Polymers 2018, 10(7), 707; https://doi.org/10.3390/polym10070707

Replication of Overmolded Orthopedic Implants with a Functionalized Thin Layer of Biodegradable Polymer

1
Institute for Automation and Applied Informatics, Karlsruhe Institute of Technology, 76344 Eggenstein-Leopoldshafen, Germany
2
Faculty of Engineering, Port Said University, Port Said 42526, Egypt
3
IK4-TEKNIKER, c/Iñaki Goenaga 5, 20600 Eibar, Spain
4
Wittmann Battenfeld GmbH, 2542 Kottingbrunn, Austria
5
RHP Technology GmbH, 2444 Seibersdorf, Austria
6
Ernst Wittner Ges. m. b. H., A1140 Wien, Austria
7
Alicona Imaging GmbH, 8074 Raaba, Austria
8
Faculdade de Engenharia, Universidade Estadual Paulista (Unesp), Guaratinguetá 12516-410, Brazil
*
Author to whom correspondence should be addressed.
Received: 24 May 2018 / Revised: 22 June 2018 / Accepted: 22 June 2018 / Published: 26 June 2018
(This article belongs to the Special Issue Polymers for Modern and Advanced Engineering Applications)

Abstract

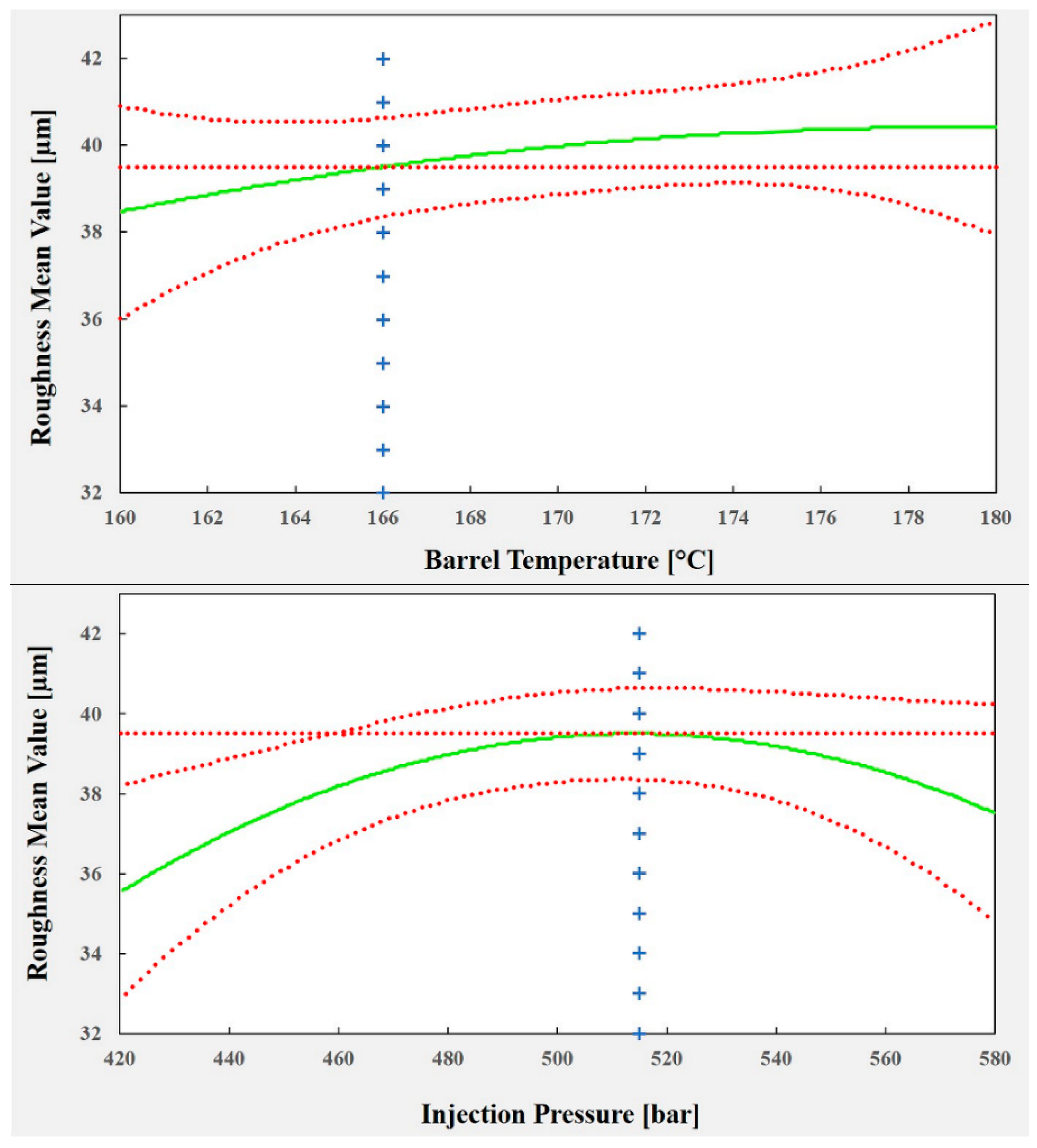

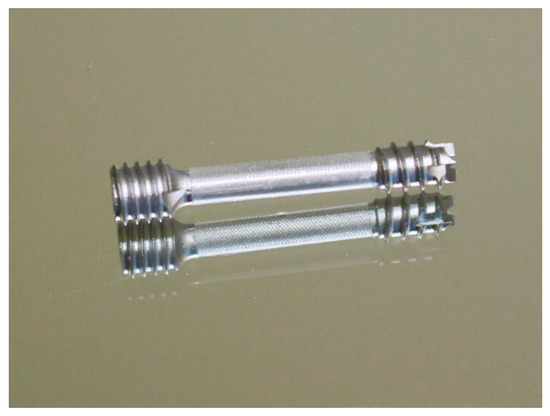

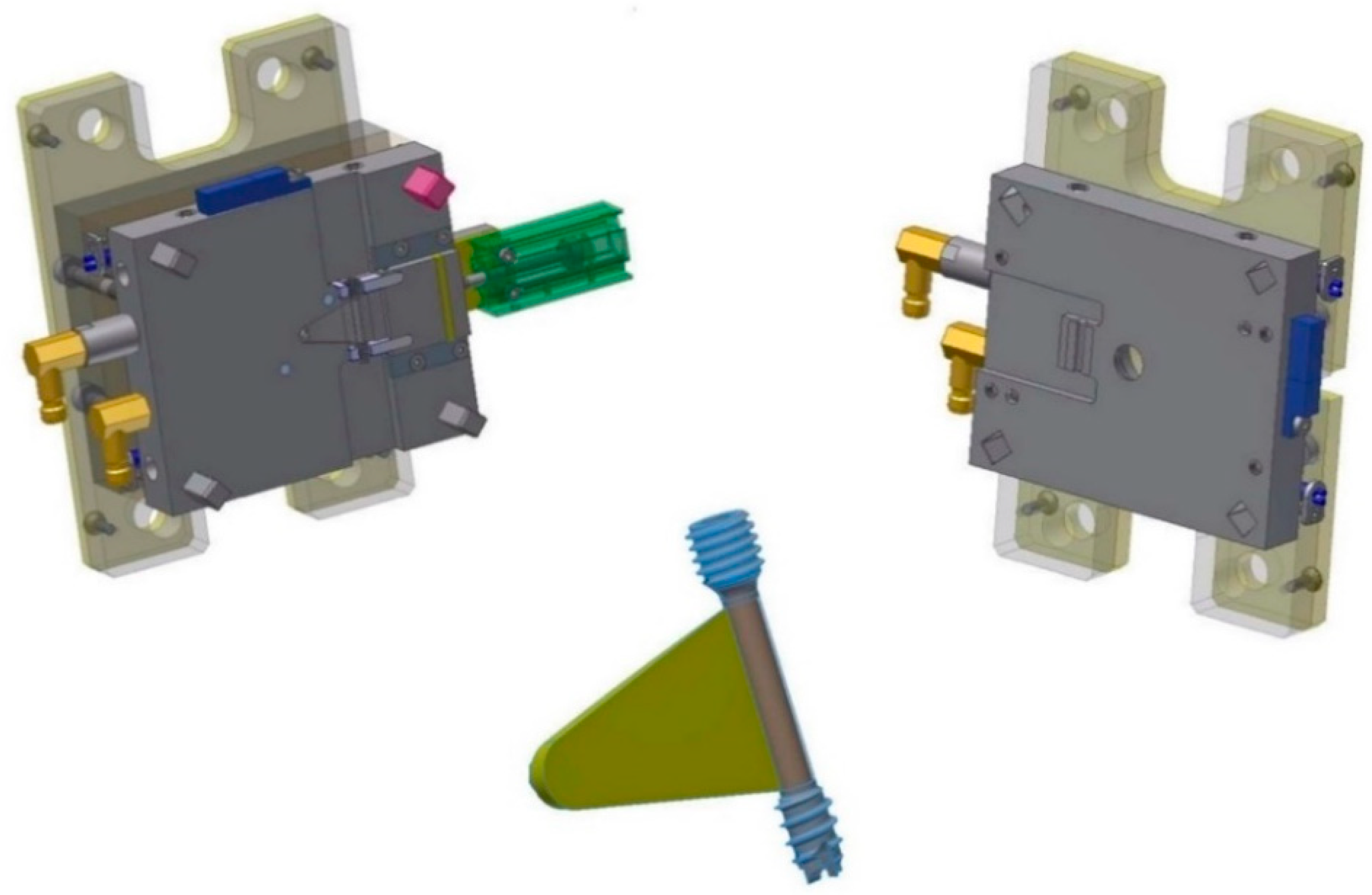

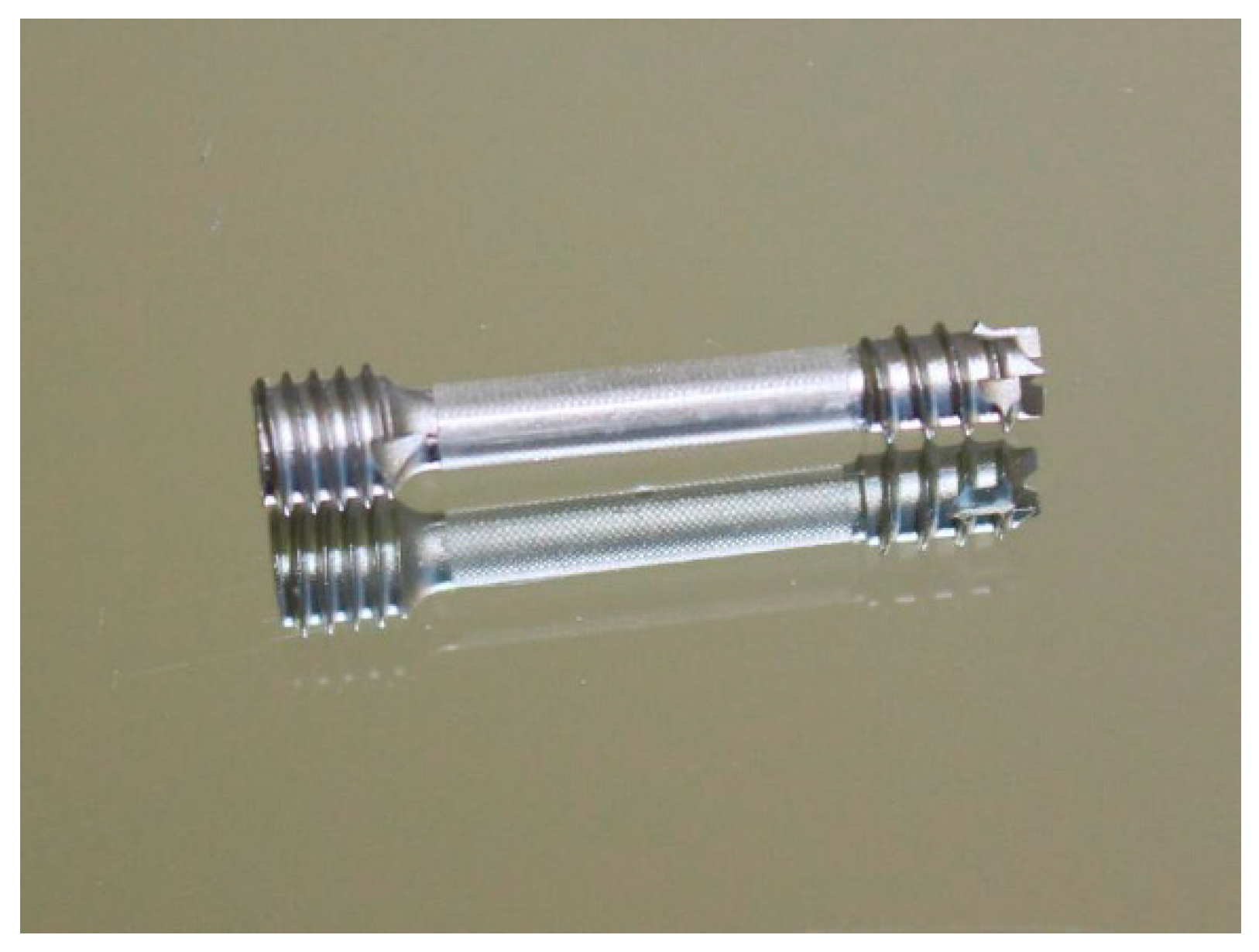

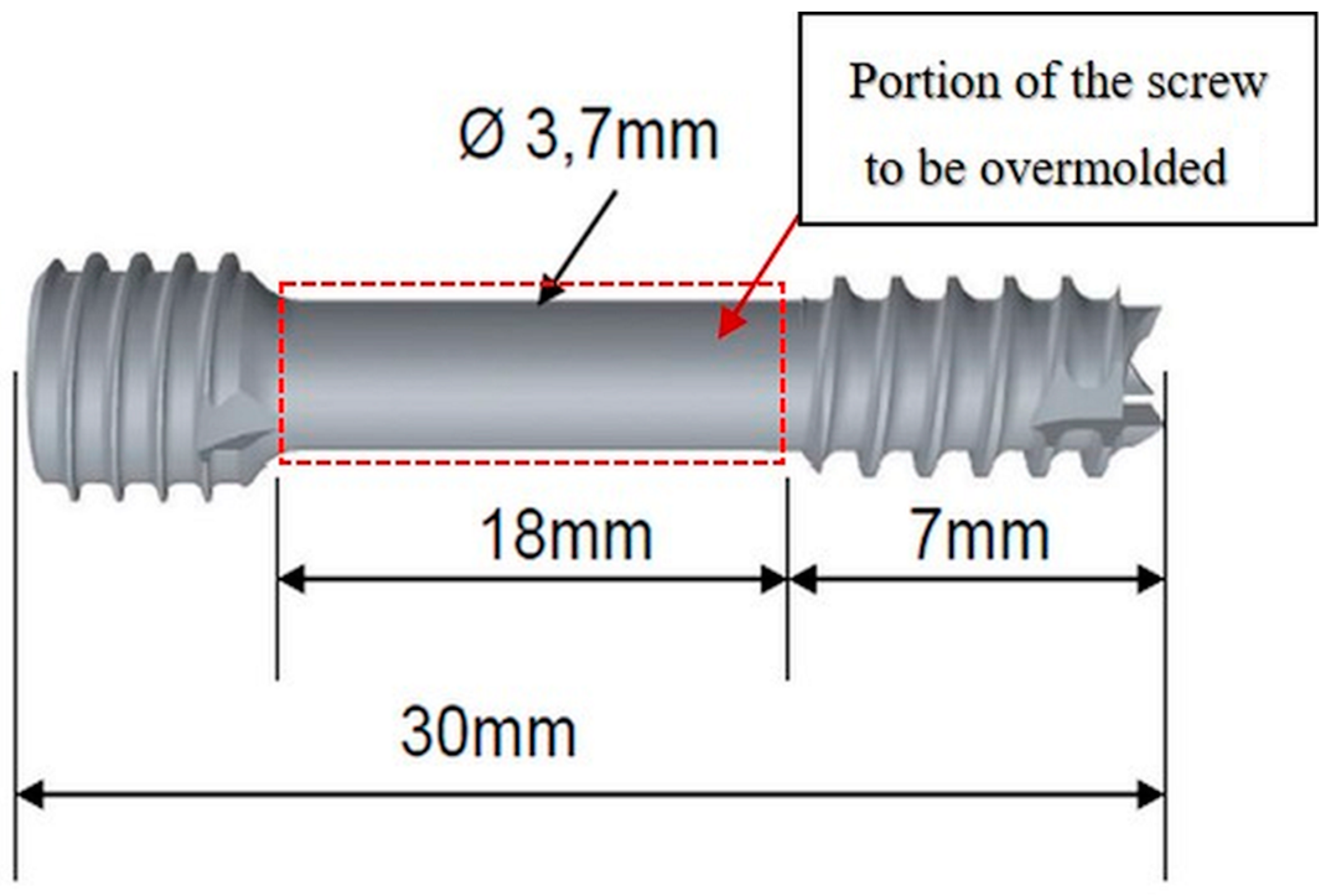

The present paper reports on the development of a biodegradable overmolded orthopedic implant: a metal bone fixing screw, which has been overmolded with a functionalized thin layer of biodegradable polymer to enhance cell adhesion during the healing process. The main challenges were to integrate precise, high-throughput and repeatable solutions to achieve a thin, defect-free structured polymer layer and to ensure a high and consistent implant quality. The work carried out entailed determining proper materials (Purasorb PDLG 5010) for the biodegradable overmolding layer and its economical substitute (NaKu PLA 100HF) to be used during initial tool and process development, designing the surface structure of the overmolded polymer layer, development of injection molding tools, as well as feeding and handling procedures. The injection overmolding process of Purasorb PDLG 5010 polymer was controlled, and the process parameters were optimized. In particular, the dominant process parameters for the overmolding, namely injection pressure, barrel temperature and mold temperature, were experimentally examined using a circumscribed three-factor central composite design and two quality marks; overmolding roughness and mass of polymer. The analysis of the experimental results shows that the mass of the overmolding is not feasible for use as the quality mark. However, the optimal parameters for the overmolding of a metallic implant screw with a thin, micro-structured polymer layer with a predefined roughness of the surface texture have been identified successfully. View Full-Text
Keywords: orthopedic implants; biodegradable polymer; functionalized surface; micro injection molding; process optimization orthopedic implants; biodegradable polymer; functionalized surface; micro injection molding; process optimization
