Polymers 2018, 10(4), 449; https://doi.org/10.3390/polym10040449

High-Performance and Simply-Synthesized Ladder-Like Structured Methacrylate Siloxane Hybrid Material for Flexible Hard Coating

Wearable Platform Materials Technology Center, Department of Materials Science and Engineering, Korea Advanced Institute of Science and Technology (KAIST), Daejeon 34141, Korea
*
Authors to whom correspondence should be addressed.
Received: 20 March 2018 / Revised: 13 April 2018 / Accepted: 16 April 2018 / Published: 17 April 2018
View Full-Text   |   Download PDF [2107 KB, uploaded 3 May 2018]   |

Abstract

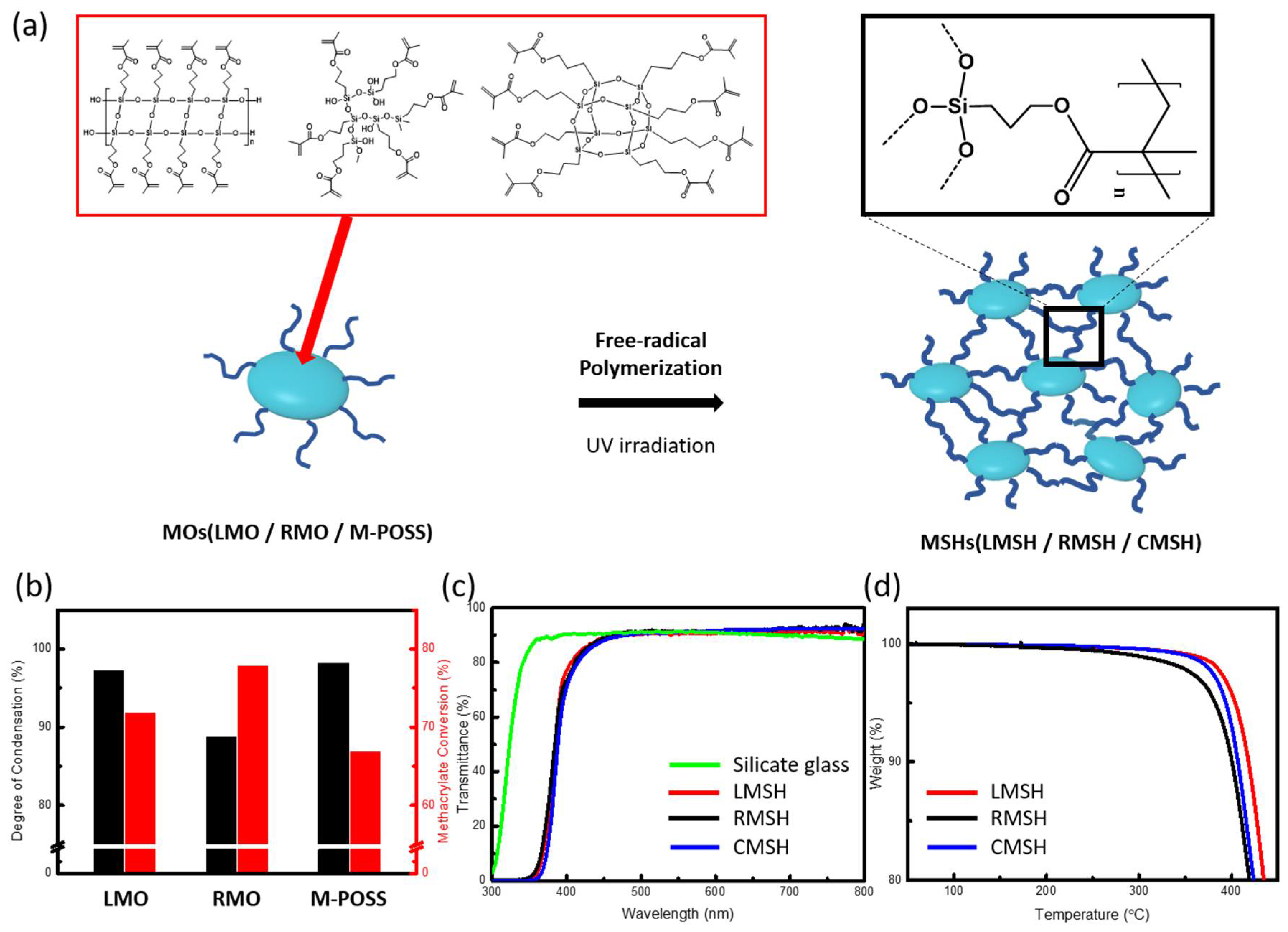

A high performance ladder-like structured methacrylate siloxane hybrid material (LMSH) was fabricated via simple hydrolytic sol–gel reaction, followed by free-radical polymerization. A structurally ordered siloxane backbone, the ladder-like structure, which is an essential factor for high performance, could be achieved by a short period of sol–gel reaction in only 4 h. This results in superior optical (Transmittance > 90% at 550 nm), thermal (T5 wt % decomposition > 400 ), mechanical properties(elastic recovery = 0.86, hardness = 0.6 GPa) compared to the random- and even commercialized cage-structured silsesquioxane, which also has ordered structure. It was investigated that the fabricated ladder-like structured MSH showed the highest overall density of organic/inorganic co-networks that are originated from highly ordered siloxane network, along with high conversion rate of polymerizable methacrylate groups. Our findings suggest a potential of the ladder-like structured MSH as a powerful alternative for the methacrylate polysilsesquioxane, which can be applied to thermally stable and flexible optical coatings, even with an easier and simpler preparation process.
View Full-Text
Keywords: methacrylate siloxane hybrid material; sol–gel process; ladder-like siloxane structure; nano-indentation test; elastic recovery methacrylate siloxane hybrid material; sol–gel process; ladder-like siloxane structure; nano-indentation test; elastic recovery
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Kim, Y.H.; Choi, G.-M.; Bae, J.G.; Kim, Y.H.; Bae, B.-S. High-Performance and Simply-Synthesized Ladder-Like Structured Methacrylate Siloxane Hybrid Material for Flexible Hard Coating. Polymers 2018, 10, 449.
