Next Article in Journal
Carrier Transport and Molecular Displacement Modulated dc Electrical Breakdown of Polypropylene Nanocomposites
Next Article in Special Issue
Synthesis and Applications of Molecularly Imprinted Polymers Modified TiO2 Nanomaterials: A Review
Previous Article in Journal
Polarization Properties and Polarization Depth Profiles of (Cd:Zn)S/P(VDF-TrFE) Composite Films in Dependence of Optical Excitation
Previous Article in Special Issue
Selective Polymer Distributed Bragg Reflector Vapor Sensors
Article Menu

Export Article

Open AccessArticle
Polymers 2018, 10(11), 1206; https://doi.org/10.3390/polym10111206

Effects of Electron Beam Irradiation on the Mechanical, Thermal, and Surface Properties of Some EPDM/Butyl Rubber Composites

1
National Research and Development Institute for Textile and Leather, Leather and Footwear Institute, 93 Ion Minulescu Street, Bucharest 031215, Romania
2
Petru Poni Institute of Macromolecular Chemistry, 41A Grigore Ghica Voda Alley, Iasi 700487, Romania
3
National Institute for Lasers, Plasma and Radiation Physics, 409 Atomistilor Street, Magurele 077125, Romania
*
Author to whom correspondence should be addressed.
Received: 12 September 2018 / Revised: 25 October 2018 / Accepted: 26 October 2018 / Published: 30 October 2018
Full-Text   |   PDF [8827 KB, uploaded 30 October 2018]   |

Abstract

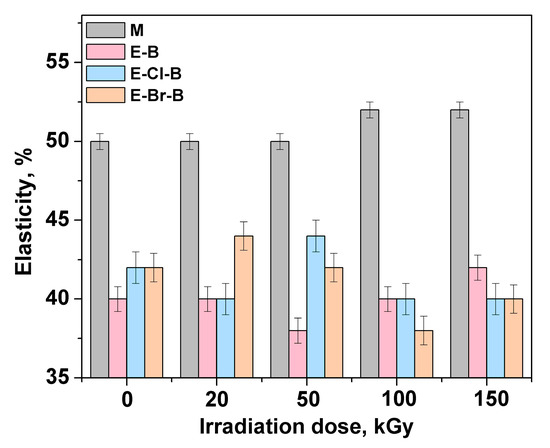

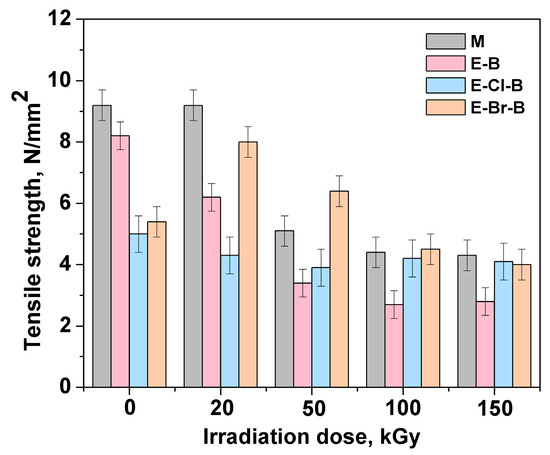

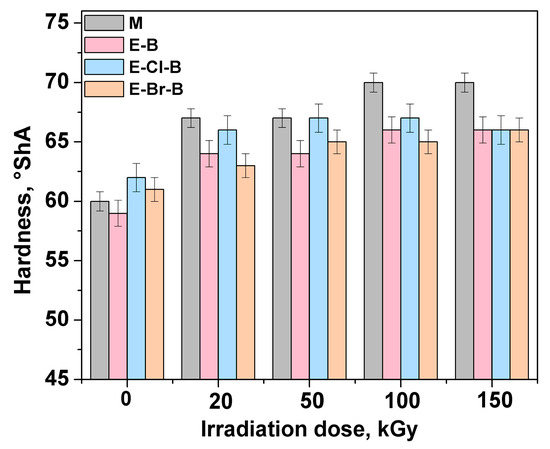

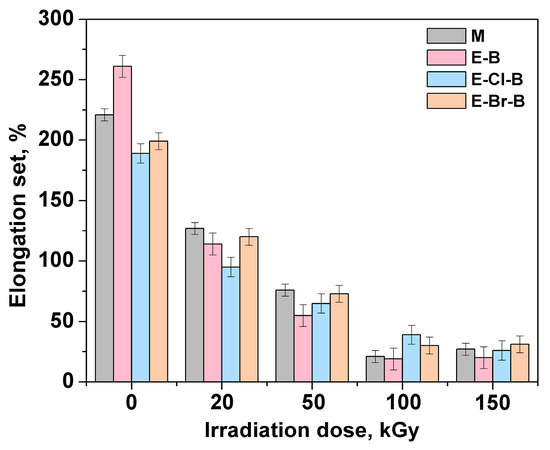

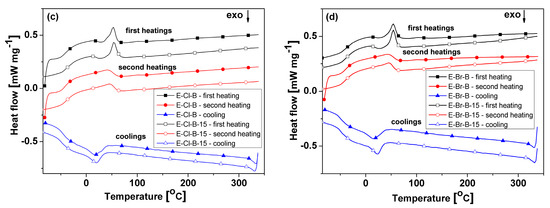

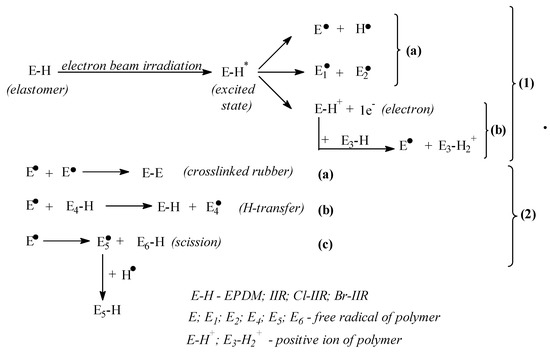

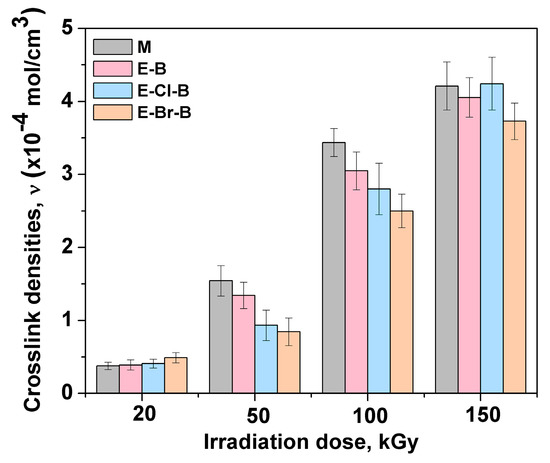

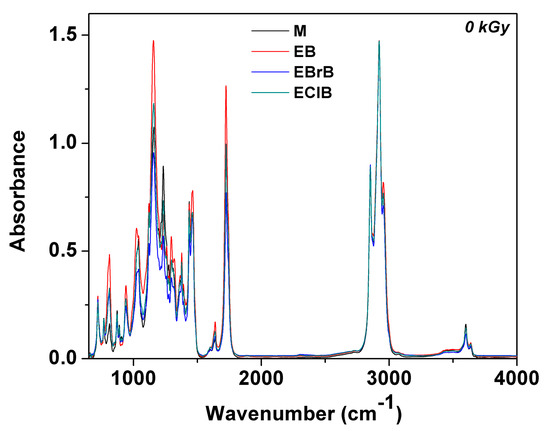

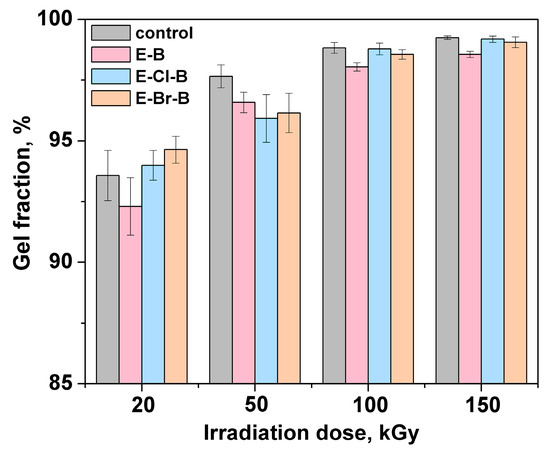

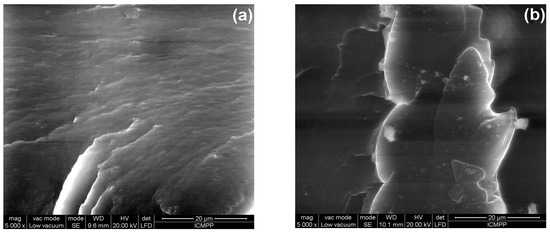

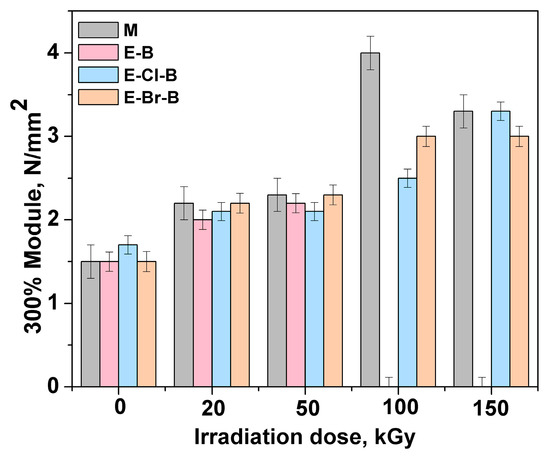

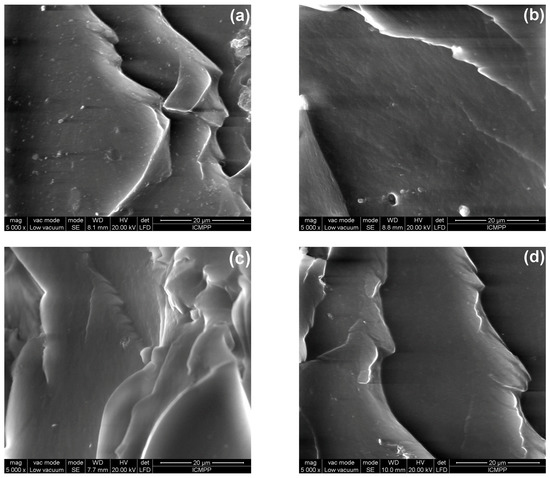

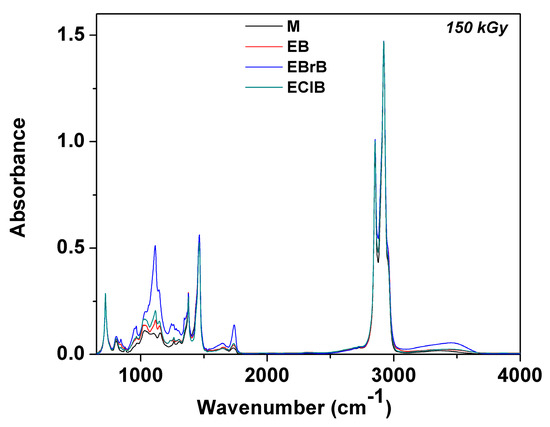

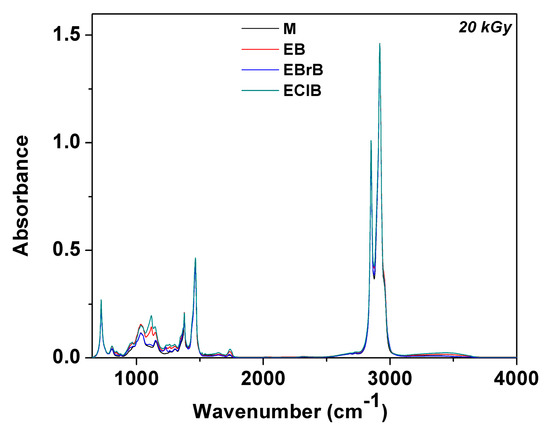

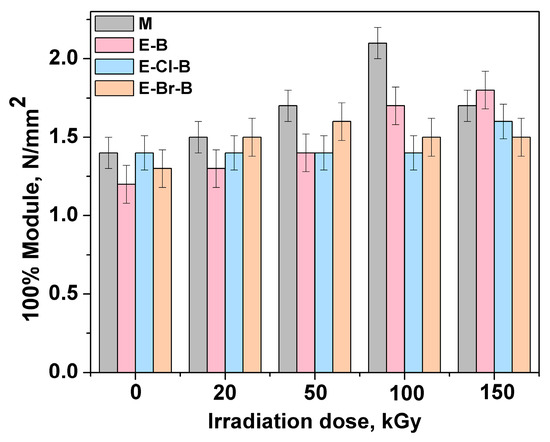

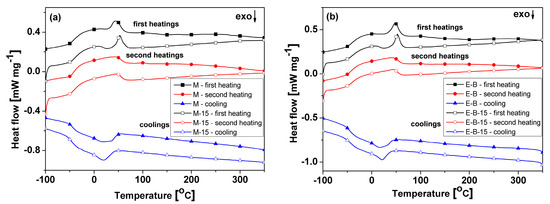

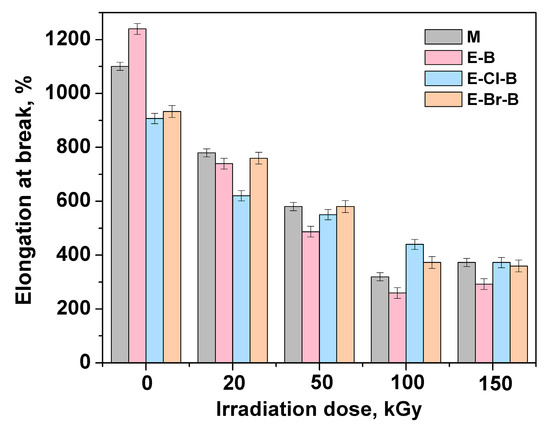

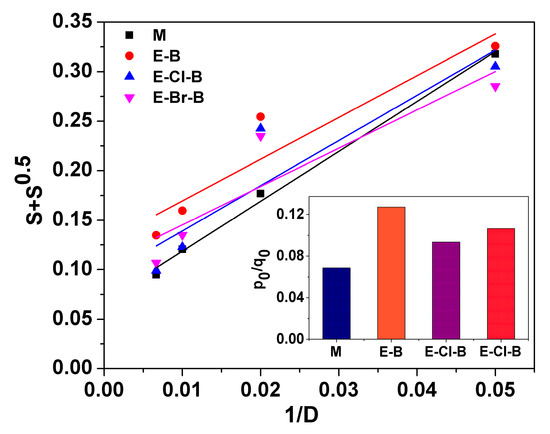

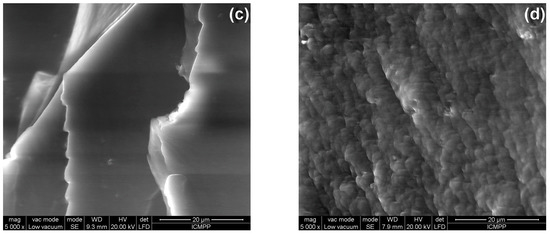

The effects of electron beam irradiation on the properties of ethylene propylene diene monomer (EPDM)/butyl rubber composites in presence of a polyfunctional monomer were investigated by means of differential scanning calorimetry (DSC), thermal analysis, scanning electron microscopy (SEM), attenuated total reflection absorption infrared spectroscopy (ATR-IR), and mechanical and surface energy measurements. The samples were exposed over a wide range of irradiation doses (20–150 kGy). The EPDM matrix was modified with butyl rubber, chlorobutyl rubber, and bromobutyl rubber. The gel content and crosslink density were found to increase with the electron beam irradiation dose. The values of the hardness and modulus increased gradually with the irradiation dose, while the tensile strength and elongation at break decreased with increasing irradiation dose. The EPDM/butyl rubber composites presented a higher thermal stability compared to the initial EPDM sample. The incorporation of butyl rubbers into the EPDM matrix led to an increase in material hydrophobicity. A similar trend was observed when the irradiation dose increased. The greatest change in the surface free energy and the contact angles occurs at an irradiation dose of 20 kGy. The Charlesby–Pinner plots prove the tendency to crosslinking as the irradiation dose increases. View Full-Text
Keywords: EPDM; electron beam irradiation; butyl rubbers; mechanical properties; thermal stability; crosslinking; contact angle EPDM; electron beam irradiation; butyl rubbers; mechanical properties; thermal stability; crosslinking; contact angle
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Stelescu, M.D.; Airinei, A.; Manaila, E.; Craciun, G.; Fifere, N.; Varganici, C.; Pamfil, D.; Doroftei, F. Effects of Electron Beam Irradiation on the Mechanical, Thermal, and Surface Properties of Some EPDM/Butyl Rubber Composites. Polymers 2018, 10, 1206.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
