Crystals 2018, 8(9), 360; https://doi.org/10.3390/cryst8090360

Tracing Phase Transformation and Lattice Evolution in a TRIP Sheet Steel under High-Temperature Annealing by Real-Time In Situ Neutron Diffraction

1,2
,
1
,
3
and
1,*
1
Neutron Scattering Division, Oak Ridge National Laboratory, Oak Ridge, TN 37831, USA
2
Shull Wollan Center, Oak Ridge National Laboratory, Oak Ridge, TN 37831, USA
3
Automotive Solutions Center, United States Steel Corporation, Troy, MI 48098, USA
*
Author to whom correspondence should be addressed.
Received: 31 July 2018 / Revised: 22 August 2018 / Accepted: 6 September 2018 / Published: 11 September 2018
(This article belongs to the Special Issue Neutron Diffractometers for Single Crystals and Powders)
Full-Text   |   PDF [1940 KB, uploaded 11 September 2018]   |

Abstract

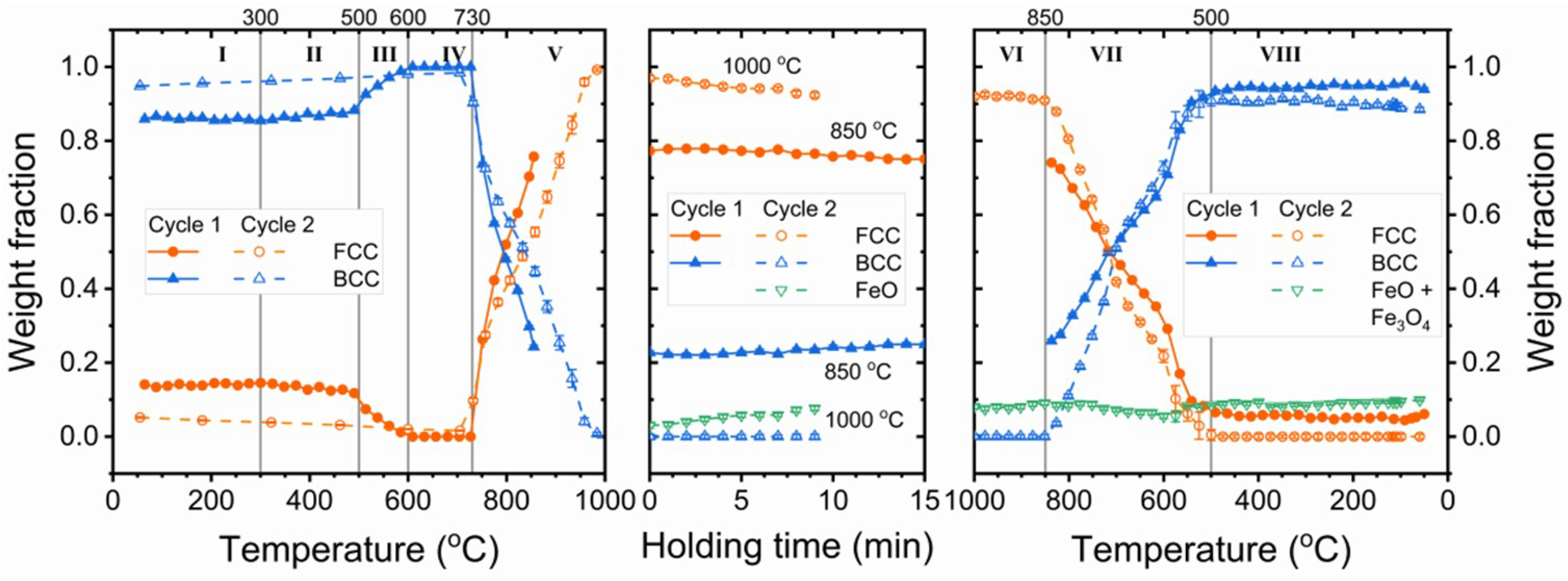

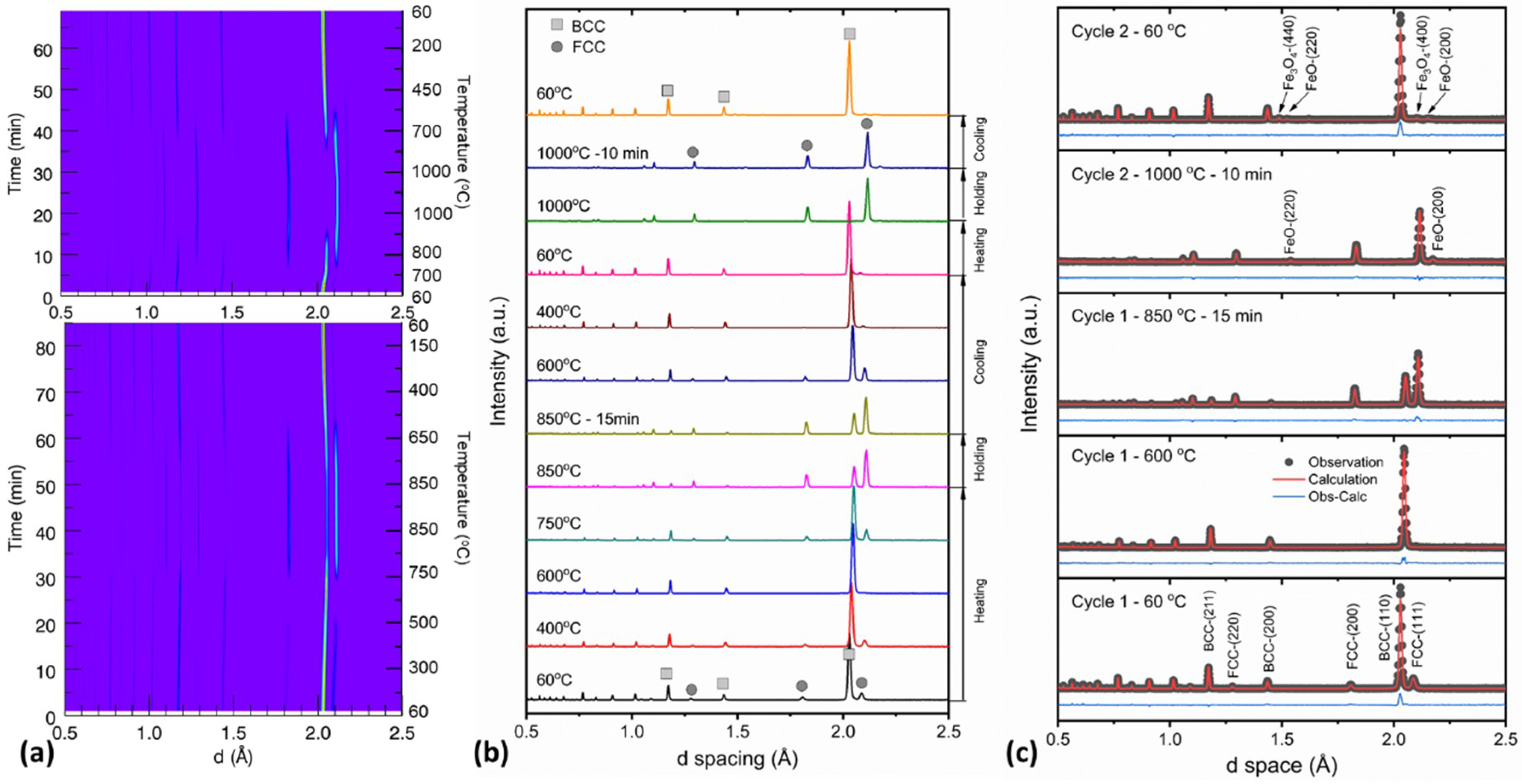

Real-time in situ neutron diffraction was used to characterize the crystal structure evolution in a transformation-induced plasticity (TRIP) sheet steel during annealing up to 1000 °C and then cooling to 60 °C. Based on the results of full-pattern Rietveld refinement, critical temperature regions were determined in which the transformations of retained austenite to ferrite and ferrite to high-temperature austenite during heating and the transformation of austenite to ferrite during cooling occurred, respectively. The phase-specific lattice variation with temperature was further analyzed to comprehensively understand the role of carbon diffusion in accordance with phase transformation, which also shed light on the determination of internal stress in retained austenite. These results prove the technique of real-time in situ neutron diffraction as a powerful tool for heat treatment design of novel metallic materials. View Full-Text
Keywords: in situ neutron diffraction; TRIP steel; annealing; phase transformation; thermal expansion; carbon concentration in situ neutron diffraction; TRIP steel; annealing; phase transformation; thermal expansion; carbon concentration
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yu, D.; Chen, Y.; Huang, L.; An, K. Tracing Phase Transformation and Lattice Evolution in a TRIP Sheet Steel under High-Temperature Annealing by Real-Time In Situ Neutron Diffraction. Crystals 2018, 8, 360.
