Next Article in Journal
GaAs Nanowires Grown by Catalyst Epitaxy for High Performance Photovoltaics
Previous Article in Journal
Microstructure and Phase Transformation Analysis of Ni50−xTi50Lax Shape Memory Alloys
Previous Article in Special Issue
Investigation of the Grain Boundary Character and Dislocation Density of Different Types of High Performance Multicrystalline Silicon
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessArticle
Crystals 2018, 8(9), 346; https://doi.org/10.3390/cryst8090346

Formation of Dislocations in the Growth of Silicon along Different Crystallographic Directions—A Molecular Dynamics Study

Institute of Photovoltaics, Nanchang University, Nanchang 330031, China
*
Author to whom correspondence should be addressed.
Received: 15 July 2018 / Revised: 19 August 2018 / Accepted: 21 August 2018 / Published: 29 August 2018
(This article belongs to the Special Issue Growth and Evaluation of Multicrystalline Silicon)
Full-Text   |   PDF [7133 KB, uploaded 29 August 2018]   |

Abstract

Molecular dynamics simulations of the seeded solidification of silicon along <100>, <110>, <111> and <112> directions have been carried out. The Tersoff potential is adopted for computing atomic interaction. The control of uniaxial strains in the seed crystals is enabled in the simulations. The results show that the dislocation forms stochastically at the crystal/melt interface, with the highest probability of the formation in <111> growth, which agrees with the prediction from a previously proposed twinning-associated dislocation formation mechanism. Applications of the strains within a certain range are found to inhibit the {111}-twinning-associated dislocation formation, while beyond this range they are found to induce dislocation formation by different mechanisms. View Full-Text
Keywords: dislocation; growth; silicon; molecular dynamics; strain effect; simulation dislocation; growth; silicon; molecular dynamics; strain effect; simulation
Figures

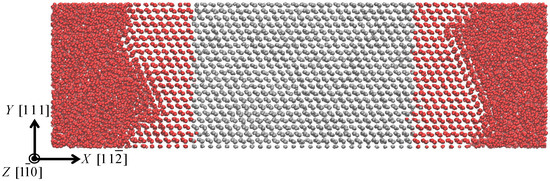

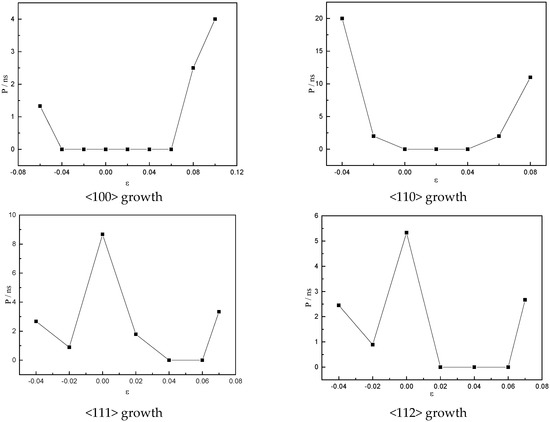

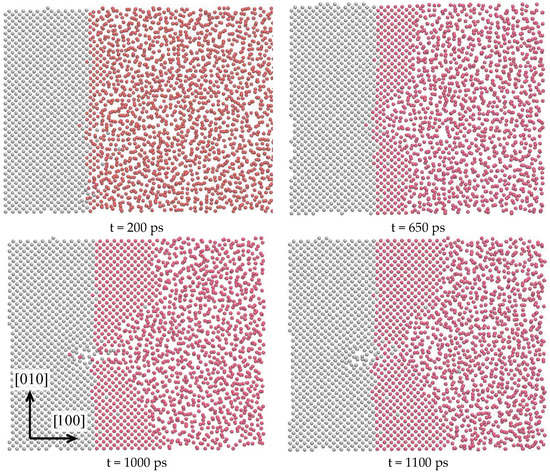

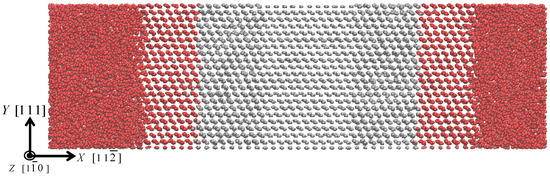

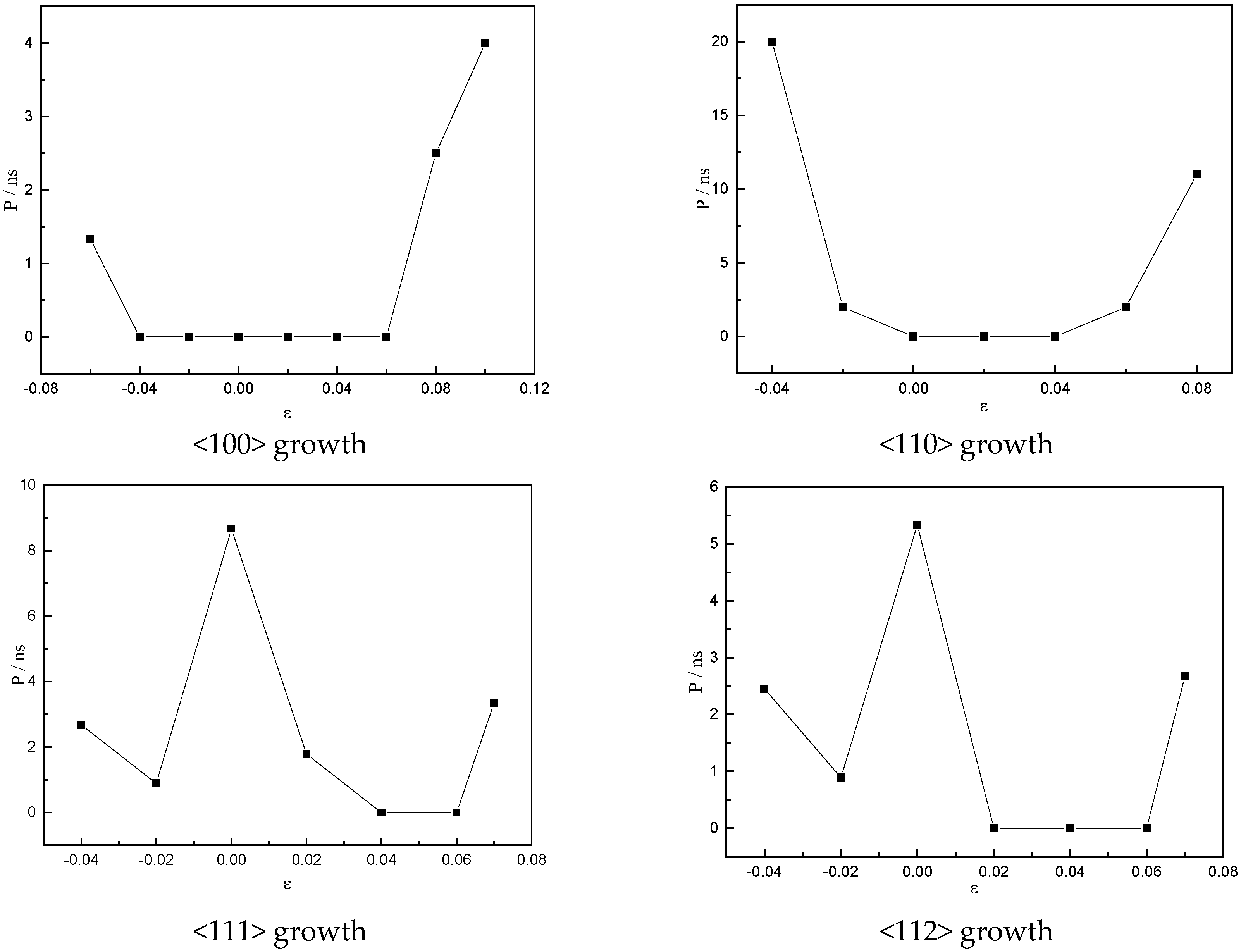

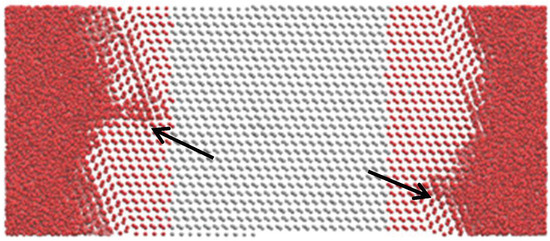

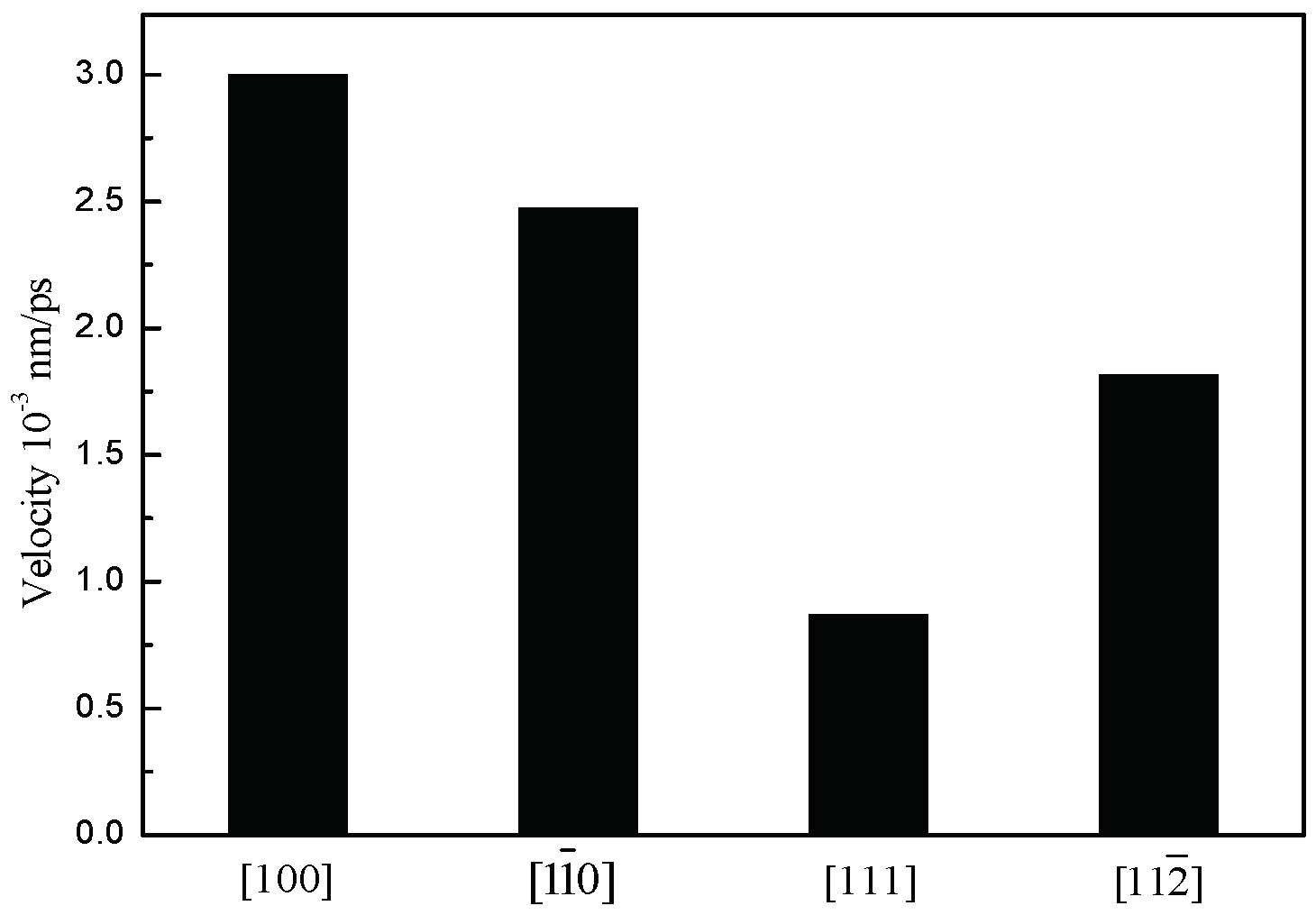

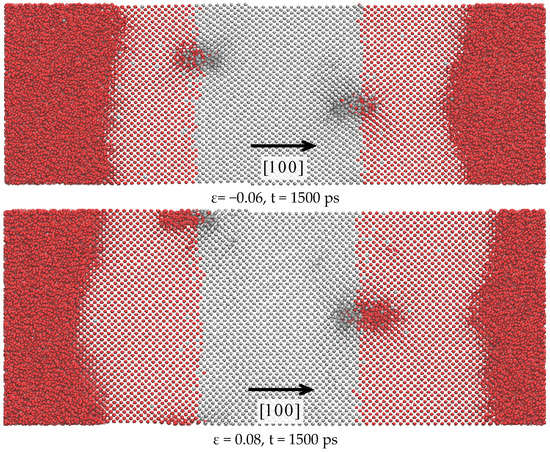

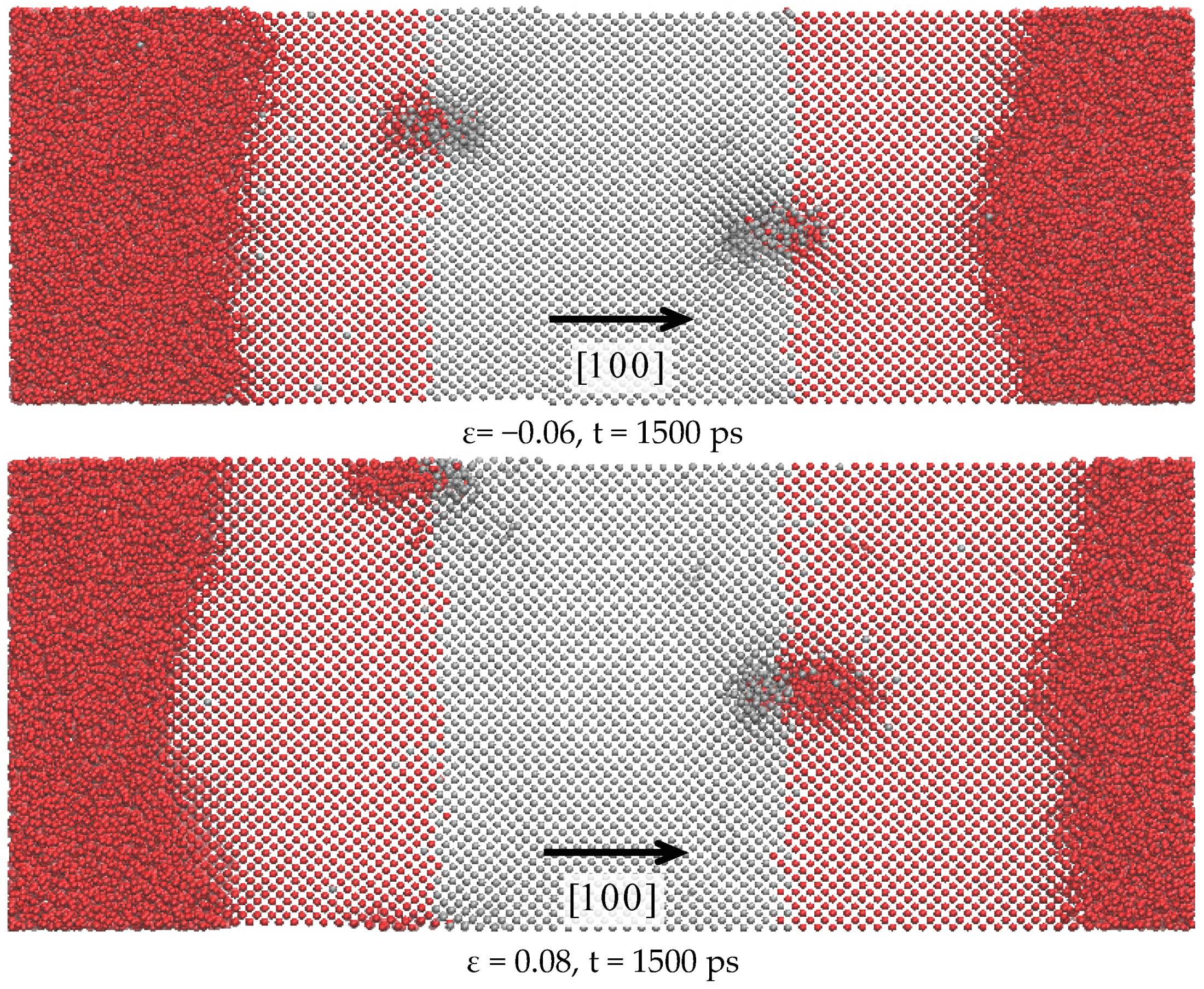

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhou, N.; Wei, X.; Zhou, L. Formation of Dislocations in the Growth of Silicon along Different Crystallographic Directions—A Molecular Dynamics Study. Crystals 2018, 8, 346.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
