Crystals 2018, 8(8), 319; doi:10.3390/cryst8080319

Article
Structural Chemistry of Halide including Thallides A8Tl11X1−n (A = K, Rb, Cs; X = Cl, Br; n = 0.1–0.9)
1
Institute of Inorganic Chemistry, University of Regensburg, 93040 Regensburg, Germany
2
Central Analytics, X-ray Crystallography Dept., University of Regensburg, 93040 Regensburg, Germany
*
Author to whom correspondence should be addressed.
Received: 23 July 2018 / Accepted: 7 August 2018 / Published: 10 August 2018

Abstract

:
A8Tl11 (A = alkali metal) compounds have been known since the investigations of Corbett et al. in 1995 and are still a matter of current discussions as the compound includes one extra electron referred to the charge of the Tl117− cluster. Attempts to substitute this additional electron by incorporation of a halide atom succeeded in the preparation of single crystals for the lightest triel homologue of the group, Cs8Ga11Cl, and powder diffraction experiments for the heavier homologues also suggested the formation of analogous compounds. However, X-Ray single crystal studies on A8Tl11X to prove this substitution and to provide a deeper insight into the influence on the thallide substructure have not yet been performed, probably due to severe absorption combined with air and moisture sensitivity for this class of compounds. Here, we present single crystal X-Ray structure analyses of the new compounds Cs8Tl11Cl0.8, Cs8Tl11Br0.9, Cs5Rb3Tl11Cl0.5, Cs5.7K2.3Tl11Cl0.6 and K4Rb4Tl11Cl0.1. It is shown that a (partial) incorporation of halide can also be indirectly determined by examination of the Tl-Tl distances, thereby the newly introduced cdd/cdav ratio allows to evaluate the degree of distortion of Tl117− clusters.
Keywords:
thallide; intermetallics; single crystal; X-ray structure analysis

1. Introduction

Naked cluster anions of the main group elements are well-known for group 14 and 15 elements in solid-state [1,2,3,4]. Most of these compounds can be described in terms of the Zintl-Klemm concept [5,6,7] by formally transferring the valence electrons of the electropositive element to the electronegative under formation of salt-like structures, so called polyanionic salts. Homoatomic group 14 or 15 element polyanions are known since Zintl himself in 1930 stated the existence of Pb94− during potentiometric titrations in liquid ammonia solutions [5]. In contrast, the existence of naked group 13 element clusters is not self-evident due to lower values for the electron affinity of group 13 elements which results in a predominantly metallic character of the analogous compounds [3,8]. The first naked thallium cluster was described in 1967 by Hansen and Smith in the binary solid-state compound Na2Tl [9], which contains Tl4 tetrahedra with a calculated formal charge of −8 by assuming complete electron transfer. These tetrahedral assemblies are related to the structures of ATt (A: alkali metal, Tt: group 14 element) [10,11,12] and white phosphorus due to their formal iso-(valence)-electronic character. The largest (empty) thallide cluster is represented by the Tl117− cluster which is present in binary materials A8Tl11 [13,14] and A15Tl27 [15] (A = K, Rb, Cs). The A8Tr11 (Tr = group 13 element) structure type was first described in 1991 for the lighter homologue indium in K8In11 [16], of which the crystal structure proved the presence of a naked, pentacapped trigonal prismatic shaped In11 cluster, which was assigned a charge of −7. Additionally, one extra-electron per formula unit is present, being responsible for the metallic character. The additional electron, referred to the charge of −7 of the cluster anion, is not necessary for the stability of the clusters [17] and can be replaced by halide atoms, which are located on a −3 void (Wyckoff position 6b) at the origin of the unit cell resulting in a diamagnetic character of the compounds. Halide incorporation was proven for the lighter homologue of the group, Cs8Ga11Cl by X-ray single crystal structure analysis [18]. Powder diffraction experiments suggested the formation of the heavier homologues Rb8Ga11Cl, Cs8Ga11X (X = Br, I), Rb8In11Cl, Cs8In11Cl, Cs8Tl11X (X = Cl, Br, I). Recently, continuative studies on halides A8Tr11 (Tr = Ga, In) have been reported [19]. However, the formation of Rb8Tl11Cl was termed as doubtful due to the lack of a significant change in the lattice constants compared to the binary phase Rb8Tl11, which also is a common problem for the remaining halide including thallides of this structure family. Therefore, well-resolved single crystal X-ray diffraction studies should provide a deeper insight into the involvement and the role of halide in A8Tl11X compounds. Thereby, we concentrated on the heavier alkali metals K, Rb and Cs as for sodium no experimental evidence of Tl11 clusters is reported.
The questions we wanted to answer were: (1) How does the geometry of the thallide cluster change on halide incorporation; (2) Is there a Rb8Tl11Cl? (3) How do mixed cation sites affect the amount of halide incorporation?
In Section 3 (Results), we report on the first single crystal X-Ray structure determination of halide including thallides, Cs8Tl11Cl0.8, Cs8Tl11Br0.9, Cs5Rb3Tl11Cl0.5, Cs5.7K2.3Tl11Cl0.6 and K3.98Rb4.02Tl11Cl0.1. Subsequently, (Section 4, Discussions), the crystal structures are investigated according to the questions listed above.

2. Materials and Methods

All compounds have been synthesized via a stoichiometric approach using high temperature solid state techniques. Cesium and rubidium were produced by the reduction of the corresponding alkali metal halide with elemental calcium [20] and distilled twice, potassium was segregated for purification. Thallium lumps have been stored under inert atmosphere and were used without further purification. The starting materials were enclosed in tantalum crucibles (for stoichiometric approaches see Appendix A) which were subsequently placed in quartz glass ampoules and sealed under argon atmosphere. The same temperature program was used for all compounds: Heating to 700 °C with a heating rate of 50 °C/h, holding for 24 h, cooling to room temperature with a cooling rate of 3 °C/h to allow for crystallization.
All compounds are very sensitive towards moisture and oxygen and degeneration of the crystals was observed (gassing) in dried mineral oil within few hours. Suitable single crystals for X-ray structure analysis were isolated in dried mineral oil and mounted on a Rigaku SuperNova (Rigaku Polska Sp. Z o. o. Ul, Wroclaw, Poland) (Mo-source, Eos detector) using MiTeGen loops. Thereby, the transfer needed to be very quick as the crystals started to decompose as soon as the mineral oil film became too thin. Once being placed on the diffractometer in the nitrogen stream at 123 K the crystals remained stable and data collection was possible.
Powder diffraction samples were measured in sealed capillaries (0.3–0.5 mm) on a Powder on a STOE Stadi P diffractometer (STOE, Darmstadt, Germany) (monochromatic Mo-Kα1 radiation λ = 0.70926 Å) equipped with a Dectris Mythen 1 K detector.

3. Results

All compounds crystallize in the K8In11 structure type (rhombohedral, spacegroup R−3c) and especially for the mixed alkali metal compounds many of the crystals happened to form typical “multicrystals”. Due to the presence of reverse/obverse twinning a R(obv) filter was applied during data reduction [21]. The materials naturally possess very high absorption coefficients (μ > 60 mm−1), therefore small single crystals have been chosen for the X-ray analyses. However, the data sets still suffer from severe absorption effects which could be reduced by carefully applying numerical absorption correction [21]. Thereby, the adjustment of the correct shape played a dominant role.
Table 1 lists the data for the structure determination. For the chloride including compounds two additional, unresolved but several times reproduced residual electron density peaks (≈1.5 Å beside the chlorine atom, ≈2.2 Å beside cesium; along the c-axis) are present, which we attribute to unresolved absorption effects as this direction is along the thinnest direction of the plate like crystals. For the bromine including compound this effect is not as dominant as for the chlorine including ones but still is observed.
With only cesium being present in Cs8Tl11Cl0.8 and Cs8Tl11Br0.9 we obtained phase pure materials according to the powder diffraction pattern of the bulk material (Figure 1; refined cell contstants at room temperature: Cs8Tl11Cl0.8: a = 10.566 (5) Å, c = 53.67 (3) Å, R−3c; Cs8Tl11Br0.9: a = 10.613 (3) Å, c = 53.680 (19) Å).
The well-crystallized Cs8Tl11X crystals and the resulting good quality single crystal diffraction data allowed the splitting of one alkali metal position according to the site occupancy factor (s.o.f.) of the halide atom (see Section 4.3).
For the mixed alkali metal compounds, we always additionally observed less reduced A15Tl27 phases as a side product. This observation became reasonable when we determined the NE value (number of electrons per thallium atom) which sums up to a value of 8/11 = 0.72 for A8Tl11, 15/27 = 0.55 for A15Tl27 and 7/11 = 0.63 for A8Tl11X. The formation of less reduced A15Tl27 were completely comprehensible if the higher reduced A8Tl11Xx (x << 1) phases would have formed when the halide content was significantly less than 1, because the overall degree of reduction was given by the stoichiometric approach for A8Tl11X. If less halide was incorporated, this is according to a higher degree of reduction and consequently, a less reduced phase was formed in addition. The remaining halide re-crystallized as (mixed) AX, of which we also could observe single crystals. The crystals for the mixed alkali metal compounds A8Tl11Xx happened to form multicrystals together with A15Tl27 and for the reported single crystals (except K4Rb4Tl11Cl0.1) the data quality was worse compared to Cs8Tl11X phases. Therefore, the splitting of the alkali metal position could only be observed for K4Rb4Tl11Cl0.1, for the remaining mixed alkali compounds splitting positions could not be reasonably introduced. In these cases, we only refined the s.o.f. of the halide (see Section 4.3).

4. Discussions

4.1. How Does the Geometry of the Thallide Cluster Change on Halide Incorporation?

All A8Tl11 and A8Tl11Xx compounds include Tl117− clusters, which are best described as a very compressed, fivefold-capped trigonal prism (Figure 2). Three symmetry independent thallium atoms are located on three different Wyckoff positions of space group R-3c: Tl1(12c; 3-fold rotational axis), Tl2 (36f; general position) and Tl3 (18e; 2-fold rotational axis) build a cluster consisting of 11 Tl atoms with point group D3. The deviations from point group D3h are very small and are represented by a distortion of the height of the trigonal prism built by Tl3-atoms. This distortion is also reflected in the distances of Tl2–Tl3 (d(Tl2–Tl3): = cd) as there are two crystallographic independent distances present (d(Tl2–Tl3) = d(Tl2–Tl3#5); d(Tl3#3–Tl2) = d(Tl3#2–Tl2)). The degree of distortion decreases with increasing similarity of the capping distances (cd).
In Table 2 and Table 3 the distances as well as the distortion angles are listed and the dependence on the amount of halide incorporation is clearly evident. In contrast, the height of the trigonal prism (Tl3–Tl3) as well as the distance of the capping atom Tl2 to the mean plane built by Tl3 atoms [d(Tl2-plane) = 0.5 Å in all compounds] do not significantly change. Based on these observations we introduced a cdd/cdav ratio (cdd: capping distance difference; cdav: average capping distance; (Equation (1)) which allowed for a quick estimation of the degree of distortion. The dependence of the cdd/cdav ratio on the amount of halide is conspicuous and therefore allows for the evaluation of the involvement of halide atoms by solely analyzing the distances between heavy atom positions.
cdd cd av = | cd 2 cd 1 | ( cd 2 + cd 1 2 ) ;   cd 1 cd 2

4.2. Is There a Rb8Tl11Cl?

Despite numerous efforts we did not succeed in producing crystals of Rb8Tl11Cl of sufficient quality for a reliable determination of halide incorporation directly from the electron density maps. The incorporation of halide cannot be completely ruled out at this point as there is some residual electron density at Wyckoff position 6b according to the position of the halide atom in the previously discussed compounds. The s.o.f. for a chlorine atom at this position refined to a value of 0.08. However, the cdd/cdav ratio of 2.4% compared to 3.0% (K8Tl11) and 3.1% (Rb8Tl11) and a tilt angle of 2.4° (K8Tl11: 4.7°, Rb8Tl11: 4.9°) are very similar to the values found in K4Rb4Tl11Cl0.1 and suggest a minimal involvement of chloride. Therefore, we assume that Rb8Tl11Cl does exist, but the amount of incorporated chlorine is less than 10%, which also is in line with the stated observations of Corbett et al. from powder diffraction experiments.

4.3. How Do Mixed Cation Sites Affect the Amount of Halide Incorporation?

It needs to be emphasized that for the preparation of all compounds the same stoichiometric approach was employed and the dependence of the amount of halide incorporation on the cesium content is conspicuous. Therefore, the cation positions needed to be examined more in detail. There are two different cation positions in the asymmetric unit corresponding to Wyckoff position 36f for A1 and Wyckoff position 12c for A2. For Cs8Tl11X the A2 position showed the previously mentioned splitting. By taking this splitting as well as free s.o.f. values for the halide (later fixed at the s.o.f. value for Cs2A) into account, a significantly improved model could be refined (Figure 3).
For Cs5Rb3Tl11Cl0.5 and Cs5.7K2.3Tl11Cl0.6 the position of A1 is mixed occupied by both alkali metals and the s.o.f. values for cesium on the mixed position are very similar to the s.o.f. values of the halide position. The position of A2 is only occupied by the heavier alkali metal cesium, which is in accordance with the observations of Corbett et al. for the binary A8Tl11 phases [14]. In summary, this would mean a favored halide incorporation when cesium is present on both crystallographically independent alkali metal positions. To prove this assumption, we investigated the system K-Rb-Tl in a stoichiometric approach to produce K4Rb4Tl11Cl which resulted in crystals of K4Rb4Tl11Cl0.1 (besides the side products (K,Rb)15Tl27 and (K,Rb)Cl). Careful investigation of the data of K4Rb4Tl11Cl0.1 showed the splitting of the A2 position, whereby convergence of the refinement was achieved when A1 and one splitting position are mixed occupied by Rb and K. The second splitting position Rb2A is exclusively occupied by Rb. The overall s.o.f. for A2 was fixed at unity using a SUMP restraint. At the max. peak of the residual electron density a chlorine atom was placed of which the s.o.f. refined at 0.103 (13) and was fixed according to the s.o.f. of Rb2A (Figure 4).
The resulting coordination sphere of the halide is best described as distorted cubic, where the longer distances are along the room diagonal of the cubic arrangement from the halide to the position of A2. This distance shortens significantly for X-A2 by introducing split positions (same s.o.f. as halide), resulting in a less distorted cubic arrangement (Figure 5). This cubic arrangement greatly resembles the coordination of the halide in the CsCl structure type (d(Cs-Cl) = 3.573 Å; d(Cs-Br) = 3.718 Å). The distances within the the distorted cubic arrangements as well as the s.o.f. values for the halide/split position in Cs8Tl11X (X = Cl or Br) and K4Rb4Tl11Cl0.1 are listed in Table 4 and Table 5 lists distances as well as s.o.f. values of the mixed occupied sites within Cs5Rb3Tl11Cl0.5 and Cs5.7K2.3Tl11Cl0.6.
The same stoichiometric approach to produce the hitherto presented compounds also was employed by using solely potassium. Here, we only observed well crystallized halide-free K8Tl11 and K15Tl27 phases. The previously stated stability of the halide including A8Tr11X phases might not exclusively be caused by the effect of charge balance due to halide incorporation but by the stabilization of a preferably heavier halide atom in a distorted cubic arrangement including cesium preferentially (Figure 6). If less (or no) cesium is involved, then less (or even no) halide will be incorporated. If rubidium is involved as the heaviest alkali metal, then the amount of incorporated halide seems to be limited to approximately 10%. In return, the Tl11 clusters themselves seem to tolerate any charge between 7 and 8.

Author Contributions

Conceptualization, S.G.; Methodology, S.G., S.T., B.H., S.S.; Validation, S.G.; Formal Analysis, S.G., S.S., B.H.; Investigation, S.G., S.T.; Resources, N.K.; Writing-Original Draft Preparation, S.G., S.T.; Writing-Review & Editing, S.G.; Visualization, S.G., S.T.; Supervision, S.G.; Project Administration, S.G.

Funding

This work was supported by the German Research Foundation (DFG) within the funding programme Open Access Publishing.

Acknowledgments

The authors thank Marc Schlosser (working group of A. Pfitzner) for collecting the powder diffraction patterns and Dr. Michael Bodensteiner (X-ray Structure department) for discussions concerning the refinement of (K,Rb)8Tl11Cl0.1.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Stoichiometric approaches
Cs8Tl11Cl0.8: 0.445 g Cs (3.3 mmol), 1.076 g Tl (5.3 mmol Tl) and 0.081 g CsCl (0.51 mmol)
Cs8Tl11Br0.9: 0.413 g Cs (3.1 mmol), 0.998 g Tl (4.9 mmol Tl) and 0.091 g CsBr (0.44 mmol)
Cs5Rb3Tl11Cl0.5: 0.246 g Cs (1.9 mmol), 0.128 g Rb (1.5 mmol), 1.124 g Tl (5.5 mmol) and 0.061 g RbCl (0.5 mmol)
Cs5.7K2.3Tl11Cl0.6: 0.264 g Cs (2 mmol), 0.058 g K (1.5 mmol), 1.117 g Tl (5.5 mmol) and 0.037 g KCl (0.5 mmol)
K3.98Rb4.02Tl11Cl0.1: 0.154 g Rb (1.8 mmol), 0,052 g K (1.3 mmol), 1.0134 g Tl (5 mmol) and 0.034 g KCl (0.45 mmol)

References

  1. Gärtner, S.; Korber, N. Polyanions of group 14 and group 15 elements in alkali and alkaline earth metal solid state compounds and solvate structures. In Zintl Ions Principles and Recent Developments, Fässler, T.F., Ed.; Springer: Berlin, Germany, 2011; pp. 25–56. [Google Scholar]
  2. Gärtner, S.; Korber, N. Chapter 1.09-Zintl anions. In Comprehensive Inorganic Chemistry II, 2nd ed.; Reedijk, J., Poeppelmeier, K., Eds.; Elsevier: Amsterdam, The Netherlands, 2013; pp. 251–267. [Google Scholar]
  3. Corbett, J.D. Polyanionic clusters and networks of the early p-element metals in the solid state: Beyond the zintl boundary. Angew. Chem. Int. Ed. 2000, 39, 670–690. [Google Scholar] [CrossRef]
  4. Scharfe, S.; Kraus, F.; Stegmaier, S.; Schier, A.; Fässler, T.F. Zintl ions, cage compounds, and intermetalloid clusters of group 14 and group 15 elements. Angew. Chem. Int. Ed. 2011, 50, 3630–3670. [Google Scholar] [CrossRef] [PubMed]
  5. Zintl, E.; Goubeau, J.; Dullenkopf, W. Salzartige Verbindungen und intermetallische Phasen des Natriums in flüssigem Ammoniak. Z. Phys. Chem. 1931, 154, 1–46. [Google Scholar] [CrossRef]
  6. Zintl, E.; Dullenkopf, W. Über den Gitterbau von NaTl und seine Beziehung zu den Strukturen des β-Messings. Z. Phys. Chem. 1932, B16, 195–205. [Google Scholar] [CrossRef]
  7. Eisenmann, B.; Cordier, G. Structural patterns of homo-and heteronuclear anions in zintl phases and related intermetallic compounds and concepts for their interpretation. In Chemistry, Structure and Bonding of Zintl Phases and Ions; Kauzlarich, S.M., Ed.; VCH Verlagsgesellschaft mbH: Weinheim, Germany, 1996; pp. 61–137. [Google Scholar]
  8. Guloy, A.M. Polar intermetallics and zintl phases along the zintl border. In Inorganic Cemistry in Focus III; Wiley-VCH Verlag GmbH & Co.: Weinheim, Germany, 2006. [Google Scholar]
  9. Hansen, D.A.; Smith, J.F. Structure and bonding model for Na2Tl. Acta Cryst. 1967, 22, 836–845. [Google Scholar] [CrossRef]
  10. Marsh, R.E.; Shoemaker, D.P. The crystal structure of NaPb. Acta Cryst. 1953, 197–205. [Google Scholar] [CrossRef]
  11. Busmann, E. Die kristallstrukturen von KSi, RbSi, KGe, RbGe und CsGe. Z. Anorg. Allg. Chem. 1961, 313, 90–106. [Google Scholar] [CrossRef]
  12. Lorenz, C.; Gärtner, S.; Korber, N. Ammoniates of zintl phases: Similarities and differences of binary phases A4E4 and their corresponding solvates. Crystals 2018, 8, 276. [Google Scholar] [CrossRef]
  13. Blase, W.; Cordier, G.; Muller, V.; Haussermann, U.; Nesper, R.; Somer, M. Preparation and crystal-structures of Rb8In11,K8Tl11, and Rb8Tl11 band-structure calculations on K8In11. Z. Naturforsch. B 1993, 48, 754–760. [Google Scholar] [CrossRef]
  14. Dong, Z.-C.; Corbett, J.D. A8Tl11 (A = K, Rb, or Cs) Phases with Hypoelectronic Tl117− cluster anions: Syntheses, structure, bonding and properties. J. Cluster Sci. 1995, 6, 187–201. [Google Scholar] [CrossRef]
  15. Dong, Z.C.; Corbett, J.D. A15Tl27 (A = Rb,Cs): A structural type containing both isolated clusters and condensed layers based on the tl-11 fragment. Syntheses, structure, properties, and band structure. Inorg. Chem. 1996, 35, 1444–1450. [Google Scholar] [CrossRef] [PubMed]
  16. Sevov, S.C.; Corbett, J.D. A remarkable hypoelectronic indium cluster in K8In11. Inorg. Chem. 1991, 30, 4875–4877. [Google Scholar] [CrossRef]
  17. Wang, F.; Wedig, U.; Prasad, D.; Jansen, M. Deciphering the chemical bonding in anionic thallium clusters. J. Am. Chem. Soc. 2012, 134, 19884–19894. [Google Scholar] [CrossRef] [PubMed]
  18. Henning, R.W.; Corbett, J.D. Cs8Ga11, a new isolated cluster in a binary gallium compound. A family of valence analogues A8Tr11X: A = Cs, Rb; Tr = Ga, In, Tl; X = Cl, Br, I. Inorg. Chem. 1997, 36, 6045–6049. [Google Scholar] [CrossRef] [PubMed]
  19. Falk, M.; El Addad, A.; Röhr, C. Crystal and electronic structure of alkali triele halogenides of the K8In11-type structure. In Proceedings of the 25th Annual Conference of the German Crystallographic Society, Karlsruhe, Germany, 27–30 March 2017. [Google Scholar]
  20. Hackspill, L. Sur quelques properiétés des métaux alcalins. Helv. Chim. Acta 1928, 11, 1003–1026. [Google Scholar] [CrossRef]
  21. Agilent. Crysalis pro. v.39.37b ed.; Agilent Technologies Ltd.: Yarnton, UK, 2014. [Google Scholar]
  22. Computer Program: STOE WinXPOW; STOE & Cie 2000 Darmstadt: Darmstadt, Germany, 2011.
  23. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. Olex2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
Figure 1. Measured (a) and calculated (c) powder diffraction patterns of Cs8Tl11Cl0.8; Measured (b) and calculated (d) powder diffraction patterns of Cs8Tl11Br0.9 (diffractograms generated by the program STOE WinXPOW [22].
Figure 1. Measured (a) and calculated (c) powder diffraction patterns of Cs8Tl11Cl0.8; Measured (b) and calculated (d) powder diffraction patterns of Cs8Tl11Br0.9 (diffractograms generated by the program STOE WinXPOW [22].
Crystals 08 00319 g001aCrystals 08 00319 g001b

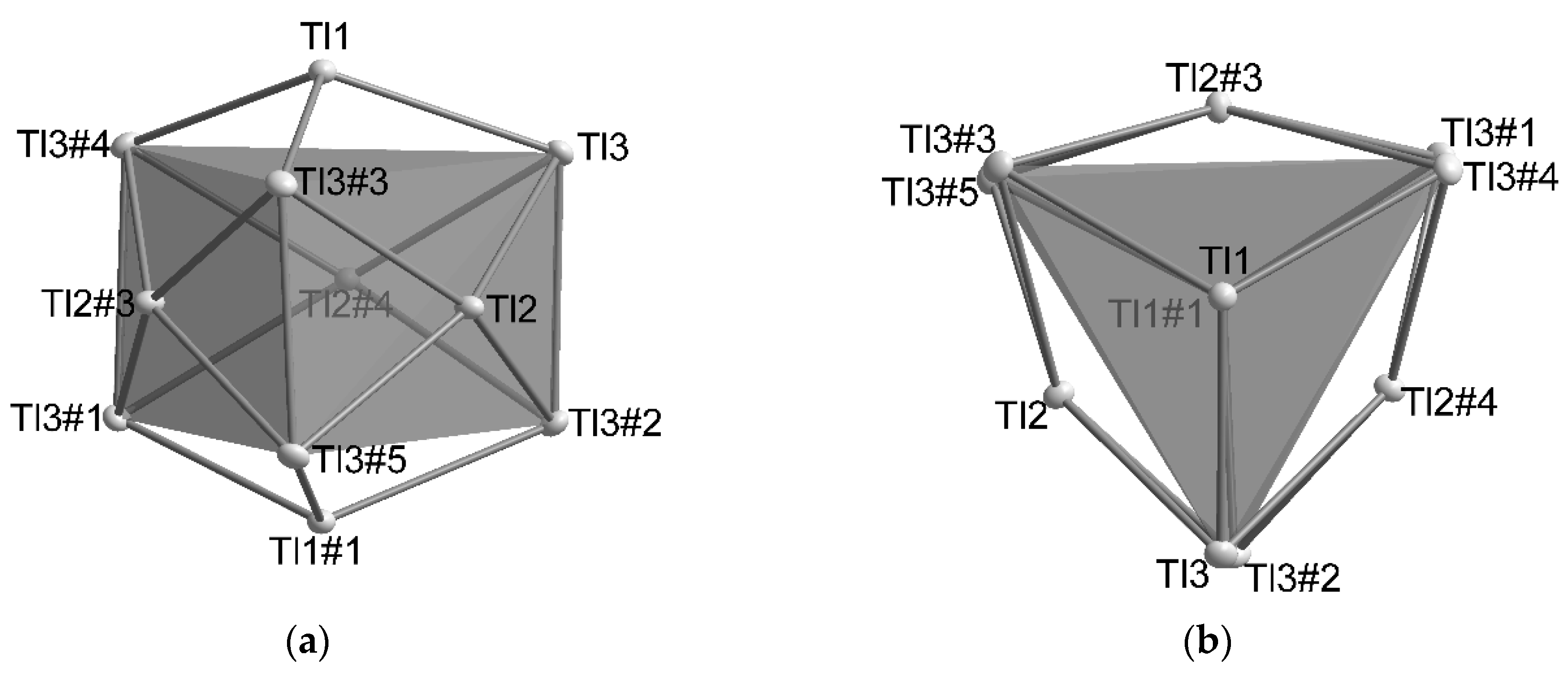

Figure 2. Two perspectives (a) side view; (b) top view show the distortion of the trigonal prism in the Tl117− cluster which results in the point group D3 for the cluster; Symmetry operations for the generation of equivalent atoms: #1: 1/3 + x − y, 2/3 − y, 7/6 − z; #2: 1/3 + y, −1/3 + x, 7/6 − z; #3: 1 − y, x − y, z; #4: 1 – x + y, 1 − x, z; #5: 4/3 − x, 2/3 – x + y, 7/6 − z.
Figure 2. Two perspectives (a) side view; (b) top view show the distortion of the trigonal prism in the Tl117− cluster which results in the point group D3 for the cluster; Symmetry operations for the generation of equivalent atoms: #1: 1/3 + x − y, 2/3 − y, 7/6 − z; #2: 1/3 + y, −1/3 + x, 7/6 − z; #3: 1 − y, x − y, z; #4: 1 – x + y, 1 − x, z; #5: 4/3 − x, 2/3 – x + y, 7/6 − z.
Crystals 08 00319 g002

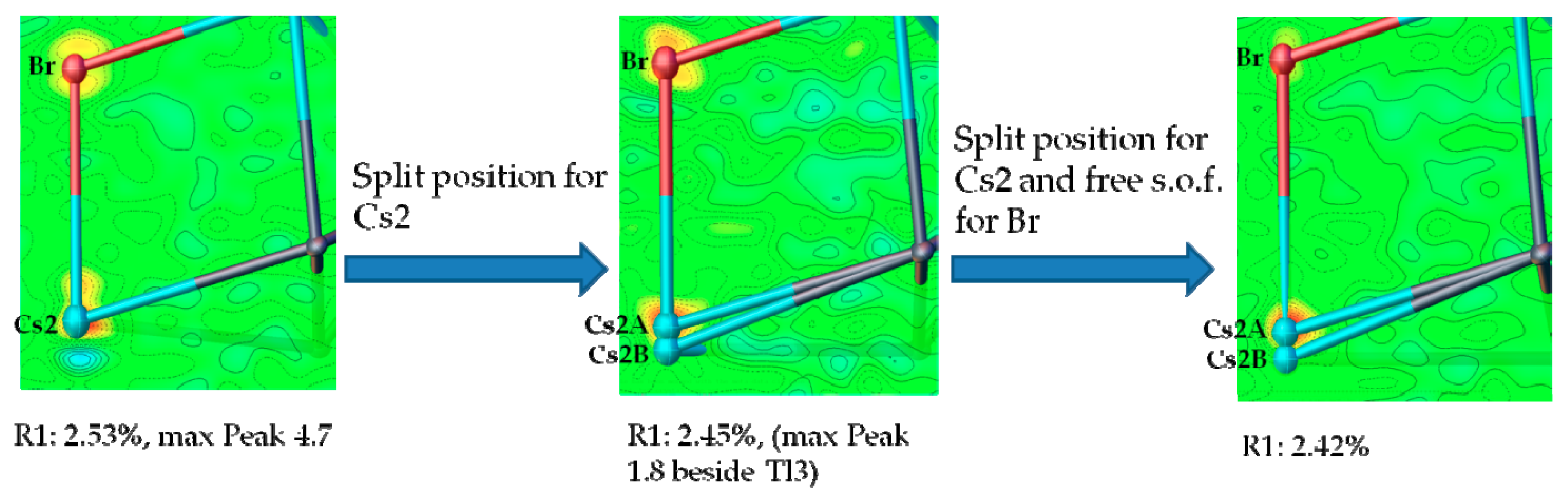

Figure 3. Introduction of split positions and free s.o.f. values for the halide in Cs8Tl11Br0.9 results in an improved model (residual electron density maps, generated by Olex2 [23]).
Figure 3. Introduction of split positions and free s.o.f. values for the halide in Cs8Tl11Br0.9 results in an improved model (residual electron density maps, generated by Olex2 [23]).
Crystals 08 00319 g003
Figure 4. Introduction of split positions and free s.o.f. values for the halide in K4Rb4Tl11Cl0.1 results in an improved model (residual electron density maps, generated by Olex2 [23]).
Figure 4. Introduction of split positions and free s.o.f. values for the halide in K4Rb4Tl11Cl0.1 results in an improved model (residual electron density maps, generated by Olex2 [23]).
Crystals 08 00319 g004
Figure 5. Distorted cubic arrangement around the halide (a); respectively void (b). Cs1: x, y, z; Cs1#1: 1 − y, x − y, z; Cs1#2: 1 − x + y, 1 − x, z; Cs1#3: 4/3 − x, 2/3 − y, 2/3 − z; Cs1#4: 1/3 + y, 2/3 – x + y, 273 − z; Cs1#5: 1/3 + x − y, −1/3 + x, 2/3 − z; Cs2A/B: x, y, z; Cs2A/B#1: 4/3 − x, 2/3 − y, 2/3 − z.
Figure 5. Distorted cubic arrangement around the halide (a); respectively void (b). Cs1: x, y, z; Cs1#1: 1 − y, x − y, z; Cs1#2: 1 − x + y, 1 − x, z; Cs1#3: 4/3 − x, 2/3 − y, 2/3 − z; Cs1#4: 1/3 + y, 2/3 – x + y, 273 − z; Cs1#5: 1/3 + x − y, −1/3 + x, 2/3 − z; Cs2A/B: x, y, z; Cs2A/B#1: 4/3 − x, 2/3 − y, 2/3 − z.
Crystals 08 00319 g005

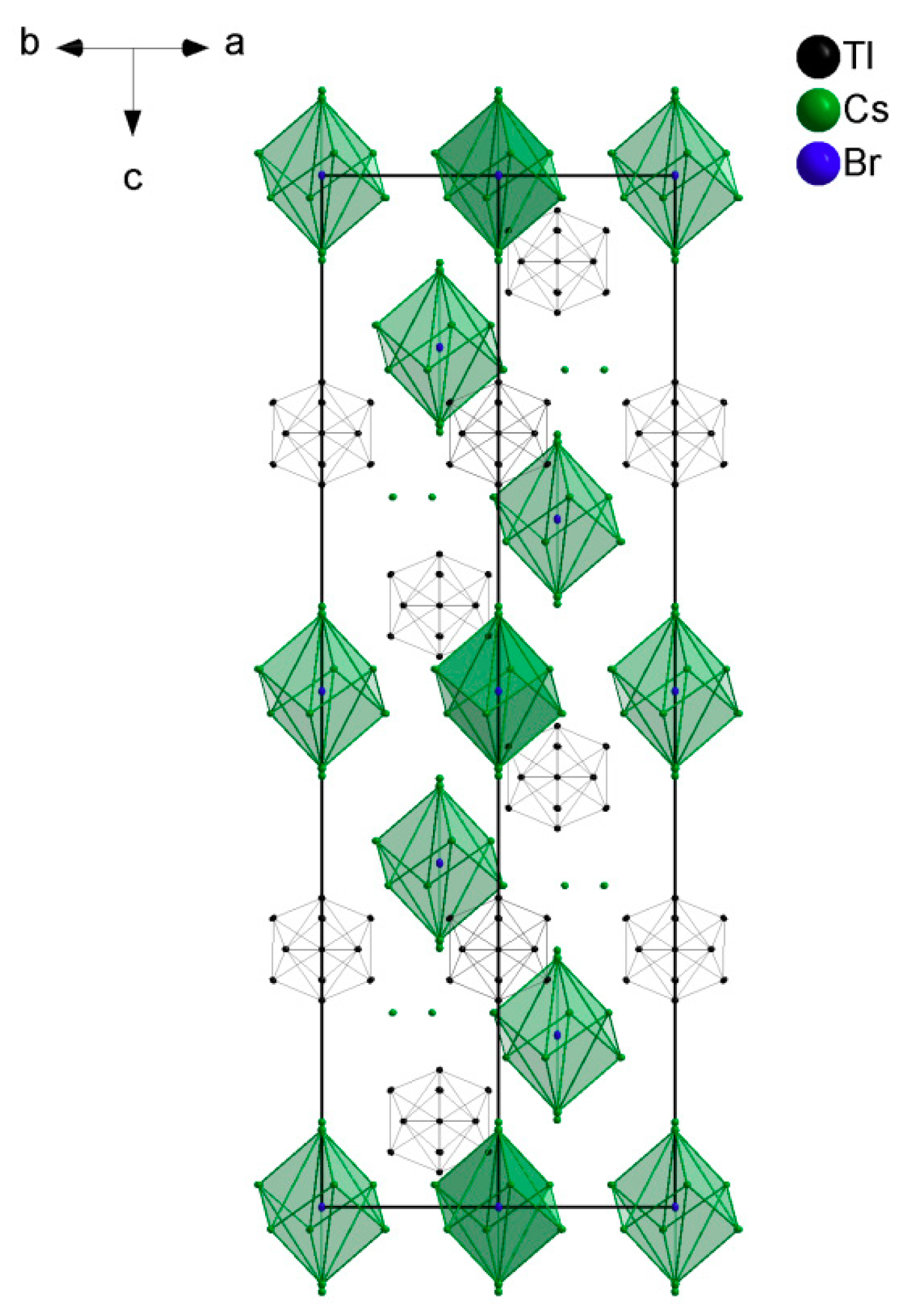

Figure 6. The unit cell of Cs8Tl11Br0.9 shows the two characteristic components: Tl11 clusters and the distorted cubic arrangement around the halide atom.
Figure 6. The unit cell of Cs8Tl11Br0.9 shows the two characteristic components: Tl11 clusters and the distorted cubic arrangement around the halide atom.
Crystals 08 00319 g006
Table 1. Crystal data and structure refinement details.
Table 1. Crystal data and structure refinement details.
CompoundCs8Tl11Cl0.80Cs8Tl11Br0.92Cs5.13Rb2.87Tl11Cl0.49Cs5.67K2.33Tl11Cl0.60K3.98Rb4.02Tl11Cl0.1
CSD number *4345414345404345394345381856564
Mr [g·mol−1]3339.713385.203192.523114.022751.04
Crystal systemTrigonalTrigonalTrigonalTrigonalTrigonal
Space groupR-3cR−3cR-3cR-3cR-3c
a [Å]10.4691 (4)10.5608 (3)10.3791 (5)10.3291 (9)10.0948 (4)
b [Å]10.4691 (4)10.5608 (3)10.3791 (5)10.3291 (9)10.0948 (4)
c [Å]53.297 (3)53.401(2)52.437 (3)51.909 (5)51.0274 (18)
α [°]9090909090
β [°]9090909090
γ [°]120120120120120
V3]5058.8 (5)5157.9 (4)4892.0 (5)4796.3 (9)4503.3 (4)
Z66666
F(000)8068.08180.07726.07544.06703.0
ρcalc [g·cm−3]6.5786.5396.5026.4696.087
μ [mm−1]60.90260.74564.05261.90865.822
-range for data collection [°]7.59 to 58.9827.558 to 69.2667.694 to 54.2027.758 to 54.1987.91 to 69.18
Reflections collected/independent79177/147312097/23743174/11943394/11765040/1934
Data/restraints/parameters1473/0/362374/0/361194/0/341176/0/341934/1/37
Goodness-of-fit on F21.2441.1361.0891.1481.033
Final R indices [I > 2σ(I)]R1 = 0.0280
wR2 = 0.0619
R1 = 0.0242
wR2 = 0.0528
R1 = 0.0392
wR2 = 0.0928
R1 = 0.0456
wR2 = 0.0996
R1 = 0.0242
wR2 = 0.0461
R indices (all data)R1 = 0.0309
wR2 = 0.0629
R1 = 0.0280
wR2 = 0.0541
R1 = 0.0466
wR2 = 0.0970
R1 = 0.0566
wR2 = 0.1034
R1 = 0.0292
wR2 = 0.0478
Rint0.04970.03850.04460.04490.0280
Largest diff. peak/hole [e·Å−3]2.96/−1.381.83/−3.384.82/−2.293.62/−2.211.48/−1.67
* Further details of the crystal structure investigation(s) may be obtained from The Cambridge Crystallographic data centre CCDC on quoting the deposition number CSD-xxxxxx or the the deposition number CCDC-xxxxxxx at https://www.ccdc.cam.ac.uk/structures/?
Table 2. Selected distances in [Å] (numbering scheme according to, values taken from [1,15]), tilt angle and cdd/cdav value for K8Tl11 and Rb8Tl11.
Table 2. Selected distances in [Å] (numbering scheme according to, values taken from [1,15]), tilt angle and cdd/cdav value for K8Tl11 and Rb8Tl11.
Atom 1Atom 2K8Tl11Rb8Tl11
Tl2Tl33.0476 (4)3.060
Tl2Tl333.1396 (4)3.157
Tl1Tl313.1304 (4)3.147
Tl3Tl333.2054 (7)3.219
Tilt [°]4.69 (2)4.90
cdd/cdav [%]2.973.12
Table 3. Selected distances in [Å] (numbering scheme according to), tilt angle and cdd/cdav value for Cs8Tl11Cl0.8, Cs8Tl11Br0.9, Cs5Rb3Tl11Cl0.5 and Cs5.7K2.3Tl11Cl0.6 and K4Rb4Tl11Cl0.1.
Table 3. Selected distances in [Å] (numbering scheme according to), tilt angle and cdd/cdav value for Cs8Tl11Cl0.8, Cs8Tl11Br0.9, Cs5Rb3Tl11Cl0.5 and Cs5.7K2.3Tl11Cl0.6 and K4Rb4Tl11Cl0.1.
Atom 1Atom 2Cs8Tl11Cl0.8Cs8Tl11Br0.9Cs5Rb3Tl11Cl0.5Cs5.7K2.3Tl11Cl0.6K4Rb4Tl11Cl0.1
Tl2Tl33.0656 (4)3.0743 (2) 3.0605 (6)3.0554 (7)3.0564 (2)
Tl2Tl333.0632 (4)3.0766 (2) 3.0896 (6)3.0656 (4)3.1298 (3)
Tl1Tl313.0894 (4)3.1006 (2)3.1049 (7)3.0884 (8)3.1274 (3)
Tl3Tl333.2019 (11)3.2102 (4)3.2025 (11)3.1873 (11)3.2104 (4)
Tilt [°]0.12 (2)0.069 (7)0.94 (2) 0.34 (5)2.352 (7)
cdd/cdav [%]0.080.070.950.322.38
Table 4. Distances in [Å] within the distorted cubic arrangement around the halide/void and s.o.f. values for the halide/Cs2A (split position) in Cs8Tl11X (X = Cl or Br) and K4Rb4Tl11Cl0.1.
Table 4. Distances in [Å] within the distorted cubic arrangement around the halide/void and s.o.f. values for the halide/Cs2A (split position) in Cs8Tl11X (X = Cl or Br) and K4Rb4Tl11Cl0.1.
Position 1–Position 2Cs8Tl11Br0.9Cs8Tl11Cl0.8Position 1–Position 2K4Rb4Tl11Cl0.1
Cs2A-X13.990 (2)3.991 (9)Rb2A-X13.80 (2)
Cs2B-void4.3884.354K2B/Rb2B-void4.096 (3)
Cs1-X1/void3.6705 (4)3.5876 (7)K1/Rb1-X1/void3.5994 (9)
s.o.f. (X1/Cs2A)0.924 (6)0.76 (2)s.o.f. (X1/Rb2A)0.103 (13)
Table 5. Distances in [Å] within the cubic arrangement around the halide/void in Cs5Rb3Tl11Cl0.5 and Cs5.7K2.3Tl11Cl0.6. The s.o.f. values for Cs at the mixed occupied A1 site resemble the s.o.f. values for the halide (numbering scheme according to Figure 5).
Table 5. Distances in [Å] within the cubic arrangement around the halide/void in Cs5Rb3Tl11Cl0.5 and Cs5.7K2.3Tl11Cl0.6. The s.o.f. values for Cs at the mixed occupied A1 site resemble the s.o.f. values for the halide (numbering scheme according to Figure 5).
Position 1–Position 2Cs5Rb3Tl11Cl0.5Cs5.7K2.3Tl11Cl0.6
A2-X1/void4.099 (2)4.002
A1-X1/void3.6160 (13)3.5492 (2)
s.o.f. (A1 = Cs)0.521 (12)0.612 (9)
s.o.f. (X1)0.50 (4)0.60 (4)

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
