Crystals 2018, 8(8), 312; doi:10.3390/cryst8080312

Article
Effect of Charge on the Structures of Zn(II) Coordination Polymers with Triazole-carboxylate Ligands: Syntheses, Structures, and Luminescent Properties
College of Chemistry and Chemical Engineering, and Henan Key Laboratory of Function-Oriented Porous Materials, Luoyang Normal University, Luoyang 471934, China
*
Author to whom correspondence should be addressed.
Received: 10 July 2018 / Accepted: 27 July 2018 / Published: 1 August 2018

Abstract

:
Three new Zn(II) coordination polymers, {[Zn(L1)2(H2O)2]·4H2O}n (1), {[Zn(L2)(H2O)2]·0.5H2O}n (2), and {[Zn1.5(L1)(o-bdc)(H2O)]·0.5H2O}n (3) (HL1 = 3,5-di(1,2,4-triazol-1-yl)benzoic acid, H2L2 = 5-(triazol-1-yl)isophthalic acid, o-H2bdc = 1,2-benzenedicarboxylic acid), were successfully synthesized and characterized. Compound 1 exhibits 1D chain structure containing [Zn(L1)2] unit. Compound 2 shows a 2D plane with the ratio of Zn:L2 was 1:1 since L2 can match the positive charge of Zn(II). When L1 and o-bdc2– were presented together, Zn(II) centers are linked by L1 to form 2D double layers, then o-bdc2– further connected the adjacent layers to generate final 3D framework of 3. The ligand charges may play key roles in tuning the frameworks of compounds 13. The solid state luminescence of compounds 13 and all ligands have been investigated here.
Keywords:
coordination polymer; bifunctional ligand; synthesis; crystal structure; luminescence

1. Introduction

As a kind of promising hybrid materials, coordination polymers (CPs) have recently attracted a great amount of research interest on account of their fascinating variety of structural patterns and unique properties, such as gas adsorption, luminescence, electrochemistry, catalysis, magnetism, and so on [1,2,3,4,5,6,7]. The construction of the CPs is mainly formed by two basic components, metal ions or clusters and organic linkers. Through varying metal centers and organic linkers, CPs with specific characteristics can be obtained [8,9,10,11,12,13]. But in fact, the rational design and tuned synthesis of CPs still remains a major challenge since assembly is influenced by many factors such as the coordination requirements of the metal ions and the properties of the ligands, including shape, coordination mode, and flexibility, metal-to-ligand ratio, temperature, pH, solvent, and so on [14,15,16,17,18,19,20,21]. In addition, the assembly rule must concern the charges of metal ions and organic linkers since the final CPs are electrically neutral. Unfortunately, the architectural effects induced by the variations of charges on the structures of CPs are rarely reported [22,23,24,25]. In this sense, it is still necessary to continue to explore the effect of charges on the assembly of CPs.
With these considerations in mind, we would like to herein report the syntheses and structures of three new Zn(II) CPs, {[Zn(L1)2(H2O)2]·4H2O}n (1), {[Zn(L2)(H2O)2]·0.5H2O}n (2), and {[Zn1.5(L1)(o-bdc)(H2O)]·0.5H2O}n (3) (HL1 = 3,5-di(1,2,4-triazol-1-yl)benzoic acid, H2L2 = 5-(triazol-1-yl)isophthalic acid, o-H2bdc = 1,2-benzenedicarboxylic acid). Zinc(II) coordination polymers with benzoic or triazole ligands have been extensively studied [26,27,28,29]. In which the Zn(II) centers and organic ligands are bonded together by versatile coordination interactions to give various frameworks from 1D to 3D with superior properties. Benzoic and triazole present together in the bifunctional ligands HL1 and H2L2. So the two ligands have similar shapes and coordination groups except that deprotonation of L1 and L22– exhibit different charges. The influences of ligand charges on structures of compounds 13 have been discussed. The fluorescent properties of compounds 13 and ligands have also been investigated.

2. Materials and Methods

2.1. Reagents and Instruments

All chemicals and solvents used in the syntheses were purchased commercially, and used directly without any purification process. The infrared spectra were obtained with a Nicolet Avatar-360 spectrometer using KBr pellets in the range of 4000–600 cm−1. Powder X-ray diffraction (PXRD) patterns of the compounds were carried out on a Bruker AXS D8-Advanced diffractometer with Cu–Kα (λ = 1.5406 Å) radiation. The luminescent analysis was measured with a FL-4500 fluorescent spectrometer using solid samples.

2.2. Single-Crystal X-ray Diffraction

The single-crystal diffraction data for 13 were collected by using a Oxford Diffraction Gemini with MoKα radiation (λ = 0.71073 Å) at 290 K. The Olex 2 program was used as an interface, together with the SHELXT and SHELXL programs to solve the structures [30,31]. Atomic positions of all non-hydrogen atoms were refined with anisotropic parameters in the refinement. Positions of hydrogen atoms were located geometrically and refined using a riding model. The detailed crystallographic data for crystals 13 are listed in Table 1. Selected bond lengths and bond angles are provided in Table S1 (Supporting information). CCDC 1842442, 1842811, and 1842911 contain the supplementary crystallographic data for crystals in this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html, or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: (+44) 1223-336-033; or e-mail: deposit@ccdc.cam.ac.uk. Details on XRD patterns and selected bond lengths and bond angles for 1, 2, and 3 are list in supplementary content.

2.3. Preparation of Compounds 13

2.3.1. Synthesis of {[ Zn(L1)2(H2O)2]·4H2O}n (1)

A mixture of Zn(CH3COO)2·2H2O (44 mg, 0.2 mmol), HL1 (0.1 mmol, 25.6 mg), H2O (10 mL), and acetonitrile (5 mL) was sealed in a 25 mL Teflon-lined stainless steel vessel and heated at 140 °C for 4 days. Then the reaction mixture was naturally cooled down to room temperature, and the colorless block crystals were obtained. Yield (based on Zn): 46%. IR (KBr, cm−1): 3109(w), 1618(m), 1534(s), 1241(w), 1039(m), 852(m), 761(m), 632(s).

2.3.2. Synthesis of {[Zn(L2)(H2O)2]·0.5H2O}n (2)

Compound 2 was obtained using similar method as described above, except that H2L2 was used instead of HL1. Colorless crystals were collected with a yield of 62% based on Zn. IR (KBr, cm−1): 3143(w), 3012(m), 1616(w), 1555(s), 1241(w), 1048(m), 815(m), 761(s), 675(m).

2.3.3. Synthesis of {[Zn1.5(L1)(o-bdc)(H2O)]·0.5H2O}n (3)

A mixture of Zn(CH3COO)2·2H2O (44 mg, 0.2 mmol), HL1 (0.1 mmol, 25.6 mg), o-H2bdc (16.6 mg, 0.1 mmol), H2O (10 mL), and acetonitrile (5 mL) was sealed in a 25 mL Teflon-lined stainless steel vessel and heated at 160 °C for 4 days. Then the reaction mixture was naturally cooled down to room temperature, and the colorless block crystals were obtained. Yield (based on Zn): 44%. IR (KBr, cm−1): 3122(w), 1605(m), 1568(s), 1276(s), 1043(m), 845(m), 774(m), 688(s).

3. Results and Discussion

3.1. Structural Description

3.1.1. Crystal Structure of 1

Compound 1 crystallizes in orthorhombic space group Pccn. Figure 1a shows the asymmetric unit of 1, which consists of one Zn(II) atom, two L1 ligands, two coordinated water molecules, and four crystallized water molecules. Each zinc atom is surrounded by four nitrogen atoms from four different L1 ligands and two water oxygen atoms to give ZnN4O2 octahedron geometry. The Zn–O distance is 2.1400(18) Å, and the Zn–N distances are 2.159(2) and 2.148(2) Å, respectively. In the structure of 1, adjacent Zn(II) centers are bridged by η2–κN–κN′–L1 to obtain a 1D infinite chain (Figure 1b). The –COO group is not involved in the coordination but is responsible for neutralizing the charge. Due to the existence of the coordinated water and lattice water molecules, there are a large number of intermolecular O–H···O hydrogen bonds between water molecules or between water molecules and L1 ligands in the structure of 1. By which, the 1D chains are connected into a 2D network.

3.1.2. Crystal Structure of 2

Compound 2 shows a 2D planar layer structure presenting an asymmetric unit formed by one Zn(II) atom, one L2 ligand, two coordinated water molecules, and one half lattice water (Figure 2a). The Zn(II) atom exhibits a distorted octahedron geometry with a ZnNO5 coordination sphere, formed by three η3–κN–κO,O′–κO′′–L2 ligands and two coordinated water molecules. The equatorial positions are occupied by three oxygen atoms from two carboxyl groups and a triazole nitrogen atom, and two water oxygen atoms occupy the axial positions. The Zn–N distance is 2.117(4) Å, and the Zn–O distances are in the range of 1.975(3)–2.304(4) Å. Each L2 ligand links three Zn(II) atoms to generate a 2D layer (Figure 2b). In each layer, all L2 ligands and Zn(II) atoms are in a plane, showing the rigidity of L2. There are also exist intermolecular O–H···O hydrogen bonds in the crystal structure of compound 2, a 3D framework is constructed by which.

3.1.3. Crystal Structure of 3

When o-H2bdc was introduced in compound 3 as a coligand with L1, an interesting 3D framework was constructed. Single crystal X-ray structural analysis reveals that the asymmetric unit of compound 3 consists of one and a half Zn(II) atoms, one L1 ligand, one o-bdc2– anions, one half coordinated water molecule, and one half lattice water molecule (Figure 3a). The Zn1 atom is coordinated by two oxygen atoms from two o-bdc2– ligands, two nitrogen atoms from two L1 ligands, and one water molecule. The coordination geometry of Zn1 can be described as a slightly distorted tetragonal pyramidal. Zn2 presents four-coordinated distorted tetrahedron geometry. The coordination positions are occupied by three oxygen atoms from two o-bdc2– ligands and one L1 ligand, and one nitrogen atom from the other L1 ligand. The Zn–O lengths are in the range of 1.942(4)–2.137(3) Å, while the Zn–N ones vary from 2.064(4) to 2.069(4) Å. In compound 3, adjacent Zn2 atoms are connected by L1 utilize Zn2–O1 and Zn2–N3 bonds. So novel 1D [Zn2L1]n chain formed in two directions on the ab plane (Figure 3b). Then such chains are linked into a 2D double layer network via Zn1–N6 coordination bonds (Figure 3c). In addition, neighboring 2D layers are connected by the o-bdc2– ligands through the Zn1–O6, Zn2–O3, and Zn2–O5 bonds to give a 3D framework (Figure 3d). There are also exist intermolecular O–H···O hydrogen bonds in 3, which stabilizes the framework.

3.2. Effects of Ligand Charge on the Structures of the Title Compounds

Comparing the structures of compounds 13, it is clear that the variation of ligand charges produces profound structural changes in the networks. The use of L1 induces a [Zn(L1)2] building unit in compound 1, the carboxyl group of L1 was not involved in the coordination because of the low metal content effected by the charge, resulting only a 1D chain. L2 carries –2 charge so satisfies the charge requirement of Zn(II), thus a 2D plane with [ZnL2] units was constructed. When L1 and o-bdc2– present together, compound 3 exhibits a 3D framework including 2D [Zn1Zn2L1]2+ layers, then the o-bdc2– extended the structure and match the charge.

3.3. Powder X-ray Diffraction (PXRD) and Luminescent Properties

In order to verify the purity, the PXRD experiments were carried out at room temperature (Figures S1–S3). The simulated PXRD patterns of compounds 13 are consistent with their experimental PXRD patterns in key positions, indicating the good purity of these compounds.
The solid state luminescence of CPs 13 and the free ligands were investigated at ambient temperature. As shown in Figure 4, compounds 1, 2, and 3 reveal the emission bands centered at 445 (λex = 383 nm), 422 (λex = 341 nm), and 431 nm (λex = 373 nm), respectively. All these bands can be assigned to intraligand (π* → π or π* → n) emission [32,33,34]. In comparison with the emission maximum values of the free HL1 at 414 nm (λex = 356 nm), H2L2 at 398 nm (λex = 336 nm), and o-H2bdc at 407 nm (λex = 341 nm), obvious red-shifts were observed for all CPs. The red-shifts may be caused by the coordination of ligands to the center Zn(II) atoms, which can increase the conjugate degree of ligands [35].

4. Conclusions

In summary, three Zn(II) coordination polymers based on two similar triazole-carboxyl bifunctional ligands have been successfully constructed. Compounds 13 exhibit different 1D, 2D, and 3D structures, which may be induced by different ligand charges of L1 and L2. The luminescent properties of the three compounds also have been studied. The results show compounds 13 exhibit strong ligand-based fluorescence. This systematic investigation reveals the influences of ligand charges on the construction and the final structures of coordination polymers. Further studies in this field are underway in our lab.

Supplementary Materials

The following are available online at http://www.mdpi.com/2073-4352/8/8/312/s1. Table S1: Selected bond lengths (Å) and bond angles (o) for 13, Figure S1: Experimental (red) and simulated (black) PXRD patterns of compound 1; Figure S2: Experimental (red) and simulated (black) PXRD patterns of compound 2; Figure S3: Experimental (red) and simulated (black) PXRD patterns of compound 3.

Author Contributions

X.S. and K.W. synthesized the three compounds. S.M. and C.X. performed the X-ray structure determination and analyzed the results. Z.L. and Z.W. wrote the paper.

Acknowledgments

This work was supported by the National Science Foundation of China (21372112) and the Science and Technology Research Key Project of the Education Department of Henan Province (13A150799).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wu, C.D.; Hu, A.G.; Zhang, L.; Lin, W.B. A Homochiral Porous Metal-Organic Framework for Highly Enantioselective Heterogeneous Asymmetric Catalysis. J. Am. Chem. Soc. 2005, 127, 8940–8941. [Google Scholar] [CrossRef] [PubMed]
  2. Allendorf, M.D.; Bauer, C.A.; Bhakta, R.K.; Houk, R.J.T. Luminescent metal-organic framework. Chem. Soc. Rev. 2009, 38, 1330–1352. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, L.; Han, Y.Z.; Feng, X.; Zhou, J.W.; Qi, P.F.; Wang, B. Metal-organic framework for energy storage: Batteries and supercapacitors. Coord. Soc. Rev. 2016, 307, 361–381. [Google Scholar] [CrossRef]
  4. Li, J.R.; Kuppler, R.J.; Zhou, H.C. Selective gas adsorption and separation in metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef] [PubMed]
  5. Kurmoo, M. Magnetic metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1353–1379. [Google Scholar] [CrossRef] [PubMed]
  6. Janiak, C. Engineering coordination polymers towards applications. Dalton Trans. 2003, 14, 2781–2804. [Google Scholar] [CrossRef]
  7. Kitagawa, S.; Kitaura, R.; Noro, S. Functional Porous Coordination Polymers. Angew. Chem. Int. Ed. 2004, 43, 2334–2375. [Google Scholar] [CrossRef] [PubMed]
  8. Sun, D.; Yan, Z.H.; Blatov, V.A.; Wang, L.; Sun, D.F. Syntheses, Topological Structures, and Photoluminescences of Six New Zn(II) Coordination Polymers Based on Mixed Tripodal Imidazole Ligand and Varied Polycarboxylates. Cryst. Growth Des. 2013, 13, 1277–1289. [Google Scholar] [CrossRef]
  9. Liu, K.; Shi, W.; Cheng, P. The coordination chemistry of Zn(II), Cd(II) and Hg(II) complexes with 1,2,4-triazole derivatives. Dalton Trans. 2011, 40, 8475–8490. [Google Scholar] [CrossRef] [PubMed]
  10. Zhou, X.H.; Du, X.D.; Li, G.N.; Zuo, J.L.; You, X.Z. Coordination Polymers Assembled from 3,5-Pyrazoledicarboxylic Acid and Bis(triazolyl) Ligands: Chiral and Meso-Structures Induced by Ligand Flexibility and a Six-Connected Self-Catenated Network. Cryst. Growth Des. 2009, 9, 4487–4496. [Google Scholar] [CrossRef]
  11. Yang, P.; Wu, X.X.; Huo, J.Z.; Ding, B.; Wang, Y.; Wang, X.G. Hydrothermal synthesis and characterization of a series of luminescent Zn(II) and Cd(II) coordination polymers with the new versatile multidentate ligand 1,3-di-(1,2,4-triazol-4yl)benzene. CrystEngComm 2013, 15, 8097–8109. [Google Scholar] [CrossRef]
  12. Chen, W.; Wang, J.Y.; Chen, C.; Yue, Q.; Yuan, H.M.; Chen, J.S.; Wang, S.N. Photoluminescent Metal-Organic Polymer Constructed from Trimetallic Clusters and Mixed Carboxylates. Inorg. Chem. 2003, 42, 944–946. [Google Scholar] [CrossRef] [PubMed]
  13. Wu, H.; Liu, H.Y.; Liu, Y.Y.; Yang, J.; Liu, B.; Ma, J.F. An unprecedented 2D→3D metal-organic polyrotaxane framework constructed from cadmium and a flexible star-like ligand. Chem. Commun. 2011, 47, 1818–1820. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, X.L.; Zhang, R.; Wang, X.; Lin, H.Y.; Liu, G.C.; Zhang, H.X. Metal ion-tuned coordination polymers based on different isopolymolybdates grafted by in-situ ligand. Polyhedron 2017, 135, 180–188. [Google Scholar] [CrossRef]
  15. Gautier, R.; Clérac, R. Tuning the Crystal Structure Dimensionality of Cobalt(II)/1,2,4-Triazole Complexes. Cryst. Growth Des. 2017, 17, 864–869. [Google Scholar] [CrossRef]
  16. Xue, Y.S.; Jin, F.Y.; Zhou, L.; Liu, M.P.; Xu, Y.; Du, H.B.; Fang, M.; You, X.Z. Structural Diversity and Properties of Coordination Polymers Built from a Rigid Octadentenate Carboxylic Acid. Cryst. Growth Des. 2012, 12, 6158–6164. [Google Scholar] [CrossRef]
  17. Wu, L.F.; Wang, Z.X.; Xue, C.C.; Xiao, H.P.; Li, M.X. Two 2D sliver complexes with a symmetric and noncentrosymmetric architecture controlled by the metal-ligand ratio. CrystEngComm 2014, 16, 5627–5632. [Google Scholar] [CrossRef]
  18. Zhang, W.Q.; Zhang, W.Y.; Wang, R.D.; Ren, C.Y.; Li, Q.Q.; Fan, Y.P.; Liu, B.; Wang, Y.Y. Effect of Coordinated Solvent Molecules on Metal Coordination Sphere and Solvent-Induced Transformations. Cryst. Growth Des. 2017, 17, 517–526. [Google Scholar] [CrossRef]
  19. Rao, K.P.; Higuchi, M.; Duan, J.; Kitagawa, S. pH-Dependent Interpenetrated, Polymorphic, Cd2+- and BTB-Based Porous Coordination Polymers with Open Metal Sites. Cryst. Growth Des. 2013, 13, 981–985. [Google Scholar] [CrossRef]
  20. Zheng, B.; Dong, H.; Bai, J.F.; Li, Y.Z.; Li, S.H.; Scheer, M. Temperature controlled Reversible Change of the Coordination Modes of the Highly Symmetrical Multitopic Ligand To Construct Coordination Assemblies: Experimental and Theoretical Studies. J. Am. Chem. Soc. 2008, 130, 7778–7779. [Google Scholar] [CrossRef] [PubMed]
  21. Pandey, P.; Kharediya, B.; Elrez, B.; Sutter, J.P.; Bhargavi, G.; Rajasekharan, M.V.; Sunkari, S.S. Ligand Directed Structural Diversity and Magnetism in Copper(II)-azido Assemblies with ISOMERIC Aminopyridines: Synthesis, Structure, Magnetism and Theoretical Studies. Dalton Trans. 2017, 46, 15908–15918. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, P.P.; Peng, J.; Pang, H.J.; Sha, J.Q.; Zhu, M.; Wang, D.D.; Liu, M.G. The Factors Affecting on the Assembly of Ag-H2biim System: Size, Charge or Shape of Polyanions? CrystEngComm 2011, 13, 3832–3841. [Google Scholar] [CrossRef]
  23. Yu, T.L.; Fu, Y.B.; Wang, Y.L.; Hao, P.F.; Shen, J.J.; Fu, Y.L. Hierarchical Symmetry Transfer and Flexible Charge Matching in Five [M(phen)3]2+ Directed Iodoargentates with 1 to 3D Frameworks. CrystEngComm 2015, 17, 8752–8761. [Google Scholar] [CrossRef]
  24. Mezei, G.; Raptis, R.G. Pyrazole-4-Sulfonate Networks of Alkali and Alkaline-earth Metals. Effect of Cation Size, Charge, H-bonding and Aromatic Interactions on the Three-dimensional Supramolecular Architecture. New J. Chem. 2003, 27, 1399–1407. [Google Scholar] [CrossRef]
  25. Wang, C.; Liu, D.M.; Xie, Z.G.; Lin, W.B. Functional Metal-Organic Frameworks via Ligand Doping: Influences of Ligand Charge and Steric Demand. Inorg. Chem. 2014, 53, 1331–1338. [Google Scholar] [CrossRef] [PubMed]
  26. Qu, L.L.; Zhu, Y.L.; Li, Y.Z.; Du, H.B.; You, X.Z. Solvent-induced Synthesis of Zinc(II) and Manganese(II) Coordination Polymers with a Semirigid Tetracarboxylic Acid. Cryst. Growth Des. 2011, 11, 2444–2452. [Google Scholar] [CrossRef]
  27. Liu, T.F.; Lü, J.; Guo, Z.G.; Proserpio, D.M.; Cao, R. New metal-organic Framework with Uninodal 4-connected Topology Displaying Interpenetration, Self-catenation, and Second-order Nonlinear Optical Response. Cryst. Growth Des. 2010, 10, 1489–1491. [Google Scholar] [CrossRef]
  28. Miao, S.B.; Li, Z.H.; Ji, B.M.; Deng, D.S.; Xu, C.Y.; Zhou, L. Synthesis, Crystal Structure, and Properties of a 3D Cu(I) Coordination Polymer Based on Cu3(CN)2 Clusters and 1,3-Di-(1,2,4-Triazole-4yl)Benzene. J. Clust. Sci. 2014, 25, 1137–1145. [Google Scholar] [CrossRef]
  29. Miao, S.B.; Xu, C.Y.; Deng, D.S.; Ji, B.M. Synthesis, Crystal Structure, and Properties of a 2D Cu(I) Coordination Polymer Based on Cu3I3 Chains Linked by 1,3-Di-(1,2,4-Triazole-4yl)Benzene. J. Clust. Sci. 2018, 29, 313–317. [Google Scholar] [CrossRef]
  30. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Cryst. 2009, 42, 342–346. [Google Scholar] [CrossRef]
  31. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Cryst. 2015, 71, 3–8. [Google Scholar]
  32. Zhang, M.N.; Fan, T.T.; Wang, Q.S.; Han, H.L.; Li, X. Zn/Cd/Cu-Frameworks Constructed by 3,3’-diphenyldicarboxylate and 1,4-bis(1,2,4-triazol-1-yl)butane: Syntheses, Structure, Luminescence and Luminescence Sensing for Metal Ion in Aqueous Medium. J. Solid State 2018, 258, 744–752. [Google Scholar] [CrossRef]
  33. Gu, J.Z.; Liang, X.X.; Cui, Y.H.; Wu, J.; Shi, Z.F.; Kirillov, A.M. Introducing 2-(2-carboxyphenoxy)terephthalic Acid as a New Versatile Building Block for Design of Diverse Coordination Polymers: Synthesis, Structural Features, Luminescence Sensing, and Magnetism. CrystEngComm 2017, 19, 2570–2588. [Google Scholar] [CrossRef]
  34. Zhang, F.; Hou, L.; Zhang, W.Y.; Yan, Y.T.; Wu, Y.L.; Yang, R.; Cao, F.; Wang, Y.Y. Two Metal-organic Frameworks Based on a Flexible Benzimidazole Carboxylic Acid Ligand: Selective Gas Sorption and Luminescence. Dalton Trans. 2017, 46, 15118–15123. [Google Scholar] [CrossRef] [PubMed]
  35. Miao, S.B.; Li, Z.H.; Xu, C.Y.; Ji, B.M. A New 3-Fold Interpenetrating 3D Zn(II) Metal-organic Framework: Synthesis, Structure and Luminescent Property. Chin. J. Struct. Chem. 2016, 35, 1960–1966. [Google Scholar]

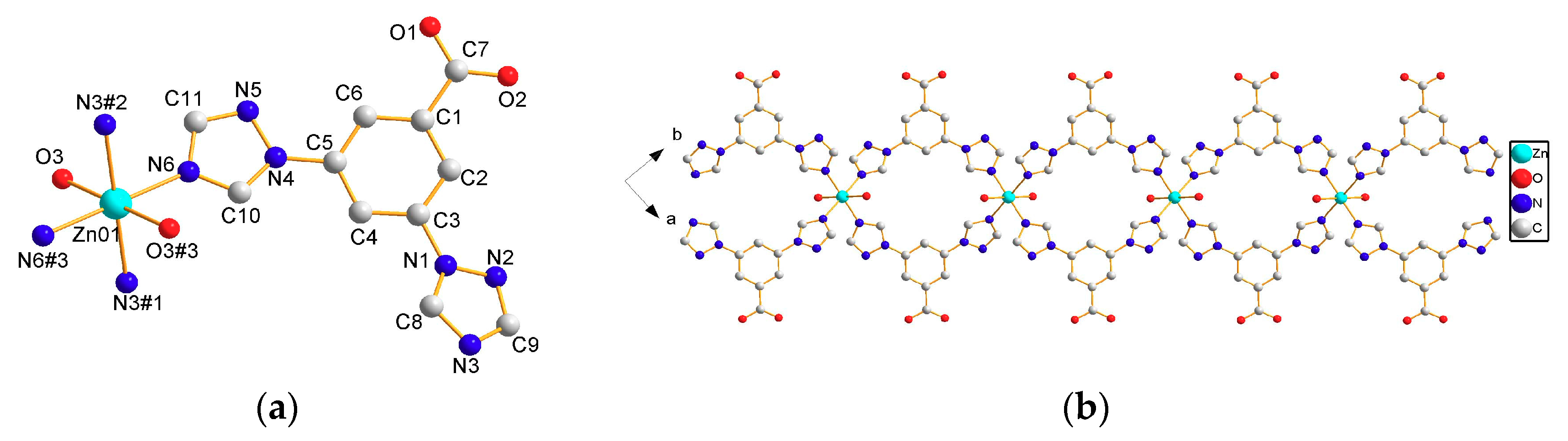

Figure 1. (a) Coordination environment of Zn(II) ion in 1; (b) The 1D chain of 1.
Figure 1. (a) Coordination environment of Zn(II) ion in 1; (b) The 1D chain of 1.
Crystals 08 00312 g001
Figure 2. (a) Coordination environment of Zn(II) ion in 2. (b) The 2D layer of 2.
Figure 2. (a) Coordination environment of Zn(II) ion in 2. (b) The 2D layer of 2.
Crystals 08 00312 g002

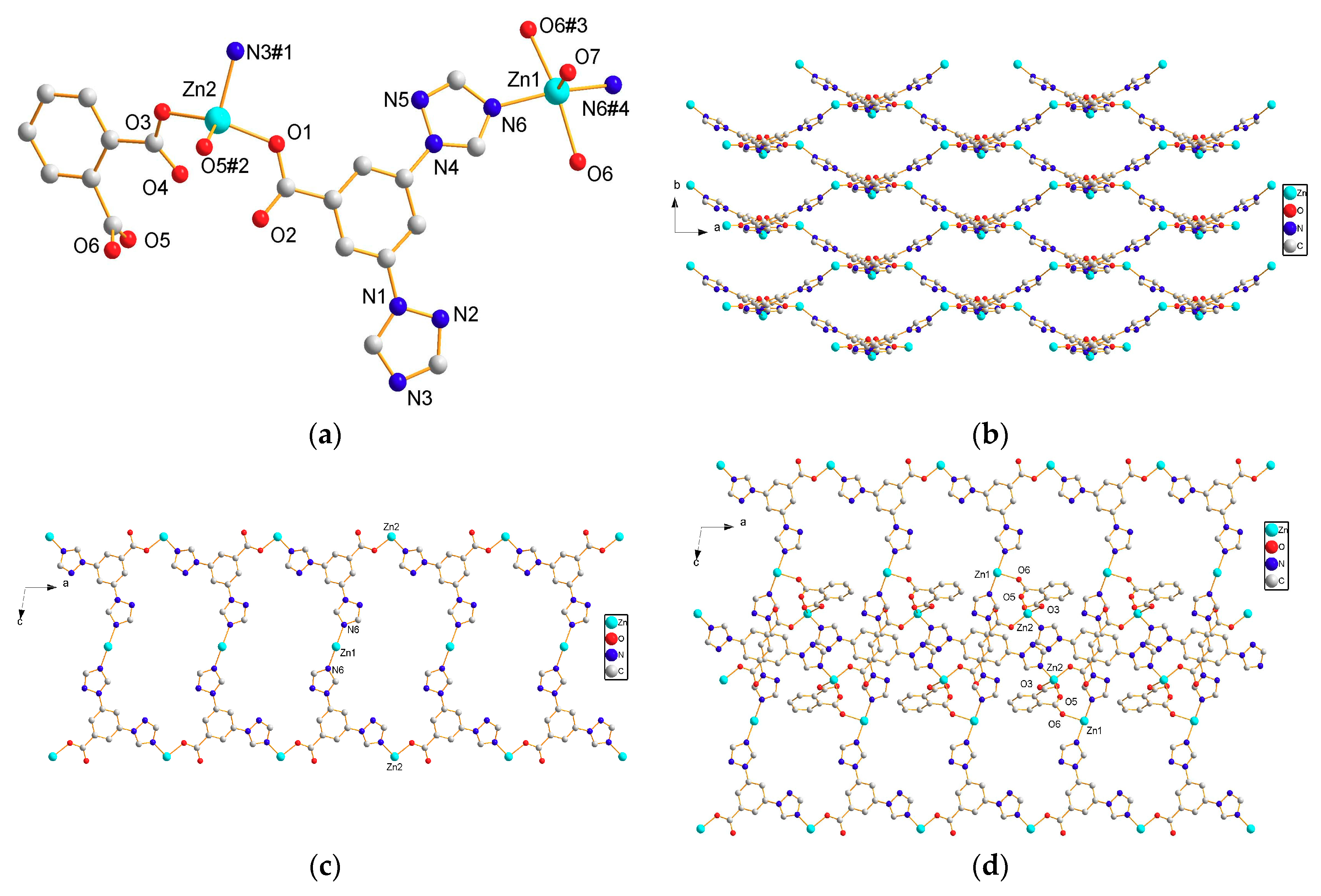

Figure 3. (a) Coordination environment of Zn(II) ions in 3. (b) The 2D double layer of 3 in ab plane. (c) The 2D double layer of 3 in ac plane. (d) The 3D framework of 3.
Figure 3. (a) Coordination environment of Zn(II) ions in 3. (b) The 2D double layer of 3 in ab plane. (c) The 2D double layer of 3 in ac plane. (d) The 3D framework of 3.
Crystals 08 00312 g003

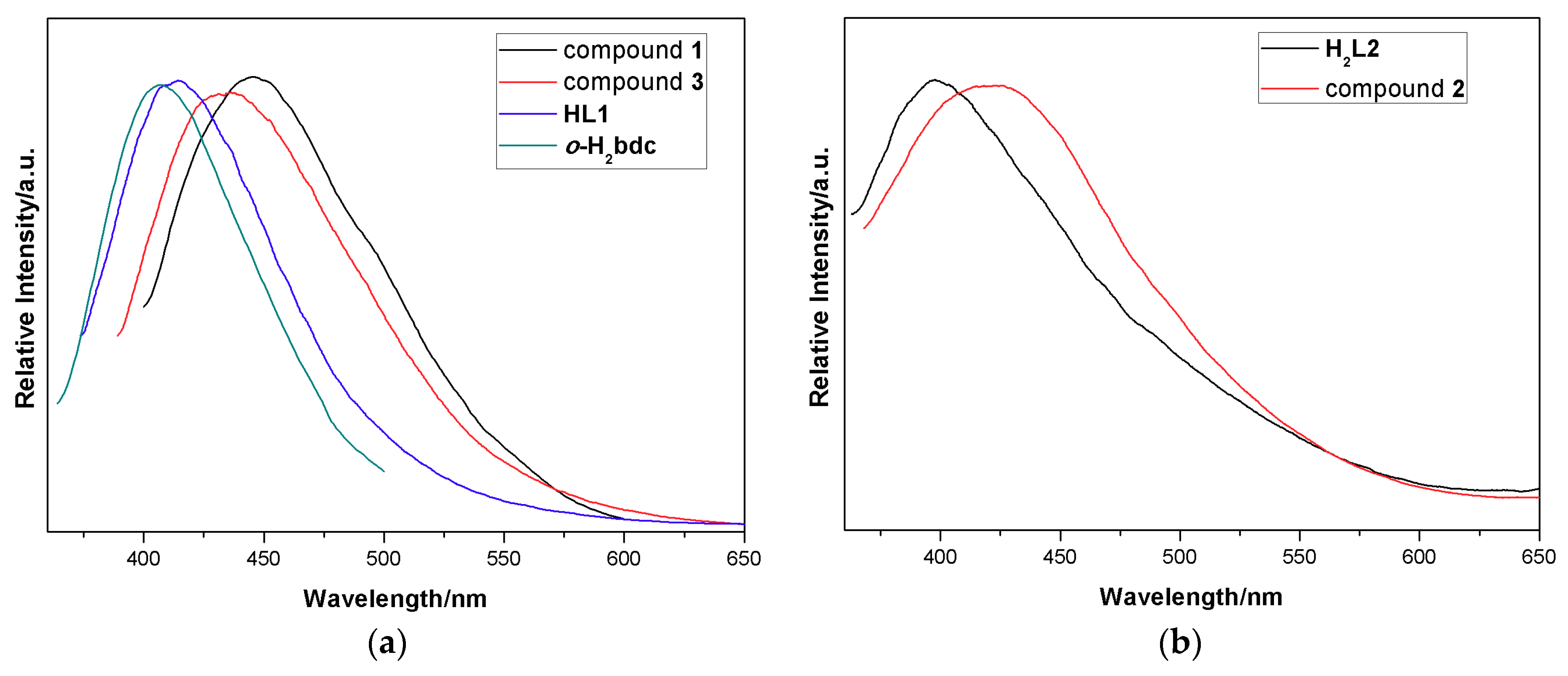

Figure 4. (a) Solid-state luminescent spectra of compound 1, 3, HL1, and o-H2bdc; (b) Solid-state luminescent spectra of compound 2 and H2L2.
Figure 4. (a) Solid-state luminescent spectra of compound 1, 3, HL1, and o-H2bdc; (b) Solid-state luminescent spectra of compound 2 and H2L2.
Crystals 08 00312 g004
Table 1. Crystallographic parameters for compounds 13.
Table 1. Crystallographic parameters for compounds 13.
123
FormulaC22H26N12O10ZnC10H10N3O6.50ZnC38H26N12O14Zn3
Formula weight683.92341.581070.82
Crystal systemorthorhombicmonoclinicmonoclinic
Space groupPccnI2/aC2/c
a (Å)13.3477(4)13.5074(5)20.5014(12)
b (Å)15.2594(6)10.7712(4)7.0380(7)
c (Å)13.5167(6)16.3959(5)26.7095(15)
α (°)909090
β (°)9098.788(3)99.232(6)
γ (°)909090
V3)2753.05(19)2357.45(14)3804.0(5)
Z484
Dcalc (g·cm−3)1.6501.9251.870
μ (mm−1)0.9722.1211.969
F(000)140813842160
R1, wR2 (I > 2σ(I))0.0368, 0.08630.0501, 0.11230.0556, 0.1334
R1, wR2 (all data)0.0480, 0.09050.0535, 0.11350.0617, 0.1366
Goodness-of-fit (GOF) on F21.0741.1841.186
