Open AccessArticle
Crystals 2018, 8(2), 57; https://doi.org/10.3390/cryst8020057

Conductive Supramolecular Architecture Constructed from Polyoxovanadate Cluster and Heterocyclic Surfactant

Department of Chemistry, School of Science, Tokai University, 4-1-1 Kitakaname, Hiratsuka 259-1292, Japan
*
Author to whom correspondence should be addressed.
Received: 30 December 2017 / Revised: 12 January 2018 / Accepted: 22 January 2018 / Published: 25 January 2018
(This article belongs to the Special Issue Crystal Structure Analysis of Supramolecular and Porous Solids)
View Full-Text   |   Download PDF [3648 KB, uploaded 25 January 2018]   |

Abstract

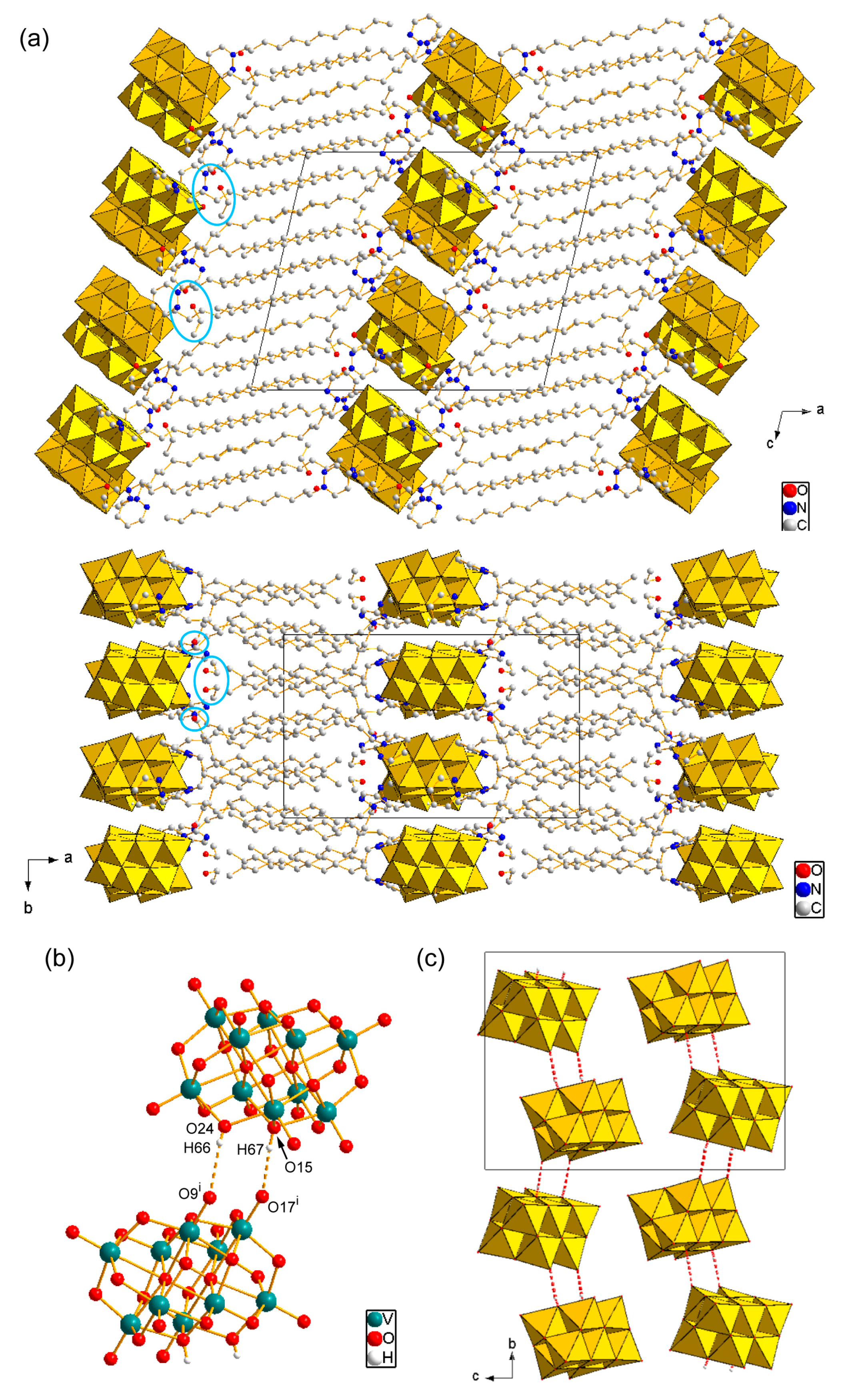

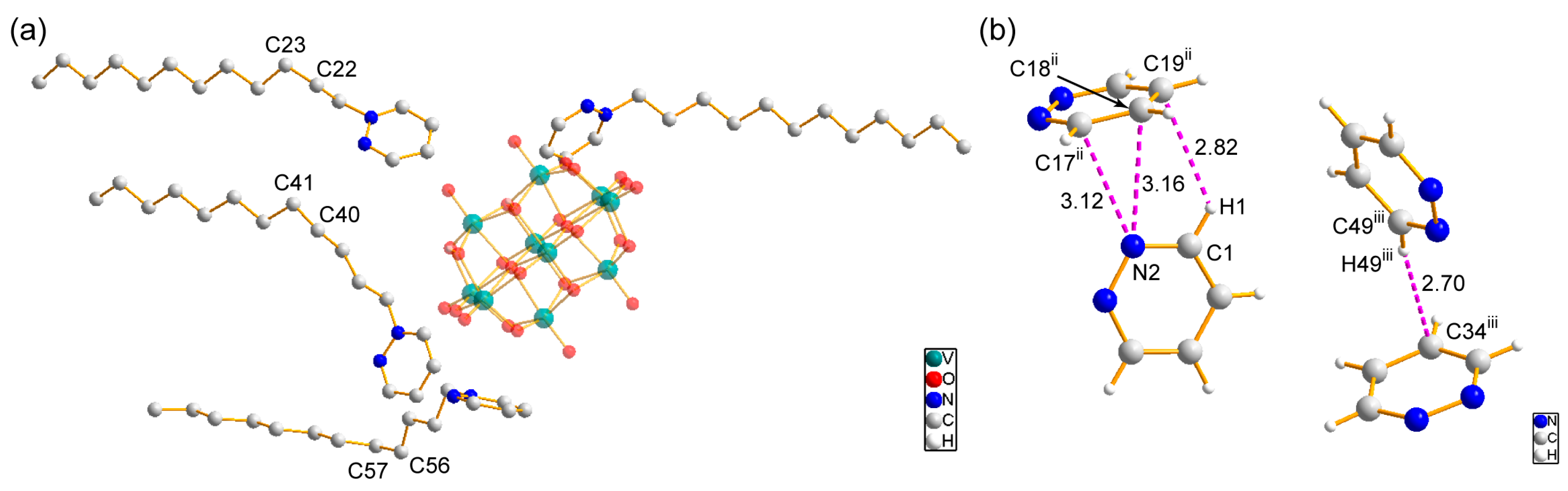

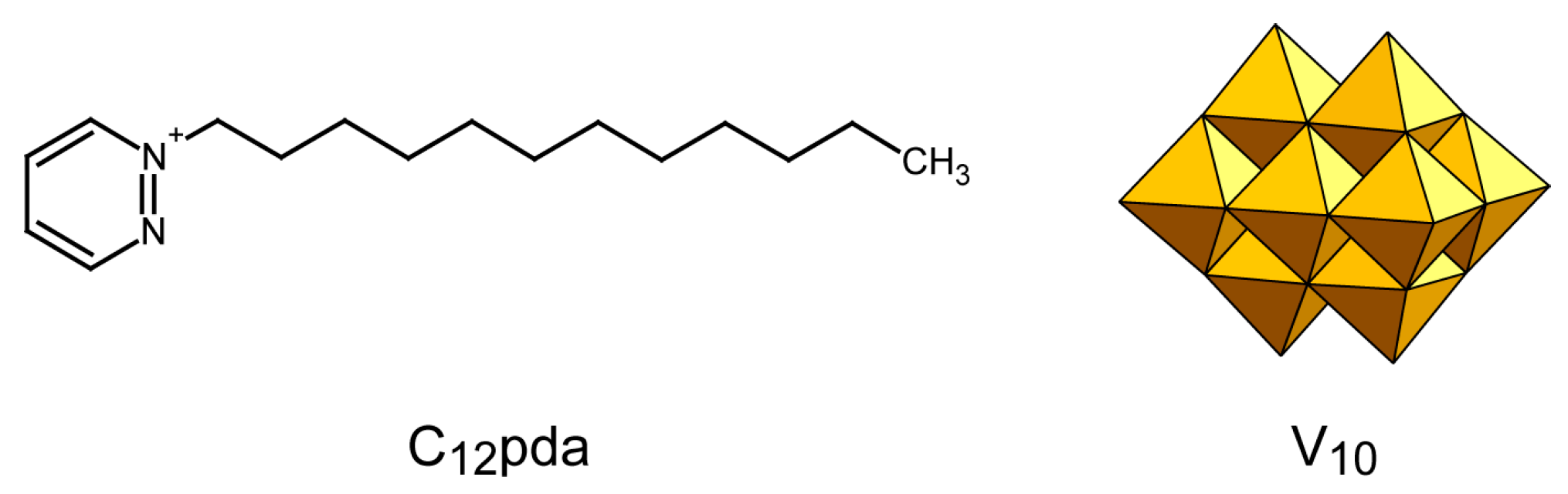

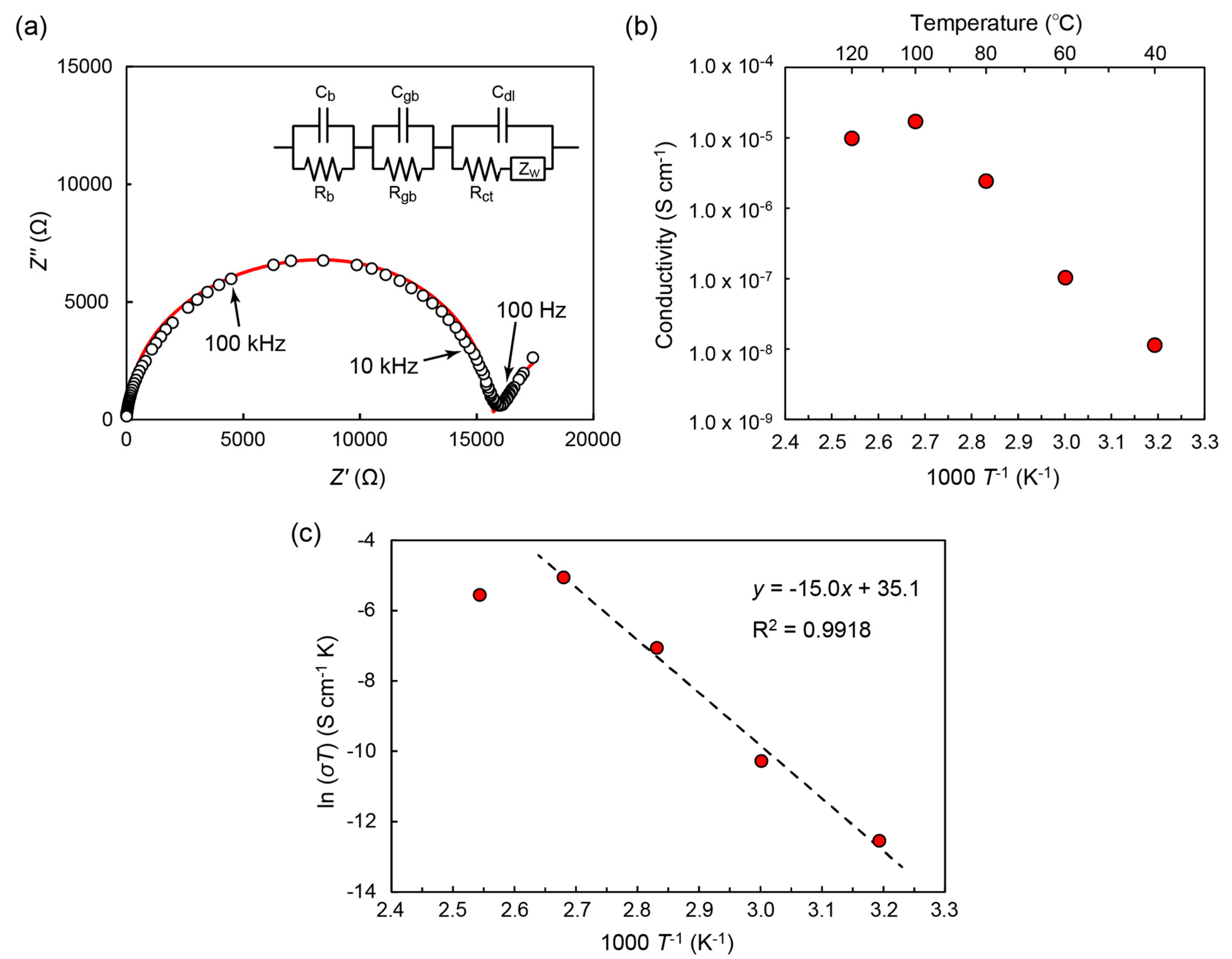

Proton-conductive solid electrolytes are significant for fuel-cell battery technology. Especially for use in motor vehicles, proton conductors which work at intermediate temperatures (373–673 K) under an anhydrous atmosphere are desired to improve the fuel cell stability and efficiency. Inorganic–organic hybrid supramolecular architectures are a promising option for the realization of highly conductive proton conductors. Here, a hybrid layered crystal was synthesized for the first time by using an proton-containing decavanadate (V10) anion and a heterocyclic surfactant cation. A simple ion-exchange reaction led to the formation of an inorganic–organic hybrid of V10 by using dodecylpyridazinium (C12pda) as the heterocyclic surfactant. Single crystal X-ray analyses revealed that four C12pda cations were associated with one V10 anion, which was a diprotonated species forming a one-dimensional infinite chain structure through hydrogen bonds. Anhydrous proton conductivity was investigated by alternating current (AC) impedance spectroscopy in the range of 313–393 K, exhibiting a maximum value of 1.7 × 10−5 S cm−1 at 373 K. View Full-Text
Keywords: inorganic–organic; hybrid crystal; polyoxometalate; heterocyclic; surfactant; proton conductivity inorganic–organic; hybrid crystal; polyoxometalate; heterocyclic; surfactant; proton conductivity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Share & Cite This Article

MDPI and ACS Style

Misawa, T.; Taira, M.; Fujio, K.; Ito, T. Conductive Supramolecular Architecture Constructed from Polyoxovanadate Cluster and Heterocyclic Surfactant. Crystals 2018, 8, 57.
