Next Article in Journal
The Effects of Nanostructure on the Hydrogen Sorption Properties of Magnesium-Based Metallic Compounds: A Review
Next Article in Special Issue
Effect of Thermally Reduced Graphene Oxide on Mechanical Properties of Woven Carbon Fiber/Epoxy Composite
Previous Article in Journal / Special Issue
One Step Preparation of Fe–FeO–Graphene Nanocomposite through Pulsed Wire Discharge
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Crystals 2018, 8(2), 105; https://doi.org/10.3390/cryst8020105

Mechanically Robust 3D Graphene–Hydroxyapatite Hybrid Bioscaffolds with Enhanced Osteoconductive and Biocompatible Performance

1
Lanzhou University Second Hospital, Lanzhou 730000, China
2
College of Civil Engineering and Mechanics, Lanzhou University, Lanzhou 730000, China
3
Key Laboratory of Mechanics on Disaster and Environment in Western China (Lanzhou University), The Ministry of Education of China, Lanzhou 730000, China
4
School of Stomatology, Lanzhou University, Lanzhou 730000, China
5
Laboratory of Clean Energy Chemistry and Materials, Lanzhou Institute of Chemical Physics Chinese Academy of Sciences, Lanzhou 730000, China
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Received: 30 January 2018 / Revised: 16 February 2018 / Accepted: 21 February 2018 / Published: 23 February 2018
(This article belongs to the Special Issue Graphene Mechanics)
Full-Text   |   PDF [5292 KB, uploaded 23 February 2018]   |

Abstract

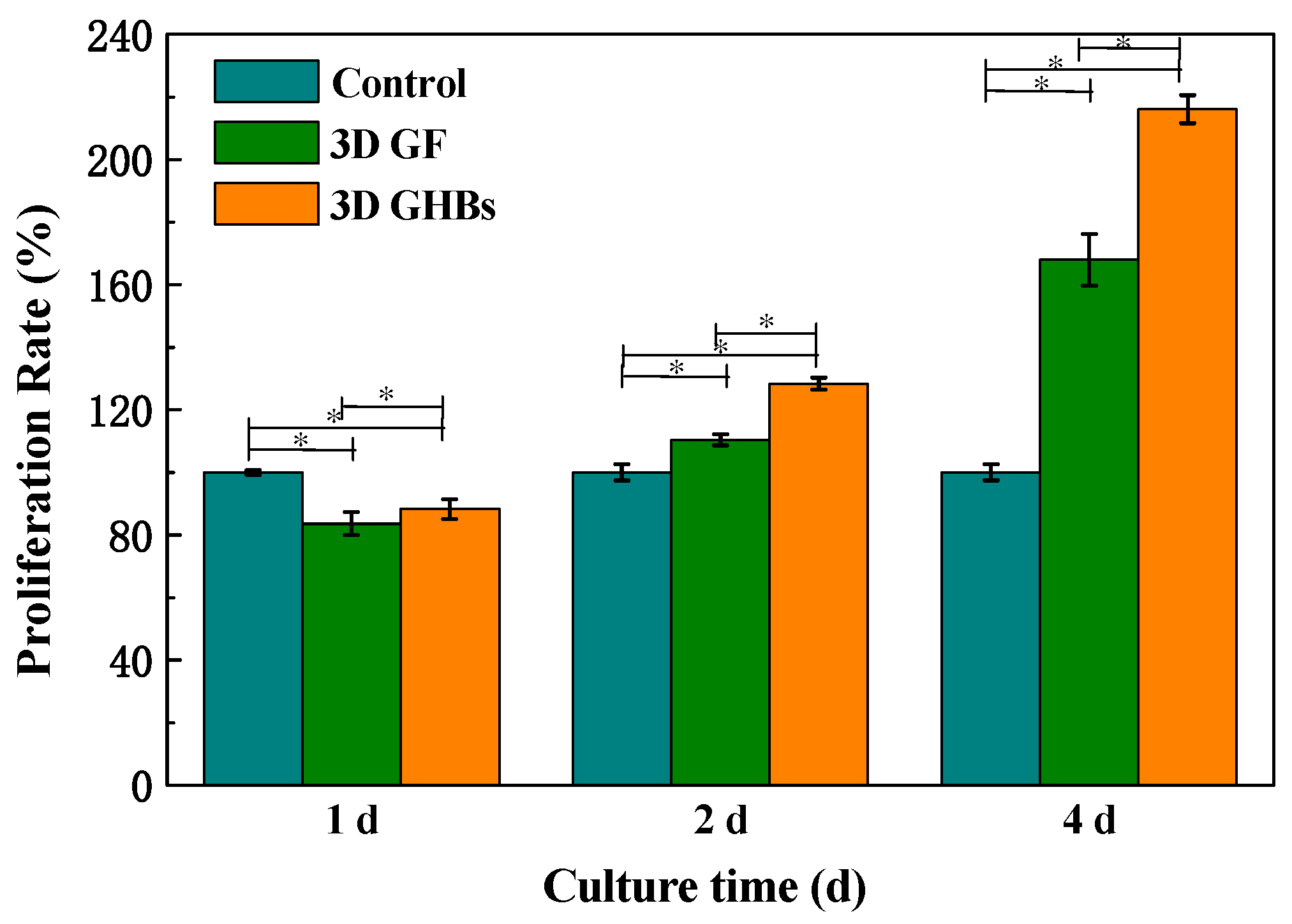

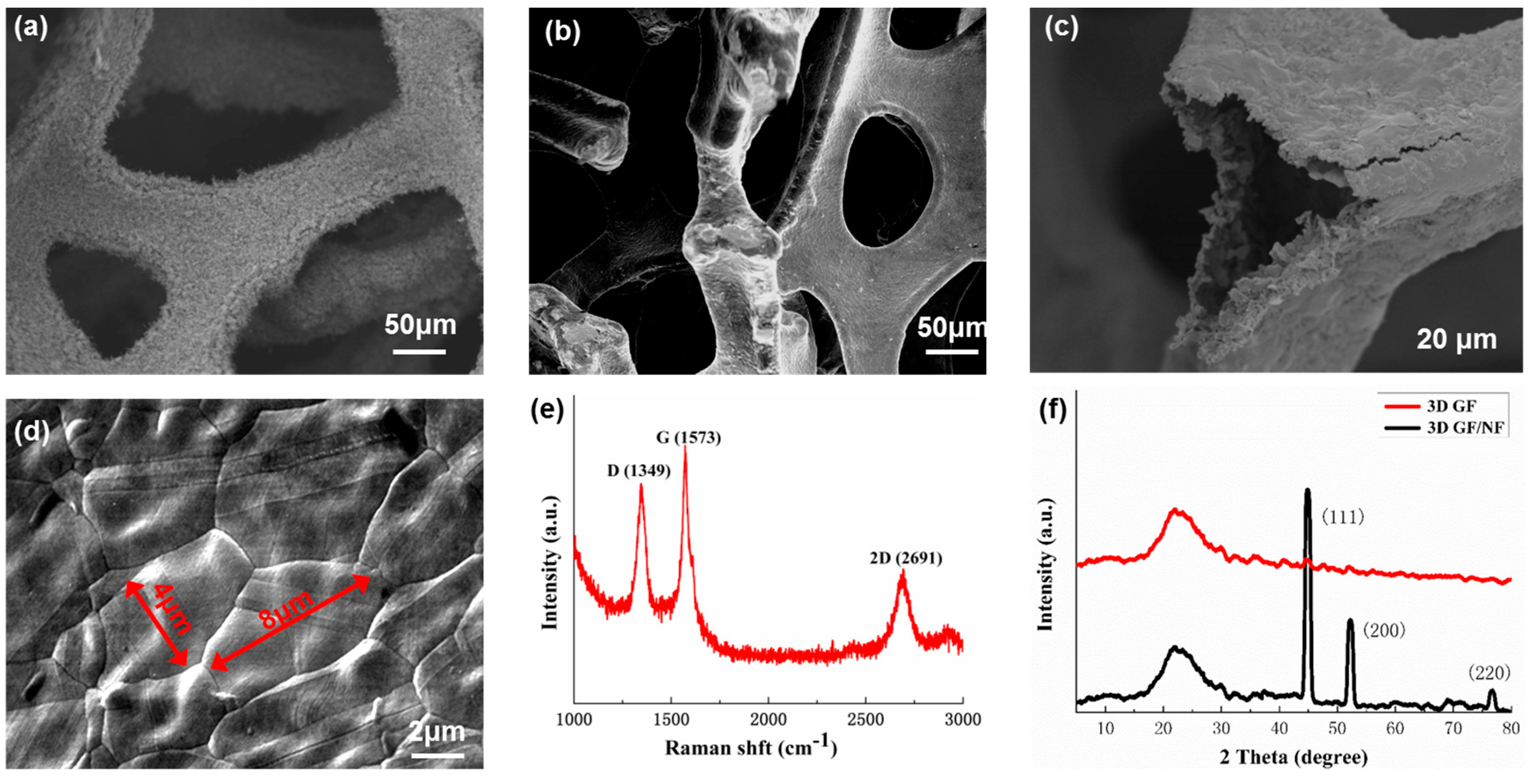

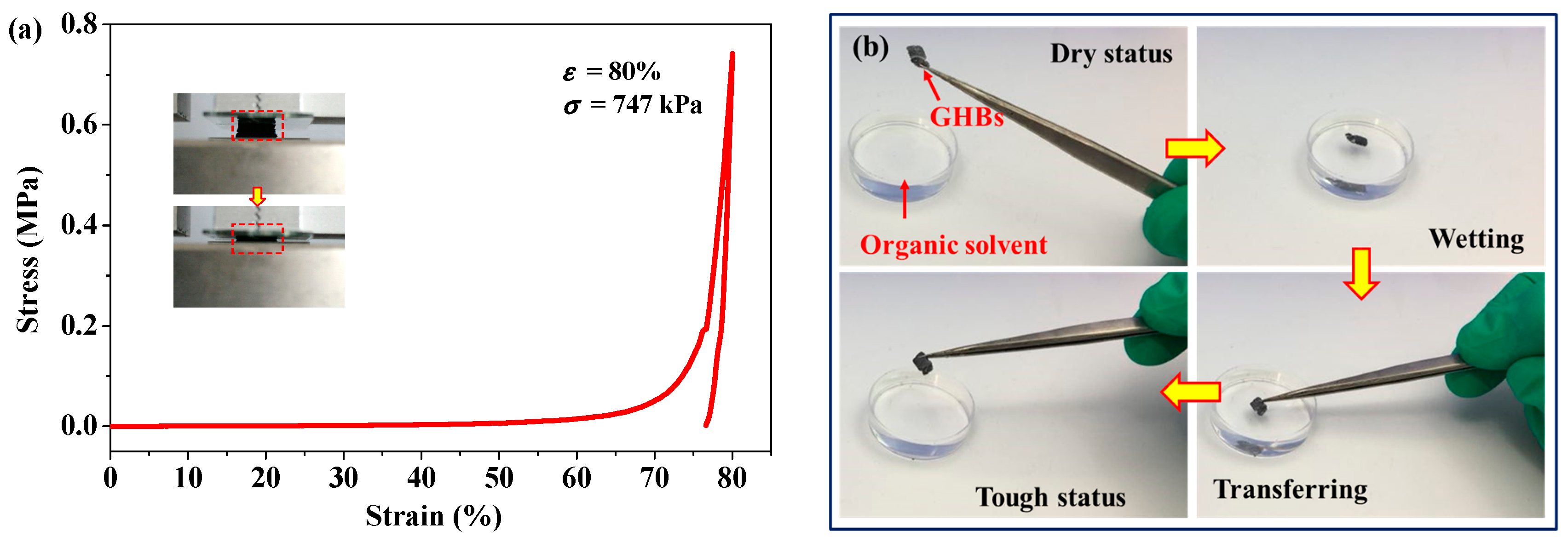

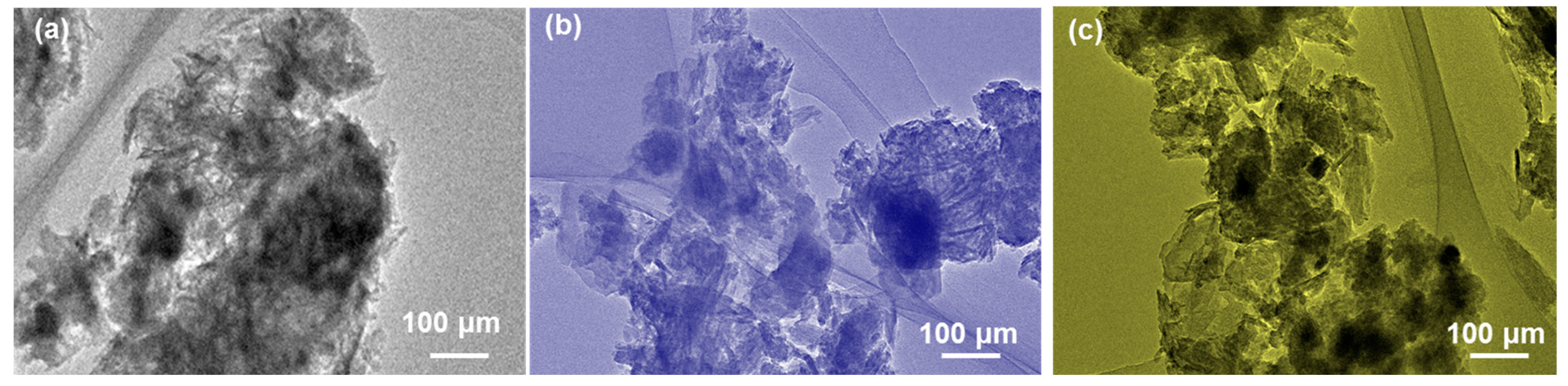

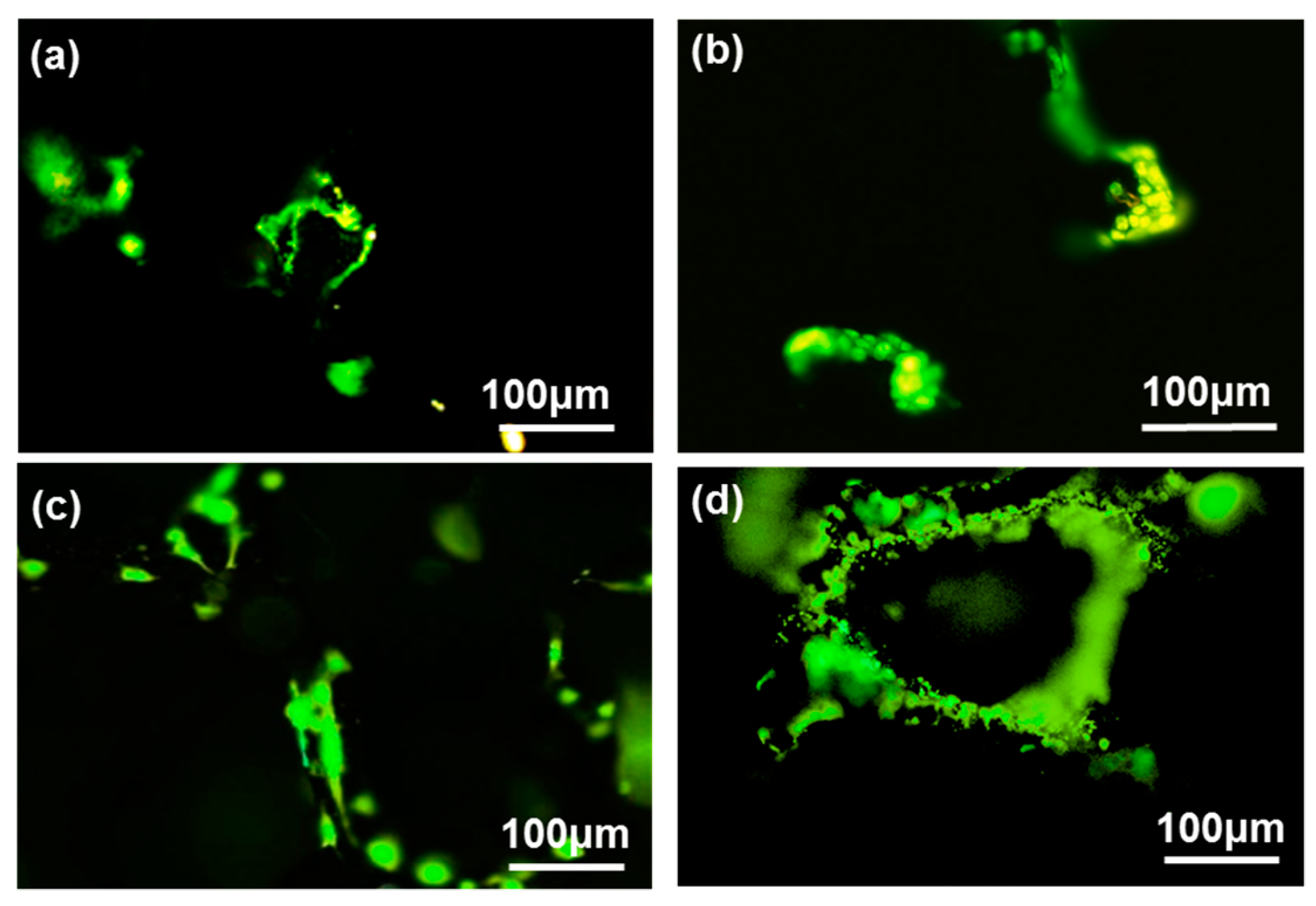

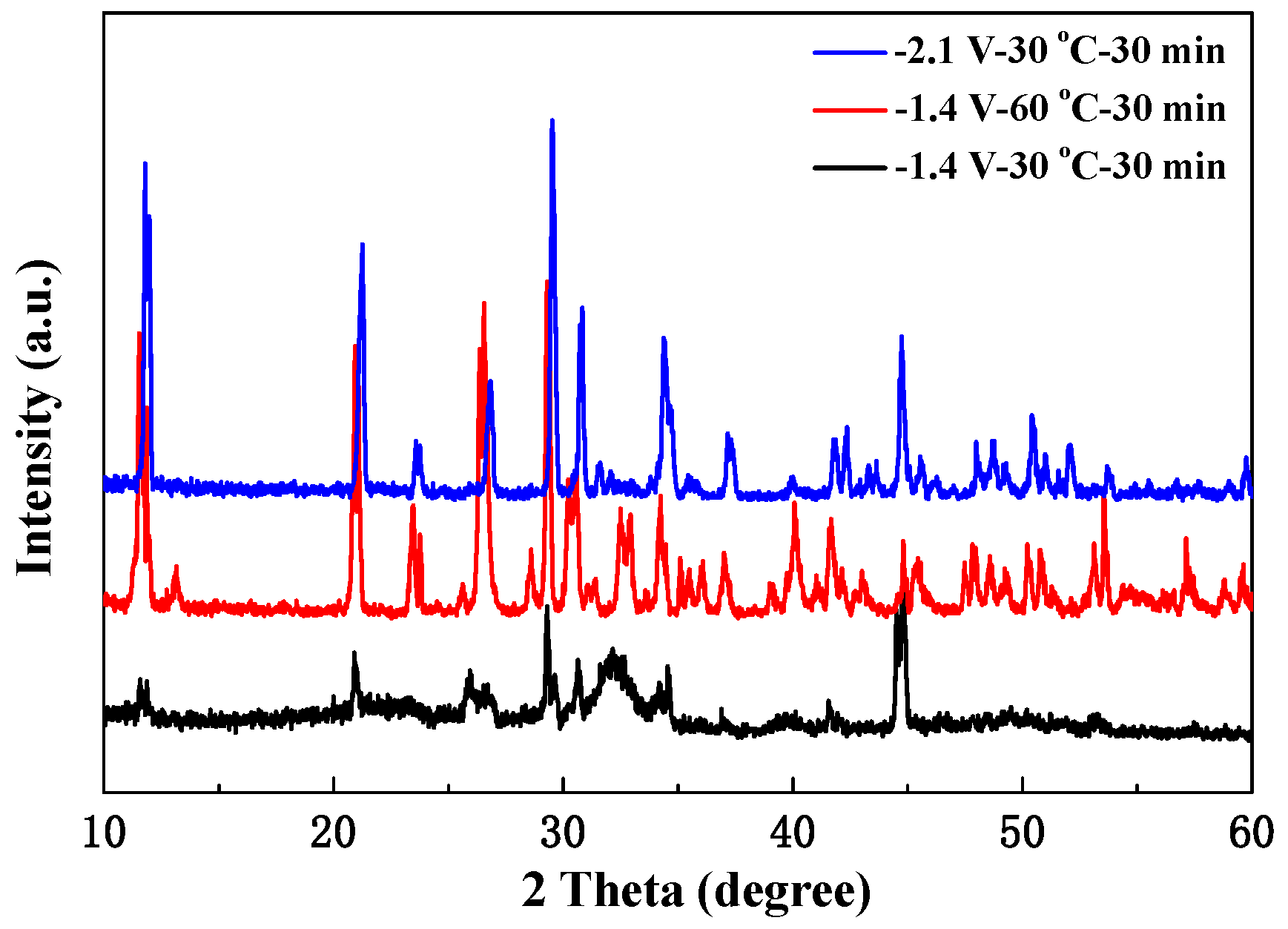

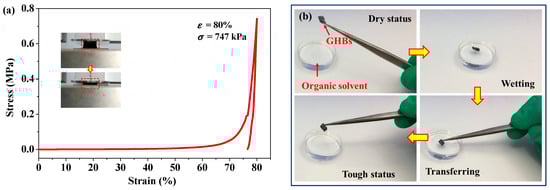

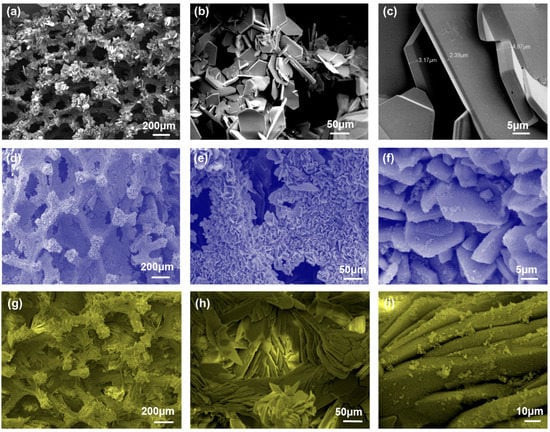

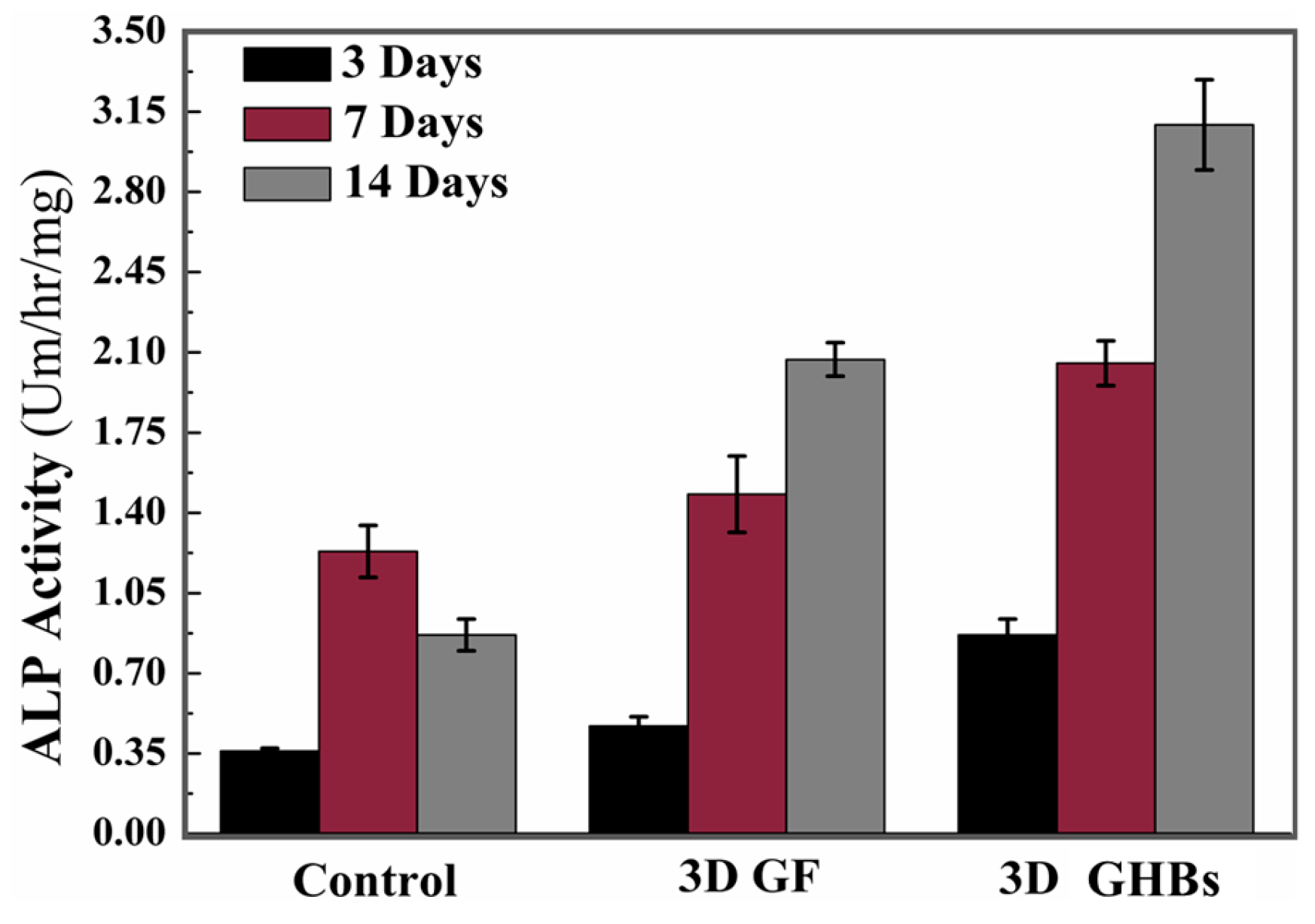

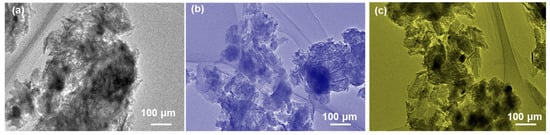

In this paper, we describe three-dimensional (3D) hierarchical graphene–hydroxyapatite hybrid bioscaffolds (GHBs) with a calcium phosphate salt electrochemically deposited onto the framework of graphene foam (GF). The morphology of the hydroxyapatite (HA) coverage over GF was controlled by the deposition conditions, including temperature and voltage. The HA obtained at the higher temperature demonstrates the more uniformly distributed crystal grain with the smaller size. The as-prepared GHBs show a high elasticity with recoverable compressive strain up to 80%, and significantly enhanced strength with Young’s modulus up to 0.933 MPa compared with that of pure GF template (~7.5 kPa). Moreover, co-culture with MC3T3-E1 cells reveals that the GHBs can more effectively promote the proliferation of MC3T3-E1 osteoblasts with good biocompatibility than pure GF and the control group. The superior performance of GHBs suggests their promising applications as multifunctional materials for the repair and regeneration of bone defects. View Full-Text
Keywords: graphene–hydroxyapatite hybrid bioscaffolds; graphene foam; electrochemical deposition; mechanical robustness; biocompatibility graphene–hydroxyapatite hybrid bioscaffolds; graphene foam; electrochemical deposition; mechanical robustness; biocompatibility
Figures

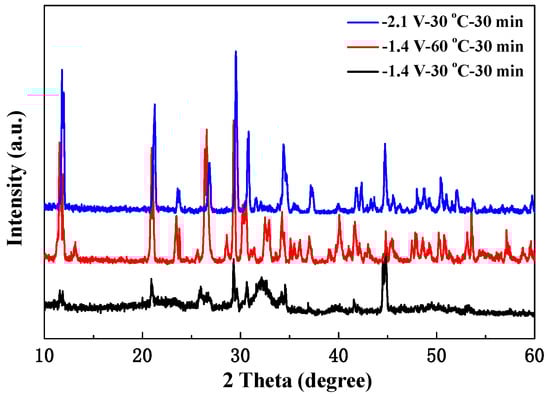

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Xie, W.; Song, F.; Wang, R.; Sun, S.; Li, M.; Fan, Z.; Liu, B.; Zhang, Q.; Wang, J. Mechanically Robust 3D Graphene–Hydroxyapatite Hybrid Bioscaffolds with Enhanced Osteoconductive and Biocompatible Performance. Crystals 2018, 8, 105.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
