Crystals 2017, 7(9), 260; doi:10.3390/cryst7090260

Effects of Curing Temperature on Electro-Optical Characteristics of a Polymer-Stabilized In-Plane-Switching Liquid Crystal Cell

Department of Electronics Engineering, Pusan National University, Busan 46241, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Charles Rosenblatt
Received: 21 July 2017 / Revised: 7 August 2017 / Accepted: 23 August 2017 / Published: 25 August 2017
(This article belongs to the Section Liquid Crystals)
View Full-Text   |   Download PDF [965 KB, uploaded 25 August 2017]   |

Abstract

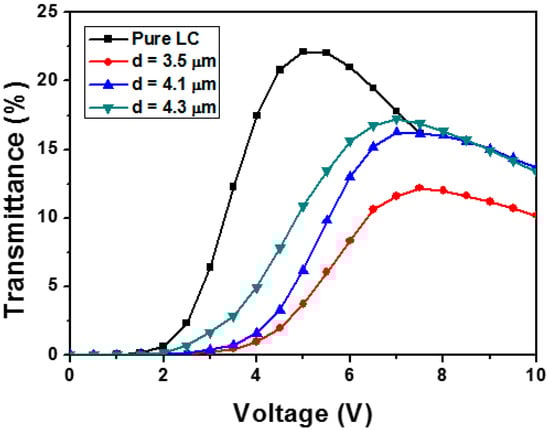

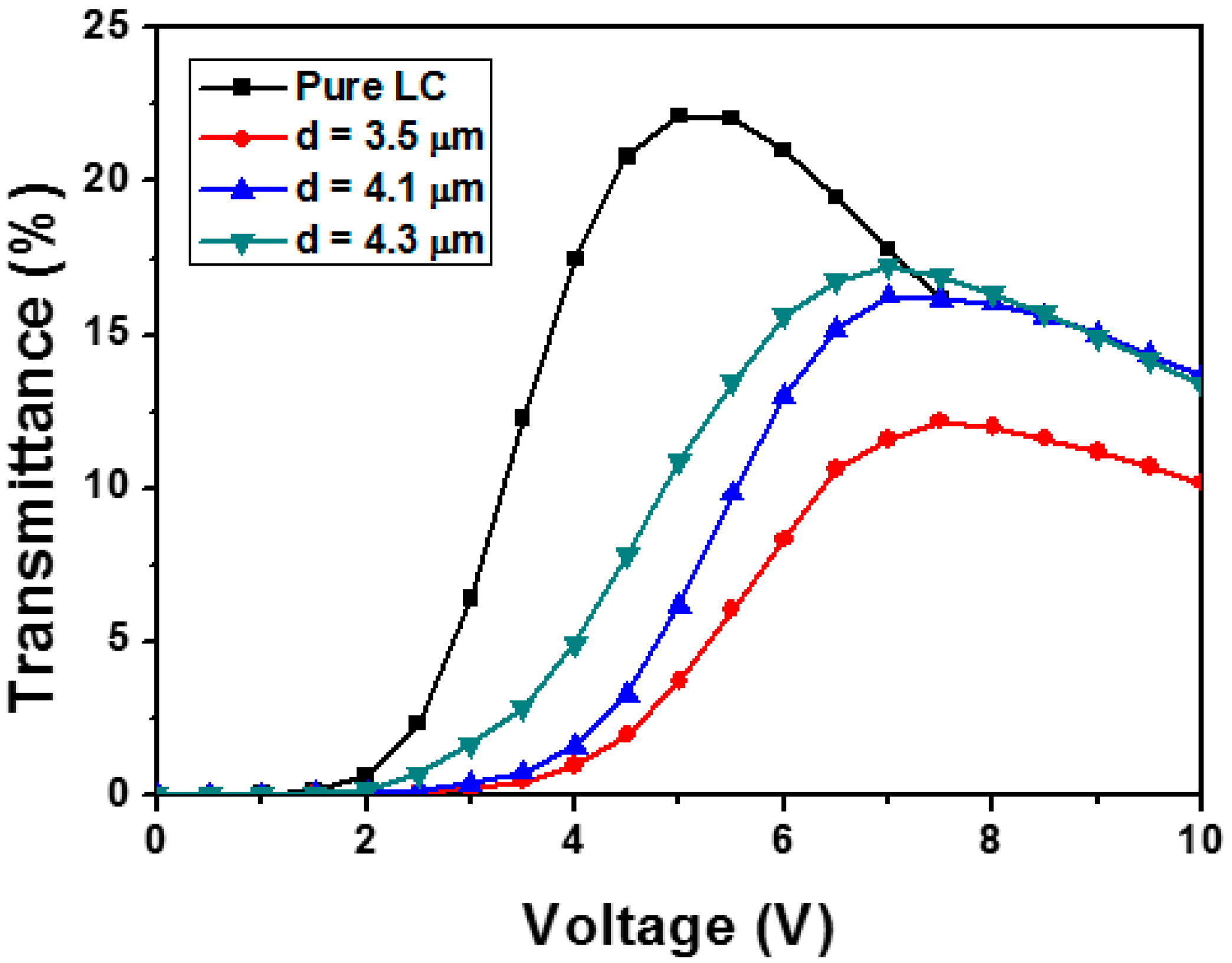

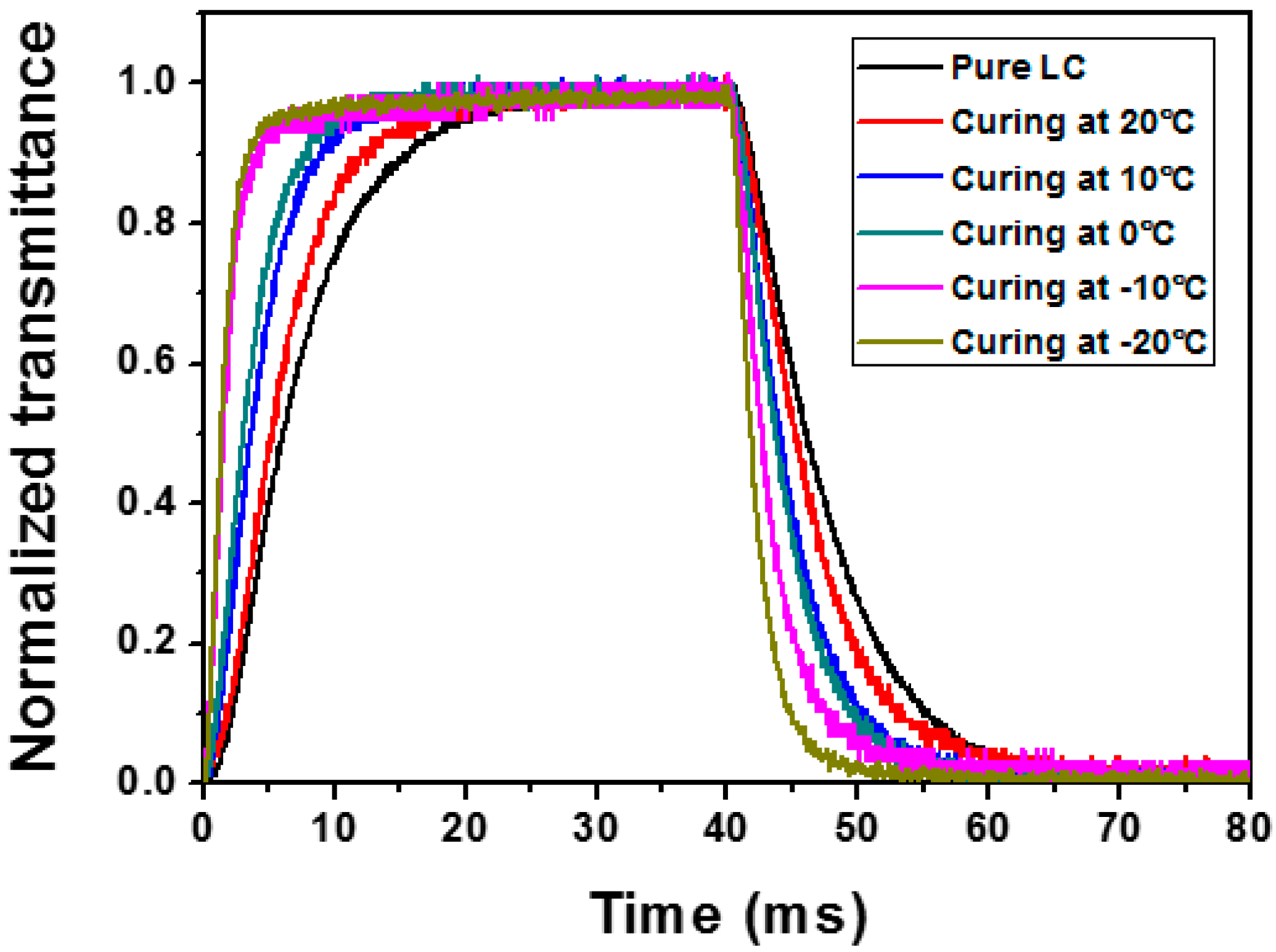

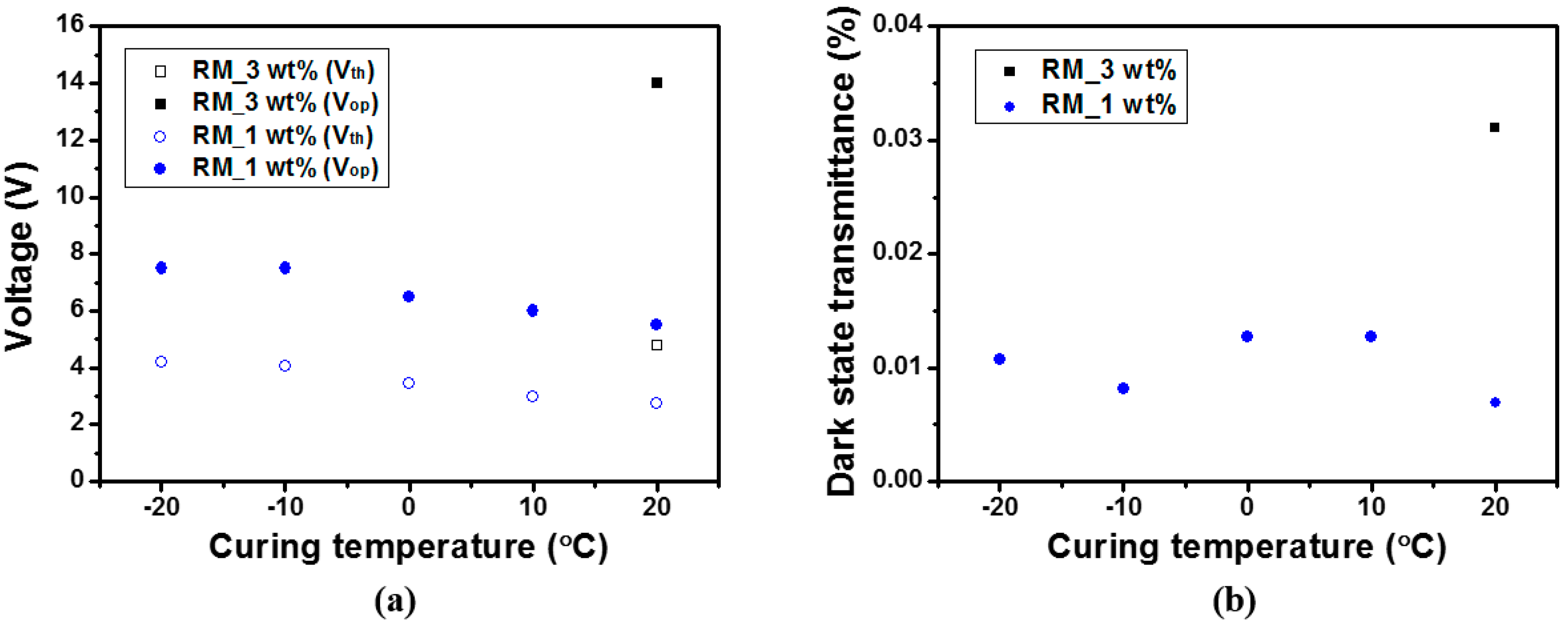

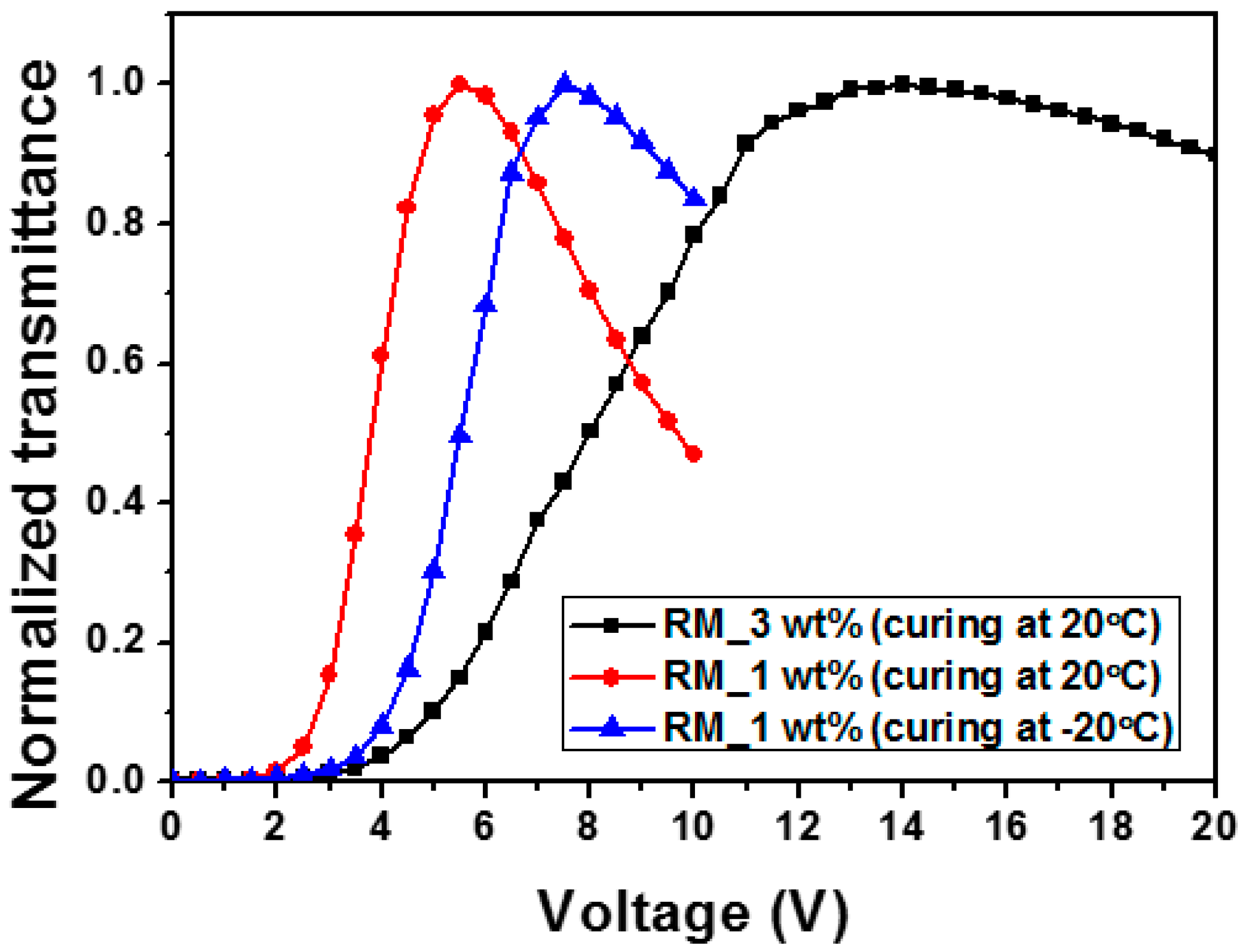

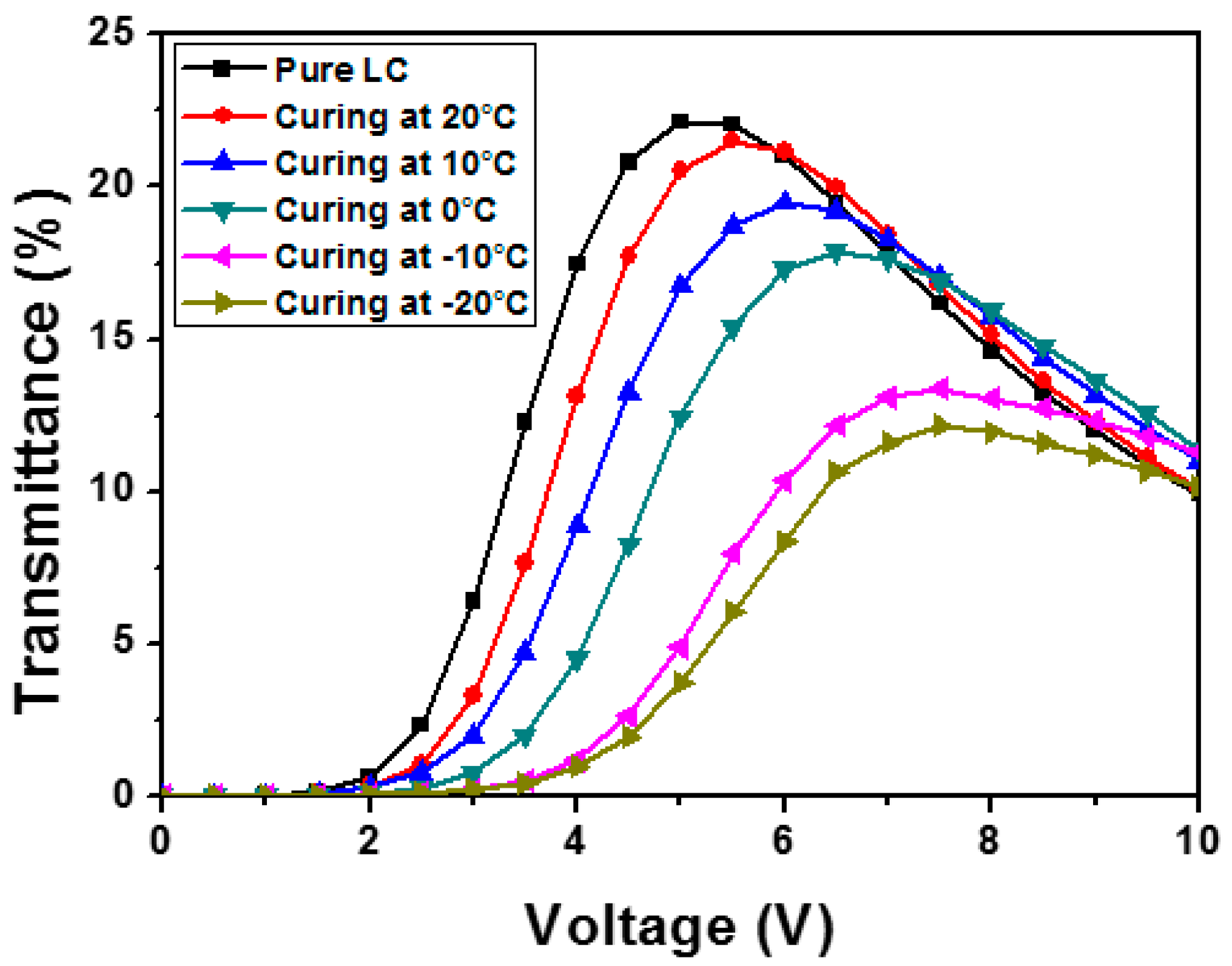

We investigated the electro-optic characteristics of a polymer-stabilized, in-plane-switching (IPS) liquid crystal cell as the UV curing temperature was varied. We found that the response time of an IPS cell could be reduced through low-temperature UV curing of a low concentration of polymer material. We also found that fast switching could be achieved at a low operating voltage and with little light leakage in the dark state. Low-temperature curing of the polymer structure could greatly reduce the average distance between polymer bundles even at low polymer concentrations. Therefore, the decrease in transmittance of a polymer-stabilized IPS cell could be minimized by increasing the cell gap without sacrificing the response time because of the sufficiently high anchoring strength of the polymer structure obtained through low-temperature UV curing. View Full-Text
Keywords: liquid crystals; liquid crystal device; in-plane switching; polymer network liquid crystals; liquid crystal device; in-plane switching; polymer network
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
