Article

Pr9.33(SiO4)6O2 Crystals: Czochralski Growth and Near UV-Visible FR Performance

College of Chemistry, Fuzhou University, Fuzhou 350116, China
*
Author to whom correspondence should be addressed.
Crystals 2017, 7(8), 229; https://doi.org/10.3390/cryst7080229
Submission received: 29 June 2017 / Revised: 21 July 2017 / Accepted: 21 July 2017 / Published: 31 July 2017
(This article belongs to the Section Crystalline Materials)

Abstract

:
Pr9.33(SiO4)6O2 crystals have been grown by the Cz-method for the first time for near UV–visible Faraday rotation applications. Rietveld refinement of XRD data demonstrates that the compound crystallizes in the oxyapatite structure with space group P63/m, with oxyapatite structure. In contrast to Tb3Ga5O12, Pr9.33(SiO4)6O2 crystal shows a higher transparency in the UV–visible wavelength region, and a shorter cutoff at 270 nm. The Faraday rotation performance and the temperature-dependence of the field-cooled (FC) and zero-field-cooled (ZFC) magnetic susceptibility have been investigated, which indicate that the Pr9.33(SiO4)6O2 crystal exhibits paramagnetic behavior in the experimental temperature range from 2 to 300 K and yields a larger FR angle which rapidly increases towards the cutoff. Pr9.33(SiO4)6O2 crystal is therefore a promising magneto-optical crystal in particular for potential FR applications in the near UV–visible spectral region.

1. Introduction

The Faraday isolators (FIs) using the non-reciprocity principle are poised to be a significant player in a modern optical information processing system to eliminate optical noise and feedback [1,2,3,4,5]. Yttrium-iron garnet (Y3Fe5O12, YIG), the most commonly used FI material in the near IR spectral region so far, is transparent in the 1.2~5.0 μm wavelength regions and exhibits an extremely large Faraday rotation (FR) angle [6,7]. Nevertheless, with the rapid expansion of visible solid-state lasers and laser-diodes, as well as excimer lasers in the UV, the demand of FIs operated at these spectral regions is rapidly promoting [8,9,10], while the conventional Yttrium-iron garnet crystals are not practical because of their poor transparency in this wavelength region [11].
The most widely employed magneto-optical (MO) materials for the visible and near IR spectral regions are terbium-gallium garnet (Tb3Ga5O12, TGG) crystals [1,12] and Tb-doped glasses [13,14,15]. Nevertheless, due to poor relative stability and low thermal conductivity, Tb-doped glasses could not be employed in high-power lasers [16]. For another, TGG crystal, as a crystalline MO material, is a congruently melting material and therefore can be synthesized by the Czochralski (Cz) method. However, because of the evaporation and decomposition of Ga2O3 from the congruent melt during the Czochralski growth process, its growth technique is not exempt of difficulties [17,18]. Furthermore, owing to the electric-dipole 4f-4f transitions of the MO active ion Tb3+, TGG crystal presents two physical drawbacks: the increasing transmission loss in the visible spectral region, and the strong absorption bands in the near UV [19]. Therefore, with the continuous development of fiber-lasers and laser-diodes operating at shorter spectral regions, the demand of FIs operating in the UV–visible wavelength region is rapidly increasing.
Among the rare earth ions, Tb3+, Ce3+, Pr3+, and Dy3+ have been pointed to exhibit the best MO performance [20,21], and Pr3+ is more transparent in the near UV. Taking into account the requirements for a new generation of MO materials employed in the near UV–visible spectral region, Pr9.33(SiO4)6O2 (PSO), a member of the oxyapatite-type silicate [22,23,24], which crystallizes in the hexagonal system and demonstrates great potential for application in phosphors [25] and high-power lasers [26,27], has attracted growing attention from our research team in recent years.
PSO crystal melts congruently and presents strong crystallizability [28], hence, in the present investigation, we try to adopt the common RF-heating Cz-method to grow PSO crystals. The optical transmission, magnetic, and magneto-optical performances have also been discussed.

2. Experimental

PSO single crystals were synthesized by the common Cz-technique with RF-heating [29]. The polycrystalline materials used for PSO crystals growth were synthesized by the solid-phase reaction method using high-purity initial reagents Pr6O11, and SiO2 powders. The stoichiometric amounts of starting materials were weighed accurately with the overweight 1 wt% of SiO2 in order to make up for its potential volatilization losses during the PSO crystals growth. The raw materials mixed homogeneously in a corundum mortar with the ethanol were pressed into tablets and then sintered at 1470 K in air for 23 h.
The polycrystalline tablets with single apatite phase were added into an iridium crucible with dimensions of Ø56 × 43 mm2, and then heated by a ratio frequency induction furnace under a protective atmosphere of N2. After the PSO polycrystalline material was melted completely, the <001> oriented PSO crystal, obtained through growth on the iridium wire, was used as seeds and dipped into the PSO melt with 15~20 rpm rotating rate and 1.0~1.5 mm h−1 pulling rate. After growth, the PSO crystal was pulled out of the melt and then annealed at a rate of 15~60 K h−1 to room temperature.
The photograph of the as-grown PSO single crystal is shown in Figure 1a. The PSO crystal is crack free and transparent with a light green coloration. Owing to the optically uniaxial crystal, PSO single crystal should be oriented along the crystallographic c-axis to avoid the effects of birefringence in the FR measurements. The PSO crystal was oriented by X-ray diffraction, and the wafers, cut along the (001) crystal plane, are shown in Figure 1b.
The X-ray diffraction measurement for Rietveld refinement were carried out on a Rigaku-Ultima III X-ray diffractometer (Rigaku, Tokyo, Japan) using the Cu-Kα line (λ = 1.54051 Å) between 10° < 2θ < 80° with a scanning step of 0.01° and a scanning rate of 0.12°/min at room temperature. Structural parameter refinement of PSO crystal was carried out by analyzing the X-ray diffraction data using the DBWS-9411 PC program [30]. The absorption spectrum of as-grown PSO crystal was tested by using a Lambda900 UV-Vis-NIR spectrophotometer (Perkin-Elmer, Waltham, MA, USA), over the spectral range of 200–800 nm at room temperature with a 2 nm resolution. The temperature-dependence of the field-cooled (FC) and zero-field-cooled (ZFC) magnetic susceptibilities were tested by using a superconducting quantum interference device magnetometer (SQUID, Quantum Design MPMS-XL, San Diego, CA, USA) in the temperature range from 2 to 300 K with an applied field of 0.1 T. Faraday rotation angles of the as-grown PSO single crystal along the crystallographic c-axis were measured by using the photo-extinction technique [31] at room temperature with the average values of six data for interpretation. A commercial TGG single crystal, supplied by Physcience Opto-electronic Co., Ltd. Beijing, was used as a reference material and has also been evaluated under the same test conditions.

3. Results and Discussion

3.1. Structure Refinement

The powder X-ray diffraction pattern of the as-grown PSO single crystal are displayed in Figure 2. The Rietveld refinement unambiguously indicates the existence of the single hexagonal oxyapatite phase with the space group P63/m. The atomic coordinates, unit cell parameters, and refinement results for the as-grown PSO crystal are compiled in Table 1, which indicate that each cation occupies the expected cationic site according to the atomic radius, that is, Pr9.33(SiO4)6O2. The 6h sites are fully occupied by Pr3+ and the cation vacancy are all present at the 4f sites with concentration of 6.7%. It is noteworthy that the oxide ions coordinated by Pr (1) ions at the 4f site are all belong to (SiO4)4 group. However, the other oxide ions, at the 2a site, have three-fold coordination with the Pr (2) ions at the 6h site and do not belong to any (SiO4)4 group. Therefore, placing Pr ions on the 6h site can satisfy electrostatic charge balance more efficiently. On the other hand, the 4f site is an ionic site, while the 6h site is a covalent site on the basis of the bond valence sums [32]. So it seems to be that the cation vacancies are preferred at the 4f site. These conclusions from our Rietveld refinement present good agreement with previous ones found in other oxyapatite-type silicates [22,23,24,28].

3.2. Optical Transmission

The absorption spectrum of as-grown crystal PSO in the near UV–visible spectral region is given in Figure 3, in contrast to the commercial TGG crystal. As can be seen, the absorbance of TGG continuously increases in the visible spectral region till the beginning of the 7F65D3, 5D2 Tb3+ absorption bands below 390 nm, which seriously restricts the application of TGG FIs in the UV–visible spectral region. In comparison with TGG, PSO crystal presents a smaller dispersion, a higher transparency in the near UV–visible spectral region, and a shorter cutoff at 265 nm, which enables the use of PSO single crystals also at spectral region where TGG crystals could not be employed. However, a strong absorption band, attributed to the energy level transition 3H41S0 reduces the transparency below 270 nm. In addition, PSO presents two absorption bands in the 430–497 nm and the 570–612 nm wavelength regions, which are mainly related to the energy level transitions 3H43PJ and 3H41D2 of Pr3+ in the oxyapatite structure, and responsible for the typical light green coloration of PSO crystal.

3.3. Paramagnetic Behavior

The temperature-dependence of the magnetic susceptibility ( χ M ) for as-grown PSO crystal measured over the temperature range from 2 to 300 K are exhibited in Figure 4. Paramagnetic behavior was observed in the experimental temperature range, that is, no magnetic interaction was found down to 2.0 K. The reciprocal magnetic susceptibility as a function of the temperature is shown in the inset of Figure 4, and the solid line indicated a Curie–Weiss behavior above 70 K. The deviation from the Curie-Weiss law below 70 K may related to the influence of the crystal field on the magnetic ions Pr3+ in the PSO compound [33,34]. A fit of the χ M 1 T curve to the Curie–Weiss law from 200 to 300 K gives the effective magnetic moment ( μ eff ) of PSO to be 3.54(3) µB, which is in good agreement with the theoretical effective magnetic moment for a free Pr3+ ion, i.e., μ cal = 3.58 µB [35].

3.4. Magneto-Optical Performance

The magneto-optical response of as-grown PSO single crystal along the crystallographic c-axis at room temperature is exhibited in Figure 5 as a function of the wavelength. It is seen that, although PSO crystal just has a slightly larger Faraday rotation angle than that of the commercial TGG crystal in the visible spectral region, the Verdet constant increment of PSO in the near UV spectral region is very remarkable: VPSO varies from 511 to 1590 rad T−1 m−1 between 400 and 300 nm.
On the basis of FR standard theory, which considers a single electronic transition frequency, the Verdet constants (V), are proportional to the inverse of the wavelength square (λ2) and to the concentration of magnetic rare-earth ions (NRE) as follows
V = E λ 2 λ 0 2
where λ0 corresponds to the wavelength of RE3+ ions 4f-4f5d transition, and the factor E includes all the proportionality factor, e.g., the Lande splitting factor, the concentration of magnetic ions NRE, and the transition probability [36]. Fitting the experimental data to Equation (1) yields E and λ0, listed in Table 2. As magneto-optic effect of PSO crystal comes mainly from Pr ions, we can assume that the concentration of magnetic ions and Pr ions is approximately the same. The concentration of Pr ions can be obtained according to the refined structural parameters of PSO. As shown in Table 2, the transition wavelengths of Pr3+ in PSO is slightly smaller than that of Tb3+ in TGG at 239 and 260 nm, respectively. Moreover, the rotation efficiency of Tb3+ in TGG clearly overcomes that of Pr3+ in PSO, i.e., (E/NTb)TGG > (E/NPr)PSO. Hence, it can be deduced that the larger Verdet constant observed in PSO is merely owing to a higher concentration of the MO active RE3+ ions. Moreover, in comparison with PrF3, PSO crystal not only presents a larger transition wavelength, i.e., (λ0)PSO > (λ0)PrF3, but also a higher rotation efficiency, i.e., (E/NPr)PSO >> (E/NPr)PrF3, which makes it have a larger Verdet constant than that of PrF3 [2].

4. Conclusions

In summary, the performance of oxyapatite-type PSO crystals for magneto-optical applications in the near UV–visible spectral region was investigated. Crack free PSO single crystals with high optical-quality and large size were successfully fabricated by the Cz-method. The Rietveld refinement indicates that the as-grown PSO crystallizes in P63/m, with oxyapatite structure. As expected, PSO crystal exhibits paramagnetic behavior down to 2 K and presents a higher transparency in the near UV–visible spectral region, as well as a shorter cutoff at 265 nm. In comparison with Pr-based crystal PrF3 and commercially available TGG, we demonstrate that the as-grown PSO crystal yields a larger FR which rapidly increases towards the cutoff. Presented results therefore indicate that PSO crystals are promising magneto-optical crystal in particular for potential magneto-optical applications in the near UV–visible spectral region.

Acknowledgments

This work was supported by National Natural Science Foundation of China (Nos. 51602054, 61575045 and 51272044), and the Natural Science Foundation of Fujian Province (No. 2013J01180).

Author Contributions

Xin Chen and Jianzhong Chen conceived and designed the experiments; Xin Chen performed the experiments, analyzed the data, and wrote the paper; Jianzhong Chen modified the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Khazanov, E.; Andreev, N.; Palashov, O.; Poteomkin, A.; Sergeev, A.; Mehl, O.; Reitze, D.H. Effect of terbium gallium garnet crystal orientation on the isolation ratio of a Faraday isolator at high average power. Appl. Opt. 2002, 41, 483–492. [Google Scholar] [CrossRef] [PubMed]
  2. Vasyliev, V.; Villora, E.G.; Nakamura, M.; Sugahara, Y.; Shimamura, K. UV–visible Faraday rotators based on rare-earth fluoride single crystals: LiREF4 (RE = Tb, Dy, Ho, Er and Yb), PrF3 and CeF3. Opt. Express 2012, 20, 14460–14470. [Google Scholar] [CrossRef] [PubMed]
  3. Bedarev, V.A.; Pashchenko, M.I.; Merenkov, D.N.; Savina, Y.O.; Pashchenko, V.O.; Gnatchenko, S.L.; Bezmaternykh, L.N.; Temerov, V.L. The Faraday effect in TbFe3(BO3)4 and TbAl3(BO3)4 borates. J. Magn. Magn. Mater. 2014, 362, 150–153. [Google Scholar] [CrossRef]
  4. Tsushima, K.; Koshizuka, N. Research activities on magneto-optical devices in Japan. IEEE Trans. Magn. 1987, 23, 3473–3478. [Google Scholar] [CrossRef]
  5. Tanaka, K.; Tatehata, N.; Fujita, K.; Hirao, K.; Soga, N. The Faraday effect and magneto-optical figure of merit in the visible region for lithium borate glasses containing Pr3+. J. Phys. D Appl. Phys. 1998, 31, 2622–2627. [Google Scholar] [CrossRef]
  6. Shoji, Y.; Mizumoto, T.; Yokoi, H.; Hsieh, I.W.; Osgood, R.M. Magneto-optical isolator with silicon waveguides fabricated by direct bonding. Appl. Phys. Lett. 2008, 92, 071117. [Google Scholar] [CrossRef]
  7. Modi, K.B.; Vara, R.P.; Vora, H.G.; Chhantbar, M.C.; Joshi, H.H. Infrared spectroscopic study of Fe3+ substituted yttrium iron garnet. J. Mater. Sci. 2004, 39, 2187–2189. [Google Scholar] [CrossRef]
  8. Lee, D.; Choi, K.; Kim, K.D.; Park, Y. Visible light wireless communications based on predistorted OFDM. Opt. Commun. 2012, 285, 1767–1770. [Google Scholar] [CrossRef]
  9. Cui, K.Y.; Quan, J.G.; Xu, Z.Y. Performance of indoor optical femtocell by visible light communication. Opt. Commun. 2013, 298–299, 59–66. [Google Scholar] [CrossRef]
  10. Das, P.; Park, Y.; Kim, K.D. Performance of color-independent OFDM visible light communication based on color space. Opt. Commun. 2014, 324, 264–268. [Google Scholar] [CrossRef]
  11. Geho, M.; Sekijima, T.; Fujii, T. Growth of terbium aluminum garnet (Tb3Al5O12; TAG) single crystals by the hybrid laser floating zone machine. J. Cryst. Growth 2004, 267, 188–193. [Google Scholar] [CrossRef]
  12. Yasuhara, R.; Tokita, S.; Kawanaka, J.; Kawashima, T.; Kan, H.; Yagi, H.; Nozawa, H.; Yanagitani, T.; Fujimoto, Y.; Yoshida, H.; et al. Cryogenic temperature characteristics of Verdet constant on terbium gallium garnet ceramics. Opt. Express 2007, 15, 11255–11261. [Google Scholar] [CrossRef] [PubMed]
  13. Giesen, A.; Speiser, J. Fifteen years of work on thin-disk lasers: Results and scaling laws. IEEE J. Sel. Top. Quantum 2007, 13, 598–609. [Google Scholar] [CrossRef]
  14. Hayakawa, T.; Nogami, M.; Nishi, N.; Sawanobori, N. Faraday rotation effect of highly Tb2O3/Dy2O3-concentrated B2O3−Ga2O3−SiO2−P2O5 glasses. Chem. Mater. 2002, 14, 3223–3225. [Google Scholar] [CrossRef]
  15. Chen, Q.L.; Wang, H.; Wang, Q.W.; Chen, Q.P. Properties of tellurite core/cladding glasses for magneto-optical fibers. J. Non-Cryst. Solids 2014, 400, 51–57. [Google Scholar] [CrossRef]
  16. Miyanaga, N.; Azechi, H.; Tanaka, K.A.; Kanabe, T.; Jitsuno, T.; Kawanaka, J.; Fujimoto, Y.; Kodama, R.; Shiraga, H.; Knodo, K.; et al. 10-kJ PW laser for the FIREX-I program. J. Phys. IV France 2006, 133, 81–87. [Google Scholar] [CrossRef] [Green Version]
  17. Linares, R.C. Growth of garnet laser crystals. Solid State Commun. 1964, 2, 229–231. [Google Scholar] [CrossRef]
  18. Carruthers, J.R.; Kokta, M.; Barns, R.L.; Grasso, M. Nonstoichiometry and crystal growth of gadolinium gallium garnet. J. Cryst. Growth 1973, 19, 204–208. [Google Scholar] [CrossRef]
  19. Chen, X.; Zhang, W.H.; Wan, Q.P.; Guo, F.Y.; Zhuang, N.F.; Fu, H.; Xie, X.T.; Chen, J.Z. Czochralski growth of Sr2Tb8(SiO4)6O2 crystals for visible–near IR magneto-optical applications. Opt. Mater. 2014, 37, 188–192. [Google Scholar] [CrossRef]
  20. Berger, S.B.; Rubinstein, C.B.; Kurkjian, C.R.; Treptow, A.W. Faraday rotation of rare-earth (III) phosphate glasses. Phys. Rev. 1964, 133, A723–A727. [Google Scholar] [CrossRef]
  21. MacFarlane, D.R.; Bradbury, C.R.; Newman, P.J.; Javorniczky, J. Faraday rotation in rare earth fluorozirconate glasses. J. Non-Cryst. Solids 1997, 213–214, 199–204. [Google Scholar] [CrossRef]
  22. Higuchi, M.; Katase, H.; Kodaira, K.; Nakayama, S. Float zone growth and characterization of Pr9.33(SiO4)6O2 and Sm9.33(SiO4)6O2 single crystals with an apatite structure. J. Cryst. Growth 2000, 218, 282–286. [Google Scholar] [CrossRef]
  23. Kolitsch, U.; Seifert, H.J.; Aldinger, F. The Identity of Monoclinic La2O3 and Monoclinic Pr2O3 With La9.33(SiO4)6O2 and Pr9.33(SiO4)6O2, Respectively. J. Solid State Chem. 1995, 120, 38–42. [Google Scholar] [CrossRef]
  24. Masubuchi, Y.; Higuchi, M.; Takeda, T.; Kikkawa, S. Oxide ion conduction mechanism in RE9.33(SiO4)6O2 and Sr2RE8(SiO4)6O2 (RE = La, Nd) from neutron powder diffraction. Solid State Ion. 2006, 177, 263–268. [Google Scholar] [CrossRef]
  25. Yamane, A.; Kunimoto, T.; Kobayashi, H. Luminescent properties of Tb-activated rare-earth oxyapatite silicate MLn4Si3O13 (M = Ca, Sr, Ln = La, Gd). Phys. Status Solidi C 2006, 3, 2705–2708. [Google Scholar] [CrossRef]
  26. Lebedev, V.A.; Voroshilov, I.V.; Ignatiev, B.V.; Gavrilenko, A.N.; Isaev, V.A.; Shestakov, A.V. Spectroscopy of ytterbium in Gd4CaO(SiO4)3 (CGS). J. Lumin. 2000, 92, 139–144. [Google Scholar] [CrossRef]
  27. Druon, F.; Chénais, S.; Raybaut, P.; Balembois, F.; Georges, P.; Gaumé, R.; Haumesser, P.H.; Viana, B.; Vivien, D.; Dhellemmes, S.; et al. Apatite-structure crystal, Yb3+: SrY4(SiO4)3O, for the development of diode-pumped femtosecond lasers. Opt. Lett. 2002, 27, 1914–1916. [Google Scholar] [CrossRef]
  28. Chen, X.; Gong, Z.L.; Fu, H.; Zhuang, N.F.; Zhang, W.H.; Xie, X.T.; Guo, F.Y.; Chen, J.Z. Czochralski growth and Faraday rotation properties of Tb9.33(SiO4)6O2 crystals. J. Cryst. Growth 2015, 418, 126–129. [Google Scholar] [CrossRef]
  29. Liebertz, J. Crystal growth from melts of high viscosity. Prog. Cryst. Growth Charact. 1983, 6, 361–369. [Google Scholar] [CrossRef]
  30. Young, R.A.; Shakthivel, A.; Moss, T.S.; Paiva-Santos, C.O. DBWS-9411-an upgrade of the DBWS*.* programs for Rietveld refinement with PC and mainframe computers. J. Appl. Crystallogr. 1995, 28, 366–367. [Google Scholar] [CrossRef]
  31. Yoshida, H.; Tsubakimoto, K.; Fujimoto, Y.; Mikami, K.; Fujita, H.; Miyanaga, N.; Nozawa, H.; Yagi, H.; Yanagitani, T.; Nagata, Y.; et al. Optical properties and Faraday effect of ceramicterbium gallium garnet for a room temperatureFaraday rotator. Opt. Express 2011, 19, 15181–15187. [Google Scholar] [CrossRef] [PubMed]
  32. Takahashi, M.; Uematsu, K.; Ye, Z.G.; Sato, M. Single-Crystal Growth and Structure Determination of a new oxide apatite, NaLa9(GeO4)6O2. J. Solid State Chem. 1998, 139, 304–309. [Google Scholar] [CrossRef]
  33. Rosenkranz, S.; Ramirez, A.P.; Hayashi, A.; Cava, R.J.; Siddharthan, R.; Shastry, B.S. Crystal-field interaction in the pyrochlore magnet Ho2Ti2O7. J. Appl. Phys. 2000, 87, 5914–5916. [Google Scholar] [CrossRef]
  34. Gingras, M.; Hertog, B.; Faucher, M.; Gardner, J.; Dunsiger, S.; Chang, L.; Gaulin, B.; Raju, N.; Greedanm, J. Thermodynamic and single-ion properties of Tb3+within thecollective paramagnetic-spin liquid state of the frustrated pyrochlore antiferromagnet Tb2Ti2O7. Phys. Rev. B 2000, 62, 6496–6511. [Google Scholar] [CrossRef]
  35. Hiroaki, N.; Makoto, W.; Yukio, H. Crystal structures, magnetic and thermal properties of Ln3IrO7(Ln=Pr, Nd, Sm, and Eu). J. Solid State Chem. 2004, 177, 739–744. [Google Scholar]
  36. Qiu, J.R.; Tanaka, K.; Sugimoto, N.; Hirao, K. Faraday effect in Tb3+-containing borate, fluoride and fluorophosphates glasses. J. Non-Cryst. Solids 1997, 213–214, 193–198. [Google Scholar] [CrossRef]

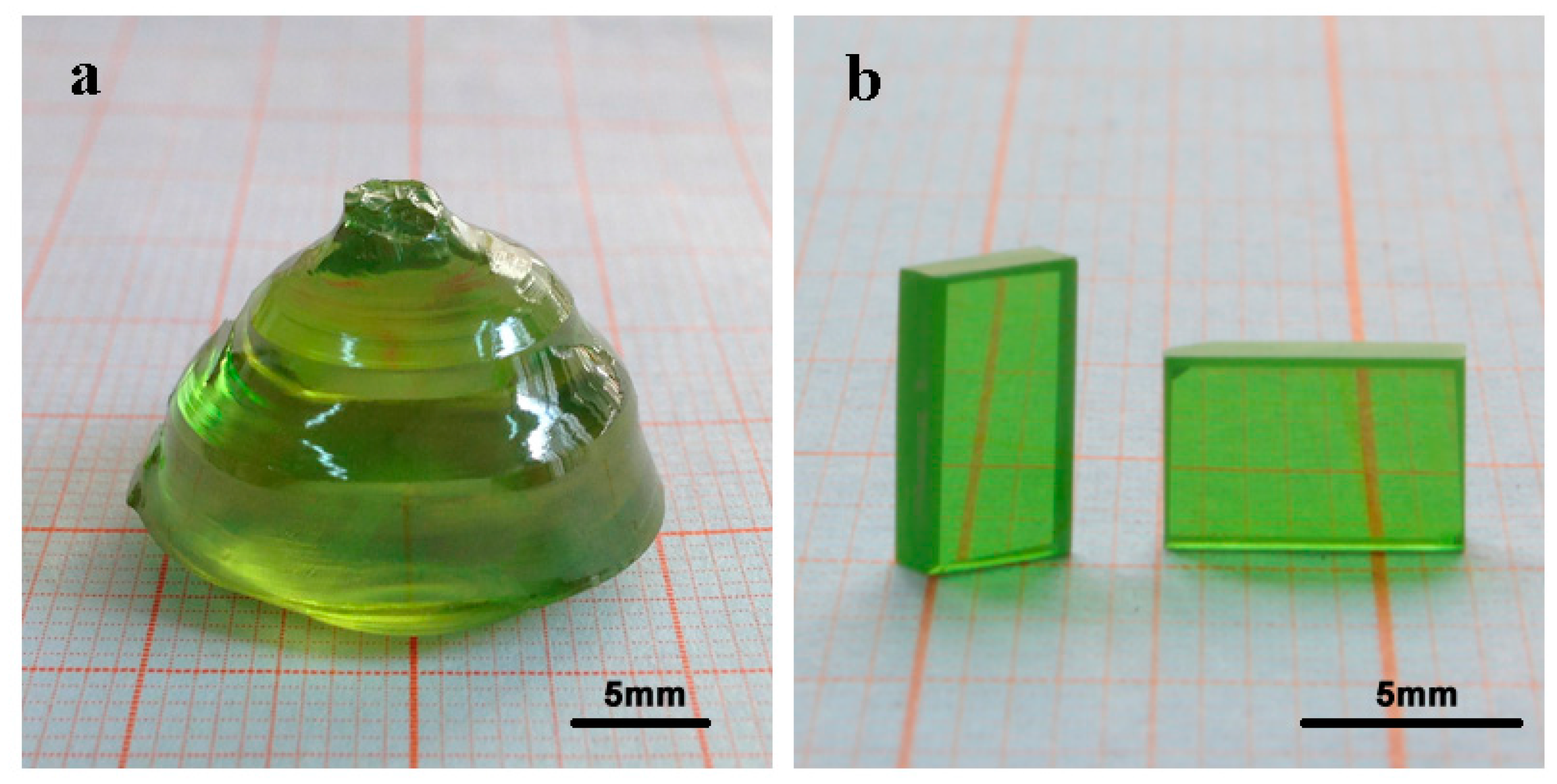

Figure 1. Photographs of as-grown PSO single crystal (a), and polished wafers (b).
Figure 1. Photographs of as-grown PSO single crystal (a), and polished wafers (b).
Crystals 07 00229 g001

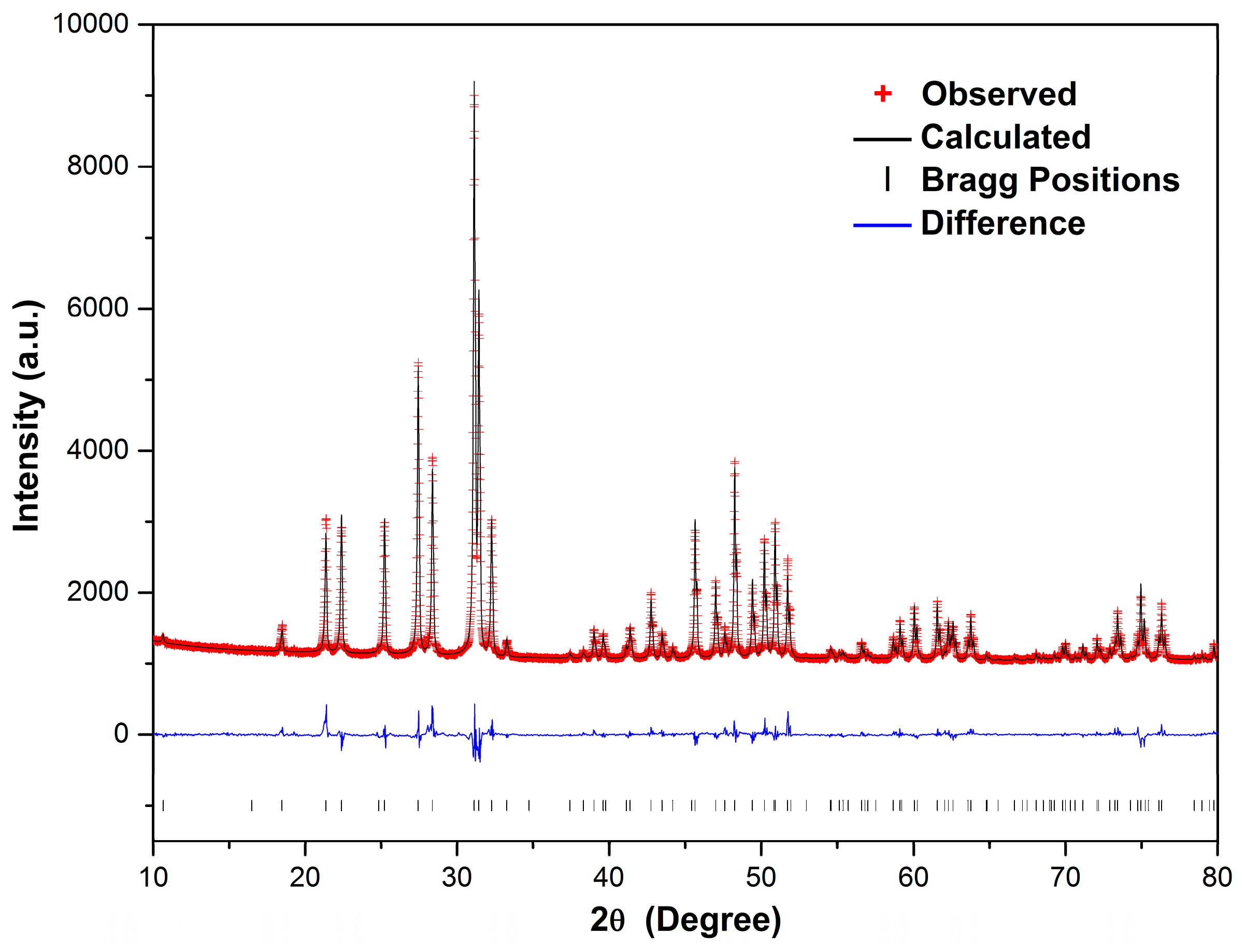

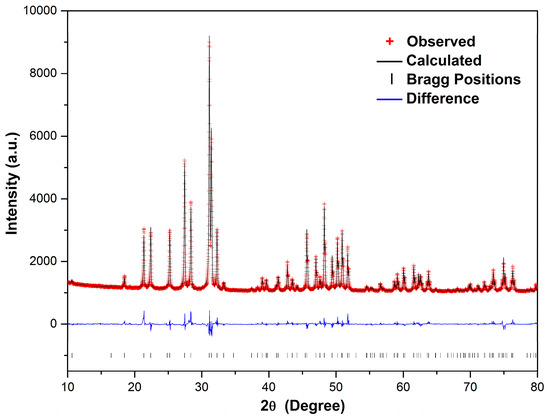

Figure 2. Fitted diffraction profiles of the as-grown PSO single crystal at room temperature.
Figure 2. Fitted diffraction profiles of the as-grown PSO single crystal at room temperature.
Crystals 07 00229 g002

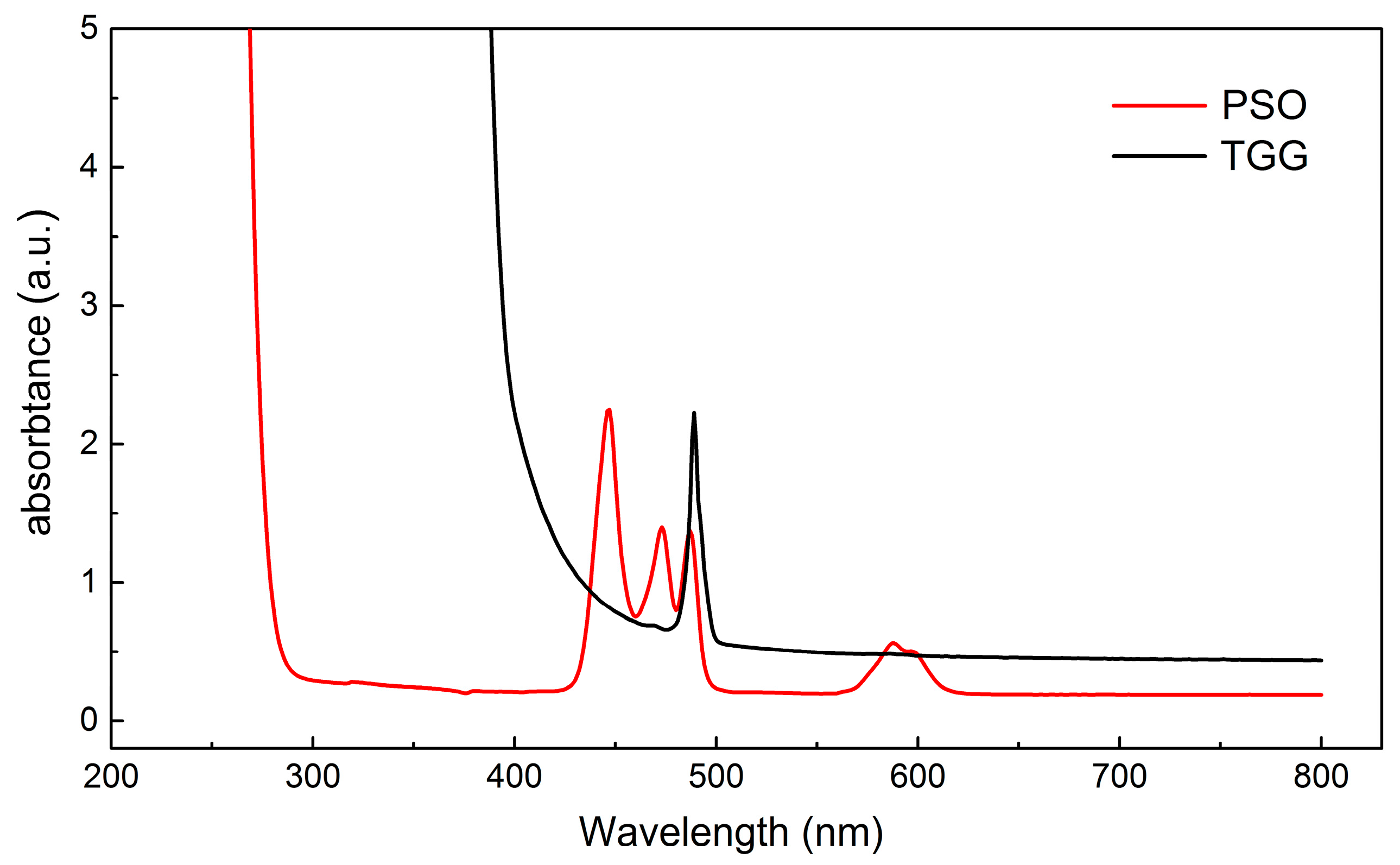

Figure 3. Absorption spectra of as-grown PSO crystal in comparison with that of commercial TGG crystal.
Figure 3. Absorption spectra of as-grown PSO crystal in comparison with that of commercial TGG crystal.
Crystals 07 00229 g003

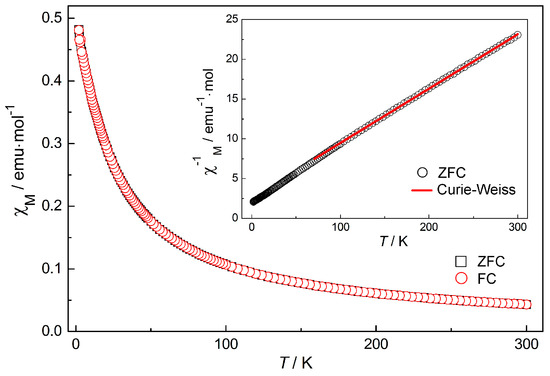

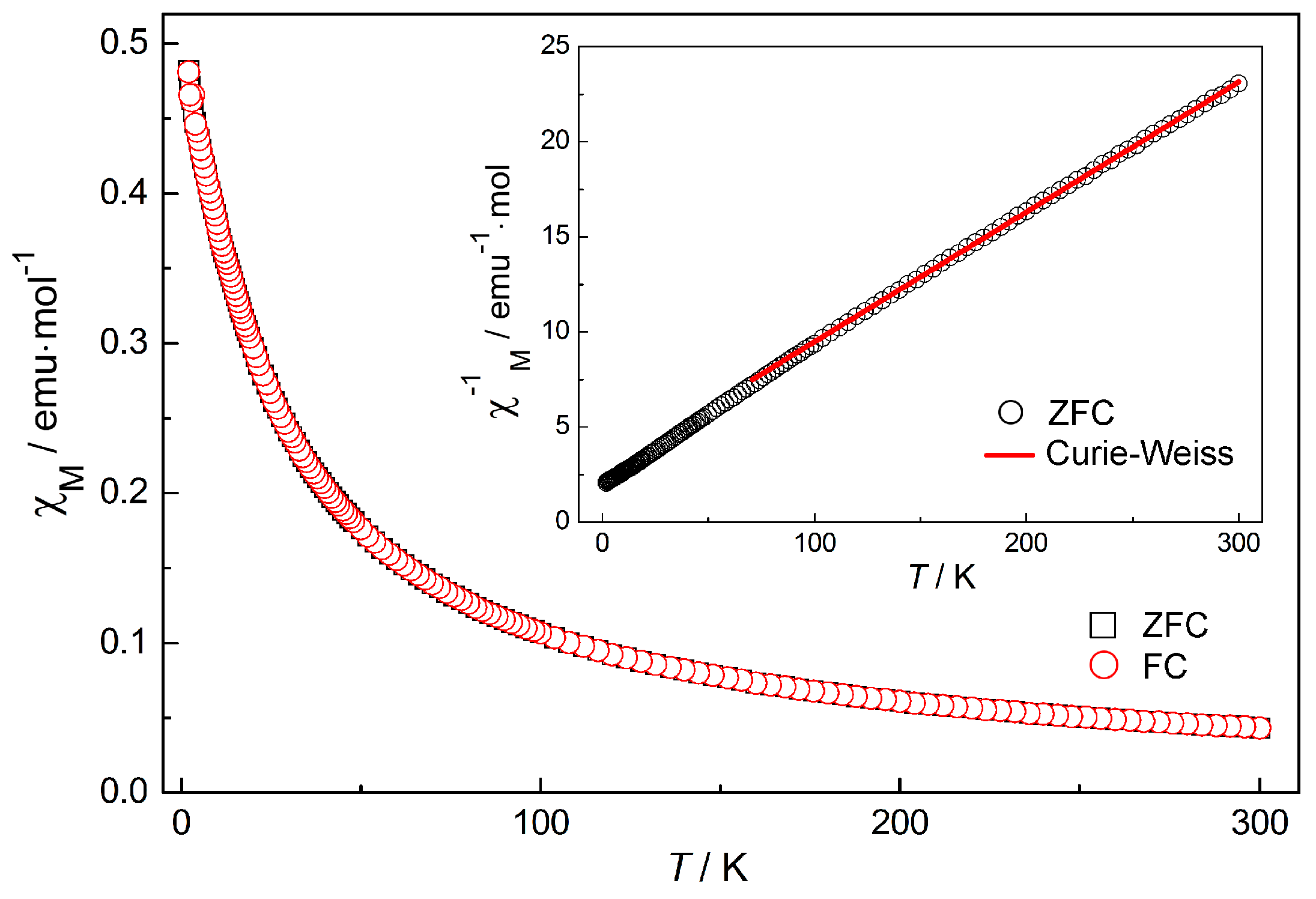

Figure 4. Temperature-dependence of the magnetic susceptibility for as-grown crystal PSO. The inset shows the reciprocal magnetic susceptibility vs. temperature curve. The solid line is the Curie–Weiss fitting.
Figure 4. Temperature-dependence of the magnetic susceptibility for as-grown crystal PSO. The inset shows the reciprocal magnetic susceptibility vs. temperature curve. The solid line is the Curie–Weiss fitting.
Crystals 07 00229 g004

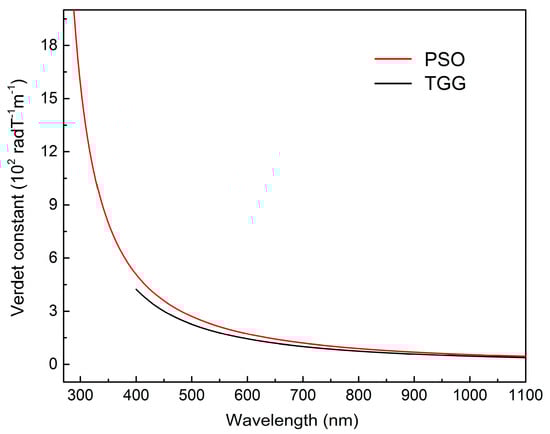

Figure 5. Verdet constant of as-grown PSO crystal vs. wavelength λ. TGG was tested as reference, and the experimental data were fitted by an equation A/(λ2λ02), with λ0 and A constants.
Figure 5. Verdet constant of as-grown PSO crystal vs. wavelength λ. TGG was tested as reference, and the experimental data were fitted by an equation A/(λ2λ02), with λ0 and A constants.
Crystals 07 00229 g005
Table 1. Refined structural parameters for the as-grown PSO crystal according to P63/m model.
Table 1. Refined structural parameters for the as-grown PSO crystal according to P63/m model.
AtomSiteSite Occ.xyz
Pr14f0.8491/32/30.0014
Pr26h1.00.01240.24001/4
Si6h1.00.39350.37021/4
O16h1.00.31650.46931/4
O26h1.00.58130.48181/4
O312i1.00.34320.25700.0735
O42a1.0001/4
Hexagonal, space group P63/m; a = b = 9.61229(3) Å, c = 7.06561(2) Å, Rwp = 6.52%.
Table 2. The fitted results of PSO, TGG, and PrF3 single crystals according to Equation (1), and the respective RE3+ ion concentrations NRE in the crystals.
Table 2. The fitted results of PSO, TGG, and PrF3 single crystals according to Equation (1), and the respective RE3+ ion concentrations NRE in the crystals.
Crystalλ0 (nm)E (107 rad nm2 T–1 m–1)NRE (1021 ions cm–3)
PSO2395.275516.71
TGG2604.259512.74
PrF3 [2]1844.596519.10
