Open AccessArticle
Crystals 2017, 7(6), 170; doi:10.3390/cryst7060170

Effect of an External Electric Field on the Kinetics of Dislocation-Free Growth of Tetragonal Hen Egg White Lysozyme Crystals

Institute for Materials Research, Tohoku University, 2-1-1 Katahira, Aoba-ku, Sendai 980-8577, Japan
*
Author to whom correspondence should be addressed.
Received: 28 April 2017 / Revised: 30 May 2017 / Accepted: 9 June 2017 / Published: 10 June 2017
(This article belongs to the Special Issue Protein Crystallization under the Presence of an Electric Field)
View Full-Text   |   Download PDF [768 KB, uploaded 12 June 2017]   |

Abstract

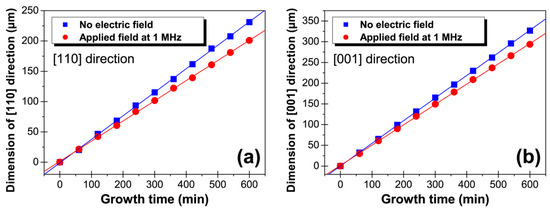

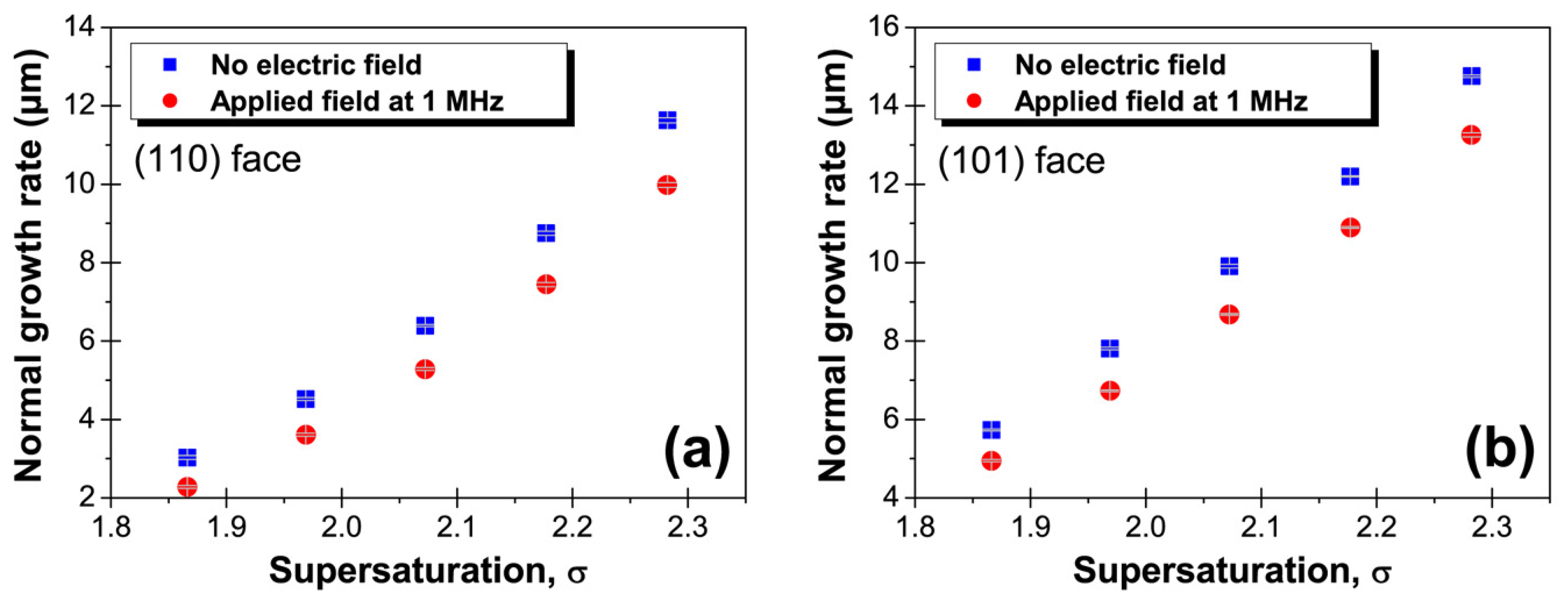

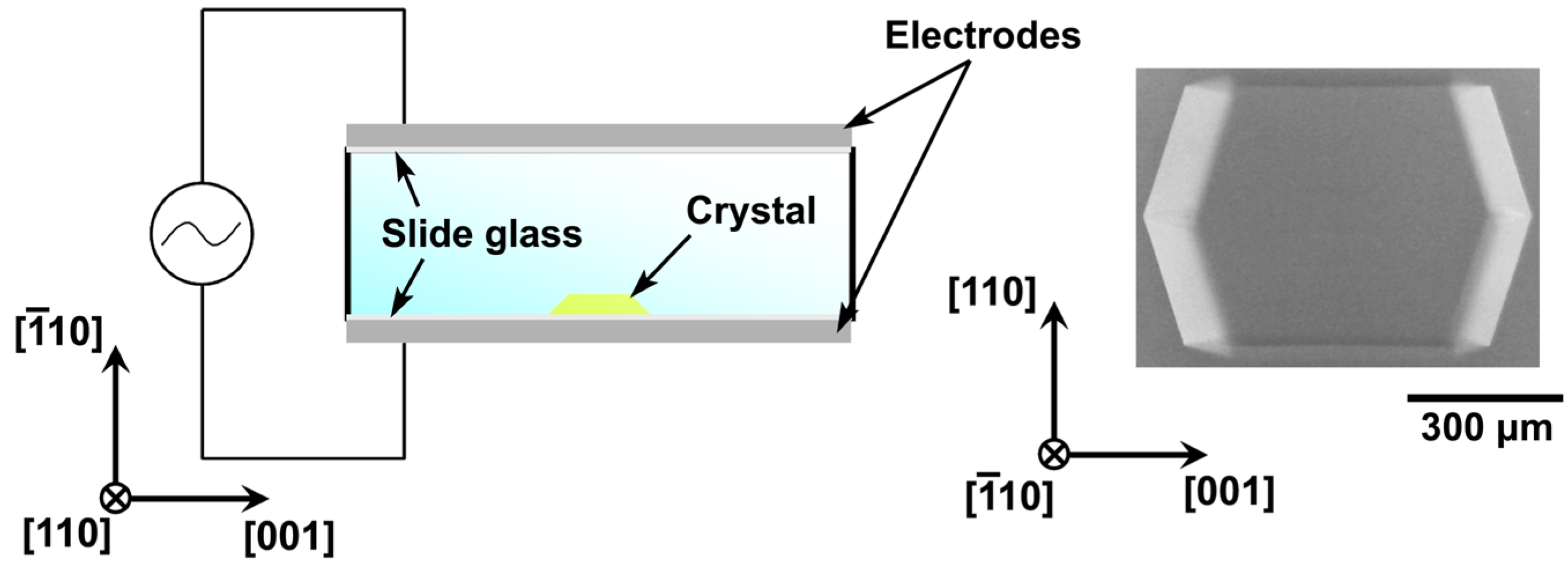

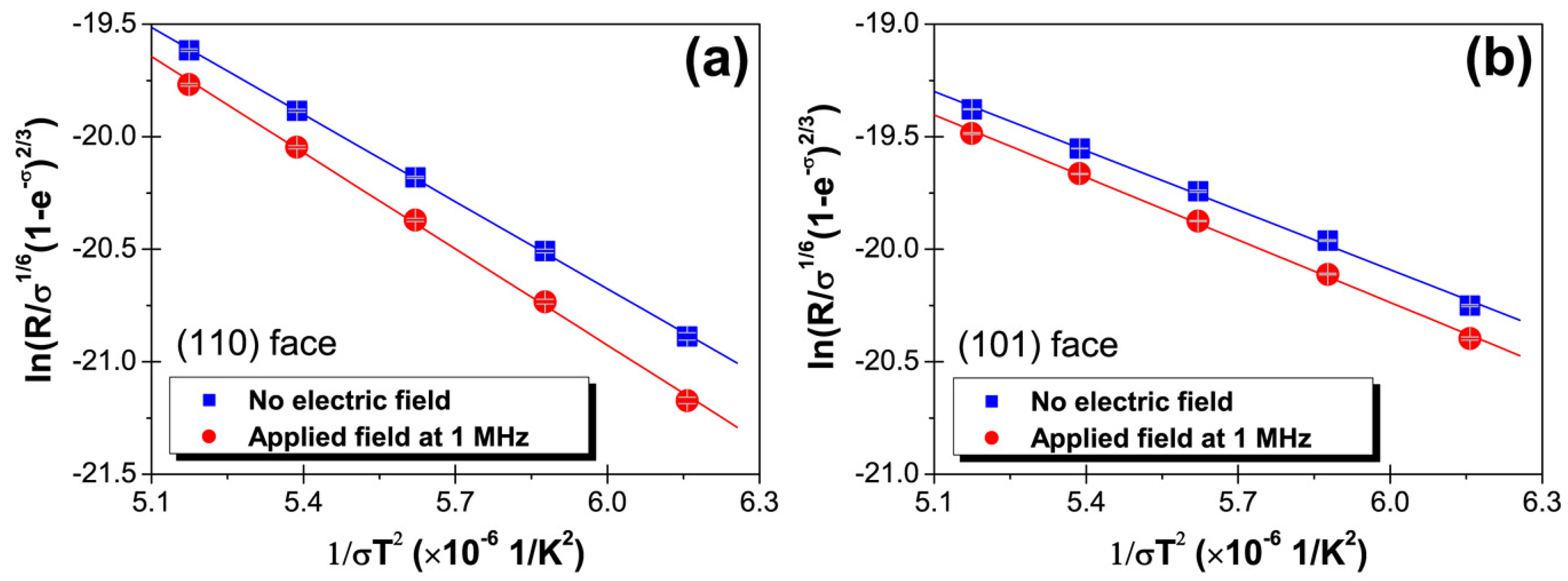

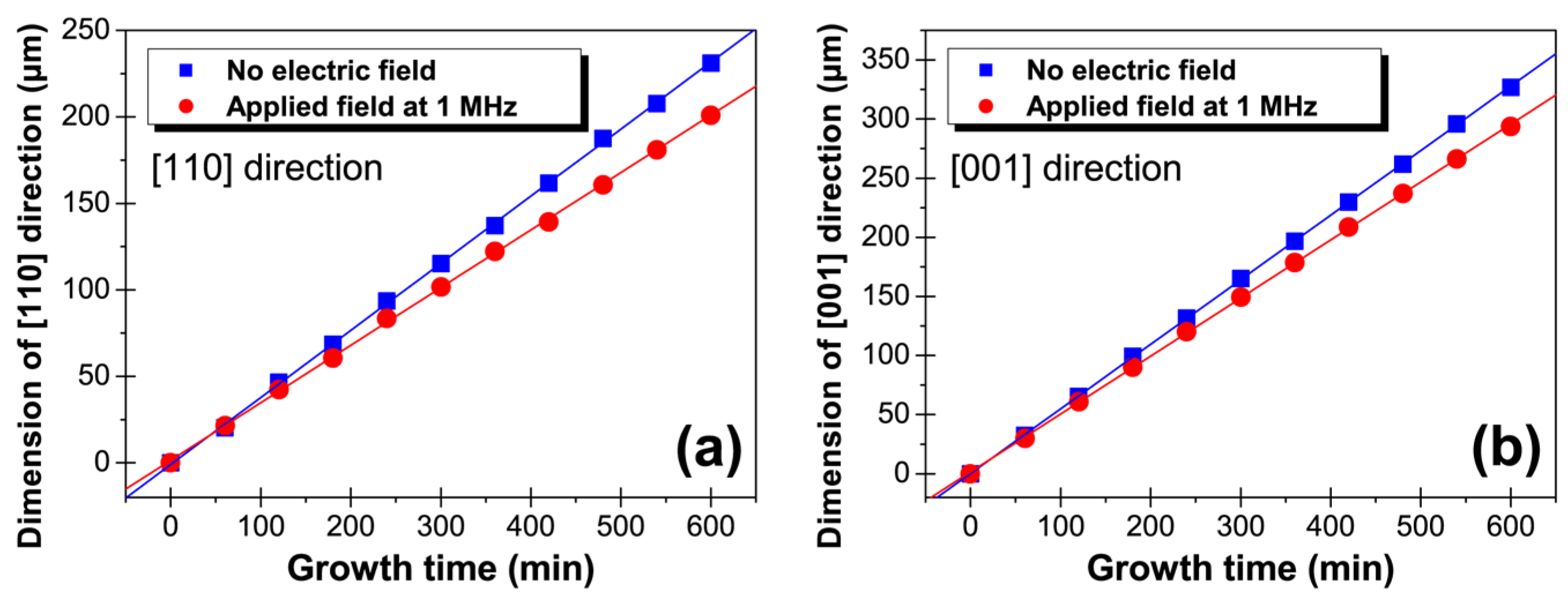

Dislocation-free tetragonal hen egg white (HEW) lysozyme crystals were grown from a seed crystal in a cell. The rates of tetragonal HEW lysozyme crystal growth normal to the (110) and (101) faces with and without a 1-MHz external electric field were measured. A decrease in the typical growth rates of the crystal measured under an applied field at 1 MHz was observed, although the overall driving force increased. Assuming that the birth and spread mechanism of two-dimensional nucleation occurs, an increase in the effective surface energy of the step ends was realized in the presence of the electric field, which led to an improvement in the crystal quality of the tetragonal HEW lysozyme crystals. This article also discusses the increase in the effective surface energy of the step ends with respect to the change in the entropy of the solid. View Full-Text
Keywords: protein crystals; growth kinetics; electric field; crystal quality protein crystals; growth kinetics; electric field; crystal quality
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Koizumi, H.; Uda, S.; Fujiwara, K.; Okada, J.; Nozawa, J. Effect of an External Electric Field on the Kinetics of Dislocation-Free Growth of Tetragonal Hen Egg White Lysozyme Crystals. Crystals 2017, 7, 170.
