Crystals 2017, 7(4), 114; doi:10.3390/cryst7040114

Fabrication of Low Dislocation Density, Single-Crystalline Diamond via Two-Step Epitaxial Lateral Overgrowth

Key Laboratory for Physical Electronics and Devices of the Ministry of Education, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Academic Editor: Yuri N. Palyanov
Received: 15 March 2017 / Revised: 13 April 2017 / Accepted: 17 April 2017 / Published: 18 April 2017
(This article belongs to the Special Issue Diamond Crystals)
View Full-Text   |   Download PDF [22468 KB, uploaded 19 April 2017]   |

Abstract

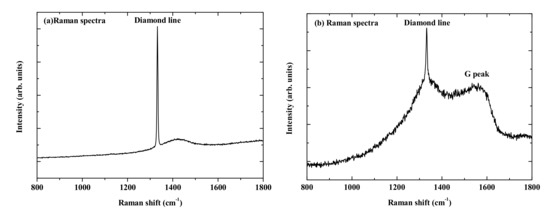

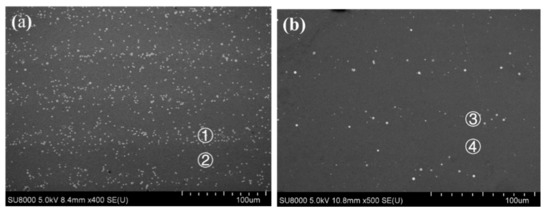

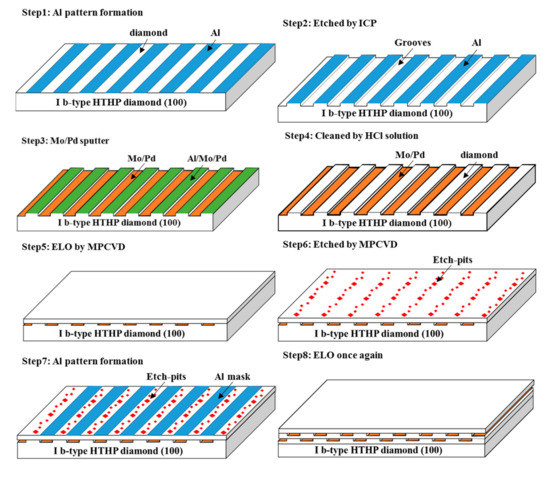

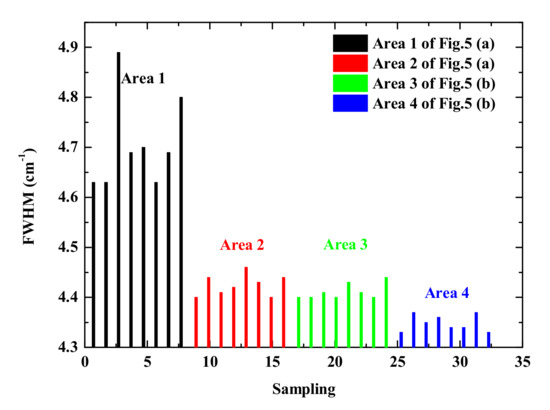

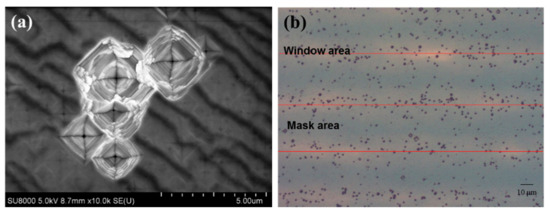

Continuous diamond films with low dislocation density were obtained by two-step epitaxial lateral overgrowth (ELO). Grooves were fabricated by inductively coupled plasma etching. Mo/Pd stripes sputtered in the grooves were used to inhibit the propagation of dislocations originating from the diamond substrate. Coalescent diamond films were achieved by ELO via microwave plasma-enhanced chemical vapor deposition. Etch-pits were formed intentionally to characterize the quality of the epitaxial films and distinguish different growth areas, as dislocations served as preferential sites for etching. In the window regions, a high density of dislocations, displayed as dense etch-pits, was generated. By contrast, the etch-pit density was clearly lower in the overgrowth regions. After the second ELO step, the dislocation density was further decreased. Raman spectroscopy analysis suggested that the lateral overgrowth of diamond is a promising method for achieving low dislocation density films. View Full-Text
Keywords: chemical vapor deposition; CVD diamond; epitaxial lateral overgrowth (ELO); dislocations; etch-pits chemical vapor deposition; CVD diamond; epitaxial lateral overgrowth (ELO); dislocations; etch-pits
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
