Open AccessArticle
Crystals 2017, 7(4), 105; doi:10.3390/cryst7040105

Epoxy-Based Composites Embedded with High Performance BZT-0.5BCT Piezoelectric Nanoparticles Powders for Damping Vibration Absorber Application

1
School of Materials Science and Engineering, Southeast University, Nanjing 211189, China
2
National Institute for Materials Science, Tsukuba 305-0047, Japan
*
Authors to whom correspondence should be addressed.
Received: 24 February 2017 / Revised: 6 April 2017 / Accepted: 6 April 2017 / Published: 9 April 2017
(This article belongs to the Special Issue Crystal Structure of Electroceramics)
View Full-Text   |   Download PDF [3336 KB, uploaded 11 April 2017]   |

Abstract

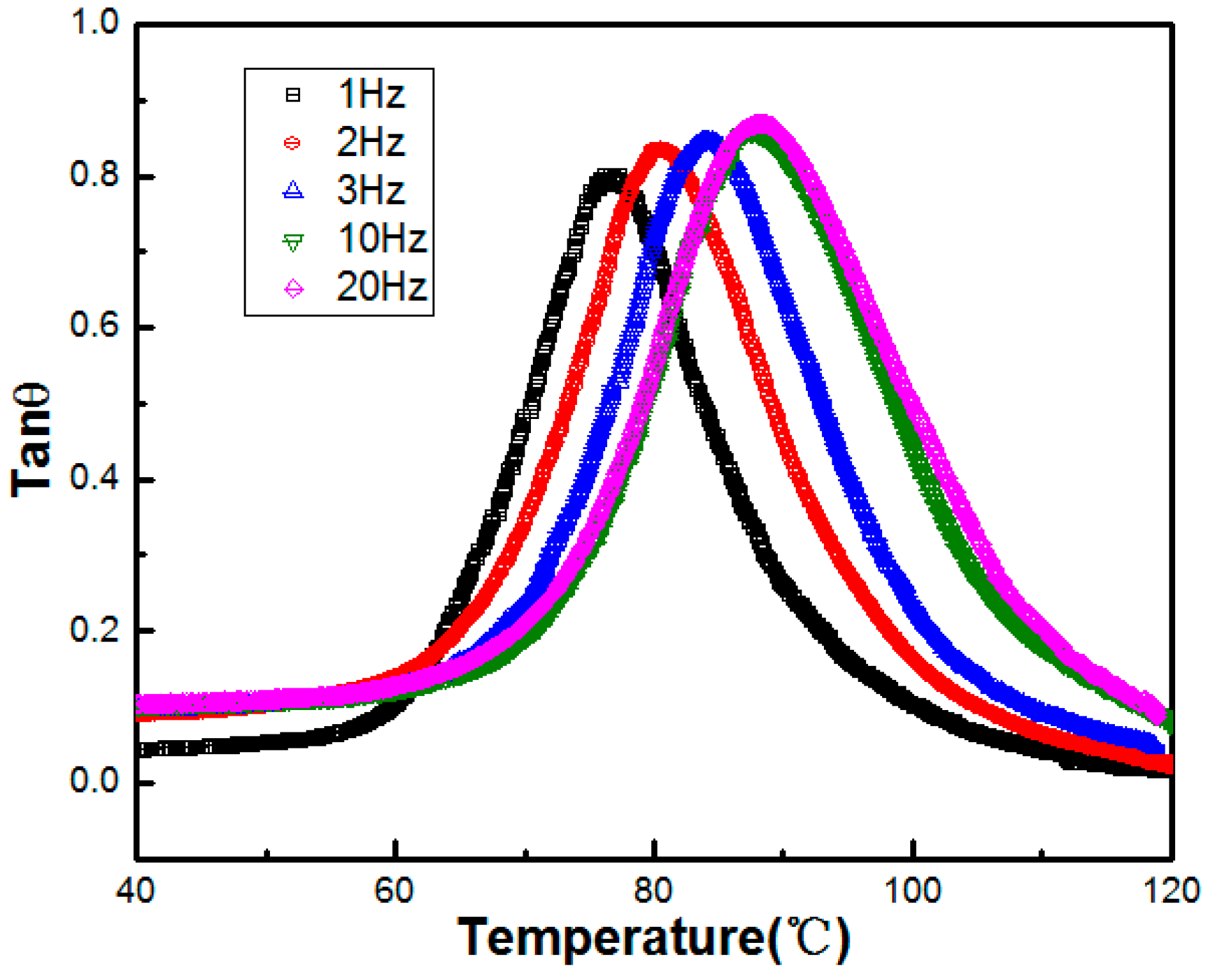

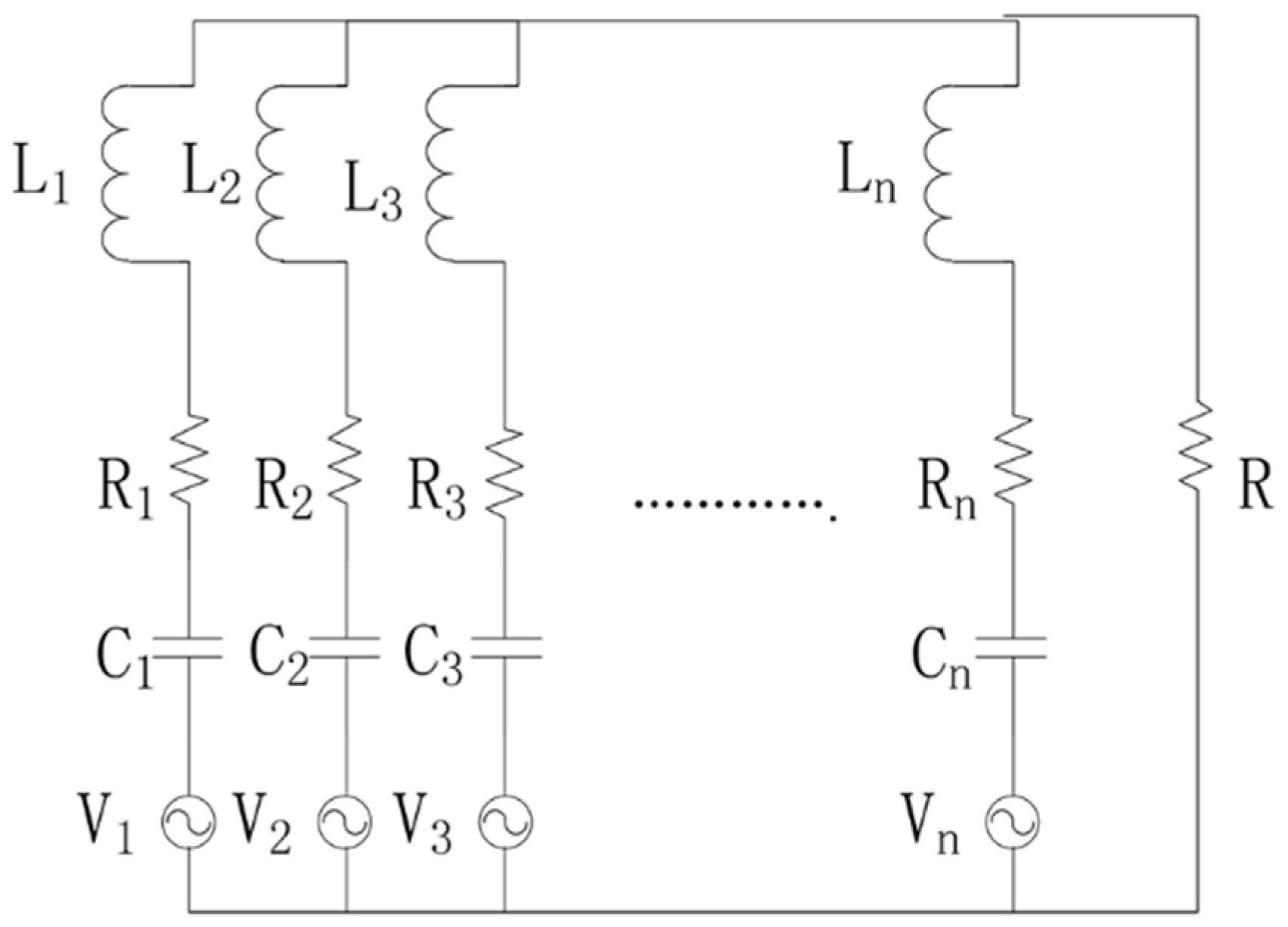

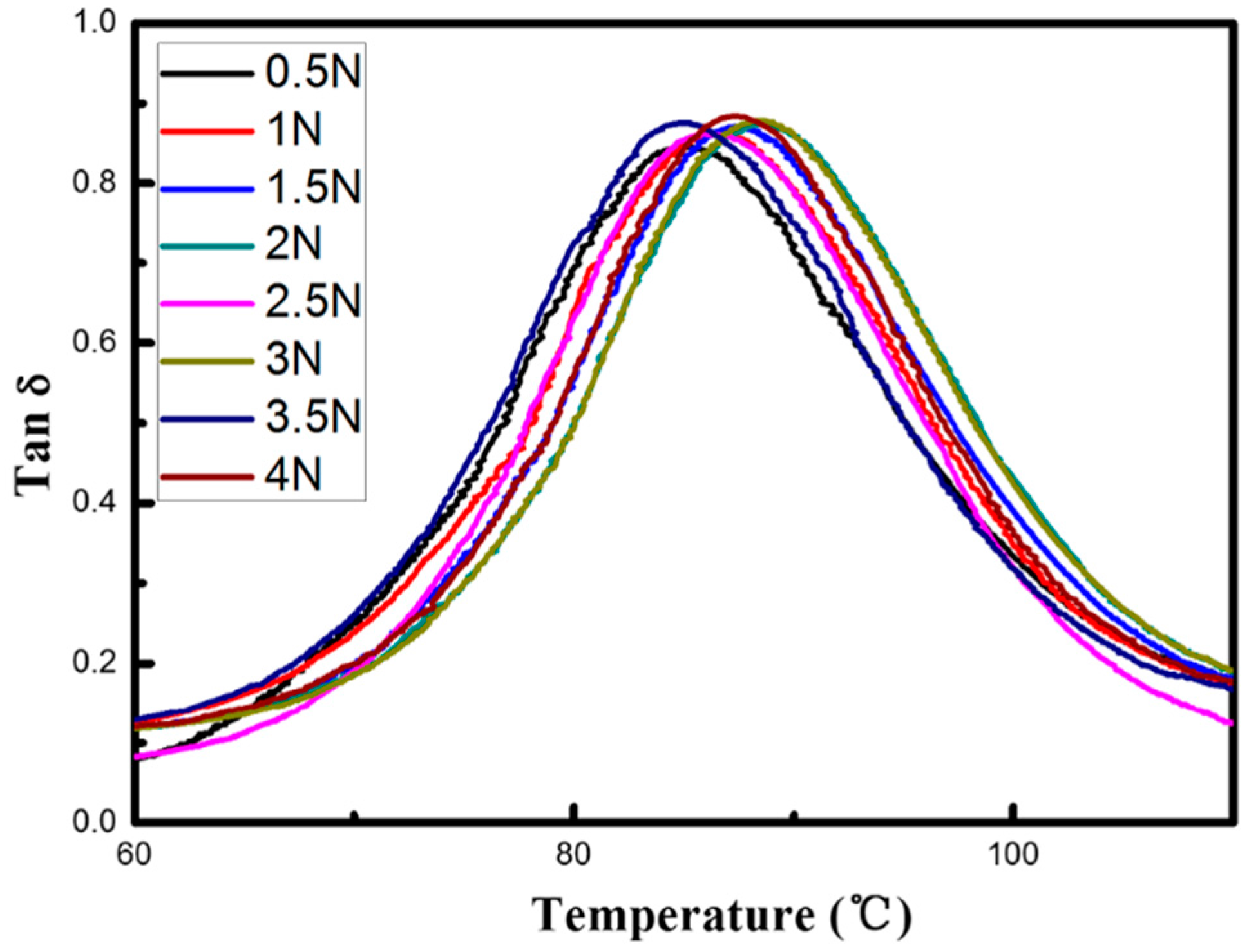

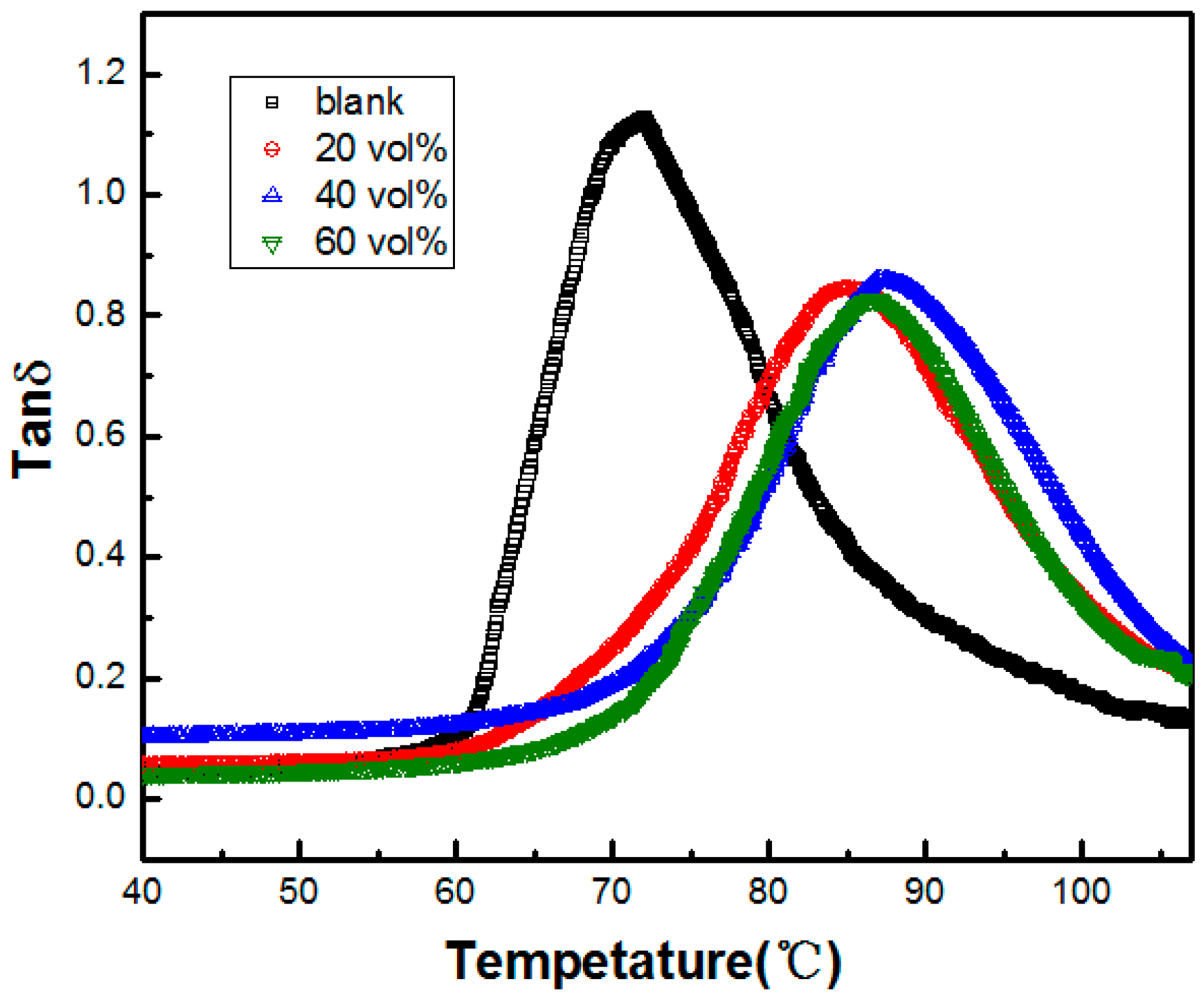

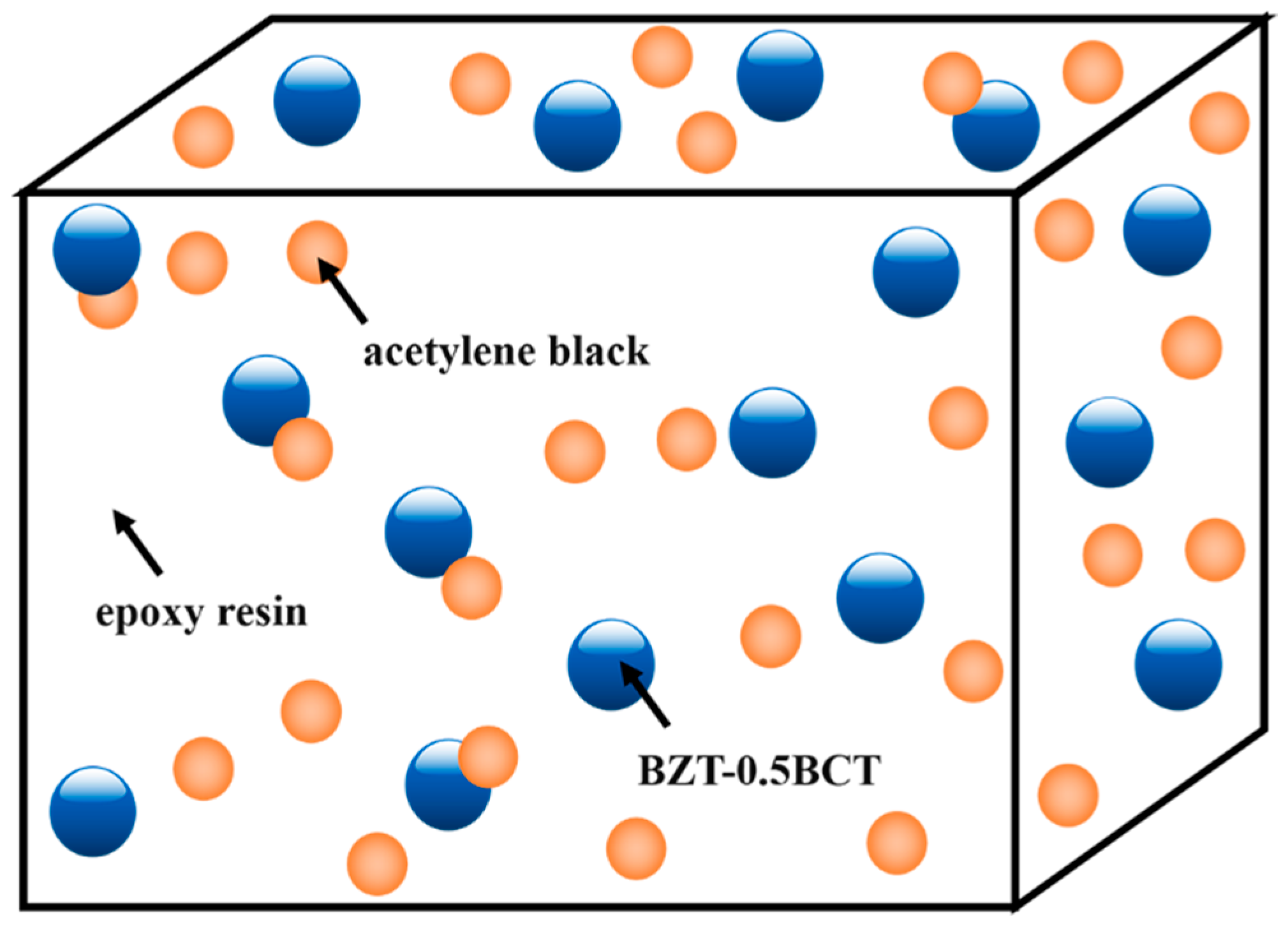

Abstract: Lead-free, high piezoelectric performance, Ba(Zr0.2Ti0.8)O3-0.5(Ba0.7Ca0.3)TiO3 (BZT-0.5BCT) sub-micron powders with perovskite structure were fabricated using the sol-gel process. A 0-3 type composite was obtained by choosing epoxy resin as matrix and BZT-0.5BCT, acetylene black as functional phases. Particular attention was paid to the damping behavior of composite with different content of BZT-0.5BCT powders, the influence of frequency and loading force on the damping properties were also analyzed. A mathematical model was developed to characterize the damping properties of the composites. It found that the piezoelectric effects and interfacial friction play a key role in damping behavior of composites, and a large dissipated loss factor of tanδ was found at the BZT-0.5BCT content of 20 vol %. View Full-Text
Keywords: lead-free piezoelectric composites; vibration absorber; damping properties lead-free piezoelectric composites; vibration absorber; damping properties
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
