Crystals 2016, 6(8), 91; doi:10.3390/cryst6080091

Metal(II) Complexes of Compartmental Polynuclear Schiff Bases Containing Phenolate and Alkoxy Groups

1
Institut für Physikalische und Theoretische Chemie, Technische Universität Graz, A-8010 Graz, Austria
2
Institut für Anorganische Chemie, Technische Universität Graz, Stremayrgasse 9/V, A-8010 Graz, Austria
3
Department of Chemistry, Louisiana State University, Choppin Hall, Baton Rouge, LA 70803, USA
4
Department of Chemistry, University of Louisiana at Lafayette, P.O. Box 43700, Lafayette, LA 70504, USA
*
Authors to whom correspondence should be addressed.
Academic Editors: Thomas Doert and Mathias Wickleder
Received: 6 July 2016 / Revised: 31 July 2016 / Accepted: 3 August 2016 / Published: 9 August 2016
(This article belongs to the Special Issue Crystal Structure of Complex Compounds)
View Full-Text   |   Download PDF [1872 KB, uploaded 9 August 2016]   |

Abstract

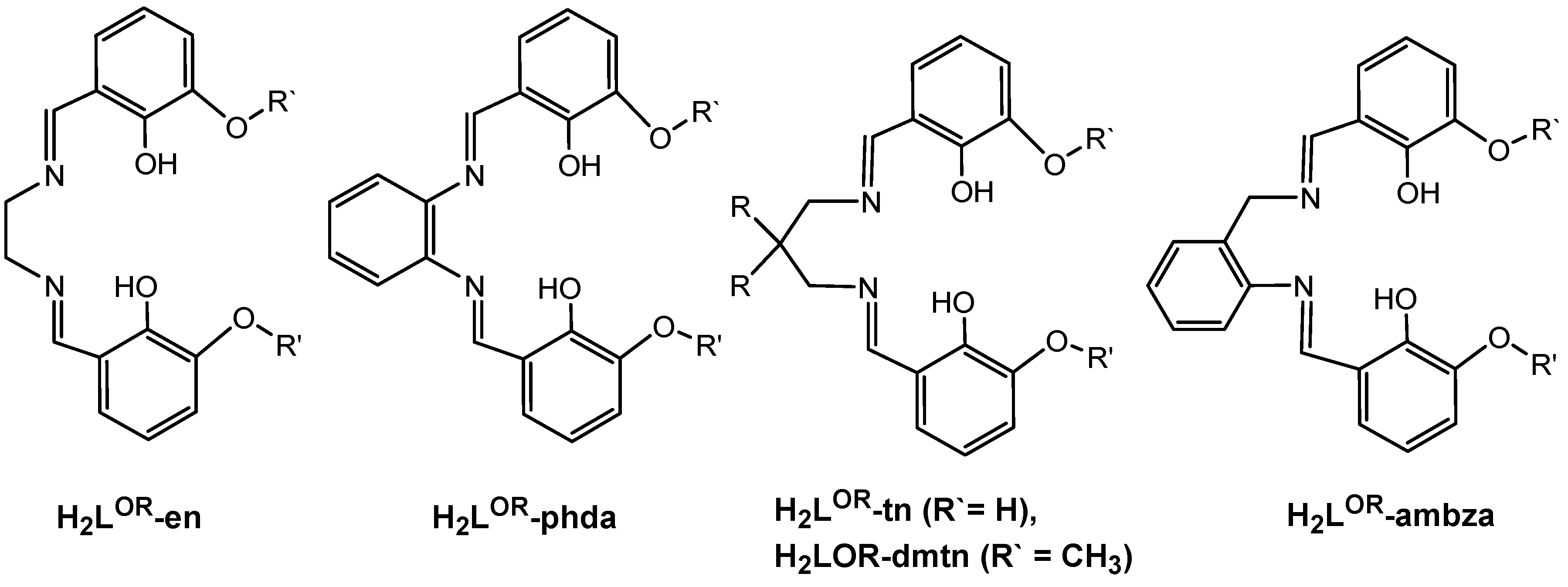

Five mono-nuclear Cu(II) and Ni(II) complexes and one dinuclear Zn(II) complex were synthesized from the Schiff bases N,N'-bis(3-ethoxy-2-hydroxybenzylidene)-1,2-phenylenediamine (H2LOEt-phda) and 2-ethoxy-6-({2-[(3-ethoxy-2-hydroxybenzylidene)amino]-benzyl}iminomethyl)phenol (H2LOEt-ambza): [Cu(LOEt-phda)(H2O)].H2O (1), [Ni(LOEt-phda)].H2O (2), [Cu(LOEt-ambza)].H2O·EtOH (3), [Cu(LOEt-ambza)].H2O (4), [Ni(LOEt-ambza)] (5) and [Zn2(LOEt-ambza)(μ-OAc)(OAc)] (6). The complexes were structurally characterized with elemental microanalyses, IR, UV-Vis and ESI-MS spectroscopic techniques as well as single crystal X-ray crystallography. The metal centers display distorted square planar geometries in 24 and 5 and distorted square pyramidal (SP) in 1, whereas in 6 an intermediate geometry between SP and TBP was observed around the first Zn2+ ion and a tetrahedral around the second ion, with one acetate is acting as a bridging ligand. In all cases, metal ions were incorporated into the N2-O2 binding site with no involvement of the alkoxy groups in the coordination. The LOEt-ambza-complexes 36 revealed significant dihedral angles between the phenol rings and the plane containing the central benzene ring, and large O2-O2 bond distances (5.1-5.9 Ǻ). Results are discussed in relation to other related Schiff base complexes. View Full-Text
Keywords: coordination compounds; crystal structure; Schiff bases; nickel; copper; zinc coordination compounds; crystal structure; Schiff bases; nickel; copper; zinc
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Mautner, F.A.; Fischer, R.C.; Spell, M.; Acevedo, A.R.; Tran, D.H.; Massoud, S.S. Metal(II) Complexes of Compartmental Polynuclear Schiff Bases Containing Phenolate and Alkoxy Groups. Crystals 2016, 6, 91.
