Crystals 2014, 4(3), 377-389; doi:10.3390/cryst4030377

Phase Energy Determined from Stress and Electric-Field-Induced Phase Transformations in [011]C Cut 0.24PIN-PMN-PT Single Crystals

Department of Mechanical and Aerospace Engineering, University of California Los Angeles, 420 Westwood Plaza, Los Angeles, CA 90095, USA
* Author to whom correspondence should be addressed.
Received: 8 May 2014 / Revised: 15 July 2014 / Accepted: 5 August 2014 / Published: 19 August 2014
(This article belongs to the Special Issue Piezoelectric Crystals)
View Full-Text   |   Download PDF [771 KB, uploaded 19 August 2014]   |   Browse Figures

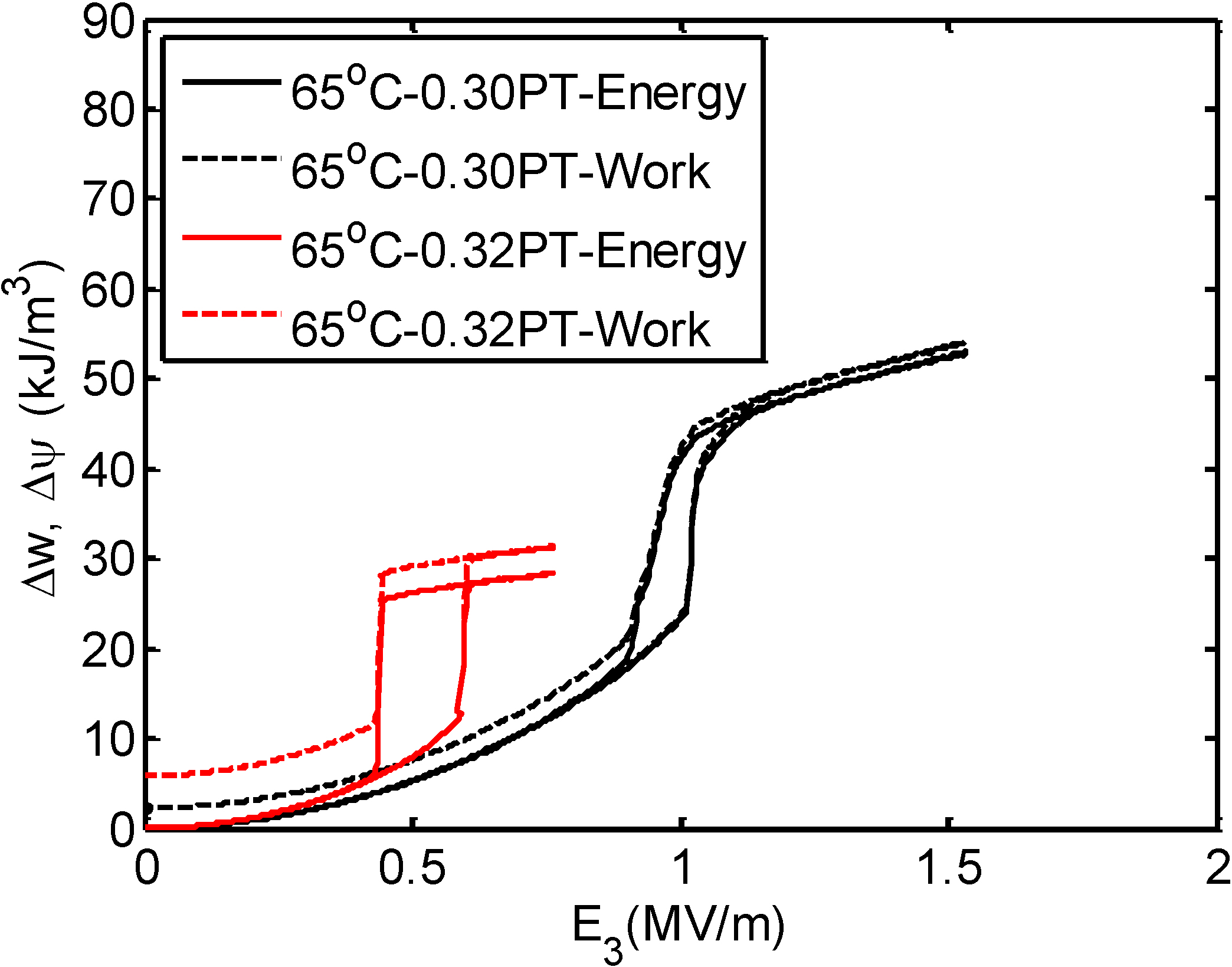

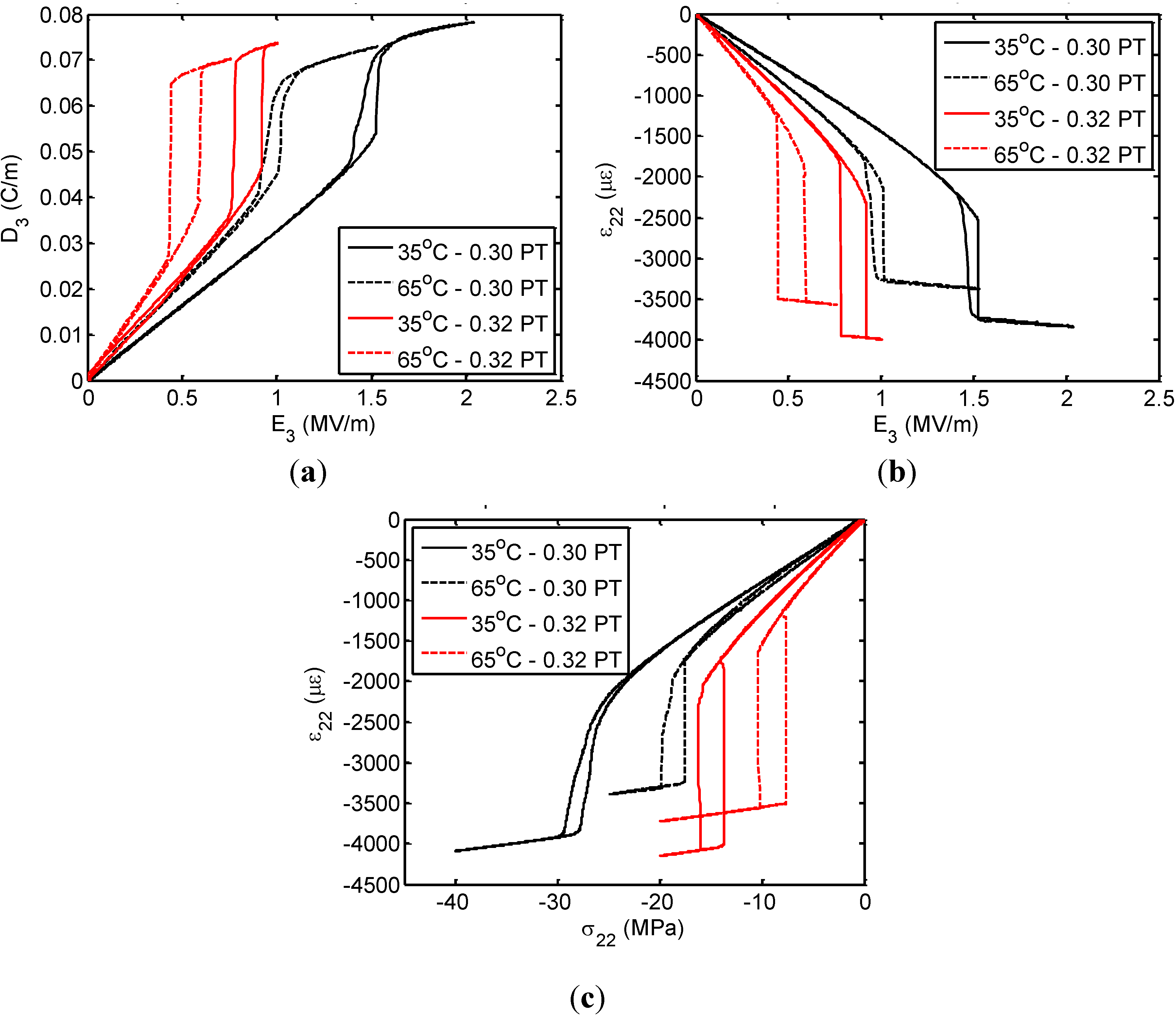

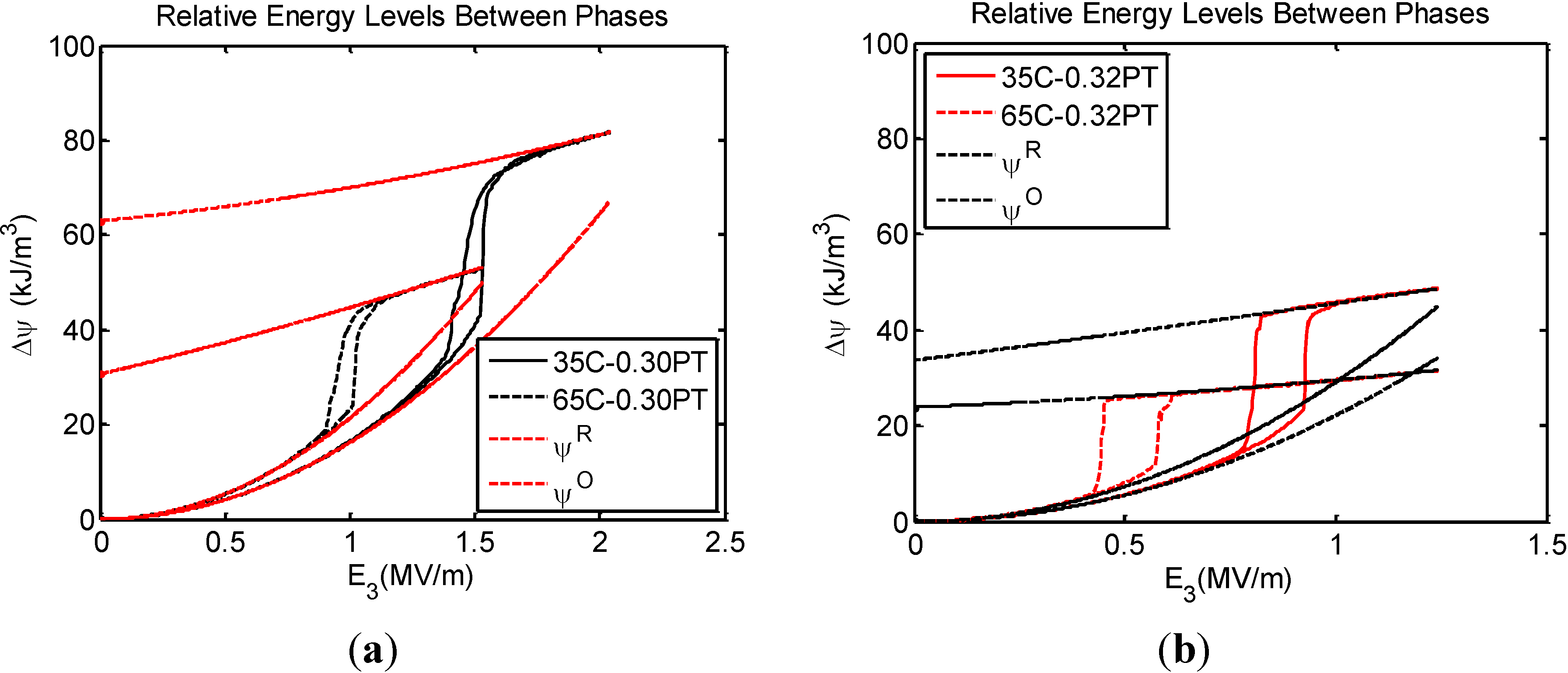

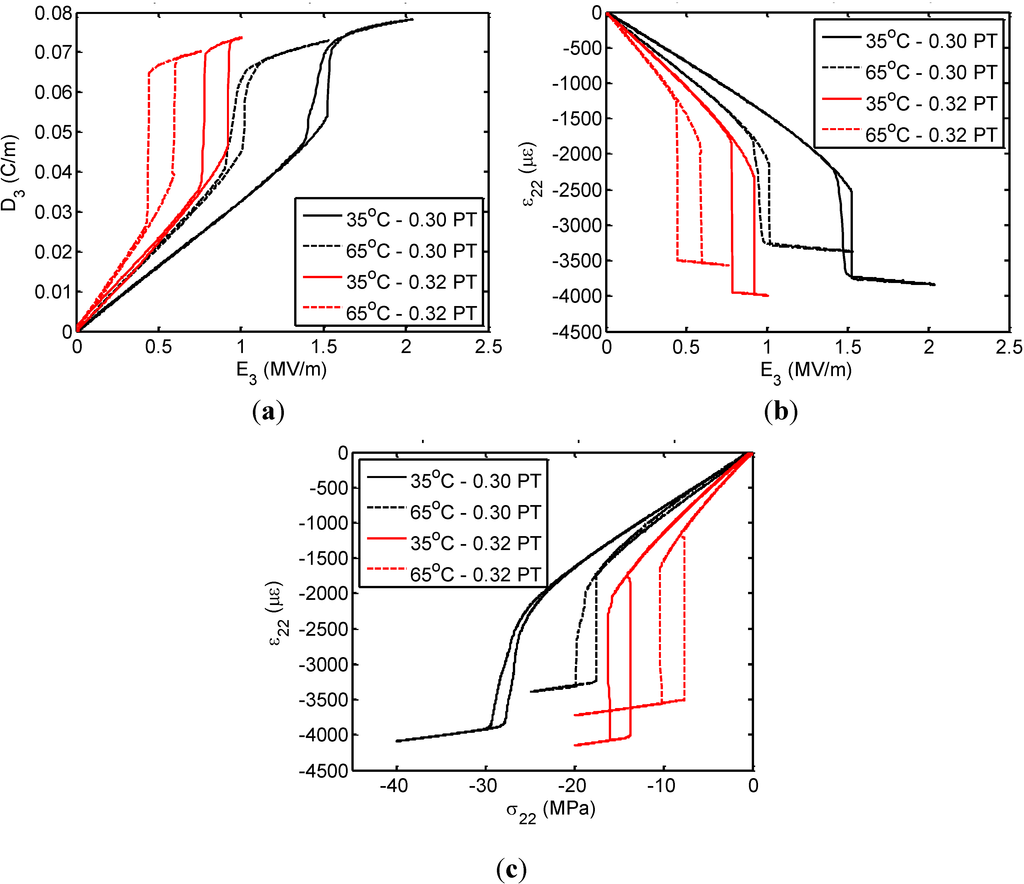

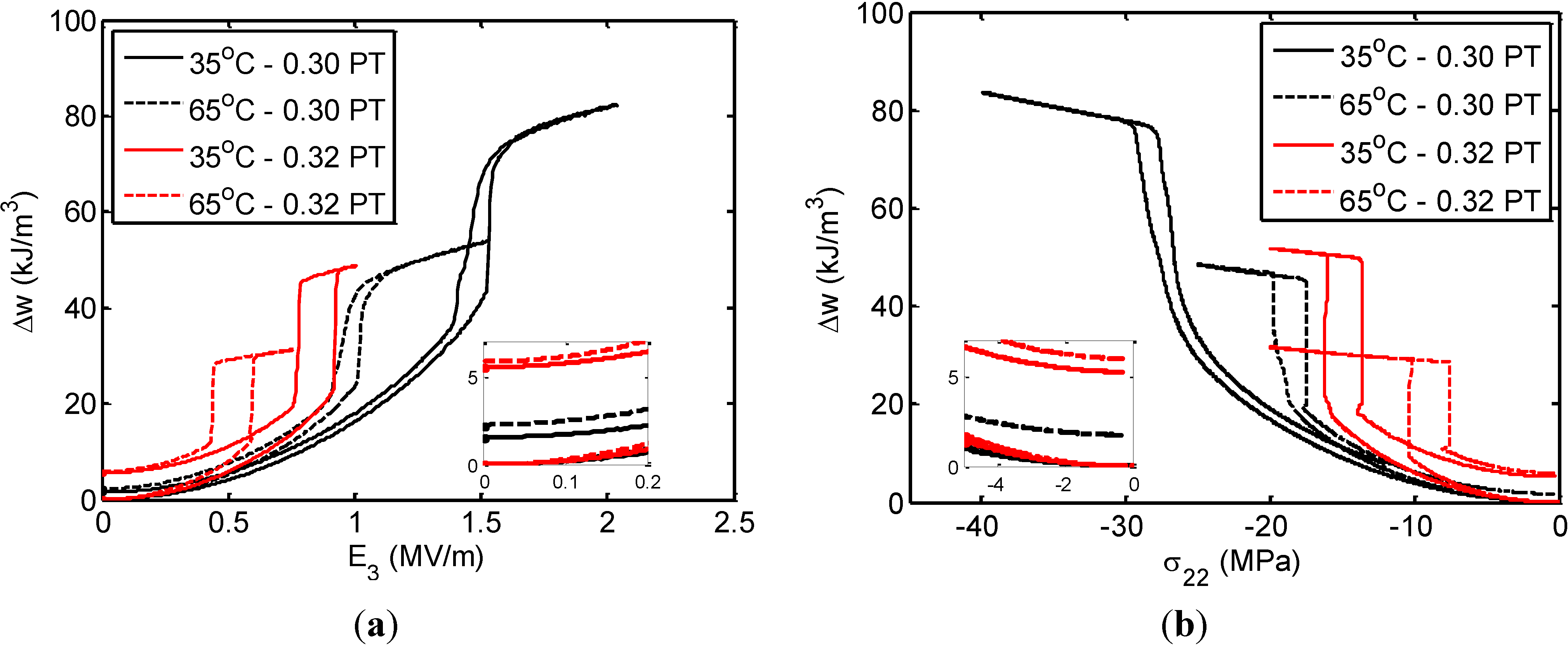

The effect of composition and temperature on the large field behavior of [011]C cut and poled (d32-mode) rhombohedral relaxor ferroelectric 0.24PIN-(1−x)PMN-xPT single crystals was characterized under electromechanical loading and the relative phase energy determined. The electric field and stress induced polarization and strain response and field dependent material properties are reported for two concentrations of lead titanate (PT), with one PT concentration closer to the morphotropic phase boundary, at low and high temperature. A thermodynamic analysis to determine the relative energy levels of the rhombohedral and orthorhombic phases is based on the path integration of the measured data to determine external work done to drive the phase transition. The effect of heat generated by irreversible strain and electric displacement increments (hysteresis in the phase transformation) was removed from the work done during the loading cycle and the relative Helmholtz free energy density levels of the phases was determined.
Keywords: relaxor piezoelectric; phase transformation; thermodynamics relaxor piezoelectric; phase transformation; thermodynamics
