Temperature-Dependent Phase Transition in Orthorhombic [011]c Pb(Mg1/3Nb2/3) O3-0.35PbTiO3 Single Crystal
Wenhui He 1, Qiang Li 1, Qingfeng Yan 1,*, Nengneng Luo 1, Yiling Zhang 2, Xiangcheng Chu 2 and Dezhong Shen 1
1
Department of Chemistry, Tsinghua University, Beijing 100084, China; E-Mails: awenyuyu@163.com (W.H.); qiangli@mail.tsinghua.edu.cn (Q.L.); luonn1234@163.com (N.L.); shendz@mail.tsinghua.edu.cn (D.S.)
2
State Key Laboratory of New Ceramics and Fine Processing, Tsinghua University, Beijing 100084, China; E-Mails: ylzhang@mail.tsinghua.edu.cn (Y.Z.); chuxiangcheng@tsinghua.edu.cn (X.C.)
*
Author to whom correspondence should be addressed; E-Mail: yanqf@mail.tsinghua.edu.cn; Tel.: +86-10-6279-2830.
Received: 29 April 2014; in revised form: 9 June 2014 / Accepted: 25 June 2014 /
Published: 11 July 2014

Abstract

: Relaxor [011]c PMN-0.35PT single crystal phase transition characteristics are investigated through various methods including variable temperature dielectric properties, X-ray diffraction, bipolar ferroelectric hysteresis loops (P-E) and electric-field-induced strain (S-E) hysteresis loops measurements. The results reveal that two phase transitions exist within the range from room temperature to 250 °C: orthorhombic (O)-tetragonal (T)-cubic (C). The O-to-T and T-to-C phase transition temperatures have been identified as 84 °C and 152 °C, respectively. Diffuseness degree of the T-to-C phase transition for the unpoled single crystal has been calculated to be 1.56, implying an intermediate state between normal and relaxor ferroelectrics. Temperature-dependent remanent polarization (Pr), coercive field (Ec), saturation polarization (Ps), hysteresis loop squareness (Rsq), and longitudinal piezoelectric constant ( Crystals 04 00262 i003) are also explored to learn the details of the phase transitions. Variable temperature unipolar Suni-E hysteresis loops avail additional evidence for the microstructure change in the as-measured single crystal.
Keywords:
temperature-dependent phase transition; orthorhombic [011]c PMN-0.35PT; dielectric properties; piezoelectric properties; P-E hysteresis loops; S-E hysteresis loops

1. Introduction

Relaxor-PbTiO3 (PT) based single crystals have generated much interest in the past two decades owing to their excellent dielectric and piezoelectric performances [1,2] compared to lead zirconate titanate (PZT) ceramics [3,4]. [001]c Pb(Mg1/3Nb2/3)O3-xPbTiO3 (PMN-xPT) single crystals with compositions close to morphotropic phase boundary (MPB) are well known as typical relaxor ferroelectrics with ultrahigh piezoelectric coefficient (d33 > 2000 pC/N) and electromechanical coupling factor (k33 > 0.9) [5], with various high-tech applications, such as sonar transducers, medical ultrasonic detectors, actuators, to name a few [6,7,8]. The thermal stability of dielectric and piezoelectric properties of PMN-xPT single crystals is very important for most electromechanical applications. Thus, it is desirable to understand the temperature usage range and thermal behavior of piezoelectric crystal elements. The temperature dependent properties of relaxor-PT crystals have been extensively studied, with most investigations focusing on [001]c crystals [9].

Recently, [011]c PMN-xPT relaxor ferroelectric single crystals, with compositions near the MPB, come into view due to their high transverse piezoelectric properties (d31 > 2100 pC/N) [10,11,12,13,14]. Meanwhile, [011]c orthorhombic relaxor-PT crystal was reported with a high shear piezoelectric response of d24 in single domain state, making it a promising candidate for novel sensor or transducer design [15]. Previous investigations indicated that the formation of monoclinic or orthorhombic phase in PMN-xPT single crystals strongly depended on temperature, external E-field, stress, and PT content [16]. The excellent electromechanical properties of [011]c single crystal were associated with the phase transition and direction of polarization.

In order to further understand the relationships among them, combined electric field and stress induced rhombohedral-orthorhombic (R-O) phase transition in PMN-xPT system has been studied by Shanthi et al. [17]. Furthermore, Tu et al. [18] explored a field-induced intermediate orthorhombic phase in the [011]c single crystal. However, the ferroelectric-ferroelectric phase transitions far below its Curie temperature (Tc) heavily restricted the further applications of PMN-xPT relaxor ferroelectrics. The effect of temperature on phase transition in [011]c single crystals is thus worth investigating in detail. To our knowledge, few studies have been performed on temperature-dependent phase transition characteristic of [011]c crystals at different temperatures up to date. In this paper, the phase transition in [011]c PMN-0.35PT single crystal is investigated via variable temperature dielectric properties measurement, X-ray diffraction, bipolar P-E and S-E hysteresis loops analysis.

2. Experimental Section

The PMN-xPT single crystals applied in this work were grown by a modified Bridgman method [19]. Crystal samples were cut from the bottom of an as-grown boule, and the corresponding PT content x = 0.35. The boule single crystal was annealed at 850 °C for 24 h to reduce the potential oxygen vacancies and residual thermal stress. All samples were oriented using X-ray crystal diffraction instrument (DX-2/4A, Dong Fang Crystal Instrument Inc., Dandong, Liaoning, China). Each sample was cut and polished into a parallelepiped with one pair of parallel surfaces along [011] direction. Then, the samples were sputtered with gold electrodes on the pair of (011) surfaces and poled under 2.75 kV/mm DC fields at room temperature for 15 min in silicon oil.

Dielectric measurement was carried out on unpoled sample as a function of temperature at 10 kHz and 100 kHz using an Agilent 4294A (Agilent Inc., Bayan, Malaysia) impedance analyzer connected with a Delta 9023 (Delta Design Inc., San Diego, CA, USA) temperature control system. The heating rates of 1 °C/min were chosen for the measurement. Piezoelectric constant d33 was measured using a ZJ-4A quasi-static piezo-d33 meter (Institute of Acoustics, Chinese Academy of Sciences, ZJ-4A, Beijing, China). Crushed PMN-0.35PT crystal powders were examined at different temperature by a X-ray diffraction (PANalytical Analytical Instruments, X’Pert Pro MPD, Almelo, The Netherlands) with Cu Ka radiation to determine its crystal structure. The ferroelectric hysteresis loops and electric-field-induced strain were measured at the frequency of 1 Hz and variable temperatures using a TF Analyzer 2000 (aixACCT Systems GmbH, TF2000A, Aachen, Germany).

3. Results and Discussion

3.1. Dielectric and Piezoelectric Properties

Figure 1a shows the temperature dependence of dielectric permittivity (εr) and dielectric loss (tanδ) for unpoled [011]c PMN-0.35PT single crystal. Two anomalies can be observed in the measured temperature range, locating at 84 °C and 152 °C, respectively. Obviously, the peak appeared at high temperature (152 °C) belongs to the tetragonal-cubic (T-C) phase transition. The peak located at low temperature (84 °C) might correspond to the R-T or O-T ferroelectric-ferroelectric phase transition. However, the piezoelectric constant of the [011]c PMN-0.35PT single crystal measured by the ZJ-4A quasi-static piezo-d33 meter is only about 120 pC/N at room temperature. It caused our attention that which kind of ferroelectric phase structure of the [011]c PMN-0.35PT single crystal correlates with such a low piezoelectric constant at room temperature. The detail of the ferroelectric-ferroelectric phase transition at 84 °C is not clear yet and it will be discussed in following sections.

Crystals 04 00262 g001 1024

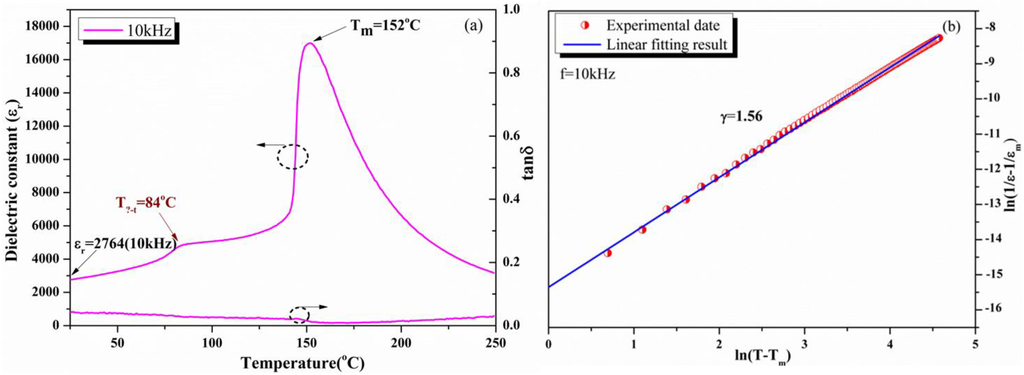

Figure 1. (a) Dielectric permittivity and dielectric loss for unpoled [011]c PMN-0.35PT single crystal at 10 kHz; (b) Plot of ln(1/εr − 1/εm) vs. ln(TTm) for PMN-0.35PT single crystal at 10 kHz.

Click here to enlarge figure

Figure 1. (a) Dielectric permittivity and dielectric loss for unpoled [011]c PMN-0.35PT single crystal at 10 kHz; (b) Plot of ln(1/εr − 1/εm) vs. ln(TTm) for PMN-0.35PT single crystal at 10 kHz.
Crystals 04 00262 g001 1024

A broad dielectric peak is observed, which indicates typical dielectric relaxor behavior in as-measured crystal, see Figure 1a. In order to evaluate the degree of dielectric relaxor properties in a quantitative way, a power function relation was used, as follows [20].

Crystals 04 00262 i001
where εm is dielectric maximum at Tc, C is a material related constant, Tm stands for the absolute temperature at dielectric maximum, and γ is the so-called relaxation factor standing for the degree of diffuseness of phase transition, with values ranging from 1 to 2. γ = 1 means a normal ferroelectric, while γ = 2 is a typical relaxor ferroelectric. The curve according to Equation (1) has been plotted using the data obtained at 10 kHz and the fitting line is given in Figure 1b. The slope of the linear fitting curve is 1.56, suggesting the [011]c PMN-0.35PT single crystal stays at an intermediate state between normal and relaxor ferroelectric.

3.2. X-ray Diffraction (XRD) Analysis

To clarify the phase transition behaviors at different temperatures, temperature-dependent XRD has been performed and patterns are given in Figure 2. The XRD patterns were collected from the crushed and unpoled PMN-0.35PT crystal powders. No annealing was applied to the crushed powders before XRD characterization.

Crystals 04 00262 g002 1024

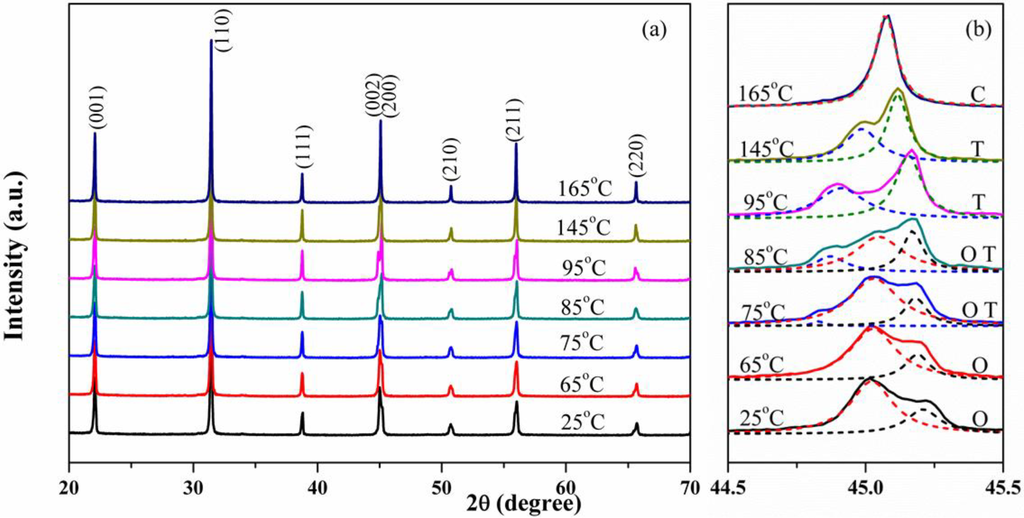

Figure 2. (a) Temperature-dependent XRD patterns; (b) The {200}c reflection peaks around 2θ = 45°. The fitted red and blank dash lines in 25 °C, 65 °C, 75 °C and 85 °C respectively indicate the O phase splitting peaks. The blue dash dot lines in 75 °C, 85 °C, 95 °C, and 145 °C represent the (002)T (left) and (200)T (right) splitting peaks of T phase. And the pink line in 165 °C is the (200)c fitted peak of C phase.

Click here to enlarge figure

Figure 2. (a) Temperature-dependent XRD patterns; (b) The {200}c reflection peaks around 2θ = 45°. The fitted red and blank dash lines in 25 °C, 65 °C, 75 °C and 85 °C respectively indicate the O phase splitting peaks. The blue dash dot lines in 75 °C, 85 °C, 95 °C, and 145 °C represent the (002)T (left) and (200)T (right) splitting peaks of T phase. And the pink line in 165 °C is the (200)c fitted peak of C phase.
Crystals 04 00262 g002 1024

Pure perovskite phase can be identified throughout the measurement temperature range, as shown in Figure 2a. Generally, the {200}c reflection peaks around 2θ = 45° are usually used to distinguish R, O and T phases, due to the difference among unit cell parameters a, b, and c in the respecting structures. Therefore, the phase structure can be characterized through analyzing the peak around 2θ = 45°. Figure 2b presents the {200}c reflection peaks around 2θ = 45° as a function of temperature, which have been fitted by applying the Lorentzian function after Ka2 diffraction peaks were striped using X’pert High Score Plus software. Two peaks can be seen around 2θ = 45° by fitting the curve collected at room temperature (25 °C) with the right peak height being half of the left one, indicating an orthorhombic (O) symmetry, as reported in similar ferroelectrics [21,22]. When the temperature increases to 95 °C, a pure T phase appears with the right peak height being twice of the left one as discussed in previous work [23]. In the range of 65 °C to 95 °C, three peaks can be fitted, resulting from the nucleation of new T phase in the O phase matrix, which indicates the temperature induced O to T phase transition, verifying the ferroelectric-ferroelectric phase transition observed in Figure 1a. With further temperature increases, pure tetragonal phase maintains in as-measured crystal. When the temperature rises to 165 °C, higher than its Curie temperature, only a single peak can be seen, which demonstrates that the tetragonal structure has changed into a cubic paraelectric phase.

3.3. Variable Temperature Bipolar Ferroelectric Hysteresis Loops Analysis

The major aim of this study is to represent the phase transition temperature by analyzing temperature-dependent bipolar ferroelectric hysteresis loops (P-E). The samples have been annealed for 24 h at 850 °C before the measurements of the bipolar P-E loops. The bipolar P-E hysteresis loops at 2.75 kV/mm have been measured at various temperatures with [011]c PMN-0.35PT single crystal and the results are shown in Figure 3a. As temperature increases, the shape of polarization hysteresis loop changes sharply between 65 °C and 95 °C, which indicates a phase transition (To-t) occurs in this range. The partial enlarged plots are given in the inset of Figure 3a.

Figure 3b reveals the temperature-dependent evolution of remanent polarization (Pr), coercive field (Ec), saturation polarization (Ps), and hysteresis loop squareness (Rsq) of the as-grown [011]c PMN-0.35PT single crystal, respectively. The phase transition temperature range is marked in shadow area. It is well known that temperature can seriously affect the domain walls movement. As shown in Figure 3b, Pr decreases with temperature increasing, due to the so-called pyroelectric effect [24]. Owing to the decrease of interface energy of the ferroelectric domains with temperature increasing, the domain walls movement becomes easier, leading to the decline of Ec [25]. The variation of temperature-dependent hysteresis loops indicates the movement of domain walls, crystal structure, as well as internal spontaneous polarization re-orientation. The shadow area in Figure 3b should be a ferroelectric(O)-ferroelectric(T) phase transition temperature region since the variation trends of Pr, Ec, and Ps are obviously discrepant compared with that in other temperature ranges, in accordance with the phase transitions as shown in Figure 1 and Figure 2.

In order to assess the evolution of the relaxor ferroelectric properties and phase transition temperature (To-t) accurately, squareness (Rsq) of P-E loop as a function of temperature has been calculated using Equation (2) [3]:

Crystals 04 00262 i002
where Pr is the remanent polarization, Ps is the saturated polarization, Ec stands for coercive field, and P1.1Ec represents the polarization under the external field of 1.1Ec. For the ideal square loop, Rsq equals to 2. Figure 3b shows the variation of Rsq as a function of temperature. Below 65 °C, the Rsq remains almost constant. A dramatic reduction of Rsq can be observed in the vicinity of 85 °C, resulting from the O-T phase transition. When the structure becomes a pure T phase, the Rsq of [011]c PMN-0.35PT single crystal decreases gradually with increasing temperature.

Crystals 04 00262 g003 1024

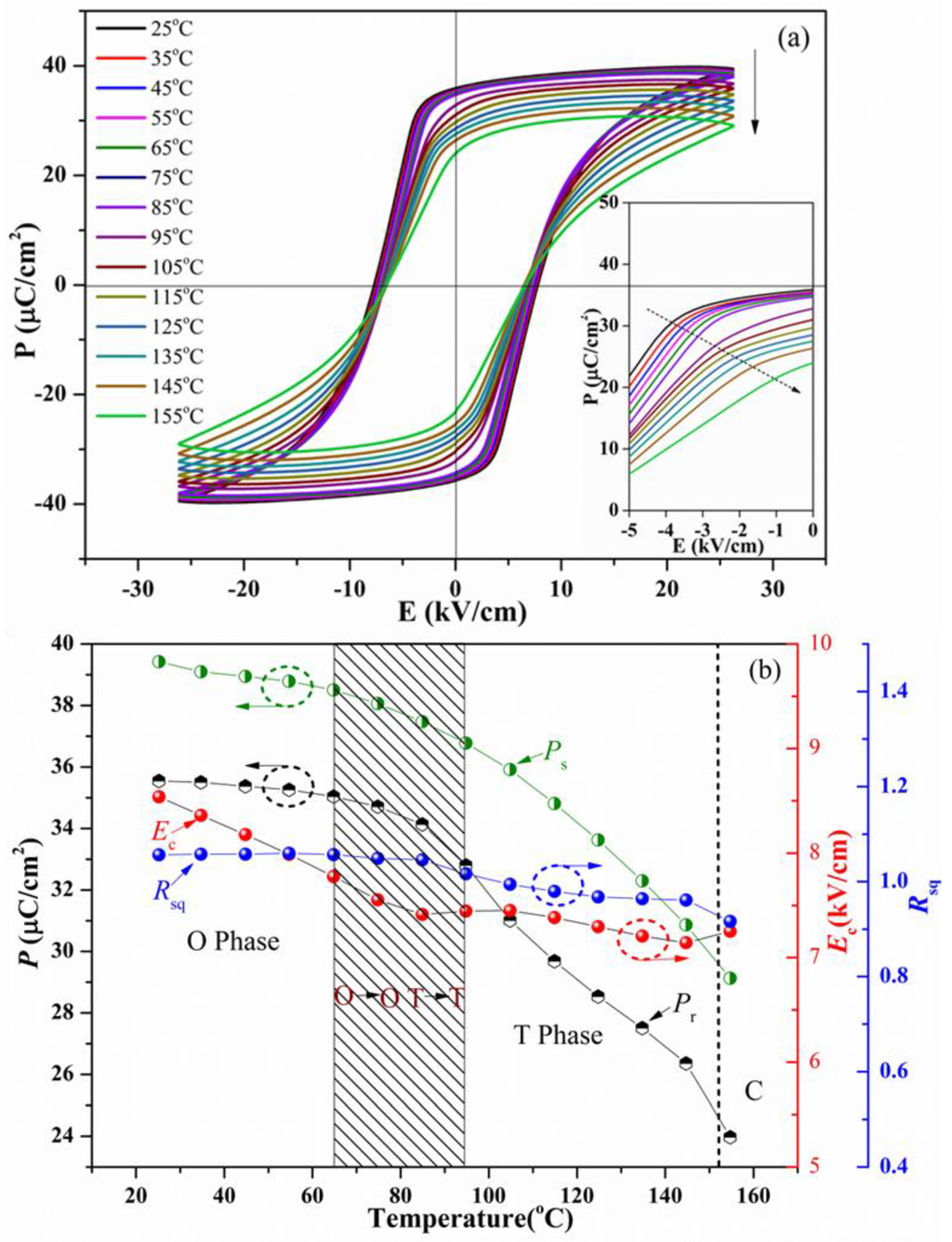

Figure 3. (a) Bipolar polarization hysteresis loop patterns of the [011]c PMN-0.35PT single crystal at different temperatures; (b) Temperature dependence of the Pr, Ec, Ps, and Rsq of the as-grown single crystal. In Figure 3a, the arrow indicates the variation trend of the samples with temperature increasing and the inset highlights the partial enlarged plots.

Click here to enlarge figure

Figure 3. (a) Bipolar polarization hysteresis loop patterns of the [011]c PMN-0.35PT single crystal at different temperatures; (b) Temperature dependence of the Pr, Ec, Ps, and Rsq of the as-grown single crystal. In Figure 3a, the arrow indicates the variation trend of the samples with temperature increasing and the inset highlights the partial enlarged plots.
Crystals 04 00262 g003 1024

3.4. Variable Temperature Bipolar S-E Hysteresis Loops Analysis

The temperature-induced phase transition in the [011]c PMN-0.35PT single crystal also can be verified by bipolar strain measurements at electric field of 2.75 kV/mm. Before the measurement, the sample was annealed. As can be seen from Figure 4a, the strain changes obviously around the temperature of To-t, which is quite different from the situation caused by fatigue [26]. Typical butterfly shaped strain hysteresis loops can be observed throughout the measurement temperature range. To demonstrate the change of strain more intuitively, the evolution of the negative strain Sneg with variable temperature is presented in Figure 4b. The definition for Sneg is given in the inset in Figure 4b. As can be observed, the negative strain is reduced gradually as temperature increasing. However, around the phase transition temperature, the negative strain reduces suddenly. This sudden reduction can be ascribed to a combined effect of temperature increasing and temperature-induced phase transition.

Crystals 04 00262 g004 1024

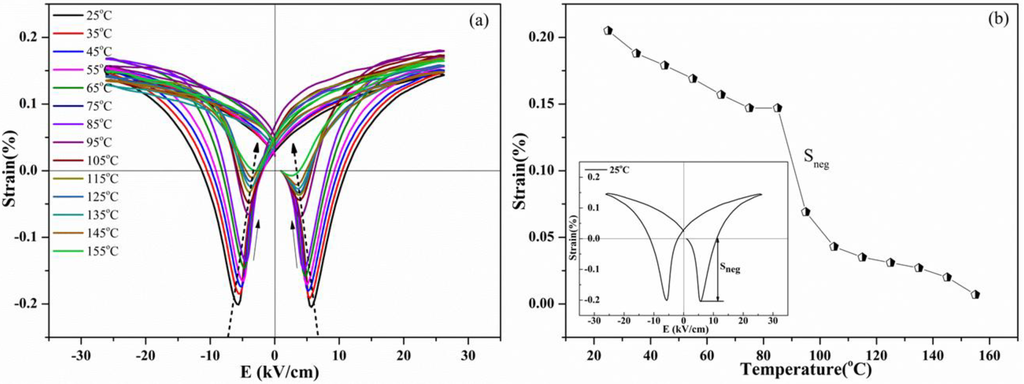

Figure 4. (a) Variable temperature S-E hysteresis loop patterns; (b) Negative strain (Sneg) values as a function of temperature. The inner indicates the definition of Sneg in this study.

Click here to enlarge figure

Figure 4. (a) Variable temperature S-E hysteresis loop patterns; (b) Negative strain (Sneg) values as a function of temperature. The inner indicates the definition of Sneg in this study.
Crystals 04 00262 g004 1024

3.5. Variable Temperature Unipolar Suni-E Hysteresis Loops Analysis

The unipolar Suni-E patterns at 2.75 kV/mm at various temperatures for annealed [011]c PMN-0.35PT single crystal are given in Figure 5a. It is noteworthy that the ferroelectric phase remained after field removal and the original properties could not be restored at a temperature lower than the Tc (152 °C). When the temperature rises to 155 °C, which is above the Tc, the PMN-0.35PT single crystal becomes paraelectric phase because the sample has reverted to its original state upon field removal. The Suni-E hysteresis loops perform an obvious change between 65 °C and 95 °C, corresponding to the O-to-T phase transition. The tendency of the maximum strain is given in the inset in Figure 5a. Below the To-t, the strain almost remains the same. A rapid rise of strain can be found in the vicinity of To-t and then it shifts down with the continuous elevating temperature.

Since the crystals have been annealed, [011]c PMN-0.35PT single crystal possess an O phase with a multidomain state at room temperature. When temperature increases, it becomes single domain state, which leads to the strain decreasing until at 75 °C, as seen in Figure 5b. At 75 °C, the T phase occurs, which is in accordance with XRD analysis (see Figure 2). In this case, the strain increases gradually with the temperature increasing. When the as-grown single crystals become pure T phase with further increasing temperature, the strain still increases as shown in Figure 5c. The as-grown single crystal would be poled gradually when measuring the unipolar Suni-E loops since an electric field of 2.75 kV/mm was applied. When the temperature is above 95 °C, the strain becomes larger suddenly. The cause of the observed S-E behavior at 105 °C in Figure 5c is still unclear. It may be caused by electrical field induced phase transition or thermal retardation phenomenon, which needs further investigation in the future work. After that the strain reduces again under the influence of temperature. The insets in Figure 5b,c schematically illustrate the polarization direction changes as temperature increasing based the above description. The temperature-dependent longitudinal piezoelectric coefficient ( Crystals 04 00262 i003) is shown in Figure 5d. The change mechanism of Crystals 04 00262 i003 is similar to that of the maximum strain shown in the inset of Figure 5a.

Crystals 04 00262 g005 1024

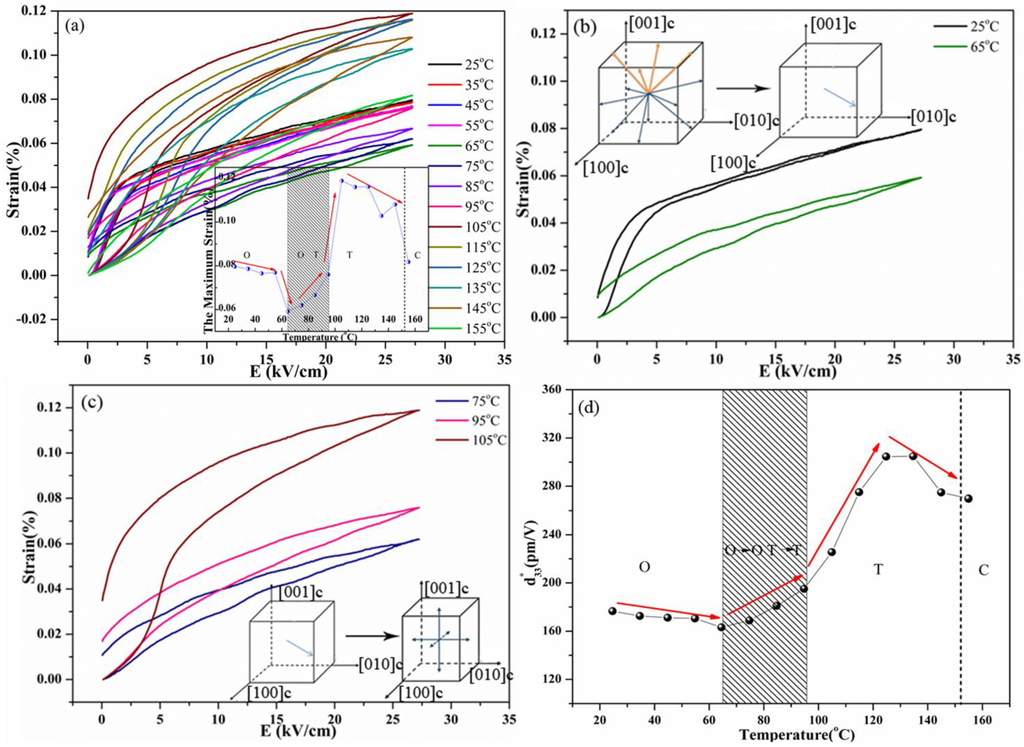

Figure 5. (a) The unipolar Suni-E plots as a function of temperature for [011]c PMN-0.35PT. The inset indicates the variation tendency of the maximum strain; (b,c) The significant variation S-E patterns at 25 °C, 65 °C, 75 °C, 95 °C and 105 °C, respectively. The insets schematically illustrate the polarization direction change as temperature increasing; (d) Temperature dependence of the longitudinal piezoelectric coefficient ( Crystals 04 00262 i003).

Click here to enlarge figure

Figure 5. (a) The unipolar Suni-E plots as a function of temperature for [011]c PMN-0.35PT. The inset indicates the variation tendency of the maximum strain; (b,c) The significant variation S-E patterns at 25 °C, 65 °C, 75 °C, 95 °C and 105 °C, respectively. The insets schematically illustrate the polarization direction change as temperature increasing; (d) Temperature dependence of the longitudinal piezoelectric coefficient ( Crystals 04 00262 i003).
Crystals 04 00262 g005 1024

4. Conclusions

Temperature-dependent phase transition characteristics in orthorhombic [011]c PMN-0.35PT single crystal have been investigated through variable temperature dielectric properties, X-ray diffraction, bipolar P-E hysteresis loops, and S-E hysteresis loops analyses. Two dielectric peaks are shown in the temperature-dependent dielectric permittivity for unpoled [011]c PMN-0.35PT single crystal. One is the O-to-T phase transition around 84 °C and the other is related to the T-to-C phase transition around 152 °C. The diffuseness degree of the T-to-C phase transition for the unpoled single crystal is calculated to be 1.56, implying the sample is at an intermediate state between normal and relaxor ferroelectrics. The variation trend of temperature-dependent Pr, Ec, Pmax, Rsq, and Crystals 04 00262 i003 are in good accordance with phase transition deduced from variable temperature dielectric properties and XRD analysis. Variable temperature unipolar Suni-E hysteresis loops avail additional evidence for the microstructure change in the as-measured single crystal.

Acknowledgments

This work was supported by the National Basic Research Program of China (Grant No. 2013CB632900), the National Natural Science Foundation of China (Nos. 50972071, 51172118 and 91333109). The Tsinghua National Laboratory for Information Science and Technology (TN List) Cross-discipline Foundation, the Tsinghua University Initiative Scientific Research Program and the State Key Laboratory of New Ceramics and Fine Processing, Tsinghua University, Beijing 100084, China are also acknowledged for partial financial support.

Author Contributions

Qiang Li and Qingfeng Yan designed the experiments. Wenhui He and Nengneng Luo performed PMN-PT crystal growths and characterizations. All authors analyzed the data and discussed the results. Wenhui He, Qiang Li and Qingfeng Yan co-wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, S.-J.; Luo, J.; Xia, R.; Rehrig, P.-W.; Randall, C.-A.; Shrout, T.-R. Field-induced piezoelectric response in Pb(Mg1/3Nb2/3)O3-PbTiO3 single crystals. Solid State Commun. 2006, 137, 16–20. [Google Scholar] [CrossRef]
  2. Luo, H.-S.; Xu, G.-S.; Wang, P.-C.; Yin, Z.-W. Growth and Characterization of Relaxor Ferroelectric PMNT Single Crystals. Ferroelectrics 1999, 231, 685–690. [Google Scholar]
  3. Hou, Y.-D.; Wu, N.-N.; Wang, C.; Zhu, M.-K.; Song, X.-M. Effect of Annealing Temperature on Dielectric Relaxation and Raman Scattering of 0.65Pb(Mg1/3Nb2/3)O3-0.35PbTiO3 System. J. Am. Ceram. Soc. 2010, 93, 2748–2754. [Google Scholar] [CrossRef]
  4. Joe, K.; Mark, L.; Chutima, T.; Ahmad, S. Effect of Composition on the Electromechanical Properties of (1−x)Pb(Mg1/3Nb2/3)O3-xPbTiO3 Ceramics. J. Am. Ceram. Soc. 1997, 80, 957–964. [Google Scholar]
  5. Ye, Z.-G.; Dong, M.; Yamashita, Y. Thermal stability of the Pb(Zn1/3Nb2/3)O3-PbTiO3 [PZNT91/9] and Pb(Mg1/3Nb2/3)O3-PbTiO3 [PMNT68/32] single crystals. J. Cryst. Growth 2000, 211, 247–251. [Google Scholar]
  6. Saitoh, S.; Kobayashi, T.; Harada, K.; Shimanuki, S.; Yamashita, Y. Simulation and Fabrication Process for a Medical Phased Array Ultrasonic Probe Using a 0.91Pb(Zn1/3Nb2/3)O3-0.09PbTiO3 Single Crystal. Jpn. J. Appl. Phys. 1998, 37, 3053–3057. [Google Scholar] [CrossRef]
  7. Cheng, K.-C.; Chan, H.-L.-W.; Choy, C.-L.; Yin, Q.-R.; Luo, H.-S.; Yin, Z.-W. Single crystal PMN-0.33PT/epoxy 1–3 composites for ultrasonic transducer applications. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2003, 50, 1177–1183. [Google Scholar] [CrossRef]
  8. Hana, U.; Franck, L.; Janez, H.; Marc, L.; Marija, K. 0.65Pb(Mg1/3Nb2/3)O3-0.35PbTiO3 Thick Films for High-Frequency Piezoelectric Transducer Applications. Jpn. J. Appl. Phys. 2013, 52, 055502:1–055502:6. [Google Scholar]
  9. Zhang, S.-J.; Li, F. High performance ferroelectric relaxor-PbTiO3 single crystals: Status and perspective. J. Appl. Phys. 2012, 111, 031301:1–031301:50. [Google Scholar]
  10. Liu, T.; Lynch, C.-S. Ferroelectric properties of [110], [001] and [111] poled relaxor single crystals: Measurements and modeling. Acta Mater. 2003, 51, 407–416. [Google Scholar] [CrossRef]
  11. Zhang, R.; Jiang, B.; Cao, W.-W. Superior d*32 and k*32 coefficients in 0.95Pb(Zn1/3Nb2/3)O3-0.045PbTiO3 and 0.92Pb(Zn1/3Nb2/3)O3-0.08PbTiO3 single crystals poled along [011]. J. Phys. Chem. Solids 2004, 65, 1083–1086. [Google Scholar] [CrossRef]
  12. Zhang, R.; Jiang, B.; Jiang, W.; Cao, W.-W. Complete set of elastic, dielectric, and piezoelectric coefficents of 0.93Pb(Zn1/3Nb2/3)O3-0.07PbTiO3 single crystal poled along [011]. Appl. Phys. Lett. 2006, 89, 242908:1–242908:3. [Google Scholar]
  13. Rajan, K.-K.; Shanthi, M.; Chang, W.-S.; Jin, J.; Lim, L.-C. Dielectric and piezoelectric properties of [001] and [011]-poled relaxor ferroelectric PZN-PT and PMN-PT single crystals. Sens. Actuators 2007, A133, 110–116. [Google Scholar]
  14. Shanthi, M.; Chia, S.M.; Lim, L.C. Overpoling resistance of [011]-poled Pb(Mg1/3Nb2/3)O3-PbTiO3 single crystals. Appl. Phys. Lett. 2005, 87, 202902:1–202902:3. [Google Scholar]
  15. Li, F.; Zhang, S.-J.; Xu, Z.; Wei, X.-Y.; Luo, J.; Shrout, T.-R. Temperature independent shear piezoelectric response in relaxor-PbTiO3 based crystals. Appl. Phys. Lett. 2010, 97, 252903:1–252903:3. [Google Scholar]
  16. Tu, C.-S.; Huang, L.-W.; Chien, R.; Schmidt, V.-H. E-Field and Temperature Dependent Transformation in <102>-Cut PMN-PT Crystal. Fundam. Phys. Ferroelectr. 2003, 677, 152–159. [Google Scholar] [CrossRef]
  17. Shanthi, M.; Lim, L.-C. Combined electric field and stress-induced R-O phase transitionin [011]-poled Pb(Mg1/3Nb2/3)O3-(28–32)%PbTiO3 single crystals of [011] length cut. Appl. Phys. Lett. 2009, 95, 102901:1–102901:3. [Google Scholar]
  18. Tu, C.-S.; Schmidt, V.H.; Chien, R.R.; Tsai, S.-H.; Lee, S.-C.; Luo, H.-S. Field-induced intermediate orthorhombic phase in (110)-cut Pb(Mg1/3Nb2/3)0.70Ti0.30O3 single crystal. J. Appl. Phys. 2008, 104, 094105:1–094105:6. [Google Scholar]
  19. Luo, N.-N.; Li, Y.-Y.; Xia, Z.-G.; Li, Q. Progress in lead- based ferroelectric and antiferroelectric single crystals: Composition modification, crystal growth and properties. Cryst. Eng. Commun. 2012, 14, 4547–4556. [Google Scholar] [CrossRef]
  20. Uchino, K.; Nomura, S. Critical exponents of the dielectric constants in diffused-phase-transition crystals. Ferroelectr. Lett. 1982, 44, 55–61. [Google Scholar]
  21. Noheda, B.; Cox, D.E.; Shirane, G.; Gao, J.; Ye, Z.-G. Phase diagram of the ferroelectric relaxor (1−x)PbMg1/3Nb2/3O3-xPbTiO3. Phys. Rev. B 2002, 66, 054104:1–054104:10. [Google Scholar]
  22. Breval, E.; Wang, C.; Dougherty, J.P.; Gachigi, K.W. PLZT Phases Near Lead Zirconate: 1. Determination by X-ray Diffraction. J. Am. Ceram. Soc. 2005, 88, 437–442. [Google Scholar] [CrossRef]
  23. Wang, L.; Li, Q.; Xue, L.-H.; Zhang, Y.L. Effect of Zr:Sn ratio in the lead lanthanum zirconate stannate titanate ceramics on microstructure and electric properties. J. Phys. Chem. Solids 2007, 68, 2008–2013. [Google Scholar] [CrossRef]
  24. Li, X.-Y.; Lu, S.-G.; Chen, X.-Z.; Gu, H.-M.; Qian, X.-S.; Zhang, Q.-M. Pyroelectric and electrocaloric materials. J. Mater. Chem. C 2013, 1, 23–37. [Google Scholar] [CrossRef]
  25. Yimnirun, R.; Wongsaenmai, S.; Wongmaneerung, R.; Wongdamnern, N.; Ngamjarurojana, A.; Ananta, S.; Laosiritaworn, Y. Stress- and temperature-dependent scaling behavior of dynamic hysteresis in soft PZT bulk ceramics. Phys. Scr. 2007, 129, 184–189. [Google Scholar]
  26. Zhang, S.-J.; Xia, R.; Hao, H.; Liu, H.-X.; Shrout, T.-R. Mitigation of thermal and fatigue behavior in K0.5Na0.5NbO3-based lead free piezoceramics. Appl. Phys. Lett. 2008, 92, 152904:1–152904:3. [Google Scholar]
