Gate-Induced Thermally Stimulated Current on the Ferroelectric-like Dielectric Properties of (BEDT-TTF)(TCNQ) Crystalline Field Effect Transistor
Masatoshi Sakai 1,*, Mitsutoshi Hanada 1, Shigekazu Kuniyoshi 1, Hiroshi Yamauchi 1, Masakazu Nakamura 2 and Kazuhiro Kudo 1
1
Department of Electrical and Electronic Engineering, Chiba University, 1-33 Yayoi-cho, Inage-ku, Chiba 263-8522, Japan; Email: hanada@graduate.chiba-u.jp (M.H.); kuniyosi@faculty.chiba-u.jp (S.K.); yamauchi@office.chiba-u.jp (H.Y.); kudo@faculty.chiba-u.jp (K.K.)
2
Graduate School of Materials Science, Nara Institute of Science and Technology (NAIST), 8916-5 Takayama, Ikoma, Nara 630-0192, Japan; Email: mnakamura@ms.naist.jp
*
Author to whom correspondence should be addressed; Email: sakai@faculty.chiba-u.jp
Received: 20 March 2012; in revised form: 15 June 2012 / Accepted: 18 June 2012 /
Published: 29 June 2012

Abstract

: A gate-induced thermally stimulated current (TSC) on β´-(BEDT-TTF)(TCNQ) crystalline FET were conducted to elucidate the previously observed ferroelectric-like behaviors. TSC which is symmetric for the polarization of an applied Crystals 02 00730 i012 and has a peak at around 285 K was assigned as a pyroelectric current. By integrating the pyroelectric current, temperature dependence of the remnant polarization charge was obtained and the existence of the ferroelectric phase transition at 285 K was clearly demonstrated. We have tentatively concluded that the phase transition between dimer Mott insulator and charge ordered phase occurred at around the interface of organic crystal and substrate.
Keywords:
ferroelectricity; pyroelectric current; field effect transistor; Mott insulator; charge order

1. Introduction

Recently electronic ferroelectricity derived from charge ordered phase attract much attention in the wide range of the research area. In the quarter-filled charge ordered phase, carriers are localized by on-site and inter-site Coulomb repulsion and form a stripe pattern of carrier distribution. The carrier patterns make large coherent domains in low temperature [1,2,3,4,5,6]. Since this is a kind of an electrically polarized electronic state, the charge distribution is modulated by an external electric field with increasing temperature. In these days, it is recognized that several types of organic correlated electronic materials exhibit electronic ferroelectricity.

We have investigated the field effect transistor (FET) characteristics of β´-(BEDT-TTF)(TCNQ) being known as an organic dimer Mott insulator [7,8]. The FET exhibited ambipolar FET characteristics at room temperature [9,10]. However, field effect mobility of both electron and hole abruptly changed at around 285 K and also showed the hysteresis on the temperature sweep [10]. We also found that the transfer curve of the FET indicated hysteresis on the applied gate voltage sweep below 285 K [10]. By the measurement of the temperature dependence and applied gate voltage dependence of gate capacitance included in a FET structure, we have found out that a ferroelectric-like transition exists in β´-(BEDT-TTF)(TCNQ). However, there has been no report on a ferroelectric-like phase transition observed in β´-(BEDT-TTF)(TCNQ) crystal. In addition, there has been no report on the ferroelectric-like phase transition at 285 K for two known polymorph [11,12,13]. To elucidate the origin of the ferroelectric-like properties, a thermally stimulated current (TSC) method was conducted on the FET sample.

TSC is a conventional electrical measurement to investigate a carrier trap and thermal dissolution of a spontaneous polarization. In this work, we conducted a gate-induced TSC measurement to mainly investigate a pyroelectric current. By measuring a pyroelectric current, the existence of spontaneous polarization which is the origin of the observed ferroelectric-like behavior is experimentally demonstrated.

2. Experimental Details

A Si wafer was cleaved and cleaned by warm semiconductor-grade acetone and UV/O3 cleaner to remove organic contaminants on the surface. Then the Si wafer was cleaned by a semiconductor-grade H2SO4 mixture. Pre-fabricated surface SiO2 layer of 1 µm thickness to protect the Si wafer was completely etched with a hydrofluoric acid mixture to remove alkali ion possibly diffused into SiO2 layer. Then, SiO2 layer of 300 µm thickness as a gate insulator of FET structure was formed by thermal oxidization. Then interdigital source and drain electrode of FET were fabricated by a standard vacuum evaporation method. The FET substrate was carefully prepared in a clean room.

The source materials, substrate preparation, and crystal growth method were described in our previous studies [9,10]. The high crystallinity, majority of the triclinic phase, and spontaneous oriented growth in the a*-direction normal to the substrate surface were elucidated by the X-ray diffraction [9]. As a result, the bc conductive plane of the BEDT-TTF layer is parallel to the SiO2 surface and continuous from source to drain electrode. A sample structure is not a normal capacitor structure but a bottom-contact FET structure itself because this ferroelectric-like phenomena is observed in this FET structure. In addition, dimension of the tiny crystal (0.8 × 300 × 0.4 µm) is not suitable for making parallel capacitor structure.

A gate-induced thermally stimulated current was measured in the procedure explained below. Initially, the sample was placed in vacuum chamber in which a base pressure is approximately 108 Pa and sample temperature was decreased to 280 K which is lower than the observed ferroelectric-like phase transition temperature (285 K). A poling voltage ( Crystals 02 00730 i012) was applied under 280 K and this poling bias was kept for 30 min. After the poling, the sample was cooled until about 90 K under the application of Crystals 02 00730 i012 to freeze the gate-induced polarization. After Crystals 02 00730 i012 was turned to 0 V, an electrical current from source electrode was measured under the constant sample heating rate of about 5 K/min. A thermally stimulated current was observed with the dissolution of initially frozen polarization.

Crystals 02 00730 g001 200
Figure 1. Calculated electrical flux density distribution in the FET sample with the source and gate voltage of 0 and 30 V, respectively. The electric flux density in (BEDT-TTF)(TCNQ) is not uniform; far from that of parallel capacitor. The electric flux density is concentrated in the vicinity of the source electrode edge and at the interface between (BEDT-TTF)(TCNQ) and SiO2 gate insulator.

Click here to enlarge figure

Figure 1. Calculated electrical flux density distribution in the FET sample with the source and gate voltage of 0 and 30 V, respectively. The electric flux density in (BEDT-TTF)(TCNQ) is not uniform; far from that of parallel capacitor. The electric flux density is concentrated in the vicinity of the source electrode edge and at the interface between (BEDT-TTF)(TCNQ) and SiO2 gate insulator.
Crystals 02 00730 g001 1024

3. Results and Discussion

At first, distribution of the electric field in our sample was calculated by the finite element method (FEM). Since the anisotropic dielectric constant of (BEDT-TTF)(TCNQ) is unknown, we assumed an isotropic dielectric constant of 100–10000 as trial values. This model dielectric isotropy is not so realistic because the 2-dimensional BEDT-TTF materials exhibit large anisotropy. However, the variation of dielectric constant barely affected the result of the FEM calculation. Figure 1 is a calculated distribution of an electric flux density in our bottom contact FET structure at around the source electrode. The thickness of source electrode is approximately 20 nm and the height of the organic crystals is ranging from 200 to 600 nm along a* -axis. As shown in the figure, the electric flux density in (BEDT-TTF)(TCNQ) is not uniform but concentrated in the vicinity of the Au electrode edge and at the interface between (BEDT-TTF)(TCNQ) and SiO2 gate insulator. The fringe field in the crystal is mainly consisted of a horizontal component which is parallel to the conductive b-c plane of BEDT-TTF layer. Therefore, the main contribution to the observed dielectric response is due to the horizontal component of the dielectric constant of (BEDT-TTF)(TCNQ).

Dielectric constant estimated from the simulated capacitance was larger than the typical value measured in inorganic ferroelectric ceramics such as BaTiO3. This estimation is tentative because of the limited precision of this calculation. However, early reports on one-dimensional charge ordered materials such as TMTSF compounds [14,15,16,17,18,19] indicated the extremely high dielectric constants of over 10000. Charge ordered state is one of the polarized state of which the polarization originate from the alternative localization of carrier. For the rigid charge ordered phase, it is impossible to invert the polarization by an external electric field. However, in a fluctuated charge ordered state, weakly localized carriers are mobile by the external electric field. Therefore, the effective electric field contributing to the observed dielectric response is horizontal component in the vicinity of the Au electrode and at the interface between (BEDT-TTF)(TCNQ) crystal and SiO2 gate insulator, by no means from whole bulk.

Crystals 02 00730 g002 200

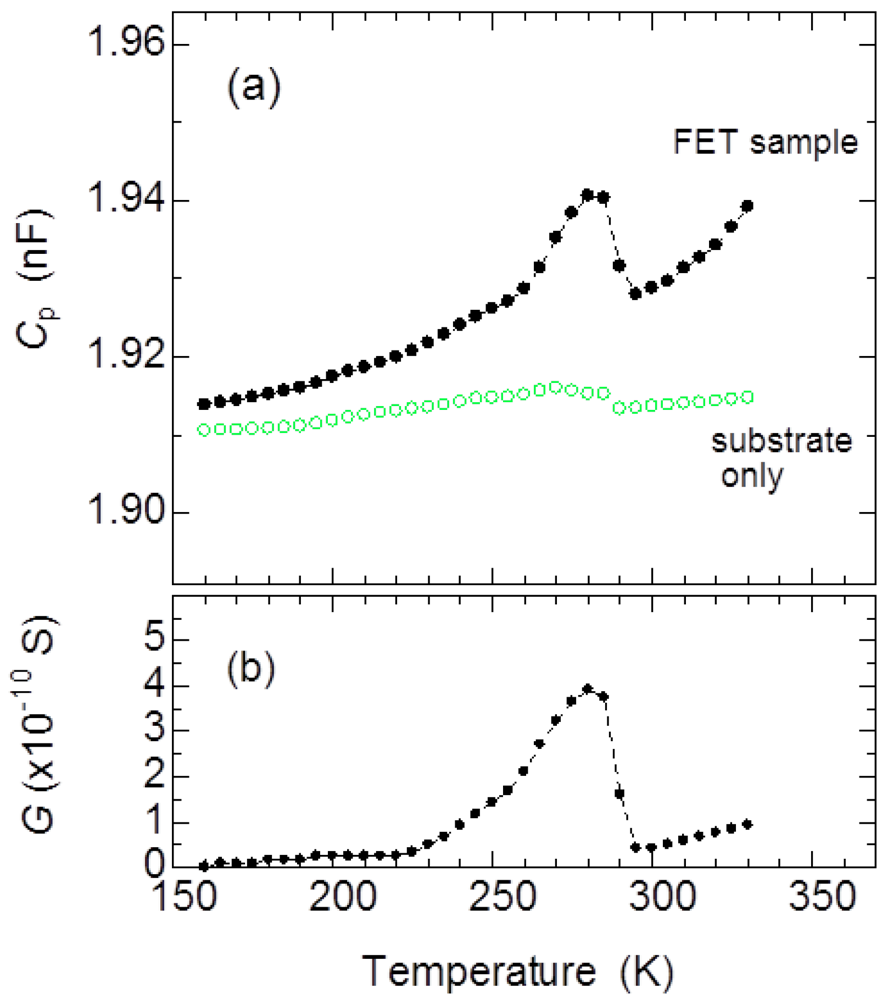

Figure 2. Temperature dependence of the capacitance (Cp and dielectric loss (G) measured in (BEDT-TTF)(TCNQ) FET structure. Cp and G were measured by impedance meter at 4 Hz.

Click here to enlarge figure

Figure 2. Temperature dependence of the capacitance (Cp and dielectric loss (G) measured in (BEDT-TTF)(TCNQ) FET structure. Cp and G were measured by impedance meter at 4 Hz.
Crystals 02 00730 g002 1024

Figure 2 shows the temperature dependence of the dielectric response measured in (BEDT-TTF)(TCNQ) FET structure. Cp and G stand for a capacitance and a dielectric loss, respectively. The observed admittance is written as,

Crystals 02 00730 i001

Crystals 02 00730 i002

where j is the imaginary unit and C0 is a geometrical capacitance. Therefore, Cp and G are related to the complex dielectric constant Crystals 02 00730 i003. However in our case, it is impossible to transform Cp and G into the Crystals 02 00730 i004 and Crystals 02 00730 i005 because an electric field is not uniform in the FET structure (see Figure 1 ). Although a parallel capacitor structure is generally used for conventional dielectric measurements, we had to observe a novel ferroelectric-like property which was observed in the channel region of FET structure [10] and had not been reported in bulk crystal. Both the observed Cp and G have a peak at around 280 K, and abruptly decrease at around 290 K. In our previous work [10], we suggested the existence of unknown ferroelectric-like transition by a displacement current measurement. In this work, the conventional impedance measurement also discovered this ferroelectric-like transition. However, compared to the typical ferroelectric transition, the observed temperature dependence of dielectric response is rather dispersive because the polarization in our sample is not uniform due to the non-uniformity of electric field in the crystal.

Crystals 02 00730 g003 200

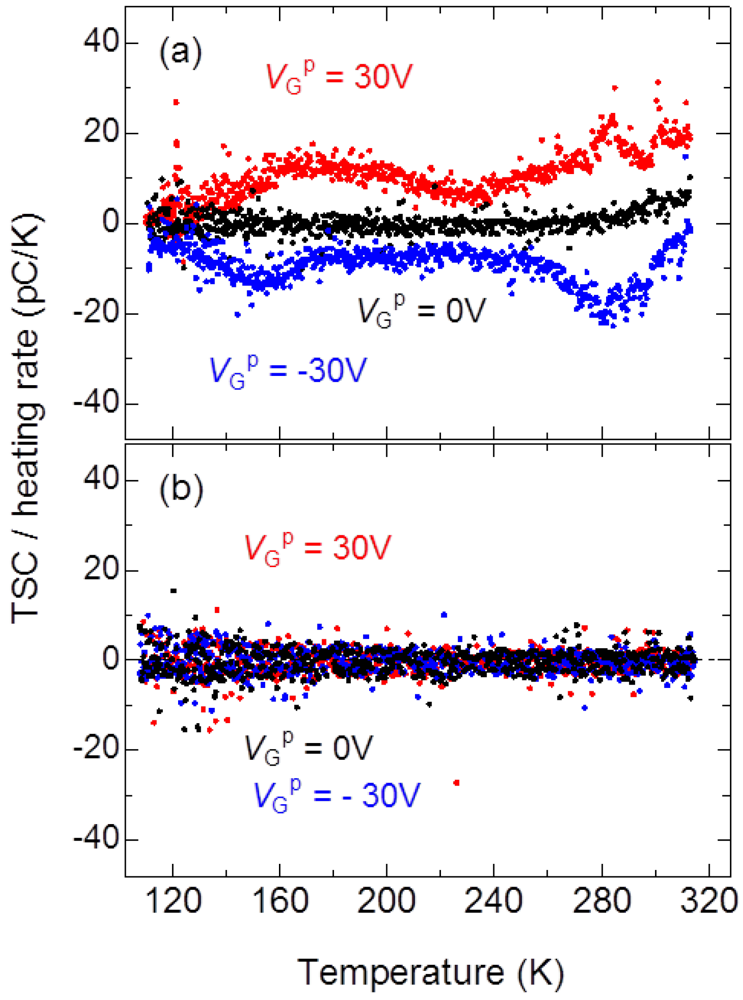

Figure 3. (a) Gate-induced TSCs observed in the FET sample after various Crystals 02 00730 i012; (b) The TSCs observed in the substrate without (BEDT-TTF)(TCNQ) crystals.

Click here to enlarge figure

Figure 3. (a) Gate-induced TSCs observed in the FET sample after various Crystals 02 00730 i012; (b) The TSCs observed in the substrate without (BEDT-TTF)(TCNQ) crystals.
Crystals 02 00730 g003 1024

Figure 3(a) shows observed gate-induced TSCs. By application of the positive Crystals 02 00730 i012, positive TSC was observed. On the other hand, negative TSC was observed by application of negative Crystals 02 00730 i012. In addition, by application of zero Crystals 02 00730 i012, no TSC peak was observed. Only a minor increase of a TSC was observed above 290 K, which was also observed in a blank test which is described afterwards. The observed TSC under non-zero Crystals 02 00730 i012 have a maximum at 285 K, and there are minor and broad peaks in 180–210 K. These minor and broad peaks do not belong to a pyroelectric current but correspond to detrapping of carriers because these peaks are not symmetric to the polarization of an applied Crystals 02 00730 i012. A thermal activation energy for electron and hole detrapping should be different. On the other hand, major TSC observed above 210 K belongs to a pyroelectric current because these peaks are symmetric to the Crystals 02 00730 i012 polarization, and the TSC corresponds to the dielectric response and QV hysteresis observed in our previous work [10]. The QV hysteresis, divergent increase of dielectric constant and loss are a part of the feature of the ferroelectricity. Therefore, we concluded that the observed TSC corresponded to the dissolution of the ferroelectric-like polarization.

Here, other possible origin of observed TSC should be carefully considered. A possibility for mobile alkali ion (especially Na+ ion in our environment) diffused into the SiO2 gate insulator or a residual moisture on the substrate surface are denied by blank test in Figure 3 (b). Figure 3 (b) shows a result of blank tests which is measured by using the FET substrate without (BEDT-TTF)(TCNQ) crystals. There is no TSC signal in this sample. Although weak increase of TSC above 290 K was observed in some samples, the weak TSC did not depend on applied Crystals 02 00730 i012 and its polarity. In addition, the observed weak TSC decreases after the several thermal cycles. A possible origin of the weak TSC in the blank test is surface moisture or mobile alkali ion naturally diffused into the SiO2 layer. However, thick pre-fabricated SiO2 layer to protect the Si wafer from the alkali ion pollution is completely removed in the sample preparation procedure. Moreover, a contribution of alkali ion cannot decrease after several thermal cycles because alkali ion diffused in Si cannot vaporize in this experimental condition. Therefore, we conclude that the origin of the small TSC observed in the blank test is residual surface moisture at the substrate surface. Incidentally, the existence of ferroelectric phase of H2O is proposed at around 60 K [20]. However, this phase cannot affect our results.

Crystals 02 00730 g004 200

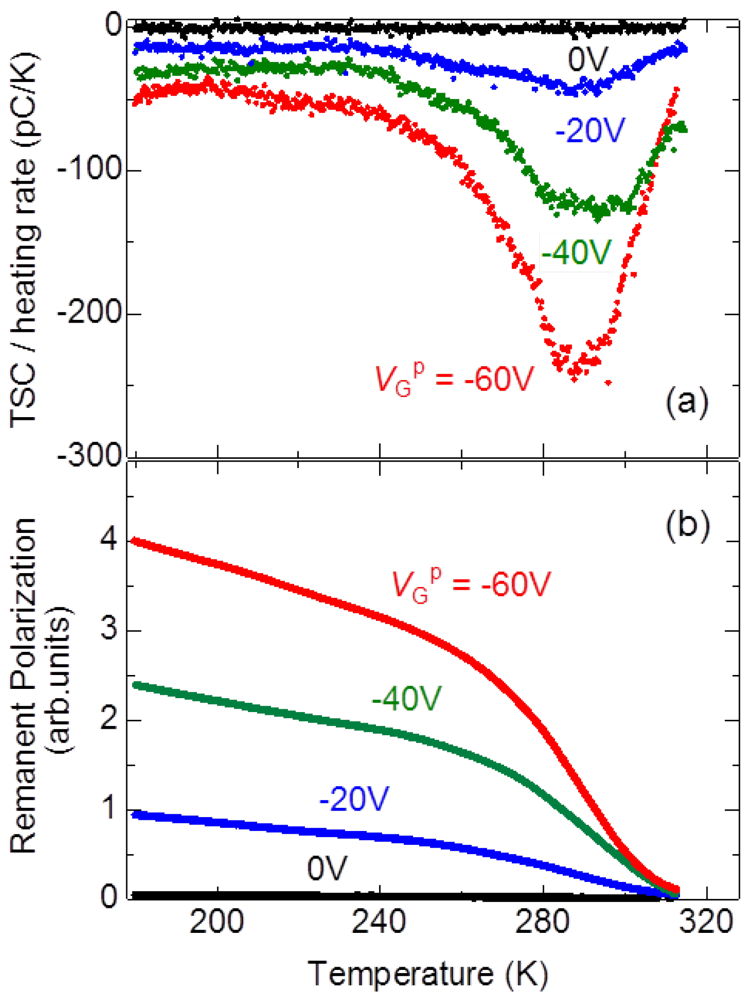

Figure 4. (a) Crystals 02 00730 i012 dependence of the observed TSCs; (b) Temperature and Crystals 02 00730 i012 dependence of the remnant polarization charge. The values for the remnant polarization charge at the lowest temperature (Qini) was taken rather arbitrarily to let the remnant polarization charge be proportional to Crystals 02 00730 i012 because it was difficult to determine the absolute value of Qini due to the non-uniform electric field.

Click here to enlarge figure

Figure 4. (a) Crystals 02 00730 i012 dependence of the observed TSCs; (b) Temperature and Crystals 02 00730 i012 dependence of the remnant polarization charge. The values for the remnant polarization charge at the lowest temperature (Qini) was taken rather arbitrarily to let the remnant polarization charge be proportional to Crystals 02 00730 i012 because it was difficult to determine the absolute value of Qini due to the non-uniform electric field.
Crystals 02 00730 g004 1024

Now we discuss the TSC as a pyroelectric current. Figure 4 (a) shows the Crystals 02 00730 i012 dependence of the observed TSCs. These TSCs increase with increasing Crystals 02 00730 i012 because induced average polarization increase with increasing Crystals 02 00730 i012. However, the TSC peak temperature shows little dependence on the Crystals 02 00730 i012. In this temperature region, the observed TSC is expected to mainly consist of the pyroelectric current because the temperature range is higher than that of which the detrapping from the carrier traps are observed. On this basis, we integrated the observed TSCs. The relation between the polarization and observed TSC is written as

Crystals 02 00730 i006

where, seff is the effective surface area of the sample and is defined for a parallel capacitor. Qr and Pr is a remnant polarization charge and a remnant polarization, respectively. In the case of the parallel capacitor, one can define the pyroelectric coefficient p(T),

Crystals 02 00730 i007

thus one obtains:

Crystals 02 00730 i008

If the heating rate ( Crystals 02 00730 i009) is constant, one can obtain the pyroelectric coefficient. Then, Pr was calculated as an integration of the pyroelectric current i(T).

Crystals 02 00730 i010

In our case, remnant polarization charge is calculated as,

Crystals 02 00730 i011

where Qini is a constant of integration which is fixed by an initial condition, i.e., initially induced polarization. Figure 4 (b) shows integrated TSC, which corresponds to the temperature and Crystals 02 00730 i012 dependence of the remnant polarization charge (Qr). Although the Qini is difficult to determine, because of the non-uniform electric field in the crystal, we determined the Qini for each Crystals 02 00730 i012 on the assumption that the initially induced Qr is proportional to the Crystals 02 00730 i012. Figure 4 (b) indicates that Qr gradually decrease with increasing temperature until 260 K, and begin to decrease steeply at around 280–290 K. A little Qr remains at 320 K. These observed temperature dependence well corresponds to the temperature dependence of the Cp as shown in Figure 2 (a). Temperature dependence of Cp and previously observed hysteresis [10] had suggested the existence of ferroelectric phase transition, which is now supported by the additional evidence in this work.

Figure 5 are the summary of the physical and electrical parameters of the β´-(BEDT-TTF)(TCNQ) crystalline FET. There are clear relationships between the observed parameters; especially, the ferroelectric-like transition, which is indicated in Figure 5 (c) and (d), and a change of the field effect mobility (shown in Figure 5 (b)) occurred simultaneously. On the other hand, this ferroelectric-like transition hardly affected on the bulk conduction shown in Figure 5 (a). Therefore, this correlation is related to the interface of the organic crystals and SiO2 because both field effect mobility and the ferroelectric-like properties were observed at around the interface, not as the bulk properties. Because a bulk β´-(BEDT-TTF)(TCNQ) crystal is known as a dimer Mott insulator, the ferroelectric-like phase below 285 K, discovered in this work, is exceptional. On the other hand, there are many examples of ferroelectric phase transition observed in charge ordered materials [1,2,3,4,5,6]. Therefore, we have speculated that the phase transition between the charge-ordered phase and dimer Mott insulator phase occurred at the interface of organic crystal and gate insulator.

Crystals 02 00730 g005 200

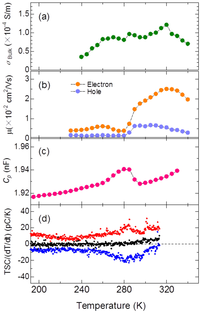

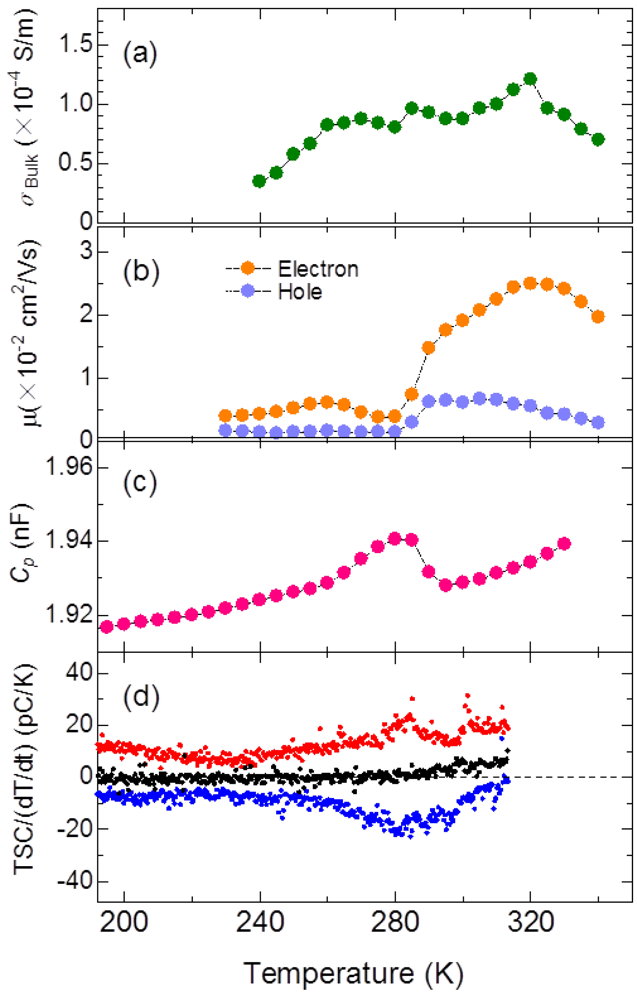

Figure 5. Summary of the physical and electrical parameters observed in the β´-(BEDT-TTF)(TCNQ) crystalline FET. Temperature dependence of (a) bulk conductance; (b) field effect mobility; (c) gate capacitance, and (d) TSC.

Click here to enlarge figure

Figure 5. Summary of the physical and electrical parameters observed in the β´-(BEDT-TTF)(TCNQ) crystalline FET. Temperature dependence of (a) bulk conductance; (b) field effect mobility; (c) gate capacitance, and (d) TSC.
Crystals 02 00730 g005 1024

The band filling of both the dimer Mott insulator and charge ordered phase are quarter filling. The difference of the dimer Mott insulator and charge ordered phase is the degree of localization of correlated carriers. The carrier of the dimer Mott insulator and charge ordered phase is localized in one dimer site and one BEDT-TTF site, respectively. If a carrier is localized in a BEDT-TTF site and the thermal hopping to the intradimer neighboring BEDT-TTF site is allowed, spontaneous polarization derived from the biased carrier distribution in dimer sites is induced by an external electric field. Based on this assumption, the strange temperature behavior shown in Figure 5 is explained by the abrupt change of the degree of the localization on correlated carriers. And also, phase transition between charge ordered phase and Mott insulator phase in a quarter-filled dimer Mott insulator had been predicted in theoretical works [21,22,23]. By introducing the intradimer strain, Mott insulator phase undergoes the phase transition to ferroelectric phase in the way to the charge ordered phase.

Although the effect of a gate electric field on the phase transition is not clear now, it is indubitable that an interface strain on the soft organic material affects this phase transition. A modulation of a crystal lattice parameter is one of the necessary factor to lead the phase transition between charge ordered and Mott insulator phase in the theoretical prediction [21,22,23]. Thermal expansion coefficient of Si wafer is much smaller than that of the organic materials. Therefore, if there is no slippage at the interface, the in-plane (b-c plane) lattice parameter of the organic crystal at around the interface of the Si wafer is effectively expanded with decreasing temperature compared to its thermal expansion in free crystal [24,25]. In fact, in our preliminary result, distance of (0kl) planes are expanded compared to the free (0kl) plane distance (to be published elsewhere). On the other hand, (h00) plane distance is rather compressed compared to (h00) distance of the free bulk crystal. These facts are explained by the interfacial strain on the soft organic material.

4. Conclusions

We have presented the gate-induced TSC experiment on (BEDT-TTF)(TCNQ) crystalline FET sample to elucidate previously observed ferroelectric-like behaviors and related abrupt change of the field effect carrier mobility. Among the observed TSC components, TSC which is symmetric for the applied Crystals 02 00730 i012 and has a peak at around 285 K was assigned as a pyroelectric current derived from the spontaneous polarization of ferroelectricity. By integrating the pyroelectric current, temperature dependence of the remnant polarization charge was exhibited and the existence of the ferroelectric phase transition at 285 K was clearly demonstrated. With the calculated distribution of an electric field and obvious relationship of the field effect mobility and ferroelectric behavior, we have concluded that the observed novel phenomena is brought about at around the interface of organic crystal and substrate. Although the phenomena has not fully been elucidated yet, we temporarily concluded that the phase transition occurred between dimer Mott insulator and charge ordered phase.

Acknowledgments

The authors wish to thank T. Mori in Tokyo Institute of Technology and K. Yamamoto in Institute of Molecular Science for fruitful discussion, A. Nakao for experimental help in Photon Factory, KEK, and H. Furumi in Nippon Steel Chemical Co. Ltd. for providing highly purified materials. This work was supported by a Grant-in-Aid for Scientific Research (young research grant #19760211) and Chiba University Global COE Program from Ministry of Education, Culture, Sports, Science and Technology, Japan.

References

  1. Yamamoto, K.; Kowalska, A.A.; Yakushi, K. Direct observation of ferroelectric domains created by Wigner crystallization of electrons in α-[bis(ethylenedithio)tetrathiafulvalene]2I3. Appl. Phys. Lett. 2010, 96 122901-1-122901-3., 122901–1, doi:10.1063/1.3327810.
  2. Yamamoto, K.; Kowalska, A.A.; Nakano, C.; Yakushi, K. Inhomogeneous ferroelectric polarization in α '-(BEDT-TTF)2IBr2 revealed by second-harmonic generation microscopy. Physica B 2010, 405, S363–S364, doi:10.1016/j.physb.2009.10.027.
  3. Kowalska, A.A.; Yamamoto, K.; Nakano, C.; Yakushi, K. Ferroelectric Polarization in α-(ET)2I2Br Studied by Second -Harmonic Generation Microscopy. J. Phys. 2008, 132 012006-1-012006-5, 012006–1.
  4. Yamamoto, K.; Iwai, S.; Boyko, S.; Kashiwazaki, A.; Hiramatsu, F.; Okabe, C.; Nishi, N.; Yakushi, K. Strong Optical Nonlinearity and its Ultrafast Response Associated with Electron Ferroelectricity in an Organic Conductor. J. Phys. Soc. Jpn. 2008, 77 074709-1-074709-6., 074709–1, doi:10.1143/JPSJ.77.074709.
  5. Abdel-Jawad, M.; Terasaki, I.; Sasaki, T.; Yoneyama, N.; Kobayashi, N.; Uesu, Y.; Hotta, C. Anomalous dielectric response in the dimer Mott insulator κ-(BEDT-TTF)2Cu2(CN)3. Phys. Rev. B 2010, 82, doi:10.1103/PhysRevB.82.125119.
  6. Niizeki, S.; Yoshikane, F.; Kohno, K.; Takahashi, K.; Mori, H.; Bando, Y.; Kawamoto, T.; Mori, T. Dielectric Response and Electric-Field-Induced Metastable State in an Organic Conductor β-(meso-DMBEDT-TTF)2PF6. J. Phys. Soc. Jpn. 2008, 77, 073710, doi:10.1143/JPSJ.77.073710.
  7. Mori, T.; Inokuchi, H. Structural and electrical properties of (BEDT-TTF)(TCNQ). Solid State Commun. 1986, 59, 355–359, doi:10.1016/0038-1098(86)90562-4.
  8. Iwasa, Y.; Mizuhashi, K.; Koda, T.; Tokura, Y.; Saito, G. Metal-insulator transition and antiferromagnetic order in bis(ethylenedithio)tetrathiafulvalene tetracyanoquinodimethane (BEDT-TTF)(TCNQ). Phys. Rev. B 1994, 49, 3580–3583, doi:10.1103/PhysRevB.49.3580.
  9. Sakai, M.; Sakuma, H.; Ito, Y.; Saito, A.; Nakamura, M.; Kudo, K. Ambipolar field-effect transistor characteristics of (BEDT-TTF)(TCNQ) crystals and metal-like conduction induced by a gate electric field. Phys. Rev. B 2007, 76 045111-1-045111-1-5., 045111–1, doi:10.1103/PhysRevB.76.045111.
  10. Sakai, M.; Ito, Y.; Takahara, T.; Ishiguro, M.; Nakamura, M.; Kudo, K. Ferroelectriclike dielectric response and metal-insulator transition in organic Mott insulator-gate insulator interface. J. Appl. Phys. 2010, 107 043711-1-043711-5., 043711–1, doi:10.1063/1.3310735.
  11. Mori, T.; Inokuchi, H. Crystal Structure of the Mixed-Stacked Salt of Bis(ethylenedithio) tetrathiafulvalene (BEDT-TTF) and Tetracyanoquinodimethane (TCNQ). Bull. Chem. Soc. Jpn. 1987, 60, 402–404, doi:10.1246/bcsj.60.402.
  12. Yamamoto, H.M.; Hagiwara, M.; Kato, R. New phase of (BEDT-TTF)(TCNQ). Synth. Met 2003, n133-134, 449–451.
  13. Yamamoto, H.M.; Tajima, N.; Hagiwara, M.; Kato, R.; Yamaura, J.-I. Strange Electric/Magnetic Behavior of New (BEDT-TTF)(TCNQ). Synth. Met. 2003, 135-136, 623–624, doi:10.1016/S0379-6779(02)00808-1.
  14. Brazovskii, S.; Monceau, P.; Nad, F. The ferroelectric Mott-Hubbard phase in organic conductors. Synth. Met. 2003, 137, 1331–1333, doi:10.1016/S0379-6779(02)01076-7.
  15. Monceau, P.; Nad, F.; Brazovskii, S. Ferroelectric mott-hubbard phase of organic (TMTTF)2X conductors. Phys. Rev. Lett. 2001, 86, 4080–4083, doi:10.1103/PhysRevLett.86.4080.
  16. Nad, F.; Monceau, P.; Carcel, C.; Fabre, J.M. Dielectric response of the charge-induced correlated state in the quasi-one-dimensional conductor (TMTTF)2PF6. Phys. Rev. B 2000, 62, 1753–1756, doi:10.1103/PhysRevB.62.1753.
  17. Nad, F.; Monceau, P.; Fabre, J.M. Low frequency dielectric permittivity of quasi-one-dimensional conductor (TMTTF)2Br. Eur. Phys. J. B 1998, 3, 301–306, doi:10.1007/s100510050316.
  18. Nad, F.; Monceau, P.; Bechgaard, K. Low-frequency permittivity of spin-density wave in (TMTSF)2PF6 at low temperatures. Solid State Commun. 1995, 95, 655–660, doi:10.1016/0038-1098(95)00360-6.
  19. Nad, F.; Monceau, P. Charge-density-wave glass state in quasi-one-dimensional conductors. Phys. Rev. B 1995, 51, 2052–2060, doi:10.1103/PhysRevB.51.2052.
  20. Fukazawa, H.; Hoshikawa, A.; Ishii, Y.; Chakoumakos, B.C.; Fernandez-Baca, J.A. Existence of Ferroelectric Ice in the Universe. Astrophys. J. 2006, 652, L57–L60, doi:10.1086/510017.
  21. Yoshioka, H.; Tsuchiizu, M.; Seo, H. Charge-Ordered State versus Dimer-Mott Insulator at Finite Temperatures. J. Phys. Soc. Jpn. 2007, 76 103701-1-103701-4., 103701–1, doi:10.1143/JPSJ.76.103701.
  22. Seo, H.; Motome, Y.; Kato, T. Finite-Temperature Phase Transitions in Quasi-One-Dimensional Molecular Conductors. J. Phys. Soc. Jpn. 2007, 76 013707-1-013707-6., 013707–1, doi:10.1143/JPSJ.76.013707.
  23. Otsuka, Y.; Seo, H.; Motome, Y.; Kato, T. Finite-Temperature Phase Diagram of Quasi-One-Dimensional Molecular Conductors: Quantum Monte Carlo Study. J. Phys. Soc. Jpn. 2008, 77 113705-1-4., 113705–1, doi:10.1143/JPSJ.77.113705.
  24. Kawasugi, Y.; Yamamoto, H.M.; Hosoda, M.; Tajima, N.; Fukunaga, T.; Tsukagoshi, K.; Kato, R. Strain-Induced Superconductor/Insulator Transition and Field Effect in a Thin Single Crystal of Molecular Conductor. Appl. Phys. Lett. 2008, 92 243508-1-243508-3., 243508–1, doi:10.1063/1.2949316.
  25. Kawasugi, Y.; Yamamoto, H.M.; Tajima, N.; Fukunaga, T.; Tsukagoshi, K.; Kato, R. Field-Induced Carrier Delocalization in the Strain-Induced Mott Insulating State of an Organic Superconductor. Phys. Rev. Lett. 2009, 103 116801-1-116801-1-4., 116801–1, doi:10.1103/PhysRevLett.103.116801.
