Crystals 2012, 2(3), 1239-1247; doi:10.3390/cryst2031239

Article
Crystal and Molecular Structure Studies of Ethyl 4-(4-Hydroxyphenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate and Ethyl 4-(3-Bromophenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate
Manpreet Kaur 1, Jerry P. Jasinski 2,*, Ray J. Butcher 3, Hemmige S. Yathirajan 1, Anil N. Mayekar 4 and Badiadka Narayana 5
1
Department of Studies in Chemistry, University of Mysore, Manasagangotri, Mysore-570 006, India; Email: manpreet.kaur2488@yahoo.in (M.K.); yathirajan@hotmail.com (H.S.Y.)
2
Department of Chemistry, Keene State College, 229 Main Street, Keene, NH 03435, USA
3
Department of Chemistry, Howard University, 525 College Street NW, Washington DC 20059, USA; Email: rbutcher99@yahoo.com
4
SeQuent Scientific Limited, Baikampady, Mangalore-575 011, India; Email: anilmayekar@gmail.com
5
Department of Studies in Chemistry, Mangalore University, Mangalagangotri-574 199, India; Email: nbadiadka@yahoo.co.uk
*
Author to whom correspondence should be addressed; Email: jjasinski@keene.edu; Tel.: +603-358-2563; Fax: +603-358-2897.
Received: 24 July 2012; in revised form: 8 August 2012 / Accepted: 15 August 2012 /
Published: 27 August 2012

Abstract

: The crystal and molecular structures of the title compounds, ethyl 4-(4-hydroxyphenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate (I) and ethyl 4-(3-bromophenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate (II), are reported and confirmed by single crystal X-ray diffraction data. Compound (I), C26H24O5, crystallizes from a methanol solution in the monoclinic C2/c space group with eight molecules in the unit cell. The unit cell parameters are: a = 25.4114(5) Å, b = 8.47440(10) Å, c = 20.6921(4) Å, β = 108.328(2)° and V = 4229.92(13) Å3. Disorder is observed throughout the entire molecule with an occupancy ratio 0.690(2):0.310(2). Compound (II), C26H23O4Br, crystallizes from an ethyl acetate solution in the monoclinic P21/c spacegroup with four molecules in the unit cell. The unit cell parameters are a = 17.8991(9) Å, b = 11.4369(6) Å, c = 10.8507(5) Å, β = 92.428(4)° and V = 2219.25(19) Å3. Disorder is observed in the cyclohexenone ring and the carboxylate group with an occupancy ratio 0.830(6):0.170(6). Weak O–H...O (I) or C–H...O (II) intermolecular interactions are observed which influence crystal packing stability. These chalcone derivative types of molecules are important in their ability to act as activated unsaturated systems in conjugated addition reactions of carbanions in the presence of basic catalysts which exhibit a multitude of biological activities.
Keywords:
cyclohexenecarboxylates; X-ray crystal structure; disorder; weak intermolecular interactions

1. Introduction

Chalcones and their corresponding heterocyclic analogs are valuable intermediates in organic synthesis [1]. This scaffold is found in various medicinally useful compounds and is known to exhibit a multitude of biological activities [2]. From a chemical point of view, an important feature of the chalcones scaffold is the ability to act as activated unsaturated systems in conjugate i.e., 1,4-addition reactions of carbanions in the presence of bases [3]. This reactivity may be exploited for obtaining highly functionalized derivatives [4]. The more common application is found in preparation of 3,5-diaryl-6-carbethoxycyclohexanones, efficient synthons in building spiro compounds [5], or intermediates in the synthesis of benzisoxazoles, or carbazole derivatives [6,7], via 1,3-Michael addition of ethyl acetoacetate. Crystal structures of (8RS, 9SR)-ethyl 4-(3-bromothien-2-yl)-6-(2-furyl)-2-oxocyclohex-3-ene-1-carboxylate [8], ethyl 4-(3-bromo-2-thienyl)-2-oxo-6-phenylcyclohex-3-ene-1-carboxylate [9], (R, S)-methyl 3-methyl-5-oxo-1-phenylcyclohex-3-ene-1-carboxylate [10], rac-ethyl 3-(3-bromo-2-thienyl)-2-oxo-6-(4-propoxyphenyl)cyclohex-3-ene-1-carboxylate [11], (±)-ethyl 6-(6-methoxy-2-naphthyl)-4-(4-methylphenyl)-2-oxocyclohex-3-ene-1-carboxylate [12], ethyl 6-(6-methoxy-2-naphthyl)-2-oxo-4-(2-thienyl)cyclohex-3-ene-1-carboxylate [13], (1RS,6SR)-ethyl 4-(4-chlorophenyl)-6-(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate toluene hemisolvate [14], ethyl 4-(2,4-dichlorophenyl)-6-(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate [15], ethyl 4,6-bis(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate [16] and methyl 4,6-bis(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate [17] have been reported. In view of the pharmacological importance of these derivatives, crystal and molecular structure studies of two new derivatives of cyclohex-3-ene-1-carboxylates, (I) and (II) (Figure 1), are reported, and expected to be useful for the docking studies.

Crystals 02 01239 g001 200

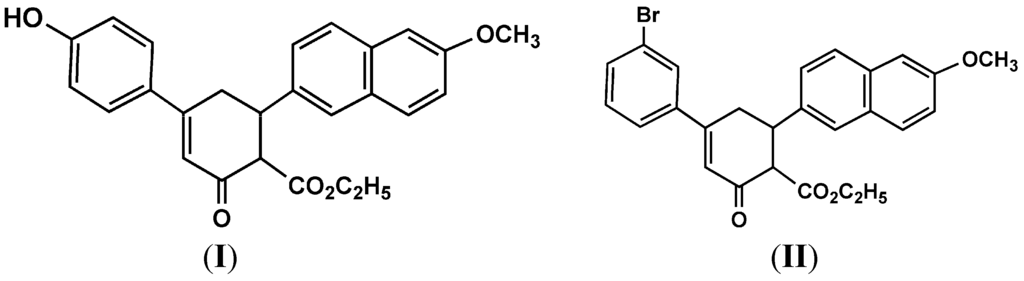

Figure 1. The molecular structures of (I) C26H24O5; and (II) C26H23O4Br.

Click here to enlarge figure

Figure 1. The molecular structures of (I) C26H24O5; and (II) C26H23O4Br.
Crystals 02 01239 g001 1024

2. Results and Discussion

The molecule in (I) is totally disordered. The disordered cyclohexene ring (C7A/C8A/C9A/C10A/C11A/C12A and C7B/C8B/C9B/C10B/C11B/C12B: occupancy ratio 0.690(2)/0.310(2)) adopts a slightly distorted half-chair conformation with puckering parameters Q, θ and φ of 0.436(5) Å, 129.4(7)°, 48.6(9)° and 0.522(11) Å, 50.4(14)°, 227.5(18)°, respectively [18], in their molecular structures (Figure 2). For an ideal half-chair θ has a value of 50.4(7)° or 180° − θ. Weak O–H…O intermolecular interactions contribute to crystal packing stability (Table 1). The dihedral angle between the least squares planes of the benzene and naphthalene rings is 71.7(8)° (A).

Crystals 02 01239 g002 200

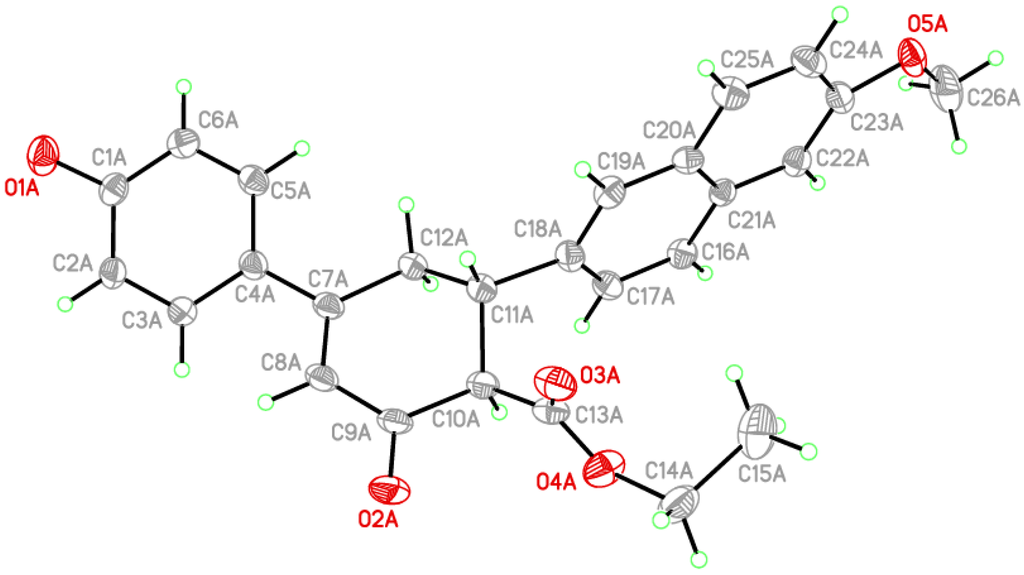

Figure 2. Molecular structure of (I) showing the atom labeling scheme and 30% probability displacement ellipsoids. Only the 0.690(2) occupancy disordered atoms are shown. The dihedral angle between the least squares planes of the benzene and naphthalene rings is 71.7(8)°.

Click here to enlarge figure

Figure 2. Molecular structure of (I) showing the atom labeling scheme and 30% probability displacement ellipsoids. Only the 0.690(2) occupancy disordered atoms are shown. The dihedral angle between the least squares planes of the benzene and naphthalene rings is 71.7(8)°.
Crystals 02 01239 g002 1024
Table 1. Hydrogen bonds for (I) C26H25O5, [Å and °].

Click here to display table

Table 1. Hydrogen bonds for (I) C26H25O5, [Å and °].
D–H...Ad (D–H)d (H...A)d (D...A)< (DHA)
O1A—H1A…O5A #10.842.443.219(7)154(1)
1B—H1B…O5B #20.842.303.135(2)177(1)
O2B—H2B1…O2B0.842.553.36(3)162(1)

Symmetry transformations used to generate equivalent atoms: #1 x + 1/2, −y + 1/2, z + 1/2; #2x + 1, y, −z + 3/2.

In (II), the disordered cyclohexene ring (C7/C8/C9/C10A/C11A/C12A and C7/C8/C9/C10B/C11B/C12B: occupancy ratio 0.819(5)/0.181(5)) also adopts a slightly distorted half-chair conformation with puckering parameters Q, θ and φ of 0.463(4) Å, 47.5(4)°, 229.7(6)° and 0.646(15) Å, 125.7(9)°, 13.7(10)°, respectively [18], in their molecular structures (Figure 3). In addition, disorder is observed in the carboxylate group (C13/O2/O3/C14A/C15A and C13/O2/O3/C14B/C15B) with an occupancy ratio 0.819(5)/0.181(5). The dihedral angle between the least squares planes of the benzene and naphthalene rings is 65.0(2)°.

Crystals 02 01239 g003 200

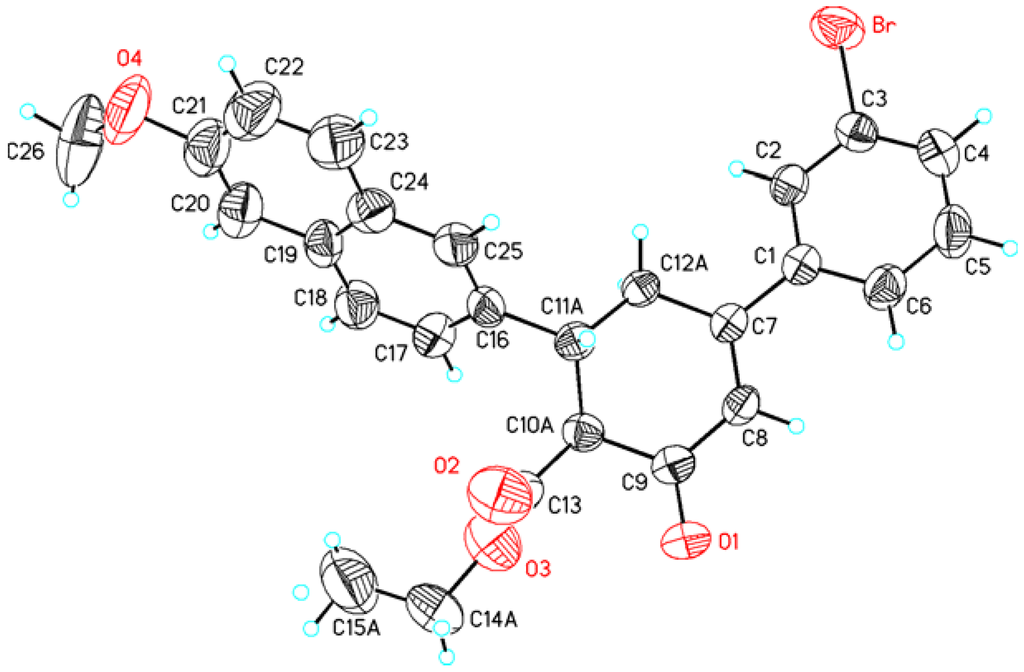

Figure 3. Molecular structure of (II) showing the atom labeling scheme and 30% probability displacement ellipsoids. Only the 0.830(6) occupancy disordered atoms are shown. The dihedral angle between the least squares planes of the benzene and naphthalene rings is 64.9(9)°.

Click here to enlarge figure

Figure 3. Molecular structure of (II) showing the atom labeling scheme and 30% probability displacement ellipsoids. Only the 0.830(6) occupancy disordered atoms are shown. The dihedral angle between the least squares planes of the benzene and naphthalene rings is 64.9(9)°.
Crystals 02 01239 g003 1024

Bond lengths are in normal ranges for both (I) and (II) [19]. Selected bond lengths for both molecules (disordered A atoms in (I) and (II)) are listed in Table 2.

Table 2. Selected atom distances [Å] for (I) and (II) (disordered A atoms).

Click here to display table

Table 2. Selected atom distances [Å] for (I) and (II) (disordered A atoms).
Atoms (I)Distance (I)Atoms (II)Distance (II)
C1A—O1A1.365(4)C3—Br1.895(3)
C9A—O2A1.211(5)C9—O11.212(3)
C9A—C10A1.492(5)C9—C10A1.524(4)
C10A—C11A1.520(5)C10A—C11A1.523(4)
C10A—C13A1.525(6)C10A—C131.520(5)
C13A—O3A1.182(8)C13—O21.191(4)
C13A—O4A1.308(7)C13—O31.310(4)
C14A—O4A1.430(6)C14A—O31.444(5)
C14A—C15A1.602(9)C14A—C15A1.440(7)
C23A—O5A1.386(4)C21—O41.384(4)
O5A—C26A1.422(7)O4—C261.432(6)

In (I) weak O—H…O intermolecular interactions (Table 1) are observed which contribute to crystal packing stability (Figure 4).

Crystals 02 01239 g004 200
Figure 4. Packing diagram of (I) viewed along the a axis.

Click here to enlarge figure

Figure 4. Packing diagram of (I) viewed along the a axis.
Crystals 02 01239 g004 1024

In (II) weak C—H…O intermolecular interactions are observed (Table 3) which influence crystal packing in the unit cell (Figure 5).

Table 3. Hydrogen bonds for (II) C26H23O4Br, [Å and °].

Click here to display table

Table 3. Hydrogen bonds for (II) C26H23O4Br, [Å and °].
D–H...Ad (D–H)d (H...A)d (D...A)< (DHA)
C12B—H12D...O1 #10.972.333.110(4)136(2)

Symmetry transformations used to generate equivalent atoms: #1 x, −y + 3/2, z − 1/2.

Crystals 02 01239 g005 200

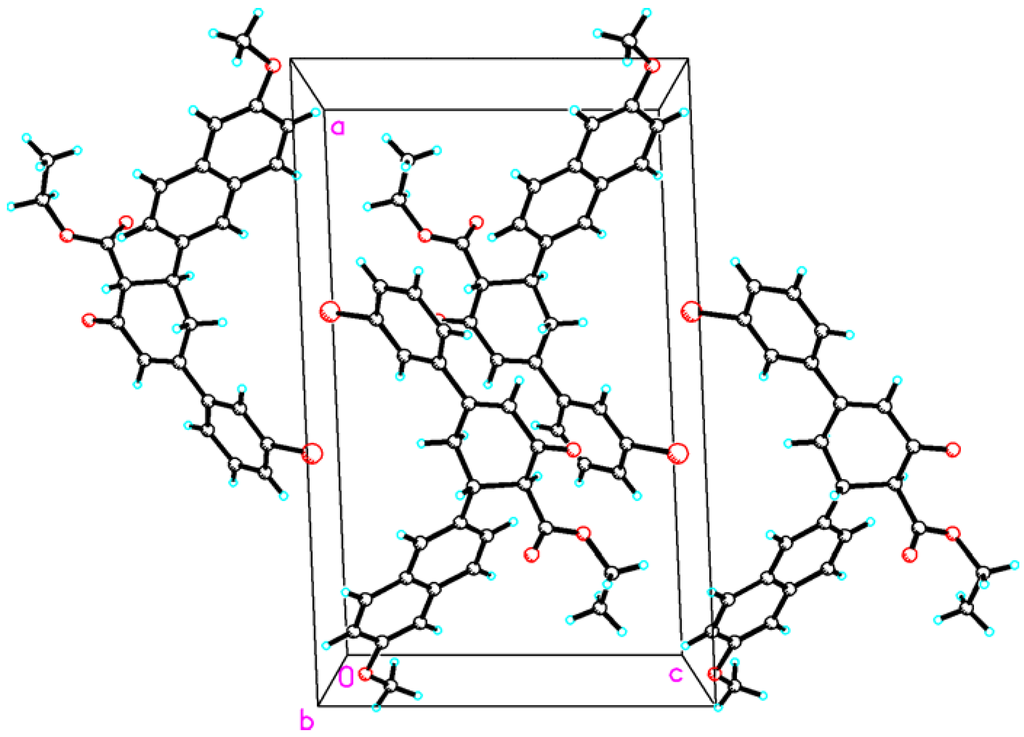

Figure 5. Packing diagram of (II) viewed along the a axis.

Click here to enlarge figure

Figure 5. Packing diagram of (II) viewed along the a axis.
Crystals 02 01239 g005 1024

3. Experimental Section

3.1. General

The two cyclohexene carboxylates (I) and (II) were prepared by the method of Mayekar et al. [19], Scheme 1.

Crystals 02 01239 g006 200

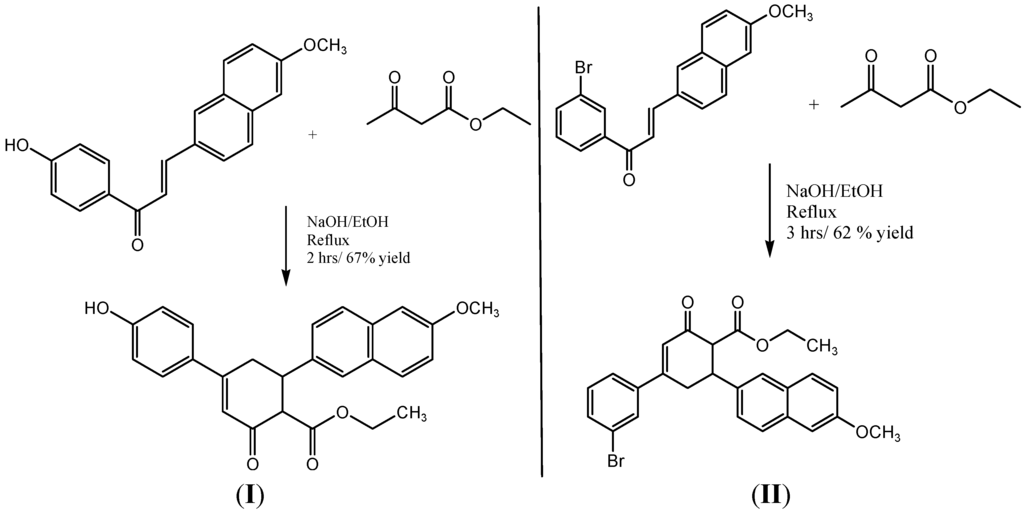

Scheme 1. The synthesis of (I) and (II).

Click here to enlarge figure

Scheme 1. The synthesis of (I) and (II).
Crystals 02 01239 g006 1024

3.2. Synthesis of Ethyl 4-(4-Hydroxyphenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate

(2E)-1-(4-Hydroxyphenyl)-3-(6-methoxynaphthalen-2-yl)prop-2-en-1-one (1.52 g, 5 mmol) and ethyl acetoacetate (0.65 g, 5 mmol) were refluxed for 2 h in 10–15 mL ethanol in presence of 0.8 mL 10% NaOH. The reaction mixture was cooled to room temperature and the reaction mass was filtered. The compound was recrystallized from methanol (Yield = 67%; m.p.: 461–463 K: Scheme 1). X-ray quality crystals of (I) were obtained from slow evaporation of methanol solution. Composition for C26H24O5 : Found (Calculated): C: 74.88 (74.98%); H: 5.77 (5.81%).

3.3. Synthesis of Ethyl 4-(3-Bromophenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate

(2E)-1-(3-Bromophenyl)-3-(6-methoxynaphthalen-2-yl)prop-2-en-1-one (1.84 g, 5 mmol) and ethyl acetoacetate (0.65 g, 5 mmol) were refluxed for 3 h in 10–15 mL ethanol in presence of 0.8 mL 10% NaOH. The reaction mixture was cooled to room temperature and the reaction mass was filtered. Recrystallization of the compound was done using methanol (Yield: 62%; m.p.: 419–421 K; Scheme 1). X-ray quality crystals of (II) were grown from slow evaporation of ethyl acetate solution. Composition for C26H23O4Br: Found (Calculated): C: 65.08 (65.14%); H: 4.79 (4.84%).

3.4. Data Collection and Refinement

Crystallographic data for both (I) and (II) were collected on an Oxford Diffraction CCD-Diffractometer with monochromatic Cu-Kα (λ = 1.54178 Å) (I) or Mo-Kα radiation (λ = 0.71073 Å) (II) and a Gemini R detector [20]. The structures were solved by direct methods [21], full-matrix least-squares refinement [21] on F2 and 306 (I) or 299 (II) parameters. In (I), the molecule was totally disordered with an occupancy ratio 0.690(2)/0.310(2). All of the H atoms were placed in their calculated positions and then refined using the riding model with C—H lengths of 0.95 Å (CH), 0.99 Å (CH2) or 0.98 Å (CH3). The isotropic displacement parameters for these atoms were set to 1.18 to 1.21 (CH, CH2), or 1.49 to 1.50 (OH, CH3), times Ueq of the parent atom. In (II) the cyclohexenone ring (C10A/C10B, C11A/C11B, C12A/C12B) and the carboxylate group (C14A/C14B, C15A/C15B) were disordered with a occupancy ratio 0.819(5)/0.181(5). All of the H atoms were placed in their calculated positions and then refined using the riding model with C—H lengths of 0.93 or 0.98 Å (CH), 0.97 Å (CH2) or 0.96 Å (CH3). The isotropic displacement parameters for these atoms were set to 1.19 to 1.20 (CH, CH2), or 1.5 (CH3), times Ueq of the parent atom.

Crystal data for (I): colorless chunk, 0.44 × 0.31 × 0.27 mm, C26H24O5, Mr = 416.45, monoclinic C2/c, a = 25.4114(5) Å, b = 8.47440(10) Å, c = 20.6921(4) Å, β = 108.328(2)° and V = 4229.92(13) Å3, Z = 8, F(000) = 1760, T = 123(2) K, ρcalc = 1.308 g·cm−3, μ = 0.733 mm−1, 13998 reflections measured (−29 ≤ h ≤ 31, −10 ≤ k ≤ 10, −25 ≤ l ≤ 14; 3.66 ≤ θ ≤ 75.71°), Rint = 0.0243, 4326 merged reflections, I > 2σ(I), 306 parameters, 82 restraints, GOF = 1.096, R(F) = 0.0938, wR(F2) = 0.2328, w = 1/σ2(Fo2) + 0.0541P2], where P = (Fo2 + 2Fc2)/3, min./max. ∆ρ = −0.651, +0.566 e Å3. Cambridge Database deposition number: CSD-888539.

Crystal data for (II): colorless chunk, 0.51 × 0.38 × 0.15 mm, C26H23O4Br, Mr = 479.35, monoclinic P21/c, a = 17.8991(9) Å, b = 11.4369(6) Å, c = 10.8507(5) Å, β = 92.428(4)°. and V = 2219.25(19) Å3, Z = 4, F(000) = 984, T = 295 K, ρcalc = 1.435 g·cm−3, μ = 1.882 mm−1, 21008 reflections measured (−26 ≤ h ≤ 26, −16 ≤ k ≤ 17, −15 ≤ l ≤ 16; 5.18 ≤ θ ≤ 32.47), Rint = 0.0638, 7380 merged reflections, I > 2σ(I), 299 parameters, 10 restraints, GOF = 0.973, R(F) = 0.0533, wR(F2) = 0.1082, w = 1/σ2(Fo2) + 0.0541P2], where P = (Fo2 + 2Fc2)/3, min./max. ∆ρ = –0.597, +0.398 e Å3. Cambridge Database deposition number: CSD-888540.

4. Conclusions

The crystal and molecular structures ethyl 4-(4-hydroxyphenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate (I) and ethyl 4-(3-bromophenyl)-6-(6-methoxy-2-naphthyl)-2-oxocyclohex-3-ene-1-carboxylate (II) are reported. This data represents the structural confirmation of two new derivatives of chalcone molecules which exhibit a multitude of biological activities.

Acknowledgements

MK thanks University of Mysore for research facilities. RJB acknowledges the NSF MRI program (grant No. CHE-0619278) for funds to purchase the X-ray diffractometer.

References

  1. Dhar, D.N. The Chemistry of Chalcones and Related Compounds; Wiley-Interscience: New York, NY, USA, 1981; pp. 64–70.
  2. Dimmock, J.R.; Elias, D.W.; Beazely, M.A.; Kandepu, N.M. Bioactivities of chalcones. Curr. Med. Chem. 1999, 6, 1125–1150.
  3. House, H.O. Modern Synthetic Reactions, 2nd ed.; W.A. Benjamin: Menlo Park, CA, USA, 1972; pp. 492–595.
  4. Tabba, H.D.; Yousef, N.M.; Al-arab, M.M. Michael-Michael aldol reaction of chalcones with cyanoacetylurea and cyanoacetylpiperidine. Collect. Czech. Chem. Commun. 1995, 60, 594–604, doi:10.1135/cccc19950594.
  5. Padmavathi, V.; Sharmila, K.; Somashekara, R.A.; Bhaskar, R.D. Reactivity of 3,5-diarylcyclohexanones—synthesis of spirocyclohexanes. Indian J. Chem. 2001, 40B, 11–14.
  6. Padmavathi, V.; Sharmila, K.; Padmaja, A.; Bhaskar, R.D. An efficient synthesis of 6,8-diarylcarbazoles via Fischer indole cyclizations. Heterocycl. Commun. 1999, 5, 451–456, doi:10.1515/HC.1999.5.5.451.
  7. Padmavathi, V.; Mohana, R.B.J.; Balaiah, A.; Venugopal, R.K.; Bhaskar, R.D. Synthesis of some fused pyrazoles and isoxazoles. Molecules 2000, 5, 1281–1286, doi:10.3390/51201281.
  8. Fischer, A.; Yathirajan, H.S.; Ashalatha, B.V.; Narayana, B.; Sarojini, B.K. (8RS, 9SR)-Ethyl 4-(3-bromothien-2-yl)-6-(2-furyl)-2-oxocyclohex-3-ene-1-carboxylate. Acta Cryst. 2007, E63, o254–o255.
  9. Fischer, A.; Yathirajan, H.S.; Ashalatha, B.V.; Narayana, B.; Sarojini, B.K. Ethyl 4-(3-bromo-2-thienyl)-2-oxo-6-phenylcyclohex-3-ene-1-carboxylate. Acta Cryst. 2008, E64, o560.
  10. Yao, L.Y.; Zhang, C.; Wang, B.S. (R, S)-Methyl 3-methyl-5-oxo-1-phenylcyclohex-3-ene-1-carboxylate. Acta Cryst. 2006, E62, o2768–o2769.
  11. Fischer, A.; Swamy, M.T.; Narayana, B.; Yathirajan, H.S. Rac-ethyl 3-(3-bromo-2-thienyl)-2-oxo-6-(4-propoxyphenyl)cyclohex-3-ene-1-carboxylate. Acta Cryst. 2008, E64, o2152.
  12. Li, H.; Mayekar, A.N.; Narayana, B.; Yathirajan, H.S.; Harrison, W.T.A. Ethyl 6-(6-methoxy-2-naphthyl)-4-(4-methylphenyl)-2-oxocyclohex-3-ene-1-carboxylate. Acta Cryst. 2009, E65, o1186.
  13. Li, H.; Mayekar, A.N.; Narayana, B.; Yathirajan, H.S.; Harrison, W.T.A. Ethyl 6-(6-methoxy-2-naphthyl)-2-oxo-4-(2-thienyl)cyclohex-3-ene-1-carboxylate. Acta Cryst. 2009, E65, o1533.
  14. Dutkiewicz, G.; Narayana, B.; Veena, K.; Yathirajan, H.S.; Kubicki, M. (1RS, 6SR)-Ethyl 4-(4-chlorophenyl)-6-(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate toluene hemisolvate. Acta Cryst. 2011, E67, o334–o335.
  15. Dutkiewicz, G.; Narayana, B.; Veena, K.; Yathirajan, H.S.; Kubicki, M. (1RS, 6SR)-Ethyl 4-(2,4-dichlorophenyl)-6-(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate. Acta Cryst. 2011, E67, o445–o446.
  16. Dutkiewicz, G.; Narayana, B.; Veena, K.; Yathirajan, H.S.; Kubicki, M. (1RS, 6SR)-Ethyl 4,6-bis(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate. Acta Cryst. 2011, E67, o336.
  17. Fun, H.-K.; Hemamalini, M.; Samshuddin, S.; Narayana, B.; Yathirajan, H.S. Methyl 4,6-bis(4-fluorophenyl)-2-oxocyclohex-3-ene-1-carboxylate. Acta Cryst. 2010, E66, o864–o865.
  18. Cremer, D.; Pople, J.A. A general definition of ring puckering coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358, doi:10.1021/ja00839a011.
  19. Mayekar, A.N.; Li, H.; Yathirajan, H.S.; Narayana, B.; Suchetha Kumari, N. Synthesis, characterization and antimicrobial study of some new cyclohexenone derivatives. Int. J. Chem. 2010, 2, 114–123.
  20. Oxford Diffraction. CrysAlis PRO and CrysAlis RED; Oxford Diffraction Ltd.: Abingdon, Oxfordshire, UK, 2010.
  21. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122.
