Crystals 2012, 2(3), 1034-1057; doi:10.3390/cryst2031034

Review
Magnetic and Electric Properties of Organic Conductors Probed by 13C-NMR Using Selective-Site Substituted Molecules
Shinji Hirose , Masaki Misawa and Atsushi Kawamoto *
Department of Condensed Matter Physics, Hokkaido University, Kita-ku Sapporo, Hokkaido 060-0810, Japan; Email: saviour-oct-26@ec.hokudai.ac.jp (S.H.); Masaki.Misawa@jp.sony.com (M.M.)
*
Author to whom correspondence should be addressed; Email: atkawa@phys.sci.hokudai.ac.jp; Tel.: +81-01-706-4423; Fax: +81-01-706-4926.
Received: 6 April 2012; in revised form: 26 June 2012 / Accepted: 6 July 2012 /
Published: 27 July 2012

Abstract

: Quasi-One and quasi-two dimensional organic conductors consisting of TTF derivatives such as BEDT-TTF (bis-(ethylene-dithio)-tetra-thia-fulvalene) and TMTCF (C = S; TMTTF: tetra-methyl-tetra-thia-fulvalene, C = Se; TMTSF: tetra-methyl-tetra-selena-fulvalene) have been well investigated in condensed matter physics because of interest in the emerging electric and magnetic properties, such as the spin density wave, charge order, superconductivity, anti-ferromagnetism, and so on. To probe the electronic state, nuclear magnetic resonance (NMR) is one of the most powerful tools as the microscopic magnetometer. A number of 13C-NMR studies have been performed of the double-site central 13C=13C bond substituted molecules. However, problems with the coupled spin system of 13C=13C complicated the interpretation for observations on NMR. Therefore, single-site 13C-enriched molecules are desired. We summarize the problem of Pake doublet and the preparation of the single-site 13C-susbstituted BEDT-TTF and TMTCF molecules. We also demonstrate the superiority of 13C-NMR of the single-site 13C-susbstituted molecule utilizing the hyperfine coupling tensor.
Keywords:
13C-NMR; TMTTF; TMTSF; BEDT-TTF; Pake doublet; hyperfine coupling tensor

1. Introduction

Organic conductors consisting of molecular donor and inorganic anion have been the subject of intense interest because of their low dimensionality, magnetism, and superconductivity [1,2,3,4]. Among them, (TMTCF)2X (C = S; TMTTF: tetra-methyl-tetra-thia-fulvalene, C = Se; TMTSF: tetra-methyl-tetra-selena-fulvalene) salts are known as quasi-one dimensional organic conductors, and, moreover, (BEDT-TTF)2X (BEDT-TTF: bis-(ethylene-dithio)-tetra-thia-fulvalene) salts are known as quasi-two dimensional organic conductors, where X is a monovalent inorganic anion. Figure 1 shows the molecular structure of their donors. The electronic properties emerging in these salts can be controlled by applying pressure and chemical substitutions [5].

Crystals 02 01034 g001 1024
Figure 1. Molecular structures of tetra-methyl-tetra-thia-fulvalene (TMTTF), tetra-methyl-tetra-selena-fulvalene (TMTSF) and bis-(ethylene-dithio)-tetra-thia-fulvalene (BEDT-TTF).

Click here to enlarge figure

Figure 1. Molecular structures of tetra-methyl-tetra-thia-fulvalene (TMTTF), tetra-methyl-tetra-selena-fulvalene (TMTSF) and bis-(ethylene-dithio)-tetra-thia-fulvalene (BEDT-TTF).
Crystals 02 01034 g001 1024

Among (TMTSF)2X, the so-called Bechgaard salt, (TMTSF)2PF6 is the first organic superconductor, and the superconductivity emerges at 1.6 K under pressure of 0.65~1 GPa [6]. In (TMTSF)2ClO4 which consists of the same donor molecule, the superconductivity emerges at 1.2 K at ambient pressure [7]. In TMTTF salt, (TMTTF)2AsF6 and (TMTTF)2SbF6 show charge ordered (CO) state below 100 K and 157 K, and theoretical and experimental studies have been performed from the view of the relationship between CO system and magnetism emerging at lower temperature [8,9,10]. Moreover, (TMTTF)2Br shows commensurate antiferromagnetism below 13 K at ambient pressure [11]. With applying pressure over 0.5 GPa, the incommensurability of the magnetic state was suggested and discussed in relation to the spin density wave (SDW) in (TMTSF)2PF6 at ambient pressure [12]. The substitution of inorganic anions is considered to be due to the chemical pressure. The physical or chemical pressure dependence of the electronic properties was described by the universal phase diagram proposed by Jerome et al. [5].

On the other hand, the quasi-two dimensional organic conductor, (BEDT-TTF)2X shows the various electronic properties according to the molecular arrangement. In κ-(BEDT-TTF)2X, two BEDT-TTF molecules form a dimer, which constitutes the half-filled electronic system with the strongly-electron correlation. As a result, a similar competition occurs with adjacent and coexisting superconducting and antiferromagnetic phases as in high-Tc cuprates and heavy fermion systems at low temperatures [4,13,14]. Indeed, κ-(BEDT-TTF)2Cu(NCS)2 and κ-(BEDT-TTF)2Cu[N(CN)2]Br show superconductivity below 10.4 K and 11.6 K and κ-(BEDT-TTF)2[N(CN)2]Cl shows antiferromagnetic order below 27 K [15,16]. These electronic properties in κ-(BEDT-TTF)2X are described in the phase diagram predicted by Kanoda et al., in which the physical properties can be controlled by temperature, physical pressure, and chemical substitution parameters. Since the superconductivity is close to antiferromagnetism at low temperature, theoretical studies about electronic properties in κ-(BEDT-TTF)2X were performed from the viewpoint of the strongly-correlated electron system [17,18,19,20,21].

Salt with another packing arrangement, α-(BEDT-TTF)2X and θ-(BEDT-TTF)2X, has been a topic of interest due to the metal-insulator (MI) transition and charge disproportionation by off-site coulomb interaction [22,23,24,25,26,27,28,29]. In this type of organic conductor, various charge disproportionation patterns are realized, and these patterns give important information about the electronic structure. Recently, the mechanism of superconductivity by the charge fluctuation instability has also been intensively discussed [30,31,32].

Many theoretical and experimental studies of these interesting topics have been performed over the past three decades [33,34,35]. In order to reveal the electronic properties of (TMTCF)2X and (BEDT-TTF)2X from the microscopic view, Nuclear Magnetic Resonance (NMR) measurement is one of the most powerful tools. In 1H-NMR, however, the spectrum showed no significant change due to the small hyperfine coupling constant and the large dipole–dipole interaction between 1H-nuclei. Whereas the hyperfine coupling constant is large for 77Se, there are four crystallographic independent 77Se sites in a unit cell, and the four crystallographic independent 77Se sites complicate the analysis of the spectrum in (TMTSF)2X salt [36]. Moreover, there is no 77Se site in TMTTF and BEDT-TTF. In contrast, 13C-NMR shows sharp spectrum with large hyperfine coupling constant. In order to reveal the electronic properties, 13C-NMR is suitable. However, most 13C-NMR studies are performed on the double-side substituted central 13C=13C in TTF skeleton because of the molecular symmetry of TTF derivatives. In the case of double-side enriched sample, two 13C nuclei are coupled due to the dipole–dipole interaction and the spectrum starts to become complicated (the so called Pake doublet). Therefore, TMTCF and BEDT-TTF, in which one side of the central carbon bond is substituted with 13C, are desired. In this paper, we first summarize the problem of Pake doublet, next we present the synthesis methods of single-site 13C-substituted molecules which avoid the Pake doublet problem, and demonstrate the superiority of 13C-NMR of these molecular crystals.

2. Problems of Pake Doublet

In case of the coupled spins system in the central 13C=13C bond in TTF skeleton, the nuclear dipole–dipole interaction, Crystals 02 01034 i002, is added to Zeeman interaction, Crystals 02 01034 i003. These interactions are described as,

Crystals 02 01034 i004

Crystals 02 01034 i005

Here, Crystals 02 01034 i006, Crystals 02 01034 i007, Crystals 02 01034 i008, Crystals 02 01034 i009, Crystals 02 01034 i010, Crystals 02 01034 i011 are the spin operators of each nuclear site, the g factor of nuclei, the magnitude of the external magnetic field, the nuclear magneton, and the vector between two nuclei. This dipole–dipole interaction, Crystals 02 01034 i012, can be expressed as, using Crystals 02 01034 i013 and the creation-annihilation operators, Crystals 02 01034 i014,

Crystals 02 01034 i015

Here, A~F terms are defined as,

Crystals 02 01034 i016

Here, θ is the angle between the external field and the direction of the central C=C bond. Since the terms of A and B are commutative with the nuclear Zeeman interaction, terms of A and B contribute to NMR shift, whereas other anticommutative terms act in the way of the second-order perturbation. Hence, the spin states of the coupled spin system are expressed as the triplet state,

Crystals 02 01034 i017

Crystals 02 01034 i018

Crystals 02 01034 i019

and the singlet state,

Crystals 02 01034 i020

Here, Crystals 02 01034 i021. As a result, the two transitions of Crystals 02 01034 i022 and Crystals 02 01034 i023 between closest levels in the triplet state are allowed with same intensities. This doublet structure is the so called Pake doublet.

In realistic TMTCF and BEDT-TTF compounds, the situation is more complicated. Generally, two nuclei in 13C=13C bond are crystallographic nonequivalent even in symmetrical molecule. Defining NMR shifts at two local sites as Crystals 02 01034 i024 and Crystals 02 01034 i025, the nuclear Zeeman interaction, Crystals 02 01034 i026, is modified as,

Crystals 02 01034 i027

and the energy matrix is expressed as,

Crystals 02 01034 i028

Here, Crystals 02 01034 i029 and Crystals 02 01034 i030 are the difference and the average of NMR shift between two local sites, respectively. Because of the off-diagonal elements in the energy matrix, the hybridization between the singlet and triplet states occurs and the eigenstates are expressed as follow,

Crystals 02 01034 i031

Crystals 02 01034 i032

Crystals 02 01034 i033

Crystals 02 01034 i034

As a consequence, all transitions between levels except that between Crystals 02 01034 i035 and Crystals 02 01034 i036 are allowed and we can observed four transitions,

Crystals 02 01034 i037

Crystals 02 01034 i038

Crystals 02 01034 i039

Crystals 02 01034 i040

These transitions are categorized into two groups with different intensities. One group is an outside pair of the quartet (O), the other group is an inside pair of the quartet (I). These shifts, Crystals 02 01034 i041, and intensities, Crystals 02 01034 i042, are expressed as,

Crystals 02 01034 i043

Crystals 02 01034 i044

respectively. In π electron system, δ1(2) depends on the direction of the external field to the crystal system, and the angular dependence of δ1(2) around a rotational axis shows a simple sinusoidal curve. However, As Crystals 02 01034 i045 also depends on the angle of θ, the angular dependence of Crystals 02 01034 i045 does not show a simple curve but a complicated one.

In the limit of Crystals 02 01034 i046, the mean values of two higher (lower) shift in quartet represent NMR shift at two local sites,

Crystals 02 01034 i047

Crystals 02 01034 i048

Whereas, the mean value does not represent the shift of the local nucleus in the case of Crystals 02 01034 i049. Since the spin susceptibility is connected to NMR shift at local nucleus via hyperfine coupling constant, NMR shift does not represent the local spin susceptibility. Since the magnitude of d isproportional to H0−1, the problems actually surface in the low field experiments, such as that under superconductivity.

The mixing of Crystals 02 01034 i050 and Crystals 02 01034 i051 depending on the parameter of Crystals 02 01034 i029 also have an influence on the spin-lattice relaxation time, T1, which intrinsically depends on the magnetic fluctuation at each local nucleus. Therefore, the relaxation to the mixing states is driven by the magnetic fluctuation on both sites, and the problems of Pake doublet causes great loss of the advantage of the local magnetic probe.

In the coupled spin system in the double-side 13C-substituted molecules, the transverse nuclear magnetization induced by RF pulse is always modulated by Crystals 02 01034 i002, which cannot be canceled by the spin echo, π/2-π pulse, sequence. Therefore, the spectrum by the fast Fourier transformation of this modulated spin echo signal contains the spurious information such as the negative intensity [37]. This modulation could be canceled by the solid echo pulse sequence [38]. There are a few experiments using solid echo pulse sequence [39]. However, this sequence requires the fast recovery RF system and restricts the advantage of the conventional spin echo. This modulation also inhibits the measurement of the spin-spin relaxation time, T2. There are some estimations of T2 deduced from the envelope of the modulated spin echo intensity, so called J-modulation [40,41]. However, this method estimates T2 for overall spectrum in the coupled spin system and is not conventional.

In condensed matter physics, NMR measurement is one of the most powerful tools as the magnetometer on the specific local site. However, the coupled spin system of the double-side substituted molecule modulates NMR spectrum, mixes local spin states, and weakens the character as the local magnetic probe. The magic angle setting ( Crystals 02 01034 i052) is one of alternative methods to avoid Pake doublet problem [8,42]. However, the setting restricts the direction of the external field. Therefore, the single-site substituted TMTCF and BEDT-TTF are desired.

3. Synthetic Method of Single-Site 13C- Substituted Molecule

In preparing the single-site substituted TCF derivatives, a candidate reaction is the cross-coupling of a ketone and a thioketone. Figure 2 shows the use of this method to prepare one-side enriched BEDT-TTF [43]. Thioketone-Ketone coupling takes precedence over any self-coupling. We found that the treatment of the ketone-d4 and the thioketone-d0 with triethyl phosphite mainly produced BEDT-TTF-d4 with the minor product of BEDT-TTF-d8 and the trace amount of BEDT-TTF-d0 with a ratio of 0.7:0.24:0.06 from mass spectroscopy. Thus, the reaction of an enriched thioketone and non-enriched ketone produces 13C=12C molecule as major products, 12C=12C molecule as minor product, and 13C=13C molecule in only trace amounts. For 13C-NMR spectral purposes, the contamination by the inactive 12C=12C is unimportant, and it is important to prevent the contamination of the 13C=13C molecule which superimposes on the additional modulated resonance line. Indeed as shown in Figure 3, there are four magnetically independent central C=C sites, A-a, A-b, B, and C in the NMR spectra of α-(BEDT-TTF)2I3 without other additional peaks from 13C=13C molecule.

Crystals 02 01034 g002 1024

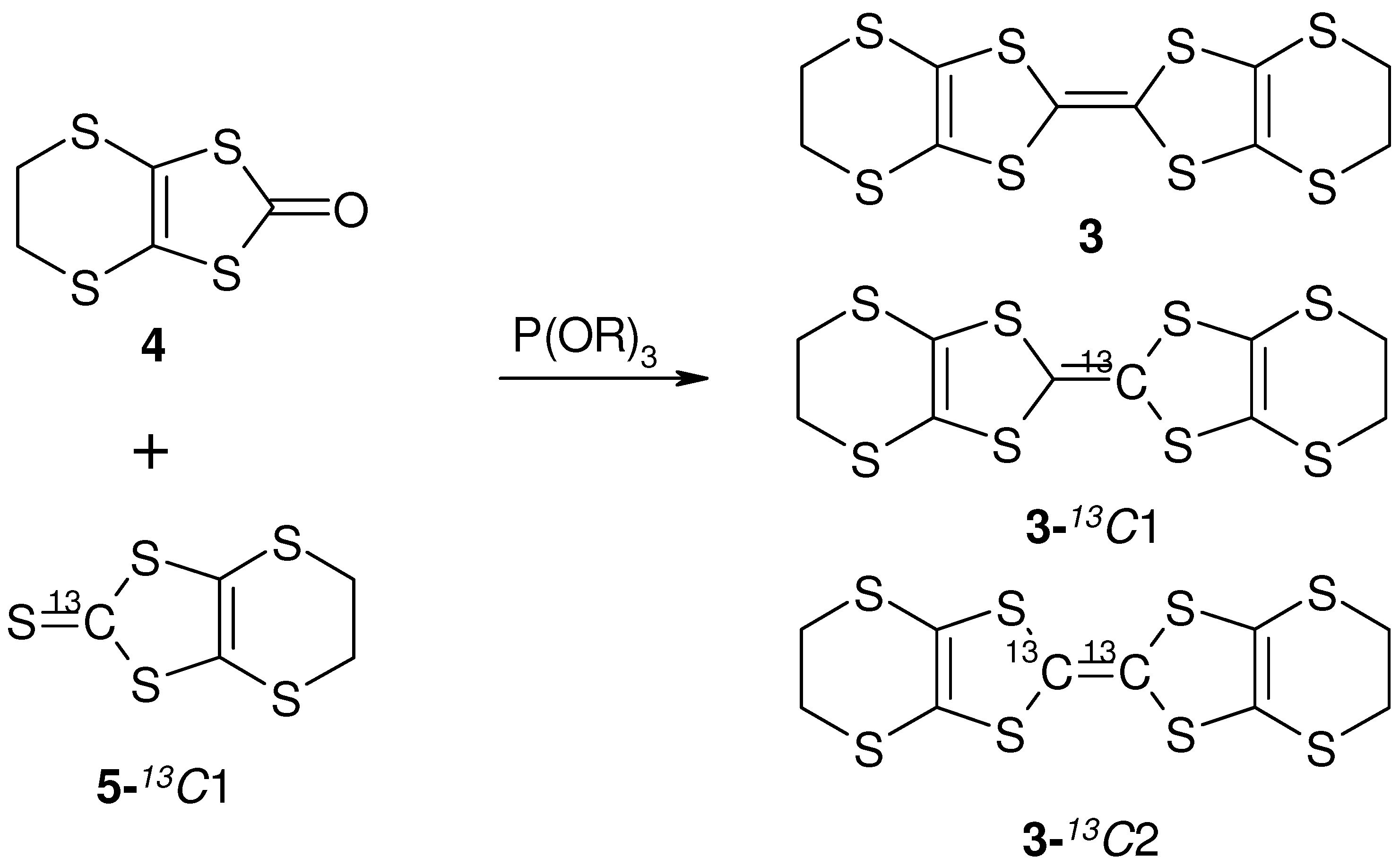

Figure 2. Cross-Coupling reaction of a ketone and a thioketone for BEDT-TTF.

Click here to enlarge figure

Figure 2. Cross-Coupling reaction of a ketone and a thioketone for BEDT-TTF.
Crystals 02 01034 g002 1024
Crystals 02 01034 g003 1024

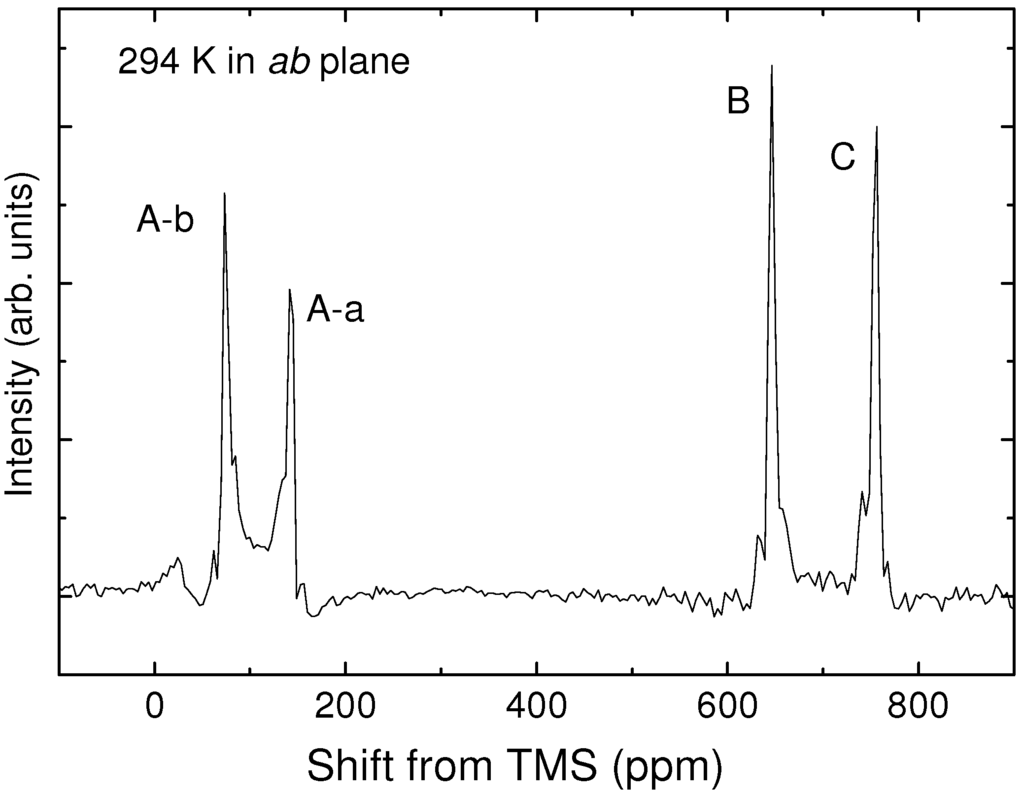

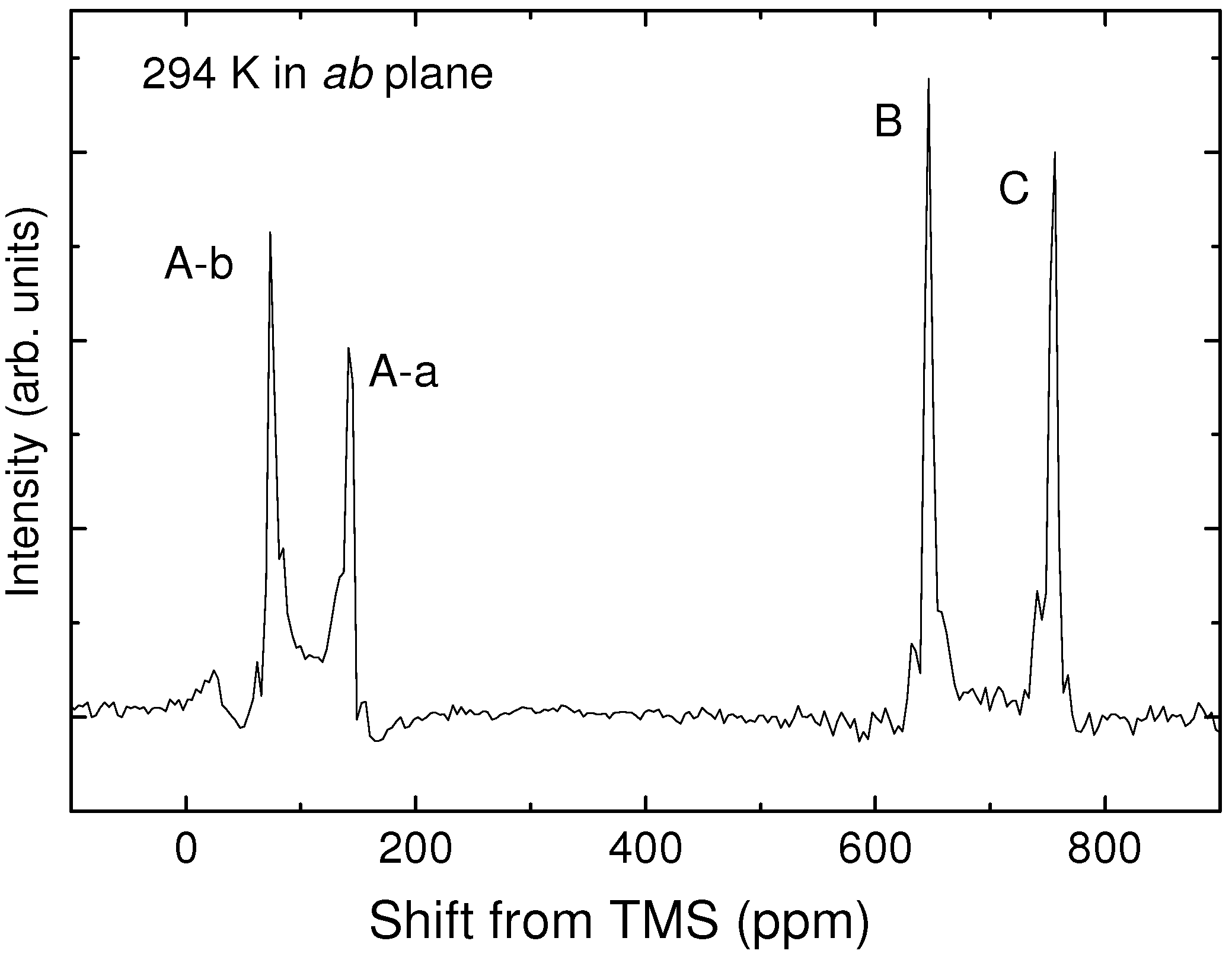

Figure 3. 13C-NMR spectra for α-(BEDT-TTF)2I3.

Click here to enlarge figure

Figure 3. 13C-NMR spectra for α-(BEDT-TTF)2I3.
Crystals 02 01034 g003 1024

In the traditional coupling method [43], TMTTF is prepared from 13CS2 as the starting material. However, we could obtain the stochastically or 100% double-side 13C-enriched TMTTF. For TMTSF, problems exist with the availability of the starting isotope reagent, (CH3)2N13CCl2Cl [44], or 13CSe2 [45], and we also obtain stochastically or 100% double-side 13C-enriched TMTSF. In a previous study [11], Barthel and Bechgaard et al. obtained 13C-NMR spectra of (TMTSF)2PF6 using stochastically 10% 13C-enriched molecules, but the low isotope ratio worsened the signal-to-noise ratio and restricted the measurement temperature. In the end, we could not produce TMTTF by couplings ketones, and the stochastic coupling of the corresponding carbene resulted in the contamination of the stochastic 13C=13C-enriched molecule. For TMTSF, the hetero-coupling has not been studied, and the problem of the starting material remains.

Because the well-established synthetic route to prepare TMTCF is not suitable for the isotope substitution, we explored an alternative procedure. The single-site 13C-substituted molecule is an unsymmetrical donor. Among the synthetic routes to prepare unsymmetrical donors, those used as symmetrical donor have not yet been considered, but may be worth consideration in the future. Figure 4 shows one such candidate, the synthetic route of Yamada et al. using dibutyltin complex [46]. Advantages of this method are that the isotope reagent dichloroacetic acid methyl ester is available and that Yamada et al. have already established the precursors of 8 and 9.

We synthesized the one-side 13C-enriched TMTCF by Yamada’s method and characterized the products by mass spectroscopy and 1H-NMR. The yields with respect to the starting reagent dichloroacetic acid methyl ester were 10% for TMTTF [47], and 3% for TMTSF [48]. Compared to yields obtained by the traditional method, these yields are low. However, the method enables the preparation of enriched radical salts using the conventional electrochemical cell, and may be useful for preparing other enriched donor molecules as well.

Crystals 02 01034 g004 1024

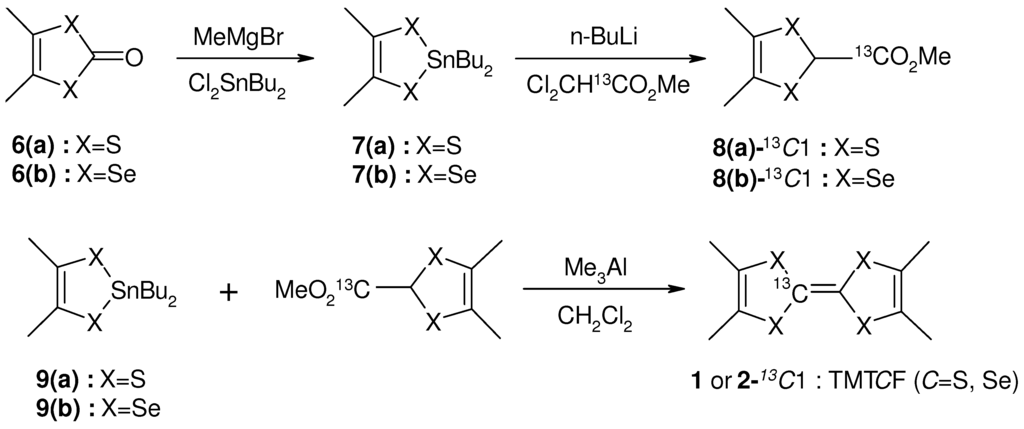

Figure 4. Synthetic route to prepare one-side 13C-enriched TMTCF.

Click here to enlarge figure

Figure 4. Synthetic route to prepare one-side 13C-enriched TMTCF.
Crystals 02 01034 g004 1024

We also made an attempt to synthesize for the selective one-side enriched BEDT-TTF by this method. Unfortunately, the yield discourages practical use. Then we explored one of the alternatives with the precursor of 11 shown in Figure 5 [49]. After purification, we obtained the selective one-side enriched BEDT-TTF with a yield of 36% based on 11 [50].

Crystals 02 01034 g005 1024

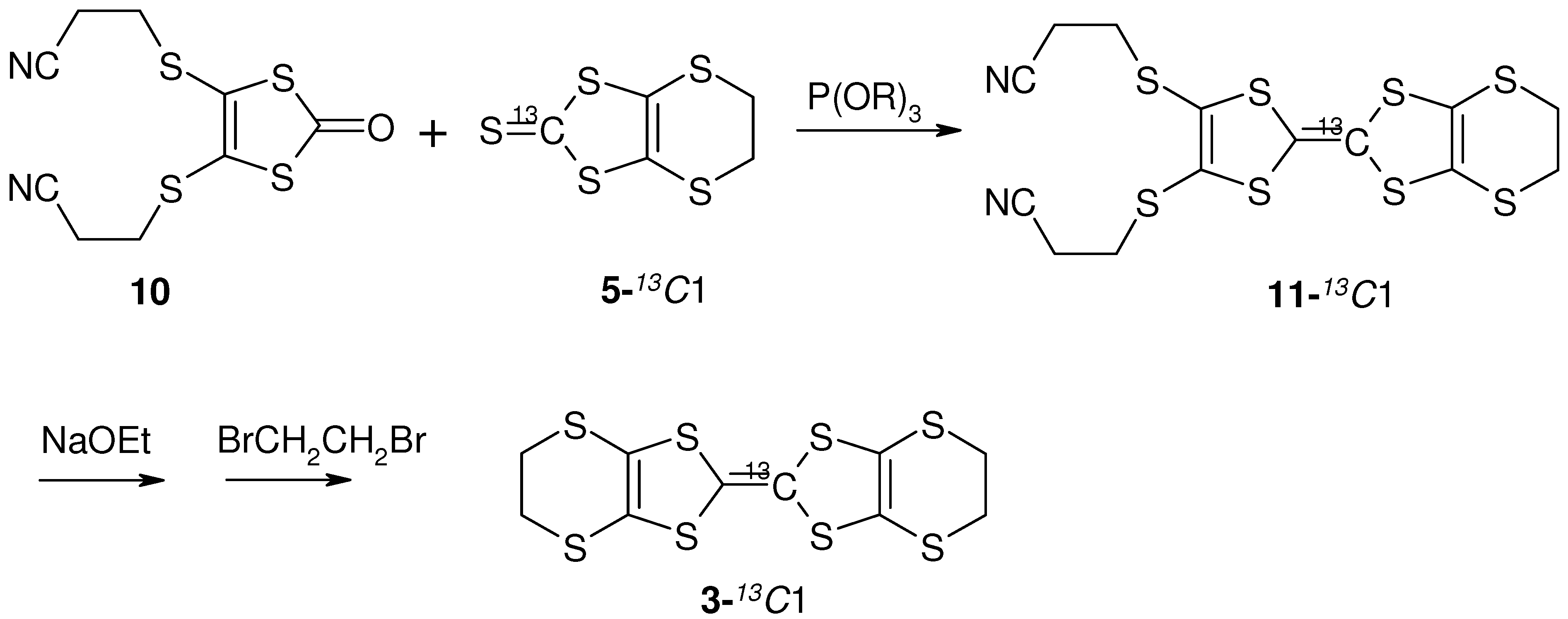

Figure 5. Synthetic route to prepare selective one-side 13C-enriched BEDT-TTF.

Click here to enlarge figure

Figure 5. Synthetic route to prepare selective one-side 13C-enriched BEDT-TTF.
Crystals 02 01034 g005 1024

To demonstrate the suitability for 13C-NMR spectral purposes of enriched molecules thus prepared, we synthesized a single crystal of (TMTSF)2PF6 and examined its spectrum. Figure 6a shows the 13C-NMR spectrum for (TMTSF)2PF6 at 292 K [51]. There are two crystallographically non-equivalent 13C sites in (TMTCF)2X salts. Hence it is expected that two peaks are observed in metallic state, and we actually observed only two peaks. The linewidth of about 30 ppm is very sharp and the small variation of NMR shift can be detected. Signal-to-Noise ratio is sufficient even at room temperature, and we can measure from room temperature.

Crystals 02 01034 g006 1024

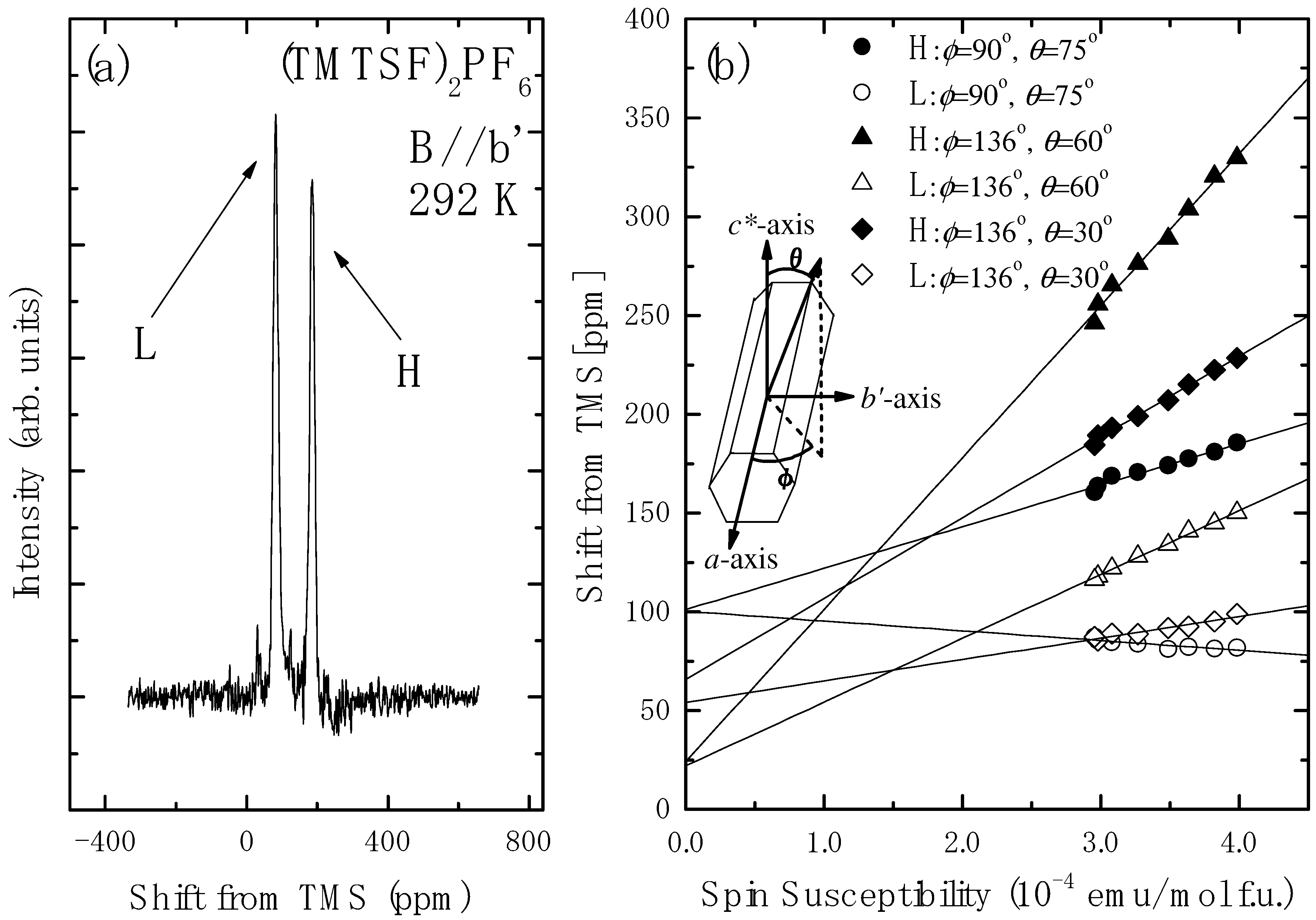

Figure 6. (a) 13C-NMR spectrum for (TMTSF)2PF6 at 292 K; (b) χ-δ plot in the metallic phase of (TMTSF)2PF6 at several angles [51].

Click here to enlarge figure

Figure 6. (a) 13C-NMR spectrum for (TMTSF)2PF6 at 292 K; (b) χ-δ plot in the metallic phase of (TMTSF)2PF6 at several angles [51].
Crystals 02 01034 g006 1024

4. NMR Investigation Utilizing Hyperfine Coupling and Chemical Shift Tensor

4.1. NMR Shift on Molecular Conductors

The NMR shift δ can be expressed as δ = σ + K = σ + Aχs. Here σ is chemical shift, and K is Knight shift. A is the hyperfine coupling constant, and χs is the spin susceptibility. Chemical shift is caused by the orbital current and is expressed as tensor, σ, due to crystal anisotropy in solid. Ignoring the small effect of the ring current of surrounding molecules, chemical shift depends on the electron orbital on on-site molecule, ϕi, and is expressed as,

Crystals 02 01034 i054

Here, m, c, e, Lz are the electron mass, velocity of light, electron charge and operator of the angular momentum. The summation is performed over all occupied orbitals. Dividing the summation into the valence (core) and highest (lowest) occupied (unoccupied) molecular orbital, HOMO (LUMO) parts, the chemical shift can be expressed as,

Crystals 02 01034 i055

Here, the summation is performed below Fermi energy, and φk is the Bloch wave function constructed from HOMO (LUMO) on molecules in a crystal and is expressed as,

Crystals 02 01034 i056

Here, Rn is the translation vector in the crystal. From the second perturbation, the matrix element of the second term is represented by the excited state, ϕn0, as,

Crystals 02 01034 i057

In transition metals, the excitation energy, En-EHOMO, corresponds to small ligand field splitting energy and this term becomes important. Whereas, in planer organic conductors, the excited state, ϕn0, corresponds to the sp2-hybrided σ* orbital, and the excited energy is large, and the chemical shift is simplified as,

Crystals 02 01034 i058

Therefore, the chemical shift depends on the molecular structure. The summation part depends on the degree of the band filling and the chemical shift can probe the charge on the molecule.

Knight shift, K, has the contributions from the core polarization and the dipole field and is proportional to on-site local spin susceptibility, χlocal, described as,

Crystals 02 01034 i059

The hyperfine coupling constant by this contribution can be expressed as the tensor, A0, and depends on the molecular structure similar to chemical shift. In addition, however, there are the dipole interaction and exchange interaction from the neighboring molecules. The exchange term between molecules depends on the transfer integral between molecules and is sensitive to the topology of the band structure. In this case, the Knight shift can be expressed as a summation of on-site and off-site molecular contributions. When the hyperfine coupling tensor by the dipole interaction and exchange interaction from off-site molecule is given as Bi, the hyperfine coupling tensor, A, can be expressed as

Crystals 02 01034 i060

Here, h is a direction cosine of the external field. Namely, observed hyperfine coupling constant is modified by the crystal and band structure and the off-site hyperfine coupling tensor, Bi, and depends on molecular location in spite of the isomorphic molecular structure. Note that the chemical shift probes the summation of the projective coefficient blow Fermi energy, whereas the Knight shift probes the projective coefficient at Fermi energy.

The problem is the case of the disproportionation between molecular sites in paramagnetic state. By this disproportionation of the local spin susceptibility, on-site and off-site hyperfine coupling tensors, A0 and Bi, does not change but Knight shift in spin-rich and spin-poor sites, which is shown in Figure 7b, are described as,

Crystals 02 01034 i061

Crystals 02 01034 i062

respectively. Here χpoor and χrich are the local spin susceptibility on the spin-poor site and spin-rich site. In case of χpoor << χrich, the Knight shift intensively depends on off-site hyperfine coupling tensor, Bi, and becomes different from the regular state. Figure 8 show the angular dependence of NMR shift at 294 K and 60 K in 13C NMR of α'-(BEDT-TTF)2IBr2, in which the charge order transition with the large disproportionation occurs below 200 K [52]. At 294 K, the principal axis of NMR shift tensor behave in unison with that of molecular orientation, which means the NMR shift mainly depends on on-site hyperfine coupling tensor, A. In contrast, NMR shift at 60 K shows the different angular dependence from each molecular orientation. Previous NMR studies on large charge disproportionate salts were analyzed with the assumption that Knight shift was proportional to on-site susceptibility [28,53]. However, the off-site contribution is fundamental to the quantitative analysis on large charge disproportionate salts.

Crystals 02 01034 g007 1024
Figure 7. Schematic view of hyperfine coupling field around the neighboring molecules (a) in no disproportionation (b) in disproportionation of diagonal stripe pattern with on-site spin poor site. Here A0 and Bi (i = 1, 2, 3, 4) are the on-site and off-site hyperfine coupling fields. [52]

Click here to enlarge figure

Figure 7. Schematic view of hyperfine coupling field around the neighboring molecules (a) in no disproportionation (b) in disproportionation of diagonal stripe pattern with on-site spin poor site. Here A0 and Bi (i = 1, 2, 3, 4) are the on-site and off-site hyperfine coupling fields. [52]
Crystals 02 01034 g007 1024

For diamagnetic organic materials, Knight shift diminishes and NMR shift corresponds to σ. For organic conductors, Knight shift involves the information of the spin susceptibility, and NMR is regarded as the microscopic magnetometer at enriched site. Because of the dipole and exchange field of the spin magnetization, Knight shift and the hyperfine coupling constant strongly depend on its crystal structure. In contrast, the chemical shift detects the shielding current around local nucleus and mainly depends on only its molecular structure. Hence, the chemical shift tensors of both central C=C sites are almost the same. To utilize the feature as the microscopic magnetometer, we must evaluate the hyperfine coupling constant and chemical shift. In π electron system, because of the molecular anisotropy, A and σ is expressed by the hyperfine coupling tensor A and chemical shift tensor σ as, Crystals 02 01034 i063

Crystals 02 01034 g008 1024

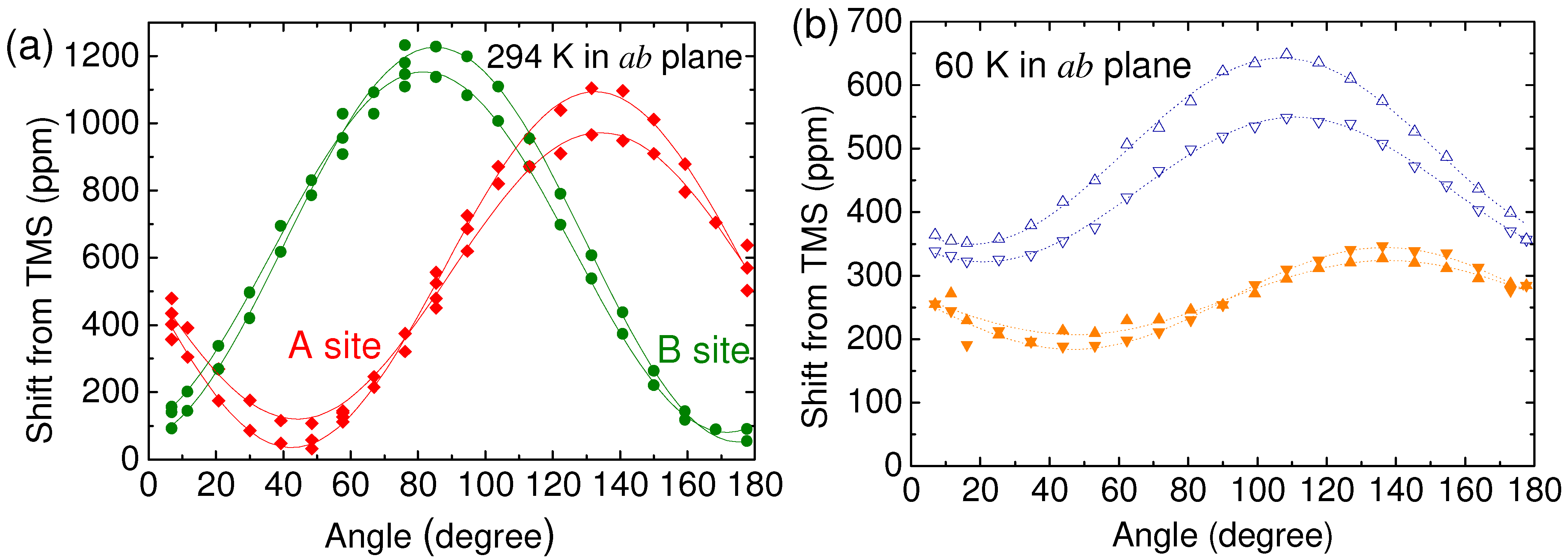

Figure 8. (a) Angular dependence of NMR shift at A and B local molecular sites at 294 K in ab plane rotation in α'-(BEDT-TTF)2IBr2; (b) Angular dependence of NMR shift at A and B local spin-poor molecular sites at 60 K in ab plane rotation in α'-(BEDT-TTF)2IBr2. At 60 K, The principal axes of NMR shift are intensively different from that at 294 K for large disproportionation of spin susceptibility [52].

Click here to enlarge figure

Figure 8. (a) Angular dependence of NMR shift at A and B local molecular sites at 294 K in ab plane rotation in α'-(BEDT-TTF)2IBr2; (b) Angular dependence of NMR shift at A and B local spin-poor molecular sites at 60 K in ab plane rotation in α'-(BEDT-TTF)2IBr2. At 60 K, The principal axes of NMR shift are intensively different from that at 294 K for large disproportionation of spin susceptibility [52].
Crystals 02 01034 g008 1024

4.2. Determination of the Hyperfine Coupling and Chemical Shift Tensor

We measured the temperature dependence of the NMR shift δ at several angles. From the slope of χ-δ plot as shown in Figure 6b, we could determine the hyperfine coupling constant A and chemical shift σ. Using these values at several angles, we determined hyperfine coupling tensors and chemical shift tensor as,

Crystals 02 01034 i064

Crystals 02 01034 i065

Crystals 02 01034 i066

respectively [51]. We also prepared the single crystal of (TMTTF)2Br and performed the same examination for the determination of the hyperfine coupling and chemical shift tensors. These results are listed as,

Crystals 02 01034 i067

Crystals 02 01034 i068

Crystals 02 01034 i069

As (TMTCF)2X salts display the same isomorphism, it is reasonable that the results of (31)~(33) and (34)~(36) are nearly same.

We also determined the hyperfine coupling tensors of β'-(BEDT-TTF)2ICl2 from χ-δ plot as,

Crystals 02 01034 i070

Crystals 02 01034 i071

Here, inner and outer sites mean two crystallographic nonequivalent sites in a dimer of two BEDT-TTF molecules and b' axis is corresponded to the direction perpendicular to ac* plane [54].

4.3. Korringa Enhancement Factor in (TMTTF)2PF6

For investigation of the electron correlation, the Korringa enhancement factor, Crystals 02 01034 i072, is important, which is related by,

Crystals 02 01034 i073

Crystals 02 01034 i072 is the parameter depending on the electron correlation and is determined from observations of the spin-lattice relaxation time, T1, and Knight shift, K, and other physical constants without analytical assumptions. This factor gives important information for the electron correlation. However, in case the hyperfine coupling is anisotropic, the Equation (39) is modified by the form factor and is written as,

Crystals 02 01034 i074

To evaluate the Korringa enhancement factor, the ratio of matrix elements in the hyperfine coupling tensor, A///A, is needed. From our hyperfine coupling tensor of (TMTSF)2PF6, the form factor was estimated to ~36 and the Korringa factor was estimated to ~0.55 with utilizing the observed data of the spin-lattice relaxation time, T1, and Knight shift, K, except for SDW contribution. Figure 9 shows the pressure dependence of the Korringa factor with other parameters. This result suggested that the electron correlation except SDW fluctuation is weak as in the simple alkali metals and the Korringa factor does not change above the critical pressure of superconducting transition. Contrast to that, The SDW fluctuation intensity, C, shows the same pressure dependence of Tc, suggesting the connection between superconductivity and SDW fluctuation [51].

Crystals 02 01034 g009 1024
Figure 9. Pressure dependence of superconducting transition temperature, Tc, Curie-Weis expression fitting parameter, C, and theKorringa factor [51,55].

Click here to enlarge figure

Figure 9. Pressure dependence of superconducting transition temperature, Tc, Curie-Weis expression fitting parameter, C, and theKorringa factor [51,55].
Crystals 02 01034 g009 1024

4.4. Determination of the Magnetic Moment in β'-(BEDT-TTF)2ICl2

β'-(BEDT-TTF)2ICl2 shows superconductivity under ultra-high pressure (8 GPa) [56]. Under ambient pressure, this salt is an insulator and undergoes an anti-ferromagnetic (AF) transition at low temperature. From the Curie constant in paramagnetic phase, the insulator phase is suggested to be a dimer Mott insulator with one local spin per a dimer [57]. It is important to verify the amplitude of the staggered moment in AF phase. We determined the hyperfine coupling tensors in 13C NMR of the antiferromagnetic phase of β'-(BEDT-TTF)2ICl2 with single-site 13C-substituted BEDT-TTF [54]. To prevent the spin-flop phenomenon, the external magnetic field was applied perpendicular to the easy axis. Thus, the antiferromagnetic moment induces the local field parallel to the external field via the off-diagonal element of the hyperfine coupling tensor. Figure 10 shows the NMR spectra with the magnetic field parallel to b' axis, which is perpendicular to the easy axis [57,58]. In this setting, the moment induces the internal field parallel to the quantization axis via Ab'c. In previous 13C-NMR on organic conductors, the quantitative analysis was difficult due to the Pake doublet. Using hyperfine coupling tensors, however, we could perform the site assignment of spectrum shown in Figure 10, and we estimated the amplitude of the moment as ~1μB per dimer, predicting β'-(BEDT-TTF)2ICl2 under ambient pressure is a dimer Mott insulator.

Crystals 02 01034 g010 1024

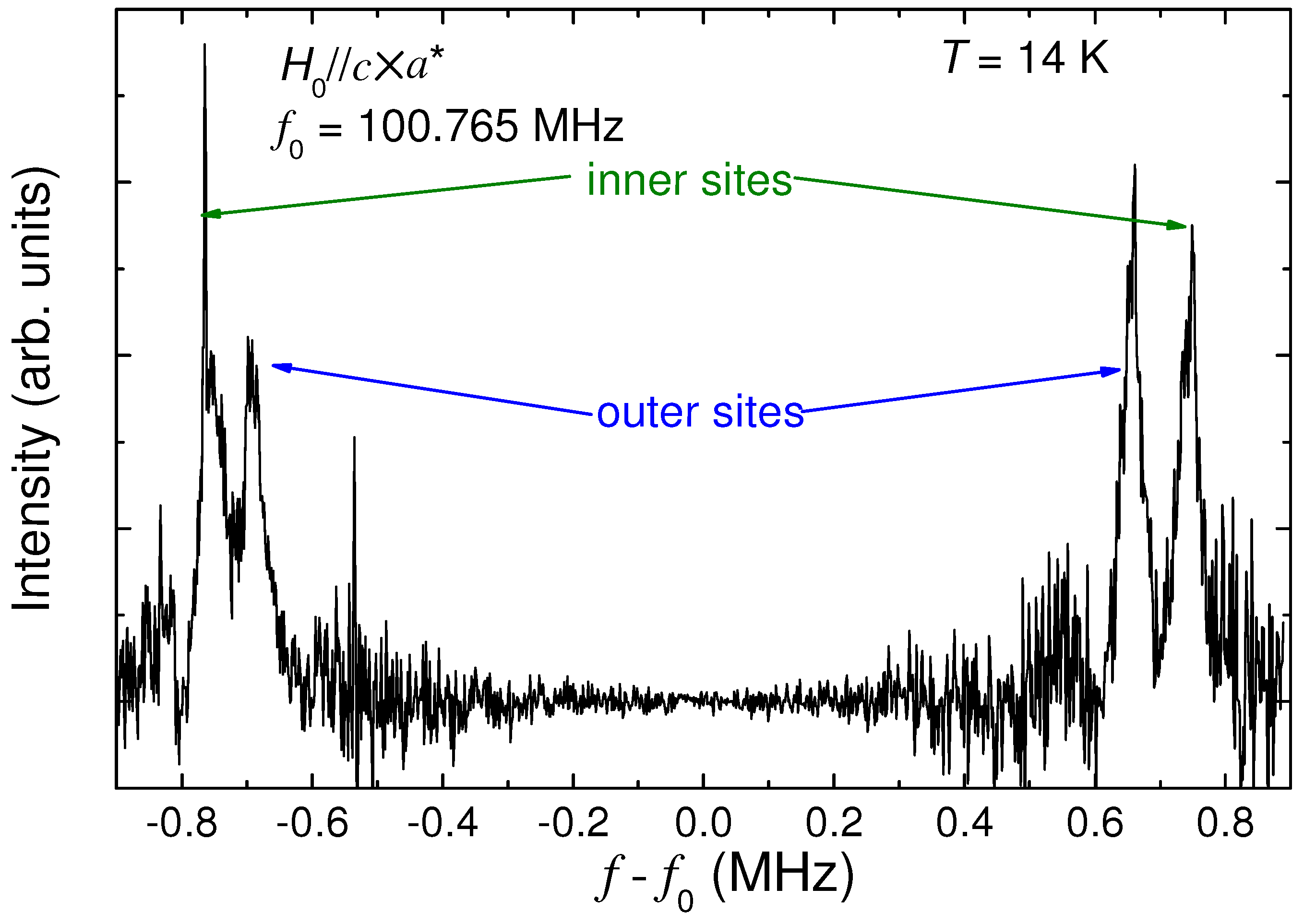

Figure 10. The NMR spectra below the antiferromagnetic transition temperature at Crystals 02 01034 i075 [54].

Click here to enlarge figure

Figure 10. The NMR spectra below the antiferromagnetic transition temperature at Crystals 02 01034 i075 [54].
Crystals 02 01034 g010 1024

4.5. Site Assignment on Charge Order Phase in α-(BEDT-TTF)2I3

The α-(BEDT-TTF)2I3 undergoes an MI transition at 135 K and the insulator phase of this salt has been well theoretically investigated and is revealed to be a charge ordered (CO) state due to the off-site coulomb interaction. In CO state, the inversion symmetry breaking induces the charge disproportionation among two A, B, and C sites in a unit cell. The CO pattern gives important information about the electronic structure. The vibrational spectroscopy is sensitive to the electron density on the molecular orbital and one of the powerful tools for the charge disproportionation. Unfortunately, the vibrational spectroscopy can directly determine the degree of the charge disproportionation but cannot perform the site assignment [59]. The CO pattern was predicted from the molecular bond-length deduced by the precise X-ray diffraction (XRD), which is also sensitive to the electron density of bonding or anti-bonding molecular orbital. The XRD has suggested that the molecular site, C, was assigned as charge-poor site [22]. The NMR is an alternative tool for site assignment. From the angular dependence of NMR shift, NMR distinguishes the molecular sites in a unit cell [23]. Since NMR shift is expressed as the sum of Knight and chemical shift, NMR shift almost corresponds to the chemical shift in the spin singlet state. The angular dependence of the chemical shift is relative smaller than the splitting width from Pake doublet. Hence, the angular dependence of NMR shift does not show a simple sinusoidal curve but a complicated form. Previous NMR studies on double-side substituted sample reveal that the molecular site, B, is spin-poor site in metallic phase, where, because of Knight shift, the angular dependence of the NMR shift is larger than the splitting width from Pake doublet, and the angular dependence of NMR shift shows almost a sinusoidal curve. Considering the spin disproportionation in the metallic phase is precursor phenomena of the CO transition, it is suggested that the molecular site, B, is charge-poor site in CO state [23], conflicting to the conclusion from XRD.

Using a single-site 13C-substituted molecule, NMR can directly probe the charge on the molecule from the chemical shift in the spin singlet state. Four peaks are observed in the single-site 13C-substiuted α-(BEDT-TTF)2I3, and the site assignment of four observed peaks could be performed from the simple sinusoidal dependence on the in-plane rotation shown in Figure 11a. Previous NMR study of θ-(BEDT-TTF)2RbZn(SCN)4 suggested that the chemical shift is the most sensitive to the charge in the case of the field parallel to the molecular long axis [60]. Then, rotating the magnetic field parallel to the molecular long axis, and comparing the chemical shift with those on θ-(BEDT-TTF)2RbZn(SCN)4, we concluded that the molecular site, C, was assigned as charge-poor site, as suggested by XRD [22].

Crystals 02 01034 g011 1024

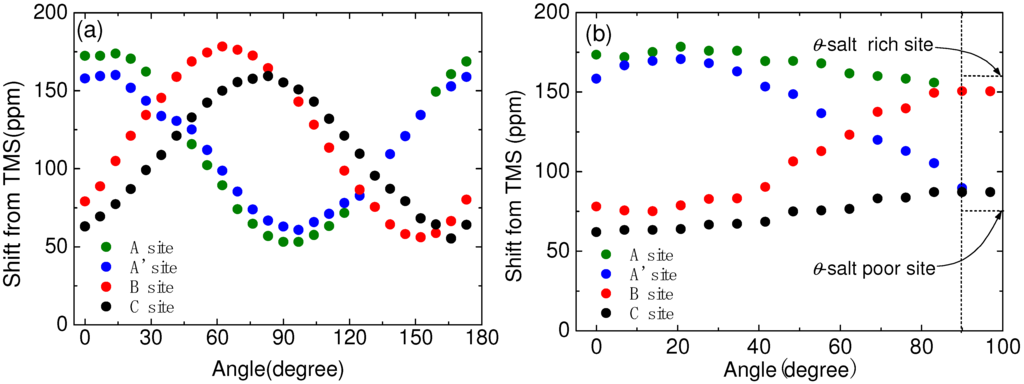

Figure 11. Angular dependence of the NMR shift of α-(BEDT-TTF)2I3 (a) at the magnetic field in the ab plane and (b) the magnetic field rotated around the direction perpendicular to the conducting plane and parallel to the long axis of the BEDT-TTF molecule [61].

Click here to enlarge figure

Figure 11. Angular dependence of the NMR shift of α-(BEDT-TTF)2I3 (a) at the magnetic field in the ab plane and (b) the magnetic field rotated around the direction perpendicular to the conducting plane and parallel to the long axis of the BEDT-TTF molecule [61].
Crystals 02 01034 g011 1024

The chemical shift tensor at charge-rich and charge-poor sites were also evaluated as,

Crystals 02 01034 i076

Crystals 02 01034 i077

respectively [61]. Here, three principle axes, X, Y, Z, are defined as molecular coordinates shown in the literature. Averaging these tensors, the chemical shift tensor of the charge of ρ = 0.5e can be obtained as,

Crystals 02 01034 i078

The chemical shift tensor at ρ = 0 has been estimated using neutral molecule [62]. However, the chemical shift tensor at ρ = 0.5e was unknown. The chemical shift tensor at ρ = 0.5e is a basic parameter of the quantitative analysis in (BEDT-TTF)2X salts.

4.6. Slow Dynamics of Ethylene Motions in BEDT-TTF

Our previous study under various pressures revealed that κ-(BEDT-TTF)2Cu(NCS)2 shows Fermi-liquid behavior just above the superconducting transition temperature Tc, with the correlation between the Korringa factor and Tc [63]. However, this salt does not behave as a simple Fermi liquid at high temperatures. The electrical resistance of κ-(BEDT-TTF)2Cu(NCS)2 shows semiconductive behavior above 80 K and, it steeply decreases showing T2 dependence below 30 K [64]. This behavior is a feature of all κ-type salts [15]. The anomaly in the thermal-expansion measurements at semiconductive region was found and this anomaly connected to the freezing of the ethylene motion of the BETD-TTF molecules, suggesting the glass transitions at 53 and 70 K [65]. NMR spectroscopy can detect slow dynamics corresponding to the glass transition through the spin-spin relaxation time, T2. As the single-site 13C-enriched molecule prevents the J-modulation by the nuclear dipole–dipole interaction, the precise measurement of T2 can be performed, including the site dependence. Figure 12 shows the temperature dependence of T2−1 at each site shown in the spectra [66]. Anomalies of the two-peak behavior were observed at around 100 and 125 K corresponding to the glass transition.

Crystals 02 01034 g012 1024

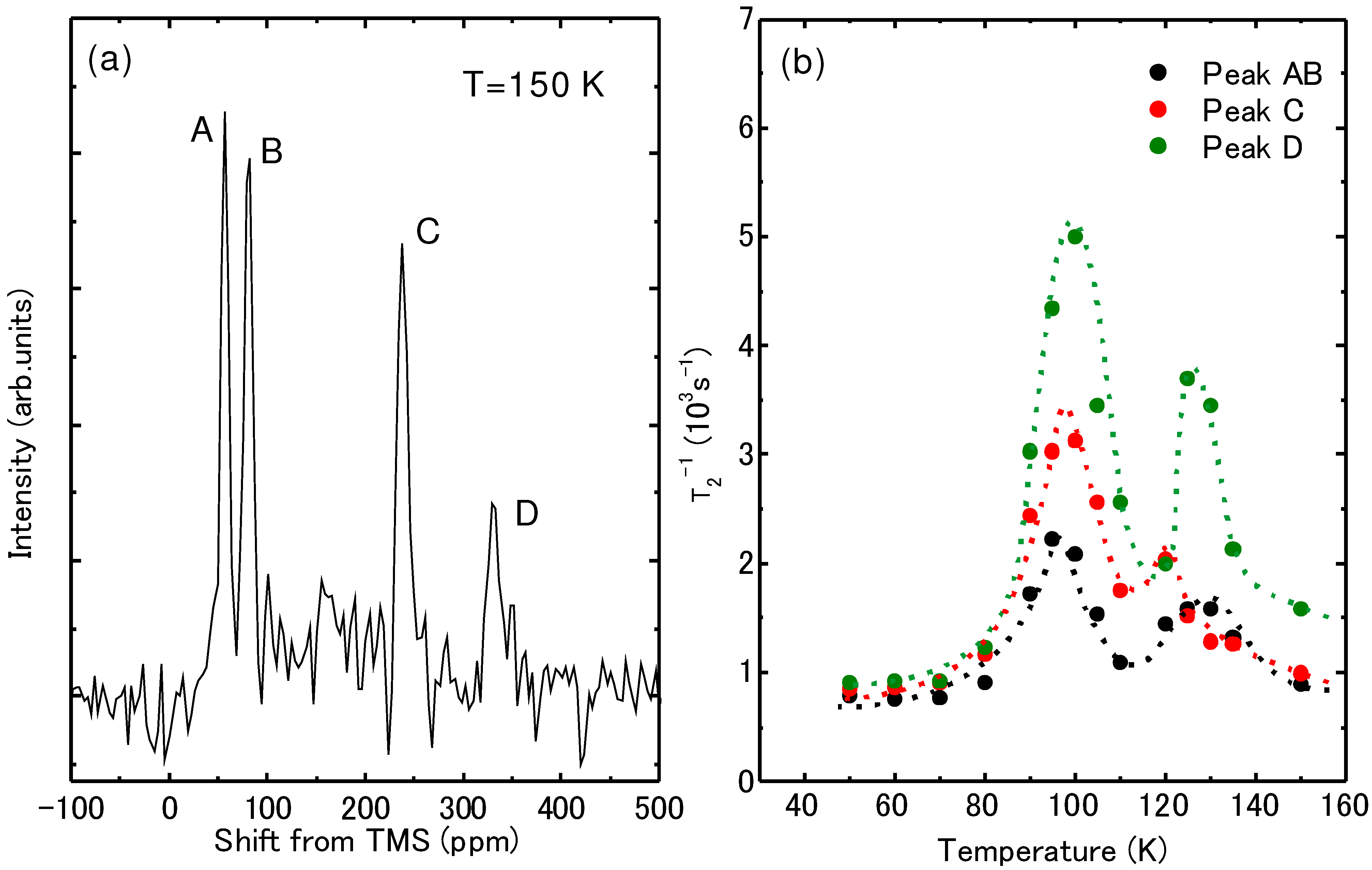

Figure 12. (a) 13C NMR spectra of κ-(BEDT-TTF)2Cu(NCS)2; (b) Temperature dependence of T2−1 [66].

Click here to enlarge figure

Figure 12. (a) 13C NMR spectra of κ-(BEDT-TTF)2Cu(NCS)2; (b) Temperature dependence of T2−1 [66].
Crystals 02 01034 g012 1024

The mechanism of the T2 process encompasses important information for the semiconductive behavior. In the case of direct coupling caused by the dipole field of ethylene motion, T2−1 is proportional to the square of the gyromagnetic ratio, γ2, whereas, in the case of indirect coupling caused by conduction electrons, T2−1 depends on one diagonal component of hyperfine coupling tensor at each site, which induces the fluctuation parallel to the external field. These anomalies of T2−1 were associated with the values, not of the nuclear gyromagnetic ratio, but of the hyperfine coupling constant. Namely, T2−1 at the peak D, which has a large hyperfine coupling constant, is faster than at other sites. This result provided the direct experimental evidence of the connection between the conduction electrons and the ethylene motion, and was consistent with the resulting crossover to metallic behavior when the ethylene motion freezes.

5. Conclusions

In summary, to prevent the Pake doublet problem for 13C-NMR on (TMTCF)2X and (BEDT-TTF)2X, we synthesized a single-site 13C-substituted TMTCF and BEDT-TTF molecule, utilizing the coupling of the dibutyl-tin complexes with the corresponding esters developed by Yamada et al. and explored an alternative method for the pure one-side enriched BEDT-TTF.

By the determination of the hyperfine coupling tensor and chemical shift tensor of TMTCF and BEDT-TTF, we evaluated the hyperfine coupling tensor as the basic parameter for 13C-NMR of (TMTCF)2X and (BEDT-TTF)2X. These single-site 13C-substituted TMTCF and BEDT-TTF molecules and their hyperfine coupling and chemical shift tensors enabled us to expand the ability of 13C-NMR on organic conductors. We demonstrated the superiority of 13C-NMR of some single-site 13C-substituted molecular crystals. The preparation and basic parameters of single-site 13C-substituted TMTCF and BEDT-TTF molecules will also contribute to future 13C-NMR works.

Acknowledgments

These studies were supported in parts by a Grant-in-Aid for Science Research Grant No. 14540316, No. 16038201 and No. 18540306 from the Ministry of Education, Culture, Sports, Science and Technolog. We thank T. Suzuki (Institute for molecular science) for his advice of the organic synthesis. We thank K. Watanabe and E. Fukushi (GC-MS & NMR Laboratory, Graduate School of Agriculture, Hokkaido University) for MS measurements. And we thank Y. Kimura, Y. Kuwata, T. Kawai, Y. Eto, Y. Liu, Mr. N. Shimohara, N. Matsunaga, and K. Nomura for coworking for 13C-NMR mesurement and the organic synthesis

References and Notes

  1. Wang, H.H.; Beno, M.A.; Geiser, U.; Firestone, M.A.; Webb, K.S.; Nunez, L.; Crabtree, G.W.; Carlson, K.D.; Williams, J.M. Ambient-Pressure superconductivity at the highest temperature (5 K) observed in an organic system: β-(BEDT-TTF)2AuI2. Inorg. Chem. 1985, 24, 2465–2466. [Google Scholar]
  2. Wang, H.H.; Geiser, U.; Williams, J.M.; Mason, J.M.; Perr, J.T.; Heindl, J.E.; Lathrop, M.W.; Love, B.J.; Watkins, D.M.; Yaconi, G.A. Phase selectivity in the simultaneous synthesis of the Tc = 12.8 K (0.3 kbar) organic superconductor κ-(BEDT-TTF)2Cu[N(CN)2]Cl or the semiconductor (BEDT-TTF)Cu[N(CN)2]2. Chem. Mater. 1992, 4, 247–249. [Google Scholar]
  3. Geiser, U.; Wang, H.H.; Carlson, K.D.; Williams, J.M.; Charlier, H.A.; Heindl, J.E.; Yaconi, G.A.; Love, B.J.; Lathrop, M.W.; Schirber, J.E.; et al. Superconductivity at 2.8 K and 1.5 kbar in κ-(BEDT-TTF)2Cu2(CN)3: The first organic superconductor containing a polymeric copper cyanide anion. Inorg. Chem. 1991, 30, 2586–2588. [Google Scholar]
  4. Urayama, H.; Yamochi, H.; Saito, G.; Nozawa, K.; Sugano, T.; Kinoshita, M.; Sato, S.; Oshima, K.; Kawamoto, A.; Tanaka, A. A new ambient pressure organic superconductor based on BEDT-TTF with TC higher than 10 K (TC = 10.4 K). J. Chem. Lett. 1988, 17, 55–58. [Google Scholar]
  5. Jérome, D. The physics of organic superconductors. Science 1991, 252, 1509–1514. [Google Scholar]
  6. Jérome, D.; Mazaud, A.; Ribault, M.; Bechgaard, K. Superconductivity in a synthetic organic conductor (TMTSF)2PF6. J. Phys. Lett. 1980, 41, 95–98. [Google Scholar]
  7. Bechgaard, K.; Carneiro, K.; Olsen, M.; Rasmussen, F.B.; Jacobsen, C.S. Zero-Pressure organic superconductor: Di-(tetramethyltetraselenafulvalenium)-perchlorate [(TMTSF)2ClO4]. Phys. Rev. Lett. 1981, 46, 852–855. [Google Scholar]
  8. Chow, D.S.; Zamborszky, F.; Alavi, B.; Tantillo, D.J.; Baur, A.; Merlic, C.A.; Brown, S.E. Charge ordering in the TMTTF family of molecular conductors. Phys. Rev. Lett. 2000, 85, 1698. [Google Scholar]
  9. Zamborszky, F.; Yu, W.; Raas, W.; Brown, S.E.; Alavi, B.; Merlic, C.A.; Baur, A. Competition and coexistence of bond and charge orders in (TMTTF)2AsF6. Phys. Rev. B 2002, 66, 1–4. [Google Scholar]
  10. Yu, W.; Zhang, F.; Zamborsky, F.; Alavi, B.; Baur, A.; Merlic, C.A.; Brown, S.E. Electron-Lattice coupling and broken symmetries of the molecular salt (TMTTF)2SbF6. Phys. Rev. B 2004, 70, 1–4. [Google Scholar]
  11. Barthel, E.; Quirion, G.; Wzietek, P.; Jérome, D.; Christensen, J.B.; Jørgensen, M.; Bechgaard, K. NMR in commensurate and incommensurate spin density waves. Europhys. Lett. 1993, 21, 87–92. [Google Scholar]
  12. Klemme, B.J.; Brown, S.E.; Wzietek, P.; Kriza, G.; Batail, P.; Jerome, D.; Fabre, J.M. Commensurate and incommensurate spin-density waves and a modified phase diagram of the Bechgaard salts. Phys. Rev. Lett. 1995, 75, 2408–2411. [Google Scholar]
  13. Mckenzie, R.H. Similarities between organic and cuprate superconductors. Science 1997, 278, 820–821. [Google Scholar] [CrossRef]
  14. Lang, M. Quasi-Two dimensional organic superconductors. Supercond. Rev. 1996, 2, 1. [Google Scholar]
  15. Kanoda, K. Electron correlation, metal-insulator transition and superconductivity in quasi-2D organic systems, (ET)2X. Phys. C 1997, 282–287, 299–302. [Google Scholar] [CrossRef]
  16. Kawamoto, A.; Miyagawa, K.; Nakazawa, Y.; Kanoda, K. Electron correlation in the κ-phase family of BEDT-TTF compounds studied by 13C-NMR, where BEDT-TTF is bis(ethylenedithio)tetrathiafulvalene. Phys. Rev. B 1995, 52, 15522–15533. [Google Scholar]
  17. Kondo, H.; Moriya, T. Spin fluctuation-induced superconductivity in organic compounds. J. Phys. Soc. Jpn. 1998, 67, 3695–3698. [Google Scholar] [CrossRef]
  18. Kino, H.; Kontani, H. Phase diagram of superconductivity on the anisotropic triangular lattice hubbard model: An effective model of κ-(BEDT-TTF) salts. J. Phys. Soc. Jpn. 1998, 67, 3691–3694. [Google Scholar] [CrossRef]
  19. Schmalian, J. Pairing due to spin fluctuations in layered organic superconductors. Phys. Rev. Lett. 1998, 81, 4232–4235. [Google Scholar] [CrossRef]
  20. Vojta, M.; Dagotto, E. Indications of unconventional superconductivity in doped and undoped triangular antiferromagnets. Phys. Rev. B 1999, 59, 713–716. [Google Scholar] [CrossRef]
  21. Schirber, J.E.; Overmyer, D.L.; Carlson, K.D.; William, J.M.; Kini, A.M.; Wang, H.H.; Charlier, H.A.; Love, B.J.; Watkins, D.M.; Yaconi, G.A. Pressure-Temperature phase diagram, inverse isotope effect, and superconductivity in excess of 13 K in κ-(BEDT-TTF)2Cu[N(CN)2]Cl, where BEDT-TTF is bis(ethylenedithio)tetrathiafulvalene. Phys. Rev. B 1991, 44, 4666–4669. [Google Scholar]
  22. Kakiuchi, T.; Wakabashi, Y.; Sawa, H.; Takahash, T.; Nakamura, T. Charge ordering in α-(BEDT-TTF)2I3 by synchrotron X-ray diffraction. J. Phys. Soc. Jpn. 2007, 76, 1–4. [Google Scholar]
  23. Moroto, S.; Hiraki, K.-I.; Takano, Y.; Kubo, Y.; Takahashi, T.; Yamamoto, H.M.; Nakamura, T. Charge disproportionation in the metallic state of α-(BEDT-TTF)2I3. J. Phys. IV 2004, 114, 399–340. [Google Scholar]
  24. Wojciechowski, R.; Yamamoto, K.; Yakushi, K.; Inokuchi, M.; Kawamoto, A. High-Pressure Raman study of the charge ordering in α-(BEDT-TTF)2I3. Phys. Rev. B 2003, 67, 1–11. [Google Scholar]
  25. Yue, Y.; Yamamoto, K.; Uruichi, M.; Nakano, C.; Yakushi, K.; Yamada, S.; Hiejima, T.; Kawamoto, A. Nonuniform site-charge distribution and fluctuations of charge order in the metallic state of α-(BEDT-TTF)2I3. Phys. Rev. B 2010, 82, 1–8. [Google Scholar]
  26. Bender, K.; Hennig, I.; Schweitzer, D.; Dietz, K.; Endres, H.; Keller, H.J. Synthesis, structure and physical properties of a two-dimensional organic metal, di[dis(ethylene-dithiolo)tetrathiofulvalene] triiodide, (BEDT-TTF)+2I3. Mol. Cryst. Liq. Cryst. 1984, 107, 359–371. [Google Scholar] [CrossRef]
  27. Yamamoto, K.; Yakushi, K.; Miyagawa, K.; Kanoda, K.; Kawamoto, A. Charge ordering in θ-(BEDT-TTF)2RbZn(SCN)4 studied by vibrational spectroscopy. Phys. Rev. B 2002, 65, 1–8. [Google Scholar]
  28. Miyagawa, K.; Kawamoto, A.; Kanoda, K. Charge ordering in a quasi-two-dimensional organic conductor. Phys. Rev. B 2000, 62, 7679–7682. [Google Scholar]
  29. Mori, H.; Tanaka, S.; Mori, T. Systematic study of the electronic state in θ-type BEDT-TTF organic conductors by changing the electronic correlation. Phys. Rev. B 1998, 57, 12023–12029. [Google Scholar]
  30. Seo, H.; Fukuyama, H. Antiferromagnetic phases of one-dimensional quarter-filled organic conductors. J. Phys. Soc. Jpn. 1997, 66, 1249–1252. [Google Scholar]
  31. Seo, H. Charge ordering in organic ET compounds. J. Phys. Soc.Jpn. 2000, 69, 805–820. [Google Scholar] [CrossRef]
  32. Merino, J.; Mckenzie, R.H. Superconductivity mediated by charge fluctuations in layered molecular crystals. Phys. Rev. Lett. 2001, 87, 1–4. [Google Scholar]
  33. Emery, V.J.; Bruinsma, R.; Barišić, S. Electron-Electron Umklapp scattering in organic superconductors. Phys. Rev. Lett. 1982, 48, 1039–1043. [Google Scholar] [CrossRef]
  34. Scott, J.C.; Pedersen, H.J.; Bechgaard, K. Magnetic properties of the organic conductor bis-tetramethyltetraselenafulvalene hexafluorophosphate [(TMTSF)2PF6]: A new phase transition. Phys. Rev. Lett. 1980, 45, 2125–2128. [Google Scholar]
  35. Lasjaunias, J.C.; Biljaković, K.; Nad’, F.; Monceau, P.; Bechgaard, K. Glass transition in the spin-density wave phase of (TMTSF)2PF6. Phys. Rev. Lett. 1994, 72, 1283–1286. [Google Scholar]
  36. Lee, I.J.; Chow, D.S.; Clark, W.G.; Strouse, M.J.; Naughton, M.J.; Chaikin, P.M.; Brown, S.E. Evidence from 77Se Knight shifts for triplet superconductivity in (TMTSF)2PF6. Phys. Rev. B 2003, 68, 1–4. [Google Scholar]
  37. Takahashi, T. 13C-NMR studies of charge ordering in organic conductors. Syth. Met. 2003, 133–134, 261–264. [Google Scholar] [CrossRef]
  38. Powles, J.G.; Manfield, P. Double-Pulse nuclear-resonance transients in solid. Phys. Lett. 1962, 2, 58–59. [Google Scholar] [CrossRef]
  39. Miyagawa, K.; Kawamoto, A.; Kanoda, K. 13C NMR study of nesting instability in α-(BEDT-TTF)2RbHg(SCN)4. Phys. Rev. B 1997, 56, 8487–8490. [Google Scholar]
  40. De Soto, S.M.; Slichter, C.P.; Kini, A.M.; Wang, H.H.; Geiser, U.; Williams, J.M. 13C NMR line-shape studies of the organic superconductor κ-(ET)2Cu[N(CN)2]Br. Phys. Rev. B 1996, 54, 16101–16107. [Google Scholar]
  41. Shimizu, Y.; Miyagawa, K.; Kanoda, K.; Maesato, M.; Saito, G. Emergence of inhomogeneous moments from spin liquid in the triangular-lattice Mott insulator κ-(ET)2Cu2(CN)3. Phys. Rev. B 2006, 73, 140407/1–140407/4. [Google Scholar]
  42. De Sono, S.M.; Slichter, C.P.; Kini, A.M.; Wang, H.H.; Geiser, U.; Williams, J.M. 13C-NMR studies of the normal and superconducting states of the organic superconductor κ-(ET)2Cu[N(CN)2]Br. Phys. Rev. B 1995, 52, 10364–10368. [Google Scholar]
  43. Ferraris, J.P.; Poehler, T.O.; Bloch, A.N.; Cowan, D.O. Synthesis of the highly conducting organic salt: Tetramethyltetrathiofulvalenium-tetracyano-p-quinodimethanide. Tetrahedron Lett. 1973, 14, 2553–2556. [Google Scholar]
  44. Moradpour, A.; Peyrussan, V.; Johansen, I.; Bechgaard, K. High-Yield synthesis of tetramethyltetraselenafulvalene (TMTSF) avoiding the use of gaseous hydrogen selenide. J. Org. Chem. 1983, 48, 388–389. [Google Scholar]
  45. Bechgaard, K.; Cowan, D.O.; Bloch, A.N. Synthesis of the organic conductor tetramethyltetraselenofulvalenium 7,7,8,8-tetracyano-p-quinodimethanide (TMTSF-TCNQ)[4,4′,5,5′-tetramethyl-Δ2,2′-bis-1,3-diselenolium 3,6-bis-(dicyanomethylene)cyclohexadienide]. J. Chem. Soc. Chem. Commun. 1974, 937–938. [Google Scholar]
  46. Yamada, J.; Satoki, S.; Mishima, S.; Akashi, N.; Takahashi, K.; Masuda, N.; Nishimoto, Y.; Takasaki, S.; Anzai, H. Synthesis of unsymmetrical tetrathiafulvalene derivatives via Me3Al-promoted reactions of organotin compounds with esters. J. Org. Chem. 1996, 61, 3987–3995. [Google Scholar]
  47. Tetra-Methyl-Tetra-Thia-Fulvalene (TMTTF, 1). To a solution of 4,5-dimethyl-2,2-dibutyl-2-stanna-1,3-dithiole (4(a); 1600 mg, 4.56 mmol) in anhydrous dichloromethane (8.6 mL) was added at −78 °C a hexane solution of Me3Al (1.08 mol/L × 9.4 mL = 10.15 mmol). And then a solution of Methyl 4,5-dimethyl-1, 3-dithiole- 2-carboxylate (5(a); 720 mg, 3.81 mmol) in anhydrous dichloromethane (8.6 mL) was added. The mixture was warmed up to room temperature, and left stirring overnight. The reaction was quenched by the addition of saturated aqueous NaHCO3 solution at 0 °C. The aqueous layer was extracted with five portions of chloroform. The extracts were combined, dried over MgSO4, and the solvent was evaporated in vacuo. Recrystallization of the product from acetonitrile gave 1 (TMTTF), orange crystals; yield: 360 mg (43.7%). 1H-NMR (CDCl3/TMS): δ = 2.01(s, 12H). MS(FD): m/z (%): 263(22), 262(15), 261(M+, 100).
  48. Tetra-Methyl-Tetra-Selena-Fulvalene (TMTSF, 2). To a solution of 4,5-Dimethyl-2,2-dibutyl-2-stanna-1,3-diselenole (4(b); 1361 mg, 3.06 mmol) in anhydrous dichloromethane (9.8 mL) was added at −78 °C a hexane solution of Me3Al (1.08 mol/L × 5.6 mL = 6.02 mmol). And then a solution of Methyl 4,5-dimethyl-1, 3-diselenole- 2-carboxylate (5(b); 840 mg, 2.93 mmol) in anhydrous dichloromethane (9.8 mL) was added. The mixture was warmed up to room temperature, and left stirring overnight. The reaction was quenched by the addition of saturated aqueous NaHCO3 solution at 0 °C, and the mixture was filtered through Celite. The aqueous layer was extracted with three portions of chloroform. The extracts were combined, dried over MgSO4, and the solvent was evaporated in vacuo. And then the product was chromatographed (silica gel, hexane- chloroform). Recrystallization of the product from acetonitrile gave 2 (TMTSF), purple crystals; yield: 100 mg (7.6%). 1H-NMR (CDCl3/TMS): δ = 1.98(s,12H). MS(FD): m/z (%): 455(35), 454(13), 453(84), 452(29), 451(100), 450(46), 449(M+, 99), 448(50), 447(76), 446(42), 445(45), 444(22), 443(20).
  49. Svenstrup, N.; Rasmussen, K.M.; Hansen, T.K.; Becher, J. The chemistry of TTFTT; 1: New efficient synthesis and reactions of tetrathiafulvalene-2,3,6,7-tetrathiolate (TTFTT): An important building block in TTF-syntheses. Synthesis 1994, 809–812. [Google Scholar]
  50. Bis-(Ethylene-Dithio)-Tetra-Thia-Fulvalene (BEDT-TTF-13C1, 3). Enriched 2,3-Bis(cyanoethylthio)-6,7-ethylenedithiotetrathiafulvalene was prepared from the enriched thioketone form by the literature. To a solution of enriched 2,3-bis(cyanoethylthio)-6,7-ethylenedithiotetrathiafulvalene (12; 200 mg, 0.42 mmol) in degassed EtOH (10 mL) was added Sudium (40mg, 3.5mmol) in 3 mL of degassed EtOH under Ar and the mixture was stirred for 4 h. To the deep red solution was added 1,2-dibromoethane (219 mg, 1.1 mmol) in degassed EtOH (22 mL) and stirred overnight under Ar. The mixture was filtered. The product was purified by chromatography (silica gel, CS2) and recrystallized from chlorobenzene to give 3 (BEDT-TTF-13C1,), bright red crystals; yield: 58 mg (36%). 1H-NMR (CDCl3/TMS): δ = 3.27(s, 8H). MS(FD): m/z (%): 389(6), 388(5), 387(37), 386(18), 385(100), 384(3).
  51. Kimura, Y.; Misawa, M.; Kawamoto, A. Correlation between non-Fermi-liquid behavior and antiferromagnetic fluctuations in (TMTSF)2PF6 observed using 13C-NMR spectroscopy. Phys. Rev. B 2011, 84, 1–5. [Google Scholar]
  52. Hirose, S.; Kawamoto, A. 13C NMR study on the charge-ordering salt α'-(BEDT-TTF)2IBr2. Phys. Rev. B 2009, 80, 1–6. [Google Scholar]
  53. Hiraki, K.; Kanoda, K. Wigner crystal type of charge ordering in an organic conductor with a quarter-filled band: (DI-DCNQI)2Ag. Phys. Rev. Lett. 1998, 80, 4737–4740. [Google Scholar] [CrossRef]
  54. Eto, Y.; Kawamoto, A. Antiferromagnetic phase in β'-(BEDT-TTF)2ICl2 under pressure as seen via 13C NMR. Phys. Rev. B 2010, 81, 1–4. [Google Scholar]
  55. Leyraud, N.D.; Senzier, P.A.; Cotret, R.S.; Bourbonnais, C.; J’erome, D.; Bechgaard, K.; Taillefer, L. Correlation between linear resistivity and Tc in the Bechgaard salts and the pnictide superconductor Ba(Fe1−xCox)2As2. Phys. Rev. B 2009, 80, 1–5. [Google Scholar]
  56. Taniguchi, H.; Miyashita, M.; Uchiyama, K.; Satoh, K.; Mori, N.; Okamoto, H.; Miyagawa, K.; Kanoda, K.; Hedo, M.; Uwatoko, Y. Superconductivity at 14.2 K in layered organics under extreme pressure. J. Phys. Soc. Jpn. 2003, 72, 468–471. [Google Scholar]
  57. Yoneyama, N.; Miyazaki, A.; Enoki, T.; Saito, G. Magnetic properties of TTF-type charge transfer salts in the Mott insulator regime. Bull. Chem. Soc. Jpn. 1999, 72, 639–651. [Google Scholar] [CrossRef]
  58. Tokumoto, M.; Anzai, H.; Ishiguro, T.; Saito, G.; Kobayashi, H.; Kato, R.; Kobayashi, A. Electrical and magnetic properties of organic semiconductors, (BEDT-TTF)2X (X = IBr2, IBrCl, and ICl2). Synth. Met. 1987, 19, 215–220. [Google Scholar]
  59. Yamamoto, T.; Uruichi, M.; Yamamoto, K.; Yakushi, K.; Kawamoto, A.; Taniguchi, H. Examination of the charge-sensitive vibrational modes in bis(ethylenedithio)tetrathiafulvalene. J. Phys. Chem. B 2005, 109, 15226–15235. [Google Scholar]
  60. Chiba, R.; Hiraki, K.; Takahashi, T.; Yamamoto, H.M.; Nakamura, T. Charge disproportionation and dynamics in θ-(BEDT-TTF)2CsZn(SCN)4. Phys. Rev. B 2008, 77, 1–10. [Google Scholar]
  61. Kawai, T.; Kawamoto, A. 13C-NMR study of charge ordering state in the organic conductor, α-(BEDT-TTF)2I3. J. Phys. Soc. Jpn. 2009, 78, 1–6. [Google Scholar]
  62. Klutz, T.; Henning, I.; Haeberlen, U.; Schweitzer, D. Knight shift tensors and p-spin density in the organic metals αt-(BEDT-TTF)2I3 and (BEDT-TTF)2Cu(NCS)2. Appl. Magn. Reson. 1991, 2, 441. [Google Scholar]
  63. Itaya, M.; Eto, Y.; Kawamoto, A.; Taniguchi, H. Antiferromagnetic fluctuations in the organic superconductor κ-(BEDT-TTF)2Cu(NCS)2 under Pressure. Phys. Rev. Lett. 2009, 102, 1–4. [Google Scholar]
  64. Strack, C.; Akinci, C.; Paschenko, V.; Wolf, B.; Uhrig, E.; Assmus, W.; Lang, M.; Schreuer, J.; Wiehl, L.; Schlueter, J.A.; et al. Resistivity studies under hydrostatic pressure on a low-resistance variant of the quasi-two-dimensional organic superconductor κ-(BEDT-TTF)2Cu[N(CN)2]Br: Search for intrinsic scattering contributions. J. Phys. Rev. B 2005, 72, 054511. [Google Scholar]
  65. Müller, J.; Lang, M.; Steglich, F.; Schlueter, J.A.; Kini, A.M.; Sasaki, T. Evidence for structural and electronic instabilities at intermediate temperatures in κ-(BEDT-TTF)2X for X = Cu[N(CN)2]Cl, Cu[N(CN)2]Br and Cu(NCS)2: Implications for the phase diagram of these quasi-two-dimensional organic superconductors. Phys. Rev. B 2002, 65, 1–14. [Google Scholar]
  66. Kuwata, Y.; Itaya, M.; Kawamoto, A. Low-Frequency dynamics of κ-(BEDT-TTF)2Cu(NCS)2 observed by 13C NMR. Phys. Rev. B 2011, 83, 1–5. [Google Scholar]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
