Crystals 2012, 2(2), 413-445; doi:10.3390/cryst2020413

Review
Moderate Temperature Dense Phase Hydrogen Storage Materials within the US Department of Energy (DOE) H2 Storage Program: Trends toward Future Development
Scott McWhorter 1,, Kathleen O’Malley 2, Jesse Adams 3, Grace Ordaz 4, Katie Randolph 3 and Ned T. Stetson 4,*
1
Savannah River National Laboratory, Aiken, SC 29808, USA; Email: christopher.mcwhorter@ee.doe.gov
2
SRA International, Fairfax, VA 22033, USA; Email: kathleen.o’malley@ee.doe.gov
3
Fuel Cell Technologies Program-Golden Field Office, US Department of Energy, 1617 Cole Boulevard, Golden, CO 80401, USA; Email: jesse.adams@go.doe.gov (J.A.); katie.randolph@go.doe.gov (K.R.)
4
Fuel Cell Technologies Program, US Department of Energy, 1000 Independence Avenue SW, Washington, DC 20585, USA; Email: grace.ordaz@ee.doe.gov
Current address: Fuel Cell Technologies Program, US Department of Energy, 1000 Independence Avenue SW, Washington, DC 20585, USA.
*
Author to whom correspondence should be addressed; Email: ned.stetson@ee.doe.gov; Tel.: +1-202-586-9995; Fax: +1-202-586-9811.
Received: 20 March 2012; in revised form: 20 April 2012 / Accepted: 23 April 2012 /
Published: 10 May 2012

Abstract

: Hydrogen has many positive attributes that make it a viable choice to augment the current portfolio of combustion-based fuels, especially when considering reducing pollution and greenhouse gas (GHG) emissions. However, conventional methods of storing H2 via high-pressure or liquid H2 do not provide long-term economic solutions for many applications, especially emerging applications such as man-portable or stationary power. Hydrogen storage in materials has the potential to meet the performance and cost demands, however, further developments are needed to address the thermodynamics and kinetics of H2 uptake and release. Therefore, the US Department of Energy (DOE) initiated three Centers of Excellence focused on developing H2 storage materials that could meet the stringent performance requirements for on-board vehicular applications. In this review, we have summarized the developments that occurred as a result of the efforts of the Metal Hydride and Chemical Hydrogen Storage Centers of Excellence on materials that bind hydrogen through ionic and covalent linkages and thus could provide moderate temperature, dense phase H2 storage options for a wide range of emerging Proton Exchange Membrane Fuel Cell (PEM FC) applications.
Keywords:
hydrogen storage; metal hydrides; chemical hydrogen storage; review; applications; intermetallic compounds; complex hydrides; PEM fuel cells

1. Introduction

Hydrogen is a near ideal energy carrier that can be used to fuel the economy while reducing our nation’s dependence on fossil fuels, diversifying renewable and sustainable energy sources and significantly reducing pollution and greenhouse gas emissions. Currently, hydrogen is commercially produced from natural gas by means of chemical processing including steam methane reforming, partial oxidation and/or autothermal reforming; although, it has the potential to be produced from a diverse portfolio of domestic renewable resources such as biomass, hydro, wind and solar [1]. It contains more chemical energy per unit mass than any hydrocarbon fuel; however, it is the lightest of all elements and behaves as an ideal gas at room temperature so that its energy density is particularly low and, thus, is problematic to store effectively in small volumes. Consequently, one of the primary barriers to commercialization of hydrogen fuel cell technologies for portable, stationary and transportation applications is the efficient storage of hydrogen.

Existing technologies allow the storage of hydrogen through the modification of its physical state as a high pressure gas or cryogenic liquid; however, these options have technical and practical challenges, especially when considering emerging commercial markets. Compression can be used to increase the energy density with the use of robust pressure vessels; however at the expense of significant weight and cost penalties [2]. For instance, analysis of 35 MPa and 70 MPa Type IV composite cylinders that use high strength carbon fiber (CF) reinforcement to reduce cylinder weight for automotive applications indicates hydrogen system capacities of 5.5 and 5.2 wt.% H2 and 17.6 and 26.3 g-H2/L, at a cost of ~$15/k·Wh and $19/k·Wh, respectively [3,4]. Comparatively, the 70 MPa requires ~10% more CF than the 35 MPa system to withstand the higher pressure which adds an additional ~$3/k·Wh in cost. Likewise, the compression of hydrogen accounts for a ~10–15% loss in energy content which further decreases the overall efficiency of the system [2].

Alternatively, lower temperatures can be used to increase the energy density of hydrogen as a liquid or cryo-compressed fluid. Hydrogen is a liquid at its boiling point of 20 K with a density of approximately 71 grams per liter. Further increases in density are expected with the application of cryogenic temperatures and pressure as observed in Figure 1. However, each technology requires well insulated and expensive cryogenic storage vessels to prevent boil-off and maximize dormancy (i.e., length of time the hydrogen can be stored without loss). Moreover, the liquefaction process is energy intensive and consumes approximately ~25–30% of the energy content of the stored hydrogen [2].

Crystals 02 00413 g001 1024
Figure 1. Plot of hydrogen density as a function of pressure and temperature.

Click here to enlarge figure

Figure 1. Plot of hydrogen density as a function of pressure and temperature.
Crystals 02 00413 g001 1024

When considering hydrogen storage options for emerging applications, each application must be regarded individually as each has its own distinct set of performance criteria. For example, for a stationary back-up power application that may well sit dormant at a remote location for months prior to being used; dormancy, quick start-up, gravimetric capacity, ease of refill and cost might be critical issues; whereas, for a man-portable power application, such as a rechargeable battery extender; size (i.e., gravimetric and volumetric capacities), cost and ease of use might be the greatest factors. In comparison, one of the most challenging applications, transportation, has very rigorous performance requirements with respect to weight, volume, start-up, rate of refill, transient operation, cost and a number of other performance criteria [5]. Nevertheless, traditional hydrogen storage alone cannot meet the performance criteria for all applications.

Despite the demanding challenges, the U.S. government and stakeholders realize that hydrogen storage represents a key enabling technology for the emergence of hydrogen fuel cells as an alternative energy source and have initiated intense research on materials-based solutions. The U.S. Department of Energy’s (DOE) Hydrogen Storage sub-program supports research and development of materials and technologies to address the barriers for compact, lightweight and inexpensive storage of hydrogen. The goal of the sub-program is to develop and demonstrate a portfolio of viable hydrogen storage technologies for transportation and early market fuel cell applications such as stationary power, backup power and material handling equipment. In response to the 2003 Hydrogen Fuel Initiative that placed a greater emphasis on R&D funding for hydrogen fuel cell vehicles, the DOE initiated the National Hydrogen Storage Project, which included three centers of excellence as well as independent projects, to accelerate the development of hydrogen storage materials that would allow for hydrogen storage systems capable of meeting DOE performance targets [5]. The centers of excellence involved multidisciplinary teams of academic, industrial and federal laboratory partners with focused efforts in three main groups of hydrogen storage materials (1) reversible metal hydrides; (2) chemical hydrogen storage and (3) high surface area sorbents. The first category of materials, the reversible metal hydrides, is generally characterized by the reactions of metals, nonmetals and alloys with hydrogen under moderate temperatures and pressures through combinations of metallic, ionic and/or covalent bonding (i.e., chemical bonding). The second group, chemical hydrogen storage, are a class of storage compounds containing large quantities of chemically bound hydrogen that can be released by heating (i.e., thermolysis) or reactions with other materials (e.g., hydrolysis reactions) and typically must be regenerated using separate processing steps after desorption of the hydrogen. The third group, comprised mainly of highly porous solids, utilizes high surface area materials (e.g., activated carbons, metal-organic frameworks, etc.) to bind dihydrogen through van der Waals interactions at low temperatures, generally lower than 273 K. From an applications perspective, the most significant difference between the three groups of materials is their operational temperature (see Figure 2), which is mainly determined by the differences in bonding types (i.e., chemical vs. physisorption), where most applications will have an operational temperature range that requires the storage to function at ambient or moderate temperatures. Both metal hydrides and chemical hydrogen storage materials, for that matter, typically require heating (i.e., 340 K–500 K) for thermal decomposition and subsequent hydrogen release due to their relatively high chemical stability. However, several thermodynamic factors, such as reaction pressure, enthalpy (ΔH) and entropy (ΔS), ultimately influence the equilibrium temperature requirements for decomposition and are described by the van’t Hoff Equation. In contrast, most sorbent materials possess room temperature heats of adsorption that are too weak (e.g., <10 kJ/mol) for significant binding of hydrogen which necessitates the use of colder temperatures (i.e., <77 K) to store meaningful quantities of hydrogen (i.e., ~4–8 wt.% H2). Efforts to increase the heats of adsorption for these materials have included metal doping of carbonaceous materials, and while promising results have been reported, material synthesis and sorption measurements have suffered from irreproducibility and the ability to validate results [6,7,8]. As operation at (or near) ambient temperatures and pressures is highly desirable across all applications, a focus of the R&D is on developing materials with suitable hydrogen bonding enthalpies (i.e., ~17–35 kJ/mol H2) that can provide energy efficient hydrogen storage platforms.

Crystals 02 00413 g002 1024

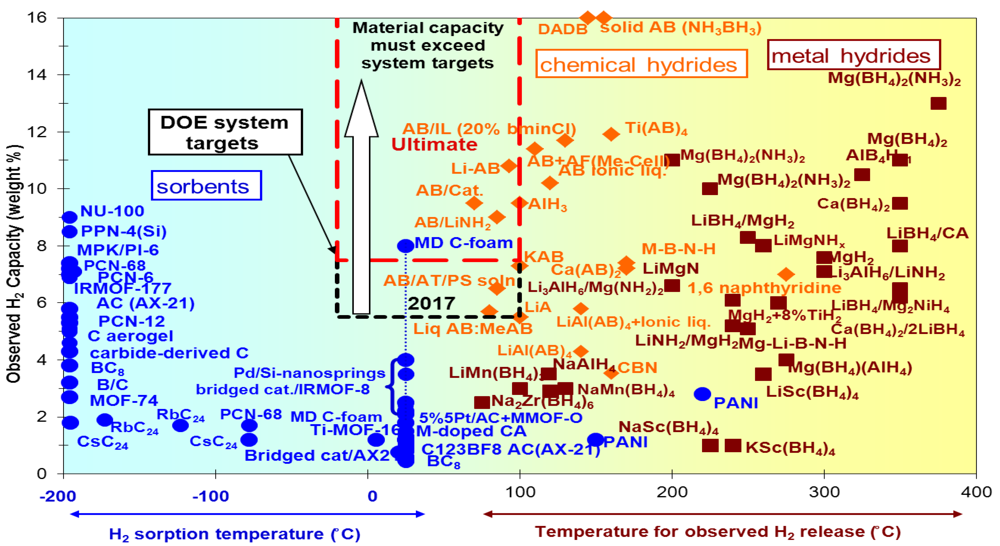

Figure 2. Plot of hydrogen storage materials as a function of observed temperature release or sorption. Dashed lines denotes DOE 2017 and Ultimate targets.

Click here to enlarge figure

Figure 2. Plot of hydrogen storage materials as a function of observed temperature release or sorption. Dashed lines denotes DOE 2017 and Ultimate targets.
Crystals 02 00413 g002 1024

Recognizing that there has been vast accounts of research across all groups of hydrogen storage materials, this article is not meant to be a comprehensive review of all materials research, but rather, an attempt to summarize the research conducted through the Metal Hydride Center of Excellence (MHCoE) and Chemical Hydrogen Storage Center of Excellence (CHSCoE) on moderate temperature, condensed phase hydrogen storage materials (i.e., metal and chemical hydrides) in the context of relevant applications. Additionally, we will identify improvements in material properties realized through crystal structure characterization/modification and trends for future research.

2. Moderate Temperature Condensed Phase Hydrogen Storage Materials

Chemical compounds are formed by the combination of two or more atoms in a lower potential energy state than the separated atoms, thus implying a net attractive force between the atoms. It is these bonding forces in chemical and metal hydrides that impart the characteristics that demonstrate impressive gravimetric and volumetric hydrogen density in the moderate temperature condensed phase hydrogen storage materials. A convenient approach to describing these types of hydride materials is according to bonding forces which typically bin into three groups: (1) ionic hydrides; (2) covalent hydrides and (3) interstitial hydrides.

Ionic hydrides are the “true salts” that are usually binary compounds where the hydrogen atom is bound to an extremely electropositive metal that normally conforms to the structure MH or MH2, where M = Group I or II metal cations such as Ca, Li, Na or K. These compounds tend to be quite thermally stable towards hydrogen decomposition, while are very reactive with water and other strong bases. Covalent hydrides encompass compounds such as sodium borohydride, ammonia borane (AB), aluminum hydride, and hydrocarbons, etc., where the bonding is highly localized between the hydrogen and the central element (e.g., Al, B, Mg, C, N, etc.). These compounds are known to contain large quantities of chemically bound hydrogen (i.e., up to 20 wt.%) that can be released at elevated temperatures either by thermolysis or by reaction with other compounds (e.g., hydrolysis reactions). The interstitial hydrides, also known as intermetallic hydrides, are a unique group of hydride materials in that their bonding is normally considered metallic and the hydrogen atoms can reside in the interstices within the metal or alloy framework forming non-stoichiometric compounds that follow the form of AnBm. These hydride materials are characteristically reversible over a range of temperatures (i.e., ~290 K–500 K) depending on the specific composition. However, interstitial hydrides are typically composed of transition metals and, subsequently, contain a low mass fraction of hydrogen of only a few percent. While the discovery of intermetallic hydrides is credited with stimulating extensive development of materials-based hydrogen storage, to date relatively few have been commercialized for Proton Exchange Membrane Fuel Cell (PEM FC) applications but rather primarily in nickel-metal hydride battery applications. Advanced research into chemical and metal hydrogen storage materials has focused mainly on materials that exhibit ionic and covalent bonding characteristics. However, these stronger bonding characteristics can lead to thermodynamically stable compounds that can require problematic heat management schemes in practical systems. For instance, a hydrogen storage reaction with an enthalpy of formation of 50 kJ/mol H2 and equilibrium pressure of approximately 10 MPa, would require ~420 kW of cooling for a 5 min refill of 5.0 kg H2 assuming that PEM fuel cell waste heat can be used for desorption and no energy is consumed to dissipate the heat ejected during refueling, while the same reaction at ΔH = 20 kJ/mol would only require approximately 170 kW of cooling for the same 5 min refill. Needless to say, much of the current materials-based hydrogen storage research has focused on manipulation of the material’s thermodynamic stability or alternative materials that are virtually thermal-neutral (i.e., exothermic release compounds). In the following sections we review research advancements in materials that have the greatest potential to meet the current hydrogen storage performance targets [5] as observed by the US DOE Metal Hydride and Chemical Hydrogen Storage Centers of Excellence.

2.1. Metal Hydrides

Metal hydrides, conceptually, have the ability to be the simplest method of storing hydrogen through the reaction of H2 with a metal or metal alloy (M) to form a metal hydride (MHx):

Crystals 02 00413 i001

As mentioned in the previous section, early work in metal hydrides from the early 1970s [9] concentrated mainly on intermetallic hydrides, such as LaNi5 and TiFe, that demonstrated very reasonable absorption/desorption kinetics but suffered from low intrinsic gravimetric capacities of ~2 wt.%. Yet, numerous attempts to modify capacities while maintaining reasonable kinetics via polymetallic compositions with lightweight metals proved to be unsuccessful. Subsequent research focused on complex metal hydrides, especially following the discovery by Bogdanovic and Schwickardi [10] that demonstrated the ability of titanium catalysts to decrease the desorption temperature of sodium alanate while rendering it reversible, albeit at moderately high pressures (i.e., ~60–150 bar) in addition to long-term cycling capacity degradation.

Complex metal hydrides are an interesting class of hydrogen storage compounds made up of low-Z Group I and II metal cations (e.g., Ca, Li, Na, Mg, etc.) bonded to complex anions that contain central atoms covalently bound to two or more hydrogen atoms (e.g., amides, borohydrides and alanates), which consequently exhibit exceptional gravimetric and volumetric capacities. This class contains both strong covalent bonding and ionic/covalent-type bonds resulting in higher thermodynamic stabilities along with lower equilibrium hydrogen pressures. However, due to the engineering challenges associated with developing a hydrogen storage system around a highly thermodynamically stable material in addition to the particularly slow hydrogen absorption/desorption kinetics observed in these materials; the use of these compounds has been limited in practical applications. Thus, the focus of research within the MHCoE was to develop novel materials exploiting metal hydride bonding characteristics that would meet the automotive performance requirements as well as being appropriate for emerging PEM FC applications.

2.1.1. Complex Anionic Hydrides

Work within the MHCoE on complex anionic hydrides focused on the synthesis and characterization of high weight capacity materials that contain well-defined chemical moieties, in particular, alanates (i.e., AlH4, AlH63–), amides/imides (NH2/NH–2) and borohydrides (BH4). Early on in the MHCoE, work was performed on the alanates (i.e., NaAlH4, Na2LiAlH6, K2LiAlH6, etc.) which showed appreciable reversible gravimetric hydrogen capacities, albeit at decomposition temperatures and pressures outside of the operational window for a PEM FC [11]. Also, since engineering assessments within the MHCoE suggested that the hydrogen storage system balance-of-plant could account for at least 50% of the mass and volume of the system, efforts shifted towards higher weight percent materials, namely the borohydrides.

Complex borohydrides have the potential to deliver some of the highest hydrogen storage capacities of many of the H2 storage compounds as shown in Table 1. Magnesium borohydride, in particular, can deliver an exceptional 14.9 wt.% H2 as demonstrated initially by Konopolev, who reported on the synthesis and desorption properties in a 1980 publication [12]. Mg(BH4)2 was synthesized in 80% yield from the combination of NaBH4 and MgCl2 in boiling ethanol and observed hydrogen desorption above 590 K with a ΔH of ~53 kJ/mol H2, however, relatively little was known about the desorption pathway nor the reaction reversibility. Through the MHCoE, Zhao et al. [13,14,15], studied the correlation between crystal structure and hydrogen desorption dynamics. Figure 3 shows a combined in-situ XRD and RGA spectra of the desorption of Mg(BH4)2. In doing so, they were able to identify a stepwise dehydrogenation of Mg(BH4)2 to MgB2 [Table 1, reactions 8a–c] that delivered 12 wt.% H2 at a very reasonable ΔH of ~40 kJ/mol H2 and additionally determined the formation of an intermediate magnesium polyborane (MgB12H12) species. Identification of the intermediate MgB12H12 closo-structure proved to be very significant towards discovering potential pathways for a reversible Mg(BH4)2 material system as this polyborane structure was suggested as to be both a kinetic and thermodynamic barrier to reversibility.

Crystals 02 00413 g003 1024

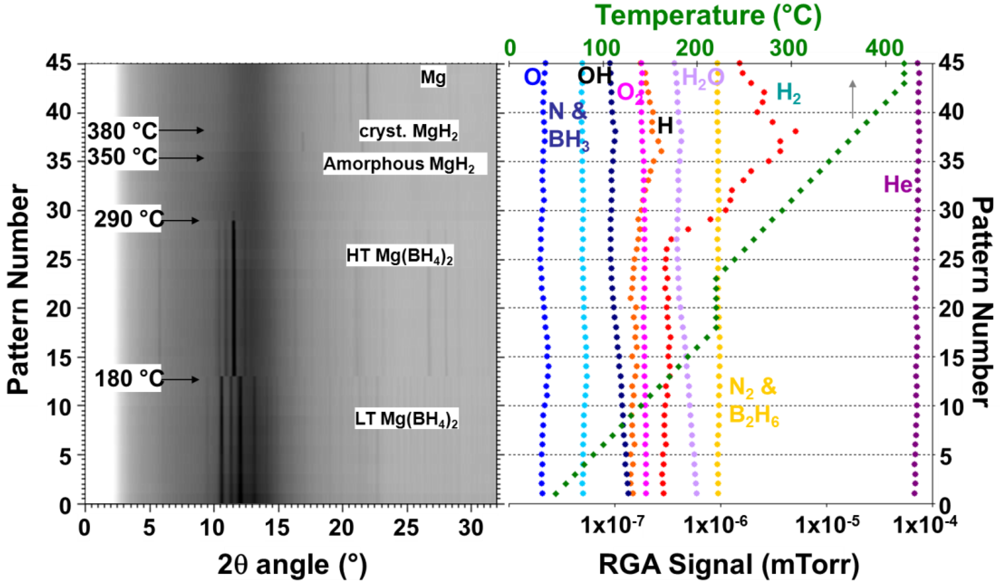

Figure 3. Overlay of in situ XRD and RGA curves of Mg(BH4)2 decomposition. Adapted with permission from [14].

Click here to enlarge figure

Figure 3. Overlay of in situ XRD and RGA curves of Mg(BH4)2 decomposition. Adapted with permission from [14].
Crystals 02 00413 g003 1024
Table Table 1. Highlights of capacity and thermodynamic data for hydrogen storage materials investigated through the Metal Hydride Center of Excellence (MHCoE) and Chemical Hydrogen Storage Center of Excellence (CHSCoE). All data for Tdes (units of K) and ΔHdes (units of kJ/mol H2) are taken from experimental measurements unless otherwise noted. a Cumulative, based on NH3BH3; b Calculated; and c Estimated from DSC.

Click here to display table

Table 1. Highlights of capacity and thermodynamic data for hydrogen storage materials investigated through the Metal Hydride Center of Excellence (MHCoE) and Chemical Hydrogen Storage Center of Excellence (CHSCoE). All data for Tdes (units of K) and ΔHdes (units of kJ/mol H2) are taken from experimental measurements unless otherwise noted. a Cumulative, based on NH3BH3; b Calculated; and c Estimated from DSC.
Rxn. No.Hydrogen release reactionwt.% H2g- H2/LReversibleTdesHdesCyclingRef.
12Al(BH4)3 + B2H6 ↔ 2AlB4H11 + 4H213.5Y493 [14]
24LiBH4 + 5Mg2NiH4 ↔ 2MgNi2.5B2 + 4LiH + 8MgH2 + 8H26.5Y6931510[16]
3 a3LiAlH4 ↔ Li3AlH6 + 2Al + 3H25.374Y353–453−105[17,18]
3 bLi3AlH6 ↔ 3LiH + Al + Crystals 02 00413 i007H22.6Y25
4Ti-doped LiAlH4~7353–4533[17]
52AlH3 → 2AlH2 + H210147N398–4487.6[19,20]
6 aNaAl4 Crystals 02 00413 i006Na3AlH6 + Crystals 02 00413 i007Al + H2480Y39337100[18,21,22]
6 bNa3Al6 ↔ 3NaH + Al + Crystals 02 00413 i009H21.943Y45347
7LiH + 2LiNH3 + KBH4 → Li3BN2 + KH + 4H27.48 b508 b43.61 b[23]
8 a6Mg(BH4)2 → 5MgH2 + Mg(B12H12) + 13H2
8 b5MgH2 + Mg(B12H12) → 5Mg + 5H2↑ + Mg(B12H12)12147Y673, 803412[17,24]
8 c5Mg + Mg(B12H12) → 6MgB2 + 6H2
9 a3Ca(BH4)2 → CaB6 + 2CaH2 + 10H29.5108Y573–62341.4 b[25,26]
9 bCaB6 + 2CaH2 → 3Ca(BH4)2
10Li3N + 2H2 ↔ Li2NH + LiH + H2 ↔ LiNH2 + 2LiH11.5Y528[27]
112LiNH2 + MgH2 → Mg(NH2)2 + 2LiH ↔ MgLi(NH2) + 2H2570Potential41.8264 cycles; 23% loss in capacity[18]
12MgH2 + LiNH2 → LiMgN + 2H28.2Y525,54333–38[28]
13 aLiNH2 + MgH2 Crystals 02 00413 i008Mg(NH2)2 + Crystals 02 00413 i008MgH2 + LiH ↔ Crystals 02 00413 i008Li2Mg(NH2)2 + Crystals 02 00413 i008MgH2 ↔ LiMgN6.5107Y10[18]
13 b Crystals 02 00413 i008Mg(NH2)2 + Crystals 02 00413 i008MgH2 + LiH ↔ Crystals 02 00413 i008Li2Mg(NH2)2 + Crystals 02 00413 i008MgH2 ↔ LiMgN
14Nano-confined MgH2\carbon aerogel9–16424[17]
152MgH2 + Mg(NH2)2 → Mg3N2 + 4H27.4 b453 b26 b[23]
16 axNH3BH3 → [NH2BH2]x + (x-1)H26.5373−21.7[29,30,31]
16 b[NH2BH2]x→ [NHBH]x + H26.9 N423−(23.9–15.4)
16 c[NHBH]x → BNx + H296 a>823
17Ca(NH2BH3)2 ↔ CaBN + H27.550 cN4433.5 [32,33]
18LiNH2BH3 ↔ LiBNHx + H210.952N~403~(-2)[34,35]
19NaNH2BH3 ↔ NaBNH2 + H27.643N~353-(2-5) [34,35]
20cycle CBN → NH-BH + 3H25–7Potential27.9[36,37]

Reversibility of Mg(BH4)2 was further evaluated by Jensen et al. as they demonstrated conditions under which MgB2 could be hydrogenated to Mg(BH4)2 in ~75% yield [17,24]. MgB2 was hydrogenated to Mg(BH4)2 at 950 bar at 673 K and subsequent desorption of the product at 800 K yielded 11.4 wt.% H2 with <5% converted to MgB12H12 as confirmed by the peak at −15 ppm using magic angle spinning (MAS) 11B nuclear magnetic resonance (NMR) spectroscopy (Figure 4). Subsequent reports by Jensen et al. have demonstrated cycling of 12 wt.% at 803 K [38]. Attempts to lower the hydrogenation temperature through addition of oxidative additives (i.e., NiCl2, FeCl3, TiCl3, etc.) had no effect. However, these results demonstrated the plausibility of a reversible high capacity borohydride material that has the potential to meet the stringent performance demands for automotive applications, as well as, being adaptable for emerging fuel cell applications.

Crystals 02 00413 g004 1024

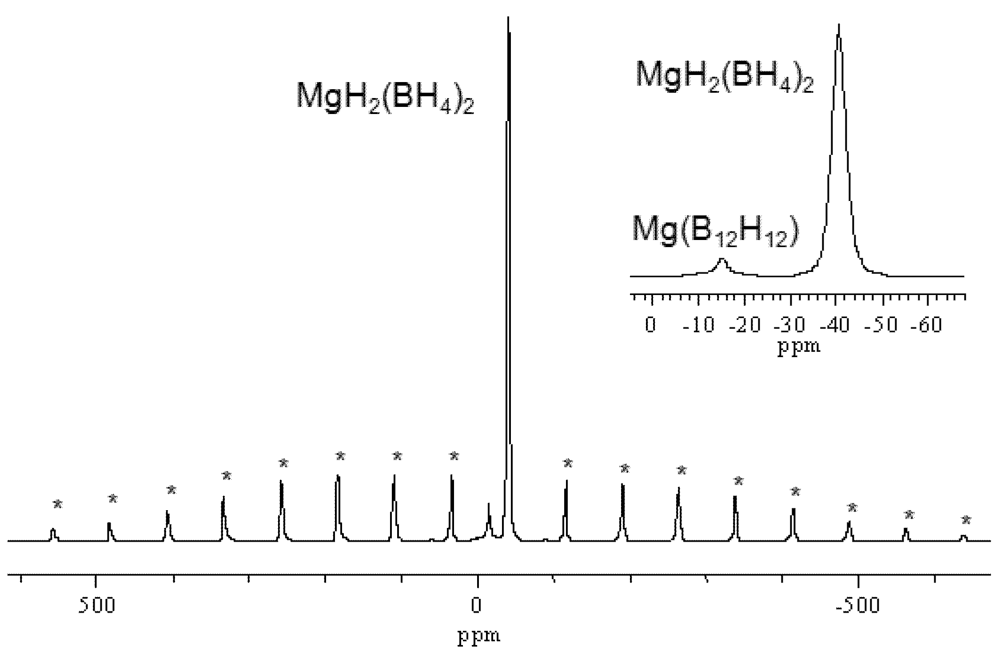

Figure 4. 11B MAS-NMR spectra of synthesized Mg(BH4)2 at 950 bar and 673 K. Inset highlights formation of Mg(B12H12) at −15 ppm. Asterisked peaks are spinning side bands. Adapted with permission from [17].

Click here to enlarge figure

Figure 4. 11B MAS-NMR spectra of synthesized Mg(BH4)2 at 950 bar and 673 K. Inset highlights formation of Mg(B12H12) at −15 ppm. Asterisked peaks are spinning side bands. Adapted with permission from [17].
Crystals 02 00413 g004 1024

Calcium borohydride, Ca(BH4)2, also received considerable attention within the MHCoE as it has the potential to reversibly release 9.5 wt.% H2 through reactions 9a-b in Table 1. Investigations into the H2 cycling behavior of Ca(BH4)2 showed a continual decrease in Ca(BH4)2 starting material (Figure 5) which suggested the formation of a thermally stable intermediate compound as in the decomposition reaction theoretically predicted by Ozolins et al. [25]. 11B MAS NMR studies of cycled Ca(BH4)2 (Figure 6) verified the formation a CaB12H12 intermediate after comparison with other metal salt dodecahydro-closo-dodecaborate NMR spectra [39,40,41]. Further efforts focused on understanding the stability and the possibility of lowering the ΔHdec for hydrogen release from CaB12H12 through destabilization experiments [41].

Crystals 02 00413 g005 1024

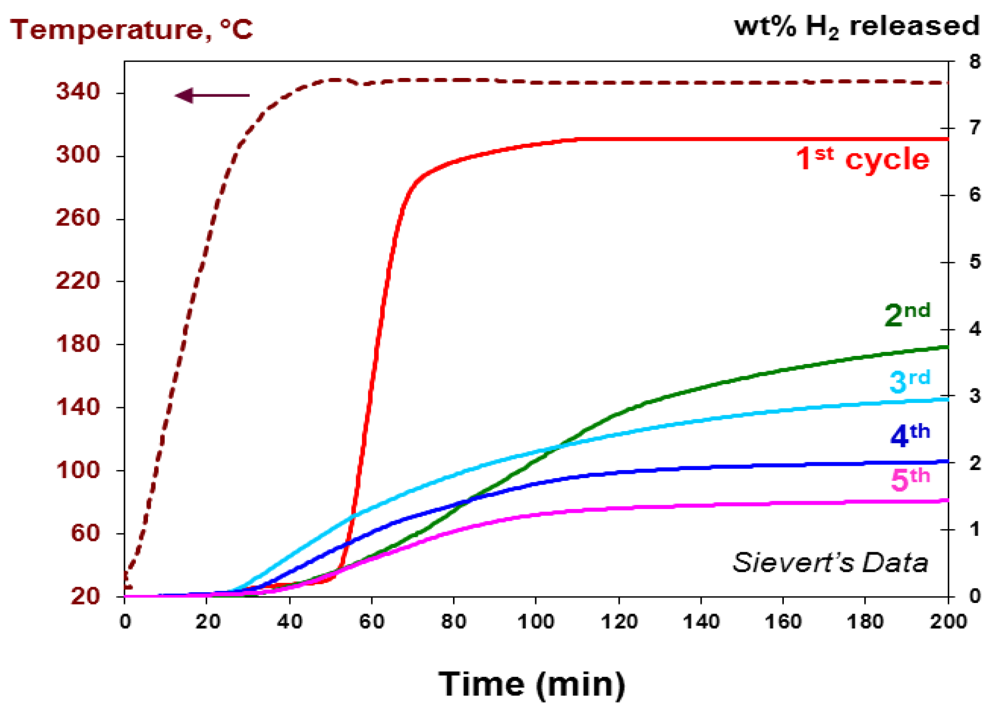

Figure 5. Desorption/adsorption plots of cycling capacity loss for Ca(BH4)2. Adapted with permission from [39].

Click here to enlarge figure

Figure 5. Desorption/adsorption plots of cycling capacity loss for Ca(BH4)2. Adapted with permission from [39].
Crystals 02 00413 g005 1024
Crystals 02 00413 g006 1024

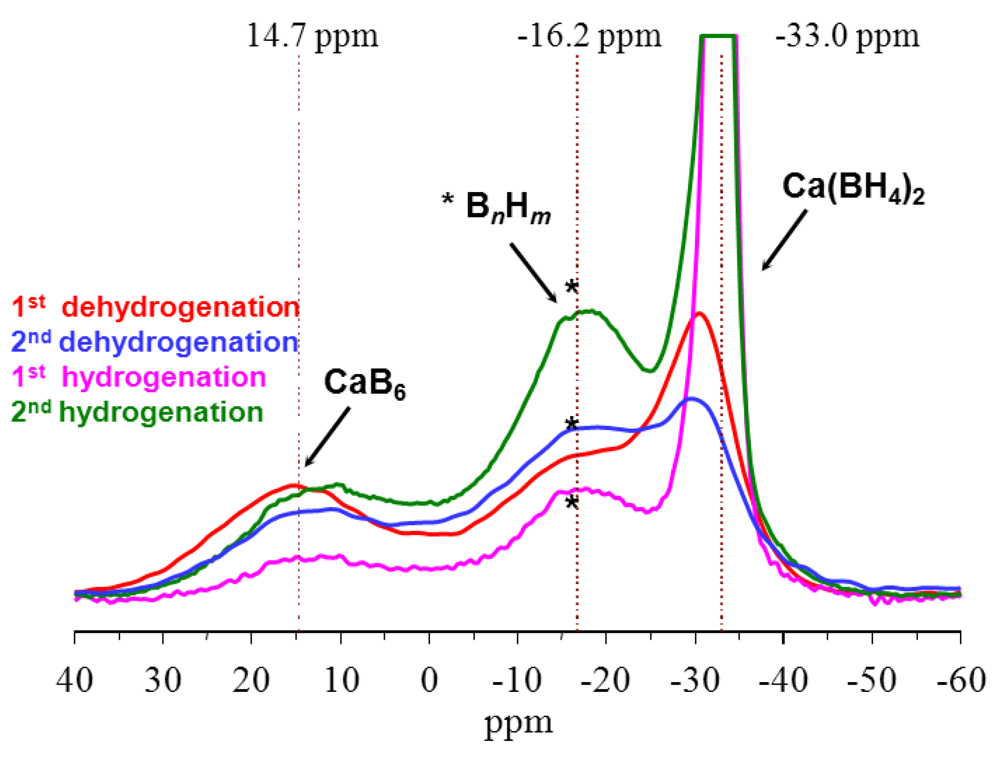

Figure 6. 11B MAS-NMR spectra of Ca(BH4)2 thermal cycling. The peak at −18 ppm was assigned to B12H12 after comparison to reference K2B12H12. Adapted with permission from [39].

Click here to enlarge figure

Figure 6. 11B MAS-NMR spectra of Ca(BH4)2 thermal cycling. The peak at −18 ppm was assigned to B12H12 after comparison to reference K2B12H12. Adapted with permission from [39].
Crystals 02 00413 g006 1024

2.1.2. Complex Amide/Imide Hydrides

Lithiated amide/imide hydrides are another class of hydrogen storage materials with the potential to deliver high capacity at reasonable pressures; however, as observed for many complex materials, the temperature required to release hydrogen at reasonable pressures is too high for practical applications. Interest in amide/imide materials was stimulated by the report from Chen et al. [27] that >10 wt.% H2 could be reversibly desorbed from Li3N in two steps [Table 1, reaction 10]. However, the plateau pressure for the first step in the reaction is only 0.01 bar at 528 K which is below the operational pressure required for a PEM FC (i.e., 5 bar), thus future studies primarily focused on the lithium imide (i.e., Li2NH) reaction. At least fifteen different amide/imide related materials were investigated during the course of the MHCoE; however, for brevity, the two most prominent systems (i.e., 2 LiNH2 + MgH2 and LiMgN) will be described.

Initial studies within the MHCoE were focused on lowering the temperature of the Li2NH desorption reaction through destabilization methodologies. Luo et al. [42,43] used a partial substitution of Li with Mg by ball milling a 2:1 molar ratio of LiNH2 and MgH2 [Table 1, reaction 11] which reversibly desorbed ~5.2 wt.% H2 at 493 K and 30 bar (ΔH = 39 kJ/mol H2) as shown in the PCT (Figure 7), which is a substantial increase in the plateau pressure compared to [27]. Cyclic stability testing of this material indicated ~23% H2 capacity loss after 264 cycles; presumably due to loss of N through ammonia release. Moreover, the addition of catalytic additives, such as KH, significantly increased the H2 release kinetics of this system (Figure 8), allowing the desorption temperature to be lowered closer to the operational temperature range for a PEM FC (i.e., 353 K–393 K) which is thought to occur through the formation of K-N species after diffusion of K+ into the imide and amide phase boundaries; consequently weakening the amide and imide bonds [44].

Crystals 02 00413 g007 1024

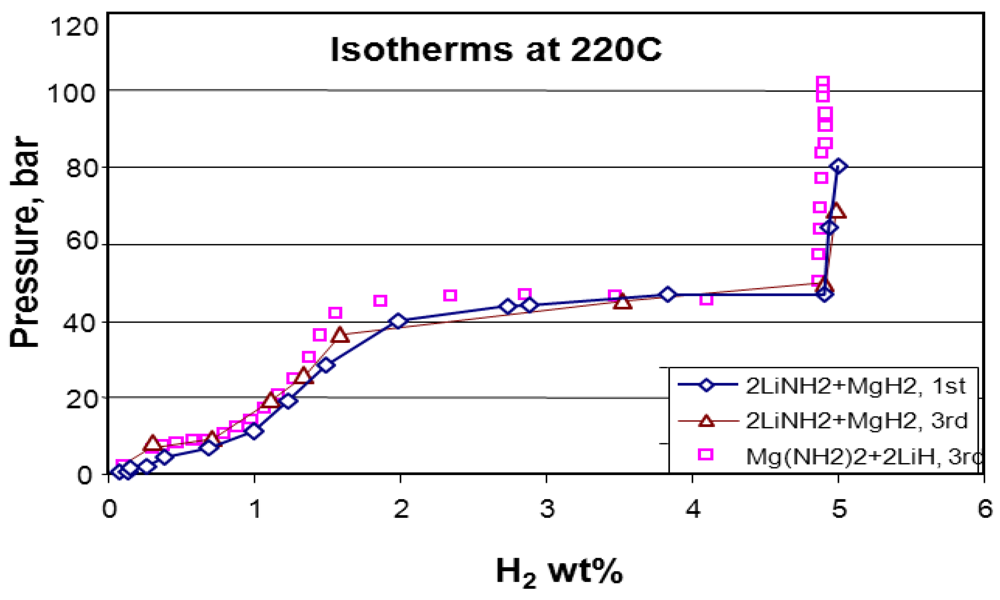

Figure 7. Cyclic pressure-composition isotherms of 2LiNH2 + MgH2 at 493 K. Adapted with permission from [43].

Click here to enlarge figure

Figure 7. Cyclic pressure-composition isotherms of 2LiNH2 + MgH2 at 493 K. Adapted with permission from [43].
Crystals 02 00413 g007 1024
Crystals 02 00413 g008 1024

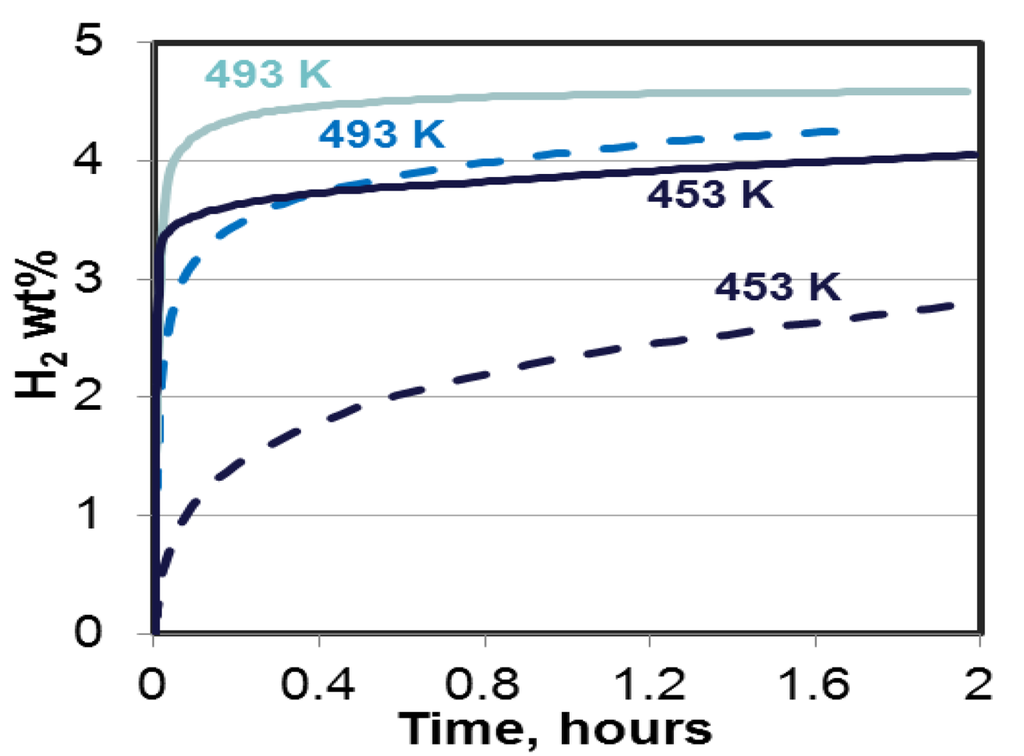

Figure 8. Dehydrogenation isotherms showing the effect of KH additives on the kinetics of LiNH2/MgH2. Solid lines = 4 mol% KH and dash lines = no KH. Adapted with permission [39].

Click here to enlarge figure

Figure 8. Dehydrogenation isotherms showing the effect of KH additives on the kinetics of LiNH2/MgH2. Solid lines = 4 mol% KH and dash lines = no KH. Adapted with permission [39].
Crystals 02 00413 g008 1024

Another prominent amide/imide reaction was discovered empirically by Fang et al. [45] by simply adjusting the molar ratio of reactants in the LiNH2/MgH2 system. First principle calculations predicted that a 1:1 LiNH2:MgH2 molar ratio would react [Table 1, reaction 12] to evolve 2 moles of H2(8.2 wt.% H2) and produce LiMgN which could be reversibly cycled with a ΔH ≈ 32 kJ/mol H2 [46,47]. Initial experiments to rehydrogenate the LiMgN product indicated only ~5 wt.% H2 uptake at 513 K and 138 bar as shown by TGA analysis (Figure 9). The thermal gravimetric analysis (TGA) curve also suggested that the reaction was a two-step process in contrast to what was originally predicted in reaction 14. XRD and TGA analysis of the hydrogenated species of reaction 12 indicated partial hydrogenation, the researchers presumed the incomplete hydrogenation was kinetically limited and attempted to adjust the adsorption/desorption kinetics by addition of a known catalyst for hydrogen storage reactions, TiCl3. The addition of 4 wt.% of TiCl3 to LiMgN allows almost complete rehydrogenation to 8.0 wt.% H2 as determined by the TGA curve in Figure 10 of the subsequent dehydrogenation of Ti-catalyzed LiMgN at 513 K, which is a considerable improvement over the non-catalyzed case. Further XRD and FTIR analysis of the adsorption/desorption reaction products supported a two-step reversible reaction shown in reactions 13a-b of Table 1. However, long term cycling of the reaction still needs to be examined.

Crystals 02 00413 g009 1024

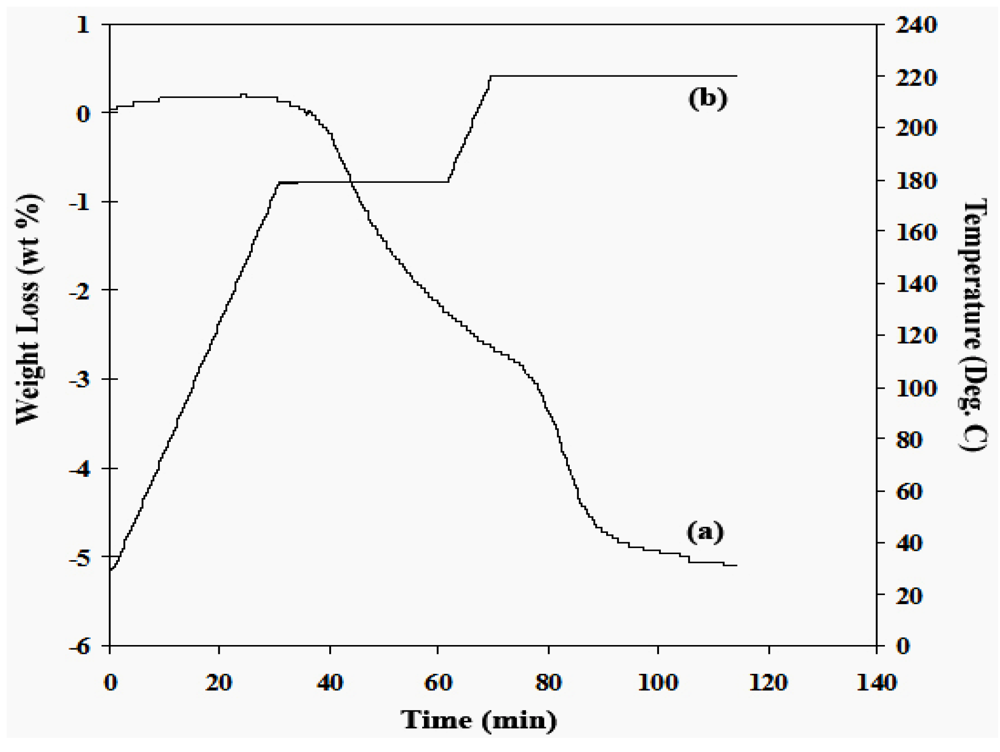

Figure 9. TGA curve for uncatalyzed LiMgN after hydrogenation at 513 K and 138 bar. Adapted with permission from [45].

Click here to enlarge figure

Figure 9. TGA curve for uncatalyzed LiMgN after hydrogenation at 513 K and 138 bar. Adapted with permission from [45].
Crystals 02 00413 g009 1024
Crystals 02 00413 g010 1024
Figure 10. TGA curve of the dehydrogenation of ball-milled/jar rolled Ti-catalyzed LiMgN after hydrogenation at 433 K and 138 bar. Adapted with permission from [28].

Click here to enlarge figure

Figure 10. TGA curve of the dehydrogenation of ball-milled/jar rolled Ti-catalyzed LiMgN after hydrogenation at 433 K and 138 bar. Adapted with permission from [28].
Crystals 02 00413 g010 1024

An issue related to the use of all amide/imide materials is the release of NH3 during the desorption reaction as this represents both a loss of material during reaction that cannot be recovered and an impurity with sizable detrimental effects on PEM FC membrane materials even at trace concentrations (i.e., <1 ppm/v). As such, NH3 impurities in the desorbed H2 gas from the Li-Mg-N-H systems were measured and estimated by Luo et al. [48]. The measurements showed that NH3 concentrations increased with the desorption temperature, from 180 ppm/v at 453 K to 720 ppm/v at 513 K. Additionally, after 270 cycles, the authors determined that NH3-formation during desorption accounted for ~7% of the capacity loss due to the loss of nitrogen during cycling. Thus, before these materials can be used in practical hydrogen storage systems, more effort must be focused on reducing or mitigating NH3 formation in the dehydrogenation reactions.

2.1.3. Aluminum Hydride (Alane)

Aluminum hydride, AlH3, is a well characterized hydrogen storage material with a gravimetric capacity of 10 wt.% H2 and volumetric capacity of 149 g-H2/L through an endothermic dehydrogenation reaction [Table 1, reaction 5]. It is a thermodynamically unstable but kinetically stabilized material that can deliver more than 0.01 g-H2-s−1kg−1 above 385 K. However, direct hydrogenation of aluminum to alane requires over 105 bars of hydrogen pressure at room temperature and traditional organometallic routes are economically impractical for large scale implementation of this material [49], thus the focus of the MHCoE with respect to alane was towards developing a cost and energy effective regeneration method. The approaches considered within the MHCoE were (1) an organometallic adduct-assisted process and (2) a non-aqueous electrochemical process.

Graetz et al. investigated a method for forming alane through a multi-step organometallic adduct-assisted process [19,50]. In general, the process involves (1) the formation of an adduct-intermediate hydride phase by direct hydrogenation and (2) then the decomposition of the intermediate phase to recover the pure hydride. In preliminary work on adduct-assisted process, a Ti-doped triethyleneamine (TEDA)–AlH3 adduct regeneration scheme was demonstrated to be low-temperature, low-pressure and reversible; however, the TEDA-AlH3 adduct was particularly stable so that attempts to recover the AlH3 product thermally resulted in large quantities of H2 being desorbed as well, thus lowering the efficiency of the overall process. Consequently, formation of the complex from a less stable adduct (i.e., lower boiling point) proved unsuccessful as well. An alternative approach to circumvent this problem was to form the adduct-complex with a moderately stable adduct (dimethylethylamine, DMEA) and then convert (i.e., transaminate) the adduct-complex to a form that was easily recoverable by thermal means. This approach was successfully demonstrated experimentally in three steps as shown in Equations 12–14 and followed via vibrational spectroscopy, shown in Figure 11. The Ti-catalyzed DMEA-AlH3 adduct is formed [Equation 2] under mild pressure (65–70 bar) at a 50% yield followed by transamination [Equation 3] with triethylamine (TEA) at 328 K and 1 bar and finally the TEA is desorbed at 343 K and partial vacuum [Equation 4] to give the AlH3 product in <80% yield from the TEA. The FTIR spectra in Figure 11 show the distinct shift in peaks of the Al-H stretch during the transamination from DMEA to TEA. All reagents except Al and H2 are expected to be recovered and recycled. However, a significant drawback of the method was the energy required to execute the chemical processing steps as Ahluwalia et al. found the well-to-tank energy efficiency (WTTE) to be only 24% [4,51], although the WTTE increases to 42% if low temperature waste heat can be used. Yet, this still falls short of the 70% WTTE needed for alane to meet the DOE well-to-powerplant efficiency target of 60% for off-board regenerable materials [5] after factoring in the predicted onboard efficiency of alane (i.e., 85%) [51].

Adduct Formation:

Crystals 02 00413 i002

Transamination:

Crystals 02 00413 i003

Separation/Recovery:

Crystals 02 00413 i004
Crystals 02 00413 g011 1024
Figure 11. FTIR spectra of the transamination of triethylamine (TEA) and dimethylethylamine (DMEA) alane adducts at various stages of the process. Adapted with permission from [50].

Click here to enlarge figure

Figure 11. FTIR spectra of the transamination of triethylamine (TEA) and dimethylethylamine (DMEA) alane adducts at various stages of the process. Adapted with permission from [50].
Crystals 02 00413 g011 1024

Another approach to regenerate alane was explored by Zidan et al. [52,53]. This process uses electrolytic potential to replace the high hydrogen pressure potential and increase the hydrogen activity to drive the chemical reactions and yield high purity AlH3. The idea is described by Faraday’s Equation [Equation 5] where E is the electrical potential, F is Faraday’s constant, R is the gas constant, T is temperature and P is the hydrogen pressure.

Crystals 02 00413 i005

Since the electrolytic potential scales as the natural log of pressure, the thermodynamic requirements can be met with a reasonably low voltage. The electrolysis reaction is carried out in an electrolytic solution of a complex alanate (i.e., NaAlH4) dissolved in a polar, aprotic solvent such as THF. A constant potential is used to drive the formation of alane and an alkali halide, NaH, from the alanate electrolyte. The starting alanate is regenerated by direct hydrogenation of the spent Al metal with the byproduct NaH. Assuming high yield of the alane, the process should notionally cost the heat of formation of NaAlH4, which is −115 kJ/mol. However, empirically, recovery of pure alane at 100% yield has not been demonstrated with this reaction and also energy losses through processes of adduct separation have been observed. More recently, the same group demonstrated yield and efficiency improvements with the use of lithium alanate in DME as the electrolyte (demonstrated by Jensen et al. [54]) and the introduction of LiCl as an electro-catalytic additive [53].

2.1.4. Destabilized Hydrides

Another concept that was explored within the MHCoE to improve dehydrogenation thermodynamics involved incorporating a second species into the reaction of a thermodynamically stable complex hydride (Figure 12) also called “destabilization”. It is worth pointing out that the individual compounds are not destabilized but rather the overall reaction is destabilized by decomposing to a more stable alloy thus requiring less energy for decomposition. During the MHCoE, many new destabilized hydride material systems were explored both computationally [46,47,55,56,57,58,59] and experimentally (e.g., LiBH4/MgF2, LiBH4/MgCl2, LiNH2/MgH2, LiBH4/Mg2NiH4, etc.) [18,45,57,60,61,62,63,64,65,66,67,68,69,70,71,72,73]; however, we will briefly highlight an example and discuss implications for further research.

Crystals 02 00413 g012 1024

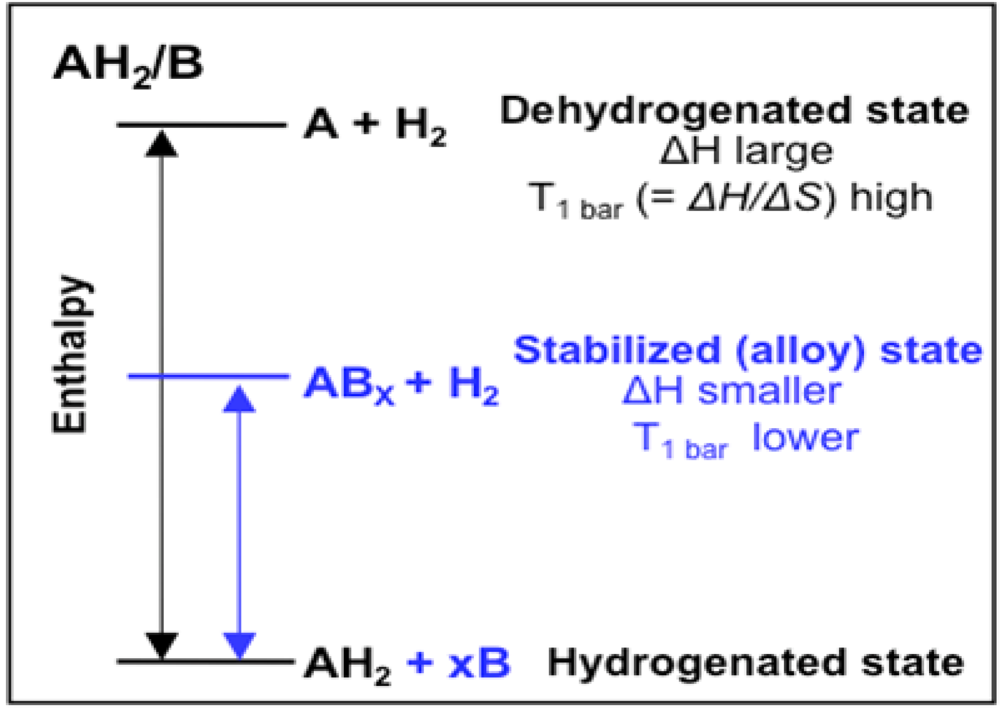

Figure 12. Schematic representation of the destabilization concept. Adapted with permission from [16].

Click here to enlarge figure

Figure 12. Schematic representation of the destabilization concept. Adapted with permission from [16].
Crystals 02 00413 g012 1024

Vajo et al. [16,67] demonstrated a remarkable “destabilized” material system in LiBH4/Mg2NiH4. The reaction revealed many new features contradictory to the individual complex compounds such as full reversibility, low enthalpy and entropy and reaction through a unique low-temperature kinetic pathway. The dehydrogenation of the destabilized mixture is shown in Figure 13 and the complete dehydrogenation reaction is shown in Table 1, reaction 2. This reaction releases 6.5 wt.% H2 on a total material basis and as Figure 13 shows, the dehydrogenation occurs at temperatures lower than the individual pure components (i.e., LiBH4 or Mg2NiH4) begin to desorb significant quantities of H2 (i.e., ~598 K) and indicates a new hydrogen release pathway that likely occurs through reaction of the individual components rather than sequential release and reaction of the components as observed in other destabilized material systems [16]. The enhanced kinetics of the system allowed it’s equilibrium to be characterized over a wider temperature range as shown in Figure 14. This system demonstrated the lowest thermodynamic properties of any reversible complex hydride with a ΔH = 15 kJ/mol H2 and ΔS = 62 J/K-mol H2, however the capacity for the low temperature step (i.e., 2.6 wt.% H2) is too low for practical use on-board vehicles.

Crystals 02 00413 g013 1024

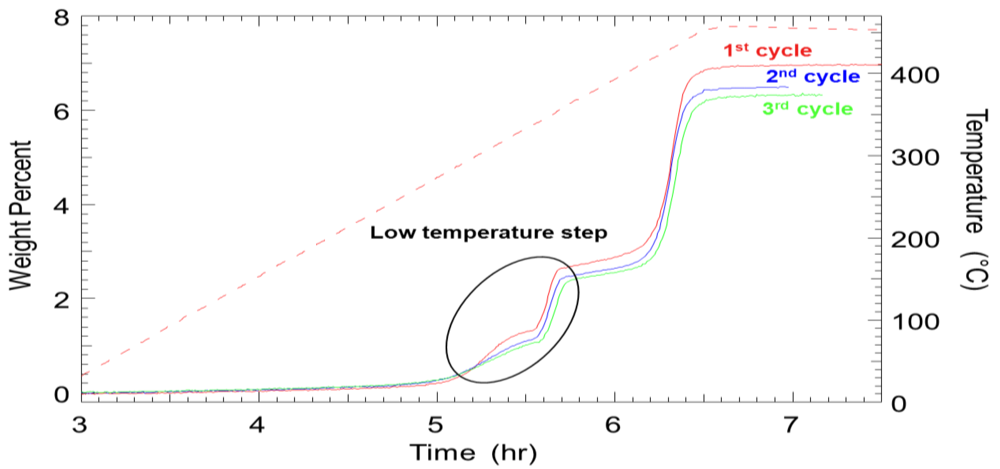

Figure 13. Dehydrogenation cycling curves of the LiBH4/Mg2NiH4 destabilized system. The circled portion highlights the low temperature step not observed in the pure component dehydrogenation. Adapted with permission from [16].

Click here to enlarge figure

Figure 13. Dehydrogenation cycling curves of the LiBH4/Mg2NiH4 destabilized system. The circled portion highlights the low temperature step not observed in the pure component dehydrogenation. Adapted with permission from [16].
Crystals 02 00413 g013 1024

Although this approach has proven to be effective in tuning the thermodynamic properties of complex hydrides, the weight penalty of adding a second species can reduce the gravimetric capacity of these systems unless all species added contain H2 (i.e., MgH2/LiBH4). Also, as these systems involve two or more hydrides with multiple potential reaction pathways, judicious choice of the hydride combinations is needed that allows extremely fast kinetics which facilitates almost simultaneous decomposition and avoids thermodynamic “sinks”.

Crystals 02 00413 g014 1024

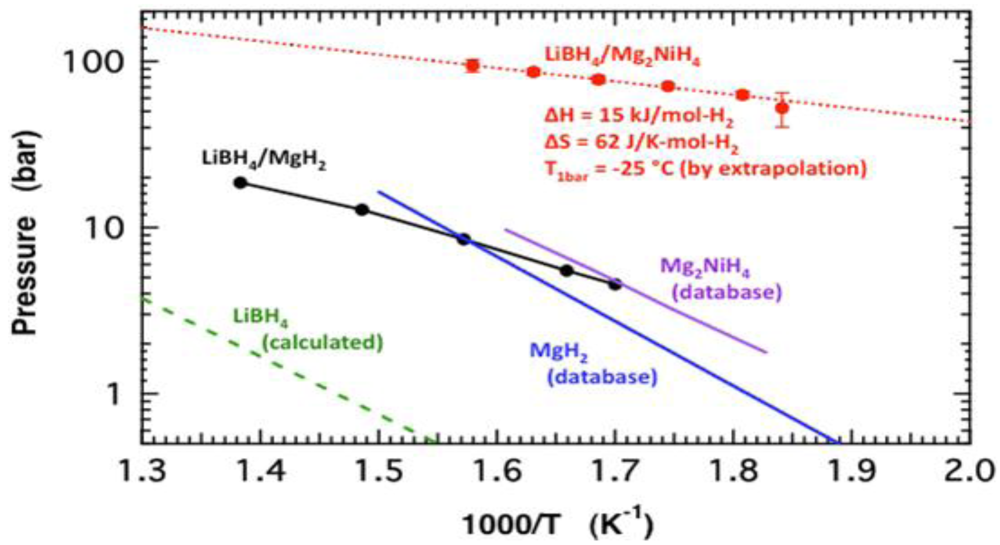

Figure 14. van’t Hoff plots of LiBH4, MgNiH4 and MgH2 destabilized systems. Adapted with permission from [16].

Click here to enlarge figure

Figure 14. van’t Hoff plots of LiBH4, MgNiH4 and MgH2 destabilized systems. Adapted with permission from [16].
Crystals 02 00413 g014 1024

2.1.5. Computational Guidance of Metal Hydride Development

Computational studies were an integrated function of each of the experimental endeavors within the MHCoE. First-principles methods such as Prototype Electrostatic Ground State [74] were developed and used to predict new crystalline materials and their thermodynamic properties, as well as provide validation of experimental results. It is estimated that computational methods allowed such rapid screening that over twenty million reactions were assessed for favorable hydrogen release properties over the duration of the Center [23,25,46,47,55,56,57,59,74,75,76]. For example, during the course of the Center interest had turned to Ca(BH4)2 as a potential high capacity material; however the true structure of the complex hydride was unknown. The traditional approach was lengthy to implement using a database method to iteratively search for all possible materials with the same general formula and reduce that set down to possible matches based on lowest ground state crystal structure alone, an approach that did not account for the complex electrostatic interactions that define the crystal structure of these compounds. A more logical rapid screening approach was implemented by Majzoub et al. [74] that incorporated their understanding that the complex anionic materials are dominated by electrostatic interactions. By treating the complex materials as rigid units and performing a global minimization of electrostatic interactions over the crystal unit, an optimized set of crystal structures based on total energy calculations is provided that can guide or validate experimental determinations. This method was applied to many different materials screened and developed within the MHCoE. For further information on the details of the computational efforts within the MHCoE, the reader is directed to the annual progress reports published by the DOE FCT program [77].

2.1.6. Summary and Research Trends

Significant progress was made over the five year tenure of the MHCoE to improve thermodynamics, adsorption/desorption kinetics and reversibility of metal hydride materials. Materials with exceptional gravimetric and volumetric capacities were demonstrated that make these materials attractive candidates across all hydrogen fuel cell applications. Tremendous efforts were focused on developing materials that can meet the thermodynamic requirements for automotive applications in particular; however, kinetic barriers and cyclic stability still limit their incorporation into practical applications.

Thus, current research in metal hydride material systems is focused predominantly on four distinct areas: (1) exploring new ways to alter reaction pathways to reduce thermodynamic “sinks”; (2) exploring novel destabilization combinations to improve thermodynamic and kinetic properties while also using lightweight materials to improve capacities; (3) understanding the influence and correlation of additives and catalysts on crystal structures and reaction steps; and (4) discovering and applying new nanostructural approaches to improve kinetics and thermodynamics by improving diffusion pathways and limiting formation of unwanted material phases.

2.2. Regenerable Chemical Hydrogen Storage Materials

As mentioned previously, chemical hydrogen storage materials are a class of storage compounds containing large quantities of chemically bound hydrogen that can be released by heating (i.e., thermolysis) or reactions with other materials (e.g., hydrolysis reactions) which typically must be regenerated (i.e., off-board) using separate processing steps after desorption of the hydrogen. Despite demonstrating notable hydrogen storage material properties (i.e., high gravimetric capacities, fast desorption kinetics, room temperature operation, etc.), the widespread, high volume use of these materials requires a cost effective means of regenerating the fuel from the spent material. There are however “single use” low power applications that can be potentially viable if the fuel can be produced and spent fuel disposed in both sustainable and economic methods.

Chemical hydrogen storage materials vary considerably in physical phases including pure-component liquids, solutions, slurries and solids, therefore careful consideration of the impacts to the overall system operation and performance should be given prior to material selection. Paramount to this is the manner in which the various chemicals release hydrogen. Basically the CHSCoE explored four approaches to releasing hydrogen from covalent compounds, hydrolysis, thermolysis, catalysis and a combination thereof. During its pursuit of the optimum chemical hydrogen storage material, the trade-offs of each approach’s effect on the overall system were also considered. For example, endothermic release materials such as the heterocyclic compounds (i.e., n-ethyl carbazole, cyclohexane, decalin, etc.), require heat and/or expensive Pt-based catalysts to release H2 in sufficient amounts; this reduces the overall efficiency of the system since useable hydrogen is burned to provide the heat and the catalysts require specialized reactors that adds significant system mass. In contrast, exothermic release reactions, such as the thermolysis of AB, should not require supplementary sources of energy to drive the release reaction since the heat of reaction drives the release once initiated. However engineered controls, for instance flow reactors, generally must be used to mitigate the risk of a “run-away” reaction, leading to increasing rates of hydrogen desorption and temperature. Another considerable factor is fuel stability. The endothermic materials have inherent thermal stability and are stable at extreme ambient temperatures (i.e., ≤333 K); however, the exothermic materials could start to release hydrogen and initiate a “run-away” scenario. For slurries and solids, transporting the fuel within the on-board fuel reactor system can be complicated, requiring specialized pumps or augers that are inclined to clog [78]. Also, it is important to keep in mind especially for slurries and solutions, the capacity penalties associated with the solvent volume and mass. Thus, research and development of chemical hydrogen storage materials is carried out in order to understand the mechanisms that allow control and proper tuning of thermodynamics and kinetics required to meet all of the storage system level requirements (e.g., capacities, operating temperature, cost, etc.) for emerging PEM FC applications.

The DOE CHSCoE investigated hundreds of candidate materials that had the potential to meet the DOE system performance targets [5]. In order to optimize gravimetric and volumetric material capacities, research within the CHSCoE was ultimately focused to compounds that contained elements of low atomic numbers such as B, C, N, etc. that have a high H molecular ratio such as borane amines that contain up to ~20 wt.% H2 on a material basis. However, not all compounds demonstrated the potential to be regenerated either off-board via a chemical process or directly with hydrogen. Consequently, only those materials that received significant attention for their potential to be regeneration or rehydrogenated will be discussed in this review. Nonetheless, the reader is directed to the many accounts of research on materials that showed significant capacities which might be of value for “single use” applications [29].

2.2.1. Ammonia Borane

Much of the research within the CHSCoE focused on AB (nNH3BH3) and its derivatives as they demonstrated high capacities and rapid kinetics of hydrogen release. Thermolysis of solid AB is believed to proceed through a series of step-wise reactions [Table 1, reactions 16a–c] with each delivering one equivalent of hydrogen per mole of AB to deliver ~17 wt.% H2 at 423 K. The decomposition is characterized by an induction, nucleation then growth mechanistic pathway, whereas the solid-state AB reactions have demonstrated 180 min induction period and required up to 360 min to release only ~0.8 H2-equivalents at 358 K [79,80]. Autrey et al. used 11B MAS-NMR to gain fundamental insight into the hydrogen release pathways from solid AB and observed the formation of new species, such as the diammoniate of diborane (DADB), during different isothermal desorptions, including the induction phase [81]. This information gave insight into approaches to reduce the induction period for hydrogen release at lower temperatures. For example, addition of 5 wt.% DADB to AB was demonstrated to reduce the induction period by >75% compared to neat AB heated at 353 K. However, during dehydrogenation of solid AB, the material is inclined to foam and evolves significant quantities of gas phase impurities (e.g., ammonia, borazine and diborane) and research within the center was directed to resolve these issues, identify approaches to minimize foaming and additives to minimize impurities in solid AB [34,82]. The CHSCoE also investigated solubilized AB materials that involved liquid based compositions that could effectively utilize catalysts to reduce the temperature of hydrogen release while maintaining hydrogen capacity above 2 equivalents of H2.

Alternative approaches to thermal dehydrogenation of solid AB are solution-based catalysis and ionic liquid enhancements. Numerous examples of catalytically amended AB were demonstrated over the course of the CHSCoE. Homogenous catalysis efforts included Lewis acids [83], non-nucleophilic bases (i.e., Proton Sponge) [84], and various transition metals [83,85,86,87,88]. One of the most effective homogenous catalysts was demonstrated by Baker et al. [89] using nickel N-heterocyclic carbene (Ni-NHC) complex generated through an in situ reaction with bis(cyclooctadiene)Ni(0). Addition of a 25 wt.% solution of AB in diglyme to the active catalyst (Ni-NHC) rapidly evolved 3 equivalents of H2 at 333 K in 150 min which is a 20-fold increase in activity when compared to the uncatalyzed reaction. While homogenous catalysts have demonstrated moderate success in changing the thermodynamics and kinetics of AB thermolysis, they could be rather problematic in an engineered system due to the complicated separation and recovery from spent fuel. Therefore, efforts turned towards discovering a heterogeneous catalyst for the dehydrogenation of AB.

Burrell et al. investigated the use of transition metal heterogeneous catalysts for the dehydrogenation of AB in non-aqueous media at temperatures below the standard PEM FC operating conditions (i.e., <343 K) [30,32,90]. Platinum, palladium and ruthenium demonstrated catalytic activity, with the strongest activity observed for platinum [90]. At 343 K, only approximately half of the 3 equivalents of H2 were extracted after 120 min, but more than 2 equivalents were extracted when the temperature was increased to 383 K. Additionally, non-precious metal base catalysts were screened that showed high release rates and extracted greater than 9 wt.% H2 at 343 K in Figure 15 [30]. However, in both cases the solvents reduced the capacity of useable H2 to less than 7 wt.% and generated insoluble solid products that deposited on the active sites of the catalysts that led to these activities being discontinued within the center.

Crystals 02 00413 g015 1024

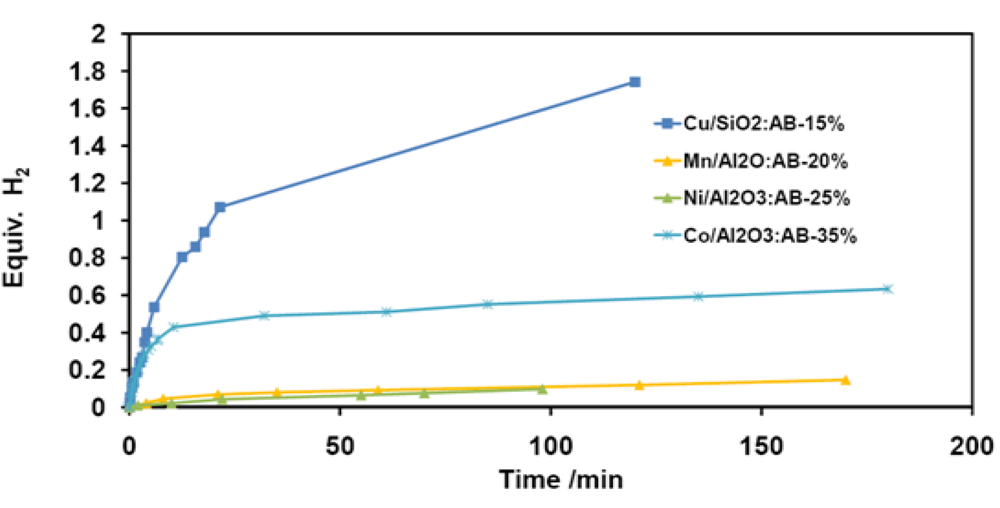

Figure 15. H2 release measurements of ammonia borane (AB) using heterogeneous catalysts deposited on oxide particles. Adapted with permission from [29].

Click here to enlarge figure

Figure 15. H2 release measurements of ammonia borane (AB) using heterogeneous catalysts deposited on oxide particles. Adapted with permission from [29].
Crystals 02 00413 g015 1024

Ionic liquids (ILs) were found to be promising solvents and activating media to promote the rate and extent of H2 extraction from AB. Sneddon et al. demonstrated the unique attributes of ILs for activating AB by reacting 1-butyl-3-methylimidazolium chloride (bmimCl) with AB (50:50 wt.%) at 358 K [31,91]. The AB-IL mixture exhibited no induction period and released 1.0 H2-equivalent in 67 min and 2.2 H2-equivalents total over 330 min which compares very favorably to thermolysis of AB at the same temperature releasing ~0.8 H2-equivalents after 360 min and an 180 min induction period. It was also shown that moderate increases in temperature significantly enhanced the H2 release rate. For example, the 50:50 wt.% AB:IL solution held at 383 K release 1.0 H2-equivalents in 5 min and 2.2 H2-equivalents in just 20 min Solid-state and solution 11B NMR studies indicate that the IL promotes conversion of AB into its more reactive ionic DADB form which dramatically improves the H2 release rate. It was also noted that reducing the IL concentration to 20 wt.% still released 2.0 H2-equivalents in 52 min at 393 K, which equates to 11.4 wt.% H2 on a material basis at steady-state. Moreover, Burrell et al. reported that H2 produced from the AB/IL mixtures contained only trace levels of borazine with no detectable levels of diborane as determined by IR spectroscopy [30].

Additional increases in the activity of AB/IL systems were demonstrated using catalysts and additives such as transition metals [88] and non-nucleophilic bases [84]. For example, Baker et al. investigated the influence of various homo- and heterogeneous transition metal catalysts on the dehydrogenation selectivity and rate. As shown in Figure 16, all catalyst systems tested showed marked improvement over the baseline system (i.e., 50:50 wt.% AB:IL). The study also observed a relationship between the pairing of IL and metal catalyst as preferential coordination of the IL to the catalyst metal centers can lead to different decomposition pathways that can influence the final reaction products.

Crystals 02 00413 g016 1024

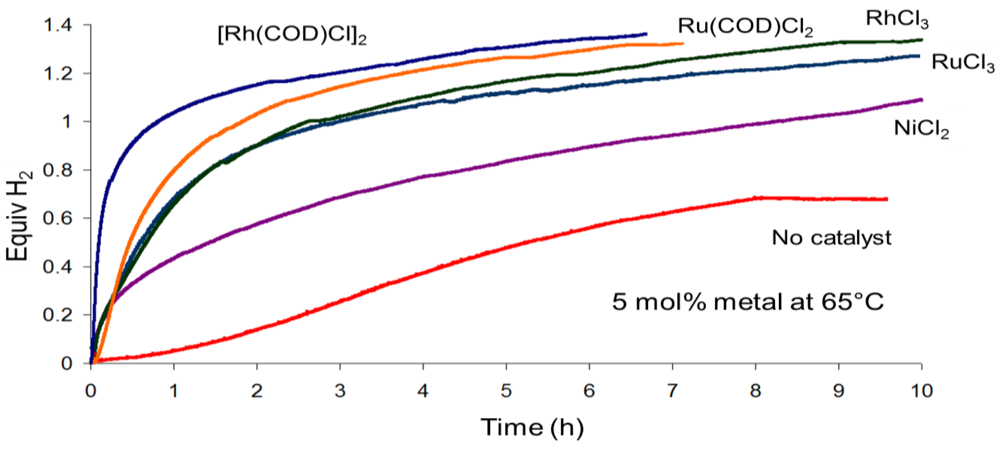

Figure 16. H2 release measurements of catalyzed AB (150 mg) and IL[bmim][Cl] (150 mg) with 5 mol% of each catalyst. Adapted with permission from [31].

Click here to enlarge figure

Figure 16. H2 release measurements of catalyzed AB (150 mg) and IL[bmim][Cl] (150 mg) with 5 mol% of each catalyst. Adapted with permission from [31].
Crystals 02 00413 g016 1024

Balancing the need to realize a reasonable dehydrogenation rate at low temperatures with the need for a stable material is a challenge for this and most hydrogen release systems. While the combinations of AB/IL/catalysts and additives that were demonstrated through the CHSCoE are promising, challenges remain in maintaining soluble reaction products in IL systems, especially when more than 1 H2-equivalent is released at high AB concentrations. Aardahl et al. [92] estimated that in order to reach a 6 wt.% H2-system basis, a minimum of 2.0 H2-equivalents must be released from a solution containing a 50:50 wt.% AB/IL solution. Since 50:50 wt.% AB/IL solutions are approaching the solubility limit for AB in IL, maximizing H2 release from these becomes extremely important. Furthermore, challenges with system reactor design when using heterogeneous catalysts or separation of catalyst from spent fuel with homogeneous catalysts will require careful optimization of fuel form and catalyst. It is useful to note that the engineering challenges of chemical hydrogen storage materials-based systems are being addressed within the Hydrogen Storage Engineering Center of Excellence and detailed information regarding the status of these systems have been reported [93].

2.2.2. Regeneration of Spent AB

While there was significant progress towards dehydrogenation of AB within the CHSCoE, regeneration of the spent fuel is arguably the most important aspect for AB to become a practical solution for PEMFC applications. Several iterations of AB regeneration reactions have been at least partially demonstrated on the bench starting from the spent fuel polyborazylene (PB) [29,32,87, ,94,95,96]. Perhaps the most promising, especially from an overall processing perspective, was reported by Sutton et al. [95]. A simple one-pot regeneration scheme (Figure 17) was demonstrated that reacts hydrazine (H2NNH2) with spent fuel (i.e., PB) in liquid ammonia at 313 K to give a quantitative conversion to AB (99%). However, cost and efficiency analyses showed that although the hydrazine one-pot method reduces processing costs, it is dominated by the cost and efficiency of producing hydrazine to such an extent that for this method to be practical, the energy intensity of the most efficient hydrazine production process would need to be reduced by 80% [4,97].

Crystals 02 00413 g017 1024

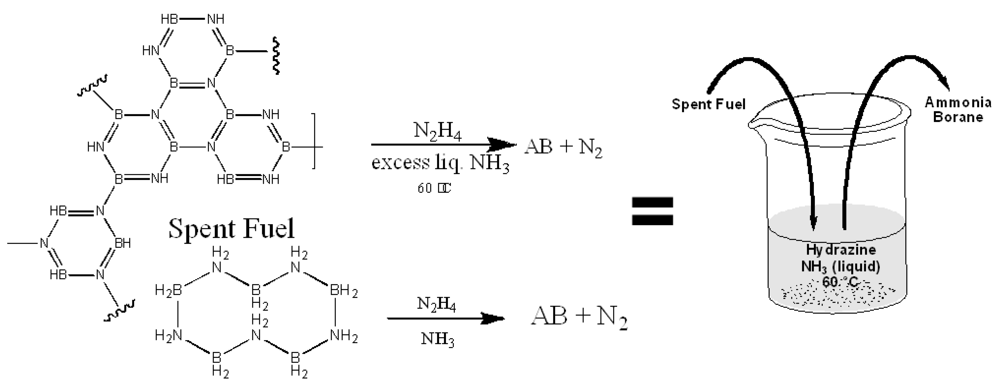

Figure 17. Schematic representation of a simple one-pot AB regeneration using hydrazine.Adapted with permission from [29].

Click here to enlarge figure

Figure 17. Schematic representation of a simple one-pot AB regeneration using hydrazine.Adapted with permission from [29].
Crystals 02 00413 g017 1024

2.2.3. Metal Amidoboranes

A novel class of materials identified by the CHSCoE for continued research is the metal amidoboranes [29]. Similar to the concept of destabilized complex hydrides, metal amidoboranes exchange one or more of the hydrogen atoms in AB with a metal to potentially decrease the enthalpy of decomposition, reduce the formation of volatile impurities and improve the rate of hydrogen release. For example, Burrell et al. reported the synthesis of Ca(NH2BH3)2 from the reaction of calcium hydride and AB in THF [Table 1, reaction 17] [33]. Investigation of the desorption properties of the Ca-amidoborane revealed that the compound released up to 3.6 H2-equivalents (7.2 wt.% H2) at 443 K, in contrast to thermolysis of solid AB that releases ~2.0 H2-equivalents at any temperature above 393 K. This was attributed to the endothermic release pathway of Ca(NH2BH3)2 that was estimated to have a dehydrogenation enthalpy of 3.5 kJ/mol-H2. In comparison, thermolytic release from lithium amidoborane [Table 1, reaction 18] was found to give 10.9 wt.% H2 and the sodium analogue [Table 1, reaction 19] delivered 7.5 wt.% H2 at 364 K [35]. A large range of compounds synthesized from lightweight metals including the alkali [35,98,99] and alkaline earth metals [33,98] have shown encouraging release rates and enthalpies compared to solid AB thermolysis. Unfortunately, all the metal amidoboranes investigated to date have been too exothermic and not able to uptake H2 at reasonable pressures or temperatures for on-board regeneration. However, the results demonstrate that the thermodynamic and kinetic properties can be tuned from those of solid AB using this approach and provide promise for future research.

2.2.4. Cyclo-CBN Compounds

Another class of promising materials towards a reversible chemical hydrogen storage system are boron and nitrogen doped organic (C-B-N) compounds that couple the exothermic H2 release from B-N bonds with the endothermic H2 release from C-C bonds to create compounds that may be tailored to undergo dehydrogenation with ΔG ≈ 0 [Table 1, reaction 20] [36,37,100]. Liu et al. are investigating the use of BN-heterocyclic analogues of cyclohexane to reversibly uptake/release H2 as shown in Figure 18. In fact, computational studies have suggested that the release of three H2 molecules from the parent molecule (reaction 3 in Figure 18), 1,2-azaborine, exhibits thermodynamics that are conducive to a reversible system with ΔG ≈ 8.0 kJ/mol-H2 (i.e., 1.9 kcal/mol-H2) with the potential to release 7.1 wt.% H2 [36]. Synthetically, the parent material is a challenge to prepare, however regeneration of a t-butyl analogue of the spent fuel, 1,2-dihydro-1,2-azaborine, was demonstrated under relatively mild conditions to give the charged fuel which has the potential to deliver 4.1 wt.% H2. Additional research is needed to discover catalysts that will dehydrogenate both the B-N and C-C bonds to increase the practical capacity of these materials. However, initial results demonstrate that these materials do indeed show the propensity to release H2 at near thermoneutral conditions.

Crystals 02 00413 g018 1024

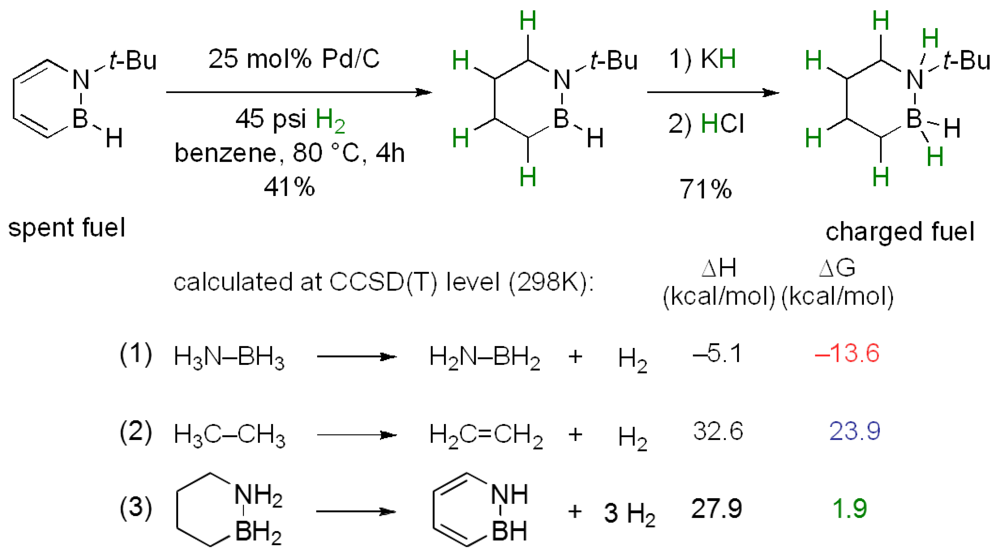

Figure 18. Regeneration of C-B-N spent fuel and predicted thermodynamics. Adapted with permission from [37].

Click here to enlarge figure

Figure 18. Regeneration of C-B-N spent fuel and predicted thermodynamics. Adapted with permission from [37].
Crystals 02 00413 g018 1024

2.2.5. Computational Guidance of Chemical Hydrogen Storage Systems

As discussed in Section 2.1.5, a key attribute of the Center’s approach involved the integration and guidance of experimental efforts with computational chemistry. In particular, computational chemistry provided distinct direction in cases where there were potentially hundreds or thousands of chemical pathways, which considerably accelerated progress in the areas of catalyst development, thermodynamic tailoring and development of regeneration chemistries. To support engineering assessments of various material or regeneration choices, first principles approaches were used to predict physical properties of reagents, intermediates and products that were previously unknown [36,37,83,94,95,101]. Also, parameters such as heats of vaporization and heats of formation/dehydrogenation were determined computationally to determine process heat requirements. For more detailed discussions of specific examples of computational efforts, the readers are directed to the various project reports and presentations given through the US DOE FCT annual progress reports and annual merit review proceedings [29,101,102].

2.2.6. Summary and Research Trends

As ascertained from this very small “snapshot” of materials research within the CHSCoE, the Center made substantial progress in identifying and developing covalent chemical compounds with promising H2 capacities, H2 release properties and understanding the mechanistic pathways that control H2 release. In addition, the CHSCoE made significant progress in exploring ways to regenerate the spent fuel. Although materials that meet many of the DOE system targets have been identified, a material that satisfies all the targets simultaneously has not been found; however the results from the Center do point toward promising approaches for future R&D on chemical hydrogen storage materials.

Accordingly, research in chemical hydrogen storage material systems continues to be focused around the following four topics; (1) investigations of new reversible materials that allow near thermoneutral H2 release and regenerated by addition of H2 under moderate conditions; (2) development of H2 dense complete fluid systems that maintain liquid phase for the complete fuel cycle and can meet the needs for a range of PEM FC applications (i.e., man-portable to automotive); (3) additives or catalysts that can eliminate dehydrogenation impurities; and (4) inexpensive and energy efficient regeneration schemes for off-board renewable materials.

3. Conclusions

As conventional methods of storing H2 are not considered to be long-term solutions to meet the challenging H2 storage requirements for many of the emerging PEM FC applications, considerable efforts have been directed at developing advanced materials-based H2 storage that show great potential to provide cost effective, dense sources of H2. The DOE initiated three centers of excellence that focused on accelerating advancements in hydrogen storage material to meet the DOE H2 storage system-level performance targets that are based on achieving similar performance and cost levels as current gasoline fuel storage for light-duty vehicles. While significant progress has been made across all material platforms including metal hydrides, chemical hydrogen storage materials and cryosorbents, none currently satisfy all of the stringent performance requirements for the most demanding applications, such as providing on-board vehicle storage to deliver greater than 300 miles driving range across a diverse vehicle platform while maintaining passenger and cargo space requirements. However, a number of these materials in their current state could possibly meet the demands for emerging PEM FC applications such as man-portable or emergency back-up power that might have less demanding storage performance requirements. Many of these applications will have practical operational requirements that necessitate the storage function at ambient or moderate temperature, which most likely limits the useage of cryosorbents to applications that can manage bulkier vacuum vessels and tolerate dormancy, such as on-board vehicle storage. This review summarized advancements from the MHCoE and CHSCoE in H2 storage materials that show the potential to densely bind and release hydrogen at moderate temperatures. Common among the materials investigated in both Centers was: (1) the need to reduce temperatures for H2 uptake and release; (2) understanding the influence of additives and catalysts; (3) discovering material combinations that allow on-board regeneration by the addition of H2 at moderate temperatures and pressures; and (4) determining conditions that minimize the formation of impurities in the released H2.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. DOE. Office of Energy Efficiency and Renewable Energy Hydrogen, Fuel Cell Technologies Program Multi-year Research, Development and Demonstration Plan: Planned Program Activities for 2005–2015. Available online: http://www1.eere.energy.gov/hydrogenandfuelcells/ mypp/index.html (accessed on 4 May 2012).
  2. Ahluwalia, R.K.; Hua, T.Q.; Peng, J.-K. Fuel cycle efficiencies of different automotive on-board hydrogen storage options. Int. J. Hydrog. Energy 2007, 32, 3592–3602. [Google Scholar] [CrossRef]
  3. Ahluwalia, R.; Hua, T.; Peng, J.-K.; Kumar, R. System Level Analysis of Hydrogen Storage Options. Proceedings of the 2008 U.S. DOE Hydrogen Program Annual Merit Review, Arlington, VA, USA, 9–13 June 2008; Available online: http://www.hydrogen.energy.gov/ pdfs/review08/st_2_ahluwalia.pdf (accessed on 4 May 2012).
  4. Ahluwalia, R.K.; Hua, T.Q.; Peng, J.-K. On-board and off-board performance of hydrogen storage options for light-duty vehicles. Int. J. Hydrog. Energy 2011, 37, 2891–2910. [Google Scholar]
  5. US DOE Targets for Onboard Hydrogen Storage Systems for Light-Duty Vehicles. Available online: http://www1.eere.energy.gov/hydrogenandfuelcells/storage/pdfs/targets_onboard_hydro_storage.pdf (accessed on 4 May 2012).
  6. Bourlinos, A.B.; Steriotis, T.A.; Karakassides, M.; Sanakis, Y.; Tzitzios, V.; Trapalis, C.; Kouvelos, E.; Stubos, A. Synthesis, characterization and gas sorption properties of a molecularly-derived graphite oxide-like foam. Carbon 2007, 45, 852–857. [Google Scholar]
  7. Miller, M.A.; Page, R. National Testing Laboratory for Solid-State Hydrogen Storage Technologies. Proceedings of the 2008 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 9–13 June 2008; Available online: http://www.hydrogen.energy.gov/ pdfs/review08/st_28_miller.pdf (accessed 4 May 2012).
  8. Miller, M.A.; Page, R. National Testing Laboratory for Solid-State Hydrogen Storage Technologies. Proceedings of the 2009 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 18–22 May 2009; Available online: http://www.hydrogen.energy.gov/ pdfs/review09/stp_45_miller.pdf (accessed 4 May 2012).
  9. Van Vancht, J.H.N.; Kuijpers, F.A.; Bruning, H.C.A.M. Reversible room-temperature absorption of large quantities of hydrogen by intermetallic compounds. Philips Res. Rep. 1970, 25, 133–146. [Google Scholar]
  10. Bogdanovic, B.; Schwickardi, M. Ti-doped alkali metal aluminum hydrides as potential novel reversible hydrogen storage materials. J. Alloys Compd. 1997, 253–254, 1–9. [Google Scholar]
  11. Satyapal, S.; Petrovic, J.; Read, C.; Thomas, G.; Ordaz, G. The U.S. department of energy’s national hydrogen storage project: Progress towards meeting hydrogen-powered vehicle requirements. Catal. Today 2007, 120, 246–256. [Google Scholar]
  12. Konoplev, V.N. Synthesis of magnesium tetrahydroborate. Zhurnal Neorganicheskoi Khimii 1980, 25, 1737–1740. [Google Scholar]
  13. Soloveichik, G.L.; Gao, Y.; Rijssenbeek, J.; Andrus, M.; Kniajanski, S.; Bowman, J., R.C.; Hwang, S.-J.; Zhao, J.-C. Magnesium borohydride as a hydrogen storage material: Properties and dehydrogenation pathway of unsolvated Mg(BH4)2. Int. J. Hydrog. Energy 2009, 34, 916–928. [Google Scholar]
  14. Zhao, J.-C.; Andrus, M.; Cui, J.; Gao, Y.; Kniajanski, S.; Lemmon, J.; Raber, T.; Rijssenbeek, J.; Rubinsztajn, G.; Soloveichik, G.L. Lightweight Intermetallics for Hydrogen Storage. Proceedings of the 2007 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 14–18 May 2007; Available online: http://www.hydrogen.energy.gov/pdfs/review07/ st_16_zhao.pdf (accessed on 4 May 2012).
  15. Zhao, J.-C.; Cui, J.; Gao, Y.; Kniajanski, S.; Lemmon, J.; Raber, T.; Rijssenbeek, J.; Rubinsztajn, G.; Soloveichik, G.L. Lightweight Intermetallics for Hydrogen Storage. Proceedings of the 2008 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 9–13 June 2008; Available online: http://www.hydrogen.energy.gov/pdfs/review08/stp_22_zhao.pdf (accessed on 4 May 2012).
  16. Liu, P.; Vajo, J. Thermodynamically Tuned Nanophase Materials for Reversible Hydrogen Storage. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/ pdfs/review10/st065_liu_2010_p_web.pdf (accessed on 4 May 2012).
  17. Jensen, C.; McGrady, S. Fundamental Studies of Advanced, High-Capacity Reversible Metal Hydrides. Proceedings of the 2009 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 18–22 May 2009; Available online: http://www.hydrogen.energy.gov/ pdfs/review09/st_07_jensen.pdf (accessed on 4 May 20112).
  18. Klebanoff, L.; Keller, J. 5-Year Review of Metal Hydride Center of Excellence. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st029_klebanoff_ 2010_o_web.pdf (accessed on 4 May 2012).
  19. Graetz, J.; Wegrzyn, J.; Johnson, J.K.; Celebi, Y.; Zhou, W.M.; Reilly, J. Aluminum Hydride Regeneration. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/ pdfs/review10/st034_graetz_2010_o_web.pdf (accessed on 4 May 2012).
  20. Graetz, J.; Reilly, J.J. Kinetically stabilized hydrogen storage materials. Scr. Mater. 2007, 56, 835–839. [Google Scholar] [CrossRef]
  21. Bogdanovic, B.; Brand, R.A.; Marjanovic, A.; Schwickardi, M.; Tolle, J. Metal doped sodium aluminum hydrides as potential new hydrogen storage materials. J. Alloys Comp. 2000, 302, 36–58. [Google Scholar] [CrossRef]
  22. Bogdanovic, B.; Eberle, U.; Felderhoff, M.; Schuth, F. Complex aluminum hydrides. Scr. Mater. 2007, 56, 813–816. [Google Scholar]
  23. Johnson, J.K.; Sholl, D.S. First-Principles Modeling of Hydrogen Storage in Metal Hydride Systems. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/ pdfs/review10/st064_johnson_2010_p_web.pdf (accessed on 4 May 2012).
  24. Severa, G.; Ronnebro, E.; Jensen, C.M. Direct hydrogenation of magnesium boride to magnesium borohydride: Demonstration of >11 weight percent reversible hydrogen storage. Chem. Commun. 2010, 46, 421–423. [Google Scholar]
  25. Ozolins, V.; Majzoub, E.H.; Wolverton, C. First-principles prediction of thermodynamically reversible hydrogen storage reactions in the Li-Mg-Ca-B-H system. J. Am. Chem. Soc. 2009, 131, 230–237. [Google Scholar]
  26. Ronnebro, E.; Majzoub, E.H. Calcium borohydride for hydrogen storage: Catalysis and reversibility. J. Phys. Chem. B 2007, 111, 12045–12047. [Google Scholar] [CrossRef]
  27. Chen, P.; Xiong, Z.T.; Luo, J.Z.; Lin, J.Y.; Tan, K.L. Interaction of hydrogen with metal nitrides and imides. Nature 2002, 420, 302–303. [Google Scholar]
  28. Fang, Z.Z.; Sohn, H.Y. Discovery of H2 Storage Materials: LiMgN and Ng-Ti-H. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, June 7–11 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st062_fang _2010 _p_web.pdf (accessed on 4 May 2012).
  29. Ott, K. 2010 Overview and Wrapup: DOE Chemical Hydrogen Storage Center of Excellence. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/ st036_ott_2010_o_web.pdf (accessed on 4 May 2012).
  30. Nakagawa, T.; Shrestha, R.; Davis, B.; Diyabalanage, H.; Burrell, A.; Henson, N.; Semelsberger, T.; Stephens, F.; Gordon, J.; Ott, K.; et al. Chemical Hydrogen Storage R&D at Los Alamos National Laboratory. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st040_burrell_2010_o_web.pdf (accessed on 4 May 2012).
  31. Sneddon, L. Amineborane-Based Chemical Hydrogen Storage. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st039_sneddon_2010_o_ web.pdf (accessed on 4 May 2012).
  32. Burrell, A.K.; Shrestha, R.P.; Davis, B.; Diyabalanage, H.V.K.; Henson, N.; Inbody, M.; John, K.; Semelsberger, T.A.; Stephens, F.; Gordon, J.; et al. Chemical Hydrogen Storage R&D at Los Alamos National Laboratory. Proceedings of the 2009 U.S. DOE Hydrogen Program Annual Merit Review, Arlington, VA, USA, 18–22 May 2009; Available online: http://www.hydrogen.energygov/pdfs/review09/st_17_burrell.pdf (accessed on 4 May 2012).
  33. Diyabalanage, H.V.K.; Shrestha, R.P.; Semelsberger, T.A.; Scott, B.L.; Bowden, M.E.; Davis, B.L.; Burrell, A.K. Calcium amidotrihydroborate: A hydrogen storage material. Angew. Chem. Int. Ed. 2007, 46, 8995–8997. [Google Scholar]
  34. Autrey, T. PNNL Progress as Part of the Chemical Hydrogen Storage Center of Excellence. Proceedings of the 2009 U.S. DOE Hydrogen Program Annual Merit Review, Arlington, VA, USA, 18–22 May 2009; Available online: http://www.hydrogen.energy.gov/pdfs/review09/ st_18_autrey.pdf (accessed on 4 May 2012).
  35. Xiong, Z.; Yong, C.K.; Wu, G.; Chen, P.; Shaw, W.; Karkamkar, A.; Autrey, T.; Jones, M.O.; Johnson, S.R.; Edwards, P.P.; David, W.I.F. High-capacity hydrogen storage in lithium and sodium amidoboranes. Nat. Mater. 2008, 7, 138–141. [Google Scholar] [CrossRef]
  36. Campbell, P.G.; Zakharov, L.N.; Grant, D.J.; Dixon, D.A.; Liu, S.-Y. Hydrogen storage by boron-nitrogen heterocycles: A simple route for spent fuel regeneration. J. Am. Chem. Soc. 2010, 132, 3289–3291. [Google Scholar]
  37. Liu, S.-Y. Hydrogen Storage by Novel CBN Heterocycle Materials. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st038_liu_2010_o_web.pdf (accessed on 4 May 2012).
  38. Jensen, C.; McGrady, S. Advanced, High-Capacity Reversible Metal Hydrides. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st031_jensen_2010 _o_web.pdf (accessed on 4 May 2012).
  39. Allendorf, M.; Majzoub, E.H.; Stavila, V. Discovery and Development of Metal Hydrides for Reversible On-board Hydrogen Storage. Proceedings of the 2009 U.S. DOE Annual Merit Review, Washington, DC, USA, 18–22 May 2009; Available online: http://www.hydrogen. energy.gov/pdfs/review09/st_03_allendorf.pdf (accessed on 4 May 2012).
  40. Discovery and Development of Metal Hydrides for Reversible On-board Hydrogen Storage. Proceedings of the 2010 U.S. DOE Annual Merit Review; Washington, DC, USA: 7–11 June 2010. Available online: http://www.hydrogen.energy.gov/pdfs/review10/st033_allendorf_2010_o_web.pdf (accessed on 4 May 2012).
  41. Stavila, V.; Her, J.-H.; Zhou, W.; Hwang, S.-J.; Kim, C.; Ottley, L.A.M.; Udovic, T.J. Probing the structure, stability and hydrogen storage properties of calcium dodecahydro-closo-dodecaborate. J. Solid State Chem. 2010, 183, 1133–1140. [Google Scholar]
  42. Luo, W.; Ronnebro, E. Towards a viable hydrogen storage system for transportation application. J Alloys Compd. 2005, 404–406, 392–395. [Google Scholar]
  43. Klebanoff, L.; Keller, J. Metal Hydride Center of Excellence Overview. Proceedings of the 2006 U.S. DOE Annual Merit Review, Washington, DC, USA, 16–19 May 2006; Available online: http://www.hydrogen.energy.gov/pdfs/review06/st_13_klebanoff.pdf (accessed on 4 May 2012).
  44. Wang, J.; Liu, T.; Wu, G.; Li, W.; Liu, Y.; Araujo, C.M.; Scheicher, R.H.; Blomqvist, A.; Ahuja, R.; Xiong, Z.; et al. Potassium-modified Mg(NH2)2/2LiH system for hydrogen storage. Angew.Chem. Int. Ed. 2009, 48, 5828–5832. [Google Scholar]
  45. Lu, J.; Fang, Z.Z.; Choi, Y.J.; Sohn, H.Y. Potential of binary lithium magnesium nitride for hydrogen storage applications. J. Phys. Chem. C 2007, 111, 12129–12134. [Google Scholar] [CrossRef]
  46. Alapati, S.V.; Johnson, J.K.; Sholl, D.S. Identification of destabilized metal hydrides for hydrogen storage using first principles calculations. J. Phys. Chem. B 2006, 110, 8769–8776. [Google Scholar] [CrossRef]
  47. Alapati, S.V.; Johnson, J.K.; Sholl, D.S. Using first principles calculations to identify new destabilized metal hydride reactions for reversible hydrogen storage. Phys. Chem. Chem. Phys. 2007, 9, 1438–1452. [Google Scholar]
  48. Luo, W.; Wang, J.; Stewart, K.; Clift, M.; Gross, K. Li-Mg-N-H: Recent investigations and development. J. Alloys Compd. 2007, 446–447, 336–341. [Google Scholar]
  49. Graetz, J.; Chaudhuri, S.; Lee, Y.; Vogt, T.; Reilly, J.J. Pressure-indued structural and electronic changes in alpha-AlH3. Phys. Rev. B 2006, 74, 214114–214120. [Google Scholar] [CrossRef]
  50. Graetz, J. New approaches to hydrogen storage. Chem. Soc. Rev. 2009, 38, 73–82. [Google Scholar] [CrossRef]
  51. Ahluwalia, R.; Hua, T.; Peng, J.-K.; Kumar, R. System Level Analysis of Hydrogen Storage Options. Proceedings of the 2011 U.S. DOE Hydrogen Program Annual Merit Review, Arlington, VA, USA, 9–13 May 2011; Available online: http://www.hydrogen.energy.gov/pdfs/ review11/st001_ahluwalia_2011_o.pdf (accessed on 4 May 2012).
  52. Zidan, R.; Garcia-Diaz, B.L.; Fewox, C.S.; Stowe, A.C.; Gray, J.R.; Harter, A.G. Aluminum hydride: A reversible material for hydrogen storage. Chem. Commun. 2009. [Google Scholar] [CrossRef]
  53. Zidan, R.; Garcia-Diaz, B.L.; Martinez-Rodriguez, M.; Teprovich, J. Electrochemical Reversible Formation of Alane. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 7–11 June 2010; Available online: http://hydrogen.energy.gov/ pdfs/review10/st063_zidan_2010_p_web.pdf (accessed on 4 May 2012).
  54. Jensen, C.M.; McGrady, S. Fundamental Studies of Advanced, High-Capacity Reversible Metal Hydrides. Proceedings of the 2009 U.S. DOE Annual Merit Review, Washington, DC, USA, 18–22 May 2009; Available online: http://www.hydrogen.energy.gov/pdfs/review09/st_ 07_jensen.pdf (accessed on 4 May 2012).
  55. Alapati, S.V.; Johnson, J.K.; Sholl, D.S. Firist princilples screening of destabilized metal hydrides for high capacity H2 storage using scandium. J. Alloys Compd. 2007, 446–447, 23–27. [Google Scholar]
  56. Alapati, S.V.; Johnson, J.K.; Sholl, D.S. Stability analysis of doped materials for reversible hydrogen storage in destabilized metal hydrides. Phys. Rev. B 2007, 76, 104108. [Google Scholar] [CrossRef]
  57. Wu, H.; Zhou, W.; Udovic, T.J.; Rush, J.J.; Hartman, M.R.; Bowman, J., R.C.; Vajo, J.J. Neutron vibrational spectroscopy and first-principles study of novel ternary hydrides: Li4Si2H(D) and Li4Ge2H(D): Electronic structure and lattice dynamics. Phys. Rev. B 2007, 76, 224301–224306. [Google Scholar]
  58. Zarkevich, N.A.; Johnson, D.D. Comment on Structural stability of complex hydrides: LiBH4 revisited. Phys. Rev. Lett. 2006, 97, 119601–119605. [Google Scholar] [CrossRef]
  59. Zarkevich, N.A.; Tan, T.L.; Johnson, D.D. First-priniciples prediction of phase-segregating alloy phase diagrams and a rapid design estimates of their transition temperatures. Phys. Rev. B 2007, 75, 104203–104212. [Google Scholar]
  60. Bowman, J.R.C.; Hwang, S.-J.; Ahn, C.C.; Vajo, J.J. NMR and X-ray diffraction studies of phases in the destabilized LiH-Si system. Mater. Res. Soc. Symp. Proc. 2005, 837, N3.6.1. [Google Scholar]
  61. Dai, B.; Rankin, R.B.; Johnson, J.K.; Allendorf, M.D.; Sholl, D.S.; Zarkevich, N.A.; Johnson, D.D. Influence of surface reactions on complex hydride reversibility. J. Phys. Chem. C 2008, 112, 18270–18279. [Google Scholar]
  62. Kelly, S.T.; Clemens, B.M.; Van Atta, S.L.; Vajo, J.J.; Olson, G.L. Kinetic limitations of the Mg2Si system for reversible hydrogen storage. Nanotechnology 2009, 20, 204011–204017. [Google Scholar] [CrossRef]
  63. Lu, J.; Choi, Y.J.; Fang, Z.Z.; Sohn, H.Y. Effect of milling intensity on the formation of LiMgN from the dehydrogenation of LiNH2-MgH2 (1:1) mixture. J. Power Sources 2010, 195, 1992–1997. [Google Scholar]
  64. Lu, J.; Fang, Z.Z.; Sohn, H.Y. A new Li-Al-N-H system for reversible hydrogen storage. J. Phys. Chem. B 2006, 110, 14236–14239. [Google Scholar]
  65. Lu, J.; Fang, Z.Z.; Sohn, H.Y.; Bowman, J.R.C.; Hwang, S.-J. Potential and reaction mechanism of Li-Mg-Al-N-H system for reversible hydrogen storage. J. Phys. Chem. C 2007, 111, 16686–16692. [Google Scholar] [CrossRef]
  66. Purewal, J.; Hwang, S.-J.; Bowman, J.R.C.; Ronnebro, E.; Fultz, B.; Ahn, C. Hydrogen sorption behavior of the ScH2-LiBH4 system: Experimental assessment of chemical destabilization effects. J. Phys. Chem. C 2008, 112, 8481–8485. [Google Scholar]
  67. Vajo, J.J.; Li, W.; Liu, P. Thermodynamic and kinetic destabilization in LiBH4/Mg2NiH4: promise for borohydride-based hydrogen storage. Chem. Commun. 2010, 46, 6687–6689. [Google Scholar] [CrossRef]
  68. Vajo, J.J.; Olson, G.L. Hydrogen storage in destabilized chemical systems. Scr. Mater. 2007, 56, 829–834. [Google Scholar] [CrossRef]
  69. Vajo, J.J.; Salguero, T.T.; Gross, A.F.; Skeith, S.L.; Olson, G.L. Destabilization strategies and kinetics challenges in light metal hydride systems. J. Alloys Compd. 2007, 446–447, 409–414. [Google Scholar]
  70. Vajo, J.J.; Skeith, S.L. Reversible storage of hydrogen in destabilized LiBH4. J. Phys. Chem. B 2005, 109, 3719–3722. [Google Scholar] [CrossRef]
  71. Wang, L.-L.; Graham, D.D.; Robertson, I.M.; Johnson, D.D. On the reversibility of hydrogen-storage reactions in Ca(BH4)2: Characterization via experiment and theory. J. Phys. Chem. C 2009, 113, 20088–20096. [Google Scholar]
  72. Wu, H.; Zhou, W.; Udovic, T.J.; Rush, J.J. Hydrogen storage in a novel destabilized hydride system, Ca2SiHx: Effects of amorphization. Chem. Mater. 2007, 19, 329–334. [Google Scholar] [CrossRef]
  73. Wu, H.; Zhou, W.; Udovic, T.J.; Rush, J.J. Structure and hydrogenation properties of the ternary alloys Ca2xMgxSi (0 < x < 1). J. Alloys Compd. 2007, 446–447, 101–105. [Google Scholar]
  74. Majzoub, E.H.; Ozolins, V. Prototype electrostatic ground state approach to predicting crystal structures of ionic compounds: Applications to hydrogen storage materials. Phys. Rev. B 2008, 77, 104111–104115. [Google Scholar] [CrossRef]
  75. Majzoub, E.H.; Ronnebro, E. Crystal structures of calcium borohydride: Theory and experiment. J. Phys. Chem. C 2009, 113, 3352–3358. [Google Scholar] [CrossRef]
  76. Zarkevich, N.A.; Johnson, D.D. Predicting enthalpies of molecular substances: Application to LiBH4. Phys. Rev. B 2008, 100, 040601–040604. [Google Scholar] [CrossRef]
  77. Annual Progress Report for the DOE Hydrogen Program. Available online: http://www.hydrogen.energy.gov/annual_progress.html (accessed on 17 February 2012).
  78. Holladay, J.D.; Brooks, K.P.; Ronnebro, E.; Simmons, K.L.; Weimar, M.R. 2011 Annual Progress Report for the DOE Hydrogen Program. Available online: http://www.hydrogen.energy.gov/ pdfs/progress11/iv_d_6_holladay_2011.pdf (accessed on 4 May 2012).
  79. Baumann, J.; Baitalow, F.; Wolf, G. Thermal decomposition of polymeric aminoborane (H2BNH2)x under hydrogen release. Thermochim. Acta 2005, 430, 9–14. [Google Scholar] [CrossRef]
  80. Wolf, G.; Baumann, J.; Baitalow, F.; Hoffmann, F.P. Calorimetric Process Monitoring of Thermal decomposition of B-N-H compounds. Thermochim. Acta 2000, 343, 19–25. [Google Scholar] [CrossRef]
  81. Stowe, A.C.; Shaw, W.J.; Linehan, J.C.; Schmid, B.; Autrey, T. Situ solid state 11B MAS-NMR studies of the thermal decomposition of ammonia borane: Mechanistic studies of the hydrogen release pathways from a solid state hydrogen storage material. Phys. Chem. Chem. Phys. 2007, 9, 1831–1836. [Google Scholar]
  82. Aardahl, C.L.; Autrey, T.; Camaioni, D.; Dubois, D.; Linehan, J.C.; Karkamkar, A.; Rassat, S.D.; Zheng, R.; Shaw, W.; Li, J.; et al. 2009 Annual Progress Report for the DOE Hydrogen Program. Available online: http://www.hydrogen.energy.gov/pdfs/progress09/iv_b_1d_autry.pdf (accessed on 4 May 2012).
  83. Stephens, F.H.; Baker, R.T.; Matus, M.H.; Grant, D.J.; Dixon, D.A. Acid initiation of ammonia-borane dehydrogenation for hydrogen storage. Angew. Chem. Int. Ed. 2007, 46, 746–749. [Google Scholar] [CrossRef]
  84. Himmelberger, D.W.; Yoon, C.W.; Bluhm, M.E.; Carroll, P.J.; Sneddon, L.G. Base-promoted ammonia borane hydrogen release. J. Am. Chem. Soc. 2009, 131, 14101–14110. [Google Scholar]
  85. Denney, M.C.; Pons, V.; Hebden, T.J.; Keinekey, D.M.; Goldberg, K.I. Efficient catalysis of ammonia borane dehydrogenation. J. Am. Chem. Soc. 2006, 128, 12048–12049. [Google Scholar] [CrossRef]
  86. Fulton, J.L.; Linehan, J.C.; Autrey, T.; Balasubramanian, M.; Chen, Y.; Szymczak, N.K. When is a Nanoparticle a Cluster? An operando EXAFS Study of Amine BoraneDehydrocoupling by Rh4–6 Clusters. J. Am. Chem. Soc. 2007, 129, 11936–11949. [Google Scholar]
  87. Sneddon, L. Amineborane-Based Chemical Hydrogen Storage. Proceedings of the 2007 U.S. DOE Hydrogen Program Annual Merit Review, Washington, DC, USA, 14–18 May 2007; Available online: http://www.hydrogen.energy.gov/pdfs/review07/st_27_sneddon.pdf (accessed on 4 May 2012).
  88. Wright, W.R.H.; Berkeley, E.R.; Alden, L.R.; Baker, R.T.; Sneddon, L.G. Transition metal catalysed ammonia-borane dehydrogenation in ionic liquids. Chem. Commun. 2011, 47, 3177–3179. [Google Scholar]
  89. Keaton, R.J.; Blacquiere, J.M.; Baker, R.T. Base metal catalyzed dehydrogenation of ammonia-borane for chemical hydrogen storage. J. Am. Chem. Soc. 2007, 129, 1844–1845. [Google Scholar] [CrossRef]
  90. Shrestha, R.P.; Diyabalanage, H.V.K.; Semelsberger, T.A.; Ott, K.C.; Burrell, A.K. Catalytic dehydrogenation of ammonia borane in non-aqueous medium. Int. J. Hydrog. Energy 2009, 34, 2616–2621. [Google Scholar]
  91. Himmelberger, D.W.; Alden, L.R.; Bluhm, M.E.; Sneddon, L.G. Ammonia boran hydrogen release in ionic liquids. Inorg.Chem. 2009, 48, 9883–9889. [Google Scholar]
  92. Aardahl, C.L.; Rassat, S.D. Overview of systems considerations for on-board chemical hydrogen storage. Int. J. Hydrog. Energy 2009, 34, 6676–6683. [Google Scholar] [CrossRef]
  93. Semelsberger, T.A.; Burrell, T.; Rockward, T.; Brosha, R.; Tafoya, J.; Purdy, G.; Nakagawa, T.; Davis, B. Chemical Hydride Rate Modeling, Validation and System Demonstration. Proceedings of the 2011 U.S. DOE Hydrogen Program Annual Merit Review, Arlington, VA, USA, 9–13 May 2011; Available online: http://www.hydrogen.energy.gov/pdfs/review11/ st007_semelsberger_2011_o.pdf (accessed on 4 May 2012).
  94. Davis, B.L.; Dixon, D.A.; Garner, E.B.; Gordon, J.C.; Matus, M.H.; Scott, B.; Stephens, F.H. Efficient regeneration of partially spent ammonia borane fuel. Angew. Chem. 2009, 121, 6944–6948. [Google Scholar] [CrossRef]
  95. Sutton, A.D.; Burrell, A.K.; Dixon, D.A.; Garner, E.B.; Gordon, J.C.; Nakagawa, K.C.; Ott, K.C.; Robinson, J.P.; Vasiliu, M. Regeneration of ammonia borane spent fuel by direct reaction with hydrazine and liquid ammonia. Science 2011, 331, 1426–1429. [Google Scholar]
  96. Sutton, A.D.; Davis, B.L.; Bhattacharyya, K.X.; Ellis, B.D.; Gordon, J.C.; Power, P.P. Recycle of tin thiolate compounds relevant to ammonia-borane regeneration. Chem. Commun. 2010, 46, 148–149. [Google Scholar]
  97. Ahluwalia, R.K.; Hua, T.Q.; Peng, J.-K.; Kumar, R. 2011 Annual Progress Report for the DOE Hydrogen Program. Available online: http://www.hydrogen.energy.gov/pdfs/progress11/iv_e_2_ahluwalia_2011.pdf (accessed on 4 May 2012).
  98. Wu, H.; Zhou, W.; Yildirim, T. Alkali and alkaline-earth metal amidoboranes: Structure, crystal chemistry, and hydrogen storage propertie. J. Am. Chem. Soc. 2008, 130, 14834–14839. [Google Scholar]
  99. Xiong, Z.; Chua, Y.S.; Wu, G.; Xu, W.; Chen, P.; Shaw, W.; Karkamkar, A.; Linehan, J.C.; Smurthwaite, T.; Autrey, T. Interaction of lithium hydride and ammonia borane in THF. Chem. Commun. 2008. [Google Scholar] [CrossRef]
  100. Marwitz, A.J.V.; Matus, M.H.; Zakharov, L.N.; Dixon, D.A.; Liu, S.-Y. A hybrid organic/inorganic benzene. Angew. Chem. Int. Ed. 2009, 48, 973–977. [Google Scholar] [CrossRef]
  101. Arduengo, A.J.; Dixon, D.A. Main Group Element and Organic Chemistry for Hydrogen Storage and Activation. Proceedings of the 2010 U.S. DOE Hydrogen Program Annual Merit Review, Arlington, VA, USA, 7–11 June 2010; Available online: http://www.hydrogen.energy.gov/pdfs/review10/st060_dixon_2010_p_web.pdf (accessed on 4 May 2012).
  102. Arduengo, A.J.; Dixon, D.A. 2009 Annual Progress Report for the DOE Hydrogen Program. Available online: http://www.hydrogen.energy.gov/pdfs/progress09/iv_b_1e_dixon.pdf (accessed on 4 May 2012).
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
