Phase and Texture of Solution-Processed Copper Phthalocyanine Thin Films Investigated by Two-Dimensional Grazing Incidence X-Ray Diffraction
Previous Article in Journal
Crystal Structure of Na3MoCl6

Crystals 2011, 1(3), 104-111; doi:10.3390/cryst1030104

Article
Indium Doping in BaSn3−xInx (0 ≤ x ≤ 0.2) with Ni3Sn Structure
Marion C. Schäfer 1, Yuki Yamasaki 1,2, Veronika Fritsch 3 and Svilen Bobev 1,*
1
Department of Chemistry and Biochemistry, University of Delaware, Newark, DE 19716, USA
2
Department of Chemistry, Hosei University, Tokyo 194-0298, Japan
3
Physikalisches Institut, Karlsruher Institut für Technologie, D-76131 Karlsruhe, Germany
*
Author to whom correspondence should be addressed; E-Mail: bobev@udel.edu; Tel.: +1-302-831-8720; Fax: +1-302-831-6335.
Received: 20 June 2011; in revised form: 1 July 2011 / Accepted: 11 July 2011 /
Published: 12 July 2011

Abstract

: Investigations of the system Ba–In–Sn, with the objective to synthesize Ba8In16Sn30 clathrate using Sn and In flux reactions, yielded instead the known BaSn3 compound (P63/mmc; a = 7.228(2) Å, c = 5.469(3) Å) from Sn flux and its In-doped variant BaSn2.8In0.2(1) (a = 7.260(1) Å, c = 5.382(2) Å) from In flux. BaSn3−xInx is the first, and up until now, the only ternary phase containing these elements. Its structure is isomorphic with the Ni3Sn type (Pearson symbol hP8) and is apparently capable of sustaining small variations in the valence electron count by virtue of replacing Sn with the electron poorer In. Electrical resistivity measurements on single-crystals of both undoped and doped phases show different metallic-like behavior, suggesting that neither BaSn3 nor BaSn3−xInx are valence compounds.
Keywords:
polar intermetallic phases; stannides; barium; tin; crystal structure

1. Introduction

Due to their potential as thermoelectric materials [1,2], intermetallic clathrates (A8[X,Y]46)—aka type-I; A24[X,Y]136)—aka type-II, where A = alkali or alkaline-earth metal; X and Y = groups 13 and 14 elements) have attracted much attention in recent years. Not long ago, our group had reported on several new Si-based clathartes with type-II structure [3]. We were intrigued by the scarcity of isotypic Ge- and particularly Sn-based compounds, with Ba16Ga32Sn104 [4] being the sole example. Our attention was also piqued by the fact that the system Ba–Ga–Sn appeared carefully mapped out—for example, the polymorphic Ba8Ga16Sn30 clathrate-I and clathrate-VIII compounds [5-7], as well as some other ternary phases like BaGaSn [8], Ba3Ga0.491Sn4.509 [9], and BaGa3.11Sn0.89 [10], have been well characterized—while in the Ba–In–Sn system, no ternary phases have been obtained until now.

Therefore, we embarked on systematic investigations of the system Ba–In–Sn. The initial results from our exploratory work in the Sn-rich part of this ternary phase diagram suggested that the known binary phases BaSn3 [11-13] and BaSn5 [11,14] are the most common products of such reactions. Being at the border of the typical intermetallic and Zintl phases, both compounds are reported as superconductors below 2.4 K (BaSn3) and 4.4 K (BaSn5), respectively. The first and only (so far) ternary phase, the solid-solution BaSn3−xInx was identified from a reaction of the elements using excess In as a metal flux. Its structure is the main subject of this article and was refined from single-crystal X-ray diffraction data; the composition was independently obtained via elemental micro-probe analysis by means of energy-dispersive X-ray spectroscopy (EDX). Electrical resistivity and heat-capacity measurements on single crystals of both phases are also reported.

2. Results and Discussion

During the investigations of the Ba–In–Sn system, single crystals of the known barium tristannide BaSn3 [11-13] and the In-doped barium tristannide BaSn3−xInx (x ≈ 0.2) were obtained, instead of the desired, still unknown, clathrates Ba8In16Sn30 or Ba16In32Sn104. While BaSn3 can be readily synthesized from elemental mixtures [11-13] or by using Sn flux (this work), BaSn3−xInx with a small (less than ca. 10% at.) substitution of Sn by In was only observed when using large amounts of In as a metal flux. BaSn3 and BaSn3−xInx both crystallize with the hexagonal space group P63/mmc (No. 194) (Pearson symbol hP8; Ni3Sn type structure [15]), the hexagonal variant of the Cu3Au structure [16]. The structure can be viewed as alternating layers of Ba2+ cations (Wyckoff site 2c: ⅓ ⅔ ¼) and [Sn3]2− triangles (Wyckoff site 6h: 2x, x, ¾), as shown in Figure 1. These slabs are arranged in an ABAB sequence along the crystallographic c-axis. Since the triangular Sn3 fragments can also be considered as parts of Sn6 octahedra that are linked via face-sharing, one can also rationalize the structure as polyanionic 1D-chains along the c-axis and Ba2+ cations [13]. Full description of the crystal and electronic structure can be found elsewhere [12,13].

The lattice parameters we report for Sn flux-grown BaSn3 are a = 7.228(2) Å, c = 5.469(3) Å; the literature values for BaSn3 [12,13] are a = 7.254(4) and c = 5.500(3) Å. These periodicity constants appear to be slightly longer, however, this elongation is not due to any phase width, but to a thermal expansion—our data were obtained at 120(2) K (Table 1), while the previously reported structure was done at room temperature [12,13]. The virtually identical c/a ratios (0.757 vs 0.758) confirm that BaSn3 is a line compound with a robust structure, which is invariant of the method of preparation (stoichiometric reactions vs Sn flux).

However, upon comparison of the above values with the refined unit cell parameters for the “same” compound, grown from In flux, one immediately notices that the structure expands slightly in the ab-plane (a = 7.260(1) Å) and contracts along the c axis (c = 5.382(2) Å), which results in significantly smaller c/a ratio of 0.741, i.e., solid solution BaSn3−xInx forms. Given the large excess of In employed in the synthesis, we can speculate that the homogeneity range of this phase is rather small, and that the discussed composition represents the maximum solubility range under these conditions, i.e., BaSn3−xInx (0 ≤ x ≤ 0.2).

In BaSn3, the Sn–Sn distances within the Sn3 triangles are 3.051(1) Å, slightly shorter than the corresponding distances in BaSn3−xInx (dSn/In−Sn/In = 3.075(1) Å). The opposite trend is observed for the interlayer Sn–Sn distances—they are slightly longer in the pure binary compound (dSn–Sn = 3.253 Å) compared to the In-doped variant (dSn/In−Sn/In = 3.224(1) Å). The substitution of Sn with In has a very minor effect (or almost no-effect) on the Ba–Sn and Ba–Sn/In distances—dBa–Sn = 3.629(1)/3.646(1) Å vs dBa–Sn/In = 3.617(1)/3.644(1) Å, respectively. The discussed bond lengths are in good agreement with those reported for other binary compounds like BaSn (dSn−Sn = 2. 985 Å; dBa−Sn = 3.600−3.705 Å) [17]; BaSn2 (dSn−Sn = 2.919 Å; dBa−Sn = 3.473 Å) [18], BaSn5 (dSn−Sn = 2.959−3.437 Å; dBa−Sn = 3.549−3.729 Å) [14], and Ba3Sn5 (dSn−Sn = 2.992−3.695 Å; dBa−Sn = 3.488−3.731 Å) [19].

Electrical resistivity measurements (Figure 2) for single-crystals of BaSn3 show metallic behavior with ρ300K on the order of 200 μΩ·cm. At temperature below ca. 4.5 K, the material undergoes a phase change, following which it becomes superconducting, as evidenced from the abrupt jump in the ρ(T) curve from nearly 12 μΩ·cm to zero resistivity at 3.7 K. This behavior is somewhat puzzling, since superconductivity was reported originally below 2.4 K by Fässler et al. [12,13]. Perhaps even more puzzling is the fact that the ρ(T) results are reproducible between crystals from different batches, while heat capacity measurements on the same crystals (supporting information) show no anomalies at this temperature regime. A reasonable interpretation of the data can be accomplished if one recognizes that TC is very close to the critical temperature of elemental Sn (3.7 K [20]), and since we cannot rule out the presence of small amounts of free Sn in the BaSn3 specimens grown from Sn flux, most likely this material is not a superconductor.

The resistivity of single-crystals of the In-doped BaSn2.8In0.2 confirms similar metallic behavior with ρ300K on the order of 230 μΩ·cm). This material also becomes a superconductor, but at a higher temperature (ca. 6 K). This TC is 2−3 degrees higher than the critical temperature of elemental Sn (3.7 K [20]) and In (3.4 K [20]), however the heat capacity measurements mirror the behavior observed for BaSn3 and show no anomalies at this temperature regime. Although the ρ(T) behavior of another BaSn3−xInx sample is similar (TC is slightly different but the sample might inadvertently has slightly different doping level), the susceptibility data indicate only a small volume fraction. Therefore, we argue that bulk superconductivity is not an intrinsic property of these materials.

3. Experimental Section

Both BaSn3 and BaSn2.8In0.2 were obtained using excess of Sn and In as metal fluxes, respectively. In all cases, the corresponding elements (Alfa or Aldrich, purity greater than 99.9%) were loaded in alumina crucibles (2 cm3) inside an argon-filled glove box. After enclosing the crucibles in evacuated fused silica tubes, they were heated in programmable muffle furnaces to 1000 °C (rate 10 °C/h), equilibrated for 5 h, cooled to 450 °C (rate −300 °C/h) and annealed at 450 °C for 12 h. The flux was removed (by decanting it) subsequent to another cooling step to 400 °C (rate −10 °C/h). The silica tubes were crack-opened in the glove box and the crystals were isolated.

BaSn3 crystals grow very big (up to 7–8 mm long) from Sn flux reactions (loaded in the molar ratio Ba:Sn = 2:15), whereas similar in size crystals of BaSn3−xInx emerge only from In flux reactions (loaded in the molar ratio Ba:In:Sn = 2:15:7.5). In both cases, the crystals' appear as silver rods. Extensive efforts to synthesize the desired clathrate Ba8In16Sn30 (or any other ternary phase in this system) have been unsuccessful so far.

X-ray powder diffraction patterns were taken at room temperature on a Rigaku MiniFlex powder diffractometer using Cu Kα radiation. Typical runs included θθ scans (2θmax = 80°) with scan steps of 0.05° and 5 sec/step counting time. The JADE 6.5 software package [21] was used for data analysis. The intensities and the positions of the experimentally observed peaks and those calculated from the crystal structures matched very well. Since the diffractometer was enclosed in a nitrogen-filled glove box, we were able to test the air-sensitivity of the title compounds by comparing the diffraction patterns of the freshly prepared samples with those that had been exposed to air. Based on the test results, all of the title compounds are moderately unstable and decompose/hydrolyze after an overnight exposure to air.

Intensity data collections were carried out on a Bruker SMART CCD diffractometer at 120 K using graphite-monochromated Mo-Kα radiation. Suitable single-crystals of BaSn3 and BaSn3−xInx were selected in a glove box and cut to smaller dimensions (less than 0.1 mm) under mineral oil. The SMART [22] and SAINTplus [23] programs were used for the data collection, integration and the global unit cell refinement from all data. Semi-empirical absorption correction was applied with SADABS [24]. The structures were refined to convergence by full matrix least-square methods on F2, as implemented in SHELXTL [25]. All atoms were refined with anisotropic displacement parameters.

In the refinements of BaSn3−xInx, the Sn atoms, located at Wyckoff site 6h, were determined to be statistically disordered with a small amount of In (vide supra). This was done by freeing the occupation parameter of the Sn site, while keeping the Ba-one fixed, which suggested a slight deviation from full occupancy. Because the X-ray scattering factors for In and Sn are very close, reliable refinements of the composition were not possible and the ratio of Sn to In was established from elemental microanalysis (JEOL 7400F electron microscope equipped with an INCA-OXFORD energy-dispersive spectrometer). In agreement with the averaged ratio of Sn:In = 2.8:0.2, the 6h site was assigned as 7 atomic % In and the balance Sn (fixed), yielding a formula BaSn2.8In0.2. Selected details of the data collections and structure refinement parameters are summarized in Table 1. The refined atomic coordinates and equivalent isotropic displacement parameters are given in Table 2. Additional details of the crystal structure investigations may be obtained from Fachinformationszentrum Karlsruhe, D-76344 Eggenstein-Leopoldshafen, Germany (Fax: +49-7247-808-666, E-Mail: crysdata@fiz-karlsruhe.de) on quoting the depository numbers CSD-423108 for BaSn3 and CSD-423109 for BaSn2.8In0.2, respectively.

Four-probe measurements of the electrical resistivity and heat capacity measurements (thermal relaxation method) as a function of the temperature were carried out on a Quantum Design PPMS system in the interval 2 to 300 K with excitation current of 1 mA. The electrical resistivity was measured on at least two crystals from each batch to assure reproducibility. Polished single crystals were used to minimize geometric errors.

4. Conclusions

Large single-crystals of BaSn3 and BaSn2.8In0.2 were obtained using the flux method, following systematic investigations of the Ba–In–Sn ternary diagram. The first and only (so far) ternary phase, the solid-solution BaSn3−xInx was identified from a reaction of the elements using excess in as a metal flux, while BaSn3 crystals can be readily grown from Sn flux. Both structures were refined from single-crystal X-ray diffraction data and the composition of BaSn2.8In0.2 was independently confirmed via energy-dispersive X-ray spectroscopy (EDX). Electrical resistivity measurements on single crystals of both phases indicate metallic behavior in the temperature interval 6−300 K and superconducting behavior below 4–6 K. However, the susceptibility data indicate only a small volume fraction of a superconducting phase in the samples. Based on this, and the fact that the heat capacity measurements show no anomalies around 2–10 K, we argue that bulk superconductivity is not an intrinsic property of these materials.

Crystals 01 00104f1 1024

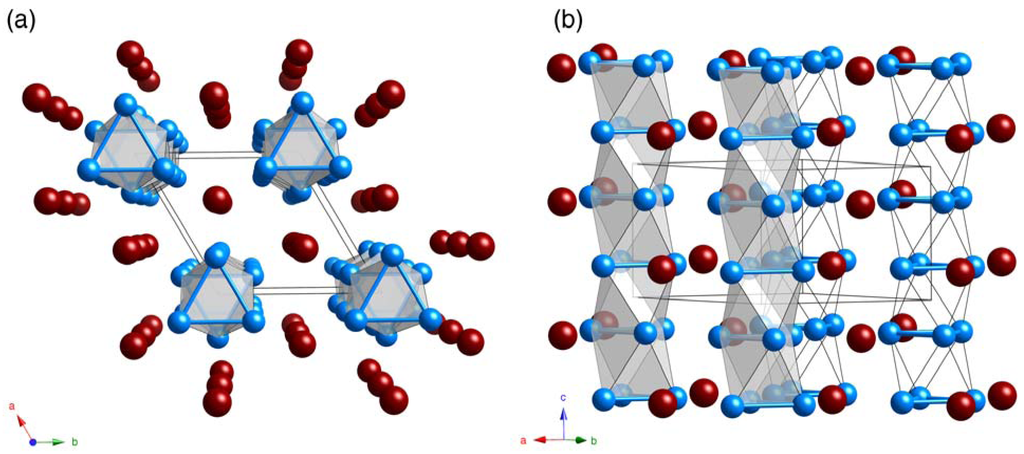

Figure 1. Views of the crystal structure of BaSn3 and BaSn3−xInx, projected along [001] (a) and slightly off [110] (b). The linkage of the Sn6 octahedra (and (Sn,In)6, respectively) via face-sharing into infinite chains is emphasized. Ba atoms are drawn as red spheres, and the Sn (or disordered Sn/In) atoms as blue spheres. The thick cylinders between the Sn atoms signify the [Sn3]2− triangles in the ab-planes (d ≈ 3.05−3.07 Å) and the thin lines represent the longer interlayer bond (d ≈ 3.22−3.25 Å).

Click here to enlarge figure

Figure 1. Views of the crystal structure of BaSn3 and BaSn3−xInx, projected along [001] (a) and slightly off [110] (b). The linkage of the Sn6 octahedra (and (Sn,In)6, respectively) via face-sharing into infinite chains is emphasized. Ba atoms are drawn as red spheres, and the Sn (or disordered Sn/In) atoms as blue spheres. The thick cylinders between the Sn atoms signify the [Sn3]2− triangles in the ab-planes (d ≈ 3.05−3.07 Å) and the thin lines represent the longer interlayer bond (d ≈ 3.22−3.25 Å).
Crystals 01 00104f1 1024
Crystals 01 00104f2 1024

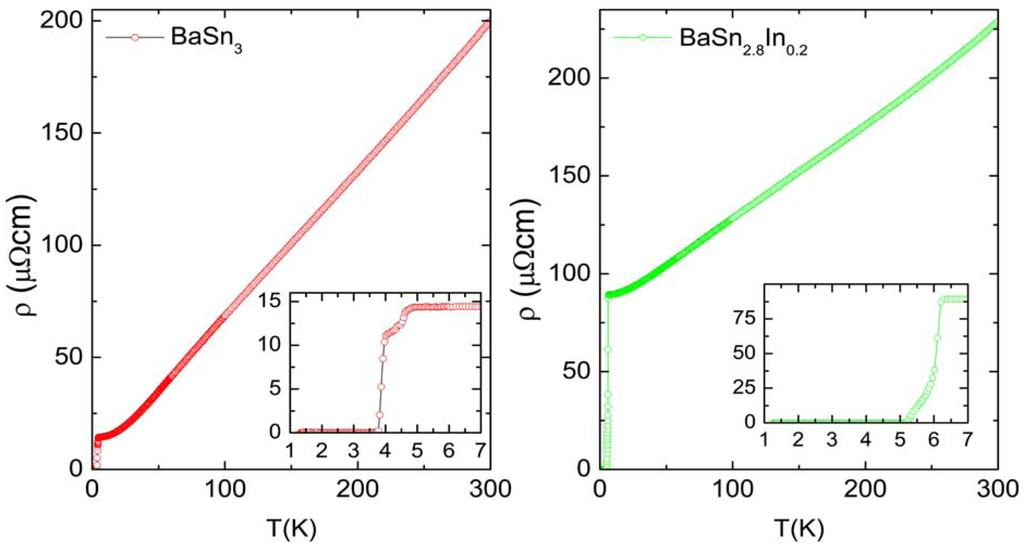

Figure 2. Temperature dependent electrical resistivity measurements for single-crystals of BaSn3 and BaSn2.8In0.2 (Inset: Magnified view of the low temperature region of the resistivity).

Click here to enlarge figure

Figure 2. Temperature dependent electrical resistivity measurements for single-crystals of BaSn3 and BaSn2.8In0.2 (Inset: Magnified view of the low temperature region of the resistivity).
Crystals 01 00104f2 1024
Table Table 1. Selected crystal data and structure refinement parameters for BaSn3 and BaSn3−xInx.

Click here to display table

Table 1. Selected crystal data and structure refinement parameters for BaSn3 and BaSn3−xInx.
empirical formulaBaSn3BaSn2.8In0.2
Fw, g/mol493.41492.64
Crystal systemHexagonalHexagonal
Space groupP63/mmc (No. 194)P63/mmc (No. 194)
a (Å)7.2279(17)7.2604(13)
c (Å)5.4689(26)5.3817(20)
V3)247.43245.68
Z22
T (K)120(2)120(2)
Radiation, λ (Å)Mo Kα, 0.71073Mo Kα, 0.71073
ρ (g·cm−3)6.6236.659
μ (cm−1)226.2227.0
R1 [I > 2σ(I)]a0.0140.021
wR2 [I > 2σ (I)]a0.0300.041
largest peak/hole (e·Å−3)0.45/ −0.840.68/ −1.67

aR1 = Σ||Fo| − |Fc||/Σ|Fo|; wR2 = [Σ[w(|Fo2Fc2)2]/ Σ[w(Fo2)2]]1/2, where w = 1/[σ2 Fo2 + (AP)2 + BP], P = [Fo2 +2 Fc2 ]/3; A and B: weight coefficients.

Table Table 2. Atomic coordinates and equivalent isotropic displacement parameters (Ueq)a.

Click here to display table

Table 2. Atomic coordinates and equivalent isotropic displacement parameters (Ueq)a.
AtomSite bxyzUeq2)
BaSn3
Ba2c¼0.0100(2)
Sn6h0.7186(1)0.8593(1)¾0.0094(2)

BaSn2.8In0.2
Ba2c¼0.0085(4)
Sn/In6h0.7176(1)0.8588(1)¾0.0095(3)

aUeq is defined as one third of the trace of the orthogonalized Uij tensor;bStandardization of the coordinates moves the origin by 0 0 ½ and changes the Wyckoff letter for Ba from 2c (⅓ ⅔ ¼) to 2d (⅓ ⅔ ¾). The Wyckoff letter for the Sn (Sn/In) site does not change, but the coordinates become x = 0.1407(1); y = 0.2814(1); z = ¼ and x = 0.1412(1); y = 0.2824(1); z = ¼, for BaSn3 and BaSn2.8In0.2, respectively.

The authors gratefully acknowledge the financial support from the University of Delaware and US Department of Energy through a grant DE-SC0001360.

References and Notes

  1. Nolas, G.S.; Cohn, J.L.; Slack, G.A.; Schjuman, S.B. Semiconducting Ge clathrates: Promising candidates for thermoelectric applications. Appl. Phys. Lett. 1998, 73, 178–180. [Google Scholar]
  2. Christensen, M.; Johnson, S.; Iversen, B.B. Thermoelectric clathrates of type I. Dalton Trans. 2010, 39, 978–992. [Google Scholar]
  3. Bobev, S.; Meyers, J., Jr.; Fritsch, V.; Yamasaki, Y. Synthesis and structural characterization of novel clathrate-II compounds of silicon. Proc. Int. Conf. Thermoelectr. 2006, 25, 48–52. [Google Scholar]
  4. Kroner, R.; Peters, K.; von Schnering, H.G.; Nespers, R. Crystal structure of the clathrate-II, Ba16Ga32Sn104. Z. Kristallogr. NCS 1998, 644, 664–664. [Google Scholar]
  5. Eisenmann, B.; Schäfer, H.; Zagler, R. Die Verbindungen A8B16C30 (A = Sr, Ba; B = Al, Ga; C = Si, Ge, Sn) und ihre Käfigstrukturen. J. Less-Common Met. 1986, 118, 43–55. [Google Scholar]
  6. Suekuni, K.; Avila, M.A.; Umeo, K.; Fukuoka, H.; Yamanaka, S.; Nakagawa, T.; Takabatake, T. Simultaneous structure and carrier tuning of dimorphic clathrate Ba8Ga16Sn30. Phys. Rev. 2008, B77, 235119. [Google Scholar]
  7. Carrillo-Cabrera, W.; Cardoso Gil, R.H.; Tran, V.H.; Grin, Yu. Refinement of the crystal structure of Ba8Ga17.2Sn28.8. Z. Kristallogr. NCS 2002, 217, 181–182. [Google Scholar]
  8. Evans, J.E.; Wu, Y.; Kranak, V.F.; Newman, N.; Reller, A.; Garcia-Garcia, F.J.; Häussermann, U. Structural properties and superconductivity in the ternary intermetallic compounds MAB (M = Ca, Sr, Ba; A = Al, Ga, In; B = Si, Ge, Sn). Phys. Rev. 2009, B80, 064514. [Google Scholar]
  9. Dürr, I.; Schwarz, M.; Wendorff, M.; Röhr, C. Novel barium triel/tetrelides with the Pu3Pd5 structure type. J. Alloys Compounds 2010, 494, 62–71. [Google Scholar]
  10. Tobash, P.H.; Yamasaki, Y.; Bobev, S. Gallium-tin mixing in BaGa(4−x)Snx [x = 0.89(2)] with the BaAl4 structure type. Acta Crystallogr. 2007, E63, i35–i37. [Google Scholar]
  11. Ray, K.W.; Thompson, R.G. A Study of Barium-Tin Alloys. Metals Alloys 1930, 1, 314–316. [Google Scholar]
  12. Fässler, T.F.; Kronseder, C. BaSn3: Superconductor at the border of Zintl phases and intermetallic compounds. Real-space analysis of band structures. Angew. Chem. Int. Ed. Engl. 1997, 36, 2683–2686. [Google Scholar]
  13. Ponou, S.; Fässler, T.F.; Kienle, L. Structural complexity in intermetallic alloys: long-range order beyond 100 nm in the system of BaSn3/BaBi3. Angew. Chem. Int. Ed. Engl. 2008, 47, 3999–4004. [Google Scholar]
  14. Fässler, T.F.; Hoffmann, S.; Kronseder, C. Novel tin structure motives in superconducting BaSn5- The role of lone pairs in intermetallic compounds (1). Z. Anorg. Allg. Chem. 2001, 627, 2486–2492. [Google Scholar]
  15. Rahlfs, P. Die Kristallstruktur des Ni3Sn (Mg3Cd-Typ = Überstruktur der hexagonal dichtesten Kugelpackung). Metallwirtschaft, Metallwissenschaft, Metalltechnik 1937, 16, 343–345. [Google Scholar]
  16. Betteridge, W. Relation between the degree of order and the lattice parameters of Cu3Au. J. Inst. Met. 1949, 75, 559–570. [Google Scholar]
  17. Rieger, W.; Parthé, E. Alkaline earth silicides, germanides and stannides with CrB structure type. Acta Crystallogr. 1967, 22, 919–922. [Google Scholar]
  18. Kim, S.-J.; Fässler, T.F. Crystal structure of barium distannide, BaSn2. Z. Kristallogr. NCS 2008, 223, 325–326. [Google Scholar]
  19. Zürcher, F.; Nesper, R.; Hoffmann, S.; Fässler, T. Novel Arachno-type (X5)6− Zintl anions in Sr3Sn5, Ba3Sn5, and Ba3Pb5 and charge influence on Zintl clusters. Z. Anorg. Allg. Chem. 2001, 627, 2211–2219. [Google Scholar]
  20. Wernick, J.H.; Matthias, B.T. Superconductivity in the In-Sn System. Chem. Phys. 1961, 34, 2194–2195. [Google Scholar]
  21. JADE, Version 6.5; Materials Data, Inc.: Livermore, CA, USA, 2003.
  22. SMART NT, Version 5.63; Bruker Analytical X-ray Systems Inc.: Madison, WI, USA, 2003.
  23. SAINT NT, Version 6.45; Bruker Analytical X-ray Systems Inc.: Madison, WI, USA, 2003.
  24. SADABS NT, Version 2.10; Bruker Analytical X-ray Systems Inc.: Madison, WI, USA, 2001.
  25. SHELXTL, Version 6.12; Bruker Analytical X-ray Systems Inc.: Madison, WI, USA, 2001.
