Catalysts 2018, 8(8), 312; doi:10.3390/catal8080312

Article
Dehydrogenative Transformation of Alcoholic Substrates in Aqueous Media Catalyzed by an Iridium Complex Having a Functional Ligand with α-Hydroxypyridine and 4,5-Dihydro-1H-imidazol-2-yl Moieties
Graduate School of Human and Environmental Studies, Kyoto University, Kyoto 606-8501, Japan
*
Author to whom correspondence should be addressed.
Received: 29 June 2018 / Accepted: 27 July 2018 / Published: 31 July 2018

Abstract

:
A new catalytic system that employs water as an environmentally friendly solvent for the dehydrogenative oxidation of alcohols and lactonization of diols has been developed. In this catalytic system, a water-soluble dicationic iridium complex having a functional ligand that comprises α-hydroxypyridine and 4,5-dihydro-1H-imidazol-2-yl moieties exhibits high catalytic performance. For example, the catalytic dehydrogenative oxidation of 1-phenylethanol in the presence of 0.25 mol % of the iridium catalyst and base under reflux in water proceeded to give acetophenone in 92% yield. Additionally, under similar reaction conditions, the iridium-catalyzed dehydrogenative lactonization of 1,2-benzenedimethanol gave phthalide in 98% yield.
Keywords:
dehydrogenation; iridium catalyst; functional ligand; alcohol; diol; ketone; lactone; water solvent

1. Introduction

From the viewpoint of green sustainable chemistry, it is important to accomplish synthetic organic reactions efficiently using water as a solvent. Because water is incombustible, non-toxic, inexpensive, and easily available in large quantities, it is important that research aims at using water as a solvent for organic synthesis [1,2,3,4,5,6]; however, it is generally difficult to use water as a solvent in such reactions, especially in reactions that require homogeneous transition metal catalysts. This is probably due to the fact that most homogeneous transition metal catalysts have problems when used in aqueous media, such as (1) instability in water, (2) insolubility in water, and/or (3) inactivity in water. These limitations have prevented the development of methods for catalytic organic synthesis in aqueous media.
Recently, with an objective to overcome the aforementioned problems, we developed a homogeneous dicationic iridium catalyst with a bipyridine-based functional ligand, which is highly soluble and stable in water [7]. Additionally, we reported some catalytic systems that were active for the dehydrogenative oxidation reaction of alcohols in aqueous media, for the production of aldehydes, ketones, carboxylic acids, and lactones [8,9,10]. These achievements were remarkable as uncommon examples of catalytic organic synthesis using water as a solvent [11,12,13,14,15,16,17,18,19,20,21,22]; however, some issues remained unresolved such as (1) the necessity of using comparatively large amounts of catalyst, (2) the significant effort required to synthesize the functional ligands, and (3) the limited scope of substrates that can be used as a starting material for the dehydrogenative reactions.
In this study, we synthesized a series of iridium complexes bearing a bidentate functional ligand based on a pyridine and an imidazoline ring. These catalysts were successfully applied to the production of ketones and lactones in water using a small amount of catalyst.

2. Results and Discussion

First, a series of dicationic complexes 14 were prepared (Figure 1). Complexes 1 and 2 have bidentate functional ligands that comprise α-hydroxypyridine and 4,5-dihydro-1H-imidazol-2-yl moieties. Complex 3 does not have hydroxy group in the pyridine ring of the functional ligand. Complex 4 includes methoxy group instead of hydroxy group at the α-position in the pyridine ring of the functional ligand. The structures of these complexes 14 were determined by NMR data and elemental analyses. For example, in the 1H NMR analysis of 1 [23], three signals in the aromatic region at δ 8.13, 7.63, and 7.33 ppm, which would be assigned as protons on the pyridine ring, were observed. Additionally, two sets of signals that can be assigned to the methylene protons in 4,5-dihydro-1H-imidazol-2-yl moiety were observed at δ 4.34 and 4.10 ppm as triplet signals with each integration values corresponding to 2H, clearly indicating the bidentate N,N-chelating nature of the ligand in complex 1. Details of the procedures for the preparation of complexes 14 and their analytical data are included in the experimental section. All these complexes were highly soluble in water and stable under air or in water for extended periods of time. Therefore, we decided to explore their applications as catalysts for the dehydrogenative oxidation of organic substrates in aqueous media following our previous work on this type of reaction.
Thus, we examined the dehydrogenative oxidation of 1-phenylethanol (5a) to acetophenone (6a) in aqueous media using the water-soluble iridium complexes 14. The results are summarized in Table 1. Complex 1 and 2 having an α-hydroxypyridine moiety in the functional ligand exhibited high catalytic performance, with the activity of 1 slightly higher than that of 2 (entries 1 and 2). High yield of 6a was accomplished by the employment of a very small amount (0.25 mol %) of both catalyst 1 and Na2CO3 (entry 1). The presence of hydroxy group at the α-position of the functional ligand was observed to be indispensable for achieving a high catalytic performance; complex 3 without a hydroxy group and complex 4 with a methoxy group exhibited poor catalytic activity (entries 3 and 4). The importance of hydroxy group at α-position of the pyridine ring in the functional ligand will be discussed later in the explanation of catalytic mechanism (vide infra). When compared with our previously reported catalysts for the dehydrogenative oxidation of alcohols in aqueous media, complex 1 can be regarded as one of the most effective catalysts [7,9,24].
With an optimal catalyst in hand, we further focused on the optimization of basic additive for the dehydrogenative oxidation of 5a to 6a catalyzed by 1. The results are summarized in Table 2. The reaction without any basic additive resulted in a very low yield of 6a (16%). However, addition of a variety of bases, such as Na2CO3, NaOH, NaHCO3, Li2CO3, K2CO3, and Cs2CO3, considerably improved the catalytic activity of 1, with the highest yield of 6a (92%) obtained using 0.25 mol % of Na2CO3 (entry 2). We think that the addition of base would lead to the formation of catalytically active monocationic species. The detailed explanation of the effect of base will be discussed later (vide infra).
To explore the scope of the new catalytic system that employs 1 and Na2CO3 in aqueous media, various secondary alcohols were subjected to the optimized reaction conditions. The results are summarized in Table 3. The reactions of 1-arylethanols bearing electron-donating and electron-withdrawing substituents in the aromatic ring smoothly proceeded to give the corresponding acetophenone derivatives in moderate to high yields. Methoxy, N,N-dimethylamino, trifluoromethyl, fluoro, and chloro groups were tolerated in this catalytic system. 1-Indanol and 1-tetralol were also converted into the corresponding ketones in excellent yields. Additionally, 1-phenyl-1-propanol could be dehydrogenatively oxidized to propiophenone, even though a relatively higher catalyst loading and longer reaction time were required in this case.
A possible mechanism for the dehydrogenative oxidation of alcohols catalyzed by 1 is depicted in Scheme 1. Firstly, the base-promoted elimination of triflic acid along with the dissociation of aquo ligand from catalyst 1 would occur to generate a monocationic coordinatively unsaturated species A having an α-pyridonate moiety connected to the 4,5-dihydro-1H-imidazol-2-yl unit. Further, activation of the alcohol substrate would occur through transition state B which produces the ketonic product with the concomitant formation of iridium hydride species C. The final step would involve the protonolysis of the hydride on the iridium center by the hydroxy proton on the functional ligand, regenerating the catalytically active unsaturated species A along with release of hydrogen gas.
To verify the possible mechanism, some experiments were carried out. First, a quantitative analysis of the evolved hydrogen gas was conducted (Equation (1)). When the dehydrogenative oxidation of 1-indanol in aqueous media on a large scale (10 mmol scale) was performed, hydrogen gas was obtained in 98% yield, which was almost equimolar amount to that of the ketone product (99%). The second experiment addressed the formation of the catalytically active monocationic species A (Equation (2)). By the treatment of the dicationic catalyst 1 with one equivalent of Na2CO3 at room temperature for 10 min, a new monocationic complex 9 having an α-pyridonate ring connected to the 4,5-dihydro-1H-imidazol-2-yl moiety, which is closely related to the species A in Scheme 1, was isolated in 33% yield. The structure of 9 was determined by spectroscopic data (see the Supplementary Materials). Further, the catalytic performance of 9 was investigated (Equation (3)). As expected, the complex 9 showed high catalytic activity for the dehydrogenation of 1-phenylethanol in water with a loading of 0.25 mol % even in the absence of base to give acetophenone in a high yield (90%). We assume that the results of these reactions (Equations (1)–(3)) strongly support the proposed catalytic cycle that is depicted in Scheme 1.

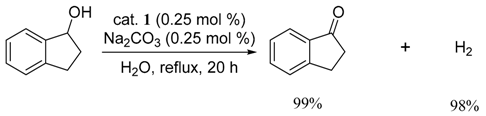

Catalysts 08 00312 i016

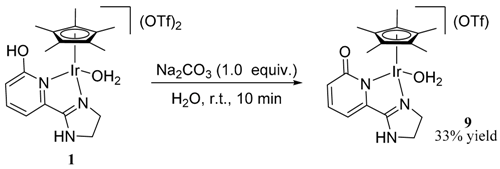

Catalysts 08 00312 i017
Catalysts 08 00312 i018
As a further application of the dehydrogenative oxidation system catalyzed by 1, we examined the dehydrogenation of diols in water. Although we have previously reported a similar catalytic system for the dehydrogenative lactonization using a water-soluble iridium catalyst having a bipyridine-based functional ligand, a relatively high catalyst loading (1.0–3.0 mol %) was required in those cases [10]. Therefore, in this study, we attempted the reactions of various diols using 0.25 mol % of catalyst 1 and Na2CO3. The results are summarized in Table 4. A variety of lactones having five- or six-membered ring structures could be obtained in good to excellent yields by conducting the reactions in aqueous media. For the substrates depicted in entries 5–7, two isomers of lactones were obtained. In those cases, each product was isolated as a mixture of isomers, the ratios of which were determined by 1H NMR analysis.
The reaction pathway for dehydrogenative lactonization is illustrated in Scheme 2. In the first step, one of the alcohol moieties in the diol substrate would be transformed to the aldehyde by catalytic dehydrogenation. Then, an intramolecular cyclization would afford the corresponding hemiacetal. Finally, dehydrogenative transformation would occur to generate lactone as a product.

3. Experimental Section

3.1. General

1H and 13C{1H} NMR spectra were recorded on ECX-500 and ECS-400 spectrometers (JEOL, Akishima, Tokyo, Japan) at room temperature. Gas chromatography (GC) analyses were performed on a GC353B gas chromatograph (GL-Sciences, Shinjuku, Tokyo, Japan) with a capillary column [InertCap Pure WAX (GL-Sciences, Shinjuku, Tokyo, Japan)]. Elemental analyses were carried out at the Microanalysis Center of Kyoto University. Silica-gel column chromatography was carried out using Wako-gel C-200 (FUJIFILM Wako Pure Chemical Corporation, Doshoumatchi, Osaka, Japan). The compounds, [Cp*IrCl2]2 (Cp* = η5-pentamethylcyclopentadienyl) [25] and [Cp*Ir(OH2)3](OTf)2 [26] were prepared according to the literature method. The diol 7b was prepared by the reduction of 2-benzoylbenzoic acid using LiAlH4 [10]. The diols 7eg were prepared by the reduction of the corresponding dicarboxylic acids using BH3-THF [10]. All other reagents are commercially available and were used as received.

3.2. Preparation of Dicationic Complexes 14

In a two-necked round-bottomed flask under argon atmosphere, [Cp*Ir(OH2)3](OTf)2 (1.14 g, 1.68 mmol), 2-(4,5-dihydro-1H-imidazol-2-yl)-6-methoxymethoxypyridine (348 mg, 1.68 mmol), and degassed distilled water (10 mL) were placed. The mixture was stirred at 60 °C for 12 h. After cooling to room temperature, the mixture was washed with CH2Cl2 (15 mL × 3) and Et2O (10 mL × 1). Evaporation of the water layer under vacuum gave a crude product of complex 1 as a yellow powder. The product was purified by recrystallization from water (orange crystals, 965 mg, 1.20 mmol, 71%).
Analysis: 1H NMR (400 MHz, methanol-d4): δ 8.13 (t, J = 7.2 Hz, 1H, aromatic), 7.63 (d, J = 7.2 Hz, 1H, aromatic), 7.33 (d, J = 8.0 Hz, 1H, aromatic), 4.34 (t, J = 10 Hz, 2H, -N(CH2)-), 4.10 (t, J = 11 Hz, 2H, -N(CH2)-), 1.77 (s, 15H, Cp*). 13C{1H} NMR (100 MHz, methanol-d4): δ 173.2, 165.6, 144.9, 144.8, 123.3(q, CF3), 118.2, 117.4, 89.6, 53.8, 47.0, 9.7. 1H NMR (500 MHz, D2O): δ 7.97 (dd, J = 8.0 Hz, 7.0 Hz, 1H, aromatic), 7.42 (d, J = 7.0 Hz, 1H, aromatic), 7.23 (d, J = 8.0 Hz, 1H, aromatic), 4.27 (t, J = 10.5 Hz, 2H, -N(CH2)-), 4.02 (t, J = 10.5 Hz, 2H, -N(CH2)-), 1.70 (s, 15H, Cp*). 13C{1H} NMR (125 MHz, D2O): δ 172.5, 165.0, 144.1, 143.5, 120.3 (q, JCF = 316 Hz), 117.2, 117.1, 88.6, 53.1, 46.4, 9.27. Anal. Calcd for C20H26N3O8IrF6S2: C, 29.78; H, 3.25; N, 5.21. Found: C, 29.42; H, 3.25; N, 5.14.
Complexes 24 were prepared by the similar procedures for complex 1.
Complex 2 (61%): Analysis: 1H NMR (400 MHz, methanol-d4): δ 8.15 (t, J = 8.0 Hz, 1H, aromatic), 7.92 (d J = 8.0 Hz, 1H, aromatic), 7.35 (d, J = 8.0 Hz, 1H, aromatic), 4.20 (m, 4H, -N(CH2CH2)N-), 3.50 (s, 3H, NCH3), 1.75 (s, 15H, Cp*). 13C{1H} NMR (100 MHz, methanol-d4): δ 171.3, 165.7, 144.9, 144.8, 123.3, 120.0, 117.4, 89.8, 56.7, 51.9, 35.7, 9.8. Anal. Calcd for C21H29N3O8IrF6S2•2H2O: C, 29.40; H, 3.88; N, 4.90. Found: C, 29.50; H, 3.62; N, 4.92.
Complex 3 (75%): Analysis: 1H NMR (400 MHz, methanol-d4): δ 9.24 (d, J = 5.2Hz, 1H, aromatic), 8.45 (t, J = 7.6 Hz, 1H, aromatic), 8.23 (d, J = 7.6 Hz, 1H, aromatic), 8.02 (t, J = 6.4 Hz, 1H, aromatic), 4.38 (t, J = 10 Hz, 2H, -N(CH2)-), 4.18 (t, J = 11 Hz, 2H, -N(CH2)-), 1.80 (s, 15H, Cp*). 13C{1H} NMR (100 MHz, methanol-d4): δ 172.5, 154.3, 148.0, 143.2, 132.1, 126.8, 123.3, 89.8, 53.6, 47.4, 9.12. Anal. Calcd for C20H26N3O7IrF6S2: C, 30.38; H, 3.31; N, 5.31. Found: C, 30.29; H, 3.32; N, 5.27.
Complex 4 (88%): Analysis: 1H NMR (400 MHz, methanol-d4): δ 8.36 (t, J = 7.6 Hz, 1H, aromatic), 7.80 (d, J = 1.2 Hz, 1H, aromatic), 7.69 (d, J = 9.2 Hz, 1H, aromatic), 4.36 (m, 2H, -N(CH2-)), 4.13 (m, 2H, -N(CH2)-), 4.34 (s, 3H, OCH3), 1.76 (s, 15H, Cp*). 13C{1H} NMR (100 MHz, methanol-d4): δ 173.1, 165.9, 146.2, 145.7, 123.4, 119.4, 114.4, 89.9, 59.1, 54.0, 47.1, 9.8. Anal. Calcd for C21H28N3O8IrF6S2•2H2O: C, 29.44; H, 3.76; N, 4.90. Found: C, 29.72; H, 3.73; N, 4.84.

3.3. General Procedures for the Dehydrogenative Oxidation of 1-Phenylethanol (Table 1 and Table 2)

In a flask under argon atmosphere, catalyst 1 (0.0025 mmol, 0.25 mol %), 1-phenylethanol (1.0 mmol), degassed distilled water (3.0 mL) and 0.1 M Na2CO3 aq. (25 µL) were placed. The mixture was stirred under reflux for 20 h in an oil bath (135 °C). After cooling to room temperature, the mixture was diluted with THF (10 mL). The conversion of 1-phenylethanol and the yield of acetophenone were determined by GC analysis using biphenyl as an internal standard.

3.4. General Procedure for the Dehydrogenative Oxidation of Secondary Alcohols (Table 3)

In a flask under argon atmosphere, catalyst 1 (0.0025 mmol, 0.25 mol %), secondary alcohol (1.0 mmol), degassed distilled water (3.0 mL) and 0.1 M Na2CO3 aq. (25 µL, 0.0025 mmol, 0.25 mol %) were placed. The mixture was stirred under reflux for 20 h in an oil bath (135 °C). After cooling to room temperature, the produced ketones were isolated by column chromatography on silica-gel (eluent: hexane/ethyl acetate).
4′-Methylacetophenone (6b) [27]: 1H NMR (400 MHz, CDCl3): δ 7.87 (m, 2H, aromatic), 7.26 (m, 2H, aromatic), 2.58 (s, 3H, -COCH3), 2.41 (s, 3H, -CH3). 13C{1H} NMR (100 MHz, CDCl3): δ 197.8, 143.8, 134.7, 129.2, 128.4, 26.5, 21.6.
4′-Methoxyacetophenone (6c) [28]: 1H NMR (400 MHz, CDCl3): δ 7.95 (m, 2H, aromatic), 6.93 (m, 2H, aromatic), 3.87 (s, 3H, OCH3), 2.56 (s, 3H, -COCH3). 13C{1H} NMR (100 MHz, CDCl3): δ 196.8, 163.5, 130.6, 130.3, 114.0, 55.5, 26.3.
4′-(N,N-dimethylamino)acetophenone (6d) [27]: 1H NMR (400 MHz, CDCl3): δ 7.86 (d, J = 6.8 Hz, 2H, aromatic), 6.64 (m, 2H, aromatic), 3.03 (s, 6H), 2.49 (s, 3H). 13C{1H} NMR (100 MHz, CDCl3): δ 196.4, 153.4, 130.5, 125.1, 110.6, 40.0, 26.0.
4′-Trifluoromethylacetophenone (6e) [29]: 1H NMR (400 MHz, CDCl3): δ 8.04 (d, J = 8.4 Hz, 2H, aromatic), 7.71 (d, J = 7.6 Hz, 2H, aromatic), 2.63 (s, 3H, -COCH3). 13C{1H} NMR (100 MHz, CDCl3): δ 197.1, 139.8, 134.4 (q, JCF = 32.4 Hz), 128.7, 125.8 (d, JCF = 2.8 Hz), 123.7 (q, JCF = 271.8 Hz), 26.9.
4′-Fluoroacetophenone (6f) [29]: 1H NMR (400 MHz, CDCl3): δ 7.94 (m, 2H, aromatic), 7.08 (t, J = 8.8 Hz, 2H, aromatic), 2.54 (s, 3H, -COCH3). 13C{1H} NMR (100 MHz, CDCl3): δ 196.5, 165.8 (d, JCF = 253.6 Hz), 133.6, 131.0 (d, JCF = 8.5 Hz), 115.6 (d, JCF = 21.9 Hz), 26.5.
4′-Chloroacetophenone (6g) [30]: 1H NMR (400 MHz, CDCl3): δ 7.89 (ddd, J = 8.4, 2.4, 1.6 Hz, 2H, aromatic), 7.42 (dt, J = 8.8, 2.0 Hz, 2H, aromatic), 2.59 (s, 3H, -COCH3). 13C{1H} NMR (100 MHz, CDCl3): δ 196.7, 139.6, 135.5, 129.6, 128.9, 26.6.
3′-Methylacetophenone (6h) [31]: 1H NMR (400 MHz, CDCl3): δ 7.75 (m, 2H, aromatic), 7.33 (m, 2H, aromatic), 2.57 (s, 3H, -COCH3), 2.40 (s, 3H, -CH3). 13C{1H} NMR (100 MHz, CDCl3): δ 198.4, 138.3, 137.1, 133.9, 128.8, 128.4, 125.6, 26.7, 21.3.
3′-Methoxyacetophenone (6i) [28]: 1H NMR (400 MHz, CDCl3): δ 7.50 (m, 1H, aromatic), 7.45 (m, 1H, aromatic), 7.33 (m, 1H, aromatic), 7.07 (m, 1H, aromatic), 3.81 (s, 3H, -OCH3) 2.56 (s, 3H, -COCH3). 13C{1H} NMR (100 MHz, CDCl3): δ 197.9, 159.8, 138.5, 129.6, 121.1, 119.6, 112.4, 55.4, 26.7.
3′-Chloroacetophenone (6j) [31]: 1H NMR (400 MHz, CDCl3): δ 7.88 (m, 1H, aromatic), 7.79 (m, 1H, aromatic), 7.49 (m, 1H, aromatic), 7.37 (t, J = 8.0 Hz, 1H, aromatic), 2.56 (s, 3H, -COCH3). 13C{1H} NMR (100 MHz, CDCl3): δ 196.8, 138.6, 134.9, 133.1, 130.0, 128.4, 126.5, 26.7.
1-Indanone (6k) [32]: 1H NMR (400 MHz, CDCl3): δ 7.70 (d, J = 7.6 Hz, 1H, aromatic), 7.54 (m, 1H, aromatic), 7.44 (m, 1H, aromatic), 7.32 (m, 1H, aromatic), 3.09 (t, J = 6.0 Hz, 2H), 2.70–2.63 (m, 2H). 13C{1H} NMR (100 MHz, CDCl3): δ 207.0, 155.2, 137.2, 134.6, 127.2, 126.7, 123.6, 36.2, 25.8.
α-Tetralone (6l) [32]: 1H NMR (400 MHz, CDCl3): δ 8.01 (m, 1H, aromatic), 7.45 (m, 1H, aromatic), 7.32–7.18 (m, 2H, aromatic), 2.92 (m, 2H), 2.61 (m, 2H), 2.07 (m, 2H). 13C{1H} NMR (100 MHz, CDCl3): δ 198.1, 144.4, 133.2, 132.9, 128.7, 126.9, 126.4, 39.0, 29.5, 23.1.
Propiophenone (6m) [31]: 1H NMR (400 MHz, CDCl3): δ 7.95 (m, 2H, aromatic), 7.52 (m, 1H, aromatic), 7.43 (m, 2H, aromatic), 2.99 (q, J = 7.2 Hz, 2H, CH2CH3), 1.21 (t, J = 7.2 Hz, 3H, CH2CH3). 13C{1H} NMR (100 MHz, CDCl3): δ 200.8, 136.9, 132.9, 128.6, 128.0, 31.8, 8.3.

3.5. Procedure for the Quantitative Analysis of the Evolved Hydrogen Gas in the Dehydrogenative Oxidation of 1-Indanol (Equation (1))

In a flask connected with a gas burette through a condenser under argon atmosphere, catalyst 1 (20.3 mg, 0.025 mmol), distilled water (30 mL), 0.1 M Na2CO3 aq. (250 µL) and 1-indanol (1.35 g, 10 mmol) were placed. The mixture was stirred under reflux for 20 h in an oil bath (135 °C). The yield of 1-indanone was determined by 1H NMR (CDCl3) using triphenylmethane as an internal standard. The volume of evolved gas was measured by a gas burette. The molar amount of hydrogen was calculated using the ideal gas law. The purity of evolved hydrogen gas was confirmed by GC analysis (experimental detail is described in the Supplementary Materials).

3.6. Preparation of Monocationic Complex 9 (Equation (2))

In a flask under argon atmosphere, complex 1 (101.6 mg, 0.126 mmol) was placed. 0.1 M Na2CO3 aq. (1.25 mL) was added and stirred for 10 min at room temperature. Then, the solvent water was evaporated by the vacuum pump and the deposed dark green powder remained. The powder was dissolved in dry CH2Cl2 and filtered by Celite under argon atmosphere. The filtrate organic layer was washed by distilled water (10 mL × 4) under argon atmosphere, then the solvent was removed by evaporation and the dark green powder was obtained (27.2 mg, 0.041 mmol, 33%). Results of the NMR analysis of complex 9 are shown in the Supplementary Materials.

3.7. General Procedure for the Dehydrogenative Lactonization of Diols (Table 4)

In two-necked test tube under argon atmosphere, catalyst 1 (0.0025 mmol, 0.25 mol %), diol (1.0 mmol), distilled water (1.5 mL) and 0.1 M Na2CO3 aq. (25 µL, 0.0025 mmol, 0.25 mol %) were placed. The mixture was stirred under reflux for 20 h in an oil bath (135 °C). After cooling to room temperature, the solvent was evaporated. The yield of the product was determined by 1H NMR using 1,3,5-trimethoxybenzene as an internal standard. The product was isolated by silica-gel column chromatography (eluent: hexane/ethyl acetate).
Phthalide (8a) [33]: 1H NMR (500 MHz, CDCl3): δ 7.91 (d, J = 7.5 Hz, 1H, aromatic), 7.71 (td, J = 7.5, 1.0 Hz, 1H, aromatic), 7.56–7.52 (m, 2H, aromatic), 5.34 (s, 2H, -CH2-). 13C{1H} NMR (125 MHz, CDCl3): δ 171.2, 146.6, 134.1, 129.0, 125.6, 125.6, 122.2, 69.7.
3-Phenyl-1(3H)-isobenzofuranone (8b) [34]: 1H NMR (500 MHz, CDCl3): δ 7.97 (d, J = 7.5 Hz, 1H, aromatic), 7.66 (t, J = 7.5 Hz, 1H, aromatic), 7.56 (t, J = 7.5 Hz, 1H, aromatic), 7.41–7.36 (m, 3H, aromatic), 7.34 (d, J = 7.5 Hz, 1H, aromatic), 7.30–7.27 (m, 2H, aromatic). 13C{1H} NMR (125 MHz, CDCl3): δ 170.7, 149.8, 136.5, 134.5, 129.5, 129.4, 129.1, 127.1, 125.8, 125.7, 123.0, 82.9.
Naphtho[2,3-c]furan-1(3H)-one (8c) [33]: 1H NMR (400 MHz, CDCl3): δ 8.52 (s, 1H, aromatic), 8.06 (d, J = 8.4 Hz, 1H, aromatic), 7.96 (d, J = 8.4 Hz, 1H, aromatic), 7.92 (s, 1H, aromatic), 7.67 (td, J = 6.8, 1.2 Hz, 1H, aromatic), 7.61 (t, J = 8.0 Hz, 1H, aromatic), 5.5 (s, 2H, -CH2-). 13C{1H} NMR (125 MHz, CDCl3): δ 171.1, 140.1, 136.3, 133.2, 130.0, 129.1, 128.2, 127.1, 127.1, 123.5, 120.1, 69.8.
1H,3H-Naphtho[1,8-cd]pyran-1-one (8d) [33]: 1H NMR (400 MHz, CDCl3): δ 8.35 (dd, J = 7.6, 0.8 Hz, 1H, aromatic), 8.08 (d, J = 8.0 Hz, 1H, aromatic), 7.81 (d, J = 8.4 Hz, 1H, aromatic), 7.62 (dd, J = 8.0, 7.2 Hz, 1H, aromatic), 7.53 (t, J = 7.2 Hz, 1H, aromatic), 7.34 (dd, J = 7.2, 0.8 Hz, 1H, aromatic), 5.79 (s, 2H, -CH2-). 13C{1H} NMR (125 MHz, CDCl3): δ 170.3, 139.0, 137.3, 132.7, 131.9, 130.7, 130.2, 128.8, 128.7, 128.6, 128.5, 69.2.
3,4-Dihydro-1H-2-benzopyran-1-one (8ea) [35], 1,4-Dihydro-3H-2-benzopyran-3-one (8eb) [36]: 1H NMR (500 MHz, CDCl3): δ 8.08 (dd, J = 6.4, 0.8 Hz 1H), 7.55 (td, J = 6.0, 1.2 Hz, 1H), 7.41 (t, J = 6.0 Hz, 1H), 7.27 (m, 1H), 4.55 (t, J = 4.8 Hz, 2H), 3.08 (t, J = 4.8 Hz, 2H). 13C{1H} NMR (125 MHz, CDCl3): δ 165.0, 139.5, 133.6, 130.1, 127.5, 127.2, 125.1, 67.2, 27.6. 1H NMR (400 MHz, CDCl3): δ 7.37–7.23 (m, 4H), 5.32 (s, 2H), 3.72 (s, 2H). 13C{1H} NMR (100 MHz, CDCl3): δ 170.7, 131.5, 130.9, 128.6, 126.9, 124.5, 69.9, 36.1.
6-Methyl-1(3H)-isobenzofuranone (8fa) [33], 5-Methyl-1(3H)-isobenzofuranone (8fb) [33]: 1H NMR (500 MHz, CDCl3): δ 7.70 (s, 1H), 7.50 (d, J = 8.0 Hz, 1H), 7.39 (d, J = 8.0 Hz, 1H), 5.27 (s, 2H), 2.50 (s, 3H). 13C{1H} NMR (125 MHz, CDCl3): δ 171.2, 143.8, 139.1, 135.1, 125.6, 125.3, 121.8, 69.6, 21.1. 1H NMR (500 MHz, CDCl3): δ 7.79 (d, J = 8.0 Hz, 1H), 7.34 (d, J = 8.0 Hz, 1H), 7.29 (s, 1H), 5.29 (s, 2H), 2.47 (s, 3H). 13C{1H} NMR (125 MHz, CDCl3): δ 171.1, 147.1, 145.2, 130.0, 125.3, 122.9, 122.4, 69.4, 21.9.
6-Fluoro-1(3H)-isobenzofuranone (8ga) [37]: 1H NMR (500 MHz, CDCl3): δ 7.58 (dd, J = 2.5, 7.0 Hz, 1H, aromatic), 7.49 (m, 1H, aromatic), 7.42 (td, J = 2.5, 8.5 Hz, 1H, aromatic), 5.32 (s, 2H, -CH2-). 13C{1H} NMR (125 MHz, CDCl3): δ 170.1 (d, JCF = 3.5 Hz), 163.2 (d, JCF = 248.0 Hz), 142.0, 127.9 (d, JCF = 9.6 Hz), 123.9 (d, JCF = 8.4 Hz), 122.2 (d, JCF = 23.9 Hz), 112.3 (d, JCF = 23.9 Hz), 69.6 (s).
5-Fluoro-1(3H)-isobenzofuranone (8gb) [37]: 1H NMR (500 MHz, CDCl3): δ 7.93 (dd, J = 8.5, 5.0 Hz, 1H, aromatic), 7.25 (td, J = 8.8, 2.0 Hz, 1H, aromatic), 7.20 (dd, J = 7.5, 1.5 Hz, 1H, aromatic), 5.32 (s, 2H, -CH2-). 13C{1H} NMR (125 MHz, CDCl3): δ 170.0, 166.7 (d, JCF = 255.1 Hz), 149.4 (d, JCF = 10.8 Hz), 128.2 (d, JCF = 9.5 Hz), 122.0, 117.5 (d, JCF = 23.8 Hz), 109.6 (d, JCF = 23.9 Hz), 69.1 (d, JCF = 3.6 Hz).

4. Conclusions

In summary, we have synthesized water-soluble and stable dicationic complexes 14 having a bidentate functional ligand that comprises substituted or non-substituted pyridine and 4,5-dihydro-1H-imidazol-2-yl moieties. Among the prepared complexes, derivative 1, which contained an α-hydroxypyridine in the functional ligand, exhibited high catalytic performance in the dehydrogenative oxidation of secondary alcohols to the corresponding ketones in aqueous media. Furthermore, the complex 1 also exhibited high catalytic activity for the dehydrogenative lactonization of diols in aqueous media. For both reactions, lower catalyst loadings were required as compared to the requirement of the previously reported systems.

Supplementary Materials

The following are available online at http://www.mdpi.com/2073-4344/8/8/312/s1. Figure S1. Reaction setup for the quantitative analysis of the evolved hydrogen gas. Figure S2. GC analyses of the hydrogen gas. a) The chromatogram of the evolved gas by the reaction of 1-indanol. b) The chromatogram of the standard gas of pure hydrogen. Figure S3. 1H NMR(D2O) experiment for detection of the active species.

Author Contributions

M.Y. performed the experiments, analyzed the results, and wrote the manuscript. H.W. performed the experiments and analyzed the results. T.S. contributed to analyze the experimental results and write the manuscript. K.F. guided the research, designed the experiments, and wrote the manuscript.

Funding

This work was financially supported by JSPS KAKENHI Grant Number JP16H01018 and JP18H04255 in Precisely Designed Catalysts with Customized Scaffolding.

Conflicts of Interest

The authors declare no conflicts of interest.

References and Notes

  1. Lindström, U.M. Stereoselective Organic Reactions in Water. Chem. Rev. 2002, 102, 2751–2772. [Google Scholar] [CrossRef] [PubMed]
  2. Chanda, A.; Fokin, V.V. Organic Synthesis “On Water”. Chem. Rev. 2009, 109, 725–748. [Google Scholar] [CrossRef] [PubMed]
  3. Butler, R.N.; Coyne, A.G. Water: Nature’s Reaction Enforcer—Comparative Effects for Organic Synthesis “In-Water” and “On-Water”. Chem. Rev. 2010, 110, 6302–6337. [Google Scholar] [CrossRef] [PubMed]
  4. Simon, M.-O.; Li, C.-J. Green chemistry oriented organic synthesis in water. Chem. Soc. Rev. 2012, 41, 1415–1427. [Google Scholar] [CrossRef] [PubMed]
  5. Kitanosono, T.; Masuda, K.; Xu, P.; Kobayashi, S. Catalytic Organic Reactions in Water toward Sustainable Society. Chem. Rev. 2018, 118, 679–746. [Google Scholar] [CrossRef] [PubMed]
  6. Gawande, M.B.; Bonifácio, V.D.B.; Luque, R.; Branco, P.S.; Varma, R.S. Benign by design: Catalyst-free in-water, on-water green chemical methodologies in organic synthesis. Chem. Soc. Rev. 2013, 42, 5522–5551. [Google Scholar] [CrossRef] [PubMed]
  7. Kawahara, R.; Fujita, K.; Yamaguchi, R. Dehydrogenative Oxidation of Alcohols in Aqueous Media Using Water-Soluble and Reusable Cp*Ir Catalysts Bearing a Functional Bipyridine Ligand. J. Am. Chem. Soc. 2012, 134, 3643–3646. [Google Scholar] [CrossRef] [PubMed]
  8. Toyomura, K.; Fujita, K. Synthesis of Coordinatively Unsaturated Iridium Complexes Having Functional 8-Quinolinolato Ligands: New Catalysts for Dehydrogenative Oxidation of Alcohols in Aqueous Media. Chem. Lett. 2017, 46, 808–810. [Google Scholar] [CrossRef]
  9. Fujita, K.; Tamura, R.; Tanaka, Y.; Yoshida, M.; Onoda, M.; Yamaguchi, R. Dehydrogenative Oxidation of Alcohols in Aqueous Media Catalyzed by a Water-Soluble Dicationic Iridium Complex Bearing a Functional N-Heterocyclic Carbene Ligand without Using Base. ACS Catal. 2017, 7, 7226–7230. [Google Scholar] [CrossRef]
  10. Fujita, K.; Ito, W.; Yamaguchi, R. Dehydrogenative Lactonization of Diols in Aqueous Media Catalyzed by a Water—Soluble Iridium Complex Bearing a Functional Bipyridine Ligand. ChemCatChem 2013, 6, 109–112. [Google Scholar] [CrossRef]
  11. A number of catalytic systems for dehydrogenative transformation of alcoholic substrates have been reported by other research groups. See the references 12 to 22.
  12. Feng, B.; Chen, C.; Yang, H.; Zhao, X.; Hua, L.; Yu, Y.; Cao, T.; Shi, Y.; Hou, Z. Ionic Liquid-Promoted Oxidant-Free Dehydrogenation of Alcohols with Water-Soluble Ruthenium Nanoparticles in Aqueous Phase. Adv. Synth. Catal. 2012, 354, 1559–1565. [Google Scholar] [CrossRef]
  13. Tang, L.; Sun, H.; Li, Y.; Zha, Z.; Wang, Z. Highly Active and Selective Synthesis of Imines from Alcohols and Amines or Nitroarenes Catalyzed by Pd/DNA in Water with Dehydrogenation. Green Chem. 2012, 14, 3423–3428. [Google Scholar] [CrossRef]
  14. Gunanathan, C.; Milstein, D. Applications of Acceptorless Dehydrogenation and Related Transformations in Chemical Synthesis. Science 2013, 341, 1229712. [Google Scholar] [CrossRef] [PubMed]
  15. Balaraman, E.; Khaskin, E.; Leitus, G.; Milstein, D. Catalytic Transformation of Alcohols to Carboxylic Acid Salts and H2 Using Water as the Oxygen Atom Source. Nat. Chem. 2013, 5, 122–125. [Google Scholar] [CrossRef] [PubMed]
  16. Sawama, Y.; Morita, K.; Yamada, T.; Nagata, S.; Yabe, Y.; Monguchi, Y.; Sajiki, H. Rhodium-on-Carbon Catalyzed Hydrogen Scavenger-and Oxidant-Free Dehydrogenation of Alcohols in Aqueous Media. Green Chem. 2014, 16, 3439–3443. [Google Scholar] [CrossRef]
  17. Ngo, A.H.; Adams, M.J.; Do, L.H. Selective Acceptorless Dehydrogenation and Hydrogenation by Iridium Catalysts Enabling Facile Interconversion of Glucocorticoids. Organometallics 2014, 33, 6742–6745. [Google Scholar] [CrossRef]
  18. Sawama, Y.; Morita, K.; Asai, S.; Kozawa, M.; Tadokoro, S.; Nakajima, J.; Monguchi, Y.; Sajiki, H. Palladium on Carbon-Catalyzed Aqueous Transformation of Primary Alcohols to Carboxylic Acids Based on Dehydrogenation under Mildly Reduced Pressure. Adv. Synth. Catal. 2015, 357, 1205–1210. [Google Scholar] [CrossRef]
  19. Wang, X.; Wang, C.; Liu, Y.; Xiao, J. Acceptorless Dehydrogenation and Aerobic Oxidation of Alcohols with a Reusable Binuclear Rhodium(II) Catalyst in Water. Green Chem. 2016, 18, 4605–4610. [Google Scholar] [CrossRef]
  20. Zhang, L.; Nguyen, D.H.; Raffa, G.; Trivelli, X.; Capet, F.; Desset, S.; Paul, S.; Dumeignil, F.; Gauvin, R.M. Catalytic Conversion of Alcohols into Carboxylic Acid Salts in Water: Scope, Recycling, and Mechanistic Insights. ChemSusChem 2016, 9, 1413–1423. [Google Scholar] [CrossRef] [PubMed]
  21. Crabtree, R.H. Homogeneous Transition Metal Catalysis of Acceptorless Dehydrogenative Alcohol Oxidation: Applications in Hydrogen Storage and to Heterocycle Synthesis. Chem. Rev. 2017, 117, 9228–9246. [Google Scholar] [CrossRef] [PubMed]
  22. Bhatia, A.; Muthaiah, S. Well-Defined Ruthenium Complex for Acceptorless Alcohol Dehydrogenation in Aqueous Medium. ChemistrySelect 2018, 3, 3737–3741. [Google Scholar] [CrossRef]
  23. Very recently, Himeda et al. Reported the synthesis of a closely related complex which has the same dicationic part of complex 1, while the anionic part of their complex is sulfate (SO42−). They applied this complex as a catalyst for hydrogenation of carbon dioxide and dehydrogenation of formic acid in water: Wang, L.; Onishi, N.; Murata, K.; Hirose, T.; Muckerman, J.T.; Fujita, E.; Himeda, Y. Efficient Hydrogen Storage and Production Using a Catalyst with an Imidazoline-Based, Proton-Responsive Ligand. ChemSusChem 2017, 10, 1071–1075. [Google Scholar] [CrossRef] [PubMed]
  24. We performed the dehydrogenative oxidation of 1-phenylethanol (5a) to acetophenone (6a) by using 0.25 mol% of our previously reported water-soluble dicationic catalysts. Yield of 6a was 72% with the catalyst reported in reference 7 and 89% with the catalyst reported in reference 9, respectively.
  25. Ball, R.G.; Graham, W.A.G.; Heinekey, D.M.; Hoyano, J.K.; McMaster, A.D.; Mattson, B.M.; Michel, S.T. Synthesis and Structure of Dicarbonylbis(η-pentamethylcyclopentadienyl)diiridium. Inorg. Chem. 1990, 29, 2023–2025. [Google Scholar] [CrossRef]
  26. Ogo, S.; Makihara, N.; Watanabe, Y. pH-Dependent Transfer Hydrogenation of Water-Soluble Carbonyl Compounds with [Cp*IrIII(H2O)3]2+ (Cp* = η5-C5Me5) as a Catalyst Precursor and HCOONa as a Hydrogen Donor in Water. Organometallics 1999, 18, 5470–5474. [Google Scholar] [CrossRef]
  27. Uyanik, M.; Fukatsu, R.; Ishihara, K. Bromine-Catalyzed Aerobic Oxidation of Alcohols. Chem. Asian J. 2010, 5, 456–460. [Google Scholar] [CrossRef] [PubMed]
  28. Buchwald, S.L.; Watson, B.T.; Lum, R.T.; Nugent, W.A. A General Method for the Preparation of Zirconocene Complexes of Substituted Benzynes: In Situ Generation, Coupling Reactions, and Use in the Synthesis of Polyfunctionalized Aromatic Compounds. J. Am. Chem. Soc. 1987, 109, 7137–7141. [Google Scholar] [CrossRef]
  29. Rios, M.Y.; Salazar, E.; Olivo, H.F. Chemo-enzymatic Baeyer–Villiger Oxidation of Cyclopentanone and Substituted Cyclopentanones. J. Mol. Catal. B Enzym. 2008, 54, 61–66. [Google Scholar] [CrossRef]
  30. Herbivo, C.; Comel, A.; Kirsch, G.; Raposo, M.M.M. Synthesis of 5-Aryl-5′-formyl-2,2′-bithiophenes as New Precursors for Nonlinear Optical (NLO) Materials. Tetrahedron 2009, 65, 2079–2086. [Google Scholar] [CrossRef]
  31. Ruan, J.; Li, X.; Saidi, O.; Xiao, J. Oxygen and Base-Free Oxidative Heck Reactions of Arylboronic Acids with Olefins. J. Am. Chem. Soc. 2008, 130, 2424–2425. [Google Scholar] [CrossRef] [PubMed]
  32. Dohi, T.; Takenaga, N.; Goto, A.; Fujioka, H.; Kita, Y. Clean and Efficient Benzylic C−H Oxidation in Water Using a Hypervalent Iodine Reagent: Activation of Polymeric Iodosobenzene with KBr in the Presence of Montmorillonite-K10. J. Org. Chem. 2008, 73, 7365–7368. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, Y.-H.; Shi, B.-F.; Yu, J.-Q. Palladium(II)-Catalyzed ortho Alkylation of Benzoic Acids with Alkyl Halides. Angew. Chem. Int. Ed. 2009, 48, 6097–6100. [Google Scholar] [CrossRef] [PubMed]
  34. Karthikeyan, J.; Parthasarathy, K.; Cheng, C.-H. Synthesis of Biarylketones and Phthalides from Organoboronic Acids and Aldehydes Catalyzed by Cobalt Complexes. Chem. Commun. 2011, 47, 10461–10463. [Google Scholar] [CrossRef] [PubMed]
  35. Hoover, J.M.; Stahl, S.S. Highly Practical Copper(I)/TEMPO Catalyst System for Chemoselective Aerobic Oxidation of Primary Alcohols. J. Am. Chem. Soc. 2011, 133, 16901–16910. [Google Scholar] [CrossRef] [PubMed]
  36. Omura, S.; Fukuyama, T.; Murakami, Y.; Okamoto, H.; Ryu, I. Hydroruthenation Triggered Catalytic Conversion of Dialdehydes and Keto Aldehydes to Lactones. Chem. Commun. 2009, 45, 6741–6743. [Google Scholar] [CrossRef] [PubMed]
  37. Irvine, R.W.; Kinloch, S.A.; McCormick, A.S.; Russell, R.A.; Warrener, R.N. Anthracyclines XVII: The Synthesis of 2-Fluoro and 3-Fluoro-4-demethoxydaunomycin. Tetrahedron 1988, 44, 4591–4604. [Google Scholar] [CrossRef]

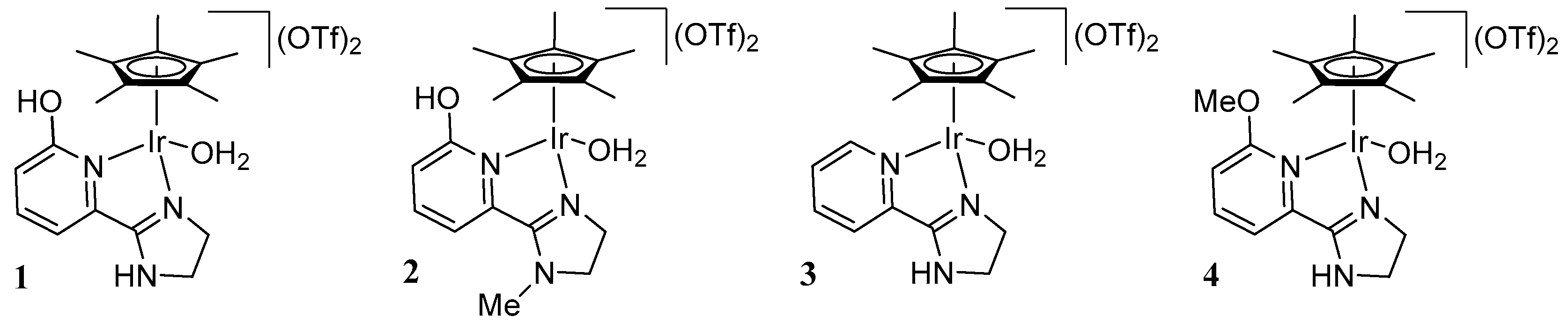

Figure 1. The dicationic complexes 14 bearing a bidentate ligand based on pyridine and 4,5-dihydro-1H-imidazole-2-yl moieties.
Figure 1. The dicationic complexes 14 bearing a bidentate ligand based on pyridine and 4,5-dihydro-1H-imidazole-2-yl moieties.
Catalysts 08 00312 g001

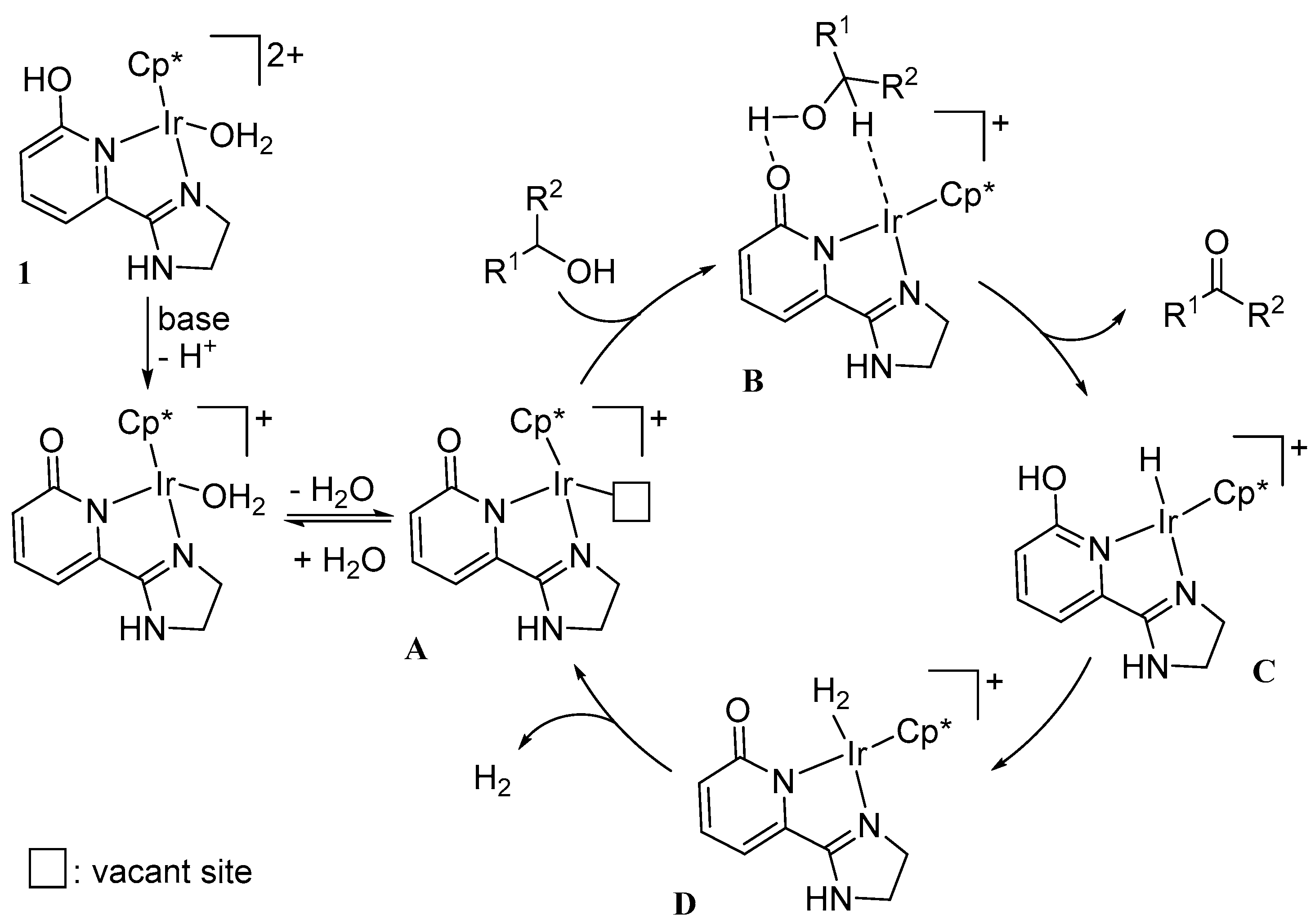

Scheme 1. Possible mechanism of the present dehydrogenative oxidation of alcohols catalyzed by 1.
Scheme 1. Possible mechanism of the present dehydrogenative oxidation of alcohols catalyzed by 1.
Catalysts 08 00312 sch001

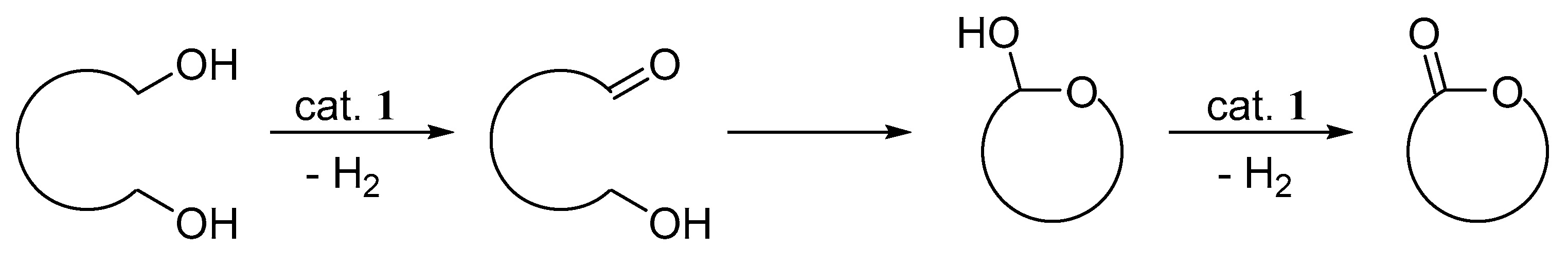

Scheme 2. Reaction pathway for the dehydrogenative lactonization catalyzed by 1.
Scheme 2. Reaction pathway for the dehydrogenative lactonization catalyzed by 1.
Catalysts 08 00312 sch002
Table 1. Dehydrogenative oxidation of 1-phenylethanol (5a) to acetophenone (6a) in aqueous media using water-soluble iridium complexes 14.
Table 1. Dehydrogenative oxidation of 1-phenylethanol (5a) to acetophenone (6a) in aqueous media using water-soluble iridium complexes 14.
Catalysts 08 00312 i001
entrycat.conv. of 5a (%) ayield of 6a (%) a
119292
228989
331414
442525
a Determined by GC analysis.
Table 2. Optimization of the basic additive for the dehydrogenative oxidation of 5a to 6a catalyzed by 1 in aqueous media.
Table 2. Optimization of the basic additive for the dehydrogenative oxidation of 5a to 6a catalyzed by 1 in aqueous media.
Catalysts 08 00312 i002
entrybase (mol %)conv. of 5a (%) ayield of 6a (%) a
1none1616
2Na2CO3 (0.25)9292
3Na2CO3 (0.50)8181
4NaOH (0.50)8383
5NaHCO3 (0.50)8282
6Li2CO3 (0.25)8382
7K2CO3 (0.25)8383
8Cs2CO3 (0.25)8686
a Determined by GC analysis.
Table 3. Dehydrogenative oxidation of various secondary alcohols to the corresponding ketones catalyzed by 1 in aqueous media.
Table 3. Dehydrogenative oxidation of various secondary alcohols to the corresponding ketones catalyzed by 1 in aqueous media.
Catalysts 08 00312 i003
Catalysts 08 00312 i004 Catalysts 08 00312 i005 Catalysts 08 00312 i006 Catalysts 08 00312 i007
6b 87% (84%)6c 95% (92%)6d 62% (59%)6e 63% (57%)
Catalysts 08 00312 i008 Catalysts 08 00312 i009 Catalysts 08 00312 i010 Catalysts 08 00312 i011
6f 83% (74%)6g 80% (75%)6h 83% (81%)6i 80% (78%)
Catalysts 08 00312 i012 Catalysts 08 00312 i013 Catalysts 08 00312 i014 Catalysts 08 00312 i015
6j 80% (75%)6k 98% (98%)6l 98% (98%)6m 73% (71%) a,b
Yields were determined by 1H NMR analysis. Isolated yields are shown in the parentheses. a 1.0 mol % of complex 1 and Na2CO3 were used as catalyst. b Reaction time was 72 h.
Table 4. Dehydrogenative lactonization of diols in aqueous media catalyzed by 1.
Table 4. Dehydrogenative lactonization of diols in aqueous media catalyzed by 1.
Catalysts 08 00312 i019
entrydiolproduct yield (%) a
1 Catalysts 08 00312 i020 Catalysts 08 00312 i021 98 (81)
2 b Catalysts 08 00312 i022 Catalysts 08 00312 i023 98 (91)
3 Catalysts 08 00312 i024 Catalysts 08 00312 i025 78 (73)
4 Catalysts 08 00312 i026 Catalysts 08 00312 i027 99 (71)
5 b,c Catalysts 08 00312 i028 Catalysts 08 00312 i029 Catalysts 08 00312 i03091, 82 : 18 d
(91, 82 : 18 d)
6 Catalysts 08 00312 i031 Catalysts 08 00312 i032 Catalysts 08 00312 i03399, 48 : 52 d
(86, 47 : 53 d)
7 Catalysts 08 00312 i024 Catalysts 08 00312 i035 Catalysts 08 00312 i03698, 45 : 55 d
(88, 48 : 52 d)
a Yields were determined by 1H NMR analysis. Isolated yields are shown in parentheses. b 0.5 mol % of complex 1 and Na2CO3 were used as catalyst. c Reaction time was 48 h. d Ratio of two isomers.
