One-Pot Synthesis of N,N′-dialkylureas via Carbonylation of Amines with CO2 Applying Y0.08Zr0.92O1.96 Mixed Oxide (YSZ-8) as a Heterogeneous Catalyst

Department of Chemical Engineering and Light Industry, Guangdong University of Technology, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Catalysts 2018, 8(5), 188; https://doi.org/10.3390/catal8050188
Submission received: 17 April 2018 / Revised: 17 April 2018 / Accepted: 26 April 2018 / Published: 2 May 2018

Abstract

:
One-pot synthesis of N,N′-dialkylureas were successfully achieved from catalytic carbonylation of aliphatic primary amines with CO2 as the carbon source and Y0.08Zr0.92O1.96 mixed oxide (Yttria-stabilized zirconia, YSZ-8) as the heterogeneous catalyst. The yield of the target product was obtained up to 80.60% from a 48 h reaction with an aliphatic primary amine and 3.0 MPa CO2 in N-methyl-2-pirrolidinone at 160 °C. A multi-pronged mechanistic study was carried out where factors that might influence the reaction efficiency were studied, including catalyst structure, substrates basicity, CO2 pressure, solvent polarity and reaction time. The presence of oxygen vacancies in YSZ-8 was found to be essential for the carbonylation process by creating additional reduction potential for the activation of CO2 which would lead to the key intermediate species.

1. Introduction

N,N′-dialkylureas are widely used in the chemical industry, especially in the manufacture of pesticides, herbicides, pharmaceuticals, resin precursors and plant growth regulators [1]. Conventionally, they are prepared from highly toxic reagents depending on methods such as phosgene or isocyanates [2]. In the past few years, a number of safer and more environmentally benign synthetic routes were invented [3], including carbonylation of amines with various carbonyl derivatives such as carbonyldiamide [4], acetoacetanilide [5], carbonate [6], urea [7], carbamate [8] etc.; or with gaseous C1 sources such as CO [9,10] or CO2 [11]. Amongst them, direct carbonylation of amines by CO2 is far more attractive from the standpoint of either environmental consideration or resource utilization [3].
For the preparation of N,N′-dialkylureas from catalytic carbonylation of amines with CO2, the following steps are generally involved (Scheme 1):
It is well-known that CO2 readily combines with amines at room temperature and ambient pressure, forming the corresponding carbamic acids [12]. Thus, the key step in the aforementioned procedure is the equilibrium-limited dehydration of carbamic acids to ureas/or isocyanates [13]. Either harsh conditions (200 °C, and CO2 pressures higher than 10 MPa) or the addition of stoichiometric amounts of dehydrating agents (such as dicyclohexylcarbodiimide, PCl5, POCl3, and so on) are usually needed to shift the equilibrium towards the desired product (Scheme 1) [14,15], which would inevitably lead to a series of side products. However, the adoption of a proper catalyst could be an ideal solution, such as Y2(C2O4)3 [9], K3PO4 [16], 1,5-diazabicyclo[4.3.0]non-5-ene (DBU) [17], guanidine [18], Cs2CO3 [19], CsOH/[bmim] OH [20], polymer-immobilized nanogold (Au@polymer) [21], KOH/polyethylene glycol [22], TBA2[WO4] (TBA = [(n-C4H9)4N]+) [23], and cesium benzotriazolide [24]. It is of particular interest that the employment of Au@polymer as a heterogeneous catalyst resulted in an appreciable yield of N,N′-dialkylureas. However, the stability of Au@polymer catalyst is not promising, due to the relatively weak chemical bonding between gold nanoparticles and the self-instable polymer support, particularly under extreme reaction conditions (5.0 MPa CO2, 180 °C, 20 h,and alkaline reaction environment in the presence of amine as raw materials). Obviously, the exploration of more efficient catalysts, especially heterogeneous catalysts that can be easily recycled, is still highly desired for the catalytic carbonylation of amines by CO2.
As a ceramic material with good thermal and chemical stability, Yttria-stabilized zirconia (YSZ) is also one of the most widely used heterogeneous catalysts/catalyst supports in the field of catalytic synthesis [25]. It was reported to catalyze reactions such as oxidation of hydrocarbons [26], hydrogenation of CO and CO2 [27,28], electrochemically assisted NOX storage-reduction [29], and so on. In this study, yttria-stabilized ZrO2 (8 mol % Y, YSZ-8) was employed as a heterogeneous catalyst for the production of N,N′-dialkylureas via carbonylation of amines directly with CO2. Factors influencing the reaction efficiency were studied systematically, where a possible reaction mechanism was also proposed.

2. Experimental

2.1. Synthesis of the YSZ-8 Catalyst

The YSZ-8 catalyst was synthesized using the co-precipitation method at room temperature as described in the literature [30]. The typical procedure is as follows: firstly, ZrOCl2·10H2O (>98.5% pure, Aladdin Chemicals) and Y(NO3)3·6H2O (>99.5% pure, Aladdin Chemicals) were dissolved in de-ionized water and mixed according to a molar ratio of Zr/Y = 97:3 in a 250 mL three-neck flask equipped with a magnetic stirrer at room temperature to form a precursor solution. Then, the pH value of the precursor solution was adjusted to 8 with 0.1 M NH3 solution (25 wt. % in water, Aladdin Chemicals), resulting in a cream-white suspension. The white precipitate was recovered by filtration, washed with ethanol, dried at 100 °C overnight, and calcinated in vacuum at 600 °C for 4 h.
As a comparison, pure Y2O3 and ZrO2 catalysts were prepared following the same procedure as was used for YSZ-8, without zirconium or yttrium additives, respectively.

2.2. Characterization of Catalyst

X-ray diffraction (XRD) spectroscopy was performed on a Brucker D8 Advance diffractometer (Bruckstr., Beijing, China) with Cu Kα1 radiation. Scans were made over a range of 2θ = 6–80°, at a rate of 1°/min.
X-ray photoelectron spectroscopy (XPS) was carried out on a Thermo Scientific/k-Alpha (Thermo Fisher Scientific, Shanghai, China) with Al Kα radiation (E = 1486.6 eV). A C1s binding energy (BE) of 284.6 eV was used as a reference.

2.3. Carbonylation of Amine with CO2

The carbonylation of amine with CO2 (>99.9% pure, Jun Duo Gas Co., Guangzhou, China.) was performed using a 50 mL Teflon-lined stainless-steel autoclave equipped with a magnetic stirrer. In a typical procedure, 5 × 10−2 mol of amine, 30 mL of solvent and 4.5 × 10−4 mol of catalyst were firstly charged into the autoclave. Then, a flow of nitrogen was introduced to drive out the air contained in the autoclave, and a mixed gas of CO2/N2 (2/1 in mole ratio) was introduced into the reactor at room temperature to meet a total pressure of 2.5 MPa, and then the gas inlet was shut off. After that, the temperature was slowly increased to 160 °C (caution: this would usually elevate the pressure to ca. 6.5 to 7.0 MPa), where the reaction mixture was remained for 6–48 h with stirring. When the reaction completed, the reactor was opened at room temperature, where the catalyst can be recovered simply by filtration, washed with deionized water and calcined under vacuum at 600 °C for 4 h. All these products were qualitatively and quantitatively analyzed over a QP2010 plus GC-MS instrument (Shimadzu, Shanghai, China) equipped with a RXiTM-5MS capillary column (30 m × 0.25 mm). Both the conversion of amines and yields of various products were determined by comparing to an external standard and calculated following the equation Wsp = Wst·Asp/Ast × 100%, where sp and st refer respectively to specimen and standard. The reaction selectivity was calculated via area normalization method, based on the converted amine. As for the isolation of N,N′-dialkylurea, 100 mL of 1.0 mol % sodium carbonate aqueous solution was added to the previous filtrate, precipitating N,N′-dialkylurea as a white solid, which was then collected by filtration and dried at 80 °C for 24–48 h, and the filtrate was distillated to remove water for recovering the organic solvent. The solid was identified to be N,N′-dialkylurea via mass and IR spectroscopies. Based on the weight of solid, the isolated yield of N,N′-dialkylurea was obtained.
All the chemicals used above for the synthesis of N,N′-dialkylureas were purchased from Aladdin Chemical Co. (Shanghai, China), and dried prior to use to remove water.

3. Results and Discussion

3.1. Structural Characterization of the Catalysts

The XRD pattern of the YSZ-8 (Figure 1a) is totally consistent with that of the Y0.08Zr0.92O1.96 mixed oxide (JCPDS No. 48-0224); no other crystalline nor amorphous phase was detected. It can be concluded that the YSZ-8 (Figure 1a) catalyst prepared in this work possesses exactly the structure of Y0.08Zr0.92O1.96 mixed oxide. Nevertheless, the position of a few diffraction peaks at 2-theta angles of 30.2°, 55.3°, and 58.6° for YSZ-8 show a slight shift to high angle compared to the standard diffraction XRD card of Y0.08Zr0.92O1.96 (JCPDS No. 48-0224). This could be ascribed to a homogeneous insertion of yttrium to the zirconia structure, which could result in sub-lattice zirconium defects in YSZ-8. When comparing the XRD pattern of pure Y2O3 catalyst (Figure 1c) with that of YSZ-8 (Figure 1a), no distinguishable peak could be indexed to Y2O3, further demonstrating the incorporation of Y into the zirconia framework. Meanwhile, the XRD intensity of YSZ-8 increased dramatically comparing to that of pure ZrO2 (Figure 1b), indicating that the insertion of yttrium to the zirconia would result in a more perfect crystalline form.
The chemical states of Y, Zr, and O atoms in YSZ-8 were investigated by XPS. As shown in Figure 2, the XPS spectra of Zr3d, Y3d and O1s in YSZ-8 powder are consistent with the reported characteristics of yttrium and zirconium atoms in yttria-stabilized zirconia [31,32,33,34,35]. The elemental ratio of Y/Zr on the surface of YSZ-8 obtained by XPS is 0.09:1, which is in good agreement with XRD analysis. The BE of Zr3d5/2 in YSZ-8 was found to be 181.9 eV (Figure 2a)—slightly lower than pure ZrO2 (182.5 eV [32])—while that of Y3d5/2 was 156.9 eV (Figure 2b)—slightly higher than pure Y2O3 (156.2 eV [33]). The significant chemical shift observed on both Zr3d and Y3d core level peaks might probably be due to the insertion of yttrium into the zirconia framework, leading to highly mobile oxygen vacancies in the catalyst, as observed from the XRD pattern of the YSZ-8 catalyst. Afterwards, electrons from yttrium could be further transferred to these vacancies, where a similar charge transfer from the vacancies to zirconium could also happen, ultimately leading to peaks of Zr3d shifting toward lower BE and those of Y3d toward higher BE.
The former hypothesis is further supported by the O1s spectra (Figure 2c), which revealed the existence of three oxygen ions: lattice oxygen OI (BE = 529.4 eV), chemisorbed oxygen OII (BE = 531.1 eV), and oxygen related to vacancy sites OIII (BE = 532.4 eV). This perfectly matched that of yttria-stabilized zirconia as reported in the literature [31,34,35], except that the relative intensities of the three oxygen components in the synthesized YSZ-8 changed comparing with the YSZ-8 reported in Ref. 31. More specifically, the ratio of their relative intensities for the synthesized and reported YSZ-8 are OI:OII:OIII = 56:24:20 and 74:20:6, respectively, displaying an increase in the OIII peak of the synthesized YSZ-8. The increase of the relative intensity of the OIII peak in the synthesized YSZ-8 could be resulted from an increase of oxygen vacancy sites and/or an increase of the sub-lattice zirconium defects sites.

3.2. Carbonylation of 1-Butanamine by CO2

Various catalysts and solvents were tested for the carbonylation of 1-butanamine (1a) by CO2 and the results were listed in Table 1. In the absence of a catalyst (entry 1), the conversion is only 4.17% and the selectivity in N,N′-dibutylurea (2a) is 94.03% after 24 h. Unsurprisingly, the employment of a catalyst resulted in a large increase in conversion (entries 2~11) and, in most cases, an increase in selectivity of 2a.
The conversion of 1a increased most when catalyzed by YSZ-8, where conversions above 64.32% (entries 4–7) and selectivity up to 90.13% were achieved. It can be easily seen that both the conversion of 1a and the yield of 2a for the catalysts involved in this work have an order of YSZ-8 > Y2O3 > ZrO2. Undoubtedly, YSZ-8 possesses the best catalytic activity amongst all these tested catalysts. Based on the structural characterizations based on XRD and XPS patterns of YSZ-8 in Section 3.1, such an activity can be ascribed to the interfacial structure of YSZ-8 catalyst which would be more favorable for adsorption and activation of CO2 due to an increase in oxygen vacancies with the yttrium insertion into zirconia. This can be further validated from the literature: as was pointed out by Ge, de Leitenburg and co-workers [36], CO2 preferred to adsorb on negatively charged defects in the lattice of catalyst through a bent configuration, resulting in the activation of the adsorbed CO2; while, based on a comparison of YSZ-8, Y2O3, and ZrO2 upon CO2 adsorption by Penner and co-workers [37], their CO2 adsorptive capacity displayed an order of YSZ-8 > Y2O3 > ZrO2, and the relative fraction of CO2 adsorption on the oxygen vacancies sites with YSZ-8 is much higher than with the others.
Notably, when a recovered YSZ-8 catalyst was employed under the same conditions of entry 4, almost the same result as that of entry 4 was obtained (entry 7); clearly stating the reusability of the YSZ-8 catalyst in the carbonylation of amines by CO2 to the corresponding N,N′-dialkylureas.
Meanwhile, the employment of a dehydrating agent (4A zeolite, entry 5), or prolonging of the reaction time (from 24 h to 48 h, entry 6), based on the YSZ-8 catalyst, led to the formation 2a, especially in the latter case, and a selectivity as high as 91.01% along with 76.40% GC yield was achieved (entry 6).
Solvents were also found to affect the results obviously (cf. entries 2, 8–11): the conversion of 1a in a protic solvent such as BuOH was practically low (entry 11), while higher conversions were acquired in aprotic polar solvents including N-methyl-2-pirrolidinone (NMP), 1,3-dimethylimidazolidinone (DMI), N,N′-dimethylacetamide (DMA), and 2-methoxyethyl ether (DEDM), where the conversion increased with the polarity increase of the aprotic solvent. Two reasons can be ascribed here: Firstly, the basicity of amines would be reduced in protic solvents with respect to aprotic ones [38]. As a consequence, the carbonylation process tends to be retarded in BuOH but not in aprotic solvents such as NMP, DMI, DMA, and DEDM. Secondly, the stimulation of the conversion by aprotic solvents displayed an order of NMP > DMI > DMA > DEDM, coinciding with the order of their polarity increase [39]. This result could be ascribed to the stronger inductive effect on CO2 with aprotic solvents of higher polarity. For instance, NMP is an excellent choice for such a combined physical and chemical trapping of CO2, as it not only absorbs CO2, but also stabilizes the ionic intermediates of the chemisorptions [40].
What is also notable is that N,N′-dibutyloxamide (3a) was identified as one of the main byproducts in the synthesis of N,N′-dialkylurea only when catalyzed by YSZ-8 rather than by ZrO2 and/or Y2O3. This closely correlated to the presence of oxygen vacancy sites and/or sub-lattice zirconium defects sites in YSZ-8, which does not exist in ZrO2 and/or Y2O3 catalysts. In fact, it is reported that the presence of oxygen vacancies in the Rh/CeO2 and CeO2-promoted Rh/SiO2 catalysts could also lead to the reduction of CO2 by creating additional reduction potential, on the basis of adsorption and activation of CO2 to surface carbonaceous species [41]. Also reported is that N,N′-dialkyloxamides can be prepared from direct oxidative double-carbonylation of amines with CO and O2 catalyzed either by homogeneous Pd or Ni complexes or by heterogeneous supported gold nanoparticles (Au NPs) [9]. Furthermore, it must be noted that butyl butylate formed from oxidation of n-butanol was also detected from the reaction of 1-butanamine and CO2 catalyzed by YSZ-8 in n-butanol, which further evidenced that CO2 could be partially dissociated into CO and oxygen in the presence of YSZ-8 catalyst. Summarizing, these results clearly revealed that the couple of YSZ-8 catalyst/NMP solvent possessed a unique and significantly superior activity for the carbonylation of amines to the corresponding ureas with CO2.
Under the optimized conditions (Table 1, entry 5: with YSZ-8 as the catalyst, NMP as the solvent and 4A zeolite as the dehydrating agent), the substrate scope of amines was investigated (Table 2). Aliphatic primary amines were converted to the corresponding N,N′-dialkylureas with moderate to high yields (entries 1–7). Specifically, for linear amines, the selectivity of 2 slightly changed with the increasing of C number or chain length of the attached alkyl, while the total conversion of the substrate amine increased rapidly. This may be due to that, on the one hand, starting amines with longer chains possess higher basicity which are more favored by the reaction, as in good agree with the reactivity difference between aprotic solvents and protic ones; on the other hand, the high steric hindrance had a positive effect on the formation of the carbamoyl species from which 2 was generated via reductive elimination. This was further confirmed by a highly hindered branched amine, iso-butylamine 1d, with an 81.38% conversion of 1d and a 96.89% GC selectivity of 2d at 160 °C in 24 h (entry 6). This works perfectly with cyclic aliphatic primary amines such as cyclohexylamine 1e, N,N′-dicyclohexylureas (2e), which was obtained with excellent yield (72.11% isolated) and quite high conversion (up to 85.89%) under the same condition (entry 7). Besides the more favored high steric hindrance, the particularly high reactivity of 1e could be ascribed to the greater nucleophilicity and basicity of the N atom compared with the rest amines including 1a/b/c/d/f.
Consistently with the results reported in the literature [19], aromatic primary amines such as aniline 1f showed very low reactivity towards the carbonylation reaction, with only 3.07% conversion and a negligible GC yield of 2f, where quiazoline and 1-isocyanatobenzene were detected as the main by-products (entry 8). This could be rooted in the weak nucleophilicity and basicity of anilines [39]. Nevertheless, N-dibutylamine 1g, as a secondary primary amine, could hardly be converted to the corresponding 1,3-di-N,N-dibutyl-2-urea via carbonylation with CO2 (entry 9). Apparently, such a striking difference in reactivity between primary and secondary amines cannot be simply attributed to basicity, nucleophilicy, or steric hindrance between them. Still, it is notable that N,N′-dialkylureas were obtained as the main byproduct in the synthesis of isocyanates from monoamides of oxalic acid with peroxydisulfate [42]. In fact, small amounts of iscocyanates were also detected by GC-MS in the reaction mixtures of primary amines with CO2, in especial at early stages. Therefore, it is clear that the reactivity difference between the two types of amines depends on their ability to generate an isocyanate, which is formed in situ via the dehydrolysis of carbamic acids originated from CO2 and primary amines (Scheme 1). Not surprisingly, the reaction runs faster at higher reaction pressure (compare with entries 2 and 3).
It is well-known that CO2 easily combines with amines to afford the corresponding carbamic acids at room temperature under atmospheric pressure [12]. However, further transformations of carbamic acids to ureas were much more difficult, except in the presence of a catalyst or stoichiometric amounts of bases [13], which is also in accordance with our experimental results as shown in Table 1. Besides, no reaction was observed to occur between secondary amine and CO2 in the presence of catalyst YSZ-8 (see Table 2, entry 9). Mechanistic studies in literature showed that the presence of oxygen vacancies in catalysts (such as ceria oxide and rhodium oxide) played a key role in the adsorption and activation of CO2 on the catalyst surface by creating additional reduction potential for the transformation of CO2 to CO and/or surface carbonaceous species [41,43]. Meanwhile, XRD and XPS analysis revealed that oxygen vacancy sites and/or sub-lattice zirconium defects sites were formed on the surface of our YSZ-8 catalyst, as discussed in Section 3.1. Based on the combined experimental and literature study, a plausible reaction mechanism is proposed (Scheme 2): initially, a CO2 molecule is adsorbed to an oxygen vacancy site on YSZ-8, generating complex A which would result in the activation of a carbon-oxygen double bond in the CO2 molecule. Then, the carbon atom of CO2 undergoes a nucleophilic attack by an amine, forming complex B as the key active intermediate species. A subsequent proton transfer from amine to the carbonyl oxygen in complex B would result in complex C, which is then nucleophilically attacked by another amine, forming the desired product N,N′-dialkylurea (2) with H2O as a co-product with the catalyst being regenerated (Route I1). Elimination of complex C could also afford the byproduct isocyanate (Route I2).
Meanwhile, an electron transfer from the oxygen vacancy site of YSZ-8 to the adsorbed CO2 in complex A could result in the formation of both CO species (D) and O by creating additional reduction potential [22,43]. Afterwards, a nucleophilic attack of the freshly-formed CO by an amine occurs, generating H+ and complex E. Subsequent C-C coupling of complex E would yield the byproduct N,N′-dialkyloxamide (3), accompanied by the catalyst regeneration (Route II). In general, the reduction of CO2 to CO and oxygen is much more difficult than that of CO2 with amines. Consequently, route I is relatively easier to process than route II, which is consistent with our experimental results where the selectivity of the byproduct N,N′-dialkyloxamide (3) is much lower than that of the desired product N,N′-dialkylurea (2) (see Table 1 and Table 2).

4. Conclusions

The YSZ-8 material prepared in this work was identified as being totally consistent with the compositions of nanosized Y0.08Zr0.92O1.96. XRD and XPS patterns of YSZ-8 indicated that the yttrium moiety was incorporated into the zirconia framework, resulting in an increase of oxygen vacancy sites. As a heterogeneous catalyst, YSZ-8 exhibits very high activity and selectivity toward the carbonylation of aliphatic primary amines with CO2, forming N,N′-dialkylurea under relatively mild conditions. The yield of N,N′-dialkylurea was obtained up to 80.60% after 48 h at 160 °C under 3.0 MPa, with YSZ-8 as the catalyst, N-methyl-2-pirrolidinone as the solvent and 4 A zeolite as the dehydrant. Mechanistic studies revealed that the presence of oxygen vacancies in the YSZ-8 catalyst played a key role in the adsorption and activation of CO2 by creating additional reduction potential for the reduction of CO2 to CO and/or surface carbonaceous species. This would result in the coordination of a carbonyl oxygen of CO2 to an oxygen vacancy site, which is the key intermediate species to the activation of CO2. Then, a reaction intermediate formed from a nucleophilic attack of the amino group towards the carbonyl carbon, which would end up in the final carbonylation product.

Author Contributions

Dalei Sun and Xianghua Yang conceived and designed the experiments; Kaihong Xie performed the experiments; Dalei Sun and Yanxiong Fang analyzed the data; Yanxiong Fang contributed reagents/materials/analysis tools; Dalei Sun wrote the paper.

Acknowledgments

We are grateful for the Science and Technology Program of Guangzhou, China (No. 201607010166), the National Natural Science Foundation of China (No. 21206019), and Natural Science Foundation of Guangdong Province (No. 2014A030310449) for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krakowiak, J.; Wawer, J. Hydration of urea and its derivatives-volumetric and compressibility studies. J. Chem. Thermodyn. 2014, 79, 109–117. [Google Scholar] [CrossRef]
  2. Boileau, S.; Bouteiller, L.; Lauprêtre, F.; Lortie, F. Soluble supramolecular polymers based on urea compounds. New J. Chem. 2000, 24, 845–848. [Google Scholar] [CrossRef]
  3. Bigi, F.; Maggi, R.; Sartori, G. Selected syntheses of ureas through phosgene substitutes. Green Chem. 2000, 2, 140–148. [Google Scholar] [CrossRef]
  4. Katritzky, A.R.; Kirichenko, N.; Rogovoy, B.V. Synthesis of mono and N,N-disubstituted ureas. Arkivoc 2003, 2003, 8–14. [Google Scholar]
  5. Bigi, F.; Frullanti, B.; Maggi, R.; Sartori, G.; Zambonin, E. Reaction of aliphatic amines with acetoacetanilide in the presence of zeolite catalyst. Solvent-free synthesis of symmetric N,N′-dialkylureas. J. Org. Chem. 1999, 64, 1004–1006. [Google Scholar] [CrossRef] [PubMed]
  6. Ballini, R.; Fiorini, D.; Maggi, R.; Righi, P.; Sartori, G.; Sartorio, R. TBD-catalysed solventless synthesis of symmetrically N,N′-substituted ureas from primary amines and diethyl carbonate. Green Chem. 2003, 5, 396–398. [Google Scholar] [CrossRef]
  7. Carr, R.V.C.; Minnich, K.E.; Marsella, J.A. Process for the Production of Cyclic N,N′-dialkylureas. U.S. Patent 6,096,891A, 1 August 2000. [Google Scholar]
  8. Eriksson, G.M.; Zeng, X.Z.; Senanayake, C.; Farina, V. Practical synthesis of unsymmetrical ureas from isopropenyl carbamates. J. Org. Chem. 2005, 70, 6960–6963. [Google Scholar]
  9. Shi, F.; Deng, Y.Q. Polymer-immobilized gold catalysts for the efficient and clean syntheses of carbamates and symmetric ureas by oxidative carbonylation of aniline and its derivatives. J. Catal. 2002, 211, 548–551. [Google Scholar]
  10. Mancuso, R.; Raut, D.S.; Ca, N.D.; Fini, F.; Carfagna, C.; Gabriele, B. Catalytic oxidative carbonylation of amino moieties to ureas, oxamides, 2-oxazolidinones, and benzoxazolones. ChemSusChem 2015, 8, 2204–2211. [Google Scholar] [CrossRef] [PubMed]
  11. Sun, D.L.; Ye, J.H.; Fang, Y.X.; Chao, Z.S. Green synthesis of N,N′-dialkylureas from CO2 and amines using metal salts of oxalate as catalysts. Ind. Eng. Chem. Res. 2016, 55, 64–70. [Google Scholar] [CrossRef]
  12. Hampe, E.M.; Rudkevich, D.M. Exploring reversible reactions between CO2 and amines. Tetrahedron 2003, 59, 9619–9625. [Google Scholar] [CrossRef]
  13. Nomura, R.; Hasegawa, Y.; Ishimoto, M.; Toyosaki, T.; Matsuda, H. Carbonylation of amines by carbon dioxide in the presence of an organoantimony catalyst. J. Org. Chem. 1992, 57, 7339–7342. [Google Scholar] [CrossRef]
  14. Cooper, C.F.; Falcone, S.J. A simple one-pot procedure for preparing symmetrical diarylureas from carbon dioxide and aromatic amines. Synth. Commun. 1995, 25, 2467–2474. [Google Scholar] [CrossRef]
  15. Ogura, H.; Takeda, K.; Tokue, R.; Kobayashi, T. A convenient direct synthesis of ureas from carbon dioxide and amines. Synthesis 1978, 394–396. [Google Scholar] [CrossRef]
  16. Choi, Y.S.; Kim, H.; Shin, S.H.; Cheong, M.; Kim, Y.J.; Jang, H.G.; Kim, H.S.; Lee, J.S. K3PO4-catalyzed carboxylation of amines to 1,3-disubstituted ureas: A mechanistic consideration. Appl. Catal. B Environ. 2014, 144, 317–324. [Google Scholar] [CrossRef]
  17. Peterson, S.L.; Stucka, S.M.; Dinsmore, C.J. Parallel synthesis of ureas and carbamates from amines and CO2 under mild conditions. Org. Lett. 2010, 12, 1340–1343. [Google Scholar] [CrossRef] [PubMed]
  18. Marchegiani, M.; Nodari, M.; Tansini, F.; Massera, C.; Mancuso, R.; Gabriele, B.; Costa, M.; Ca, N.D. Urea derivatives from carbon dioxide and amines by guanidine catalysis: Easy access to imidazolidin-2-ones under solvent-free conditions. J. CO2 Util. 2017, 21, 553–561. [Google Scholar] [CrossRef]
  19. Parvulescu, I.V.; Jacobs, P.; Vos, D.D. Synthesis of symmetrical or asymmetrical urea compounds from CO2 via base catalysis. Green Chem. 2007, 9, 158–161. [Google Scholar]
  20. Jiang, T.; Ma, X.M.; Zhou, Y.X.; Liang, S.G.; Zhang, J.C.; Han, B.X. Solvent-free synthesis of substituted ureas from CO2 and amines with a functional ionic liquid as the catalyst. Green Chem. 2008, 10, 465–469. [Google Scholar] [CrossRef]
  21. Shi, F.; Zhang, Q.; Ma, Y.; Deng, Y.; He, Y. From CO oxidation to CO2 activation: An unexpected catalytic activity of polymer-supported nanogold. J. Am. Chem. Soc. 2005, 127, 4182–4183. [Google Scholar] [CrossRef] [PubMed]
  22. Kong, D.-L.; He, L.-N.; Wang, J.-Q. Synthesis of urea derivatives from CO2 and amines catalyzed by polyethylene glycol supported potassium hydroxide without dehydrating agents. Synlett 2010, 8, 1276–1280. [Google Scholar] [CrossRef]
  23. Kimura, T.; Kamata, K.; Mizuno, N. A bifunctional tungstate catalyst for chemical fixation of CO2 at atmospheric pressure. Angew. Chem. Int. Ed. 2012, 51, 6700–6703. [Google Scholar] [CrossRef] [PubMed]
  24. Truong, C.C.; Kim, J.; Lee, Y.; Kim, Y.J. Well-Defined cesium benzotriazolide as an active catalyst for generating disubstituted ureas from carbon dioxide and amines. ChemCatChem 2017, 9, 247–252. [Google Scholar] [CrossRef]
  25. Tsampas, M.N.; Sapountzi, F.M.; Vernoux, P. Applications of yttria stabilized zirconia (YSZ) in catalysis. Catal. Sci. Technol. 2015, 5, 4884–4900. [Google Scholar] [CrossRef]
  26. Zhu, J.J.; van Ommen, J.G.; Bouwmeester, H.J.M.; Lefferts, L. Activation of O-2 and CH4 on yttrium-stabilized zircoma for the partial oxidation of methane to synthesis gas. J. Catal. 2005, 233, 434–441. [Google Scholar] [CrossRef]
  27. Bebelis, S.; Karasal, H.; Vayenas, C.G. Electrochemical promotion of CO hydrogenation on Rh/YSZ electrodes. J. Appl. Electrochem. 2008, 38, 1127–1133. [Google Scholar] [CrossRef]
  28. Theleritis, D.; Souentie, S.; Siokou, A.; Katsaounis, A.; Vayenas, C.G. Hydrogenation of CO2 over Ru/YSZ electropromoted catalysts. ACS Catal. 2012, 2, 770–780. [Google Scholar] [CrossRef]
  29. Hernandez, W.Y.; Hadjar, A.; Giroir-Fendler, A.; Andy, P.; Princivalle, A.; Klotz, M.; Marouf, A.; Guizard, C.; Tardivat, C.; Viazzi, C.; et al. Electrochemically-assisted NOx storage-reduction catalysts. Catal. Today 2015, 241, 143–150. [Google Scholar] [CrossRef]
  30. Vasylkiv, O.; Sakka, Y. Nonisothermal synthesis of yttria-stabilized zirconia nanopowder through oxalate processing: I, characteristics of Y-Zr oxalate synthesis and its decomposition. J. Am. Ceram. Soc. 2000, 83, 2196–2202. [Google Scholar] [CrossRef]
  31. Ntais, S.; Isaifan, R.J.; Baranova, E.A. An X-ray photoelectron spectroscopy study of platinum nanoparticles on yttria-stabilized zirconia ionic support: Insight into metal support interaction. Mater. Chem. Phys. 2014, 148, 673–679. [Google Scholar] [CrossRef]
  32. Guittet, M.J.; Crocombette, J.P.; Gautier-soyer, M. Bonding and XPS chemical shifts in ZrSiO4 versus SiO2 and ZrO2: Charge transfer and electrostatic effects. Phys. Rev. B 2001, 63. [Google Scholar] [CrossRef]
  33. Sun, G.B.; Hidajat, K.; Wu, X.S.; Kawi, S. A crucial role of surface oxygen mobility on nanocrystalline Y2O3 support for oxidative steam reforming of ethanol to hydrogen over Ni/Y2O3 catalysts. Appl. Catal. B Environ. 2008, 81, 303–312. [Google Scholar] [CrossRef]
  34. Zhang, X.C.; Yang, H.M.; Tang, A.D. Optical, Electrochemical and Hydrophilic Properties of Y2O3 Doped TiO2 Nanocomposite Films. J. Phys. Chem. B 2008, 112, 16271–16279. [Google Scholar] [CrossRef] [PubMed]
  35. He, X.; Wang, J.J.; Shu, Z.; Tang, A.D.; Yang, H.M. Y2O3 functionalized natural palygorskite as an adsorbent for methyl blue removal. RSC Adv. 2016, 6, 41765–41771. [Google Scholar] [CrossRef]
  36. Pan, Y.X.; Liu, C.J.; Wiltowski, T.S.; Ge, Q.F. CO2 adsorption and activation overg-Al2O3-supported transition metal dimers: A density functional study. Catal. Today 2009, 147, 68–76. [Google Scholar] [CrossRef]
  37. Köck, E.M.; Kogler, M.; Bielz, T.; Klötzer, B.; Penner, S. In situ FT-IR spectroscopic study of CO2 and CO adsorption on Y2O3, ZrO2, and yttria-stabilized ZrO2. J. Phys. Chem. C 2013, 117, 17666–17673. [Google Scholar] [CrossRef] [PubMed]
  38. Pearson, R.G.; Vogelsong, D.C. Acid-base equilibrium constants for 2,4-dinitrophenol and some aliphatic amines in non-aqueous solvents. J. Am. Chem. Soc. 1958, 80, 1038–1043. [Google Scholar] [CrossRef]
  39. James, G.S. Lange’s Handbook of Chemistry, 16th ed.; McGraw-Hill: New York, NY, USA, 2005; Section 8; p. E-16. [Google Scholar]
  40. Vaidya, P.D.; Mahajani, V.V. Kinetics of the reaction of CO2 with aqueous formulated solution containing monoethanolamine, N-methyl-2-pyrrolidone, and diethylene glycol. Ind. Eng. Chem. Res. 2005, 44, 1868–1873. [Google Scholar] [CrossRef]
  41. Trovarelli, A.; Deleitenburg, C.; Dolcetti, G.; Lorca, J.L. CO2 methanation under transient and steady-state conditions over Rh/CeO2 and CeO2-promoted Rh/SiO2: The role of surface and bulk ceria. J. Catal. 1995, 151, 111–124. [Google Scholar] [CrossRef]
  42. Minisci, F.; Fontana, F.; Coppa, F.; Yan, Y.M. Reactivity of carbamoyl radicals. A new, general, convenient free-radical synthesis of isocyanates from monoamides of oxalic acid. J. Org. Chem. 1995, 60, 5430–5433. [Google Scholar] [CrossRef]
  43. Farkas, A.P.; Solymosi, F. Activation and reactions of CO2 on a K-promoted Au(111) surface. J. Phys. Chem. C 2009, 113, 19930–19936. [Google Scholar] [CrossRef]

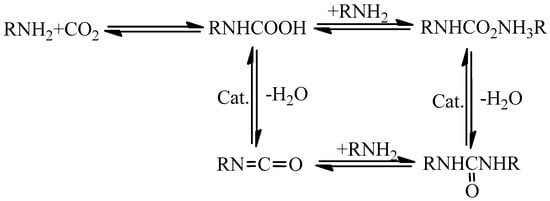

Scheme 1. Reaction steps involved in the synthesis of N,N′-dialkylureas from amines and CO2.
Scheme 1. Reaction steps involved in the synthesis of N,N′-dialkylureas from amines and CO2.
Catalysts 08 00188 sch001

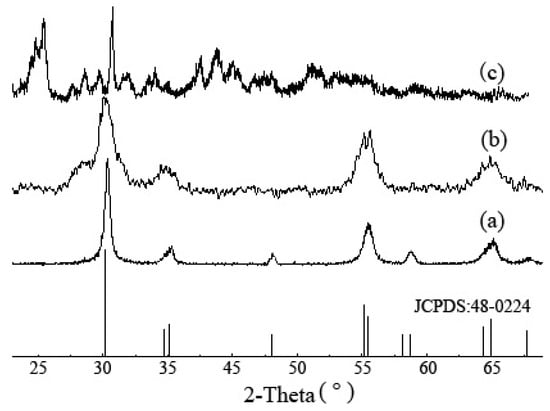

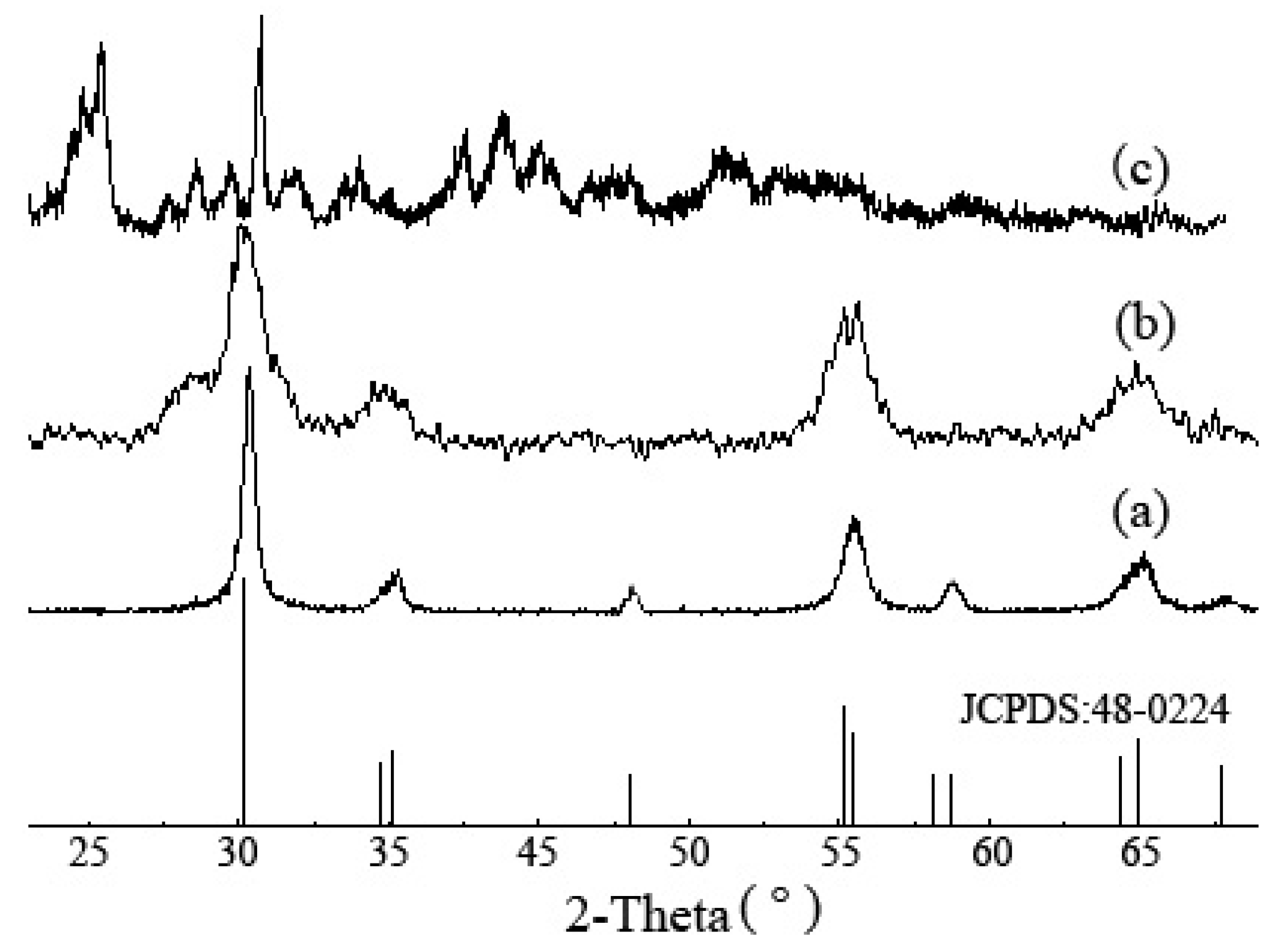

Figure 1. X-ray diffraction patterns of catalysts after thermal treatment at 600 °C. (a) 8 mol % yttria-stabilized zirconia (YSZ-8); (b) pure ZrO2; (c) pure Y2O3.
Figure 1. X-ray diffraction patterns of catalysts after thermal treatment at 600 °C. (a) 8 mol % yttria-stabilized zirconia (YSZ-8); (b) pure ZrO2; (c) pure Y2O3.
Catalysts 08 00188 g001

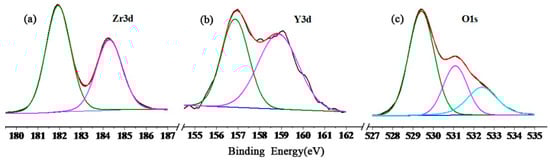

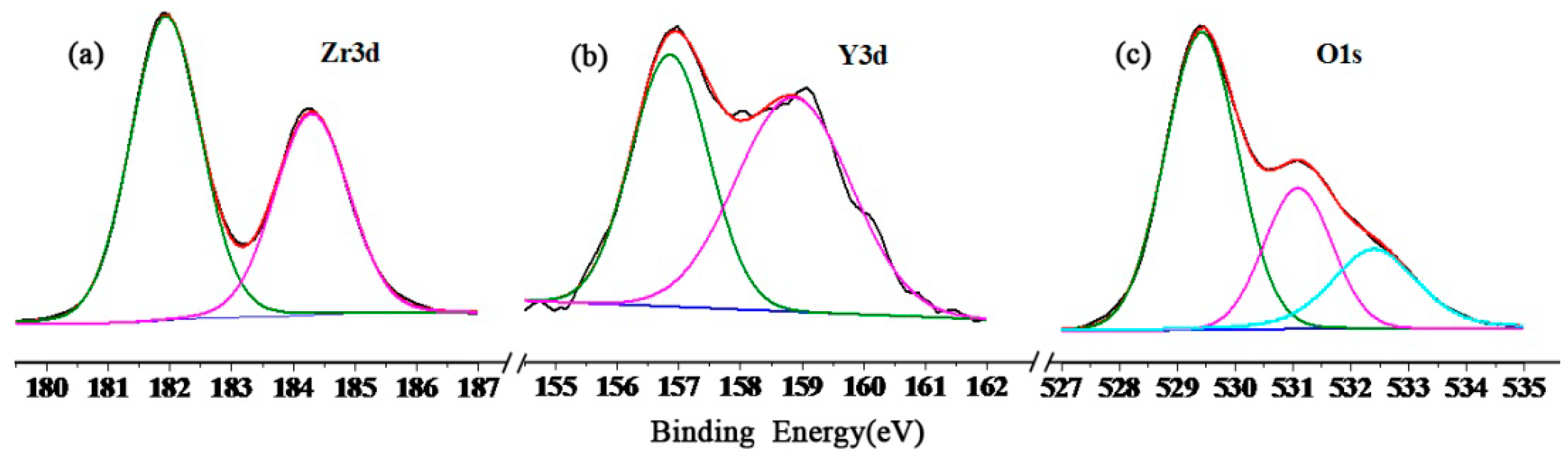

Figure 2. Zr3d (a), Y3d (b) and O1s (c) of the synthesized YSZ-8 catalyst.
Figure 2. Zr3d (a), Y3d (b) and O1s (c) of the synthesized YSZ-8 catalyst.
Catalysts 08 00188 g002

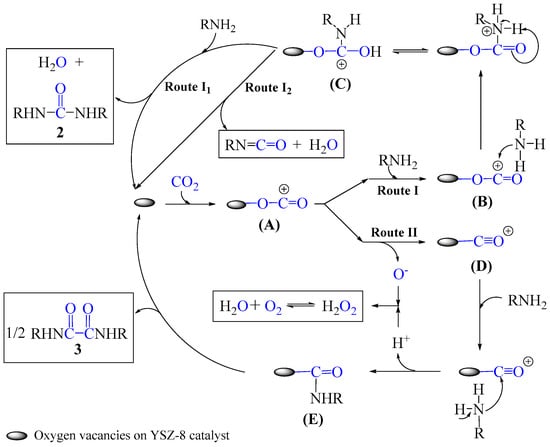

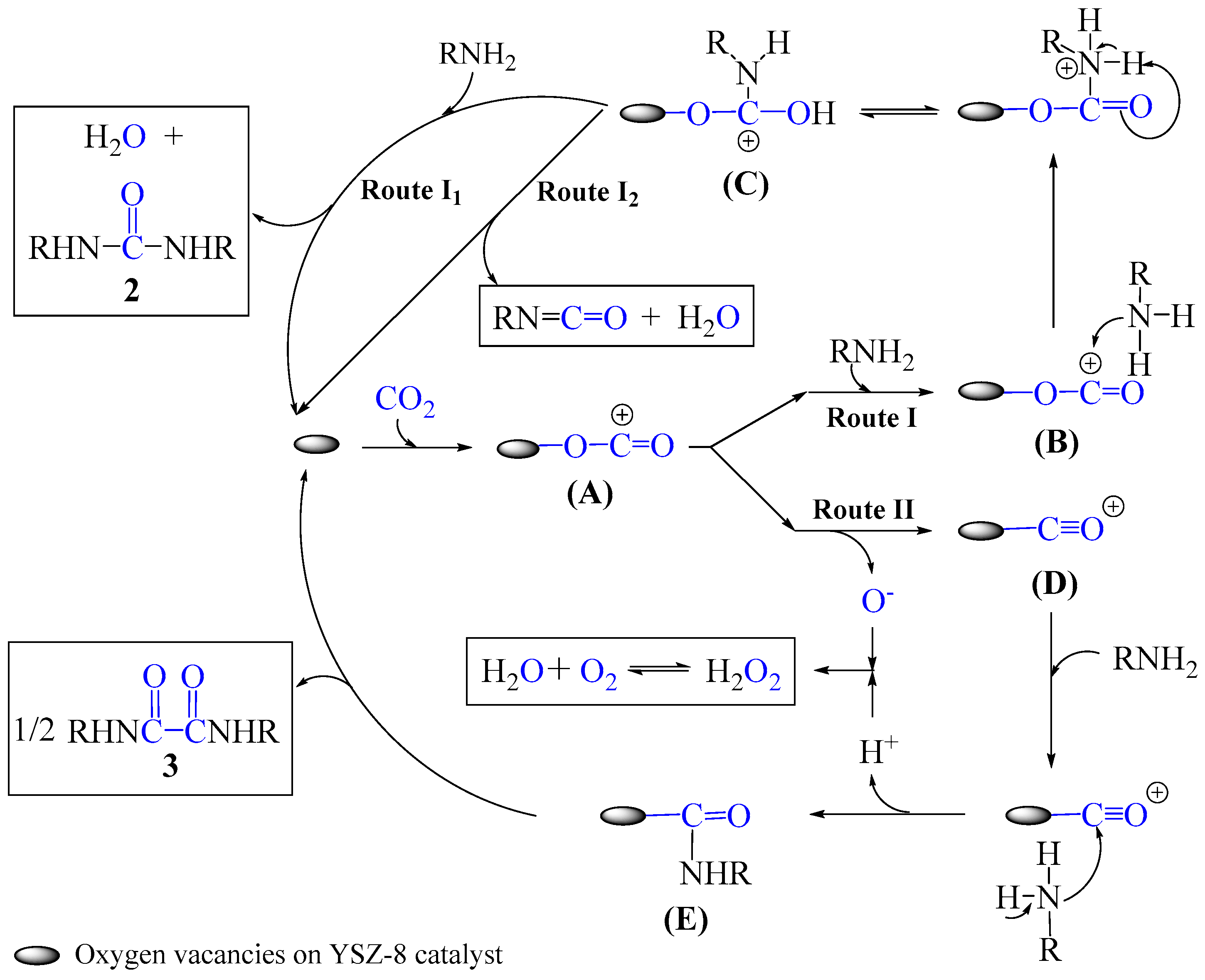

Scheme 2. Plausible mechanism for the preparation of N,N′-dialkylurea from amine and CO2 over YSZ-8 catalyst.
