Microwave-Assisted Synthesis of Co3(PO4)2 Nanospheres for Electrocatalytic Oxidation of Methanol in Alkaline Media

by
Prabhakarn Arunachalam
*,
Maged N. Shaddad
,
Abdullah Salah Alamoudi
,
Mohamed A. Ghanem
and
Abdullah M. Al-Mayouf
Electrochemistry Research Group, Chemistry Department, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Catalysts 2017, 7(4), 119; https://doi.org/10.3390/catal7040119
Submission received: 16 January 2017 / Revised: 11 April 2017 / Accepted: 12 April 2017 / Published: 17 April 2017
(This article belongs to the Special Issue Enabling Technologies toward Green Catalysis)
Browse Figures
Versions Notes

Abstract

:
Low-cost and high-performance advanced electrocatalysts for direct methanol fuel cells are of key significance for the improvement of environmentally-pleasant energy technologies. Herein, we report the facile synthesis of cobalt phosphate (Co3(PO4)2) nanospheres by a microwave-assisted process and utilized as an electrocatalyst for methanol oxidation. The phase formation, morphological surface structure, elemental composition, and textural properties of the synthesized (Co3(PO4)2) nanospheres have been examined by powder X-ray diffraction (XRD), Fourier transform-infrared spectroscopy (FT-IR), field emission-scanning electron microscopy (FE-SEM), high-resolution transmission electron microscopy (HRTEM), X-ray photoelectron spectroscopy (XPS), and nitrogen adsorption-desorption isotherm investigations. The performance of an electrocatalytic oxidation of methanol over a Co3(PO4)2 nanosphere-modified electrode was evaluated in an alkaline solution using cyclic voltammetry (CV) and chronopotentiometry (CP) techniques. Detailed studies were made for the methanol oxidation by varying the experimental parameters, such as catalyst loading, methanol concentration, and long-term stability for the electro-oxidation of methanol. The good electrocatalytic performances of Co3(PO4)2 should be related to its good surface morphological structure and high number of active surface sites. The present investigation illustrates the promising application of Co3(PO4)2 nanospheres as a low-cost and more abundant electrocatalyst for direct methanol fuel cells.

1. Introduction

Concerns of the expanding demand for energy by humankind and the quick consumption of fossil fuels have set off the need to plan and create novel advances for the production of energy in a sustainable way [1,2]. Direct alcohol fuel cells (DAFCs) have engrossed significant interest as a power source for handy applications, such as laptops, mobile phones, automobiles, and digital cameras, etc. [3]. The concerns with storage and transport of alcohols (such as ethanol, methanol, glycerol, and ethylene glycol) are more user-responsive compared to hydrogen [4]. The most frequent DAFC is the direct methanol fuel cell (DMFC), which relies upon the oxidation of methanol over the surface of the catalysts. In recent years, DMFCs are considered as one of the most promising candidate for solving the energy crisis because of their high energy conversion efficiency, non-toxic nature, less noise, and low operating temperature [5,6]. Electrocatalytic oxidation of methanol is the prime step in the progress of DMFCs. Conventionally, platinum and platinum-based alloys are extensively used as promising electrocatalysts for the oxidation of alcohols due to their outstanding electrocatalytic activities. However, what strongly limit their large-scale applications are the expensive noble metals and their lower abundance in nature. This concern has brought more attention on researchers to develop an alternative low-cost and high catalytic performance for the electrocatalytic oxidation of alcohols.
Over the past few years, several other functional electrocatalytic materials have been engaged as alternatives to noble Pt electrocatalysts in DMFCs which consist of metal oxides [7,8], carbonaceous materials [9,10], metal chalcogenides [11,12,13], and phosphates [14,15]. More recently, metal phosphates have exposed as an efficient electrocatalysts for the uses in various applications due to their exclusive physical and chemical properties. Many researchers have examined Co-based electrocatalysts for the oxidation of alcohols and energy-related applications [16,17,18,19,20,21,22,23,24]. Due to the mesoporous-structured nature, highly active surface area, non-toxic nature, and greater abundance of Co-based electrocatalyst show an enhanced property for several applications.
Herein, we report a microwave-assisted process for the fabrication of porous Co3(PO4)2 nanospheres. In this work, we have used a microwave-assisted process in order to avoid particle aggregation during the precipitation of Co3(PO4)2 nanospheres and an arrangement of good morphological features. The good surface morphological features of the catalyst are always desired to improve the electrocatalytic performance. The electrocatalytic activity of the synthesized Co3(PO4)2 nanospheres was examined by the electrocatalytic methanol oxidation. The crystallinity, purity of phase, textural properties, and electrochemical performances of synthesized Co3(PO4)2 were examined by powder X-ray diffraction (XRD), Fourier transform-infrared spectroscopy (FT-IR), X-ray photoelectron spectroscopy (XPS), Brunauer–Emmett–Teller (BET), and electrochemical (voltammetric) measurements.

2. Results and Discussion

2.1. Powder XRD Analysis

The crystallinity and phase formation of the Co3(PO4)2 materials was examined by powder XRD analysis and the resulting XRD pattern is presented in Figure 1. The diffraction peaks of the calcined Co3(PO4)2 at 600 °C (Figure 1d) showed numerous peaks which are consistent with the diffraction planes. The detected (hkl) planes are indexed, agreeing with the stated hexagonal phase of Co3(PO4)2 (JCPDS No. 70–1795, Figure 1a). Conversely, it is observed that the XRD pattern of the as-synthesized (Figure 1b) and calcined Co3(PO4)2 at 300 °C (Figure 1c) showed two broad humps at a 2θ value of 35° and 55° (Figure 1c). This broad peak established that the Co3(PO4)2 showed an amorphous nature [19,20]. The calcined Co3(PO4)2 at 600 °C sample shows the strong crystalline nature of Co3(PO4)2 compared to others. We have also measured the average crystalline size, which was observed to be 32.07 nm for calcined Co3(PO4)2.

2.2. FT-IR Spectroscopy Analysis

The chemical interactions occurred in Co3(PO4)2 nanospheres were examined by FT-IR spectroscopy. The FT-IR spectra of Co3(PO4)2 was evident in the region of 500–4000 cm−1 and the experiential spectrum is shown in Figure 2. In the Co3(PO4)2 spectrum, the vibrational band at 689 cm−1 is ascribed to the V4(F2)PO43− mode of the phosphate (PO4) group [25]. The broad characteristic peaks at 1017 and 1365 cm−1 are attributed to the survival of the P=O stretching vibration in PO43− and the P–O–P stretching vibration in the HPO42− group, respectively [26]. The distinguished broad vibration peak at 3425 cm−1 is assigned to the stretching frequency of the O–H group. The FT-IR results distinctly suggested the subsistence of the Co3(PO4)2 sample.

2.3. Morphological Analysis

The surface morphology of the porous Co3(PO4)2 materials were analyzed by FE-SEM and the resultant images are displayed in Figure 3a,b. FE-SEM results of Co3(PO4)2 show nanosphere like morphology and form a hierarchical nanostructure with uniformly-packed Co3(PO4)2 with an average size of ~100 to 200 nm. It can be noticed that the surface morphology of the Co3(PO4)2 sample are tightly-packed nanosphere-like particles which can offer support for effective electron transport [27]. Further in-depth exploration on the surface morphology of Co3(PO4)2 samples was observed by HRTEM and the equivalent images are shown in Figure 4a,b. The HRTEM images also confirmed the nanosphere-like surface morphology of Co3(PO4)2 samples having an average particle size of ~100 nm.

2.4. XPS Analysis

The elemental compositions and chemical bonding of the synthesized Co3(PO4)2 nanospheres was investigated by XPS. The survey spectra of Co3(PO4)2 (Figure 5a) clearly evidenced the presence of Co, P, and O elements in the synthesized Co3(PO4)2 sample. The high-resolution XPS spectra for Co2p, P2p, and O1s species are presented in Figure 5b–d. The binding energy of Co2p (Figure 5b) appeared in two peaks around 782 and 798 eV, which are ascribed to Co2p3/2 and Co2p1/2, respectively and also with two shake-up satellites. Figure 5c demonstrated the binding energy of P2p which is centered at 134 eV. The peaks centered at 133.4, 134.1, and 135.2 eV related to the characteristics peaks of P(V) of the Co3(PO4)2 sample (Figure 5c). The observed binding energy around 532 eV of O1s is attributed to the bonding of metal oxide (Figure 5d). The fitted peak at 531.6 can related to the metal-oxygen bonds and the peak at 532.6 eV related to the oxygen of OH groups. Further, the peak at 533.9 can be related to the adsorbed water near the surface. (Figure 5d). The examined XPS analysis clearly demonstrated the formation of Co3(PO4)2 materials and the obtained results are consistent with powder XRD analysis.

2.5. Textural Properties

The nitrogen adsorption-desorption isotherm analysis was carried out to examine the textural properties, such as BET surface area, pore size, and pore volume of the synthesized Co3(PO4)2 nanospheres. The adsorption–desorption isotherms of Co3(PO4)2 nanospheres are displayed in Figure 6. Based on IUPAC classification, the isotherm of Co3(PO4)2 nanospheres exposes a type IV isotherm with distinct H3 hysteresis loops in a P/P0 range of 0.1 to 1, which is related to the porous materials. The examined specific BET surface area value from adsorption-desorption isotherms was 20.2 m2/g. In addition, Figure 6 (inset) demonstrates the BJH pore size distribution of Co3(PO4)2 nanospheres with average pore size and volume around 0.98 nm and 1.001 × 10−2 mL/g, respectively. It can be noted that the good surface morphology and textural properties are benefits for the enhancement of electrode/electrolyte interfacial area, which can improve the electrocatalytic active sites for electrocatalytic oxidation of methanol.

2.6. Electrocatalytic Methanol Oxidation over Co3(PO4)2 Nanospheres

The electrochemical performances of the Co3(PO4)2 nanosphere catalyst, with regard to oxidation-reduction reactions in alkaline media, were evaluated and compared with bulk Co3(PO4)2 fabricated in the absence of any reducing agent. Figure 7a displays the cyclic voltammetry at 50 mV·s−1 in 1.0 M KOH solution for loaded catalysts on an Au electrode. The cyclic voltammograms (CV) show two redox peaks (A1/C1 = Co2+/Co3+) and (A2/C2 = Co3+/Co4+) located at about 1.12/1.08 and 1.45/1.38 V vs. RHE, respectively, for Co3(PO4)2 nanospheres and are typically similar to those reported in the literature [28]. The CV curves of Co3(PO4)2-modified electrode (Figure 7a) exhibit a redox peak prior to the oxygen evolution reactions can be credited to the well-known redox reaction of Co(II)/Co(III) and a feasible electrochemical reaction in a KOH solution is afforded in reaction (1):
Co3(PO4)2 + OH− ↔ Co3(PO4)2 (OH−) + e−
It is evidenced that the redox peak currents of Co3(PO4)2 nanosphere catalyst voltammograms are significantly higher (15 times) than the current for bulk Co3(PO4)2 signifying substantially higher electrochemical area and higher capacitance current for Co3(PO4)2 nanosphere catalysts.
The profile of CVs of the Co3(PO4)2-modified electrode at a scan speed of 50 mV·s−1 in 1.0 M KOH solution with and without the presence of 1.0 M methanol is exhibited in Figure 7b. Prior to examining the electrocatalytic methanol oxidation activity of Co3(PO4)2 nanospheres, the electrochemical properties of the Co3(PO4)2 nanosphere-modified electrode was scrutinized in 1.0 M KOH solution. The CV of the Co3(PO4)2-modified electrode (Figure 7b) in 1.0 M KOH + 1.0 M CH3OH shows a considerable increment in the oxidation peak current density at an oxidation peak potential of 1.65 V (vs. RHE) and also noticed that the decrease in the redox peak during the reverse scan. In addition, the methanol catalytic oxidation current tends to increase with the positive scan until reaching a plateau of about 120 mA/cm2 at 1.7 V vs. RHE. Moreover, it is observed that the oxygen evolution reaction occurs at more positive potentials in the presence of methanol solutions which can be clarified by the greater affinity of Co3+ intermediate species (CoOOH) to adsorb methanol than to OH− ions [29]. Thus, the increased oxidation current and the departed redox peak in the presence of CH3OH in KOH, when compared to pure KOH solution, revealed the electrocatalytic activity of Co3(PO4)2 for the oxidation of methanol. The electrocatalytic performances of Co3(PO4)2 are nearly related to its good surface morphology and high active surface area, which was completely investigated with the results obtained above in FE-SEM, HRTEM, and BET analysis.
We have examined the effect of the catalyst loading amount on the electrocatalytic oxidation of methanol in 1.0 M KOH + 1.0 M CH3OH and the corresponding CV profile is shown in Figure 8a. It can be seen that the methanol oxidation current is noticeably enhanced. Figure 8b shows the plot of anodic methanol oxidation current density vs. electrocatalyst loading amount at 1.65 V vs. RHE, and this clearly reveals that the linear increase of the oxidation current with a catalyst loading amount (0.07 to 0.28 mg/cm2) may be due to an increase in the number of accessible active catalyst sites and efficient mass transport ions into the Co3(PO4)2 catalyst [29]. Additionally, it can be seen that the oxidation potential is shifted towards the negative potential when the electrocatalyst loading amount increased, which suggests good kinetic performance for the oxidation of methanol.
The CVs at 50 mV/s for 0.28 mg/cm2 loaded Co3(PO4)2 nanospheres in various concentrations of CH3OH solution are presented in Figure 9a. It can be observed that the CH3OH oxidation peak current density gradually increases with a shifting of the peak potential towards the positive potential as the concentration of methanol increases (Figure 9a). The linear relationship between the methanol concentration and the oxidation peak current at 1.65 V vs. RHE is plotted and shown in Figure 9b. This clearly showed the increase of methanol oxidation current linearly with the concentration of the methanol solution, which illustrates that Co3(PO4)2 nanospheres have good tolerance for product adsorption [29].
The electrochemical long-term stability of the Co3(PO4)2 nanosphere-modified electrode is also an important factor for the electro-oxidation of methanol. The long-term stability was examined using chronopotentiometry measurements at two different current densities (25 and 75 mA/cm2) in 0.14 mg/cm2 loaded Co3(PO4)2 nanospheres and the obtained result is shown in Figure 10. It can be seen from Figure 10 that the Co3(PO4)2 nanosphere-modified electrode demonstrated nearly constant operating potentials at 1.53 and 1.73 V vs. RHE for 25 and 75 mA/cm2 during 120 min of methanol oxidation testing. This suggests that Co3(PO4)2 nanospheres are relatively stable and tolerant of high poisoning levels for the oxidation of methanol. At the start of the reaction, the operating potentials are shown gradually increasing and reach steady-state which indicates incompletely-adsorbed oxidation products for a few minutes, initially. Table 1 displays the specific mass activities of nickel- and cobalt-based catalyst for methanol electro-oxidation, and it is evidenced that the methanol electro-oxidation catalytic steady-state specific activities of the Co3(PO4)2 nanosphere catalyst is superior than other nickel- and cobalt-based catalysts. The electrostability of the Co3(PO4)2 electrocatalyst also confirmed the feasible application of Co3(PO4)2 nanospheres as a capable low-cost substitute to Pt-based electrocatalysts for methanol oxidation. Lastly, and in comparison with other nickel- and cobalt-based catalysts, it is found that the methanol oxidation is significantly higher than that for cobalt-based catalysts. However, detailed study needs to be carried out to establish the Co3(PO4)2 nanosphere-based electrocatalyst to be more competitive for the methanol electro-oxidation reaction.

3. Experimental

3.1. Microwave-Assisted Synthesis of Co3(PO4)2 Nanospheres

The porous Co3(PO4)2 nanospheres were synthesized through a microwave-assisted process using cobalt nitrate (Co(NO3)2·6H2O; Sigma Aldrich, St. Louis, MO, USA) and di-sodium hydrogen phosphate (Na2HPO4; Sigma Aldrich) as the cobalt and phosphate sources, respectively. For instance, the evaluated amount of Co(NO3)2·6H2O (0.2 M) and Na2HPO4 (0.2 M) was dissolved along with 0.8 M of urea (NH2CONH2; Sigma Aldrich) in 40 mL of deionized water under ultrasonication for 30 min. Concisely, the amount of cobalt phosphate precursor and urea with a molar ratio of 1:4 were dissolved in 40 mL of water to obtain a homogenous solution. Then, 90 mL of ethylene glycol was added under ultrasonic agitation until the homogenous reaction mixture was obtained. The acquired homogenous solution was placed in a microwave oven and the microwave reaction was carried out under 600 W microwave irradiation for 15 min to form Co3(PO4)2 products. The obtained precipitate after filtration was processed via several washings with deionized water, absolute ethanol, and dried at 80 °C for 3 h. Finally, the obtained Co3(PO4)2 product was annealed for 1 h at 300 and 600 °C. For comparison purposes, the bulk Co3(PO4)2 particles were obtained and prepared without any reducing agent.

3.2. Instrumental Characterization

The crystallinity and phase formation of the synthesized Co3(PO4)2 sample was analyzed by powder XRD (Rigaku Miniflex 600, Rigaku corporation, Tokyo, Japan) with copper Kα radiation (λ = 1.5418 Å) at a scan speed of 3 °/min. The chemical interactions that occurred in Co3(PO4)2 were examined using FT-IR spectroscopy (FT-IR, Thermofisher Scientific, Waltham, MA, USA). The surface morphology of the Co3(PO4)2 materials were examined by FE-SEM (SEM, JSM-6380, JEOL, Peabody, MA, USA) and HRTEM (TEM, JEOL) The elemental compositions and chemical bonding of the synthesized Co3(PO4)2 nanospheres JEOL-6330, USA were investigated by XPS (XPS, Thermo Scientific). The textural properties of the BET surface area, pore size, and pore volume were assessed on the basis of nitrogen adsorption-desorption isotherms using a NOVA 2200e analyser (Quantachrome Instruments, Boynton Beach, FL, USA).

3.3. Electrochemical Analysis

All of the electrochemical analyses were conducted in a conventional three-electrode system using a potentiostat (VSP-0478, Biologic, Seyssinet-Pariset, France, with ECLAB software, 10.1, Biologic, Seyssinet-Pariset, France, 2011) in a 1.0 M KOH (pH = 13) solution. The electrodes consisted of Pt foil, a saturated calomel electrode, and a Co3(PO4)2 electrocatalyst ink drop-casted Au electrode as the counter, reference, and working electrodes, respectively. The Co3(PO4)2 electrocatalyst ink was prepared by dispersion of a fixed amount of the Co3(PO4)2 electrocatalyst dispersed in 0.4 mL of 2-propanol, 0.1 mL of water, and 40 µL of 5 wt % Nafion under ultrasonication. The obtained electrocatalyst ink (0.07 to 0.28 mg/cm2) was drop-casted on the Au electrode and left in air to dry for approximately 1 h.

4. Conclusions

In summary, we successfully demonstrated a facile synthesis of Co3(PO4)2 nanospheres by a microwave-assisted method and utilized as an electrocatalyst for the oxidation of methanol. The phase formation, morphological surface structure, elemental composition and textural properties of the sample was examined by various physicochemical characterization methods, such as powder XRD, FT-IR, FE-SEM, HRTEM, XPS, and BET surface analyses. The detailed electrochemical analyses show that the Co3(PO4)2 nanosphere-modified electrode exhibited an admirable electrocatalytic activity for the oxidation of methanol in alkaline media. An extended investigation was made for the methanol oxidation by varying the experimental reaction parameters, such as catalyst loading, methanol concentration, and long-term stability for electro-oxidation of methanol. The superior electrocatalytic activity of Co3(PO4)2 should be attributed to its good surface morphological structure and high number of active surface sites. These results demonstrate that the Co3(PO4)2 nanospheres could be one a low-cost, more abundant, and a competent electrocatalyst for direct methanol fuel cells.

Acknowledgments

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for funding this research group NO: RG-1438-001.

Author Contributions

Prabhakarn Arunachalam performed the experiments and wrote the manuscript. Abdullah Salah Alamoudi, Mohamed A. Ghanem, and Abdullah M. Al-Mayouf provided suggestions and assistance in experiment design and manuscript editing. Maged N. Shaddad assisted in experimental work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Peng, L.; Gan, L.; Wei, Y.; Yang, H.; Li, J.; Du, H.; Kang, F. Pt submonolayers on au nanoparticles: coverage-dependent atomic structures and electrocatalytic stability on methanol oxidation. J. Phys. Chem. C 2016, 120, 28664–28671. [Google Scholar] [CrossRef]
  2. Arunachalam, P.; Zhang, S.; Abe, T.; Komura, M.; Iyoda, T.; Nagai, K. Weak visible light (~mW/cm2) organophotocatalysis for mineralization of amine, thiol and aldehyde by biphasic cobalt phthalocyanine/fullerene nanocomposites prepared by wet process. Appl. Catal. B 2016, 193, 240–247. [Google Scholar] [CrossRef]
  3. Puthiyapura, V.K.; Brett, D.J.L.; Russell, A.E.; Lin, W.F.; Hardacre, C. Biobutanol as fuel for direct alcohol fuel cells—Investigation of Sn-modified Pt catalyst for butanol electro-oxidation. ACS Appl. Mater. Interfaces 2016, 8, 12859–12870. [Google Scholar] [CrossRef] [PubMed]
  4. Prathap, M.U.A.; Satpati, B.; Srivastava, R. Facile preparation of β-Ni(OH)2-NiCo2O4 hybrid nanostructure and its application in the electro-catalytic oxidation of methanol. Electrochim. Acta 2014, 130, 368–380. [Google Scholar] [CrossRef]
  5. Noroozifar, M.; Yavari, Z.; Motlagh, M.K.; Ghasemi, T.; Yazdi, S.H.R.; Mohammadi, M. Fabrication and performance evaluation of a novel membrane electrode assembly for DMFCs. RSC Adv. 2016, 6, 563–574. [Google Scholar] [CrossRef]
  6. Tong, Y.Y.; Gu, C.D.; Zhang, J.L.; Tang, H.; Li, Y.; Wang, X.L.; Tu, J.P. Urchin-like Ni-Co-P-O nanocomposite as novel methanol electro-oxidation materials in alkaline environment. Electrochim. Acta 2016, 187, 11–19. [Google Scholar] [CrossRef]
  7. Ghanem, M.A.; Al-Mayouf, A.M.; Arunachalam, P.; Abiti, T. Mesoporous cobalt hydroxide prepared using liquid crystal template for efficient oxygen evolution in alkaline media. Electrochim. Acta 2016, 207, 177–186. [Google Scholar] [CrossRef]
  8. Atar, N.; Eren, T.; Yola, M.L.; Karimi-Maleh, H.; Demirdögen, B. Magnetic iron oxide and iron oxide@gold nanoparticle anchored nitrogen and sulfur-functionalized reduced graphene oxide electrocatalyst for methanol oxidation. RSC Adv. 2015, 5, 26402–26409. [Google Scholar] [CrossRef]
  9. Arunachalam, P.; Ghanem, M.A.; Al-Mayouf, A.M.; Al-shalwi, M.; Abd-Elkader, O.H. Microwave assisted synthesis and characterization of Ni/NiO nanoparticles as electrocatalyst for methanol oxidation in alkaline solution. Mater. Res. Express 2017, 4, 025035. [Google Scholar] [CrossRef]
  10. Sun, J.; Dou, M.; Zhang, Z.; Ji, J.; Wang, F. Carbon nanotubes supported Pt-Co-P ultrafine nanoparticle electrocatalysts with superior activity and stability for methanol electro-oxidation. Electrochim. Acta 2016, 215, 447–454. [Google Scholar] [CrossRef]
  11. Gao, M.R.; Gao, Q.; Jiang, J.; Cui, C.H.; Yao, W.T.; Yu, S.H. A methanol-tolerant Pt/CoSe2 nanobelt cathode catalyst for direct methanol fuel cells. Angew. Chem. 2011, 123, 5007–5010. [Google Scholar] [CrossRef]
  12. Shi, M.; Zhang, W.; Li, Y.; Chu, Y.; Ma, C. Tungsten carbide-reduced graphene oxide intercalation compound as co-catalyst for methanol oxidation. Chin. J. Catal. 2016, 37, 1851–1859. [Google Scholar] [CrossRef]
  13. Cui, P.; He, H.; Liu, H.; Zhang, S.; Yang, J. Heterogeneous nanocomposites of silver selenide and hollow platinum nanoparticles toward methanol oxidation reaction. J. Power Sources 2016, 327, 432–437. [Google Scholar] [CrossRef]
  14. Yang, C.; Srinivasan, S.; Aricò, A.S.; Cretı, P.; Baglio, V.; Antonucci, V. Composite nafion/zirconium phosphate membranes for direct methanol fuel cell operation at high temperature. Electrochem. Solid-State Lett. 2001, 4, A31–A34. [Google Scholar] [CrossRef]
  15. Tan, J.; Yang, J.H.; Liu, X.; Yang, F.; Li, X.; Ma, D. Electrochemical oxidation of methanol on mesoporous nickel phosphates and Si-incorporated mesoporous nickel phosphates. Electrochem. Commun. 2013, 27, 141–143. [Google Scholar] [CrossRef]
  16. Kiyani, R.; Rowshanzamir, S.; Parnian, M.J. Nitrogen doped graphene supported palladium-cobalt as a promising catalyst for methanol oxidation reaction: Synthesis, characterization and electrocatalytic performance. Energy 2016, 113, 1162–1173. [Google Scholar] [CrossRef]
  17. Kepeniene, V.; Tamasiunait, L.T.; Jablonskiene, J.; Semasko, M.; Vaiciunien, J.; Vaitkus, R.; Norkus, E. One-pot synthesis of graphene supported platinum cobalt nanoparticles as electrocatalysts for methanol oxidation. Mater. Chem. Phys. 2016, 171, 145–152. [Google Scholar] [CrossRef]
  18. Poon, K.C.; Khezri, B.; Li, Y.; Webster, R.D.; Suc, H.; Sato, H. A highly active Pd–P nanoparticle electrocatalyst for enhanced formic acid oxidation synthesized via stepwise electroless deposition. Chem. Commun. 2016, 52, 3556–3559. [Google Scholar] [CrossRef] [PubMed]
  19. Tan, D.C.L.; Khezri, B.; Amatyakul, W.; Webster, R.D.; Sato, H. A facilely synthesized highly active Pd nanoparticle electrocatalyst for electroless deposition process. RSC Adv. 2015, 5, 88805–88808. [Google Scholar] [CrossRef]
  20. Li, T.; Fu, G.; Su, J.; Wang, Y.; Lv, Y.; Zou, X.; Zhu, X.; Xu, L.; Sun, D.; Tang, Y. Carbon supported ultrafine gold phosphorus nanoparticles as highly efficient electrocatalyst for alkaline ethanol oxidation reaction. Electrochim. Acta 2017, 231, 13–19. [Google Scholar] [CrossRef]
  21. Poon, K.C.; Tan, D.C.L.; Vo, T.D.T.; Khezri, B.; Su, H.; Webster, R.D.; Sato, H. Newly developed stepwise electroless deposition enables a remarkably facile synthesis of highly active and stable amorphous Pd nanoparticle electrocatalysts for oxygen reduction reaction. J. Am. Chem. Soc. 2014, 136, 5217–5220. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, K.; Wang, C.; Bin, D.; Wang, J.; Yan, B.; Shiraishi, Y.; Du, Y. Fabrication of Pd/P nanoparticle networks with high activity for methanol oxidation. Catal. Sci. Technol. 2016, 6, 6441–6447. [Google Scholar] [CrossRef]
  23. Zhang, M.; Yan, Z.; Li, Y.; Jing, J.; Xie, J. Preparation of cobalt silicide on graphene as Pt electrocatalyst supports for highly efficient and stable methanol oxidation in acidic media. Electrochim. Acta 2015, 161, 48–54. [Google Scholar] [CrossRef]
  24. Theerthagiri, J.; Thiagarajan, K.; Senthilkumar, B.; Khan, Z.; Senthil, R.A.; Arunachalam, P.; Madhavan, J.; Ashokkumar, M. Synthesis of hierarchical cobalt phosphate nanoflakes and their enhanced electrochemical performances for supercapacitor applications. ChemistrySelect 2016, 1, 1–11. [Google Scholar] [CrossRef]
  25. Combes, C.; Rey, C. Amorphous calcium phosphates: Synthesis, properties and uses in biomaterials. Acta Biomater. 2010, 6, 3362–3378. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, K.H.; Jeong, J.M.; Lee, S.J.; Choi, B.G.; Lee, K.G. Protein-directed assembly of cobalt phosphate hybrid nanoflowers. J. Colloid Interface Sci. 2016, 484, 44–50. [Google Scholar] [CrossRef] [PubMed]
  27. Theerthagiri, J.; Senthil, R.A.; Buraidah, M.H.; Raghavender, M.; Madhavan, J.; Arof, A.K. Synthesis and characterization of (Ni1−xCox)Se2 based ternary selenides as electrocatalyst for triiodide reduction in dye-sensitized solar cells. J. Solid State Chem. 2016, 238, 113–120. [Google Scholar] [CrossRef]
  28. Arunachalam, P.; Ghanem, M.A.; Al-Mayouf, A.M.; Al-shalwi, M. Enhanced electrocatalytic performance of mesoporous nickel-cobalt oxide electrode for methanol oxidation in alkaline solution. Mater. Lett. 2017, 196, 365–368. [Google Scholar] [CrossRef]
  29. Al-Enizia, A.M.; Ghanem, M.A.; El-Zatahry, A.A.; Al-Deyab, S.S. Nickel oxide/nitrogen doped carbon nanofibers catalyst for methanol oxidation in alkaline media. Electrochim. Acta 2014, 137, 774–780. [Google Scholar] [CrossRef]
  30. Hameed, R.M.A.; El-Khatib, K.M. Ni–P and Ni–Cu–P modified carbon catalysts for methanol electro-oxidation in KOH solution. Int. J. Hydrog. Energy 2010, 35, 2517–2529. [Google Scholar] [CrossRef]
  31. Xu, C.; Cheng, L.; Shen, P.; Liu, Y. Methanol and ethanol electrooxidation on Pt and Pd supported on carbon microspheres in alkaline media. Electrochem. Commun. 2007, 9, 997–1001. [Google Scholar] [CrossRef]
  32. Asgari, M.; Maragheh, M.G.; Davarkhah, R.; Lohrasbi, E. Methanol electrooxidation on the nickel oxide nanoparticles/multi-walled carbon nanotubes modified glassy carbon electrode prepared using pulsed electrodeposition. J. Electrochem. Soc. 2011, 158, K225–K229. [Google Scholar] [CrossRef]
  33. Barakat, N.A.M.; El-Newehy, M.; Al-Deyab, S.S.; Kim, H.Y. Cobalt/copper-decorated carbon nanofibers as novel non-precious electrocatalyst for methanol electrooxidation. Nanoscale Res. Lett. 2014, 9, 2. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, W.; Wang, H.; Zhou, J.; Wang, J.; Duchesne, P.N.; Muir, D.; Zhang, P.; Han, N.; Zhao, F.; Zeng, M.; et al. Highly active and durable methanol oxidation electrocatalyst based on the synergy of platinum–nickel hydroxide–grapheme. Nat. Commun. 2015, 6, 10035. [Google Scholar] [CrossRef] [PubMed]
Catalysts 07 00119 g001 550

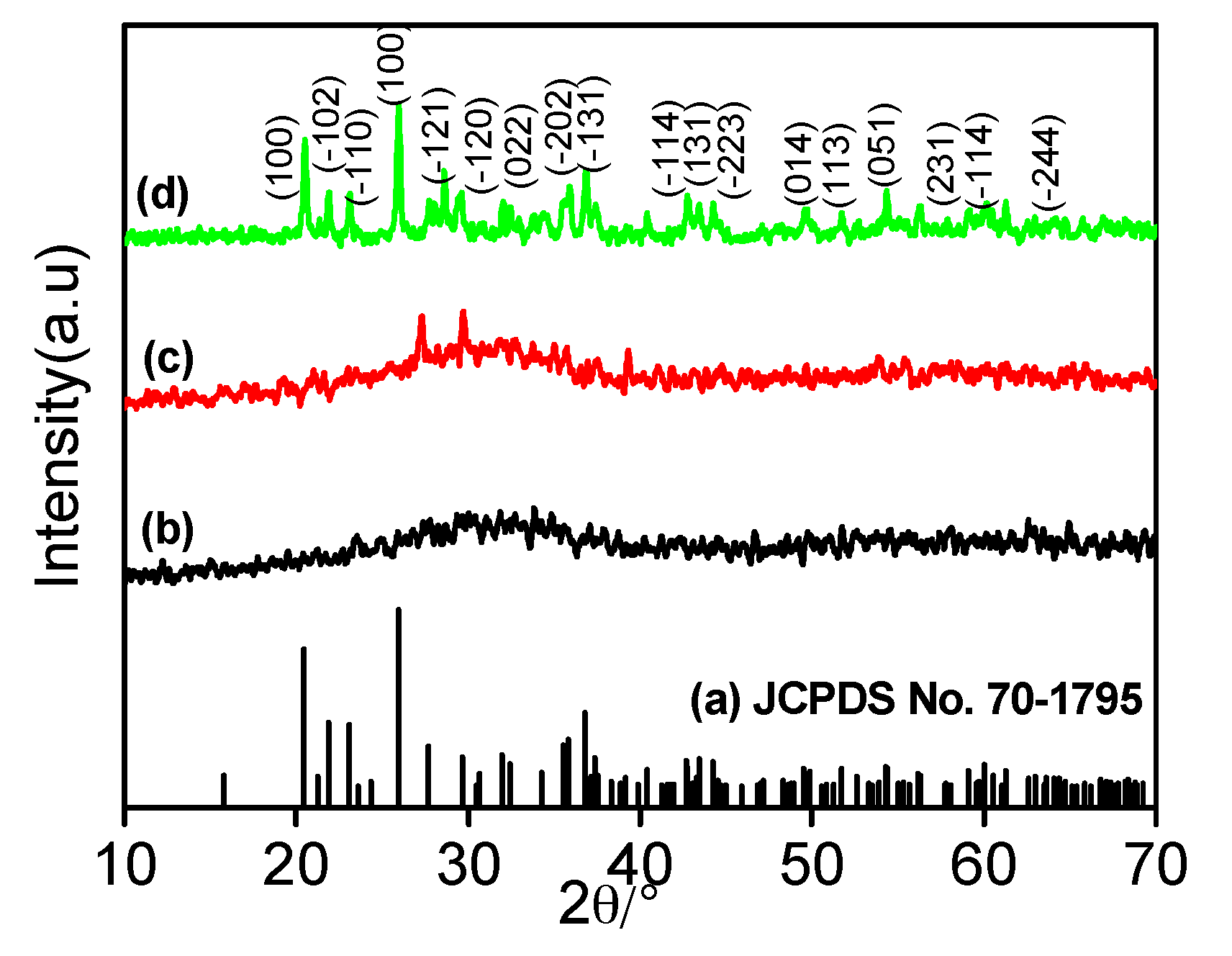

Figure 1. The powder X-ray diffraction (XRD) pattern of the (a) hexagonal Co3(PO4)2—JCPDS No. 70-1795; (b) as-synthesized, calcined Co3(PO4)2 at (c) 300 °C; and (d) 300 °C.
Figure 1. The powder X-ray diffraction (XRD) pattern of the (a) hexagonal Co3(PO4)2—JCPDS No. 70-1795; (b) as-synthesized, calcined Co3(PO4)2 at (c) 300 °C; and (d) 300 °C.
Catalysts 07 00119 g001
Catalysts 07 00119 g002 550

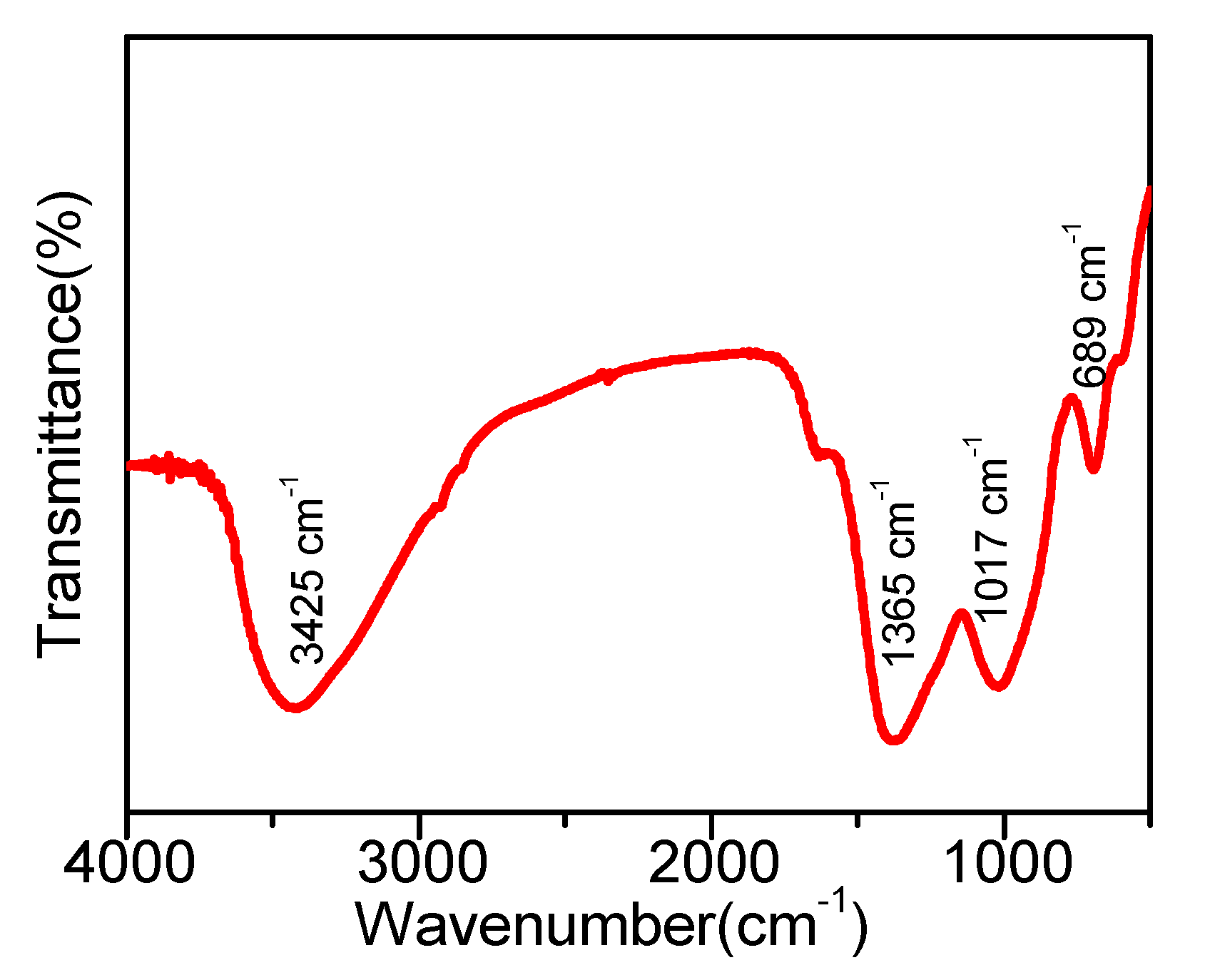

Figure 2. The FT-IR spectrum of Co3(PO4)2 nanospheres.
Figure 2. The FT-IR spectrum of Co3(PO4)2 nanospheres.
Catalysts 07 00119 g002
Catalysts 07 00119 g003 550

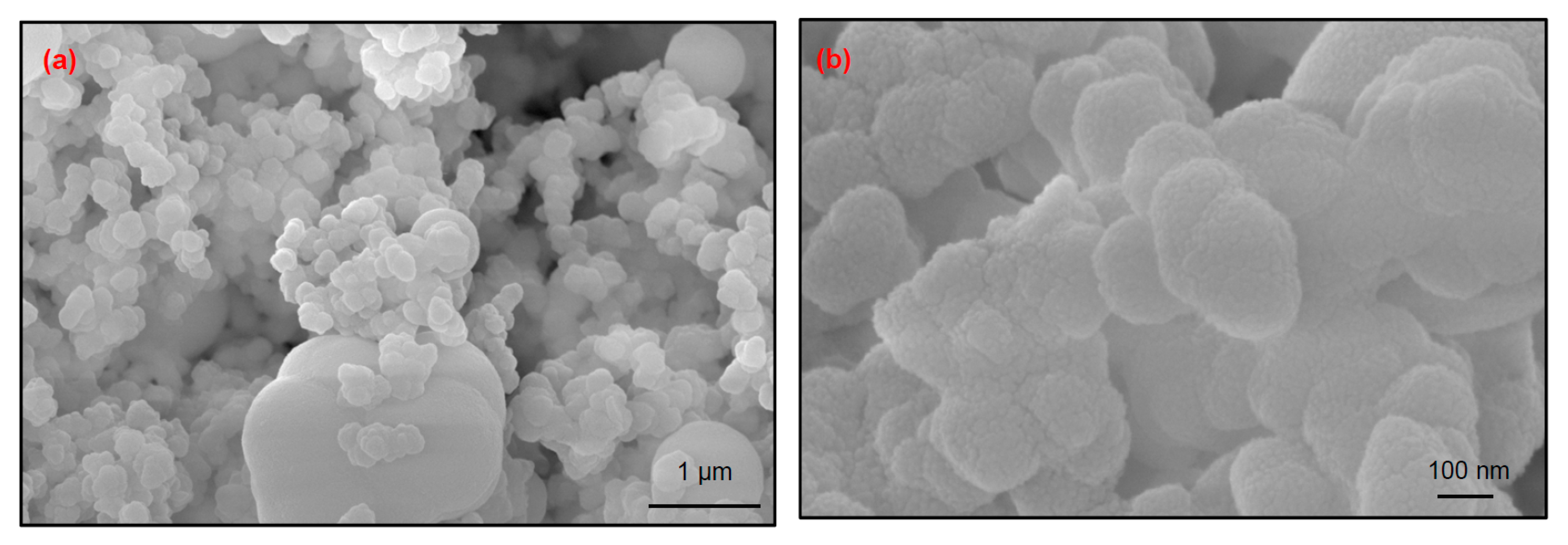

Figure 3. Field emission-scanning electron microscopy (FE-SEM) images (a) high- and (b) low-scale magnification image of a synthesized Co3(PO4)2 nanosphere sample.
Figure 3. Field emission-scanning electron microscopy (FE-SEM) images (a) high- and (b) low-scale magnification image of a synthesized Co3(PO4)2 nanosphere sample.
Catalysts 07 00119 g003
Catalysts 07 00119 g004 550

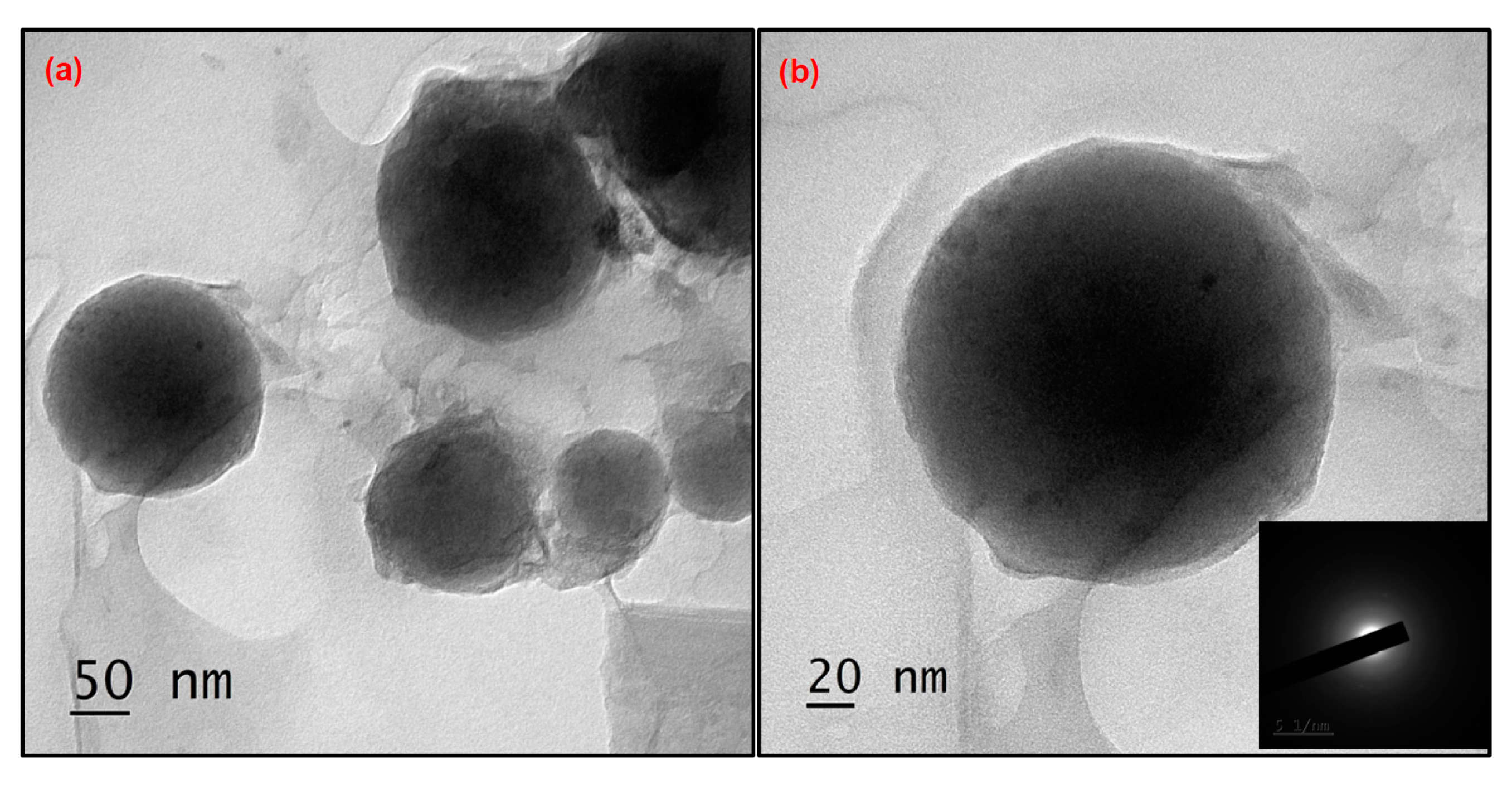

Figure 4. (a,b) High-resolution transmission electron microscopy (HRTEM) image of the Co3(PO4)2 nanosphere sample calcined at 300 °C.
Figure 4. (a,b) High-resolution transmission electron microscopy (HRTEM) image of the Co3(PO4)2 nanosphere sample calcined at 300 °C.
Catalysts 07 00119 g004
Catalysts 07 00119 g005 550

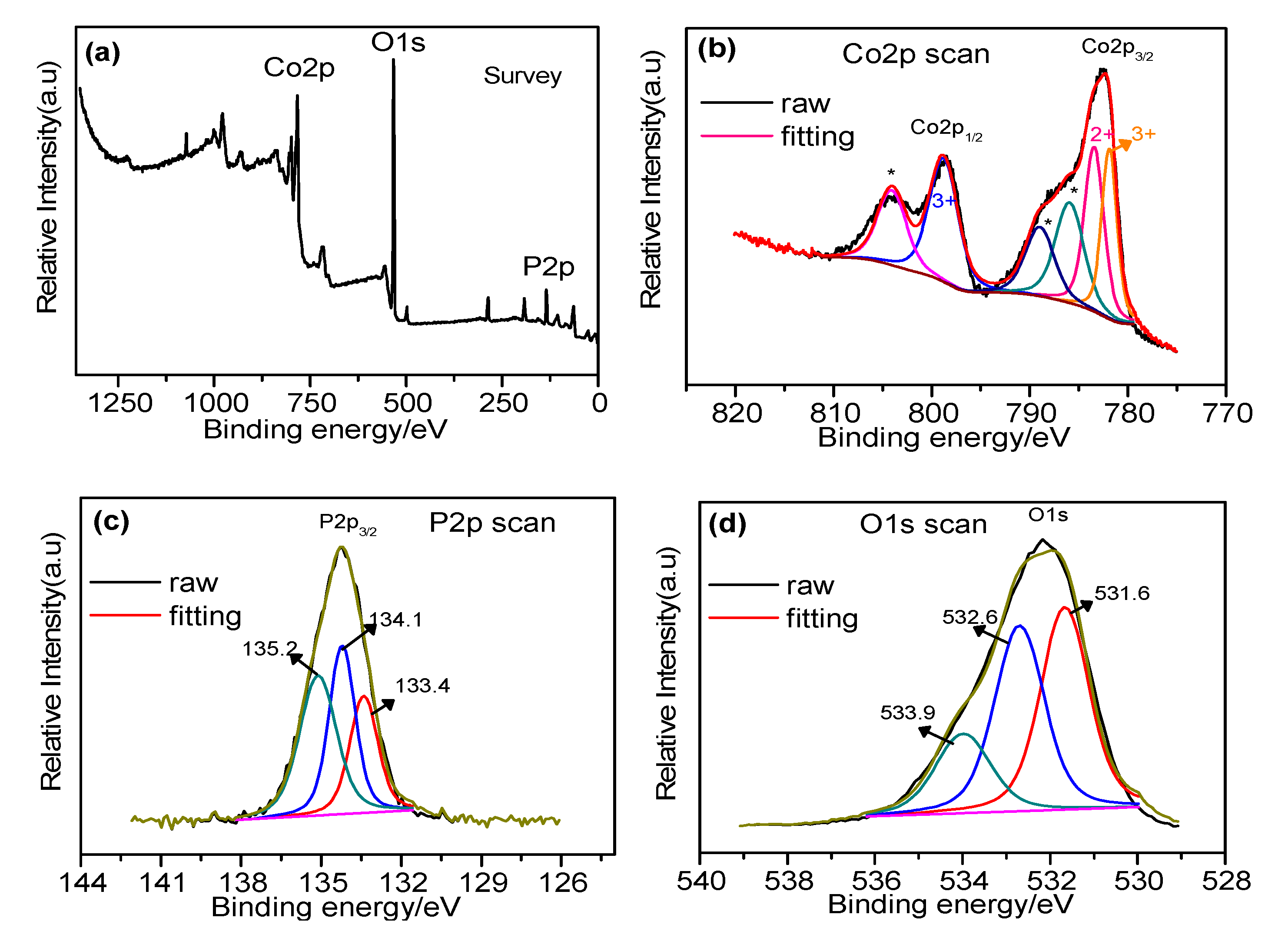

Figure 5. (a) X-ray photoelectron spectroscopy (XPS) survey spectrum of Co3(PO4)2 nanospheres, (b) Co2p, (c) P2p, and (d) O1s spectra of Co3(PO4)2 nanospheres. (* indicates satellite peak).
Figure 5. (a) X-ray photoelectron spectroscopy (XPS) survey spectrum of Co3(PO4)2 nanospheres, (b) Co2p, (c) P2p, and (d) O1s spectra of Co3(PO4)2 nanospheres. (* indicates satellite peak).
Catalysts 07 00119 g005
Catalysts 07 00119 g006 550

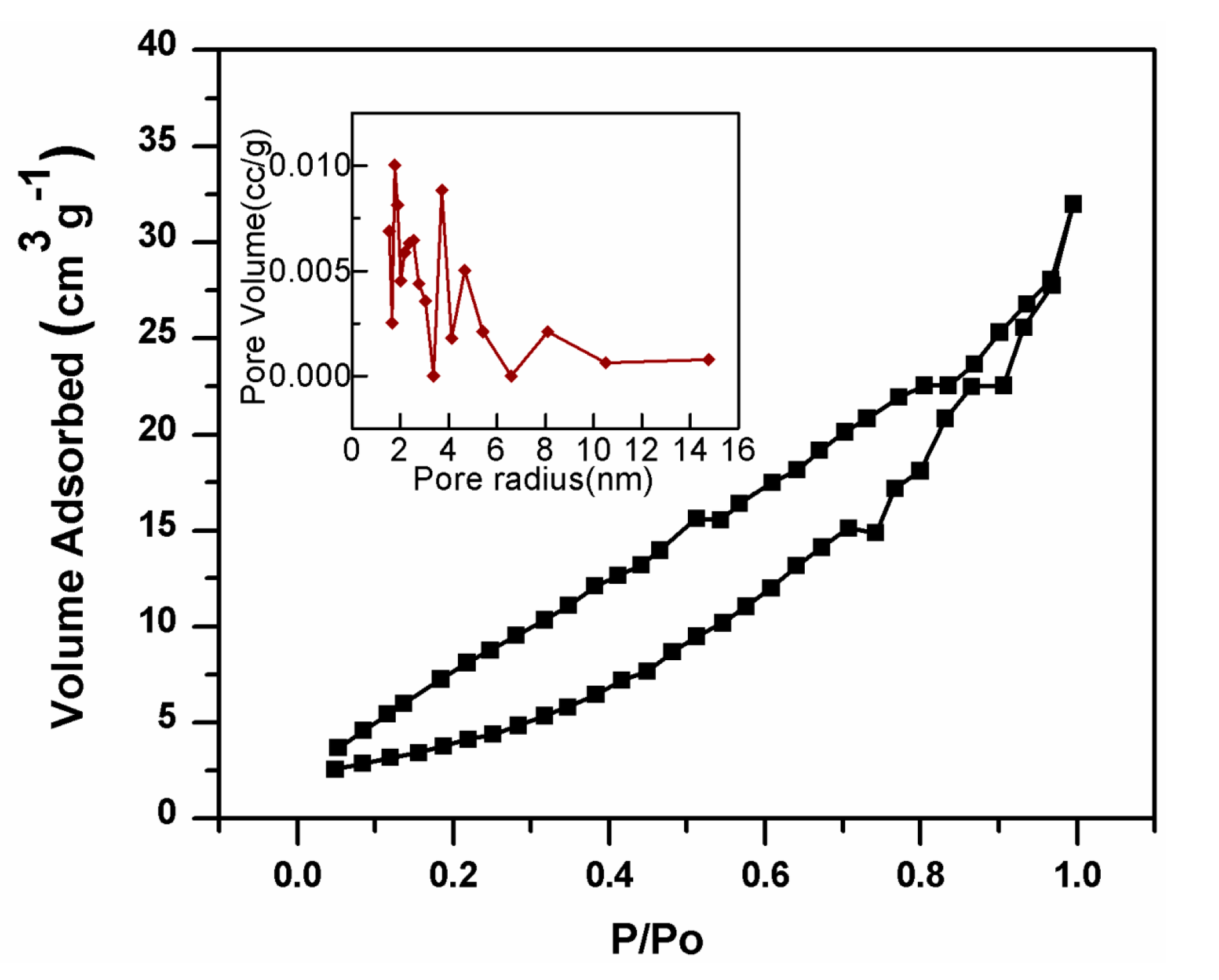

Figure 6. N2 adsorption-desorption isotherms of Co3(PO4)2 nanospheres. The inset of Figure 6 shows the pore size distribution.
Figure 6. N2 adsorption-desorption isotherms of Co3(PO4)2 nanospheres. The inset of Figure 6 shows the pore size distribution.
Catalysts 07 00119 g006
Catalysts 07 00119 g007 550

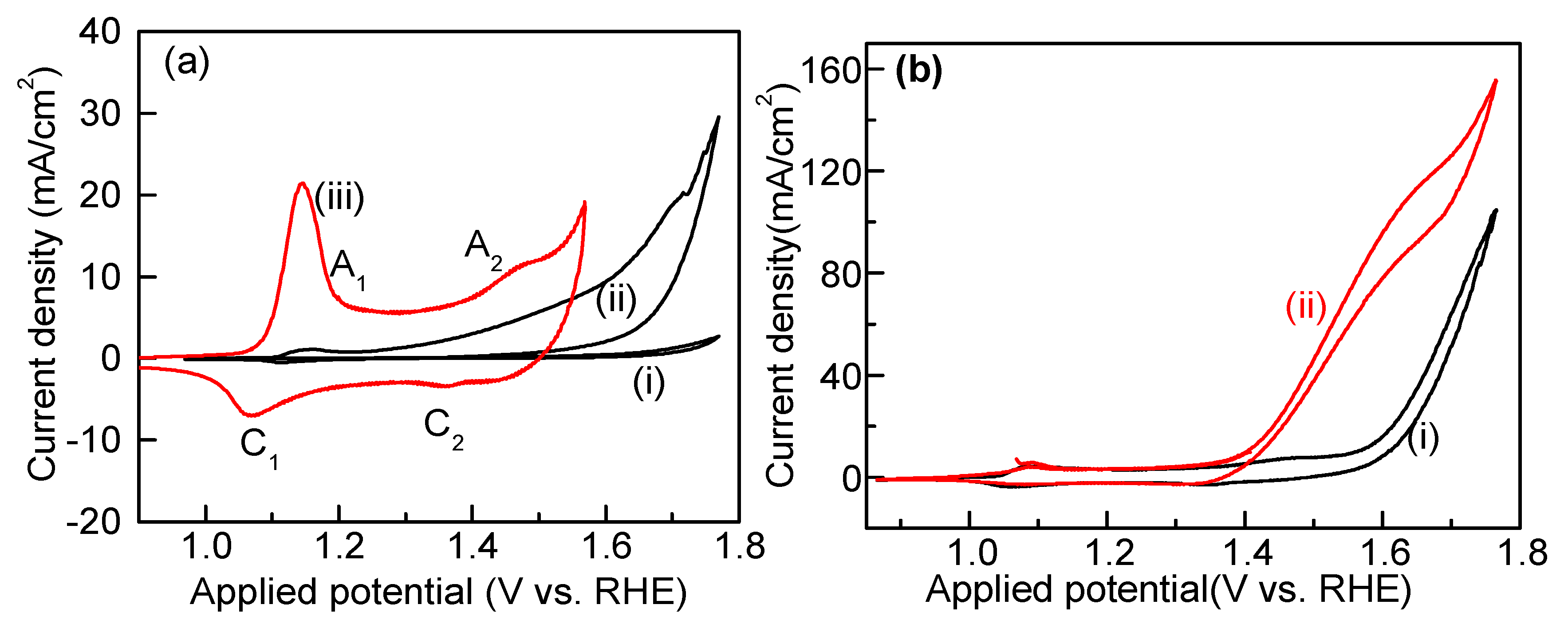

Figure 7. Cyclic voltammograms (CV) of 50 mV/s in 1.0 M KOH solution for 2.1 g/cm2 for (a): blank (i) bulk-Co3(PO4)2 (ii) and Co3(PO4)2 nanospheres (iii) loaded on an Au electrode; (b) CVs of Co3(PO4)2 nanosphere-modified electrode at 50 mV/s in 1.0 M KOH for (i) in absence, and (ii) in presence of 1.0 M CH3OH.
Figure 7. Cyclic voltammograms (CV) of 50 mV/s in 1.0 M KOH solution for 2.1 g/cm2 for (a): blank (i) bulk-Co3(PO4)2 (ii) and Co3(PO4)2 nanospheres (iii) loaded on an Au electrode; (b) CVs of Co3(PO4)2 nanosphere-modified electrode at 50 mV/s in 1.0 M KOH for (i) in absence, and (ii) in presence of 1.0 M CH3OH.
Catalysts 07 00119 g007
Catalysts 07 00119 g008 550

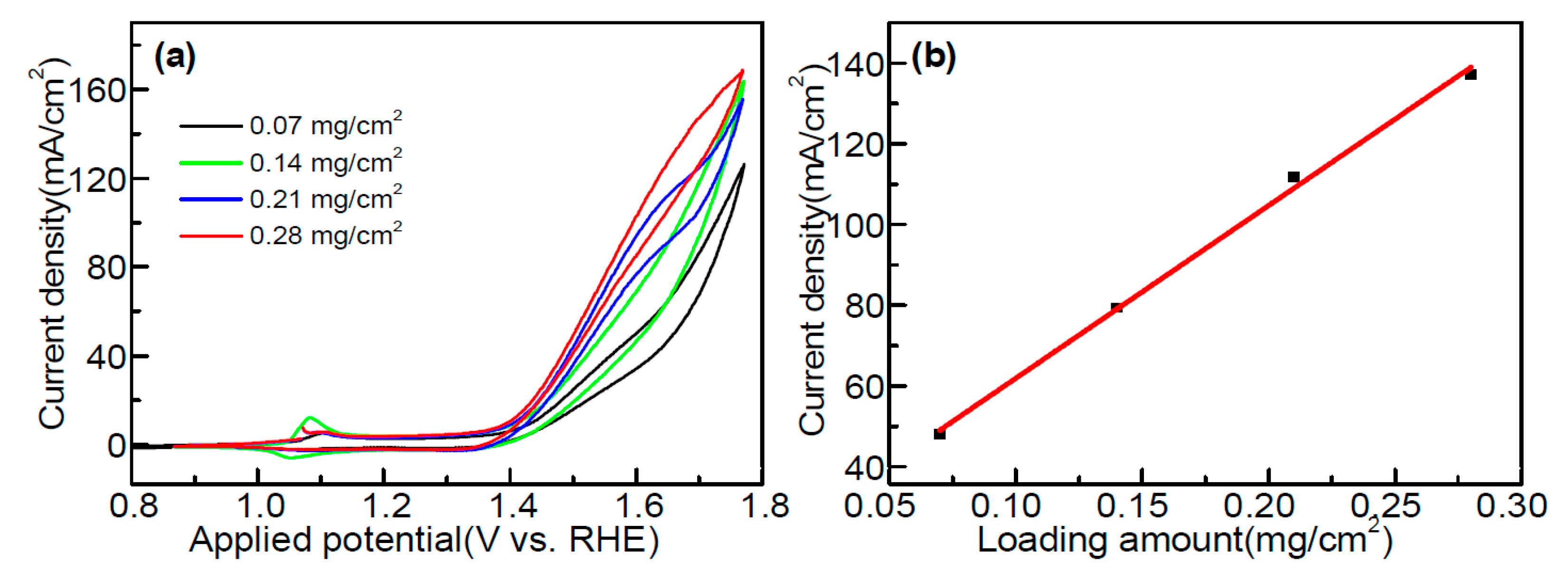

Figure 8. CVs of Co3(PO4)2 nanosphere-modified electrode at 50 mV/s (a) at various Co3(PO4)2 loadings, and (b) the plot of anodic methanol oxidation current density vs. the electrocatalyst loading amount at 1.65 V vs. RHE.
Figure 8. CVs of Co3(PO4)2 nanosphere-modified electrode at 50 mV/s (a) at various Co3(PO4)2 loadings, and (b) the plot of anodic methanol oxidation current density vs. the electrocatalyst loading amount at 1.65 V vs. RHE.
Catalysts 07 00119 g008
Catalysts 07 00119 g009 550

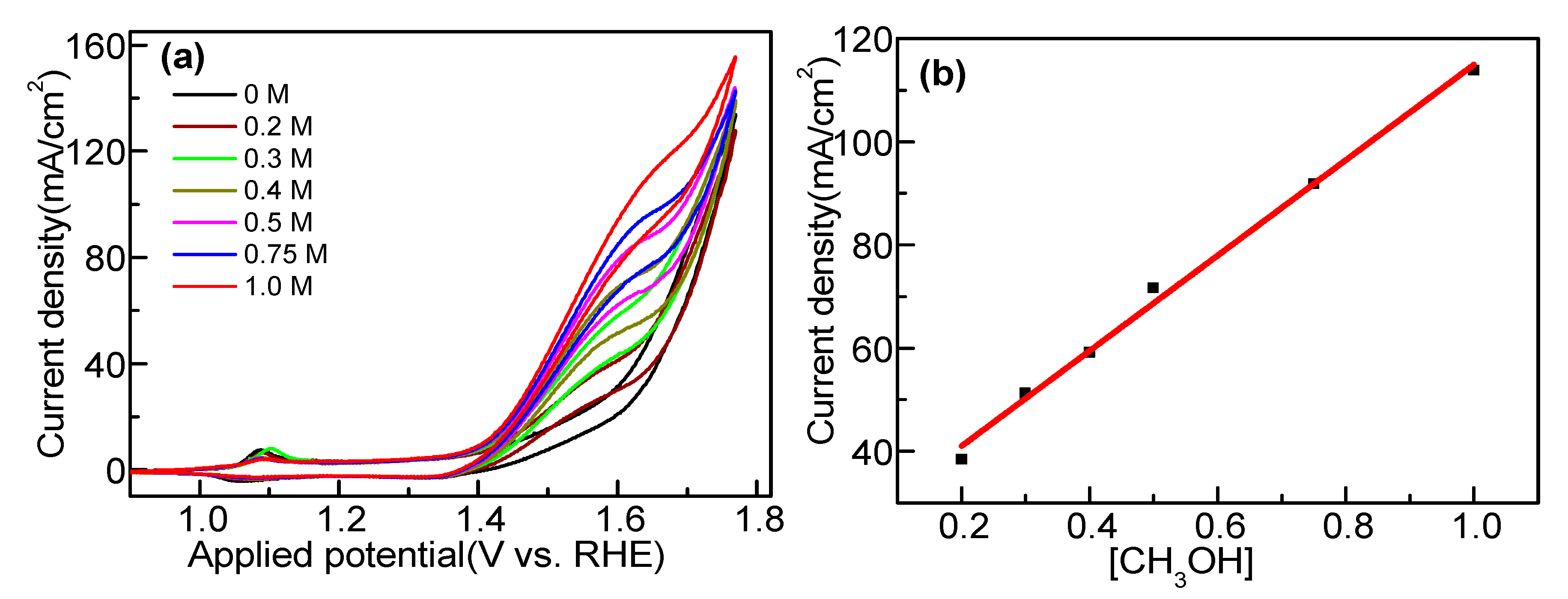

Figure 9. CVs of a Co3(PO4)2 nanosphere-modified electrode at 50 mV/s, (a) under various concentration of methanol solution, and (b) the plot of anodic methanol oxidation current density vs. methanol concentration at 1.65 V vs. RHE.
