Review

Advances in Ceramic Supports for Polymer Electrolyte Fuel Cells

Chemistry Department, Faculty of Exact Sciences, Bar-Ilan University, Ramat-Gan, 5290002, Israel
*
Author to whom correspondence should be addressed.
Catalysts 2015, 5(3), 1445-1464; https://doi.org/10.3390/catal5031445
Submission received: 29 June 2015 / Revised: 2 August 2015 / Accepted: 6 August 2015 / Published: 17 August 2015
(This article belongs to the Special Issue Electrocatalysis in Fuel Cells)

Abstract

:
Durability of catalyst supports is a technical barrier for both stationary and transportation applications of polymer-electrolyte-membrane fuel cells. New classes of non-carbon-based materials were developed in order to overcome the current limitations of the state-of-the-art carbon supports. Some of these materials are designed and tested to exceed the US DOE lifetime goals of 5000 or 40,000 hrs for transportation and stationary applications, respectively. In addition to their increased durability, the interactions between some new support materials and metal catalysts such as Pt result in increased catalyst activity. In this review, we will cover the latest studies conducted with ceramic supports based on carbides, oxides, nitrides, borides, and some composite materials.

1. Introduction

The need for advanced alternative energy technologies for transportation, backup-, and main-power applications is undisputable. Of the three available technologies, batteries, solar cells, and fuel cells (FCs), the latter is considered to be the most promising option for such applications due to its low footprint, high energy density, and low maintenance costs. In addition, fuel cells do not require a complex logistical effort and can be easily deployed in any terrain and weather (e.g., fuel cells as backup power for cellular antennas in remote locations). Hence, there is a growing use of fuel cells across industries (e.g., server farms, forklifts, buses, cellular antennas, and cars).
One of the significant hurdles in the mass deployment and commercialization of this technology is the lifetime of the fuel cell, which is mostly limited by the stability and durability of the catalyst support. Further understanding and improvement of this technology is expected to increase fuel cells' lifetime and reliability, and lower their cost.
Carbon is the most common and preferred catalyst support material for polymer electrolyte membrane fuel cells (PEMFCs) and alkaline fuel cells (AFCs). It possesses most of the primary required features: it is abundant, and it has a high surface area and good electrical conductivity. However, the use of carbon is problematic due to its low resistance to corrosion. The electrode integrity and durability is currently a technical barrier [1] in PEMFCs and AFCs, especially for applications that demand high power. This is mainly due to the loss of the fuel cell performance as a consequence of the use of carbon supports. More specifically, the degradation and corrosion of carbon-based electrodes lead to losses in the overall activity of FCs, and this is usually attributed to catalyst dissolution and agglomeration, as illustrated in Figure 1. The complete oxidation of carbon by water, which leads to its corrosion, is a four-electron process with the production of four protons, as follows:
C(s) + 2H2O→CO2 + 4H+ + 4e-
E0 = 0.207 vs. NHE

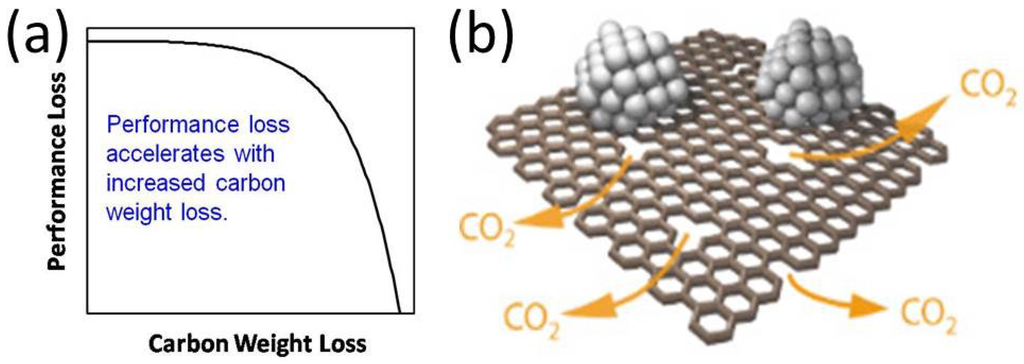

Figure 1. Relationship of carbon corrosion and activity loss in fuel cells (a) and illustration of catalyst detachment from corroded carbon (b) [2].
Figure 1. Relationship of carbon corrosion and activity loss in fuel cells (a) and illustration of catalyst detachment from corroded carbon (b) [2].
Catalysts 05 01445 g001
This is the potential of most power devices including batteries, solar cells, and fuel cells. When the pH increases, such as in AFCs, the proton activity is lowered. Consequently, the equilibrium shifts to the right in the above reaction and the rate of the carbon corrosion increases. The standard potential for complete oxidation was previously calculated by Pourbaix [3] as follows:
E0 (V) = 0.207 – 0.0591 × pH + 0.0148 log PCO2
The conditions in PEMFCs and AFCs are oxidizing, especially at the cathode [4,5,6]. As discussed above, these conditions are detrimental to the carbon electrodes and can significantly shorten the lifetime of the fuel cell [7,8].
Gruver et al. [7] showed that as the carbon support corrodes and turns into CO and CO2, the catalyst will either wash out or migrate and aggregate. Figure 2 presents images of a pre- and post-mortem sample from a fuel cell, where the loss of carbon (bright material) was observed and the platinum nanoparticles (dark material) have agglomerated (a significant increased in size was observed when compared to the particles in the Figure 2a). The result of both wash-out or aggregation of the catalyst is manifested in a decrease in the catalyst ECSA (Electro-Chemical Surface Area) in the case of precious group metal catalysts (PGMCs), or leaching and dissolution in the case of non-precious group metal catalysts (NPGMCs). One way to improve the stability of electrodes from corrosion in FCs is by the use of graphitic, nano-structured carbon materials, such as graphene nano-sheets, carbon nanotubes, and carbon nanofibers as catalyst supports [9,10,11,12]. The high degree of graphitized structures of these compounds provides a higher resistance to chemical and electrochemical oxidation. Another way is to use ceramic materials as catalyst supports [8].
Figure 2. PEM fuel cell catalyst layer with support before (a) and after (b) use. Darker dots are Pt nanoparticles and the brighter material is carbon. [7] (Adapted from this reference with the permission of the Journal of Electrochemical Society).
Figure 2. PEM fuel cell catalyst layer with support before (a) and after (b) use. Darker dots are Pt nanoparticles and the brighter material is carbon. [7] (Adapted from this reference with the permission of the Journal of Electrochemical Society).
Catalysts 05 01445 g002
Many ceramic supports were developed in order to increase the durability of fuel cells. Supports such as titanium-oxides [13,14], molybdenum-nitride [15], tungsten-oxide [16], and others were synthesized. Most of these possess some of the qualities needed for a good FC electrode (mechanical properties, thermal stability, chemical corrosion resistance), but lack others, such as good electrical conductivity and high surface area.
In this manuscript, we will review the recent advances in ceramic supports for polymer electrolyte fuel cells with a focus on five categories: carbides, oxides, nitrides, borides, and composites.

2. Carbides

The interest in metal carbides in recent years mostly rose from their possible use as catalytic materials. Some similarities between the catalytic behavior of tungsten carbide and platinum was found by Levy and Bourdart [17]. Others have shown studies on the catalytic activity of molybdenum and tungsten carbides as catalysts for methane reforming [18]. The attractiveness of these ceramic materials as catalysts was attributed to their high activity [19,20,21], lower price when compared to precious metals [22], unique structure [23], and stability [24] in acidic and alkaline mediums. In order for these materials to be good supports for electro-catalysts, they need to have high surface area (equivalent to 300 m2/g of carbon; with ceramic supports, this surface area may be much lower due to the atomic weight of the metals and comparisons should be made carefully) and good electrical conductivity (circa 4 S/cm) [25]. These requirements narrowed the possible candidates to a handful.
One of the most studied carbide supports is tungsten carbide. Ticianelli et al. [26] recently reported a composite of tungsten carbide/carbon (WC/C) synthesized using a chemical vapor deposition (CVD), and used it as a support for Pt in PEMFC anodes. They showed enhanced corrosion resistance when compared with Vulcan XC-72. Roman-Leshkov et al. [23] developed a removable ceramic coating method for the synthesis of WC. Using this technique, they were able to produce high-surface-area, electronically conductive WC, which also exhibited superior stability on the anode when compared to Vulcan XC-72. The electronic interaction between Pt and WC and its effect on the catalysis of the oxygen reduction reaction were also studied. It was concluded that the Pt is strongly attached to the support and that the interaction between the two promoted a favorable catalytic activity for the oxygen reduction reaction (ORR) [27]. Although very interesting, in these studies and others that showed similar trends [28], the WC was not exposed to harsh oxidizing conditions and was only studied at the anode where carbon corrosion is less of an issue [29]. Hence, so far, there is not enough information regarding the WC stability under oxidizing conditions.
A different carbide support was recently proposed by Elbaz et al. [30], who used the polymer-assisted deposition (PAD) method developed for the synthesis of nanoparticles by Jia et al. [31], for the synthesis of molybdenum carbide. They were able to form a Mo2C/C composite which, similarly to the WC, showed enhanced catalytic activity to ORR. Although their composite material was not completely resistant to corrosion, it did perform better than XC-72. They tied the loss of Pt electrochemical surface area (ECSA) on the Mo2C/C during their accelerated stress tests (ASTs) to the presence of excess amorphous carbon. In a more recent publication [32], the authors synthesized amorphous carbon-free Pt/Mo2C, which was found to be very resistant to corrosion, as shown in Figure 3 (less than 10% loss of ECSA vs. 90% with Pt/XC-72). In this case the Pt was added to the support during its synthesis and formed non-crystalline small atomic clusters (3–6 atoms of Pt), which the authors called Nano Rafts. This new system exhibited remarkable ORR activity with a 50% higher mass activity and a higher onset potential, attributed to the electronic interaction between the Pt and the support.
Titanium carbide has previously been tested as a support material of Ir for hydrogen evolution [33] and as a support of Pt for the electro-oxidation of methanol [34], both in acidic media, and showed promising results electrochemically and even in alleviating CO poisoning.
Recently, some studies were published also showing better durability of Pt supported on TiC than Pt/CB under ADTs (0.6–1.2V in 0.1M HClO4 solution) [35] and Pt3Pd/TiC@TiO2 support [36], which even exceeds that of Pt/TiC (under 0.4–1.2V), attributed to the corrosion resistance of the supports.

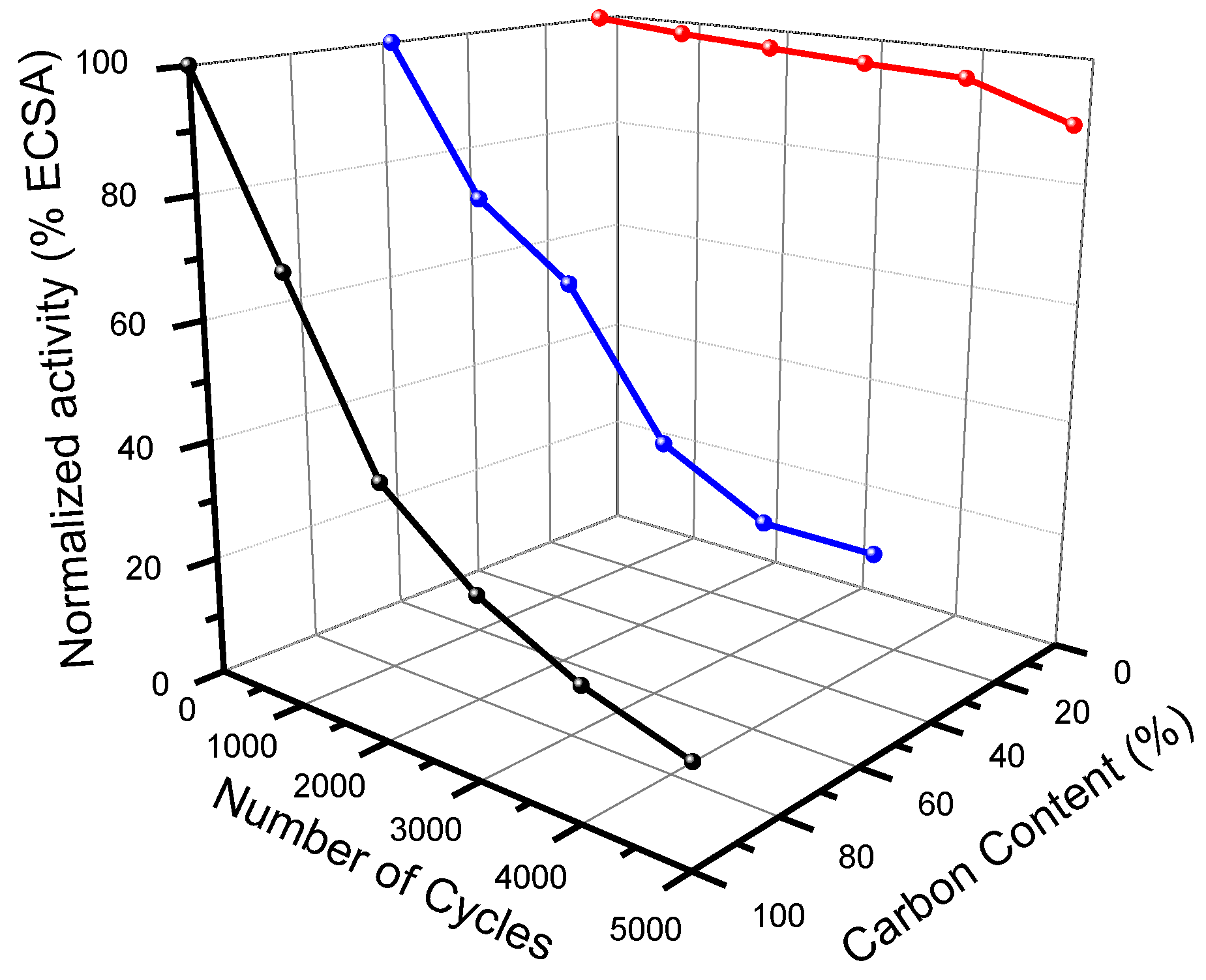

Figure 3. Normalized activity of Pt/C (black), Pt/Mo2C/C (blue), and Pt/Mo2C (red) as a function of the number of accelerated test cycles and carbon content.
Figure 3. Normalized activity of Pt/C (black), Pt/Mo2C/C (blue), and Pt/Mo2C (red) as a function of the number of accelerated test cycles and carbon content.
Catalysts 05 01445 g003

3. Oxides

Metal Oxides are inorganic compounds that possess several compatible properties for FC applications. Exhibiting properties such as corrosion resistance and mechanical and thermal stability, they show a lot of potential for FCs, although some of them are only semi-conductors or even poor electrical conductors and require certain modifications in order to make sufficient FC materials.

3.1. Titanium Oxide

Titanium oxides received extensive interest in recent years and can be roughly divided into two groups: semi- or non-conducting systems (such as TiO2) and systems that show high electrical conductivity (TinO2n−1 group).
TinO2n−1 (where n is between 4 and 10) is widely used in photo-catalysis [37,38,39], water splitting [40], and gas sensing [41] and has attracted much attention in the FC field as a possible catalyst support due to its relatively good conductivity. Recently, TinO2n−1 has shown promising effects on the durability and catalytic activity of fuel cell catalysts because of its good mechanical resistance and stability in acidic and oxidative environments. Among this series of distinct oxides, Ti4O7 (titanium sub-oxide, TSO) exhibits the highest electrical conductivity, exceeding 1000 S/cm at 25 °C [41].
In a recent study, Wu et al. [42] prepared TinO2n−1 (magneli-phase TSO) and XC-72 to support Pt electro-catalysts for comparison purposes, both loaded with 20%wt Pt. Even though the TSO-based catalyst showed low conductivity (~10-3 S/cm vs. 4.78 S/cm for XC-72 at 12 MPa), lower ECSA value (13 m2/g vs. 30 m2/g), and minimally lower onset potential (ΔE = 0.02 V) compared to Pt/XC-72, their ADT procedure (cycling between −0.5 and 2.0V vs. Saturated Calomel Electrode, SCE) was found to cause no change in the onset potential and minimal loss in ECSA (about 12% vs. twice as much for Pt/XC-72) after 8000 cycles. TEM images proved that after 8000 cycles the Pt/XC-72 went through considerable Pt aggregation whereas the morphology of Pt/TSO remained intact. Ioroi et al. also studied Pt/TSO-based electrodes for PEMFC [43,44,45]. Although promising, one of the most significant issues that still remains unsolved with the sub-stoichiometric titanium oxide is its relatively low surface area which translates to lower current densities.
In this study, the synthesis, structure, and morphology of Pt/TSO using a laser-irradiated TSO support were investigated, as well as the electrochemical activity for ORR and its stability under high potential conditions for Pt/TSO. They found that the Pt/TSO catalyst had shown a specific activity for the oxygen reduction reaction (ORR) very similar to those of commercial Pt/C catalysts, and much better oxidation resistance under high potential conditions as well. It was also shown that the conductivity of TSO-supported catalysts increased with an increase in Pt loading: 20 wt. % Pt on TSO showed conductivity of ca. 8 S/cm at 50 MPa, which was about one-quarter of that of 40 wt. % Pt on XC-72 (30 S/cm) under the same conditions. On the other hand, the calculated ECSA of Pt/TSO was rather small compared to that of Pt/XC-72 (values of 22 and 16 m2/g for 10 wt. % and 20 wt. % vs. 44 m2/g for Pt/XC-72), indicating a larger diameter of deposited Pt particles, which was consistent with the results of SEM and TEM observations: the Pt particle diameter was between 10 and 20 nm, which is much larger than the common Pt/C catalysts. The performance of the Pt/Ti4O7 cathode was evidently low compared to that of 20% Pt/XC72, mainly due to the smaller ECSA.
Non-stoichiometric mixtures of several titanium oxide phases, mainly Ti4O7 and Ti5O9, known as magneli-phase and by the registered name Ebonex, were investigated as well [46]. Ebonex is considered to be electrochemically stable with a tendency for ORR in acid and base solutions, possesses a high electrical conductivity of 1000 S/cm, and could be a good alternative catalyst support material [41,47]. The Pt/Ebonex catalytic activity was reported to be as much as 10 times higher than that of pure Pt. This was attributed to the increase of active Pt surface area by the reduction of Pt particles sized even below 1 nm and the increase of the number of active sites for oxygen reduction through simple geometric effects, as well as change of oxygen adsorption conditions through the change of the electronic structure of the catalyst caused by the electronic interactions between platinum and the Ebonex. These interactions were rationalized by the Ebonex’s hypo-d-electron character which has the ability to interact with Pt that has the hyper-d-electron character. This synergetic effect was explained through the increase of the 5d vacancy of Pt and the decrease of the Pt-Pt bond distances as a result of the interaction with Ebonex, which inhibits the chemisorption of OH. It also shifts the PtOH formation to more positive potentials, facilitating the interaction of oxygen with Pt, hence increasing the activity of the catalyst for the oxygen reduction reaction.
Another titanium oxide which was studied as a possible catalyst support for FCs is TiO2. It is a wide band gap semiconductor and its conductivity is insufficient for a support material without modification such as doping [48,49,50,51]. In spite of that, it was widely studied as a ceramic support promoting ORR in PEMFC. In a recent study [13], the synthesis of high surface area TiO2 and TiO composite materials in a single step was presented. The high surface area conductive titanium oxide was successfully synthesized using the polymer-assisted deposition technique [31]. The TiO2 and TiO nano-crystalline materials were formed with an average crystallite size on the order of 4 and 8 nm and a BET surface area of 286 and 200 m2/g for TiO and TiO2, respectively. Pt was added to the supports, and the calculated ECSA value also showed promise with approximately 60 m2/g for both phases. This system exhibited better ORR activity when compared to Pt/XC-72. This was again, as in the case of the sub-stoichiometric titanium oxides, attributed to the electronic interaction between the support and the Pt catalyst.
Shanmugam et al. [14] synthesized mesoporous TiO2 using the sono-chemical method. This synthesis resulted in a spherical globular morphology of the TiO2 particles, and a size range of 100–200 nm with pores of 4–7 nm which were around the size of the Pt particles deposited. This Pt/TiO2 was compared to Pt/C. The onset potential of the oxide formation on the Pt/TiO2 was shifted toward a higher potential, indicating a better resistance nature of Pt/TiO2 for Pt-OH formation. The Pt/TiO2 also exhibited superior results towards ORR electro-catalysis than Pt/C. This enhanced activity is attributed to several factors, such as high dispersion, better stabilization, and the modification of the electronic structure of Pt nanoparticles by interaction with the oxide interface, which results in a change in the adsorption characteristics of Pt nanoparticles on TiO2. They also studied the stability examined by chronoamperometry at an applied voltage of 0.55V and found that the current decay rate was higher for Pt/C than for Pt/TiO2 when only 13% decay was detected after 1 h (80% for conventional Pt/C). Several more studies were conducted with titanium oxide supports and showed very similar results [52,53,54,55].

3.2. Tungsten Oxide

Tungsten oxide is an n-type semiconductor with a band gap of a few eVs. Tungsten, which has several oxidation states (usually 2 to 6), appears in many forms, making it compatible with various applications. The conductivity of tungsten oxide comes from its non-stoichiometric composition, causing a donor level formed by oxygen-vacancy defects in the lattice.
Tungsten oxides (predominantly WO3) were studied for quite a long time as a catalyst for DMFC and showed high catalytic activity toward methanol oxidation reaction, possibly due to the formation of tungsten bronzes favoring the dehydrogenation of methanol, and a synergistic effect leading to CO tolerance [56,57,58]. Park et al. [59] showed excellent performance for the use of porous tungsten oxide in thin film fuel cells and also showed good stability in sulfuric acid. In another study [60], Pt was added to commercially available tungsten oxide. The performance of this system was compared to Pt/XC-72 and showed very high stability in acidic conditions.
Nano-sized WO3 was also studied as a possible support material for monolayer Pt ORR electro-catalysts in acid electrolyte [61]. Pt/WO3 exhibited good activity for ORR and superior electron transfer capability compared to conventional Pt/C and Pt. However, a thorough examination of the WO3 support revealed that it can easily turn to water-soluble hydrogen tungsten bronze (HxWO3), facilitating the detachment of Pt nanoparticles as also been discussed elsewhere [62].
Recently, Lu et al. [63] studied the electrochemistry, structure, and interaction of nano-sheets of Pd on tungsten oxide (Pd/W18O49), comparing it to three other systems: Pt/C, Pd/C (both obtained commercially), and support-less Pd NPs. The Pd/W18O49 was found to have considerably higher electrical conductivity than the support devoid of Pd and had a higher surface area (40 vs. 30 m2/g). Electrochemical studies of ORR catalysis and accelerated life tests in alkaline media showed fairly remarkable results of the tungsten-based catalyst support, outperforming the other examined systems in almost every aspect (ECSA = 48 m2/g, E1/2 = 0.875V vs. Reversible Hydrogen Electrode) and mass activity at 0.9 V–0.216 A/mgpt) and with very high stability of the W18O49 nano-sheets system.
Theoretical and experimental studies also revealed that oxygen has a higher affinity for Pd than Pt when on W18O49 [64], making O2 adsorb better on Pd, enabling the O=O bonds to break more easily. This causes a decrease in the electron density of Pd, which weakens the Pd-O bond and could significantly increase the dissociation of O2. In fact, introducing W18O49, which substantially alters the electronic structure of Pd, and the excess of oxygen vacancies present that might increase the electronic conductivity of W18O49 translated into enhanced electro-catalytic activity.

3.3. Tin Oxide

Tin oxide (SnO2) is a post-transition metal dioxide with a structure resembling rutile TiO2, and is often referred to as an oxygen-deficient n-type semiconductor that has been studied in the fields of chemical sensors [65] and electronic devices [66].
Pt and Pd supported on SnO2 were investigated as catalyst systems for various chemical reactions, such as the low temperature oxidation of CO and methane [67], the reduction of NOxs [68], and the electro-oxidation of alcoholic fuels [69,70]. Indeed, pure tin dioxide is a wide band gap semiconductor with electrical conductivity varying from 0.1 to 10−6 S/cm. Therefore, if considered as a catalyst support for fuel cells, it must have higher conductivity and, hence, certain modifications such as doping [71,72,73,74,75,76,77,78] or distinct synthesis routes are required.
Various forms of tin oxide were reported, such as SnO2 nanowires [79] (TONW) synthesized by the thermal evaporation method and meso-porous tin oxide (MPTO) by the neutral-surfactant template-assisted method [80], having high BET surface area (205 m2/g for the MPTO, very close to the value of XC-72, ca. 230 m2/g) and low particle size (20 nm diameter for TONWs and 6 nm for MPTO). After the addition of Pt to both supports, their ORR activity was compared with that of Pt on carbon and was found to be superior. In terms of durability and stability, the MPTO support outperformed commercial Pt/C during potential cycling, including two steps: the first at a constant potential of 1.2V vs. RHE and the second between 0.6 and 1.2 V vs. RHE in 0.5M sulfuric acid.
Other metal oxides that are still under investigation are Pt/MnO2 [81] and Pd/Mn2O3 [82], which have shown better catalytic activity than Pt/C even with very low noble metal content, and SiO2 [83] and NbO2 [84], which were reported as ORR catalysts in fuel cells and have shown promising and interesting results.

4. Nitrides

Like metal oxides, metal nitrides have also attracted much attention owing to their excellent thermal and chemical stabilities. Recently, some of them were found to have catalytic properties similar to those of noble metals like Pd and Pt [85,86]. However, in terms of fuel cell applications, there have not been many publications dealing with metal nitrides as catalyst supports thus far.
Among these nitrides, TiN is the most studied since it seems to show the most promise. It has a high electrical conductivity of ~4000 S/m [87,88] and is considered to have good corrosion resistance, usually attributed to the oxy-nitride layer, caused by the formation on the surface oxide due to atmospheric oxidation and/or acidic media, which prevents further oxygen diffusion to the bulk [89], in turn making it relatively chemically inert.
However, corrosion still might occur under fuel cell conditions (relatively high temperature, acidic environment, oxygen presence, high water content, and high potential applications), turning TiN into oxide form which leads to catalyst particle growth and significantly lowers the conductivity [89]. Some have tried to use this to their advantage by making oxy-nitride supports [90], employing the high corrosion stability of TiO2 and the electrical conductivity of TiN. These supports with Pt deposited on them have shown to have an ECSA more than three times higher than the conventional Pt/C catalyst and the activity under prolonged operations (denoted by ECSA) exceeded 50% even after 1000 cycles (close to 0% for Pt/C under the same conditions). Another study on TiON [91] substantiated this increased stability and even showed an improved result of only 20% loss in ECSA after 1000 cycles (80% loss for Pt/C).
More complex morphologies of TiN were also synthesized in order to increase the surface area and lower the TiN content and overall weight. For example, Pan et al. [92] synthesized hollow TiN nanotubes (NTs) by two-step synthesis. The TiN hollow NTs showed better electrochemical activity and stabilty than comercial Pt/C after an accelerated life test.
Since nitrides do not show any significant catalytic activity, a catalyst is usually added to the support. The interaction of the catalyst, in most cases -Pt, with the support is of extreme interest, since the support may change the Pt-Pt bond length and the electron density on the Pt, hence changing its catalytic activity. Zhang et al. [93] investigated the thermodynamics of a single-atom Pt catalyst bonding to the TiN surface and found that Pt atoms prefer to be embedded on the surface of the TiN, at the N vacancy sites, instead of forming Pt clusters. Therefore, under typical PEM fuel cell operation, TiN surface vacancies come into play, anchoring the Pt atom for better catalytic function as illustrated in Figure 4.

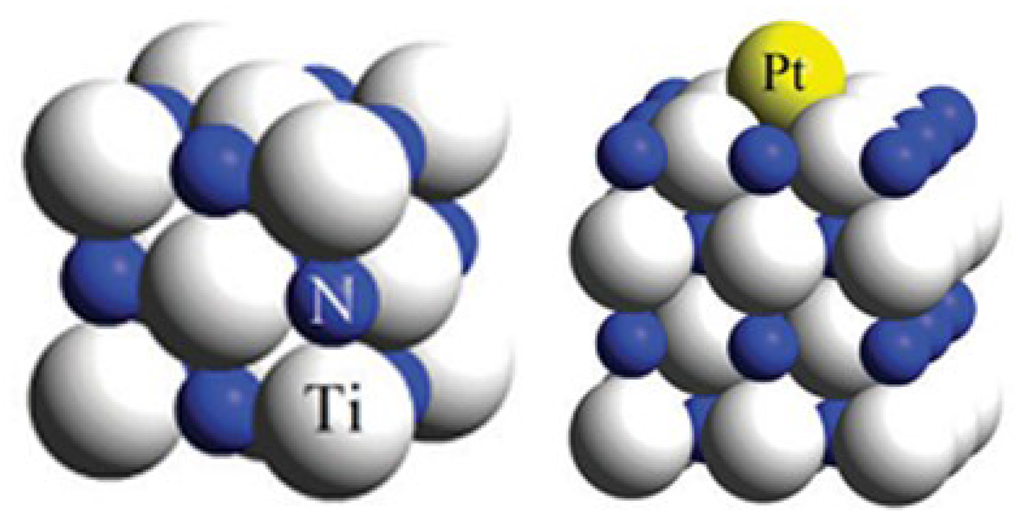

Figure 4. Crystal structure of TiN and the atomic structure model of Pt embedded on an N-vacancy site [93] (adapted from this reference with the permission of RSC publishing).
Figure 4. Crystal structure of TiN and the atomic structure model of Pt embedded on an N-vacancy site [93] (adapted from this reference with the permission of RSC publishing).
Catalysts 05 01445 g004
Although showing good stability when compared to carbon supports, TiNs show degradation under fuel cell operating conditions. This was studied by Avasarala et al. [89,94], who investigated the degradation mechanism of the Pt/TiN catalyst under fuel cell conditions using their accelerated stress test (AST) protocols. They found that out of the three main degradation mechanisms taken into account under these conditions, (1) support oxidation, (2) catalyst agglomeration, and (3) catalyst dissolution, Pt catalyst agglomeration and coalescence were the most dominant. Furthermore, during potential cycling, the oxy-nitride formed on the outer layer tends to dissolve to Ti (IV) hydroxide ions, leading to further passivation of the surface.
Among the other less-studied nitride supports, vanadium nitride (VN) has also been shown to have properties that might be suitable for fuel cells, such as reasonable surface area (55.4 m2/g) and good electrical conductivity (72 S/cm). It was studied as a support for Pd for formic acid fuel cells and has shown to be efficiently prepared by solid-solid phase separation. Higher catalytic activity promoting formic acid oxidation, dehydrogenation path, and diminished Pd catalyst CO poisoning was also demonstrated [95]. In addition, pure VN showed some catalytic activity for ORR [86], and was also suggested as a promising electrode material for electrochemical super-capacitors [96].
Another interesting nitride support is Mo2N, which was reported both as a catalyst substitute for Pt on carbon [85,97] and as a catalyst support [15]. In these studies, Mo2N supports were prepared by polymer-assisted deposition, and subsequently, Pt nanoparticles were grown on it. The ECSA of the Pt was 20.8 m2/g, lower than commercial Pt/C. Although not much work has been conducted with it, it has shown some initial potential and requires further research and improvement.
Other non-metal ceramics such as carbo-nitrides were also studied as combined catalyst-support arrays with noble and non-noble metals [98,99]. Xu et al. [100] reported the synthesis of graphitic C3N4 support by the direct heating of dicyandiamide for the deposition of Ag nanoparticles as the catalyst, forming Ag/g-C3N4. They came to the conclusion that this system showed fair ORR catalytic activity that remained almost unchanged after 200 cycles in oxygen atmosphere. C3N4 was also examined for durability and showed inconclusive results.

5. Composites/Hybrides

Some ceramic supports possess good resistance to electrochemical oxidation and stability in acidic environments, which leads to the consideration of them as alternative catalyst supports. However, the low electrical conductivity of some of them may prevent their extensive application in fuel cells.

5.1. Carbon-Based Ceramic Composites

Carbon has high electrical conductivity and surface area, therefore it has been introduced into ceramic supports physically and/or synthetically in order to improve supports that are lacking some or both of these critical properties. However, adding carbon may also lower the composite materials’ corrosion resistance and enhance the supports’ degradation in fuel cells. Therefore, ceramics that contain carbon might possess both carbon-like and ceramic-like properties, improving the support’s compatibility for fuel cells but causing it to be more susceptible to corrosion.
Pd catalyst on iron-molybdenum-carbon (Fe2MoC) composite was synthesized and then compared electrochemically to conventional Pt/C, Pd/C, and Pd/MoC catalysts [101]. The ORR onset potential of the Pd on the composite support was much higher when compared to Pd/C and Pd/MoC, but it did not demonstrate much improvement when compared to Pt/C. However, the calculated mass activity did show detectable improvement for the Pd/Fe2MoC compared to the Pt/C (146.4 and 124.3 mA/mgcat, respectively), in spite of a smaller catalyst loading ratio (37.6% and 47.6%, respectively). In addition, it showed better stability when compared to Pt/C.
Some other carbon-based composite ceramics that were synthesized and examined for ORR performance are Co3W3C [102] and Co6Mo6C2 [103]. Loaded with catalysts (Pd for the tungsten-based hybrid and Pt for the molybdenum-based), they were electrochemically characterized, and while the tungsten-based support exhibited only slightly better electrochemical characteristics such as onset potential, mass activity, and stability under prolonged exposure to an oxidizing environment compared with conventional Pt/C, the molybdenum-based support demonstrated substantial improvement in mass activity (more than twice the value of Pt/C) and showed a detectable improved stability with no detectable degradation during the AST (1000 CV cycles between 0.6–1.2V and 0.05–1.1V vs. RHE, respectively, in O2-saturated 0.1 M HClO4 solution).
Tungsten carbide and carbon nanotubes (CNTs) have exhibited ORR catalytic activity with a noble metal catalyst separately [9,10,12,104]. Considering that a hybrid tungsten carbideCNTs was synthesized and tested by Liang et al. [105], even with half the Pt loading, the Pt/WC-CNT electro-catalyst had a higher onset potential compared to the Pt/CNT, indicating a synergistic effect between Pt, WC, and the CNTs. Different composites of WC/C were reported. Garcia & Ticianelli [106] mixed tungsten hexacarbonyl with Vulcan XC-72. They tested different samples of the support for ORR activity. The supports were distinguished by the WC to C ratio in the presence of W2C. They found that all samples had better catalytic activity (denoted by onset potentials and specific activity) compared to Pt/C due to an increase of the Pt 5d-band occupancy, which led to a weaker Pt-OH interaction, resulting in a lower Pt-oxide coverage and thus increasing the kinetics of ORR.
The electrochemical properties and application of tungstate salts such as SrWO4 and CaWO4 mixed with graphite were investigated as well [107,108]. Both catalysts exhibited better electrochemical activity for oxygen reduction reaction in H2SO4 solution compared to Pt/graphite, denoted by the onset potential for SrWO4 (0.65V vs. 0.55V for Pt/graphite) and the half-wave potential for CaWO4 (0.51 V vs.0.45 V for Pt/graphite).

5.2. Other Ceramic Composites

Other composites that do not contain carbon and are usually based on more than one metal were reported as well. An interesting cesium- and tungsten-based composite that has formerly been reported as an electrolyte for fuel cells [109] due to their good proton conductivity and stability was examined in PEMFC [110]. The Cs2.5H0.5PW12O40 was shown to have a relatively high surface area (136 m2/g) diminished to 35–50 m2/g after the addition of Pt, suggesting Pt saturation of the low dimension pores. The composite also showed better catalytic activity and stability in acidic media than conventional Pt/XC-72, which was attributed to the pores preventing Pt agglomeration.
The widely use dindium tin oxide (ITO) is an n-type semiconductor with a wide band gap, which is produced by replacing In3+ by Sn4+ in the cubic structure of indium oxide. This replacement produces free electrons enhancing its conductivity and, thus, influences the optical and electrical properties of the ITO film [111]. ITO is a commercially available material often used as a transparent conducting oxide (TCO) for smart windows. Chhina et al. [112] fabricated a Pt/ITO catalyst as a potential non-carbon catalyst support and investigated the thermal and electrochemical stability. The Pt on ITO had an average crystallite size of 13 nm. Electrochemical measurements indicated that this catalyst was much more stable than those of both commercially available Hispec 4000 and Pt/XC-72R. In a different study [113], Pt clusters were deposited on the ITO NPs through the galvanic displacement of Cu by Pt. The specific ECSA of Pt/ITO (83.1 m2/g) was found to be three times that of Pt/C (27.3 m2/g) and, after 1000 cycles, changes in the Pt ECSA and electrocatalytic activity proved the stability of the Pt/ITO catalyst was far superior to that of Pt/C when Pt/ITO showed no recordable loss of Pt ECSA. However, for Pt/C, only ∼65% of the original ECSA remained after potential cycling. However, TEM pictures taken after the stability tests detected several small holes on the ITO surface due to the corrosion and dissolution of the surface Sn.

6. Titanium Diboride

TiB2 is a relatively novel titanium-based support that has been considered as a base material for a range of different applications. It exhibits good electrical (~105 S/cm) and high thermal conductivity (~65 W/mK), excellent thermal stability and corrosion resistance in acidic medium [114], and might be considered a promising candidate for PEMFC catalyst ceramic support.
TiB2 was first reported in the context of fuel cells by Yin et al. [115,116], who deposited Pt particles on TiB2 support by colloidal route. Before then, it was reported that smaller particle size leads to the agglomeration of particles and the loss of ECSA due to a higher specific surface energy. Using their synthesis route, the highly dispersed Pt nanoparticles on the ceramic support were dispersed and stabilized by Nafion in order to prevent agglomeration and particle growth. Indeed, the ceramic boride showed similar catalytic activity (similar onset potential) in addition to better durability when compared to conventional Pt/C after 6000 cycles of CVs in 0.5 M sulfuric acid. About 60% loss of ECSA was exhibited while about 80% loss was detected for Pt/C after 5000 cycles.
The electrochemical stability of the Pt/TiB2 catalyst was approximately four times higher than that of the commercial Pt/C catalyst after cycling between 0 and 1.2 V in 0.5 M H2SO4, due to the support characteristics and also possibly from the Nafion stabilization effects, which enhanced both the metal support interaction and the steric hindrance effect of the surface Pt nanoparticles. In several other studies, Pt/TiB2 was obtained not only by colloidal route [115,116,117] but also by carbo-thermal reduction [118,119].
Huang et al. [117] investigated the effect of several kinds of pretreatments applied to the support (mostly exposing it to acidic or alkaline media), in an attempt to reduce the influence of TiB2 particle size on the electrochemical performance of the system. The study showed that among the investigated pretreatments, the hydrogen peroxide pretreatment demonstrated the best results, producing a catalyst with about twice the ECSA compared to other pretreated samples, possibly due to the presence of TiO2. However, Roth et al. [118] deposited Pt particles on TiB2 prepared via the carbo-thermal reduction method [116], and showed that although TiB2 exhibited good stability under normal cycling, its performance, denoted by power density, reduced much more rapidly (it showed less than half the power density after only 100 cycles) under actual fuel cell conditions (oxygen presence and an elevated temperature of 80 °C), claimed to be due to oxide formation which probably led to reduced conductivity.

7. Conclusions

Corrosion is a serious issue in fuel cell technology as it can dramatically reduce the electrode life time, and thus the overall performance of the cell. In order to try to increase the lifetime of the electrodes, various materials have been proposed, the most promising of which are the ceramic materials. In most cases, carbides, oxides, nitrides, borides, and composite materials have shown better stability and durability when compared to the commercially available standard, Pt/XC-72. Unfortunately, due to the lack of standard protocols for the assessment of these parameters, it is impossible to compare between supports and tell which is best under certain conditions.
One very interesting outcome, which most of the researchers in the field seem to agree upon, is that the move from carbon to other supports opens up a wide array of possibilities when it comes to catalyst activity. In fact, in many of the studies surveyed in this review, enhancement of the catalytic properties was shown and was attributed to the favorable interaction of the catalysts, in most cases -Pt, with the support. When choosing ceramic supports for fuel cells, one must consider their conductivity, which in some cases is very low when compared to carbon supports, and the surface area of the support. The latter is an issue that most studies do not tackle yet, but may impact the overall performance significantly.

Acknowledgments

The authors would like to thank MAFAT for funding this work.

Author Contributions

Oran Lori and Lior Elbaz wrote this review together with equal contribution. Oran Lori was responsible for revising it and Lior Elbaz edited its final version.

Conflicts of Interest

The authors declare no conflict of interest.
