Open AccessReview
Catalysts 2015, 5(2), 561-594; doi:10.3390/catal5020561

Deactivation of Pd Catalysts by Water during Low Temperature Methane Oxidation Relevant to Natural Gas Vehicle Converters

Department of Chemical & Biological Engineering, University of British Columbia, 2360 East Mall, Vancouver, BC V6T 1Z3, Canada
*
Author to whom correspondence should be addressed.
Academic Editor: Calvin H. Bartholomew
Received: 17 December 2013 / Revised: 4 December 2014 / Accepted: 25 March 2015 / Published: 31 March 2015
(This article belongs to the Special Issue Advances in Catalyst Deactivation)
View Full-Text   |   Download PDF [4548 KB, uploaded 2 April 2015]   |

Abstract

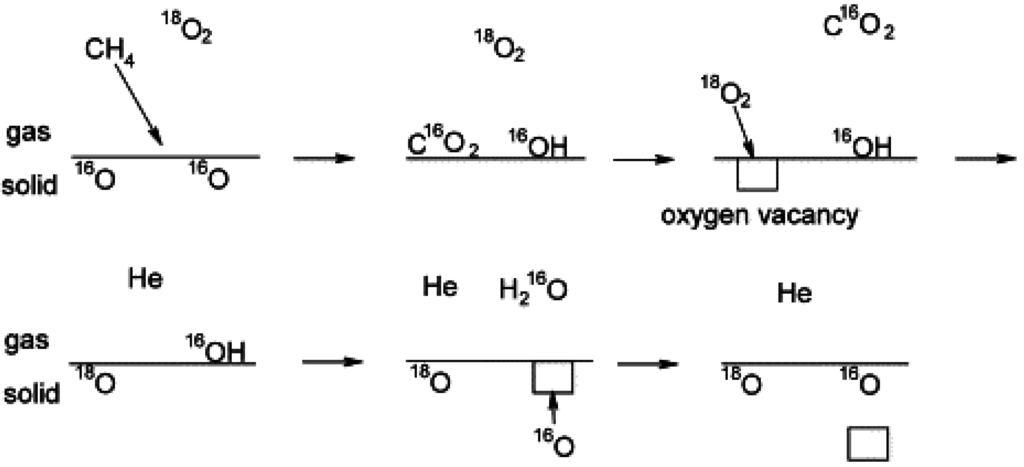

Effects of H2O on the activity and deactivation of Pd catalysts used for the oxidation of unburned CH4 present in the exhaust gas of natural-gas vehicles (NGVs) are reviewed. CH4 oxidation in a catalytic converter is limited by low exhaust gas temperatures (500–550 °C) and low concentrations of CH4 (400–1500 ppmv) that must be reacted in the presence of large quantities of H2O (10–15%) and CO2 (15%), under transient exhaust gas flows, temperatures, and compositions. Although Pd catalysts have the highest known activity for CH4 oxidation, water-induced sintering and reaction inhibition by H2O deactivate these catalysts. Recent studies have shown the reversible inhibition by H2O adsorption causes a significant drop in catalyst activity at lower reaction temperatures (below 450 °C), but its effect decreases (water adsorption becomes more reversible) with increasing reaction temperature. Thus above 500 °C H2O inhibition is negligible, while Pd sintering and occlusion by support species become more important. H2O inhibition is postulated to occur by either formation of relatively stable Pd(OH)2 and/or partial blocking by OH groups of the O exchange between the support and Pd active sites thereby suppressing catalytic activity. Evidence from FTIR and isotopic labeling favors the latter route. Pd catalyst design, including incorporation of a second noble metal (Rh or Pt) and supports high O mobility (e.g., CeO2) are known to improve catalyst activity and stability. Kinetic studies of CH4 oxidation at conditions relevant to natural gas vehicles have quantified the thermodynamics and kinetics of competitive H2O adsorption and Pd(OH)2 formation, but none have addressed effects of H2O on O mobility. View Full-Text
Keywords: natural gas vehicle; exhaust gas; methane; oxidation; catalyst; deactivation; palladium; water natural gas vehicle; exhaust gas; methane; oxidation; catalyst; deactivation; palladium; water
