Cancers 2013, 5(4), 1619-1642; doi:10.3390/cancers5041619
Published: 4 December 2013
Abstract: Circulating Tumor Cells (CTC) are rare cells originated from tumors that travel into the blood stream, extravasate to different organs of which only a small fraction will develop into metastasis. The presence of CTC enumerated with the CellSearch system is associated with a relative short survival and their continued presence after the first cycles of therapy indicates a futile therapy in patients with metastatic carcinomas. Detailed characterization of CTC holds the promise to enable the choice of the optimal therapy for the individual patients during the course of the disease. The phenotype, physical and biological properties are however not well understood making it difficult to assess the merit of recent technological advancements to improve upon the capture of CTC or to evaluate their metastatic potential. Here we will discuss the recent advances in the classification of CTC captured by the CellSearch system, the implications of their features and numbers. Latest capture platforms are reviewed and placed in the light of technology improvements needed to detect CTC. Physical properties, phenotype, viability and proliferative potential and means to assess their proliferation and metastatic capacity will be summarized and placed in the context of the latest CTC capture platforms.
Circulating tumor cells (CTC) detach from tumors and enter the blood stream, eventually forming new metastasis at distant sites . Their frequency is related with progression-free and overall survival in breast , colorectal , castration-resistant prostate , small [5,6] and non-small cell lung cancer (NSCLC) patients . Availability of a sufficient number of tumor cells offers the opportunity to evaluate the presence of treatment targets and as such CTC can be used as a “liquid biopsy”. In breast cancer, CTC are a better way to predict therapy success than imaging techniques  and compared to locally collected tumor samples, they might better represent the tumor progression as these are the evading cancer cells. Furthermore, a blood sample analysis is faster, easier and less invasive than collecting a tissue biopsy. CTC are however extremely rare, with a frequency of typically 1–10 CTC among 6 × 106 leukocytes, 2 × 108 platelets and 4 × 109 erythrocytes per mL of blood [9,10]. This low frequency creates tremendous technological challenges for their detection. Currently, the only FDA cleared system for CTC detection is the CellSearch system (Veridex, LLC, Raritan, NJ, USA). Recent reports describe the development of new CTC capture platforms [11,12,13,14,15,16,17] demonstrating an expanding interest in this field and attempting to circumvent the limitations of CellSearch. In this review we will provide an overview of recent CTC capture platforms, their associated CTC definition and discuss in more detail filtration based CTC enrichment, since the majority of others has been extensively reviewed elsewhere [18,19,20,21]. In the second part of this review we will address the current knowledge on CTC biological properties, with emphasis on viability, proliferative capacities and stem-cell like properties and finally we will discuss current strategies for CTC culturing.
2. CTC Definitions and Capture
The current CellSearch CTC definition comprises an object that stains positively for cytokeratins (CKs) 8, 18 and 19, does not stain for CD45, has a nucleus (positive 4',6-diamidino-2-phenylindole (DAPI) staining), is more than 4 × 4 μm2 in size and possesses a cell like morphology . However, the lack of “one” CTC definition among different technologies raises the questions of (i) what are CTC, (ii) how to define them and (iii) what are the absolute minimum requirements of a new technology for users to safely rely on its ability to capture CTC? Table 1 summarizes technologies for CTC detection split over 3 sub-tables, each one comprising a different capturing method, based on physical-, biological- and both physical and biological- CTC properties. Columns 1 to 6 identify the parameters used for CTC identification (and intrinsically defining a CTC) and columns 7 to 10 provide information over the assay. Table 1 does not provide an exhaustive overview of all parameters used for CTC identification and definition in each case, but rather illustrates the discrepancies that exist among different technologies regarding the most common parameters. For this purpose, we analyzed whether the authors specifically stated to have considered expression of EpCAM (either to capture or stain after capturing), CKs, CD45, as well as presence of nucleus, specific morphology and size range. In some studies, some of these parameters were mentioned as having been tested, but it was not clear to which extend they were accounted for in the definition, being marked in the Table as NC (not clear). Following assay parameters were analyzed: numerical aperture of the microscope if CTC identification was image-based; inclusion of blind users to score objects as CTC (marked as blind); use of a threshold (or cut off value), which refers to maximum number of positive objects that are identified as CTC but not sufficient to account for a positive sample, and inclusion of healthy volunteers to test the identification method in parallel with the patient samples. For instance, whereas the CellSearch and HB-Chip require positive Epithelial Cell Adhesion Molecule (EpCAM), CKs and nuclei staining to count a cell as a CTC, the MagSweeper only requires EpCAM. Furthermore morphology is poorly accounted for, and decisive criteria such as size and shape, although mentioned in some reports, are not always specified. A threshold is often defined based on values obtained from healthy donor samples, but to determine it reliably is challenging. In the prospective clinical studies that lead to the FDA clearance of CellSearch for metastatic breast  and prostate cancer  a discrimination between patients with favorable CTC (<5/7.5 mL of blood) and unfavorable CTC (>5/7.5 mL of blood) was used and for colorectal cancer  <3 CTC/7.5 mL and >3 CTC/7.5 mL was made. Although this permits a simple discrimination between patients with favorable and unfavorable prognosis in actuality the chances for longer survival decreases with increasing CTC load [22,23]. The change from unfavorable to favorable CTC after the first cycles of a new therapy is associated with increased survival benefit [4,23,24] making CTC an excellent tool to monitor the effectiveness of therapy. Question remains what time period is needed to assess a meaningful decrease in CTC and how to judge what represents a decrease in CTC especially at low CTC numbers. Guidelines for the interpretation of true changes in CTC numbers have been introduced recently . Bottom line however, is that the best survival prospects are when zero CTC are detected by the CellSearch system .
Given that only ~70% of breast cancer patients with metastatic disease have 1 or more CTC in 7.5 mL of blood it was surprising to see that ~20% of early breast cancer patients before surgical intervention had 1 or more CTC in 7.5 to 30 mL of blood and that the presence of CTC was associated with a significant increase in the risk of recurrence and shorter overall survival [25,26,27,28]. The sensitivity and specificity of the technology for CTC detection will need to be significantly improved before it can be reliably introduced in the early cancer disease setting. Application of a metastatic cascade model to women with breast cancer suggests that recurrence of breast cancer could be reduced from the current 9% to 1% when a CTC concentration of 9 CTC/L blood could be reliably detected . Analysis of larger blood volume can be achieved through leukapheresis and a recent report indeed showed a larger number of CTC as well as a larger proportion of patients in which CTC are detected by passing leukapheresis products through a CellSearch system .
2.1. Automated Identification of CTC
CTC identification remains a manual process executed by trained operators. It is laborious, time consuming and highly subjective. Automated identification by image analysis algorithms would be a more suitable approach, as it eliminates the subjectivity, makes the assignment of objects as CTC highly reproducible and is fast. The caveat of automated image recognition of cells is that the images need to be acquired on the same or on very similar platforms. Differences in numerical aperture of the objective, illumination, fluorescent filters, camera characteristics and integration time used for each of the fluorochromes will have a large influence on the reported results. The algorithms developed for the CellSearch system therefore likely will not be applicable to other systems and quantitative morphological and immunological features of the CTC can only serve as a rough guideline for alternative systems.
|Table 1. Overview of published CTC isolation technologies comparing parameters used for CTC definition and identification. Only technologies already tested with patient samples were included. The most common parameters were compared across publications, but in some cases other parameters not specified in the table heading were considered in the original publication. For more details about each column, please see main text. As an example, the first entry of the table should read: CTC definition was size based and none of the other specified parameters were taken into account; CTC objects were not identified using images therefore numerical aperture is not an applicable parameter in this case, the assay did not include blind users and it did not include a threshold number for CTC positive objects.|
|Technology||CTC Definition||Assay Parameters|
|EpCAM||CKs||CD45||Nucleus||Morphology||Size||Num Aperture||Blind||Threshold||Healthy Donors||Ref|
|Capture by physical properties|
|Label-free DC Impedance Based Microcytometer||−||−||−||−||−||+||NA||−||−||+|||
|Filter Based Microdevice||−||+||−||NC||NC||−||NM||−||−||+|||
|Capture by immunological properties|
|Capture by physical and immunological properties|
+/−: applied/not applied to definition or assay parameter; NA: not applicable; M: mentioned; NM: not mentioned; NC: not clear.
Recently algorithms for automated identification of CTC were developed using stored images from samples from castrate resistant prostate cancer (CRPC) patients processed with the CellSearch system . The image analysis algorithm identified potential CTC by object segmentation in the cytokeratin (CK) image and measured various properties of the object. Next, it automatically detected four independent features (size, CK-PE, CD45-APC and DNA-DAPI intensity) on the identified objects with the highest impact on Cox Hazard ratio (HR) of patient survival data. With these features, the algorithm created different classifiers by varying the inclusion criteria of the four different features. The results of each classifier were compared to those of manual identification and within the data set tested, many classifiers provided comparable HR for both baseline and follow up samples as the manual CellSearch CTC identification . The optimal classifier (CK-PE > 50 counts, DAPI ≤ 170 counts, CD45-APC < 60 counts and size between 34–224 µm2) was then verified with an independent data set of CRPC patients, which again resulted in comparable HR as the manual CTC count, being, to the best of our knowledge, the first automated algorithm to reliably count CTC. In addition, using images from breast, colorectal and prostate cancer patients, manual and automated counting resulted in similar prognostic value for both methods. However, when limiting automated identification solely to morphological features of CTC, CTC size and nuclear-to-cytokeratin ratio had significant impact on survival for breast cancer patients, but not in the case of colorectal or prostate cancer patients .
The automated algorithm approach was also used to verify whether different CTC definitions could result in more significant CTC changes between baseline and follow up CTC counts. Four different automated CTC definitions and the manual one were compared for HR results among a set of CellSearch images from breast and prostate cancer patient CellSearch samples. Even with looser CTC definitions, both Overall Survival and Progression Free Survival were similar. Although looser CTC definitions might reduce the Poisson error associated with the sampling noise, they also include more false positives, which offsets the effect. Ultimately, the increase of the sample volume is needed to reduce the Poisson error [10,29,30]. Filtration based technologies can cope with larger sample volumes and in addition, explore size based differences between cells of interest and background cells. This would offer an alternative to enrichment strategies based on EpCAM, widely accepted as capturing molecule (Table 1), but described to be down regulated during Epithelial to Mesenchymal Transition (EMT) or in some cases not expressed at all. The next sections will further discuss CTC EpCAM expression and the requisites of filtration-based technologies as a suitable approach for detecting EpCAM− CTC.
2.2. EpCAM+/EpCAM− CTC
Relying on antigen expression to capture CTC implies that cells not expressing the antigen of interest will be missed. Giving the biologically heterogeneity of cells within a tumor, the density of any antigen will vary. This heterogeneity is also observed in CTC and as such it is expected that not all CTC will be captured in case only one antigen is targeted. The EpCAM antigen has been the prime choice target molecule in many of the technologies developed for CTC capture [2,12,34,35,36,37]. EpCAM is expressed to various degrees by many epithelial cancers, but not by all [40,41,42,43,44,45]. In renal cell cancer EpCAM expression is for example rare whereas in breast cancer the expression can be very heterogeneous. Moreover, down regulation of EpCAM is required for cancer cell invasion, which takes place during EMT , a process via which epithelial cells gain mesenchymal characteristics that empowers them to metastasize . EMT-like changes have been reported on CTC as well [48,49,50]. Cytokeratin negative CTC from breast cancer patients have been described to express the EMT related antigens vimentin and fibronectin  and breast cancer patients negative for hormone receptors, high tumor grade, triple-negative disease or inflammatory breast cancer had increased probabilities for being undetectable by CellSearch, possibly due to CTC undergoing EMT . In particular it was shown that the CellSearch did not detect normal-like breast cancer cells from cell lines  but combining CellSearch enrichment step with CD146 improved detection rates of breast cancer cell lines , as well as adding anti-CD49f to the immunostaining cocktail . These data suggest that EpCAM+/EpCAM− nature of metastasizing cells should be considered when designing CTC capture technologies.
2.3. Filtration-Based Technologies
Separation of tumor cells from blood cells by filtration has been described quite some time ago , more recently several commercial systems have become available for CTC enrichment by filtration [32,57,58]. Comparison of the sizes of leukocytes and CTC showed an average leukocyte diameter of about 8.1 μm, whereas CTC were usually larger, with an average size of 10.7 μm in the case of prostate cancer, 11 μm in colorectal cancer and 13.1 μm in breast cancer [14,39]. This difference in size indeed can be explored by technologies based on filtration. However, CTC recovery is not exclusively dependent on cell size, but also dependent on deformability and nucleus size . Furthermore, fixation, for instance, increases the apparent viscosity of a cell which increases the pressure needed to pass a cell through the same pore size . Also different fixatives will impact apparent viscosity differently: paraformaldehyde is a stronger fixative compared to CellSave (the proprietary fixative in ethylenediaminetetraacetic acid (EDTA) blood draw tubes used in combination with CellSearch), therefore recovery of paraformaldehyde fixed cells is lower than cells collected and fixed in CellSave tubes . Furthermore, some fixatives result in the formation of precipitates, which in the case of blood will yield large aggregates of serum proteins and if used in combination with filters, will result in clogging . Filters should also possess a set of characteristics that make them usable for these systems. For instance, track etch filters do not have a flat surface making the imaging process very difficult. On the other hand, TEM grids proved to be too porous and it was not possible to distinguish adjacent cells from each other . Therefore filter requisites should include (i) no-reactivity with the sample (ii) maintenance of planar form during filtration and imaging and (iii) pores sufficiently separated to facilitate discrimination of cells. Regarding the number of pores, surprisingly, this is important in terms of leukocyte retention, but not important for CTC recovery, as long as the number of pores is at least equal to the number of CTC present in the sample. However the smaller the pore size, the higher the pressure needed to filter. All experiments should be conducted at a pressure lower than the critical pressure of CTC, to prevent CTC to be pulled in through the pores.

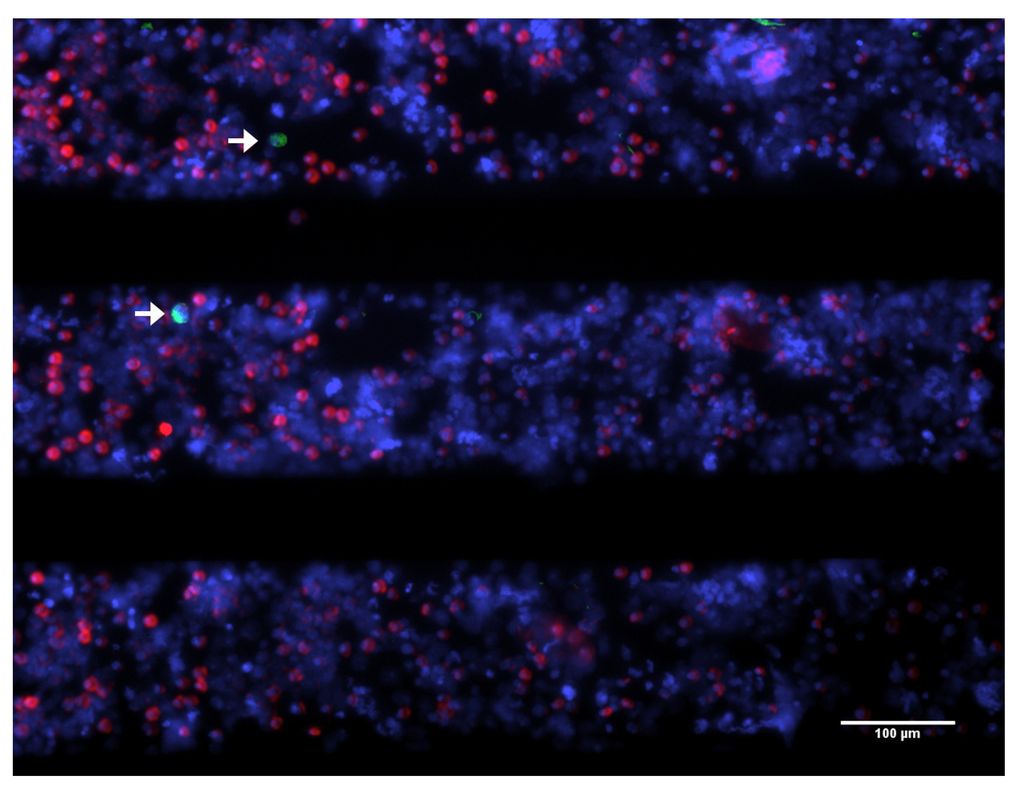

Filtration based technologies have been tested with patient blood samples diagnosed with different types of metastatic cancers and proved valuable. For instance, using polycarbonate track etch membranes with 8 µm sized pores it was possible to recover tumor liver cells from hepatocellular carcinoma patients, while healthy volunteers and chronic hepatitis patients scored negative . In some cases, filtration also showed higher capture rate when compared to the CellSearch, but because CTC definitions were different for the different technologies, those with less strict definitions are more likely to score higher [32,60]. Also no data has been reported on the clinical relevance of the reported differences [60,61]. For instance, 210 blood samples from NSCLC patients were subjected to filtration (isolation by size of epithelial tumors cells, ISET) and the CellSearch assay . ISET detected CTC in 104 patients whereas CellSearch only detected CTC in 82 patients . On average, per patient, ISET also detected more cells than the CellSearch. However, with the ISET method, CTC were considered cells positively stained for several CKs and anti-vimentin, whereas the CellSearch requires negativity for CD45 staining, presence of nucleus, a certain size range and a cell-shape morphology, in addition to CKs staining. Nonetheless both methods correlated with Disease Free Survival. Similarly, a portable microfilter device reported higher capturing rates than CellSearch, but again only CKs and DAPI staining were considered (in addition to PSA for prostate cancer patients) in the CTC definition .
To enumerate CTC not detected by the CellSearch and further understand their biological properties, our laboratory constructed a device that collects the blood discarded by the CellSearch system after immunomagnetic selection of EpCAM+ CTC . By filtering the CellTracks Autoprep waste at a constant pressure of 100 mbar through a 5μm pore sized silicon nitride filter (Vycap, Deventer, The Netherlands) the presence of EpCAM+ and EpCAM− CTC can be investigated. In addition the cytokeratin antibody cocktail used to identify the CTC can be expanded to investigate the presence of CTC that do not express the CKs used in the CellSearch kit. Figure 1 shows an example of a blood sample from a healthy donor spiked with cells from the bladder cell lines T24, with low EpCAM expression, processed with the CellSearch of which the blood waste was passed through a 5 μm pore sized silicon nitride filter.
Systematic evaluation of blood samples from patients with different carcinomas will teach which CTC are present and by following the patients we can learn what the relevance is of the various CTC subpopulations. Still with this approach we will not know whether any smaller EpCAM− CTC were present in the samples. To answer these questions, only a better understanding of CTC biology can help us tuning technologies to capture a real CTC, by integrating a reliable CTC definition with the technology.
3. Biological Properties of CTC
Morphology of CTC within and between patients is very heterogeneous [9,31,63,64] suggesting also extensive differences in their biological properties. Although many CTC are shed from the tumor(s) into the circulation, only a few will survive, successfully colonize in distant organs, promote the formation of blood vessels and consequently develop into new metastasis. The viability and proliferative state of these cells will determine to a great extent whether they have the ability to succeed.
An example of the aforementioned intra-patient heterogeneity is illustrated in Figure 2 panels A, B and C. Panel A shows a cluster of three large tumor cells that appear quite healthy and raises the question how they could have passed the peripheral vascular bed. Panel B shows six “intact” tumor cells varying in size and shape and panel C shows six “damaged” CTC varying in size and showing a distinct punctuation of the CK staining. These observations lead the hypothesis that these cells were undergoing apoptosis. This indeed appeared to be the case as this distinct cytokeratin pattern was associated with the presence of the M30 epitope present only on caspase-cleaved CK18 [64,65]. This is illustrated in panel D for three cells with punctuated CK: the panels on the left show the overlay of the CKs 8, 18, 19 FITC (green) and nucleus (purple) and the black and white images on the right the M30 staining showing the presence of the M30 epitope in these “CK containing granules”. In contrast with M30, the expression of the anti-apoptotic B-cell lymphoma protein 2 (bcl-2) suggest a viable cell resistant to apoptosis and its expression might also predict response to selected endocrine and chemotherapies [66,67]. In panel E images of bcl-2 expression of CTC is shown: on top two CTC of a breast cancer patient are shown, one of them expressing bcl-2 whereas the other does not. The image in the middle shows a CTC clearly staining with bcl-2 whereas the bottom images show a CTC that is not expressing bcl-2. The expression of M30 and bcl-2 in CTC is quite heterogeneous and whether or not this has any clinical utility has yet to be determined .
Analysis of M30 expression in CTC from 10 prostate cancer patients showed remarkable intra and inter-patient variability . The intact proportion of CTC among patients ranged from 3% to 76% and the majority of CTC events were classified as CTC fragments . In another study, among 102 Small Cell Lung Cancer (SCLC) patients, apoptotic CTC were detected in 44 (43%) and their proportion to intact CTC varied from 0.2% to 20% . Among hepatocellular carcinoma though, the incidence of patients with apoptotic CTC was 23% and the ratio of apoptotic CTC to total CTC number was 8.3% , lower when compared to other studies [65,66,70,71,72]. Interestingly, within clustered CTC (termed as circulating tumor microemboli, CTM) none of the cells presented an apoptotic nuclear morphology and moreover, bcl-2 was detected in CTC and CTM in 18 of 30 patients . In contrast to these values, the mean viability of the CTC-chip (Table 1) captured cells was approximately 98%, determined by assessing cell membrane integrity in four samples obtained from lung and prostate cancer patients . Also recently, Kallergi et al. reported higher incidence of apoptotic CTC in early breast cancer patients than in metastatic ones and although the numbers of apoptotic CTC were reduced after treatment, no statistical data was presented on the later results . Numbers of apoptotic disseminated tumor cells (DTC) in the bone marrow were also higher in breast cancer patients with stable or remissive disease than in the patients with progressive disease, 3 to 4 weeks after therapy, but a comparison between these and values before therapy (basal) among the three groups of patients was not presented, but still suggesting that high M30 levels might be associated with a favorable response to therapy . On the contrary, the mean values of M30 blood serum levels were elevated in lung cancer patients, consistently at 24 and 48 hours after chemotherapy. Moreover elevated basal levels of M30 were associated with increased risk of death .
Besides lacking a common message, the studies mentioned above also rely on different methods to measure apoptosis, stressing the need for more controlled studies to ascertain the clinical utility of apoptotic CTC. Nonetheless we can be sure that apoptotic CTC will not be able to form distant metastasis and the ability to extract information is reduced as for example no fluorescence in-situ hybridization can be performed on these cells . Still their presence is associated with poor prognosis and as the frequency of these apoptotic cells and bodies can be substantially higher they may be used to monitor therapy .
3.2. Proliferative Capacity
The potential of a CTC to proliferate is a requisite for their ability to colonize in distant organs. Panel F of Figure 2 shows CTC in a melanoma patient captured by expression of CD146 and stained for anti-high molecular weight melanoma-associated antigen (HMW-MAA). HMW-MAA is expressed in a large percentage of melanoma lesions with restricted distribution in normal tissue . The image at the top shows a CTC expressing Ki67, an universally expressed antigen in proliferating cells but absent in quiescent ones . The CTC in the middle image is clearly in the midst of cell division and verified by its Ki67 staining of both nuclei. The CTC of the same patient in the bottom image does not stain with Ki67 illustrating the diversity of proliferating stages of CTC. Reports on Ki67 expression in nine breast cancer patients with CTC showed that none of the CTC expressed Ki67  whereas in another study ~25% of the CTC in breast cancer patients expressed Ki67 . In SCLC patients both apoptotic and proliferating CTC were detected, but confined to the solitary cells and not detected in the tumor microemboli CTM . The number of reports describing the apoptotic and proliferative status of CTC are still too scarce to make definitive statements and what, if any, effect does therapy have on the proliferative state of CTC surely will need further investigation.
3.3. Stem Cell-like Properties
Whereas viability and proliferative state of CTC will partially determine their capacity to successfully extravasate and form metastasis, other identity traits are crucial to the process also. It has been proposed that CTC contain the tumor stem cells disseminated from the primary tumor to the distant metastatic sites . This is supported by the fact that within human breast cancer primary tumors, a subpopulation of cells expressing CD44+CD24−/low, having stem cell characteristics, were able to form tumors when only 200 of these cells were implanted in non-obese diabetic/severe combined immunodeficient (NOD/SCID) mice . However tumors did not form when 20,000 cells isolated from the same tumor but not expressing the CD44+CD24−/low phenotype were implanted in the mice. Furthermore, this subpopulation expressed the stem cell marker Oct-4 when cultured in vitro . Also among DTC detected in the bone marrow of early breast cancer patients, 72% expressed the putative stem cell phenotype, CD44+CD24− .
Studies with CTC revealed subpopulations with stem cell-like phenotypes. In a study comprising 30 metastatic breast cancer patients, it was shown that 80% of the patients had the CK+/CD44+/CD24−/low phenotype among their CTC and the mean prevalence per patient was 35.3% . The authors also observed the existence of a less common observed population of aldehyde dehydrogenase 1 (ALDH1)high/CD24−/low. ALDH1 has been associated with poor prognosis in different forms of breast cancer [85,86] and it has been shown that both normal and malignant stem and progenitor cells display high ALDH activity [87,88,89]. Therefore, the ALDH1 expressing CTC among the CD24−/low phenotype may further distinguish a subpopulation of higher metastatic potential. Accordingly, breast cancer cells displaying high ALDH activity and the CD44+CD24− phenotype were highly tumorogenic compared to cells that did not display the CD44+CD24− pattern .
Recently CTC were identified in blood samples of 82 hepatocellular carcinoma patients in a cohort consisting of 123 . EpCAM+ CTC were isolated using the CellSearch profile kit, cytospined and immunostained for stem cell-like markers according to a random separation of the blood samples for different stainings. CTC were found positive for stem cell-like markers such as CD133, ATP-binding cassette sub-family G member 2 (ABCG2) and β-catenin. However, none of the CTC was positive for CD90, at least in the group assigned to that staining. It would be interesting to know the separate tumorogenic potential of these CTC subpopulations, as it was shown for cells from primary tumors. For instance, CD133+ cells isolated from human brain tumors were capable of initiating tumor formation in NOD/SCID mouse brains whereas the CD133− fraction could not, even when a thousand times more cells were implanted . Moreover co-expression of CD133 and ALDH1A1 in surgically resected lung tumors of early stage NSCLC patients was strongly associated with poor survival .
Major signalling pathways that characterize normal stem cells were found activated in tumor cells and CTC as well. CTC from patients with primary and metastatic breast cancer were shown to express receptors and activated signalling kinases of the EGFR/HER2/P13K/Akt pathway . The authors analyzed peripheral blood mononuclear cells (PBMC) from 32 early and 16 metastatic breast cancer patients and reported that phospho PI3K/Akt were identified in a significant proportion of CTC. The pathway PTEN/Akt/mTOR has been described as one of the major pathways in the regulation of mammary stem/progenitor cells and to play a central role in the viability and maintenance of cancer stem cells in breast, promoting proliferation and the inhibition of apoptosis [93,94].
CTC with stem-cell like traits might represent a more aggressive subset of CTC. However, the clinical utility of stem cell-like phenotypes needs further investigation. Regarding ALDH1 for instance, it was still not possible to associate ALDH1 positivity with any of the studied clinopathological factors , although within the group of patients with CTC 46% displayed the ALDH1+ phenotype against 5% of the patients without CTC. In another study, it was not feasible to evaluate the clinical relevance of the expression of CD44+CD24− or ALDH1highCD24−/low phenotype among CTC due to the heterogeneity of the study patients population , again claiming the need for more controlled studies.
4. CTC in Vitro Culturing and in Vivo Models
The ability to expand CTC will greatly enhance the ability to study the metastatic process, explore new drugs with anti-tumor activity and test the anti-drug or drug combination that is most suitable to treat the individual patient.
4.1. CTC in Vitro culturing
CTC in vitro culture requires the cells to be viable after extraction from the blood. However most technologies depend on intracellular staining (e.g., CKs), which implies loss of cellular viability due to fixation and permeabilization methods. Some authors have presented solutions that preserve cell viability, generally at the cost of diminishing the number of molecular targets, which compromises isolation of a more heterogeneous CTC population and at the risk of isolating more hematopoietic cells. Though only tested on cancer cell lines, Takao and Takeda  developed a potential protocol for CTC enumeration consisting of a flow cytometer using a disposable microfluidic chip that allows sample collectability afterwards. The cancer cells (PC-9 and MCF-7) were isolated from whole blood with EpCAM-microbeads and isolated fractions labeled with an antibody targeting a different EpCAM epitope, anti-CD45, Syto9 and PI dyes (live/dead staining). They successfully gated live cancer cells. Repeating this protocol without the blood mixing step allowed for captured MCF-7 and PC-9 to be collected from the outlet reservoir of the chip and transferred to the culture dish with standard culture medium where they grew normally, demonstrating that the procedure is non-cytotoxic and enables capturing of live cells. However, this procedure was so far tested only with cell lines and the starting amount of cells was very high (5,000 cells), compared to patient samples that might bare a few CTC only. In those cases collection of cells from the chip will be more challenging, therefore a strategy involving less manipulation is preferable. More recently microchip assays have provided a combined capture and in situ cell growth solution. A microstructured polydimethylsiloxane (PDMS) chip containing round pillars functionalized with anti-EpCAM was tested for its capturing efficiency with PC3-9 cells spiked in blood and stably expressing mCherry fluorescent protein . After capture, cells were encapsulated in the chip by injecting a polyethylene glycol (PEG) precursor that jellified inside the chip, encapsulating the cells in a three-dimensional (3D) protective environment. Afterwards, the PDMS chip containing the hydrogel and supportive glass were transferred to a Petri dish for cell culture under standard conditions. After six days, 17% of the transferred cells were alive and spheroids of about 50 μm could be observed on the chip, sustaining that the method allows manipulation of live cells from microchip to standard culture dishes and supports tumor-like cell growth. A schematic of this microfluidic chip is depicted in Figure 3, including the experimental procedure of sample loading, hydrogel encapsulation and cell growth on petri dish.

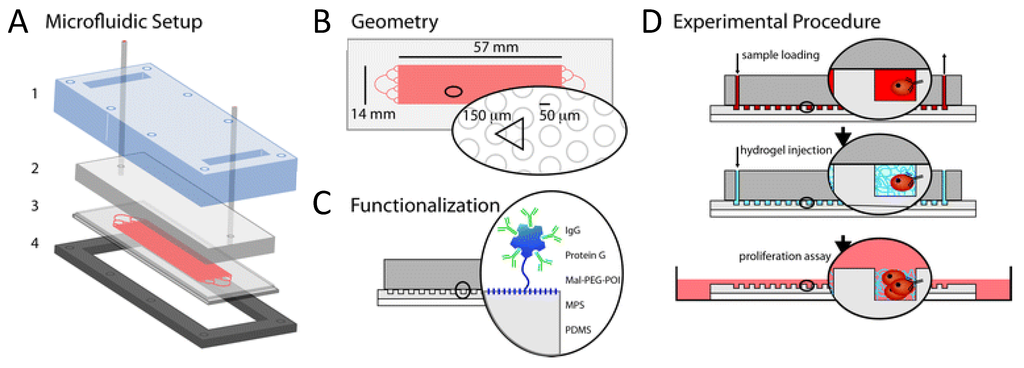

Another microfluidic device demonstrated suitability for collection of isolated cells from mice bearing tumors and their subsequent culturing for at least four passages . 4T1 mouse mammary cells were implanted subcutaneously in Balb/c mice and after 2–4 weeks mice were sacrificed and whole blood collected. Blood was mixed with anti-EpCAM coated magnetic beads, passed through the microfluidic device and isolated cells were directed to the outlet channel by shifting the position of the magnet. Collected cells were plated in 96 well culture dishes, with standard culture medium. They grew normally and remained viable throughout the entire culturing period. However the identity of these cells was not clearly established, as the only enrichment molecule used was EpCAM and no clear evidence of a “CTC only” culture was given. The issue of CTC culture purity was, however, considered by Hughes and coworkers . In this study, buffy coats from breast, prostate, lung and ovarian cancer patients were flown through a polyurethane microtube, functionalized with Protein G, E-selectin fused to IgG and anti-EpCAM or anti-prostate specific membrane antigen (PSMA) (only for prostate) antibodies. Bound cells were eluted with accutase and transferred to 1 well of a 96 well plate where they grew for 5 days, when they were analyzed for purity. CTC were defined as EpCAM+ or PSMA+, DAPI+ and having 10–25 µm in diameter cells. Purity, the ratio of CTC positive cells per DAPI+ cells, was on average 66% and 37.2%, depending on whether the microtube had been pre-coated before functionalization with halloysite nanotubes or not, respectively. Culture purity is essential to understand the identity of the captured population to confidently perform characterization assays and anti-tumor drug tests. As purity was only established 5 days after culturing, it could also be the case that culturing conditions enhanced proliferation of EpCAM− or EpCAM+ cells and the purity ratios immediately after capture were higher or lower than the ones presented in the article. This would be important to know in order to optimize and adjust culturing conditions that favor the growth of CTC rather than non-CTC cells in the culture dish.
Besides microfluidic devices, there is proof of principle that filter based technologies are suitable for culturing CTC . Blood derived from tumor bearing mice was filtered through two sandwiched parylene membranes containing pore sizes of 30 µm and 8 µm (top and bottom membrane respectively) spaced by a gap of 5.4 µm. Since CTC are bigger than the remaining cells found in the blood, in principle CTC will be retained by the bottom filter while unwanted cells will be filtered out. After filtration the bottom filter was transferred to a culture dish with cell growth media and the culture was maintained for at least 21 days. Although the purity of the captured and the grown cells still needs to be demonstrated, it showed that such membranes are capable of maintaining cell viability and supporting cell growth under appropriate cell culturing conditions.
In the studies mentioned so far, either tumor cell lines were used, for which optimal culture media formulations have been long established or high starting numbers of primary cells isolated from blood. However, one of the major challenges in culturing CTC will be when the patient isolated fraction is reduced to a few cells. Assuming they are viable and capable of proliferating, still their clonogenic potential must be assured by the right cocktail of growth factors and perhaps even a different substrate than the bottom of a culture dish. Recently, Zhang and coworkers used stem cell culture medium for cell growth of CD45−/ALDH1+ isolated cells from PBMC of breast cancer patients . EpCAM+ cultures derived from the initial population did not survive beyond 14 days, however EpCAM− colonies did and were further expanded in medium for epithelial cells. Out of these cultures, 3 cell lines were established. This is, to the best of our knowledge, the first report on the generation of CTC cell lines. Further characterization of these cell lines showed expression of several tumor-initiating markers, such as EMT, CKs and stemness. The use of different media possibly provided a necessary transition phase between the state of suspension in blood and culture in the dish.
Some in vitro models have added a dynamic dimension to the study of metastasizing cells [101,102,103,104]. For instance, a microfluidic device was designed to study the interaction between circulating cancer cells and endothelia during the mechanism of extravasation. The authors devised a system in which a chemokyne known to attract cancer cells (CXCL12) is applied onto the basal side of the endothelia. Cancer cells flow than on the apical part (MDAMB-231). They found out that treatment with that chemokine enhances adhesion of cancer cells to endothelia through expression of CXCR4 on the endhothelia independent of the expression of CXCR4 or CXCR7 on the cancer cells . Such “lab on a chip” models permit the understanding of specific interactions that static in vitro cultures don’t. However, currently only animal models can provide a global physiological response to different study parameters, including drug response. In the next section, we will elaborate on the current existent in vivo models to study CTC.
4.2. CTC in Vivo Assays Using Mouse Models
CTC collected from patients can provide valuable information about their biology, and if successful cultured in vitro, serve as basis for anti-tumor drug screening. However, animal models can add on the dynamics of metastasis and drug response at a physiological level. Using in vivo flow cytometry it was possible to track fluorescently labeled cancer cell lines when injected intravenously in mice . Another study used an orthotopic cancer mouse model, instead of intravenous injection of cancer cells, by implanting tumor tissue derived from a green fluorescent protein (GFP)-expressing hepatocellular carcinoma cell line in the liver of mice . CTC flow was monitored through an artery in the mouse ear and provided evidence that the number of CTC and distant early metastasis decrease after tumor resection. More recently, and in line with these data, CTC shedding into the bloodstream was monitored using tumor subcutaneous mouse model and Photoaccustic Flow Cytometry, a method combining the detection of laser-induced acoustic waves and fluorescence . These experiments provided pre-clinical evidence that standard medical practices involving tumor manipulation, such as palpation during physical examination, incisional biopsy and laser therapy, enhance penetration of CTC into the bloodstream. They implanted mouse melanoma and mouse breast cancer cells, constitutively expressing GFP, in the subcutis of the mice ear or on their back. Once the tumor had developed, before, during and after manipulation they monitored the veins in the ear for acoustic waves or fluorescent signals. CTC signals were considered those above red blood cells (RBC) background, since leukocytes and endothelial cells provide low fluorescence compared to the GFP+ cancer cells or RBC.
The functional capacity of potential metastasis inducing cells was tested in mouse models as well. PBMC were isolated by density gradient centrifugation using Ficoll-Paque PLUS medium and sorted via magnetic beads to enrich for EpCAM−/CD45− and EpCAM+/CD45− . Injecting 300 of the EpCAM+/CD45− cells in NOD/SCID mice induced tumor formation in 50% of the animals, but injection of 10,000 EpCAM−/CD45− did not. Further enrichment within the EpCAM+/CD45− fraction, could perhaps have resulted in a higher number of animals developing metastasis. Similar strategy, but enriching beyond EpCAM/CD45 expression, was followed by Baccelli et al. . The authors hypothesized that bone marrow can provide a suitable environment for the engraftment of CTC, because it is already a reservoir for DTC. They showed that if at least 1,109 cells acquired after depletion of hematopoietic cells from blood of breast cancer patients, were injected in the medular cavity of the femur of mice, these animals would developed metastasis in other bones of the skeleton. Moreover, CTC, defined as PI−/CD45−/EpCAM+ cells, isolated by FACS after hematopoietic depletion, were further analyzed for CD44, CD47 and hepatocyte growth factor receptor (MET) expression. Eight months after injection of 6,330 of CD44+/CD47+/MET+/− cells in the medular cavity of the femur of mice, bone metastasis developed. Primary tumor, patient bone metastasis and mice bone metastasis all expressed MET, which led the authors to hypothesize that metastasis inducing CTC are enriched among CD44+/CD47+/MET+ CTC and indeed that subpopulation correlated better with disease progression than the bulk CTC. What remains to be understood is whether the injection of such large numbers of CTC are within physiological ranges of DTC harbored in the bone marrow of patients.
Technologies for CTC capture explore the properties that distinguish them from the hematopoietic background. CTC capture targeting EpCAM, the gold standard so far, will need to be expanded to explore the full potential of CTC. Next to CTC capture based on antigen expression, CTC can be obtained by either depletion of all the blood components or separation based on differences in physical properties. The heterogeneity of antigen expression and physical properties of tumor cells makes it quite a challenge to identify the optimal approach for CTC selection and identification. Besides CTC enumeration and assessment of their protein and gene expression to monitor and select therapy, expansion of CTC could facilitate screening of actual response to anti-tumor drugs and choose the best therapeutic agent for each patient. CTC must however be viable and retain their clonogenic potential when transferred to the culture dish. In Figure 4, we propose an alternative for CTC enumeration based on whole blood inspection, currently being explored by the European consortium CTCTrap . It combines immuno-capture and size based separation for CTC enumeration and characterization including the ability to culture the CTC. In our view, such approach will provide a more effective and complete platform to capture, enumerate and characterize CTC than current technologies and enable their detection in all patients with known and unknown metastatic disease.
The position of AMC Barradas is supported by the EU FP7 HEALTH.2012.1.2-1 Project #305341 “Circulating Tumor Cells TheRapeutic Apheresis (CTCTrap): a novel biotechnology enabling personalized therapy for all cancer patients”.
Conflicts of Interest
Ana MC Barradas has no conflict of interest to declare. Leon WMM Terstappen is a consultant of Veridex LLC and receives research funding from Veridex LLC.
- Nguyen, D.X.; Bos, P.D.; Massagué, J. Metastasis: From dissemination to organ-specific colonization. Nat. Rev. Cancer 2009, 9, 274–284. [Google Scholar] [CrossRef]
- Cristofanilli, M.; Budd, G.T.; Ellis, M.J.; Stopeck, A.; Matera, J.; Miller, M.C.; Reuben, J.M.; Doyle, G.V; Allard, W.J.; Terstappen, L.W.M.M.; et al. Circulating tumor cells, disease progression, and survival in metastatic breast cancer. N. Engl. J. Med. 2004, 351, 781–791. [Google Scholar] [CrossRef]
- Cohen, S.J.; Punt, C.J.A.; Iannotti, N.; Saidman, B.H.; Sabbath, K.D.; Gabrail, N.Y.; Picus, J.; Morse, M.; Mitchell, E.; Miller, M.C.; et al. Relationship of circulating tumor cells to tumor response, progression-free survival, and overall survival in patients with metastatic colorectal cancer. J. Clin. Oncol. 2008, 26, 3213–3221. [Google Scholar] [CrossRef]
- De Bono, J.S.; Scher, H.I.; Montgomery, R.B.; Parker, C.; Miller, M.C.; Tissing, H.; Doyle, G.V; Terstappen, L.W.W.M.; Pienta, K.J.; Raghavan, D. Circulating tumor cells predict survival benefit from treatment in metastatic castration-resistant prostate cancer. Clin. Cancer Res. 2008, 14, 6302–6309. [Google Scholar] [CrossRef]
- Hiltermann, T.J.N.; Pore, M.M.; van den Berg, A.; Timens, W.; Boezen, H.M.; Liesker, J.J.W.; Schouwink, J.H.; Wijnands, W.J.A; Kerner, G.S.M.A; Kruyt, F.A.E.; et al. Circulating tumor cells in small-cell lung cancer: A predictive and prognostic factor. Ann. Oncol. 2012, 23, 2937–2942. [Google Scholar] [CrossRef]
- Hou, J.-M.; Krebs, M.G.; Lancashire, L.; Sloane, R.; Backen, A.; Swain, R.K.; Priest, L.J.C.; Greystoke, A.; Zhou, C.; Morris, K.; et al. Clinical significance and molecular characteristics of circulating tumor cells and circulating tumor microemboli in patients with small-cell lung cancer. J. Clin. Oncol. 2012, 30, 525–532. [Google Scholar] [CrossRef]
- Krebs, M.G.; Sloane, R.; Priest, L.; Lancashire, L.; Hou, J.-M.; Greystoke, A.; Ward, T.H.; Ferraldeschi, R.; Hughes, A.; Clack, G.; et al. Evaluation and prognostic significance of circulating tumor cells in patients with non-small-cell lung cancer. J. Clin. Oncol. 2011, 29, 1556–1563. [Google Scholar] [CrossRef]
- Budd, G.T.; Cristofanilli, M.; Ellis, M.J.; Stopeck, A.; Borden, E.; Miller, M.C.; Matera, J.; Repollet, M.; Doyle, G.V; Terstappen, L.W.M.M.; et al. Circulating tumor cells versus imaging—Predicting overall survival in metastatic breast cancer. Clin. Cancer Res 2006, 12, 6403–6409. [Google Scholar] [CrossRef]
- Allard, W.J.; Matera, J.; Miller, M.C.; Repollet, M.; Connelly, M.C.; Rao, C.; Tibbe, A.G.J.; Uhr, J.W.; Terstappen, L.W.M.M. Tumor cells circulate in the peripheral blood of all major carcinomas but not in healthy subjects or patients with nonmalignant diseases. Clin. Cancer Res. 2004, 10, 6897–6904. [Google Scholar] [CrossRef]
- Coumans, F.A.W.; Ligthart, S.T.; Uhr, J.W.; Terstappen, L.W.M.M. Challenges in the enumeration and phenotyping of CTC. Clin. Cancer Res. 2012, 18, 5711–5718. [Google Scholar] [CrossRef]
- Hou, H.W.; Warkiani, M.E.; Khoo, B.L.; Li, Z.R.; Soo, R.A; Tan, D.S.-W.; Lim, W.-T.; Han, J.; Bhagat, A.A.S.; Lim, C.T. Isolation and retrieval of circulating tumor cells using centrifugal forces. Sci. Rep. 2013, 3. [Google Scholar] [CrossRef]
- Ozkumur, E.; Shah, A.M.; Ciciliano, J.C.; Emmink, B.L.; Miyamoto, D.T.; Brachtel, E.; Yu, M.; Chen, P.; Morgan, B.; Trautwein, J.; et al. Inertial focusing for tumor antigen-dependent and -independent sorting of rare circulating tumor cells. Sci. Transl. Med. 2013, 5. [Google Scholar] [CrossRef]
- Choi, H.; Kim, K.K.B.; Jeon, C.S.C.; Hwang, I.; Lee, S.; Kim, H.K.H.C.; Chung, T.D. A label-free DC impedance-based microcytometer for circulating rare cancer cell counting. Lab Chip 2013, 13, 970–977. [Google Scholar] [CrossRef]
- Coumans, F.A.W.; van Dalum, G.; Beck, M.; Terstappen, L.W.M.M. Filter characteristics influencing circulating tumor cell enrichment from whole blood. PLoS One 2013, 8, e61770. [Google Scholar]
- Park, J.-M.; Lee, J.-Y.; Lee, J.-G.; Jeong, H.; Oh, J.-M.; Kim, Y.J.; Park, D.; Kim, M.S.; Lee, H.J.; Oh, J.H.; et al. Highly efficient assay of circulating tumor cells by selective sedimentation with a density gradient medium and microfiltration from whole blood. Anal. Chem. 2012, 84, 7400–7407. [Google Scholar]
- Issadore, D.; Chung, J.; Shao, H.; Liong, M.; Ghazani, A.A; Castro, C.M.; Weissleder, R.; Lee, H. Ultrasensitive clinical enumeration of rare cells ex vivo using a micro-hall detector. Sci. Transl. Med. 2012, 4. [Google Scholar] [CrossRef]
- Kim, M.S.; Sim, T.S.; Kim, Y.J.; Kim, S.S.; Jeong, H.; Park, J.-M.; Moon, H.-S.; Kim, S.I.; Gurel, O.; Lee, S.S.; et al. SSA-MOA: A novel CTC isolation platform using selective size amplification (SSA) and a multi-obstacle architecture (MOA) filter. Lab Chip 2012, 12, 2874–2880. [Google Scholar] [CrossRef]
- Pantel, K.; Brakenhoff, R.H.; Brandt, B. Detection, clinical relevance and specific biological properties of disseminating tumour cells. Nat. Rev. Cancer 2008, 8, 329–340. [Google Scholar] [CrossRef]
- Gorges, T.M.; Pantel, K. Circulating tumor cells as therapy-related biomarkers in cancer patients. Cancer Immunol. Immunother. 2013, 62, 931–939. [Google Scholar] [CrossRef]
- Balic, M.; Lin, H.; Williams, A. Progress in circulating tumor cell capture and analysis: Implications for cancer management. Expert Rev. Mol. Diagn. 2012, 12, 303–312. [Google Scholar] [CrossRef]
- Alix-Panabières, C.; Pantel, K. Circulating tumor cells: Liquid biopsy of cancer. Clin. Chem. 2013, 1, 110–118. [Google Scholar] [CrossRef]
- Coumans, F.; Ligthart, S.T.; Terstappen, L.W.M.M. Interpretation of changes in Circulating Tumor Cell counts. Transl. Oncol. 2012, 5, 486–491. [Google Scholar]
- Hayes, D.F.; Cristofanilli, M.; Budd, G.T.; Ellis, M.J.; Stopeck, A.; Miller, M.C.; Matera, J.; Jeffreyallard, W.; Doyle, G.V; Terstappen, L.W.W.M. Circulating Tumor cells at each follow-up time point during therapy of metastatic breast cancer patients predict progression-free and overall survival. Clin. Cancer Res. 2006, 12, 4218–4224. [Google Scholar] [CrossRef]
- Cohen, S.J.; Punt, C.J.A; Iannotti, N.; Saidman, B.H.; Sabbath, K.D.; Gabrail, N.Y.; Picus, J.; Morse, M.A.; Mitchell, E.; Miller, M.C.; et al. Prognostic significance of circulating tumor cells in patients with metastatic colorectal cancer. Ann. Oncol. 2009, 20, 1223–1229. [Google Scholar] [CrossRef]
- Franken, B.; Degroot, M.R.; Mastboom, W.J.; Vermes, I.; Vanderpalen, J.; Tibbe, A.G.; Terstappen, L.W. Circulating tumor cells, disease recurrence and survival in newly diagnosed breast cancer. Breast Cancer Res. 2012, 14. [Google Scholar] [CrossRef]
- Bidard, F.-C.; Mathiot, C.; Delaloge, S.; Brain, E.; Giachetti, S.; de Cremoux, P.; Marty, M.; Pierga, J.-Y. Single circulating tumor cell detection and overall survival in nonmetastatic breast cancer. Ann. Oncol. 2010, 21, 729–733. [Google Scholar] [CrossRef]
- Jueckstock, J.K.; Rack, B.K.; Zwingers, T.; Hepp, P.G.M.; Schneeweiss, A.; Beckmann, M.W.; Lichtenegger, W.; Sommer, H.L.; Pantel, K.T.H.; Forstbauer, H.; et al. Prognostic relevance of circulating tumor cells (CTC) before adjuvant chemotherapy in patients with breast cancer: Results of the German SUCCESS trial. J Clin Oncol 2011, 29, Abstr. 1033. [Google Scholar]
- Lucci, A.; Hall, C.S.; Lodhi, A.K.; Bhattacharyya, A.; Anderson, A.E.; Xiao, L.; Bedrosian, I.; Kuerer, H.M.; Krishnamurthy, S. Circulating tumour cells in non-metastatic breast cancer: A prospective study. Lancet Oncol. 2012, 13, 688–695. [Google Scholar] [CrossRef]
- Coumans, F.A.; Siesling, S.; Terstappen, L.W.M.M. Detection of cancer before distant metastasis. BMC Cancer 2013, 13. [Google Scholar] [CrossRef]
- Fischer, J.C.; Niederacher, D.; Topp, S.A.; Honisch, E.; Schumacher, S.; Schmitz, N.; Zacarias, F.L.; Vay, C.; Hoffmann, I.; Kasprowicz, N.S.; et al. Diagnostic leukapheresis enables reliable detection of circulating tumor cells of nonmetastatic cancer patients. Proc. Natl. Acad. Sci. USA 2013. [Google Scholar] [CrossRef]
- Hughes, A.D.; Mattison, J.; Western, L.T.; Powderly, J.D.; Greene, B.T.; King, M.R. Microtube device for selectin-mediated capture of viable circulating tumor cells from blood. Clin. Chem. 2012, 58, 846–853. [Google Scholar] [CrossRef]
- Lin, H.K.; Zheng, S.; Williams, A.J.; Balic, M.; Groshen, S.; Scher, H.I.; Fleisher, M.; Stadler, W.; Datar, R.H.; Tai, Y.-C.; et al. Portable filter-based microdevice for detection and characterization of circulating tumor cells. Clin. Cancer Res. 2010, 16, 5011–5018. [Google Scholar] [CrossRef]
- Vona, G.; Sabile, A.; Louha, M.; Sitruk, V.; Romana, S.; Franco, D.; Pazzagli, M.; Vekemans, M.; Lacour, B.; Paterlini-bre, P. Isolation by size of epithelial tumor cells. Am. J. Pathol. 2000, 156, 57–63. [Google Scholar] [CrossRef]
- Nagrath, S.; Sequist, L.V; Maheswaran, S.; Bell, D.W.; Irimia, D.; Ulkus, L.; Smith, M.R.; Kwak, E.L.; Digumarthy, S.; Muzikansky, A.; et al. Isolation of rare circulating tumour cells in cancer patients by microchip technology. Nature 2007, 450, 1235–1239. [Google Scholar] [CrossRef]
- Stott, S.L.; Hsu, C.-H.; Tsukrov, D.I.; Yu, M.; Miyamoto, D.T.; Waltman, B.A.; Rothenberg, S.M.; Shah, A.M.; Smas, M.E.; Korir, G.K.; et al. Isolation of circulating tumor cells using a microvortex-generating herringbone-chip. Proc. Natl. Acad. Sci. USA 2010, 107, 18392–18397. [Google Scholar] [CrossRef]
- Talasaz, A.H.; Powell, A.A.; Huber, D.E.; Berbee, J.G.; Roh, K.-H.; Yu, W.; Xiao, W.; Davis, M.M.; Pease, R.F.; Mindrinos, M.N.; et al. Isolating highly enriched populations of circulating epithelial cells and other rare cells from blood using a magnetic sweeper device. Proc. Natl. Acad. Sci. USA 2009, 106, 3970–3975. [Google Scholar] [CrossRef]
- Kirby, B.J.; Jodari, M.; Loftus, M.S.; Gakhar, G.; Pratt, E.D.; Chanel-Vos, C.; Gleghorn, J.P.; Santana, S.M.; Liu, H.; Smith, J.P.; et al. Functional characterization of circulating tumor cells with a prostate-cancer-specific microfluidic device. PLoS One 2012, 7, e35976. [Google Scholar] [CrossRef]
- Ligthart, S.T.; Coumans, F.A.W.; Attard, G.; Cassidy, A.M.; de Bono, J.S.; Terstappen, L.W.M.M. Unbiased and automated identification of a circulating tumour cell definition that associates with overall survival. PLoS One 2011, 6, e27419. [Google Scholar]
- Ligthart, S.T.; Coumans, F.A.W.; Bidard, F.-C.; Simkens, L.H.J.; Punt, C.J.A.; de Groot, M.R.; Attard, G.; de Bono, J.S.; Pierga, J.-Y.; Terstappen, L.W.M.M. Circulating tumor cells count and morphological features in breast, colorectal and prostate cancer. PLoS One 2013, 8, e67148. [Google Scholar] [CrossRef]
- Went, P.T.H.; Lugli, A.; Meier, S.; Bundi, M.; Mirlacher, M.; Sauter, G.; Dirnhofer, S. Frequent EpCam protein expression in human carcinomas. Hum. Pathol. 2004, 35, 122–128. [Google Scholar] [CrossRef]
- Trzpis, M.; McLaughlin, P.M.J.; de Leij, L.M.F.H.; Harmsen, M.C. Epithelial cell adhesion molecule: More than a carcinoma marker and adhesion molecule. Am. J. Pathol. 2007, 171, 386–395. [Google Scholar] [CrossRef]
- Rao, C.G.; Chianese, D.; Doyle, G.V. Expression of epithelial cell adhesion molecule in carcinoma cells present in blood and primary and metastatic tumors. Int. J. Oncol. 2005, 27, 49–57. [Google Scholar]
- Gaffey, M.J.; Mills, S.E.; Swanson, P.E.; Zarbo, R.J.; Shah, A.R.; Wick, M.R. Immunoreactivity for BER-EP4 in adenocarcinomas, adenomatoid tumors, and malignant mesotheliomas. Am. J. Surg. Pathol. 1992, 16, 593–599. [Google Scholar] [CrossRef]
- Gastl, G.; Spizzo, G.; Obrist, P.; Dünser, M.; Mikuz, G. Ep-CAM overexpression in breast cancer as a predictor of survival. Lancet 2000, 356, 1981–1982. [Google Scholar]
- Spizzo, G.; Fong, D.; Wurm, M.; Ensinger, C.; Obrist, P.; Hofer, C.; Mazzoleni, G.; Gastl, G.; Went, P. EpCAM expression in primary tumour tissues and metastases: An immunohistochemical analysis. J. Clin. Pathol. 2011, 64, 415–420. [Google Scholar] [CrossRef]
- Taube, J.H.; Herschkowitz, J.I.; Komurov, K.; Zhou, A.Y.; Gupta, S.; Yang, J.; Hartwell, K.; Onder, T.T.; Gupta, P.B.; Evans, K.W.; et al. Core epithelial-to-mesenchymal transition interactome gene-expression signature is associated with claudin-low and metaplastic breast cancer subtypes. Proc. Natl. Acad. Sci. USA 2010, 107, 15449–15454. [Google Scholar] [CrossRef]
- Weinberg, R.A. Twisted epithelial-mesenchymal transition blocks senescence. Nat. Cell Biol. 2008, 10, 1021–1023. [Google Scholar]
- Gorges, T.M.; Tinhofer, I.; Drosch, M.; Röse, L.; Zollner, T.M.; Krahn, T.; von Ahsen, O. Circulating tumour cells escape from EpCAM-based detection due to epithelial-to-mesenchymal transition. BMC Cancer 2012, 12. [Google Scholar] [CrossRef]
- Armstrong, A.J.; Marengo, M.S.; Oltean, S.; Kemeny, G.; Bitting, R.L.; Turnbull, J.D.; Herold, C.I.; Marcom, P.K.; George, D.J.; Garcia-Blanco, M.A. Circulating tumor cells from patients with advanced prostate and breast cancer display both epithelial and mesenchymal markers. Mol. CancerRes. 2011, 9, 997–1007. [Google Scholar]
- Kallergi, G.; Papadaki, M.A.; Politaki, E.; Mavroudis, D.; Georgoulias, V.; Agelaki, S. Epithelial to mesenchymal transition markers expressed in circulating tumour cells of early and metastatic breast cancer patients. Breast Cancer Res. 2011, 13. [Google Scholar] [CrossRef]
- Raimondi, C.; Gradilone, A.; Naso, G.; Vincenzi, B.; Petracca, A.; Nicolazzo, C.; Palazzo, A.; Saltarelli, R.; Spremberg, F.; Cortesi, E.; et al. Epithelial-mesenchymal transition and stemness features in circulating tumor cells from breast cancer patients. Breast Cancer Res. Treat. 2011, 130, 449–455. [Google Scholar] [CrossRef]
- Mego, M.; de Giorgi, U.; Dawood, S.; Wang, X.; Valero, V.; Andreopoulou, E.; Handy, B.; Ueno, N.T.; Reuben, J.M.; Cristofanilli, M. Characterization of metastatic breast cancer patients with nondetectable circulating tumor cells. Int. J. Cancer 2011, 129, 417–423. [Google Scholar]
- Sieuwerts, A.M.; Kraan, J.; Bolt, J.; van der Spoel, P.; Elstrodt, F.; Schutte, M.; Martens, J.W.M.; Gratama, J.-W.; Sleijfer, S.; Foekens, J.A. Anti-epithelial cell adhesion molecule antibodies and the detection of circulating normal-like breast tumor cells. J. Natl. Cancer Inst. 2009, 101, 61–66. [Google Scholar] [CrossRef]
- Mostert, B.; Kraan, J.; Bolt-de Vries, J.; van der Spoel, P.; Sieuwerts, A.M.; Schutte, M.; Timmermans, A.M.; Foekens, R.; Martens, J.W.M.; Gratama, J.-W.; et al. Detection of circulating tumor cells in breast cancer may improve through enrichment with anti-CD146. Breast Cancer Res. Treat. 2011, 127, 33–41. [Google Scholar] [CrossRef]
- Mostert, B.; Kraan, J.; Sieuwerts, A.M.; van der Spoel, P.; Bolt-de Vries, J.; Prager-van der Smissen, W.J.C.; Smid, M.; Timmermans, A.M.; Martens, J.W.M.; Gratama, J.W.; et al. CD49f-based selection of circulating tumor cells (CTCs) improves detection across breast cancer subtypes. Cancer Lett. 2012, 319, 49–55. [Google Scholar] [CrossRef]
- Seal, S.H. A sieve for the isolation of cancer cells and other large cells from the blood. Cancer 1964, 17, 637–642. [Google Scholar] [CrossRef]
- Desitter, I.; Guerrouahen, B.S.; Benali-Furet, N.; Wechsler, J.; Janne, P.A.; Kuang, Y.; Yanagita, M.; Wang, L.; Berkowitz, J.A.; Distel, R.J.; et al. A New device for rapid isolation by size and characterization of rare circulating tumor cells. Anticancer Res. 2011, 31, 427–441. [Google Scholar]
- Adams, D.; Makarova, O.; Zhu, P.; Li, S.A.P. Isolation of circulating tumor cells by size exclusion using lithography fabricated precision microfilters. In Proceedings of the 102th Annual Meeting of the American Association for Cancer Research, Orlando, FL, USA, 2–6 April 2011; AACR: Philadelphia, PA, USA, 2011 Abstract Number 2369.. [Google Scholar]
- Coumans, F.A.W.; van Dalum, G.; Beck, M.; Terstappen, L.W.M.M. Filtration parameters influencing circulating tumor cell enrichment from whole blood. PLoS One 2013, 8, e61774. [Google Scholar]
- Hofman, V.; Ilie, M.I.; Long, E.; Selva, E.; Bonnetaud, C.; Molina, T.; Vénissac, N.; Mouroux, J.; Vielh, P.; Hofman, P. Detection of circulating tumor cells as a prognostic factor in patients undergoing radical surgery for non-small-cell lung carcinoma: Comparison of the efficacy of the CellSearch AssayTM and the isolation by size of epithelial tumor cell method. Int. J. Cancer 2011, 129, 1651–1660. [Google Scholar] [CrossRef]
- Krebs, M.G.; Hou, J.-M.; Sloane, R.; Lancashire, L.; Priest, L.; Nonaka, D.; Ward, T.H.; Backen, A.; Clack, G.; Hughes, A.; et al. Analysis of circulating tumor cells in patients with non-small cell lung cancer using epithelial marker-dependent and -independent approaches. J. Thorac. Oncol. 2012, 7, 306–315. [Google Scholar] [CrossRef]
- Van Dalum, G.; Lenferink, A.; LWMM, T. Detection of EpCAM negative Circulating Tumor Cells. In Proceedings of the 104th Annual Meeting of the American Association for Cancer Research, Washington, DC, USA, 6–10 April 2013; AACR: Philadelphia, PA, USA, 2013 Abstract Number 1459.. [Google Scholar]
- Coumans, F.A.W.; Doggen, C.J.M.; Attard, G.; de Bono, J.S.; Terstappen, L.W.M.M. All circulating EpCAM+CK+CD45− objects predict overall survival in castration-resistant prostate cancer. Ann. Oncol. 2010, 21, 1851–1817. [Google Scholar] [CrossRef]
- Larson, C.J.; Moreno, J.G.; Pienta, K.J.; Gross, S.; Repollet, M.; O’hara, S.M.; Russell, T.; Terstappen, L.W.M.M. Apoptosis of circulating tumor cells in prostate cancer patients. Cytom. Part A 2004, 62, 46–53. [Google Scholar]
- Leers, M.P.; Kölgen, W.; Björklund, V.; Bergman, T.; Tribbick, G.; Persson, B.; Björklund, P.; Ramaekers, F.C.; Björklund, B.; Nap, M.; et al. Immunocytochemical detection and mapping of a cytokeratin 18 neo-epitope exposed during early apoptosis. J. Pathol. 1999, 187, 567–572. [Google Scholar] [CrossRef]
- Callagy, G.M.; Webber, M.J.; Pharoah, P.D.P.; Caldas, C. Meta-analysis confirms BCL2 is an independent prognostic marker in breast cancer. BMC Cancer 2008, 8. [Google Scholar] [CrossRef]
- McDonnell, T.J.; Korsmeyer, S.J. Progression from lymphoid hyperplasia to high-grade malignant lymphoma in mice transgenic for the t(14; 18). Nature 1991, 349, 254–256. [Google Scholar] [CrossRef]
- Smerage, J.B.; Budd, G.T.; Doyle, G.V; Brown, M.; Paoletti, C.; Muniz, M.; Miller, M.C.; Repollet, M.I.; Chianese, D.A.; Connelly, M.C.; et al. Monitoring apoptosis and Bcl-2 on circulating tumor cells in patients with metastatic breast cancer. Mol. Oncol. 2013, 7, 680–692. [Google Scholar] [CrossRef]
- Sun, Y.-F.; Xu, Y.; Yang, X.-R.; Guo, W.; Zhang, X.; Qiu, S.-J.; Shi, R.-Y.; Hu, B.; Zhou, J.; Fan, J. Circulating stem cell-like epithelial cell adhesion molecule-positive tumor cells indicate poor prognosis of hepatocellular carcinoma after curative resection. Hepatology 2013, 57, 1458–1468. [Google Scholar] [CrossRef]
- Méhes, G.; Witt, A.; Kubista, E.; Ambros, P. Circulating Breast cancer cells are frequently apoptotic. Am. J. Pathol. 2001, 159, 17–20. [Google Scholar] [CrossRef]
- Rossi, E.; Fassan, M.; Aieta, M.; Zilio, F.; Celadin, R.; Borin, M.; Grassi, A.; Troiani, L.; Basso, U.; Barile, C.; et al. Dynamic changes of live/apoptotic circulating tumour cells as predictive marker of response to sunitinib in metastatic renal cancer. Br. J. Cancer 2012, 107, 1286–1294. [Google Scholar] [CrossRef]
- Rossi, E.; Basso, U.; Celadin, R.; Zilio, F.; Pucciarelli, S.; Aieta, M.; Barile, C.; Sava, T.; Bonciarelli, G.; Tumolo, S.; et al. M30 neoepitope expression in epithelial cancer: Quantification of apoptosis in circulating tumor cells by CellSearch analysis. Clin. Cancer Res. 2010, 16, 5233–5243. [Google Scholar] [CrossRef]
- Kallergi, G.; Konstantinidis, G.; Markomanolaki, H.; Papadaki, M.A.; Mavroudis, D.; Stournaras, C.; Georgoulias, V.; Agelaki, S. Apoptotic Circulating Tumor Cells (CTCs) in early and metastatic breast cancer patients. Mol. Cancer Ther. 2013, 12, 1886–1895. [Google Scholar] [CrossRef]
- Fehm, T.; Becker, S.; Becker-Pergola, G.; Sotlar, K.; Gebauer, G.; Dürr-Störzer, S.; Neubauer, H.; Wallwiener, D.; Solomayer, E.-F. Presence of apoptotic and nonapoptotic disseminated tumor cells reflects the response to neoadjuvant systemic therapy in breast cancer. Breast Cancer Res. 2006, 8. [Google Scholar] [CrossRef]
- Ulukaya, E.; Yilmaztepe, A.; Akgoz, S.; Linder, S.; Karadag, M. The levels of caspase-cleaved cytokeratin 18 are elevated in serum from patients with lung cancer and helpful to predict the survival. Lung Cancer 2007, 56, 399–404. [Google Scholar] [CrossRef]
- Swennenhuis, J.F.; Tibbe, A.G.J.; Levink, R.; Sipkema, R.C.J.; Terstappen, L.W.M.M. Characterization of circulating tumor cells by fluorescence in situ hybridization. Cytometry 2009, 75, 520–527. [Google Scholar]
- Campoli, M.R.; Chang, C.C.; Kageshita, T.; Wang, X.; McCarthy, J.B.; Ferrone, S. Human high molecular weight-melanoma-associated antigen (HMW-MAA): A melanoma cell surface chondroitin sulfate proteoglycan (MSCP) with biological and clinical significance. Crit. Rev. Immunol. 2004, 24, 267–296. [Google Scholar] [CrossRef]
- Weigel, M.T.; Dowsett, M. Current and emerging biomarkers in breast cancer: Prognosis and prediction. Endocr. Relat. Cancer 2010, 17, R245–R262. [Google Scholar] [CrossRef]
- Müller, V.; Stahmann, N.; Riethdorf, S.; Goetz, A.; Ja, F.; Pantel, K. Circulating Tumor Cells in breast cancer: Correlation to bone marrow micrometastases, heterogeneous response to systemic therapy and low proliferative activity. Clin. Cancer Res. 2005, 11, 3678–3685. [Google Scholar] [CrossRef]
- Wicha, M.S.; Liu, S.; Dontu, G. Cancer stem cells: An old idea—A paradigm shift. Cancer Res. 2006, 66, 1883–1890. [Google Scholar] [CrossRef]
- Al-Hajj, M.; Wicha, M.S.; Hernandez, A.B.; Morrison, S.J.; Clarke, M.F. Prospective identification of tumorigenic breast cancer cells. Proc. Natl. Acad. Sci. USA 2003, 100, 3983–3968. [Google Scholar] [CrossRef]
- Ponti, D.; Costa, A.; Zaffaroni, N.; Pratesi, G. Isolation and in vitro propagation of tumorigenic breast cancer cells with stem/progenitor cell properties. Cancer Res. 2005, 65, 5506–5511. [Google Scholar]
- Balic, M.; Lin, H.; Young, L.; Hawes, D.; Giuliano, A.; McNamara, G.; Datar, R.H.; Cote, R.J. Most early disseminated cancer cells detected in bone marrow of breast cancer patients have a putative breast cancer stem cell phenotype. Clin. Cancer Res. 2006, 12, 5615–5621. [Google Scholar] [CrossRef]
- Theodoropoulos, P.A.; Polioudaki, H.; Agelaki, S.; Kallergi, G.; Saridaki, Z.; Mavroudis, D.; Georgoulias, V. Circulating tumor cells with a putative stem cell phenotype in peripheral blood of patients with breast cancer. Cancer Lett. 2010, 288, 99–106. [Google Scholar] [CrossRef]
- Ginestier, C.; Hur, M.; Charafe-Jauffret, E. ALDH1 is a marker of normal and malignant human mammary stem cells and a predictor of poor clinical outcome. Cell Stem Cell 2007, 1, 555–567. [Google Scholar] [CrossRef]
- Charafe-Jauffret, E.; Ginestier, C.; Iovino, F.; Tarpin, C.; Diebel, M.; Esterni, B.; Houvenaeghel, G.; Extra, J.; Bertucci, F.; Jacquemier, J.; et al. Aldehyde dehydrogenase 1-positive cancer stem cells mediate metastasis and poor clinical outcome in inflammatory breast cancer. Clin. Cancer Res. 2010, 16, 45–55. [Google Scholar] [CrossRef]
- Matsui, W.; Huff, C.A.; Wang, Q.; Malehorn, M.T.; Barber, J.; Tanhehco, Y.; Smith, B.D.; Civin, C.I.; Jones, R.J. Characterization of clonogenic multiple myeloma cells. Blood 2004, 103, 2332–2336. [Google Scholar]
- Hess, D.A.; Meyerrose, T.E.; Wirthlin, L.; Craft, T.P.; Herrbrich, P.E.; Creer, M.H.; Nolta, J.A. Functional characterization of highly purified human hematopoietic repopulating cells isolated according to aldehyde dehydrogenase activity. Blood 2004, 104, 1648–1655. [Google Scholar] [CrossRef]
- Pearce, D.J.; Taussig, D.; Simpson, C.; Allen, K.; Rohatiner, A.Z.; Lister, T.A.; Bonnet, D. Characterization of cells with a high aldehyde dehydrogenase activity from cord blood and acute myeloid leukemia samples. Stem Cells 2005, 23, 752–760. [Google Scholar] [CrossRef]
- Singh, S.; Hawkins, C.; Clarke, I.; Squire, J. Identification of human brain tumour initiating cells. Nature 2004, 432, 396–401. [Google Scholar] [CrossRef]
- Alamgeer, M.; Ganju, V.; Szczepny, A.; Russell, P.A.; Prodanovic, Z.; Kumar, B.; Wainer, Z.; Brown, T.; Schneider-Kolsky, M.; Conron, M.; et al. The prognostic significance of aldehyde dehydrogenase 1A1 (ALDH1A1) and CD133 expression in early stage non-small cell lung cancer. Thorax 2013. [Google Scholar] [CrossRef]
- Kallergi, G.; Agelaki, S.; Kalykaki, A.; Stournaras, C.; Mavroudis, D.; Georgoulias, V. Phosphorylated EGFR and PI3K/Akt signaling kinases are expressed in circulating tumor cells of breast cancer patients. Breast Cancer Res. 2008, 10. [Google Scholar] [CrossRef]
- Korkaya, H.; Paulson, A.; Charafe-Jauffret, E.; Ginestier, C.; Brown, M.; Dutcher, J.; Clouthier, S.G.; Wicha, M.S. Regulation of mammary stem/progenitor cells by PTEN/Akt/beta-catenin signaling. PLoS Biol. 2009, 7, e1000121. [Google Scholar] [CrossRef]
- Zhou, J.; Wulfkuhle, J.; Zhang, H.; Gu, P.; Yang, Y.; Deng, J.; Margolick, J.B.; Liotta, L.A.; Petricoin, E.; Zhang, Y. Activation of the PTEN/mTOR/STAT3 pathway in breast cancer stem-like cells is required for viability and maintenance. Proc. Natl. Acad. Sci. USA 2007, 104, 16158–16163. [Google Scholar] [CrossRef]
- Kasimir-Bauer, S.; Hoffmann, O.; Wallwiener, D.; Kimmig, R.; Fehm, T. Expression of stem cell and epithelial-mesenchymal transition markers in primary breast cancer patients with circulating tumor cells. Breast Cancer Res. 2012, 14. [Google Scholar] [CrossRef]
- Takao, M.; Takeda, K. Enumeration, characterization, and collection of intact circulating tumor cells by cross contamination-free flow cytometry. Cytometry 2011, 79, 107–117. [Google Scholar] [CrossRef]
- Bichsel, C.A.; Gobaa, S.; Kobel, S.; Secondini, C.; Thalmann, G.N.; Cecchini, M.G.; Lutolf, M.P. Diagnostic microchip to assay 3D colony-growth potential of captured circulating tumor cells. Lab Chip 2012, 12, 2313–2316. [Google Scholar]
- Kang, J.H.; Krause, S.; Tobin, H.; Mammoto, A.; Kanapathipillai, M.; Ingber, D.E. A combined micromagnetic-microfluidic device for rapid capture and culture of rare circulating tumor cells. Lab Chip 2012, 12, 2175–2181. [Google Scholar] [CrossRef]
- Tumor, C.; Williams, A.; Rawal, S.; Ao, Z.; Torres-munoz, J.; Balic, M.; Zhou, M. Clinical Translation of a Novel Microfilter Technology. In Proceedings of the 2013 IEEE Point-of-Care Healthcare Technologies Meeting, Bangalore, India, 16–18 January 2013.
- Zhang, L.; Ridgway, L.D.; Wetzel, M.D.; Ngo, J.; Yin, W.; Kumar, D.; Goodman, J.C.; Groves, M.D.; Marchetti, D. The identification and characterization of breast cancer CTCs competent for brain metastasis. Sci. Transl. Med. 2013, 5. [Google Scholar] [CrossRef]
- Song, J.W.; Cavnar, S.P.; Walker, A.C.; Luker, K.E.; Gupta, M.; Tung, Y.-C.; Luker, G.D.; Takayama, S. Microfluidic endothelium for studying the intravascular adhesion of metastatic breast cancer cells. PLoS One 2009, 4, e5756. [Google Scholar]
- Byun, S.; Son, S.; Amodei, D.; Cermak, N.; Shaw, J.; Ho, J.; Hecht, V.C. Characterizing deformability and surface friction of cancer cells. Proc. Natl. Acad. Sci. USA 2013, 110, 7580–7585. [Google Scholar]
- Jeon, J.S.; Zervantonakis, I.K.; Chung, S.; Kamm, R.D.; Charest, J.L. In vitro model of tumor cell extravasation. PLoS One 2013, 8, e56910. [Google Scholar]
- Mak, M.; Reinhart-King, C.A.; Erickson, D. Elucidating mechanical transition effects of invading cancer cells with a subnucleus-scaled microfluidic serial dimensional modulation device. Lab Chip 2013, 13, 340–348. [Google Scholar] [CrossRef]
- Li, Y.; Guo, J.; Wang, C.; Fan, Z.; Liu, G.; Wang, C.; Gu, Z.; Damm, D.; Mosig, A.; Wei, X. Circulation times of prostate cancer and hepatocellular carcinoma cells by in vivo flow cytometry. Cytometry 2011, 79, 848–854. [Google Scholar]
- Fan, Z.-C.; Yan, J.; Liu, G.-D.; Tan, X.-Y.; Weng, X.-F.; Wu, W.-Z.; Zhou, J.; Wei, X.-B. Real-time monitoring of rare circulating hepatocellular carcinoma cells in an orthotopic model by in vivo flow cytometry assesses resection on metastasis. Cancer Res. 2012, 72, 2683–2691. [Google Scholar] [CrossRef]
- Juratli, M.A.; Sarimollaoglu, M.; Siegel, E.; Nedosekin, D.A.; Galanzha, E.; Suen, J.Y.; Zharov, V.P. Real-time monitoring of circulating tumor-cell release during tumor manipulation using in vivo photoacoustic and fluorescent flow cytometry. Head Neck 2013. [Google Scholar] [CrossRef]
- Baccelli, I.; Schneeweiss, A.; Riethdorf, S.; Stenzinger, A.; Schillert, A.; Vogel, V.; Klein, C.; Saini, M.; Bäuerle, T.; Wallwiener, M.; et al. Identification of a population of blood circulating tumor cells from breast cancer patients that initiates metastasis in a xenograft assay. Nat. Biotechnol. 2013, 31. [Google Scholar] [CrossRef]

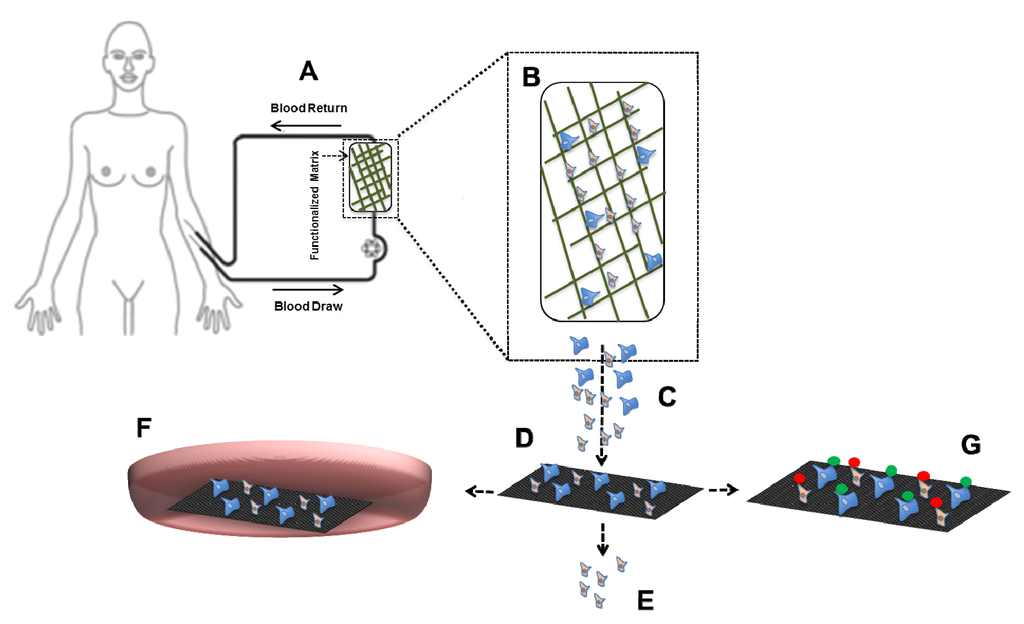

- Circulating Tumor Cells TheRapeutic APheresis (CTCTRAP). Available online: http://www.utwente.nl/tnw/ctctrap/ (accessed on 1 September 13).
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
