Cancers 2012, 4(1), 55-76; doi:10.3390/cancers4010055
Published: 20 January 2012
Abstract: Here, we investigated the relative contribution of genetic/signaling components versus microenvironmental factors to the malignancy phenotype. In this system, we took advantage of non-transformed fibroblasts that carried defined oncogenic modifications in Ras and/or p53. These cells were exposed to microenvironmental pressures, and the expression of a cancer-related chemokine cluster was used as readout for the malignancy potential (CCL2, CCL5, CXCL8, CXCL10). In cells kept in-culture, synergism between Ras hyper-activation and p53 dysfunction was required to up-regulate the expression of the chemokine cluster. The in vivo passage of RasHigh/p53Low-modified cells has led to tumor formation, accompanied by potentiation of chemokine release, implicating a powerful role for the tumor microenvironment in up-regulating the chemokine cluster. Indeed, we found that inflammatory mediators which are prevalent in tumor sites, such as TNFα and IL-1β, had a predominant impact on the release of the chemokines, which was substantially higher than that obtained by the oncogenic modifications alone, possibly acting through the transcription factors AP-1 and NF-κB. Together, our results propose that in the unbiased model system that we were using, inflammatory mediators of the tumor milieu have dominating roles over oncogenic modifications in dictating the expression of a pro-malignancy chemokine readout.
The complex and multi-factorial nature of malignant tumors reflects the cooperative activities of intracellular transformation events and microenvironmental networks. While genetic and epigenetic alterations are essential for oncogenesis, it is now known that factors of the tumor milieu have a profound influence on the ability of transformed cells to establish tumors and to metastasize [1,2].
The cooperation between multiple elements in dictating tumor growth and progression makes it difficult to dissect the relative contribution of each of the partners to malignancy. Efforts that were made in this direction were hampered by the use of model systems based on transformed cells that carried “built in” intrinsic modifications in genetic and signaling pathways. On the background of the alterations already existing in these cells, it was difficult to determine the relative impact of isolated events on disease course.
In the present study, we have set an unbiased model system in which we have determined the relative contribution of oncogenic genetic/signaling components versus microenvironmental factors to the malignancy phenotype. Here, we have imposed defined oncogenic modifications on a normal cell system [3,4], and have applied microenvironmental constrains on these modified cells. Using this model system, we determined the relative effects of each of the two partners—oncogenic alterations versus microenvironmental factors—on the expression of chemokines that form a cancer-promoting network. The chemokines included in the network are characterized by being inflammatory chemokines that often act in parallel but through diverging mechanisms to promote malignancy phenotypes.
This network comprised of the chemokines CCL2, CCL5 and CXCL8 whose expression is predominantly up-regulated in many malignant diseases, and therefore their elevation manifests the acquisition of a more malignant phenotype by the cells. These three chemokines are classified as potent tumor-promoting chemokines in a very large number of malignancies, and their roles include, between others: Induction of high presence of Tumor-Associated Macrophages (TAM) in tumors (CCL2, CCL5); Elevation of angiogenesis (CCL2 and CXCL8); and induction of tumor cell migration and proliferation (CCL5, CXCL8) [5,6,7,8,9,10,11,12,13,14]. In parallel, we wished to know if similar ongcogenic/microenvironmental regulatory constrains will adhere to an inflammatory chemokine with more complex effects on malignancy, such as CXCL10. CXCL10 attracts Th1 and NK cells to tumor sites and inhibits angiogenesis, but in parallel can exert a variety of pro-cancerous functions [12,14,15]. For the sake of simplicity, in the following sections of the manuscript the four chemokines (CCL2, CCL5, CXCL8, CXCL10) will be referred together as “cancer-related chemokine cluster”.
To perform the above-mentioned analyses, we have used non-transformed fibroblasts carrying oncogenic modifications that are prevalent in many cancer diseases [3,4]: (1) Hyper-activation of the oncogenic Ras protein. It is now well-established that due to mutations in Ras or over-expression of receptor tyrosine kinases (RTKs), the Ras pathway becomes hyper-activated in tumor cells, leading to increased cell proliferation and survival [16,17,18]; (2) Down-regulation of the tumor-suppressing protein p53. Mutations in p53 or its allelic loss are frequently detected in malignancy, with deleterious effects ensued [19,20,21,22,23].
Using such modified fibroblasts which were kept in-culture, our study shows that both Ras hyper-activation and p53 down-regulation were required together in order to induce the expression of the cancer-related chemokine cluster; however, when such cells were exposed to the tumor microenvironment in vivo, the inflammatory milieu had a more powerful driving force towards a higher tumor-promoting phenotype than the genetic modifications, as manifested in this case by elevated levels of the cancer-related chemokine cluster. Specifically, we have identified Tumor Necrosis Factor α (TNFα) and Interleukin 1β (IL-1β)—two inflammatory mediators that are known to be of a tumor-promoting phenotype [24,25,26,27,28,29]—as potent chemokine inducers in the present cell system, and revealed that their effects were significantly higher than those obtained by the oncogenic alterations of Ras and p53 combined.
Taken together, by using an advantageous unbiased system based on non-transformed cells, our study shows that in this setup, the inflammatory microenvironment dominates over the effects of oncogenic alterations in aspects related to the expression of the cancer-related chemokine cluster, emphasizing the indispensible roles played by host factors in promoting malignancy-related events. These findings may have major clinical implications because they accentuate the need to consider the targeting of inflammatory mediators that are present at the tumor milieu when therapeutic measures are designed in malignant diseases.
2. Results and Discussion
2.1. Co-Expression of Hyper-Activated Ras and Dysfunctional p53 Together, in Non-Transformed Cells, Leads to Excessive Release of the Cancer-Related Chemokine Cluster
In this study, we have used WI-38 non-transformed fibroblasts as a platform to determine the effects of hyper-activated Ras and down-regulated p53 on the cluster of cancer-related chemokines. To this end, the cells were infected to express the constitutively active RasG12V mutant (RasHigh = RasH) along with dysfunctional modalities in p53 that are prevalent in human malignant diseases: (1) p53 knock down by specific shRNA (p53Low = p53L) that recapitulates the allelic loss of p53 or its abnormal degradation; (2) Over-expression of vectors expressing mutated p53, namely p53R175H or p53R248Q, representing frequent tumor-promoting mutations of p53 in human cancers [19,20,21,22].

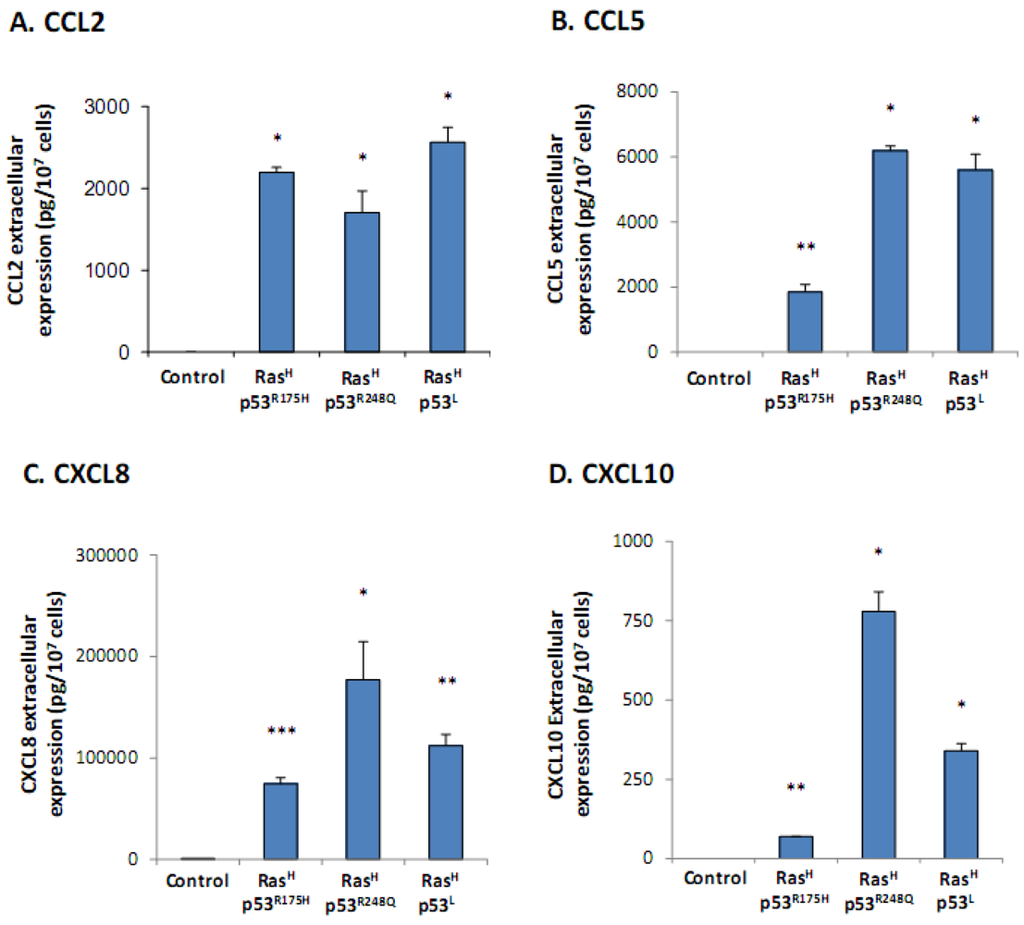

The results of Figure 1 show that the combination of Ras hyper-activation + p53 dysfunction has induced a significant elevation in secretion of the members of the pro-malignancy chemokine network, consisting of CCL2, CCL5 and CXCL8, as well as of CXCL10 which is the chemokine showing more complex roles in malignancy (Figure 1A–D, respectively). Of the three modalities used for deregulation of p53, the p53L (shRNA) and p53R248Q forms were very effective in inducing the secretion of all chemokines, while the p53R175H modality was much less efficient in most analyses and at times not active (see below). Overall, these results indicate that in cells that carry a normal phenotype, combined expression of the Ras and p53 oncogenic events shifts the balance in favor of a malignancy phenotype which is manifested by the elevated release of pro-cancerous chemokines.
2.2. The Release of the Cancer-Related Chemokine Cluster Requires Cooperation between Ras Hyper-Activation and p53 Down-Regulation

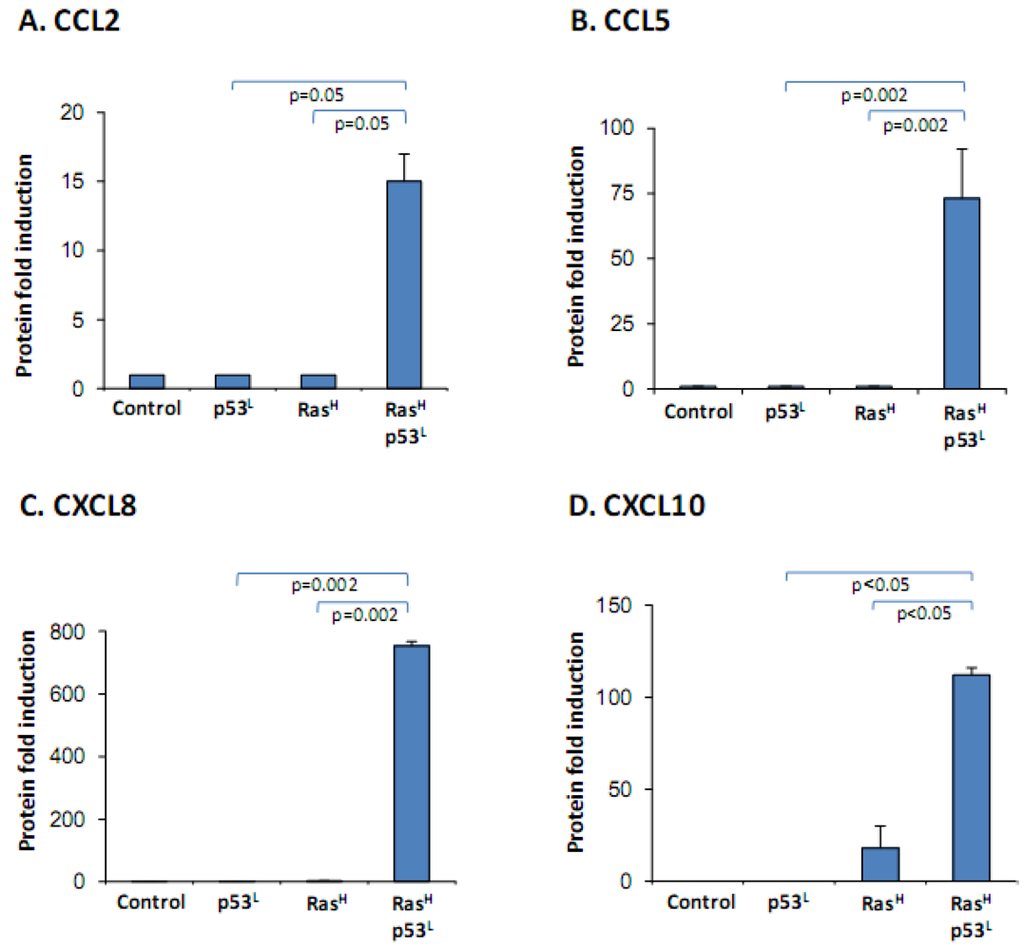

After determination of the effects induced by hyper-activated Ras and dysfunctional p53 on chemokine secretion, we wished to know if either oncogenic modification could act alone to increase the release of the chemokines, or whether cooperation between them is required. Because of its high effectiveness in promoting chemokine release when combined with Ras hyper-activation (Figure 1), in this part of the study we focused on the p53L mode of p53 inactivation (by p53 shRNA).
To this end, we have expressed in the non-transformed cells the hyper-activated form of Ras and p53L, each alone or together. The results of Figure 2 show minimal effect of hyper-activated Ras alone (RasH), or of knocked-down p53 alone (p53L) on chemokine secretion. However, when combined, RasH synergized with p53L, together leading to a prominent release of CCL2, CCL5, CXCL8 and CXCL10 by the cells.
These results indicate that cooperation between oncogenic modifications in Ras and p53 is required for induction of the cancer-related chemokine cluster. This finding shows that this chemokine-cluster readout obeys the same regulatory patterns observed for other tumor-promoting characteristics, in that its induction requires synergism between at least two oncogenic modifications [30,31,32,33,34,35,36,37,38]. The above findings also indicate that the chemokine cluster serves as an appropriate manifestation of the malignancy phenotype of the cells, and more specifically they point to the important roles played by hyper-activated Ras and dysfunctional p53 in regulation of the inflammatory setup of the tumor microenvironment, as indicated by the chemokine readout. Thus, acting together, hyper-activated Ras and dysfunctional p53 may give rise to exacerbated release of inflammatory chemokines with tumor-supporting functions, that can promote pro-cancerous activities: in tumor cells (originating due to genetic/signaling modifications), and in microenvironmental cells at their vicinity.
Also, our findings suggest that in patients exhibiting hyper-activation of the Ras pathway—due to Ras mutations and/or over-expression of RTKs—and also deregulated p53, chemokine release by the tumor cells would be promoted and the tumor microenvironment would be exposed to their tumor-supporting effects. This mode of regulation may be a part of a more complex and reciprocal net of interactions that exists between chemokines and oncogenic modifications, since recent findings have shown that over-expression of the chemokine receptor CXCR4—that is associated with tumor metastasis [39,40]—has led to up-regulation of RTKs and to deregulation of the p53-MDM2 axis .
2.3. Exposure to the Host Microenvironment Leads to Further Increase in the Expression of the Cancer-Related Chemokine Cluster
Published studies indicate that combination between oncogenic events can lead to complete transformation of cells, to the degree that they can establish full-blown tumors [30,31,32,33,34,35,36]. Along these lines, the RasH + p53L cells that were used in our study, to be now termed “RasH/p53L-in-culture” cells, were found to form tumors when inoculated to mice [3,4]. The gain of tumorigenic potential by these cells has motivated us to ask what would be the effect of exposure to host systems on the expression of the cancer-related chemokine cluster, in cells expressing oncogenic modifications.

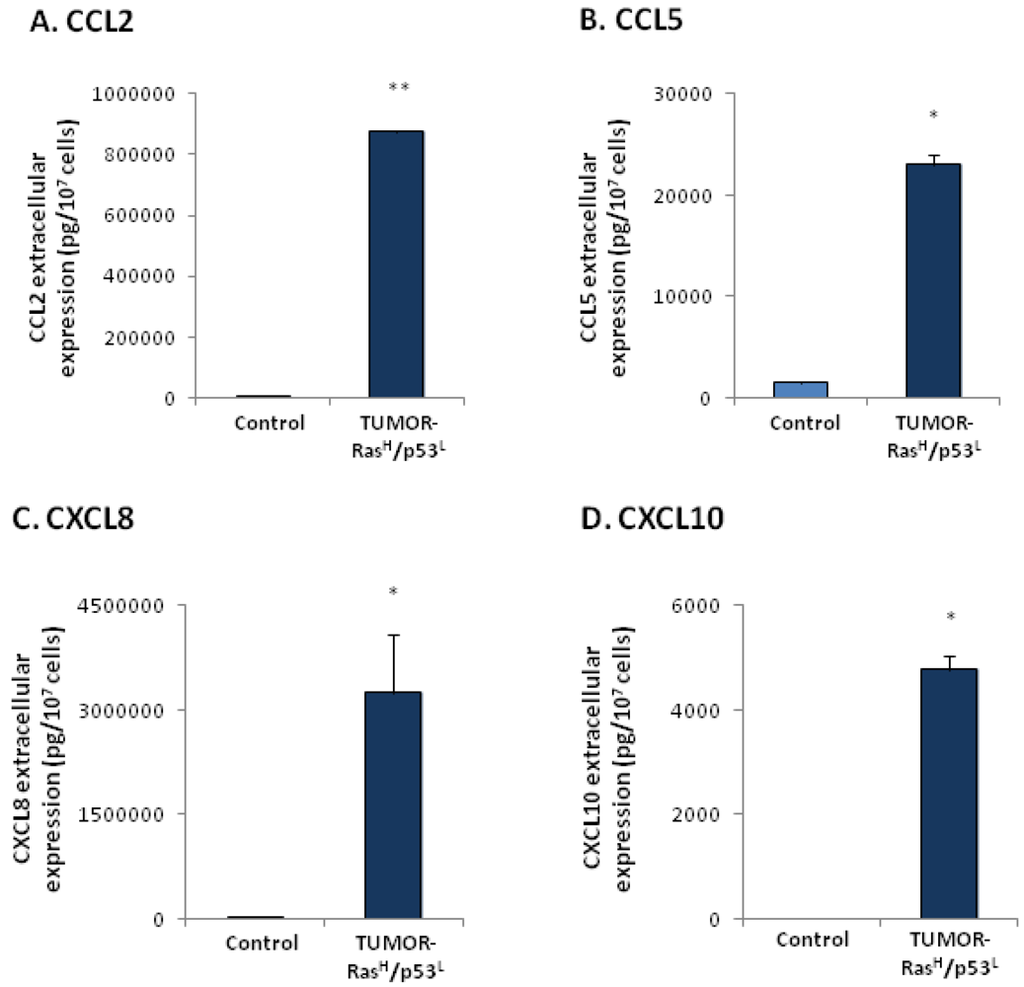

To analyze this question, following the inoculation of the RasH/p53L-in-culture cells to mice, cancer cells were excised from the tumors that have developed, and were brought back to culture . The tumor cells, termed herein TUMOR-RasH/p53L cells, were found to exert a powerful elevation in the release of the cancer-related chemokines when compared to control non-modified cells (Figure 3). To assess the specific contribution of the tumor microenvironment to the expression of the chemokines, we have compared the TUMOR-RasH/p53L cells to their in-culture counterparts. This comparison revealed that exposure to the host microenvironment has further induced prominent elevation in the release of the chemokines (Figure 4A,B). In both cell types, CXCL8 was the most prominent chemokine released by the cells. Of note, the chemokine CXCL10 obeyed the regulatory pattern observed for the typical tumor-promoting chemokines CCL2, CCL5 and CXCL8, however in general it was released in lower levels than the other chemokines. The lower efficiency obtained for CXCL10 induction by the Ras and p53 modifications, as well as by the in vivo constrains, may reflect the more complex roles of this chemokine in cancer.
Taken together, these results indicate that malignant transformation due to co-expression of oncogenic modifications induces the expression of the cancer-related chemokines; however, the expression of the chemokines can be further promoted by exposure of the cells to elements residing at the tumor microenvironment. These findings emphasize the importance of host systems in selecting cells that have preferential expression of tumor-promoting traits, including gene products that affect angiogenesis and additional pro-cancerous activities, such as those attributed to the cancer-related chemokines [4,42,43,44,45].
2.4. The Exacerbated Release of the Chemokine Cluster Following Exposure to the Host Can be Recapitulated by Stimulation with Inflammatory Cytokines

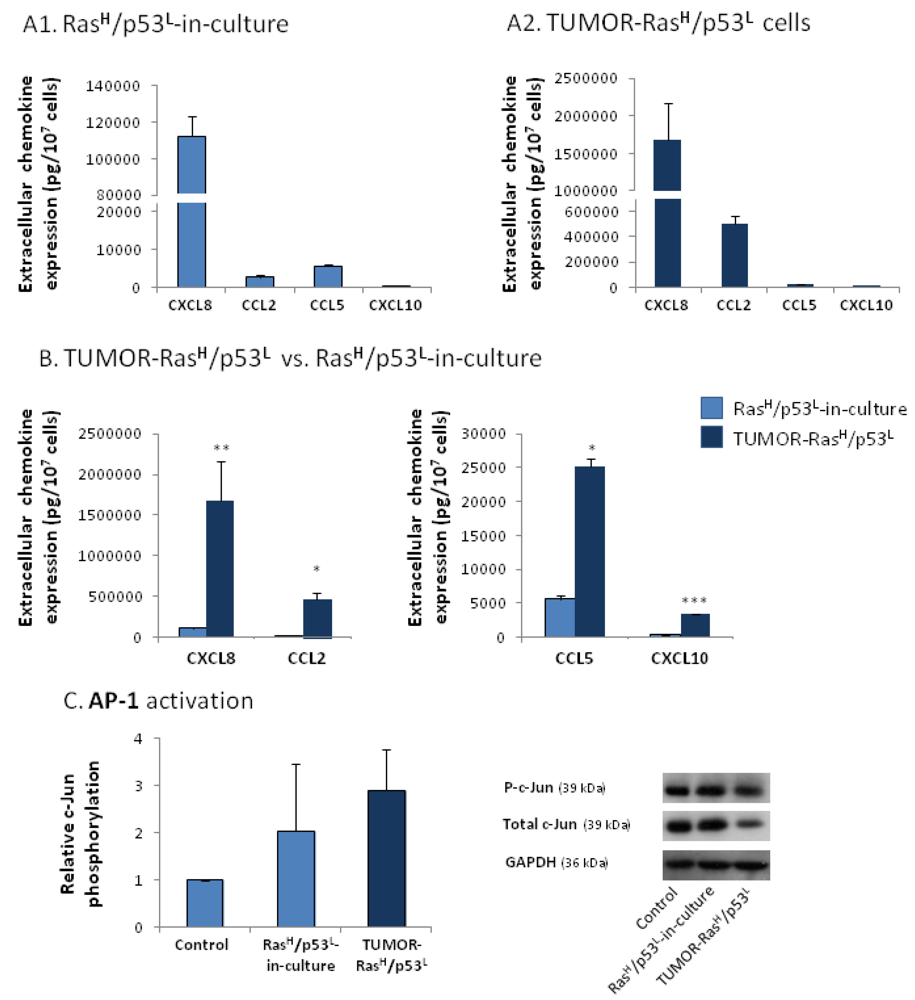

The results shown in Figure 3 and Figure 4A–B actually show that TUMOR-RasH/p53L cells retained an amplified pattern of chemokine release when they were brought back to culture, indicating that they carry permanent modification/s which enable them, in vitro, to keep releasing exacerbated levels of the chemokines. Specifically, the high basal release of the cancer-related chemokine cluster by these cells may reflect the constitutive activation of transcription factors known to regulate such chemokines. To address this possibility, we have determined the activation level of AP-1, a key inducer of inflammatory chemokines in the context of immune activities [46,47,48], in TUMOR-RasH/p53L cells. Interestingly, we found that while the total levels of the c-Jun subunit of AP-1 has been consistently reduced in these cells, the phosphorylation level of the protein remained high, thus giving rise to elevated basal activation of AP-1 in these cells (Figure 4C). In comparison, no constant activation of c-Jun was detected in RasH/p53L-in-culture cells (Figure 4C). Overall, the AP-1 transcription factor had a higher basal activation in the TUMOR-RasH/p53L cells that have emerged from the in vivo passage, than control cells in which the expression of Ras and p53 was not modified.
The elevated basal activation of AP-1 in TUMOR-RasH/p53L cells (Figure 4C) and the high chemokine amounts released by these cells (Figures 4A–B), point to the possibility that inflammatory mediators play key roles in regulating the inflammatory chemokines in RasH/p53L cells that were exposed to host systems in vivo. Inflammatory cytokines, such as Tumor Necrosis Factor α (TNFα) and Interleukin 1β (IL-1β) are known to elevate the release of inflammatory chemokines in the course of immune activities, and to activate the transcription factors AP-1 and NF-κB under such conditions [46,47,48,49,50,51,52,53,54,55,56]. Furthermore, these two cytokines were recently identified as tumor-promoting factors in many malignant diseases [24,25,26,27,28,29]. These published findings suggested that TNFα or IL-1β may be potential candidates whose activities in vivo may have led to the extremely high levels of the chemokine cluster in TUMOR-RasH/p53L cells.
At the tumor site, the sources for TNFα or IL-1β may be in host cells that are located in the tumor microenvironment, or in the tumor cells themselves. Therefore, we have determined the possibility that TUMOR-RasH/p53L cells have acquired the ability to permanently release TNFα and/or IL-1β, that then act in autocrine manners on the cells and induce the release of the inflammatory chemokines. Our data indicated that this was not the case, because TNFα or IL-1β were not secreted by the TUMOR-RasH/p53L cells (data not shown).
In view of the above, we raised an alternative possibility hypothesizing that the elevated levels of activated AP-1 in TUMOR-RasH/p53L cells actually attest for repeated selective pressures that were applied by an inflammatory tumor microenvironment in the host, leading eventually to selection of cells that carry high basal activation of transcription factor/s that promote the expression of the chemokines. In such a case, it is possible that the TUMOR-RasH/p53L cells manifest high responsiveness to inflammatory cytokines, which has led to the activation of AP-1.
Supporting this hypothesis were the findings of Figure 5, showing analyses of TUMOR-RasH/p53L cells following stimulation by TNFα or IL-1β. Measuring the activation of the AP-1 subunit c-Jun, we found that IL-1β and more potently TNFα activated the AP-1 signaling pathway in TUMOR-RasH/p53L cells and in control cells (Figure 5A). However, the results of Figure 5B show that the overall phosphorylation levels of c-Jun in TUMOR-RasH/p53L cells was higher than in control cells. Because we could not obtain sufficient reduction of c-Jun expression by siRNA (data not shown), we have determined the direct ability of IL-1β and TNFα to activate AP-1 by using a dual luciferase assay with AP-1 reporter. These assays were performed only on the TUMOR-RasH/p53L cells, because they were showing higher responsiveness to the cytokines than control cells, and have indicated that the two cytokines, and primarily TNFα induced the activation of this pathway in the TUMOR-RasH/p53L cells )Figure 5C).
In parallel, we have determined the activation of the NF-κB pathway, first asking if TNFα and IL-1β reduce the levels of the IκBα inhibitor of NF-κB in control and TUMOR-RasH/p53L cells. Using the IκBα readout, we found that TNFα and IL-1β acted primarily on the TUMOR-RasH/p53L cells to reduce IκBα levels, with TNFα showing more prominent effects compared to IL-1β (Figure 6A). The results of Figure 6B show that the effects of the cytokines on IκBα levels were more prominent in TUMOR-RasH/p53L cells than in control cells. These results suggest that the two cytokines activate NF-κB in TUMOR-RasH/p53L cells. Support for this possibility was provided by dual luciferase assays with NF-κB reporter, showing the activation of this pathway by both cytokines, with higher activation achieved by the TNFα stimulation (Figure 6C).
Overall, the TUMOR-RasH/p53L cells, which were exposed to host-microenvironmental factors in vivo have shown preferential response to TNFα or IL-1β stimulation, possibly by activating both NF-κB and AP-1 signaling pathways.
The above results suggest that the TUMOR-RasH/p53L cells attest for processes that may take place in vivo, in which the activity of the inflammatory cytokines induces in the cells a specific setup and transcriptional up-regulation that eventually lead to elevated release of the inflammatory chemokines at the tumor site. To recapitulate this in vivo process, we exposed the cells that were modified to express oncogenic Ras and p53 and were kept in-culture, to the inflammatory mediators TNFα and IL-1β. Here, of the four chemokines we chose to focus on CCL2 and CCL5 because together their effects represent a broad spectrum of cancer-related activities that are exerted by the chemokines included in the cluster studied in this research.

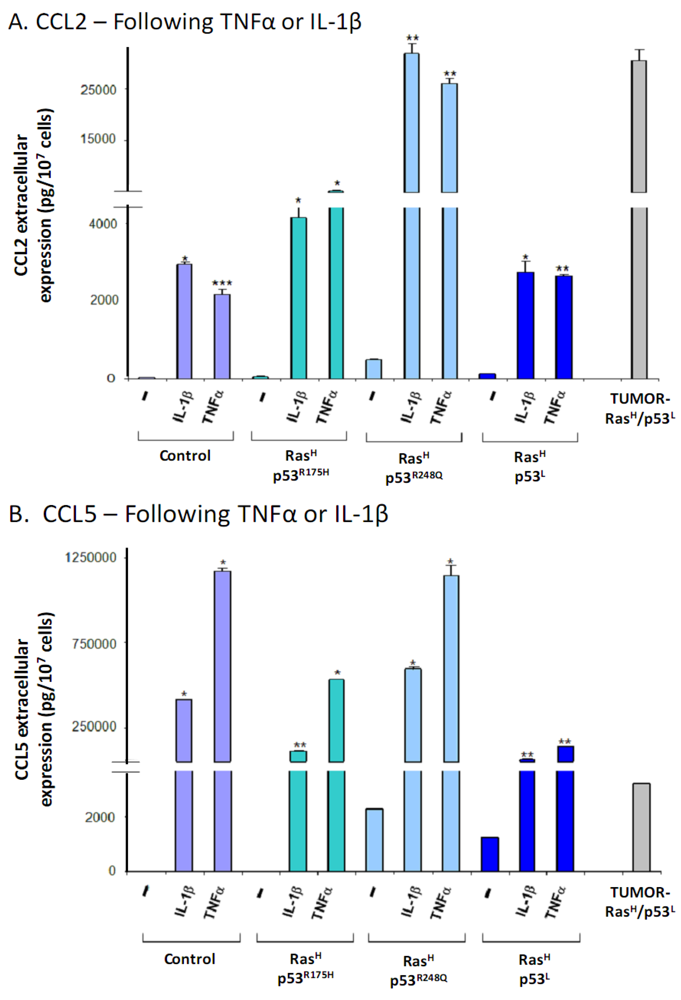

Specifically, we used cells that expressed RasH together with the different modifications of p53: p53R175H, p53R248Q or p53L. In all of these cells, the stimulation by the inflammatory cytokines has led to increased CCL2 and CCL5 secretion which was way beyond the one obtained by the combined oncogenic modifications of hyper-activated Ras and deregulated p53 together (Figure 7A,B, respectively). Moreover, the effect of the cytokines was obtained regardless of the p53 modification used, because potent induction of the chemokines by TNFα and IL-1β was obtained in all forms of deregulated p53, namely p53R175H, p53R248Q and p53L. Of note, the chemokine amounts obtained by stimulation of the different cell types kept in culture, expressing the oncogenic modifications, with the cytokines, were in general similar to those of TUMOR-RasH/p53L cells, or even higher (depending on the chemokine type).
An important point that was revealed by these analyses is that the inflammatory cytokines induced the release of the cancer-related chemokine cluster to greater extent than the combination of deregulated Ras and p53 together, and acted powerfully also without the oncogenic modification, as indicated by their ability to potently induce the release of CCL2 and CCL5 by control cells that were not modified with Ras hyper-activation and p53 down-regulation. Based on all the above findings, our conclusion is that when the chemokine cluster is used as readout for a malignancy phenotype, the tumor microenvironment has a primary role in dictating the malignancy trait of the cells. Nevertheless, when in vivo settings are concerned, it is possible that interactions between the inflammatory milieu and the oncogenic modifications would lead to a vicious cycle that potentiates the release the cancer-related chemokines.
3. Experimental Section
In this study, WI-38 human lung fibroblasts were used, following immortalization by hTERT as previously described [3,4]. These cells originally express wild type (WT) Ras and WT p53, and they were infected with the following constructs, as previously described [3,4]: RasHigh = RasH—A constitutively active human H-RasG12V mutant expressed by a hygromycin-expressing vector; p53 shRNA (p53Low = p53L), p53R175H, p53R248Q expressed by puromycin-expressing vectors. Controls included WI-38 cells infected with the empty vector of hygromycin and with a puromycin-expressing vector (shRNA against the mouse but not the human NOXA gene was used as control for shRNA of p53).
In parallel to the cell lines kept in culture, cells expressing H-RasG12V and p53L (termed “RasH/p53L-in-culture”) were inoculated to nude mice . The cells gave 100% incidence of local tumor uptake (without metastases), and cells obtained from such a tumor have been brought back to culture . In contrast to primary murine host cells that cannot survive the continuous growth in culture (such as macrophages or fibroblasts), the cells excised from the tumor have given rise to a cell line that could be continuously grown in vitro, termed herein “TUMOR-RasH/p53L”. Pathologic examination determined the sarcoma type of the resulting cells , having high mitotic rate.

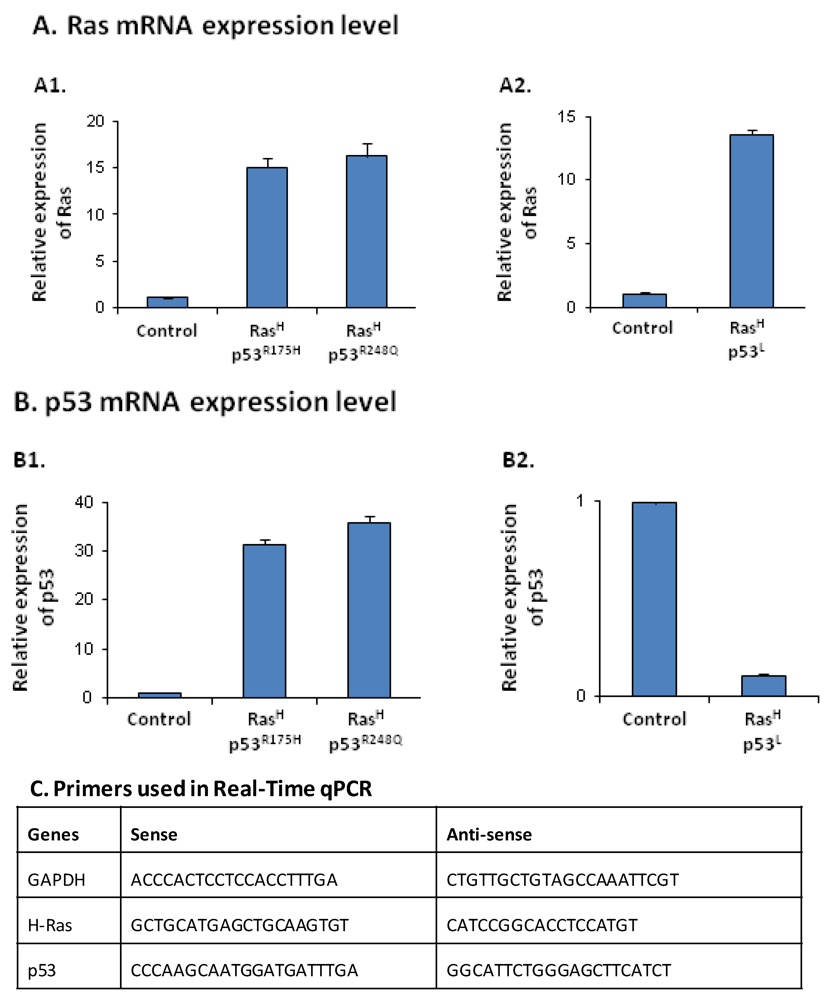

Up-regulation of Ras expression and down-regulation of p53 expression were verified in all cell lines by real time qPCR (Supplementary Figure 1; Verification for some of the cell lines by Western blotting was also provided in ). All cell lines, including TUMOR-RasH/p53L cells, had similar growth rates in culture (data not shown).
3.2. Determination of Chemokine Release by ELISA
The different cell types, as appropriate, were cultured in growth medium. Then, the cells were washed twice in PBS and incubated overnight in Low Protein Medium (LPM) containing TNFα (50 ng/mL; 300-01A) or IL-1β (500 pg/mL; 200-01B) (PeproTech, Rocky Hill, NJ, USA). Cytokine concentrations were selected based on titration analyses performed in other studies in the laboratory. Control cells were grown under similar conditions, with 0.1% BSA, the solubilizer of TNFα and IL-1β.
Chemokine expression in the supernatants of the cells was determined by sandwich ELISA, at the linear range of absorbance, using recombinant human proteins for generation of standard curves. As expected of a biological system, there were fluctuations in the levels of chemokines released by the same cell line in the various assays. However, it is important to note that the general ratios between the secretion levels of the different cell types used in this study, as well as the ratios between the different chemokines in the same cell line, were kept proportionate in the different assays along the whole study.
The following antibodies were used: Coating antibodies—mouse monoclonal antibodies against human CCL2 (500-M71, PeproTech), CCL5 (500-M75, PeproTech), CXCL8 (508402; BioLegend, San Diego, CA, USA) and CXCL10 (500-P93, PeproTech); Detecting antibodies—biotinylated goat antibodies against human CCL2 (500-P34Bt, PeproTech), CCL5 (BAF278, R&D Systems), CXCL8 (BAF208; R&D Systems, Minneapolis, MN, USA) and CXCL10 (500-P93Bt, PeproTech). After the addition of streptavidin-horseradish peroxidase (HRP, Jackson ImmunoResearch Laboratories, West Grove, PA, USA), the substrate TMB/E solution (Chemicon, Temecula, CA, USA) was added. The reaction was stopped by the addition of 0.18 M H2SO4 and optical density (OD) was measured at 450 nm. p values were calculated by Student’s t test.
3.3. Western Blot Analyses
The different cell types, as appropriate, were lysed in RIPA lysis buffer. Cell lysis was followed by conventional Western blot procedures. The following proteins were analyzed by the appropriate antibodies: phosphorylated c-Jun (sc-822; Santa Cruz Biotechnology, Santa Cruz, CAF), c-Jun (610326; BD Transduction Laboratories, San Jose, CA), IκBα (4814; Cell Signaling Technology) and GAPDH (MAB374; Chemicon).
After washings, the membranes were incubated with horseradish peroxidase (HRP)-conjugated secondary antibodies, as appropriate: sheep anti-mouse-HRP (NA931; Amersham Pharmacia Biotech, Buckinghamshire, UK) or goat anti-rabbit-HRP (111-035-003; Jackson ImmunoResearch Laboratories). The membranes were subjected to enhanced chemilluminescence (Amersham), and bands on immunoblots were quantified by densitometry. Because of consistent reduction in c-Jun expression levels (total c-Jun) in TUMOR-RasH/p53L cells, “Relative c-Jun phosphorylation levels” were calculated by dividing the densitometry values obtained for phosphorylated-c-Jun, by the values of total c-Jun, and then by GAPDH which served as a loading control (phosphorylated c-Jun/total Jun/GAPDH).
3.4. Dual Luciferase Assays
The cells were transfected with vectors containing a luciferase gene under the control of an AP-1 binding sites (5 × coll-TRE-tata; kindly provided by Tsaffrir Zor, Tel Aviv University), or NF-κB binding sites (3 × KBL; kindly provided by Stefan Wiemann, DKFZ Heidelberg, Germany). A construct coding for renilla luciferase was used for normalization of the results according to transfection yields (kindly provided by Tsaffrir Zor, Tel Aviv University). 48 h after transfection, the cells were stimulated by TNFα (8 h) or IL-1β (6–8 h) (time points were selected following a kinetic analysis), and processed with the reagents provided in Dual-Luciferase Assay System Kit (Promega, Madison, WI, USA). Luciferase activity was determined using the same kit, according to manufacturer’s instructions.
This study has analyzed the contribution of oncogenic events as compared to inflammatory mediators to acquisition of a pro-tumorigenic phenotype, using a cancer-related chemokine cluster as readout for the malignancy potential of the cells. We have identified two independent steps in which the chemokine content may be regulated. At the first stage, combined oncogenic modifications lead to full transformation of the cells and is accompanied by increased release of the chemokine cluster. The second stage takes place when the tumor cells start interacting with their surroundings in vivo, and are affected by the tumor microenvironment. At this latter stage, inflammatory cytokines that are found at the scene have major impact on the release of the chemokines by the tumor cells, and this is manifested by exacerbated levels of pro-malignancy chemokines that are released by the transformed cells. Based on published findings, it is possible that the inflammatory cytokines are released by inflammatory cells or stroma cells that reside at the tumor site. In parallel, it is possible that in some of the cancer types, the tumor cells may constitute another source for the inflammatory cytokines, as was shown to be the case for example in breast cancer [24,25,26,27,28,29,57]. Of note is the fact that in many systems, tumor cells that are grown in vitro lose the ability to constitutively release the cytokines, as may have been the case for the TUMOR-RasH/p53L cells used in our study.
Importantly, this study delineates the relative contribution of each of the two steps to regulation of the cancer-related chemokine cluster and thus potentially to malignancy, by using a platform based on cells that are non-transformed, allowing us to clearly decipher the roles of each arm to the readout used. This study provides novel findings showing, by the use of this advantageous system, that the inflammatory microenvironment has a very strong impact on the expression levels of the cancer-related chemokines, that in the unique system we used, is higher than the ability of the oncogenic alterations to increase the expression of the pro-malignancy chemokines. Nevertheless, the roles of the genetic/signaling modifications is indispensable, because in vivo they are expected to enhance the vicious cycle taking place between cancer cells and host cells at their microenvironment.
Based on the above, we suggest that in the setup of our current study, the powerful chemokine-promoting activities of inflammatory cytokines dominate the regulatory events that may control chemokine release, and dictates the expression of the chemokines at the tumor microenvironment. These chemokines, in turn, lead to a large array of tumor-promoting activities, e.g., high presence of TAM in the tumors, angiogenesis, tumor cell invasion and more. In such a setting, inflammatory cells that were recruited to the tumor site in response to chemokines such as CCL2 and CCL5 continue releasing the inflammatory cytokines TNFα and IL-1β, whose activities further promote the release of the cancer-related chemokines. By that, a vicious cycle of pro-malignancy activities ensues, supporting processes of tumor growth and progression.
These findings may have important clinical implications because they provide major support to the significant power of the inflammatory tumor microenvironment and its being a potential target for therapeutic approaches. They also emphasize the importance of current efforts to introduce to the treatment of malignant diseases novel treatments, in which inflammatory mediators are targeted, for example by direct inhibition of TNFα activities. To date, measures that target TNFα activities are already used in the clinic, primarily in inflammatory diseases such as rheumatoid arthritis, motivating researchers to determine their impact on malignant diseases. So far, therapies directed against TNFα have been implemented in a limited number of malignant diseases [58,59,60], with proven safety. At this point, it is difficult to assess the actual effects of these treatments on disease course, because the studies were preliminary and were performed on patients with advanced/metastatic diseases, including such that have failed to respond to conventional therapies. However, our findings and other studies showing the great impact of inflammatory mediators on malignancies, strengthen the need to provide improved understanding of the joint activities of inflammatory mediators at tumor sites, and to evaluate the ability to use therapies against such factors in cancer.
The authors acknowledge the financial support provided to this study by Israel Science Foundation, Israel Ministry of Health and Federico Foundation. The authors also thank Stefan Wiemann from DKFZ, Heidelberg, Germany and Tsaffrir Zor from Tel Aviv University for kindly providing luciferase constructs.
- Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674, doi:10.1016/j.cell.2011.02.013.
- Joyce, J.A.; Pollard, J.W. Microenvironmental regulation of metastasis. Nat. Rev. Cancer 2009, 9, 239–252, doi:10.1038/nrc2618.
- Milyavsky, M.; Tabach, Y.; Shats, I.; Erez, N.; Cohen, Y.; Tang, X.; Kalis, M.; Kogan, I.; Buganim, Y.; Goldfinger, N.; et al. Transcriptional programs following genetic alterations in p53, INK4A, and H-Ras genes along defined stages of malignant transformation. Cancer Res. 2005, 65, 4530–4543, doi:10.1158/0008-5472.CAN-04-3880. 15930270
- Buganim, Y.; Solomon, H.; Rais, Y.; Kistner, D.; Nachmany, I.; Brait, M.; Madar, S.; Goldstein, I.; Kalo, E.; Adam, N.; et al. 53 Regulates the Ras circuit to inhibit the expression of a cancer-related gene signature by various molecular pathways. Cancer Res. 2010, 70, 2274–2284, doi:10.1158/0008-5472.CAN-09-2661. 20197462
- Bonecchi, R.; Locati, M.; Mantovani, A. Chemokines and cancer: A fatal attraction. Cancer Cell 2011, 19, 434–435, doi:10.1016/j.ccr.2011.03.017.
- Lazennec, G.; Richmond, A. Chemokines and chemokine receptors: New insights into cancer-related inflammation. Trends Mol. Med. 2010, 16, 133–144, doi:10.1016/j.molmed.2010.01.003.
- Yadav, A.; Saini, V.; Arora, S. MCP-1: Chemoattractant with a role beyond immunity: A review. Clin. Chim. Acta 2010, 411, 1570–1579, doi:10.1016/j.cca.2010.07.006.
- Soria, G.; Ben-Baruch, A. The inflammatory chemokines CCL2 and CCL5 in breast cancer. Cancer Lett. 2008, 267, 271–285, doi:10.1016/j.canlet.2008.03.018.
- Conti, I.; Rollins, B.J. CCL2 (monocyte chemoattractant protein-1) and cancer. Semin. Cancer Biol. 2004, 14, 149–154, doi:10.1016/j.semcancer.2003.10.009.
- Waugh, D.J.; Wilson, C. The interleukin-8 pathway in cancer. Clin. Cancer Res. 2008, 14, 6735–6741, doi:10.1158/1078-0432.CCR-07-4843.
- Richmond, A.; Yang, J.; Su, Y. The good and the bad of chemokines/chemokine receptors in melanoma. Pigment Cell Melanoma Res. 2009, 22, 175–186, doi:10.1111/j.1755-148X.2009.00554.x.
- Keeley, E.C.; Mehrad, B.; Strieter, R.M. CXC chemokines in cancer angiogenesis and metastases. Adv. Cancer Res. 2010, 106, 91–111, doi:10.1016/S0065-230X(10)06003-3.
- Keeley, E.C.; Mehrad, B.; Strieter, R.M. Chemokines as mediators of neovascularization. Arterioscler. Thromb. Vasc. Biol. 2008, 28, 1928–1936, doi:10.1161/ATVBAHA.108.162925.
- Fulton, A.M. The chemokine receptors CXCR4 and CXCR3 in cancer. Curr. Oncol. Rep. 2009, 11, 125–131, doi:10.1007/s11912-009-0019-1.
- Ben-Baruch, A. Expert commentary: The chemokine receptor CXCR3 and its ligands in malignancy: Do they act as double-edged swords? In Chemokine Research Trends; Grinwald, L.R., Ed.; Nova Science Publishers: Hauppauge, NY, USA, 2007.
- Karnoub, A.E.; Weinberg, R.A. Ras oncogenes: Split personalities. Nat. Rev. Mol. Cell Biol. 2008, 9, 517–531, doi:10.1038/nrm2438.
- Schubbert, S.; Shannon, K.; Bollag, G. Hyperactive Ras in developmental disorders and cancer. Nat. Rev. Cancer 2007, 7, 295–308, doi:10.1038/nrc2109.
- Blum, R.; Cox, A.D.; Kloog, Y. Inhibitors of chronically active ras: Potential for treatment of human malignancies. Recent Pat. Anticancer Drug Discov. 2008, 3, 31–47, doi:10.2174/157489208783478702.
- Olivier, M.; Hollstein, M.; Hainaut, P. TP53 mutations in human cancers: Origins, consequences, and clinical use. Cold Spring Harb. Perspect. Biol. 2010, 2, a001008, doi:10.1101/cshperspect.a001008.
- Goldstein, I.; Marcel, V.; Olivier, M.; Oren, M.; Rotter, V.; Hainaut, P. Understanding wild-type and mutant p53 activities in human cancer: New landmarks on the way to targeted therapies. Cancer Gene Ther. 2011, 18, 2–11, doi:10.1038/cgt.2010.63.
- Oren, M.; Rotter, V. Mutant p53 gain-of-function in cancer. Cold Spring Harb. Perspect. Biol. 2010, 2, a001107, doi:10.1101/cshperspect.a001107.
- Toledo, F.; Bardot, B. Cancer: Three birds with one stone. Nature 2009, 460, 466–467, doi:10.1038/460466a.
- Brosh, R.; Rotter, V. When mutants gain new powers: News from the mutant p53 field. Nat. Rev. Cancer 2009, 9, 701–713. 19693097
- Balkwill, F. Tumour necrosis factor and cancer. Nat. Rev. Cancer 2009, 9, 361–371, doi:10.1038/nrc2628.
- Balkwill, F. TNF-alpha in promotion and progression of cancer. Cancer Metastasis Rev. 2006, 25, 409–416, doi:10.1007/s10555-006-9005-3.
- ten Hagen, T.L.; Seynhaeve, A.L.; Eggermont, A.M. Tumor necrosis factor-mediated interactions between inflammatory response and tumor vascular bed. Immunol. Rev. 2008, 222, 299–315, doi:10.1111/j.1600-065X.2008.00619.x.
- Mocellin, S.; Rossi, C.R.; Pilati, P.; Nitti, D. Tumor necrosis factor, cancer and anticancer therapy. Cytokine Growth Factor Rev. 2005, 16, 35–53, doi:10.1016/j.cytogfr.2004.11.001.
- Dinarello, C.A. Why not treat human cancer with interleukin-1 blockade? Cancer Metastasis Rev. 2010, 29, 317–329, doi:10.1007/s10555-010-9229-0.
- Apte, R.N.; Voronov, E. Is interleukin-1 a good or bad ‘guy’ in tumor immunobiology and immunotherapy? Immunol. Rev. 2008, 222, 222–241, doi:10.1111/j.1600-065X.2008.00615.x.
- Meylan, E.; Dooley, A.L.; Feldser, D.M.; Shen, L.; Turk, E.; Ouyang, C.; Jacks, T. Requirement for NF-kappaB signalling in a mouse model of lung adenocarcinoma. Nature 2009, 462, 104–107, doi:10.1038/nature08462. 19847165
- Motohara, T.; Masuko, S.; Ishimoto, T.; Yae, T.; Onishi, N.; Muraguchi, T.; Hirao, A.; Matsuzaki, Y.; Tashiro, H.; Katabuchi, H.; et al. Transient depletion of p53 followed by transduction of c-Myc and K-Ras converts ovarian stem-like cells into tumor-initiating cells. Carcinogenesis 2011, 32, 1597–1606, doi:10.1093/carcin/bgr183.
- Parada, L.F.; Land, H.; Weinberg, R.A.; Wolf, D.; Rotter, V. Cooperation between gene encoding p53 tumour antigen and ras in cellular transformation. Nature 1984, 312, 649–651, doi:10.1038/312649a0.
- Xia, M.; Land, H. Tumor suppressor p53 restricts Ras stimulation of RhoA and cancer cell motility. Nat. Struct. Mol. Biol. 2007, 14, 215–223, doi:10.1038/nsmb1208.
- Hahn, W.C.; Counter, C.M.; Lundberg, A.S.; Beijersbergen, R.L.; Brooks, M.W.; Weinberg, R.A. Creation of human tumour cells with defined genetic elements. Nature 1999, 400, 464–468, doi:10.1038/22780.
- Drayton, S.; Rowe, J.; Jones, R.; Vatcheva, R.; Cuthbert-Heavens, D.; Marshall, J.; Fried, M.; Peters, G. Tumor suppressor p16INK4a determines sensitivity of human cells to transformation by cooperating cellular oncogenes. Cancer Cell 2003, 4, 301–310, doi:10.1016/S1535-6108(03)00242-3.
- Rangarajan, A.; Hong, S.J.; Gifford, A.; Weinberg, R.A. Species- and cell type-specific requirements for cellular transformation. Cancer Cell 2004, 6, 171–183, doi:10.1016/j.ccr.2004.07.009.
- Milyavsky, M.; Shats, I.; Erez, N.; Tang, X.; Senderovich, S.; Meerson, A.; Tabach, Y.; Goldfinger, N.; Ginsberg, D.; Harris, C.C.; et al. Prolonged culture of telomerase-immortalized human fibroblasts leads to a premalignant phenotype. Cancer Res. 2003, 63, 7147–7157. 14612508
- Solomon, H.; Brosh, R.; Buganim, Y.; Rotter, V. Inactivation of the p53 tumor suppressor gene and activation of the Ras oncogene: Cooperative events in tumorigenesis. Discov. Med. 2010, 9, 448–454. 20515613
- Zlotnik, A. Involvement of chemokine receptors in organ-specific metastasis. Contrib. Microbiol. 2006, 13, 191–199, doi:10.1159/000092973.
- Zlotnik, A. New insights on the role of CXCR4 in cancer metastasis. J. Pathol. 2008, 215, 211–213, doi:10.1002/path.2350.
- Su, H.; Sobrino Najul, E.J.; Toth, T.A.; Mei Ng, C.; Lelievre, S.A.; Fred, M.; Tang, C.K. Chemokine receptor CXCR4-mediated transformation of mammary epithelial cells by enhancing multiple RTKs expression and deregulation of the p53/MDM2 axis. Cancer Lett. 2011, 307, 132–140, doi:10.1016/j.canlet.2011.03.025.
- Bissell, M.J.; Radisky, D. Putting tumours in context. Nat. Rev. Cancer 2001, 1, 46–54, doi:10.1038/35094059.
- Creighton, C.J.; Bromberg-White, J.L.; Misek, D.E.; Monsma, D.J.; Brichory, F.; Kuick, R.; Giordano, T.J.; Gao, W.; Omenn, G.S.; Webb, C.P.; et al. Analysis of tumor-host interactions by gene expression profiling of lung adenocarcinoma xenografts identifies genes involved in tumor formation. Mol. Cancer Res. 2005, 3, 119–129, doi:10.1158/1541-7786.MCR-04-0189.
- Talmadge, J.E.; Fidler, I.J. Enhanced metastatic potential of tumor cells harvested from spontaneous metastases of heterogeneous murine tumors. J. Natl. Cancer Inst. 1982, 69, 975–980. 6750200
- Halachmi, E.; Witz, I.P. Differential tumorigenicity of 3T3 cells transformed in vitro with polyoma virus and in vivo selection for high tumorigenicity. Cancer Res. 1989, 49, 2383–2389. 2539901
- Roebuck, K.A.; Carpenter, L.R.; Lakshminarayanan, V.; Page, S.M.; Moy, J.N.; Thomas, L.L. Stimulus-specific regulation of chemokine expression involves differential activation of the redox-responsive transcription factors AP-1 and NF-kappaB. J. Leukoc. Biol. 1999, 65, 291–298. 10080530
- Murugan, V.; Peck, M.J. Signal transduction pathways linking the activation of alveolar macrophages with the recruitment of neutrophils to lungs in chronic obstructive pulmonary disease. Exp. Lung Res. 2009, 35, 439–485, doi:10.1080/01902140902759290.
- Adcock, I.M. Transcription factors as activators of gene transcription: AP-1 and NF-kappa B. Monaldi Arch. Chest Dis. 1997, 52, 178–186. 9203818
- Baeuerle, P.A.; Henkel, T. Function and activation of NF-kappa B in the immune system. Annu. Rev. Immunol. 1994, 12, 141–179, doi:10.1146/annurev.iy.12.040194.001041.
- Ueda, A.; Ishigatsubo, Y.; Okubo, T.; Yoshimura, T. Transcriptional regulation of the human monocyte chemoattractant protein-1 gene. Cooperation of two NF-kappaB sites and NF-kappaB/Rel subunit specificity. J. Biol. Chem. 1997, 272, 31092–31099, doi:10.1074/jbc.272.49.31092. 9388261
- Martin, T.; Cardarelli, P.M.; Parry, G.C.; Felts, K.A.; Cobb, R.R. Cytokine induction of monocyte chemoattractant protein-1 gene expression in human endothelial cells depends on the cooperative action of NF-kappa B and AP-1. Eur. J. Immunol. 1997, 27, 1091–1097, doi:10.1002/eji.1830270508.
- Mantovani, A.; Bonecchi, R.; Locati, M. Tuning inflammation and immunity by chemokine sequestration: Decoys and more. Nat. Rev. Immunol. 2006, 6, 907–918, doi:10.1038/nri1964.
- Rot, A.; von Andrian, U.H. Chemokines in innate and adaptive host defense: Basic chemokinese grammar for immune cells. Annu. Rev. Immunol. 2004, 22, 891–928, doi:10.1146/annurev.immunol.22.012703.104543.
- Zlotnik, A.; Yoshie, O.; Nomiyama, H. The chemokine and chemokine receptor superfamilies and their molecular evolution. Genome Biol. 2006, 7, 243, doi:10.1186/gb-2006-7-12-243.
- Sedgwick, J.D.; Riminton, D.S.; Cyster, J.G.; Korner, H. Tumor necrosis factor: A master-regulator of leukocyte movement. Immunol. Today 2000, 21, 110–113, doi:10.1016/S0167-5699(99)01573-X.
- Furuichi, K.; Wada, T.; Iwata, Y.; Kokubo, S.; Hara, A.; Yamahana, J.; Sugaya, T.; Iwakura, Y.; Matsushima, K.; Asano, M.; et al. Interleukin-1-dependent sequential chemokine expression and inflammatory cell infiltration in ischemia-reperfusion injury. Crit. Care Med. 2006, 34, 2447–2455, doi:10.1097/01.CCM.0000233878.36340.10. 16849996
- Soria, G.; Ofri-Shahak, M.; Haas, I.; Yaal-Hahoshen, N.; Leider-Trejo, L.; Leibovich-Rivkin, T.; Weitzenfeld, P.; Meshel, T.; Shabtai, E.; Gutman, M.; et al. Inflammatory mediators in breast cancer: Coordinated expression of TNFa & IL-1β with CCL2 & CCL5 and effects on epithelial-to-mesenchymal transition. BMC Cancer 2011, 11, 130–149, doi:10.1186/1471-2407-11-130. 21486440
- Madhusudan, S.; Foster, M.; Muthuramalingam, S.R.; Braybrooke, J.P.; Wilner, S.; Kaur, K.; Han, C.; Hoare, S.; Balkwill, F.; Talbot, D.C.; et al. A phase II study of etanercept (Enbrel), a tumor necrosis factor alpha inhibitor in patients with metastatic breast cancer. Clin. Cancer Res. 2004, 10, 6528–6534, doi:10.1158/1078-0432.CCR-04-0730. 15475440
- Brown, E.R.; Charles, K.A.; Hoare, S.A.; Rye, R.L.; Jodrell, D.I.; Aird, R.E.; Vora, R.; Prabhakar, U.; Nakada, M.; Corringham, R.E.; et al. A clinical study assessing the tolerability and biological effects of infliximab, a TNF-alpha inhibitor, in patients with advanced cancer. Ann. Oncol. 2008, 19, 1340–1346, doi:10.1093/annonc/mdn054. 18325912
- Harrison, M.L.; Obermueller, E.; Maisey, N.R.; Hoare, S.; Edmonds, K.; Li, N.F.; Chao, D.; Hall, K.; Lee, C.; Timotheadou, E.; et al. Tumor necrosis factor alpha as a new target for renal cell carcinoma: Two sequential phase II trials of infliximab at standard and high dose. J. Clin. Oncol. 2007, 25, 4542–4549, doi:10.1200/JCO.2007.11.2136. 17925549
