Micromachines 2017, 8(7), 201; doi:10.3390/mi8070201

A Simple Extraction Method of Young’s Modulus for Multilayer Films in MEMS Applications

Key Laboratory of MEMS of the Ministry of Education, Southeast University, Nanjing 210096, China
*
Author to whom correspondence should be addressed.
Received: 8 May 2017 / Revised: 12 June 2017 / Accepted: 20 June 2017 / Published: 23 June 2017
View Full-Text   |   Download PDF [1435 KB, uploaded 26 June 2017]   |

Abstract

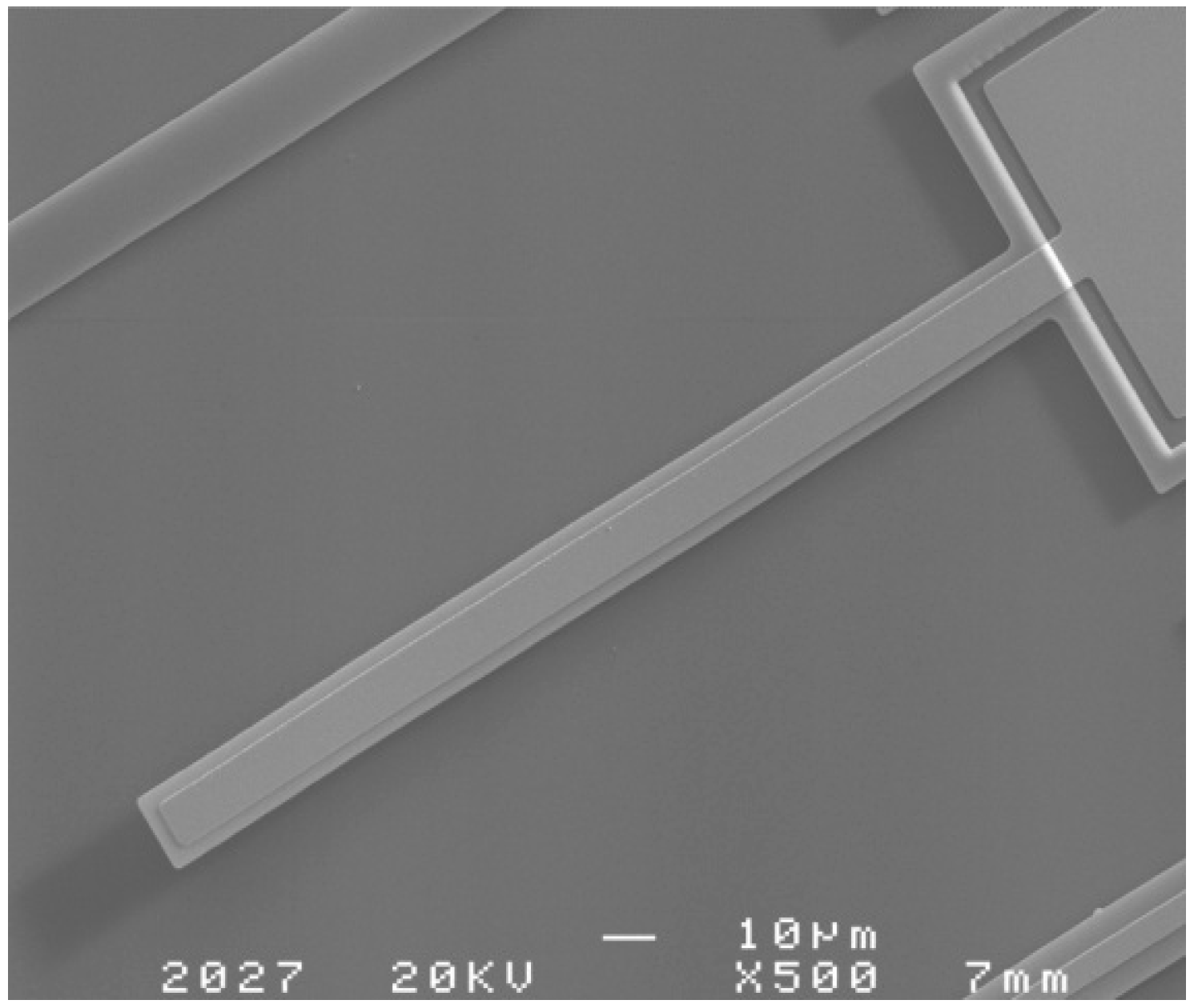

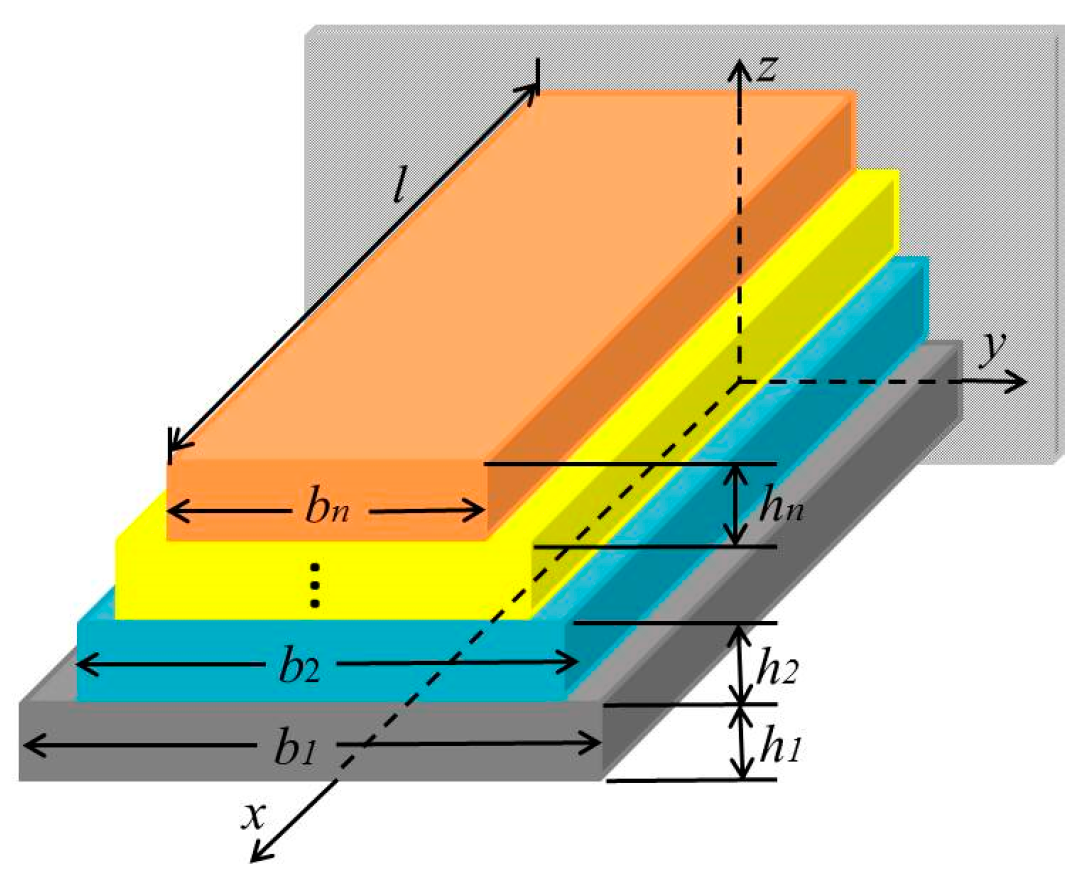

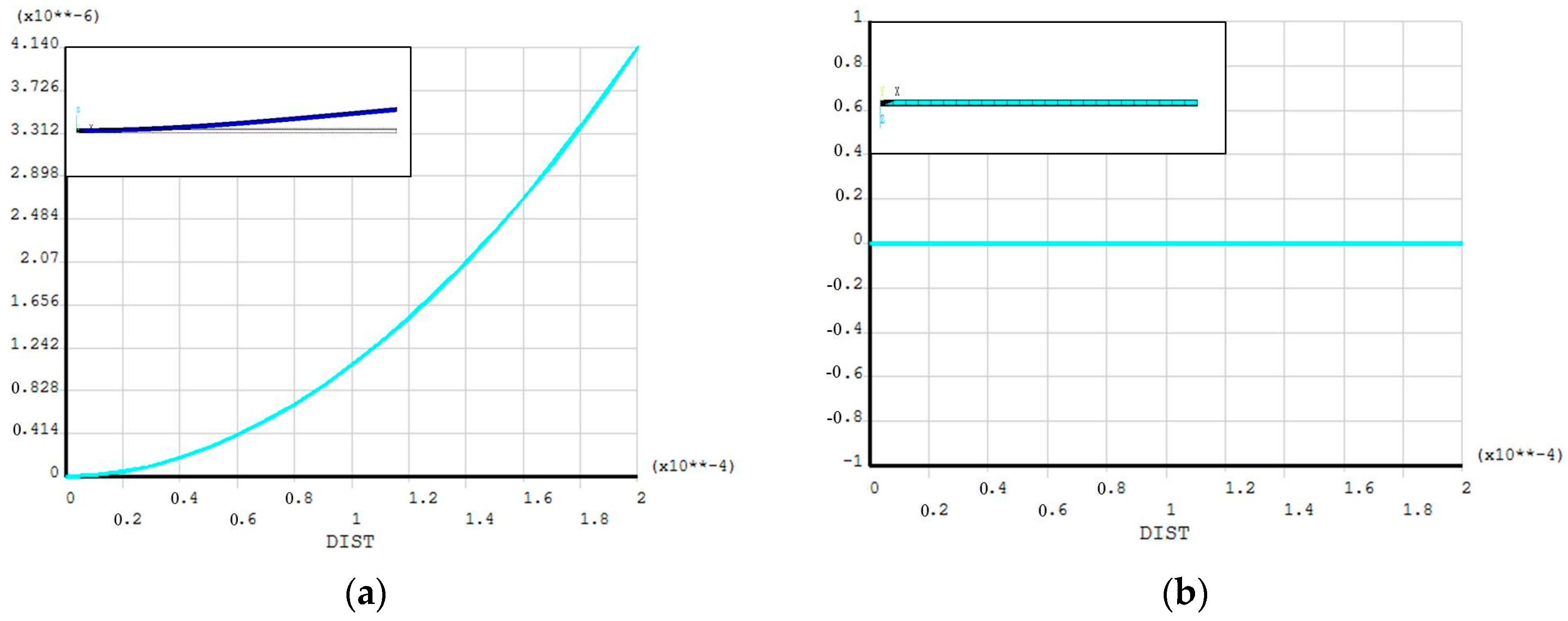

Based on the first resonance frequency measurement of multilayer beams, a simple extraction method has been developed to extract the Young’s modulus of individual layers. To verify this method, the double-layer cantilever, as a typical example, is analyzed to simplify the situation and finite element modeling (FEM) is used in consideration of the buckling and unbuckling situation of cantilevers. The first resonance frequencies, which are obtained by ANSYS (15.0, ANSYS Inc., Pittsburgh, PA, USA) with a group of thirteen setting values of Young’s modulus in the polysilicon layer are brought into the theoretical formulas to obtain a new group of Young’s modulus in the polysilicon layer. The reliability and feasibility of the theoretical method are confirmed, according to the slight differences between the setting values and the results of the theoretical model. In the experiment, a series of polysilicon-metal double-layer cantilevers were fabricated. Digital holographic microscopy (DHM) (Lyncée Tech, Lausanne, Switzerland) is used to distinguish the buckled from the unbuckled. A scanning laser Doppler vibrometer (LDV) (Polytech GmbH, Berlin, Germany) system is used to measure the first resonance frequencies of them. After applying the measurement results into the theoretical modulus, the average values of Young’s modulus in the polysilicon and gold layers are 151.78 GPa and 75.72 GPa, respectively. The extracted parameters are all within the rational ranges, compared with the available results. View Full-Text
Keywords: resonance frequency; cantilever; FEM; thin film; Young’s modulus resonance frequency; cantilever; FEM; thin film; Young’s modulus

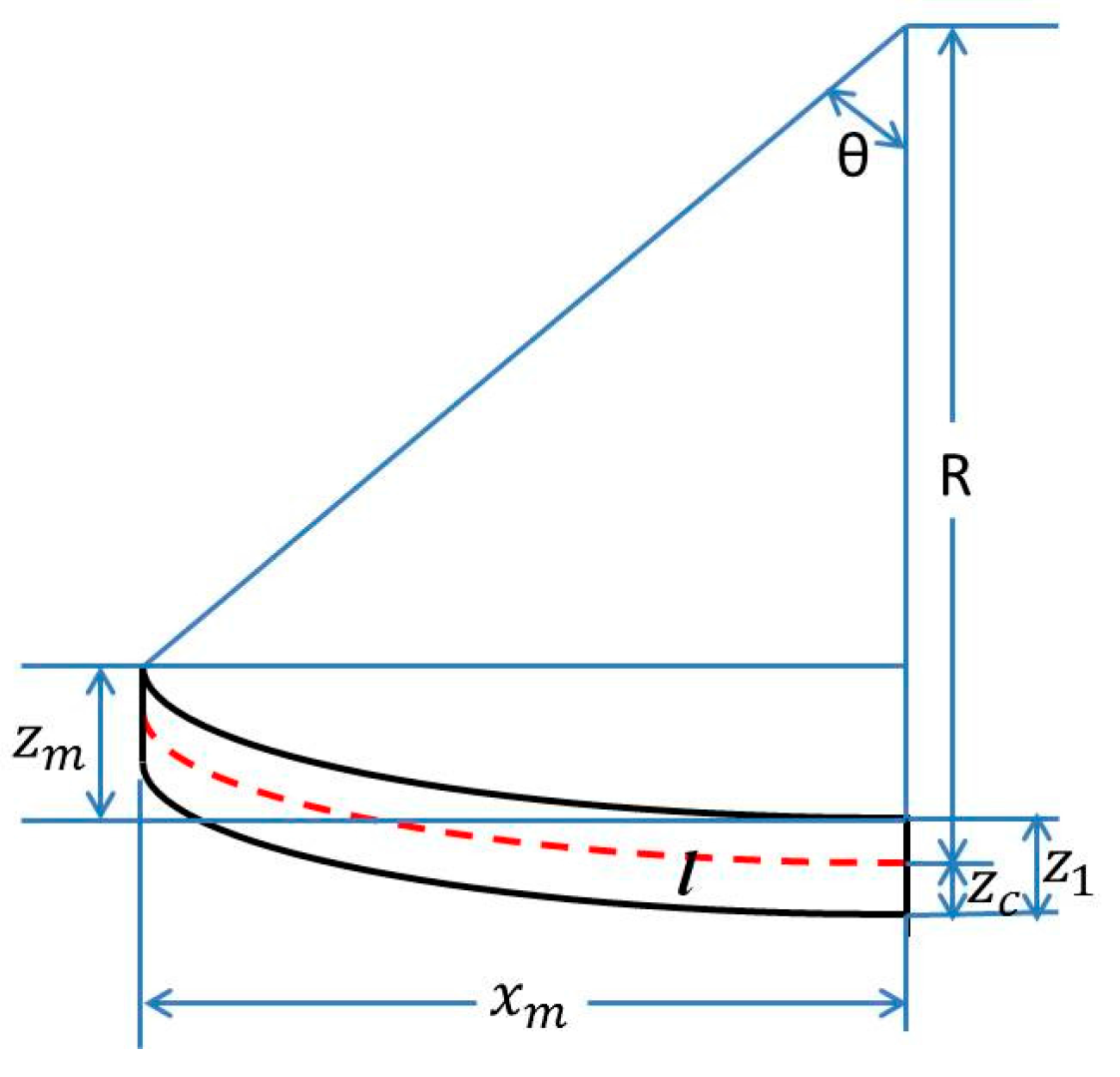

Figures

Figure 1
