Wide Linearity Range and Highly Sensitive MEMS-Based Micro-Fluxgate Sensor with Double-Layer Magnetic Core Made of Fe–Co–B Amorphous Alloy

1
Key Laboratory for Thin Film and Microfabrication of Ministry of Education, Department of Micro/Nano Electronics, School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University, Dongchuan Road 800, Shanghai 200240, China
2
Material Science and Engineering School, Central South University, Changsha 410000, China
*
Authors to whom correspondence should be addressed.
Received: 21 October 2017 / Revised: 19 November 2017 / Accepted: 29 November 2017 / Published: 30 November 2017
View Full-Text   |   Download PDF [6557 KB, uploaded 1 December 2017]   |

Abstract

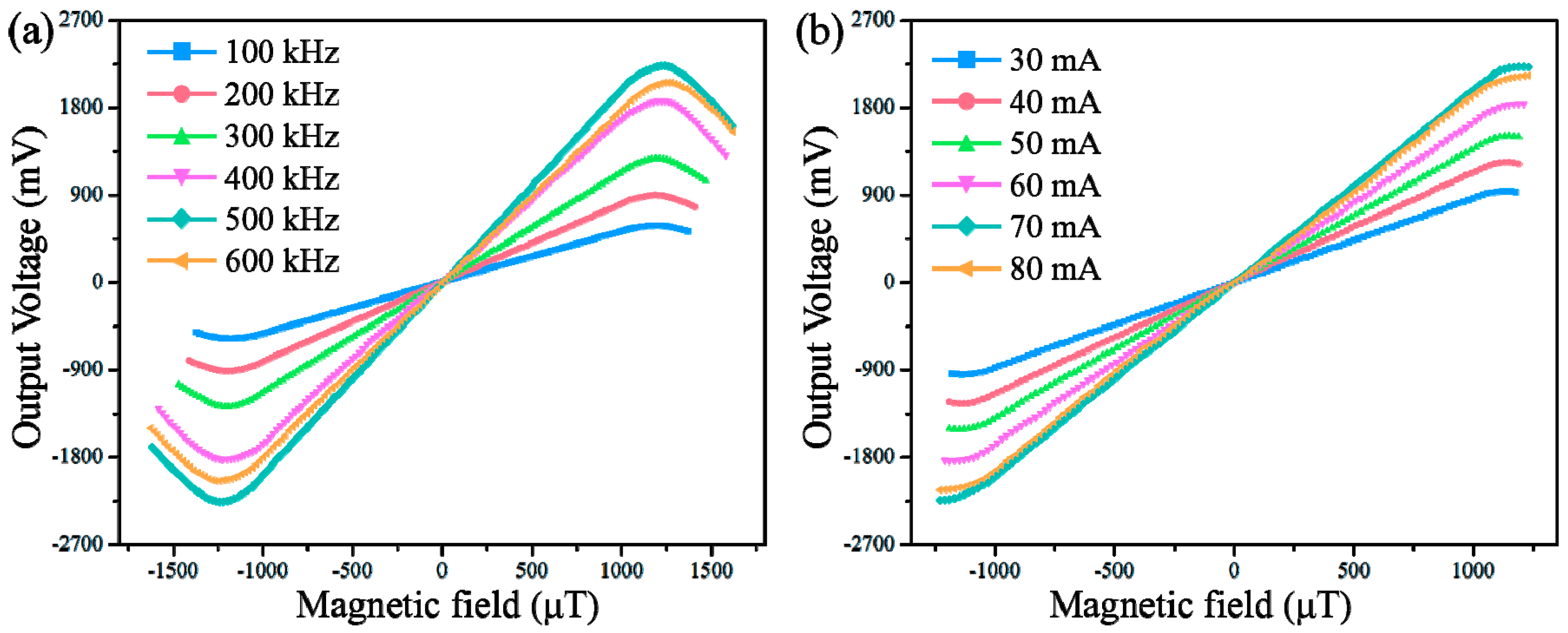

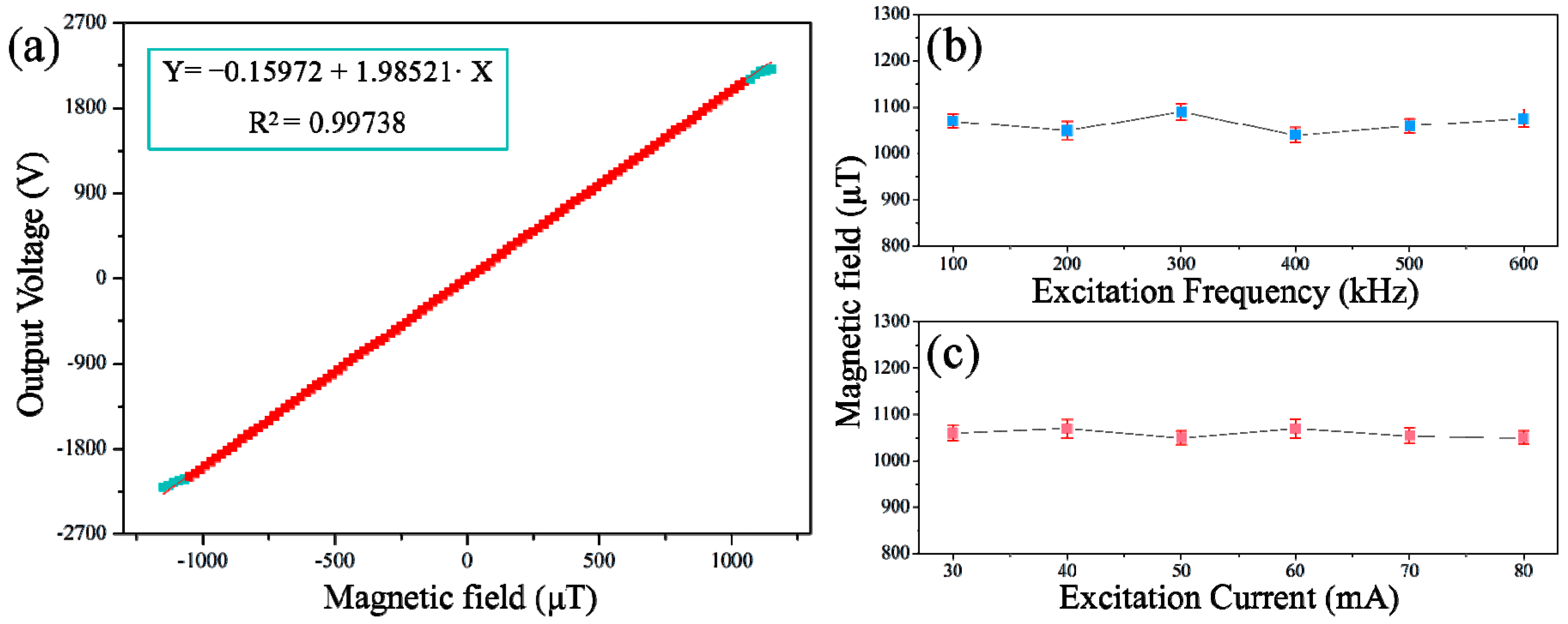

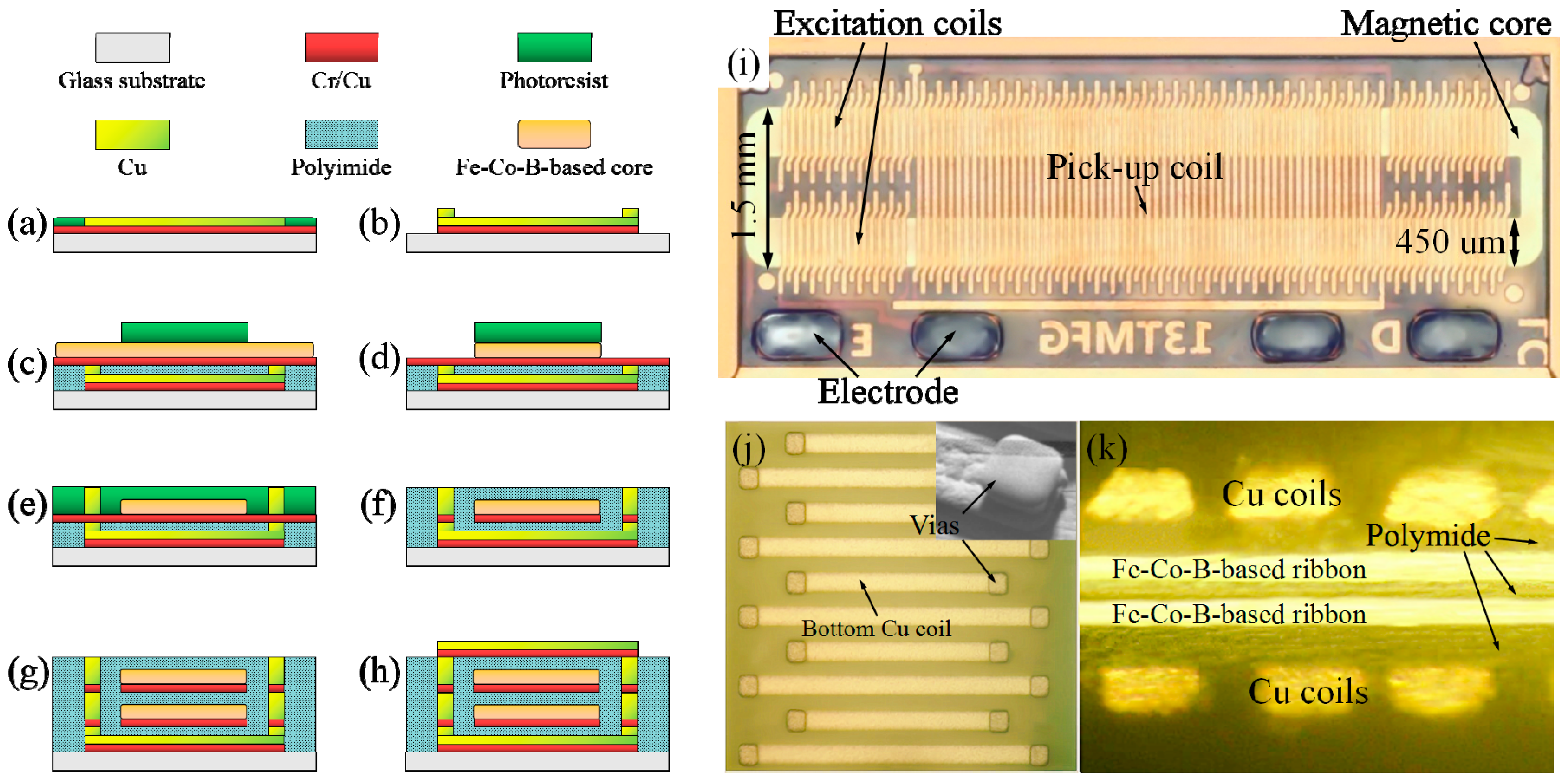

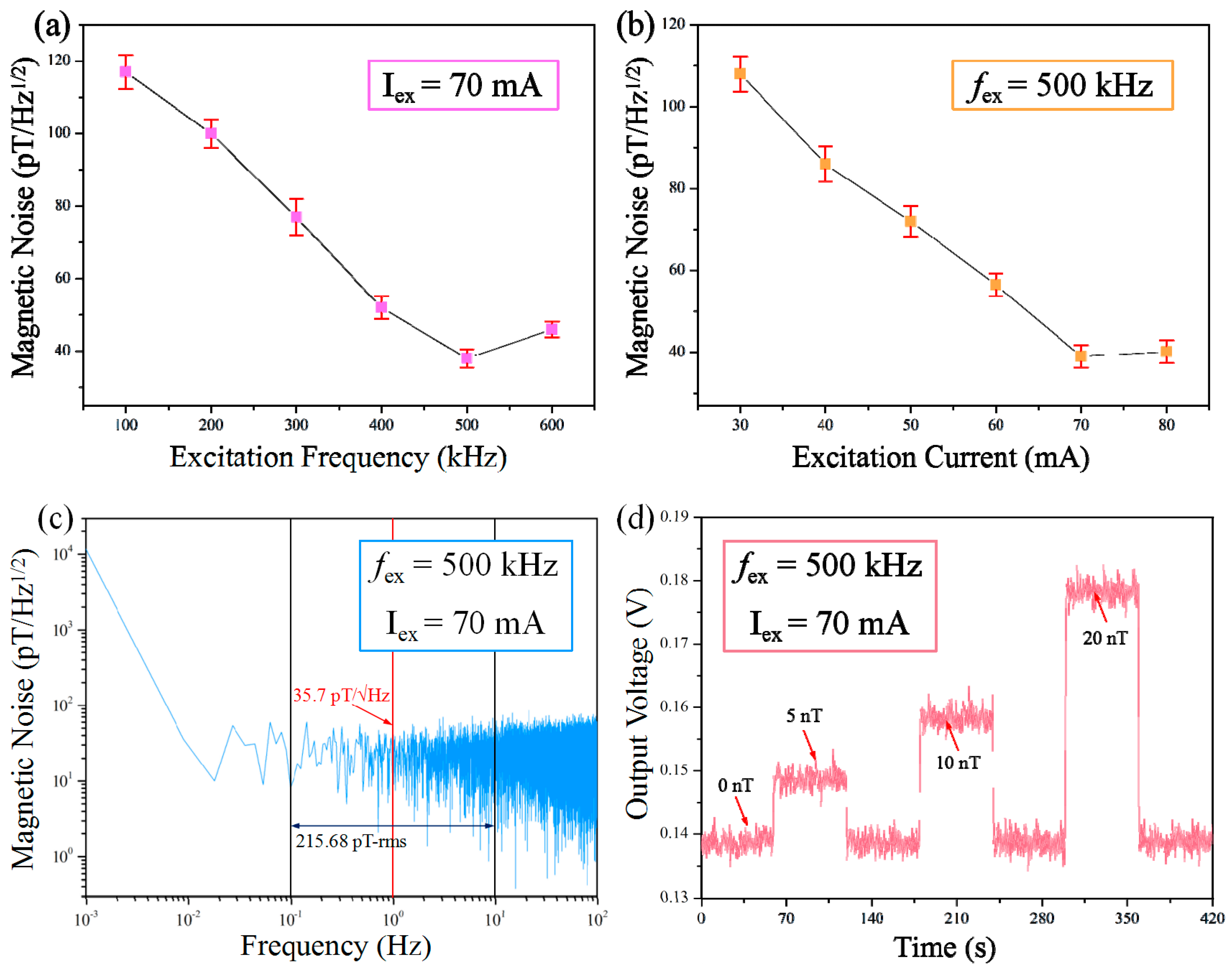

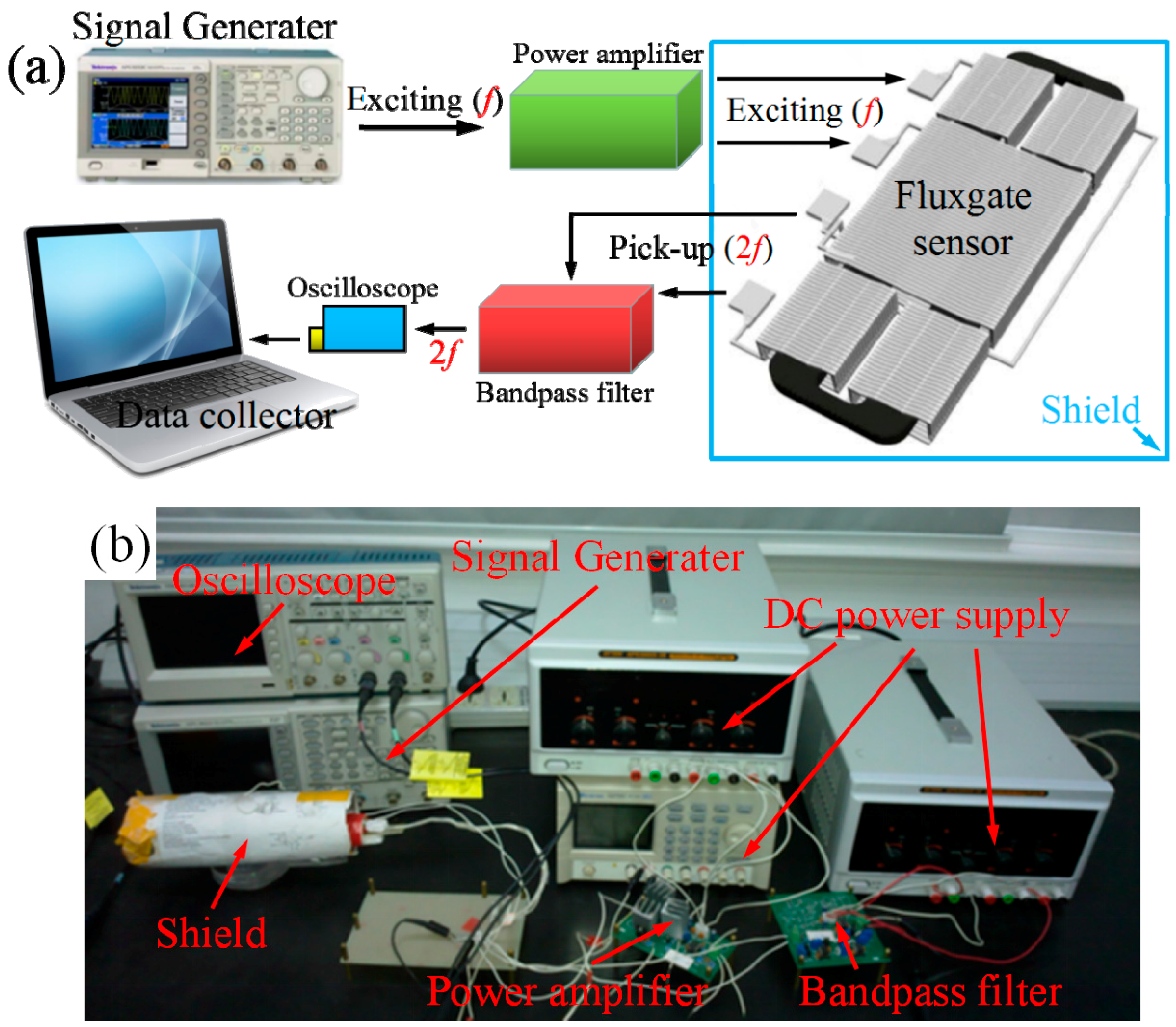

This paper reports a novel micro-fluxgate sensor based on a double-layer magnetic core of a Fe–Co–B-based amorphous ribbon. The melt-spinning technique was carried out to obtain a Fe–Co–B-based amorphous ribbon composite of Fe58.1Co24.9B16Si1, and the obtained amorphous ribbon was then annealed at 595 K for 1 h to benefit soft magnetic properties. The prepared ribbon showed excellent soft magnetic behavior with a high saturated magnetic intensity (Bs) of 1.74 T and a coercivity (Hc) of less than 0.2 Oe. Afterward, a micro-fluxgate sensor based on the prepared amorphous ribbon was fabricated via microelectromechanical systems (MEMS) technology combined with chemical wet etching. The resulting sensor exhibited a sensitivity of 1985 V/T, a wide linearity range of ±1.05 mT, and a perming error below 0.4 μT under optimal operating conditions with an excitation current amplitude of 70 mA at 500 kHz frequency. The minimum magnetic field noise was about 36 pT/Hz1/2 at 1 Hz under the same excitation conditions; a superior resolution of 5 nT was also achieved in the fabricated sensor. To the best of our knowledge, a compact micro-fluxgate sensor with such a high-resolution capability has not been reported elsewhere. The microsensor presented here with such improved characteristics may considerably enhance the development of micro-fluxgate sensors. View Full-Text
Keywords: magnetic sensor; micro-fluxgate sensor; MEMS; Fe–Co–B amorphous ribbon magnetic sensor; micro-fluxgate sensor; MEMS; Fe–Co–B amorphous ribbon
