Micromachines 2017, 8(12), 350; https://doi.org/10.3390/mi8120350

Pick-and-Place Operation of Single Cell Using Optical and Electrical Measurements for Robust Manipulation

Department of Mechanical Engineering, Toyohashi University of Technology, Toyohashi, Aichi 441-8580, Japan
*
Author to whom correspondence should be addressed.
Received: 22 October 2017 / Revised: 17 November 2017 / Accepted: 28 November 2017 / Published: 30 November 2017
(This article belongs to the Special Issue Micro/Nano Robotics, Volume II)
View Full-Text   |   Download PDF [2404 KB, uploaded 6 December 2017]   |

Abstract

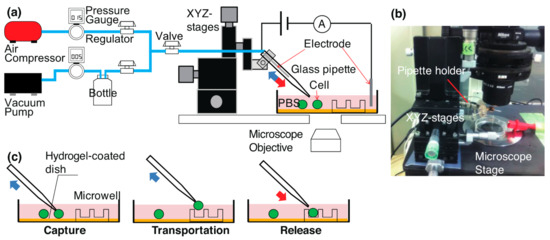

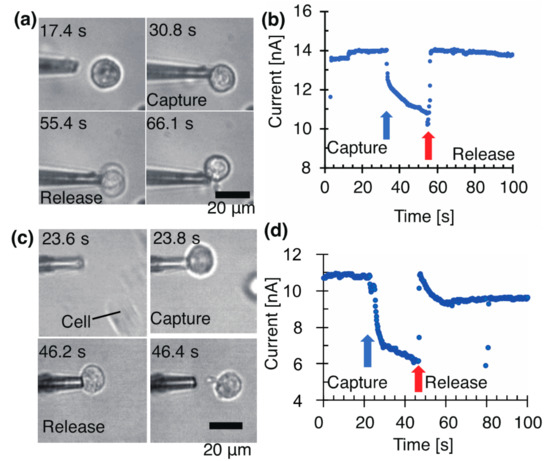

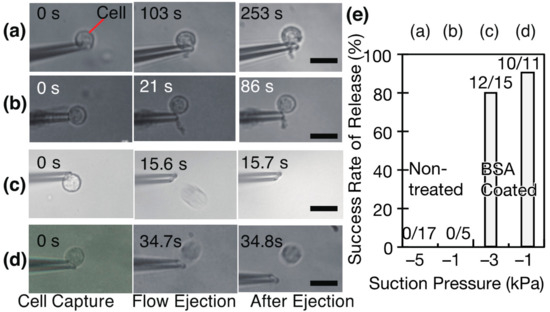

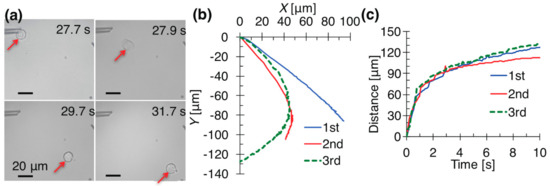

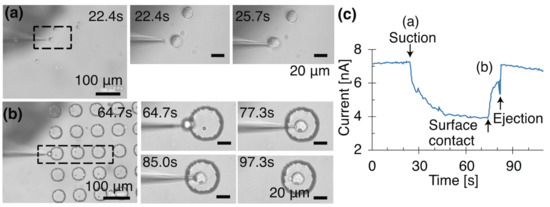

A robust pick and placement operation of a single cell is necessary for efficient sample collection. Detection and manipulation of single cells requires minimum invasiveness. We report a less-invasive method for picking up and placing single cells using optical and electrical observations for robust cell manipulation. We measured the ionic current through a glass pipette during a cell capture and release operation to detect its capture. Trapping a cell on the pipette tip by suction decreased the current and allowed the detection of cell capture within 1 s. A time-series ionic current was sensitive to the location of a cell and effective at detecting a single cell. A time-series ionic current had a higher signal-to-noise ratio than time-series microscope images. Cell membrane integrity was analyzed at the different capturing and voltage conditions. Serum protein coating shows improvement of a cell release from a pipette tip. Measurement of trajectory and distance of a cell reveals that the movement depends on an ejection flow and the flow in a dish. We achieved a pick-up and placement operation for single cells that was compatible with an open-top microwell while performing observations using optical microscopy and measurements using an electrical current. View Full-Text
Keywords: micro-manipulation; single cell; cell manipulation; electrical detection; cell screening; micro-well micro-manipulation; single cell; cell manipulation; electrical detection; cell screening; micro-well
