Micromachines 2016, 7(12), 231; doi:10.3390/mi7120231

The High Q Factor Lateral Field–Excited Thickness Shear Mode Film Bulk Acoustic Resonator Working in Liquid

1
State Key Laboratory of Mining Disaster Prevention and Control Co-founded by Shandong Province and the Ministry of Science and Technology, Shandong University of Science and Technology, Qingdao 266590, China
2
College of Electronic, Communication and Physics, Shandong University of Science and Technology, Qingdao 266590, China
*
Author to whom correspondence should be addressed.
Academic Editor: Joost Lötters
Received: 17 October 2016 / Revised: 6 December 2016 / Accepted: 7 December 2016 / Published: 14 December 2016
View Full-Text   |   Download PDF [6259 KB, uploaded 14 December 2016]   |

Abstract

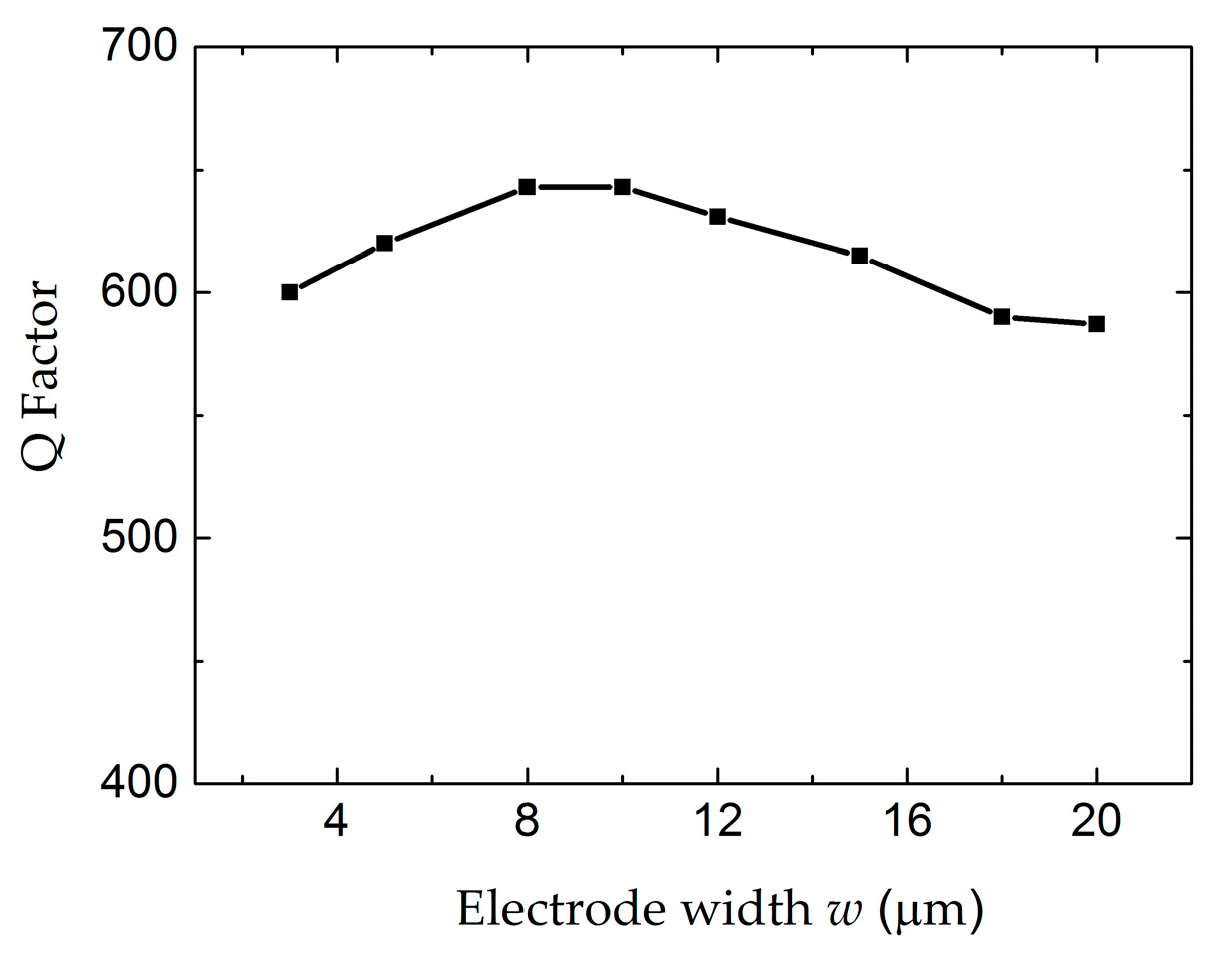

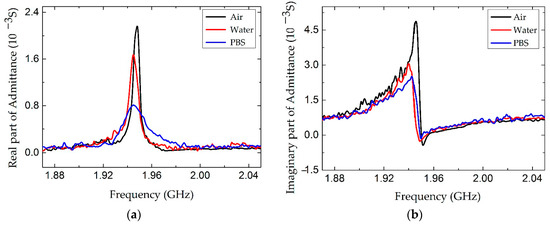

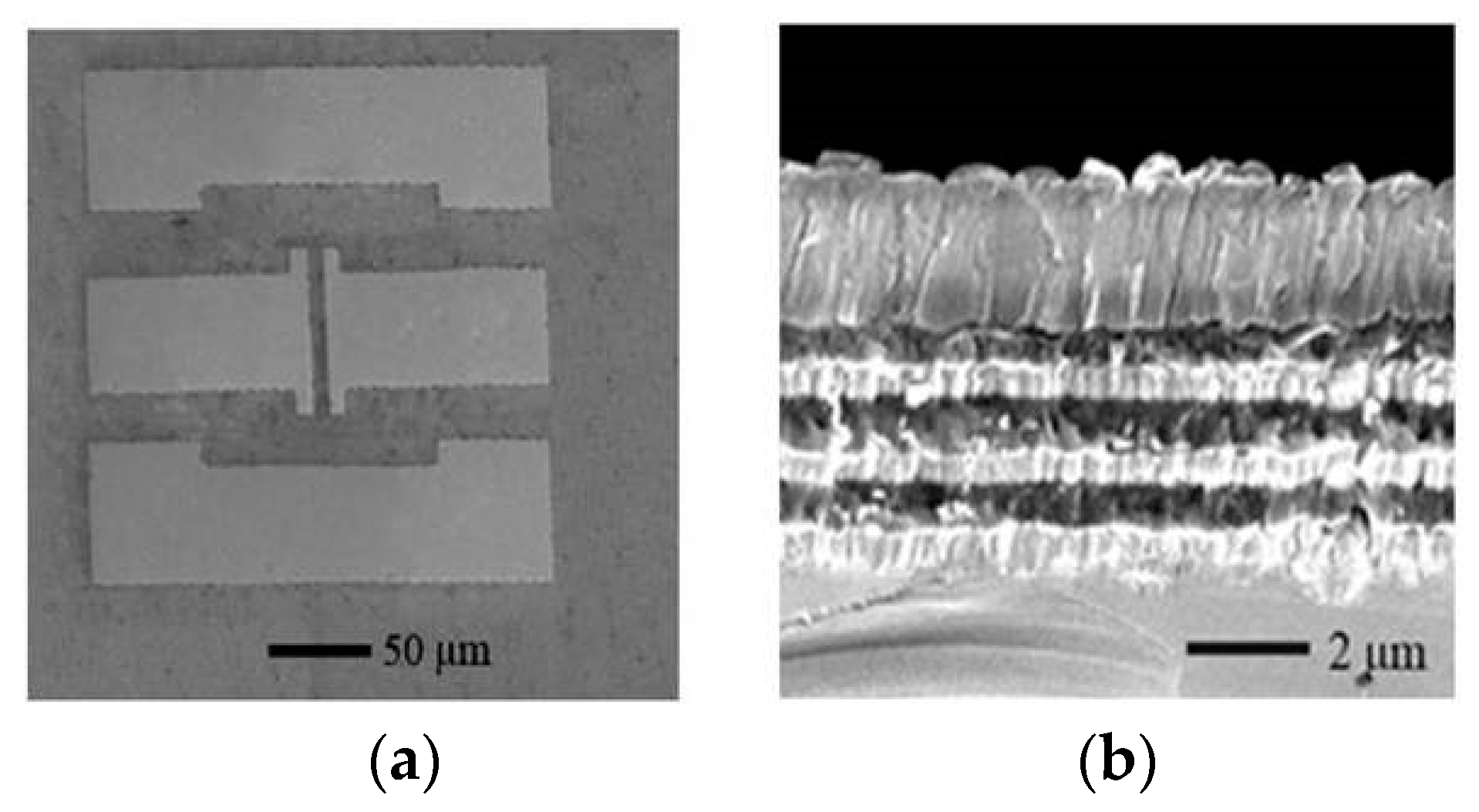

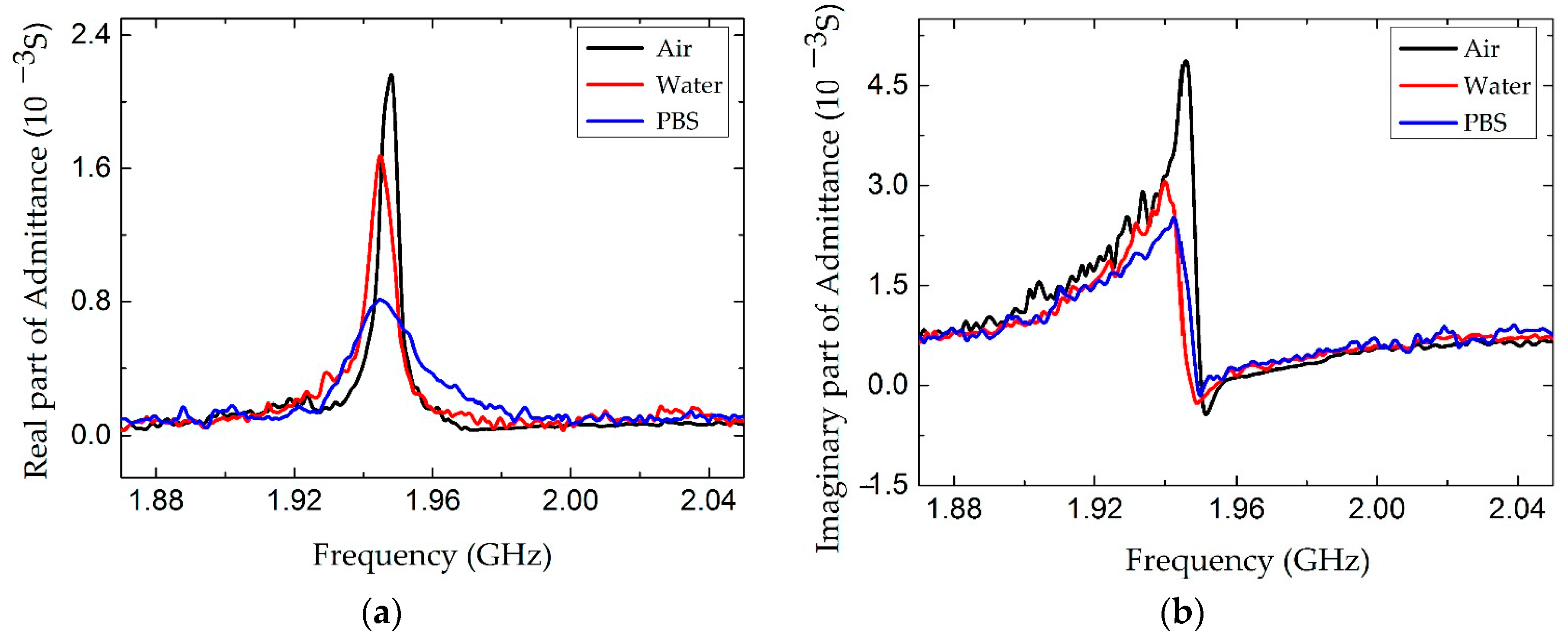

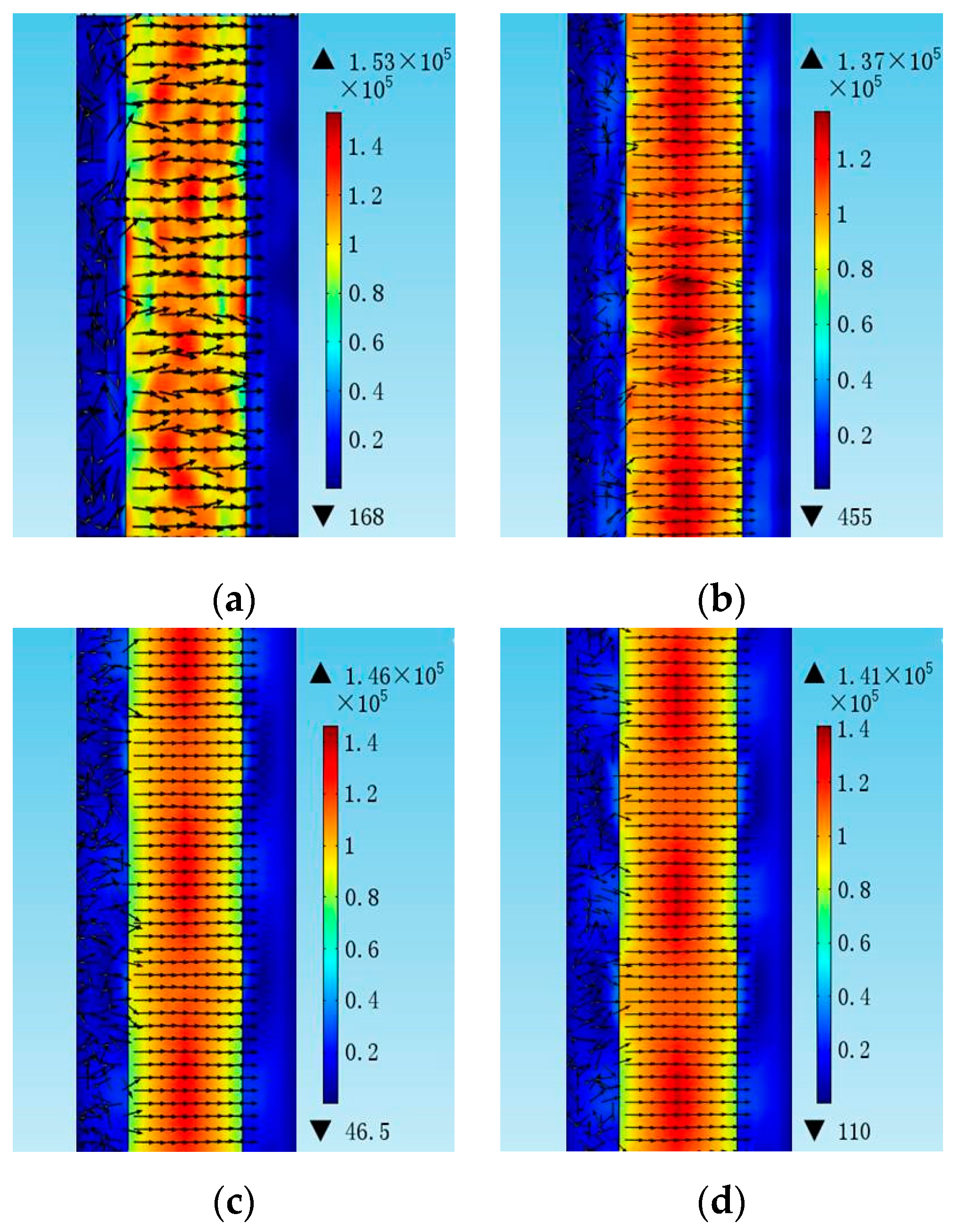

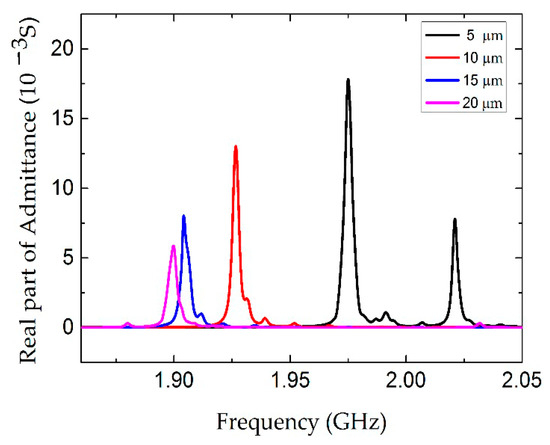

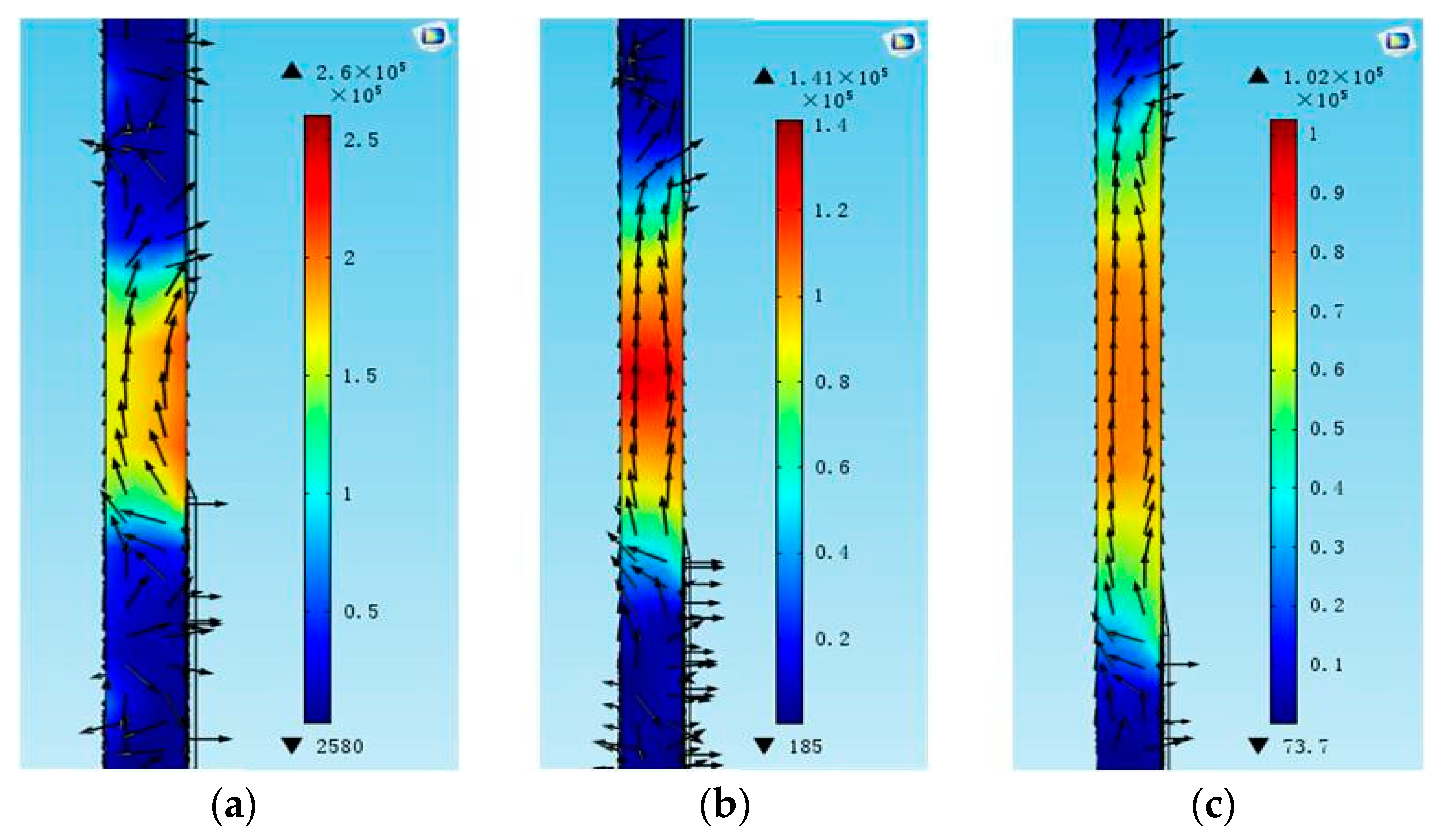

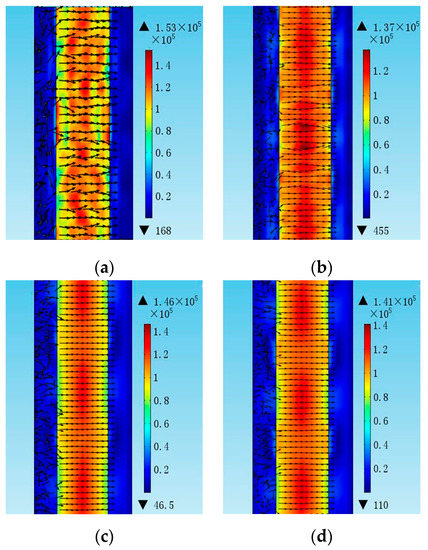

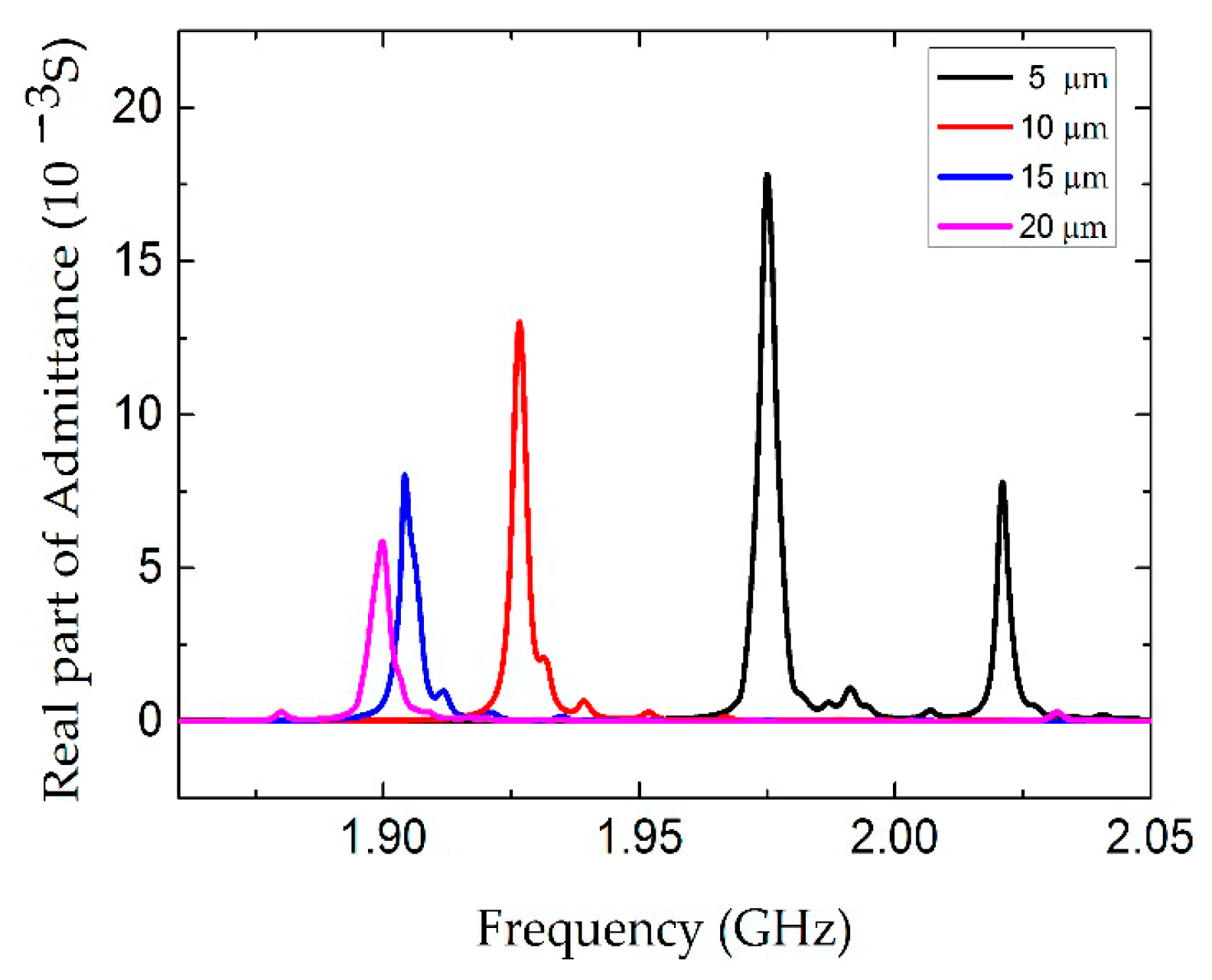

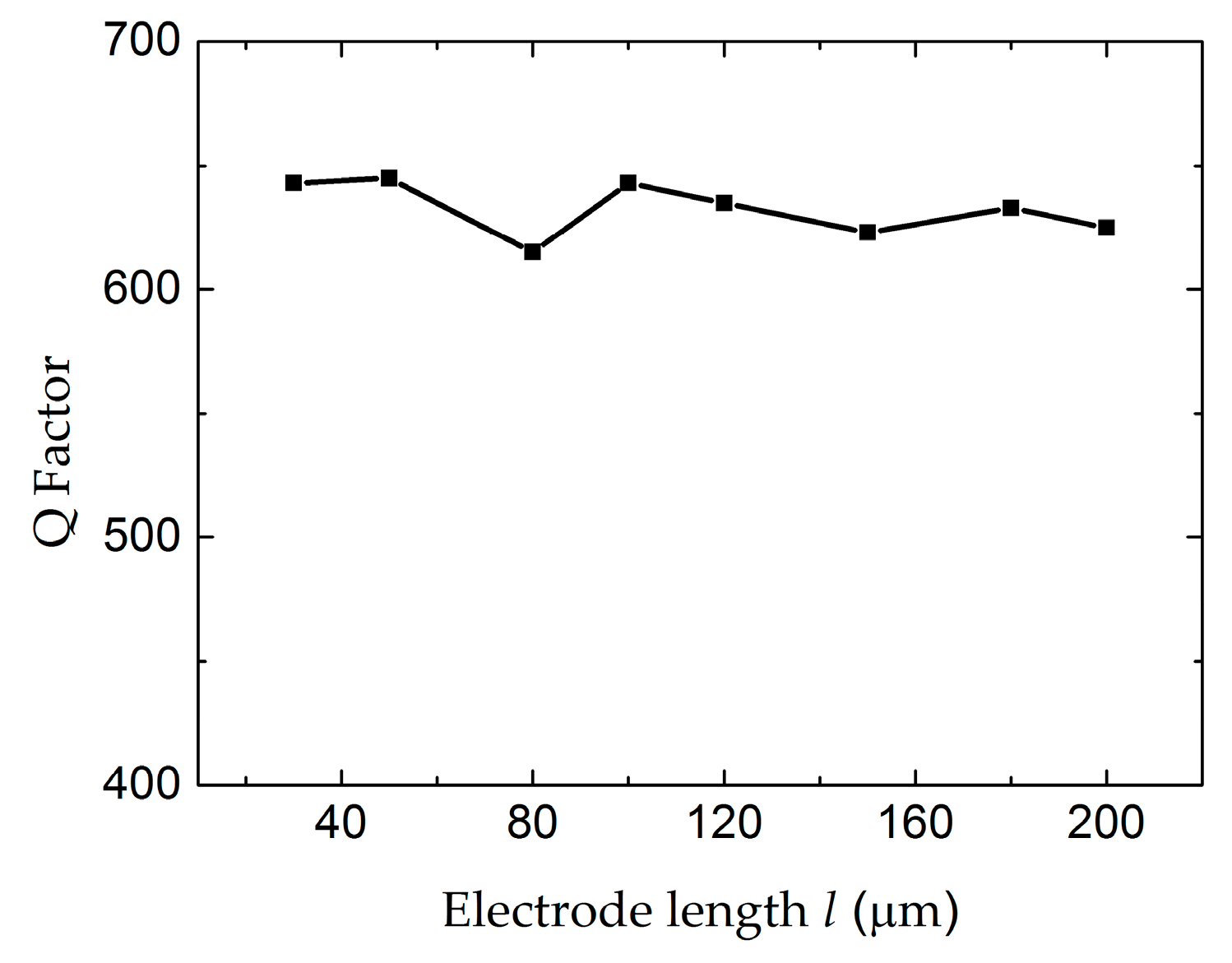

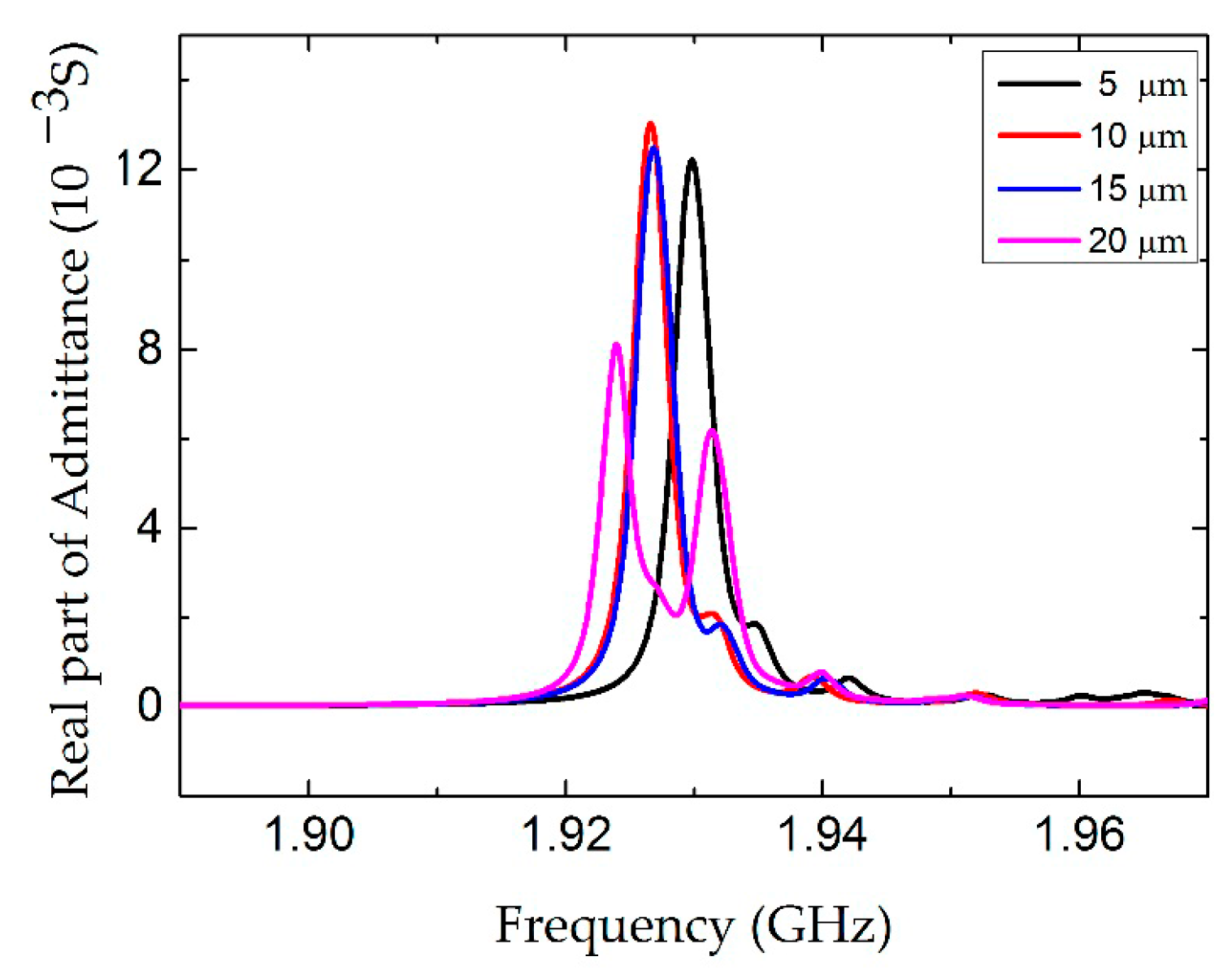

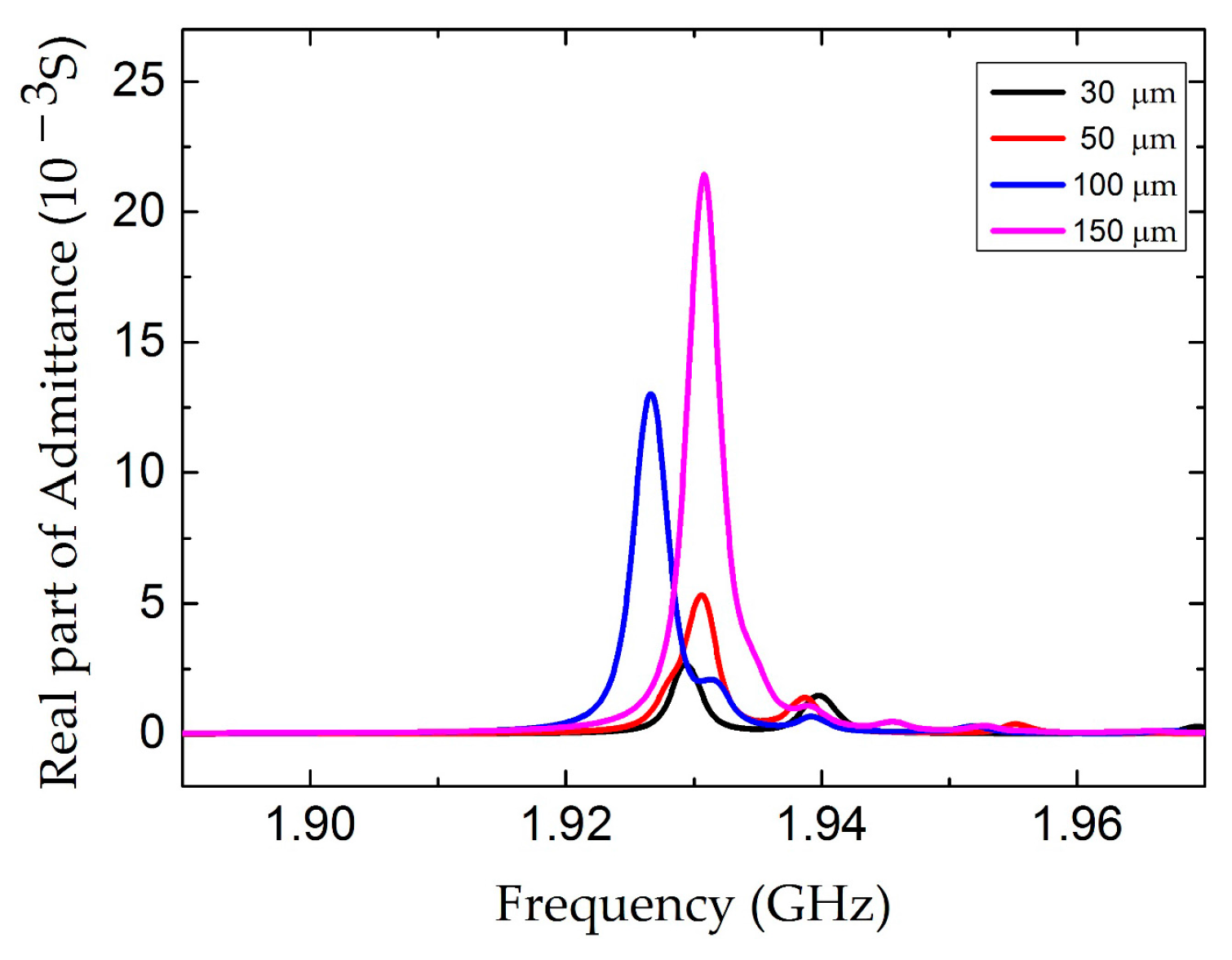

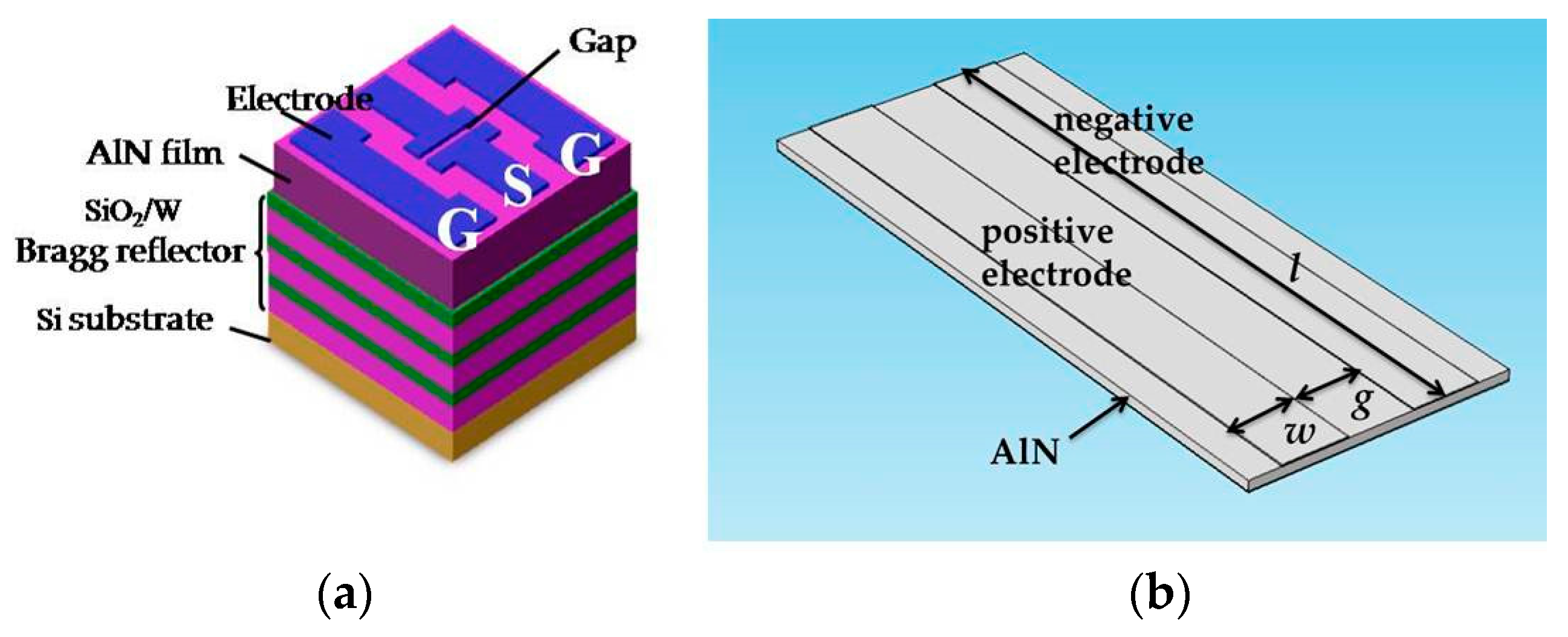

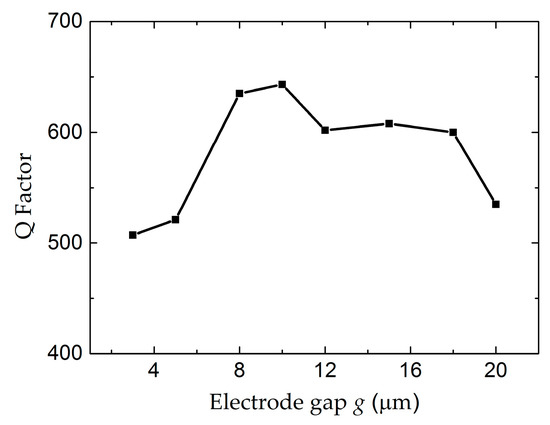

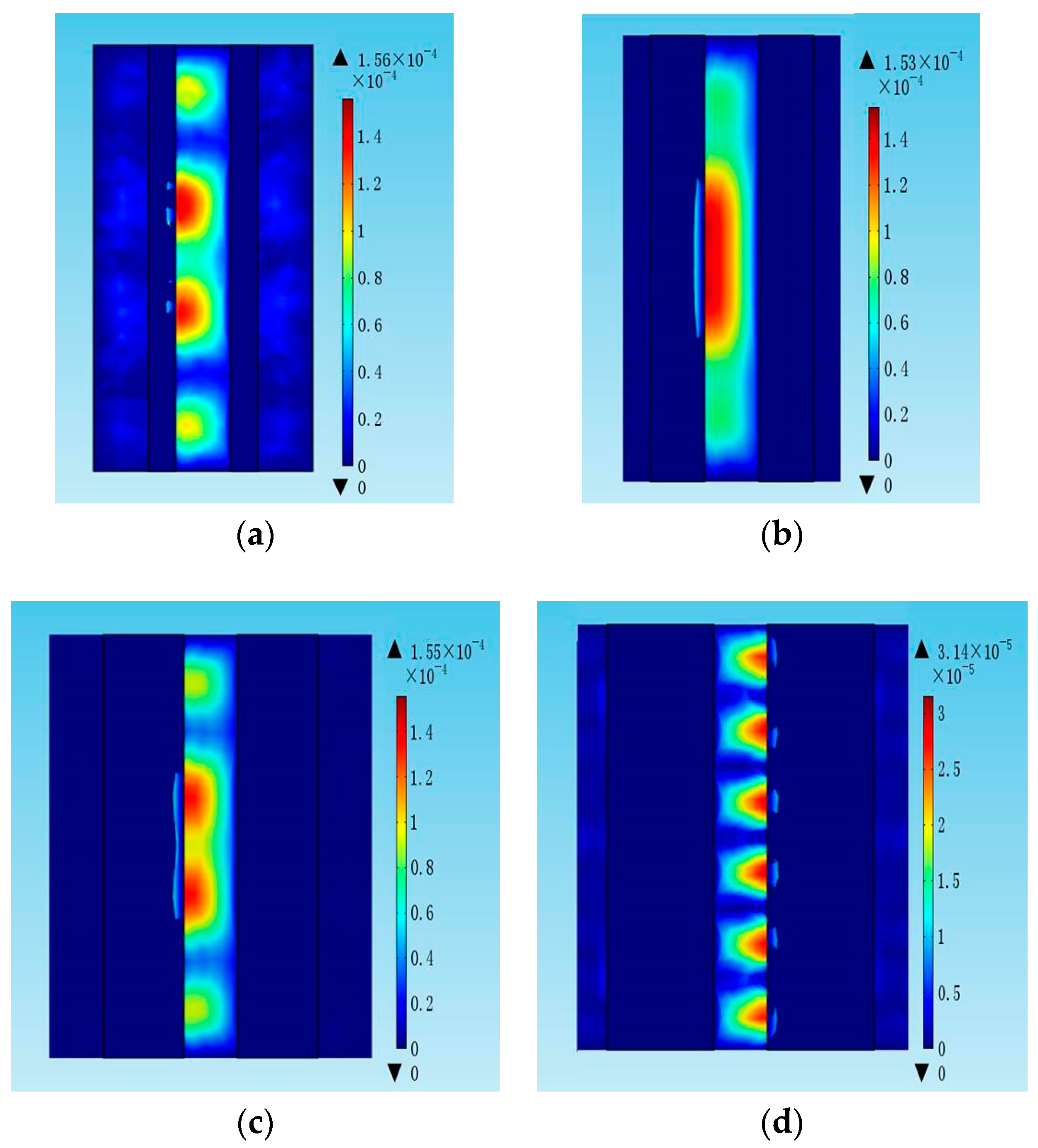

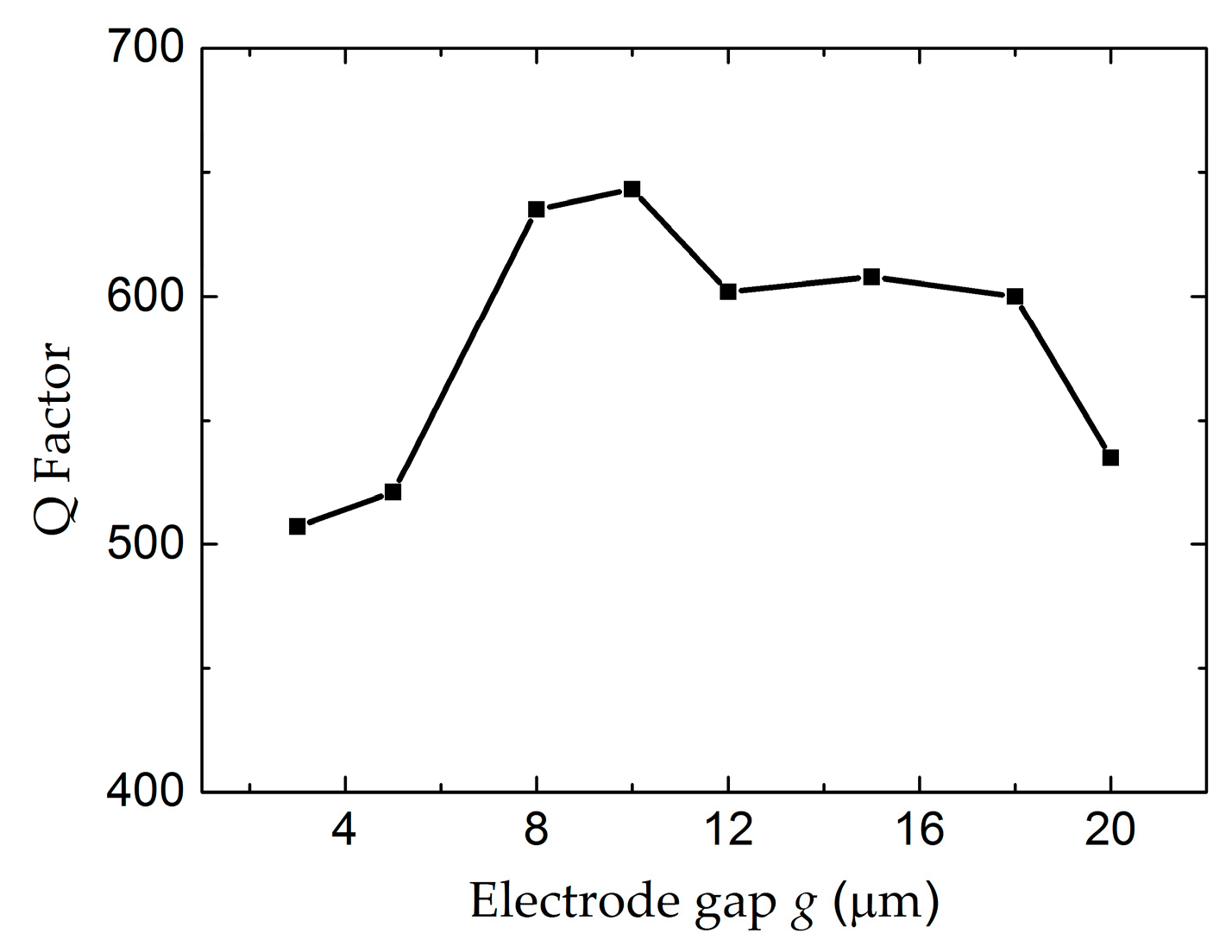

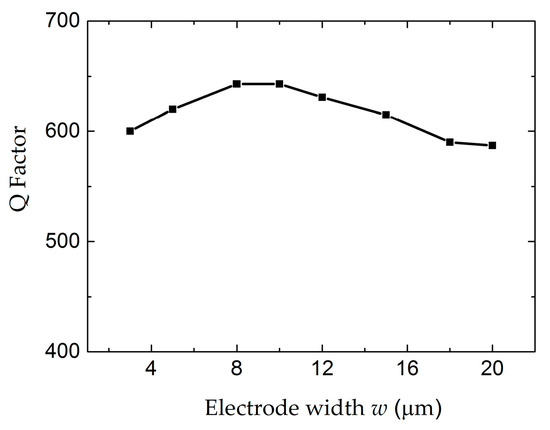

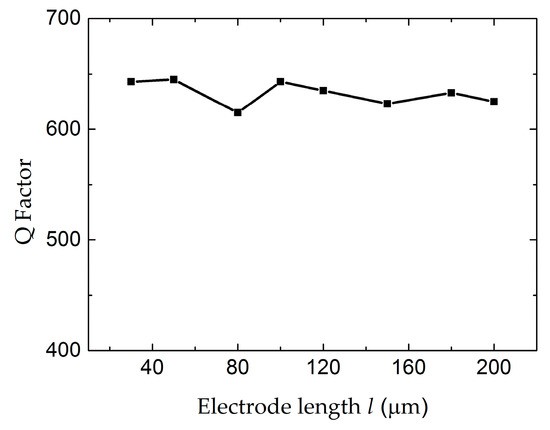

A high Q factor film bulk acoustic resonator operating in thickness shear mode excited by a lateral field is described in this paper. The influence of electrode parameters on the resonator performance is studied by the finite element method. The results showed that three key electrode parameters, including the gap, length and width, played important roles in the optimization of the resonator performance. The highest Q factor of up to 643 was obtained when the parallel electrodes were designed to be 100 µm × 10 µm with the electrode gap of 10 µm. Based on the simulation results, the AlN-based film bulk acoustic resonator with a solidly mounted structure was fabricated. The testing results showed that the real device operated at the resonance frequency of 1.94 GHz with the Q factor of 405 in air, 216 in water and 102 in phosphate buffered saline solution. View Full-Text
Keywords: film bulk acoustic resonator; thickness shear mode; finite element method film bulk acoustic resonator; thickness shear mode; finite element method
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
