Optimization Design and Simulation of a Multi-Source Energy Harvester Based on Solar and Radioisotope Energy Sources

Collaborative Innovation Center for Micro/Nano Fabrication, Device and System, State Key Laboratory of Precision Measurement Technology and Instruments, Department of Precision Instruments, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Micromachines 2016, 7(12), 228; https://doi.org/10.3390/mi7120228
Submission received: 2 November 2016 / Revised: 4 December 2016 / Accepted: 8 December 2016 / Published: 14 December 2016
(This article belongs to the Special Issue MEMS Energy Harvesters)

Abstract

:
A novel multi-source energy harvester based on solar and radioisotope energy sources is designed and simulated in this work. We established the calculation formulas for the short-circuit current and open-circuit voltage, and then studied and analyzed the optimization thickness of the semiconductor, doping concentration, and junction depth with simulation of the transport process of β particles in a semiconductor material using the Monte Carlo simulation program MCNP (version 5, Radiation Safety Information Computational Center, Oak Ridge, TN, USA). In order to improve the efficiency of converting solar light energy into electric power, we adopted PC1D (version 5.9, University of New South Wales, Sydney, Australia) to optimize the parameters, and selected the best parameters for converting both the radioisotope energy and solar energy into electricity. The results concluded that the best parameters for the multi-source energy harvester are as follows: Na is 1 × 1019 cm−3, Nd is 3.8 × 1016 cm−3, a PN junction depth of 0.5 μm (using the 147Pm radioisotope source), and so on. Under these parameters, the proposed harvester can achieve a conversion efficiency of 5.05% for the 147Pm radioisotope source (with the activity of 9.25 × 108 Bq) and 20.8% for solar light radiation (AM1.5). Such a design and parameters are valuable for some unique micro-power fields, such as applications in space, isolated terrestrial applications, and smart dust in battlefields.

Graphical Abstract

1. Introduction

With the rapid development of the micro-electro mechanical system (MEMS), the micro-power has been recognized as the key technology of MEMS. Among the various micro-powers being investigated, the betavoltaic radioisotope battery is a new type of power source which is advantageous in terms of a long working life, high reliability, flexibility in rugged environments, and being maintenance-free [1]. Researchers have succeeded in developing betavoltaic batteries with different kinds of semiconductor substrates (e.g., Si, GaN, SiC) and different kinds of radioisotope sources (e.g., 63Ni, 3H, 147Pm) over the past decade [2,3,4,5]. However, the output power and conversion efficiency of the betavoltaic battery are still rather low, which restricts its application. The Amit Lal Research Group of Cornell University developed 63Ni-Si batteries with a 0.32 nW output power and 0.3% conversion efficiency [6]. The Blanchard Research Group at the University of Wisconsin developed an inverted triangular straight-slot 63Ni-Si battery with a 0.6% conversion efficiency [7]. The Hang Guo Research Group of the Pen-Tung Sah Lab of Xiamen University developed 147Pm-GaN batteries with a 44 nW output power and increased the conversion efficiency to 0.767% [8]. Bower et al. designed the 63Ni-GaN Schottky battery which can achieve an energy conversion efficiency of 2.25% [9]. Compared with the betavoltaic battery, solar cells can provide more power. Deng et al. researched a passivated emitter and rear cell (PERC) solar cell which can provide a 20.8 mW/cm2 power density with a multicrystalline silicon substrate [10]; Masuko et al. achieved a 25.6 mW/cm2 power density with a rear junction crystalline Si solar cell [11]. Kayes et al. designed a single-junction GaAs solar cell with a power density as high as 27.6 mW/cm2 [12]. Although the power density of the solar cell is rather large, it completely relies on solar radiation. When the ambient environment is not illuminated by the sun, it can generate no electric power at all [13]. This defect becomes serious when the solar cell is applied in some unique micro-power fields, such as smart dust in battlefields. Smart dust refers to a cubic-millimeter-scale sensing and communication platform that can monitor environmental conditions in both military and commercial applications [14,15]. Researchers at the University of Michigan developed a sophisticated 1 mm three-scale smart dust in 2012 [16,17]. Each layer measures less than 2.21 mm × 1.1 mm, and the height of the entire system is 0.4 mm, resulting in a 1.0 mm3 system. The power consumption ranges from 11 nW in sleep mode up to ~40 μW in active mode. A 0.54 mm2 solar cell is fabricated and a 0.6 μAh thin-film Li battery is included in the system. When the ambient environment is illuminated by the sun, the solar cell can power the system and charge the Li battery with 40 nW power. However, when the light disappears, the thin-film Li battery can only support the system in active mode for 8 min and in sleep mode for up to 2.3 days. When the power is completely consumed, the smart dust is disconnected. In consideration of the incubation period that the smart dust needs in battlefields, a long life and stable energy source are required to make sure the device can be awakened at any moment. Multi-source energy harvesters based on solar and radioisotope energy sources are the best choice for this problem. In order to solve the problem of the absence of a light source for solar cells and increase the output power of betavoltaic batteries, we developed a novel multi-source energy harvester. The proposed harvester can convert solar energy and radioisotope energy into electrical power with a single chip.
In this research, based on the basic principle of the betavoltaic effect and the theory of semiconductor physics, we established the calculation formulas for the short-circuit current and open-circuit voltage, and analyzed the optimization thickness of the semiconductor, the doping concentration, and the junction depth using the Monte Carlo simulation program MCNP (version 5, Radiation Safety Information Computational Center, Oak Ridge, TN, USA). In order to improve the conversion efficiency of the solar cell unit, we adopted PC1D (version 5.9, University of New South Wales, Sydney, Australia) to optimize the parameters, and the results concluded that the best parameters for the multi-source energy harvester are as follows: Na = 1 × 1019 cm−3, Nd = 3.8 × 1016 cm−3, a PN junction depth of 0.5 μm, and so on. Under these parameters, when the rear of harvester (1 cm2) is irradiated with the 147Pm radioisotope source (with the activity of 9.25 × 108 Bq), the short-circuit current, open-circuit voltage, output power, and conversion efficiency are 1.51 μA, 384 mV, 0.46 μW, and 5.05%, respectively. On the other hand, when the front of the harvester is illuminated by the sun (with an air-mass of AM1.5), the output power can increase up to 20.8 mW. Such power is sufficient for many low-power applications, such as smart dust and wireless sensor nodes.

2. Structure and Models

2.1. Similarities and Differences between Solar Cells and Betavoltaic Batteries

Several similarities exist in solar cells and betavoltaic batteries, which make it possible to develop a multi-source energy harvester based on solar and radioisotope energy sources. Firstly, the betavoltaic effect is similar to the photovoltaic effect as electron-hole pairs (EHPs) are produced when the PN junction semiconductor material is struck by photons or β particles. With the help of a built-in electric field, electrons move to the N region, while holes move to the P region, and then are collected by the electrode and flow out to the outside circuit. Secondly, the semiconductor materials to fabricate betavoltaic batteries and solar cells are nearly the same, and they include Si, GaN, GaAs, etc.; therefore, the betavoltaic battery and solar cell can be deployed on a mutual substrate. Thirdly, the fabrication progresses of the betavoltaic battery and solar cell are similar. The key step of the fabrication processes for both of them is the doping of the PN junction, which can be realized by oxidation diffusion and ion implantation. The key difference between them is the electron generation mechanisms. In a betavoltaic battery, a single particle from the radioisotope generates a large number of electron-hole pairs, and the spatial distribution of these electrons is different compared those from a solar spectrum. The penetration depth of the incident radiation, rather than the absorption depth, determines the distance over which the generated electrons need to be collected. In addition, another difference between the betavoltaic battery and solar cell is that the solar cell should take into account optical considerations (i.e., low reflection, etc.).

2.2. Structure and Principle of the Multi-Source Energy Harvester

As shown in Figure 1, the proposed multi-source energy harvester is designed with a bifacial N + NP + Si structure. The front of the harvester is illuminated by the sun, and makes the harvester convert solar light energy into electricity with a photovoltaic effect. The rear of the harvester is irradiated with the 147Pm radioisotope source. The emission of energetic β particles from the radioisotope irradiates the semiconductor PN junction, thus resulting in the generation of electron-hole pairs (EHPs) through ionization and excitation. The EHPs were generated within the depletion region, and swept across the PN junction by the depletion electric field into the external load to produce electrical power.

2.3. Equivalent Circuit Model and Formulas

As the electrons induced both by photons and β particles move to the N+ region and the holes move to the P+ region, so the coexisting effects of the solar light energy source and the radioisotope energy source are equivalent for enhancing the ability of photons to produce EHPs or enhancing the ability of β particles to produce EHPs. When the solar light and radioisotope coexist, the current density is equivalent to the sum of the photon-induced current density and β particle–induced current density. Thus, the circuit model of the proposed multi-source energy harvester can be equivalent to that shown in Figure 2.
From its model, the short-circuit current, the open-circuit voltage, and the maximum output power can be derived as
I SC = ( I R + I S I 0 ( e q V j k T 1 ) ) ( R sh R sh + R S )
V OC = K T q ln ( I SC I 0 + 1 )
P m = F F × V OC × I SC
F F = v oc ln ( v oc + 0.72 ) v oc + 1
η = P m A q E av
where ISC is the short-circuit current. IR is the current generated by the radioisotope, IS is the current generated by the solar light, I0 is the leakage current of the PN junction device. Rsh and RS are the equivalent parallel resistance and series resistance of the harvester, respectively. K is Boltzmann’s constant, T is the absolute temperature, voc is the normalized open-circuit voltage which equals to VOC/(nkT/q). Pm is the maximum output power, FF is the filling factor, A is the activity of the radioisotope, Eav is the average energy of the incident β particles, and q refers to the electron charge.
In this model, the solar light–generated current (IS) can be simulated by PC1D, but there is no special simulation software to calculate IR directly. In previous studies, the calculation of IR was primarily based on the theoretical model of Shockley on the semiconductor PN junction. This kind of analytical calculation process is too complex. In this research, we adopted MCNP to simulate the transport processes of β particles in semiconductor materials and to calculate the nuclear radiation–generated current IR. Theoretically, IR can be derived as [18,19,20]:
I R = 0 H C E ( x ) · q · G ( x ) d x = q A ε 0 H C E ( x ) · E ( x ) d x = q A ε n = 1 k C E ( n ) · E ( n )
C E ( x ) = 1 tan   h ( x n / L )
where H is the thickness of the semiconductor, CE(x) is the collection probability of electron-hole pairs, q is the electron charge, E(x) is the energy deposition, E(n) is the energy deposition of the Nth layer semiconductor calculated by MCNP, and k is the number of total layers in the semiconductor during MCNP calculation; xn is the distance of the Nth layer from the depletion region, L is the minority carrier diffusion length, and tanh is the hyperbolic tangent function.

3. Simulation and Optimization Design

3.1. Energy Deposition in the Si Semiconductor

As shown in Equation (6), in order to calculate the nuclear radiation–generated current, we should obtain the energy deposition in the Si semiconductor first. The β particles emitted from the decay of the 147Pm radioisotope will lose energy during transportation. The energy deposition distribution and accumulated energy deposition of β particles can be simulated by MCNP.
MCNP is a general-purpose Monte Carlo N-Particle code that can be used for neutron, photon, electron, or coupled neutron/photon/electron transport. In this research, we first built up the geometric model of the multi-source energy harvester. In order to ensure the accuracy of the calculation, we divide the Si semiconductor substrate into several pieces, and then calculated the energy spectrum of the β particle energy emitted by 147Pm. With these data, we write up the S card, M card, and choose the simulation model to program the code.
Figure 3 shows the simulated results. From that figure, we can conclude that about 99% of the β particle energy emitted by 147Pm is deposited in a thickness of no more than 90.5 μm in the Si semiconductor. In addition, when the thickness of the Si semiconductor is decreased to 80 μm, the available power of the deposited energy will only be decreased by less than 1%. Based on the above analysis, a thickness of 80 μm to 100 μm is enough for depositing the β particle energy in the Si-147Pm radioisotope battery. Furthermore, in order to satisfy the request of converting the solar energy and radioisotope energy simultaneously, in this research, we increased the thickness of the Si semiconductor to 150 μm.

3.2. Doping Concentration Optimization

The doping concentration of the P-type and N-type regions decides the depletion region width, the intensity of the built-in field, the collection probability of EHPs, and the leakage current of the multi-source energy harvester. A low doping concentration will result in a longer minority carrier diffusion length and a wider depletion region width, and a higher collection probability of EHPs. However, a low doping concentration will result in an increase in the leakage current and a reduction in the open-circuit voltage as well. As the doping concentration affects many other parameters in this multi-source energy harvester, we make a numerical analysis and simulation of the efficiency for converting the radioisotope energy into electrical power using the mathematical analysis software MATLAB (version 7.13, Math Works, Natick, MA, USA) with Equations (1)–(7).
Figure 4 shows the relationship between the maximum conversion efficiency and doping concentration under the condition of 300 K, an activity of 9.25 × 108 Bq 147Pm radioisotope, and a 0.5 μm junction depth. From Figure 4a, we can conclude that heavy doping in the P+ region (Na about 1019 cm−3 to 1020 cm−3) and light doping in the N-type region (Nd about 1016 cm−3 to 1017 cm−3) can yield the highest efficiency for converting radioisotope energy into electrical power. To make further estimations of the performance for the multi-source energy harvester when it is under solar light illumination, we optimized Na and Nd by PC1D. In this simulation, the optimized parameters for radioisotope energy harvesting were used in PC1D, and set Na as 1 × 1019 cm−3, 3 × 1019 cm−3, 5 × 1019 cm−3, 7 × 1019 cm−3 separately, with Nd varying from 1016 cm−3 to 1017 cm−3. The simulated results are summarized in Figure 4b. From this figure we can conclude that the maximum efficiency for converting solar light energy into electric power is obtained when Na is about 1 × 1019 cm−3, and Nd is about 3.8 × 1016 cm−3.

3.3. Junction Depth Optimization

The junction depth affects the distance of the calculation layer from the depletion region, as shown in Equation (7). Therefore, it decides the collection probability of EHPs, and ultimately affects the short-circuit current. Figure 5 shows the relationship between the maximum short-circuit current and junction depth under the conditions of 300 K, activity of 9.25 × 108 Bq 147Pm radioisotope, 1 cm2 junction area, Na of 1 × 1019 cm−3, and Nd of 3.8 × 1016 cm−3. From Figure 6, we can find that when the junction depth is about 0.5 μm, the harvester can obtain the maximum short-circuit current.

3.4. Passivation Layer Optimization

The surface of the Si semiconductor represents the largest possible disturbance of the symmetry of the crystal lattice and, hence, due to non-saturated bonds, a large density of defects within the bandgap exists at the surface of the crystal [21]. In order to avoid an unacceptably large efficiency loss caused by surface recombination, the passivation of the front and rear surfaces is needed for this harvester. Traditionally, the thermal growth of SiO2 is the most effective Si surface passivation technique for solar cells, and a PECVD layer of SiNx can also provide a nearly perfect passivation as well [22]. In this research, we analyzed the energy loss when β particles penetrate into the passivation layers (SiO2 and Si3N4) with the Monte Carlo simulation program MCNP. Figure 6 analyzes the relationship between the thickness of the passivation layer and the accumulated energy loss proportion in SiO2 and Si3N4 materials. From this figure, we can conclude that when the thickness of the passivation layer is constant, the energy loss in the SiO2 layer is lower than the Si3N4 layer. A 75 nm thickness of the SiO2 passivation layer will bring out an accumulated energy loss proportion of 0.85%, which is 0.4% proportion lower than that of the Si3N4 passivation layer with an equal thickness.

3.5. Simulation on Output Results

Based on the above analysis, we make a simulation of the output parameters of the proposed multi-source energy harvester for converting radioisotope energy and solar light energy into electricity with MATLAB and PC1D software. The conditions are listed as follows: temperature of 300 K, activity of 9.25 × 108 Bq 147Pm radioisotope, junction depth of 0.5 μm, Na of 1 × 1019 cm−3, Nd of 3.8 × 1016 cm−3, 1 cm2 junction area, air mass of AM1.5. Table 1 shows the simulation results.

4. Conclusions

In summary, a novel multi-source energy harvester is designed and simulated in this research to increase the output power of betavoltaic batteries and to solve the problem of the absence of a light source for solar cells. We studied and analyzed the optimization thickness of the semiconductor, the doping concentration, the junction depth, and the material for the passivation layer. With these parameters, the proposed harvester can achieve a conversion efficiency of 5.05% for a 147Pm radioisotope source (with an activity of 9.25 × 108 Bq) and 20.8% for solar radiation (AM1.5). Such a design and parameters are valuable for micro-power applications in space, isolated terrestrial applications, and smart dust in battlefields.

Acknowledgments

The authors thank for Yu Qing Yang and other researchers and developers from the Institute of Nuclear Physics and Chemistry at the China Academy of Engineering Physics.

Author Contributions

Li Hao developed the model and did the simulation experiments; Zhang Gaofei and You Zheng proposed the idea and contributed to analyzing the data; Li Hao edited this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tianjian, S.; Daihua, L.; Jianhua, C.; Zhimin, D.; Huihao, X.; Jianhua, W.; Sen, S.; Guojun, Y.; Xiao, W.; Dongxing, W.; et al. Radioisotope battery for particular application. Nucl. Tech. 2010, 33, 625–630. [Google Scholar]
  2. Sun, W.; Kherani, N.; Hirschman, K.; Gadeken, L.; Fauchet, P. A three-dimensional porous silcion p-n diode for betavoltics and photovotaics. Adv. Mater. 2005, 17, 1230–1233. [Google Scholar] [CrossRef]
  3. Kolawa, E.A.; Patel, J.U.; Fleurial, J.P. Very High Efficiency, Miniaturized, Long-lived alpha particle power source using diamond devices for extreme space environments. U.S. Patent 6,753,469, 22 June 2004. [Google Scholar]
  4. Eiting, C.J.; Krishnamoorthy, V.; Rodgers, S.; George, T.; Robertson, J.D.; Brockman, J. Demonstration of a radiation resistant, high efficiency SiC betavoltaic. Appl. Phys. Lett. 2006, 88, 4101. [Google Scholar] [CrossRef]
  5. Cheng, Z.; San, H.; Chen, X.; Liu, B.; Feng, Z. Demonstration of a high open-circuit voltage GaN betavoltaic microbattery. Chin. Phys. Lett. 2011, 28, 078401. [Google Scholar] [CrossRef]
  6. Guo, H.; Lal, A. Nano power beta voltaic micro batteries. In Proceedings of the 12th IEEE International Conference on Solid-State Sensors, Actuators and Microsystems (TRANSDUCERS’03), Boston, MA, USA, 8–12 June 2003; pp. 36–39.
  7. Blanchard, J.; Henderson, D.; Lal, A. A Nuclear Microbattery for MEMS Devices; US Deportment of Energy Award No. DEFG07-99ID13781; University of Wisconsin-Madison: Madison, WI, USA, 2002. [Google Scholar]
  8. Guo, H.; Yang, H.; Zhang, Y. Betavoltaic microbatteries using porous silicon. In Proceedings of the 20th IEEE International Conference on Micro Electro Mechanical Systems, Hyogo, Japan, 21–25 January 2007; pp. 867–870.
  9. San, H.; Yao, S.; Wang, X.; Cheng, Z.; Chen, X. Design and simulation of GaN based Schottky betavoltaic nuclear micro-battery. Appl. Radiat. Isot. 2013, 80, 17–22. [Google Scholar] [CrossRef] [PubMed]
  10. Deng, W.; Chen, D.; Xiong, Z.; Verlinden, P.J.; Dong, J.; Ye, F.; Li, H.; Zhu, H.; Zhong, M.; Yang, Y.; et al. 20.8% PERC solar cell on 156 mm × 156 mm P-type multicrystalline silicon substrate. IEEE J. Photovolt. 2015, 6, 1–7. [Google Scholar] [CrossRef]
  11. Masuko, K.; Shigematsu, M.; Hashiguchi, T.; Fujishima, D.; Kai, M.; Yoshimura, N.; Yamaguchi, T.; Ichihashi, Y.; Mishima, T.; Matsubara, N.; et al. Achievement of more than 25% conversion efficiency with crystalline silicon heterojunction solar cell. IEEE J. Photovolt. 2014, 4, 1433–1435. [Google Scholar] [CrossRef]
  12. Kayes, B.M.; Nie, H.; Twist, R.; Spruytte, S.G.; Reinhardt, F.; Kizilyalli, I.C.; Higashi, G.S. 27.6% Conversion efficiency, a new record for single-junction solar cells under 1 sun illumination. In Proceedings of the 37th IEEE Photovoltaic Specialists Conference, Seattle, WA, USA, 19–24 June 2011; pp. 000004–000008.
  13. Li, H.; Zhang, G.; Ma, R.; You, Z. Design and Experimental Evaluation on an Advanced Multisource energy Harvesting System for Wireless Sensor Nodes. Sci. World J. 2014. Available online: https://www.hindawi.com/journals/tswj/2014/671280/ (accessed on 9 December 2016). [Google Scholar] [CrossRef] [PubMed]
  14. Kahn, J.M.; Katz, R.H.; Pister, K.S.J. Mobile networking for smart dust. In Proceedings of the 5th International Conference on the Mobile Computing and Networking, Seattle, WA, USA, 15–19 August 1999.
  15. Atwood, B.; Warneke, B.; Pister, K.S.J. Preliminary circuits for Smart Dust. In Proceedings of the 2000 Southwest Symposium on Mixed-Signal Design, San Diego, CA, USA, 27–29 February 2000; pp. 87–92.
  16. Lee, Y.; Kim, G.; Bang, S.; Kim, Y.; Lee, I.; Dutta, P.; Sylvester, D.; Blaauw, D. A modular 1 mm 3, die-stacked sensing platform with optical communication and multi-modal energy harvesting. In Proceedings of the 2012 IEEE International Solid-State Circuits Conference Digest of Technical Papers (ISSCC), San Francisco, CA, USA, 19–22 February 2012; Volume 55, pp. 402–404.
  17. Lee, Y. Ultra-Low Power Circuit Design for Cubic-Millimeter Wireless Sensor Platform. Ph.D. Thesis, The University of Michigan, Ann Arbor, MI, USA, 2012. [Google Scholar]
  18. Honsberg, C.; Doolittle, W.A.; Allen, M.; Wang, C. GaN betavoltaic energy converters. In Proceedings of the Conference Record of the Thirty-First IEEE Photovoltaic Specialists Conference, Lake Buena Vista, FL, USA, 3–7 January 2005; pp. 102–105.
  19. Mohamadian, S.M.; Feghhi, S.A.H.; Afarideh, H. Analyze and simula-tion of a typical MEMS RPG using MCNP code. In Proceedings of the 16th International Conference on Nuclear Engineering, Orlando, FL, USA, 11–15 May 2008; pp. 883–886.
  20. Tang, X.B.; Ding, D.; Liu, Y.P.; Chen, D. Optimization design and analysis of Si–63Ni betavoltaic battery. Sci. China Technol. Sci. 2012, 55, 990–996. [Google Scholar] [CrossRef]
  21. Rahman, M.Z.; Khan, S.I. Advances in surface passivation of C–Si solar cells. Mater. Renew. Sustain. Energy 2012, 1, 1–11. [Google Scholar] [CrossRef]
  22. Aberle, A.G. Surface passivation of crystalline silicon solar cells: A review. Prog. Photovolt. Res. Appl. 2000, 8, 473–487. [Google Scholar] [CrossRef]
Figure 1. Schematic diagram of multi-source harvester.
Figure 1. Schematic diagram of multi-source harvester.
Micromachines 07 00228 g001
Figure 2. Equivalent circuit model of the multi-source harvester.
Figure 2. Equivalent circuit model of the multi-source harvester.
Micromachines 07 00228 g002
Figure 3. Energy depositions in Si for the 147Pm radioisotope.
Figure 3. Energy depositions in Si for the 147Pm radioisotope.
Micromachines 07 00228 g003

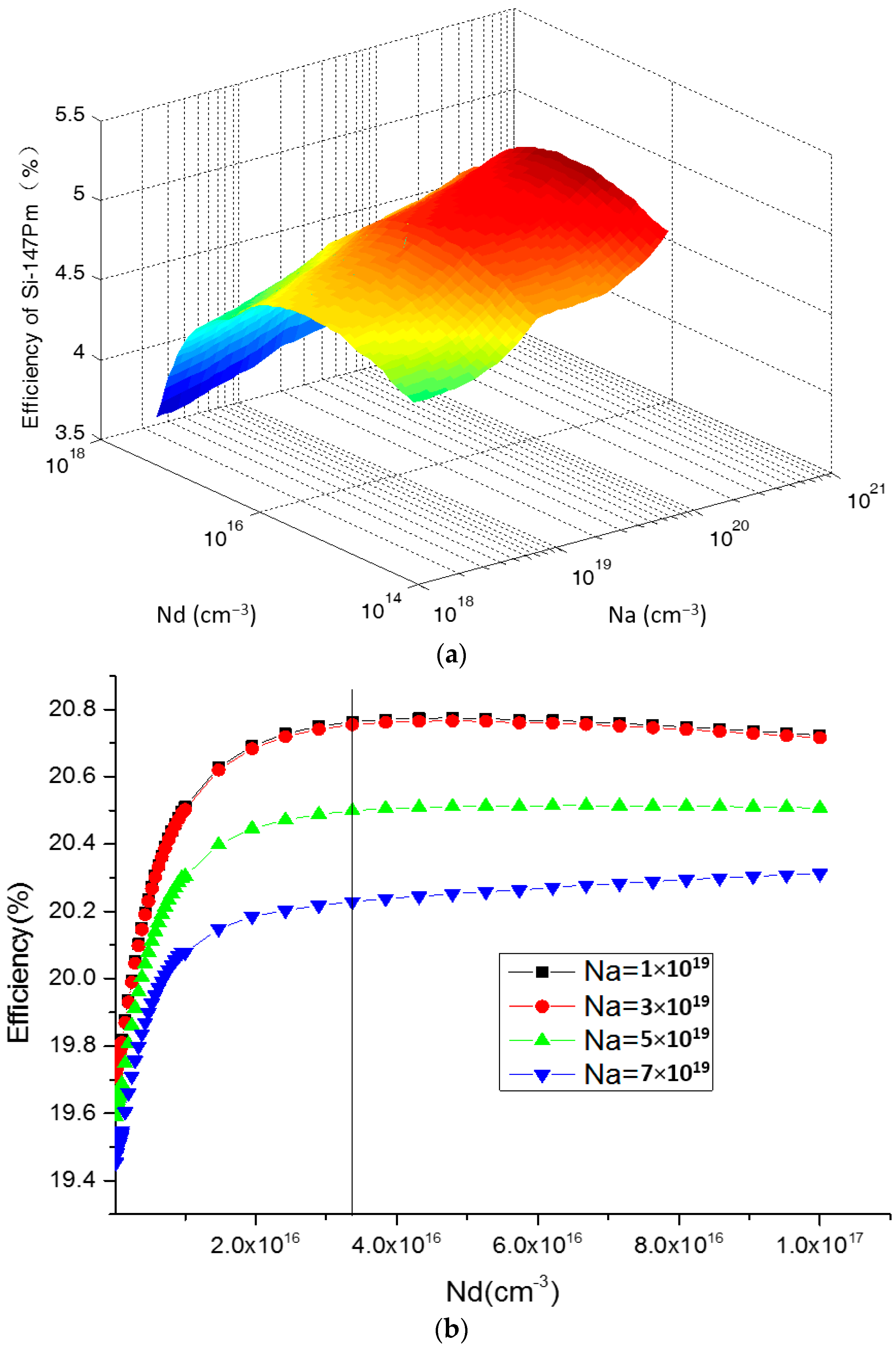

Figure 4. Relationship between the maximum conversion efficiency and doping concentration for the multi-source energy harvester. (a) Doping concentration parameters optimization simulated by MCNP (version 5, Radiation Safety Information Computational Center, Oak Ridge, TN, USA) for radioisotope energy harvesting; (b) Doping concentration parameters optimization simulated by PC1D (version 5.9, University of New South Wales, Sydney, Australia) for solar energy harvesting.
Figure 4. Relationship between the maximum conversion efficiency and doping concentration for the multi-source energy harvester. (a) Doping concentration parameters optimization simulated by MCNP (version 5, Radiation Safety Information Computational Center, Oak Ridge, TN, USA) for radioisotope energy harvesting; (b) Doping concentration parameters optimization simulated by PC1D (version 5.9, University of New South Wales, Sydney, Australia) for solar energy harvesting.
Micromachines 07 00228 g004

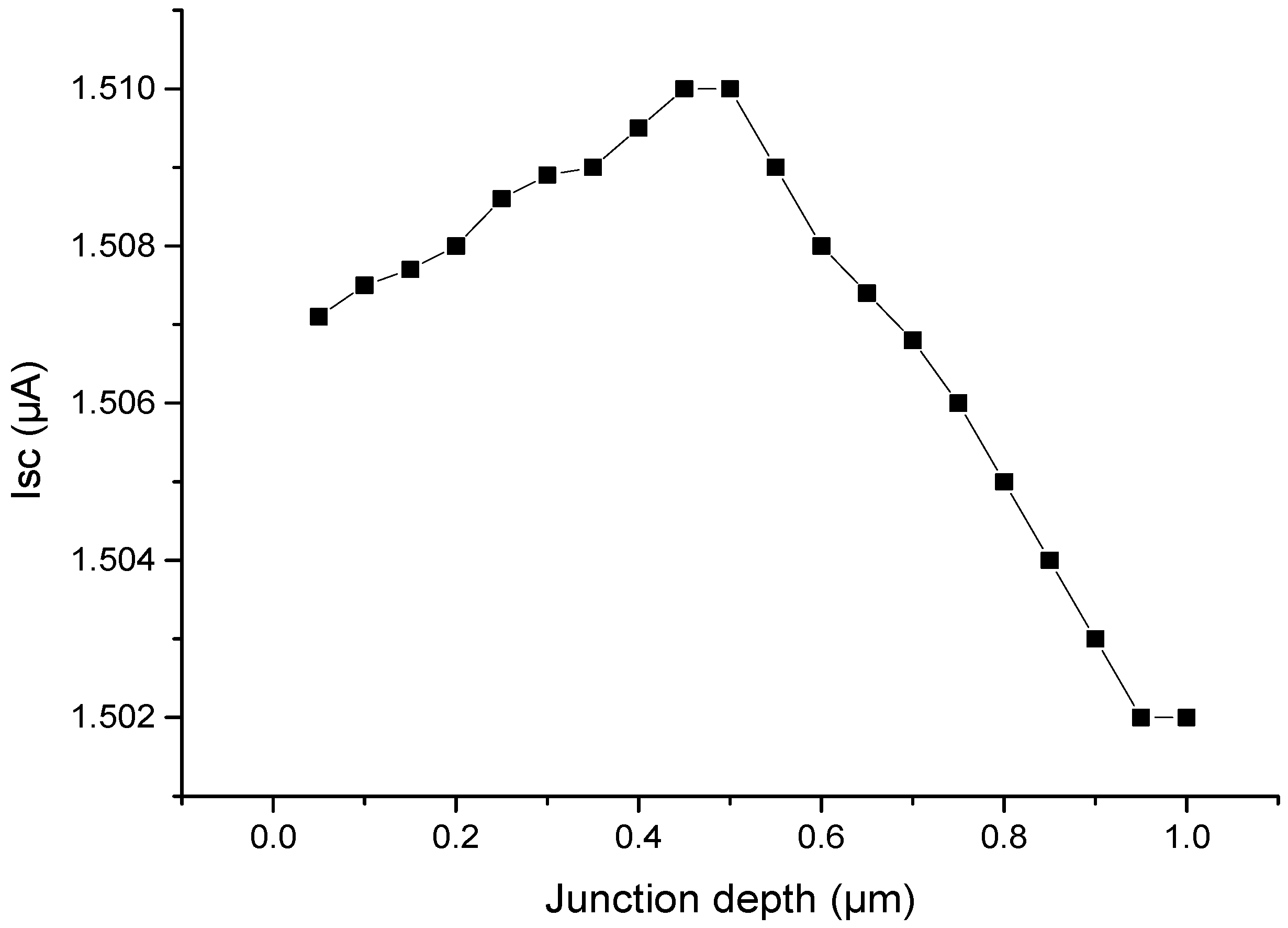

Figure 5. Relationship between ISC and junction depth in Si–147Pm.
Figure 5. Relationship between ISC and junction depth in Si–147Pm.
Micromachines 07 00228 g005

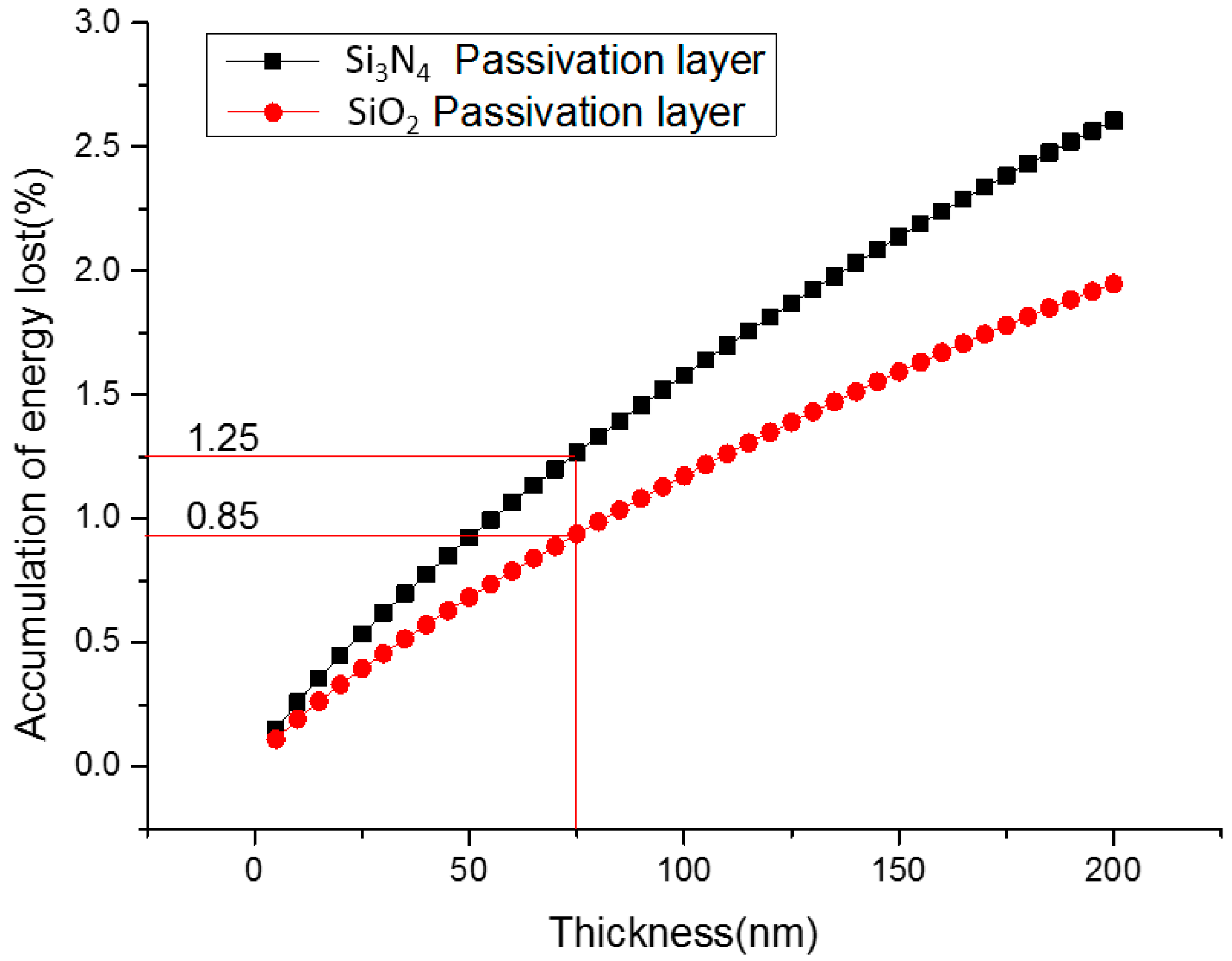

Figure 6. Radioisotope energy lost difference in the passivation layer with SiO2 and Si3N4 materials.
Figure 6. Radioisotope energy lost difference in the passivation layer with SiO2 and Si3N4 materials.
Micromachines 07 00228 g006
Table 1. Simulated results with optimized parameters.
Table 1. Simulated results with optimized parameters.
Energy SourceVocIscηPm
Solar light (Front)697 mV37.7 mA20.8%20.8 mW
147Pm source(Rear)384 mV1.51 μA5.05%0.46 μW
