Non-Lithographic Silicon Micromachining Using Inkjet and Chemical Etching

Department of Chemistry and Materials Science, School of Chemical Technology, Aalto University, FI02150 Espoo, Finland
*
Authors to whom correspondence should be addressed.
Academic Editors: Chang-Hwan Choi, Ishan Wathuthanthri and Ke Du
Received: 1 November 2016 / Revised: 29 November 2016 / Accepted: 5 December 2016 / Published: 8 December 2016
(This article belongs to the Special Issue Scalable Micro/Nano Patterning)
View Full-Text   |   Download PDF [5213 KB, uploaded 8 December 2016]   |

Abstract

We introduce a non-lithographical and vacuum-free method to pattern silicon. The method combines inkjet printing and metal assisted chemical etching (MaCE); we call this method “INKMAC”. A commercial silver ink is printed on top of a silicon surface to create the catalytic patterns for MaCE. The MaCE process leaves behind a set of silicon nanowires in the shape of the inkjet printed micrometer scale pattern. We further show how a potassium hydroxide (KOH) wet etching process can be used to rapidly etch away the nanowires, producing fully opened cavities and channels in the shape of the original printed pattern. We show how the printed lines (width 50–100 µm) can be etched into functional silicon microfluidic channels with different depths (10–40 µm) with aspect ratios close to one. We also used individual droplets (minimum diameter 30 µm) to produce cavities with a depth of 60 µm and an aspect ratio of two. Further, we discuss using the structured silicon substrate as a template for polymer replication to produce superhydrophobic surfaces. View Full-Text
Keywords: non-lithographic; patterning; silicon; micromachining; microfluidic non-lithographic; patterning; silicon; micromachining; microfluidic

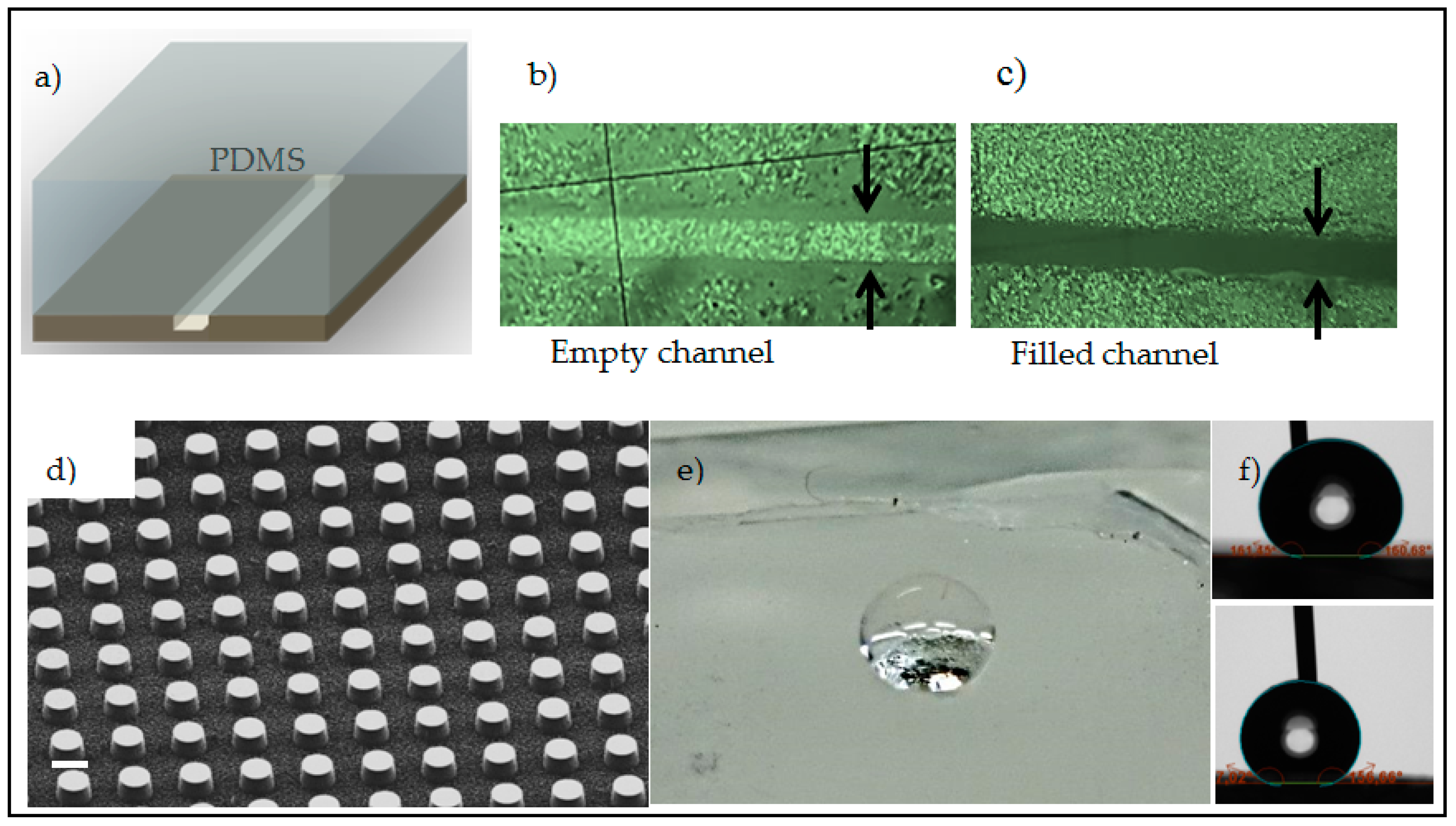

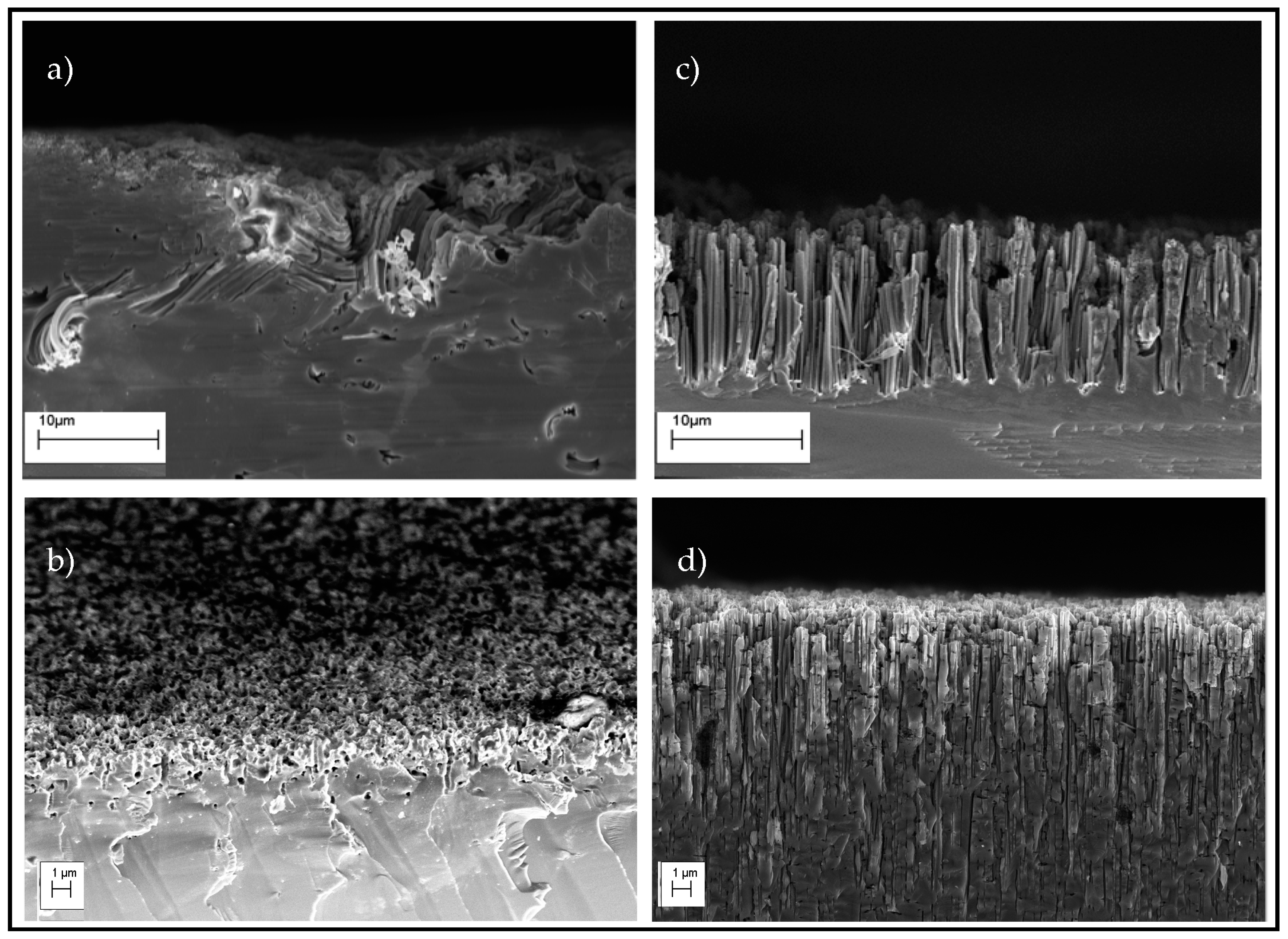

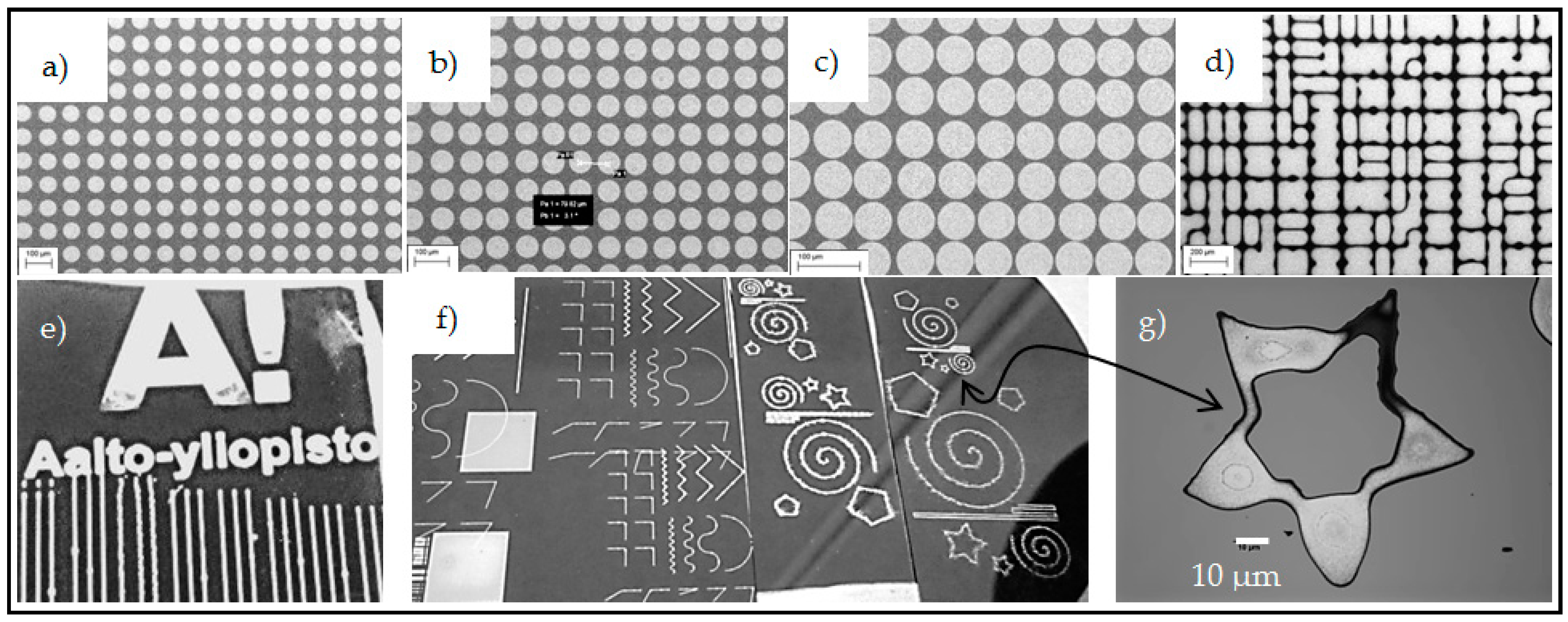

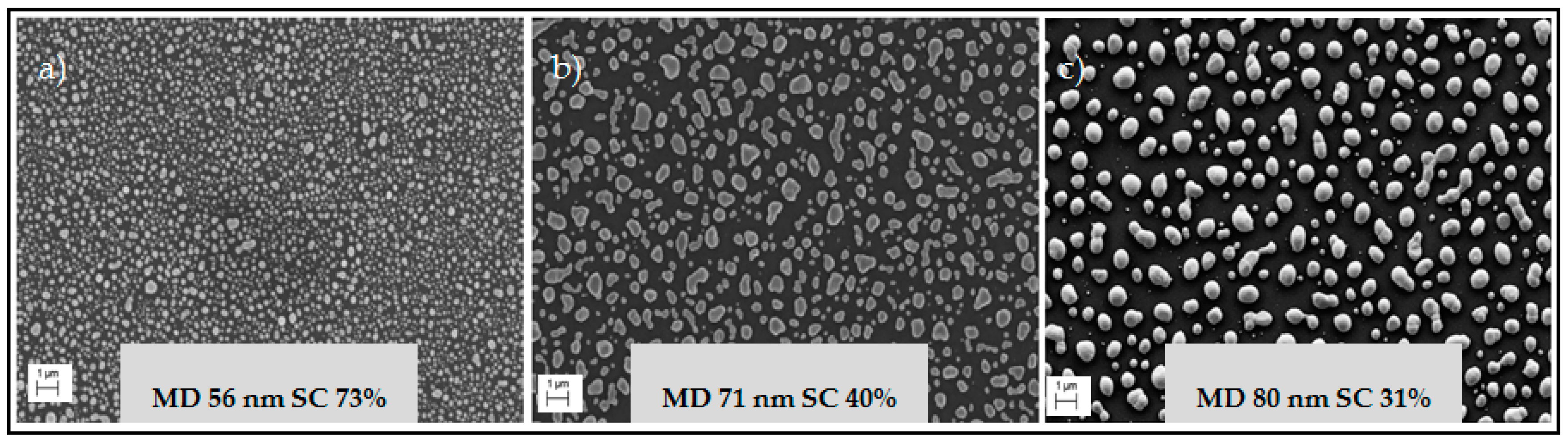

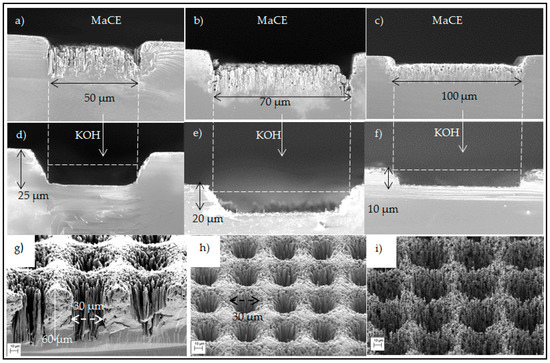

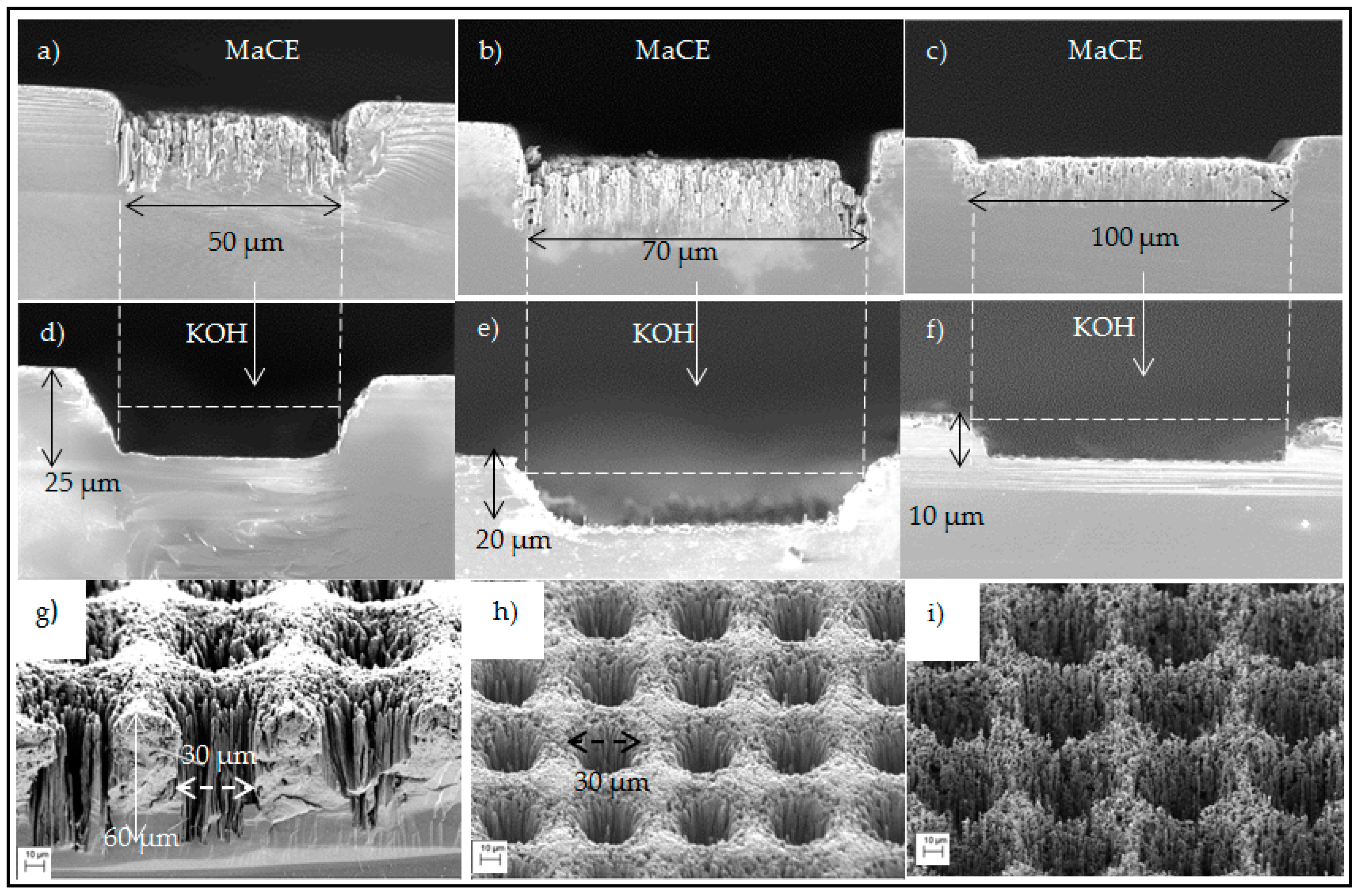

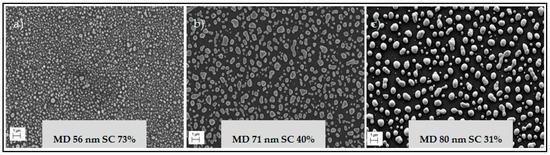

Figures

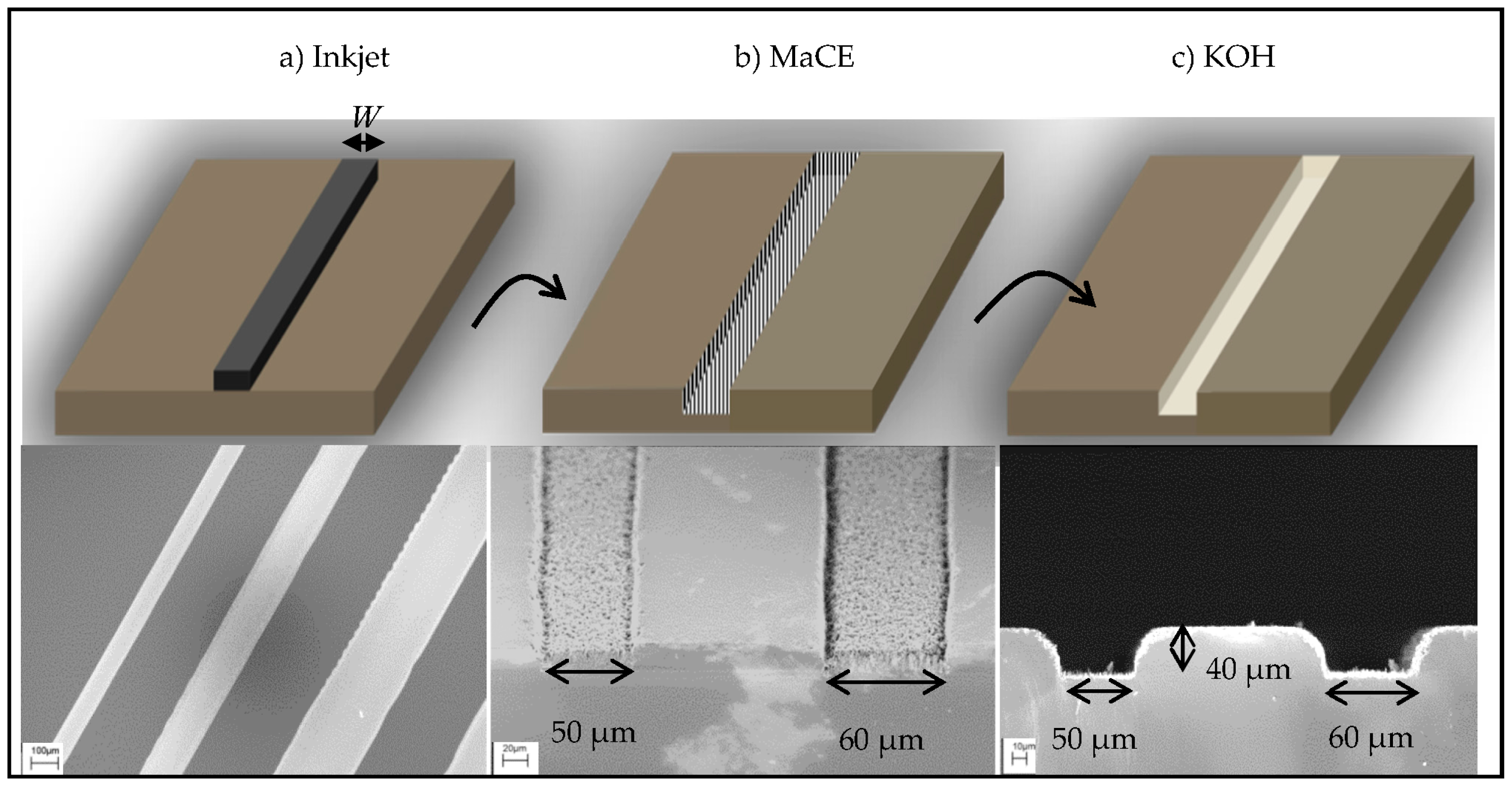

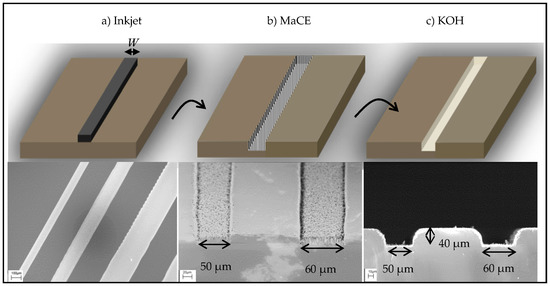

Figure 1
