Micromachines 2015, 6(5), 574-591; doi:10.3390/mi6050574

Optimizing Polymer Lab-on-Chip Platforms for Ultrasonic Manipulation: Influence of the Substrate

1
Group of Ultrasonic Resonators, Institute of Physical Technologies and Information, Spanish National Research Council CSIC, Serrano 144, 28006 Madrid, Spain
2
Department of Microsystems, IKERLAN, Jose Maria Arizmendiarreta 2, 20500 Mondragón, Spain
3
Group of Microfludics, Politechnical University of Mondragón, Goiru Kalea, 20500 Mondragón, Spain
4
Group of Molecular Biology, Fundación Hospital General Universitario de Elche, Camino de la Almazara 11, 03203 Elche, Alicante, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Jeong-Bong Lee
Received: 10 February 2015 / Revised: 28 April 2015 / Accepted: 29 April 2015 / Published: 7 May 2015
(This article belongs to the Collection Lab-on-a-Chip)
View Full-Text   |   Download PDF [3332 KB, uploaded 7 May 2015]   |

Abstract

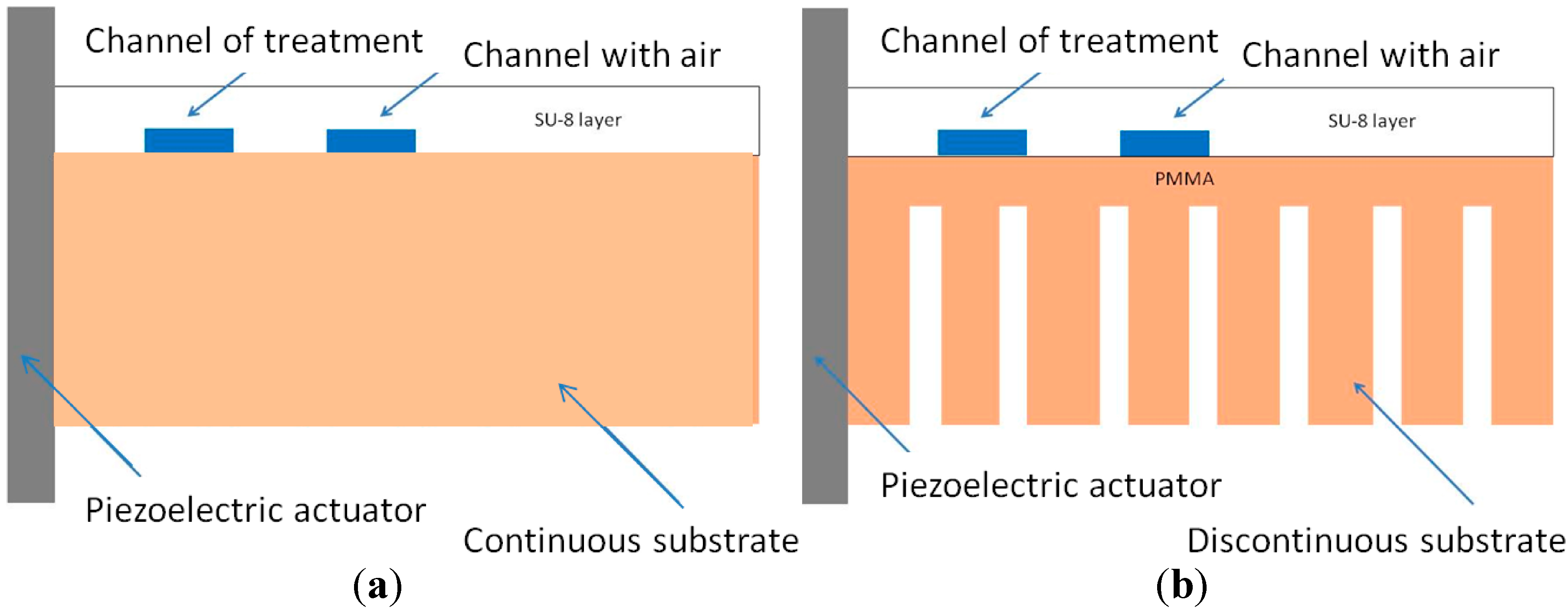

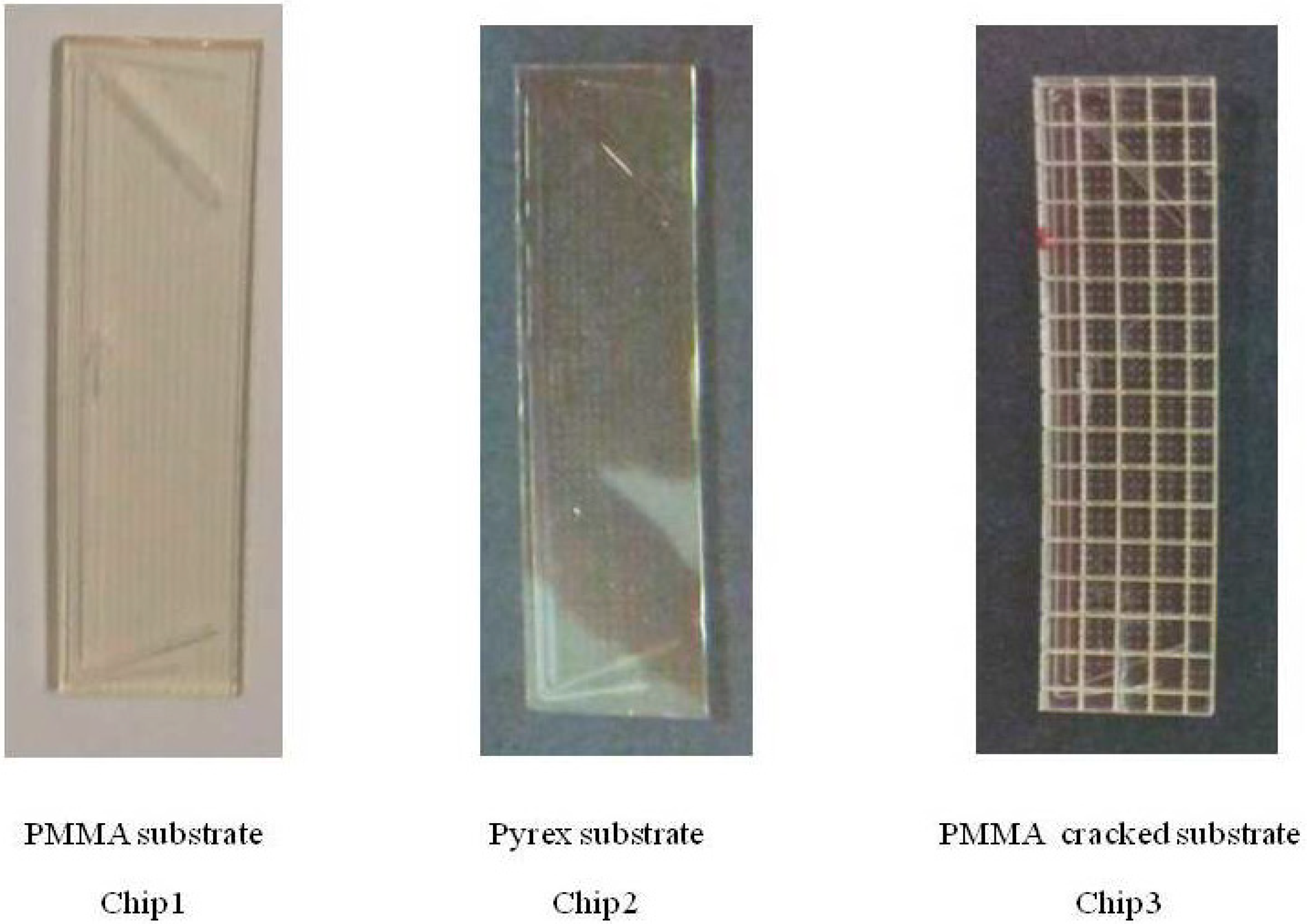

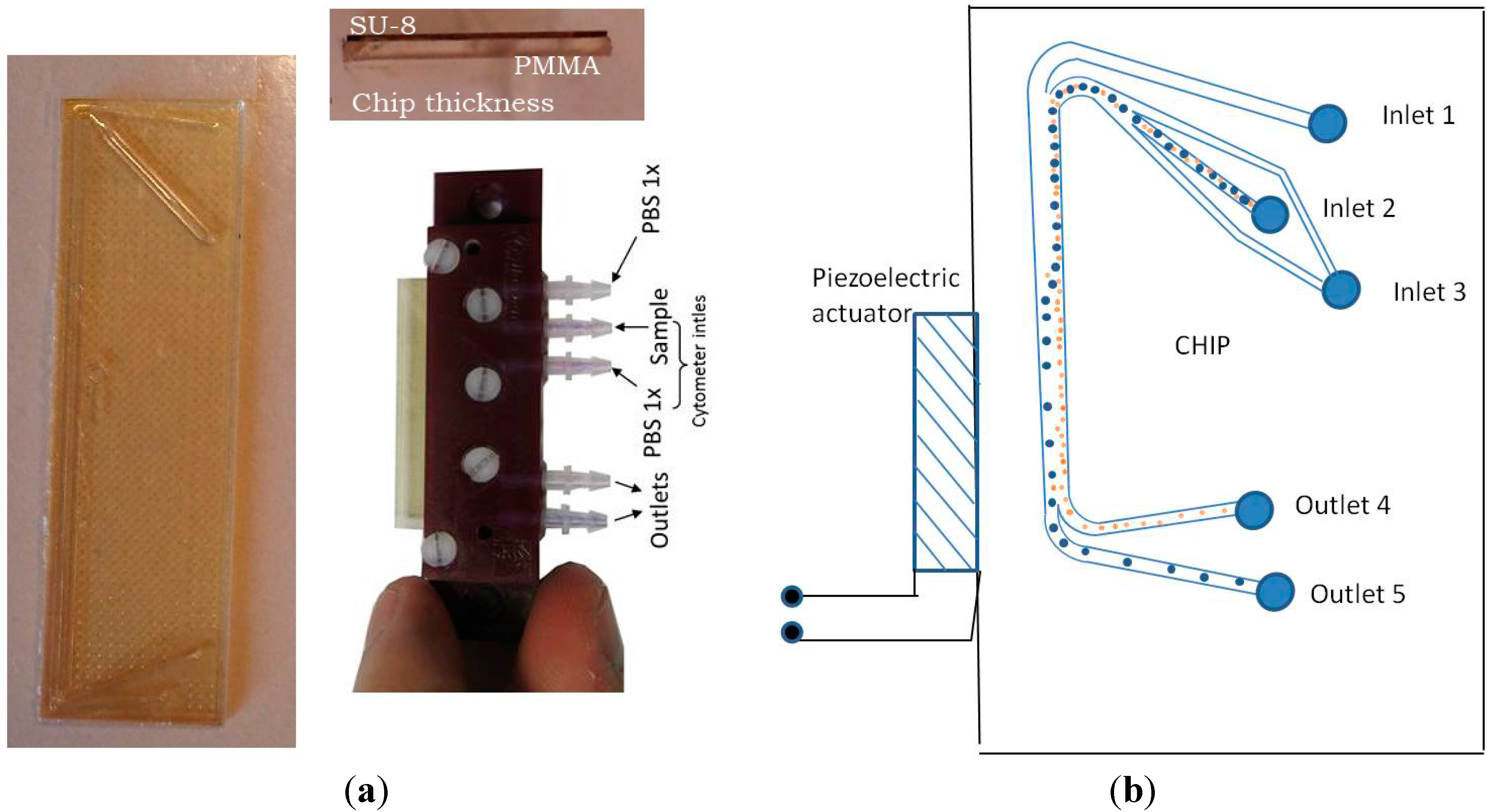

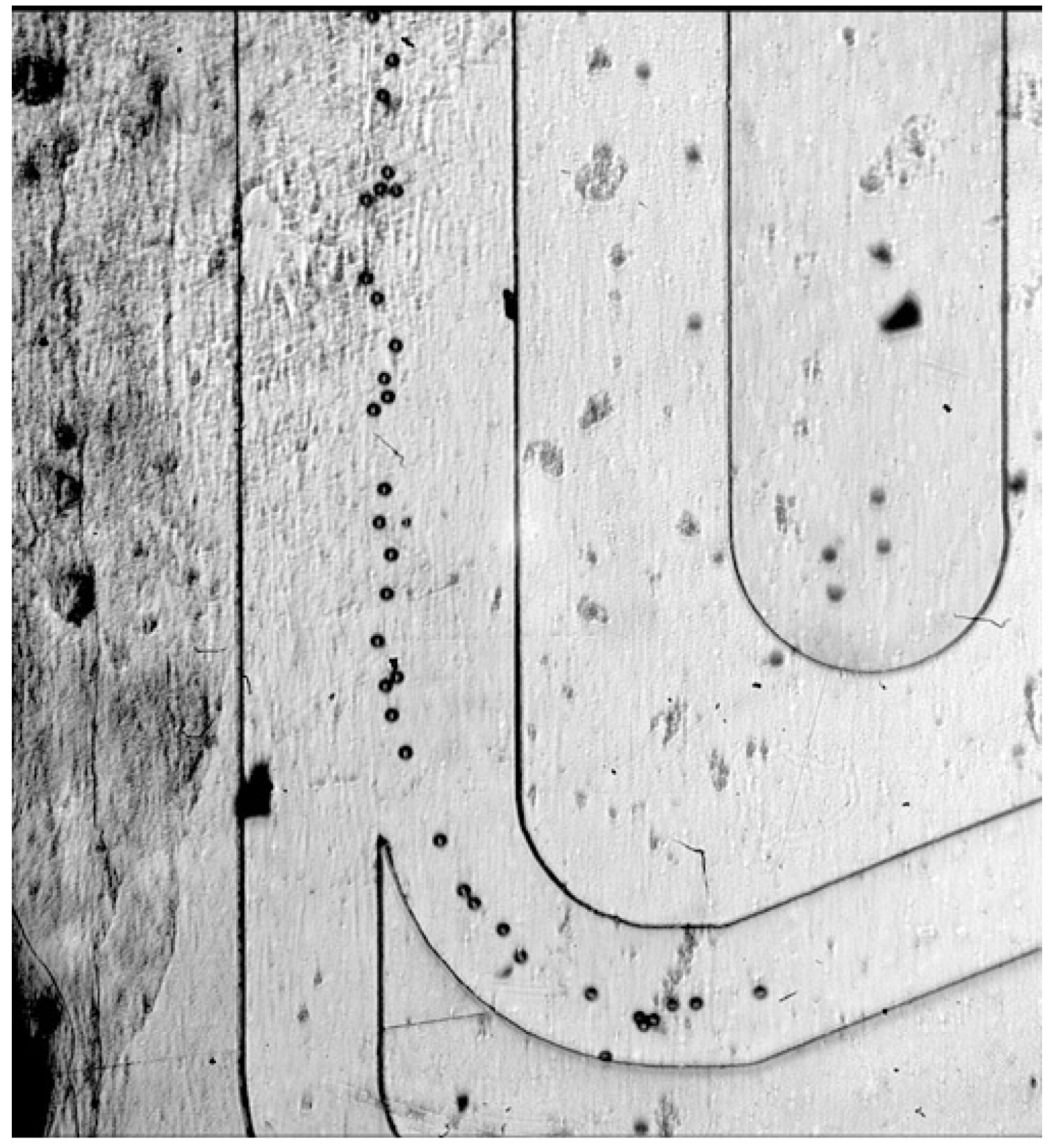

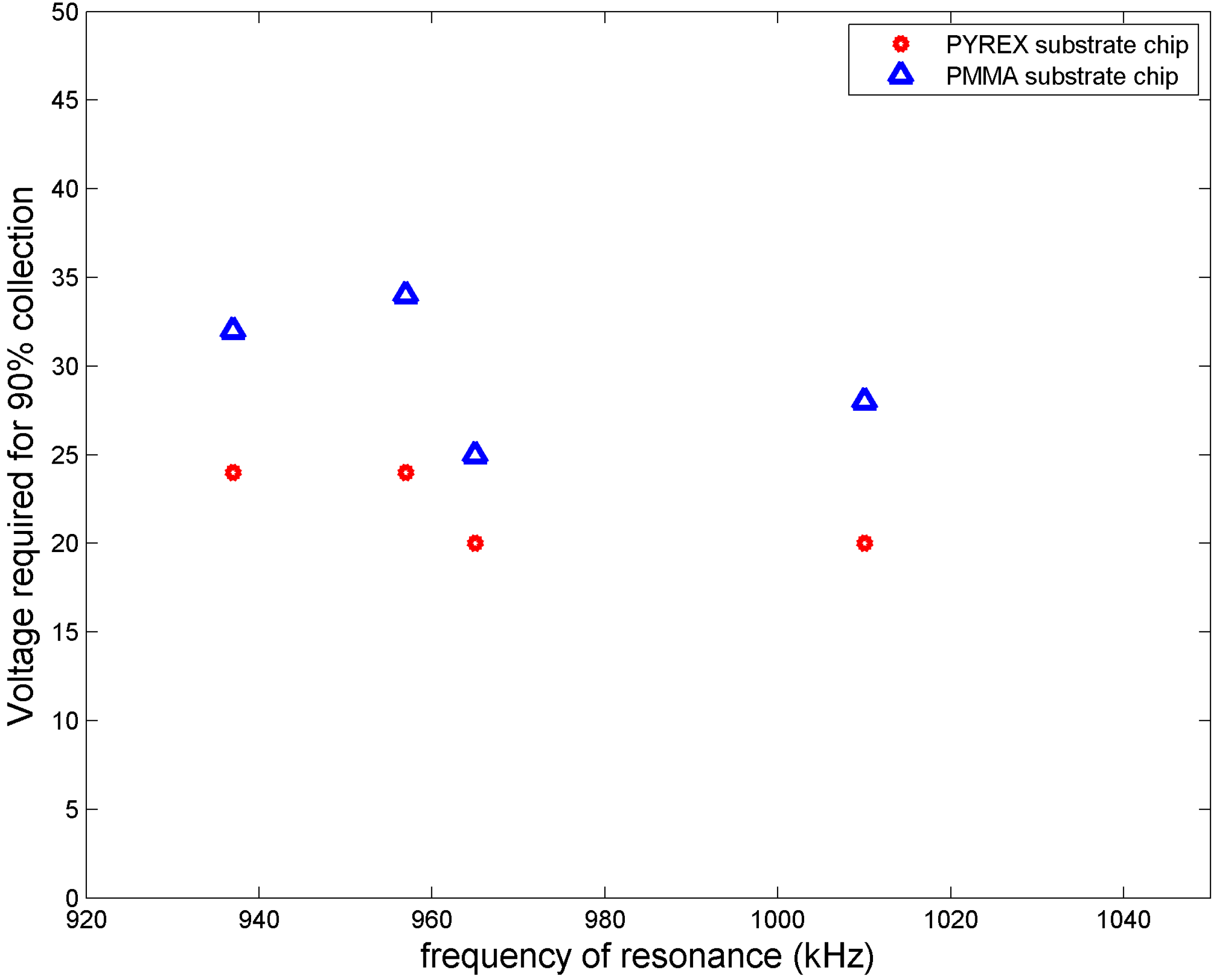

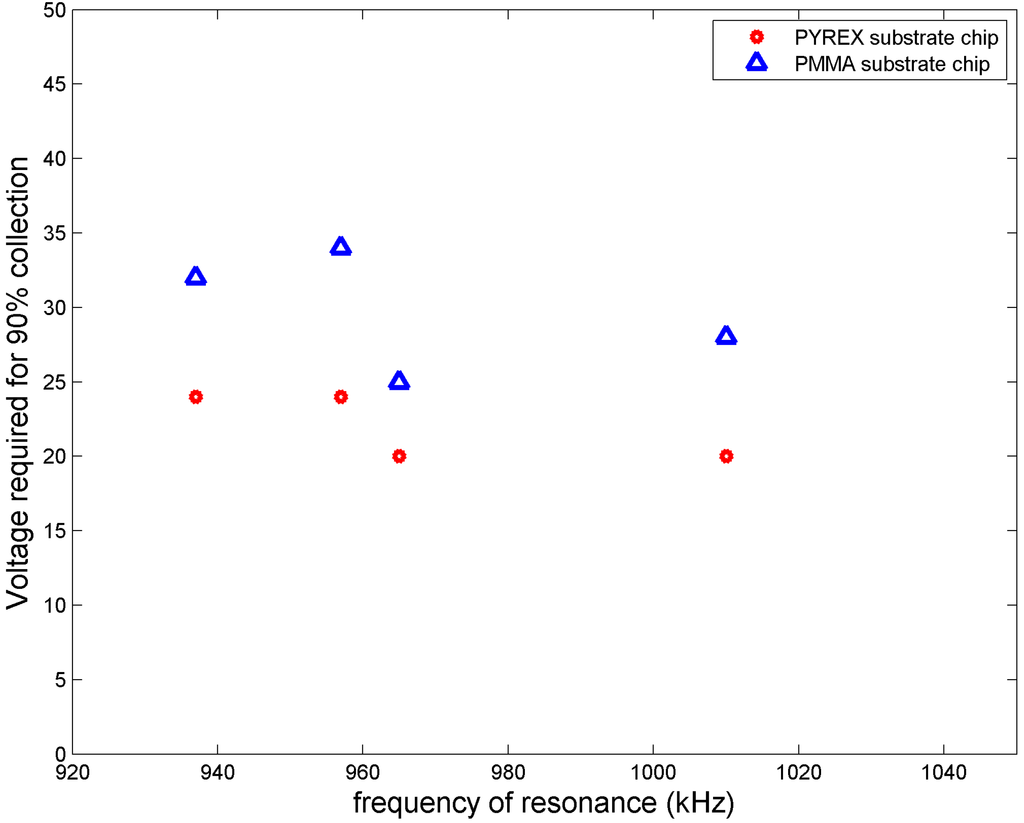

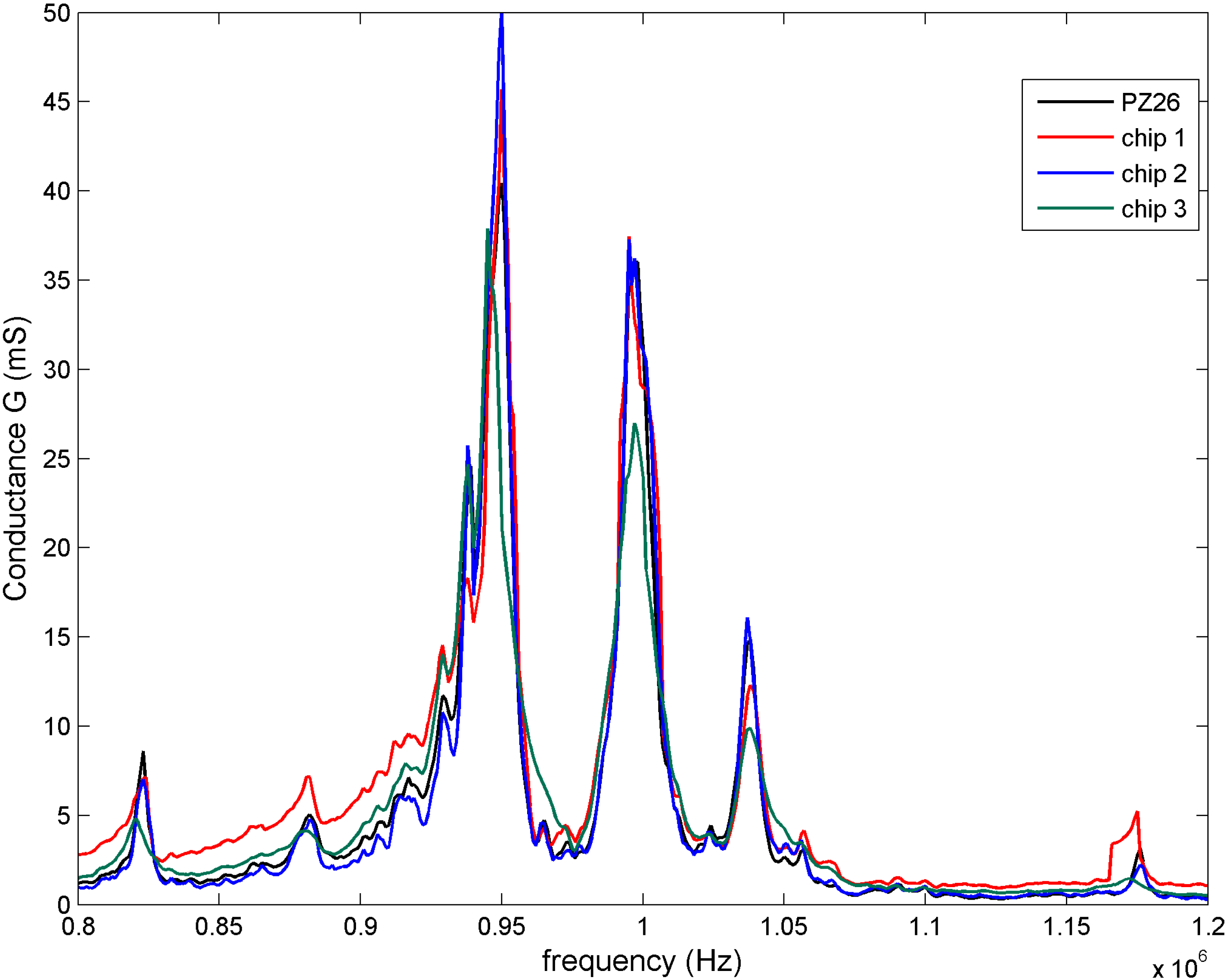

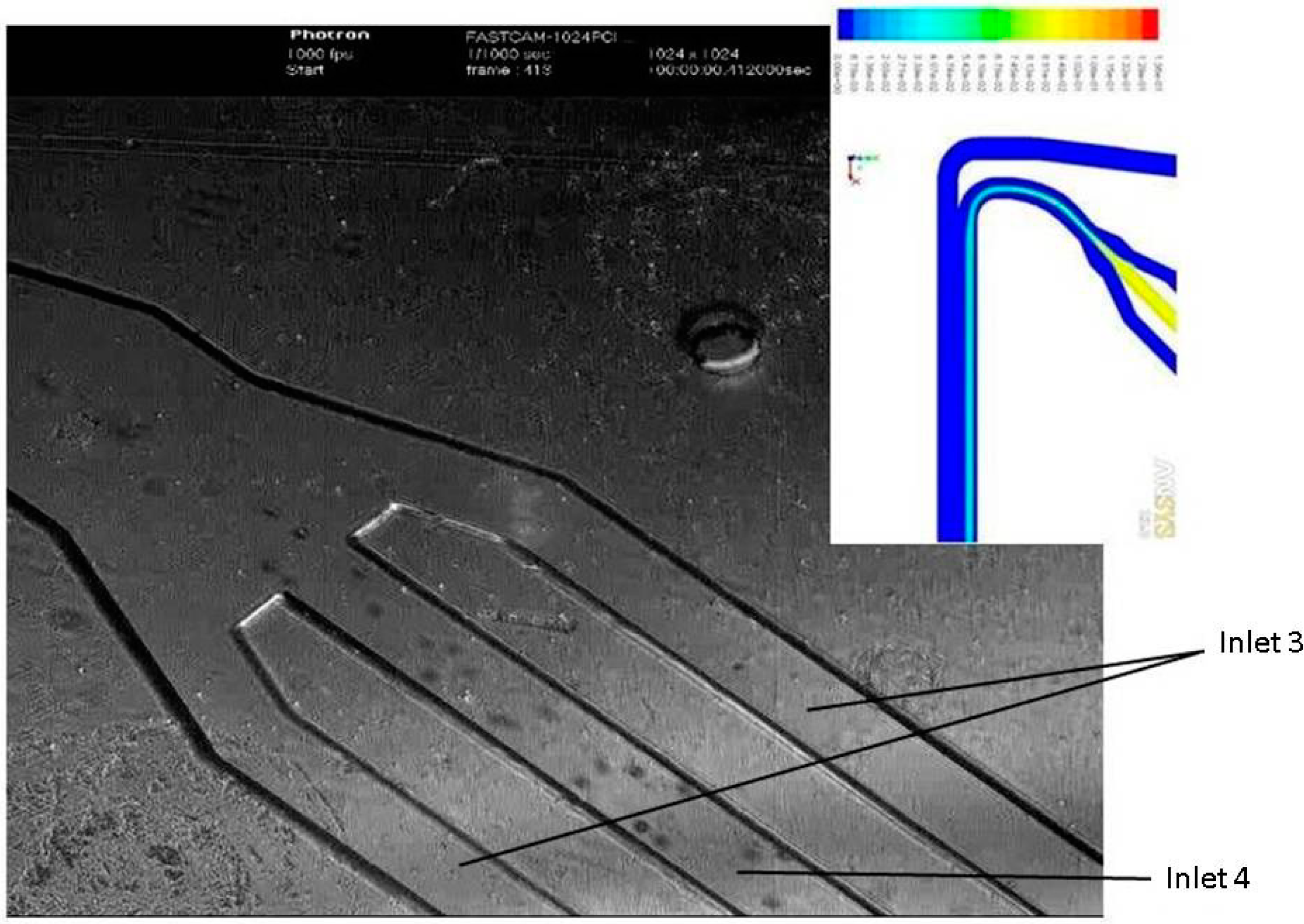

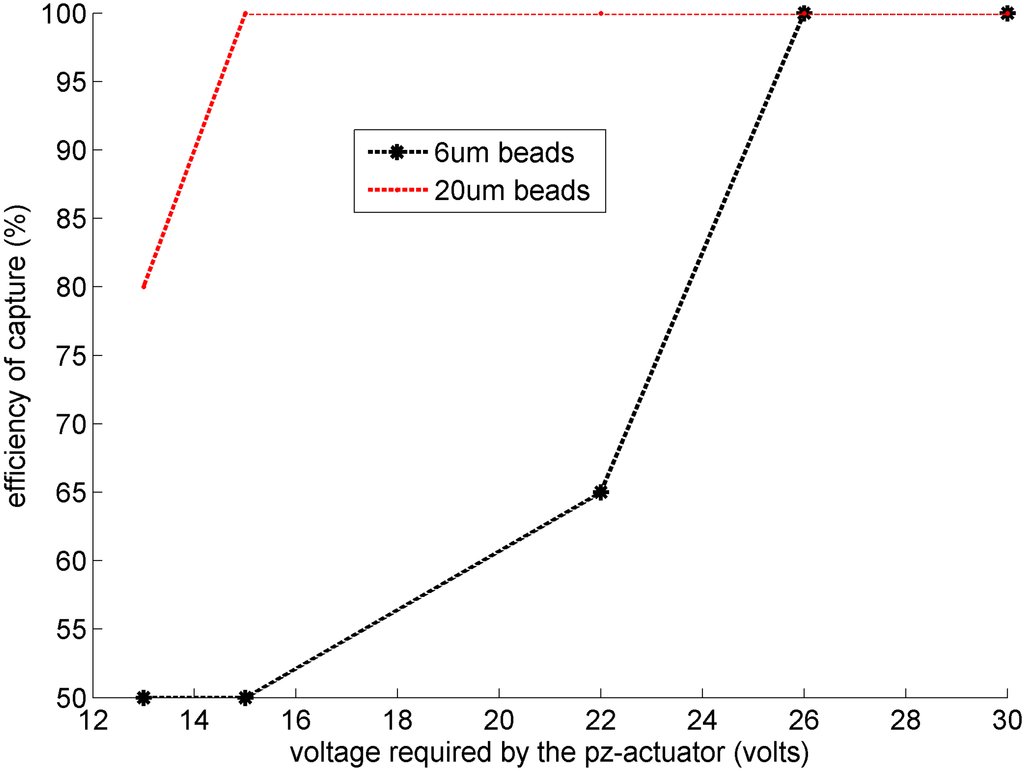

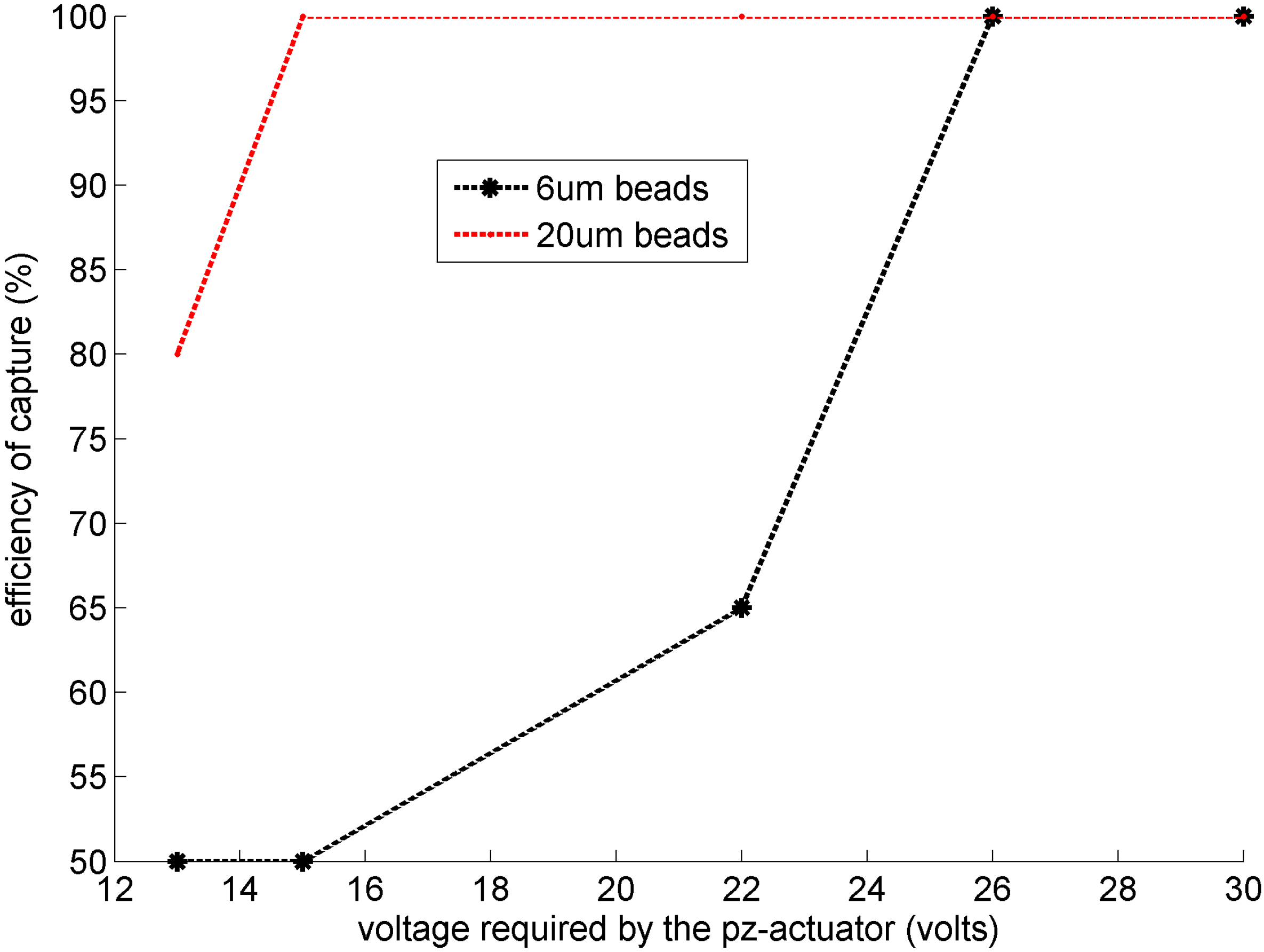

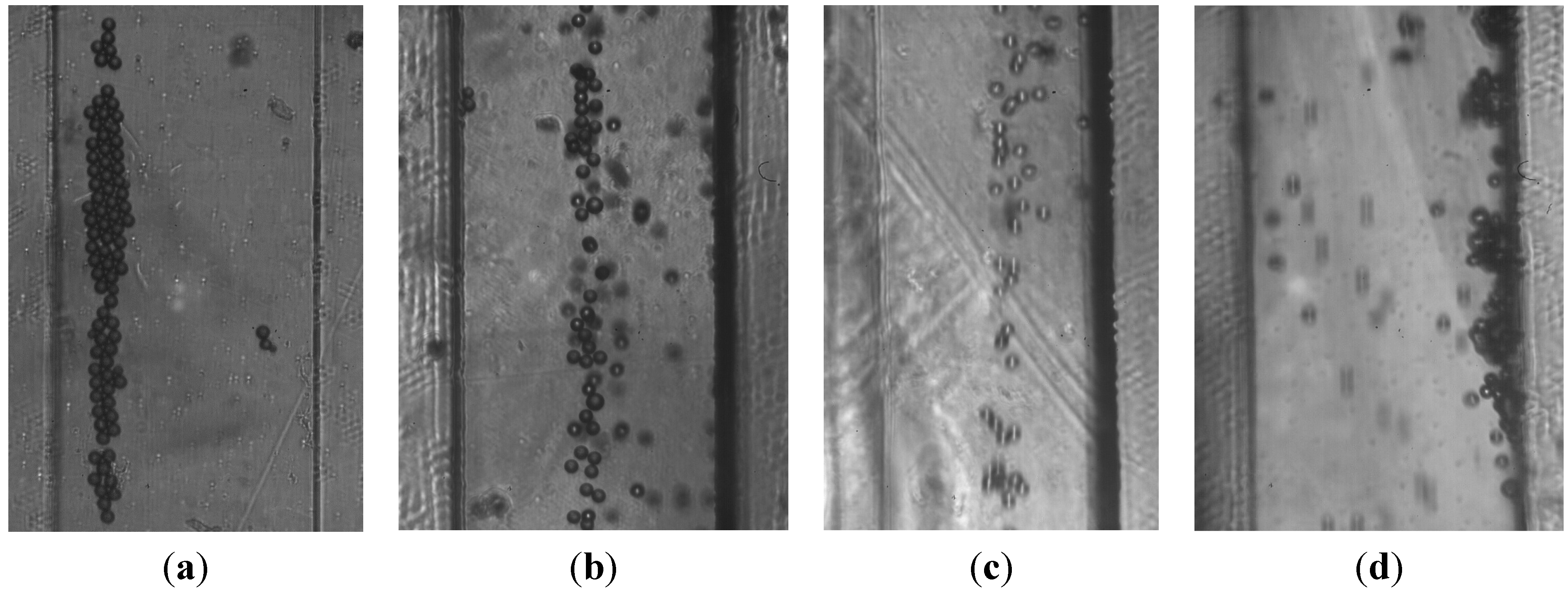

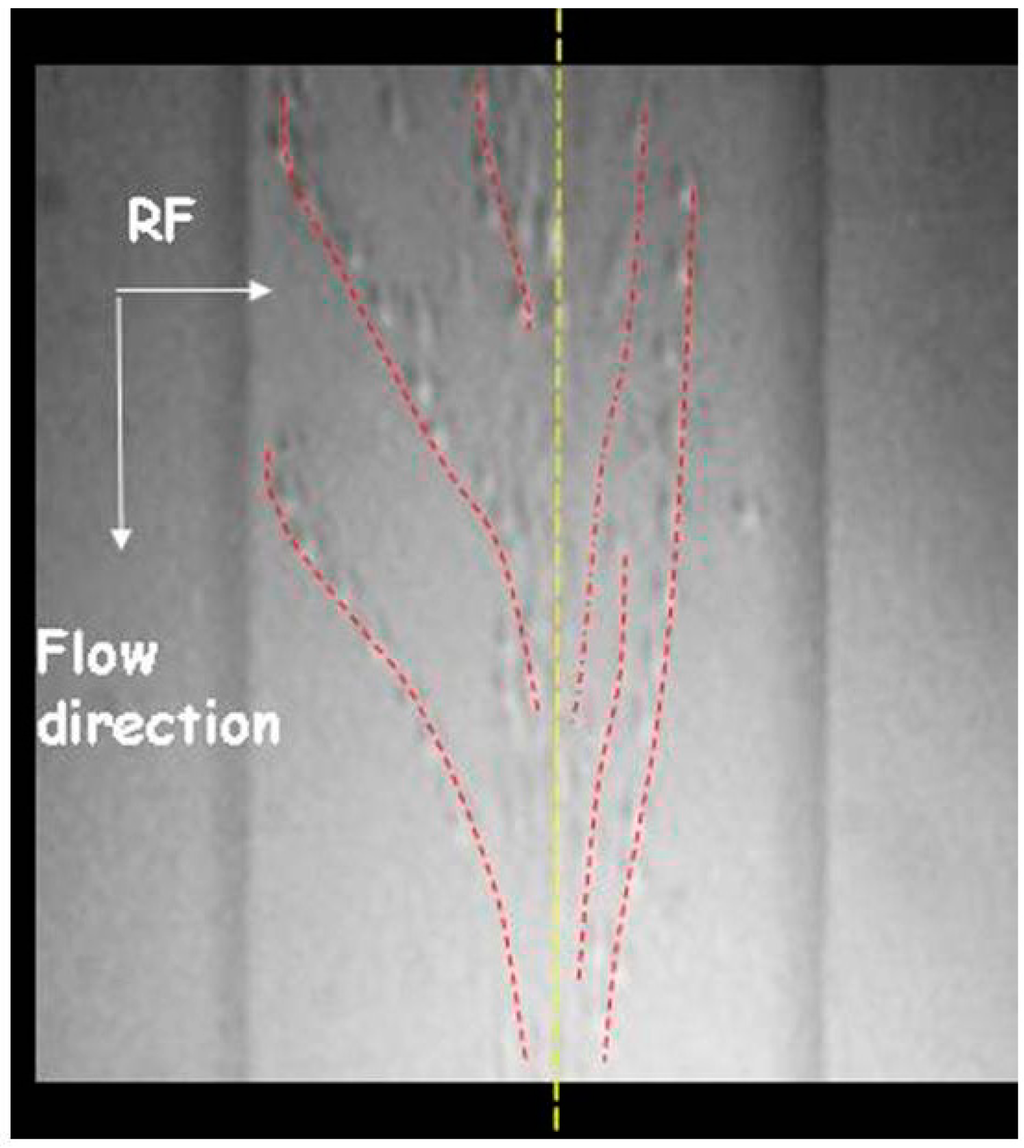

The choice of substrate material in a chip that combines ultrasound with microfluidics for handling biological and synthetic microparticles can have a profound effect on the performance of the device. This is due to the high surface-to-volume ratio that exists within such small structures and acquires particular relevance in polymer-based resonators with 3D standing waves. This paper presents three chips developed to perform particle flow-through separation by ultrasound based on a polymeric SU-8 layer containing channelization over three different substrates: Polymethyl methacrylate (PMMA); Pyrex; and a cracked PMMA composite-like structure. Through direct observations of polystyrene microbeads inside the channel, the three checked chips exhibit their potential as disposable continuous concentration devices with different spatial pressure patterns at frequencies of resonance close to 1 Mhz. Chips with Pyrex and cracked PMMA substrates show restrictions on the number of pressure nodes established in the channel associated with the inhibition of 3D modes in the solid structure. The glass-substrate chip presents some advantages associated with lower energy requirements to collect particles. According to the results, the use of polymer-based chips with rigid substrates can be advantageous for applications that require short treatment times (clinical tests handling human samples) and low-cost fabrication. View Full-Text
Keywords: lab-on-chip; ultrasonic manipulation; polymeric resonators; acoustic tweezers; particle enrichment; particle separation; structure-fluid interactions; microfluidics lab-on-chip; ultrasonic manipulation; polymeric resonators; acoustic tweezers; particle enrichment; particle separation; structure-fluid interactions; microfluidics
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

González, I.; Tijero, M.; Martin, A.; Acosta, V.; Berganzo, J.; Castillejo, A.; Bouali, M.M.; Soto, J.L. Optimizing Polymer Lab-on-Chip Platforms for Ultrasonic Manipulation: Influence of the Substrate. Micromachines 2015, 6, 574-591.
