Open AccessArticle
Micromachines 2015, 6(3), 390-395; doi:10.3390/mi6030390

A Compact W-Band Reflection-Type Phase Shifter with Extremely Low Insertion Loss Variation Using 0.13 µm CMOS Technology

1
Ministerial Key Laboratory of JGMT, Nanjing University of Science and Technology, Nanjing 210094, China
2
Semiconductor Device Research Laboratory, Terahertz Research Centre, CAEP, Chengdu 611731, China
*
Author to whom correspondence should be addressed.
Academic Editor: Geok Ing Ng
Received: 2 February 2015 / Revised: 23 February 2015 / Accepted: 24 February 2015 / Published: 23 March 2015
(This article belongs to the Special Issue Advances in MMICs)
View Full-Text   |   Download PDF [351 KB, uploaded 23 March 2015]   |

Abstract

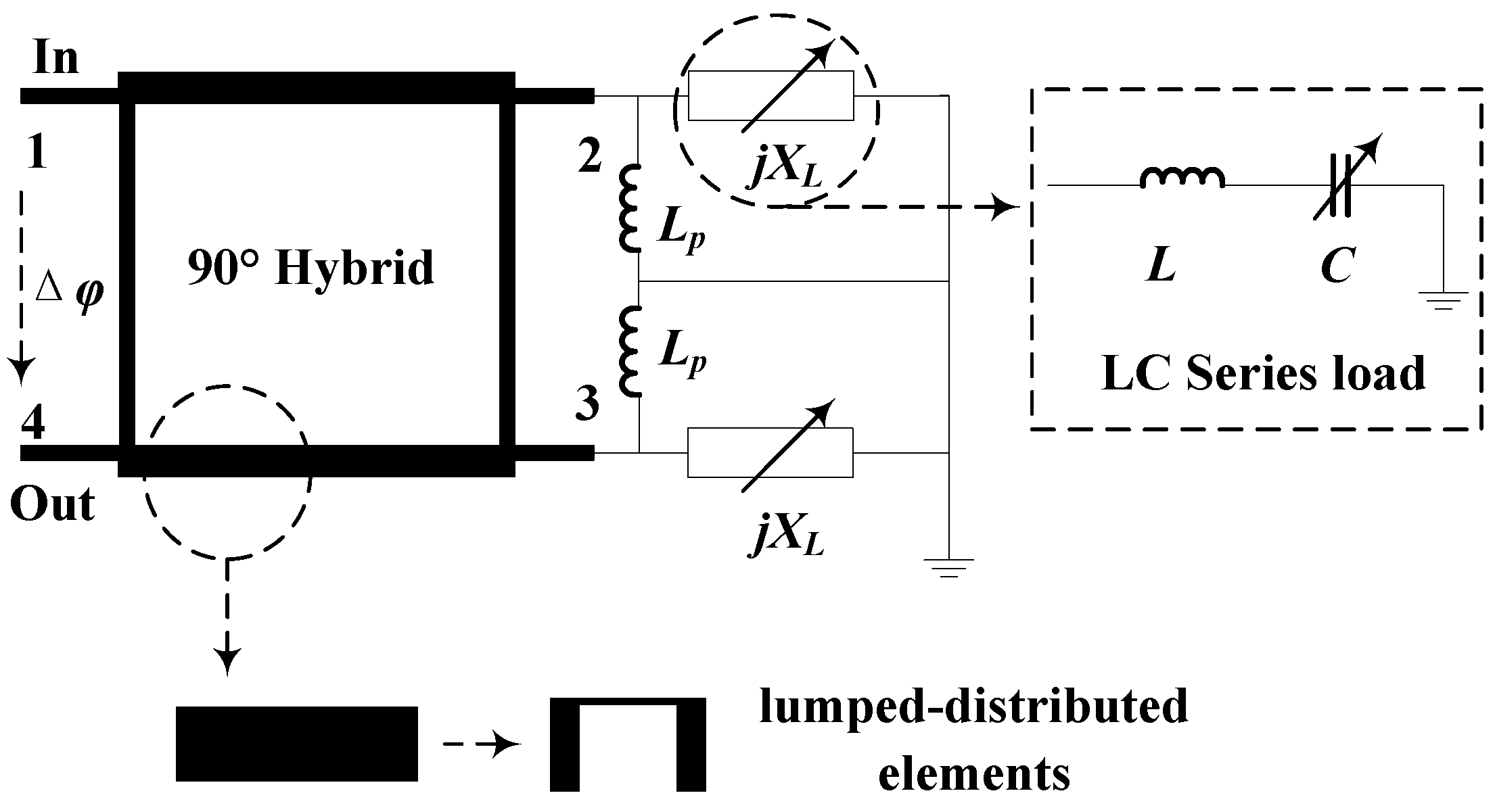

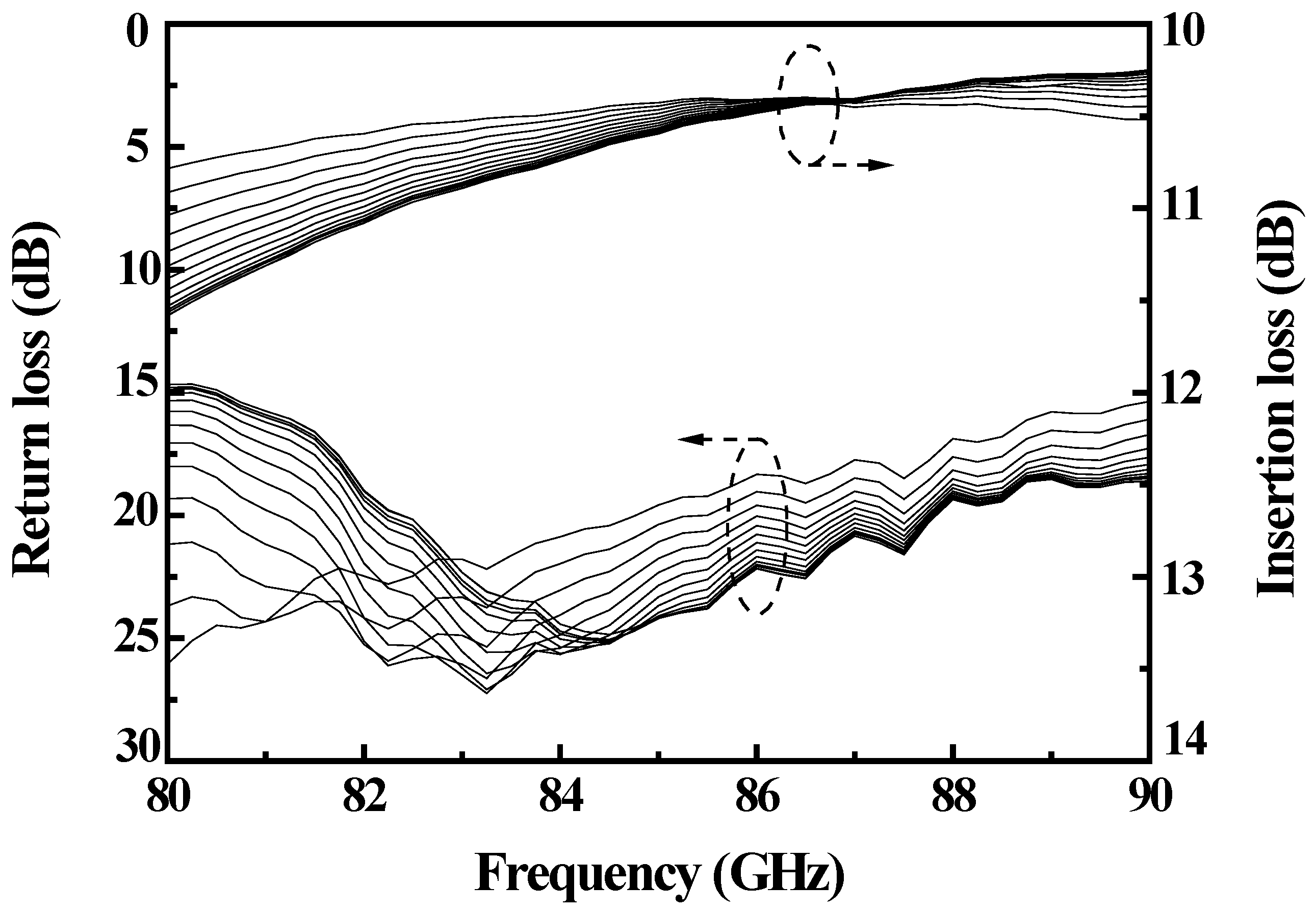

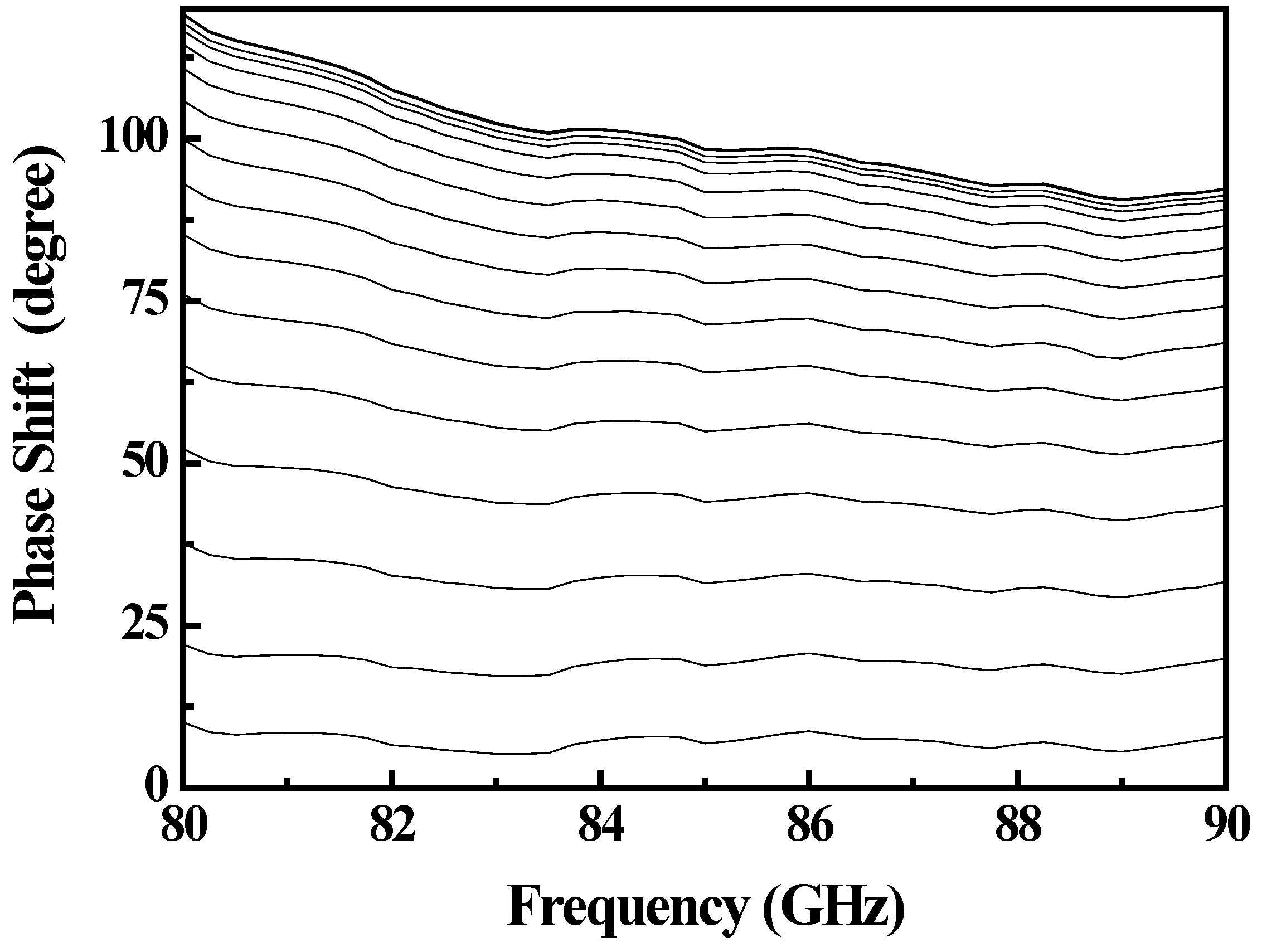

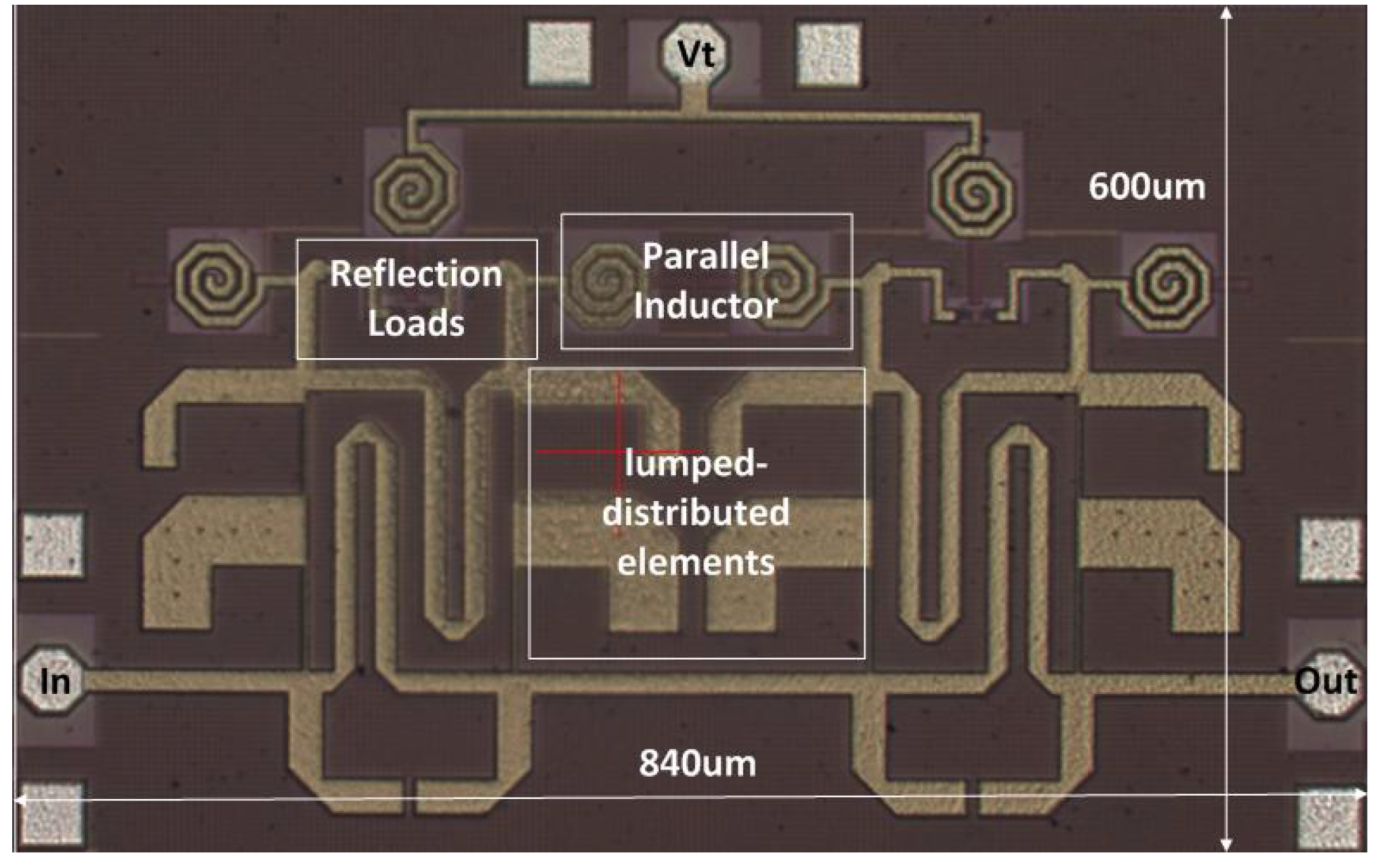

This paper presents a reflection-type phase shifter (RTPS) at W-band in a 0.13 µm complementary metal oxide semiconductor (CMOS) process. The RTPS is composed of a 90° hybrid coupler and two identical reflection loads. Lumped-distributed element transmission line is introduced in the 90° hybrid coupler to reduce the chip size. Series inductor-capacitor (LC) resonators are used as the reflective loads and parallel inductors are deployed to reduce insertion loss variation. By cascading two-stage RTPS, 90° phase shifting range and 10.5 dB insertion loss with 1 dB variations from 80 GHz to 90 GHz are achieved. An impressive 0.1 dB variation is obtained at 86 GHz. View Full-Text
Keywords: W-band; reflection-type phase shifter; insertion loss variation; series LC resonators; lumped and distributed elements; CMOS technology W-band; reflection-type phase shifter; insertion loss variation; series LC resonators; lumped and distributed elements; CMOS technology
Figures

Figure 1
