Open AccessArticle
Micromachines 2014, 5(3), 408-419; doi:10.3390/mi5030408

Sequential Atmospheric Pressure Plasma-Assisted Laser Ablation of Photovoltaic Cover Glass for Improved Contour Accuracy

1
Laboratory of Laser and Plasma Technologies, University of Applied Sciences and Arts, Von-Ossietzky-Straße 99, 37085 Göttingen, Germany
2
Application Center for Plasma and Photonics, Fraunhofer Institute for Surface Engineering and Thin Films, Von-Ossietzky-Straße 100, 37085 Göttingen, Germany
*
Author to whom correspondence should be addressed.
Received: 28 May 2014 / Revised: 24 June 2014 / Accepted: 26 June 2014 / Published: 2 July 2014
(This article belongs to the Special Issue Laser Micro- and Nano- Processing)
View Full-Text   |   Download PDF [1039 KB, uploaded 2 July 2014]   |

Abstract

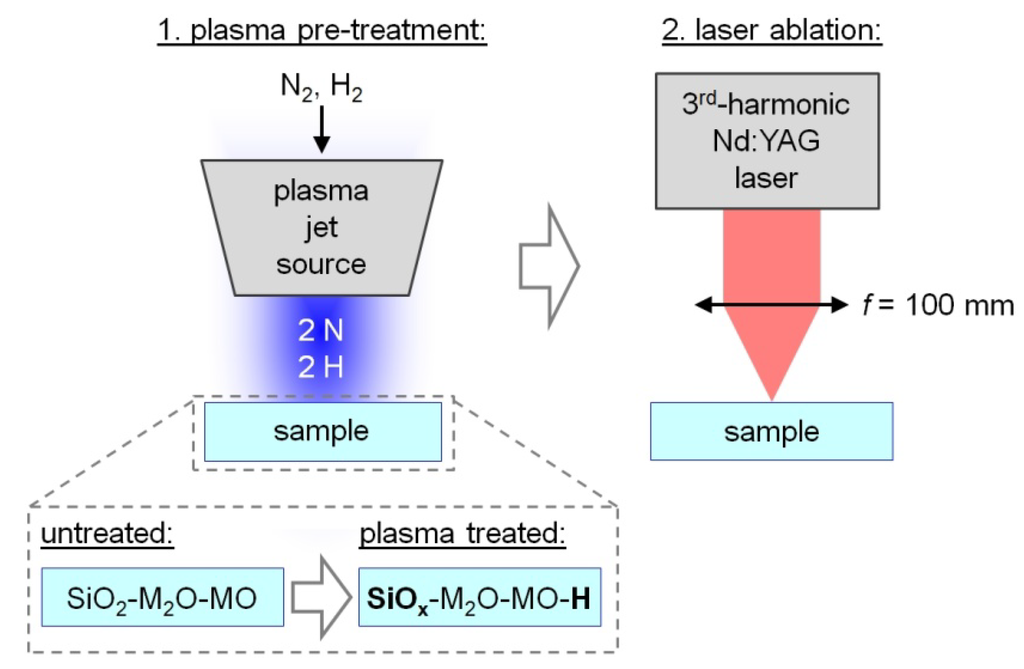

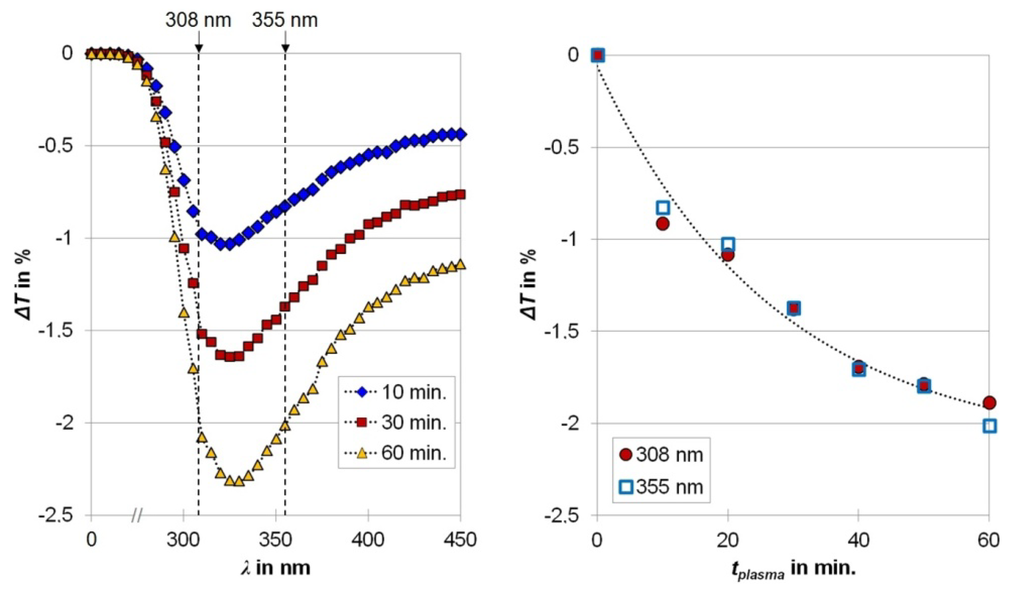

In this paper, we present sequential atmospheric pressure plasma-assisted laser ablation of photovoltaic cover glass. First, glass samples were plasma pre-treated using a hydrogenous plasma process gas in order to accomplish a modification of the near-surface glass network by a chemical reduction and the implantation of hydrogen. As a result, the transmission at a wavelength of 355 nm was reduced by approximately 2% after plasma treatment duration of 60 min. Further, the surface polarity was increased by approximately 78%, indicating an increase of the near-surface index of refraction. Subsequently to the plasma pre-treatment, the samples were laser ablated applying the above-mentioned laser wavelength of a Nd:YAG nanosecond laser. Compared to untreated samples, a significant decrease of the form error by 45% without any mentionable change in the ablation rate was obtained in the case of pre-treated samples. For comparison, the results and findings are discussed with respect to previous work, where the presented plasma-assisted ablation procedure was applied to optical glasses. View Full-Text
Keywords: atmospheric pressure plasma; laser ablation; hybrid ablation; photovoltaic glass; contour accuracy atmospheric pressure plasma; laser ablation; hybrid ablation; photovoltaic glass; contour accuracy
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gerhard, C.; Dammann, M.; Wieneke, S.; Viöl, W. Sequential Atmospheric Pressure Plasma-Assisted Laser Ablation of Photovoltaic Cover Glass for Improved Contour Accuracy. Micromachines 2014, 5, 408-419.
