Pushing the Limits of Electrical Detection of Ultralow Flows in Nanofluidic Channels
Klaus Mathwig and Serge G. Lemay *
MESA+ Institute for Nanotechnology, University of Twente, PO Box 217, 7500 AE Enschede, The Netherlands; E-Mail: k.h.mathwig@utwente.nl
*
Author to whom correspondence should be addressed; E-Mail: s.g.lemay@utwente.nl; Tel.: +31-53-489-2306; Fax: +31-53-489-3511.
Received: 11 December 2012; in revised form: 30 January 2013 / Accepted: 20 March 2013 /
Published: 2 April 2013

Abstract

: This paper presents improvements in flow detection by electrical cross-correlation spectroscopy. This new technique detects molecular number fluctuations of electrochemically active analyte molecules as they are transported by liquid flow through a nanochannel. The fluctuations are used as a marker of liquid flow as their time of flight in between two consecutive transducers is determined, thereby allowing for the measurement of liquid flow rates in the picoliter-per-minute regime. Here we show an enhanced record-low sensitivity below 1 pL/min by capitalizing on improved electrical instrumentation, an optimized sensor geometry and a smaller channel cross section. We further discuss the impact of sensor geometry on the cross-correlation functions.
Keywords:
flow detection; electrochemical sensor; nanofluidics; cross-correlation; nanochannel; redox cycling

1. Introduction

Microfabricated flow sensors are used in a wide range of commercial and research applications, their importance being reflected in the vast number of existing sensors and measurement concepts [1,2]. Also in nanofluidic systems, the flow rate is a desirable property to quantify, e.g., when measuring liquid slip or investigating the transport of macromolecules through nanochannels [3].

We have recently introduced electrochemical cross-correlation spectroscopy as an all-electrical method to detect ultralow picoliter-per-minute flow rates in nanofluidic channels [4]. The basis of this method is nanogap sensors [5], in which electrochemical active molecules undergo redox cycling between two closely spaced electrodes embedded in opposite walls of a nanochannel. The molecules travel back and forth by diffusion and are repeatedly oxidized and reduced at the electrodes, thereby shuttling electrons across the channel and generating an electrical current. This current is directly proportional to the number of molecules in the nanogap sensor. Since the molecules undergo random thermal Brownian motion, their number fluctuates considerably in time in the small femtoliter detection volume—an effect that is reflected in corresponding fluctuations of the electrical current.

To measure liquid flow, we detect the time of flight of this diffusion noise between two consecutive transducers, as sketched in Figure 1. The fluctuations are measured by recording current-time traces at the top electrodes of both sensors. The time of flight is then extracted by cross-correlation analysis of these traces.

Micromachines 04 00138 g001 200

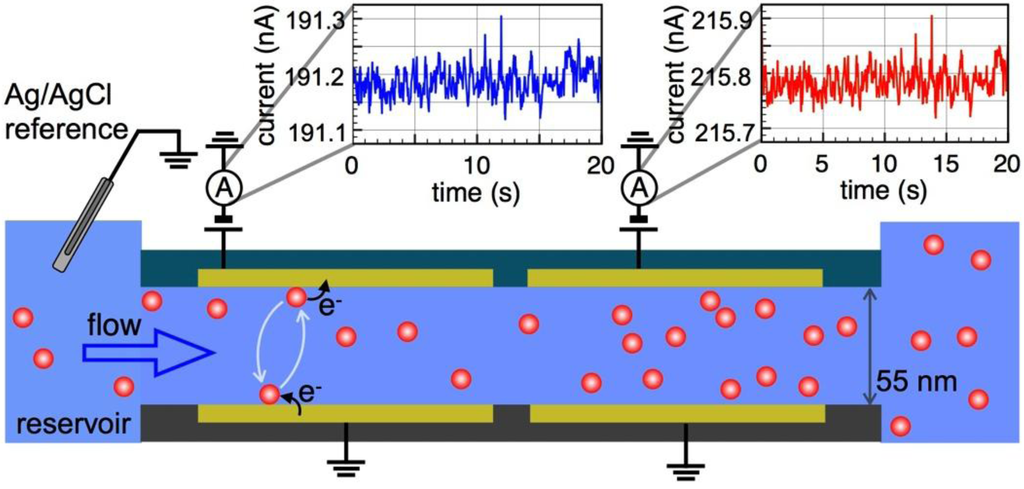

Figure 1. Schematic of the experimental setup. Fluctuations in the number density of electroactive molecules are used as tracers of liquid flow as solution is transported through a nanochannel. The fluctuations are detected electrically by redox cycling and their time of flight between the detectors—or, equivalently, the flow velocity—is then determined by cross correlation analysis of current-time traces (curves in the insets are a schematic illustration).

Click here to enlarge figure

Figure 1. Schematic of the experimental setup. Fluctuations in the number density of electroactive molecules are used as tracers of liquid flow as solution is transported through a nanochannel. The fluctuations are detected electrically by redox cycling and their time of flight between the detectors—or, equivalently, the flow velocity—is then determined by cross correlation analysis of current-time traces (curves in the insets are a schematic illustration).
Micromachines 04 00138 g001 1024

2. Device Fabrication

Nanogap devices were fabricated as described previously [6] on an oxidized 4-inch silicon wafer. 20 nm thick Pt bottom electrodes were deposited by electron-beam evaporation using a Balzers BAK 600 and patterned by photolithography and a lift-off process using Arch Chemical OIR 907-17 photoresist. The nanochannel was defined as a 55 nm thick Cr layer also deposited and defined by electron beam deposition and photolithography, respectively. After deposition of a 100 nm thick Pt top electrode, the whole structure was buried in a passivating SiN layer deposited by chemical vapor deposition. At both ends of the nanochannel, access holes were etched into the passivation layer by reactive ion etching. Schematic cross sections of the device are shown in Figure 2. It consists of a 202 μm long, 5 μm wide and 55 nm high nanochannel. The electrode pairs at the channel floor and ceiling are 100 μm long and are separated by a 2 μm wide gap.

Liquid flow is generated in the nanochannel by a syringe pump (Harvard Apparatus Pump 11 Pico Plus Elite). Since ultralow flow rates cannot be driven directly in this manner, the pump flow is reduced via Parallel Flow Control [7]. Tubing (TYGON S-54-HL) is connected to the nanofluidic device via an additional microfluidic layer in polydimethylsiloxane (PDMS, Dow Corning Sylgard 184), which was formed by molding on an SU-8/silicon master and bonded to the SiN surface after surface activation in an oxygen plasma. In this layer, four 200 μm long, 5 μm wide and 3 μm high microchannels connect both access holes of the nanochannel. The flow is then divided among the parallel nano- and microchannels according to the ratio of their hydraulic resistances. Since the resistances change cubically with the channel height the nanochannel flow rate is reduced by a factor of approximately 400,000 with respect to the syringe pump flow rate. Micrographs of the device are shown in Figure 2.

Micromachines 04 00138 g002 200

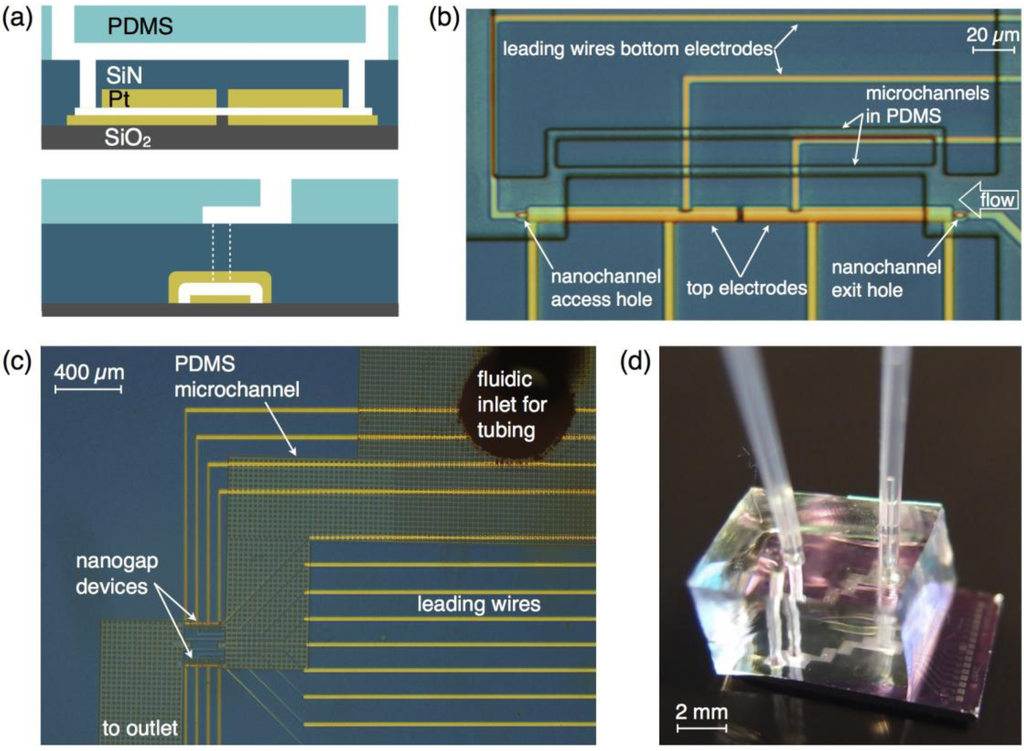

Figure 2. (a) Schematic cross section of the device along the longitudinal (top) and lateral axis (bottom). (b) Top view micrograph of a 202 μm long nanofluidic device bonded to a polydimethylsiloxane (PDMS) microchannel layer (only two out of four microchannels running in parallel to the device are shown). (c) Micrograph of the overall chip structure. (d) Photography of a chip bonded to PDMS connected to tubing; electrical contact pads are visible on the right.

Click here to enlarge figure

Figure 2. (a) Schematic cross section of the device along the longitudinal (top) and lateral axis (bottom). (b) Top view micrograph of a 202 μm long nanofluidic device bonded to a polydimethylsiloxane (PDMS) microchannel layer (only two out of four microchannels running in parallel to the device are shown). (c) Micrograph of the overall chip structure. (d) Photography of a chip bonded to PDMS connected to tubing; electrical contact pads are visible on the right.
Micromachines 04 00138 g002 1024

3. Experimental

Ferrocenedimethanol (Fc(MeOH)2 from Acros, diffusion coefficient D = 6.7 × 10−10 m2/s) was chosen as redox-active species and prepared as a 1 mM solution in Milli-Q water with 0.1 M KCl (Sigma-Aldrich) added as background electrolyte together with 5 mM H2SO4 (Sigma-Aldrich) to prevent electrode degradation. Directly before a measurement, the Cr sacrificial layer was removed and the nanochannel was formed by purging the microchannels with a chromium etchant solution (Selectipur, BASF). The redox active solution was then driven through the channel with varying syringe pump flow rates of up to 60 μL/h.

Both the bottom and top electrodes of the device were connected to a CH Instruments 842B bipotentiostat. Both top electrodes were biased at an oxidizing potential of 0.45 V while the bottom electrodes were biased at a reducing potential by short-circuiting them to a Ag/AgCl reference electrode that was connected by tubing downstream of the device. The whole setup except for the bipotentiostat (but including the syringe pump) was shielded from interference in a Faraday cage. Current-time traces of up to 600 s length were recorded at 10 ms sampling intervals at both top electrodes. We used high pass filtering to remove slow instrumental drift (see below).

4. Results and Discussion

The times of flight of molecular number concentrations were extracted from the detected current-time traces by cross-correlation analysis [4]: the traces Micromachines 04 00138 i003 exhibit diffusion noise Micromachines 04 00138 i004 from which a normalized cross-correlation function Micromachines 04 00138 i005 is evaluated:

Micromachines 04 00138 i006
Micromachines 04 00138 i005 peaks at the time Micromachines 04 00138 i007, which is—in a first approximation—identical to the time of flight of Fc(MeOH)2 molecules from the center of the first transducer to the center of the second one located 102 μm downstream. In Figure 3, cross-correlation functions are shown as a function of the syringe pump flow rate and compared to analytical functions for one-dimensional drift and diffusion in the same device geometry [4].

Micromachines 04 00138 g003 200

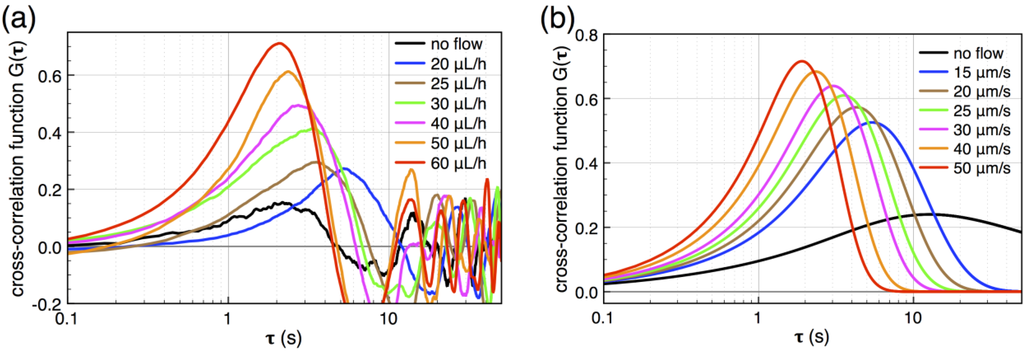

Figure 3. (a) Cross-correlation functions for different syringe pump flow rates determined from current-time traces recorded at both 100 μm long top electrodes of a 202 μm long nanofluidic device. (b) Analytically derived cross-correlation functions for different molecular drift velocities v for the same device geometry and an effective diffusion coefficient of D = 3.4 × 10−10 m2/s.

Click here to enlarge figure

Figure 3. (a) Cross-correlation functions for different syringe pump flow rates determined from current-time traces recorded at both 100 μm long top electrodes of a 202 μm long nanofluidic device. (b) Analytically derived cross-correlation functions for different molecular drift velocities v for the same device geometry and an effective diffusion coefficient of D = 3.4 × 10−10 m2/s.
Micromachines 04 00138 g003 1024

The curves are defined exclusively by longitudinal advection and diffusion. The increasing influence of diffusion for decreasing flow rates leads to peak broadening and loss of correlation. It prohibits the detection of times of flight longer than approximately 8 s because the number fluctuations decay diffusively during the flight.

The liquid flow rate in the nanochannel was first determined by multiplying the center-to-center distance Micromachines 04 00138 i009 of the transducers with the channel cross section and dividing by Micromachines 04 00138 i007. It is shown in Figure 4 as a function of pump flow (orange diamonds).

Micromachines 04 00138 g004 200

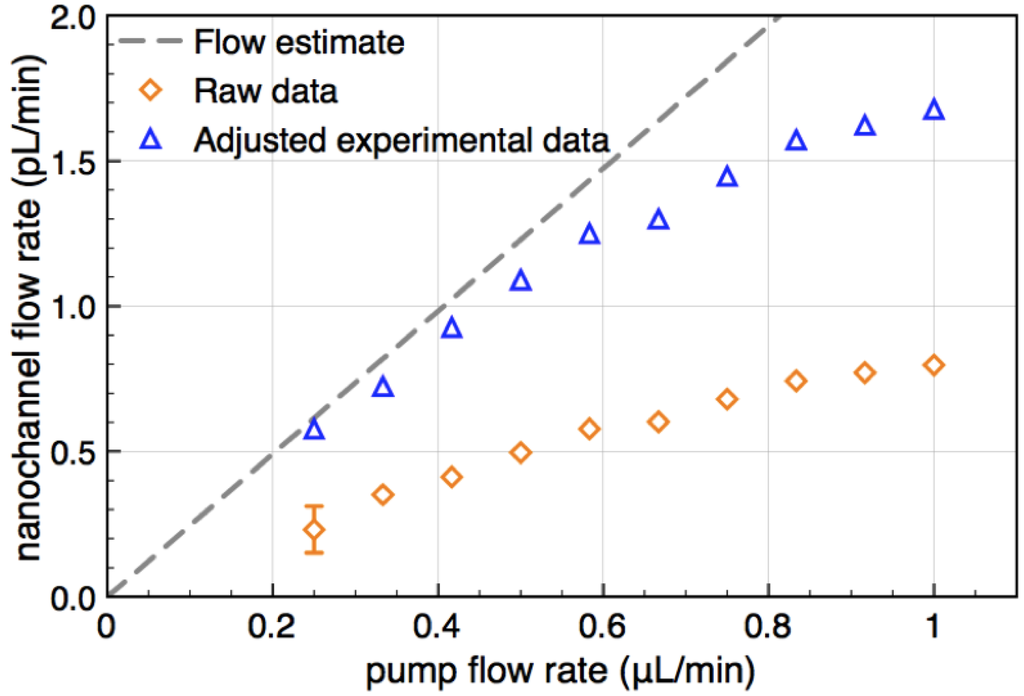

Figure 4. Nanofluidic flow rates as a function of syringe flow. The adjusted experimental data points are corrected for the shift of the peak times as well as for dynamic adsorption. The dashed line’s slope corresponds to the ratio of the micro- and nanochannels’ resistances of 1/400,000.

Click here to enlarge figure

Figure 4. Nanofluidic flow rates as a function of syringe flow. The adjusted experimental data points are corrected for the shift of the peak times as well as for dynamic adsorption. The dashed line’s slope corresponds to the ratio of the micro- and nanochannels’ resistances of 1/400,000.
Micromachines 04 00138 g004 1024

However, two effects need to be accounted for for a more accurate flow detection. First, due to the high surface-to-volume ratio of the nanochannel of 2 × 107 m−1, the Fc(MeOH)2 molecules undergo pronounced dynamic reversible adsorption at the electrodes and nanochannel walls, which slows down their average transport with respect to the fluid. We estimate the relative number of adsorbed molecules Micromachines 04 00138 i011 by stochastic chronoamperometry [8]. Its magnitude exhibits considerable scatter but amounts approximately to Micromachines 04 00138 i011 = 0.5, i.e., the molecules are slowed down to 50% of the mean liquid flow velocity.

Secondly, the increasing influence of diffusion shifts the cross-correlation peak time Micromachines 04 00138 i007 away from the actual times of flight for slow flow rates. That is, molecules travel faster into the subsequent detector by diffusion than by advection, so that Micromachines 04 00138 i007 becomes smaller than the time of flight. This shift is determined from the known analytical cross-correlation function (see below, [4]) and is shown in Figure 5a for the molecular diffusion coefficient D = 6.7 × 10−10 m2/s (green curve) and an adjusted effective Deff = 0.5 D, which takes into account the reduction of diffusive transport by the dynamic adsorption. In Figure 5b, this effect is exemplified by analytical cross-correlation functions with a constant time of flight of 4 s and flow rates ranging from 250 μm/s to 10 μm/s (and corresponding electrode lengths of 40 μm to 1000 μm with no gap in between.)

Nanochannel flow rates adjusted for both effects are shown as blue triangles in Figure 4. (The nonlinear decrease in nanochannel flow for higher pump flow rates is caused by PDMS bulging at high pressures [9].) We are able to detect flow rates below 1 pL/min, which is a factor of ten smaller compared to our previous measurements [4].

Micromachines 04 00138 g005 200

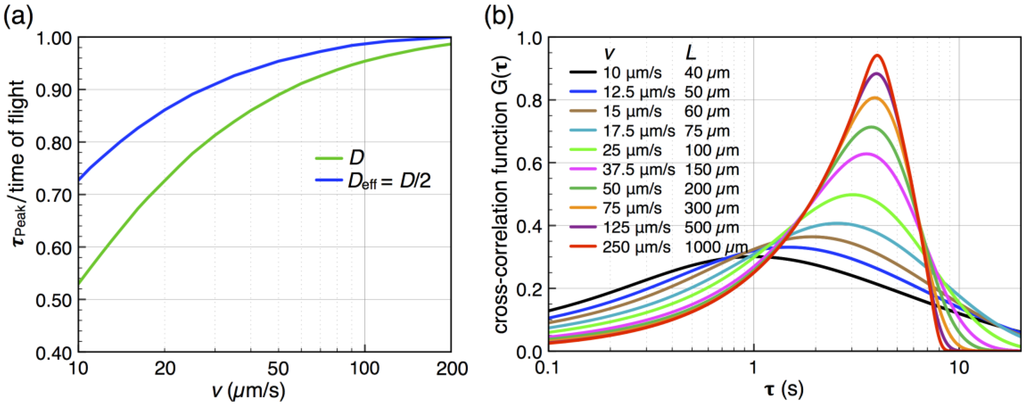

Figure 5. (a) Analytically determined deviation of the cross-correlation function’s peak time Micromachines 04 00138 i012 from the time of flight as a function of flow velocity. The blue curve is corrected for an effectively slower diffusion of the molecules due to dynamic adsorption. Experimental flow rates range from 15 μm/s to 50 μm/s. (b) Cross-correlation functions for a constant time of flight of 4 s but with different molecular velocities v (and corresponding different electrode lengths L or flight paths, respectively).

Click here to enlarge figure

Figure 5. (a) Analytically determined deviation of the cross-correlation function’s peak time Micromachines 04 00138 i012 from the time of flight as a function of flow velocity. The blue curve is corrected for an effectively slower diffusion of the molecules due to dynamic adsorption. Experimental flow rates range from 15 μm/s to 50 μm/s. (b) Cross-correlation functions for a constant time of flight of 4 s but with different molecular velocities v (and corresponding different electrode lengths L or flight paths, respectively).
Micromachines 04 00138 g005 1024

4.1. Detection Sensitivity

At low flow rates, the sensitivity in flow detection is ultimately limited by diffusive decay of the correlations during the time of flight. In particular, the flow velocity must satisfy Micromachines 04 00138 i013 for a pronounced cross-correlation peak to appear [4,10]; at lower flow rates, the signal becomes essentially indistinguishable from that for purely diffusive mass transport.

A second requirement for detection is a sufficiently high signal-to-noise ratio (SNR) of the cross-correlation function. The SNR has been analyzed in detail for Fluorescence Correlation Spectroscopy (FCS) and, because of the close relation between the two methods [4], this analysis is directly applicable here. For the case of a high number of molecules in the detection region and in the so-called molecular noise limit the SNR is given by [11,12].

Micromachines 04 00138 i014

Here Micromachines 04 00138 i015 is the duration of a current–time trace and Micromachines 04 00138 i016 is approximately the decay time of the correlations, i.e., the time of flight Micromachines 04 00138 i017 This expression for the SNR is valid for the limits Micromachines 04 00138 i018, where Micromachines 04 00138 i019 is the sampling interval. For the slowest flow reported here, the diffusive noise is not limiting since it still corresponds to SNR Micromachines 04 00138 i020 = 5.

The counterpart to the “Poisson noise limit” in FCS, in which shot noise in the photon count rate dominates the SNR [11,12], is not observed in electrical correlation spectroscopy. Due to the short (microseconds) diffusive shuttling time across the channel and slow (milliseconds) electronic response times, the number of electrons shuttled per measurement interval is always Micromachines 04 00138 i021.

For the high 1 mM analyte concentration with millions of molecules in the detection area, the influence of background noise on the current-time traces is negligible [4] and plays no significant role for the flow detection.

The increase in sensitivity is achieved for three reasons:

  • The nanochannel has a height of 55 nm instead of 130 nm. For the same average flow velocity, the flow rate is simply reduced by the smaller channel cross-section.

  • The length of each electrode is increased from 50 μm to 100 μm. As shown below (Figure 6), this increases the signal strength because the correlation in a longer plug of fluid takes more time to decay. However, a longer electrode also has the undesirable effect of decreasing the SNR according to Equation (2), Micromachines 04 00138 i022 ( Micromachines 04 00138 i015 𝑣/𝐿)1/2. For our measurement parameters (T > 100 s, v > 10 μm/s, L = 100 μm, SNR > 10), this is however not limiting.

  • Since our method relies on the detection of purely stochastic noise, sensitivity is increased by sampling traces with longer durations T. Our previous instrumentation (Keithley 6430 sub-femtoamp source meters) limited the current-time traces to a length of 25 s (at a fast Micromachines 04 00138 i019 = 100 s−1 acquisition rate). The instrumentation used here allowed extending the measurement period to up to 600 s at the same sampling interval. Therefore the traces are considerably longer than the decay time Micromachines 04 00138 i023 and the SNR is improved.

Diffusion sets the limit of the slowest resolvable velocity in the nanochannel to Micromachines 04 00138 i013. However, for our current setup, the sensitivity is ultimately limited by instrumental drift of the measured current of about 0.5% or 1 nA peak-to-peak, most likely caused by temperature drift. This external noise occurs on time scales of up to several 10’s of mHz and can be reduced by high-pass filtering (4th order Butterworth filter) with a f = 100 mHz cutoff frequency. The drift essentially prohibits detection of slower flow rates with corresponding times of flight longer than about 10 s. For longer times, the diffusion noise is lost in the instrumental drift, which occurs at the same time scales but exhibits a larger amplitude.

4.2. Geometric Design Rules

As derived in Reference [4] and in agreement with the experimental results, the cross-correlation function is given analytically by

Micromachines 04 00138 i024

Here, the upstream electrode is positioned at Micromachines 04 00138 i025, and the downstream electrode is located at Micromachines 04 00138 i026 Compared to expressing G as a function of one electrode length and a gap length in between the electrodes [4], the expression shown here more generally allows for asymmetric electrodes as well as ‘negative’ gap lengths, i.e., overlapping electrodes. In Figure 6, the impact of different electrode lengths on the shape of the cross-correlation function is shown for a mean flow velocity of v = 100 μm/s, D = 5 × 10−10 m2/s and no gap between the electrodes Micromachines 04 00138 i027. With increasing sensor length Micromachines 04 00138 i028 the magnitude of the peak in the correlation function increases, which is favorable. The position of the peak however simultaneously shifts to longer times. Therefore, increasing the detector length beyond several hundreds of μm will not deliver a more sensitive flow detection, since long times of flight are obscured by instrumental drift. Furthermore, the pressure necessary to drive a given flow increases linearly with the channel length and can then exceed 1 bar for a typical channel cross-section, which is often impractically high.

Micromachines 04 00138 g006 200

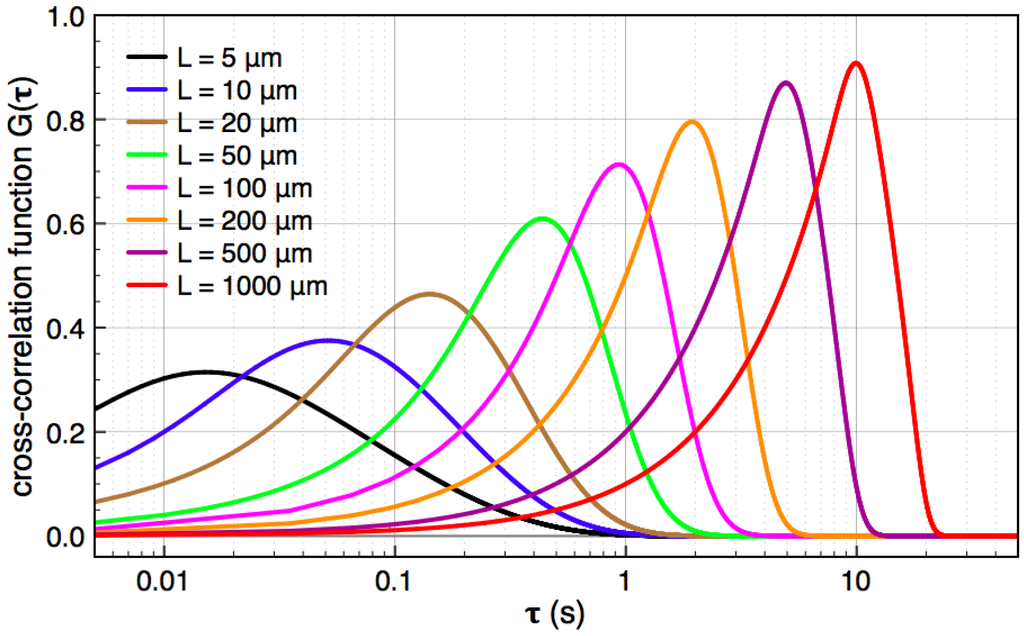

Figure 6. Analytical cross-correlations function as a function of electrode length L for symmetric transducers for a constant velocity v = 100 μm/s, D = 5 × 10−10 m2/s and no gap in between the consecutive sensors. The cross-correlation peaks are more pronounced with increasing L and shift to longer Micromachines 04 00138 i012.

Click here to enlarge figure

Figure 6. Analytical cross-correlations function as a function of electrode length L for symmetric transducers for a constant velocity v = 100 μm/s, D = 5 × 10−10 m2/s and no gap in between the consecutive sensors. The cross-correlation peaks are more pronounced with increasing L and shift to longer Micromachines 04 00138 i012.
Micromachines 04 00138 g006 1024

Increasing the distance between the two transducers leads to less pronounced cross-correlation peaks as the molecular number fluctuations have more time to decay diffusively during a longer flight. The influence of varying this gap is shown in Figure 7 for a flow rate of v = 100 μm/s and 100 μm long electrodes. The cross-correlation peak is most pronounced in the limit of a gap of Micromachines 04 00138 i031 0 μm (red curve). For longer flight paths, the influence of diffusion during a longer flight becomes more dominant and the peaks are shallower (orange curves).

Micromachines 04 00138 g007 200

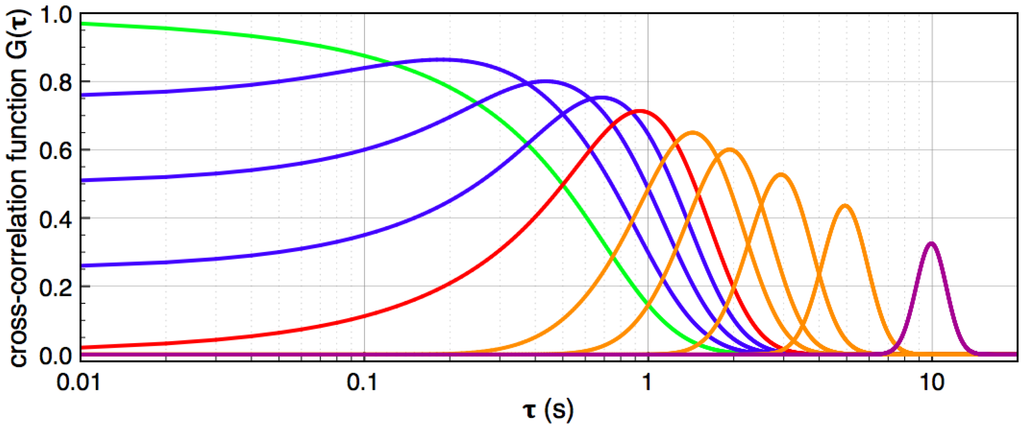

Figure 7. Analytical correlation functions for a varying separation distance L2 - L1 in between consecutive electrodes for v = 100 μm/s, D = 5 × 10−10 m2/s, Micromachines 04 00138 i033 100 μm. Green curve: Autocorrelation, which corresponds to L2 = 0; blue curves: intermediate auto-cross-correlation for a gap length L2 - L1 = −75 μm, −50 μm, −25 μm; red, orange, purple curves: cross-correlation with L2 - L1 = 0 μm…1000 μm.

Click here to enlarge figure

Figure 7. Analytical correlation functions for a varying separation distance L2 - L1 in between consecutive electrodes for v = 100 μm/s, D = 5 × 10−10 m2/s, Micromachines 04 00138 i033 100 μm. Green curve: Autocorrelation, which corresponds to L2 = 0; blue curves: intermediate auto-cross-correlation for a gap length L2 - L1 = −75 μm, −50 μm, −25 μm; red, orange, purple curves: cross-correlation with L2 - L1 = 0 μm…1000 μm.
Micromachines 04 00138 g007 1024

For completeness, we note that experimentally also overlapping detection areas (i.e., “negative gap lengths”) are feasible: To allow for redox cycling to take place, one transducer consists of two opposing electrodes. Since every molecule that is oxidized on one electrode will be reduced at the opposing one, the current-time traces of these electrodes are perfectly anticorrelated [13], and (anti-) cross-correlating these two traces is identical to determining the autocorrelation function (green curve) of just one trace [4,14]. Therefore, anti-correlating traces of only partially overlapping top- and bottom electrodes leads to correlation functions in between auto- and cross-correlation (blue curves). While these intermediate “anti-auto-cross-correlation” functions are not useful in themselves, we do see applications for asymmetric top and bottom electrodes in future experiments: By fabricating slightly longer electrodes at the downstream end of a transducer it is possible to insure that either only reduced or oxidized molecules leave the transducer instead of an equal mixture for a symmetric electrode pair. Also, if one electrode overlaps with two opposing electrodes and is kept floating electrically, an intermediate potential of the two opposing potentials is induced, thereby allowing for experiments analogous to induced-charge electrokinetics [15].

We finally note that, for sufficiently long gaps ( Micromachines 04 00138 i035 < Micromachines 04 00138 i036, purple curve in Figure 7), the cross-correlation functions exhibit a Gaussian shape, and Equation (3) reduces to

Micromachines 04 00138 i037
with a center-to-center distance Micromachines 04 00138 i038 for electrodes of equal length, a standard deviation of Micromachines 04 00138 i039 and a mean or time of flight of Micromachines 04 00138 i040 Such a long flight path between two detectors may allow the “chromatographical” discrimination of two different redox active species if they move at different velocities due to a difference in adsorption.

5. Conclusion and Outlook

We have used all-electrical cross-correlation spectroscopy of mesoscopic number fluctuations to detect record-low liquid flow rates below 1 pL/min in electrochemical nanogap sensors. This is comparable to the sensitivity recently achieved by the related method of determining the autocorrelation function of a single current-time trace as a function of flow in a 100 μm long and 50 nm high sensor [14].

We emphasize that the determined nanochannel flow rates are subject to error due to uncertainties in channel height, Micromachines 04 00138 i007, and adsorption. Thus, while detection in the sub-picoliter-per-minute range is possible, we do not claim a precision measurement in this regime.

Our method is the direct electrical analogue to optical fluorescence correlation spectroscopy [13]. Therefore we envision its application not exclusively for flow detection and have discussed the dependence of the correlation function on device geometry more generally. The method could become a tool to investigate properties of smallest quantities of analyte molecules such as adsorption, concentration or electrochemical reaction kinetics.

Acknowledgments

We gratefully acknowledge financial support from the Netherlands Organization for Scientific Research (NWO) and the European Research Council (ERC). We thank S. Kang for help with device fabrication and D. Mampallil for useful discussions.
