Article

Are We Underestimating Benthic Cyanotoxins? Extensive Sampling Results from Spain

1
Unidad Multidisciplinaria de Docencia e Investigación (UMDI), Facultad de Ciencias, Universidad Nacional Autónoma de México, Campus Juriquilla, C.P. Querétaro 76230, Mexico
2
Departamento de Biología Aplicada (Botánica), Facultad de Ciencias Experimentales, Universidad Miguel Hernández, Campus de Elche, E-03202 Alicante, Spain
3
Laboratorio de Algología, Departamento de Biología Vegetal, Facultad de Biología, Universidad de Murcia, Campus de Espinardo, E-30100 Murcia, Spain
*
Author to whom correspondence should be addressed.
Toxins 2017, 9(12), 385; https://doi.org/10.3390/toxins9120385
Submission received: 29 August 2017 / Revised: 22 November 2017 / Accepted: 23 November 2017 / Published: 28 November 2017
(This article belongs to the Special Issue Selected Papers from the 5th Iberoamerican Cyanotoxins Meeting)

Abstract

:
Microcystins (MCs) are potent hepatotoxins, and their presence in water bodies poses a threat to wildlife and human populations. Most of the available information refers to plankton, and much less is known about microcystins in other habitats. To broaden our understanding of the presence and environmental distribution of this group of toxins, we conducted extensive sampling throughout Spain, under a range of conditions and in distinct aquatic and terrestrial habitats. More than half of the tested strains were toxic; concentrations of the hepatotoxin were low compared with planktic communities, and the number of toxic variants identified in each sample of the Spanish strains ranged from 1–3. The presence of microcystins LF and LY (MC-LF and MC-LY) in the tested samples was significant, and ranged from 21.4% to 100% of the total microcystins per strain. These strains were only detected in cyanobacteria Oscillatoriales and Nostocales. We can report, for the first time, seven new species of microcystin producers in high mountain rivers and chasmoendolithic communities. This is the first report of these species in Geitlerinema and the confirmation of Anatoxin-a in Phormidium uncinatum. Our findings show that microcystins are widespread in all habitat types, including both aerophytic and endolithic peat bogs and that it is necessary to identify all the variants of microcystins in aquatic bodies as the commonest toxins sometimes represent a very low proportion of the total.

1. Introduction

Benthic cyanobacteria that produce microcystins (MCs) were first detected and characterised in communities in alpine lakes [1]. Since then, their presence in benthic communities in Spain [2,3], California [4], Egypt [5], Morocco [6,7], New Zealand [8], and other countries [9] has been reported. More recently, the presence of benthic cyanobacteria has been demonstrated in 30% of fordable rivers in California, and the number of potentially toxic genera has increased [10].
Foliaceus lichens of the genera Nephroma, Sticta, Lobaria, and Peltigera produce microcystins, including some new variants [11,12]. All these lichens contain the cyanobacteria Nostoc as a phycosymbiont. Some Nostocs found outside of lichens can also produce MCs [13], and their capacity to do so has been connected to stress conditions. However, no toxins have been detected in Nostoc commune var. flagelliforme Bornet and Flahault, which is common in desert regions, and is frequently consumed as food in countries such as China [14].
Van Apeldoorn et al. [15] reported a total of 40 toxic genera of benthic cyanobacteria, but the number has increased since that report [16]. However, most efforts to study these bacteria have focused on studying planktic communities, lakes, and reservoirs.
Aside from their toxicity to humans, the actual role of microcystins in the environment is not completely understood, in either planktic or benthic algal communities [17]. There is a large body of literature about the toxic effects of microcystins on angiosperms, fungi, bacteria, animals, and algae, but much more has to be done in order to elucidate this complex issue. These compounds interfere with biological processes that are necessary for the survival of organisms. They are potent inhibitors of certain essential protein phosphatases (PP1 and PP2) for all eukaryotes [18,19], and affect microalgae growth [20]. However, the promotion or suppression of photosynthesis has also been observed in several types of benthic algae, including diatoms [21], which are the food preferred by many herbivores. Microcystins may also inhibit the proteases employed in the digestion of heterotrophs [22], and evidence suggests that their presence in water may cause histological degeneration in macroinvertebrates, although the survival ratios are relatively high below 5 ppb of MC-LR and MC-LW [23]. Toxins may also accumulate in fish tissue, and pathological effects have been studied extensively [24,25].
In recent years, the frequency of what have, until now, been considered rare variants of microcystins (Figure 1) has been confirmed in several countries, using a variety of methods [26,27,28,29,30]. Molecular tools have advanced considerably in the last few years, but quantitative methods are still not adequate for detecting toxicity. In most cases, the relationship between gene expression and toxin production is not yet sufficiently understood [31]. Most environmental agencies recommend using different complementary methodologies to detect and quantify microcystins [18].
Benthic toxicity was initially related to Oscillatoriales and Anatoxin-a [32,33]. However, it seems that these toxins are not as prevalent as originally thought, at least in some countries or geographical areas [34]. Some species of cyanobacteria may produce both microcystins and Anatoxin-a at the same time [35,36], although most studies focus on only one type of toxin at a time. Anatoxin-a (ANT-a) is a neurotoxic alkaloid, which is an agonist at neuronal nicotinic acetylcholine receptors [37,38].
In this study, extensive sampling was performed throughout Spain, along an environmental gradient that focused especially on benthic aquatic systems, including aerophytic and endolithic habitats, in an attempt to broaden the perception of the environmental presence of cyanotoxins.

2. Results

Different habitats were sampled throughout Spain, from both Atlantic and Mediterranean regions. These habitats were high mountain streams or creeks of the Pyrenees and Sierra Nevada mountains, peat bogs from the Pyrenees, middle mountain streams from northeast and southeast Spain and the Canary Islands, saline and freshwater lagoons from northwest Spain, saline and freshwater springs from Mediterranean marshes, and a cave and building located in the southeast (Figure 2, Table 1).
Most areas were granitic, but others were calcareous. Most of the samples contained freshwater, but some had saline water. The range of altitudes varied from 5 m to 2500 m above sea level. Rainfall ranged between <200 mm and 1843 mm. The mean air temperature was between 5 and 22.5 °C. Conductivity varied between 61.6 and 2850 μScm−1, with pH between 7 and 8.5 (Figure 3).
Toxic species were detected in all the sampled habitats, including both aerophytic and endolithic species (Figure 4). The proportion of toxic strains varied between 28% and 100% of all the strains studied. Table 2 below lists all the isolated and extracted species.
Eleven of the 24 analysed strains contained microcystin. The proportion of toxic strains to non-toxic strains was similar for different taxonomic orders of cyanobacteria, and varied between 50% and 70%: 50% in Chroococcales, 60% in Oscillatoriales and 67% in Nostocales (Figure 5).
The number of microcystin variants detected per strain varied between one and three (Table 3). MC-RR was the most common microcystin in all of the studied strains (39%), followed by MC-LY (28%) and MC-LF (17%).The least common microcystins were MC-LR (11%) and MC-YR (5%) (Figure 6).
MC-LR reached the highest concentration per dry weight (1.87 μg/g), followed by MC-LY (1.72 μg/g), while MC-RR (1.36 μg/g), MC-YR (0.78 μg/g), and MC-LF (0.37 μg/g) were less concentrated. Anatoxin-a reached the highest concentration of all the toxins (2.63 μg/g), and was present in three strains from Oscillatoriales (Table 3, Figure 7).

3. Discussion

The ability to synthesise microcystins appeared very early in the evolution of cyanobacteria [39], but has been lost in certain phylogenetic branches over time. Most toxin screening efforts have been made in freshwater aquatic habitats, mainly lagoons and reservoirs. Running water, salt water, high mountains, peat bogs and aerophytic habitats (except for lichens) have been very rarely sampled [9,40].
In this work, microcystins were detected for the first time in seven species, found in high mountain streams, caves and endolithic habitats: Pseudocapsa dubia, Gloeotrichia natans, Scytonema drilosiphon, Geitlerinema carotinum, Oscillatoria margaritifera, Pseudanabaena frigida, and Schizothrix rivularianum (Figure 8). Anatoxin-a production was confirmed in Phormidium uncinatum, and was detected for the first time in Geitlerinema carotinum and G. splendidum.
The focus on freshwater environments is justified by the potential human health risks that the presence of microcystins may present for local populations [41]. However, since neither the factors that trigger the synthesis of these compounds nor their ecological function are known, significant further research must be conducted in all habitats and phylogenetic branches [17,42].
During the present study, we detected toxic strains in all of the studied habitats, which implies the need for more extensive reviews of the data from both the taxonomic and ecologic points of view. Our data showed that the frequency of microcystin producers was higher in Nostocales, although we found a similar proportion in Chroococales and Oscillatoriales. These data are similar to those found in other studies published elsewhere [15].
In most strains, more than one microcystin congener was detected. Interestingly, some of the most abundant congeners were those not considered to be particularly common. In particular, MC-LF and MC-LY were detected fairly frequently, and at relatively high concentrations. Even though these supposedly rare variants have probably always been present, they have only recently been widely reported [10,27] perhaps due to improved extraction and detection methods. These cogeners should be included in monitoring programmes, especially taking into account that the toxic capacity of the more hydrophobic variants such as MC-LF and MC-LY is sometimes much higher than MC-LR [22], which is typically used for risks assessments. The use of solid-phase extraction (SPE), coupled with immunoaffinity columns (IACs), improves the efficiency of extraction and clean-up of microcystins, especially in complex matrices [15]. The effects of exposure to MC-LF and MC-LW on the degradation, growth and proliferation of human cells is much higher than on the cells exposed to MC-LR, but phosphatase inhibition is much lower [22]. The toxicity of microcystin variants is strongly associated with the hydrophobicity of their structural amino acids. MC-LF and MC-LW therefore induce more pronounced cytotoxic effects on Caco-2 cells compared with MC-LR, and are taken up much more rapidly, or with a higher affinity, by human embryonic kidney cells and human primary hepatocytes [43,44].
Interest in algae as a food supplement has considerably increased of late. A new market has opened up for these products, which has the potential for vast economic benefits. Aquaculture has also undergone similar or even stronger growth, with the global yearly production of thousands of tons of fish and shellfish. However, no clear regulation or legislation exists for these products in most countries. Several authors have reported the presence of microcystins in food supplement products [45], as well as in fishponds and fish [26], but very little information and very few studied effects on consumer health are known. Increasing efforts to improve research in this field are needed by companies that prepare these products, not to mention by environmental agencies, countries, and governments, in order to create international regulations for blue-green algae supplements (BGAS), given their strong potential impact on populations’ health. Above all, international regulation is necessary, because BGAS is now available and easily sold on the internet, which increases possible risks worldwide.
Different types of quantification and detection kits are available, but the effectiveness for these “rare” variants is very low in some cases [38]. The use of several complementary identification or quantification methods should be compulsory, and the utilisation of biological tests based on phosphatase inhibition as the first step should be emphasised. These functional toxicity assays permit the detection of toxicants that may escape standard analytical detection [46,47,48]. Ward et al. [18] have already suggested that most strains usually produce more than one variant, and that the concentrations of some variants might drop below the level of detection for chemical methods, and could thus escape analytical control. Puddick et al. [49] provides an assessment of the microcystin congener diversity produced amongst cyanobacterial strains.
Climate warming will probably increase problems with cyanotoxins [42,43]. Thus, much work has to be done, in order to know how to prevent toxic events, how to avoid the conditions that promote their synthesis, and how to control cyanobacteria populations [50]. This is particularly important, as more hydrophobic variants will increase their predominance, given the current and future predicted atmospheric and environmental conditions [50,51,52].
Our data show that microcystins are widespread, in a variety of continental habitats, including high mountain streams, peat bogs, and aerophytic and endolithic communities. The results from our study demonstrate how important it is that screening for variants be intensified and globally managed, in order to prevent sanitary and environmental problems. Cyanotoxin-monitoring programmes worldwide should be revised to include a wider range of toxin variants (as has been done in some countries), or to initially test toxins according to “in vitro” toxicity assays, such as protein phosphatase inhibition.

4. Materials and Methods

4.1. Study Area

Extensive sampling was performed throughout Spain (including the Canary Islands), from high mountain streams, such as those in the Pyrenees and Sierra Nevada mountains, medium and low mountain streams in the southeast, freshwater and saltwater springs from Mediterranean marshes, lagoons within Atlantic marshes, caves, and buildings. Most strains lived epilithically, but some were epipelic, and others were endolithic (chasmo or euendolithic) (Table 1).

4.2. Culturing

All the collected samples were isolated in different culture media (Bold’s Basal Medium with soil extract, BG-11 for freshwater or aerophytic strains, and SWES for saltwater species) and maintained as monoclonal cultures in the Algology Laboratory at Murcia University. Strains were transferred to 500-mL flasks, and were maintained with BG-11 in aeration at 20 °C and 65–70 μM m−2 s−1 (PAR), in a 16:8 light-dark photoperiod, until enough biomass was obtained for the later analyses (25–1000 mg). The incubation period varied from 2 weeks to 2 months, depending on growth rates. Biomass was collected by filtration and was lyophilised, weighed, and kept frozen (−20 °C) until analysed [26]. The analysis was done 1 week after collection.

4.3. Taxonomic Identification

The monoclonal cultures were identified taxonomically by standard algological techniques under an OLYMPUS BX60 light microscope (OLYMPUS IBERIA S.A.U., Barcelona, Spain), equipped with a digital camera (OLYMPUS IBERIA S.A.U., Barcelona, Spain), following [53,54,55]. Comparisons were made with the preserved field material whenever necessary.

4.4. Microcystin Extraction and Quantification

Freeze-dried and weighed biomass was ground with ground-glass homogenizers. Microcystins were extracted by sonicating for 30 min with 75% methanol, following the protocols of [36,37,48,52,56]. Cycles were repeated three times. Extracts were kept frozen (−20 °C), and were then concentrated in a Büchi Vac® V-500 vacuum dryer (BÜCHI Labortechnik AG, Postfach, Switzerland) and re-suspended in methanol for three cycles. Dried extracts were re-suspended in 1 mL of HPLC grade methanol, transferred to a 1.5-mL vial, and centrifuged in a Spectrafuge 24D microcentrifuge by Labnet International Inc. (Edison, New York, NY, USA) at 16 g for 5 min [26]. The resultant extracts were filtered through a regenerated 0.45 μm cellulose filter (Filter-Lab®, Eaton Filtration LLC, Tinton Falls, NJ, USA) and kept frozen until analysed [26]. Extracts were collected with a 4¾ inch-long hypodermic needle (B/Braun Sterican®, B Braun España, Barcelona, Spain) attached to a 1-mL polypropylene syringe (BD PlastipakTM, BD, Madrid, Spain) and placed inside 1.8 amber phials (Scharlab S.L., Barcelona, Spain).
The identification and quantification of microcystins were performed by HPLC in a high-resolution photodiode array detection analysis, using a HPLC-VWR Hitachi equipped with an L-2130 Diode Array model L-2455, following the recommendations of [27,45,46,48]. Analytes were separated in a reverse-phase Agilent silicon Zorbax column C18 (4.6 × 250 mm × 5µm). The gradient mobile phase was composed of water and acetonitrile (ACN), and was acidified with trifluoroacetic acid (TFA) (0.5 μL L−1). The flow rate was 1 mL min−1 and the injection volume was 20 μL. The results were confirmed by HPLC/MS TOF (Agilent 6220, Agilent Technologies Spain S.L, Madrid, Spain).
The Anatoxin-a was extracted following the recommendations of [35,36], and was identified and quantified by HPLC photodiode array detection (Hitachi, Barcelona, Spain) and HPLC/MS (Agilent Technologies Spain S.L, Madrid, Spain).

4.5. Chemicals

All the reagents were HPLC-grade and purchased from Sigma-Aldrich (St. Louis, MO, USA). The ultrapure grade water (Milli-Q water) came from the Millipore Corporate (Bedford, MA, USA). The standards of microcystins (MC-LF, MC-LR, MC-LY, MC-RR, MC-YR) and Anatoxin-a were obtained from Enzo Life Sciences (Farmingdale, NY, USA).

Acknowledgements

The PASPA-DGAPA-UNAM programme supported the sabbatical stay of the first author. Thanks are due to the Department of Plant Biology of Murcia University for allowing us to use its facilities. We thank Mª Ángeles Caravaca (Departamento de Biología Vegetal-UM), Mª del Mar Santiago and Almudena Gutiérrez (Servicio de Experimentación Agroforestal, SEAF-UM), Mª Dolores Pardo and José Rodríguez (Servicio de Instrumentación Científica, SUIC-UM) and Juana García (Servicio de Cultivo de Tejidos, SCT-UM) for technical support in the different steps of this work. Mª Dolores Belando Torrentes helped with graphic work. This text has been proofread by Helen Warburton, (H & A), Valencia, Spain.

Author Contributions

M.A. conceived and designed the sampling and the experiments; E.A.C. and A.D.A. performed the experiments; M.A., E.A.C. and A.D.A. analysed the data; M.A. wrote the paper. All the authors contributed to the general discussion, revision, and manuscript editing.

Conflicts of Interest

The authors declare no conflict of interest with the research, authorship and/or publication of this article.

References

  1. Mez, K.; Beattie, K.; Codd, G.A.; Hanselmann, K.; Hauser, B.; Naegeli, H.; Preisig, H. Identification of a microcystin in benthic cyanobacteria linked to cattle deaths on alpine pastures in Switzerland. Eur. J. Phycol. 1997, 32, 111–117. [Google Scholar] [CrossRef]
  2. Aboal, M.; Puig, M.A. Intracellular and dissolved microcystin in reservoirs of the river Segura basin, Murcia, SE Spain. Toxicon 2005, 45, 509–518. [Google Scholar] [CrossRef] [PubMed]
  3. Aboal, M.; Puig, M.A.; Asencio, A.D. Production of microcystins in calcareous Mediterranean streams: The Alharabe River, Segura River basin in south-east Spain. J. Appl. Phycol. 2005, 17, 231–243. [Google Scholar] [CrossRef]
  4. Izaguirre, G.; Jungblut, A.D.; Neilan, B.A. Benthic cyanobacteria (Oscillatoriaceae) that produce microcystin-LR, isolated from four reservoirs in southern California. Water Res. 2007, 41, 492–498. [Google Scholar] [CrossRef] [PubMed]
  5. Mohamed, Z.A.; El-Sharouny, H.M.; Ali, W.S.M. Microcystin production in benthic mats of cyanobacteria in the Nile River and irrigation canals, Egypt. Toxicon 2006, 47, 584–590. [Google Scholar] [CrossRef] [PubMed]
  6. Oudra, B.; Dadi-El Andaloussi, M.; Vasconcelos, V.M. Identification and quantification of microcystins from Nostoc muscorum bloom occurring in Oukaïmeden River (High-Atlas mountains of Marrakech, Morocco). Environ. Monit. Asess. 2009, 149, 437–444. [Google Scholar] [CrossRef] [PubMed]
  7. Douma, M.; Loudiki, M.; Oudra, B.; Mouhri, K.; Ouahid, Y.; del Campo, F. Taxonomic diversity and toxicological assessment of Cyanobacteria in Moroccan inland waters. Revue des Sciences de l’eau 2017, 223, 435–449. [Google Scholar] [CrossRef]
  8. Wood, S.A.; Heath, M.W.; Holland, P.T.; Munday, R.; McGregor, G.B.; Ryan, K.G. Identification of a benthic microcystin-producing filamentous cyanobacterium (Oscillatoriales) associated with a dog poisoning in New Zealand. Toxicon 2010, 55, 897–903. [Google Scholar] [CrossRef] [PubMed]
  9. Aboal, M. Benthic microcystin and climatic change. In Stress Biology of Cyanobacteria. Molecular Mechanisms to Cellular Responses; Srivastava, A.K., Rai, A.N., Neilan, B., Eds.; CRC Press: Boca Raton, FL, USA, 2013; Chapter 17; pp. 321–340. [Google Scholar]
  10. Fetscher, A.E.; Howard, M.D.A.; Stancheva, R.; Kudela, R.M.; Stein, E.D.; Sutula, M.A.; Busse, L.B.; Sheath, R.G. Wadeable streams as widespread sources of benthic cyanotoxins in California, USA. Harmful Algae 2015, 49, 105–116. [Google Scholar] [CrossRef]
  11. Oksanen, I.; Jokela, J.; Fewer, D.P.; Wahlsten, M.; Rikkinen, J.; Sivonen, K. Discovery of rare and highly toxic microcystins from lichen-associated cyanobacterium Nostoc sp. strain IO-102-I. Appl. Environ. Microbiol. 2004, 70, 5756–5763. [Google Scholar] [CrossRef] [PubMed]
  12. Kaasalainen, U.; Fewer, D.P.; Jokela, J.; Wahlsten, M.; Sivonen, K.; Rikkinen, J. Cyanobacteria produce a high variety of hepatotoxic peptides in lichen symbiosis. Proc. Natl. Acad. Sci. USA 2012, 109, 5886–5891. [Google Scholar] [CrossRef] [PubMed]
  13. Kurmayer, R. The toxic cyanobacterium Nostoc sp. strain 152 produces highest amounts of microcystin and nostophycin under stress conditions. J. Phycol. 2010, 47, 200–207. [Google Scholar] [CrossRef] [PubMed]
  14. Takenaka, H.; Yamaguchi, Y.; Sakaki, S.; Watarai, K.; Tanaka, N.; Hori, M.; Seki, H.; Tsuchida, M.; Yamada, A.; Nishimori, T.; et al. Safety evaluation of Nostoc flagelliforme (Nostocales, Cyanophyceae) as a potential food. Food Chem. Toxicol. 1998, 36, 1073–1077. [Google Scholar] [CrossRef]
  15. Van Apeldoorn, M.E.; van Egmond, H.P.; Speijers, G.J.A.; Bakker, G.J.I. Toxins of cyanobacteria. Mol. Nutr. Food Res. 2007, 51, 7–60. [Google Scholar] [CrossRef] [PubMed]
  16. Borges, H.L.F.; Branco, L.H.Z.; Martins, M.D.; Lima, C.S.; Barbosa, P.T.; Lira, G.A.S.T.; Bittencourt-Oliveira, M.C.; Molica, R.J.R. Cyanotoxin production and phylogeny of benthic cyanobacterial strains isolated from the northeast of Brazil. Harmful Algae 2015, 43, 46–57. [Google Scholar] [CrossRef]
  17. Omidi, A.; Esterhuizen-Londt, M.; Pflugmacher, S. Still challenging the ecological function of the cyanobacterial toxin microcystin- What we know so far. Toxin Rev. 2017. [Google Scholar] [CrossRef]
  18. Ward, C.J.; Beattie, K.A.; Lee, E.Y.C.; Codd, G.A. Colorimetric protein phosphatase inhibition assay of laboratory strains and natural blooms of cyanobacteria: Comparisons with high-performance liquid chromatographic analysis of microcystins. FEMS Microbiol. Lett. 1997, 153, 465–473. [Google Scholar] [CrossRef] [PubMed]
  19. Shi, Y. Serine/Threonine phosphatases: Mechanism through structure. Cell 2009, 139, 468–484. [Google Scholar] [CrossRef] [PubMed]
  20. Valdor, R.; Aboal, M. Effects of living cyanobacteria, cyanobacterial extracts and pure microcystins on growth and ultrastructure of microalgae and bacteria. Toxicon 2006, 49, 769–779. [Google Scholar] [CrossRef] [PubMed]
  21. García-Espín, L.; Cantoral, E.A.; Asencio, A.D.; Aboal, M. Microcystins and cyanophyte extracts inhibit or promote the photosynthesis of fluvial algae. Ecological and management implications. Ecotoxicology 2017, 26, 658–666. [Google Scholar] [CrossRef] [PubMed]
  22. Vesterkvist, P.S.M.; Misiorek, J.O.; Spoof, L.E.M.; Toivola, D.M.; Meriluoto, J.A.O. Comparative cellular toxicity of hydrophilic and hydrophobic microcystins on Caco-2 cells. Toxins 2012, 4, 1008–1023. [Google Scholar] [CrossRef] [PubMed]
  23. Liarte, S.; Ubero-Pascal, N.; García-Ayala, A.; Puig, M.A. Histological effects and localization of dissolved microcystins LR and LW in the mayfly Ecdyonurus angelieri Thomas (Insecta, Ephemeroptera). Toxicon 2014, 92, 31–35. [Google Scholar] [CrossRef] [PubMed]
  24. El Ghazali, I.; Saqrane, S.; Carvalho, A.P.; Ouahid, Y.; del Campo, F.; Oudra, B.; Vasconcelos, V. Effect of different microcystin profiles on toxin bioaccumulation in common carp (Cyprinus carpio) larvae via Artemia nauplii. Ecotox. Environ. Saf. 2010, 73, 762–770. [Google Scholar] [CrossRef] [PubMed]
  25. Trinchet, I.; Djediat, C.; Huet, H.; Puiseux Dao, S.; Edery, M. Pathological modifications following sub-chronic exposure of medaka fish (Oryzias latipes) to microcystin-LR. Reprod. Toxicol. 2011, 32, 329–340. [Google Scholar] [CrossRef] [PubMed]
  26. Drobac, D.; Tokodi, N.; Lujic, J.; Matinovic, Z.; Subakov-Simic, G.; Dulic, T.; Vazic, T.; Nybom, S.; Meriluoto, J.; Codd, G.A.; et al. Cyanobacteria and cyanotoxins in fishponds and their effects on fish tissue. Harmful Algae 2016, 55, 66–76. [Google Scholar] [CrossRef] [PubMed]
  27. Faassen, E.J.; Lürling, M. Occurrence of the microcystins MC-LW and MC-LF in Dutch surface waters and their contribution to total microcystin toxicity. Mar. Drugs 2013, 11, 2643–2654. [Google Scholar] [CrossRef] [PubMed]
  28. Paldavicienè, A.; Mazur-Marzec, H.; Razinkovas, A. Toxic cyanobacteria blooms in the Lithuanian part of the Curonian Lagoon. Oceanologia 2009, 51, 203–216. [Google Scholar] [CrossRef]
  29. Bittencourt-Oliveira, M.C.; Oliveira, M.C.; Pinto, E. Diversity of microcystin-producing genotypes in Brazilian strains of Microcystis (cyanobacteria). Braz. J. Biol. 2011, 71, 209–216. [Google Scholar] [CrossRef] [PubMed]
  30. Hindle, R.; Zhang, X.; Kinniburgh, D. Identification of Unknown Microcystins in Alberta Lake Water; Agilent Technologies: Santa Clara, CA, USA, 2014. [Google Scholar]
  31. Beversdorf, L.J.; Chaston, S.D.; Miller, T.R.; McMahon, K.D. Microcystin mcyA and mcyE gene abundances are not appropriate indicators of microcystin concentrations in lakes. PLoS ONE 2015, 10, e0125353. [Google Scholar] [CrossRef] [PubMed]
  32. Edwards, C.; Beattie, K.A.; Scrimgeour, C.M.; Codd, G.A. Identification of anatoxin-A in benthic cyanobacteria (blue-green algae) and in associated dog poisonings at Loch Insh, Scotland. Toxicon 1992, 30, 1165–1175. [Google Scholar] [CrossRef]
  33. Gugger, M.; Lenoir, S.; Berger, C.; Ledreux, A.; Druaf, J.C.; Humbert, J.F.; Guette, C.; Bernard, C. First report in a river in France of the benthic cyanobacterium Phormidium favosum producing anatoxin-a associated with dog neurotoxicosis. Toxicon 2005, 45, 919–928. [Google Scholar] [CrossRef] [PubMed]
  34. Carrasco, D.; Moreno, E.; Paniagua, T.; de Hoyos, C.; Wormer, L.; Sanchís, D.; Cirés, S.; Martín-del-Pozo, D.; Codd, G.A.; Quesada, A. Anatoxin-a occurrence and potential cyanobacterial anatoxin-a producers in Spanish reservoirs. J. Phycol. 2007, 43, 1120–1125. [Google Scholar] [CrossRef]
  35. Park, H.D.; Watanabe, M.F.; Harda, K.; Nagal, H.; Suzuki, M.; Watanabe, M.; Hayashi, H. Hepatotoxin (microcystin) and neurotoxin (anatoxin-a) contained in natural blooms and strains of cyanobacteria from Japanese freshwaters. Nat. Toxins 1993, 1, 353–360. [Google Scholar] [CrossRef] [PubMed]
  36. Chrapusta, E.; Wegrzyn, M.; Zabagio, K.; Kaminski, A.; Adamski, M.; Wietrzyk, P.; Bialczyk, J. Microcystins and anatoxin-a in Arctic biocrust cyanobacterial communities. Toxicon 2015, 101, 35–40. [Google Scholar] [CrossRef] [PubMed]
  37. Chorus, I.; Bartram, J. (Eds.) Toxic Cyanobacteria in Water. A Guide to Their Public Health Consequences, Monitoring and Management; E & FN Spon: London, UK, 2001; pp. 15–40. [Google Scholar] [CrossRef]
  38. Metcalf, J.S.; Codd, G.A. Cyanotoxins. In Ecology of Cyanobacteria II: Their Diversity in Space and Time; Whitton, B.A., Ed.; Springer: Dordrecht, The Netherlands, 2012; pp. 651–670. [Google Scholar]
  39. Rantala, A.; Fewer, D.P.; Hisbergues, M.; Rouhiainen, L.; Vaitomaa, J.; Börner, T. Phylogenetic evidence for the early evolution of microcystin synthesis. Proc. Natl. Acad. Sci. USA 2004, 101, 568–573. [Google Scholar] [CrossRef] [PubMed]
  40. Botana, L.M.; Louzao, C.; Vilariño, N. (Eds.) Climate Change and Marine and Freshwater Toxins; De Greyter: Berlin, Germany, 2015. [Google Scholar]
  41. Codd, G.A.; Bell, S.G.; Kaya, K.; Ward, C.J.; Beattie, K.A.; Metcalf, J.S. Cyanobacterial toxins, exposure routes and human health. Eur. J. Phycol. 1999, 34, 405–415. [Google Scholar] [CrossRef]
  42. Boopathi, T.; Ki, J.-S. Impact of environmental factors on the regulation of cyanotoxin production. Toxins 2014, 6, 1951–1978. [Google Scholar] [CrossRef] [PubMed]
  43. Liu, J.; Van Oosterhout, E.; Faassen, E.J.; Lürling, M.; Helmsing, N.R.; van de Waal, D.B. Elevated pCO2 causes a shift towards more toxic microcystin variants in nitrogen-limited Microcystis aeruginosa. FEMS Microb. Ecol. 2016, 92. [Google Scholar] [CrossRef] [PubMed]
  44. Fischer, A.; Hoeger, S.J.; Stemmer, K.; Feurstein, D.J.; Knobeloch, D.; Nussler, A.; Dietrich, D.R. The role of organic transporting polypeptides (OATPs/SLCOs) in the toxicity of different congeners in vitro: A comparison of primary human hepatocytes and OATP-transfected HEK 293 cells. Toxicol. Appl. Pharmacol. 2010, 245, 9–20. [Google Scholar] [CrossRef] [PubMed]
  45. Vichi, S.; Lavarini, P.; Funari, E.; Scardala, S.; Testai, E. Contamination by Microcystis and microcystins of blue-green algae food supplements (BGAS) on the Italian market and possible risk for the exposed population. Food Chem. Toxicol. 2012, 50, 4493–4499. [Google Scholar] [CrossRef] [PubMed]
  46. Aranda-Rodriguez, R.; Jin, Z.; Harvie, J.; Cabecinha, A. Evaluation of three field test kits to detect microcystins from public health perspective. Harmful Algae 2015, 42, 34–42. [Google Scholar] [CrossRef]
  47. Moore, C.E.; Juan, J.; Lin, Y.; Gaskill, C.L.; Puschner, B. Comparison of protein phosphatase inhibition assay with LC-MS/MS for diagnosis of microcystin toxicosis in veterinary cases. Mar. Drugs 2016, 14, 54. [Google Scholar] [CrossRef] [PubMed]
  48. Meriluoto, J.; Codd, G.A. (Eds.) Toxic Cyanobacterial Monitoring and Cyanotoxin Analysis; Åbo Akademis Förlag—Åbo Akademi University Press: Åbo, Finland, 2005. [Google Scholar]
  49. Puddick, J.; Prinsep, M.R.; Wood, S.A.; Kaufononga, S.A.F.; Cary, S.C.; Hamilton, D.P. High levels of structural diversity observed in microcystins from Microcystis CAWBG11 and characterization of six new microcystin congeners. Mar. Drugs 2014, 12, 5372–5395. [Google Scholar] [CrossRef] [PubMed]
  50. Quiblier, C.; Wood, S.; Echenique-Subiabre, I.; Heath, M.; Villeneuve, A.; Humbert, J.F. A review of current knowledge on toxic benthic freshwater cyanobacteria—Ecology, toxin production and risk management. Water Res. 2013, 47, 5464–5479. [Google Scholar] [CrossRef]
  51. Wood, S.A.; Maier, M.Y.; Puddick, J.; Pochon, X.; Zaiko, A.; Dietrich, D.R.; Hamilton, D.P. Trophic state and geographic gradients influence planktonic cyanobacterial diversity and distribution in New Zealand lakes. FEMS Microbiol. Ecol. 2017, 93. [Google Scholar] [CrossRef] [PubMed]
  52. Barco, M.; Lawton, L.A.; Rivera, J.; Caixach, J. Optimization of intracellular microcystin extraction for the subsequent analysis by high-performance liquid chromatography. J. Chromatogr. A 2005, 1074, 23–30. [Google Scholar] [CrossRef] [PubMed]
  53. Komárek, J.; Anagnostidis, K. Cyanoprokaryota-1. Teil: Chroococcales. In Süsswasserflora von Mitteleuropa 19/1; Ettl, H., Gärtner, G., Heynig, H., Mollenhauer, D., Eds.; Elsevier/Spektrum: Heidelberg, Germany, 1998; p. 548. [Google Scholar]
  54. Komárek, J.; Anagnostidis, K. Cyanoprokaryota-2. Teil: Oscillatoriales. In Süsswasserflora von Mitteleuropa 19/2; Büdel, B., Krienitz, L., Gärtner, G., Schagerl, M., Eds.; Elsevier/Spektrum: Heidelberg, Germany, 2007; p. 759. [Google Scholar]
  55. Komárek, J. Cyanoprokaryota-3. Heterocystous genera. In Süsswasserflora von Mitteleuropa 19/3; Büdel, B., Krienitz, L., Gärtner, G., Schagerl, M., Eds.; Elsevier/Spektrum: Heidelberg, Germany, 2013; p. 1087. [Google Scholar]
  56. Gjolme, N.; Utkilen, H. The extraction and the stability of microcystin-RR in different solvents. Phycologia 1996, 35, 80–82. [Google Scholar] [CrossRef]

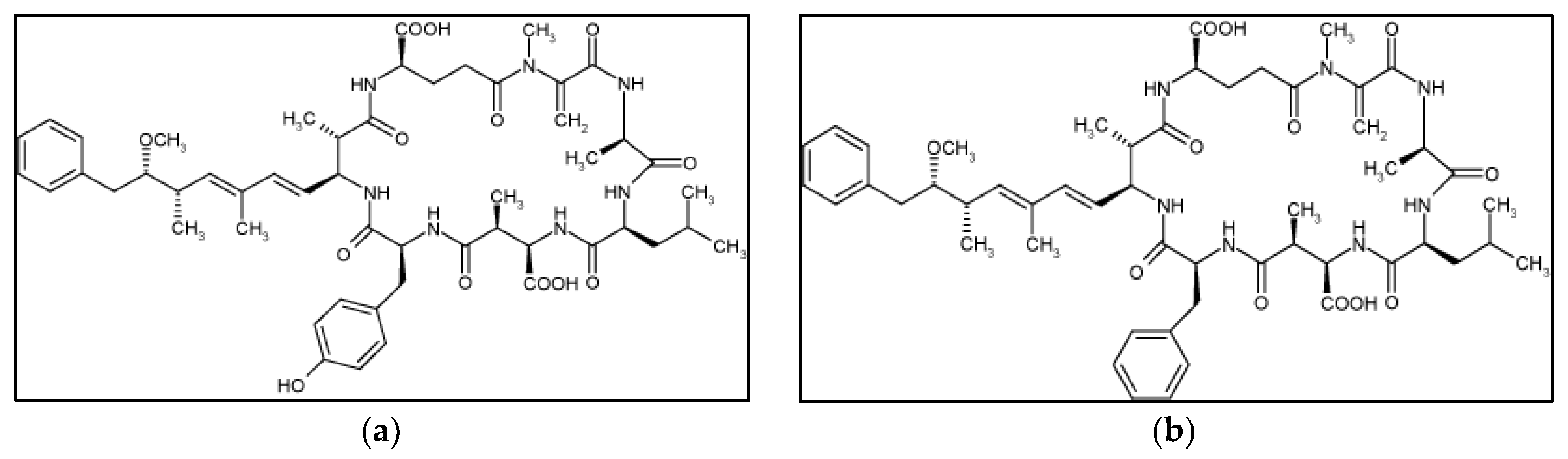

Figure 1. Structure of microcystins (a) LF (MC-LF) and (b) LY (MC-LY).
Figure 1. Structure of microcystins (a) LF (MC-LF) and (b) LY (MC-LY).
Toxins 09 00385 g001

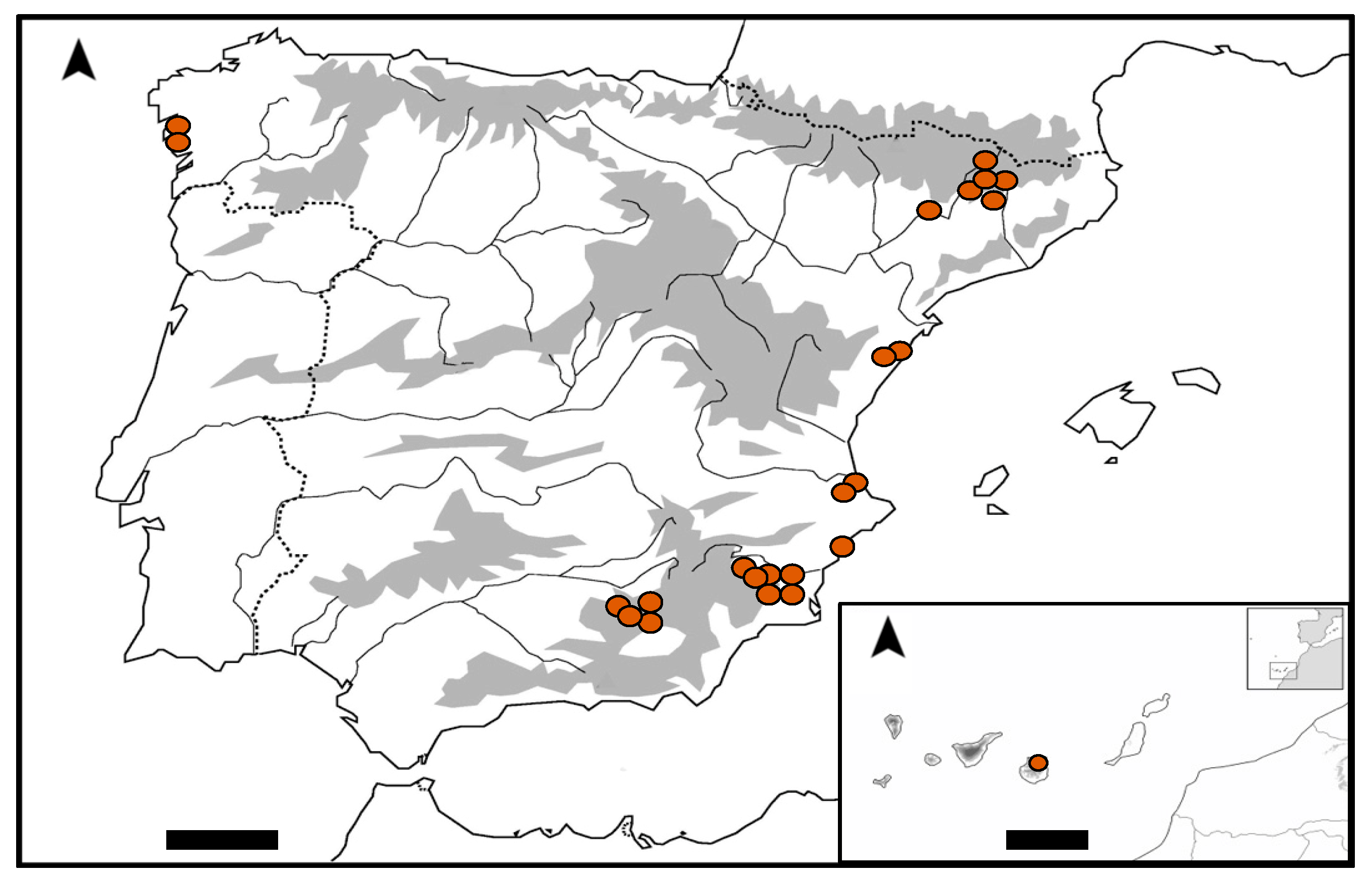

Figure 2. Map of the study area with sampled localities. Grey areas indicate mountain systems whose altitude is higher than 1500 m above sea level (asl). The insert represents the Canary Islands. Scale bars represent 100 km.
Figure 2. Map of the study area with sampled localities. Grey areas indicate mountain systems whose altitude is higher than 1500 m above sea level (asl). The insert represents the Canary Islands. Scale bars represent 100 km.
Toxins 09 00385 g002

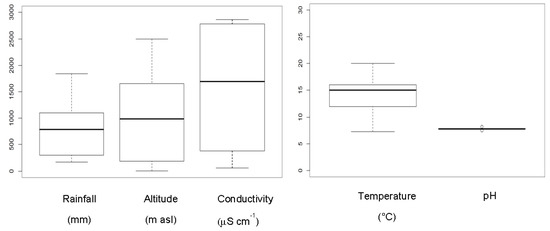

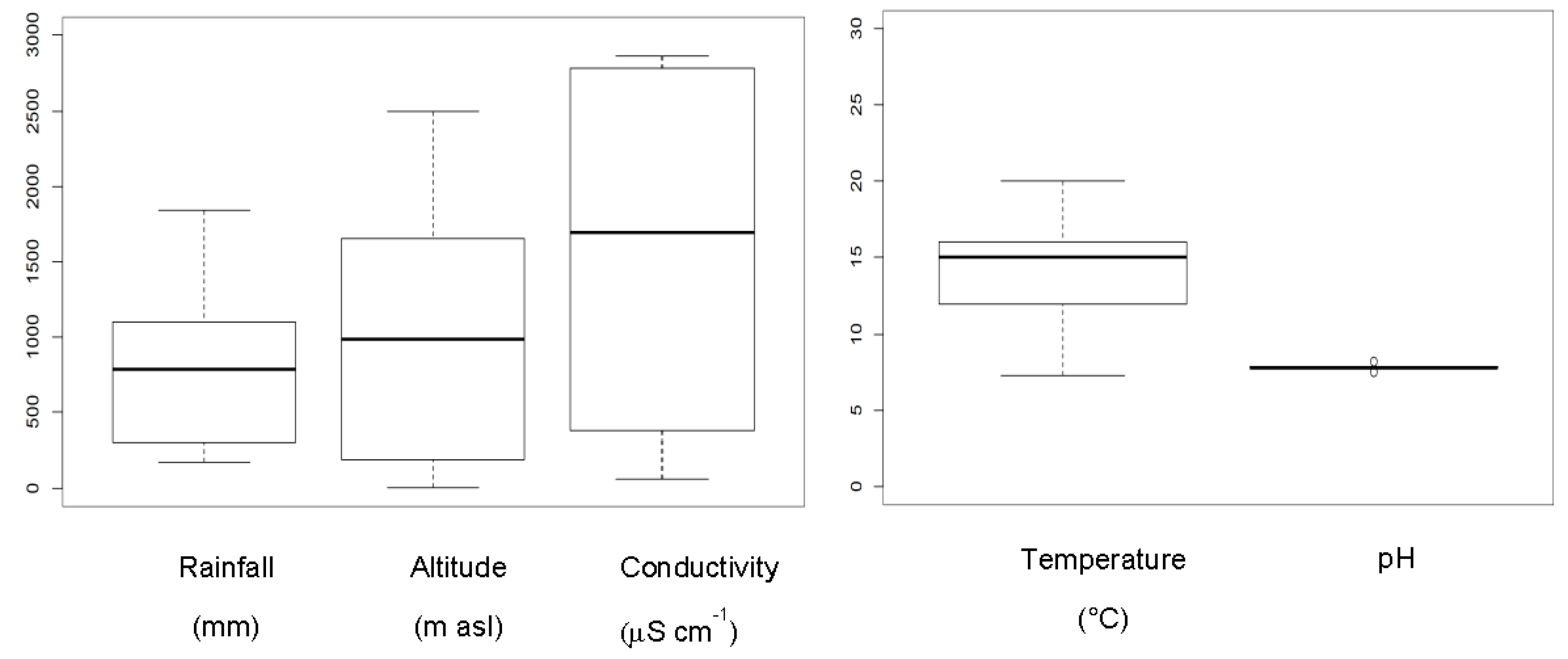

Figure 3. Ranges of the main ecological variables in the sampled habitats.
Figure 3. Ranges of the main ecological variables in the sampled habitats.
Toxins 09 00385 g003

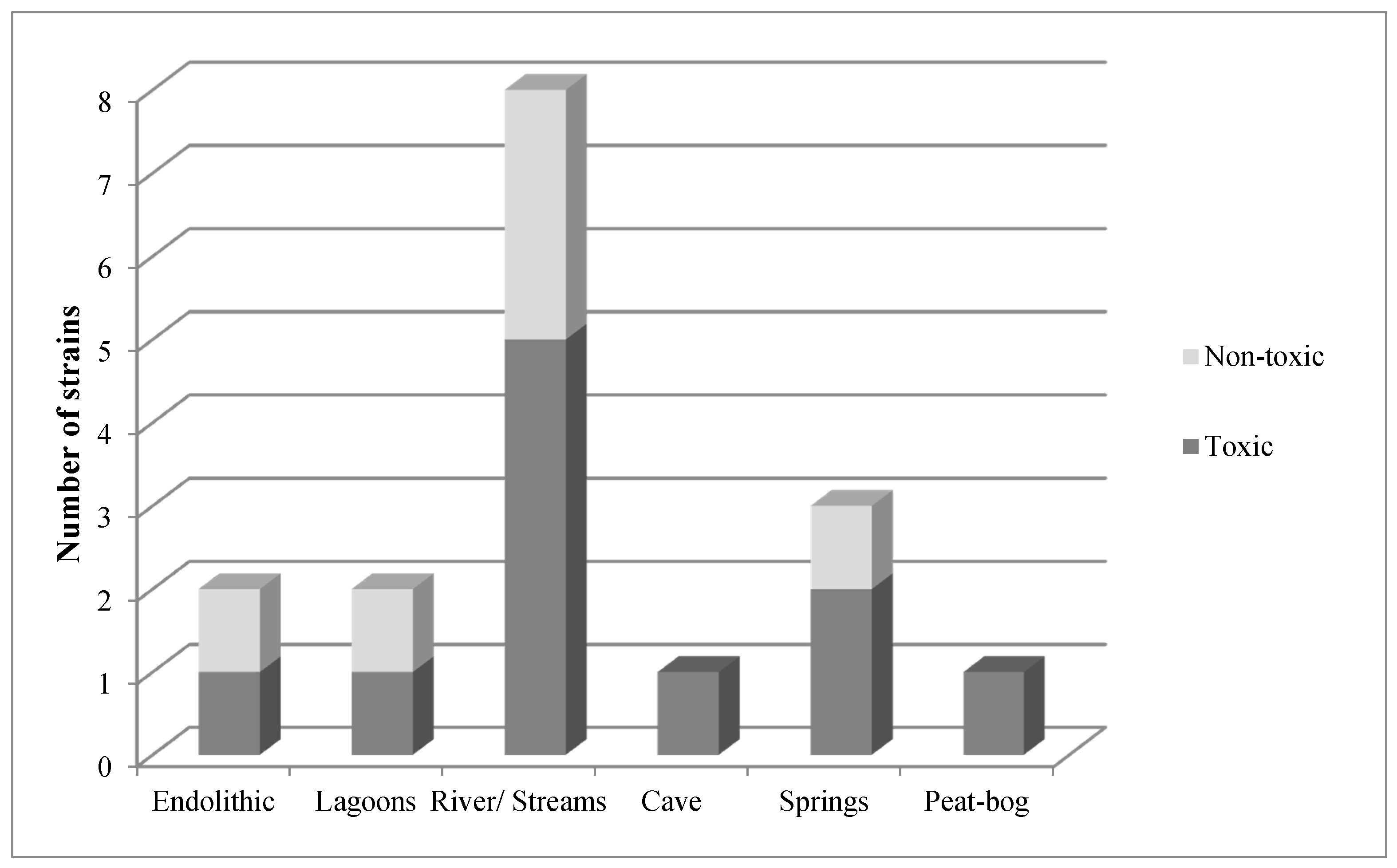

Figure 4. Distribution of the toxic strains in each habitat.
Figure 4. Distribution of the toxic strains in each habitat.
Toxins 09 00385 g004

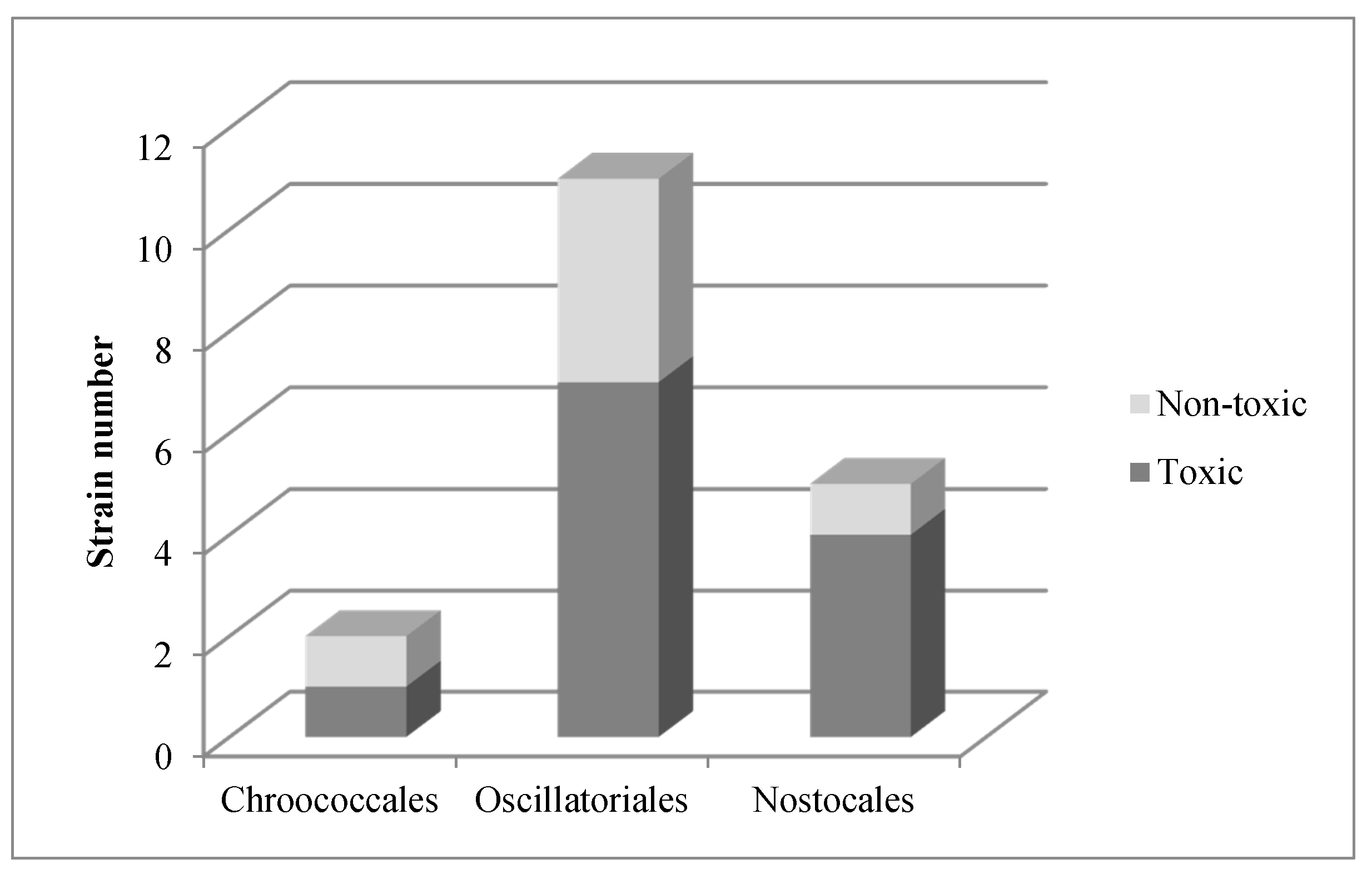

Figure 5. Distribution of the toxic strains in currently recognised taxonomic orders.
Figure 5. Distribution of the toxic strains in currently recognised taxonomic orders.
Toxins 09 00385 g005

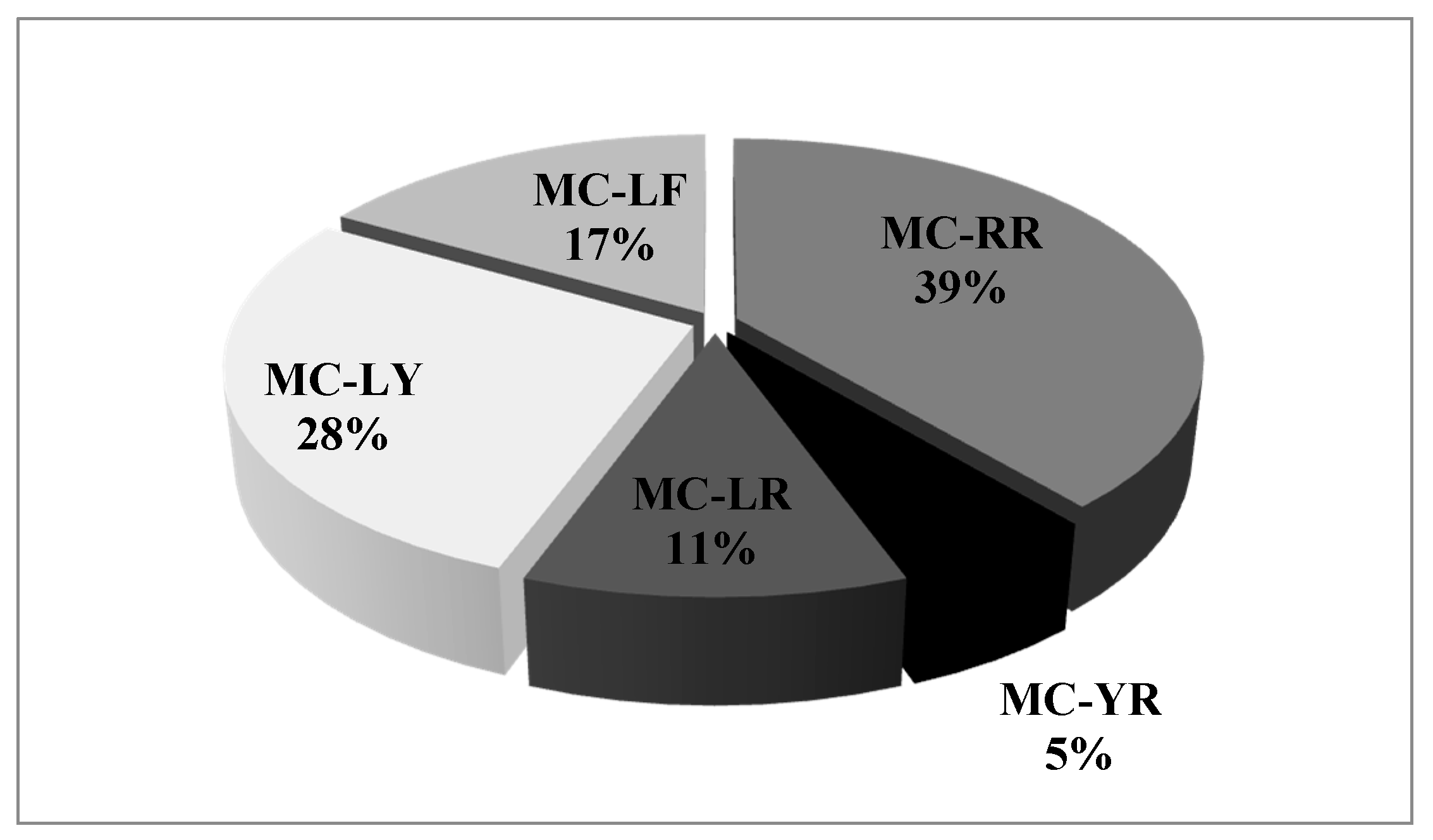

Figure 6. Frequency of each of the detected microcystin variants.
Figure 6. Frequency of each of the detected microcystin variants.
Toxins 09 00385 g006

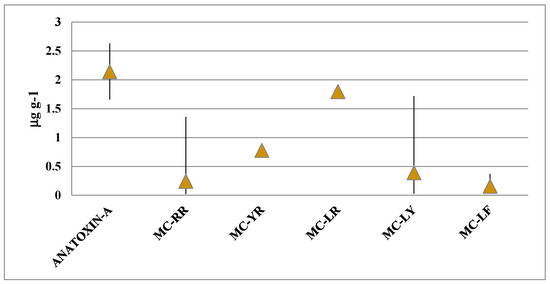

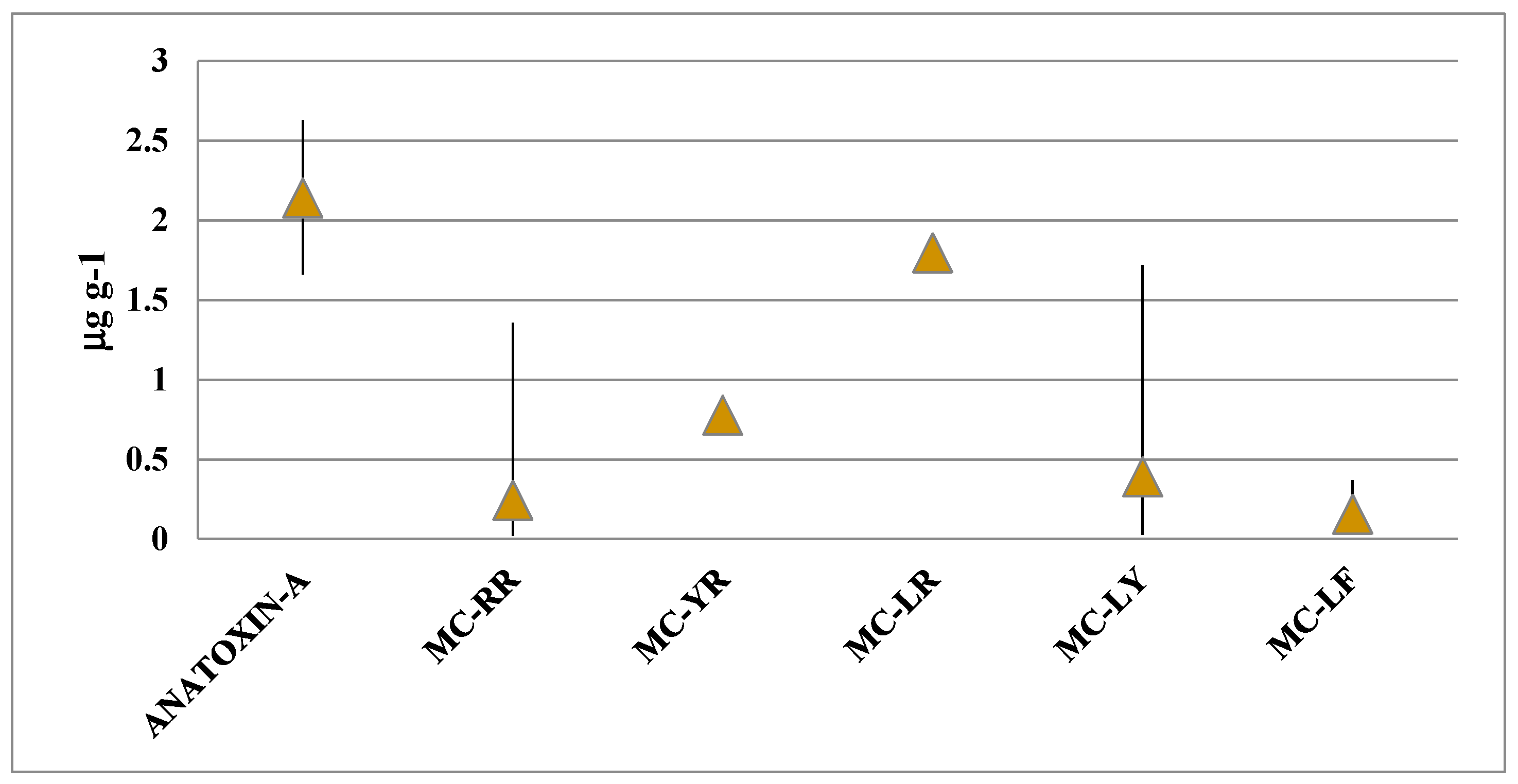

Figure 7. Mean and range of the concentrations of each of the identified variants.
Figure 7. Mean and range of the concentrations of each of the identified variants.
Toxins 09 00385 g007
Figure 8. Images of the toxic strains that were isolated during this study: 1. Pseudocapsa dubia. 2. Scytonema drilosiphon. 3. Gloeotrichia natans. 4. Pseudanabaena frigida. 5. Phormidium uncinatum. 6. Oscillatoria margaritifera. 7. Phormidium sp. 8. Geitlerinema splendidum. 9. Phormidium favosum. 10. Geitlerinema carotinum. 11. Leptolyngbya rivularianum. The scale bar represents 20 μm.
Figure 8. Images of the toxic strains that were isolated during this study: 1. Pseudocapsa dubia. 2. Scytonema drilosiphon. 3. Gloeotrichia natans. 4. Pseudanabaena frigida. 5. Phormidium uncinatum. 6. Oscillatoria margaritifera. 7. Phormidium sp. 8. Geitlerinema splendidum. 9. Phormidium favosum. 10. Geitlerinema carotinum. 11. Leptolyngbya rivularianum. The scale bar represents 20 μm.
Toxins 09 00385 g008
Table 1. List of the sampled localities, indicating habitat type, lithology, altitudes, geographic coordinates, mean rainfall, and mean temperature.
Table 1. List of the sampled localities, indicating habitat type, lithology, altitudes, geographic coordinates, mean rainfall, and mean temperature.
LocalitiesHabitatLithologyAltitude(m)CoordinatesRainfall(mm)Mean Temperature (°C)
Prado Redondo, Sierra Nevada, GranadaCreekGranitic210037°05′23.0″ N 3°24′56.8″ W13227.8
San Juan, Sierra Nevada, GranadaCreekGranitic250037°05′16.7″ N 3°22′18.5″ W13227.8
Poqueira, Sierra Nevada, GranadaCreekGranitic154036°59′26.8″ N 3°21′00.2″ W93511.6
Vall de Mulleres, Vielha, LleidaPeat bogGranitic160942°37′40.6″ N 0°45′34.9″ E18438.5
Riu Escrita, LleidaStreamGranitic170042°34′38″ N 0°56′52″ E11005.0
Fonts Lac S. Maurici, LleidaSpringsGranitic191042°32′28.9″ N 9°01′21.6″ W11005.0
Riu Llebreta, LleidaStreamGranitic199942°34′38″ N
0°56′52″ E
11005.0
Riu Ter, Villalonga, GironaRiverGranitic106742°19′59″ N
2°18′47″ E
9339.8
Lagoa Carregal, Corrubedo, A CoruñaLagoonGranitic542°33′002″ N 9°02′00″ W9339.8
Lagoa Vixán, Corrubedo, A CoruñaLagoonGranitic542°33′002″N 9°02′00″W101414.8
Guayadeque, Gran CanariaStreamVolcanic127327°56′00.7″ N 15°28′57.7″ W17522.5
Palacio Guevara, Lorca, MurciaBuildingMarble35337°40′29.82″ N 1°41′51.54″ W23217.6
Río Alhárabe, Moratalla, MurciaStreamCalcareous90038°12′50″ N 1°57′46″ W52215.7
Azud de Ojós, Ojós, MurciaReservoirCalcareous13238°8′ 52″ N 1°20′32″ W30617.4
Cueva de los Grajos, Cieza, MurciaCaveCalcareous25038°14′21″ N 1°25′08″ W30717.2
Río Chícamo, Abanilla, MurciaStreamCalcareous29038º24′97″ N 1º00′18″ W<20010.0
Marjal Almenara, Almenara, CastellónFreshwater SpringCalcareous2639°44′54.1″ N 0°11′17.3″ W46717.5
Marjal de Pego-Oliva, ValenciaSaline SpringCalcareous538° 52′08.2″ N 0°02′57.92″ W63717.8
Río Amadorio, Vilajoyosa, AlicanteStreamCalcareous3238°30′19″ N 0°13′58″ W30018.0
Río Algar, Callosa, AlicanteStreamCalcareous24738°39′33.67″ N 0°5′45.58″ W51916.9
Table 2. Isolated and extracted strains. Taxonomic order, locality and habitat are listed. Toxicity is highlighted in bold (dark grey).
Table 2. Isolated and extracted strains. Taxonomic order, locality and habitat are listed. Toxicity is highlighted in bold (dark grey).
TaxaOrderHabitatLocality
Hyella balani LehmanChroococcalesEuendolithic, springMarjal Oliva-Pego, Valencia
Pseudocapsa dubia ErcegovicChroococcalesChasmoendolithicPalacio Guevara, Lorca, Murcia
Gloeotrichia natans (Hedwig) Rabenhorst ex Bornet et FlahaultNostocalesEpiphytic, lagoonLagoa Vixán, Corrubedo, A Coruña
Nostochopsis lobata Wood ex Bornet & FlahaultNostocalesEpiphytic, lagoonLagoa Vixán, Corrubedo, A Coruña
Rivularia biasolettiana (Meneghini ex Bornet & FlahaultNostocalesEpilithic, streamRío Alhárabe, Moratalla, Murcia
Río Chícamo, Abanilla, Murcia
Scytonema drilosiphon Elenkin & V. I. PolyanskyNostocalesEpilithic, caveCueva Grajos, Cieza, Murcia
Geitlerinema splendidum (Greville ex Gomont) AnagnostidisOscillatorialesEpilithic, springUllal Almenara, Castellón
Homoeothrix juliana (Bornet & Flahault ex Gomont) KirchnerOscillatorialesEpilithic, streamRío Amadorio, Alicante
Leptolyngbya subtilis (West) AnagnostidisOscillatorialesEpilithic, springUllal Almenara, Castellón
Leptolygnbya truncata (Lemmermann) Anagnostidis & KomárekOscillatorialesEpilithic, streamRío Amadorio, Alicante
Oscillatoria margaritifera Kützing ex GomontOscillatorialesEpilithic, springUllal Almenara, Castellón
Oscillatoria sancta Kützing ex GomontOscillatorialesEpilithic, streamRío Ter, Vilallonga, Lérida
Geitlerinema carotinum (Geitler) AnagnostidisOscillatorialesEpipelic, reservoirAzud Ojós, Ojós, Murcia
Phormidium autumnale (Agardh) Trevisan ex GomontOscillatorialesEpilithic, streamRío Alhárabe, Moratalla, Murcia
Pseudanabaena frigida (Fritsch) AnagnostidisOscillatorialesEpipelic, peat bogVall de Molleres, Viella, Lérida
Schizothrix rivularianum Voronichin OscillatorialesEpipelic, streamRío Alhárabe, Moratalla, Murcia
Phormidium uncinatum Gomont ex GomontOscillatorialesEpipelic, streamBarranco Guayadeque, Gran Canaria
Table 3. Types of toxins present in the different isolated strains (nd = not detected).
Table 3. Types of toxins present in the different isolated strains (nd = not detected).
TaxaLocalityMicrocystinsAnatoxins
Gloeotrichia natansCorrubedo, GaliciaMC-LF, MC-RRnd
Geitlerinema carotinumOjós, MurciaMC-LYANT-a
Geitlerinema splendidumAlmenara, ValenciaMC-LF, MC-RRANT-a
Nostoc cf. communeSierra Nevada, GranadaMC-LF, MC-LYnd
Oscillatoria margaritiferaAlmenara, ValenciaMC-LF, MC-LY, MC-RRnd
Phormidium autumnaleMoratalla, MurciaMC-LRnd
Phormidium uncinatumGuayadeque, Gran CanariaMC-LF, MC-LYANT-a
Phormidium sp.Sierra Nevada, GranadaMC-LF, MC-LYnd
Pseudoanabaena frigidaVall de Mulleres, LéridaMC-RRnd
Pseudocapsa dubiaPalacio de Guevara, MurciaMC-RR, MC-YRnd
Rivularia biasolettianaRío Chícamo, MurciaMC-LR, MC-LY, MC-RRnd
Schizothrix rivularianumRío Alhárabe, MurciaMC-LY, MC-RRnd
Scytonema drilosiphonCueva de los Grajos, MurciaMC-LYnd

Share and Cite

MDPI and ACS Style

Cantoral Uriza, E.A.; Asencio, A.D.; Aboal, M. Are We Underestimating Benthic Cyanotoxins? Extensive Sampling Results from Spain. Toxins 2017, 9, 385. https://doi.org/10.3390/toxins9120385

AMA Style

Cantoral Uriza EA, Asencio AD, Aboal M. Are We Underestimating Benthic Cyanotoxins? Extensive Sampling Results from Spain. Toxins. 2017; 9(12):385. https://doi.org/10.3390/toxins9120385

Chicago/Turabian Style

Cantoral Uriza, Enrique A., Antonia D. Asencio, and Marina Aboal. 2017. "Are We Underestimating Benthic Cyanotoxins? Extensive Sampling Results from Spain" Toxins 9, no. 12: 385. https://doi.org/10.3390/toxins9120385

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
