Toxins 2014, 6(8), 2256-2269; doi:10.3390/toxins6082256

Article
Occurrence of Pre- and Post-Harvest Mycotoxins and Other Secondary Metabolites in Danish Maize Silage
Ida M. L. Drejer Storm 1,, Rie Romme Rasmussen 2 and Peter Have Rasmussen 2,*
1
Center for Microbial Biotechnology, Department of Systems Biology, Technical University of Denmark, Building 221, DK-2800 Kgs. Lyngby, Denmark
2
Department of Food Chemistry, National Food Institute, Technical University of Denmark, Mørkhøj Bygade 19, DK-2860 Søborg, Denmark; E-Mail: riro@food.dtu.dk
Present address: Danish Agriculture and Food Council, Axelborg, Axeltorv 3, DK-1609 København V, Denmark; E-Mail: ims@lf.dk
*
Author to whom correspondence should be addressed; E-Mail: phra@food.dtu.dk; Tel.: +45-3588-7486; Fax: +45-3588-7448.
Received: 9 June 2014; in revised form: 4 July 2014 / Accepted: 15 July 2014 /
Published: 31 July 2014

Abstract

: Maize silage is a widely used feed product for cattle worldwide, which may be contaminated with mycotoxins, pre- and post-harvest. This concerns both farmers and consumers. To assess the exposure of Danish cattle to mycotoxins from maize silage, 99 samples of whole-crop maize (ensiled and un-ensiled) were analyzed for their contents of 27 mycotoxins and other secondary fungal metabolites by liquid chromatography-tandem mass spectrometry. The method specifically targets the majority of common pre- and post-harvest fungi associated with maize silage in Denmark. Sixty-one samples contained one or more of the 27 analytes in detectable concentrations. The most common mycotoxins were zearalenone, enniatin B nivalenol and andrastin A, found in 34%, 28%, 16% and 15% of the samples, respectively. None of the samples contained mycotoxins above the EU recommended maximum concentrations for Fusarium toxins in cereal-based roughage. Thus, the present study does not indicate that Danish maize silage in general is a cause of acute single mycotoxin intoxications in cattle. However, 31 of the samples contained multiple analytes; two samples as much as seven different fungal metabolites. Feed rations with maize silage may therefore contain complex mixtures of fungal secondary metabolites with unknown biological activity. This emphasizes the need for a thorough examination of the effects of chronic exposure and possible synergistic effects.
Keywords:
maize; silage; mycotoxins; secondary metabolites; occurrence; cattle feed; multi mycotoxin; LC-MS/MS

1. Introduction

Contamination of animal feed with mycotoxins is of concern for both farmers and consumers of animal products. Maize silage is a widely used feed product for cattle around the world, particularly in dairy production [1]. It is used year round, and a dairy cow may consume 25 kg dry matter per day [2]. Maize silage may be contaminated with various fungal metabolites both pre- and post-harvest. Common pre-harvest contaminants are species of Fusarium, Alternaria and Aspergillus, while post-harvest infection is most often caused by Penicillium roqueforti, P. paneum, Zygomycetes, Aspergillus fumigatus, Byssochlamys nivea and a few other fungi [3,4].

Mycotoxin contamination caused by fungi can affect animal health [5] and productivity [6]. The general symptoms of mycotoxicosis include loss of appetite, poor weight gain, feed refusal, diarrhea, bleeding, birth defects and kidney, liver or lung damage [7]. Acute intoxications of animals are rare [8], but it is important to know the exposure of animals, since a chronic exposure to low levels of mycotoxins can give non-specific symptoms, such as impaired immune system and increased infections or metabolic and hormonal imbalances [6,9]. Moreover, little is known about the possible synergistic effects of mycotoxins, and the diagnosis of mycotoxicosis can be difficult, because other diseases may give similar symptoms [6].

The fungi spoiling maize and maize silage are able to produce a wide range of secondary metabolites on different substrates [10]. Previous studies of mycotoxins in maize silage and whole-crop maize for silage have detected various fungal metabolites of pre- and post-harvest origin [11,12,13,14,15,16,17,18,19,20,21,22,23]. The study by [11] was the most comprehensive on maize silage, covering 140 samples from the Netherlands, which were analyzed for 20 different mycotoxins, including aflatoxins, deoxynivalenol, zearalenone and ochratoxin A, but only a few compounds produced by common post-harvest silage contaminants. This study showed that the Fusarium toxins, deoxynivalenol and zearalenone, were commonly present at levels below the maximum recommended concentrations. Mycophenolic acid and roquefortine C produced by the post-harvest silage contaminant, P. roqueforti, were analyzed, but not detected. This may be because the silage samples were taken in October and November, where maize silages are only a few weeks old, thus reducing the possibility of encountering post-harvest toxins. However, maize silage can also contain high levels of post-harvest fungal metabolites in areas with visible fungal growth [18], whose presence is only sparsely examined and not regulated.

The carry-over of mycotoxins and their metabolites to edible animal products, such as milk and meat, is a potential risk for consumers. Aflatoxins have been most extensively regulated, but also: the trichothecenes, deoxynivalenol, diacetoxyscirpenol, T-2 toxin and HT-2 toxin; the fumonisins B1, B2 and B3; the ergot alkaloids; and ochratoxin A and zearalenone have been regulated in feed by some countries [24]. In the EU, maize roughage intended for animal feed is recommended not to contain more than 2 mg/kg zearalenone, 8 mg/kg deoxynivalenol and 60 mg/kg fumonisins (sum of B1 and B2) [25]. For maize intended for silage grown in Northern Europe, the risk of aflatoxins and fumonisins is, however, very little, as both groups of mycotoxins are produced by fungi that require arid, semi-arid, sub-tropical or tropical climate conditions [26,27]. The absence of aflatoxin producing fungi in Danish maize silage was confirmed by [28], where only one single isolate of A. flavus was obtained during a long-term survey of silage microbiota in 20 Danish silage stacks. Similarly, [11] did not detect aflatoxin B1 in any samples of maize, grass and wheat silages from the Netherlands. The very low risk of fumonisins in Danish maize for silage was confirmed in a four-year survey of Fusarium toxins in maize conducted from 2004–2007 on a total of 239 samples. Summarizing the results, [27] shows that the average concentrations of fumonisins B1 and B2 all four years were below 0.10 mg/kg, and the maximum observed was 2.27 mg/kg of fumonisin B1.

With the selected multi-mycotoxin method, we are capable of determining 27 mycotoxins and other fungal secondary metabolites in maize silage samples [18] of relevance for present North European climate conditions. It is specifically developed and validated for maize silage and detects metabolites from most of the common fungal contaminants of silage, both pre- and post-harvest [4]. It is therefore uniquely able to give an estimate of the overall exposure to mycotoxins through maize silage. This study covers 99 samples of maize silage and whole-crop maize for silage analyzed for alternariol (AOH), alternariol monomethyl ether (AME), altersetin (ALS), cyclopiazonic acid (CPA), deoxynivalenol (DON), enniatin B (ENN B), nivalenol (NIV), sterigmatocystin (STE), T-2 toxin (T-2), tenuazonic acid (TEA) and zearalenone (ZEA), all associated with the field mycobiota, and andrastin A (AND A), citreoisocoumarine (CICO), fumigaclavine A (FUC A), fumigaclavine C (FUC C), fumitremorgin A (FUT A), gliotoxin (GLI), marcfortine A (MAC A), marcfortine B (MAC B), mevinolin (MEV), mycophenolic acid (MPA), ochratoxin A (OTA), patulin (PAT), penitrem A (PEN A), PR toxin (PR), roquefortine A (ROQ A) and roquefortine C (ROQ C) produced by storage fungi.

2. Results and Discussion

2.1. Method Performance

Initially in the data analysis, a range of method performance parameters were measured and compared to the measurements from the method validation conducted previously [18]. The LODs of the method as determined during validation are presented in Table 1, together with the values for the limits of quantification (LOQ). Co-eluting matrix compounds early in the chromatogram did interfere with the most polar analytes (PAT, NIV and DON), which resulted in high LOD values for these analytes (0.37, 0.12 and 0.74 mg/kg, respectively). However, for DON, the interference was negligible at concentrations near or above the guideline value for maximum content in animal feed (8 mg/kg). No such guideline values exist for PAT and NIV in current EU legislation [25,29].

The method recoveries were determined for DON, GLI, NIV, PAT, ROQ C and T-2 in spiked samples (n = 6) resulting in average recoveries of 91%, 79%, 67%, 93%, 110% and 114%, respectively. The recoveries for DON, GLI, NIV and PAT were in good agreement with the recoveries determined during method validation [18]. For ROQ C and T-2, the recoveries of 110% and 114% were, by themselves, acceptable, but not comparable to the previous validation results of 205% and 55%, respectively. The current sample clean-up was performed with more experience and analyzed in shorter series for this study than during the original validation, which may be the reason for the better average recoveries.

Table Table 1. Mycotoxins and other secondary fungal metabolites included in the present study, their abbreviations and limits of detection (LOD) and quantification (LOQ) for the quantitatively determined analytes as determined during method validation [18].

Click here to display table

Table 1. Mycotoxins and other secondary fungal metabolites included in the present study, their abbreviations and limits of detection (LOD) and quantification (LOQ) for the quantitatively determined analytes as determined during method validation [18].
AnalyteAbbreviationMeanReproducibilityLOD (µg·kg−1)LOQ (µg·kg−1)
Recovery (%)RSDIR (%)
QuantitativeAlternariolAOH78141020
Alternariol momomethyl etherAME7910612
Andrastin AAND A1221212
Cyclopiazonic acidCPA63351530
DeoxynivalenolDON83187391478
Enniatin BENN B60242448
Fumitremorgin AFUT A932376152
GliotoxinGLI851371142
MevinolinMEV68272550
Mycophenolic acidMPA9013714
NivalenolNIV6815122244
Ochratoxin AOTA7191020
PatulinPAT10017371742
Penitrem APEN A10712816
Roquefortine CROQ C20525158316
SterigmatocystinSTE729816
T-2 toxinT-2552696192
Tenuazonic acidTEA3720121242
ZearalenoneZEA9016918
QualitativeAltersetinALS9114--
CitreoisocoumarinCICO847--
Fumigaclavine AFUC A9321--
Fumigaclavine CFUC C17613--
Marcfortine AMAC A6316--
Marcfortine BMAC B619--
PR-toxinPR5632--
Roquefortine AROQ A10332--

Recoveries of ROQ C from fresh extracts of a spiked sample were on average 110% (n = 6), while recoveries of extract stored at −20 °C for 1–3 months were on average 62% (n = 6). This difference in recoveries was significant (p < 0.001). This drop in recoveries of ROQ C indicates a degradation of ROQ C in extracts during storage. A maximum storage time for sample extracts of three days at −20 °C before analysis was therefore implemented.

The relative standard deviation (RSDIR) was also determined for DON, GLI, NIV, PAT, ROQ C and T-2 in the spiked samples (n = 6), resulting in values of 21%, 26%, 19%, 11%, 15% and 32%, respectively. These values were all comparable to RSDIR obtained in the original method validation [18].

2.2. Mycotoxins in Maize and Maize Silage

Out of the 99 analyzed samples, 61 contained one or more of the detectable analytes in concentrations above LOD. Summary statistics for the findings of each of the analytes are presented in Table 2, and a list of all positive results is available as Supplementary Information (Table S1).

Table Table 2. Summary statistics on the contents of mycotoxins detected in fresh, whole-crop maize samples, ensiled maize samples and all 99 samples together. For compound abbreviations, see Table 1. The number of samples with concentrations above LOD (npos) are included for both quantitatively and qualitatively determined compounds. For quantitatively determined compounds, the average concentration of positive samples (avgpos) with the standard error of the mean (SEM) in parentheses and the maximum concentrations (max) are presented in µg/kg fresh weight.

Click here to display table

Table 2. Summary statistics on the contents of mycotoxins detected in fresh, whole-crop maize samples, ensiled maize samples and all 99 samples together. For compound abbreviations, see Table 1. The number of samples with concentrations above LOD (npos) are included for both quantitatively and qualitatively determined compounds. For quantitatively determined compounds, the average concentration of positive samples (avgpos) with the standard error of the mean (SEM) in parentheses and the maximum concentrations (max) are presented in µg/kg fresh weight.
Fresh Maize (n = 17)Ensiled Maize (n = 82)Total (n = 99)
Compoundnposavgpos (SEM)Maxnposavgpos (SEM)Maxnposavgpos (SEM)Max
QuantitativeAME1111128(1)8.839(1)11
AND A 15169(54)69115169(54)691
AOH 218(6)24218(6)24
DON22369(293)2,66251629(365)2,97471841(293)2974
ENN B8128(40) a3652053(7) b1522875(13)365
MPA 243(9)52243(9)52
NIV5255(37)35111266(53)75816263(38)758
ROQ C 2173(15)1892173(15)189
ZEA1183(59)6662366(15)3113471(21)666
QualitativeCICO1 7 8
MAC A 6 6
MAC B 1 1
ROQ A 9 9

a,b Group means with different superscript letters differ significantly from each other (p ≤ 0.05).

2.2.1. Fusarium Toxins

The most common mycotoxins in the 99 samples were the Fusarium metabolites, with ZEA, ENN B and NIV being detected in 34%, 28% and 16% of the samples, respectively. This is consistent with previous surveys showing a widespread growth of Fusarium in North European maize plants [11,21,22]. The concentrations of the Fusarium toxins ZEA, DON and ENN B detected in the present study were similar to results from the studies by [11] and [22]. However, for ZEA and NIV, the concentrations and occurrences were higher in the German study by [21], where the small amount of maize and maize silage samples originated from the southern part of Germany. Similarly, the frequency of DON observed by [11] was higher than in the present study. This difference in frequency can be attributed to a difference in LOD. The method used for the present study focused on a wide selection of metabolites rather than low LODs, resulting in a lower number of positive samples, but still capturing all samples with concentrations near regulatory levels.

None of the analyzed samples contained DON or ZEA in concentrations above the guidance values set for individual feeding products by the European Commission [25]. Fusarium mycotoxins in maize silage are therefore not likely to be the cause of the general occurrence of acute intoxications of Danish cattle. However, three samples contained DON and three samples ZEA in values above the guidance values for complete feedstuffs to dairy cattle, which are 5000 and 500 µg/kg, respectively. Two of these samples (#9 and #99) were the same, thus having high levels of both DON and ZEA. DON and ZEA are known to have immunosuppressive effects and estrogenic effects, respectively [30,31]. With silage constituting up to 50%–75% of the daily feed ration to dairy cattle [12], such concentrations may affect the animals.

DON is also part of the trichothecene group, which comprises numerous fungal metabolites, of which, e.g., NIV, scirpentriol, 15-monoacetoxyscirpenol, HT-2 toxin, T-2 and diacetoxyscirpenol (DAS) have been associated with maize and silage [21]. NIV was detected in 16% of samples, but the risk for animals and public health caused by NIV in animal feed remains unassessed [32]. However, the T-2 concentration and occurrence was low, and DAS was not determined in the present study. For the enniatins, in vitro data suggest biological activity; however, there is a clear lack of animal studies, and more data is needed to evaluate their toxicity [33].

2.2.2. Penicillium Toxins

The second most common group of secondary fungal metabolites was composed of the post-harvest metabolites, AND A, ROQ C, MAC A and CICO. with AND A being the most common (15% of samples). They are all produced by P. roqueforti or P. paneum [34]. The metabolite abundance of and instrument sensitivity for AND A makes it a good marker for the presence of these species in silage. The low occurrence of the P. roqueforti/P. paneum metabolites, MPA and ROQ C, were in line with [11], who did not detect these toxins in 140 maize silages sampled from sealed stacks, but lower than in a similar study with samples taken from the cutting front of silage silos [12]. Penicillium roqueforti and P. paneum have been associated with ill-thrift and disease in cattle herds [4]. However, no direct effects were observed at high doses of MPA and ROQ C in two sheep studies [35,36] and no adverse effects have been described for AND A [37]. It therefore remains un-answered whether the presence of these P. roqueforti/P. paneum metabolites in silage poses a health and production problem for dairy cattle.

2.2.3. Alternaria Toxins

Alternaria toxins are produced pre-harvest in maize [15], but the presence of AOH and AME in maize silage is only recently described [18]. Their occurrence and concentrations in the present study were low. Seven samples contained at least traces of these analytes, and the co-occurrence of these compounds is a good marker for pre-harvest infection with Alternaria. The toxicity of alternariols is not well examined [38]. In vitro experiments show that alternariols have DNA strand-breaking activities [39]. Alternaria toxins have also been associated with human esophageal cancer in China [40]. It is therefore important to be aware of the possibility of Alternaria toxins in silage, but possible effects on animals or carry-over to products for human consumption is not sufficiently examined.

2.2.4. Other Fungal Metabolites

Other fungal metabolites were marked by their absence, rather than presence, for instance none of the secondary metabolites from Aspergillus fumigatus (GLI, FUT A, FUC A, FUC C) were detected in the present study. A. fumigatus is commonly isolated from silages in both warm and temperate climates [4], including Danish maize silage [28]. It produces gliotoxin, which has been detected in silage by [18,19,41]. The absence in this survey therefore indicates that the mycotoxin production of this fungus is limited under Danish conditions, even though the fungus is generally present. PAT and CPA were also not detected in the present study. The high occurrence of PAT, CPA, MPA and ROQ C observed by [14] could indicate climatic/continental differences or poor silage management, but the risk of false positive results in that study must also be considered high, because of the non-selective LC-MS method applied and because the recovery was tested high above the LOD. Absence of CPA was expected, as A. flavus is mainly a problem in warmer climates than the Danish one [26]. Likewise, the producers of aflatoxin B1 are not relevant under Danish climatic conditions [26,38], and aflatoxin B1 was therefore not included in the applied detection method. The same was the case for fumonisin B1 and B2, due to the low levels of these mycotoxins detected in 239 Danish maize samples from 2004–2007 [27].

2.2.5. Multiple Mycotoxins in the Same Samples

Thirty-one of the total of 99 analyzed samples contained more than one analyte, with two samples containing as much as seven analytes (Figure 1). Sample #9 contained the following toxins (concentrations (µg/kg) in brackets where applicable): AME (8.8), AOH (12), ALS, DON (2974), ENN B (85), NIV (758) and ZEA (209); thus showing infection with both the Fusarium and Alternaria pre-harvest species. Sample #27 contained AND A (521), CICO, MAC A, MAC B, MPA (34), ROQ A and ROQ C (158), all known to be produced by the common post-harvest species, P. roqueforti and P. paneum.

The finding of approximately one third of samples being infected with multiple secondary metabolites raises the issue of possible synergistic effects during multiple exposures. Alongside with this comes the question of the possible effects of long-term exposure to low concentrations of secondary metabolites. The majority of the silage samples in this study were taken approximately six months after ensiling, and they were therefore likely to represent the largest selection of post-harvest metabolites expected during the year, as maize silage has been shown to contain the highest amounts of fungal propagules 5–7 months after ensilage [28]. Several of the mycotoxins detected in Danish maize silage are known to have immunosuppressive effects. Besides the trichothecenes, DON and NIV, it includes GLI and MPA at high doses [30,37,42]. The general toxicity and immunotoxicity are considered to be the most critical effects of several trichothecenes [43]. The European Food Safety Authority [44] states the main effects of long-term dietary exposure of animals to DON as weight gain suppression, anorexia and altered nutritional efficiency, but continuous exposure to low levels of immunosuppressive toxins may increase an animal’s susceptibility to infectious diseases [45]. Long-term exposure to multiple mycotoxins, as seen in Sample 9 and 27, may thus result in unknown effects. Unfortunately, long-term in vivo studies evaluating the immunosuppressive effects of mycotoxins are sparse [12]. Similarly, very little is known about the in vivo toxicological effects of multiple mycotoxins, except for the trichothecenes [46], and the possible synergistic effects of such mixtures should therefore be examined.

Toxins 06 02256 g001 200

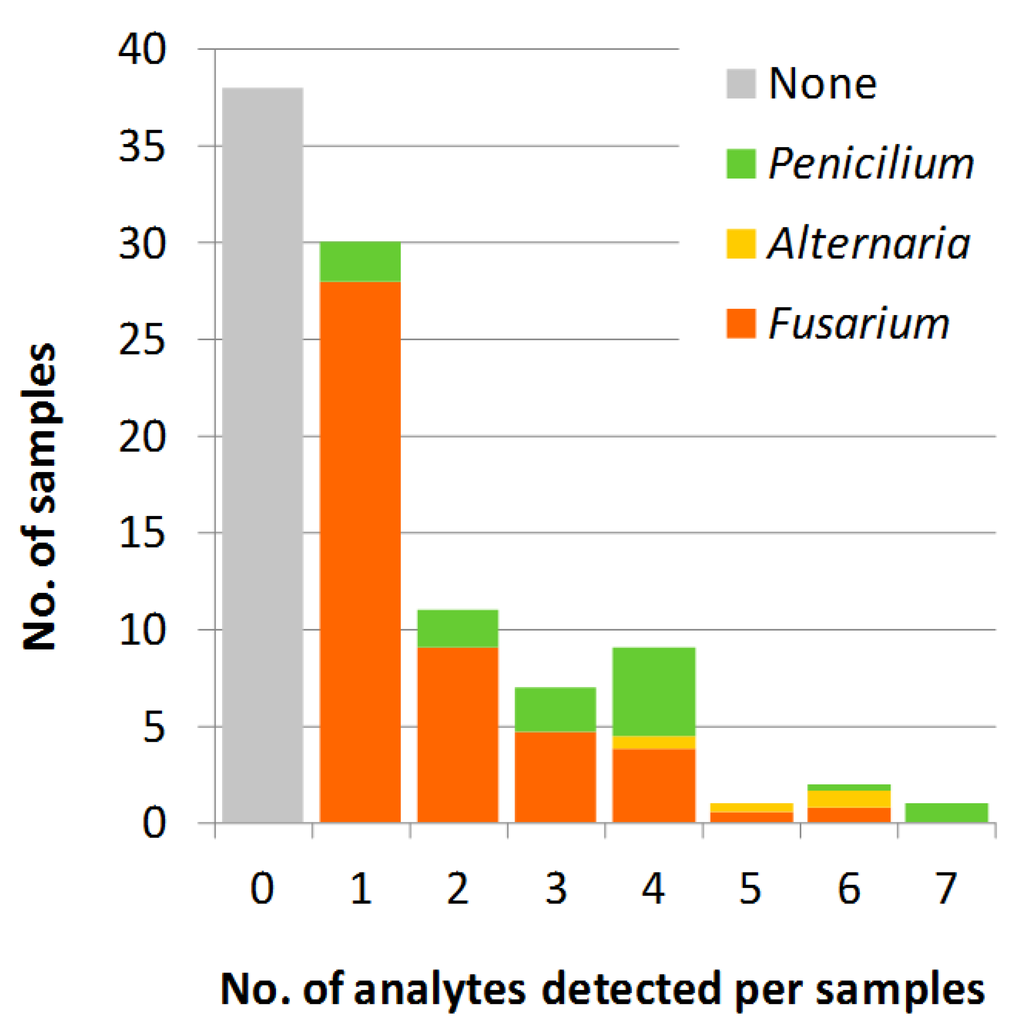

Figure 1. Distribution of the 99 maize silage samples according to the number of analytes detected in each sample. The frequency of the fungal species in the samples is illustrated by colors relative to the total number of infections in the sample category.

Click here to enlarge figure

Figure 1. Distribution of the 99 maize silage samples according to the number of analytes detected in each sample. The frequency of the fungal species in the samples is illustrated by colors relative to the total number of infections in the sample category.
Toxins 06 02256 g001 1024

2.2.6. Sample Origin and Storage Effects

The findings of mycotoxins in fresh whole-crop maize samples collected prior to ensiling vs. the findings in ensiled maize are summarized in Table 2. All of the detected toxins were observed in ensiled maize, while the fresh samples only contained the pre-harvest toxins, ENN B, ZEA, NIV, DON and AME.

The occurrence of pre- and post-harvest mycotoxins was, in general, consistent with the sample origin: maize samples only contained pre-harvest metabolites, while maize silage samples contained both pre- and post-harvest metabolites. The exception was one single finding of CICO in a fresh maize sample. This may be explained by the presence of P. roqueforti/P. paneum, also prior to ensiling, as shown by [47] or originate from other fungi, e.g., Phoma [27].

In accordance with previous studies, the results also indicate that some degradation or transformation of pre-harvest metabolites occurs during ensiling. For DON, ENN B and ZEA, the concentrations, as well as the percentages of positive samples were higher in the fresh maize samples than the ensiled, but only the average concentrations of ENN B differed significantly (p < 0.05). Similarly, [21] found a higher abundance and higher concentrations of T-2, HT-2, T-2-tetraol and T-2-triol in maize plants than in maize silage. For the interpretation of this result, it must be taken into account that the statistical analysis in this part of the study is a comparison of average values of two independent samples of, on the one hand, freshly harvested maize for ensiling and, on the other, maize silage. It was not conducted or analyzed as a stability study with an analysis of paired samples before and after ensiling. Further stability studies could involve samples from the same maize being analyzed before and after ensiling.

The sampling procedures used in this study may also have had an effect on the results, due to the inhomogeneous distribution of toxins in the samples taken in fresh and ensilaged maize. Representative sampling of large immobile stacks is always problematic and, for silage, further complicated by the fact that drilling sample holes in the stack may harm the future quality of the silage. It can also be discussed whether silage samples should be taken by drilling or from the cutting face of the silo or stack. While drilling multiple full-depth holes and combining all samples to a composite sample will give a sample representing the entire stack, it poses a lot of work and may harm the conservation of the silage. Taking multiple samples from the cutting face only samples a small part of the stack, but is highly representative for what is being fed to animals at the time of sampling. To achieve results representative of the whole stack by sampling from the cutting face, it will therefore be necessary to do repeated sampling with a relevant time interval. This will, however, give a better impression of the exposure of livestock to mycotoxins.

The samples were collected from 2007 to 2009, thus representing maize grown in 2006, 2007 and 2008. Due to the imbalanced distribution of sample types on sample year and the limited amount of samples with quantifiable concentrations of analytes, it was not possible to conduct a statistical comparison of mycotoxin occurrence between years in this study.

3. Experimental Section

3.1. Sample Collection and Preparation

Ninety-nine samples of maize silage (n = 82) or freshly harvested maize (n = 17) intended for silage were gathered. Of the ensiled maize samples 74% were collected when silages were approximately 6 months old. The samples were compiled from different studies conducted over the whole of Denmark from 2007 to 2009, thus incorporating maize from the growth seasons 2006, 2007 and 2008. Samples #1–21 were collected by the Danish Plant Directorate from randomly selected farms. Approximately ten grab samples were collected from the cutting face of the silage stack or silo to form a composite sample. Samples #22–82 were silage samples collected at randomly selected dairy farms in Jutland. Twenty of these samples were collected in 2007 [48] and 41 in 2009 [49]. All of the Samples #22–82 were collected from the full depth of silage stacks with a silage drill approximately 1 m behind the cutting face of the silage stack. Samples #83–99 were field samples of whole fresh maize plants taken at the field level from all over Denmark and consisted of different maize cultivars. The samples were harvested in October, 2007 and 2008, by personnel from the Danish Agricultural Advisory Service, either by hand or by forage harvester.

Samples were homogenized and comminuted by two different methods. Samples #22–62 and #81–97 were freeze dried and milled. From all other samples, a portion of approximately 150 g was frozen by pouring liquid nitrogen over it. As soon as the nitrogen was evaporated, the samples were homogenized in a small domestic blender to a fine powder. All samples were stored at −20 °C until extraction and analysis.

3.2. Extraction

A fast and simple pH-buffered extraction was performed according to [18]. The method employs extraction with acetonitrile and water combined with phase-separation induced by the addition of MgSO4, a principle known as QuEChERS (Quick, Easy, Cheap, Effective, Rugged, Safe) [50]. The method was developed for non-dried silage samples with a dry matter (DM) content of approximately 0.35 kg DM/kg, of which, 10.0 g of fresh weight silage is used for extraction. A minor modification was included for the analysis of freeze dried samples in the present study, where 3.5 g of dried sample was used together with 6.5 mL of water, thus totaling 10.0 g. The water/acetonitrile ratio in the final sample extraction was therefore approximately the same in the procedures for freeze dried and non-dried silage samples. The use of a relatively large portion of sample for extraction is important to account for the difficulty of homogenizing fresh maize and silage samples.

3.3. Sample Analysis

The extracts were analyzed by liquid chromatography- tandem mass spectrometry (LC-MS/MS), as described by [18], with the limits of detection (LOD) presented in Table 1 together with the limits of quantification (LOQ). The values for LOD and LOQ were determined as three- and six-times the standard deviation at intra-laboratory conditions (SDIR) divided by the recovery, both based on results from the lowest accepted spike levels. Note that eight compounds were determined qualitatively due to a lack of quantitative standards.

The 99 samples were analyzed in 6 separate series on separate days. Each series included 15–20 silage sample extracts, a 6-level matrix matched standard curve of the quantitatively available standards and 1-level of the qualitatively available standards in a matrix matched solution. To compare the performance of each series to previous validation results, one blank silage sample spiked before extraction with 6 mycotoxins (DON, NIV, GLI, PAT, ROQ C and T-2) was included in each series.

3.4. Data Analysis

All results are reported without correction for recovery. For comparison with guidance values, a dry matter content of 0.35 kg DM/kg silage was applied.

All analytical series were compared to the validation results for the method with regards to recovery and relative standard deviation under intra-laboratory reproducibility conditions (RSDIR) for the spiked samples. The RSDIR was also calculated on the basis of the results from the naturally-contaminated control sample in each series.

A comparison of mycotoxin concentrations in different sample types was conducted by a homoscedastic two-tailed Students t-test in SAS (v 9.1.3, SAS Institute Inc., Cary, NC, USA). A significance level of p ≤ 0.05 was applied.

4. Conclusions

On the basis of the present study, it is unlikely that Danish maize silage could be the direct cause of acute intoxications in dairy cattle. None of the regulated toxins were detected in concentrations above the guideline values recommended by the European Commission. This does, however, not exclude the possibility of occasional incidences of high contamination levels. The present study also shows that contamination with low levels of multiple secondary metabolites is common. Feed rations with maize silage may therefore contain complex mixtures of fungal secondary metabolites with unknown biological activity. This risk is particularly pronounced in ensiled maize samples, which can contain both pre- and post-harvests metabolites. The possible synergistic effects and effects of long-term exposure to such mixtures are not known, and further research on this subject is recommended.

Supplementary Files

Abbreviations

ALSaltersetin
AMEalternariol monomethyl ether
AND Aandrastin A
AOHalternariol
CICOcitreoisocoumarine
CPAcyclopiazonic acid
DASdiacetoxyscirpenol
DONdeoxynivalenol
ENN Benniatin B
FUC Afumigaclavine A
FUC Cfumigaclavine C
FUT Afumitremorgin A
GLIgliotoxin
LC-MS/MSliquid chromatography-tandem mass spectrometry
LODlimit of detection
LOQlimit of quantification
MAC Amarcfortine A
MAC Bmarcfortine B
MEVmevinolin
MPAmycophenolic acid
NIVnivalenol
OTAochratoxin A
PATpatulin
PEN Apenitrem A
PRPR toxin
QuEChERSQuick, Easy, Cheap, Effective, Rugged, Safe, a multi-method developed for the analysis of pesticide residues in fruit and vegetables
ROQ Aroquefortine A
ROQ Croquefortine C
RSDrelative standard deviation
RSDIRthe relative standard deviation under intra-laboratory reproducibility conditions
SDIRstandard deviation at intra-laboratory conditions
STEsterigmatocystin
T-2T-2 toxin
TEAtenuazonic acid
ZEAzearalenone

Acknowledgments

The authors sincerely wish to thank Niels Bastian Kristensen, the Danish Plant Directorate and Danish Agricultural Advisory Service for providing multiple samples for this study.

Funding for this study was provided by The Directorate for Food, Fisheries and Agri Business (Copenhagen, Denmark (#FFS05)).

Author Contributions

Ida M. L. Drejer Storm was the primary author on this article and conducted approximately half of the experimental work and data analysis. Rie R. Rasmussen was the secondary author with special emphasis on toxicological aspects and data presentation, and she conducted the second half of the experimental work and data analysis. Peter H. Rasmussen has supplied valuable inputs for the Results, Discussion and Methods section.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wilkinson, J.M.; Toivonen, M.I. World Silage: A Survey of Forage Conservation around the World; Chalcombe Publications: Lincoln, UK, 2003.
  2. Eastridge, M.L. Major advances in applied dairy cattle nutrition. J. Dairy Sci. 2006, 89, 1311–1323, doi:10.3168/jds.S0022-0302(06)72199-3.
  3. Cheli, F.; Campagnoli, A.; Dell’Orto, V. Fungal populations and mycotoxins in silages: From occurrence to analysis. Anim. Feed Sci. Tech. 2013, 183, 1–16, doi:10.1016/j.anifeedsci.2013.01.013.
  4. Storm, I.M.; Sørensen, J.L.; Rasmussen, R.R.; Nielsen, K.F.; Thrane, U. Mycotoxins in silage. Stewart Posthar. Rev. 2008, 4, doi:10.2212/spr.2008.6.4.
  5. Korosteleva, S.N.; Smith, T.K.; Boermans, H.J. Effects of feed naturally contaminated with Fusarium mycotoxins on metabolism and immunity of dairy cows. J. Dairy Sci. 2009, 92, 1585–1593, doi:10.3168/jds.2008-1267.
  6. Fink-Gremmels, J. The role of mycotoxins in the health and performance of dairy cows. Vet. J. 2008, 176, 84–92, doi:10.1016/j.tvjl.2007.12.034.
  7. Scudamore, K.A.; Livesey, C.T. Occurrence and significance of mycotoxins in forage crops and silage: A review. J. Sci. Food. Agric. 1998, 77, 1–17, doi:10.1002/(SICI)1097-0010(199805)77:1<1::AID-JSFA9>3.0.CO;2-4.
  8. Yiannikouris, A.; Jouany, J.-P. Mycotoxins in feeds and their fate in animals: A review. Anim. Res. 2002, 51, 81–99, doi:10.1051/animres:2002012.
  9. Morgavi, D.P.; Riley, R.T. An historical overview of field disease outbreaks known or suspected to be caused by consumption of feeds contaminated with Fusarium toxins. Anim. Feed Sci. Technol. 2007, 137, 201–212, doi:10.1016/j.anifeedsci.2007.06.002.
  10. Rasmussen, R.R.; Rasmussen, P.H.; Larsen, T.O.; Bladt, T.T.; Binderup, M.L. In vitro toxicity of fungi spoiling maize silage. Food Chem. Toxicol. 2011, 49, 31–44, doi:10.1016/j.fct.2010.09.007.
  11. Driehuis, F.; Spanjer, M.C.; Scholten, J.M.; Giffel, M.C.T. Occurrence of mycotoxins in maize, grass and wheat silage for dairy cattle in the Netherlands. Food Addit. Cont. Part. B 2008, 1, 41–50, doi:10.1080/19393210802236927.
  12. Driehuis, F.; Spanjer, M.C.; Scholten, J.M.; Giffel, M.C.T. Occurrence of Mycotoxins in Feedstuffs of Dairy Cows and Estimation of Total Dietary Intakes. J. Dairy Sci. 2008, 91, 4261–4271, doi:10.3168/jds.2008-1093.
  13. Garon, D.; Richard, E.; Sage, L.; Bouchart, V.; Pottier, D.; Lebailly, P. Mycoflora and multimycotoxin detection in corn silage: Experimental study. J. Agric. Food Chem. 2006, 54, 3479–3484, doi:10.1021/jf060179i.
  14. Mansfield, M.A.; Jones, A.D.; Kuldau, G.A. Contamination of fresh and ensiled maize by multiple Penicillium mycotoxins. Phytopathology 2008, 98, 330–336, doi:10.1094/PHYTO-98-3-0330.
  15. Monbaliu, S.; Poucke, C.V.; Detavernier, C.; Dumoulin, F.; Velde, M.V.D.; Schoeters, E.; Dyck, S.V.; Averkieva, O.; Peteghem, C.V.; Saeger, S.D. Occurrence of mycotoxins in feed as analyzed by a multi-mycotoxin LC-MS/MS method. J. Agric. Food Chem. 2010, 58, 66–71, doi:10.1021/jf903859z.
  16. Müller, H.M.; Amend, R. Formation and disappearance of mycophenolic acid, patulin, penicillic acid and PR toxin in maize silage inoculated with Penicillium roquefortii. Arch. Anim. Nutr. 1997, 50, 213–225.
  17. Placinta, C.M.; D’Mello, J.P.F.; Macdonald, A.M.C. A review of worldwide contamination of cereal grains and animal feed with Fusarium mycotoxins. Anim. Feed Sci. Technol. 1999, 78, 21–37.
  18. Rasmussen, R.R.; Storm, I.M.; Rasmussen, P.H.; Smedsgaard, J.; Nielsen, K.F. Multi-mycotoxin analysis of maize silage by LC-MS/MS. Anal. Bioanal. Chem. 2010, 397, 765–776, doi:10.1007/s00216-010-3545-7.
  19. Richard, E.; Heutte, N.; Sage, L.; Pottier, D.; Bouchart, V.; Lebailly, P.; Garon, D. Toxigenic fungi and mycotoxins in mature corn silage. Food Chem. Toxicol. 2007, 45, 2420–2425, doi:10.1016/j.fct.2007.06.018.
  20. Schneweis, I.; Meyer, K.; Hörmansdorfer, S.; Bauer, J. Mycophenolic acid in silage. Appl. Environ. Microbiol. 2000, 66, 3639–3641, doi:10.1128/AEM.66.8.3639-3641.2000.
  21. Schollenberger, M.; Müller, H.-M.; Rüfle, M.; Suchy, S.; Plank, S.; Drochner, W. Natural occurrence of 16 Fusarium toxins in grains and feedstuffs of plant origin from Germany. Mycopathologia 2006, 161, 43–52, doi:10.1007/s11046-005-0199-7.
  22. Sørensen, J.L.; Nielsen, K.F.; Rasmussen, P.H.; Thrane, U. Development of a LC-MS/MS method for analysis of enniatins and beauvericin in whole fresh and ensiled maize. J. Agric. Food Chem. 2008, 56, 10439–10443, doi:10.1021/jf802038b.
  23. Van Pamel, E.; Verbeken, A.; Vlaemynck, G.; de Boever, J.; Daeseleire, E. Ultrahigh-performance liquid chromatographic—Tandem mass spectrometric multimycotoxin method for quantitating 26 mycotoxins in maize silage. J. Agric. Food Chem. 2011, 59, 9747–9755, doi:10.1021/jf202614h.
  24. FAO. Worldwide Regulations for Mycotoxins in Food and Feed in 2003; Food and Agriculture Organization of the United Nations: Rome, Italy, 2004.
  25. EU commission. Commission Recommendation 2006/576/EC of 17 August 2006 on the Presence of Deoxynivalenol, Zearalenone, Ochratoxin A, T-2 and HT-2 and Fumonisins in Products Intended for Animal Feeding. 2006. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2006:229:0007:0009:EN:PDF (accessed on 19 July 2014).
  26. Cotty, P.J.; Jaime-Garcia, R. Influence of climate on aflatoxin producing fungi and aflatoxin contamination. Int. J. Food Microbiol. 2007, 119, 109–115, doi:10.1016/j.ijfoodmicro.2007.07.060.
  27. Sørensen, J.L. Preharvest. fungi and their mycotoxins in maize. Ph.D. Thesis, Technical University of Denmark, Lyngby, Denmark, June 2009.
  28. Storm, I.M.; Kristensen, N.B.; Raun, B.M.; Smedsgaard, J.; Thrane, U. Dynamics in the microbiology of maize silage during whole-season storage. J. Appl. Microbiol. 2010, 109, 1017–1026, doi:10.1111/j.1365-2672.2010.04729.x.
  29. EU Commission. Directive 2002/32/EC of the European Parliament and of the Council of 7 May 2002 on Undesirable Substances in Animal Feed. 2002. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2002:140:0010:0021:EN:PDF (accessed on 19 July 2014).
  30. EU Commission—SCF. Scientific Committee on Food: Opinion on Fusarium. Toxins—Part. 1: Deoxynivalenol. (DON). 1999. Available online: http://ec.europa.eu/food/fs/sc/scf/out44_en.pdf (accessed on 19 July 2014).
  31. EU Commission—SCF. Scientific Committee on Food: Opinion on Fusarium. Toxins—Part. 2: Zearalenone. (ZEA). 2000a. Available online: http://ec.europa.eu/food/fs/sc/scf/out65_en.pdf (accessed on 19 July 2014).
  32. EFSA. Scientific Opinion on risks for animal and public health related to the presence of nivalenol in food and feed. EFSA J. 2013, 11, 3262.
  33. Jestoi, M. Emerging fusarium-mycotoxins fusapriliferin, beauvericin, enniatins, and moniliformin: A review. Crit. Rev. Food Sci. Nutr. 2008, 48, 21–49, doi:10.1080/10408390601062021.
  34. Frisvad, J.C.; Smedsgaard, J.; Larsen, T.O.; Samson, R.A. Mycotoxins, drugs and other extrolites produced by species in Penicillium subgenus Penicillium. Stud. Mycol. 2004, 49, 201–241.
  35. Mohr, A.I.; Lorenz, I.; Baum, B.; Hewicker-Trautwein, M.; Pfaffl, M.; Dzidic, A.; Meyer, H.H.D.; Bauer, J.; Meyer, K. Influence of oral application of mycophenolic acid on the clinical health status of sheep. J. Vet. Med. A 2007, 54, 76–81, doi:10.1111/j.1439-0442.2007.00914.x.
  36. Tüller, G. Einfluss. von Roquefortin. C auf Tiergesundheid. und Lebensmittelqualität. bei Wiederkäuern. Ph.D. Thesis, Technische Universität München, München, Germany, August 2005. (In Genman).
  37. Cole, R.J.; Cox, R.H. Handbook of Toxic Fungal Metabolites; Academic Press: New York, NY, USA, 1981.
  38. Frisvad, J.C.; Thrane, U.; Samson, R.A.; Pitt, J.I. Important mycotoxins and the fungi which produce them. In Advances in Food Mycology; Hocking, A.D., Pit, J.I., Samson, R.A., Thrane, U., Eds.; Springer Science + Business Media Inc.: New York, NY, USA, 2006; pp. 3–31.
  39. Pfeiffer, E.; Eschbach, S.; Metzler, M. Alternaria toxins: DNA strand-breaking activity in mammalian cells in vitro. Mycotoxin Res. 2007, 23, 152–157, doi:10.1007/BF02951512.
  40. Liu, G.T.; Qian, Y.Z.; Zhang, P.; Dong, W.H.; Qi, Y.M.; Guo, H.T. Etiological role of Alternaria alternata in human esophageal cancer. Chin. Med. J. 1992, 105, 394–400.
  41. Pereyra, C.M.; Alonso, V.A.; Rosa, C.A.R.; Chiacchiera, S.M.; Dalcero, A.M.; Cavaglieri, L.R. Gliotoxin natural incidence and toxigenicity of Aspergillus fumigatus isolated from corn silage and ready dairy cattle feed. World Mycotoxin J. 2008, 1, 457–462, doi:10.3920/WMJ2007.1012.
  42. EU Commission—SCF. Scientific Committee on Food: Opinion on Fusarium Toxins—Part. 4: Nivalenol. 2000b. Available online: http://ec.europa.eu/food/fs/sc/scf/out74_en.pdf (accessed on 19 July 2014).
  43. Bennett, J.W.; Klich, M. Mycotoxins. Clin. Microbiol. Rev. 2003, 16, 497–516, doi:10.1128/CMR.16.3.497-516.2003.
  44. EFSA. Deoxynivalenol in food and feed: Occurrence and exposure. EFSA J. 2013, 11, 3379.
  45. Corrier, E. Mycotoxicosis: Mechanisms of immunosuppression. Vet. Immunol. Immunopathol. 1991, 30, 73–87, doi:10.1016/0165-2427(91)90010-A.
  46. EU Commission—SCF. Opinion of the Scientific Committee on Food on Fusarium Toxins Part. 6: Group Evaluation of T-2 toxin, HT-2 Toxin, Nivalenol and Deoxynivalenol. 2002. Available online: http://ec.europa.eu/food/fs/sc/scf/out123_en.pdf (accessed on 19 July 2014).
  47. Mansfield, M.A.; Kuldau, G.A. Microbiological and molecular determination of mycobiota in fresh and ensiled maize. Mycologia 2007, 99, 269–278, doi:10.3852/mycologia.99.2.269.
  48. Raun, B.M.L.; Kristensen, N.B. Prevalence of propanol fermentation in maize silage. Acta Agric. Scand. Sect. A Anim. Sci. 2010, 60, 53–59.
  49. Kristensen, N.B.; Sloth, K.H.; Højberg, O.; Spliid, N.H.; Jensen, C.; Thøgersen, R. Effects of microbial inoculants on corn silage fermentation, microbial contents, aerobic stability, and milk production under field conditions. J. Dairy Sci. 2010, 93, 3764–3774, doi:10.3168/jds.2010-3136.
  50. Lehotay, S.J.; de Kok, A.; Hiemstra, M.; van Bodegraven, P. Validation of a fast and easy method for the determination of residues from 229 pesticides in fruits and vegetables using gas and liquid chromatography and mass spectrometric detection. J. AOAC Int. 2005, 88, 595–614.
