Toxins 2014, 6(4), 1193-1200; doi:10.3390/toxins6041193

Article
Inhibitory Effects of Respiration Inhibitors on Aflatoxin Production
Shohei Sakuda 1,*, Diyan Febri Prabowo 1, Keiko Takagi 1, Kazuro Shiomi 2,3, Mihoko Mori 2,3, Satoshi Ōmura 3 and Hiromichi Nagasawa 1
1
Department of Applied Biological Chemistry, The University of Tokyo, 1-1-1 Yayoi, Bunkyo-ku, Tokyo 113-8657, Japan; E-Mails: dy.prabowo@gmail.com (D.F.P.); atakagi@mail.ecc.u-tokyo.ac.jp (K.T.); anagahi@mail.ecc.u-tokyo.ac.jp (H.N.)
2
Graduate School of Infection Control Sciences, Kitasato University, Minato-ku, Tokyo 108-8641, Japan; E-Mails: shiomi@lisci.kitasato-u.ac.jp (K.S.); morim@lisci.kitasato-u.ac.jp (M.M.)
3
Kitasato Institute for Life Sciences, Kitasato University, Minato-ku, Tokyo 108-8641, Japan; E-Mail: omuras@insti.kitasato-u.ac.jp
*
Author to whom correspondence should be addressed; E-Mail: asakuda@mail.ecc.u-tokyo.ac.jp; Tel.: +81-3-5841-5133; Fax: +81-3-5841-8022.
Received: 21 February 2014; in revised form: 13 March 2014 / Accepted: 19 March 2014 /
Published: 26 March 2014

Abstract

: Aflatoxin production inhibitors, which do not inhibit the growth of aflatoxigenic fungi, may be used to control aflatoxin without incurring a rapid spread of resistant strains. A respiration inhibitor that inhibits aflatoxin production was identified during a screening process for natural, aflatoxin-production inhibitors. This prompted us to evaluate respiration inhibitors as potential aflatoxin control agents. The inhibitory activities of four natural inhibitors, seven synthetic miticides, and nine synthetic fungicides were evaluated on aflatoxin production in Aspergillus parasiticus. All of the natural inhibitors (rotenone, siccanin, aptenin A5, and antimycin A) inhibited fungal aflatoxin production with IC50 values around 10 µM. Among the synthetic miticides, pyridaben, fluacrypyrim, and tolfenpyrad exhibited strong inhibitory activities with IC50 values less than 0.2 µM, whereas cyflumetofen did not show significant inhibitory activity. Of the synthetic fungicides, boscalid, pyribencarb, azoxystrobin, pyraclostrobin, and kresoxim-methyl demonstrated strong inhibitory activities, with IC50 values less than 0.5 µM. Fungal growth was not significantly affected by any of the inhibitors tested at concentrations used. There was no correlation observed between the targets of respiration inhibitors (complexes I, II, and III) and their IC50 values for aflatoxin-production inhibitory activity. This study suggests that respiration inhibitors, including commonly used pesticides, are useful for aflatoxin control.
Keywords:
aflatoxin; fluacrypyrim; inhibitor; pyridaben; respiration; siccanin; strobirin

1. Introduction

Contamination of agricultural products by mycotoxins, toxic secondary metabolites of fungi, is a worldwide human and livestock health concern that has the potential for drastic economic consequences. Among the mycotoxins, aflatoxins produced by some Aspergillus sp. generate the most concern because of their potent toxicity, carcinogenicity [1], and high contamination in a wide variety of food and feed commodities [2,3]. Aflatoxin contamination in agricultural products is a serious problem, but it is difficult to resolve due to the lack of an effective method to control aflatoxin production.

Antifungal agents are typically applied for addressing mycotoxin contamination, however, their use can induce the rapid spread of antifungal-resistant strains [4]. A few fungicides exist that are effective against aflatoxigenic fungi in the field [5]. Additionally, specific aflatoxin-production inhibitors, which do not significantly affect fungal growth, may be useful for the control and prevention of aflatoxin contamination in food and feed without incurring a rapid spread of resistant strains. To date, some pesticides [6], microbial metabolites [7], and plant constituents [8,9] have been shown to be specific aflatoxin-production inhibitors.

We screened a natural products library (RIKEN Natural Products Depositor) and found that siccanin, a respiration inhibitor, inhibits aflatoxin production in Aspergillus parasiticus. Since the relationship between respiration inhibitory activity and aflatoxin-production inhibitory activity has not been reported, the aim of this study was to examine the aflatoxin-production inhibitory activity of natural and synthetic respiration inhibitors.

2. Results and Discussion

2.1. Inhibitory Activity of Natural Respiration Inhibitors on Aflatoxin Production

All of the four natural respiration inhibitors with different targets (complexes I, II, and III in the mitochondrial respiratory chain) inhibited aflatoxin production of A. parasiticus in a dose-dependent manner (Figure 1a–d). The IC50 value required for each compound to inhibit aflatoxin production of A. parasiticus is shown in Table 1. Rotenone (a complex I inhibitor), siccanin and atpenin A5 (complex II inhibitors), and antimycin A (a complex III inhibitor) had similar activities with IC50 values around 10 µM. None of the four inhibitors significantly reduced fungal mycelial weight at the concentrations tested. This indicates that they have a high selectivity for aflatoxin production.

All four of the inhibitors tested are known antifungal agents. However, the aflatoxigenic fungus, A. parasiticus, showed high resistance against them. Atpenin A5 and siccanin strongly inhibit growth of some pathogenic fungi, such as Trichophyton mentagrophytes [10,11]. Siccanin strongly inhibits succinate dehydrogenase of complex II of T. mentagrophytes, which suggests that complex II may be the primary target for the fungicidal action of siccanin [12]. Atpenin A5 inhibits the mammalian complex II more strongly than siccanin [13], but there is no information on the inhibitory activities of atpenin A5 and siccanin on complex II of aflatoxigenic fungi and it is not clear if the inhibitory activities on the fungal complex II are parallel to their aflatoxin production inhibitory activities.

Toxins 06 01193 g001 200

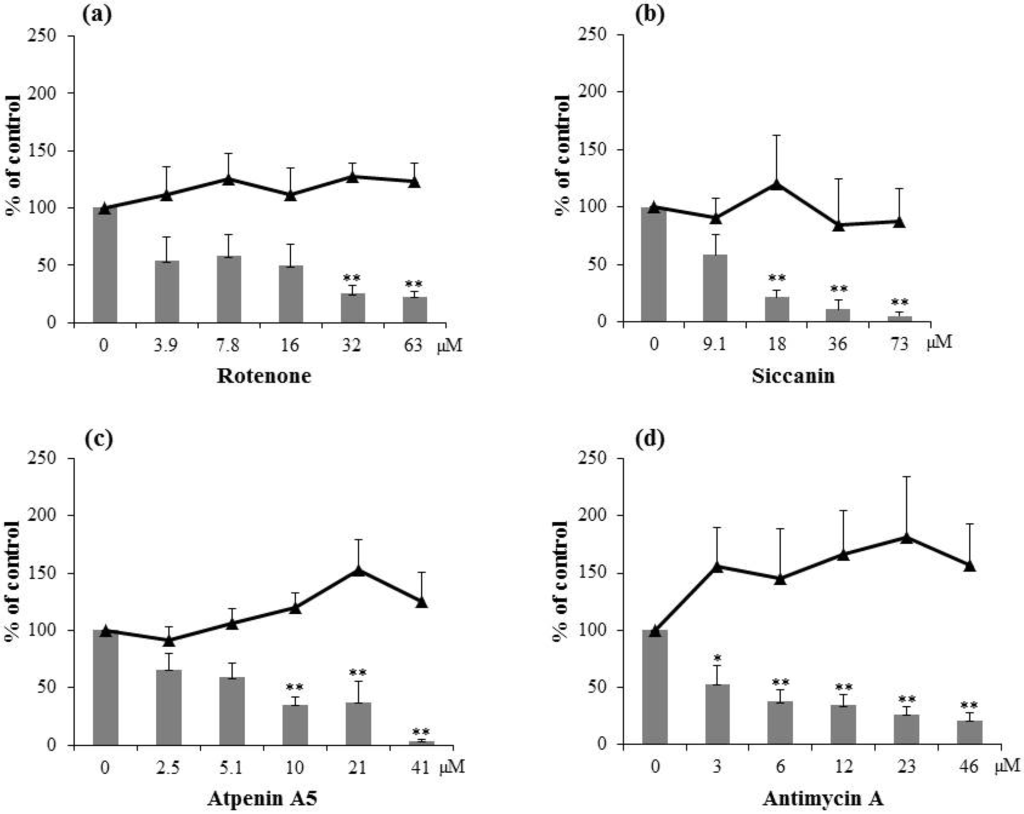

Figure 1. Effects of natural respiration inhibitors, rotenone (a); siccanin (b); atpenin A5 (c); and antimycin A (d), on aflatoxin (total aflatoxins B1 and G1) production (gray bars) and mycelial weight (black triangles) of A. parasiticus. n = 4–5, ** p < 0.01; * p < 0.05, vs. control.

Click here to enlarge figure

Figure 1. Effects of natural respiration inhibitors, rotenone (a); siccanin (b); atpenin A5 (c); and antimycin A (d), on aflatoxin (total aflatoxins B1 and G1) production (gray bars) and mycelial weight (black triangles) of A. parasiticus. n = 4–5, ** p < 0.01; * p < 0.05, vs. control.
Toxins 06 01193 g001 1024
Table Table 1. Aflatoxin-production inhibitory activity of respiration inhibitors.

Click here to display table

Table 1. Aflatoxin-production inhibitory activity of respiration inhibitors.
ClassificationTargetCompoundIC50 (µM) *
Natural productcomplex Irotenone13
complex IIsiccanin13
atpenin A59.7
complex IIIantimycin A7.2
Synthetic miticidecomplex Ipyridaben0.01
tolfenpyrad0.18
complex IImepronil 23
cyflumetofen>300
complex IIIfluacrypyrim0.07
acequinocyl1.7
bifenazate20
Synthetic fungicidecomplex IIboscalid<0.01
complex IIIPyribencarb0.43
cyazofamid0.70
pyraclostrobin0.06
kresoxim-methyl0.06
azoxystrobin0.40
trifloxystrobin0.90
picoxystrobin8.6
metominostrobin9.9

Note: * For production of total aflatoxin (aflatoxin B1 and aflatoxin G1).

2.2. Inhibitory Activities of Synthetic Pesticides with Respiration Inhibitory Activity on Aflatoxin Production

Aflatoxin-production inhibitory activities of seven commercially available miticides and nine fungicides with respiration inhibitory activity were examined (Figure 2 and Figure 3). The IC50 values obtained are listed in Table 1. Among the miticides, pyridaben and tolfenpyrad (complex I inhibitors) [14] and fluacrypyrim and acequinocyl (complex III inhibitors) demonstrated stronger inhibitory activities than the natural inhibitors. Specifically, pyridaben and fluacrypyrim had IC50 values less than 0.1 µM. Mepronil (a complex II inhibitor) and bifenazate (a complex III inhibitor) exhibited weak activities, and cyflumetofen (a complex II inhibitor) displayed very weak activity (Table 1).

It has been shown that cyflumetofen strongly inhibits the mitochondrial complex II of the spider mite, but it does not inhibit the mitochondrial complex II of insects, crustaceans, or mammals [15]. Although it is not clear if cyflumetofen inhibits complex II of fungus, its high selectivity for inhibiting the spider mite complex II might be related to its weak aflatoxin-production inhibitory activity. We did not observe a significant reduction of fungal mycelial weight by any of the miticides tested at the concentrations tested (Figure 2a–f). This finding indicates that some miticides, such as pyridaben and fluacrypyrim, can inhibit aflatoxin production by the aflatoxigenic fungus with high selectivity.

Toxins 06 01193 g002 200

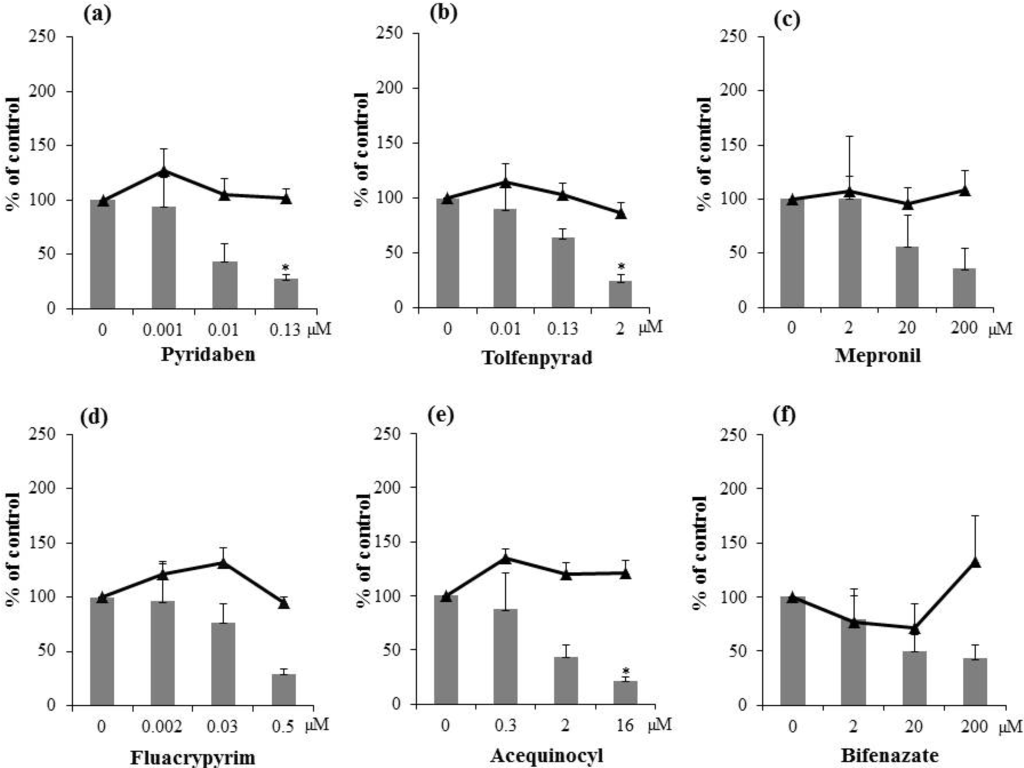

Figure 2. Effects of synthetic miticides, pyridaben (a); tolfenpyrad (b); mepronil (c); fluacrypyrim (d); acequinocyl (e); and bifenazate (f), on aflatoxin (total aflatoxins B1 and G1) production (gray bars) and mycelial weight (black triangles) of A. parasiticus. n = 4; * p < 0.05, vs. control.

Click here to enlarge figure

Figure 2. Effects of synthetic miticides, pyridaben (a); tolfenpyrad (b); mepronil (c); fluacrypyrim (d); acequinocyl (e); and bifenazate (f), on aflatoxin (total aflatoxins B1 and G1) production (gray bars) and mycelial weight (black triangles) of A. parasiticus. n = 4; * p < 0.05, vs. control.
Toxins 06 01193 g002 1024
Toxins 06 01193 g003 200
Figure 3. Effects of synthetic fungicides, boscalid (a); pyribencarb (b); cyazofamid (c); pyraclostrobin (d); kresoxym-methyl (e); azoxystrobin (f); trifloxystrobin (g); picoxystrobin (h); and metominostrobin (i), on aflatoxin (total aflatoxins B1 and G1) production (blue bars) and mycelial weight (black triangles) of A. parasiticus. n = 4–5; ** p < 0.01; * p < 0.05, vs. control.

Click here to enlarge figure

Figure 3. Effects of synthetic fungicides, boscalid (a); pyribencarb (b); cyazofamid (c); pyraclostrobin (d); kresoxym-methyl (e); azoxystrobin (f); trifloxystrobin (g); picoxystrobin (h); and metominostrobin (i), on aflatoxin (total aflatoxins B1 and G1) production (blue bars) and mycelial weight (black triangles) of A. parasiticus. n = 4–5; ** p < 0.01; * p < 0.05, vs. control.
Toxins 06 01193 g003 1024

All fungicides tested showed strong aflatoxin-production inhibitory activity (Figure 3a–i). Among them, boscalid (a complex II inhibitor) [16] and pyribencarb, kresoxim-methyl, azoxystrobin, and pyraclostrobin (complex III inhibitors) [17] inhibited aflatoxin production strongly with IC50 values comparable to those of pyridaben and fluacrypyrim mentioned above (Table 1). Since none of the fungicides significantly reduced fungal mycelial weight at the concentrations tested (Figure 3), these fungicides also show high selectivity for inhibiting aflatoxin production. Salicylaldehyde was previously shown to enhance the anti-fungal activity of antimycin A and kresoxim-methyl against aflatoxigenic fungi [18], but aflatoxin-production inhibitory activities of antimycin A and kresoxim-methyl were not reported.

Overall, the current study examined inhibitory activities of 20 compounds on aflatoxin production. From the results summarized in Table 1, it is difficult to identify a correlation between the targets of the respiration inhibitors (complexes I, II, and III) and their IC50 values for aflatoxin-production inhibitory activity, suggesting that respiration inhibitors with a variety of targets may have a potential for inhibiting aflatoxin production. Work that investigates the mode of action of respiration inhibitors for inhibition of aflatoxin production is currently in progress.

3. Experimental Section

3.1. Strains, Chemicals, and Culture Conditions

Aspergillus parasiticus NRRL 2999 was used as a producer of aflatoxins B1 and G1 throughout the study [19]. Aflatoxins B1 and G1 are the main aflatoxins produced by the NRRL 2999 strain. NRRL 2999 was maintained on potato dextrose (PD) agar (Difco, MD) and subcultured monthly. A spore suspension prepared from a week-old culture at a concentration of 2.7 × 103 cells/µL was used as the inoculum. The spore suspension (30 µL/well) was inoculated into PD liquid media in 24-well microplates (1 mL/well). All test compounds were dissolved in dimethyl sulfoxide and added to the wells (final concentration of dimethyl sulfoxide was 0.1% v/v). The plates were incubated undisturbed at 27.5 °C for three days.

Siccanin and atpenin A are fungal metabolites obtained from the natural products library of the Kitasato Institute for Life Sciences. Rotenone and antimycin A were purchased from MP Biomedicals, LLC, Illkirch, France and Sigma-Aldrich, St. Louis, MO, USA, respectively. Cyflumetofen was gifted from Dr. Ikemi of Otsuka Chemical Co., Ltd. Pesticides except for cyflumetofen were purchased from Wako Pure Chemical Industries, Ltd., Osaka, Japan.

3.2. Analysis of Aflatoxin

After three days of incubation, the NRRL 2999 culture broth of each well was centrifuged to obtain the mycelia and the culture supernatant. The mycelia were washed with 1 mL of distilled water two times and collected by centrifugation in a 1.5 mL microtube. After freeze-drying the mycelia, the mycelial weight was calculated by subtracting the weight of an empty 1.5 mL microtube from the total weight.

Aflatoxins B1 and G1 in the culture supernatant were analyzed in the following manner. The supernatant (0.7 mL) was extracted with 200 µL of chloroform, and the chloroform solution was distilled off by air-drying. The remaining residue was dissolved in 0.1 mL of a 90% aqueous acetonitrile solution. The dissolved mixture was subjected to reverse-phase HPLC on a 250 mm × 4.6 mm i.d. Capcell pak C18 UG120 column by an isocratic elution of acetonitrile:methanol:water (10:30:60) over 20 min at a flow rate of 1.0 mL with detection at 365 nm to quantify aflatoxins B1 (retention time: 8.3 min) and G1 (retention time: 11.1 min).

3.3. Data Analysis

The NRRL 2999 strain was cultured in PD liquid medium in a well of microplate, with or without a sample, at 27.5 °C for three days. Amounts of aflatoxins B1 and G1 in the culture supernatant and mycelial weight were measured according to the methods mentioned above. This experiment was repeated four or five times (n = 4–5). The aflatoxin amounts and mycelial weight of each well were normalized to those of control well. The normalized values were used for statistical analysis. Data are presented as the mean ± SE. Differences between groups were assessed by Dunnett’s test.

4. Conclusions

The results obtained in this study indicate that respiration inhibitors can control aflatoxin production, and a microbe that produces a respiration inhibitor, such as antimycin A, has the potential to be a bio-control agent. There are a number of commonly used synthetic pesticides that exhibit respiration inhibitory activity, including those used in this study. This study suggests that those pesticides may be also useful as aflatoxin control agents.

Acknowledgments

The Programme for the Promotion of Basic and Applied Researches for Innovations in Bio-oriented Industry supported this study. We thank Hiroyuki Osada and Tamio Saito of RIKEN for kindly supplying their natural product library (NPDepo); Ken Umetsu and Naoki Ikemi of Otsuka Chemical Co., Ltd. for helpful discussions and their generous gift of cyflumetofen; and Nobuo Takakusa of Nippon Soda Co., Ltd., Kurin Iimura and Toshiyoshi Yamamoto for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, Y.; Wu, F. Global burden of aflatoxin-induced hepatocellular carcinoma: A risk assessment. Environ. Health Perspect. 2010, 118, 818–824, doi:10.1289/ehp.0901388.
  2. Bennett, J.W.; Klich, M. Mycotoxins. Clin. Microbiol. Rev. 2003, 16, 497–616, doi:10.1128/CMR.16.3.497-516.2003.
  3. Richard, J.L.; Payne, G.A. Mycotoxins: Risks in Plant, Animal and Human Systems; Council for Agricultural Science and Technology Press: Ames, IA, USA, 2003.
  4. Snelders, E.; Huis in’t Velt, R.A.G.; Rijs, A.J.M.M.; Kema, G.H.J.; Melchers, W.J.G.; Verweij, P.E. Possible environmental origin of resistance of Aspergillus fumigatus to medical triazoles. Appl. Environ. Microbiol. 2009, 75, 4053–4057, doi:10.1128/AEM.00231-09.
  5. Abbas, H.K.; Wilkinson, J.R.; Zablotowicz, R.M.; Accinelli, C.; Abel, C.A.; Bruns, H.A.; Weaver, M.A. Ecology of Aspergillus flavus, regulation of aflatoxin production, and management strategies to reduce aflatoxin contamination of corn. Toxin Rev. 2009, 28, 142–153, doi:10.1080/15569540903081590.
  6. Dutton, M.F.; Anderson, M.S. Inhibition of aflatoxin biosynthesis by organophosphorous compounds. J. Food Prot. 1980, 43, 381–384.
  7. Sakuda, S. Mycotoxin production inhibitors from natural products. Mycotoxins 2010, 60, 79–86, doi:10.2520/myco.60.79.
  8. Holmes, R.A.; Boston, R.S.; Payne, G.A. Diverse inhibitors of aflatoxin biosynthesis. Appl. Microbiol. Biotechnol. 2008, 78, 559–572, doi:10.1007/s00253-008-1362-0.
  9. Jermnak, U.; Yoshinari, T.; Sugiyama, Y.; Tsuyuki, R.; Nagasawa, H.; Sakuda, S. Isolation of methyl syringate as a specific aflatoxin production inhibitor from the essential oil of Betula alba and aflatoxin production inhibitory activities of its related compunds. Int. J. Food Microbiol. 2012, 153, 339–344, doi:10.1016/j.ijfoodmicro.2011.11.023.
  10. Ōmura, S.; Tomoda, H.; Kimura, K.; Zhen, D.-Z.; Kunagai, H.; Igarashi, K.; Imamura, N.; Takahashi, Y.; Tanaka, Y.; Iwai, Y. Atpenins, new antifungal antibiotics produced by Penicillium sp. J. Antibiot. 1988, 41, 1769–1773, doi:10.7164/antibiotics.41.1769.
  11. Ishibashi, K. Studies on antibiotics from Helminthosporium sp. fungi. VII. Siccanin, a new antifungal antibiotic produced by Helminthosporium siccans. J. Antibiot. 1961, A15, 161–167.
  12. Mogi, T.; Kawakami, T.; Arai, H.; Igarashi, Y.; Matsushita, K.; Mori, M.; Shiomi, K.; Ōmura, S.; Harada, S.; Kita, K. Siccanin rediscovered as a species-selective succinate dehydrogenase inhibitor. J. Biochem. 2009, 146, 383–387, doi:10.1093/jb/mvp085.
  13. Miyadera, H.; Shiomi, K.; Ui, H.; Yamaguchi, Y.; Masuma, R.; Tomoda, H.; Miyoshi, H.; Osanai, A.; Kita, K.; Ōmura, S. Atpenins, potent and specific inhibitors of mitochondrial complex II (succinate-ubiquinone oxidoreductase). Proc. Natl. Acad. Sci. USA 2003, 100, 473–477, doi:10.1073/pnas.0237315100.
  14. Lummen, P. Complex I inhibitors as insecticides and acaricides. Biochem. Biophys. Acta 1998, 1364, 287–296.
  15. Ikemi, N. Development of a new acaricide, cyflumetofen. J. Pestic. Chem. 2012, 37, 275–282.
  16. Avenot, H.F.; Michailides, T.J. Progress in understanding molecular mechanisms and evolution of resistance to succinate dedydrogenase inhibiting (SDHI) fungicides in phytopathogenic fungi. Crop Prot. 2010, 29, 643–651, doi:10.1016/j.cropro.2010.02.019.
  17. Balba, H. Review of strobilurin fungicide chemicals. J. Environ. Sci. Health Part B: Pestic. Food Contam. Agric. Wastes 2007, 42, 441–451, doi:10.1080/03601230701316465.
  18. Kim, J.H.; Campbell, B.C.; Mahoney, N.; Chan, K.L.; Molyneux, R.J. Chemosensitization of aflatoxigenic fingi to antimycin A and strobilurin using salicylaldehyde, a volatile natural compound targeting cellular antioxidation system. Mycopathologia 2011, 171, 291–298, doi:10.1007/s11046-010-9356-8.
  19. Yoshinari, T.; Noda, Y.; Yoda, K.; Sezaki, H.; Nagasawa, H.; Sakuda, S. Inhibitory activity of blasticidin A, a strong aflatoxin production inhibitor, on protein synthesis of yeast: Selective inhibition of aflatoxin production by protein synthesis inhibitors. J. Antibiot. 2010, 63, 309–314, doi:10.1038/ja.2010.36.
