Toxins 2013, 5(8), 1422-1446; doi:10.3390/toxins5081422

Article
Deletion and Gene Expression Analyses Define the Paxilline Biosynthetic Gene Cluster in Penicillium paxilli
Barry Scott 1,*, Carolyn A. Young 1,2, Sanjay Saikia 1, Lisa K. McMillan 1, Brendon J. Monahan 1, Albert Koulman 3, Jonathan Astin 1, Carla J. Eaton 1, Andrea Bryant 1, Ruth E. Wrenn 1, Sarah C. Finch 4, Brian A. Tapper 3, Emily J. Parker 1 and Geoffrey B. Jameson 1
1
Institute of Fundamental Sciences, Massey University, Private Bag 11 222, Palmerston North 4442, New Zealand; E-Mails: cayoung@noble.org (C.A.Y.); ssaikia@msl.ubc.ca (S.S.) lisa.stanbra@scionresearch.com (L.K.M.); brendon.monahan@csiro.au (B.J.M.); j.astin@auckland.ac.nz (J.A.); c.j.eaton@massey.ac.nz (C.J.E.); akbryant@xtra.co.nz (A.B.); majoruth@hotmail.com (R.E.W.); emily.parker@canterbury.ac.nz (E.J.P.); g.b.jameson@massey.ac.nz (G.B.J.)
2
The Samuel Roberts Noble Foundation, Ardmore, OK 73401, USA
3
AgResearch, Grasslands Research Centre, Private Bag 11 008, Palmerston North 4442, New Zealand; E-Mails: albert.koulman@mrc-hnr.cam.ac.uk (A.K.); brian.tapper@agresearch.co.nz (B.A.T.)
4
AgResearch, Ruakura Research Centre, East Street, Private Bag 3123, Hamilton 3214, New Zealand; E-Mail: sarah.finch@agresearch.co.nz
*
Author to whom correspondence should be addressed; E-Mail: d.b.scott@massey.ac.nz; Tel.: +64-6-350-5168; Fax: +64-6-350-5688.
Received: 5 June 2013; in revised form: 22 July 2013 / Accepted: 2 August 2013 /
Published: 14 August 2013

Abstract

: The indole-diterpene paxilline is an abundant secondary metabolite synthesized by Penicillium paxilli. In total, 21 genes have been identified at the PAX locus of which six have been previously confirmed to have a functional role in paxilline biosynthesis. A combination of bioinformatics, gene expression and targeted gene replacement analyses were used to define the boundaries of the PAX gene cluster. Targeted gene replacement identified seven genes, paxG, paxA, paxM, paxB, paxC, paxP and paxQ that were all required for paxilline production, with one additional gene, paxD, required for regular prenylation of the indole ring post paxilline synthesis. The two putative transcription factors, PP104 and PP105, were not co-regulated with the pax genes and based on targeted gene replacement, including the double knockout, did not have a role in paxilline production. The relationship of indole dimethylallyl transferases involved in prenylation of indole-diterpenes such as paxilline or lolitrem B, can be found as two disparate clades, not supported by prenylation type (e.g., regular or reverse). This paper provides insight into the P. paxilli indole-diterpene locus and reviews the recent advances identified in paxilline biosynthesis.
Keywords:
indole-diterpene; paxilline; prenylation

1. Introduction

Paxilline is a member of a large and structurally diverse group of indole-diterpene secondary metabolites, many of which are potent tremorgenic mammalian mycotoxins, synthesized by filamentous fungi [1]. These metabolites have a common structural core comprised of a cyclic diterpene skeleton derived from geranylgeranyl diphosphate (GGPP) and an indole group that is proposed to be derived from indole-3-glycerol phosphate, a precursor of tryptophan [2,3]. Paspaline is proposed to be the first stable intermediate from which many of the other metabolites of this class are derived [4]. Further chemical elaboration of paspaline is proposed to occur by additional prenylations, different patterns of ring substitutions and different ring stereochemistry [5].

Understanding fungal indole-diterpene biosynthesis has progressed considerably in recent years principally through research on paxilline biosynthesis in Penicillium paxilli. This is an ideal organism for studying indole-diterpene biosynthesis because it grows rapidly, produces large quantities of paxilline in submerged culture and is readily amenable to genetic manipulation [6,7]. Using a combination of plasmid insertional mutagenesis and chromosome walking, a cluster of genes was isolated and shown to be required for paxilline biosynthesis [8]. Gene disruption and chemical complementation experiments have shown that paxG, paxP and paxQ are required for paxilline biosynthesis [8,9,10].

PaxG, a geranylgeranyl diphosphate (GGPP) synthase [11], is proposed to catalyze the first step in paxilline biosynthesis (Figure 1). Targeted deletion of paxG resulted in mutant strains that were completely blocked for indole-diterpene biosynthesis [8,11]. Using a P. paxilli mutant deleted for the entire pax gene cluster we were able to show by gene reconstitution experiments that just four genes, paxG, paxM, paxB and paxC were necessary and sufficient for paspaline biosynthesis [4]. Based on this study we proposed a biosynthetic scheme for paspaline biosynthesis involving condensation of indole-3-glycerol phosphate with GGPP to form 3-geranylgeranylindole (3-GGI), followed by epoxidation and cyclization of this intermediate to form paspaline (Figure 1). This scheme has recently been experimentally validated by reconstituting paspaline biosynthesis in the heterologous host Aspergillus oryzae [12]. Stepwise introduction of paxG, paxC, paxM and paxB into A. oryzae, combined with in vitro protein expression studies, demonstrated that PaxC is a prenyl transferase required for formation of 3-GGI and that PaxM and PaxB catalyze the stepwise epoxidation and cyclization of 3-GGI to paspaline [12]. Two cytochrome P450 monooxygenases, PaxP and PaxQ are involved in the later steps of the pathway in which paspaline is converted to paxilline [9,10]. While deletion mutants of paxP and paxQ were blocked for paxilline biosynthesis, they accumulated paspaline and 13-desoxypaxilline, respectively, confirming that both genes were required for paxilline biosynthesis and that paspaline and 13-desoxypaxilline were the most likely substrates for the corresponding enzymes [9]. This was confirmed by feeding these compounds to strains lacking the pax cluster but containing ectopically integrated copies of paxP and paxQ [10]. Transformants containing paxP converted paspaline into 13-desoxypaxilline as the major product and β-PC-M6 as the minor product. paxQ-containing transformants converted 13-desoxypaxilline into paxilline. These results confirmed that paspaline, β-PC-M6 and 13-desoxypaxilline are paxilline intermediates and that paspaline and β-PC-M6 are substrates for PaxP, and 13-desoxypaxilline is a substrate for PaxQ [10]. Stepwise introduction of the pax genes into A. oryzae showed that addition of paxG-C-M-B-P-Q was sufficient to reconstitute the machinery for paxilline biosynthesis [12].

Toxins 05 01422 g001 200
Figure 1. Proposed pathway for biosynthesis of paxilline and post-paxilline derivatives in P. paxilli based on experiments described here and in the recent work of Tagami et al. [12] and Liu et al. [13].

Click here to enlarge figure

Figure 1. Proposed pathway for biosynthesis of paxilline and post-paxilline derivatives in P. paxilli based on experiments described here and in the recent work of Tagami et al. [12] and Liu et al. [13].
Toxins 05 01422 g001 1024

Here we present a complete functional analysis of the PAX gene cluster locus. Using a combination of bioinformatics, gene expression and multiple targeted gene replacement analyses, we have demarcated the boundaries of the gene cluster and defined a set of seven genes required for paxilline biosynthesis in P. paxilli, plus one additional gene needed for paxilline prenylation. Collectively, the data presented here along with previously published results by us and others establish the P. paxilli pax gene cluster as a model system for understanding indole-diterpene biosynthetic pathways.

2. Results and Discussion

Our first reported annotation of the PAX locus predicted the involvement of 17 genes in the biosynthesis of paxilline, with the paxN and paxO boundaries flanked by genes encoding a putative lipase and an arabinase, respectively [8]. A re-analysis of the DNA sequence at this locus identified a total of 21 putative genes, reannotated as PP101 (paxN) to PP121 (paxO). The four new putative genes identified were predicted to encode a hypothetical protein (PP103), an acetyl transferase (PP109) and two integral membrane associated proteins (PaxA/PP114 and PaxB/PP116). A summary of the putative functions of all 21 genes is summarized in Table 1.

Table 1. Putative functions of genes encoded at the PAX locus.

Click here to display table

Table 1. Putative functions of genes encoded at the PAX locus.
Gene/
ORF
Exon #Predicted product size (aa)Predicted functionTop BlastP hit
DescriptionInterProScanProteinOrganismE-value (%ID)Accession/Ref
PP1012402FAD-dependent oxidoreductaseIPR002938
IPR003042
Pc16g05940P. chrysogenum0.0 (78)CAP93264
PP1023508β-1,3-
glucanosyltransferase
IPR004886
IPR012946
IPR013781
IPR013781
A. oryzae0.0 (66)BAE66482
PP1033103UnknownIPR018809 P. digitatum3 × 10−47 (74)EKV06610
PP1042477Zn(II)2Cys6 transcription factorIPR001138 N. fischeri3 × 10−81 (34)EAW19936
PP1057684Zn(II)2Cys6 transcription factorIPR001138
IPR007219
A. oryzae0.0 (51)XP_003189175
PP1061345UnknownIPR011042Pc16g00180P. chrysogenum5 × 10−164 (66)CAP92688
PP1074385NADH oxidoreductaseIPR001327
IPR013027
IPR023753
Pc16g00160 P. chrysogenum0.0 (65)CAP92686
PP1081543Capsule associated proteinIPR006598CAP1Metarhizium anisopliae0.0 (55)EFY96463
PP1091175AcetyltransferaseIPR000182
IPR016181
M. anisopliae3 × 10−80 (68)EFY95041
PP1103818UnknownNo hits A. niger0.0 (44)EHA28514
PP1113478Transporter (MFS)IPR005828
IPR016196
IPR020846
A. oryzae0.0 (75)BAE63453
PP1121291DUF829-Conserved protein family of unknown functionIPR008547Pc13g04190P. chrysogenum5 × 10−158 (71)CAP91488
paxG (PP113)4371Geranylgeranyl diphosphate synthaseIPR000092
IPR008949
IPR017446
Pc20g01860P. chrysogenum1 × 10-162 (64)CAP85515
paxA (PP114)2356Integral membrane protein No hitsAtmAA. flavus4 × 10−462 (33)CAP53940/ [14]
paxM (PP115)3477FAD-dependent monooxygenaseIPR002938
IPR003042
Pc20g01850P. chrysogenum0.0 (60)CAP85514
paxB (PP116)2243Integral membrane proteinNo hitsAtmBA. flavus1 × 10−103 (62)CAP53939/
[14]
paxC (PP117)3317Prenyl transferaseIPR000092
IPR008949
IPR017446
Pc20g01840P. chrysogenum3 × 10−162 (69)CAP85513
paxP (PP118)6515Cytochrome P450 monooxygenaseIPR001128
IPR002403
A. oryzae0.0 (64)EIT78616
paxQ (PP119)10512Cytochrome P450 monooxygenaseIPR001128
IPR002401
IPR017972
AtmQA. flavus0.0 (60)CAP53938/
[14]
paxD (PP120)2438Indole dimethylallyl transferaseIPR012148
IPR017795
AtmDA. flavus2 × 10−74 (35)
5 × 10−74
(35)
EED52847
CAP53937/
[13,14]
PP1214418FAD-binding oxidoreductaseIPR006094
IPR016166
IPR016167
IPR016169
W97_07461Coniosporium apollinis9 × 10−88 (34)EON68203
PP1223306Arabinase/XylanaseIPR006710
IPR023296
Pc12g01330 P. chrysogenum2 × 10−42 (38)CAP79760

To define the core cluster of genes required for paxilline biosynthesis a set of targeted gene deletion mutations were generated at the PAX locus (Figure 2). PCR-generated linear fragments of the gene replacement constructs were recombined into the genome of P. paxilli. PCR screening of hygromycin or geneticin resistant transformants identified putative replacements. Southern blot analysis was used to identify transformants containing a targeted gene replacement (Figure 2). These transformants were analyzed by normal phase TLC for their ability to synthesize paspaline, 13-desoxypaxilline and paxilline (Figure 3). This analysis showed that ΔpaxG [8,11], ΔpaxA, ΔpaxM, ΔpaxB and ΔpaxC mutants were unable to synthesize paxilline or any other indole-diterpene intermediates found in P. paxilli wild-type. The absence of any identifiable indole-diterpene compound in these extracts was confirmed by reverse phase HPLC analysis. As previously shown, ΔpaxP and ΔpaxQ mutants accumulate paspaline and 13-desoxypaxilline respectively [9]. Deletions of PP104 and PP105, encoding putative transcription factors with Zn(II)2Cys6 binuclear cluster DNA-binding motifs, PP107 (encoding a putative dehydrogenase), PP112 (encoding a conserved hypothetical protein) and paxD (=PP120; encoding a putative indole dimethylallyl transferase) all accumulated paxilline and the other indole-diterpene intermediates found in P. paxilli wild-type. While the amount of paxilline present in the ΔPP112 sample is low (Figure 3), independent TLC analyses confirmed this mutant did synthesize paxilline at levels comparable to the other mutants not involved in paxilline biosynthesis. The PP104-PP105 double mutant also had the same phenotype as wild-type, as did CYD-67, a deletion of paxD that extends through PP121 to an undefined point beyond both genes. This deletion analysis defines a set of 7 genes, paxG through to paxQ, that are required for paxilline biosynthesis.

Toxins 05 01422 g002 200

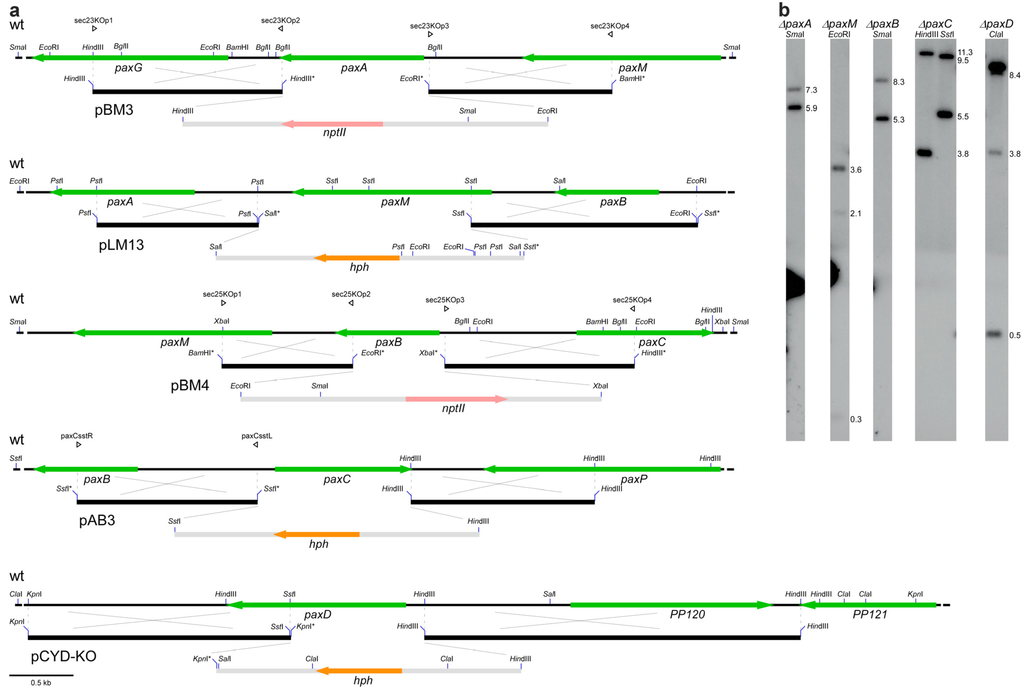

Figure 2. Paxilline biosynthesis gene replacements. (a) Physical maps of P. paxilli wild-type genomic region, linear replacement construct and mutant allele for each of paxA (PP114), paxM (PP115), paxB (PP116), paxC (PP117) and paxD (PP120); (b) Autoradiographs of Southern blots of 1 μg genomic digest of P. paxilli wild-type and mutant alleles, probed with [32P] dCTP-labeled replacement construct for each gene.

Click here to enlarge figure

Figure 2. Paxilline biosynthesis gene replacements. (a) Physical maps of P. paxilli wild-type genomic region, linear replacement construct and mutant allele for each of paxA (PP114), paxM (PP115), paxB (PP116), paxC (PP117) and paxD (PP120); (b) Autoradiographs of Southern blots of 1 μg genomic digest of P. paxilli wild-type and mutant alleles, probed with [32P] dCTP-labeled replacement construct for each gene.
Toxins 05 01422 g002 1024
Toxins 05 01422 g003 200

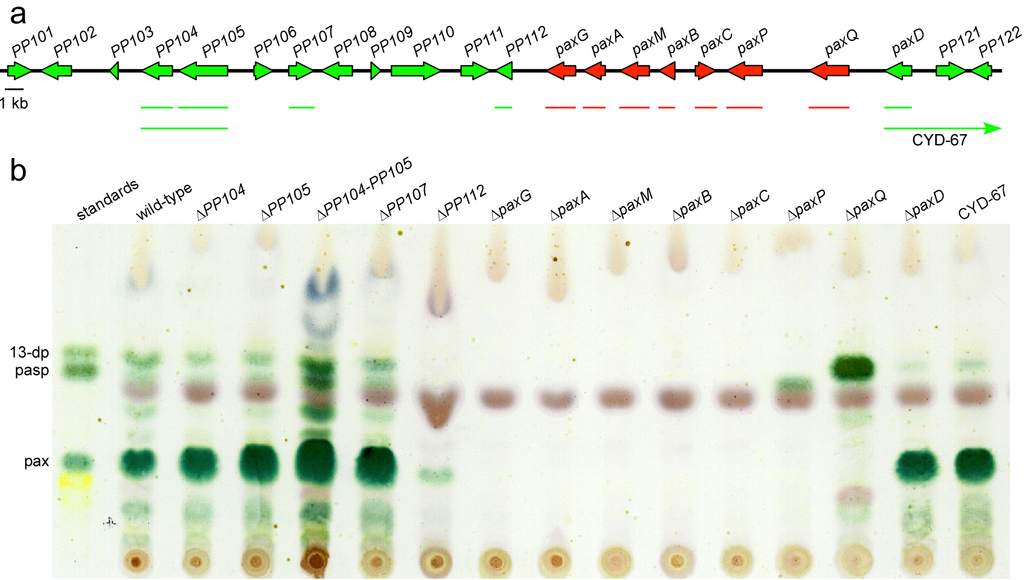

Figure 3. Deletion analysis of the paxilline biosynthesis gene cluster. (a) The P. paxilli PAX locus showing the organization of genes and ORFs. Closed arrows indicate the direction of gene/ORF transcription. The genes shown to be involved in paxilline and prenylated paxilline biosynthesis are designated as pax and the other predicted genes as PP (Penicillium paxilli). The thin red or green lines under the PAX locus indicate the deleted region for each gene or as an arrow in the case of the mutant CYD-67 that extends beyond the genomic region shown. Color scheme depicts role in paxilline biosynthesis based on gene deletion analysis: red—known role in paxilline biosynthesis; green—no role in paxilline biosynthesis, but paxD has a role in post-paxilline biosynthesis; (b) Normal phase TLC analysis for paxilline production in the P. paxilli strains deleted for the genes/ORFs mentioned in panel A. For paxilline extraction, mycelium was harvested 6 days after inoculation. Abbreviations: 13-dp, 13-desoxypaxilline; pasp, paspaline; pax, paxilline.

Click here to enlarge figure

Figure 3. Deletion analysis of the paxilline biosynthesis gene cluster. (a) The P. paxilli PAX locus showing the organization of genes and ORFs. Closed arrows indicate the direction of gene/ORF transcription. The genes shown to be involved in paxilline and prenylated paxilline biosynthesis are designated as pax and the other predicted genes as PP (Penicillium paxilli). The thin red or green lines under the PAX locus indicate the deleted region for each gene or as an arrow in the case of the mutant CYD-67 that extends beyond the genomic region shown. Color scheme depicts role in paxilline biosynthesis based on gene deletion analysis: red—known role in paxilline biosynthesis; green—no role in paxilline biosynthesis, but paxD has a role in post-paxilline biosynthesis; (b) Normal phase TLC analysis for paxilline production in the P. paxilli strains deleted for the genes/ORFs mentioned in panel A. For paxilline extraction, mycelium was harvested 6 days after inoculation. Abbreviations: 13-dp, 13-desoxypaxilline; pasp, paspaline; pax, paxilline.
Toxins 05 01422 g003 1024

PaxC is predicted to be a prenyl transferase as it contains the five conserved domains found in other prenyl transferases [15] (Figure 4), including PaxG, which has recently been shown to be a functional GGPP synthase [11]. This superfamily of enzymes is characterized by the presence of two aspartate-rich motifs, DDXXD and DDXXN/D, located in Domains II and V, respectively, that are important for allylic substrate binding and catalysis. While the first aspartate-rich motif (DDISD) in PaxC conforms to this consensus, the second (NDXXN) does not suggesting PaxC has a novel function. The recent work by Tagami et al. [12] demonstrates that PaxC is a prenyl transferase that catalyzes the condensation of indole-3-glycerol phosphate with GGPP to form 3-GGI [12] (Figure 1).

Toxins 05 01422 g004 200
Figure 4. Alignment of predicted amino acid sequences for PaxC and related prenyltransferases. Numbers indicate the position of the last amino acid residue displayed. Sequences are grouped into I (PaxC-related, prenyl transferases) and II (geranylgeranyl diphosphate synthases). The aspartate-rich motifs are indicated by bold lines above the sequences. Sequences include genes from Penicillium paxilli (Pp_PaxC, AAK11529 and Pp_PaxG, AAK11531), P. chrysogenum (Pc_XP_002562743), Aspergillus clavatus (Ac_XP_001273516), A. niger (An_XP_001394251), A. flavus (Af_AtmC AAT65718 and Af_AtmG AAT65717), A. oryzae (Ao_XP_001824349), Neotyphodium lolii (Nl_LtmC, ABF20225.1 and Nl_LtmG, AAW88510) and Fusarium fujikuroi (Ff_Ggs2, CAA75568.1).

Click here to enlarge figure

Figure 4. Alignment of predicted amino acid sequences for PaxC and related prenyltransferases. Numbers indicate the position of the last amino acid residue displayed. Sequences are grouped into I (PaxC-related, prenyl transferases) and II (geranylgeranyl diphosphate synthases). The aspartate-rich motifs are indicated by bold lines above the sequences. Sequences include genes from Penicillium paxilli (Pp_PaxC, AAK11529 and Pp_PaxG, AAK11531), P. chrysogenum (Pc_XP_002562743), Aspergillus clavatus (Ac_XP_001273516), A. niger (An_XP_001394251), A. flavus (Af_AtmC AAT65718 and Af_AtmG AAT65717), A. oryzae (Ao_XP_001824349), Neotyphodium lolii (Nl_LtmC, ABF20225.1 and Nl_LtmG, AAW88510) and Fusarium fujikuroi (Ff_Ggs2, CAA75568.1).
Toxins 05 01422 g004 1024

PaxM is predicted to be an FAD-dependent monooxygenase containing a modified Rossman fold, as it contains the highly conserved dinucleotide binding motif (DBM), as well as the ATG, GD and G-helix motifs found in the functionally characterized salicylate hydroxylase (NahG) from Pseudomonas putida and zeaxanthin epoxidase from Nicotiana plumbaginifolia [16,17,18,19,20] (Figure 5). These same motifs are found in many closely related hypothetical proteins identified in the genomes of other filamentous fungi including fruiting body maturation (Fbm-1) from Neurospora crassa [21]. The top hits to PaxM were to structurally and (mostly) functionally characterized bacterial FAD-dependent, NAD(P)H-binding proteins including urate oxidase from Klebsiella pneumoniae (PDB ID: 3rp8; 22.3% identity) [22], 2,6-dihydroxypyridine 3-hydroxylase from Arthrobacter nicotinovorans (PDB ID: 2vou; 15.3% identity) [23], aklavinone-11-hydroxylase from Streptomyces purpurascens (PDB ID: 3ihg; 17.2% identity) [24] and putative FAD-containing monooxygenase from Photorhabdus luminescens subsp. laumondii TTO1 (PDB ID: 4hb9; 18.6% identity). Reconstitution of paspaline biosynthesis in A. oryzae demonstrates that PaxM, together with PaxB (see below), is involved in two rounds of epoxidation/cyclization to first generate emindole SB then paspaline [12] (Figure 1).

Toxins 05 01422 g005 200

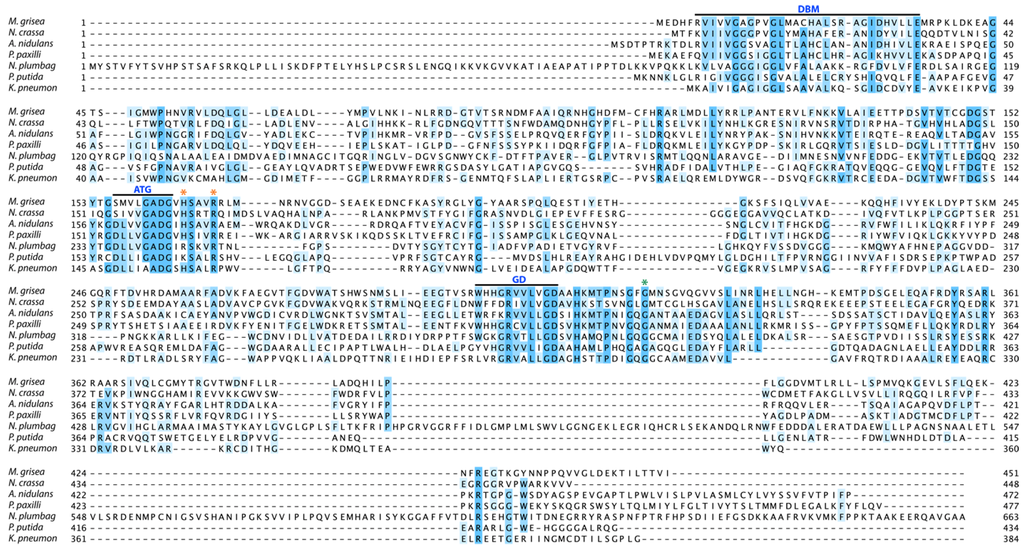

Figure 5. Alignment of amino acid sequences for PaxM and related FAD-dependent monooxygenases. Sequences were aligned using ClustalW and Jalview. The conserved dinucleotide binding motif (DBM), as well as the ATG, GD and G-helix (*) motifs found in functionally characterized FAD-dependent monooxygenases are highlighted. Sequences include: P. paxilli FAD-dependent monooxygenase (PaxM, AAK11530.1), A. nidulans hypothetical (ANID_11206.1), N. crassa fruiting body maturation protein, Fbm-1 (NCU02925.7), M. oryzae hypothetical (MGG_02256.6), Nicotiana plumbaginifolia zeaxanthin epoxidase (X95732.1) Pseudomonas putida salicylate hydroxylase, NahG (AAA25897.1) and Klebsiella pneumoniae FAD-dependent urate hydroxylase, UpxO (A6T923/3rp8).

Click here to enlarge figure

Figure 5. Alignment of amino acid sequences for PaxM and related FAD-dependent monooxygenases. Sequences were aligned using ClustalW and Jalview. The conserved dinucleotide binding motif (DBM), as well as the ATG, GD and G-helix (*) motifs found in functionally characterized FAD-dependent monooxygenases are highlighted. Sequences include: P. paxilli FAD-dependent monooxygenase (PaxM, AAK11530.1), A. nidulans hypothetical (ANID_11206.1), N. crassa fruiting body maturation protein, Fbm-1 (NCU02925.7), M. oryzae hypothetical (MGG_02256.6), Nicotiana plumbaginifolia zeaxanthin epoxidase (X95732.1) Pseudomonas putida salicylate hydroxylase, NahG (AAA25897.1) and Klebsiella pneumoniae FAD-dependent urate hydroxylase, UpxO (A6T923/3rp8).
Toxins 05 01422 g005 1024

PaxA and PaxB appear to be a novel group of integral membrane proteins, containing 6 or 7 transmembrane domains (Figure 6, Figure 7). Despite their similarity in predicted secondary structure, they share very little sequence identity. They each contain a single intron, but the size (60 nt versus 87 nt) and location (345–404 and 519–605) of these introns is different. In addition, paxA utilizes a second 5' GT donor, upstream of the first (226–404; 170 nt intron), to generate an alternative mRNA isoform. Conceptual translation of this isoform generates a 77-, instead of 356-, amino acid polypeptide. The shorter (77 amino acid) predicted polypeptide contains no putative transmembrane domains. BLASTP analysis identified a number of closely related proteins in other fungal genomes but all are hypothetical conserved proteins. On the basis of their reconstitution experiments Tagami et al. [12] propose that PaxB is a novel indole-diterpene cyclase that works together with PaxM to convert 3-GGI to paspaline (Figure 1). However, the role of PaxA is unclear given reconstitution experiments in P. paxilli and A. oryzae demonstrated that paxG-M-B-C were required for the synthesis of paspaline [4,12], and in A. oryzae paxG-M-B-C-P-Q were sufficient for paxilline biosynthesis [12], yet the paxA deletion mutant was defective in paxilline biosynthesis and could be complemented by reintroduction of the wild-type paxA. Although, the functional role of PaxA is still unclear homologues of this gene are present in all Penicillium and Aspergillus indole-diterpene gene clusters identified to date [4,14]. Furthermore, a gene named idtS (ltmS) that encodes a structurally similar gene product to paxA, is found in indole-diterpene gene clusters from the Clavicipitaceae [25,26].

Toxins 05 01422 g006 200

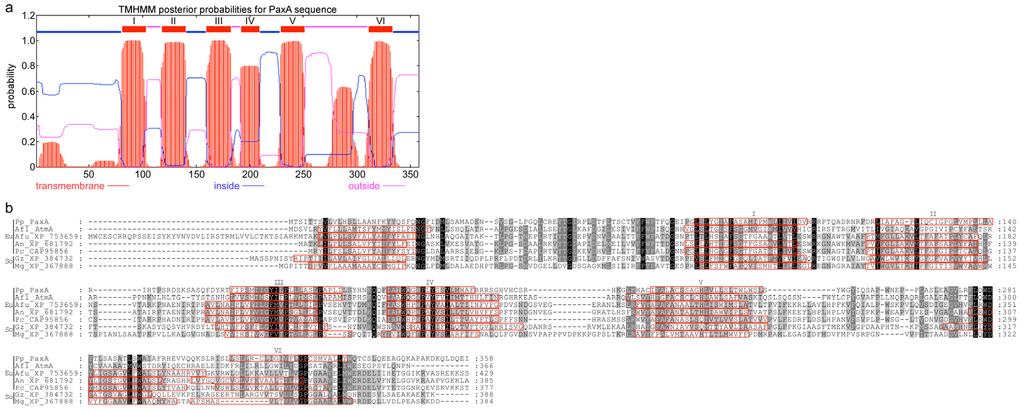

Figure 6. (a) Putative membrane topology of PaxA as determined by TMHMM; (b) Alignment of predicted amino acid sequences for PaxA and related proteins from representative fungi within the Eurotiomycetes (Eu) and Sordariomycetes (So). The predicted transmembrane helices, as determined by TMHMM, are indicated by red boxes. Numbers indicate the position of the last amino acid residue displayed. The predicted transmembrane helices in PaxA are labelled I-VI in both panel A and B. Sequences from P. paxilli (Pp_PaxA ADO29933), A. flavus (Afl_AtmA CAP53940.1), A. fumigatus (Afu_XP_753659), A. nidulans (An_XP_681792), P. chrysogenum (Pc_CAP95856), Gibberella zeae (Gz_XP_384732) and Magnaporthe oryzae (MGG_07792) are shown.

Click here to enlarge figure

Figure 6. (a) Putative membrane topology of PaxA as determined by TMHMM; (b) Alignment of predicted amino acid sequences for PaxA and related proteins from representative fungi within the Eurotiomycetes (Eu) and Sordariomycetes (So). The predicted transmembrane helices, as determined by TMHMM, are indicated by red boxes. Numbers indicate the position of the last amino acid residue displayed. The predicted transmembrane helices in PaxA are labelled I-VI in both panel A and B. Sequences from P. paxilli (Pp_PaxA ADO29933), A. flavus (Afl_AtmA CAP53940.1), A. fumigatus (Afu_XP_753659), A. nidulans (An_XP_681792), P. chrysogenum (Pc_CAP95856), Gibberella zeae (Gz_XP_384732) and Magnaporthe oryzae (MGG_07792) are shown.
Toxins 05 01422 g006 1024
Toxins 05 01422 g007 200
Figure 7. (a) Putative membrane topology of PaxB as determined by TMHMM; (b) Alignment of predicted amino acid sequences for PaxB and related proteins from representative fungi within the Eurotiomycetes (Eu) and Sordariomycetes (So). The predicted transmembrane helices, as determined by TMHMM, are indicated by red boxes. Numbers indicate the position of the last amino acid residue displayed. The predicted transmembrane helices in PaxB are labeled I-VII in both panel A and B. Sequences are from P. paxilli (Pp_PaxB, ADO29934), A. flavus (Afl_AtmB, CAP53939), A. fumigatus (Afu_XP_751270), A. nidulans (An_XP_681413), P. chrysogenum (Pc_CAP80269), N. lolii (Nl_LtmB, ABF20226), G. zeae (Gz_XP_384770), N. crassa (Nc_XP_958743) and M. oryzae (MGG_07412).

Click here to enlarge figure

Figure 7. (a) Putative membrane topology of PaxB as determined by TMHMM; (b) Alignment of predicted amino acid sequences for PaxB and related proteins from representative fungi within the Eurotiomycetes (Eu) and Sordariomycetes (So). The predicted transmembrane helices, as determined by TMHMM, are indicated by red boxes. Numbers indicate the position of the last amino acid residue displayed. The predicted transmembrane helices in PaxB are labeled I-VII in both panel A and B. Sequences are from P. paxilli (Pp_PaxB, ADO29934), A. flavus (Afl_AtmB, CAP53939), A. fumigatus (Afu_XP_751270), A. nidulans (An_XP_681413), P. chrysogenum (Pc_CAP80269), N. lolii (Nl_LtmB, ABF20226), G. zeae (Gz_XP_384770), N. crassa (Nc_XP_958743) and M. oryzae (MGG_07412).
Toxins 05 01422 g007 1024

Given the mutual requirement of PaxB and PaxM to effect the conversion of 3-GGI to paspaline [12], it is of note that PaxM is predicted by TMHMM to have an approximately 25-residue C-terminal transmembrane helix with the N-terminal region in the cytosol. This C-terminal tag would facilitate co-location of PaxM with the integral membrane protein PaxB. Furthermore, the region of helix II predicted for PaxB is not predicted to be a transmembrane helix in several other sequences (Pc-CAP80269, Nl-LtmB and Mg_XP_367501; Figure 7). This region carries the conserved WExx(Y/F) motif in its middle. For Pc-CAP80269, Nl-LtmB and Mg_XP_367501 the N-terminal sequence preceding helix I is predicted to lie on the cytosolic side of the membrane, placing the conserved WExx(Y/F) extracellularly. At least one positively charged residue, as well as at least one histidine, is found on the intracellular loops between helices III and IV and between helices V and VI. The latter contain strongly conserved hydrophobic residues at their N- and C-termini, respectively. Finally, transmembrane predictor MEMSAT-SVM [27] suggests that PaxB has a propensity to form a pore. Based on all these observations we propose that PaxB may provide the proton(s) to break open the epoxide (the formation of which is mediated by PaxM) and orientate the 3-IGG in an internal pore so that the correct cyclization to paspaline takes place.

To further define the boundaries of the pax cluster, expression analysis was carried out on all proposed pax biosynthetic genes and on the genes immediately flanking the pax genes. This analysis showed that in addition to the 7 previously defined pax genes, paxD and PP121 were also up-regulated with the onset of paxilline biosynthesis (Figure 8). The multiple bands observed in the paxA, PP121 and PP122 lanes are potentially products of incomplete or alternative splicing. In contrast to these samples the steady-state levels of β-tubulin, PP111, PP112 and PP122 are very similar across the time course of growth. These results suggest that paxD and possibly PP121 are coordinately regulated with the 7 core pax biosynthetic genes.

Toxins 05 01422 g008 200

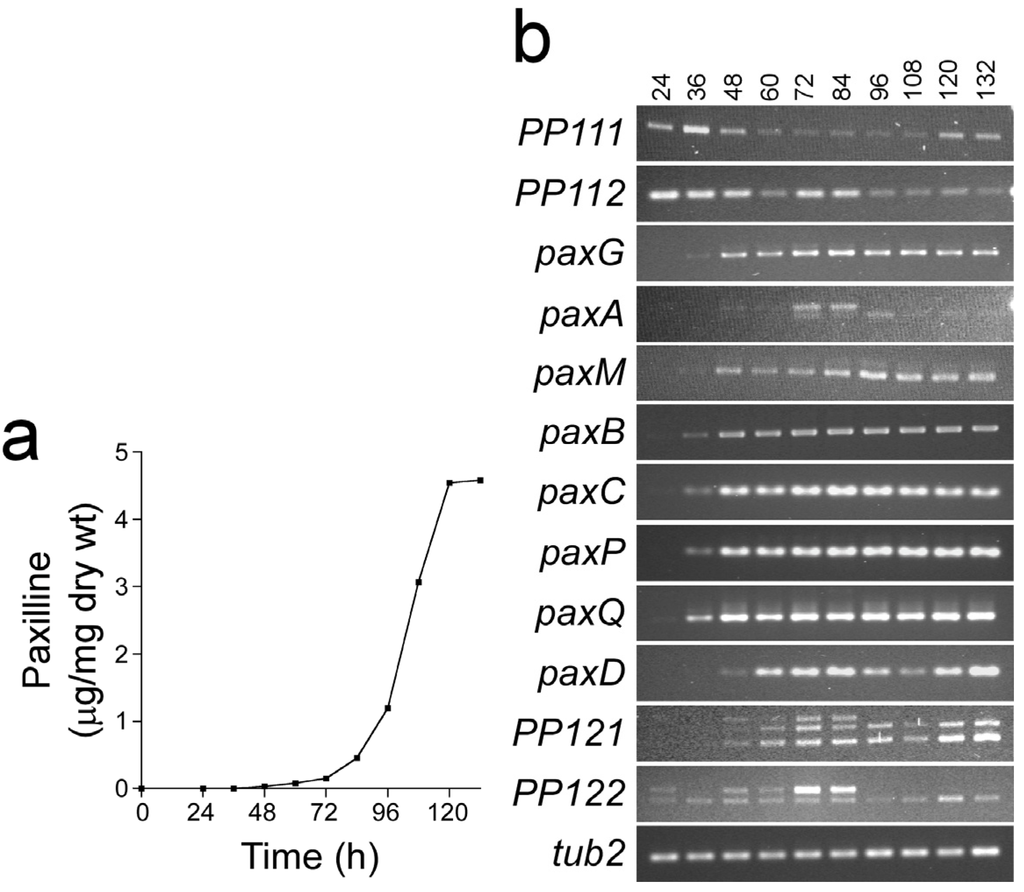

Figure 8. Coordinate expression of the pax genes is correlated with the onset of paxilline biosynthesis. (a) Time course of paxilline biosynthesis. For paxilline extraction, wild-type mycelium was harvested between 24 and 132 h of inoculation at 12 h intervals; (b) Expression analysis of pax genes. Total RNA was isolated from wild-type mycelium for each time point and used for cDNA synthesis. RT-PCR was performed with primers specific for each of the pax genes as well as the ORFs PP111, PP112, PP121, PP122 and tub2 (β-tubulin).

Click here to enlarge figure

Figure 8. Coordinate expression of the pax genes is correlated with the onset of paxilline biosynthesis. (a) Time course of paxilline biosynthesis. For paxilline extraction, wild-type mycelium was harvested between 24 and 132 h of inoculation at 12 h intervals; (b) Expression analysis of pax genes. Total RNA was isolated from wild-type mycelium for each time point and used for cDNA synthesis. RT-PCR was performed with primers specific for each of the pax genes as well as the ORFs PP111, PP112, PP121, PP122 and tub2 (β-tubulin).
Toxins 05 01422 g008 1024

The best characterized match to PaxD is AtmD from Aspergillus flavus, an indole dimethylallyl transferase that is predicted to catalyze the C4-reverse prenylation of paspalinine to form aflatrem [14,28] (Figure 1, Table 1). Therefore, a targeted disruption of paxD was made to determine whether there were any metabolite profile differences to wild-type that may be the result of additional prenylation steps. In screening the putative knockouts both a single replacement deletion (CYD-162) as well as an extended deletion of undefined length (CYD-67) of paxD were identified (Figure 2, Figure 3). As the TLC analysis of the paxD deletions showed the presence of paxilline, mass spectrometry (MS) analysis was used to compare the chemical phenotype of wild-type with the paxD deletion mutants. LC-MS/MS analysis identified a novel indole-diterpene at 32.8 min within the wild-type sample with a peak at m/z 504.3 that is absent in ΔpaxD (Figure 9a,b). Based on MS analysis this compound is proposed to be an isoprenylated derivative of paxilline. MS2 fragmentation of this ion generated ions with peaks at m/z 488.3 (loss of CH4), 486.3 (loss of H2O) and 198.2 (prenylated indole) (Figure 9c). MS3 fragmentation of the ion at m/z 198.2 generated an ion with a peak at m/z 130 corresponding to the indole group (results not shown).

Toxins 05 01422 g009 200
Figure 9. LC-MS/MS analysis of P. paxilli paxD deletion mutant. (a) UV trace at 275 nm of extract of P. paxilli wild-type; (b) Single ion extracted (504.3 m/z) chromatograms for wild-type and paxD deletion mutant; (c) Collision-induced fragmentation spectrum of the 504.3 m/z ion from wild-type (average of 6 mass spectra). Key ions are 488.3 (loss of CH4), 486.3 (loss of H2O), which is similar to paxilline fragmentation and 198.2 (prenylated indole). Based on these spectra, we assume that the prenylation occurs on the indole part of the molecule. However, the exact location of the prenyl group on the indole system remains to be elucidated.

Click here to enlarge figure

Figure 9. LC-MS/MS analysis of P. paxilli paxD deletion mutant. (a) UV trace at 275 nm of extract of P. paxilli wild-type; (b) Single ion extracted (504.3 m/z) chromatograms for wild-type and paxD deletion mutant; (c) Collision-induced fragmentation spectrum of the 504.3 m/z ion from wild-type (average of 6 mass spectra). Key ions are 488.3 (loss of CH4), 486.3 (loss of H2O), which is similar to paxilline fragmentation and 198.2 (prenylated indole). Based on these spectra, we assume that the prenylation occurs on the indole part of the molecule. However, the exact location of the prenyl group on the indole system remains to be elucidated.
Toxins 05 01422 g009 1024

These results demonstrate that PaxD is able to catalyze the further addition of an isoprene unit to the basic paxilline structure (Figure 1), a result confirmed experimentally by Liu et al. [13] who demonstrated that PaxD purified from E. coli could catalyze the conversion of dimethylallyl diphosphate and paxilline in vitro to mono- (m/z of 504.3) and di-prenylated (m/z of 572.3) paxilline. Analysis of the 1H- and 13C-NMR spectra confirmed that the major product was 21,22-diprenylated paxilline [13]. The gene PP121 is predicted to encode an oxidoreductase but this gene has still to be deleted to determine whether it also has a role in post-paxilline biosynthesis. However, the LC-MS/MS analysis was unable to detect differences between the ΔpaxD (CYD-162) and the extended deletion mutant CYD-67, suggesting that if the PP121 gene product has a role as part of this biosynthetic gene cluster, it would act post PaxD.

Unlike other prenyltransferases (e.g., PaxC and PaxG), the indole dimethylallyl transferases found in fungi do not contain the two aspartate-rich motifs, DDXXD and DDXXN/D, are generally more divergent [29,30,31,32], have broad indole derivative substrate specificity, yet only accept dimethylallyl diphosphate as the prenyl group donor [29]. The predicted active sites of two indole dimethylallyl transferases, CpaD (for α-cyclopiazonic acid) and FgaPT2 (first committed step in ergot alkaloid biosynthesis in A. fumigatus) have been characterized through mutagenesis and crystal structure, respectively [33,34]. CpaD and FgaPT2 both catalyze regular prenylation of the indole moiety at the C4 position and are found in the clade that contains the DmaW required for ergot alkaloid production (FgaPT2) or that catalyze a similar reaction (CpaD) [33,34,35,36]. Alignment of PaxD with these and other characterized dimethylallyl transferases shows some conservation across the sites proposed to be important for enzyme activity [33]. However, not all sites are conserved and these differences may explain enzymatic variation between substrates and resulting products where prenyl transfer occurs on different positions of indole moieties and depends on prenylation type.

Toxins 05 01422 g010 200

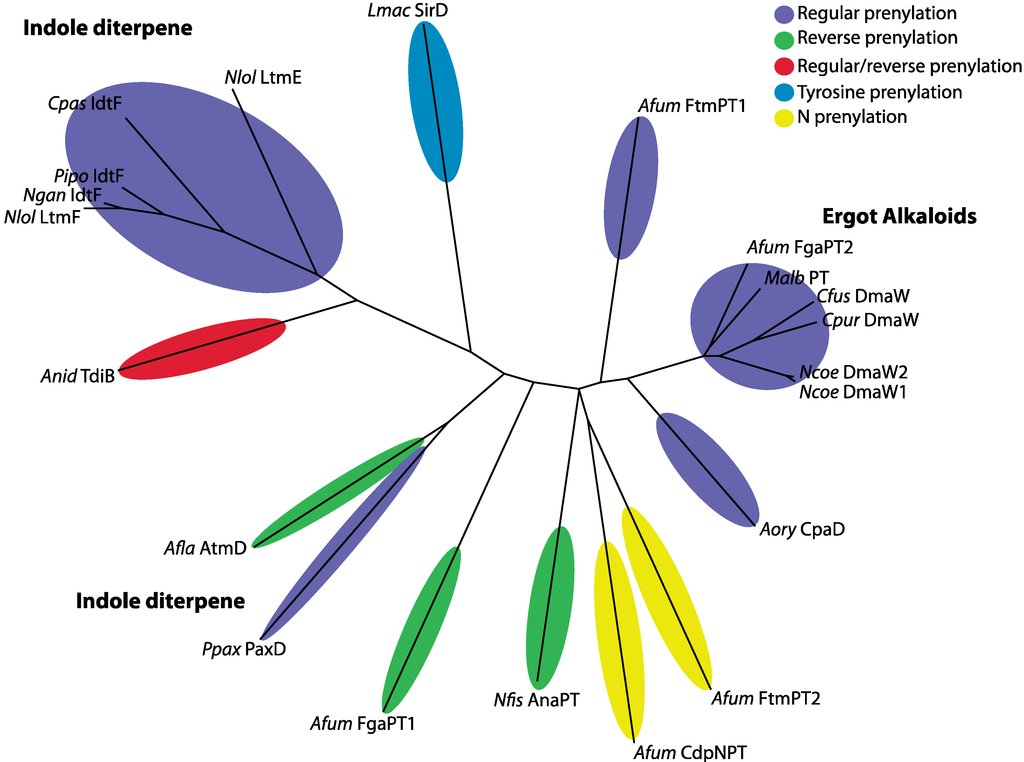

Figure 10. Unrooted tree of PaxD and related dimethylallyl transferases connected with enzymatic functions. The alignment consisted of 752 amino acids of which 265 sites were informative. Protein IDs with associated GenBank accession numbers are provided in Table A1 together with additional information on position and type of prenylation including name of the metabolite and reference.

Click here to enlarge figure

Figure 10. Unrooted tree of PaxD and related dimethylallyl transferases connected with enzymatic functions. The alignment consisted of 752 amino acids of which 265 sites were informative. Protein IDs with associated GenBank accession numbers are provided in Table A1 together with additional information on position and type of prenylation including name of the metabolite and reference.
Toxins 05 01422 g010 1024

To gain further insight into the evolution and functional relationship of PaxD and related indole dimethylallyl transferases, phylogenetic analysis of 21 related proteins, from 15 different species, of which 20 have known functions or predicted biosynthetic products, was carried out based on previous analyses of Liu et al. [37] (Figure 10). A phylogenetic tree based on the entire gene-coding region, of which 265 sites are informative, was used to potentially place functionality to PaxD. PaxD clustered closely with AtmD even though these two proteins share only 35% identity (Table 1) and have different modes of prenylation; regular for PaxD versus reverse for AtmD. The proteins within the ergot alkaloid clade, which includes DmaW, group very tightly together even though they have a broad taxonomic distribution [37]. In contrast, the dimethylallyl transferases involved in prenylation of indole-ditperpenes such as paxilline or lolitrem B, group into two very disparate clades (Figure 10). Although P. paxilli PaxD and Claviceps paspali IdtF are both able to prenylate the C5-position of an indole-diterpene resulting in prenylated paxilline and paspalitrem A, respectively, the sequences are quite divergent (sharing only 22% identity) and group in different clades. The two indole-diterpene clades represent members with different prenylation capabilities with both regular and reverse prenylation as well as prenylation of the diterpene moiety [26] (Table A1). Further analyses would be required to determine if the differences between these two clades simply represents phylogenetic distances between the species and whether there are implications for functional biochemical differences.

3. Experimental Section

3.1. Bacterial Strains and Plasmids

Escherichia coli strain XL1-Blue [38] was the host for routine cloning. The transformants of this host were grown on LB agar plates supplemented with ampicillin (100 μg/mL) for selection. Plasmids used in this study included pGEM-T Easy (Promega, Madison, WI, USA), pUC118 [39], pUChph [9], pCWHyg1 [8] and pII99 [40]. The bacterial strains used are listed in Table 2.

Table 2. Biological material.

Click here to display table

Table 2. Biological material.
Biological materialTargeted geneStrainRelevant characteristicsReference
Fungal strains
Penicillium paxilli
PN2013 Wild-type; paxilline positive[7]
PN2262PP104LMS-218PN2013/∆PP104::P trpC-hph; HygR; paxilline positiveThis study
PN2254PP105LMR-36PN2013/∆PP105::P trpC-hph; HygR; paxilline positiveThis study
PN2263PP104-PP105LMRS-173PN2013/∆PP104, PP105::PtrpC-hph; HygR; paxilline positiveThis study
PN2434PP107ABH-17PN2013/∆PP107::P trpC-nptII-TtrpC; GenR; paxilline positiveThis study
PN2456PP112BMU-13PN2013/∆PP112::P trpC-nptII-TtrpC; GenR; paxilline positiveThis study
PN2255paxGLMG-23PN2013/∆ paxG::PtrpC-hph; HygR; paxilline negative[8]
PN2457paxAsec23-22PN2013/∆ paxA::PtrpC-nptII-TtrpC; GenR; paxilline negativeThis study
PN2257paxMLMM-100PN2013/∆ paxM::PglcA-hph-trpC; HygR; paxilline negativeThis study
PN2458paxBsec25-2PN2013/∆ paxB::PtrpC-nptII-trpC; GenR; paxilline negativeThis study
PN2290paxCABC-83PN2013/∆ paxC::PtrpC-hph; HygR; paxilline negativeThis study
PN2258paxPLMP-1PN2013/∆ paxP::PtrpC-hph; HygR; paspaline positive[9]
PN2259paxQLMQ-226PN2013/∆ paxQ::PtrpC-hph; HygR; 13-desoxypaxilline positive[9]
PN2260paxDCYD-162PN2013/∆ paxD::PtrpC-hph; HygR; paxilline positiveThis study
PN2261paxD-PP122+CYD-67PN2013/∆ paxD::PtrpC-hph; HygR; paxilline positive; extended deletionThis study
Plasmids
pLM14 (pLMS-KO)PP104 pUChph hygromycin resistanceThis study
pLM15 (pLMR-KO)PP105 pUChph hygromycin resistanceThis study
pLM16 (pLMRS-KO)PP104-PP105 pUChph hygromycin resistanceThis study
pAB5 (pABH-KO)PP107 pII99 geneticin resistanceThis study
pBM2 (ppaxU-KO)PP112PN1942pII99 geneticin resistanceThis study
pBM3 (psec23-KO)paxAPN1944pII99 geneticin resistanceThis study
pLM13 (pLMM-KO)paxMPN1659pCWHyg1 hygromycin resistanceThis study
pBM4 (psec25-KO)paxBPN1946pII99 geneticin resistanceThis study
pAB3 (ppaxC-KO) paxC pUChph hygromycin resistanceThis study
pCY1 (pCYD-KO)paxDPN1642pCWHyg1 hygromycin resistanceThis study

3.2. Fungal Strains and Growth Conditions

Cultures of P. paxilli Bainier wild-type (PN2013 = ATCC 26601) and deletion derivatives were routinely grown in PD, CDYE or ACM medium at 22 °C/28 °C for 4–6 days as previously described [4,9]. Liquid cultures were started using an inoculum of 5 × 106 spores per 25 mL of CDYE medium supplemented with trace elements [4]. Media were supplemented with hygromycin (100 μg/mL) or geneticin (150 μg/mL), where necessary. The fungal strains used are listed in Table 2.

3.3. Molecular Biology

Plasmid DNA was isolated and purified by alkaline lysis using a Bio-Rad Quantum Prep Plasmid Mini-prep Kit (Bio-Rad, Berkeley, CA, USA). Genomic DNA was isolated using a modification of the method of Yoder (1988) [41] as described previously [4]. PCR conditions were as previously described [4,9,10], using primer sets listed in Table A2. DNA fragments and PCR products were purified using a QIAquick gel extraction and PCR purification kit (Qiagen, Hilden, Germany). DNA fragments were sequenced by the dideoxynucleotide chain-termination method [42] using Big-Dye (Version 3) chemistry (PerkinElmer Life Sciences, Waltham, MA, USA) with oligonucleotide primers (Sigma Genosys, St. Lois, MO, USA). Products were separated on an ABI Prism 377 sequencer (Perkin-Elmer Life Sciences). Total RNA was isolated from frozen mycelium using TRIzol reagent (Invitrogen, Carlsbad, CA, USA) and treated with DNase (Invitrogen, Carlsbad, CA, USA), as described previously [10]. RT-PCR conditions were as previously described [4,9,10], except DNase-treated total RNA (80 ng) was converted to cDNA and amplified for just 27 cycles in a single reaction using Superscript III-RT enzyme (Invitrogen) according to the manufacturer’s instructions. Primers used to amplify each of the genes are summarized in Table A2.

3.4. Preparation of Deletion Constructs

Plasmid pLMS-KO (paxR2#8) (pLM14; PP104 replacement) was constructed by sequentially ligating into pUChph, a 1.03 kb SstI fragment 5' of PP104 and a 1.16 kb HindIII fragment 3' of PP104, sourced from PCR products amplified from P. paxilli genomic DNA with primer sets paxU1SstIL/pax66 and paxRU1HindIIIL/paxRU1HindIIIR, respectively. Plasmid pUChph was digested with SstI and HindIII.

Plasmid pLMR-KO (pLM15; PP105 replacement) was constructed by sequentially ligating into pUChph, a 1.1 kb BamHI fragment 5' of PP105 and a 1.1 kb HindIII fragment 3' of PP105, sourced from PCR products amplified from P. paxilli genomic DNA, with primer sets paxRBamL/paxRBamR and KORH/KORHS respectively. Plasmid pUChph was digested with BamHI and HindIII.

Plasmid pLMSR-KO (paxR1/R2#5) (pLM16; PP104 & PP105 replacement) was constructed by sequentially ligating into pUChph, a 1.1 kb BamHI fragment 5' of PP105 and a 1.16 kb HindIII fragment 3' of PP104, sourced from PCR products amplified from P. paxilli genomic DNA, with primer sets paxRU1BamR/paxRU1BamL and paxRU1HindIIIL/paxRU1HindIIIR respectively. Plasmid pUChph was digested with BamHI and HindIII.

Plasmid pAB40 (PP107 replacement) was constructed by sequentially ligating into pII99 a 1.27 kb BglII/blunt-end fragment 3' of paxH and a 1.5 kb HindIII/XhoI fragment 5' of paxH, sourced from PCR products amplified from λCY42 [8] with primer sets pax175/pax183 and pax251Hind/pax186, respectively. Plasmid pII99 was digested with BglII/EcoRV and XhoI/HindIII.

Plasmid pBM2 (PP112 replacement) was constructed by sequentially ligating into pII99, a 1.5 kb XbaI/HindIII fragment 5' of PP112 and a 1.6 kb BamHI/EcoRI fragment 3' of paxA, sourced from PCR products amplified from P. paxilli genomic DNA with primer sets paxUKOp3/paxUKOp4 and paxUKOp1/paxUKOp2. Plasmid pII99 was digested with XbaI/HindIII and BglII/EcoRI.

Plasmid pBM3 (paxA replacement) was constructed by sequentially ligating into pII99, a 1.4 kb BamHI/EcoRI fragment 5' of paxA and a 1.5 kb HindIII fragment 3' of paxA, sourced from PCR products amplified from P. paxilli genomic DNA, with primer sets sec23KOp4/sec23KOp3 and sec23KOp2/sec23KOp1, respectively. Plasmid pII99 was digested with BglII/EcoRI and HindIII.

Plasmid pLMM-KO (pLM13; paxM replacement) was constructed by sequentially ligating into pUC118, a 1.3 kb PstI fragment 3' of paxM, a 2.3 kb SalI fragment, containing the hph gene, and a 1.8 kb SstI fragment 5' of paxM, sourced from λCY46 [8], plasmid pCWHyg1 [8] and an SstI digest of CY46-11 (pUC118 containing a 1.8 kb EcoRI fragment from λCY46).

Plasmid pBM4 (paxB replacement) was constructed by sequentially ligating into pII99, a 1 kb BamHI/EcoRI fragment 3' of paxB and a 1.5 kb XbaI/HindIII fragment 5' of paxB, sourced from PCR products amplified from P. paxilli genomic DNA with primer sets sec25KOp1/sec25KOp2 and sec25KOp3/sec25KOp4. Plasmid pII99 was digested with BglII/EcoRI and XbaI/HindIII.

Plasmid pAB3 (paxC replacement) was constructed by sequentially ligating into pUChph (McMillan 2003), a 1.4 kb HindIII fragment 3' of paxC from clone 56H-14, a HindIII pUC118 sub-clone of λCY56 [8], and a 1.4 kb SstI fragment 5' of paxC from a PCR product amplified from P. paxilli genomic DNA with primer set paxCSstR/paxCSstL.

Plasmid pCYD-KO (paxD replacement) was constructed in two steps. The first step involved a three-way ligation of HindIII/SalI cut pUC118 with a 2.9 kb HindIII fragment 5' of paxD from clone CY56-19 (a 5-kb SstI pUC118 sub-clone of λCY56) [8] and a 2.3 kb HindIII/SalI fragment containing hph from pCWHyg1 [9]. The resulting plasmid was digested with KpnI and ligated with a 2.2 kb KpnI fragment 3' of paxD from clone 56-1, a 10.5 kb SstI pUC118 sub-clone of λCY56 [8].

3.5. Penicillium paxilli Transformation and Screening

Protoplasts of PN2013 were prepared and transformed with PCR-amplified linear products of each of the replacement constructs as previously described [9], except protoplasts transformed with linear products of pBM2, pBM3 and pBM4 were plated on ACM medium supplemented with 0.8 M sucrose, rather than RG medium. Transformants were selected on medium supplemented with either hygromycin (100 μg/mL) or geneticin (150 μg/mL). The resulting stable transformants were maintained on either PD or ACM medium supplemented with either hygromycin or geneticin.

Primary screening of transformants for targeted homologous recombination events was carried out using genomic DNA from conidia as template [4], and primer sets (see above) within, and external to, the gene fragment to be replaced. Putative replacement mutants identified by PCR screening were further analyzed by Southern blotting and hybridization, using methods previously described [6].

3.6. Indole-Diterpene Analysis

Indole-diterpenes were extracted from mycelium of P. paxilli in a 2:1 chloroform-methanol mixture and analyzed by normal phase TLC and reverse phase HPLC as previously described [4]. LC-MS/MS analysis was performed on a Thermo Finnigan Surveyor (Thermo Finnigan, San Jose, CA, USA) HPLC system as previously described [4]. Mass spectra were determined with a linear ion trap mass spectrometer (Thermo LTQ, Thermo Finnigan, San Jose, CA, USA) using electro spray ionization (ESI) in positive mode using parameters previously described [4].

3.7. Bioinformatic Analyses

Sequences were aligned using ClustalX or ClustalW [43] with sequences retrieved from the NCBI GenBank database or the Broad Institute. Multiple sequence alignments were edited using Jalview.

Putative function of proteins encoded by pax genes and protein domains were identified using InterProScan [44,45]. The predicted transmembrane topologies of PaxA and PaxB were determined using TMHMM version 2, which utilizes a hidden Markov model [46].

Given the low level of sequence identity to proteins of known function, pGenThreader [47] at the University College London website [27] was used to find structures whose pattern of secondary structure elements match those predicted for PaxM. This threading is based on the well-established premise that 2-D structures, for which reliable prediction algorithms exist [48], and resultant 3-D structures, are conserved even where sequence identity has lost significance.

The phylogenetic relationships of PaxD and other known indole dimethylallyl transferases (accession numbers provided in Table A1) were determined with the program MAFFT version 7 [49,50]. Alignments were performed similarly to Liu et al. [37] with the following settings, FFT-NS-I, JTT200 scoring matrix with the gap opening penalty set to 1.0 and gap extension penalty at 0.0.

The pax gene sequences from P. paxilli are available in the GenBank database under accession number HM171111 (update to AF279808).

4. Conclusions

A cluster of seven genes—paxG, paxA, paxM, paxB, paxC, paxP and paxQ—is required for paxilline biosynthesis in P. paxilli. One additional gene, paxD, is required for a post-paxilline biosynthetic step resulting in prenylation of the indole group of paxilline. Together, these genes constitute the pax gene cluster with each gene deleted, functionally characterized, and shown to be transcriptionally co-regulated.

Acknowledgments

This research was supported by grants MAU-X0127 and C10X0203 from the New Zealand Foundation for Research, Science and Technology (FRST).

Conflict of Interest

The authors declare no conflict of interest.

Appendix

Table A1. Features of dimethylallyl transferases used in Figure 10.

Click here to display table

Table A1. Features of dimethylallyl transferases used in Figure 10.
SpeciesIsolatePrenylation TypePositionProteinCompoundReference
Aspergillus flavusNRRL 6541reverseC4AtmDaflatrem (IDT)[14]
Aspergillus fumigatusAf293 regularC2FtmPT1Brevianamide F[51]
Aspergillus fumigatusAf293 reverseC2FgaPT1fumigaclavine C[35]
Aspergillus fumigatusAf293 regularC4FgaPT2fumigaclavine C[35]
Aspergillus fumigatusAf293 N-PT-reverseN1CdpNPTcyclic dipeptide N-prenylated[52,53]
Aspergillus fumigatusAf293 N-PT-regularN1FtmPT2fumitremorgin B[54,55]
Aspergillus nidulansUn-specified regular and reverseReg = quinone; Rev = C2TdiBterrequinone A[56]
Aspergillus oryzaeRIB 40 regularC4CpaDcyclopiazonic acid[33,36]
Claviceps fusiformisATCC26245 regularC4DmaWergot alkaloid[32]
Claviceps paspaliRRC-1481regularC5IdtFpaspalitrem A (IDT)[25]
Claviceps purpureaP1 regularC4DmaWergot alkaloid[30]
Leptosphaeria maculansICBN 18 Tyrosine-regularOSirDsirodesmin[57]
Malbranchea aurantiacaRRC1813 regularC4MaPTergot alkaloid[58]
Neosartorya fischeriNRRL 181reverseC3AnaPTacetylaszonalenin[59]
Neotyphodium coenophialumATCC90664 regularC4DmaWergot alkaloid[60]
Neotyphodium gansuensee7080regular IdtF [25]
Neotyphodium loliiLp19regularggpp moietyLtmFlolitrem B (IDT)[61]
Neotyphodium loliiLp19regularC4, C5LtmElolitrem B (IDT)[61]
Penicillium paxilliATCC26601 regular (di)C5, C6PaxDIndole-diterpene (IDT)[8]
Periglandula ipomoeaeIasaF13regularggpp moietyIdtFterpendole K (IDT)[25]
Table A2. List of primers for replacement constructs and RT-PCR.

Click here to display table

Table A2. List of primers for replacement constructs and RT-PCR.
GenePrimer 1Sequence (5'–3') aPrimer 2Sequence (5'–3')Size (kb)Application
PP104paxU1SstILCTTGTTGGCgaGCTcCATATGACpax66CGCGATGGCGTACTGTAGAC1.03KO construct
PP104paxRU1HindIIILTTTAGTAGAAGCTTGGCCpaxRU1HindIIIRTCGTTGAAGcTTGCAGTA1.16KO construct
PP105paxRBamLATTGACGgATCCCGATTATCpaxRBamRGGATccGAGATGGGTGTATAC1.1KO construct
PP105KORHGGGGTATAaGcTTAACATAGAGCAGKORHSGTTACATGCTTCCATTTAAAGTTGGGAGCTGTC1.1KO construct
PP104 & PP105paxRU1BamRCAACGTTGTGGATCCATTCGGpaxRU1BamLCCCTATCGGGATGCAATTTTCAAAC1.1KO construct
PP107pax251HindTGCAAGCTTCCGCTATAGpax186AGTCAACACCAAGACAGG1.27KO construct
PP107pax175TCGACGACTTCGACCAGApax183ATGTCATCTTCCGCAATC1.5KO construct
PP112paxUKOp3ACGTTGCTAGTcTAGaTGGAAGCpaxUKOp4AGTTCGTaAGCTTGATGTGTTG1.5KO construct
PP112paxUKOp1GTGATGGATcCCAAAATTCATTGGpaxUKOp2GCAAGAaTTCAAATGCCTGGAAG1.6KO construct
paxAsec23KOp3TGGCCGAaTTCCGAGAATAGAGTsec23KOp4AAGAAATACGTGgATCCTGACAG1.4KO construct
paxAsec23KOp2GCTAAAGcTtAACAACTGGACCAsec23KOp1CTCGACAAGcTTAGAAAAGTCAC1.5KO construct
paxBsec25KOp3/CGTTGAATAGCTcTAGATTGAAGGsec25KOp4TGAGCCAAgcTTTGTGTAACTCG1.0KO construct
paxBsec25KOp1/GTGATgGATCCCAAAATTCATTGGsec25KOp2GCAAGaATTCAAATGCCTGGAAG1.5KO construct
paxCpaxCSstRGTTGAGCTCAATCCACCAACGCpaxCSstLGAGTGAGCTCTGCTTGGTAGGC1.4KO construct
PP112paxU RT-FTCGTCCTATCTCGCACCTTTCpaxU RT-RAGAGTCTGTTCGGTTCGATGG474RT-PCR
paxGpaxG RT-FACACTGCATCCCTTCTTATCGpaxG RT-RTATCGAGAAGCTCGGAGCTCT528RT-PCR
paxApaxA RT-FCAACCTTTCAGGGTGAGATTCpaxA RT-RCAGATGAGCAAGCCAAGGCAA489RT-PCR
paxMpaxM RT-FTCATCGATCAAAGGTTCGGTTpaxM RT-RAACTCGACCGTAAGCTTGGAA301RT-PCR
paxBpaxB RT-FGAACTGGTCTACTGTCTGGTCpaxB RT-RACGGTCGACGTACCAGAAACA504RT-PCR
paxCpaxC RT-FATGATGGTCGACGATATCTCCpaxC RT-RCAATTGCGAATGCCAGCCAAG385RT-PCR
paxPpaxP RT-FCCACCTACAAGACCAATGTCApaxP RT-RAAGCGAATTGATCATCGCATG417RT-PCR
paxQpaxQ RT-FCAGCCTTACAGAGAGATTCGTpaxQ RT-RGATGTGCGACAACTCTTGCAC562RT-PCR
paxDpaxD RT-FCAGTCTGGAGCTTATGCCATC paxD RT-RCGTCCTTGACGAATGCCTTGA456RT-PCR
PP121paxO RT-FGTGGCTGCTACTAAGCTGGTApaxO RT-RCACAGGAAGAAGCGATCTGGT456RT-PCR
PP122Pax248AGTTCGACAGCGCTTGGGAGAPax249CAGTGGCTCCTTAACTCTCGT592RT-PCR
tubATub2 RT-FACACTCCTGATCTCCAAGATCTub2 RT-RGATGTCGTACAGAGCCTCGTT258RT-PCR

a Nucleotides in lower case are mismatches to genomic sequence to introduce sites for restriction enzyme digestion.

References

  1. Steyn, P.S.; Vleggaar, R. Tremorgenic mycotoxins. Prog. Chem. Org. Nat. Prod. 1985, 48, 1–80, doi:10.1021/np50037a001.
  2. Byrne, K.M.; Smith, S.K.; Ondeyka, J.G. Biosynthesis of nodulisporic acid A: Precursor studies. J. Am. Chem. Soc. 2002, 124, 7055–7060, doi:10.1021/ja017183p.
  3. De Jesus, A.E.; Gorst-Allman, C.P.; Steyn, P.S.; van Heerden, F.R.; Vleggar, R.; Wessels, P.L.; Hull, W.E. Tremorgenic mycotoxins from Penicillium crustosum. Biosynthesis of Penitrem A. J. Chem. Soc. Perkin Trans. 1983, 1863–1868.
  4. Saikia, S.; Parker, E.J.; Koulman, A.; Scott, B. Four gene products are required for the fungal synthesis of the indole diterpene paspaline. FEBS Lett. 2006, 580, 1625–1630, doi:10.1016/j.febslet.2006.02.008.
  5. Parker, E.J.; Scott, D.B. Indole-diterpene Biosynthesis in Ascomycetous Fungi. In Handbook of Industrial Mycology; An, Z., Ed.; Marcel Dekker: New York, NY, USA, 2004. Chapter 14; pp. 405–426.
  6. Young, C.; Itoh, Y.; Johnson, R.; Garthwaite, I.; Miles, C.O.; Munday-Finch, S.C.; Scott, B. Paxilline-negative mutants of Penicillium paxilli generated by heterologous and homologous plasmid integration. Curr. Genet. 1998, 33, 368–377, doi:10.1007/s002940050349.
  7. Itoh, Y.; Johnson, R.; Scott, B. Integrative transformation of the mycotoxin-producing fungus, Penicillium paxilli. Curr. Genet. 1994, 25, 508–513, doi:10.1007/BF00351670.
  8. Young, C.; McMillan, L.; Telfer, E.; Scott, B. Molecular cloning and genetic analysis of an indole-diterpene gene cluster from Penicillium paxilli. Mol. Microbiol. 2001, 39, 754–764, doi:10.1046/j.1365-2958.2001.02265.x.
  9. McMillan, L.K.; Carr, R.L.; Young, C.A.; Astin, J.W.; Lowe, R.G.T.; Parker, E.J.; Jameson, G.B.; Finch, S.C.; Miles, C.O.; McManus, O.B.; et al. Molecular analysis of two cytochrome P450 monooxygenase genes required for paxilline biosynthesis in Penicillium paxilli, and effects of paxilline intermediates on mammalian maxi-K ion channels. Mol. Gen. Genomics 2003, 270, 9–23, doi:10.1007/s00438-003-0887-2.
  10. Saikia, S.; Parker, E.J.; Koulman, A.; Scott, B. Defining paxilline biosynthesis in Penicillium paxilli: Functional characterization of two cytochrome P450 monooxygenases. J. Biol. Chem. 2007, 282, 16829–16837, doi:10.1074/jbc.M701626200.
  11. Saikia, S.; Scott, B. Functional analysis and subcellular localization of two geranylgeranyl diphosphate synthases from Penicillium paxilli. Mol. Genet. Genomics 2009, 282, 257–271, doi:10.1007/s00438-009-0463-5.
  12. Tagami, K.; Liu, C.; Minami, A.; Noike, M.; Isaka, T.; Fueki, S.; Shichijo, Y.; Toshima, H.; Gomi, K.; Dairi, T.; et al. Reconstitution of biosynthetic machinery for indole-diterpene paxilline in Aspergillus oryzae. J. Am. Chem. Soc. 2013, 135, 1260–1263, doi:10.1021/ja3116636.
  13. Liu, C.; Noike, M.; Minami, A.; Oikawa, H.; Dairi, T. Functional analysis of a prenyltransferase gene (paxD) in the paxilline biosynthetic gene cluster. Appl. Microbiol. Biotechnol. 2013, doi:10.1007/s00253-013-4834-9.
  14. Nicholson, M.J.; Koulman, A.; Monahan, B.J.; Pritchard, B.L.; Payne, G.A.; Scott, B. Identification of two aflatrem biosynthesis gene loci in Aspergillus flavus and metabolic engineering of Penicillium paxilli to elucidate their function. Appl. Environ. Microbiol. 2009, 75, 7469–7481, doi:10.1128/AEM.02146-08.
  15. Chen, A.; Kroon, P.A.; Poulter, C.D. Isoprenyl diphosphate synthases: Protein sequence comparisons, a phylogenetic tree, and predictions of secondary structure. Protein Sci. 1994, 3, 600–607, doi:10.1002/pro.5560030408.
  16. Wierenga, R.K.; Terpstra, P.; Hol, W.G.J. Predictions of the occurrence of the ADP-binding bab-fold in proteins using an amino acid sequence fingerprint. J. Mol. Biol. 1986, 187, 101–107, doi:10.1016/0022-2836(86)90409-2.
  17. Vallon, O. New sequence motifs in flavoproteins: Evidence for common ancestry and tools to predict structure. Proteins Struct. Funct. Genet. 2000, 38, 95–114, doi:10.1002/(SICI)1097-0134(20000101)38:1<95::AID-PROT10>3.0.CO;2-A.
  18. Eggink, G.; Engel, H.; Vriend, G.; Terpstra, P.; Witholt, B. Rubredoxin reductase of Pseudomonas oleovorans: Structural relationship to other flavoprotein oxidoreductases based on one NAD and two FAD fingerprints. J. Mol. Biol. 1990, 212, 135–142, doi:10.1016/0022-2836(90)90310-I.
  19. You, I.-S.; Ghosal, D.; Gunsalus, I.C. Nucleotide sequence analysis of the Pseudomonas putida PpG7 salicylate hydroxylase gene (nahG) and its 3'-flanking region. Biochemistry 1991, 30, 1635–1641, doi:10.1021/bi00220a028.
  20. Marin, E.; Nussaume, L.; Quesada, A.; Gonneau, M.; Sotta, B.; Hugueney, P.; Frey, A.; Marion-Poll, A. Molecular identification of zeaxanthin epoxidase of Nicotiana plumbaginifolia, a gene involved in abscisic acid biosynthesis and corresponding to the ABA locus of Arabidopsis thaliana. EMBO J. 1996, 15, 2331–2342.
  21. Nowrousian, M. A novel polyketide biosynthesis gene cluster is involved in fruiting body morphogenesis in the filamentous fungi Sordaria macrospora and Neurospora crassa. Curr. Genet. 2009, 55, 185–198, doi:10.1007/s00294-009-0236-z.
  22. Hicks, K.A.; O’Leary, S.E.; Begley, T.P.; Ealick, S.E. Structural and mechanistic studies of HpxO, a novel flavin adenine dinucleotide-dependent urate oxidase from Klebsiella pneumoniae. Biochemistry 2013, 52, 477–487, doi:10.1021/bi301262p.
  23. Lindqvist, Y.; Koskiniemi, H.; Jansson, A.; Sandalova, T.; Schnell, R.; Liu, Z.; Mantsala, P.; Niemi, J.; Schneider, G. Structural basis for substrate recognition and specificity in aklavinone-11-hydroxylase from rhodomycin biosynthesis. J. Mol. Biol. 2009, 393, 966–977, doi:10.1016/j.jmb.2009.09.003.
  24. Treiber, N.; Schulz, G.E. Structure of 2,6-dihydroxypyridine 3-hydroxylase from a nicotine-degrading pathway. J. Mol. Biol. 2008, 379, 94–104, doi:10.1016/j.jmb.2008.03.032.
  25. Schardl, C.L.; Young, C.A.; Hesse, U.; Amyotte, S.G.; Andreeva, K.; Calie, P.J.; Fleetwood, D.J.; Haws, D.C.; Moore, N.; Oeser, B.; et al. Plant-symbiotic fungi as chemical engineers: Multi-genome analysis of the Clavicipitaceae reveals dynamics of alkaloid loci. PLoS Genet. 2013, 9, e1003323, doi:10.1371/journal.pgen.1003323.
  26. Saikia, S.; Takemoto, D.; Tapper, B.A.; Lane, G.A.; Fraser, K.; Scott, B. Functional analysis of an indole-diterpene gene cluster for lolitrem B biosynthesis in the grass endosymbiont Epichloë festucae. FEBS Lett. 2012, 586, 2563–2569, doi:10.1016/j.febslet.2012.06.035.
  27. Buchan, D.W.; Ward, S.M.; Lobley, A.E.; Nugent, T.C.; Bryson, K.; Jones, D.T. Protein annotation and modelling servers at University College London. Nucleic Acids Res. 2010, 38, W563–W568, doi:10.1093/nar/gkq427.
  28. Saikia, S.; Nicholson, M.J.; Young, C.; Parker, E.J.; Scott, B. The genetic basis for indole-diterpene chemical diversity in filamentous fungi. Mycol. Res. 2008, 112, 184–199, doi:10.1016/j.mycres.2007.06.015.
  29. Steffan, N.; Grundmann, A.; Yin, W.B.; Kremer, A.; Li, S.M. Indole prenyltransferases from fungi: A new enzyme group with high potential for the production of prenylated indole derivatives. Curr. Med. Chem. 2009, 16, 218–231, doi:10.2174/092986709787002772.
  30. Tudzynski, P.; Hölter, K.; Correia, T.; Arntz, C.; Grammel, N.; Keller, U. Evidence for an ergot alkaloid gene cluster in Claviceps purpurea. Mol. Gen. Genet. 1999, 261, 133–141, doi:10.1007/s004380050950.
  31. Schneider, P.; Weber, M.; Hoffmeister, D. The Aspergillus nidulans enzyme TdiB catalyzes prenyltransfer to the precursor of bioactive asterriquinones. Fungal Genet. Biol. 2008, 45, 302–309, doi:10.1016/j.fgb.2007.09.004.
  32. Tsai, H.-F.; Wang, H.; Gebler, J.C.; Poulter, C.D.; Schardl, C.L. The Claviceps purpurea gene encoding dimethylallyltryptophan synthase, the committed step for ergot alkaloid biosynthesis. Biochem. Biophys. Res. Commun. 1995, 216, 119–125, doi:10.1006/bbrc.1995.2599.
  33. Liu, X.; Walsh, C.T. Characterization of cyclo-acetoacetyl-L-tryptophan dimethylallyltransferase in cyclopiazonic acid biosynthesis: Substrate promiscuity and site directed mutagenesis studies. Biochemistry 2009, 48, 11032–11044, doi:10.1021/bi901597j.
  34. Metzger, U.; Schall, C.; Zocher, G.; Unsold, I.; Stec, E.; Li, S.M.; Heide, L.; Stehle, T. The structure of dimethylallyl tryptophan synthase reveals a common architecture of aromatic prenyltransferases in fungi and bacteria. Proc. Natl. Acad. Sci. USA 2009, 106, 14309–14314.
  35. Unsöld, I.A.; Li, S.M. Reverse prenyltransferase in the biosynthesis of fumigaclavine C in Aspergillus fumigatus: Gene expression, purification, and characterization of fumigaclavine C synthase FGAPT1. ChemBioChem 2006, 7, 158–164, doi:10.1002/cbic.200500318.
  36. Machida, M.; Asai, K.; Sano, M.; Tanaka, T.; Kumagai, T.; Terai, G.; Kusumoto, K.; Arima, T.; Akita, O.; Kashiwagi, Y.; et al. Genome sequencing and analysis of Aspergillus oryzae. Nature 2005, 438, 1157–1161, doi:10.1038/nature04300.
  37. Liu, M.; Panaccione, D.G.; Schardl, C.L. Phylogenetic analyses reveal monophyletic origin of the ergot alkaloid gene dmaW in fungi. Evol. Bioinform. 2009, 5, 1–17.
  38. Bullock, W.O.; Fernandez, J.M.; Short, J.M. XL1-Blue: A high efficiency plasmid transforming recA Escherichia coli strain with beta-galactosidase selection. Biotechniques 1987, 5, 376–378.
  39. Vieira, J.; Messing, J. Production of single-stranded plasmid DNA. Meth. Enzymol. 1987, 153, 3–11, doi:10.1016/0076-6879(87)53044-0.
  40. Namiki, F.; Matsunaga, M.; Okuda, M.; Inoue, I.; Nishi, K.; Fujita, Y.; Tsuge, T. Mutation of an arginine biosynthesis gene causes reduced pathogenicity in Fusarium oxysporum f. sp. melonis. Mol. Plant-Microbe Interact. 2001, 14, 580–584, doi:10.1094/MPMI.2001.14.4.580.
  41. Yoder, O.C. Cochliobolus heterostrophus, cause of southern corn leaf blight. Adv. Plant Pathol. 1988, 6, 93–112.
  42. Sanger, F.; Nicklen, S.; Coulson, A.R. DNA sequencing with chain-terminating inhibitors. Proc. Natl. Acad. Sci. USA 1977, 74, 5463–5467, doi:10.1073/pnas.74.12.5463.
  43. Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W: Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res. 1994, 22, 4673–4680, doi:10.1093/nar/22.22.4673.
  44. Quevillon, E.; Silventoinen, V.; Pillai, S.; Harte, N.; Mulder, N.; Apweiler, R.; Lopez, R. InterProScan: Protein domains identifier. Nucleic Acids Res. 2005, 33, W116–W120, doi:10.1093/nar/gki442.
  45. Zdobnov, E.M.; Apweiler, R. InterProScan—An integration platform for the signature-recognition methods in InterPro. Bioinformatics 2001, 17, 847–848, doi:10.1093/bioinformatics/17.9.847.
  46. Krogh, A.; Larsson, B.; von Heijne, G.; Sonnhammer, E.L. Predicting transmembrane protein topology with a hidden Markov model: Application to complete genomes. J. Mol. Biol. 2001, 305, 567–580, doi:10.1006/jmbi.2000.4315.
  47. Lobley, A.; Sadowski, M.I.; Jones, D.T. pGenTHREADER and pDomTHREADER: New methods for improved protein fold recognition and superfamily discrimination. Bioinformatics 2009, 25, 1761–1767, doi:10.1093/bioinformatics/btp302.
  48. Jones, D.T. Protein secondary structure prediction based on position-specific scoring matrices. J. Mol. Biol. 1999, 292, 195–202, doi:10.1006/jmbi.1999.3091.
  49. Katoh, K.; Misawa, K.; Kuma, K.; Miyata, T. MAFFT: A novel method for rapid multiple sequence alignment based on fast Fourier transform. Nucleic Acids Res. 2002, 30, 3059–3066, doi:10.1093/nar/gkf436.
  50. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780, doi:10.1093/molbev/mst010.
  51. Grundmann, A.; Li, S.M. Overproduction, purification and characterization of FtmPT1, a brevianamide F prenyltransferase from Aspergillus fumigatus. Microbiology 2005, 151, 2199–2207, doi:10.1099/mic.0.27962-0.
  52. Ruan, H.L.; Yin, W.B.; Wu, J.Z.; Li, S.M. Reinvestigation of a cyclic dipeptide N-prenyltransferase reveals rearrangement of N-1 prenylated indole derivatives. ChemBioChem 2008, 9, 1044–1047, doi:10.1002/cbic.200700723.
  53. Yin, W.B.; Ruan, H.L.; Westrich, L.; Grundmann, A.; Li, S.M. CdpNPT, an N-prenyltransferase from Aspergillus fumigatus: Overproduction, purification and biochemical characterisation. ChemBioChem 2007, 8, 1154–61, doi:10.1002/cbic.200700079.
  54. Nierman, W.C.; Pain, A.; Anderson, M.J.; Wortman, J.R.; Kim, H.S.; Arroyo, J.; Berriman, M.; Abe, K.; Archer, D.B.; Bermejo, C.; et al. Genomic sequence of the pathogenic and allergenic filamentous fungus Aspergillus fumigatus. Nature 2005, 438, 1151–1156, doi:10.1038/nature04332.
  55. Grundmann, A.; Kuznetsova, T.; Afiyatullov, S.; Li, S.M. FtmPT2, an N-prenyltransferase from Aspergillus fumigatus, catalyses the last step in the biosynthesis of fumitremorgin B. ChemBioChem 2008, 9, 2059–2063, doi:10.1002/cbic.200800240.
  56. Balibar, C.J.; Howard-Jones, A.R.; Walsh, C.T. Terrequinone A biosynthesis through L-tryptophan oxidation, dimerization and bisprenylation. Nature Chem. Biol. 2007, 3, 584–592, doi:10.1038/nchembio.2007.20.
  57. Gardiner, D.M.; Cozijnsen, A.J.; Wilson, L.M.; Pedras, M.S.; Howlett, B.J. The sirodesmin biosynthetic gene cluster of the plant pathogenic fungus Leptosphaeria maculans. Mol. Microbiol. 2004, 53, 1307–1318, doi:10.1111/j.1365-2958.2004.04215.x.
  58. Ding, Y.; Williams, R.M.; Sherman, D.H. Molecular analysis of a 4-dimethylallyltryptophan synthase from Malbranchea aurantiaca. J. Biol. Chem. 2008, 283, 16068–16076, doi:10.1074/jbc.M801991200.
  59. Yin, W.B.; Grundmann, A.; Cheng, J.; Li, S.M. Acetylaszonalenin biosynthesis in Neosartorya fischeri. Identification of the biosynthetic gene cluster by genomic mining and functional proof of the genes by biochemical investigation. J. Biol. Chem. 2009, 284, 100–109.
  60. Wang, J.; Machado, C.; Panaccione, D.G.; Tsai, H.-F.; Schardl, C.L. The determinant step in ergot alkaloid biosynthesis by an endophyte of perennial ryegrass. Fungal Genet. Biol. 2004, 41, 189–198, doi:10.1016/j.fgb.2003.10.002.
  61. Young, C.A.; Felitti, S.; Shields, K.; Spangenberg, G.; Johnson, R.D.; Bryan, G.T.; Saikia, S.; Scott, B. A complex gene cluster for indole-diterpene biosynthesis in the grass endophyte Neotyphodium lolii. Fungal Genet. Biol. 2006, 43, 679–693, doi:10.1016/j.fgb.2006.04.004.
Toxins EISSN 2072-6651 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
