Open AccessArticle
Remote Sens. 2017, 9(7), 707; https://doi.org/10.3390/rs9070707

Estimation of Forest Aboveground Biomass in Changbai Mountain Region Using ICESat/GLAS and Landsat/TM Data

1
Institute of Geodesy and Geophysics, Chinese Academy of Sciences, Wuhan 430077, China
2
Hubei Key Laboratory for Environment and Disaster Monitoring and Evaluation, Wuhan 430077, China
3
Department of Geographical Sciences, University of Maryland, College Park, MD 20742, USA
4
Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100732, China
5
Academy of Forest Inventory and Planning, State Forestry Administration, Beijing 100714, China
*
Author to whom correspondence should be addressed.
Received: 20 June 2017 / Revised: 4 July 2017 / Accepted: 4 July 2017 / Published: 9 July 2017
(This article belongs to the Section Forest Remote Sensing)
View Full-Text   |   Download PDF [17845 KB, uploaded 9 July 2017]   |

Abstract

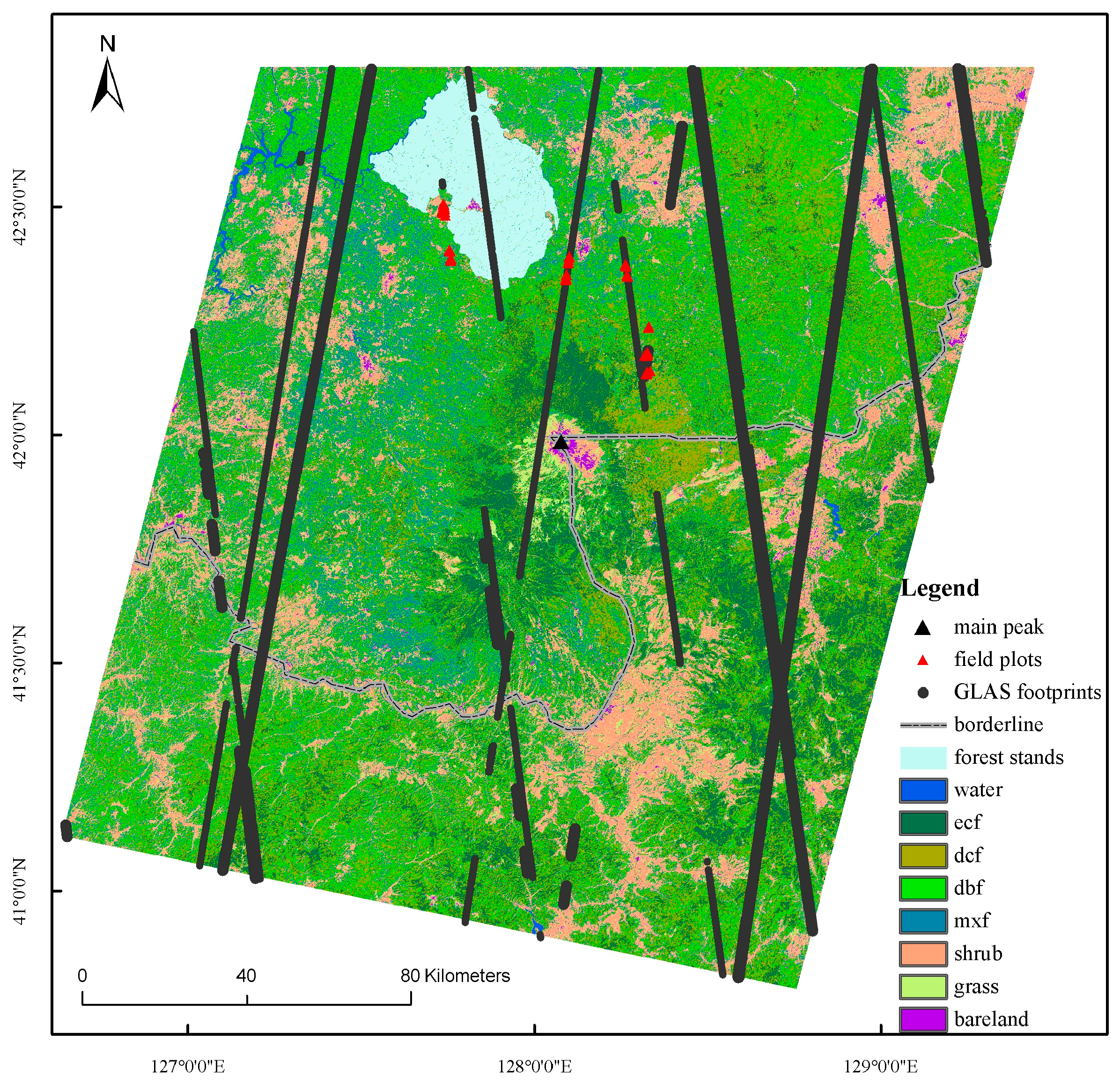

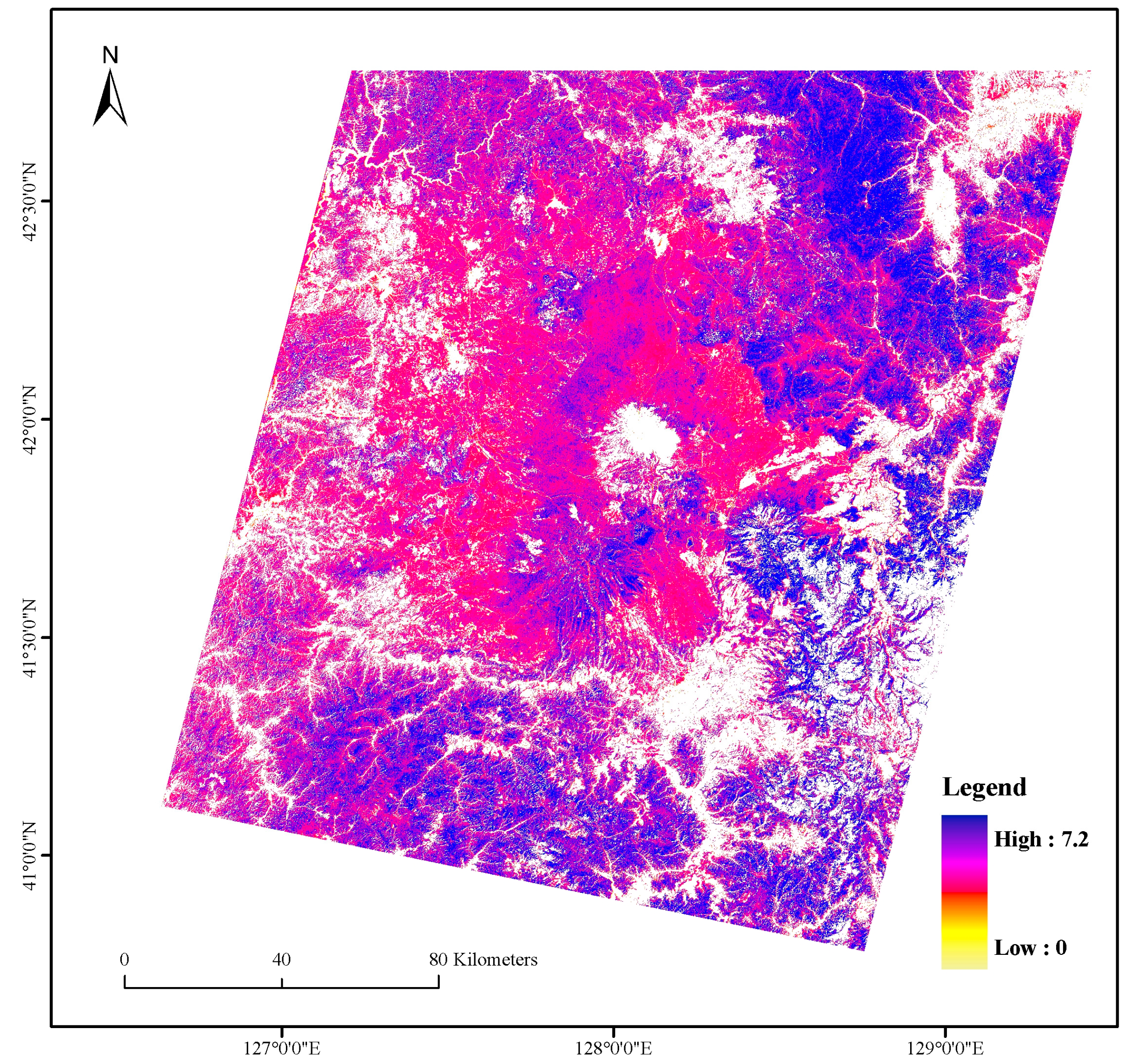

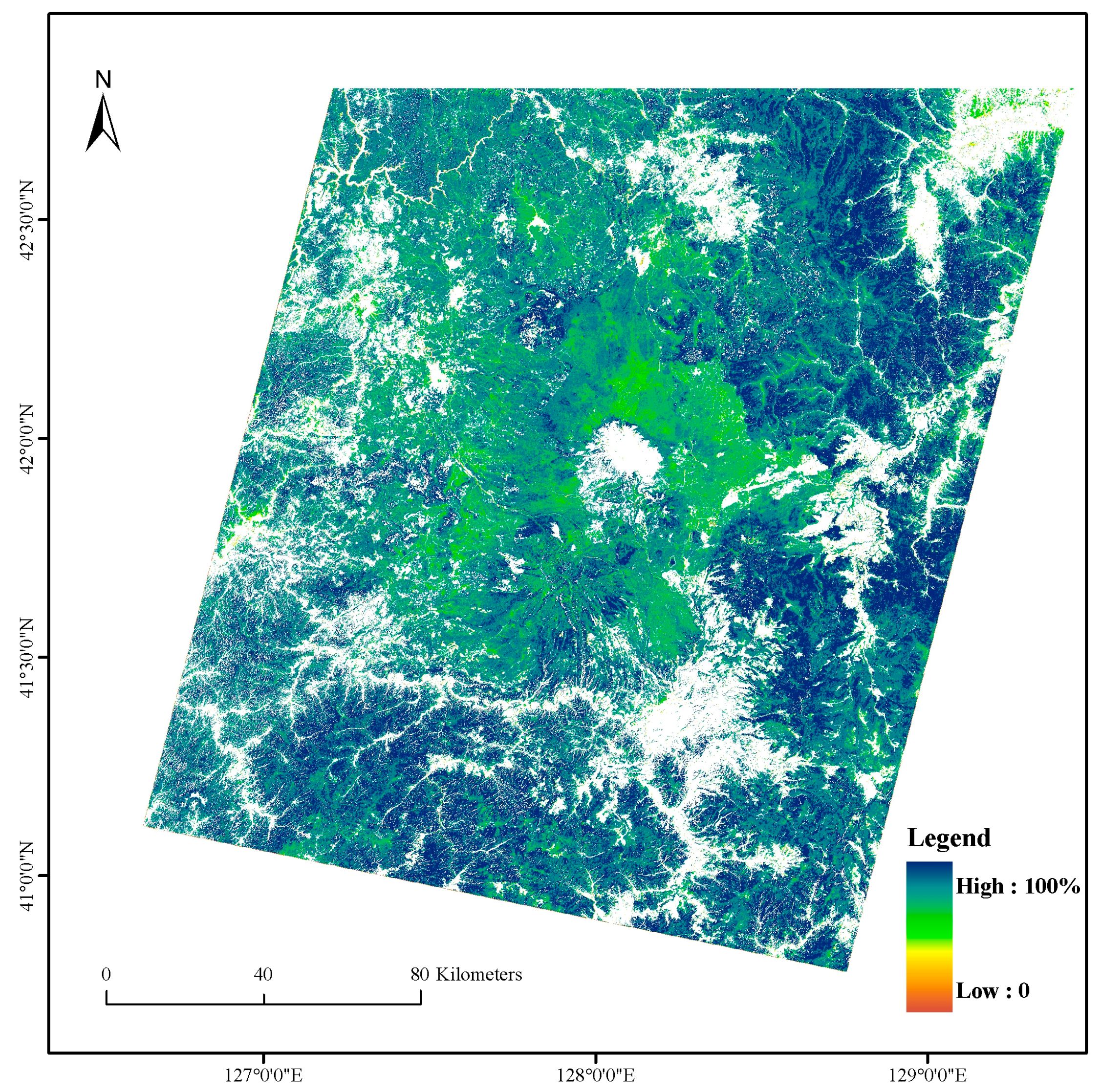

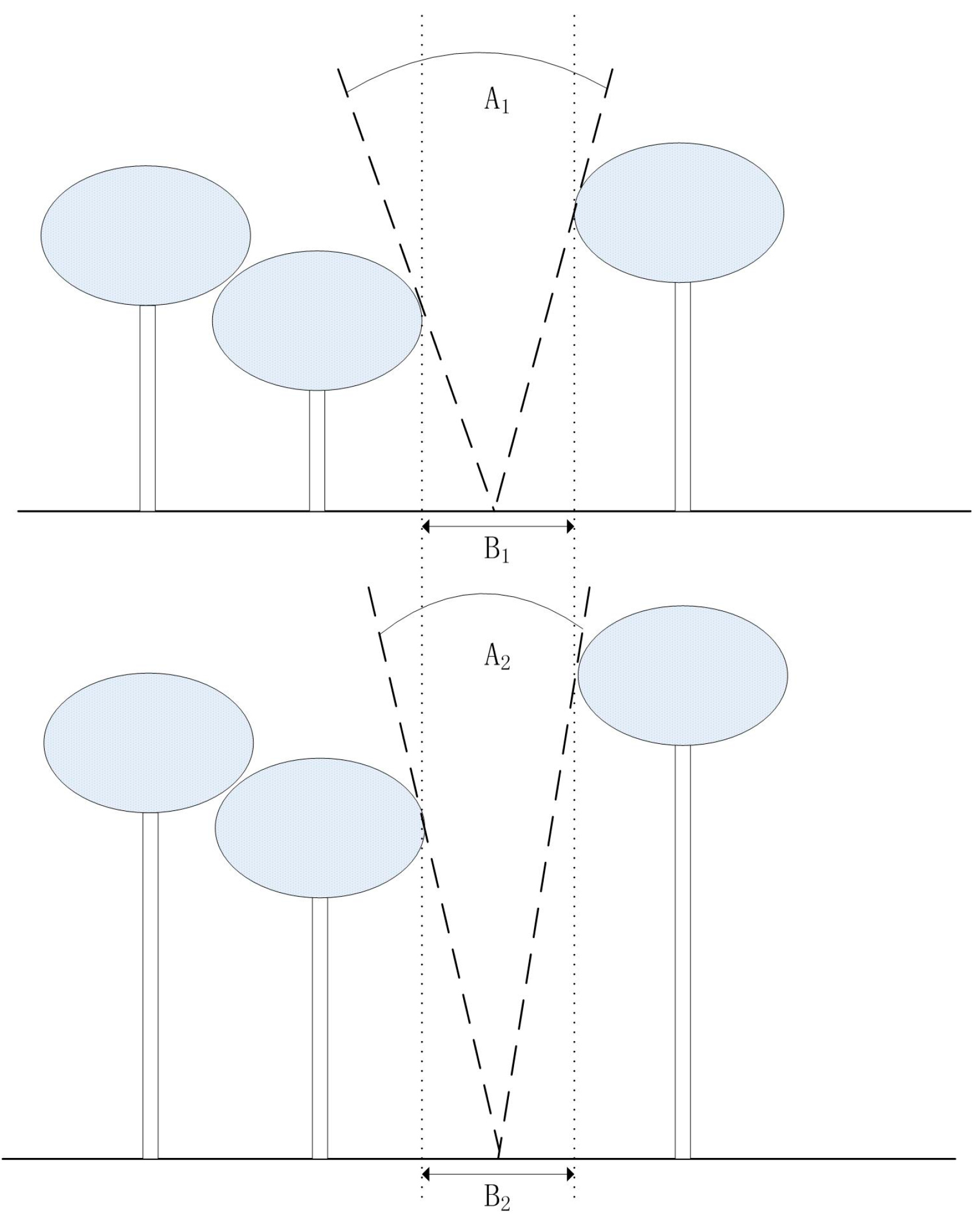

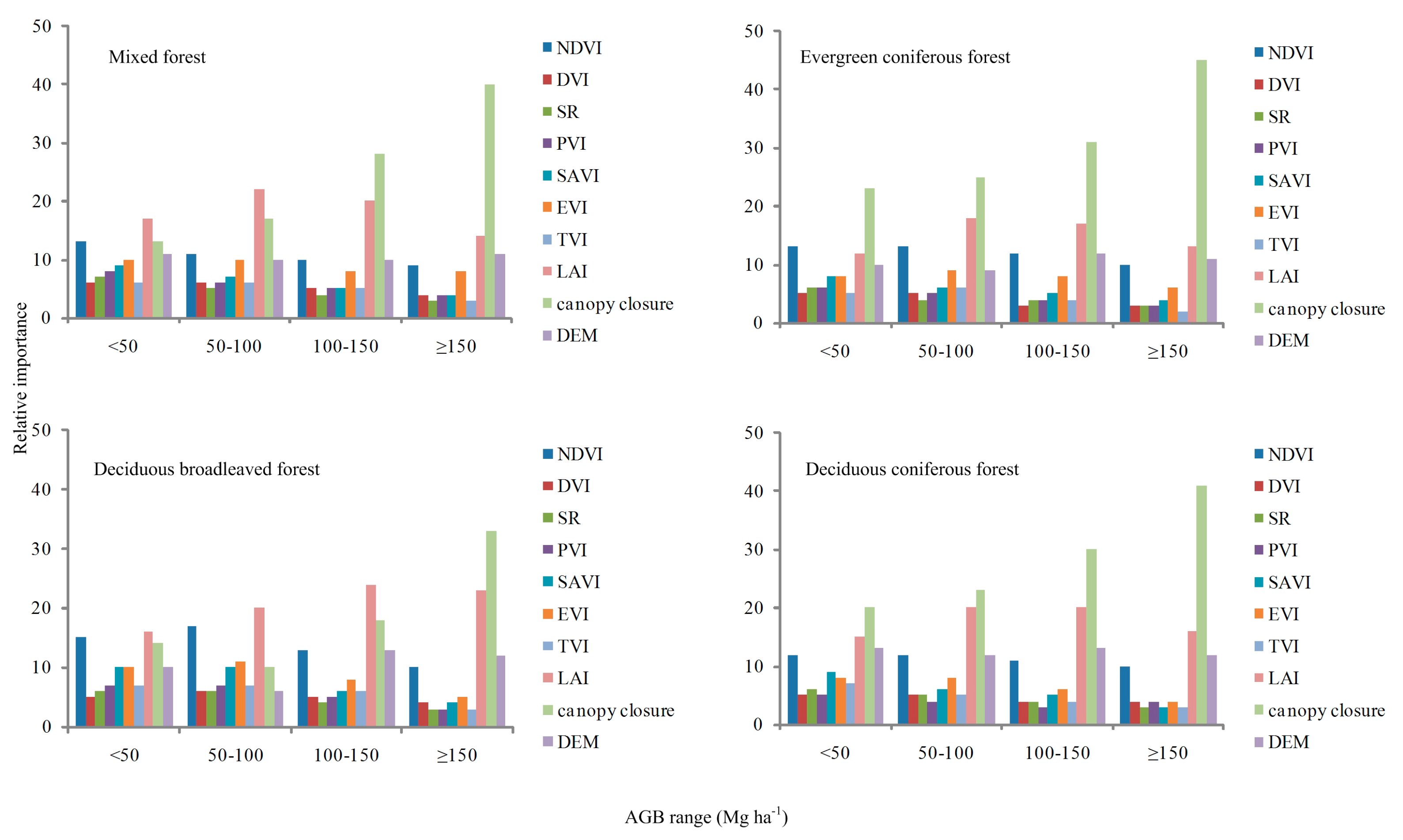

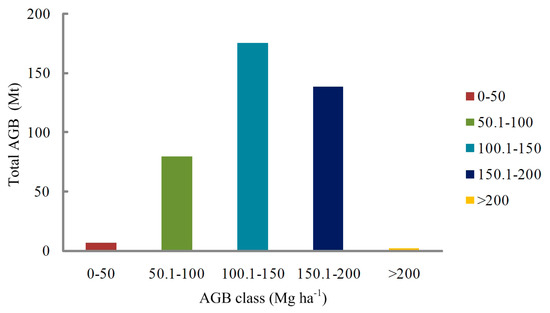

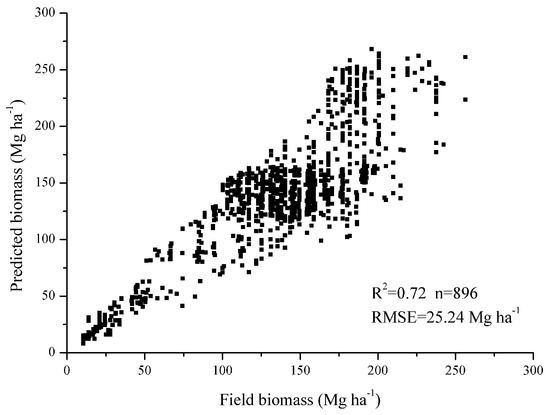

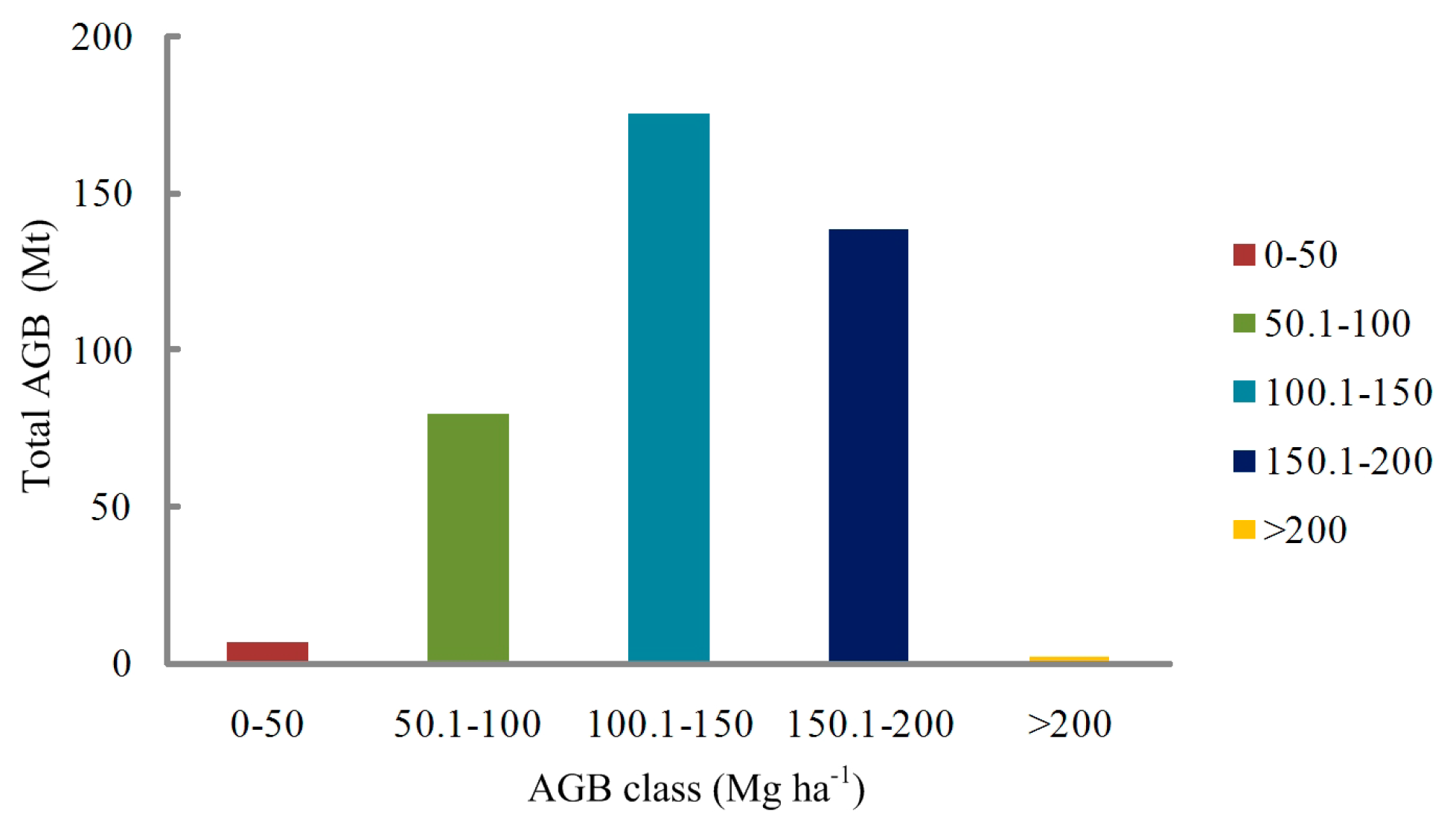

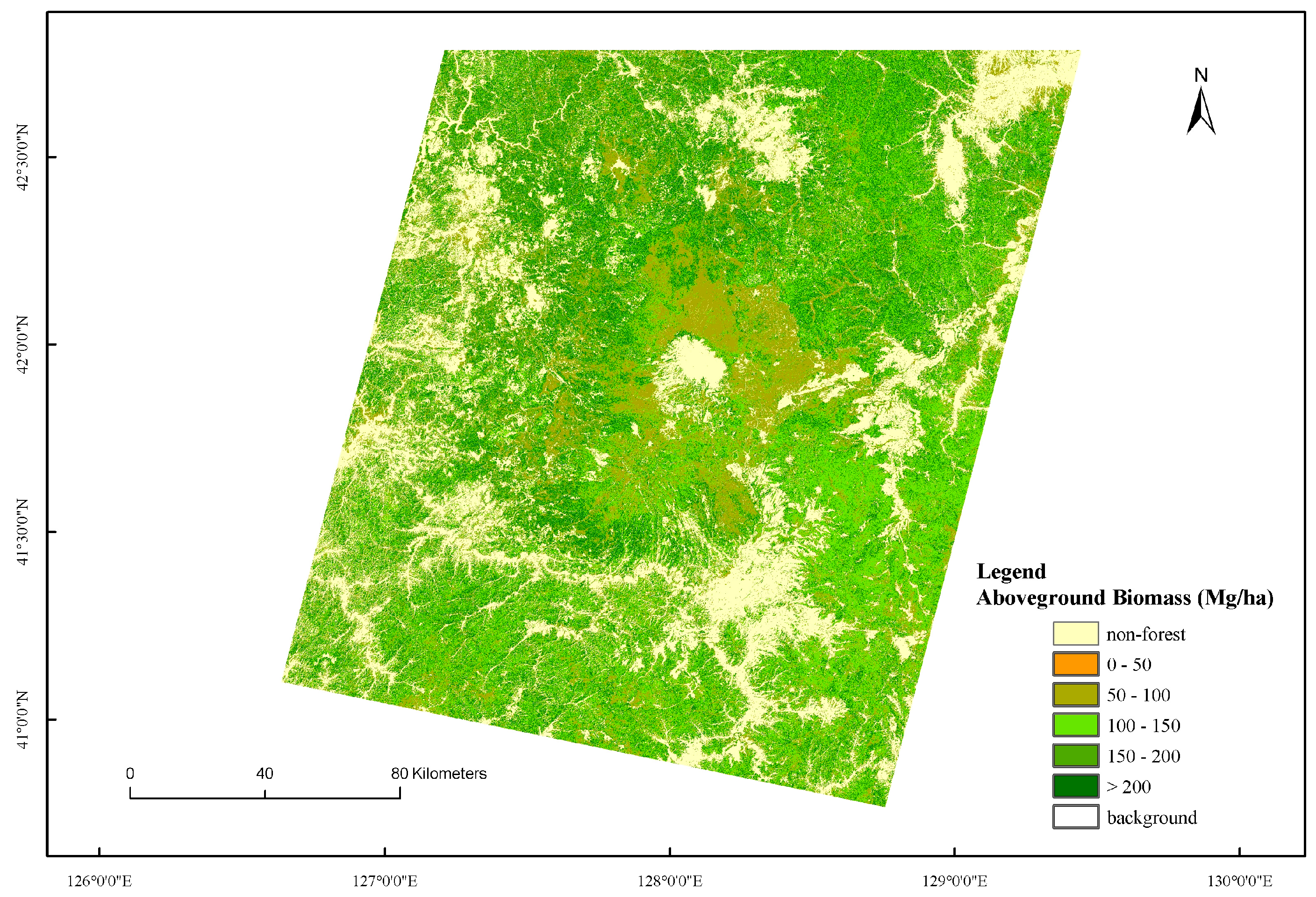

Mapping the magnitude and spatial distribution of forest aboveground biomass (AGB, in Mg·ha−1) is crucial to improve our understanding of the terrestrial carbon cycle. Landsat/TM (Thematic Mapper) and ICESat/GLAS (Ice, Cloud, and land Elevation Satellite, Geoscience Laser Altimeter System) data were integrated to estimate the AGB in the Changbai Mountain area. Firstly, four forest types were delineated according to TM data classification. Secondly, different models for prediction of the AGB at the GLAS footprint level were developed from GLAS waveform metrics and the AGB was derived from field observations using multiple stepwise regression. Lastly, GLAS-derived AGB, in combination with vegetation indices, leaf area index (LAI), canopy closure, and digital elevation model (DEM), were used to drive a data fusion model based on the random forest approach for extrapolating the GLAS footprint AGB to a continuous AGB map. The classification result showed that the Changbai Mountain region was characterized as forest-rich in altitudinal vegetation zones. The contribution of remote sensing variables in modeling the AGB was evaluated. Vegetation index metrics account for large amount of contribution in AGB ranges <150 Mg·ha−1, while canopy closure has the largest contribution in AGB ranges ≥150 Mg·ha−1. Our study revealed that spatial information from two sensors and DEM could be combined to estimate the AGB with an R2 of 0.72 and an RMSE of 25.24 Mg·ha−1 in validation at stand level (size varied from ~0.3 ha to ~3 ha). View Full-Text
Keywords: forest AGB; ICESat/GLAS; Landsat/TM; vegetation index; canopy closure; random forest; Changbai Mountain forest AGB; ICESat/GLAS; Landsat/TM; vegetation index; canopy closure; random forest; Changbai Mountain
Figures

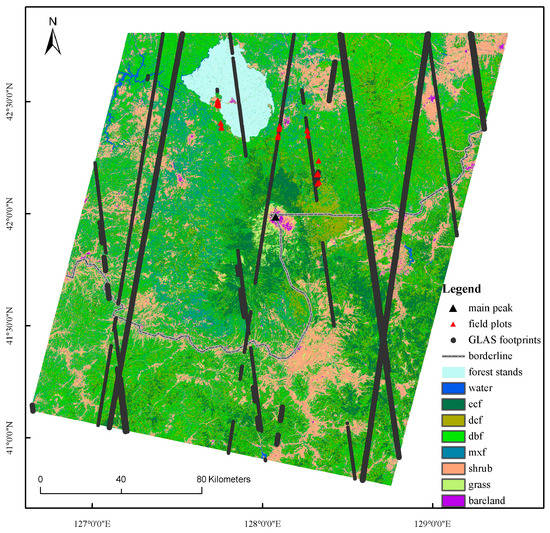

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
