Abstract

:
The Rational Function Model (RFM) is a widely used generic sensor model for georeferencing satellite images. Owing to inaccurate measurement of satellite orbit and attitude, the Rational Polynomial Coefficients (RPCs) provided by image vendors are commonly biased and cannot be directly used for high-precision remote-sensing applications. In this paper, we propose a new method for the bias compensation of RPCs using local polynomial models (including the local affine model and the local quadratic model), which provides the ability to correct non-rigid RPC deformations. Performance of the proposed approach was evaluated using a stereo triplet of ZY-3 satellite images and compared with conventional global-polynomial-based models (including the global affine model and the global quadratic model). The experimental results show that, when the same polynomial form was used, the correction residuals of the local model could be notably smaller than those of the global model, which indicates that the new method has great ability to remove complex errors existed in vendor-provided RPCs. In the experiments of this study, the accuracy of the local affine model was nearly 15% better than that of the global affine model. Performance of the local quadratic model was not as good as the local affine model when the number of Ground Control Points (GCPs) was less than 10, but it improved rapidly with an increase in the number of redundant observations. In the test scenario with 15 GCPs, the accuracy of the local quadratic model was about 9% and 27% better than those of the local affine model and the global quadratic model, respectively.

Graphical Abstract

1. Introduction

High-resolution satellite images (with a spatial resolution of several meters or finer) have been widely used in earth and environmental studies [1]. Limited by the unsatisfactory performance of onboard navigation sensors, the direct-georeferencing accuracy of the satellite imagery is commonly worse than several times of the Ground Sampling Distance (GSD) [2,3], which cannot meet the requirement of high-precision remote-sensing applications such as urban 3-D reconstruction [4] and orthophoto production [5]. To improve the geopositioning accuracy is one of the most critical issues in the photogrammetric processing chain of high-resolution satellite imagery, and it has been continuously studied for years [6,7,8].
The Rational Function Model (RFM) is a generic sensor model used for the georeferencing of spaceborne optical [9,10,11,12,13] and SAR (Synthetic Aperture Radar) images [14,15,16,17]. As its functional form is fixed and does not relate to the distinct characteristics of different sensors, the RFM is very popular both in the academic and industrial communities [9,10]. A great number of researches have reported that the RFM can accurately approximate rigorous sensor models [18,19,20,21,22,23]. However, owing to inaccurate measurement of ephemeris and attitude data, the Rational Polynomial Coefficients (RPCs) provided by satellite image vendors are often seriously biased, and there is therefore a strong need to remove the systematic errors in RPCs [24,25].
Bias compensation for RPCs can be conducted either in the image space or the object space; the former is more recommended in literature [3]. Classical bias-correction approaches include the shift model, the shift and drift model, the affine model and the second-order polynomial model [26,27,28,29,30,31]. Many studies have evaluated and compared different models using a variety of high-resolution satellite data, such as the SPOT-5 [4], IKONOS [26,30], QuickBird [3,25,28], and WorldView-1/2/3 [25,32,33]. Most of them have reported that the shift model can produce a sub-pixel georeferencing accuracy for many satellite images [25,33], and the affine model or the second-order polynomial model usually obtains the best performance [3,24,28].
Conventional bias-correction methods adopt global polynomials to model the error distribution of the whole scene. Low-order polynomial models may not yield satisfactory results, because they have difficulties in compensating complex errors caused by the perturbations in satellite motion. High-order polynomial models (cubic or higher degree polynomials), on the other hand, require too many Ground Control Points (GCPs), are likely to be overfitted and are therefore rarely used in practice [3]. Given that non-rigid RPC deformations cannot be modeled by global polynomials, the least squares collocation [12] and thin-plate splines [34] have been introduced to tackle the problem.
In this paper, we present an alternative approach to correct complex RPC deformations using the local polynomial modeling technique. Only a few nearest GCPs around the image point are used to model the systematic errors in RPCs, and the coefficients of local polynomials are estimated by a weighted least squares algorithm. The remaining parts of this paper are organized as follows: first, we briefly introduce the fundamental concept of the rational function model. Then, Section 3 presents the bias-compensated models for RPCs, including the widely-used global polynomial models and the proposed local polynomial models. Finally, we report and analyze the results of comparative experiments in Section 4 and offer our concluding remarks in Section 5.

2. The Rational Function Model

The rational function model used for satellite image georeferencing employs a ratio of two cubic polynomials to approximate rigorous imaging geometry [23,35].
l n = P 1 ( U , V , W ) P 2 ( U , V , W ) s n = P 3 ( U , V , W ) P 4 ( U , V , W )
with
l n = ( l l 0 ) / l S s n = ( s s 0 ) / s S
and
U = ( λ λ 0 ) / λ S V = ( φ φ 0 ) / φ S W = ( h h 0 ) / h S
where ( l , s ) are the line and sample components of the image coordinate, respectively; ( λ , φ , h ) are the geodetic longitude, latitude, and height components of the ground coordinate, respectively; l n , s n , U , V , W are the normalized coordinates, l 0 , s 0 , λ 0 , φ 0 , h 0 and l S , s S , λ S , φ S , h S are the corresponding offset and scale terms, respectively [10]; and P i ( i = 1 , , 4 ) is a third-order polynomial and has the following form.
P ( U , V , W ) = c 1 + c 2 U + c 3 V + c 4 W + c 5 U V + c 6 U W + c 7 V W + c 8 U 2 + c 9 V 2 + c 10 W 2 + c 11 U V W + c 12 U 3 + a 13 U V 2 + c 14 U W 2 + c 15 U 2 V + c 16 V 3 + c 17 V W 2 + c 18 U 2 W + c 19 V 2 W + c 20 W 3
To eliminate unnecessary degrees of freedom, the zero-order terms of the denominator polynomials (i.e., P 2 and P 4 ) in Equation (1) are always fixed to be 1, and accordingly, there is a total of 78 independent coefficients in the RFM [35].
Because of the imperfect measurement of satellite ephemeris and attitude, the vendor-provided RPCs are commonly inaccurate and Equation (1) is no longer valid. The most common solution is to adjust the image coordinates to keep the equation balanced again [3,10,30]. Substituting Equation (2) into Equation (1) and adding the correction terms ( Δ l , Δ s ) in the image space, it yields
l = l + Δ l = P 1 ( U , V , W ) P 2 ( U , V , W ) l S + l 0 s = s + Δ s = P 3 ( U , V , W ) P 4 ( U , V , W ) s S + s 0
where Δ l and Δ s are usually modeled as functions of the image coordinates ( l , s ) .
Δ l = f l ( l , s ) Δ s = f s ( l , s )

3. The Bias-Compensated Models

3.1. Global Polynomial Models

In previous studies [3,23,26,28,30] the correction terms in Equation (6) are modeled as global polynomials of measured image coordinates and have the following general form.
Δ l = a 0 + a 1 l + a 2 s + a 3 l 2 + a 4 l s + a 5 s 2 + Δ s = b 0 + b 1 l + b 2 s + b 3 l 2 + b 4 l s + b 5 s 2 +
More specifically, there are mainly four schemes with different independent variables being widely used [3,10].
  • ( a 0 , b 0 ) , which describe image coordinate translations (the global shift model);
  • ( a 0 , a 1 , b 0 , b 1 ) , which model shift and time-dependent errors (the global shift and drift model);
  • ( a 0 , a 1 , a 2 , b 0 , b 1 , b 2 ) , which represent an affine transformation (the global affine model);
  • ( a 0 , a 1 , , a 5 , b 0 , b 1 , , b 5 ) , which describe a second-order polynomial transformation (the global quadratic model).
Some researchers have reported that the affine model and the quadratic model usually produce better performance than the other two models [3]. Less sophisticated models are not routinely recommended for use unless the number of GCPs is very limited, primarily due to the lack of capacity to absorb radial distortions and some more complex errors.

3.2. Local Polynomial Models

In local-polynomial-based methods, the correction terms in Equation (6) are modeled as
Δ l = α 0 + α 1 ( l l p ) + α 2 ( s s p ) + α 3 ( l l p ) 2 + α 4 ( l l p ) ( s s p ) + α 5 ( s s p ) 2 + Δ s = β 0 + β 1 ( l l p ) + β 2 ( s s p ) + β 3 ( l l p ) 2 + β 4 ( l l p ) ( s s p ) + β 5 ( s s p ) 2 +
where ( l p , s p ) are the coordinates of the image point being processed, and ( α 0 , α 1 , , α 5 , β 0 , β 1 , , β 5 ) are the coefficients of local polynomials.
When N GCPs are used in the bias compensation of RPCs, the matrix form of Equation (8) can be written as
Y = A X
where Y refers to [ Δ l 1 , Δ s 1 , Δ l 2 , Δ s 2 , , Δ l N , Δ s N ] T the image-coordinate vector of GCPs, and X represents [ α 0 , α 1 , , β 5 ] T the vector of local polynomial coefficients, which can be estimated by a weighted least squares approach.
X = ( A T W A ) 1 A T W Y
with W the diagonal weight matrix
W = [ w 1 0 0 0 w 2 0 0 0 w N ]
Based on the recommendations of the literature [36,37], a tri-cube kernel is used in the weight function.
w i = { 70 81 ( 1 ( d i / h ) 3 ) 3 for   d i h 0 for   d i > h
with d i the Euclidean distance
d i = ( l i l p ) 2 + ( s i s p ) 2
where ( l i , s i ) refer to the image coordinates of the i-th nearest GCP around ( l p , s p ) , and h is the bandwidth of the kernel function and can be chosen by cross-validation [38]. As illustrated in Figure 1, the weights are zero for the GCPs far away from the image point p, and the local polynomial coefficients are only determined by the GCPs nearby. Benefiting from the introduction of the local weighting strategy, local polynomial models can compensate complex, non-rigid errors in RPCs, while global polynomial models treat all GCPs as equally weighted observations and can only describe rigid deformations.
Given the previous studies on the global-polynomial-based models (cf. Section 3.1) for the bias correction of RPCs, the following two schemes of the local polynomial model are employed and tested in our experiments.
  • ( α 0 , α 1 , α 2 , β 0 , β 1 , β 2 ) , which represent an affine transformation in a local region (the local affine model);
  • ( α 0 , α 1 , , α 5 , β 0 , β 1 , , β 5 ) , which describe a second-order polynomial transformation in a local area (the local quadratic model).

4. Experiments

4.1. Data

A stereo triplet of Chinese ZY-3 satellite images, which was acquired on 23 February 2012 and was captured from different views (nadir, backward, and forward looking directions), was used in the experiments. The study area covers a region of about 2500 km2 and is located in Beijing, China. As shown in Figure 2, the topography of the scene ranges from relatively flat urban areas with elevations near sea level in the eastern region, to undulating mountainous areas with the elevations up to around 1500 m in the western and northwestern regions. A total of 30 ground points was surveyed by differential GPS (Global Positioning System) with an average accuracy better than 5 cm, and the corresponding image coordinates were measured manually. A Leave-One-Out Cross-Validation (LOOCV) procedure [39] was employed to detect potential outliers. We adopted the following index.
R e = max ( e 1 , e 2 , ... , e N ) median ( e 1 , e 2 , ... , e N )
where e i refers to the image-projection error when using the i-th ground point as the check point and all other ones as control points, N is the total number of ground points. Given that the values of R e were not larger than 3.0 in all test scenarios (cf. Table 1), no ground points were identified as outliers. In most parts of the experiments, 15 points were used as Ground Control Points (GCPs), and the other 15 points were reserved as Independent Check Points (ICPs).
Figure 3 shows the image-projection errors of the ground survey points by using the vendor-provided RPCs in the georeferencing. It can be seen that the errors in the three images are of the same magnitude and have a similar pattern, this is because the maximum difference between the acquisition times of the three images is only tens of seconds and the long-term variations of orbit errors are therefore almost the same.

4.2. Schemes

Four image-based bias-correction models were tested and compared in the experiments, and they are the local affine model, the local quadratic model and their corresponding global polynomial versions. The four GCPs located at the corners of the scene (i.e., No. 1–4 in Figure 3) were used as the starting configuration, and then we gradually increased the number of GCPs in the test until all 15 points were added. In all test scenarios, the 15 fixed ICPs (i.e., the unnumbered points in Figure 3) were employed to evaluate the accuracies of different bias-correction models.

4.3. Results

Figure 4 shows the tendency of the residuals with an increasing number of GCPs. When the number of GCPs in use was less than the minimum requirement of a bias-correction model, the process results would be undefined and are not presented in the figure. In our algorithms, the minimum numbers of GCPs needed in the local polynomial models are somewhat larger than those in the global polynomial models (5 vs. 3 and 8 vs. 6 for the affine model and the quadratic model, respectively).
It can be found from Figure 4a–c that there was not a global quadratic trend in the image-projection errors, because the performance of the global second-order polynomial model was commonly worse or only marginally better than that of the global affine model. The correction residuals of the local models were always noticeably smaller than those of the corresponding global models, which indicates that local polynomials have greater ability to model complex RPC errors, such as the distortions caused by orientation variations. When sufficient GCPs were available (the number of GCPs exceeded 10), the correction accuracy of the local quadratic model was significantly better than those of all other test models.
Figure 5 further illustrates an example of the spatial distribution of correction residuals in the image space. The test scenario employed all 15 GCPs and the nadir-view image. Large errors in Figure 5a mainly arise at the edges of the scene, which indicates that some complex deviation existed in the results of the global affine model. The correction residuals of the global quadratic model (Figure 5b) were somewhat smaller than those of the global affine model, mainly observed at the GCPs (e.g., point No. 1, 3, and 6) but not at the ICPs (cf. Figure 4a). The local polynomial models removed almost all errors of the GCPs (Figure 5c–d), and their residuals at the ICPs were also noticeably smaller than those of the global-polynomial-based models. The local quadratic model performed the best among the four test methods. At most checkpoints, correction residuals of the local quadratic model were significantly smaller than those of all competitors.
The performance of different bias-correction models was also compared in the object space. After correcting RPC errors in the image space by using different methods, the geographic coordinates of the object points were then calculated by forward intersection, and they were finally transformed to a Cartesian coordinate system. The Euclidean distances between the calculated object coordinates and their corresponding true values (i.e., GPS survey results) were computed, and the statistical results of the ICPs are shown in Figure 4d. It can be seen that the accuracies of the local polynomial models were always better than those of the global polynomial models when the same polynomial form was used. Correction residuals of the local affine model were overall 5%~10% less than those of the global affine model. The performance of the local quadratic model improved more rapidly than that of the other three models with an increase in the number of redundant observations. When all 15 GCPs were used, the correction residuals of the local quadratic model were about 20% and 35% smaller than those of the local affine model and the global quadratic model, respectively.
More experiments were conducted using different training sets to reduce the effect of the spatial distribution of GCPs on the performance assessment. Figure 6 shows the box plots of 100 tests with using 15 GCPs. In each test, the four points at the corners of the scene were fixed as GCPs, and the other 11 GCPs were randomly chosen from the remainder of ground points. It can be seen that the standard deviations of affine models were always smaller than those of the corresponding quadratic models, which shows that the performance of lower-order polynomial models is less influenced by the spatial distribution of GCPs. The local polynomial models achieved better accuracy than the global models for all three images and object coordinates. The local quadratic model performed the best in the four methods. Its mean residual in the object space was about 9% and 27% smaller than those of the local affine model and the global quadratic model, respectively.

4.4. Discussions

The proposed method was also tested using some IKONOS, QuickBird, and other ZY-3 images. No obvious non-rigid RPC deformations were detected in these data sets, and the correction accuracies of the local and global polynomial models were at the same level. Figure 7 shows an IKONOS example. The study area is located in Hobart, Australia, and a total of 113 ground points were surveyed. As illustrated in Figure 7a, 77 points were reserved as ICPs, and part or all of the other 36 points were used as GCPs in the experiments. The results in Figure 7b show that, when more than 20 GCPs were employed, the image residuals of all four test models barely reduced with an increase in the number of redundant observations. The bias-correction accuracies of the local models were only slightly better than those of the global models, which implies that no serious non-rigid bias exists in the RPC data of the test IKONOS image. Given that strong non-rigid RPC errors were detected only in all three images of one ZY-3 stereo triplet, but not in other test images, it can be inferred that the errors are most likely caused by complex navigation errors induced by temporary short-period orbital perturbations.

5. Conclusions

In this paper, we have presented a local-polynomial-based method for bias compensation of rational polynomial coefficients, which can be used in the photogrammetric processing of high-resolution satellite imagery. Benefiting from the flexibility of local polynomials on data modeling, the new method has great potential for removing complex errors in vendor-provided RPCs, such as the distortions caused by perturbations in satellite motion. Our preliminary results on a Chinese ZY-3 satellite data set show that, when the same polynomial form was used, accuracy of the local polynomial model can be noticeably better than that of the corresponding global polynomial model. More specifically, correction residuals of the local affine model were about 15% smaller than those of the global affine model. The performance of the local quadratic model was significantly higher than that of the other test models when sufficient GCPs were available. In the test scenario using 15 GCPs, the accuracy of the local quadratic model was about 9% and 27% better than those of the local affine model and the global quadratic model, respectively. Our future research on this topic will focus on testing the performance of the local polynomial models on more data from different sensors.

Acknowledgments

This research was supported by the Beijing Key Laboratory of Urban Spatial Information Engineering (No. 2014206), the China Postdoctoral Science Foundation (No. 2015M570724), the National Natural Science Foundation of China (No. 41601493) and the Shenzhen future industry development funding program (No. 201507211219247860).

Author Contributions

Xiang Shen designed the experiments and wrote the paper; Qingquan Li defined the major working scheme; Guofeng Wu and Jiasong Zhu contributed to the data processing and manuscript writing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Benediktsson, J.A.; Chanussot, J.; Moon, W.M. Very high-resolution remote sensing: Challenges and opportunities. Proc. IEEE 2012, 100, 1907–1910. [Google Scholar] [CrossRef]
  2. Tang, X.M.; Xie, J.F.; Wang, X.; Jiang, W.S. High-precision attitude post-processing and initial verification for the ZY-3 satellite. Remote Sens. 2015, 7, 111–134. [Google Scholar] [CrossRef]
  3. Hong, Z.H.; Tong, X.H.; Liu, S.J.; Chen, P.; Xie, H.; Jin, Y.M. A comparison of the performance of bias-corrected RSMs and RFMs for the geo-positioning of high-resolution satellite stereo imagery. Remote Sens. 2015, 7, 16815–16830. [Google Scholar] [CrossRef]
  4. Tao, C.V.; Hu, Y. 3D reconstruction methods based on the rational function model. Photogramm. Eng. Remote Sens. 2002, 68, 705–714. [Google Scholar]
  5. Shaker, I.F.; Abd-Elrahman, A.; Abdel-Gawad, A.K.; Sherief, M.A. Building extraction from high resolution space images in high density residential areas in the great cairo region. Remote Sens. 2011, 3, 781–791. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Zheng, M.; Xiong, X.; Xiong, J. Multistrip bundle block adjustment of ZY-3 satellite imagery by rigorous sensor model without ground control point. IEEE Geosci. Remote Sens. 2015, 12, 865–869. [Google Scholar] [CrossRef]
  7. Jiang, Y.-H.; Zhang, G.; Tang, X.; Li, D.-R.; Wang, T.; Huang, W.-C.; Li, L.-T. Improvement and assessment of the geometric accuracy of chinese high-resolution optical satellites. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 1–12. [Google Scholar] [CrossRef]
  8. Oh, J.; Lee, C. Automated bias-compensation of rational polynomial coefficients of high resolution satellite imagery based on topographic maps. ISPRS J. Photogramm. Remote Sens. 2015, 100, 14–22. [Google Scholar] [CrossRef]
  9. Poli, D.; Toutin, T. Review of developments in geometric modelling for high resolution satellite pushbroom sensors. Photogramm. Rec. 2012, 26, 58–73. [Google Scholar] [CrossRef]
  10. Fraser, C.S.; Dial, G.; Grodecki, J. Sensor orientation via RPCs. ISPRS J. Photogramm. Remote Sens. 2006, 60, 182–194. [Google Scholar] [CrossRef]
  11. Tao, C.V.; Hu, Y. A comprehensive study of the rational function model for photogrammetric processing. Photogramm. Eng. Remote Sens. 2001, 67, 1347–1357. [Google Scholar]
  12. Li, C.; Shen, Y.Z.; Li, B.F.; Qiao, G.; Liu, S.J.; Wang, W.I.; Tong, X.H. An improved geopositioning model of QuickBird high resolution satellite imagery by compensating spatial correlated errors. ISPRS J. Photogramm. Remote Sens. 2014, 96, 12–19. [Google Scholar] [CrossRef]
  13. Sadeghian, S.; Valadan Zoej, M.J.; Delavar, M.R.; Abootalebi, A. Precision rectification of high resolution satellite imagery without ephemeris data. Int. J. Appl. Earth Obs. Geoinf. 2001, 3, 366–371. [Google Scholar] [CrossRef]
  14. Jiang, W.H.; Yu, A.X.; Dong, Z.; Wang, Q.S. Comparison and analysis of geometric correction models of spaceborne SAR. Sensors 2016, 16, 973. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, L.; Balz, T.; Liao, M. Satellite SAR geocoding with refined RPC model. ISPRS J. Photogramm. Remote Sens. 2012, 69, 37–49. [Google Scholar] [CrossRef]
  16. Zhang, L.; He, X.Y.; Balz, T.; Wei, X.H.; Liao, M.S. Rational function modeling for spaceborne SAR datasets. ISPRS J. Photogramm. Remote Sens. 2011, 66, 133–145. [Google Scholar] [CrossRef]
  17. Capaldo, P.; Crespi, M.; Fratarcangeli, F.; Nascetti, A.; Pieralice, F. High-resolution SAR radargrammetry: A first application with COSMO-SkyMed spotlight imagery. IEEE Geosci. Remote Sens. 2011, 8, 1100–1104. [Google Scholar] [CrossRef]
  18. Li, R.; Di, K.; Ma, R. 3-D shoreline extraction from IKONOS satellite imagery. Mar. Geod. 2003, 26, 107–115. [Google Scholar] [CrossRef]
  19. Pehani, P.; Cotar, K.; Marsetic, A.; Zaletelj, J.; Ostir, K. Automatic geometric processing for very high resolution optical satellite data based on vector roads and orthophotos. Remote Sens. 2016, 8, 343. [Google Scholar] [CrossRef]
  20. Jeong, J.; Yang, C.; Kim, T. Geo-positioning accuracy using multiple-satellite images: IKONOS, QuickBird, and Kompsat-2 stereo images. Remote Sens. 2015, 7, 4549–4564. [Google Scholar] [CrossRef]
  21. Ling, X.; Zhang, Y.; Xiong, J.; Huang, X.; Chen, Z. An image matching algorithm integrating global SRTM and image segmentation for multi-source satellite imagery. Remote Sens. 2016, 8, 672. [Google Scholar] [CrossRef]
  22. Di, K.C.; Ma, R.J.; Li, R.X. Rational functions and potential for rigorous sensor model recovery. Photogramm. Eng. Remote Sens. 2003, 69, 33–41. [Google Scholar]
  23. Di, K.C.; Ma, R.J.; Li, R.X. Geometric processing of IKONOS stereo imagery for coastal mapping applications. Photogramm. Eng. Remote Sens. 2003, 69, 873–879. [Google Scholar]
  24. Xiong, Z.; Zhang, Y. A generic method for RPC refinement using ground control information. Photogramm. Eng. Remote Sens. 2009, 75, 1083–1092. [Google Scholar] [CrossRef]
  25. Teo, T.A. Bias compensation in a rigorous sensor model and rational function model for high-resolution satellite images. Photogramm. Eng. Remote Sens. 2011, 77, 1211–1220. [Google Scholar] [CrossRef]
  26. Fraser, C.S.; Hanley, H.B. Bias compensation in rational functions for IKONOS satellite imagery. Photogramm. Eng. Remote Sens. 2003, 69, 53–57. [Google Scholar] [CrossRef]
  27. Fraser, C.S.; Hanley, H.B. Bias-compensated rpcs for sensor orientation of high-resolution satellite imagery. Photogramm. Eng. Remote Sens. 2005, 71, 909–915. [Google Scholar] [CrossRef]
  28. Tong, X.H.; Liu, S.J.; Weng, Q.H. Bias-corrected rational polynomial coefficients for high accuracy geo-positioning of QuickBird stereo imagery. ISPRS J. Photogramm. Remote Sens. 2010, 65, 218–226. [Google Scholar] [CrossRef]
  29. Sekhar, K.S.S.; Kumar, A.S.; Dadhwal, V.K. Geocoding RISAT-1 MRS images using bias-compensated RPC models. Int. J. Remote Sens. 2014, 35, 7303–7315. [Google Scholar] [CrossRef]
  30. Grodecki, J.; Dial, G. Block adjustment of high-resolution satellite images described by rational polynomials. Photogramm. Eng. Remote Sens. 2003, 69, 59–68. [Google Scholar] [CrossRef]
  31. Wang, J.; Di, K.C.; Li, R. Evaluation and improvement of geopositioning accuracy of IKONOS stereo imagery. J. Surv. Eng. 2005, 131, 35–42. [Google Scholar]
  32. Barazzetti, L.; Roncoroni, F.; Brumana, R.; Previtali, M. Georeferencing accuracy analysis of a single Worldview-3 image collected over Milan. In Proceedings of the XXIII ISPRS Congress, Prague, Czech Republic, 12–19 July 2016.
  33. Astrand, P.J.; Bongiorni, M.; Crespi, M.; Fratarcangeli, F.; Da Costa, J.N.; Pieralice, F.; Walczynska, A. The potential of Worldview-2 for ortho-image production within the “control with remote sensing programme” of the european commission. Int. J. Appl. Earth Obs. Geoinf. 2012, 19, 335–347. [Google Scholar] [CrossRef]
  34. Shen, X.; Liu, B.; Li, Q.Q. Correcting bias in the rational polynomial coefficients of satellite imagery using thin-plate smoothing splines. ISPRS J. Photogramm. Remote Sens. 2017, 125, 125–131. [Google Scholar] [CrossRef]
  35. Zhang, Y.J.; Lu, Y.H.; Wang, L.; Huang, X. A new approach on optimization of the rational function model of high-resolution satellite imagery. IEEE Trans. Geosci. Remote 2012, 50, 2758–2764. [Google Scholar] [CrossRef]
  36. Cleveland, W.S. Robust locally weighted regression and smoothing scatterplots. J. Am. Stat. Assoc. 1979, 74, 829–836. [Google Scholar] [CrossRef]
  37. Fan, J.C.C.; Gijbels, R. Local Polynomial Modelling and Its Applications; Chapman and Hall: London, UK, 1996; pp. 24–25. [Google Scholar]
  38. Takezawa, K. Introduction to Nonparametric Regression; John Wiley & Sons: Hoboken, NJ, USA, 2006; pp. 185–191. [Google Scholar]
  39. Brovelli, M.A.; Crespi, M.; Fratarcangeli, F.; Giannone, F.; Realini, E. Accuracy assessment of high resolution satellite imagery orientation by leave-one-out method. ISPRS J. Photogramm. Remote Sens. 2008, 63, 427–440. [Google Scholar] [CrossRef]

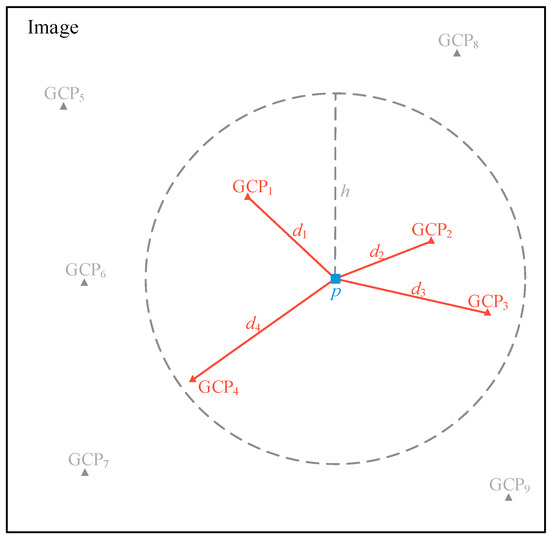

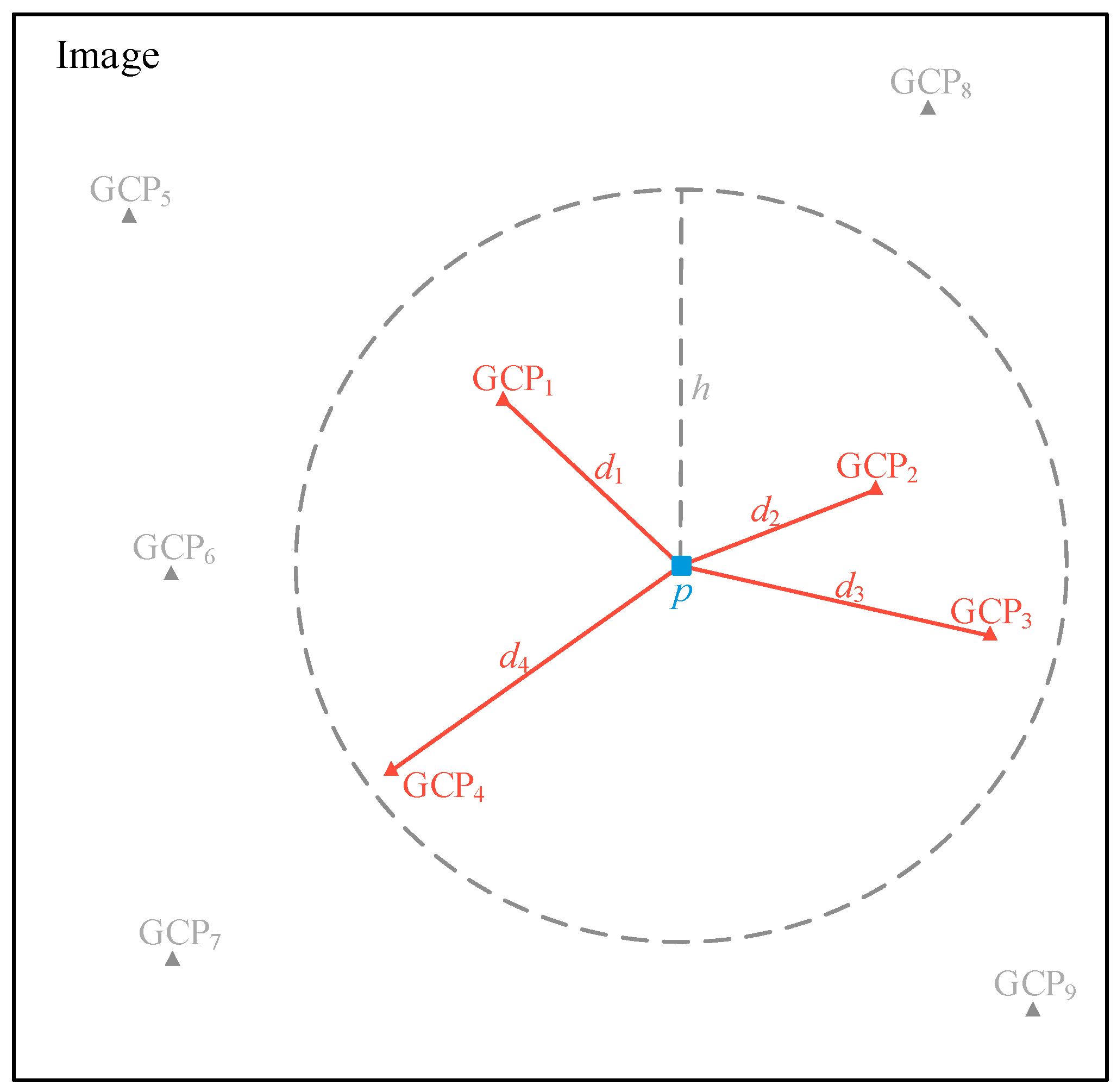

Figure 1. A schematic diagram of the local weighting strategy. The weight of a Ground Control Point (GCP) is calculated based on its distance to the image point being processed (the point p). If the distance is larger than the kernel bandwidth h, the corresponding GCP has no contribution in determining the coefficients of local polynomials.
Figure 1. A schematic diagram of the local weighting strategy. The weight of a Ground Control Point (GCP) is calculated based on its distance to the image point being processed (the point p). If the distance is larger than the kernel bandwidth h, the corresponding GCP has no contribution in determining the coefficients of local polynomials.
Remotesensing 09 00200 g001
Figure 2. The study area and the distribution of ground survey points.
Figure 2. The study area and the distribution of ground survey points.
Remotesensing 09 00200 g002

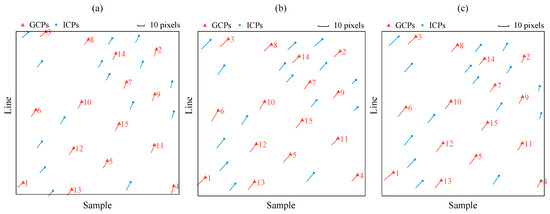

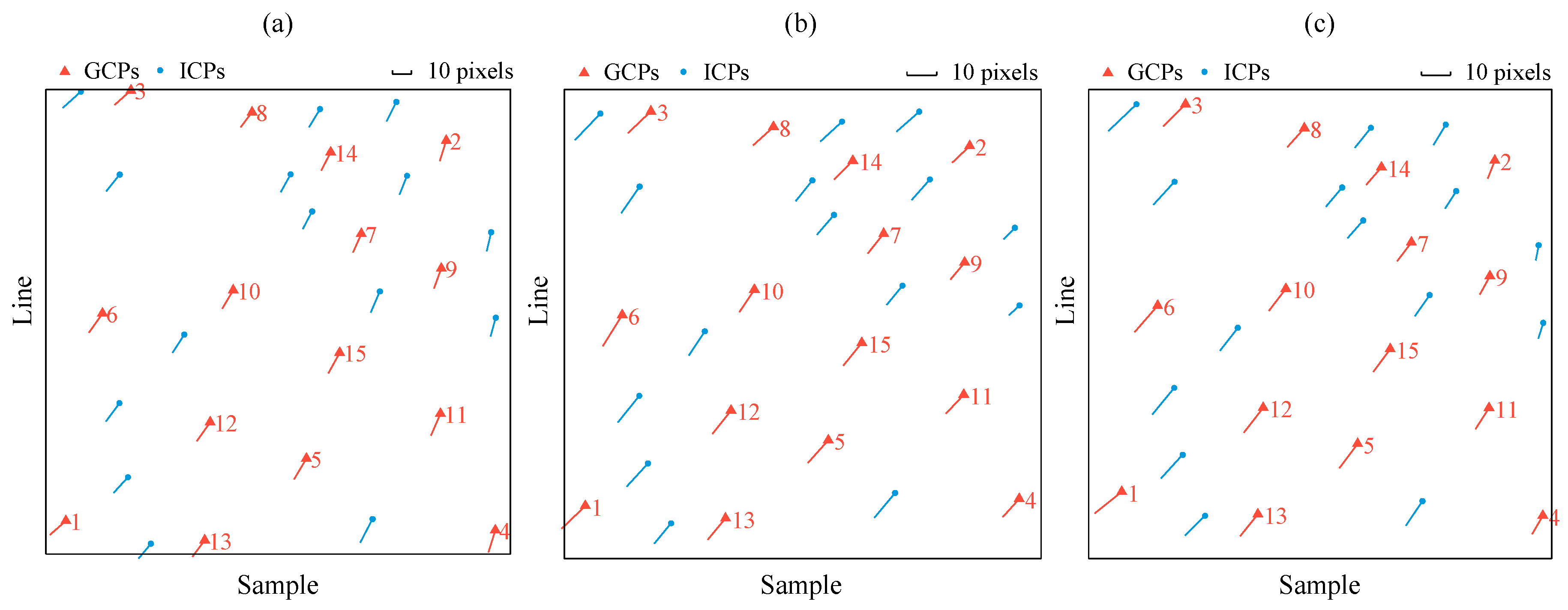

Figure 3. The image-projection errors of all Ground Control Points (GCPs) and Independent Check Points (ICPs) by using the vendor-provided RPCs in the georeferencing. The error vectors were exaggerated 100 times to enable better illustration. (a) Nadir, (b) backward, and (c) forward view images.
Figure 3. The image-projection errors of all Ground Control Points (GCPs) and Independent Check Points (ICPs) by using the vendor-provided RPCs in the georeferencing. The error vectors were exaggerated 100 times to enable better illustration. (a) Nadir, (b) backward, and (c) forward view images.
Remotesensing 09 00200 g003

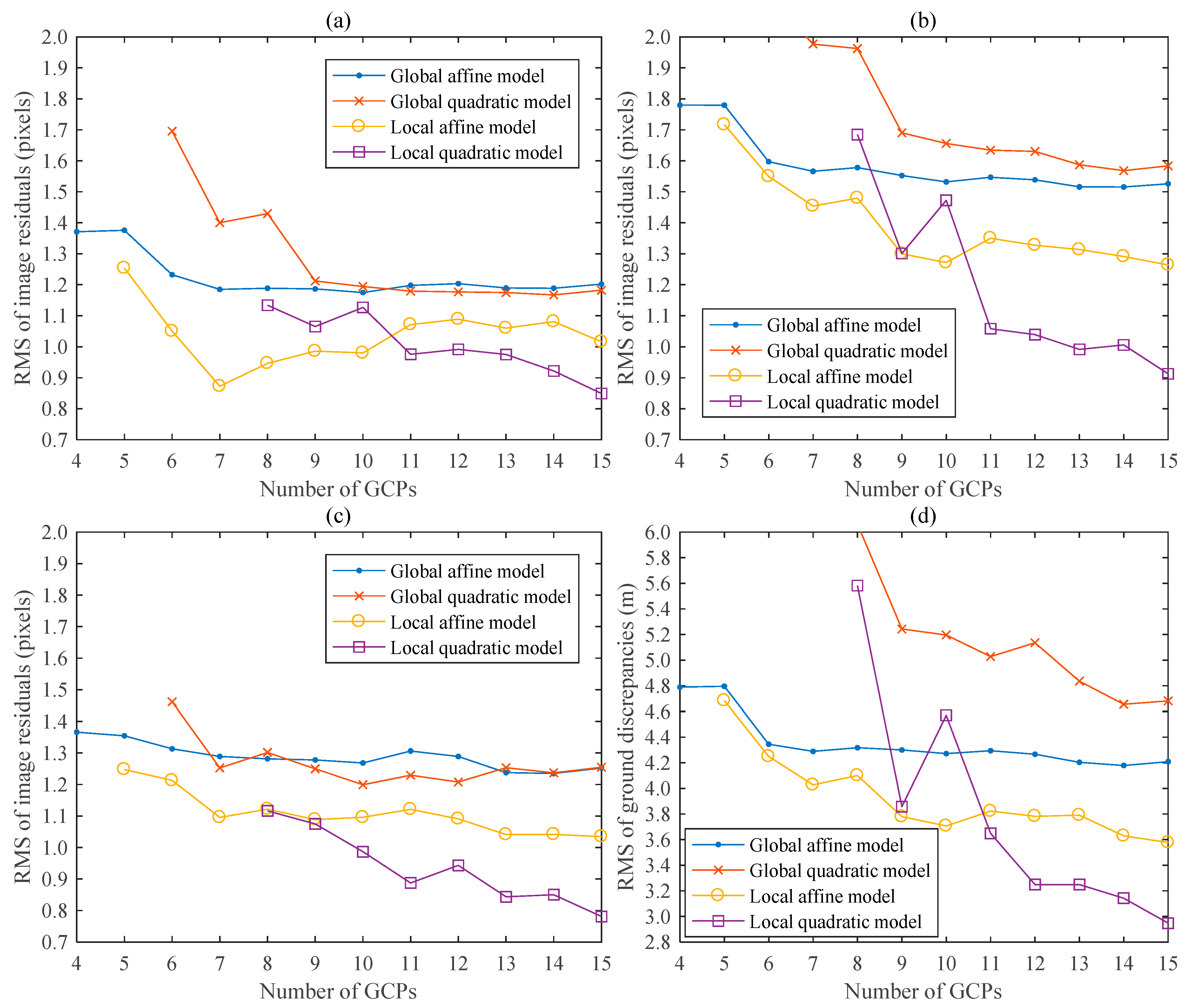

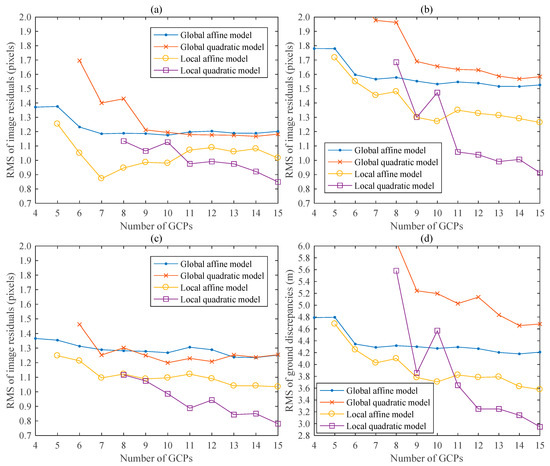

Figure 4. The bias-correction errors with an increase in the number of GCPs. The residuals in the (a) nadir, (b) backward, and (c) forward view images; (d) the residuals in the object space.
Figure 4. The bias-correction errors with an increase in the number of GCPs. The residuals in the (a) nadir, (b) backward, and (c) forward view images; (d) the residuals in the object space.
Remotesensing 09 00200 g004

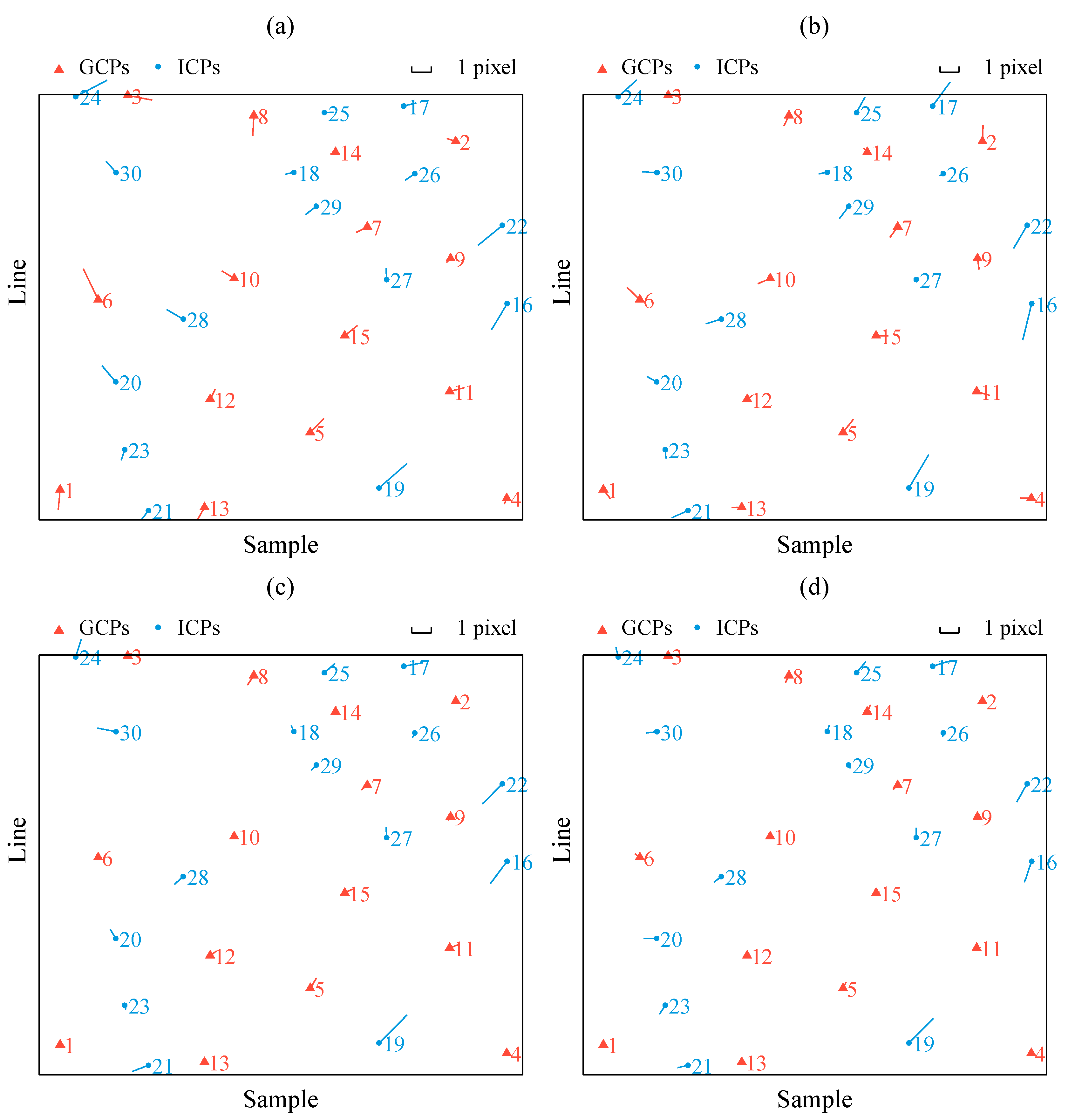

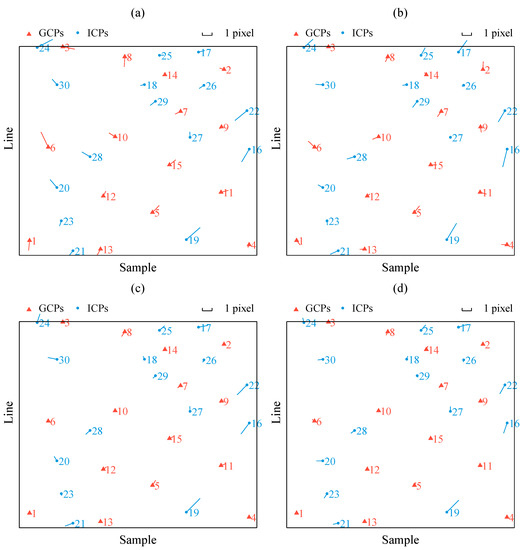

Figure 5. The bias-correction residuals of ground survey points in the nadir-view image when all 15 GCPs were used. The residuals were exaggerated 1000 times to provide better illustration. (a) The global affine model, (b) the global quadratic model, (c) the local affine model, and (d) the local quadratic model.
Figure 5. The bias-correction residuals of ground survey points in the nadir-view image when all 15 GCPs were used. The residuals were exaggerated 1000 times to provide better illustration. (a) The global affine model, (b) the global quadratic model, (c) the local affine model, and (d) the local quadratic model.
Remotesensing 09 00200 g005

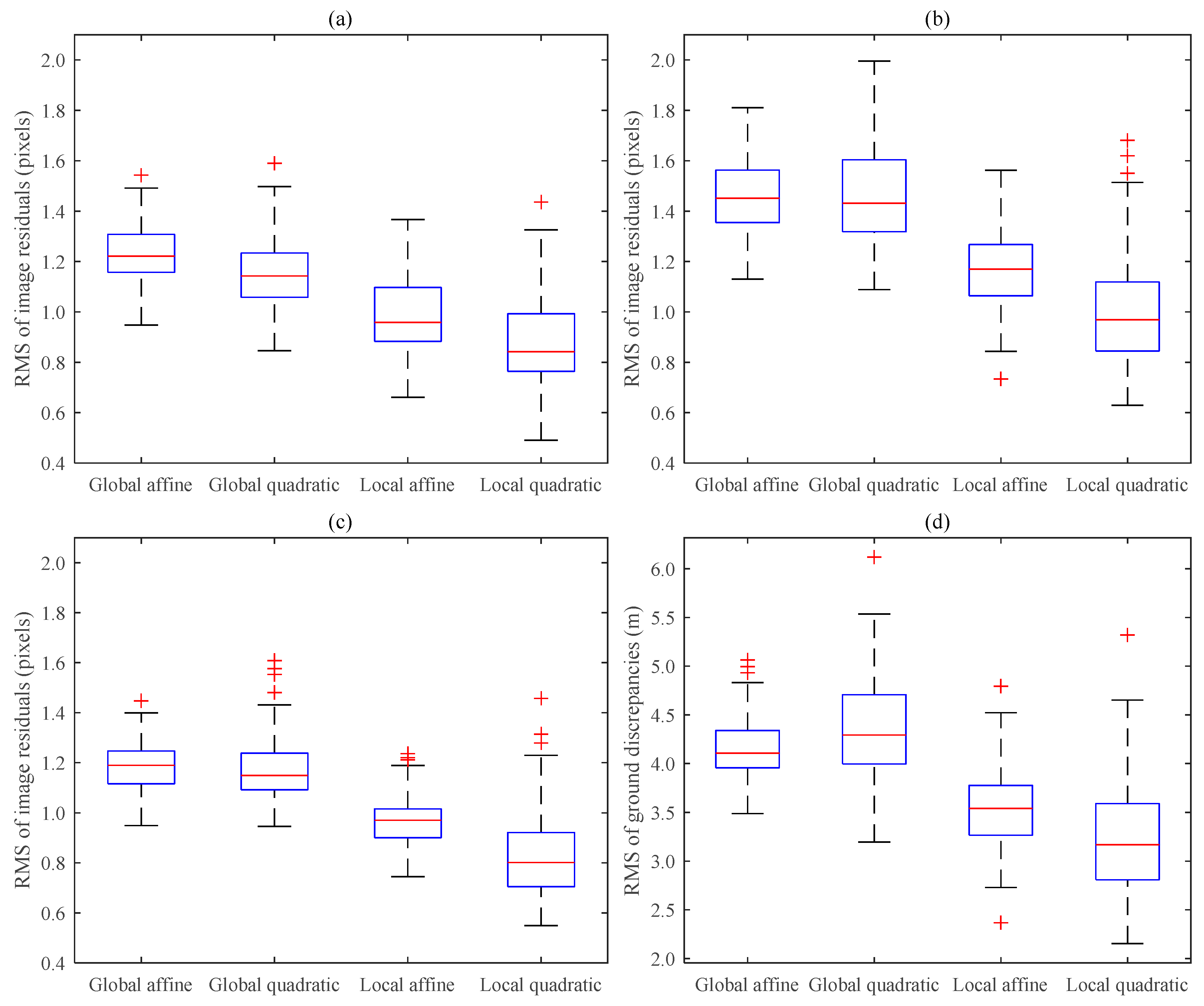

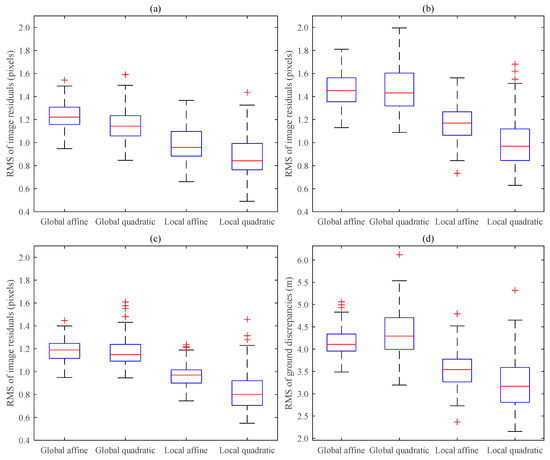

Figure 6. The statistical results of 100 tests using randomly selected GCPs. The residuals in the (a) nadir, (b) backward, and (c) forward view images; (d) the residuals in the object space.
Figure 6. The statistical results of 100 tests using randomly selected GCPs. The residuals in the (a) nadir, (b) backward, and (c) forward view images; (d) the residuals in the object space.
Remotesensing 09 00200 g006

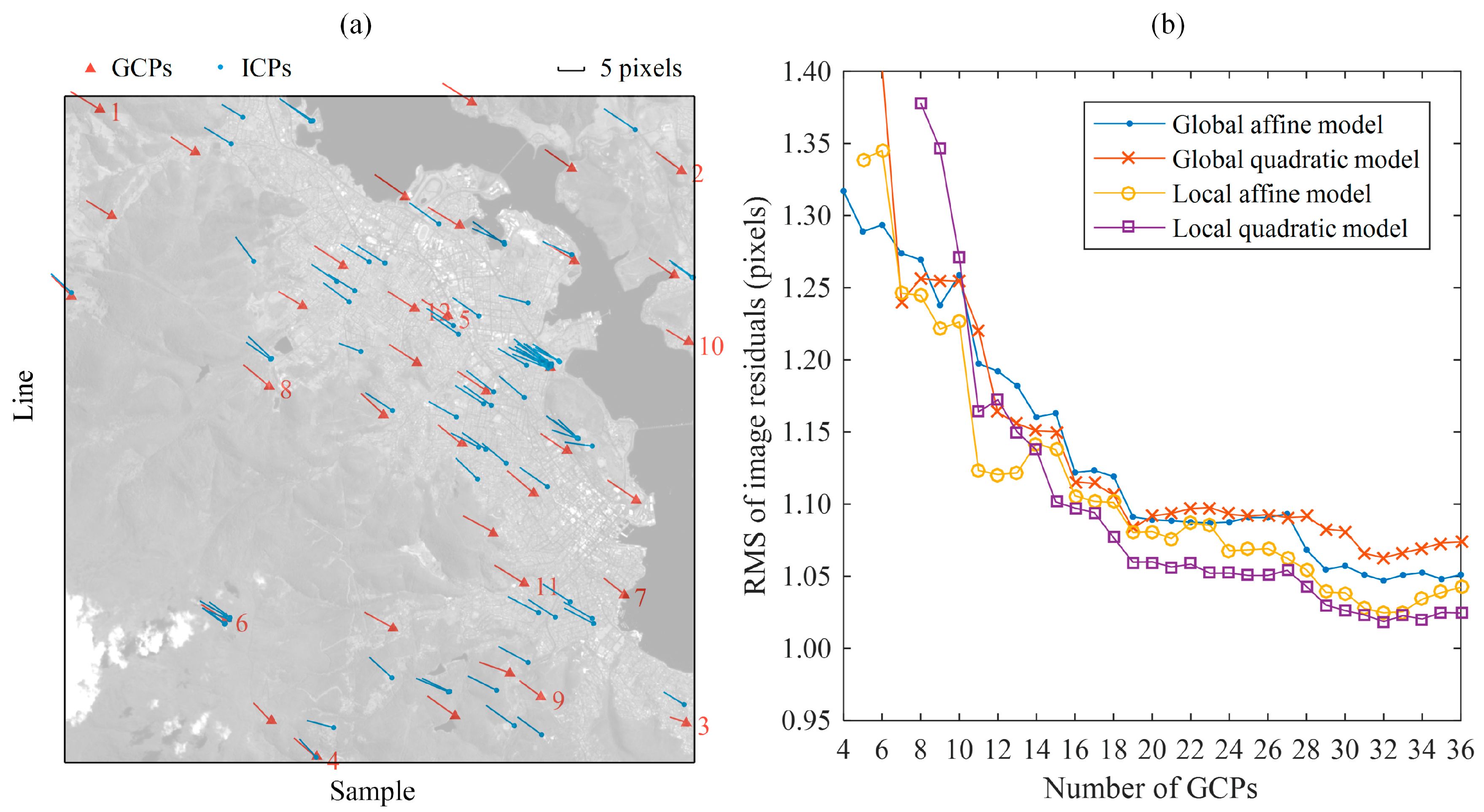

Figure 7. The experimental results of an IKONOS image. (a) The initial image-projection errors of ground survey points; (b) the image residuals using four bias correction methods.
Figure 7. The experimental results of an IKONOS image. (a) The initial image-projection errors of ground survey points; (b) the image residuals using four bias correction methods.
Remotesensing 09 00200 g007
Table 1. The values of the outlier detection index R e .
Table 1. The values of the outlier detection index R e .
ImageGlobal AffineGlobal QuadraticLocal AffineLocal Quadratic
Nadir3.002.482.882.97
Backward2.612.592.261.91
Forward2.472.622.842.81
