Open AccessArticle
Remote Sens. 2017, 9(11), 1200; doi:10.3390/rs9111200

A Phenological Approach to Spectral Differentiation of Low-Arctic Tundra Vegetation Communities, North Slope, Alaska

Alfred Wegener Institute, Helmholtz Centre for Polar and Marine Research, Research Unit Potsdam, Telegrafenberg, A45, 14473 Potsdam, Germany
Integrated Remote Sensing Studio (IRSS) Faculty of Forestry, University of British Columbia, 2424 Main Mall, Vancouver, BC V6T 1Z4, Canada
Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences, Telegrafenberg, 14473 Potsdam, Germany
Author to whom correspondence should be addressed.
Received: 12 October 2017 / Revised: 15 November 2017 / Accepted: 20 November 2017 / Published: 22 November 2017
(This article belongs to the Special Issue Remote Sensing of Arctic Tundra)
View Full-Text   |   Download PDF [2394 KB, uploaded 24 November 2017]   |


Arctic tundra ecosystems exhibit small-scale variations in species composition, micro-topography as well as significant spatial and temporal variations in moisture. These attributes result in similar spectral characteristics between distinct vegetation communities. In this study we examine spectral variability at three phenological phases of leaf-out, maximum canopy, and senescence of ground-based spectroscopy, as well as a simulated Environmental Mapping and Analysis Program (EnMAP) and simulated Sentinel-2 reflectance spectra, from five dominant low-Arctic tundra vegetation communities in the Toolik Lake Research Area, Alaska, in order to inform spectral differentiation and subsequent vegetation classification at both the ground and satellite scale. We used the InStability Index (ISI), a ratio of between endmember and within endmember variability, to determine the most discriminative phenophase and wavelength regions for identification of each vegetation community. Our results show that the senescent phase was the most discriminative phenophase for the identification of the majority of communities when using both ground-based and simulated EnMAP reflectance spectra. Maximum canopy was the most discriminative phenophase for the majority of simulated Sentinel-2 reflectance data. As with previous ground-based spectral characterization of Alaskan low-Arctic tundra, the blue, red, and red-edge parts of the spectrum were most discriminative for all three reflectance datasets. Differences in vegetation colour driven by pigment dynamics appear to be the optimal areas of the spectrum for differentiation using high spectral resolution field spectroscopy and simulated hyperspectral EnMAP and multispectral Sentinel-2 reflectance spectra. The phenological aspect of this study highlights the potential exploitation of more extreme colour differences in vegetation observed during senescence when hyperspectral data is available. The results provide insight into both the community and seasonal dynamics of spectral variability to better understand and interpret currently used broadband vegetation indices and also for improved spectral unmixing of hyperspectral aerial and satellite data which is useful for a wide range of applications from fine-scale monitoring of shifting vegetation composition to the identification of vegetation vigor. View Full-Text
Keywords: low-Arctic; tundra vegetation; hyperspectral remote sensing; spectroscopy low-Arctic; tundra vegetation; hyperspectral remote sensing; spectroscopy

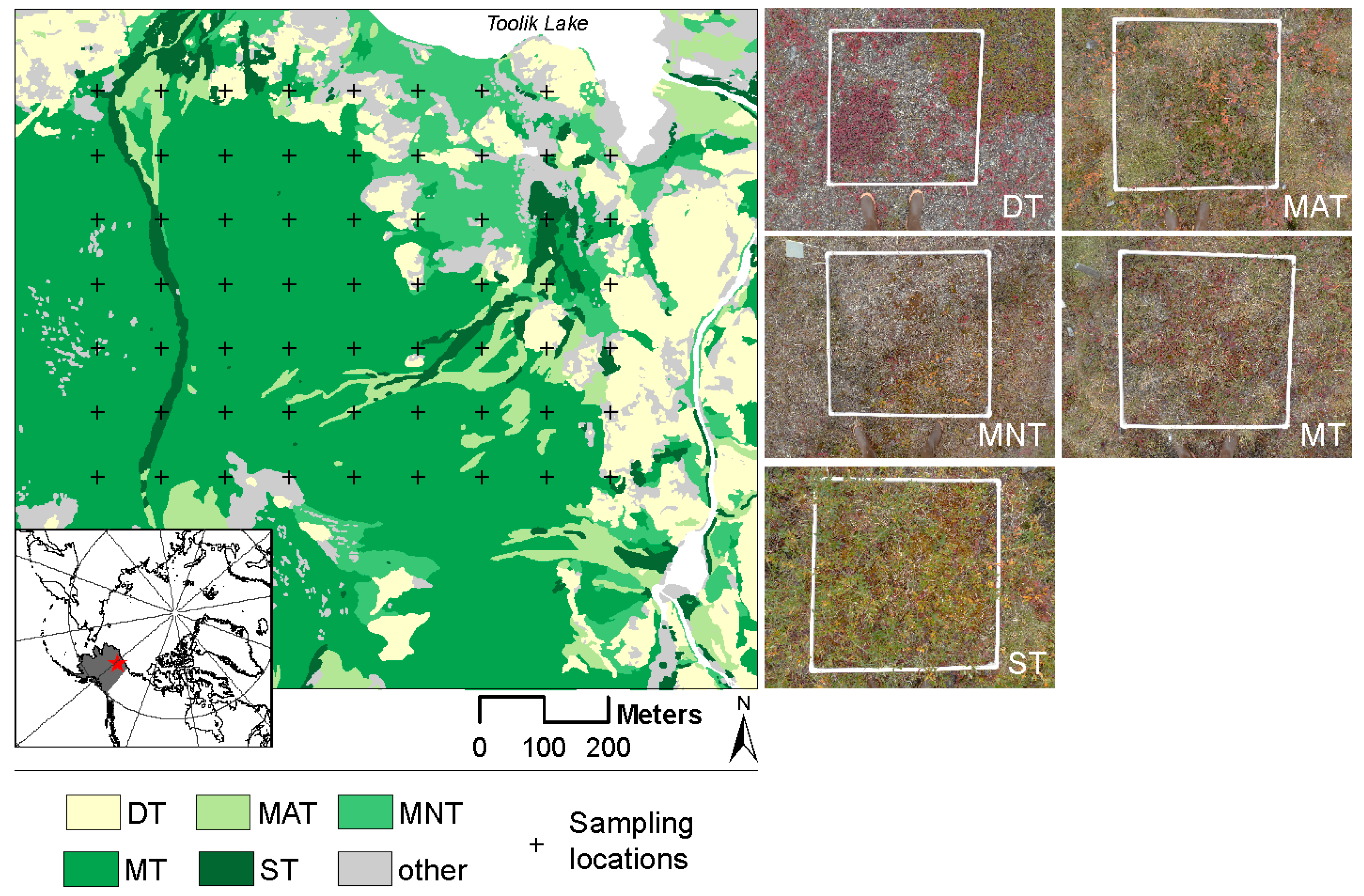

Figure 1
