Progress in Remote Sensing of Photosynthetic Activity over the Amazon Basin

by
Celio Helder Resende De Sousa
1,*,
Thomas Hilker
2,†,
Richard Waring
1,
Yhasmin Mendes De Moura
3 and
Alexei Lyapustin
4
1
Department of Forest Ecosystems and Society, Oregon State University, Corvallis, OR 97331, USA
2
Department of Forest Engineering, Resources and Management, Oregon State University, Corvallis, OR 97331, USA
3
Instituto Nacional de Pesquisas Espaciais (INPE), Divisão de Sensoriamento Remoto, São José dos Campos, SP 12227-010, Brazil
4
NASA Goddard Space Flight Center, Greenbelt, MD 20771, USA
*
Author to whom correspondence should be addressed.
†
Deceased.
Remote Sens. 2017, 9(1), 48; https://doi.org/10.3390/rs9010048
Submission received: 5 November 2016 / Revised: 17 December 2016 / Accepted: 1 January 2017 / Published: 7 January 2017
Browse Figures
Versions Notes

Abstract

:
Although quantifying the massive exchange of carbon that takes place over the Amazon Basin remains a challenge, progress is being made as the remote sensing community moves from using traditional, reflectance-based vegetation indices, such as the Normalized Difference Vegetation Index (NDVI), to the more functional Photochemical Reflectance Index (PRI). This new index, together with satellite-derived estimates of canopy light interception and Sun-Induced Fluorescence (SIF), provide improved estimates of Gross Primary Production (GPP). This paper traces the development of these new approaches, compares the results of their analyses from multiple years of data acquired across the Amazon Basin and suggests further improvements in instrument design, data acquisition and processing. We demonstrated that our estimates of PRI are in generally good agreement with eddy-flux tower measurements of photosynthetic light use efficiency (ε) at four sites in the Amazon Basin: r2 values ranged from 0.37 to 0.51 for northern flux sites and to 0.78 for southern flux sites. This is a significant advance over previous approaches seeking to establish a link between global-scale photosynthetic activity and remotely-sensed data. When combined with measurements of Sun-Induced Fluorescence (SIF), PRI provides realistic estimates of seasonal variation in photosynthesis over the Amazon that relate well to the wet and dry seasons. We anticipate that our findings will steer the development of improved approaches to estimate photosynthetic activity over the tropics.

Graphical Abstract

1. Introduction

Tropical forests affect the global climate through their massive exchange of carbon, water and heat. Extensive cloud cover and variable atmospheric conditions, however, make it difficult to estimate these fluxes accurately. In recent decades, precipitation over the Amazon has decreased, along with the length of the wet season [1,2]. An extension of the dry season decreases photosynthesis while increasing carbon emissions from fires. In the drought of 2005, net ecosystem loss of above-ground growth recorded on intact forest plots was estimated as averaging 5.3 Mg·C·ha−1, with a total loss of between 1.2 and 1.6 Pg for the Amazon Basin [3]. Loss of carbon through ignition can be mapped moderately accurately, while Gross Primary Production (GPP) is more difficult to assess because the extent that sunlight is absorbed and utilized by photosynthetic tissues is not directly measured with conventional reflectance indices, such as the Normalized Difference Vegetation Index (NDVI) and Enhanced Vegetation Index (EVI). GPP can be modeled as a simple function of the products of incident solar radiation, which is about 50% photosynthetically active (PAR) [4], the faction of that absorbed by photosynthetic tissue (fPAR) and the light-conversion efficiency of photosynthesis (ε):
GPP = PAR × fPAR × ε,
The main challenge in solving Equation (1) is in defining seasonal variation in light use efficiency. Under optimal conditions, absorbed radiation is utilized by the plant to split water (photochemical quenching) and provide electrons for the photosynthetic fixation of CO2. However, in situations where plants receive more sunlight than they can actually use (i.e., photosynthesis is limited by factors other than light), light use and absorption are adjusted to protect the plant from photo-oxidative damage [5]. When the supply of radiation is in excess, the xanthophyll cycle pigment violaxanthin is converted rapidly via intermediate antheraxanthin to zeaxanthin, and this reaction is reversed when radiation is no longer in excess [5]. This mechanism is called non-photochemical quenching. When heat dissipation increases through non-photochemical quenching, ε decreases; consequently leading to a reduction in both chlorophyll fluorescence and fixation of CO2.

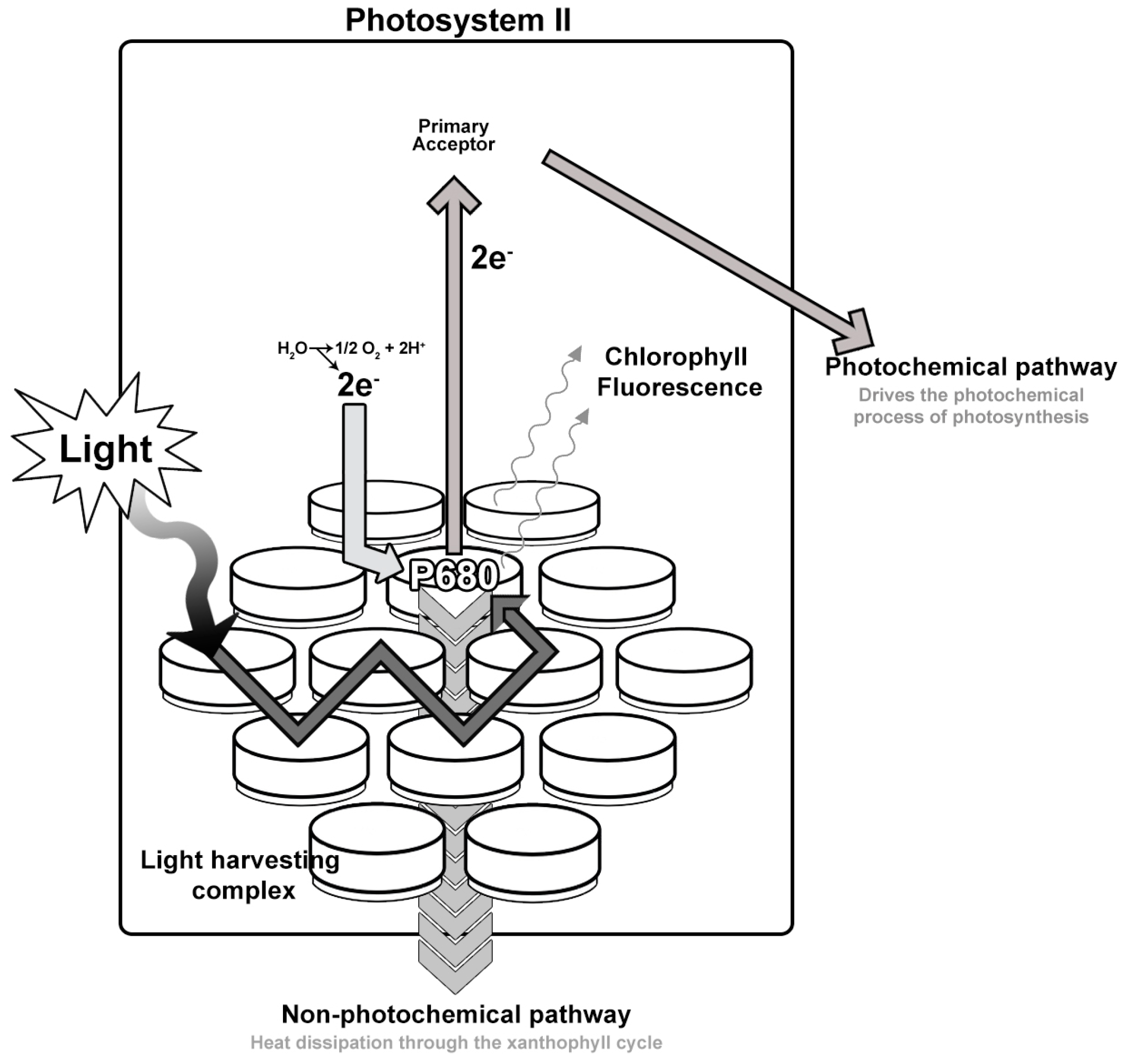

The non-photochemical quenching can be quantified by monitoring specific spectral bands to yield a Photochemical Reflectance Index (PRI) [6]:
PRI = (ρ531 − ρ570)/(ρ531 + ρ570),
where ρ531 is the reflectance at 531 nm, which increases as photosynthesis is downregulated, and ρ570 is the reflectance at 570 nm, which is unresponsive to changes in incident PAR and serves as a reference. A diagram depicting the relevant biophysics is presented in Figure 1, which includes both dissipation of heat and light from chloroplasts.
Complementary to PRI, Solar-Induced Fluorescence (SIF) may provide further opportunities to measure photosynthetic activity (discussed in Section 3). Although both of these techniques are experimental, they have the potential of providing improved estimates of GPP at increasingly refined temporal and spatial resolutions, as seen in [7,8,9]. In this paper, we review progress in the application of these approaches over the Amazon Basin and suggest opportunities for future improvements.

2. Remote Sensing of Non-Photochemical Quenching from PRI

Numerous studies [6,7,9,10,11,12] have related ε to the PRI where reflectance measurements were acquired close to the target. The dependency of this index on extraneous effects and atmospheric conditions, however, has hampered its use beyond the leaf and canopy scale [8]. Recent work has shown that the status of the xanthophyll cycle may be inferred across vegetation types from multi-angle observations of sunlit and shaded leaves: In cases where GPP is limited by factors other than light (ε < εmax), PRI is closely related to canopy shadow fractions (αs) [13,14], because sunlit leaves are more likely to be exposed to excess radiation levels than shaded leaves [15]. However, this relationship disappears under conditions where light is limiting GPP. In this case, photosynthesis will not be downregulated in either sunlit or shaded leaves (εsunlit = εshaded). As a result, the slope of the relationship between PRI and αs is proportional to the light-use efficiency [14,16,17]. This multi-angle retrieval is largely insensitive to changes in vegetation type because slope is derived from comparing the same area of the canopy [13]. The sampling approach is theoretically sound [13,14] and has been validated from both tower-mounted [16,18] and satellite-borne sensors [16,17,19]. In the latter, it proved critical to implement a sophisticated atmospheric correction algorithm (MAIAC) to preserve the anisotropy of surface reflectance at 531 nm [17].
One of the main sampling limitations for broad-scale application of the approach is the shortage of multi-angle observations acquired along a satellite’s track at 531 nm. Such sampling is available with ESA’s Compact High Resolution Imaging Spectrometer (CHRIS) [16], but only for pre-determined sites. Alternatively, NASA’s Moderate Resolution Imaging Spectroradiometer (MODIS) acquires spectral reflectance data at 531 nm (Band 11), but samples across rather than along the satellite track. As a result, repeated overpasses are required to obtain multi-angle assessments of individual pixels. The relatively large pixels sampled by MODIS (1 km) also make it difficult to assess PRI over heterogeneous landscapes. Nonetheless, over comparatively homogeneous types of vegetation, data acquired over a few days with MODIS instruments on Terra (morning) and Aqua (afternoon) satellites provide backscatter and forward-scattered reflectance data from multiple angles that permit the calculation of PRI (Figure 2).

3. Remote Sensing of Sun-Induced Fluorescence

A measure of Sun-Induced Fluorescence (SIF) provides an alternative to PRI to assess photosynthetic activity [20,21,22,23] by measuring the emittance of photons from leaf chlorophyll as fluorescence. The probability of an absorbed photon being re-emitted as fluorescence depends on both photochemical and non-photochemical quenching. Fluorescence is an indicator of the amount of energy present temporarily within the photosynthetic apparatus. In the past, the relatively weak fluorescence signal from chloroplasts has restricted the use of this approach. Recently, improvements in the detection of narrow absorption features (Fraunhofer lines) permit the determination of SIF from space through the comparison of fluorescing with non-fluorescing vegetation [20,22,24,25]. Parazoo and collaborators [26] were among the first to investigate the link between solar-induced chlorophyll fluorescence with net carbon exchange across forested areas in southern Amazonia. They estimated seasonal changes in atmospheric CO2 by acquiring measurements from the NASA Atmospheric CO2 Observations from Space Build (ACOSb2.9) and compared these with solar-induced chlorophyll fluorescence data collected from the Greenhouse Gases Observing Satellite (GOSAT). The CO2 content of the atmosphere decreased during the wet season and rose during the dry. Atmospheric concentrations of CO2, however, were only weakly and inversely correlated with their measurements of SIF (r = −0.53).
Lee and collaborators [27] expanded sampling to include the entire Amazon Basin using SIF measurements from GOSAT. The results of their analysis corresponded with that expected, i.e., less stress and higher values of SIF during the wet season (December, January and February) and lower ones during the dry (June, July and August) with up to a 15% difference between years. A still more refined analysis by Guan et al. [28] included acquiring the Enhanced Vegetation Index (EVI) from MODIS and SIF from Global Ozone Monitoring Experiment-2 (GOME-2), changes in total water storage from the Gravity Recovery and Climate Experiment (GRACE) and rainfall from the Tropical Rainfall Measuring Mission (TRMM). These authors established an annual threshold of 2000 mm per year, below which evergreen canopies were not maintained.

4. Case Study of Seasonal Variation in Light-Use Efficiency and SIF across the Amazon Basin

4.1. Data Retrieval

4.1.1. Photochemical Reflectance Index

Satellite retrieval of PRI depends on Aerosol Optical Thickness (AOT), Surface Reflectance (SR) and bi-directional reflectance. Aerosols artificially enhance backscattering over vegetated (dark) surfaces and attenuate the surface directional reflectance depending on the path length. Conventional, pixel-based algorithms designed to correct for varying atmospheric properties produce a single measurement over both vegetated and non-vegetated landscapes with unknown AOT and SR; consequently, the surface reflectance is difficult to calculate without knowledge of the land cover. The standard MODIS surface reflectance algorithm (MOD09) [29] uses a version of the dark target aerosol retrieval algorithm [30,31], relating surface reflectance in the visible (blue and red) spectral bands with MODIS Band 7 (2.1 µm) reflectance with a prescribed Spectral Regression Coefficient (SRC). A Lambertian surface model is then used for aerosol retrievals and atmospheric correction. Although it simplifies processing, the Lambertian assumption reduces the anisotropy of derived surface reflectance introducing errors dependent on view geometry (e.g., [32,33]). The use of a Lambertian assumption is likely to reduce the accuracy in the PRI detection band, as the dependency of this band on shadow fractions is stronger than that of the reference band [19].
The MAIAC algorithm, in contrast, is based on a rigorous radiative transfer model [34,35] fully coupled with the Li-Sparse Ross-Thick (LSRT) model of surface BRDF [36]. It simultaneously retrieves AOT, SRC and surface BRDF using three to 16 days of calibrated and geo-located Level 1B (L1B) MODIS data, gridded to a resolution of 1 km. These multi-day acquisitions provide the basis to derive spectral reflectance coefficients in the blue (0.466 µm) and shortwave IR (2.13 µm) required for aerosol corrections [37] and to characterize the distribution of the surface Bi-Directional Reflectance Distribution Function (BRDF) for all of the MODIS reflective bands [38].
Based on time-series analysis, MAIAC has demonstrated the ability to distinguish stable surface features from those associated with random variation and changing fields of clouds [39]. For this project, we used MODIS Collection 6 Level 1B (calibrated and geometrically corrected) data, which removed the effects of major errors in sensor calibration present in earlier collections. Detailed descriptions of MAIAC and quality testing are provided elsewhere [37,38,40,41]. MAIAC observations were used to obtain cloud-free, multi-angle surface reflectance in MODIS Bands 11 and 12 (526 to 536 nm and 546 to 536 nm, respectively) from the Terra and Aqua platforms to derive PRI across the Amazon Basin. The underlying assumption in this application of multi-angle MODIS data is that the xanthophyll status of the vegetation remains the same between Terra and Aqua overpasses. This assumption is reasonable considering that the equatorial location of the Amazon limits the time between overpasses to approximately 3 h.
We modified the spectral definition of PRI (in Equation (1)) by substituting MODIS Band 12, centered at 551 nm rather than 570 nm, because MODIS lacks the latter band [42,43]. Thus, to calculate the Photochemical Reflectance Index:
PRI = (ρ11 − ρ12)/(ρ11 + ρ12),
where ρ11 and ρ12 are the reflectance at MODIS Bands 11 and 12, respectively. For our analysis, we focused on the MAIAC monthly composite of MODIS Terra and Aqua observations at different viewing geometries for the years 2000 to 2012. The general location of the study area and type of data analyzed are presented in Figure 3.

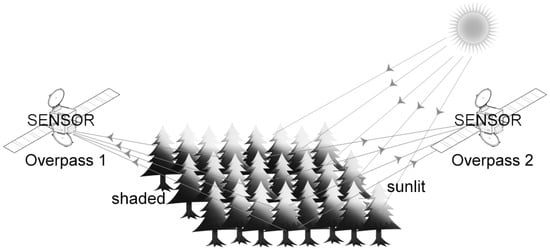

Variation in the viewing geometry changes the fraction of sunlit and shaded canopy. We approximated shadow effects by computing the monthly average PRI (Equation (3)) for both geometry views: PRIforward (PRIf) and PRIbackward (PRIb). By averaging the monthly difference (PRIdif) between the two geometry views, we reduced noise and obtained reasonable estimates of variation in photosynthetic efficiency between the wet and dry seasons between the years 2000 and 2012.

4.1.2. Sun-Induced Fluorescence

The SIF signal was measured from Fraunhofer lines as described in Section 3. This signal was recorded by the Global Ozone Monitoring Experiment-2 (GOME-2) onboard the operational European Meteorological (MetOp) satellites launched in October 2006. Currently, GOME-2 provides daily fluorescence data with a nominal footprint of 40 × 40 km. Monthly mean (Level 3) data are available, gridded to a spatial resolution of 0.5° latitude by 0.5° longitude, from 2007 to 2012 [44]. Details of the retrieval of SIF from GOME-2 measurements are provided in [26]. In this work, we used v. 26 data obtained between 2007 and 2012 [45]. Fluorescence values were normalized by the cosine of the solar zenith angle to minimize variations in SIF associated with fluctuations in irradiance.
Because of the high noise associated with GOME-2 measurements [25], we aggregated monthly values of fluorescence into two periods: the months of June, July and August (JJA) and those of December, January and February (DJF). These two periods showed the largest differences in SIF. Following the approach of Lee et al. [27], we subtracted the annual means from the respective seasonal means to enhance and to normalize the differences in fluorescence recorded across the Amazon.

4.1.3. Eddy-Flux Measurements

GPP derived from eddy covariance measurements of CO2 exchange made at four forested Amazonian tower sites established during the ‘Large-Scale Biosphere Atmosphere Experiment in Amazonia’ (LBA) [46] provides an independent measure of photosynthetic activity to compare with values of PRI acquired from satellites. Five other tower sites established during the LBA campaign collected data from non-forest vegetation [47].

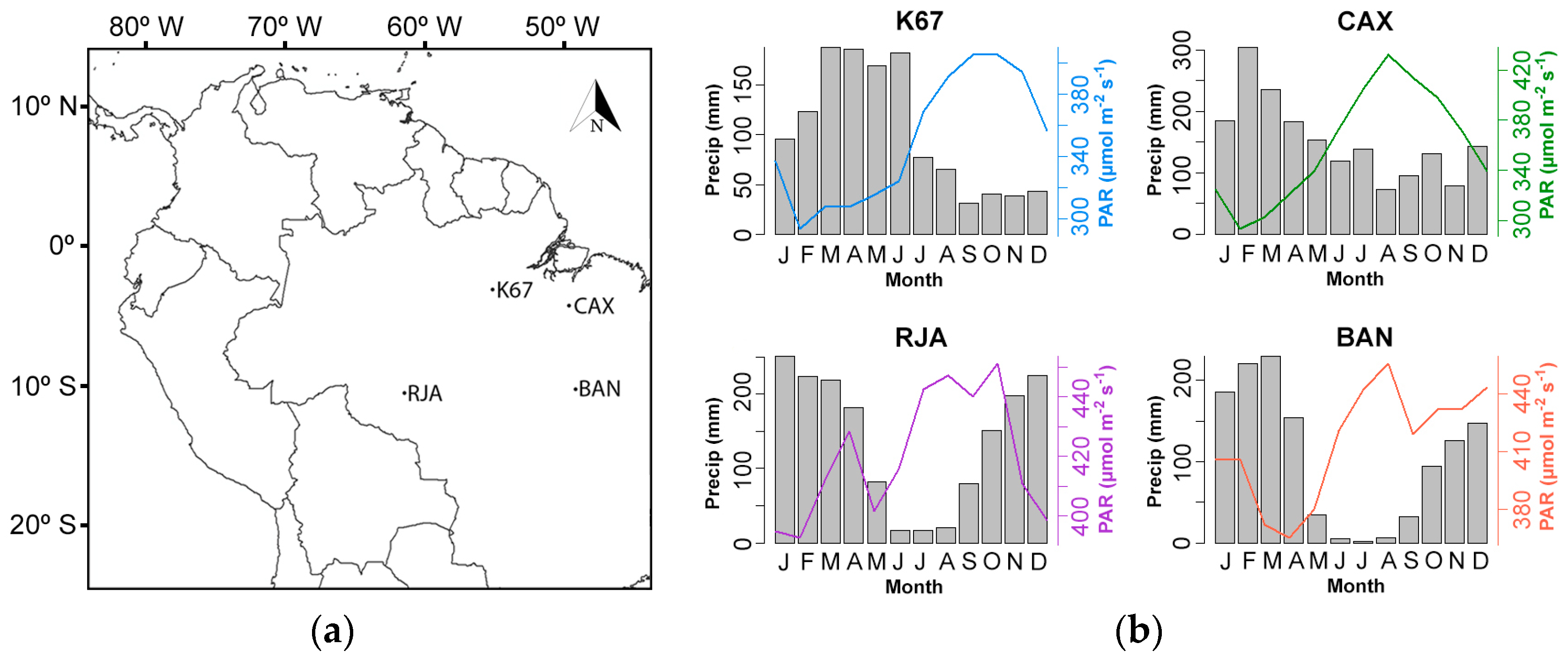

The Santarém K67 tower was the most northern of the four tropical rainforest sites (Figure 4); it was located near the confluence of the Tapajós and Amazon rivers. The Caxiuanã National Forest tower (CAX) was situated approximately 350 km to the west of the city of Belem in Pará State, close to the Baía de Caxiuanã. For more details, see [48]. The Reserva Jarú (RJA) site, located in the Rondônia State in Brazil, lies approximately 100 km north of Ji-Paraná, while the Bananal Island (BAN) site was located about 260 km west of Palmas in the Tocantins State. The site is seasonally flooded and represents a type of vegetation somewhere between a tropical rainforest and savanna (Brazilian Cerrado).
Detailed descriptions of the types of instrumentation, the procedures for processing eddy covariance data and averaging the results at hourly and monthly time-steps are provided from the references listed in Table 1.
Monthly averages of GPP and incident PAR were obtained for each of the forested site from the integrated Brazilian Flux LBA project CD-32 database. The fraction of visible light (PAR) absorbed by the vegetation (fPAR) was calculated from the simple Beer’s law:
fPAR = 1 − exp(LAI(-k)),
where LAI is the projected leaf area index (m2·m−2) and k is a light extinction coefficient of 0.5. Eight-day composites of MODIS Terra MOD15A2 LAI products (Collection 5) were the basis for calculating fPAR at each site.
MODIS selects the maximum LAI value recorded over eight-day sampling intervals as a representative value for each pixel (Table 1). The maximum values for the 3 × 3 km grid around each tower site were then averaged for comparison with PRI and SIF. For each site, monthly values of ε (Equation (1)) were calculated from eddy-flux-derived GPP to compare with monthly estimates of PRI. The requisite PRI observations were averaged from a 3 × 3 MAIAC pixel cluster (9 km2) with the tower located in the central pixel. Each forested site was fairly homogeneous, minimizing the variance around the averaged PRI value. A similar averaging approach using a 3 × 3 MODIS pixel window was also used by Xiao and collaborators [55] to obtain NDVI and EVI values for tower sites in the Amazon.

4.2. Results

4.2.1. Photochemical Reflectance Index and Sun-Induced Fluorescence

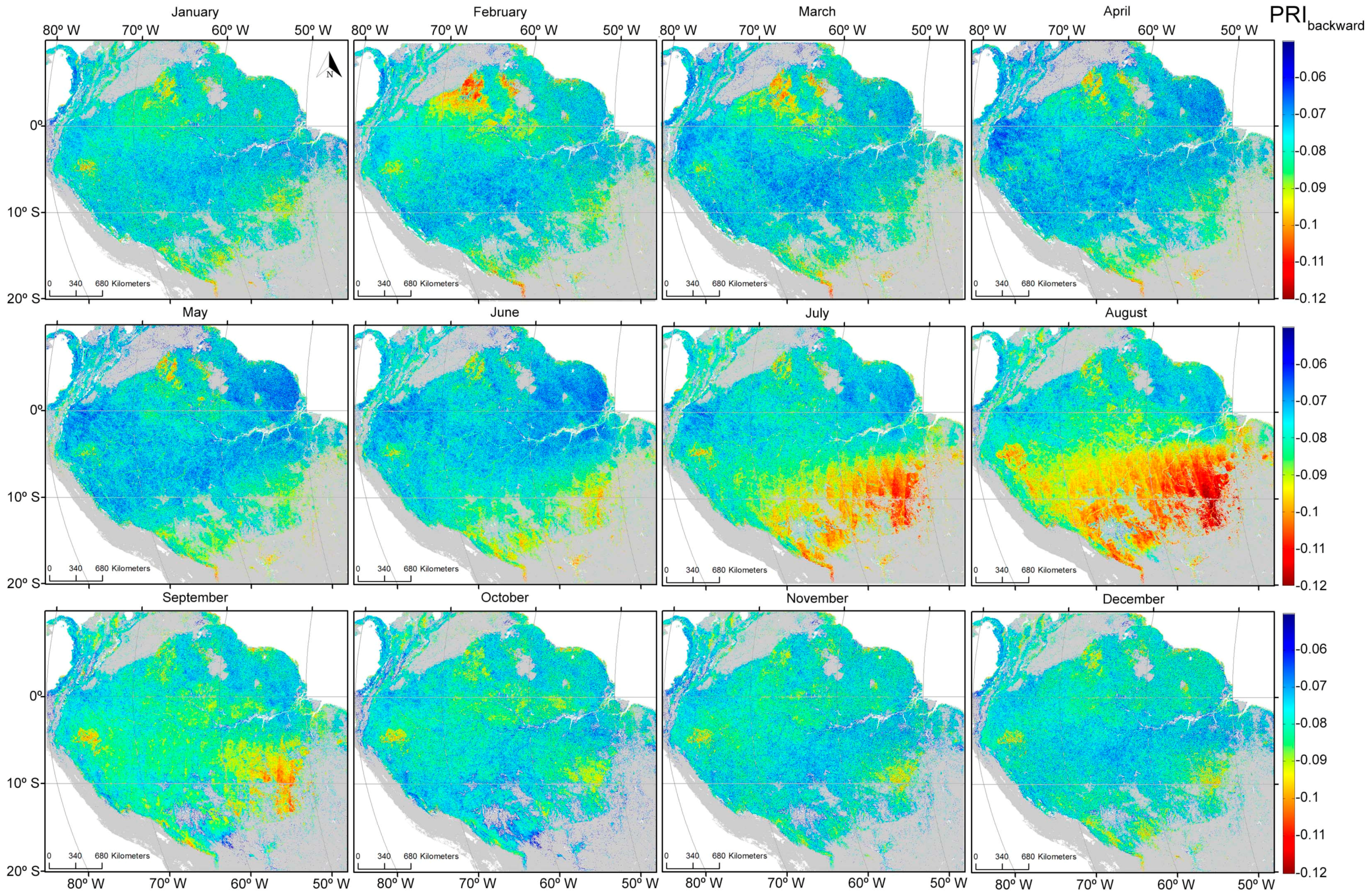

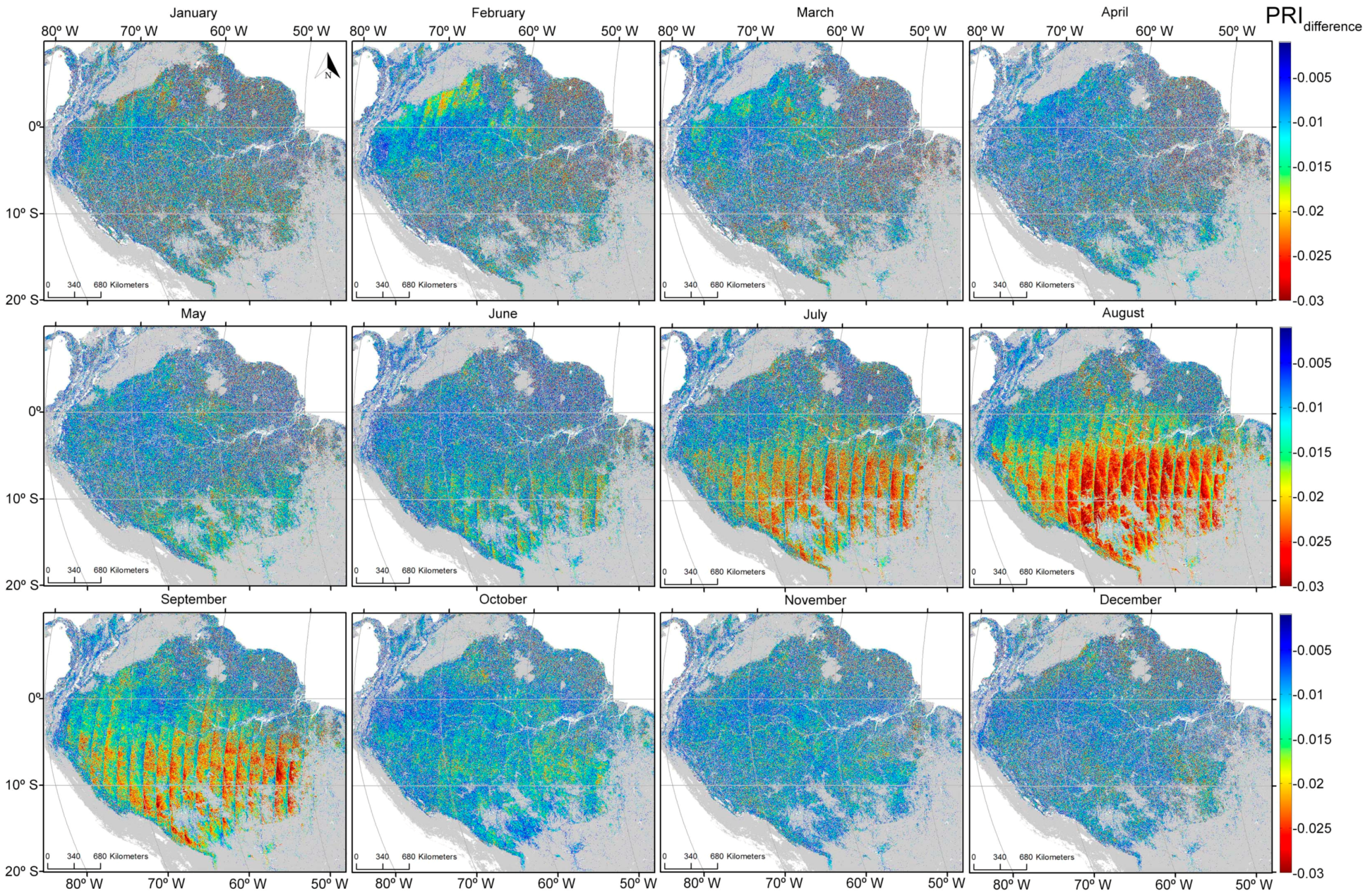

PRI values, averaged for the period 2000 to 2012, were generally higher when acquired in the forward direction (Figure 5) compared with those acquired from the backscatter direction (Figure 6). PRIf values were lowest in the northern Amazonia during the months of February, March and April and southern Amazonia during July and August; however, the seasonal variability was small. Seasonality was much more pronounced with backscattered observations than those obtained from the forward-scattered direction.
Areas with the lowest PRIb values were concentrated in the northern Amazonia from February to April (when the dry season peaks) and from July to September (driest months in the southern Amazonia). The differences between PRIb and PRIf illustrate this more clearly (Figure 7). The lowest values of PRIdif in the southern part of the study area occurred during the dry season, peaking in August. The smallest values of PRIdif were consistent with remotely-sensed estimates of precipitation averaging less than 100 mm per month [56].

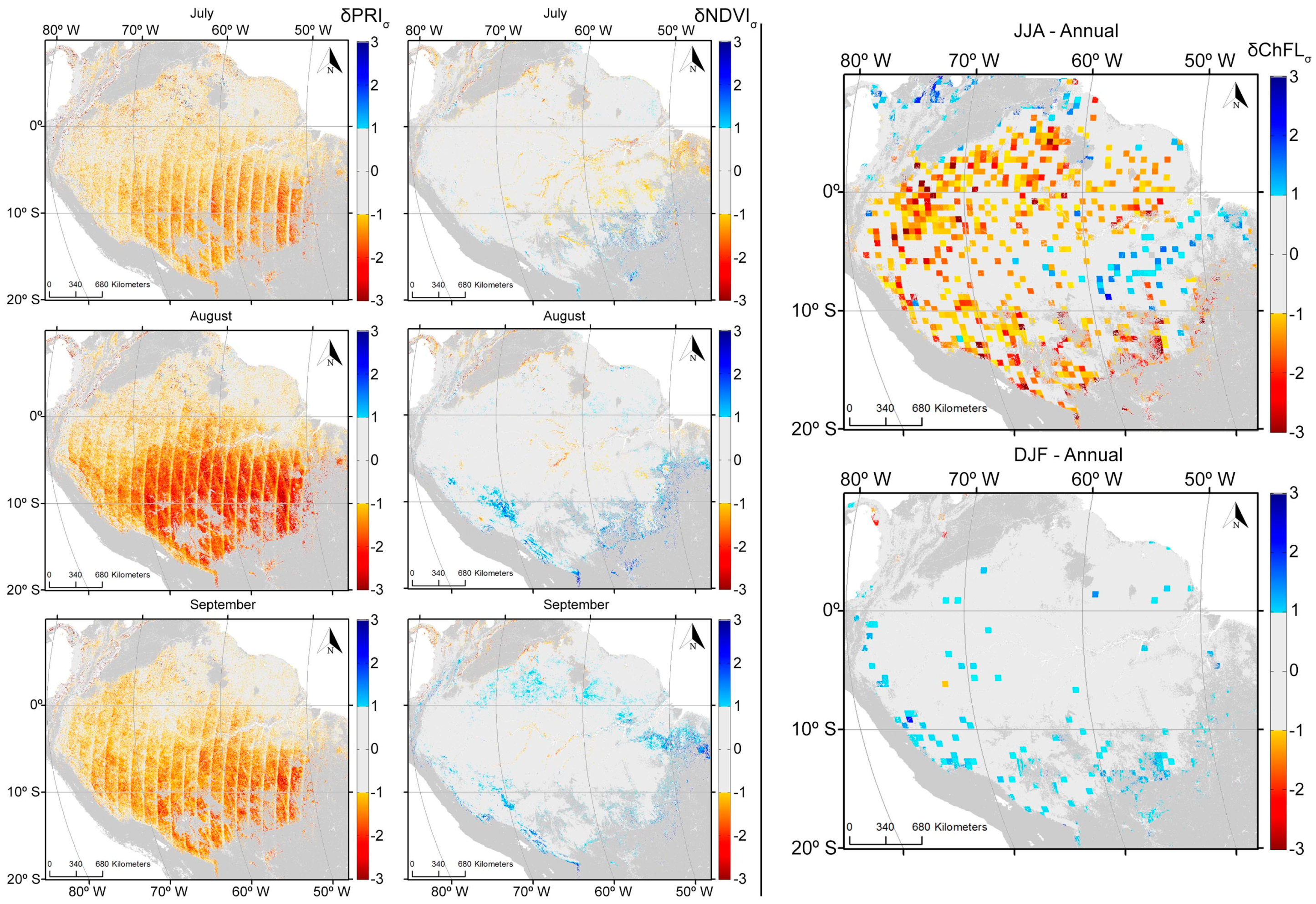

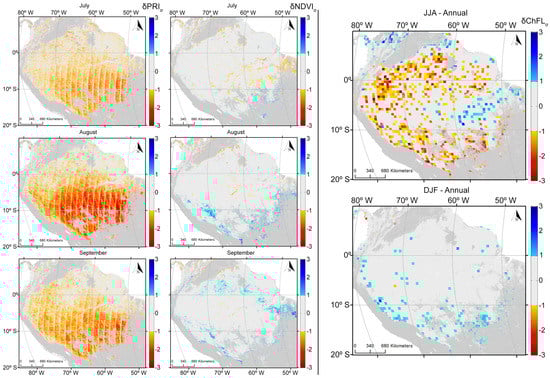

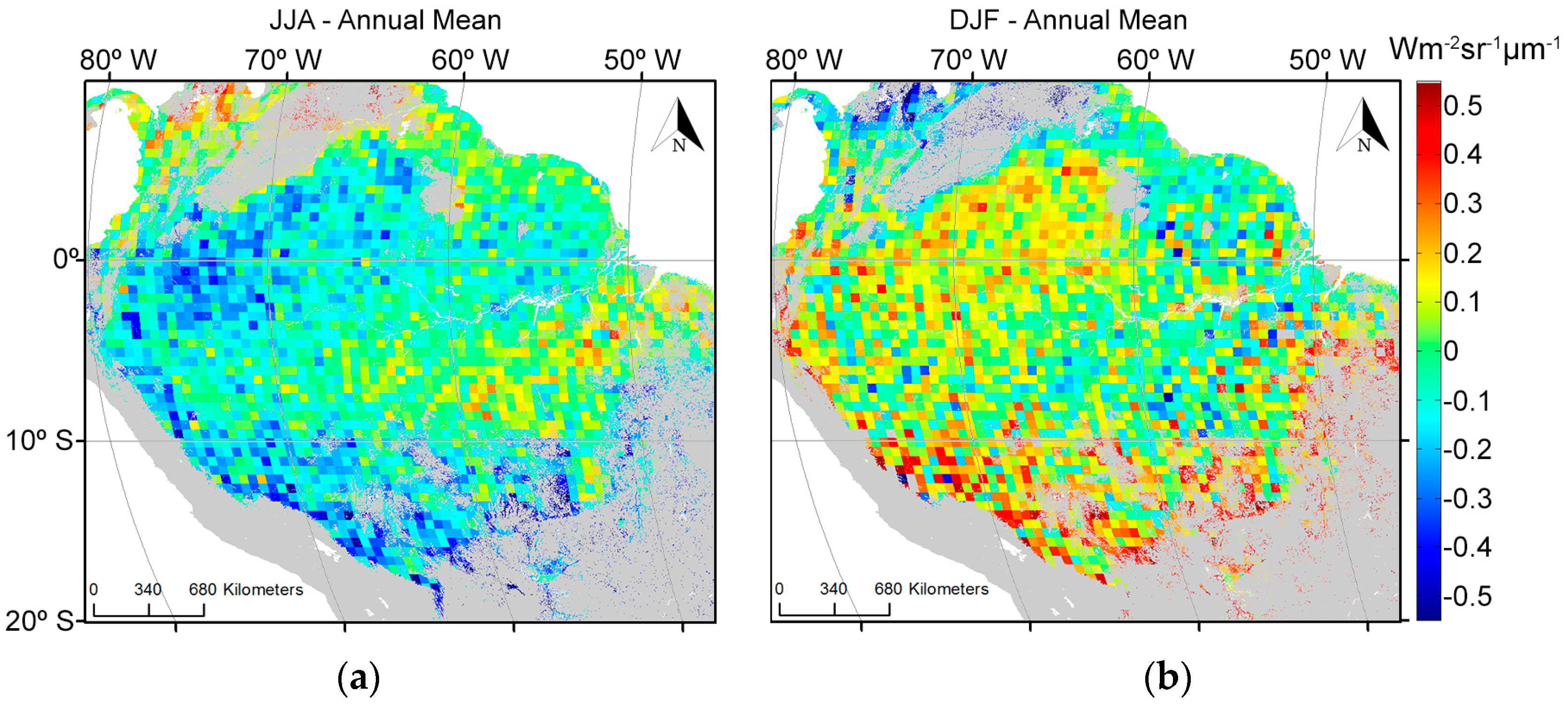

Figure 8 shows the seasonal departures of GOME-2 SIF estimates from the annual mean on a 0.5° × 0.5° grid for the combined months of June, July and August (JJA). Extremely negative values, ranging from −0.2 to −0.5, characterized most of the JJA period. At the other extreme, December, January and February (DJF) were characterized by positive values (ranging from 0.2 to 0.5) for most of the area. In contrast to PRI, SIF exhibited a more spread out behavior, extending well into northern forests rather than being concentrated mostly in the southern region. Additionally, SIF showed patches of positive values for the dry season (from 0.3 to 0.45) in the northern most point of the basin (upper left corner of Figure 8) and negative values for the same area during the wet season (ranging from −0.2 to −0.5). These seasonal patterns of SIF are consistent with results report by [27] using data retrieved from GOSAT.
In contrast to PRI, the seasonality of NDVI derived from MAIAC reflectance measurements was muted across the Amazon Basin (Figure 9). NDVI is insensitive to subtle variation in canopy physiology and more responsive to structural variation in LAI.
There is an ongoing debate over whether the productivity of evergreen forests in the Amazon is limited by radiation or by water. Figure A1 and Figure A2 in the Appendix show seasonal changes in water storage measured from the Gravity Recovery and Climate Experiment (GRACE) along with rainfall estimates acquired from the Tropical Rainfall Measuring Mission (TRMM). Almost no rainfall was measured between June and August in the southern part of the basin, with moderate rainfall of up to 200 mm per month starting in October. The lowest water content was reached between July and September with an increase in storage beginning again in November, about a month behind the commencement of significant rainfall. Increases in water storage lagged about a month.
We normalized estimates of PRI and SIF by dividing monthly values by the standard deviations of the entire dataset (total number of months). Pixels were plotted in which changes for a given month were within one standard deviation of the mean (refer to Figure 9). Those with variability in excess of with >1 standard deviation are also designated. GOME-2 provides only one measurement at every 40 km, and the retrieval shows consistently a high variation, for seasonal means and when normalized for the year.

4.2.2. Comparison of PRI with GPP at Eddy-Flux Tower Sites

The relationships between PRI and ε derived from eddy covariance measurements for the forested sites are presented in Figure 10. Each data point represents a monthly average of PRI and ε values. Strong, logarithmic relationships are exhibited for BAN, CAX and RJA with coefficients of determination (r2) of 0.75 (p < 0.01, n = 12), 0.51 (p < 0.01, n = 12) and 0.78 (p < 0.01, n = 12), respectively. The PRI values were highly variable for the evergreen rain forest K67 (r2 = 0.37, p < 0.01, n = 12) and generally higher during most seasons than observed at the BAN and RJA sites where rainfall is seasonally more variable (Figure 10). Strong logarithmic relationships between eddy-flux-derived ε and PRI were also reported in [9,14,16] where the relationship between PRI and (ε) disappears (or saturates) for high values of ε. This trend is confirmed by the results shown in Figure 10.

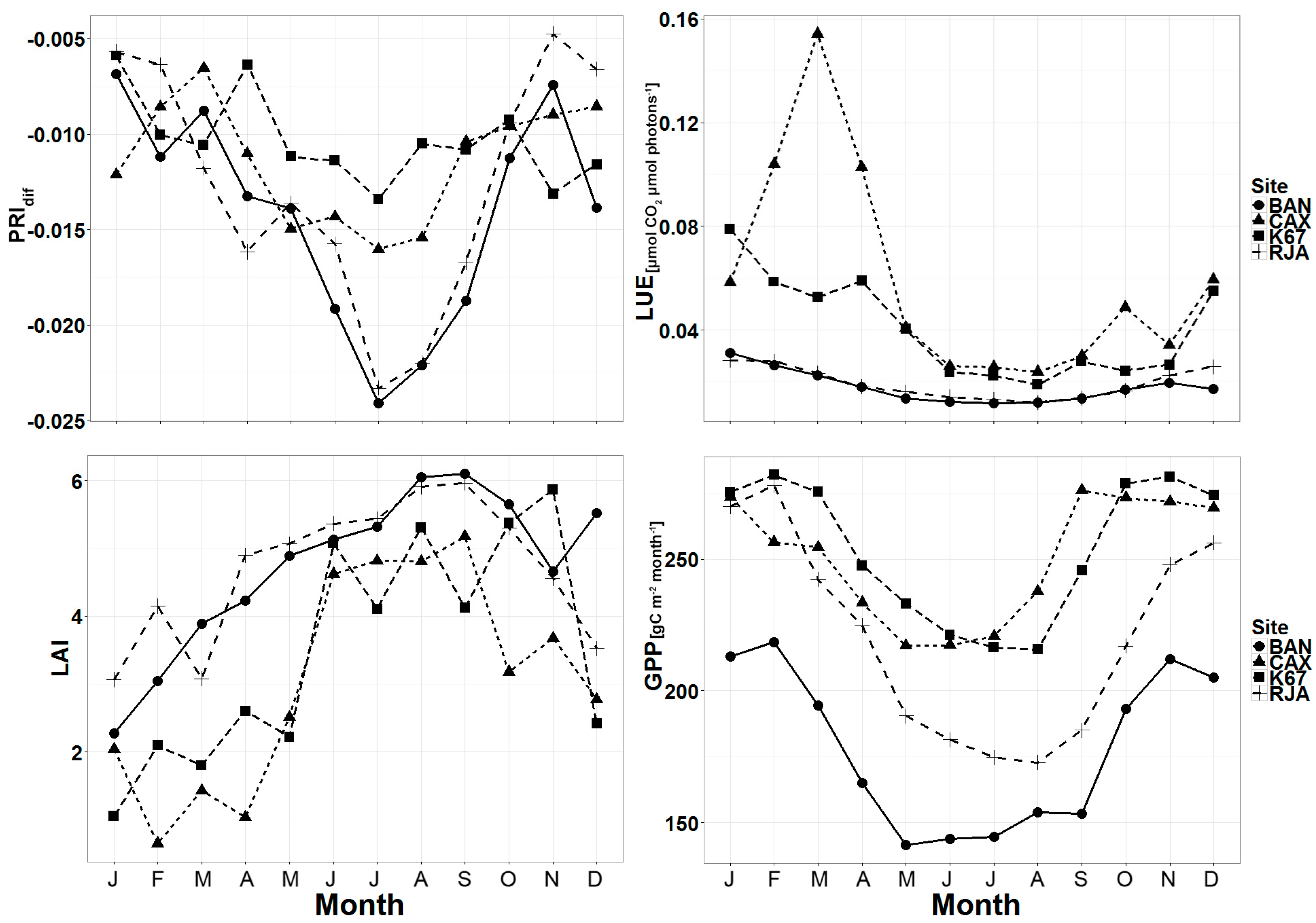

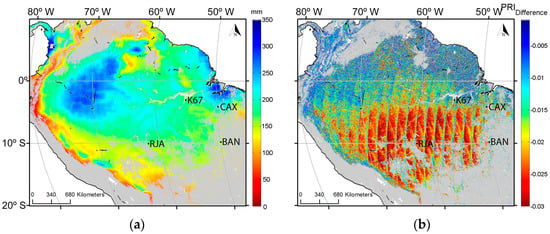

Figure 11 shows the monthly averages of PRIdif, light-use efficiency (ε), LAI and GPP for each forested tower site. Overall, BAN and RJA sites showed the lower values compared to K67 and CAX for all months, with a pronounced decline starting in June and continuing until September. Low values of PRIdif are common during this season of low rainfall in southern Brazil (Figure 4 and Appendix Figure A2). BAN and RJA sites also showed the lower values of light use efficiency and GPP calculated from eddy-flux measurements. However, LAI showed an inverse seasonal variation with higher values concentrating during dry season’s months with BAN and RJA showing higher values. Light-use efficiency for the CAX site showed a peak in March (Figure 11). Although it might seem an outlier, the low values of LAI at the same time agree. In general, seasonal trends in LAI are opposite those of PRI, Light Use Efficiency (LUE) and GPP. Similar trends were observed by Myneni and collaborators [57] across the Amazon basin. This trend is in agreement with the seasonality of solar radiation (e.g., Figure 4), which might lead to a pattern of leaf flush during this radiation-rich season and leaf abscission during the wettest months due to cloud coverage. LAI estimates for February, March and April were the lowest for CAX compared to other sites, which agrees with the higher values of LUE recorded for those months. This is because LAI is used to calculate fPAR (Equation (4)), which is inversely proportional to LUE based on Beer’s law.

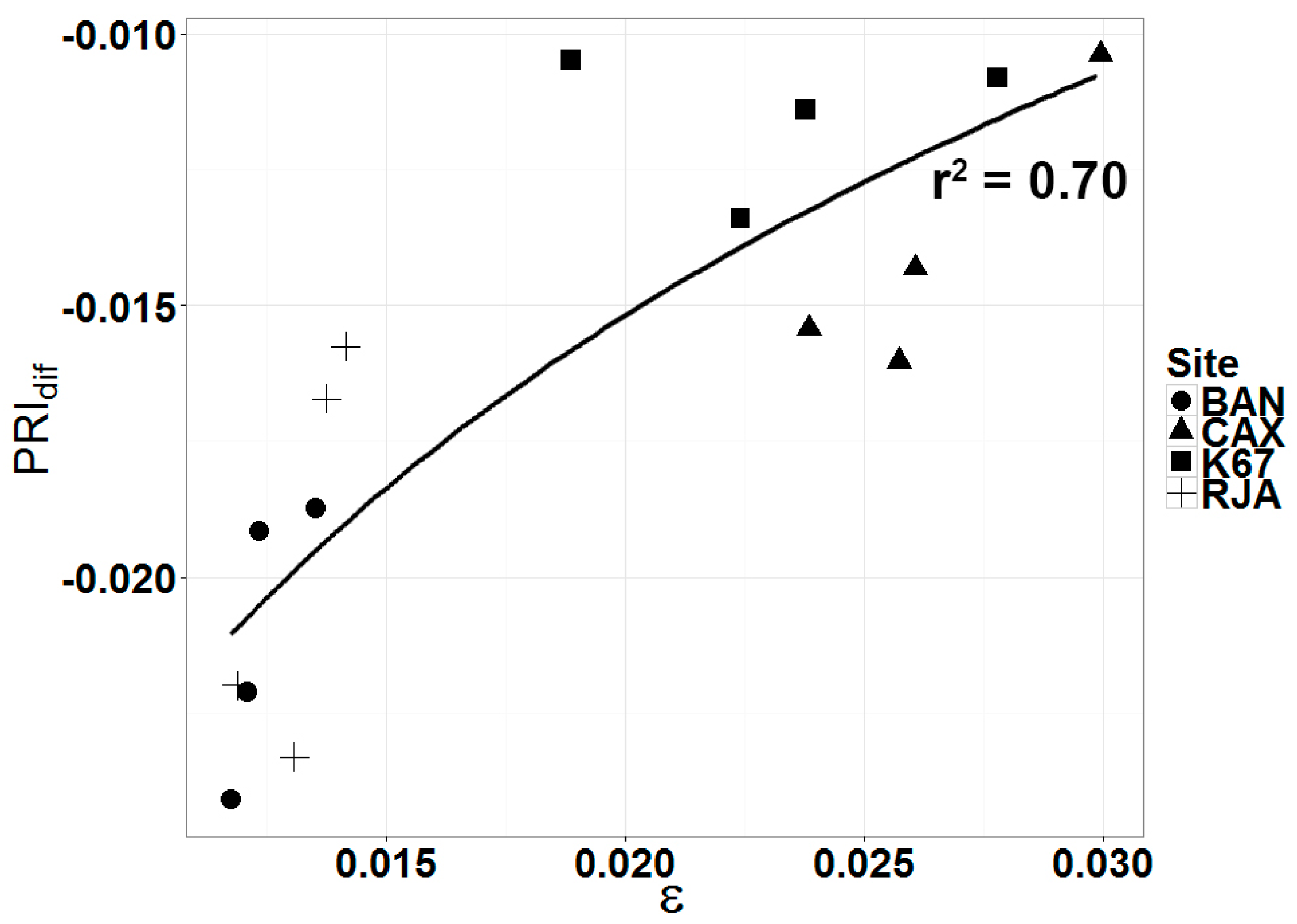

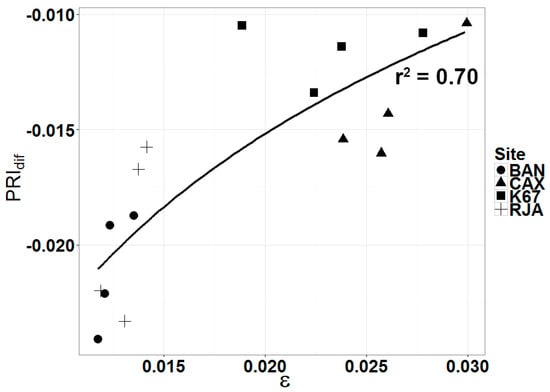

Figure 12 indicates a strong logarithmic relation between PRIdif and ε derived from each site for the months of the dry season (r2 = 0.70 (p < 0.01)). Each data point represents a monthly average of PRI and ε for the months of June, July, August and September.
The way that the values of PRIdif and ε are dispersed along the trend lines for each site in Figure 10b and Figure 12 seems reasonable. Forests in the south are likely to experience more stress than forests lying further to the north. Figure 10, Figure 11 and Figure 12 show distinct separation of sites from one another: BAN and RJA register a larger seasonal range in PRIdif values with consistently low values of ε. The northern area, typically with frequent cloud cover, experiences less downregulation in photosynthesis (Figure 13) and, as a result, produces much higher values of ε than the forested area further to the south. The correlations between PRIdif and ε are notably better where seasonal stress occurs than where it does not.
We surmise that the relationship between PRIdif and ε is considerably stronger when downregulation occurs (Figure 12), because at high values, the relationship saturates (Figure 10b).
The relationships between GPP and PRIdif for the dry season (June through September) are defined by Equation (5) and for all months by Equation (6):
GPPdry = 9588.1(PRIdif)2 + 549.88(PRIdif) + 12.53 (r2 = 0.72, p < 0.001, n = 16),
GPPall months = −3091.1(PRIdif)2 + 114.93(PRIdif) + 9.07 (r2 = 0.51, p < 0.001, n = 48),
During the wet season with extensive cloud cover, GPP is light-limited, and the relationship between PRIdif and ε weakens because photosynthesis is not downregulated in either sunlit or shaded portions of the canopy (PRIf = PRIb).

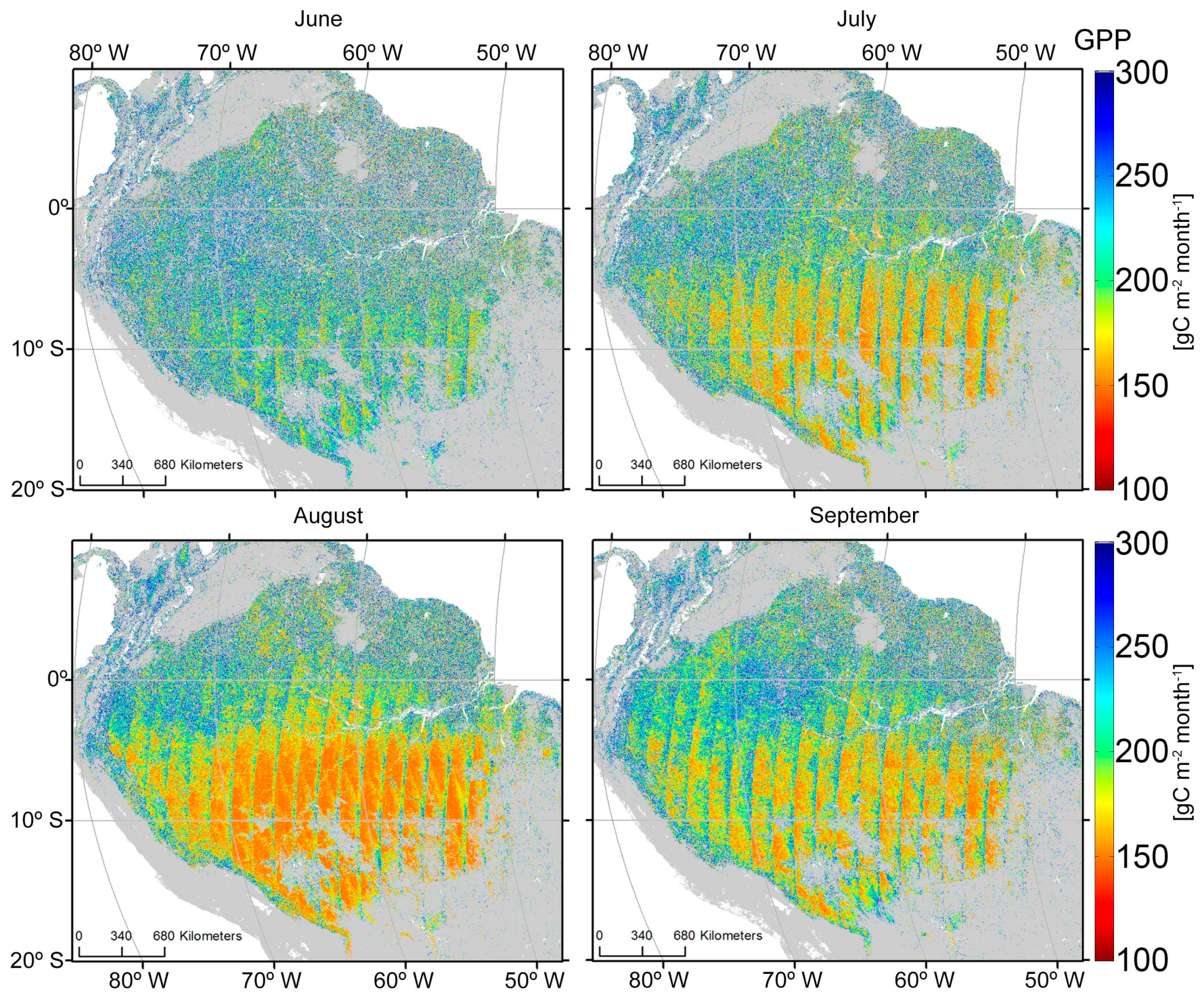

Figure 14 extends estimates of GPP across the Amazon basin during the dry season based on Equation (5).

4.3. Discussion

4.3.1. Photochemical Reflectance Index and Sun-Induced Fluorescence

This study presented the potential of satellite-based measurements of multi angle PRI and Sun-induced fluorescence as proxies for improving estimates of seasonality and primary productivity over tropical ecosystems. Results presented in Figure 5, Figure 6 and Figure 7 illustrate that seasonal variability provides strong support of previous studies demonstrating a period of depression in PRI values for an evergreen coniferous forest that peaked in July and August in association with the dry season [9].
The two physiological proxies were generally congruent. The most fluorescence and highest dissipation of energy from a shift in xanthophyll pigments occurred during the dry season and least during the wet (Figure 8 and Figure 9).
The inclusion of additional information obtained from the Gravity Recovery and Climate Experiment (GRACE) and Tropical Rainfall Measuring Mission (TRMM) proved valuable in explaining delayed seasonal responses in PRI. Abrupt decreases in precipitation do not immediately downregulate photosynthesis because considerable water remains stored within the soil accessible to tree roots [58]. Consistent with this, the PRI estimates showed the lowest values indicative of stress between July and September, in concert with GRACE measurements.
The fact that the lowest values of SIF and PRI were observed during the dry season when incident radiation is high suggests that other factors limit photosynthesis, an observation substantiated from eddy-flux analyses at both wet and dry tropical forest sites [47]. On clear days, even with near saturated soils, the leaf-air water vapor deficit increases exponentially with temperature, restricting stomata opening and causing a decrease in photosynthesis [59,60]. Qian Zhang and collaborators [9] observed that the relationship between PRI and ε is the strongest under clear or partially-cloudy skies with moderate to high vapor pressure deficit (VPD) (>20 h·Pa) and high temperatures (>31 °C) for an evergreen coniferous forest.
In temperate and boreal forests, subfreezing temperatures also cause stomata closure that may extend for days [61]. These factors, together with soil water deficits, are included in most process-based growth models.
Figure 9 illustrates that seasonal variabilities evident in both PRI and SIF, but particularly in PRI, enhance the extent the photosynthetic activity varies as implied by variation in the greenness index (Figure 5, Figure 6, Figure 7 and Figure 8). While current sensors are less than ideal, we demonstrate that they have the capacity to monitor seasonal variation in two physiologically-important indices. While neither PRI nor SIF were obtained from instruments specifically designed for their measurement, we demonstrated that current platforms have the ability to monitor seasonal variation in these physiologically-important indices. This capability complements more static vegetation indices that monitor only structural changes (e.g., EVI and NDVI). GPP estimated with such indices showed an increase in the late dry seasons, consistent with an increase of radiation [55]. Greening has been reported in the Amazon during the dry season using EVI and NDVI indices derived from MODIS data [62]. This trend was later refuted by [63] owing to atmosphere-corrupted data used in [62].
Our study, however, supports findings by [47,63] that GPP does not increase directly with an increase in radiation, nor does it necessarily plummet when rainfall decreases. Regional estimates of net changes in water storage from GRACE are valuable, but should be supplemented at selected places with more direct measurements of water stress on trees and the interactions of other variables on photosynthesis [64].

4.3.2. Improvements in Instrument Design, Data Acquisition and Processing

Although we obtained evidence of seasonality for both PRI and SIF, current sensors on orbiting platforms limit the determination of SIF and PRI at higher temporal resolution (i.e., weekly or daily basis) due to inherent noise levels. Improvements in sensor design, data acquisition and processing may reduce the high variance reported. Even though the high noise from both MODIS and GOME-2 retrievals over the area does not appear to have a substantial impact on our monthly averages for both PRIdif and SIF (please refer to the figures), inferences drawn from the data and subsequent extrapolations must be done carefully. Additionally, it should be noted that we are looking at averages over multiple years. Extreme drought events, such as the 2005 and 2010 (addressed in detail in [63,65,66,67,68]) might have more pronounced effects on both PRIdif and SIF estimates. One might consider using sophisticated BRDF models rather than collecting forward- and back-scattered observations as we did. As a result of our choice, vertical “stripping” occurred at the edges of the MODIS sampling swath (see Figure 5, Figure 6 and Figure 7). This limitation will be addressed with the new MAIAC release that will provide BRDF kernels for Bands 11 and 12.
We were restricted to sampling over monthly periods to obtain sufficient data and to integrate over large areas. There is progress in refining both deficiencies. Joiner and collaborators [44] used GOME-2 data acquired at eight-day intervals over several years and plotted results on a 2° × 2° grid with a four-fold improvement in spatial resolution compared with Level 3 GOME-2 data.

4.3.3. PRI and Eddy-Flux Measurements of Light Use Efficiency

The general standard for measurement of GPP is from the acquisition of eddy covariance data of CO2 exchange. A basic assumption in the calculation of GPP is that the relation between temperature and ecosystem respiration derived from nighttime measurements applies to daytime conditions. This assumption has been questioned based on an analysis of the differential fractionation of stable carbon and oxygen isotopes collected seasonally above a temperate deciduous forest in Massachusetts [69]. Even if accurate, GPP estimates derived from eddy-flux from towers are difficult to extrapolate across landscapes with a variety of topography and cover types. Multi-directional sensors borne on satellites can, we believe, aid considerably in the pursuit of better estimates of GPP and related ecosystem exchanges (water vapor, methane, etc.). The possibility of supplementing ground-based measurements with those obtained with multi-directional sensors borne on satellites is, we believe, an approach worth pursuing. Our results suggest that PRI is able to capture seasonal changes in ε across large areas of tropical forests. However, we observed that the correlations of PRI and ε varied greatly between flux sites: PRIdif was more sensitive to variations in ε for southern sites than northern sites. This is in concert with reduced rainfall measured from GRACE for the southern flux sites. We surmise that PRIdif becomes more sensitive to variations in ε under stressed conditions. We observed the strongest correlation (r2 = 0.70, p < 0.01) for the dry period between June and September (Figure 12). Our finding is corroborated by Zhang et al. [9], where PRI was significantly correlated with ε during most of the dry season for an evergreen coniferous forest in China.
Our study also substantiates earlier work by [16,17] in temperate coniferous and deciduous forests that reported strong non-linear relationship between satellite-derived PRI and ε obtained from eddy covariance measurements (although a different approach was used to account for shadow effects).

5. Conclusions

In this paper, we addressed the potentials and limitations of multi-angle MODIS PRI and SIF observations as proxies for productivity over the Amazon rainforests. While traditional greenness measurements, such as NDVI, will only provide information about chlorophyll content and leaf flush/leaf loss (and other factors potentially affecting NDVI, such as leaf movement, pigment pool size, leaf wilting and active heliotropism), PRI when combined with SIF offers a complementary more direct proxy for light-use efficiency over large areas of tropical forests. We conclude that:
(1)
PRI is able to capture seasonal changes in ε in large areas of tropical forests. These changes are linked to stress conditions related to water availability during the dry season.
(2)
Statistically-significant logarithmic relationships were found between PRIdif and ε determined from eddy-flux measurements for all sites; southern sites, however, showed stronger correlations (r2 = 0.78, p < 0.01 for RJA and r2 = 0.75, p < 0.01 for BAN). Thus, correlations between PRIdif and ε are notably better where seasonal stress occurs than where it does not.
(3)
MODIS and GOME-2 observations, while not optimal for measuring short-term changes in ε, provide realistic estimates of seasonal variation in photosynthesis over the Amazon that relate well to wet and dry seasons.
(4)
The development of new sensor designs with the capacity for frequent, moderate resolution, multi-angle PRI and SIF measurements should increase our understanding of ecosystem functioning in response to the climate in the tropics and elsewhere.

Supplementary Materials

The following are available online at www.mdpi.com/2072-4292/9/1/48/s1. Figure S1: Monthly averages of MODIS MAIAC NDVI for the period of 2000 to 2012 for forested areas in the Amazon basin. The averages were calculated to show seasonality. Areas in grey represent different land covers and were not taken into consideration.

Acknowledgments

This research was supported in part by a scholarship from CAPES—Brazil (Coordenação de Aperfeiçoamento de Pessoal de Nível Superior, Grant Number BEX 1233-13-0) awarded to the author. Many thanks to the reviewers who provided insightful suggestions on an earlier draft of the manuscript.

Author Contributions

C.H.R.S. and T.H. conceived of and designed the experiments. C.H.R.S. analyzed the data. A.L. contributed the MAIAC V data. C.H.R.S. wrote the original paper, and R.H.W. made extensive revisions. Y.M.M. edited and made revisions of the figures. All authors read and approved the submitted draft of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Remotesensing 09 00048 g015 550

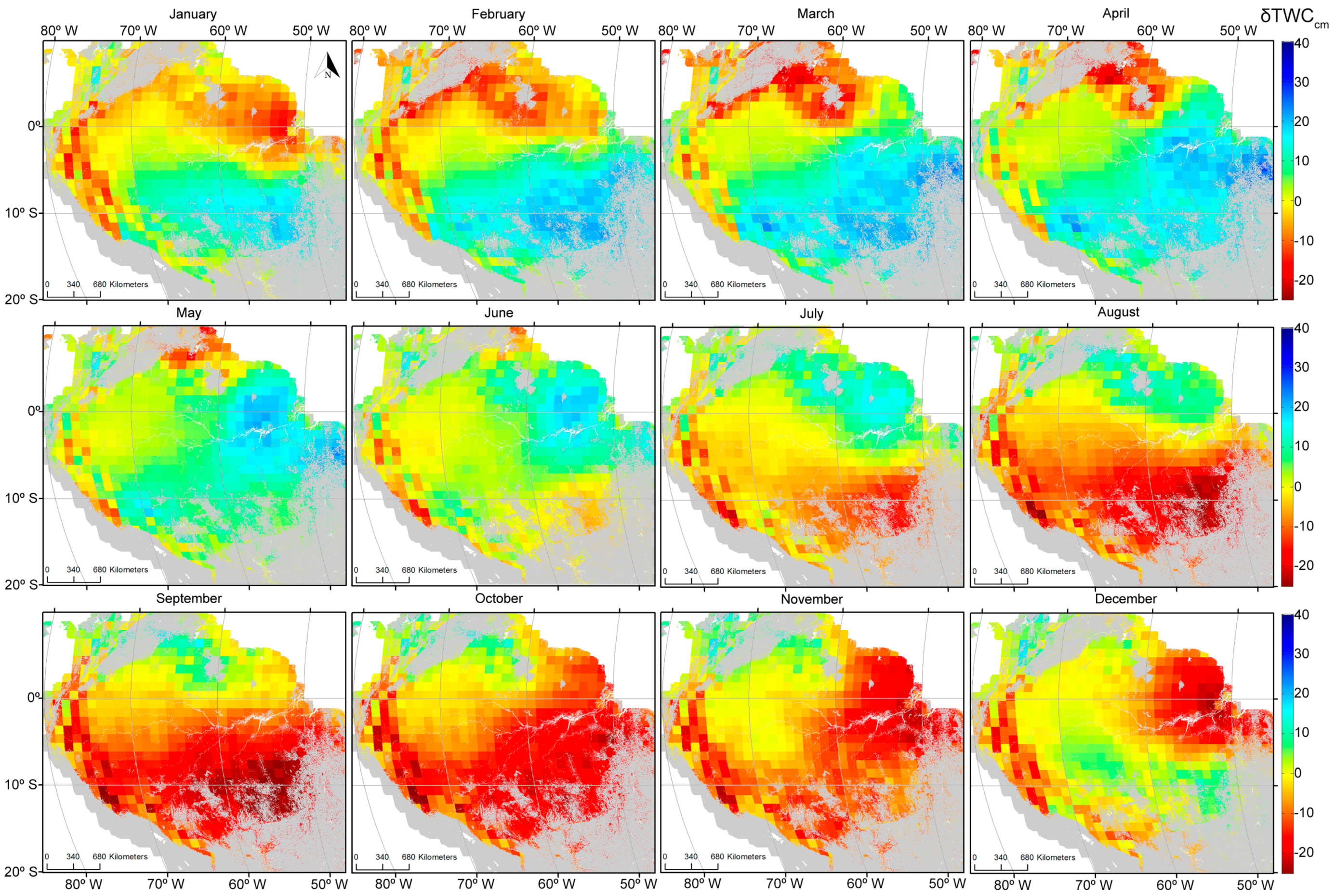

Figure A1. Monthly averages of change in table water content from GRACE for the period of 2001 to 2012. The resolution of the figure is coarse because the nominal footprint of the data is 2 km × 2 km.
Figure A1. Monthly averages of change in table water content from GRACE for the period of 2001 to 2012. The resolution of the figure is coarse because the nominal footprint of the data is 2 km × 2 km.
Remotesensing 09 00048 g015
Remotesensing 09 00048 g016 550

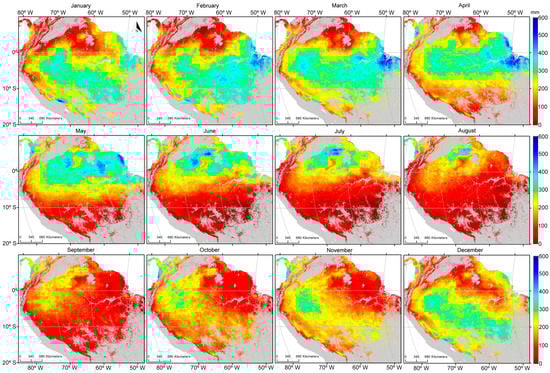

Figure A2. Seasonal variation of rainfall from the Tropical Rainfall Measuring Mission (TRMM) for the period of 2000 to 2011. A monthly average approach was adopted to show rainfall seasonality over the Amazon basin.
Figure A2. Seasonal variation of rainfall from the Tropical Rainfall Measuring Mission (TRMM) for the period of 2000 to 2011. A monthly average approach was adopted to show rainfall seasonality over the Amazon basin.
Remotesensing 09 00048 g016

References

  1. Li, W.; Fu, R.; Juárez, R.I.N.; Fernandes, K. Observed change of the standardized precipitation index, its potential cause and implications to future climate change in the Amazon region. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2008, 363, 1767–1772. [Google Scholar] [CrossRef] [PubMed]
  2. Li, W.; Fu, R.; Dickinson, R.E. Rainfall and its seasonality over the Amazon in the 21st century as assessed by the coupled models for the IPCC AR4. J. Geophys. Res. 2006, 111. [Google Scholar] [CrossRef]
  3. Phillips, O.L.; Aragão, L.E.O.C.; Lewis, S.L.; Fisher, J.B.; Lloyd, J.; López-González, G.; Malhi, Y.; Monteagudo, A.; Peacock, J.; Quesada, C.A. Drought sensitivity of the Amazon rainforest. Science 2009, 323, 1344–1347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Stanhill, G.; Fuchs, M. The relative flux density of photosynthetically active radiation. J. Appl. Ecol. 1977, 14, 317–322. [Google Scholar] [CrossRef]
  5. Adams, B.D.; Adams, W.W. The role of xanthophyll cycle carotenoids in the protection of photosynthesis. Trends Plant Sci. 1996, 1, 21–26. [Google Scholar] [CrossRef]
  6. Gamon, J.A.; Peñuelas, J.; Field, C.B. A narrow-waveband spectral index that tracks diurnal changes in photosynthetic efficiency. Remote Sens. Environ. 1992, 41, 35–44. [Google Scholar] [CrossRef]
  7. Schickling, A.; Matveeva, M.; Damm, A.; Schween, J.; Wahner, A.; Graf, A.; Crewell, S.; Rascher, U. Combining Sun-induced chlorophyll fluorescence and photochemical reflectance index improves diurnal modeling of gross primary productivity. Remote Sens. 2016, 8. [Google Scholar] [CrossRef]
  8. Zhang, C.; Filella, I.; Garbulsky, M.; Peñuelas, J. Affecting factors and recent improvements of the photochemical reflectance index (PRI) for remotely sensing foliar, canopy and ecosystemic radiation-use efficiencies. Remote Sens. 2016, 8. [Google Scholar] [CrossRef]
  9. Zhang, Q.; Ju, W.; Chen, J.M.; Wang, H.; Yang, F.; Fan, W.; Huang, Q.; Zheng, T.; Feng, Y.; Zhou, Y. Ability of the photochemical reflectance index to track light use efficiency for a sub-tropical planted coniferous forest. Remote Sens. 2015, 7, 16938–16962. [Google Scholar] [CrossRef]
  10. Gamon, J.A.; Bond, B. Effects of irradiance and photosynthetic downregulation on the photochemical reflectance index in Douglas-fir and ponderosa pine. Remote Sens. Environ. 2013, 135, 141–149. [Google Scholar] [CrossRef]
  11. Liu, L.; Zhang, Y.; Jiao, Q.; Peng, D. Assessing photosynthetic light-use efficiency using a solar-induced chlorophyll fluorescence and photochemical reflectance index. Int. J. Remote Sens. 2013, 34, 4264–4280. [Google Scholar] [CrossRef]
  12. Nichol, C.J.; Huemmrich, K.F.; Black, T.A.; Jarvis, P.G.; Walthall, C.L.; Grace, J.; Hall, F.G. Remote sensing of photosynthetic-light-use efficiency of boreal forest. Agric. For. Meteorol. 2000, 101, 131–142. [Google Scholar] [CrossRef]
  13. Hall, F.G.; Hilker, T.; Coops, N.C.; Lyapustin, A.; Huemmrich, K.F.; Middleton, E.; Margolis, H.; Drolet, G.; Black, T.A. Multi-angle remote sensing of forest light use efficiency by observing PRI variation with canopy shadow fraction. Remote Sens. Environ. 2008, 112, 3201–3211. [Google Scholar] [CrossRef]
  14. Hall, F.G.; Hilker, T.; Coops, N.C. PHOTOSYNSAT, photosynthesis from space: Theoretical foundations of a satellite concept and validation from tower and spaceborne data. Remote Sens. Environ. 2011, 115, 1918–1925. [Google Scholar] [CrossRef]
  15. Hilker, T.; Coops, N.C.; Schwalm, C.R.; Jassal, R.S.; Black, T.A.; Krishnan, P. Effects of mutual shading of tree crowns on prediction of photosynthetic light-use efficiency in a coastal Douglas-fir forest. Tree Physiol. 2008, 28, 825–834. [Google Scholar] [CrossRef] [PubMed]
  16. Hilker, T.; Hall, F.G.; Coops, N.C.; Lyapustin, A.; Wang, Y.; Nesic, Z.; Grant, N.; Black, T.A.; Wulder, M.A.; Kljun, N. Remote sensing of photosynthetic light-use efficiency across two forested biomes: Spatial scaling. Remote Sens. Environ. 2010, 114, 2863–2874. [Google Scholar] [CrossRef]
  17. Hilker, T.; Coops, N.C.; Hall, F.G.; Nichol, C.J.; Lyapustin, A.; Black, T.A.; Wulder, M.A.; Leuning, R.; Barr, A.; Hollinger, D.Y. Inferring terrestrial photosynthetic light use efficiency of temperate ecosystems from space. J. Geophys. Res. 2011, 116. [Google Scholar] [CrossRef]
  18. Hilker, T.; Hall, F.G.; Coops, N.C.; Collatz, J.G.; Black, T.A.; Tucker, C.J.; Sellers, P.J.; Grant, N. Remote sensing of transpiration and heat fluxes using multi-angle observations. Remote Sens. Environ. 2013, 137, 31–42. [Google Scholar] [CrossRef]
  19. Hilker, T.; Lyapustin, A.; Hall, F.G.; Wang, Y.; Coops, N.C.; Drolet, G.; Black, T.A. An assessment of photosynthetic light use efficiency from space: Modeling the atmospheric and directional impacts on PRI reflectance. Remote Sens. Environ. 2009, 113, 2463–2475. [Google Scholar] [CrossRef]
  20. Frankenberg, C.; Butz, A.; Toon, G.C. Disentangling chlorophyll fluorescence from atmospheric scattering effects in O2 A-band spectra of reflected sun-light. Geophys. Res. Lett. 2011, 38. [Google Scholar] [CrossRef]
  21. Guanter, L.; Frankenberg, C.; Dudhia, A.; Lewis, P.E.; Dans, J.G.; Kuze, A.; Suto, H.; Grainger, R.G. Retrieval and global assessment of terrestrial chlorophyll fluorescence from GOSAT space measurements. Remote Sens. Environ. 2012, 121, 236–251. [Google Scholar] [CrossRef]
  22. Joiner, J.; Yoshida, Y.; Vasilkov, A.P.; Middleton, E.M.; Campbell, P.K.E.; Yoshida, Y.; Kuze, A.; Corp, L.A. Filling-in of near-infrared solar lines by terrestrial fluorescence and other geophysical effects: Simulations and space-based observations from SCIAMACHY and GOSAT. Atmos. Meas. Tech. 2012, 5, 809–829. [Google Scholar] [CrossRef]
  23. Joiner, J.; Yoshida, Y.; Vasilkov, A.P.; Corp, L.A.; Middleton, E.M. First observations of global and seasonal terrestrial chlorophyll fluorescence from space. Biogeosciences 2011, 8, 637–651. [Google Scholar] [CrossRef] [Green Version]
  24. Frankenberg, C.; Fisher, J.B.; Worden, J.; Badgley, G.; Saatchi, S.S.; Lee, J.E.; Toon, G.C.; Butz, A.; Jung, M.; Kuze, A.; et al. New global observations of the terrestrial carbon cycle from GOSAT: Patterns of plant fluorescence with gross primary productivity. Geophys. Res. Lett. 2011, 38. [Google Scholar] [CrossRef]
  25. Joiner, J.; Guanter, L.; Lindstrot, R.; Voigt, M.; Vasilkov, A.P.; Middleton, E.M.; Huemmrich, K.F.; Yoshida, Y.; Frankenberg, C. Global monitoring of terrestrial chlorophyll fluorescence from moderate spectral resolution near-infrared satellite measurements: Methodology, simulations, and application to GOME-2. Atmos. Meas. Tech. 2013, 6, 2803–2823. [Google Scholar] [CrossRef]
  26. Parazoo, N.C.; Bowman, K.; Frankenberg, C.; Lee, J.E.; Fisher, J.B.; Worden, J.; Jones, D.B.A.; Berry, J.; Collatz, G.J.; Baker, I.T. Interpreting seasonal changes in the carbon balance of southern Amazonia using measurements of XCO2 and chlorophyll fluorescence from GOSAT. Geophys. Res. Lett. 2013, 40, 2829–2833. [Google Scholar] [CrossRef]
  27. Lee, J.E.; Frankenberg, C.; van der Tol, C.; Berry, J.A.; Guanter, L.; Boyce, C.K.; Fisher, J.B.; Morrow, E.; Worden, J.R.; Asefi, S. Forest productivity and water stress in Amazonia: Observations from GOSAT chlorophyll fluorescence. Proc. R. Soc. B Biol. Sci. 2013, 280. [Google Scholar] [CrossRef] [PubMed]
  28. Guan, K.; Pan, M.; Li, H.; Wolf, A.; Wu, J.; Medvigy, D.; Caylor, K.K.; Sheffield, J.; Wood, E.F.; Malhi, Y. Photosynthetic seasonality of global tropical forests constrained by hydroclimate. Nat. Geosci. 2015, 8, 284–289. [Google Scholar] [CrossRef]
  29. Vermote, E.F.; Kotchenova, S. Atmospheric correction for the monitoring of land surfaces. J. Geophys. Res. 2008, 113. [Google Scholar] [CrossRef]
  30. Kaufman, Y.J.; Tanré, D.; Remer, L.A.; Vermote, E.F.; Chu, A.; Holben, B.N. Operational remote sensing of tropospheric aerosol over land from EOS moderate resolution imaging spectroradiometer. J. Geophys. Res. 1997, 102, 17051–17067. [Google Scholar] [CrossRef]
  31. Levy, R.C.; Remer, L.A.; Mattoo, S.; Vermote, E.F.; Kaufman, Y.J. Second-generation operational algorithm: Retrieval of aerosol properties over land from inversion of Moderate Resolution Imaging Spectroradiometer spectral reflectance. J. Geophys. Res. Atmos. 2007, 112. [Google Scholar] [CrossRef]
  32. Lyapustin, A.I. Atmospheric and geometrical effects on land surface albedo. J. Geophys. Res. 1999, 104, 4127–4143. [Google Scholar] [CrossRef]
  33. Wang, Y.; Lyapustin, A.I.; Privette, J.L.; Cook, R.B.; SanthanaVannan, S.K.; Vermote, E.F.; Schaaf, C.L. Assessment of biases in MODIS surface reflectance due to Lambertian approximation. Remote Sens. Environ. 2010, 114, 2791–2801. [Google Scholar] [CrossRef]
  34. Lyapustin, A.; Knyazikhin, Y. Green’s function method for the radiative transfer problem. I. Homogeneous non-Lambertian surface. Appl. Opt. 2001, 40, 3495–3501. [Google Scholar] [CrossRef] [PubMed]
  35. Lyapustin, A.; Wang, Y. Parameterized code SHARM-3D for radiative transfer over inhomogeneous surfaces. Appl. Opt. 2005, 44, 7602–7610. [Google Scholar] [CrossRef] [PubMed]
  36. Wanner, W.; Li, X.; Strahler, A.H. On the derivation of kernels for kernel-driven models of bidirectional reflectance. J. Geophys. Res. 1995, 100, 21077–21089. [Google Scholar] [CrossRef]
  37. Lyapustin, A.; Wang, Y.; Laszlo, I.; Kahn, R.; Korkin, S.; Remer, L.; Levy, R.; Reid, J.S. Multiangle implementation of atmospheric correction (MAIAC): 2. Aerosol algorithm. J. Geophys. Res. 2011, 116. [Google Scholar] [CrossRef]
  38. Lyapustin, A.; Wang, Y.; Laszlo, I.; Hilker, T. Multi-angle implementation of atmospheric correction for MODIS (MAIAC). Part 3: Atmospheric correction. Remote Sens. Environ. 2012, 127, 385–393. [Google Scholar] [CrossRef]
  39. Lyapustin, A.; Wang, Y.; Frey, R. An automatic cloud mask algorithm based on time series of MODIS measurements. J. Geophys. Res. 2008, 113. [Google Scholar] [CrossRef]
  40. Lyapustin, A.; Martonchik, J.; Wang, Y.; Laszlo, I.; Korkin, S. Multiangle implementation of atmospheric correction (MAIAC): 1. Radiative transfer basis and look-up tables. J. Geophys. Res. 2011, 116. [Google Scholar] [CrossRef]
  41. Hilker, T.; Lyapustin, A.I.; Tucker, C.J.; Sellers, P.J.; Hall, F.G.; Wang, Y. Remote sensing of tropical ecosystems: Atmospheric correction and cloud masking matter. Remote Sens. Environ. 2012, 127, 370–384. [Google Scholar] [CrossRef]
  42. Middleton, E.M.; Cheng, Y.B.; Hilker, T.; Black, T.A.; Krishnan, P.; Coops, N.C.; Huemmrich, K.F. Linking foliage spectral responses to canopy-level ecosystem photosynthetic light-use efficiency at a Douglas-fir forest in Canada. Can. J. Remote Sens. 2009, 35, 166–188. [Google Scholar] [CrossRef]
  43. Drolet, G.G.; Huemmrich, K.F.; Hall, F.G.; Middleton, E.M.; Black, T.A.; Barr, A.G.; Margolis, H.A. A MODIS-derived photochemical reflectance index to detect inter-annual variations in the photosynthetic light-use efficiency of a boreal deciduous forest. Remote Sens. Environ. 2005, 98, 212–224. [Google Scholar] [CrossRef]
  44. Joiner, J.; Yoshida, Y.; Vasilkov, A.P.; Schaefer, K.; Jung, M.; Guanter, L.; Zhang, Y.; Garrity, S.; Middleton, E.M.; Huemmrich, K.F. The seasonal cycle of satellite chlorophyll fluorescence observations and its relationship to vegetation phenology and ecosystem atmosphere carbon exchange. Remote Sens. Environ. 2014, 152, 375–391. [Google Scholar] [CrossRef]
  45. Aura Validation Data Center (AVDC) v. 26 Data. Available online: http://avdc.gsfc.nasa.gov/ (accessed on 5 January 2016).
  46. Keller, M.; Alencar, A.; Asner, G.P.; Braswell, B.; Bustamante, M.; Davidson, E.; Feldpausch, T.; Fernandes, E.; Goulden, M.; Kabat, P.; et al. Ecological research in the large-scale biosphere—Atmosphere experiment in amazonia: Early results. Ecol. Appl. 2004, 14, 3–16. [Google Scholar] [CrossRef] [Green Version]
  47. Coupe, N.R.; da Rocha, H.R.; Hutyra, L.R.; da Araujo, A.C.; Borma, L.S.; Christoffersen, B.; Cabral, O.M.R.; de Camargo, P.B.; Cardoso, F.L.; da Costa, A.C.L.; et al. What drives the seasonality of photosynthesis across the Amazon basin? A cross-site analysis of eddy flux tower measurements from the Brasil flux network. Agric. For. Meteorol. 2013, 182, 128–144. [Google Scholar] [CrossRef]
  48. Saleska, S.R. Carbon in Amazon forests: Unexpected seasonal fluxes and disturbance-induced losses. Science 2003, 302, 1554–1557. [Google Scholar] [CrossRef] [PubMed]
  49. Hutyra, L.R.; Munger, J.W.; Saleska, S.R.; Gottlieb, E.; Daube, B.C.; Dunn, A.L.; Amaral, D.F.; de Camargo, P.B.; Wofsy, S.C. Seasonal controls on the exchange of carbon and water in an Amazonian rain forest. J. Geophys. Res. Biogeosci. 2007, 112. [Google Scholar] [CrossRef] [Green Version]
  50. Filho, J.D.C.S.; Ribeiro, A.; Costa, M.H.; Cohen, J.C.P. Mecanismos de controle da variação sazonal da transpiração de uma floresta tropical no nordeste da amazônia. Acta Amazon. 2005, 35, 223–229. [Google Scholar] [CrossRef]
  51. Carswell, F.E.; Costa, A.L.; Palheta, M.; Malhi, Y.; Meir, P.; Costa, J.D.P.R.; Ruivo, M.D.L.; Leal, L.D.S.M.; Costa, J.M.N.; Clement, R.J. Seasonality in CO2 and H2O flux at an eastern Amazonian rain forest. J. Geophys. Res. D Atmos. 2002, 107. [Google Scholar] [CrossRef]
  52. Kruijt, B.; Elbers, J.A.; von Randow, C.; Araújo, A.C.; Oliveira, P.J.; Culf, A.; Manzi, A.O.; Nobre, A.D.; Kabat, P.; Moors, E.J. The robustness of eddy correlation fluxes for amazon rain forest conditions. Ecol. Appl. 2004, 14, 101–113. [Google Scholar] [CrossRef]
  53. Von Randow, C.; Manzi, A.O.; Kruijt, B.; de Oliveira, P.J.; Zanchi, F.B.; Silva, R.L.; Hodnett, M.G.; Gash, J.H.C.; Elbers, J.A.; Waterloo, M.J.; et al. Comparative measurements and seasonal variations in energy and carbon exchange over forest and pasture in South West Amazonia. Theor. Appl. Climatol. 2004, 78, 5–26. [Google Scholar] [CrossRef]
  54. Borma, L.S.; da Rocha, H.R.; Cabral, O.M.; von Randow, C.; Collicchio, E.; Kurzatkowski, D.; Brugger, P.J.; Freitas, H.; Tannus, R.; Oliveira, L.; et al. Atmosphere and hydrological controls of the evapotranspiration over a floodplain forest in the Bananal Island region, Amazonia. J. Geophys. Res. Biogeosci. 2009, 114, 1–12. [Google Scholar] [CrossRef]
  55. Xiao, X.; Zhang, Q.; Saleska, S.; Hutyra, L.; de Camargo, P.; Wofsy, S.; Frolking, S.; Boles, S.; Keller, M.; Moore, B. Satellite-based modeling of gross primary production in a seasonally moist tropical evergreen forest. Remote Sens. Environ. 2005, 94, 105–122. [Google Scholar] [CrossRef]
  56. Asner, G.P.; Alencar, A. Drought impacts on the Amazon forest: The remote sensing perspective. New Phytol. 2010, 187, 569–578. [Google Scholar] [CrossRef] [PubMed]
  57. Myneni, R.B.; Yang, W.; Nemani, R.R.; Huete, A.R.; Dickinson, R.E.; Knyazikhin, Y.; Didan, K.; Fu, R.; Juarez, R.I.N.; Saatchi, S.S.; et al. Large seasonal swings in leaf area of Amazon rainforests. Proc. Natl. Acad. Sci. USA 2007, 104, 4820–4823. [Google Scholar] [CrossRef] [PubMed]
  58. Nepstad, D.; Lefebvre, P.; da Silva, U.L.; Tomasella, J.; Schlesinger, P.; Solórzano, L.; Moutinho, P.; Ray, D.; Benito, J.G. Amazon drought and its implications for forest flammability and tree growth: A basin-wide analysis. Glob. Chang. Biol. 2004, 10, 704–717. [Google Scholar] [CrossRef]
  59. Lloyd, J.; Grace, J.; Miranda, A.C.; Meir, P.; Wong, S.C.; Miranda, H.S.; Wright, I.R.; Gash, J.H.C.; Mcintyre, J. A simple calibrated model of Amazon rainforest productivity based on leaf biochemical properties. Plant Cell Environ. 1995, 18, 1129–1145. [Google Scholar] [CrossRef]
  60. Wu, J.; Guan, K.; Hayek, M.; Coupe, N.R.; Wiedemann, K.T.; Xu, X.; Wehr, R.; Christoffersen, B.O.; Miao, G.; da Silva, R.; et al. Partitioning controls on Amazon forest photosynthesis between environmental and biotic factors at hourly to inter-annual time scales. Glob. Chang. Biol. 2016. [Google Scholar] [CrossRef] [PubMed]
  61. Tranquillini, W. Summary for policymakers. In Climate Change 2013—The Physical Science Basis; Intergovernmental Panel on Climate Change, Ed.; Cambridge University Press: Cambridge, UK, 1979; Volume 31, pp. 1–30. [Google Scholar]
  62. Huete, A.R.; Didan, K.; Shimabukuro, Y.E.; Ratana, P.; Saleska, S.R.; Hutyra, L.R.; Yang, W.; Nemani, R.R.; Myneni, R. Amazon rainforests green-up with sunlight in dry season. Geophys. Res. Lett. 2006, 33. [Google Scholar] [CrossRef]
  63. Samanta, A.; Ganguly, S.; Hashimoto, H.; Devadiga, S.; Vermote, E.; Knyazikhin, Y.; Nemani, R.R.; Myneni, R.B. Amazon forests did not green-up during the 2005 drought. Geophys. Res. Lett. 2010, 37. [Google Scholar] [CrossRef]
  64. Landsberg, J.J.; Waring, R.H. Water relations in tree physiology: Where to from here? Tree Physiol. 2017, 130, 1–15. [Google Scholar] [CrossRef] [PubMed]
  65. Saleska, S.R.; Didan, K.; Huete, A.R.; da Rocha, H.R. Amazon forests green-up during 2005 drought. Science 2007, 318. [Google Scholar] [CrossRef] [PubMed]
  66. Samanta, A.; Costa, M.H.; Nunes, E.L.; Vieira, S.A.; Xu, L.; Myneni, R.B. Comment on “Drought-induced reduction in global terrestrial net primary production from 2000 through 2009”. Science 2011, 333. [Google Scholar] [CrossRef] [PubMed]
  67. Samanta, A.; Ganguly, S.; Myneni, R.B. MODIS Enhanced Vegetation Index data do not show greening of Amazon forests during the 2005 drought. New Phytol. 2011, 189, 11–15. [Google Scholar] [CrossRef] [PubMed]
  68. Xu, L.; Samanta, A.; Costa, M.H.; Ganguly, S.; Nemani, R.R.; Myneni, R.B. Widespread decline in greenness of Amazonian vegetation due to the 2010 drought. Geophys. Res. Lett. 2011, 38. [Google Scholar] [CrossRef]
  69. Wehr, R.; Munger, J.W.; McManus, J.B.; Nelson, D.D.; Zahniser, M.S.; Davidson, E.A.; Wofsy, S.C.; Saleska, S.R. Seasonality of temperate forest photosynthesis and daytime respiration. Nature 2016, 534, 680–683. [Google Scholar] [CrossRef] [PubMed]
Remotesensing 09 00048 g001 550
Figure 1. Depiction of the energy pathways within a leaf’s light-harvesting complex. Light is absorbed by antenna pigments and the energy transferred to the reaction center (P680). Under optimal conditions, the energy is used in the dark reaction to fix CO2 and produce photosynthate (photochemical quenching). When absorbed light exceeds the capacity of the photosynthetic reactions, the excess energy begins to accumulate in the reaction center, which can lead to photo-oxidative damage to cells. A shift in the type of xanthophyll pigments dissipates this energy as heat at 531 nm or fluorescence from the Fraunhofer lines.
Figure 1. Depiction of the energy pathways within a leaf’s light-harvesting complex. Light is absorbed by antenna pigments and the energy transferred to the reaction center (P680). Under optimal conditions, the energy is used in the dark reaction to fix CO2 and produce photosynthate (photochemical quenching). When absorbed light exceeds the capacity of the photosynthetic reactions, the excess energy begins to accumulate in the reaction center, which can lead to photo-oxidative damage to cells. A shift in the type of xanthophyll pigments dissipates this energy as heat at 531 nm or fluorescence from the Fraunhofer lines.
Remotesensing 09 00048 g001
Remotesensing 09 00048 g002 550
Figure 2. On the first overpass, when the sensor faces the Sun, forward-scattered reflectance data are retrieved; on the second overpass, with the sensor facing the opposite direction, back-scatter reflectance from shaded portions of the canopy is obtained.
Figure 2. On the first overpass, when the sensor faces the Sun, forward-scattered reflectance data are retrieved; on the second overpass, with the sensor facing the opposite direction, back-scatter reflectance from shaded portions of the canopy is obtained.
Remotesensing 09 00048 g002
Remotesensing 09 00048 g003 550

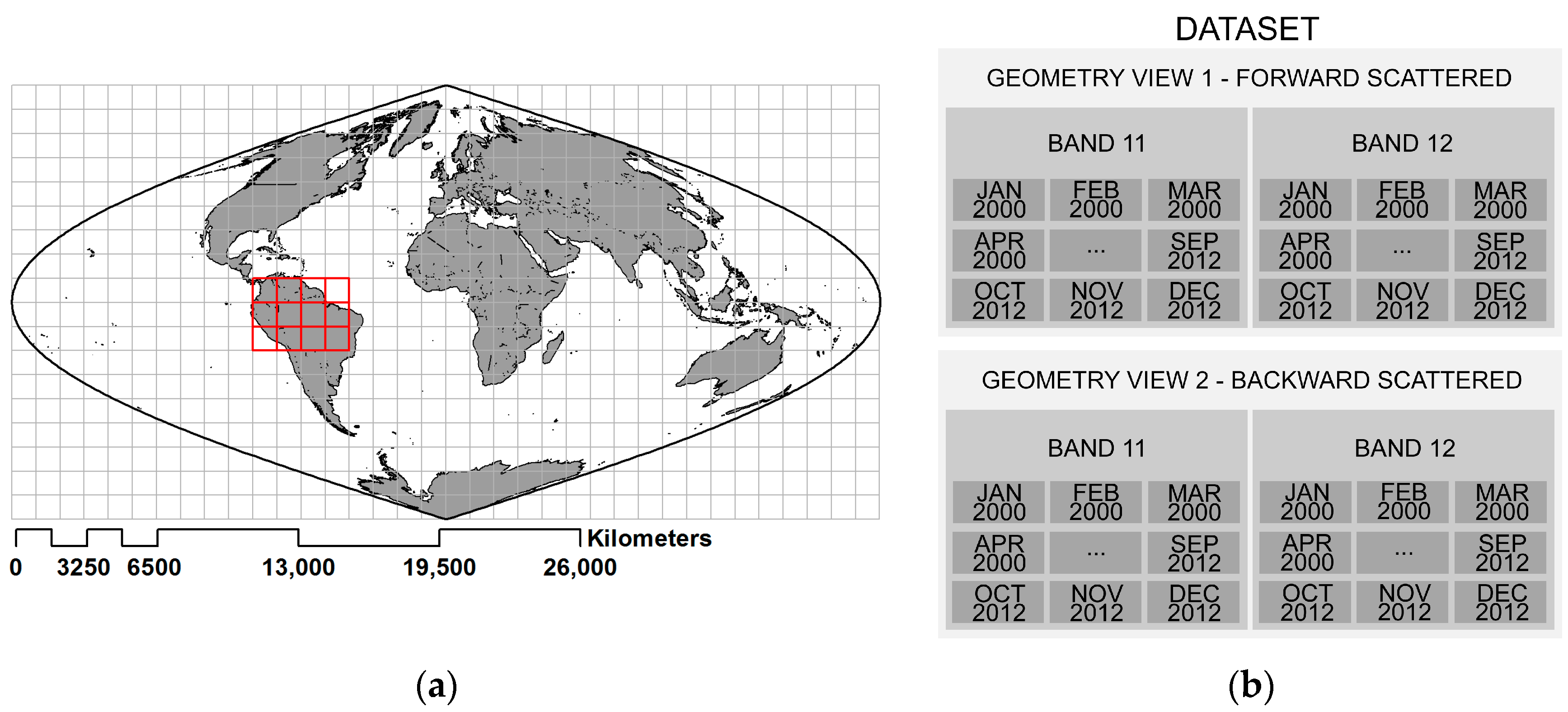

Figure 3. (a) The area, highlighted in red, was sampled with MODIS imagery; (b) MODIS datasets required to calculate monthly values of Photochemical Reflectance Index (PRI)consisted of 156 mosaics for Band 12 (546 to 556 nm) and Band 11 (526 to 536 nm) for each viewing angle for the years specified in the text.
Figure 3. (a) The area, highlighted in red, was sampled with MODIS imagery; (b) MODIS datasets required to calculate monthly values of Photochemical Reflectance Index (PRI)consisted of 156 mosaics for Band 12 (546 to 556 nm) and Band 11 (526 to 536 nm) for each viewing angle for the years specified in the text.
Remotesensing 09 00048 g003
Remotesensing 09 00048 g004 550
Figure 4. (a) Location of the four forested Brazilian flux tower sites used in this study: Santarém forest (K67), Caxiuanã forest (CAX), Reserva Jarú forest (RJA) and Bananal island (BAN); (b) Average monthly precipitation (bars) and photosynthetically-active radiation (line) measured at the flux towers for periods between two and four years (see Table 1).
Figure 4. (a) Location of the four forested Brazilian flux tower sites used in this study: Santarém forest (K67), Caxiuanã forest (CAX), Reserva Jarú forest (RJA) and Bananal island (BAN); (b) Average monthly precipitation (bars) and photosynthetically-active radiation (line) measured at the flux towers for periods between two and four years (see Table 1).
Remotesensing 09 00048 g004
Remotesensing 09 00048 g005 550

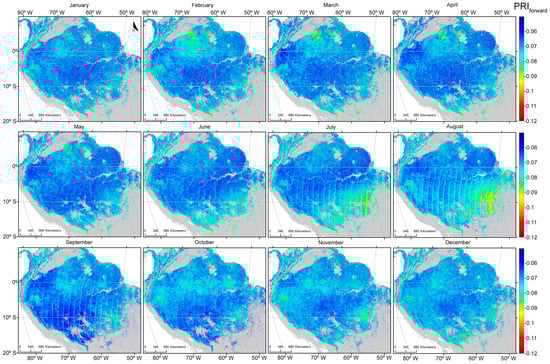

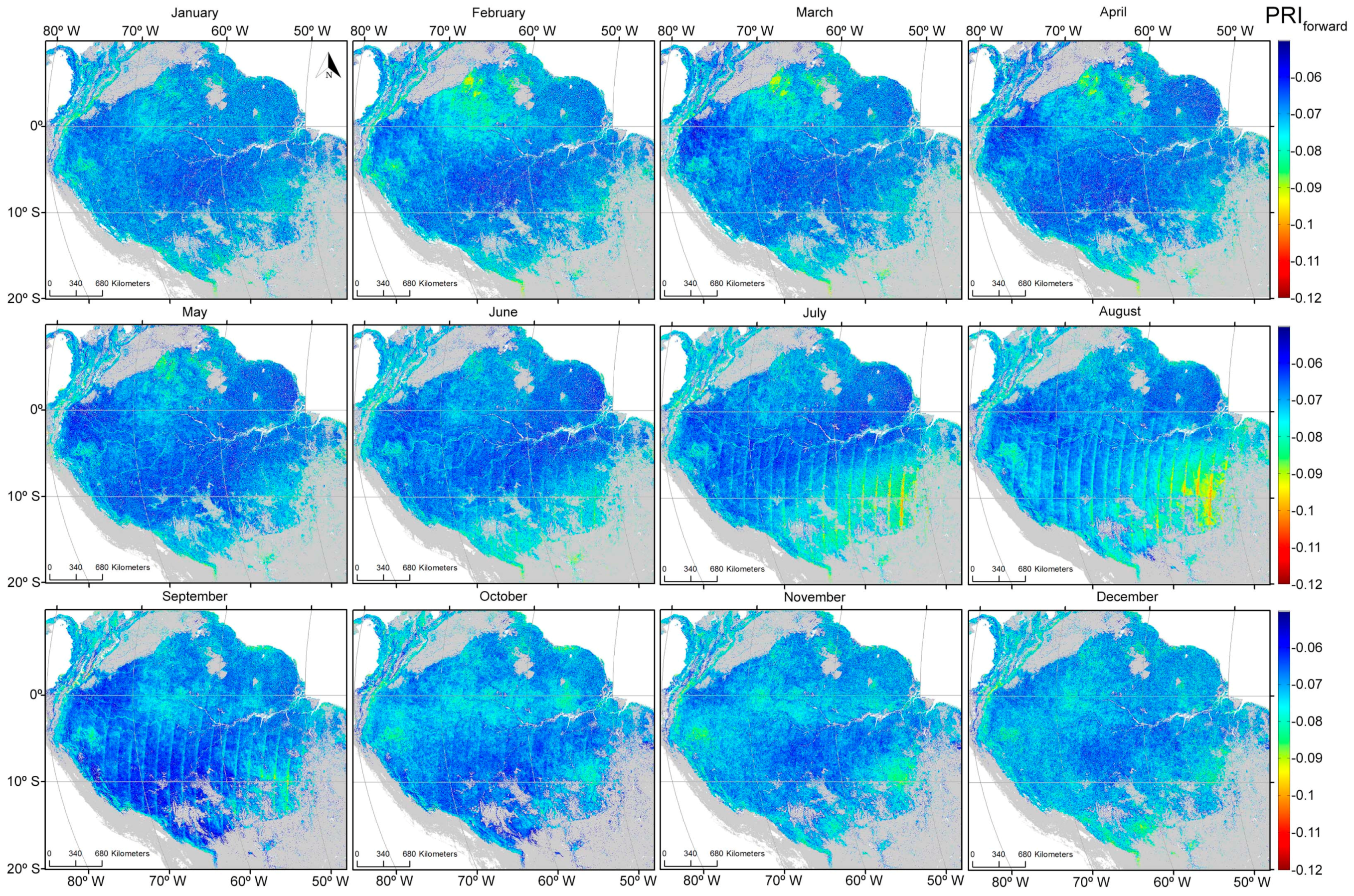

Figure 5. Monthly averages of the Photochemical Reflectance Index (forward scattered) are indicative of seasonal variation for the years 2000 to 2012 over forested areas in the Amazon Basin. Areas in grey represent non-forest cover.
Figure 5. Monthly averages of the Photochemical Reflectance Index (forward scattered) are indicative of seasonal variation for the years 2000 to 2012 over forested areas in the Amazon Basin. Areas in grey represent non-forest cover.
Remotesensing 09 00048 g005
Remotesensing 09 00048 g006 550

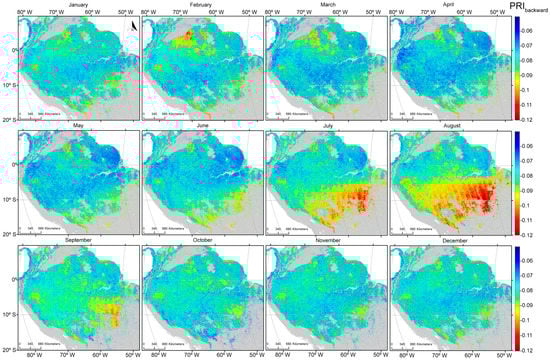

Figure 6. Monthly averages of the Photochemical Reflectance Index (backward scatter) are indicative of seasonal variation for the years 2000 to 2012 over forested portions of the Amazon Basin.
Figure 6. Monthly averages of the Photochemical Reflectance Index (backward scatter) are indicative of seasonal variation for the years 2000 to 2012 over forested portions of the Amazon Basin.
Remotesensing 09 00048 g006
Remotesensing 09 00048 g007 550
Figure 7. Monthly averages of the difference between forward- and back-scattered Photochemical Reflectance Indices for the years 2000 to 2012 for forested areas in the Amazon Basin.
Figure 7. Monthly averages of the difference between forward- and back-scattered Photochemical Reflectance Indices for the years 2000 to 2012 for forested areas in the Amazon Basin.
Remotesensing 09 00048 g007
Remotesensing 09 00048 g008 550
Figure 8. Seasonal variation of SIF from Global Ozone Monitoring Experiment-2 (GOME-2) from 2007 to 2012. The annual mean (average across all years) was subtracted from the seasonal mean (average of June, July and August (JJA) (a) and December, January and February (DJF) (b) for the 2007 to 2012 period) to show fluorescence seasonality. The resolution of this figure is coarse because GOME-2 has a relatively large footprint (approximately 40 km × 80 km at nadir gridded to a spatial resolution of 0.5° latitude by 0.5° longitude). Areas in grey were not evaluated.
Figure 8. Seasonal variation of SIF from Global Ozone Monitoring Experiment-2 (GOME-2) from 2007 to 2012. The annual mean (average across all years) was subtracted from the seasonal mean (average of June, July and August (JJA) (a) and December, January and February (DJF) (b) for the 2007 to 2012 period) to show fluorescence seasonality. The resolution of this figure is coarse because GOME-2 has a relatively large footprint (approximately 40 km × 80 km at nadir gridded to a spatial resolution of 0.5° latitude by 0.5° longitude). Areas in grey were not evaluated.
Remotesensing 09 00048 g008
Remotesensing 09 00048 g009 550
Figure 9. Monthly mean dry season δPRI and NDVI for the period 2000 to 2012 expressed in colors denoting ≥1 standard deviations from all monthly means over the collection. δSIF means (2007 to 2012) for the dry (JJA) and wet (DJF) seasons are similarly depicted (monthly averages available in the Supplementary Material).
Figure 9. Monthly mean dry season δPRI and NDVI for the period 2000 to 2012 expressed in colors denoting ≥1 standard deviations from all monthly means over the collection. δSIF means (2007 to 2012) for the dry (JJA) and wet (DJF) seasons are similarly depicted (monthly averages available in the Supplementary Material).
Remotesensing 09 00048 g009
Remotesensing 09 00048 g010 550

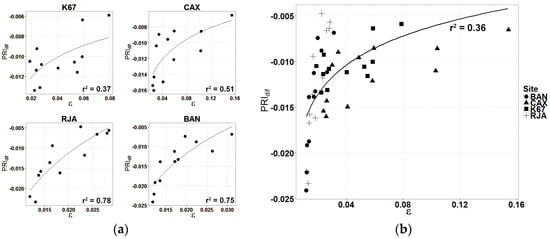

Figure 10. Relationship between PRI derived from MAIAC observations (3 × 3 km) and ε derived from eddy covariance measurements for (a) Santarém forest (K67) (PRI = 0.0029ln(ε) − 0.0008), Reserva Jarú (RJA) (PRI = 0.0179ln(ε) + 0.0587), Caxiuanã National Forest (CAX) (PRI = 0.0036ln(ε) − 0.0004) and Bananal Island (BAN) (PRI = 0.0154ln(ε) + 0.0486) and (b) All sites together (right).
Figure 10. Relationship between PRI derived from MAIAC observations (3 × 3 km) and ε derived from eddy covariance measurements for (a) Santarém forest (K67) (PRI = 0.0029ln(ε) − 0.0008), Reserva Jarú (RJA) (PRI = 0.0179ln(ε) + 0.0587), Caxiuanã National Forest (CAX) (PRI = 0.0036ln(ε) − 0.0004) and Bananal Island (BAN) (PRI = 0.0154ln(ε) + 0.0486) and (b) All sites together (right).
Remotesensing 09 00048 g010
Remotesensing 09 00048 g011 550
Figure 11. Satellite-derived monthly averages of PRIdif and LAI compared with calculated values of measurements of light-use efficiency (ε) and GPP derived from tower-based measurements at each site. A seasonal decline in PRIdif and GPP characterizes all sites during the dry season, particularly those in the south (BAN and RJA).
Figure 11. Satellite-derived monthly averages of PRIdif and LAI compared with calculated values of measurements of light-use efficiency (ε) and GPP derived from tower-based measurements at each site. A seasonal decline in PRIdif and GPP characterizes all sites during the dry season, particularly those in the south (BAN and RJA).
Remotesensing 09 00048 g011
Remotesensing 09 00048 g012 550
Figure 12. Relationship (PRI = 0.011ln(ε) + 0.0277) between PRIdif derived from MAIAC analyses and ε derived from eddy covariance measurements for sites at Bananal Island (BAN), Caxiuanã National Forest (CAX), Reserva Jarú (RJA) and Santarém forest (K67) for the months of June through September.
Figure 12. Relationship (PRI = 0.011ln(ε) + 0.0277) between PRIdif derived from MAIAC analyses and ε derived from eddy covariance measurements for sites at Bananal Island (BAN), Caxiuanã National Forest (CAX), Reserva Jarú (RJA) and Santarém forest (K67) for the months of June through September.
Remotesensing 09 00048 g012
Remotesensing 09 00048 g013 550

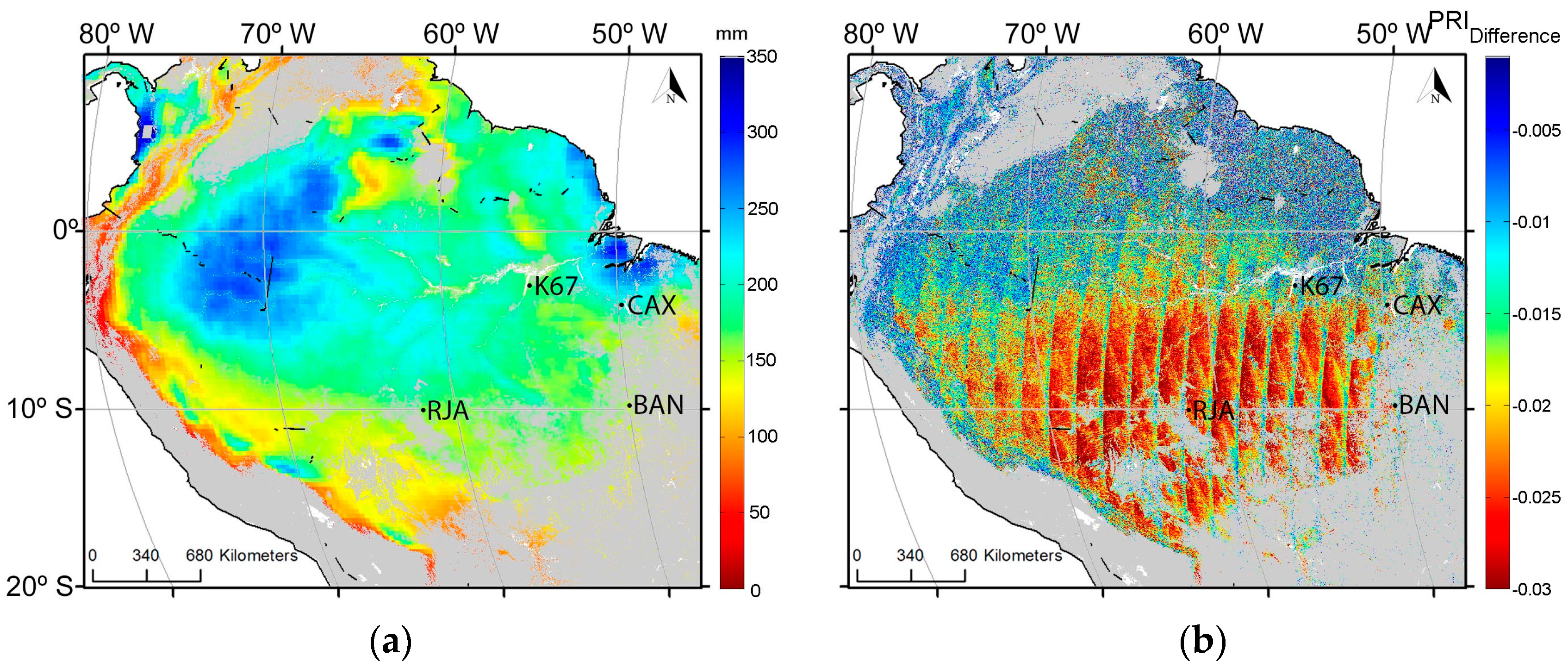

Figure 13. (a) Averaged August precipitation in the Amazon basin from 2000 to 2012 acquired from the Tropical Rainfall Measuring Mission (TRMM); (b) Average PRIdif values for the month of August from 2000 to 2012. The lowest values of PRIdif during August and other dry-season months occur in the southern region.
Figure 13. (a) Averaged August precipitation in the Amazon basin from 2000 to 2012 acquired from the Tropical Rainfall Measuring Mission (TRMM); (b) Average PRIdif values for the month of August from 2000 to 2012. The lowest values of PRIdif during August and other dry-season months occur in the southern region.
Remotesensing 09 00048 g013
Remotesensing 09 00048 g014 550
Figure 14. Modeled spatial variation in GPP during the months of the dry season across the Amazon basin based on the relationship between PRIdif and eddy-flux measurements of GPP (Equation (5)). Consistently lower values of GPP are predicted in the southern part of the Amazon compared to the northern part throughout the dry season.
Figure 14. Modeled spatial variation in GPP during the months of the dry season across the Amazon basin based on the relationship between PRIdif and eddy-flux measurements of GPP (Equation (5)). Consistently lower values of GPP are predicted in the southern part of the Amazon compared to the northern part throughout the dry season.
Remotesensing 09 00048 g014
Table
Table 1. Information on the four Brazilian flux sites used in this study [47].
Table 1. Information on the four Brazilian flux sites used in this study [47].
ID/Site NameNearest CityLat./Long.Biome TypeMeasurement PeriodPrinciple InvestigatorsData Reference
K67/TapajosSantarém/Belterra, Pará State, Brazil2.85S/54.97WTropical rainforestJanuary 2002 to December 2004Wofsy, S., Saleska, S.[49,50]
CAX/CaxiuanaBelém, Pará State, Brazil1.72S/51.46WTropical rainforestJanuary 1999 to July 2003Sa, L., Miller, S., da Rocha, H.[48,51]
RJA/Reserva JaruJi-Paraná, Rondônia State, Brazil10.08S/61.93WTropical dry forestOctober 2003 to December 2006Manzi, A., Cardoso, F.[52,53]
BAN/Bananal IslandPium, Tocantins State, Brazil9.82S/50.13WSeasonally flooded forest-SavannaOctober 2003 to December 2006da Rocha, H.[54]

Share and Cite

MDPI and ACS Style

De Sousa, C.H.R.; Hilker, T.; Waring, R.; De Moura, Y.M.; Lyapustin, A. Progress in Remote Sensing of Photosynthetic Activity over the Amazon Basin. Remote Sens. 2017, 9, 48. https://doi.org/10.3390/rs9010048

AMA Style

De Sousa CHR, Hilker T, Waring R, De Moura YM, Lyapustin A. Progress in Remote Sensing of Photosynthetic Activity over the Amazon Basin. Remote Sensing. 2017; 9(1):48. https://doi.org/10.3390/rs9010048

Chicago/Turabian Style

De Sousa, Celio Helder Resende, Thomas Hilker, Richard Waring, Yhasmin Mendes De Moura, and Alexei Lyapustin. 2017. "Progress in Remote Sensing of Photosynthetic Activity over the Amazon Basin" Remote Sensing 9, no. 1: 48. https://doi.org/10.3390/rs9010048

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
