Open AccessArticle
Remote Sens. 2016, 8(4), 282;

Pi-SAR-L2 Observation of the Landslide Caused by Typhoon Wipha on Izu Oshima Island

Earth Observation Research Center, Japan Aerospace Exploration Agency, 2-1-1 Sengen, Tsukuba, Ibaraki 305-8505, Japan
Tokyo Denki University, Ishizaka, Hatoyama-machi, Hiki-gun, Saitama 350-0394, Japan
Author to whom correspondence should be addressed.
Academic Editors: Zhenhong Li, Roberto Tomas, Ioannis Gitas and Prasad S. Thenkabail
Received: 24 December 2015 / Revised: 16 March 2016 / Accepted: 22 March 2016 / Published: 29 March 2016
(This article belongs to the Special Issue Earth Observations for Geohazards)
Full-Text   |   PDF [7953 KB, uploaded 29 March 2016]   |

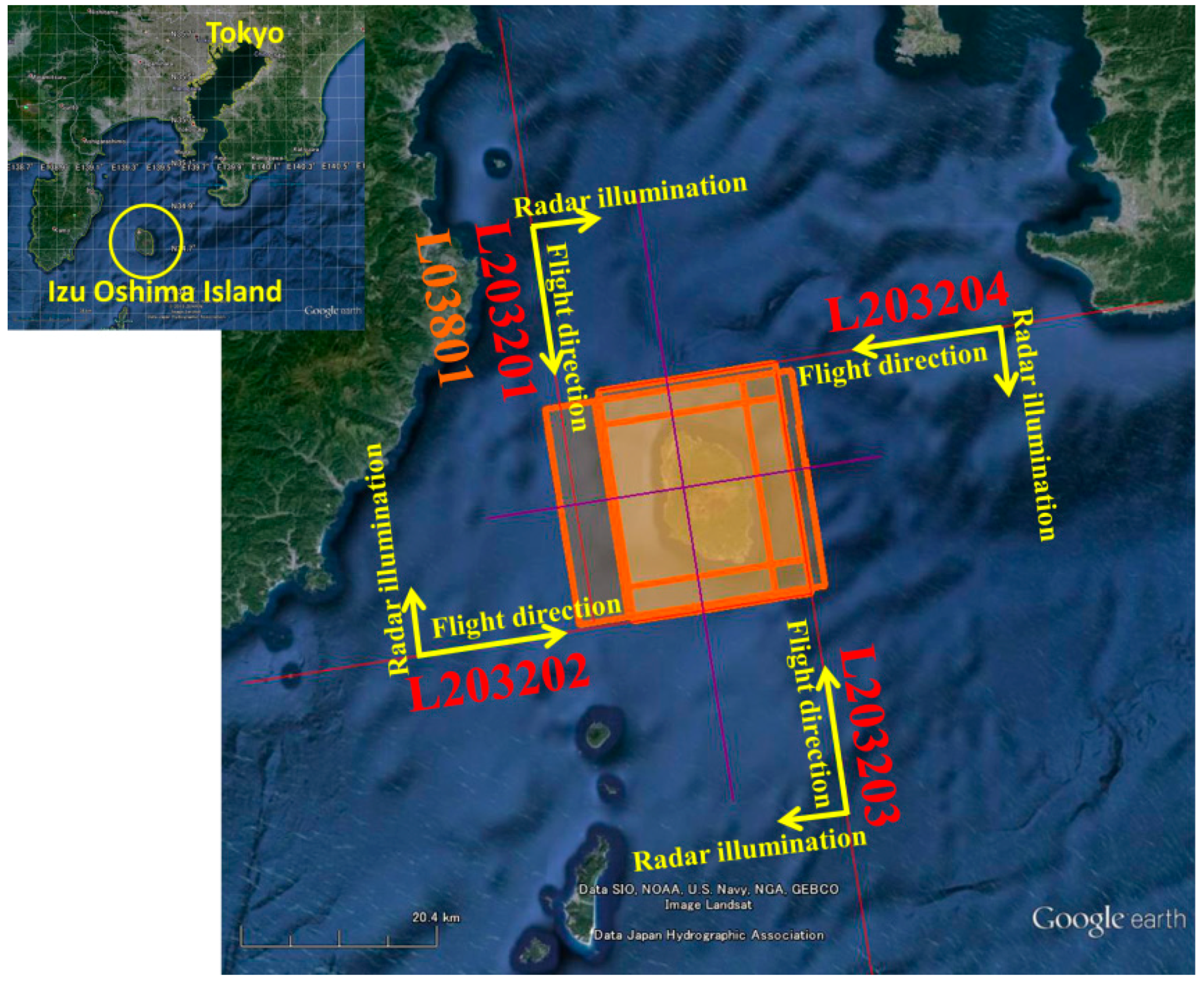

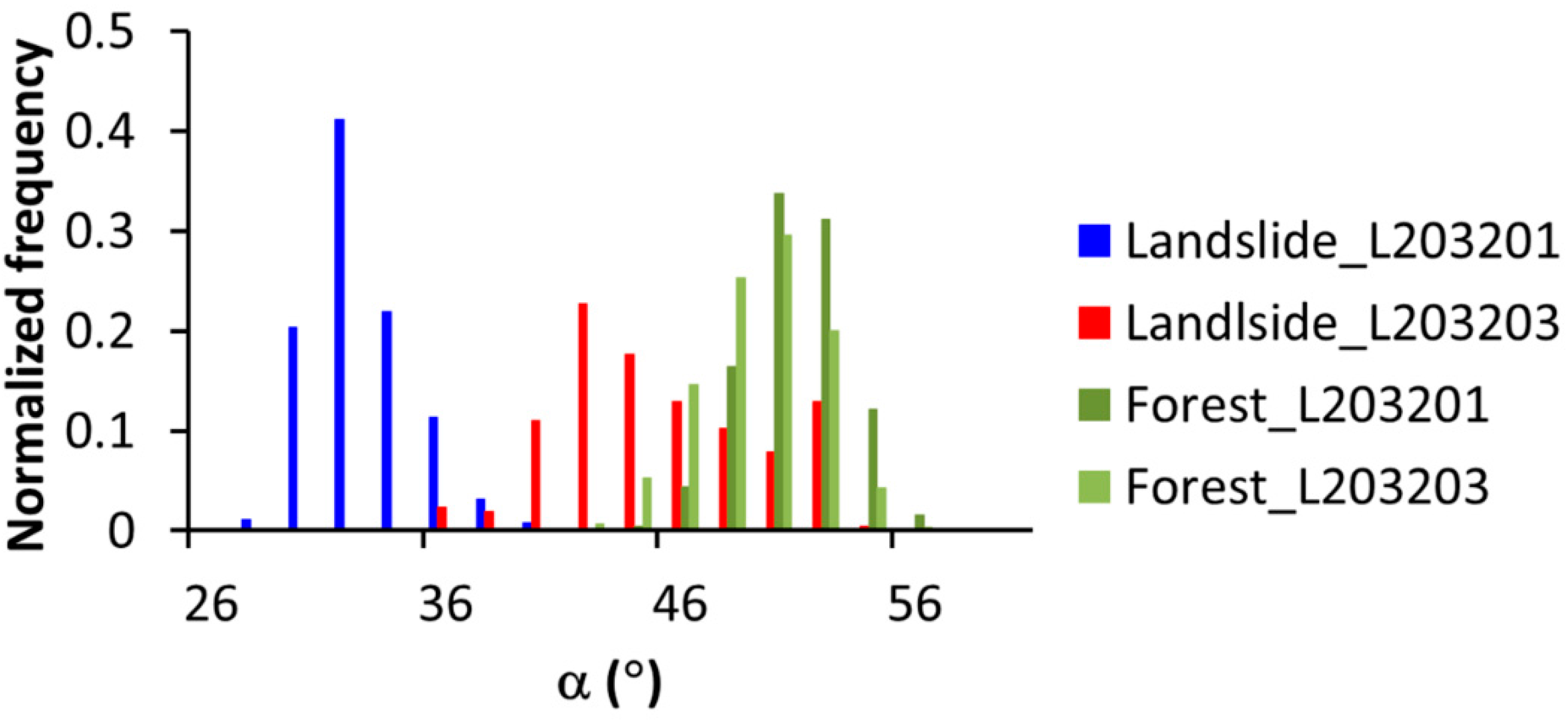

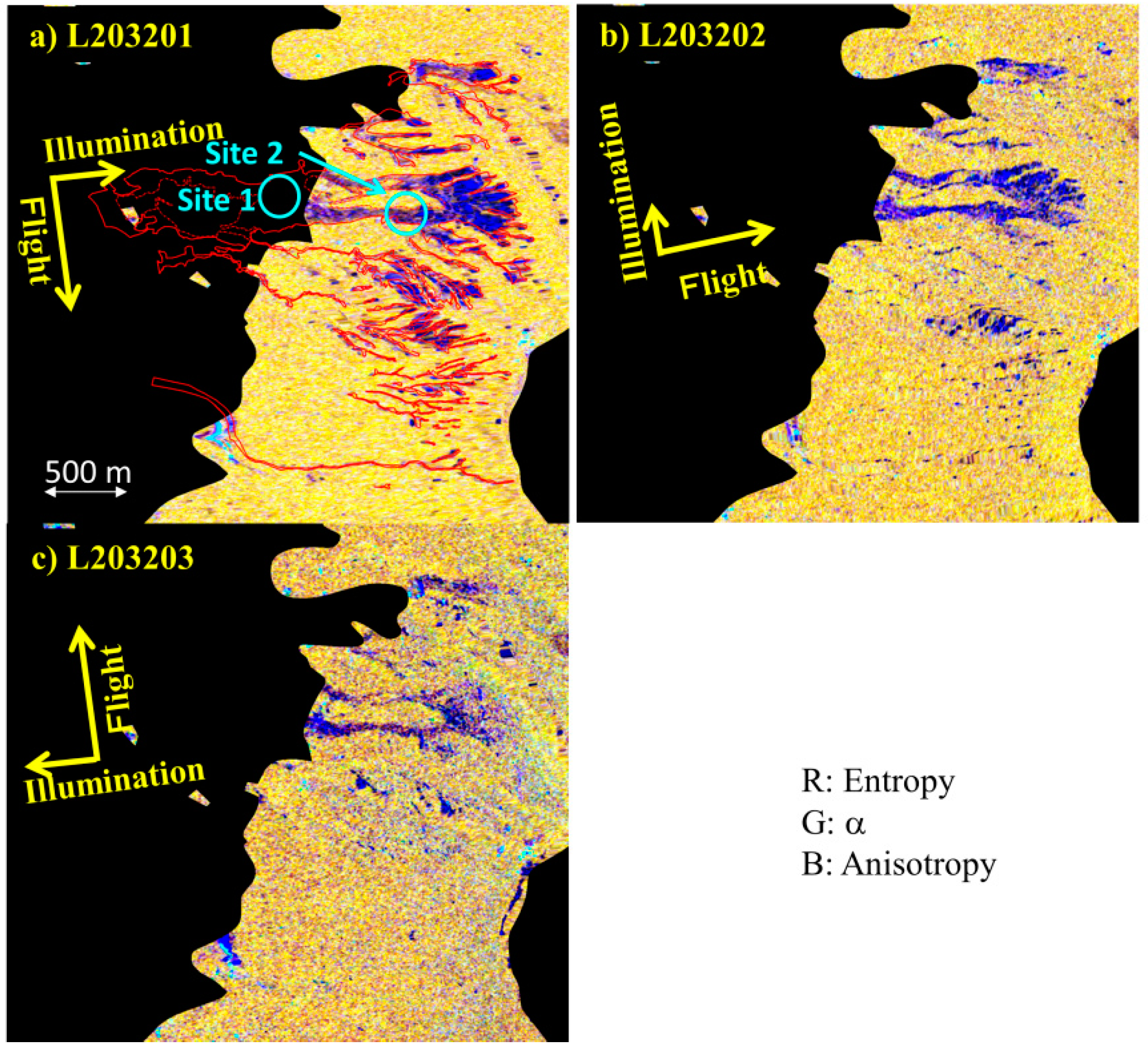

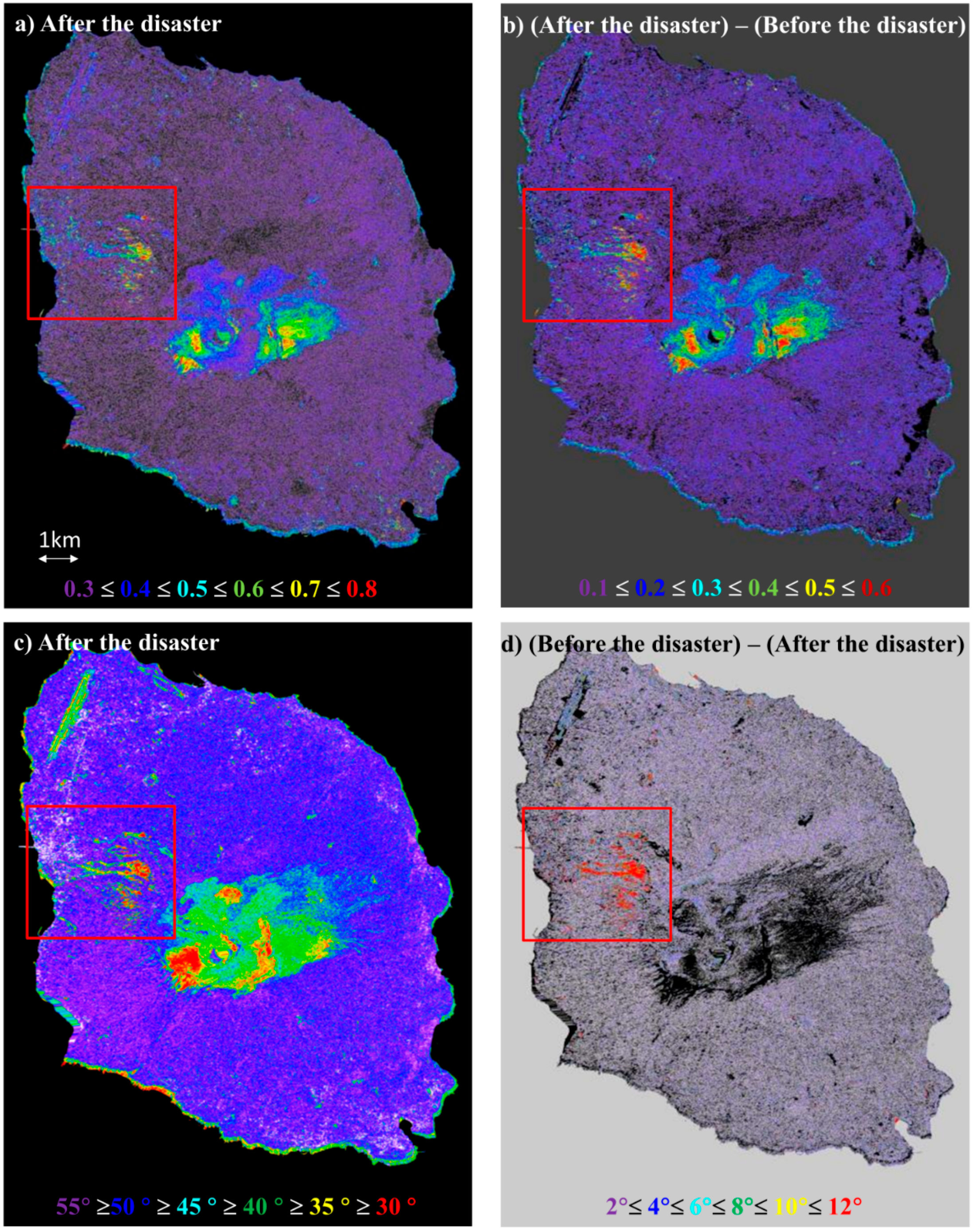

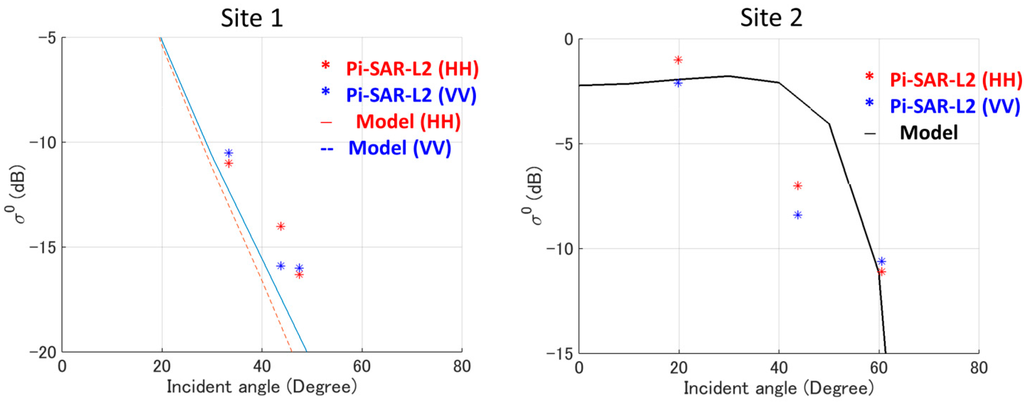

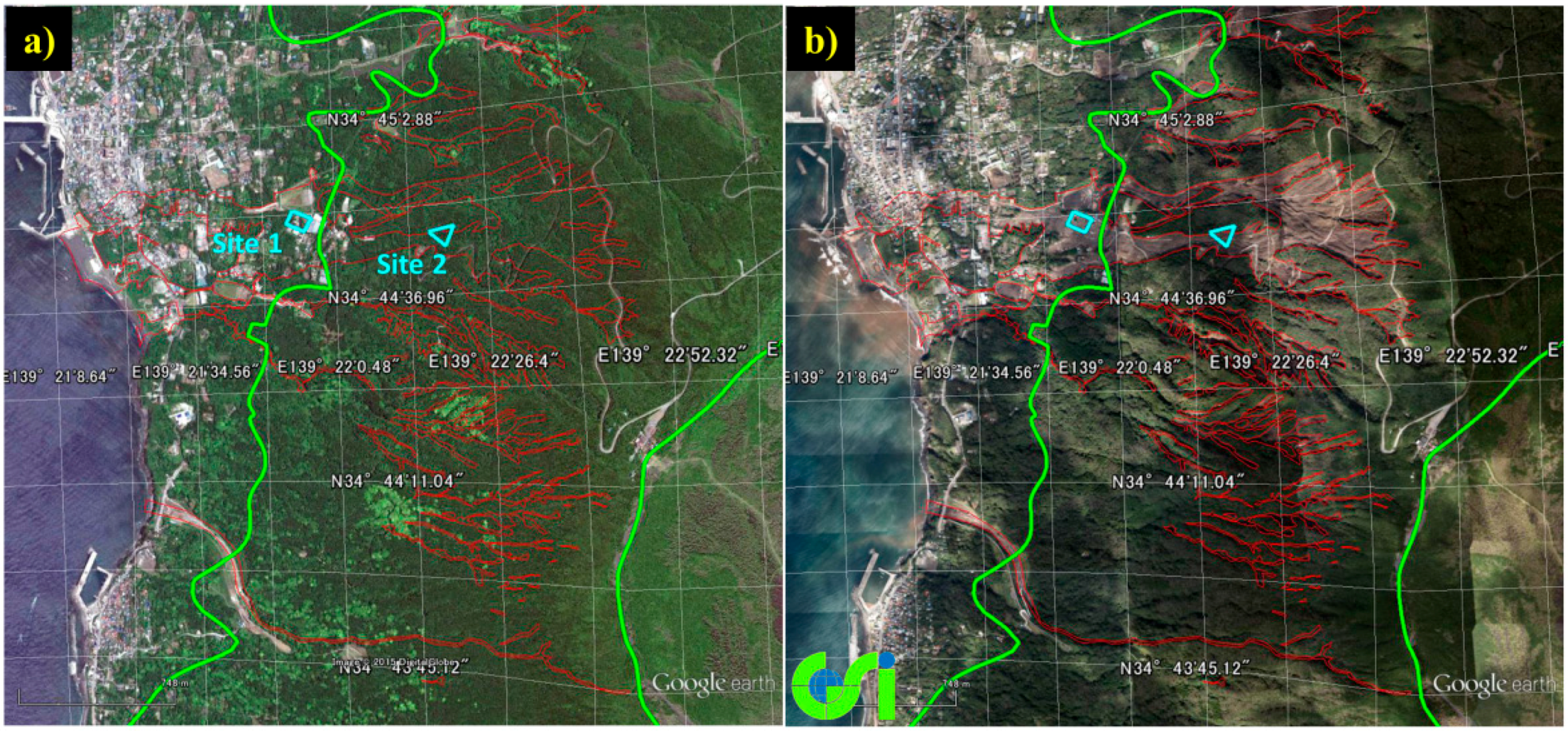

Pi-SAR-L2 full polarimetic data observed in four different observational directions over a landslide area on Izu Oshima Island, induced by Typhoon Wipha on 16 October 2013, were analyzed to clarify the most appropriate L-band full polarimetric parameters and observational direction to detect a landslide area. Japanese airborne Pi-SAR-L2 and PiSAR-L data were used in this analysis. Several L-band full polarimetric parameters, including backscattering coefficient (σ°), coherence between two polarimetric states, four-component decomposition parameters (double-bounce/volume/surface/helix scattering), and eigenvalue decomposition parameters (entropy/α/anisotropy), were calculated to determine the most appropriate parameters for detecting landslide areas. The change in land cover from forest before the disaster to bare soil after the disaster was detected well by α, and coherence between HH and VV. Observational data from the bottom to the top of the landslide detected the landslide well, whereas observations from the opposite sides were not as useful, indicating that a smaller local incident angle is better to distinguish landslide and forested areas. Soil from the landslide intruded into the urban areas; however, none of the full polarimetric parameters showed any significant differences between the landslide-affected urban areas after the disaster and unaffected areas before the disaster. View Full-Text
Keywords: polarimetry; disaster; L-band SAR polarimetry; disaster; L-band SAR

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Watanabe, M.; Thapa, R.B.; Shimada, M. Pi-SAR-L2 Observation of the Landslide Caused by Typhoon Wipha on Izu Oshima Island. Remote Sens. 2016, 8, 282.
