Remote Sens. 2015, 7(9), 11551-11569; doi:10.3390/rs70911551

Geometrical Issues on the Structural Analysis of Transmission Electricity Towers Thanks to Laser Scanning Technology and Finite Element Method

1
Department of Material Engineering, Applied Mechanics and Construction, School of Industrial Engineering, University of Vigo, 36208 Vigo, Spain
2
Department of Land and Cartographic Engineering, High Polytechnic School of Avila, University of Salamanca, Hornos Caleros, 50, 05003 Avila, Spain
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Academic Editors: Fabio Remondino, Nicolas Baghdadi, Henrique Lorenzo and Prasad S. Thenkabail
Received: 4 July 2015 / Revised: 12 August 2015 / Accepted: 1 September 2015 / Published: 10 September 2015
View Full-Text   |   Download PDF [808 KB, uploaded 10 September 2015]   |

Abstract

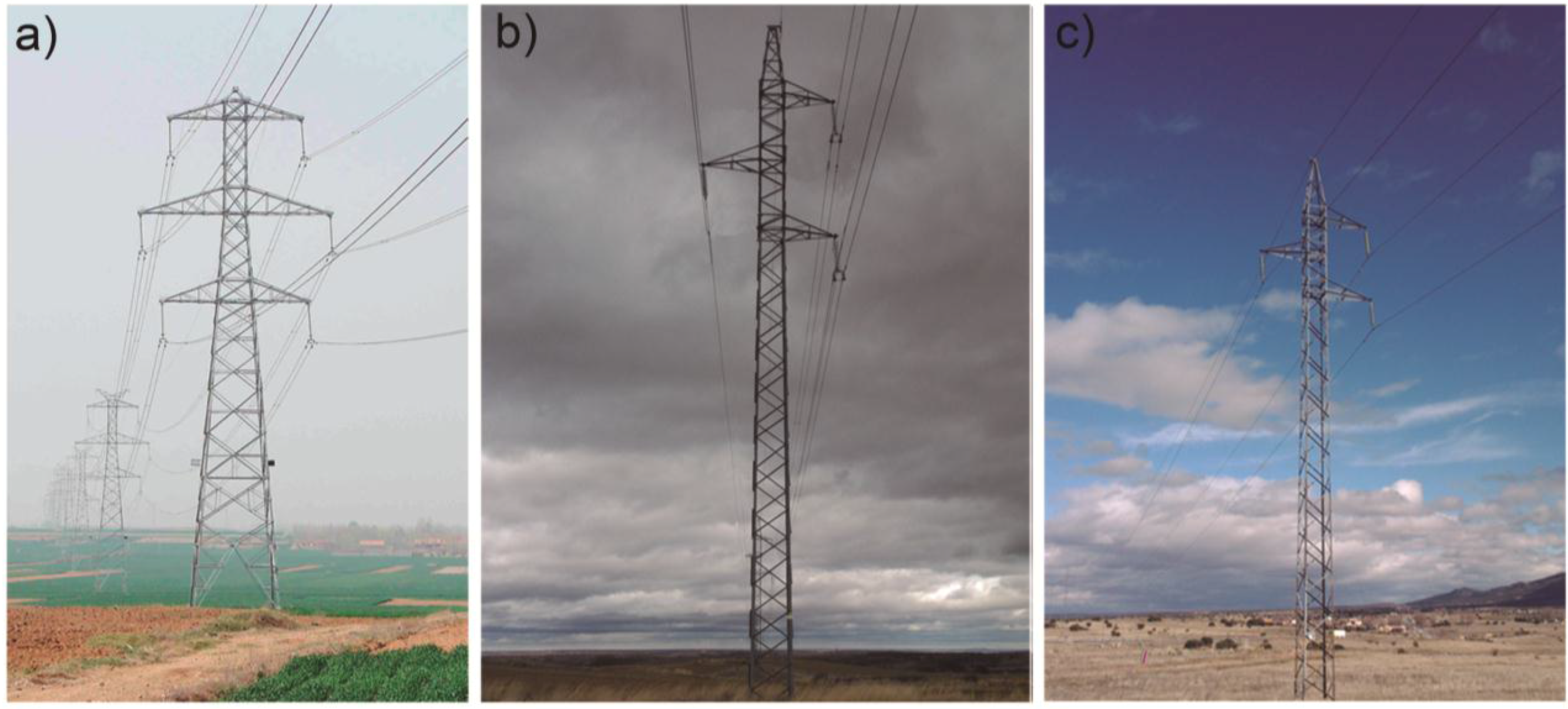

This paper presents a multidisciplinary approach to reverse engineering and structural analysis of electricity transmission tower structures through the combination of laser scanning systems and finite element methodology. The use of laser scanning technology allows the development of both drawings and highly accurate three-dimensional geometric models that reliably reproduce geometric reality of towers structures, detecting imperfections, and particularities of their assembly. Due to this, it is possible to analyze and quantify the effect of these imperfections in their structural behavior, taking into account the actual geometry obtained, different structural models, and load hypotheses proposed. The method has been applied in three different types of metal electricity transmission towers with high voltage lines located in Guadalajara (Spain) in order to analyze its structural viability to accommodate future increased loads with respect that which are currently subjected. View Full-Text
Keywords: non-destructive techniques; structural analysis; Laser Scanning; Finite Element Method; transmission towers; reverse engineering non-destructive techniques; structural analysis; Laser Scanning; Finite Element Method; transmission towers; reverse engineering
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
