Open AccessArticle
Remote Sens. 2015, 7(4), 4804-4833;

Analysis of the Urban Heat Island Effect in Shijiazhuang, China Using Satellite and Airborne Data

1,2,* , 3,1,* , 4
Key Laboratory of Water Cycle & Related Land Surface Processes, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
University of Chinese Academy of Sciences, Beijing 100049, China
Department of Civil, Environmental and Geomatics Engineering, Florida Atlantic University, Florida State, FL 33431, USA
State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
Authors to whom correspondence should be addressed.
Academic Editors: Dale Quattrochi and Prasad Thenkabail
Received: 5 November 2014 / Revised: 7 April 2015 / Accepted: 8 April 2015 / Published: 20 April 2015
View Full-Text   |   Download PDF [4348 KB, uploaded 23 April 2015]   |

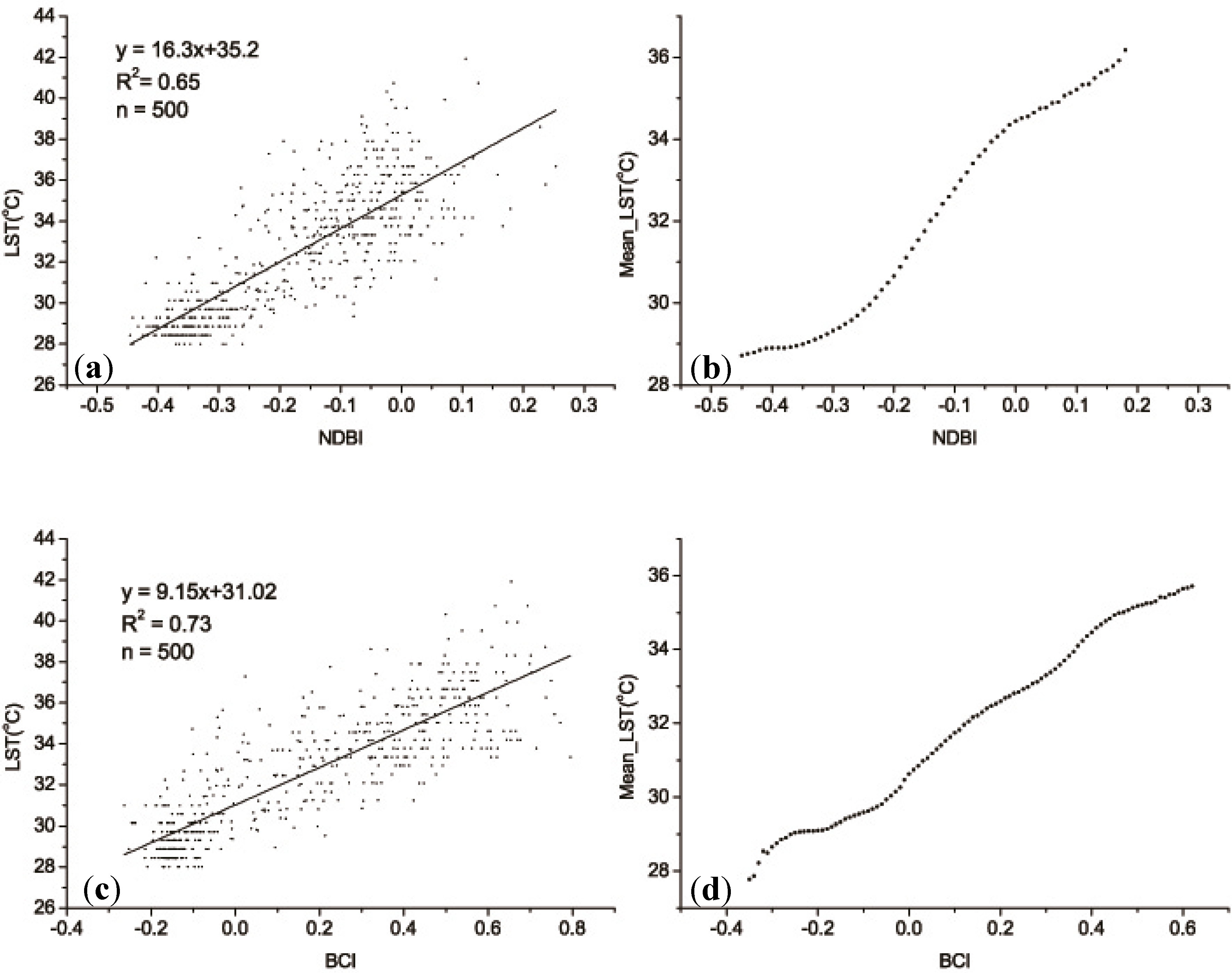

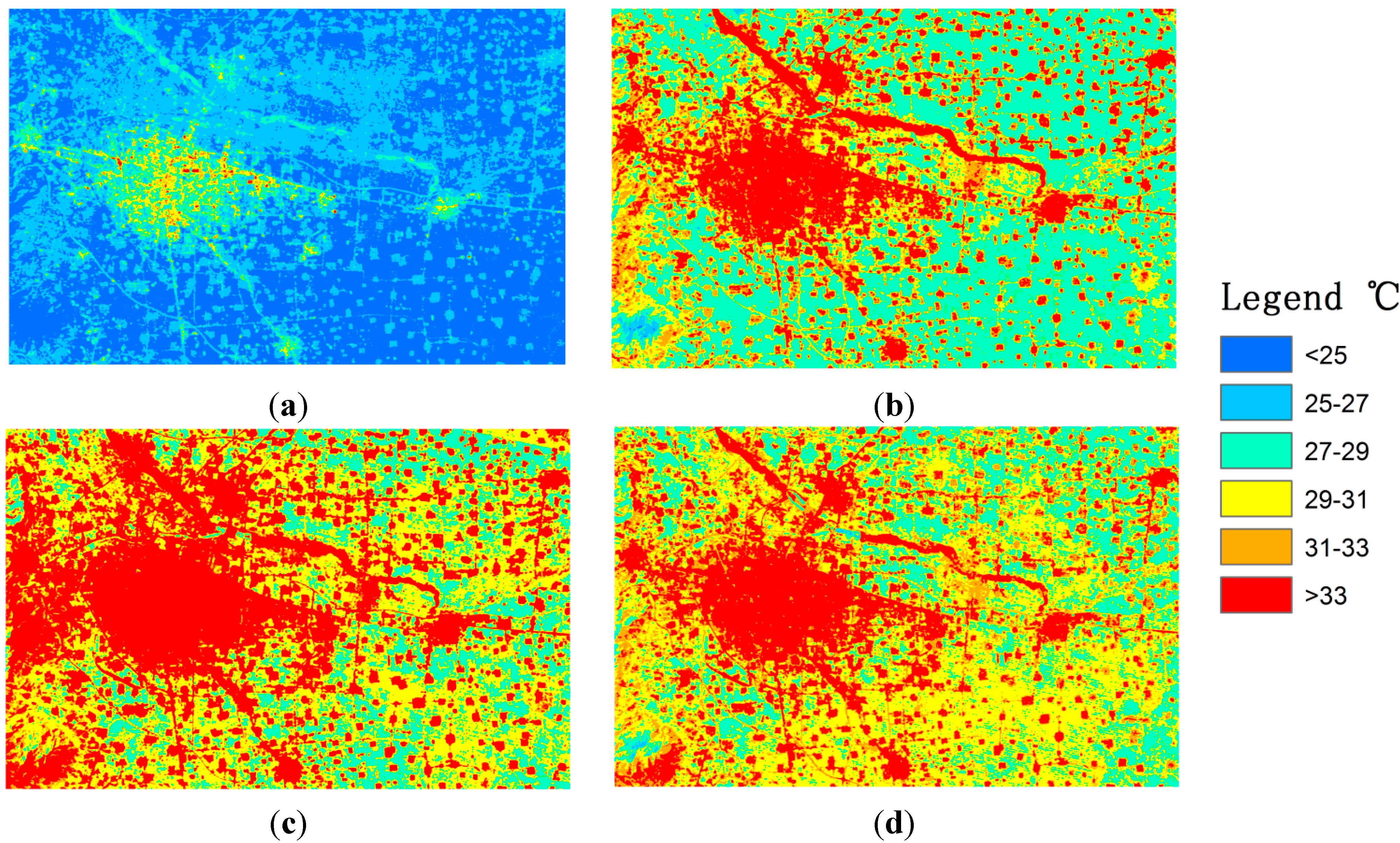

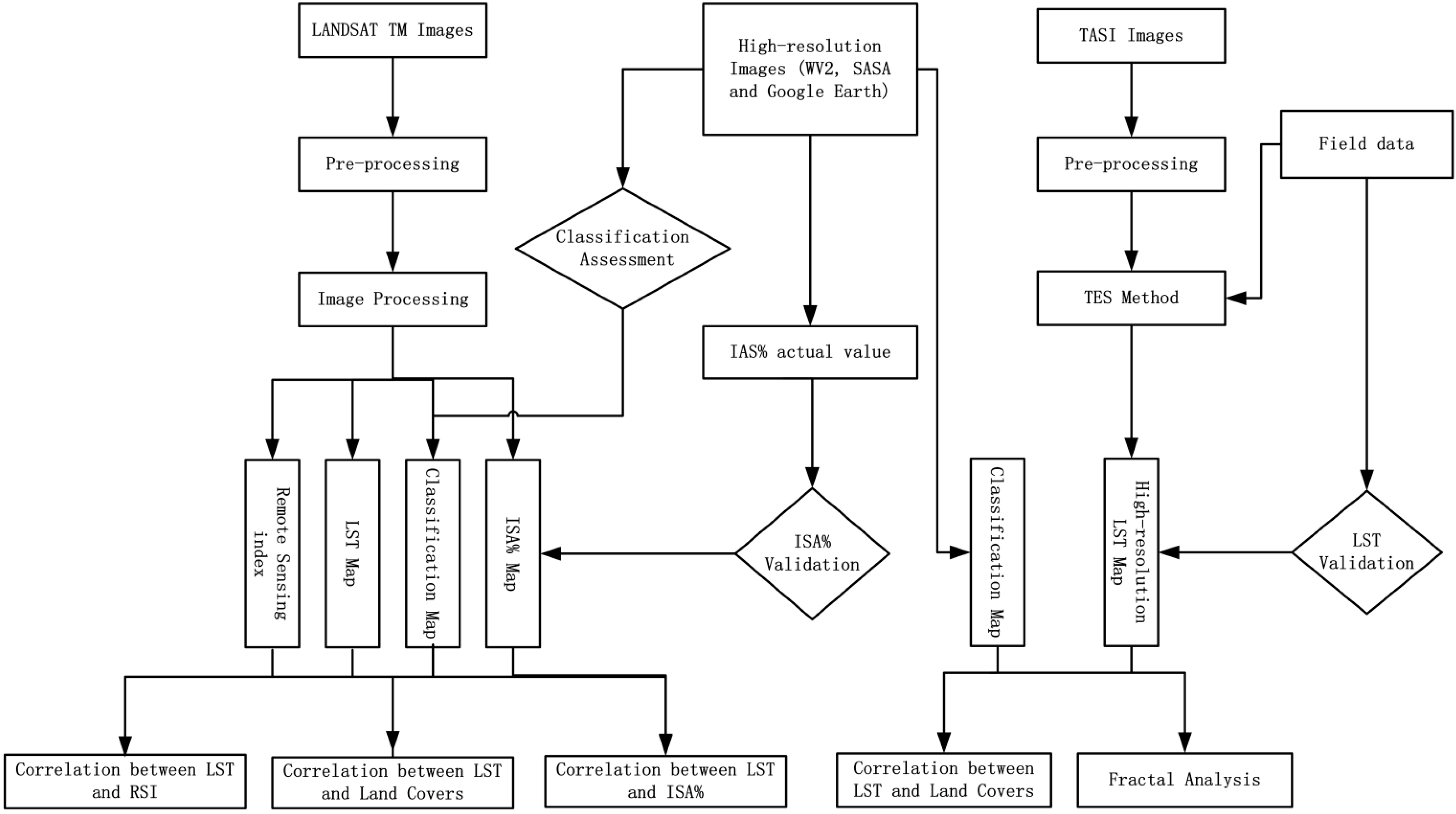

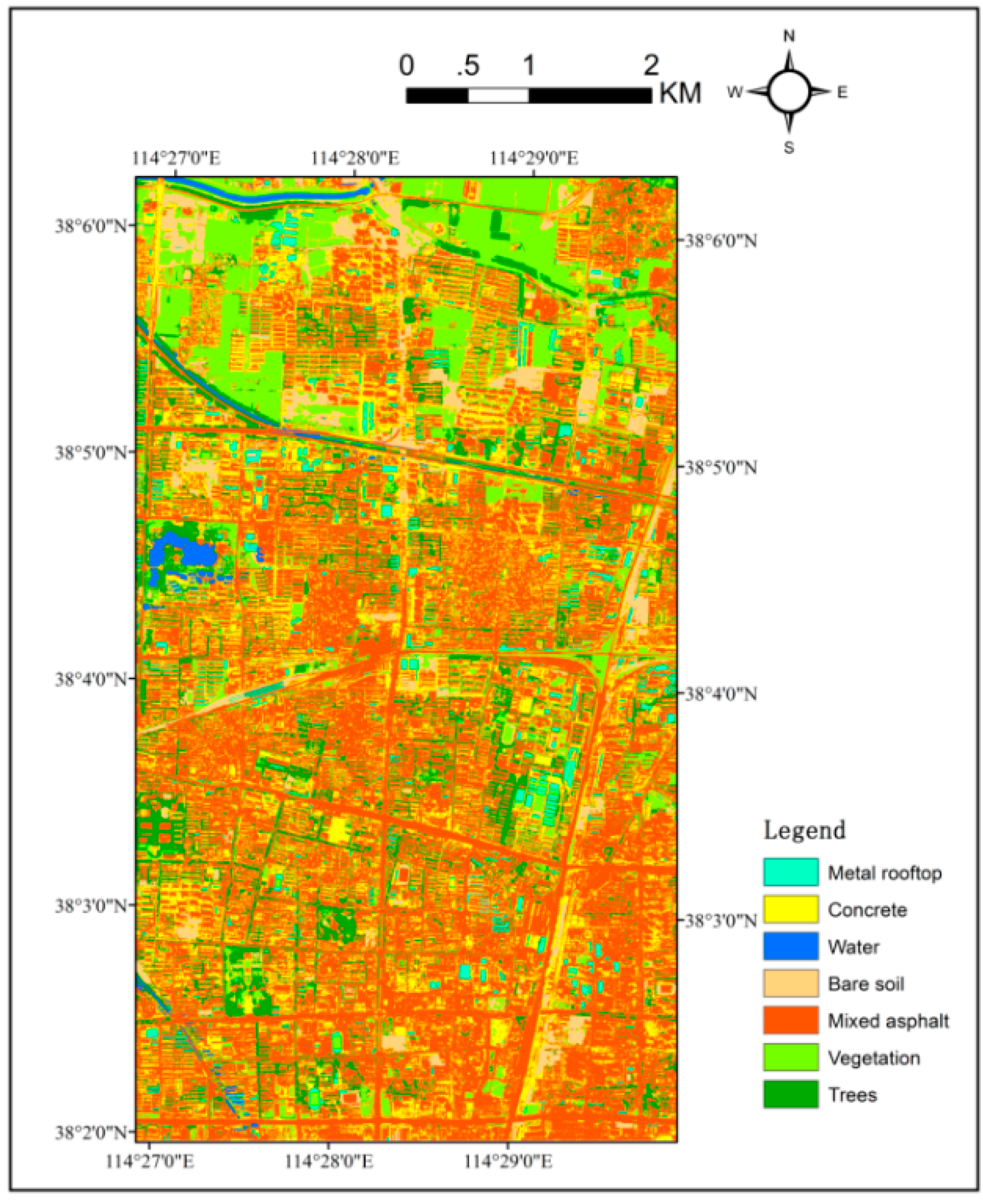

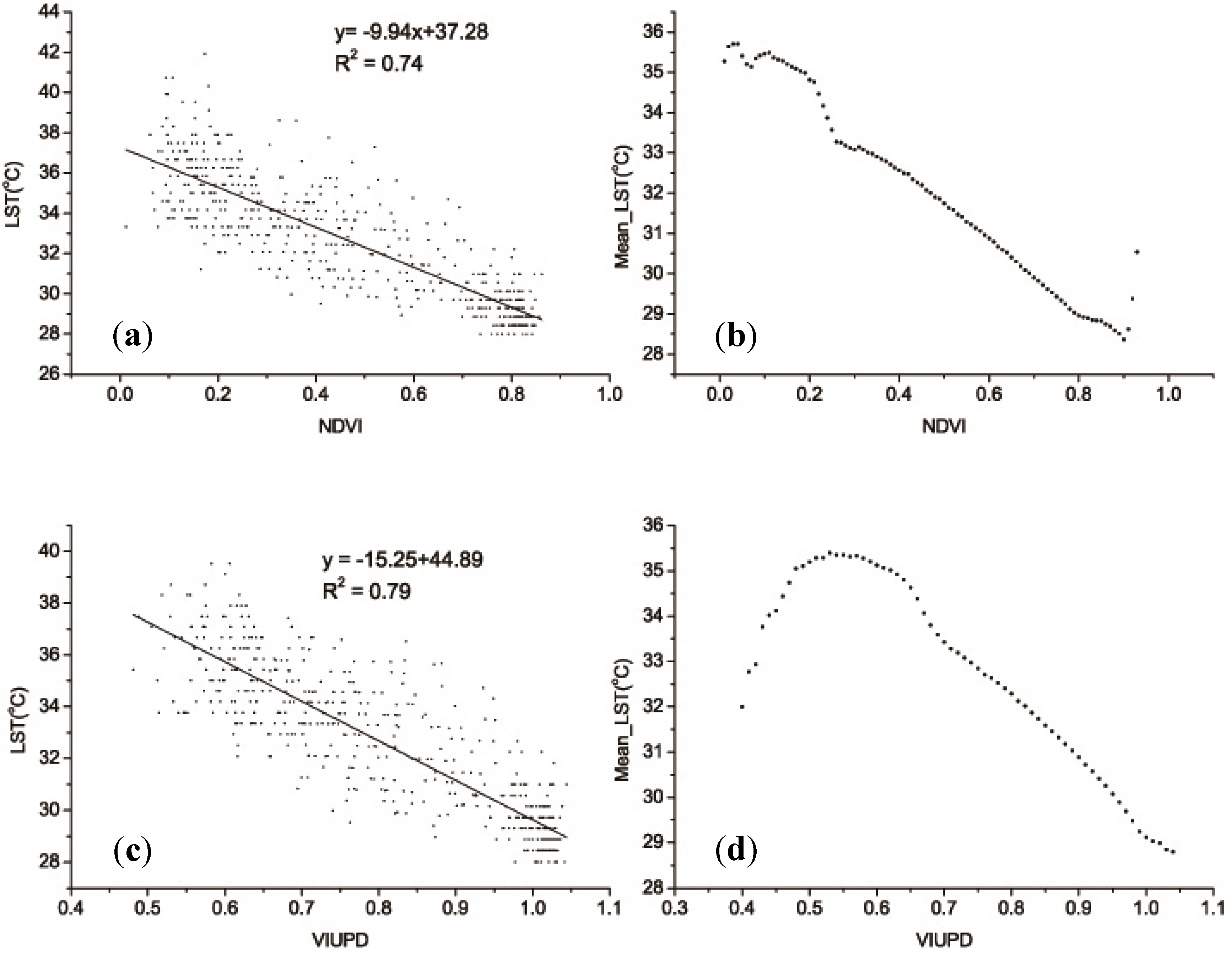

The urban heat island (UHI) effect resulting from rapid urbanization generally has a negative impact on urban residents. Shijiazhuang, the capital of Hebei Province in China, was selected to assess surface thermal patterns and its correlation with Land Cover Types (LCTs). This study was conducted using Landsat TM images on the mesoscale level and airborne hyperspectral thermal images on the microscale level. Land surface temperature (LST) was retrieved from four scenes of Landsat TM data in the summer days to analyze the thermal spatial patterns and intensity of surface UHI (SUHI). Surface thermal characteristics were further examined by relating LST to percentage of imperious surface area (ISA%) and four remote sensing indices (RSIs), the Normalized Difference Vegetation Index (NDVI), Universal Pattern Decomposition method (VIUPD), Normalized Difference Built-up Index (NDBI) and Biophysical Composition Index (BCI). On the other hand, fives scenes of airborne TASI (Thermal Airborne Spectrographic Imager sensor) images were utilized to describe more detailed urban thermal characteristics of the downtown of Shijiazhuang city. Our results show that an obvious surface heat island effect existed in the study area during summer days, with a SUHI intensity of 2–4 °C. The analyses reveal that ISA% can provide an additional metric for the study of SUHI, yet its association with LST is not straightforward and this should a focus in future work. It was also found that two physically based indices, VIUPD and BCI, have the potential to account for the variation in urban LST. The results concerning on TASI indicate that diversity of impervious surfaces (rooftops, concrete, and mixed asphalt) contribute most to the SUHI, among all of the land cover features. Moreover, the effect of impervious surfaces on LST is complicated, and the composition and arrangement of land cover features may play an important role in determining the magnitude and intensity of SUHI. Overall, the analysis of urban thermal signatures at two spatial scales complement each other and the use of airborne imagery data with higher spatial resolution is helpful in revealing more details for understanding urban thermal environments. View Full-Text
Keywords: urban heat island (UHI); land cover types (LCTs); impervious surface area (ISA); thermal airborne spectrographic imager (TASI) urban heat island (UHI); land cover types (LCTs); impervious surface area (ISA); thermal airborne spectrographic imager (TASI)

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, K.; Su, H.; Zhang, L.; Yang, H.; Zhang, R.; Li, X. Analysis of the Urban Heat Island Effect in Shijiazhuang, China Using Satellite and Airborne Data. Remote Sens. 2015, 7, 4804-4833.
